HPE Cloudline CL5800 Gen9 Server

The HPE Cloudline CL5800 Gen9 Server is a 4U open-standards based storage server that is purpose built for cold storage, object storage, and data analytics applications. Supporting one compute node and up to 100 Large Form Factor (LFF) drives in a 4U form factor.

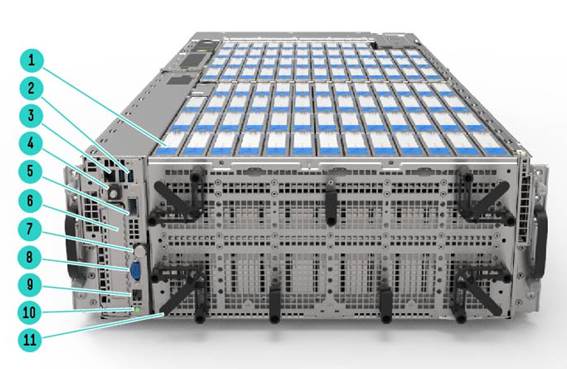

HPE Cloudline CL5800 Gen9 Server - Front View

1.

Storage Tray

7.

Compute Node Thumbscrew

2.

USB 3.0

8.

VGA Port

3.

RJ45 Management Port

9.

RJ45 Serial Port (special cable required)

4.

UID Button and LED

10.

Power Button

5.

OCP Mezzanine Connector

11

Cable Clamp

6.

PCIe Expansion Slot

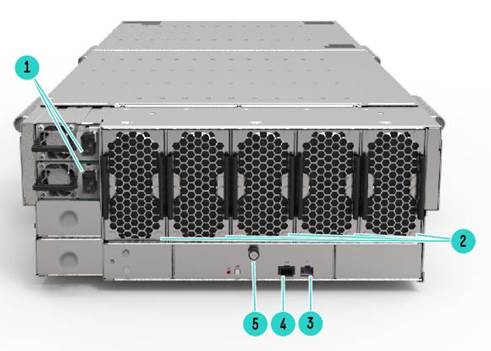

HPE Cloudline CL5800 Gen9 Server - Rear View

1.

Power Supply Units

4.

Dedicated Management Port

2.

System Fan Modules

5.

Fan Control Module Thumbscrew

3.

RJ45 Serial Port

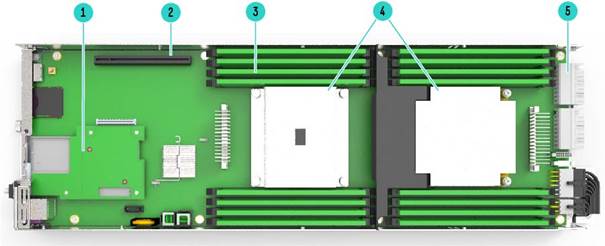

HPE Cloudline CL5800 Gen9 Server - Internal View

1.

OCP Networking Mezzanine Card

4.

(2) Intel Xeon E5 2600 Series CPUs

2.

Front Facing PCIe Slot

5.

PCI-E x32 Lanes for HBA Connection

3.

(16) DDR-4 Memory Sockets

Processor

One of the following depending on model

NOTE: For more information regarding Intel Xeon processors, please see the following

http://www.intel.com/content/www/us/en/processors/xeon/xeon-processor-e5-family.html

Intel® Xeon® processor E5-2600 v4 product family is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. Select one of the following Intel® Xeon® E5-2600 v4 processors based on the model, quantity of 2.

Chipset

One of the following depending on model

Intel® C610 Series Chipset

Intel® E5-2600 v4 Processor Family

NOTE: For more information regarding Intel chipsets, please see the following

http://www.intel.com/content/www/us/en/chipsets/x99-chipset-pch-spec-update.html

On System Management Chipset

One of the following depending on model

ASPEED 2400 with KVM Support

Memory

One of the following depending on model

Type:

Industry Standard DDR4

DDR4 Registered (RDIMM)

Memory Protection

One of the following depending on model

Expansion Slots

PCIe riser slots

Power Supply

(2) HPE CL 1600W N+N Hot Plug PSU Redundant

System Fans

(5) Hot Plug redundant fan modles

Interfaces

Video

1

IPMI Management Port

1 RJ-45 Management Port

USB

Serial Port

OCP Connector

2 USB ports (Standard)

1 RJ-45

1 or 2

Operating Systems Test for CL Servers

Ubuntu Server

NOTE: For more information visit http://www.hpe.com/info/ossupport

Upgradeability

up to 16 DIMM slots

x16 PCIe slot for expansion

Industry Standard Compliance

ACPI 2.0b Compliant

PCIe 3.0 Compliant

PXE Support

WOL Support

IPMI

Redfish API

UEFI

Graphics

Integrated PCIe VGA/2D Controller via ASPEED 2400 BMC

1920 x 1200 @ 60Hz (32 bpp)

Form Factor

4U Rack form factor

All models ship with tool-less friction rail kits

6.88" (174.8mm) Height x 17.64" (448mm) Width x 40.16" (1020mm) Length

Security

Power-on password

Serial interface control

Administrator's password

UEFI Secure Boot

Warranty

Hardware support and is available for 3 years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Hard drives have either a one year or three year warranty; refer to the HPE Cloudline Servers and Options Global Limited Warranty and Technical Support for details.

NOTE: Server Warranty includes 3 Years Parts with five (5) days response time, 0 Years Labor, and 0 Years Onsite Support. Additional information regarding worldwide limited warranty and technical support is available at

http://www.hpe.com/support/cloudline_warranty_en.

Response time:

Response times are based on local standard business days and working hours. Unless otherwise stated, all responses are measured from the time the customer calls until Hewlett Packard Enterprise has either established a mutually acceptable time for support to be performed, or Hewlett Packard Enterprise has begun to provide support or remote diagnostics. Response time is based on commercially reasonable effort. In some countries and under certain supplier constraints, response time may vary. If your location is outside the customary service zone, response time may be longer or there may be an additional charge. Contact your local Hewlett Packard Enterprise service organization for response time availability in your area.

Protect your business beyond warranty with HPE Pointnext operational services

HPE Cloudline Support Services provide remote diagnosis and support, scheduled onsite hardware repair/troubleshooting, and coverage for replacement components, including defective media retention (DMR). With HPE Cloudline Support Services, you can purchase the services that meet your specific needs.

- HPE 5800 Parts + Remote Technical Support + Defective Media Retention

- HPE 5800 Parts + Remote Technical Support + Onsite Labor

- HPE 5800 Parts + Remote Technical Support + Onsite Labor + Defective Media Retention

Additional information regarding HPE packaged support services for Cloudline servers is available at: https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA5-9207ENN.pdf.

Standard Support recommendation

Connect to Hewlett Packard Enterprise for faster problem resolution. Cloudline Carepack Services provides hardware onsite response. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Datacenter Care for Hyperscale

DC for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture. Customers can take advantage of this environment support tailored to their operating model. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA6-3460ENW.pdf.

Spares Management Service

Provides customers with spare parts inventory for onsite stocking, and access to the HPE Spares Management Tool - an automated inventory management tool that helps enable real-time inventory management. More information at

https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA1-3116ENW.pdf.

Advisory & Transformational Services

Design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge. More information at

https://www.hpe.com/us/en/services/consulting.html.

Lifecycle Event Services

Operational offerings to improve performance and securely handle retirement of customers’ IT environments. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/5981-8521ENE.pdf.

- Operate & Improve performance, minimize risk of downtime, and reduce security risks.

- Retire & Sanitize to safely and securely dispose of retired IT, and ensuring customer data cannot be compromised.

Professional Services

Integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment. More information at https://www.hpe.com/us/en/services/professional.html.

Step 1: Base Configuration (Base chassis with HDD drawers)

HPE Chassis Cloudline CL5800 Gen9

HPE Cloudline CL5800 Gen9 LFF 4U 1-node Configure-to-order Server and Chassis

P03271-B21

NOTE: Standard 5x hot-plug fan module included

NOTE: Standard 2x1600W N+N Redundant Power Supply Included

Step 2: Choose Required Node Options (only one of the following from each list unless otherwise noted)

NOTE: Choose 2 processors

NOTE: Mixing of 2 different processor models are NOT allowed

HPE Processors

E5-2600v4 series Processors

HPE CL G3 Intel Xeon E5-2630 v4 (2.2GHz/10-core/85W) FIO Processor Kit

847822-L21

HPE CL G3 Intel Xeon E5-2650 v4 (2.2GHz/12-core/105W) FIO Processor Kit

847810-L21

HPE CL G3 Intel Xeon E5-2680 v4 (2.4GHz/14-core/35MB/120W) FIO Processor Kit

847792-L21

NOTE: Choose 2 processors in each server

NOTE: Mixing of 2 different processor models are NOT allowed

HPE Memory

HPE CL 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Memory FIO Kit

P07029-B21

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Memory FIO Kit

880841-B21

NOTE: Select two or more memory from section above.

NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2400MHz, 2133MHz or 1866MHz. Registered DIMMs (RDIMMs) for E5-2600 v4 Series

HPE Host Bus Adaptor (Data Drives)

HPE CL Broadcom 9400-16i Tri-Mode Host Bus Adapter

880861-B21

HPE CL LSI SAS 9305-16i 12Gb Host Bus Adapter Kit

862627-B21

NOTE: One HBA card must be selected. For connection to LFF data hard drives.

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Networking

HPE CL Ethernet 10Gb 2-port X710-DA2 SFP+ OCP FIO Adapter

P06629-B21

HPE CL Ethernet 25Gb 2-port SFP28 Mellanox ConnectX-4 Lx OCP Mezzanine Adapter

847936-B21

HPE CL Ethernet 50Gb 1-port SFP28 Mellanox ConnectX-4 Lx OCP FIO Mezzanine Adapter

880843-B21

NOTE: Mellanox card 847936-B21 and 880843-B21 supported under Legacy mode only

NOTE: TPM2.0 only works when UEFI is set to default

HPE Drives

SFF (2.5-inch) SSD Drives (Boot or Cache)

HPE CL 240GB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08796-B21

HPE CL 960GB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08802-B21

HPE CL 1.92TB SATA 6G Mixed Use SFF (2.5in) Intel S4610 FIO SSD

P08814-B21

NOTE: Select 1 to 4 SSD drives in compute node

Hot Plug LFF (3.5-inch) Drives (Data)

HPE CL 10TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate 512e FIO HDD

P08762-B21

HPE CL 14TB SATA 6G Enterprise 7.2K LFF (3.5in) Hitachi ISE 512e FIO HDD

P08759-B21

HPE CL 14TB SATA 6G Enterprise 7.2K LFF (3.5in) Toshiba 512e FIO HDD

P10836-B21

NOTE: Select 0 to 100 LFF data drives per chassis

Step 3: Choose Additional for Factory Integration from Core and Additional Options sections below.

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE CL5800 Gen9 CMA FIO Kit

HPE CL5800 Gen9 CMA FIO Kit

P09861-B21

NOTE: Optional part to manage the cables at the rear side of server

HPE Cloudline Support Services

HPE Cloudline Parts + Remote Technical Support with DMR

H2NA8A3#SRY

HPE Cloudline Parts + Onsite Labor + Remote Technical Support

H0HF0A3#SRY

HPE Cloudline Parts + Onsite Labor + Remote Technical Support with DMR

H2NA9A3#SRY

Memory Subsystem Architecture

Each Intel® Xeon® E5-2600v4 family processor socket contains four memory channels per installed processor with two DIMM per channel for a total of eight (8) DIMMs or a grand total of sixteen (16) DIMMs for the server.

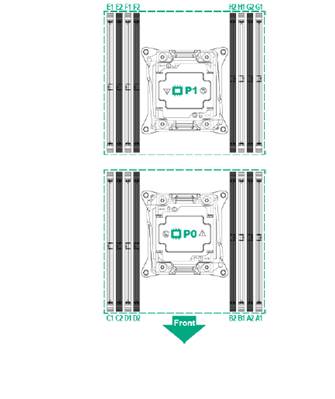

Memory Population guidelines

.

General Memory Population Rules and Guidelines:

Install DIMMs only if the corresponding processor is installed.

If only one processor is installed in a two processor system, only half of the DIMM slots are available.

To maximize performance, it is recommended to balance the total memory capacity between all installed processors and load the channels similarly whenever possible.

When two processors are installed, balance the DIMMs across the two processors.

DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.

The maximum memory speed is a function of the memory type, memory configuration, and processor model.

The maximum memory capacity is a function of the memory type and number of installed processors.

DIMM Type

Registered Dimms (RDIMMs)

DIMM Rank

Dual Rank

DIMM Capacity

16GB, 32GB

Voltage

Standard Voltage 1.2V

16 slot servers

16

MAXIMUM CAPACITY (GB)

512

1 DIMM Per Channel

2133 MT/s or 2400 MT/s (Processor Dependent)

2 DIMM Per Channel

1866MT/s or 2133MT/s (Processor Dependent)

Processor Models

Supported Memory Speeds

E5-2630v4

2133MT/s

E5-2650v4

2400MT/s

E5-2680v4

2400MT/s

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 16GB = 16384MB
• 32GB = 32768MB

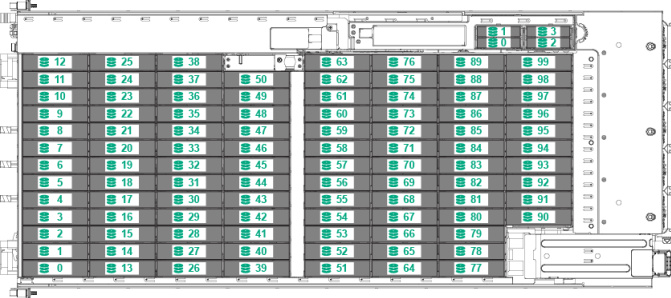

Section Device Numbering

System Unit

Dimensions (H x W x D)

6.88" x 17.64" x 40.16" (174.8mm x 448mm x 1020mm

Weight(approximate)

Maximum:

(all hard drives, power supplies, and processors installed )

116KG (w/o Packaging)

Input Requirements

Rated Line Voltage

AC input: 200-240V

Rated Input Current

8.7A at 200VAC

7.2A at 240VAC

Rated Input Frequency

50/60Hz

Rated Input Power

1734W at 200VAC

1720W at 240VAC

BTU Rating

Maximum

5918 at 200VAC

5884 at 240VAC

Power Supply Output

Rated Steady-State Power

1600W at 200VAC to 240 VAC input

Maximum Peak Power

2200W for 1ms (turbo mode) at 200 VAC to 240 VAC input

System Inlet Temperature

Standard Operating Support

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. The upper limit and rate of change may be limited by the type and number of options installed.

System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

Extended Ambient Operating Support

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:

http://www.hpe.com/servers/ashrae

For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: http://www.hpe.com/servers/ashrae

System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

Non-operating

-30° to 60°C (-22° to 140°F)

Relative Humidity

(non-condensing)

Operating

8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.

Non-operating

(non-condensing)

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Date

Version History

Action

Description of Change

03-Dec-2018

Version 2

Changed

Configuration Information and Additional Options sections were updated

01-Oct-2018

Version 1

New

New QuickSpecs
