HPE Cloudline CL5800 Gen10 Server

The HPE Cloudline CL5800 Gen10 Server is a 4U open-standards based storage server that is purpose built for cold storage, object storage, and data analytics applications. Supporting one compute node, up to 100 Large Form Factor (LFF) drives, and 4 Small From Factor (SFF) SSDs in a 4U form factor.

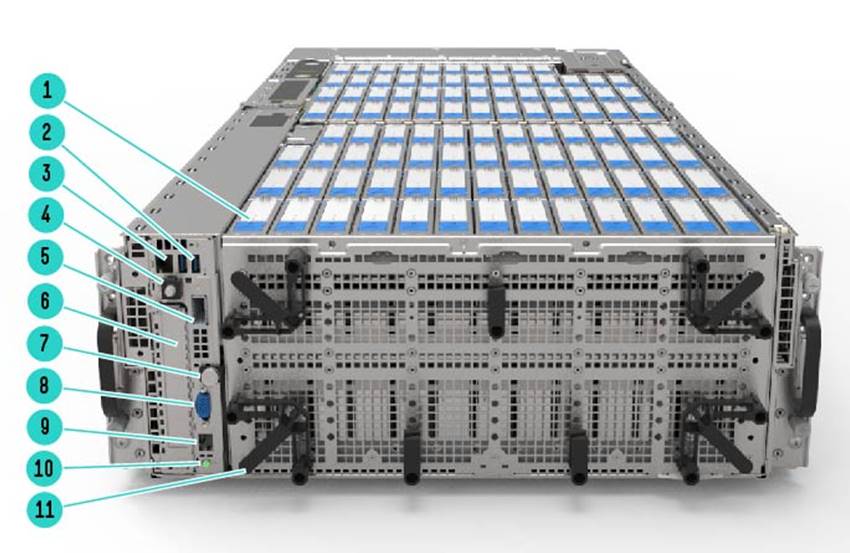

HPE Cloudline CL5800 Gen10 Server - Front View

1.

Storage Tray

7.

Compute Node Thumbscrew

2.

USB 3.0

8.

VGA Port

3.

RJ45 Management Port

9.

RJ45 Serial Port (special cable required)

4.

UID Button and LED

10.

Power Button

5.

OCP Mezzanine Connector

11

Cable Clamp

6.

PCIe Expansion Slot

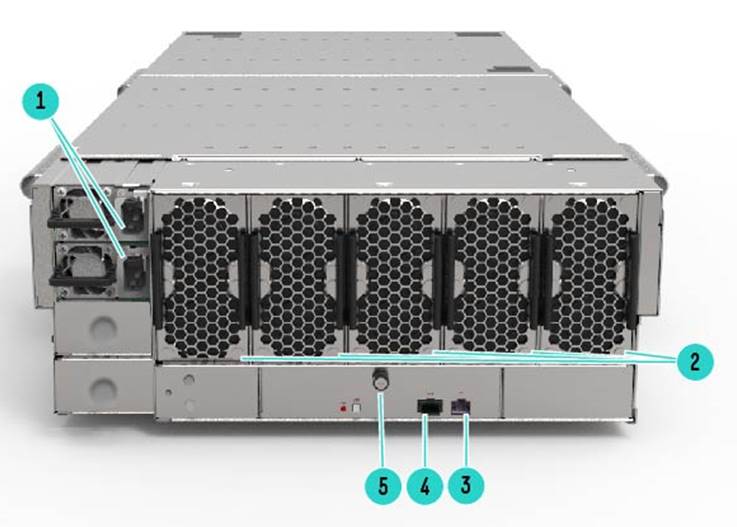

HPE Cloudline CL5800 Gen10 Server - Rear View

1.

Power Supply Slots

4.

RJ45 Dedicated Management Port

2.

Hot Swappable System Fan Modules

5.

Fan Control Module Thumbscrew

3.

RJ45 Serial Port

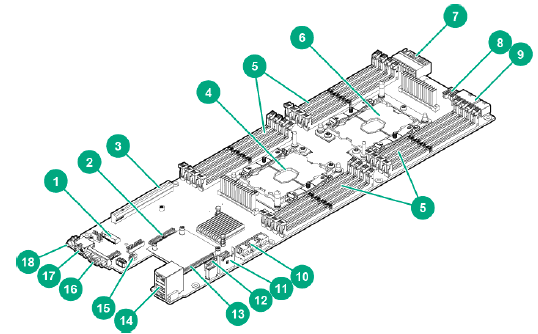

HPE Cloudline CL5800 Gen10 Server - Internal View

1.

M.2 connector

10.

MiniSAS HD connector (3)

2.

OCP mezzanine B connector

11.

Coin battery slot

3.

PCIe x16 slot

12.

SATA connector (2)

4.

Processor 0

13.

OCP mezzanine A connector

5.

Memory module (16)

14.

USB 3.0 (2) and dedicated management port/RJ45

6.

Processor 1

15.

UID connector

7.

B-to-B connector (1)

16.

VGA port

8.

Signal connector (2)

17.

Serial console port/RJ45

9.

Power connector (2)

18.

Power button with LED

Processor

Select two of the following. Processors within the server must be matching.

Chipset

One of the following depending on model

Intel® C621 Chipset

NOTE: For more information regarding Intel chipsets, please see the following

http://www.intel.com/products/server/chipsets/.

On System Management Chipset

• iBMC ASPEED AST2500 with KVM Support & IPMI 2.0
• AMI MegaRAC, Virtual Media

Memory

Industry Standard DDR4 Registered (RDIMM)

Memory Protection

• Memory Static Virtual Lockstep
• Memory Mirror: Set entire 1LM memory in system to be mirrored, consequently reducing the memory capacity by half.
• Memory Rank Sparing
• Memory Correctable Error Threshold: Use for sparing, tagging, and leaky bucket
• Memory SDDC Plus One

Expansion Slots

PCIe riser slots

Power Supply

(2 or 4) HPE CL 1600W N+N Hot Plug PSU Redundant

System Fans

(5) Hot Plug redundant fan modles

Operating Systems Tested for CL Servers

• Red Hat Enterprise Linux 7.6 (64 bit) (includes KVM)
• Ubuntu 16.04.6
• Ubuntu 18.04.2
• VMware vSphere 6.7 U1
• CentOS 7.6
• SLES 15 SP0

NOTE: For more information visit http://www.hpe.com/info/ossupport

Industry Standard Compliance

• ACPI 6.1 Compliant
• PCIe 3.0 Compliant
• PXE Support
• WOL Support
• IPMI
• Redfish API
• UEFI

Graphics

• Integrated PCIe VGA/2D Controller via ASPEED 2500 BMC
• 1920 x 1200 @ 60Hz (32 bpp)

Form Factor

• 4U Rack form factor
• All models ship with tool-less friction rail kits
• 6.88" (174.8mm) Height x 17.64" (448mm) Width x 40.16" (1020mm) Length

Security

• Power-on password
• Serial interface control
• Administrator's password
• UEFI Secure Boot
• TPM 2.0 (optional)

Warranty

Hardware support is available for 3 years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Hard drives have either a one year or three year warranty; refer to the HPE Cloudline Servers and Options Global Limited Warranty and Technical Support for details.

NOTE: Server Warranty includes 3 Years Parts with five (5) days response time, 0 Years Labor, and 0 Years Onsite Support.

Response time:

Response times are based on local standard business days and working hours. Unless otherwise stated, all responses are measured from the time the customer calls until Hewlett Packard Enterprise has either established a mutually acceptable time for support to be performed, or Hewlett Packard Enterprise has begun to provide support or remote diagnostics. Response time is based on commercially reasonable effort. In some countries and under certain supplier constraints, response time may vary. If your location is outside the customary service zone, response time may be longer or there may be an additional charge. Contact your local Hewlett Packard Enterprise service organization for response time availability in your area.

Protect your business beyond warranty with HPE Support Services

HPE Cloudline Support Services provide remote diagnosis and support, scheduled onsite hardware repair/troubleshooting, and coverage for replacement components, including defective media retention (DMR). With HPE Cloudline Support Services, you can purchase the services that meet your specific needs.

• 3 year Cloudline Parts plus Labor plus Remote Technical Support
• 3 year Cloudline Parts plus Labor plus Remote Technical wCDMR
• 3 year Cloudline Parts plus Labor plus Remote Technical wDMR
• 3 year Cloudline Parts plus Remote Technical wCDMR
• 3 year Cloudline Parts plus Remote Technical wDMR

Standard Support recommendation

Connect to Hewlett Packard Enterprise for faster problem resolution. Cloudline Carepack Services provides hardware onsite response. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Datacenter Care for Hyperscale

DC for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture. Customers can take advantage of this environment support tailored to their operating model. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA6-3460ENW.pdf.

Spares Management Service

Provides customers with spare parts inventory for onsite stocking, and access to the HPE Spares Management Tool - an automated inventory management tool that helps enable real-time inventory management. More information at

https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA1-3116ENW.pdf.

Advisory & Transformational Services

Design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge. More information at

https://www.hpe.com/us/en/services/consulting.html.

Lifecycle Event Services

Operational offerings to improve performance and securely handle retirement of customers’ IT environments. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/5981-8521ENE.pdf.

• Operate & Improve performance, minimize risk of downtime, and reduce security risks.
• Retire & Sanitize to safely and securely dispose of retired IT, and ensuring customer data cannot be compromised.

Professional Services

Integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment. More information at https://www.hpe.com/us/en/services/professional.html.

Step 1: Base Configuration (Base chassis with HDD drawers)

HPE Chassis Cloudline CL5800 Gen9

HPE Cloudline CL5800 Gen10 100LFF Configure-to-order Server

P17255-B21

NOTE: 5x hot-plug fan modules included

Step 2: Choose Required Node Options

NOTE: Must select 2 processors of the same model

HPE Processors

HPE CL Gen10 Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) FIO Processor Kit

P12078-L21

HPE CL Gen10 Intel Xeon-Gold 5220 (2.2GHz/18-core/125W) FIO Processor Kit

P12077-L21

HPE CL Gen10 Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) FIO Processor Kit

P12075-L21

HPE CL Gen10 Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) FIO Processor Kit

P12071-L21

HPE CL Gen10 Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) FIO Processor Kit

P12070-L21

HPE CL Gen10 Intel Xeon-Silver 4215 (2.5GHz/8-core/85W) FIO Processor Kit

P12069-L21

HPE CL Gen10 Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) FIO Processor Kit

P12067-L21

HPE CL Gen10 Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) FIO Processor Kit

P12066-L21

HPE CL Gen10 Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) FIO Processor Kit

P12064-L21

HPE Memory

HPE DDR4 Special SmartMemory

P14119-B21

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Memory FIO Kit

P10660-B21

HPE DDR4 Special SmartMemory

P14492-B21

NOTE: Select at least 2 memory kits.

NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2933MT/s, 2666MT/s or 2400MT/s.

HPE Power Supplies

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

830272-B21

NOTE: Select 2 or 4 power supplies depending on system wattage guidance in HPE Power Advisor and customer requirements

HPE Host Bus Adaptor or RAID Controller (LFF Drives)

HPE CL 9305-16i SAS3224 16-port SAS Broadcom FIO Host Bus Adapter

862627-B21

HPE CL Broadcom 9400-16i Tri-Mode Host Bus Adapter

880861-B21

HPE CL 9405W-16i Tri-Mode Broadcom FIO Host Bus Adapter

P16482-B21

HPE CL 9361-24i SAS3324 CacheVault CVPM02 Broadcom FIO MegaRAID Adapter

P19325-B21

HPE CL 9361-16i SAS3316 CacheVault CVPM02 Broadcom FIO MegaRAID Adapter

857143-B21

NOTE: One HBA card or RAID controller must be selected. For connection to LFF drives.

NOTE: 1 When a RAID controller is selected, P17259-B21 HPE CL5800 Gen10 RAID Enablement FIO Kit must also be selected.

HPE Networking

HPE CL Ethernet 10Gb 2-port X710-DA2 SFP+ OCP FIO Adapter

P06629-B21

HPE CL Ethernet 25Gb 2-port SFP28 Mellanox ConnectX-4 Lx OCP Mezzanine Adapter

847936-B21

HPE CL Ethernet 50Gb 1-port SFP28 Mellanox ConnectX-4 Lx OCP FIO Mezzanine Adapter

880843-B21

HPE CL 40GbE QSFP28 Dual Port Mellanox OCP Mezzanine Adapter

847934-B21

HPE CL Ethernet 50Gb 1-port ConnectX-4 QSFP28 PCIe FIO Adapter

875389-B21

HPE CL Ethernet 100Gb 1-port QSFP28 PCIe FIO Adapter

878071-B21

HPE CL InfiniBand EDR/Ethernet 100Gb 2-port Mellanox ConnectX-5 QSFP28 PCIe3 FIO Adapter

P09056-B21

NOTE: Ubuntu 16.04.6 generic kernel does not include drivers for P09056-B21. For configurations with this NIC, Ubuntu 16.04.6 HWE kernel or Ubuntu 18.04.2 is recommended.

NOTE: TPM2.0 only works when UEFI is set to default

HPE Security

HPE Trusted Platform Module 2.0 Kit

745823-B21

HPE Drives

NVME M.2 SSD

HPE CL 256GB NVMe x4 Lanes Read Intensive M.2 - UFF to SFF Intel P4101 FIO SSD

P08793-B21

Up to 1 NVME M.2 SSD may be selected.

SFF (2.5-inch) SSD Drives (Boot or Cache)

HPE CL 240GB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08796-B21

HPE CL 960GB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08802-B21

HPE CL 1.92TB SATA 6G Mixed Use SFF (2.5in) Intel S4610 FIO SSD

P08814-B21

HPE CL 960GB SATA 6G Mixed Use SFF (2.5in) Intel S4610 FIO SSD

P08811-B21

NOTE: Select 1 to 4 SSDs for compute node.

NOTE: Up to 10 LFF slots may be used for SSDs. In this case, (1) HPE CL5800 LFF to SFF FIO Drive Carrier Kit (P21222-B21)  must be added per SSD selected for LFF bays.

Hot Plug LFF (3.5-inch) Drives (Data)

HPE CL 16TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate FIO HDD

P19169-B21

HPE CL 14TB SATA 6G Enterprise 7.2K LFF (3.5in) Hitachi ISE 512e FIO HDD

P08759-B21

HPE CL 14TB SATA 6G Enterprise 7.2K LFF (3.5in) Toshiba 512e FIO HDD

P10836-B21

HPE CL 10TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate FIO HDD

P19168-B21

NOTE: Select 51 to 100 LFF drives per chassis.

Up to 10 LFF slots may be used for SSDs. In this case, (1) HPE CL5800 LFF to SFF FIO Drive Carrier Kit (P21222-B21)  must be added per SSD selected for LFF bays.

Step 3: Choose Additional for Factory Integration from Core and Additional Options sections below.

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Cloudline Server Racks/Rack Special Accessories

P09861-B21

NOTE: Optional part to manage the cables at the rear side of server

HPE CL Legacy FIO Mode Setting

P11219-B22

Memory Subsystem Architecture

2^nd Gen Intel® Xeon® Processor Scalable Family socket contains six memory channels per installed processor with two DIMM per channel for a grand total of sixteen (16) DIMMs for the server.

Memory Population guidelines

.

General Memory Population Rules and Guidelines:

• To maximize performance, it is recommended to balance the total memory capacity between all installed processors.
• When two processors are installed, balance the DIMMs across the two processors.
• White DIMM slots denote the first slot to be populated in a channel.
• Mixing of DIMM types (UDIMM, RDIMM, and LRDIMM) is not supported.
• The maximum memory speed is a function of the memory type, memory configuration, and processor model.
• The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.

DIMM slot and configuration order for each CPU

Rear

P0

1 DIMM

A1

2 DIMMs

B1

A1

3 DIMMs

C1

B1

A1

4 DIMMs

B1

A1

D1

E1

5 DIMMs *

C1

B1

A1

D1

E1

6 DIMMs

C1

B1

A1

D1

E1

F1

7 DIMMs *

C1

B1

A1

A2

D1

E1

F1

8 DIMMs *

C1

B1

A1

D2

A2

D1

E1

F1

NOTE: * Unbalanced

Front

P1

1 DIMM

G1

2 DIMMs

G1

H1

3 DIMMs

G1

H1

J1

4 DIMMs

L1

K1

G1

H1

5 DIMMs *

L1

K1

G1

H1

J1

6 DIMMs

M1

L1

K1

G1

H1

J1

7 DIMMs *

M1

L1

K1

G2

G1

H1

J1

8 DIMMs *

M1

L1

K1

G2

K2

G1

H1

J1

NOTE: * Unbalanced

Memory Bandwidth and Capacity

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 16GB = 16,384MB
• 32GB = 32,768MB
• 64GB = 65,536MB

DIMM Type

DIMMs

HPE SKU P/N

P10660-B21

P14119-B21

P14492-B21

SKU Description

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Memory FIO Kit

HPE DDR4 Special SmartMemory

HPE DDR4 Special SmartMemory

DIMM Capacity

32GB

16GB

64GB

DIMM Rank

2R

2R

2R

Voltage

1.2

1.2

1.2

DRAM Depth[bit]

4G

 1G

 2G

DRAM width[bit]

x4

x8

x4

DRAM Density

8G

8G

8G

CAS Latency

21-21-21

21-21-21

21-21-21

DIMM Native Speed

2933 MT/s

2933 MT/s

2933 MT/s

Processors Officially Supported Memory Speed:

Intel® Xeon® Gold 62xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2933 MT/s

2933 MT/s

2933 MT/s

2 DIMMs Per Channel

2666  MT/s

2666 MT/s

2666  MT/s

Intel® Xeon® Gold 52xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2666 MT/s

2666 MT/s

2666 MT/s

2 DIMMs Per Channel

2666 MT/s

2666 MT/s

2666 MT/s

Intel® Xeon® Silver 42xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2400 MT/s

2400 MT/s

2400 MT/s

2 DIMMs Per Channel

2400 MT/s

2400 MT/s

2400 MT/s

Intel® Xeon® Bronze 32xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2133MT/s

2133MT/s

2133MT/s

2 DIMMs Per Channel

2133MT/s

2133MT/s

2133MT/s

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor model. For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

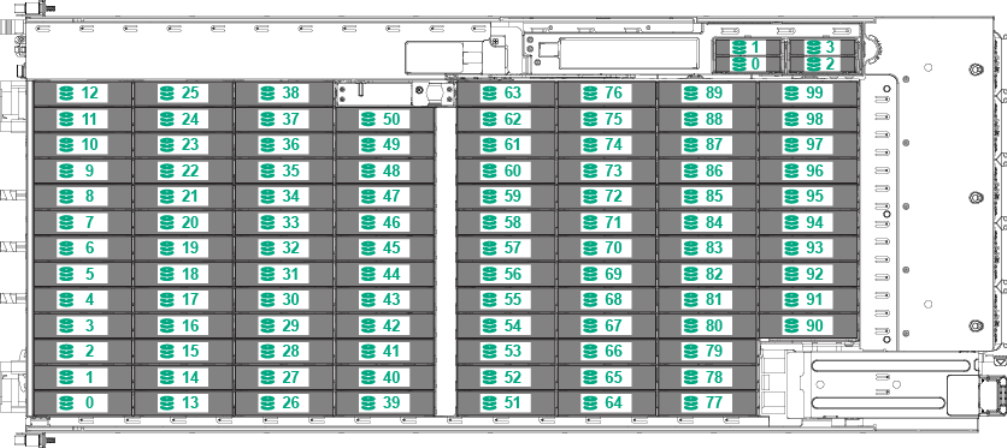

Section Device Numbering

System Unit

Dimensions (H x W x D)

6.88" x 17.64" x 40.16" (174.8mm x 448mm x 1020mm

Weight(approximate)

Maximum:

(all hard drives, power supplies, and processors installed )

116KG (w/o Packaging)

Input Requirements

Rated Line Voltage

AC input: 200-240V

Rated Input Current

8.7A at 200-240VAC

7.2A at 240VAC

Rated Input Frequency

50/60Hz

Rated Input Power

1734W at 200VAC

1725W at 240VAC

BTU Rating

Maximum

5918 at 200VAC

5884 at 240VAC

Power Supply Output

Rated Steady-State Power

1600W at 200VAC to 240 VAC input

Maximum Peak Power

2200W for 1ms (turbo mode) at 200 VAC to 240 VAC input

System Inlet Temperature

Standard Operating Support

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. The upper limit and rate of change may be limited by the type and number of options installed.

System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

Extended Ambient Operating Support

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:

http://www.hpe.com/servers/ashrae

For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: http://www.hpe.com/servers/ashrae

System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

Non-operating

-30° to 60°C (-22° to 140°F)

Relative Humidity

(non-condensing)

Operating

8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.

Non-operating

(non-condensing)

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Date

Version History

Action

Description of Change

03-Feb-2020

Version 2

Changed

Configuration Information section was updated.

09-Dec-2019

Version 1

New

New QuickSpecs
