HPE Cloudline CL5200 Gen9 Server

The HPE Cloudline CL5200 Gen9 Server is a 4U open-standards based storage server that is purpose built for cold storage, object storage, and data analytics applications. Supporting one or two compute nodes and up to 80 Large Form Factor (LFF) drives in a 4U form factor.

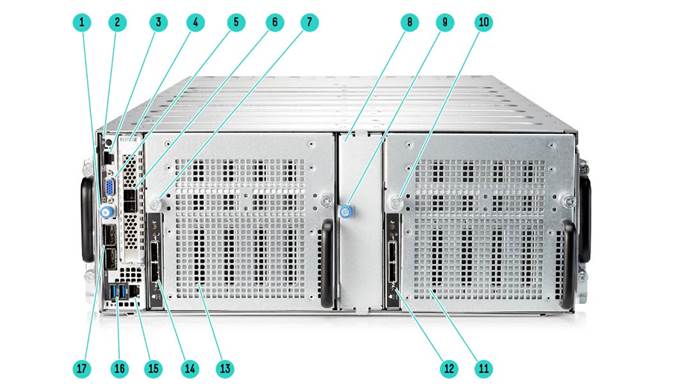

HPE Cloudline CL5200 Gen9 Server - Front View

1.

Compute Node 1 Thumbscrew

10.

Storage Drawer 2 Thumbscrew

2.

Power Butten

11.

Storage Drawer #2

3.

Serial Port (require special cable)

12.

Storage Node 2 Port

4.

Compute Node #1

13.

Storage Drawer #1

5.

VGA Port

14.

Storage Node 1 Port

6.

HBA or RAID connector

15.

RJ45 Management port(IPMI)

7.

Storage Drawer 1 Thumbscrew

16.

USB3 Connector

8.

Compute Node #2

17.

OCP Mezzanine Connector

9.

Compute Node 2 Thumbscrew

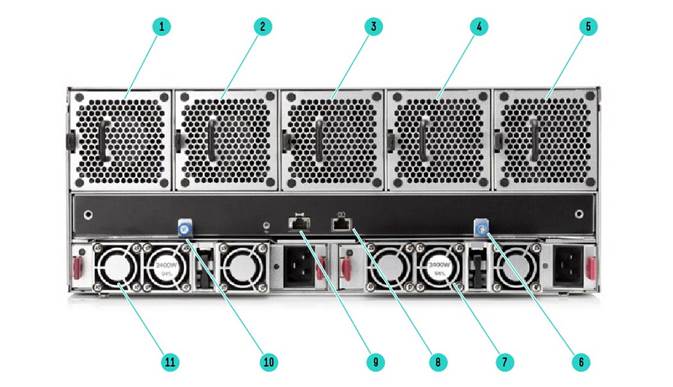

HPE Cloudline CL5200 Gen9 Server- Rear View

1.

System Fan 5

7.

Power Supply Unit 2

2.

System Fan 4

8.

RJ45 Serial Port

3.

System Fan 3

9.

BMC Management Port

4.

System Fan 2

10.

Fan Control Module Thumbscrew

5.

System Fan 1

11.

Power Supply Unit 1

6.

Fan Control Module Thumbscrew

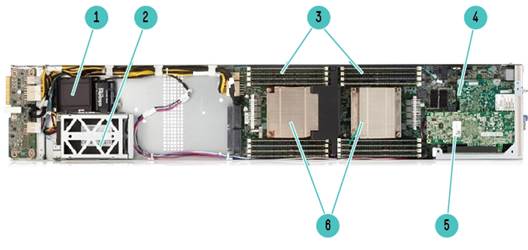

HPE Cloudline CL5200 Gen9 Server- Internal View

1.

Optional SuperCap Battery

4.

OCP form factor network mezzanine card

2.

(2) Small form factor HDD/SSD

5.

PCI-E x16 HBA/RAID Adapter

3.

(16) DDR-4 Memory Sockets

6.

(2) Intel Xeon E5 2600 Series CPUs

Processor

One of the following depending on model

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/content/www/us/en/processors/xeon/xeon-processor-e5-family.html

Intel® Xeon® processor E5-2600 v4 product family is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. One (or two) of the following Intel® Xeon® E5-2600 v4 processors based on the model.

Chipset

One of the following depending on model

Intel® C610 Series Chipset

Intel® E5-2600 v4 Processor Family

NOTE: For more information regarding Intel chipsets, please see the following

http://www.intel.com/content/www/us/en/chipsets/x99-chipset-pch-spec-update.html

On System Management Chipset

One of the following depending on model

ASPEED 2400 with KVM Support

Memory

One of the following depending on model

Type:

Industry Standard DDR4

DDR4 Registered (RDIMM)

DIMM Slots Available

16 slots available with 2 processors

 (4 channels per processor, 2 DIMMs per channel)

Maximum Capacity (RDIMM)

512GB

(16 x 32GB RDIMM @2400MT/s)

Memory Protection

One of the following depending on model

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Online spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Expansion Slots

PCIe riser slots

Expansion Slots #

Technology

Bus Width

Connector Width

Form Factor

Notes

1

PCIe 3.0

X16

X16

Low profile

RAID/HBA

2

PCIe 3.0

x16

x16

OCP Mezz

Networking

NOTE: Bus Width data indicates the number of physical electrical lanes running to the connector.

Power Supply

HPE CL 2400W N+N Hot Plug PSU Redundant

System Fans

5 Hot Plug redundant fans

Interfaces

Video

1 VGA Port

IPMI Management Port

1 RJ-45 Management Port

USB

Serial Port

2 USB ports (Standard)

1 RJ-45 Port

Operating Systems Test for CL Servers

Cent OS

Red Hat Enterprise Linux (RHEL)

Suse Linux Enterprise Server

Ubuntu Server

Microsoft Windows Server 2012

For more information visit http://www.hpe.com/info/ossupport

Upgradeability

Upgradeable to two processors (36 cores)

up to 16 DIMM slots

NOTE: To take advantage of DIMMs 9-16, a second processor must be installed.

Industry Standard Compliance

ACPI 2.0b Compliant

PCIe 3.0 Compliant

PXE Support

WOL Support

IPMI

Redfish API

UEFI

Graphics

Integrated PCIe VGA/2D Controller via ASPEED 2400 BMC

1920 x 1200 @ 60Hz (32 bpp)

Form Factor

4U Rack form factor

All models ship with tool-less friction rail kits

6.93" x 17.64" x 42.05" (176mm x 448mm x 1068mm)

Security

Power-on password

Serial interface control

Administrator's password

Warranty

Hardware support is available for 3 years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Hard drives have either a one year or three year warranty; refer to the HPE Cloudline Servers and Options Global Limited Warranty and Technical Support for details.

NOTE: Server Warranty includes 3 Years Parts with five (5) days response time, 0 Years Labor, and 0 Years Onsite Support. Additional information regarding worldwide limited warranty and technical support is available at

http://www.hpe.com/support/cloudline_warranty_en.

Response time

Response times are based on local standard business days and working hours. Unless otherwise stated, all responses are measured from the time the customer calls until Hewlett Packard Enterprise has either established a mutually acceptable time for support to be performed, or Hewlett Packard Enterprise has begun to provide support or remote diagnostics. Response time is based on commercially reasonable effort. In some countries and under certain supplier constraints, response time may vary. If your location is outside the customary service zone, response time may be longer or there may be an additional charge. Contact your local Hewlett Packard Enterprise service organization for response time availability in your area.

Protect your business beyond warranty with HPE Pointnext operational services

HPE Cloudline Support Services provide remote diagnosis and support, scheduled onsite hardware repair/troubleshooting, and coverage for replacement components, including defective media retention (DMR). With HPE Cloudline Support Services, you can purchase the services that meet your specific needs.

- HPE 5200 Parts + Remote Technical Support + Defective Media Retention

- HPE 5200 Parts + Remote Technical Support + Onsite Labor

- HPE 5200 Parts + Remote Technical Support + Onsite Labor + Defective Media Retention

Additional information regarding HPE packaged support services for Cloudline servers is available at

https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA5-9207ENN.pdf.

Standard Support recommendation

Connect to Hewlett Packard Enterprise for faster problem resolution. Cloudline Carepack Services provides hardware onsite response. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

Datacenter Care for Hyperscale

DC for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture. Customers can take advantage of this environment support tailored to their operating model. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA6-3460ENW.pdf.

Spares Management Service

Provides customers with spare parts inventory for onsite stocking, and access to the HPE Spares Management Tool - an automated inventory management tool that helps enable real-time inventory management. More information at

https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA1-3116ENW.pdf.

Advisory & Transformational Services

Design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge. More information at

https://www.hpe.com/us/en/services/consulting.html.

Lifecycle Event Services

Operational offerings to improve performance and securely handle retirement of customers’ IT environments. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/5981-8521ENE.pdf.

- Operate & Improve performance, minimize risk of downtime, and reduce security risks.

- Retire & Sanitize to safely and securely dispose of retired IT, and ensuring customer data cannot be compromised.

Professional Services

Integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment. More information at https://www.hpe.com/us/en/services/professional.html.

Parts and Materials

Hewllet Packard Enterprise provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewllet Packard Enterprise due to malfunction.

Step 1: Base Configuration (Base chassis with HDD drawers)

HPE Chassis - Cloudline CL5200 Gen9

HPE CL5200 G9 PMC Enclosure CTO Svr

P03813-B21

NOTE: Standard 5 hot-plug fan module included

NOTE: Standard 2400W N+N Redundant Power Supply Included

Step 1a: Select Nodes (choose one or two of the following configurable models)

HPE Server Nodes - Cloudline CL5200 Gen9

HPE Cloudline CL5200 Gen9 SFP+ Compute Node Configure-to-order Server

P03876-B21

NOTE: P03876-B21is for use with SFP+ or QSFP NIC

Step 2: Choose Required Node Options (only one of the following from each list unless otherwise noted)

HPE Processors

E5-2600v4 series Processors

HPE CL G3 Intel Xeon E5-2620 v4 (2.1GHz/8-core/85W) FIO Processor Kit

848499-L21

HPE CL G3 Intel Xeon E5-2630 v4 (2.2GHz/10-core/85W) FIO Processor Kit

847822-L21

HPE CL G3 Intel Xeon E5-2640 v4 (2.4GHz/10-core/90W) FIO Processor Kit

847812-L21

HPE CL G3 Intel Xeon E5-2650 v4 (2.2GHz/12-core/105W) FIO Processor Kit

847810-L21

HPE CL G3 Intel Xeon E5-2680 v4 (2.4GHz/14-core/35MB/120W) FIO Processor Kit

847792-L21

HPE CL G3 Intel Xeon E5-2695 v4 (2.1GHz/18-core/120W) FIO Processor Kit

857635-L21

NOTE: Choose 1 or 2 processors in each node

NOTE: Mixing of 2 different processor models are NOT allowed

HPE Memory

HPE CL 16GB (1x16GB) Dual Rank x4 DDR4-2400 CAS-15-15-15 Registered Memory Kit

851005-B21

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-15-15-15 Registered Memory Kit

851007-B21

HPE CL 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Memory FIO Kit

P07029-B21

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Memory FIO Kit

880841-B21

NOTE: Select one or more memory from section above. A minimum of two memory kits are required if server is configured with two processors

NOTE: If only one processor is installed, only half of the total DIMM slots are available. When populating with two processors, all 16 DIMM slots are available.

NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2400MT/s, 2133MT/s or 1866MT/s.

Registered DIMMs (RDIMMs) for E5-2600 v4 Series

HPE RAID Controller (Data Drives)

HPE CL PMC-ASR-8885 RAID Adapter Kit

860004-B21

HPE CL PMC-AFM-700 Super Capacitor Flash Module Device for 8885e RAID Adapter

860046-B21

HPE CL Broadcom 9300-8e SAS 12G Host Bus Adapter

851320-B21

NOTE: One RAID or HBA card must be selected per compute node. For connection to LFF data hard drives.

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Networking

HPE CL 40GbE QSFP28 Dual Port Mellanox OCP Mezzanine Adapter

847934-B21

HPE CL Ethernet 25Gb 2-port SFP28 Mellanox ConnectX-4 Lx OCP Mezzanine Adapter

847936-B21

HPE CL Ethernet 10Gb 2-port X710-DA2 SFP+ OCP FIO Adapter

P06629-B21

HPE CL Ethernet 10Gb 2-port SFP+ Intel X520 OCP Mezzanine Adapter

851279-B21

NOTE: NIC card 847934-B21 and 847936-B21 only supported under Legacy mode

NOTE: TPM 2.0 only works when UEFI is set to default

SFF (2.5-inch) SSD Drives (Boot)

HPE CL 960GB 6G SATA Read Intensive SFF (2.5in) Intel S4500SE Solid State Drive Kit

P01679-B21

HPE CL 240GB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08796-B21

HPE CL 960GB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08802-B21

NOTE: Select 1 or 2 boot drives per compute node

HPE  Drives

Hot Plug LFF (3.5-inch) Drives (Data)

HPE CL 6TB 6G SATA 7.2K rpm LFF (3.5in) Seagate Midline Hard Drive

847820-B21

HPE CL 8TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate 512e FIO HDD

848539-B21

HPE CL 10TB 6GB SATA 7.2K rpm LFF (3.5in) HGST Midline Hard Drive Kit

860036-B21

HPE CL 10TB 6GB SATA 7.2K rpm LFF (3.5in) Seagate Midline Hard Drive Kit

860038-B21

HPE CL 14TB SATA 6G Enterprise 7.2K LFF (3.5in) Hitachi ISE 512e FIO HDD

P08759-B21

NOTE: Select up to 80 LFF data drives per chassis (20 Minimum per storage tray)

Step 3: Choose Additional for Factory Integration from Core and Additional Options sections below.

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Internal SAS Cable Kit

HPE CL5200 Gen9 1080mm Internal Mini SAS High Density to 2x SATA Cable Kit

867110-B21

NOTE: This optional mini-SAS cable should be selected when the internal boot drives need to be connected to the RAID card instead of the onboard PCH. This option is only available when selecting the PMC 8885 Raid Card.

HPE Cloudline Support Services

HPE Cloudline Parts + Remote Technical Support with DMR

H2NA8A3#WGD

HPE Cloudline Parts + Onsite Labor + Remote Technical Support

H0HF0A3#WGD

HPE Cloudline Parts + Onsite Labor + Remote Technical Support with DMR

H2NA9A3#WGD

Memory Subsystem Architecture

Each Intel® Xeon® E5-2600v4 family processor socket contains four memory channels per installed processor with two DIMM per channel for a total of eight (8) DIMMs or a grand total of sixteen (16) DIMMs for the server.

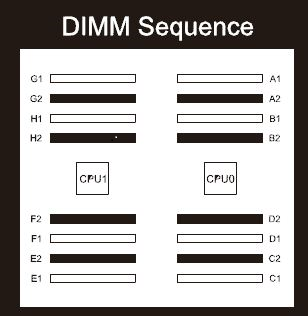

Memory Population guidelines

 .

General Memory Population Rules and Guidelines:

Install DIMMs only if the corresponding processor is installed.

If only one processor is installed in a two processor system, only half of the DIMM slots are available.

To maximize performance, it is recommended to balance the total memory capacity between all installed processors and load the channels similarly whenever possible.

When two processors are installed, balance the DIMMs across the two processors.

DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.

The maximum memory speed is a function of the memory type, memory configuration, and processor model.

The maximum memory capacity is a function of the memory type and number of installed processors.

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 16GB = 16384MB
• 32GB = 32768MB

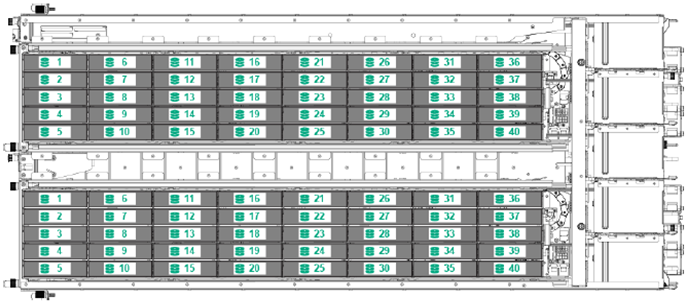

Section Device Numbering:

Strorage Node

System Unit

Dimensions (H x W x D)

6.93" x 17.64" x 42.05" (176mm x 448mm x 1068mm)

Weight

(approximate)

Maximum:

(all hard drives, power supplies, and processors installed

271 lbs. (122.8 kg)

Input Requirements

Rated Line Voltage

AC input: 200-240V

DC input: 240V

Rated Input Current

200-240Vac ~13.6A

240Vdc ~13.3A

Rated Input Frequency

50/60Hz

Rated Input Power

AC input: 2700W

DC input: 2700W

BTU Rating

Maximum

8191BTU/hour at 220Vac

Power Supply Output

Rated Steady-State Power

2400W

Maximum Peak Power

2640W

System Inlet Temperature

Standard Operating Support

10° to 35°C (50° to 95°F)

Non-operating

-30° to 60°C.

Relative Humidity

Operating

50% to 80% relative humidity (Rh)

Non-operating

(non-condensing)

50% to 90% relative humidity (Rh))

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Date

Version History

Action

Description of Change

03-Dec-2018

Version 11

Changed

Configuration Information section was updated.

01-Oct-2018

Version 10

Changed

Configuration Information section was updated.

SKU descriptions were updated.

SKUs were added.

04-Sep-2018

Version 9

Changed

Overview, Standard Features and Additional Options sections were updated.,

07-May-2018

Version 8

Changed

Change product name from G3 to Gen9

23-Oct-2017

Version 7

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

27-Mar-2017

Version 6

Updated

Update the pre-configured section

13-Feb-2017

Version 5

Changed

Add SATA SKUs

09-Dec-2016

Version 4

Updated

Updated commodities and corrections

06-Jun-2016

Version 3

Updated

Updated with new options for Xeon E5-2600v4

13-May-2016

Version 2

Updated

Update information for the CL5200 G3

31-Mar-2016

Version 1

New

New QuickSpecs
