HPE Cloudline CL4100 Gen10 Server

The HPE Cloudline CL4100 Gen10 is a 1U dual-node server for Cloud Service Providers that features up to 4 of the 2^nd Gen Intel® Xeon® Scalable processors, and a choice of up to 16 SFF SATA drives or 8 SFF NVMe drives. Without any extras, this server is ideal for Hadoop/Casandra and HPC workloads to meet the dense compute needs of Service Providers and Enterprises.

CL4100 Gen10 Front View (node)

1.

Node 2

6.

(2) OCP v2 mezzanine ports

2.

Node 1

7.

PCIe x16 Gen3 slot

3.

(1) RJ45 management port (IPMI)

8.

VGA port

4.

(2) USB ports

9.

RJ45 serial connection

5.

UID/BMC reset button

10.

Power button

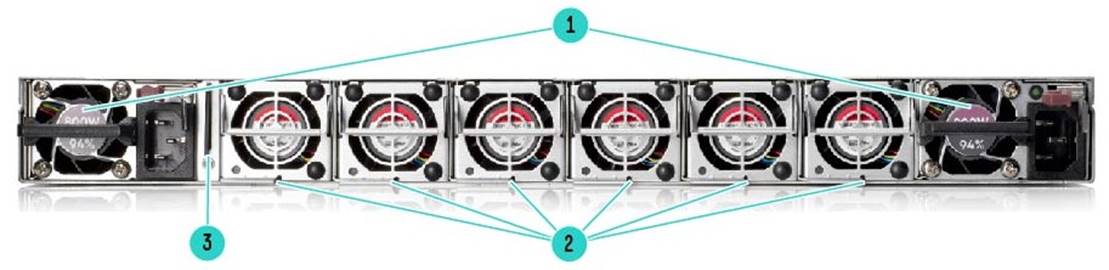

CL4100 Gen10 Rear View (chassis)

1.

(2) 1+1 FlexSlot power supplies

3.

Asset tag

2.

(6) fans, N+1 redundant, hot-swap

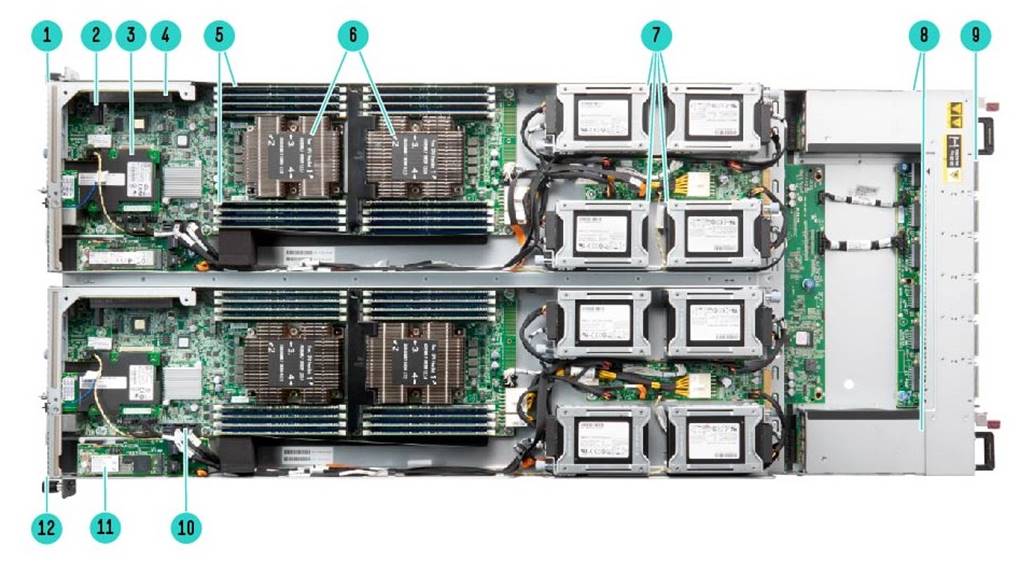

CL4100 Gen10 Internal View per node (chassis)

1.

Node 2

7.

(8) SFF SATA SSD drives OR (4) SFF NVMe SSD drives

2.

(1) NVMe M.2 connector

8.

(2) 800W OR 1600W power supplies

3.

OCP v2 mezzanine location

9.

(6) hot-swappable fans

4.

PCIe x16 Gen3 slot

10.

(3) mini-SAS x4 ports (SATA support)

5.

(16) DDR4 Memory DIMMs

11.

Optional M.2 Module riser

6.

(2) 2^nd Gen Intel® Xeon® Scalable processors

12.

Node 1

Platform Information

Form Factor

1U rack storage  1.69"(H) x 17.18" (W) x 40" (D) (43.00 mm x 436.50mm x 1017.16mm)

Chassis Type

Dual node; each node up to 8 SFF SATA SSD or 4 SFF NVMe SSD

System Fans

6 Hot-swappable Rear Fans Standard

Processor

Processors - Up to 2 (per node) of the following

NOTE: For more information regarding 2^nd Gen Intel® Xeon® processors, please see the following http://www.intel.com/xeon.

NOTE: Up to 2 processors per node supported. Mixing different processor models is not supported.

2^nd Gen Intel® Xeon® Processor Scalable Family

NOTE: Silver - 4200 Series supports Intel® Turbo Boost Technology, Intel® Hyper-Threading Technology, Intel® AVX-512, 48 lanes PCIe 3.0 and Standard RAS. Gold - 5200 and 6200 series support, Intel®  Turbo Boost Technology, Intel® Hyper-Threading Technology, Intel® AVX-512, 48 lanes PCIe 3.0 and Advanced RAS. Only 2 UPI links are supported for this platform. Actual Max Memory Size supported per processor is 512GB based on supported memory options.

Chipset (per node)

Intel® C621 Chipset

NOTE: For more information regarding Intel chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/.

On System Management Chipset (per node)

• iBMC ASPEED AST2500 with KVM Support IPMI 2.0
• AMI MegaRAC, Virtual Media

Memory (per node)

Industry Standard DDR4 Registered (RDIMM)

Memory Protection

• Memory Static Virtual Lockstep
• Memory Mirror: Set entire 1LM memory in system to be mirrored, consequently reducing the memory capacity by half.
• Memory Rank Sparing
• Memory Correctable Error Threshold: Use for sparing, tagging, and leaky bucket
• Memory SDDC Plus One

Expansion Slots

NOTE: Bus Width data indicates the number of physical electrical lanes running to the connector.

NOTE: All risers are included. Expansion slot will only be available if the processor is installed.

Internal Storage Devices (per node)

Maximum Internal Storage (per node)

Power Supply

(2) 800W OR (2) 1600W FlexSlot Hot Plug Redundant Power Supplies

System Fans

6 hot-swappable fans

Interfaces (per node)

Operating Systems

NOTE: Tested for successful installation only, No Operating Systems certification done unless indicated.

Linux

• Red Hat Enterprise Linux 7.6 (64 bit) (includes KVM)
• SLES 15 SP0 (64 bit) (includes XEN &KVM)
• Ubuntu 16.04.6
• Ubuntu 18.04.2
• CentOS 7.6

Hypervisors

VMware vSphere 6.7 U1

Industry Standard Compliance

• ACPI 6.1
• PCIe 3.0
• PXE Support
• WOL Support
• USB 3.0 Support

Graphics

Integrated PCIe VGA/2D Controller via ASPEED 2500 BMC, 1920 x 1200 @ 60Hz (32 bpp)

Form Factor

1U Rack form factor  1.69" (4.3cm) Height x 17.18" (43.65 cm) Width x 40" (101.716 cm) Length

Security

• Power-on password
• Administrator's password
• TPM 2.0
• UEFI Secure Boot

Warranty

Hardware support and is available for 3 years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Hard drives have either a one year or three year warranty; refer to the HPE Cloudline Servers and Options Global Limited Warranty and Technical Support for details.

NOTE: Server Warranty includes 3 year five (5) day Parts response time, 0-Years Labor, 0-Years Onsite support. Additional information regarding worldwide limited warranty and technical support is available at http://www.hpe.com/support/cloudline_warranty_en.

Response time:

Response times are based on local standard business days and working hours. Unless otherwise stated, all responses are measured from the time the customer calls until Hewlett Packard Enterprise has either established a mutually acceptable time for support to be performed, or Hewlett Packard Enterprise has begun to provide support or remote diagnostics. Response time is based on commercially reasonable effort. In some countries and under certain supplier constraints, response time may vary. If your location is outside the customary service zone, response time may be longer or there may be an additional charge. Contact your local Hewlett Packard Enterprise service organization for response time availability in your area.

Protect your business beyond warranty with HPE Pointnext operational services

HPE Cloudline Support Services provide remote diagnosis and support, scheduled onsite hardware repair/troubleshooting, and coverage for replacement components, including defective media retention (DMR). With HPE Cloudline Support Services, you can purchase the services that meet your specific needs.

• 3 year Cloudline Parts plus Labor plus Remote Technical Support
• 3 year Cloudline Parts plus Labor plus Remote Technical wCDMR
• 3 year Cloudline Parts plus Labor plus Remote Technical wDMR
• 3 year Cloudline Parts plus Remote Technical wCDMR
• 3 year Cloudline Parts plus Remote Technical wDMR

Standard Support recommendation

Connect to Hewlett Packard Enterprise for faster problem resolution. Cloudline Packaged Support Services Services provides hardware onsite response. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Datacenter Care for Hyperscale

DC for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture. Customers can take advantage of this environment support tailored to their operating model. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA6-3460ENW.pdf.

Spares Management Service

Provides customers with spare parts inventory for onsite stocking, and access to the HPE Spares Management Tool - an automated inventory management tool that helps enable real-time inventory management. More information at

https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA1-3116ENW.pdf.

Advisory & Transformational Services

Design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge. More information at

https://www.hpe.com/us/en/services/consulting.html.

Lifecycle Event Services

Operational offerings to improve performance and securely handle retirement of customers’ IT environments. More information at https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=5982-0093enn

• Operate & Improve performance, minimize risk of downtime, and reduce security risks.

Retire & Sanitize to safely and securely dispose of retired IT, and ensuring customer data cannot be compromised.

Professional Services

Integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment. More information at https://www.hpe.com/us/en/services/professional.html.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

• Factory Integrated Models must start with a CTO Server.
• FIO indicates that this option is only available as a factory installable option.
• Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose the following configurable model)

Chassis

HPE CL4100 Gen10 CTO server

SATA 8 SFF SSD

HPE CL4100 Gen10 CTO server

NVMe 4 SFF SSD

HPE Cloudline CL4100 Gen10 1U 2-node Configure-to-order Server and Chassis

P03273-B21

Node SKU

P04289-B21 (2 nodes per chassis)

Processor

2 per node, each at 150W

DIMM Slots (per node)

16 DIMM slots for RDIMM DDR4 Memory

Storage

Controller

Embedded SATA Ports

NVMe Passthrough

PCIe

Processor 0 supports

1 x16 PCIe3 FHHL

Optional 1 x OCP Mezz 2.0 Type 1

Processor 1 supports

N/A

Drive Cage (per node)

1 or 8 SFF SATA

2 or 4 SFF NVMe

Network Controller (per node)

Dedicated 1GbE LAN port (management)

Fans

6 hot swappable fans

Management (per node)

ASPEED 2500, IPMI v2.0 compliant, on board "KVM over IP" support, Redfish API Conformant

Power Supply

(2)  800W or 1600W Platinum Redundant PSU

USB (per node)

2 USB 3.0 Ports front

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

HPE Processors

NOTE: Select two (2) Processors per node

NOTE: Mixing of 2 different processor models are NOT allowed.

NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed

Silver Processors

HPE CL Gen10 Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) FIO Processor Kit

P12064-L21

HPE CL Gen10 Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) FIO Processor Kit

P12066-L21

HPE CL Gen10 Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) FIO Processor Kit

P12067-L21

HPE CL Gen10 Intel Xeon-Silver 4215 (2.5GHz/8-core/85W) FIO Processor Kit

P12069-L21

HPE CL Gen10 Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) FIO Processor Kit

P12070-L21

Gold Processors

HPE CL Gen10 Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) FIO Processor Kit

P12071-L21

HPE CL Gen10 Intel Xeon-Gold 5217 (3.0GHz/8-core/115W) FIO Processor Kit

P12073-L21

HPE CL Gen10 Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) FIO Processor Kit

P12075-L21

HPE CL Gen10 Intel Xeon-Gold 5220 (2.2GHz/18-core/125W) FIO Processor Kit

P12077-L21

HPE CL Gen10 Intel Xeon-Gold 5220S (2.7GHz/18-core/125W) FIO Processor Kit

P19121-L21

HPE CL Gen10 Intel Xeon-Gold 5222 (3.8GHz/4-core/105W) FIO Processor Kit

P19122-L21

HPE CL Gen10 Intel Xeon-Gold 6222V (1.8GHz/20-core/115W) FIO Processor Kit

P19127-L21

HPE CL Gen10 Intel Xeon-Gold 6226 (2.7GHz/12-core/125W) FIO Processor Kit

P19123-L21

HPE CL Gen10 Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) FIO Processor Kit

P12078-L21

HPE CL Gen10 Intel Xeon-Gold 6234 (3.3GHz/8-core/130W) FIO Processor Kit

P19124-L21

HPE CL Gen10 Intel Xeon-Gold 6238 (2.1GHz/22-core/140W) FIO Processor Kit

P19125-L21

HPE CL Gen10 Intel Xeon-Gold 6240 (2.6GHz/18-core/150W) FIO Processor Kit

P12080-L21

HPE CL Gen10 Intel Xeon-Gold 6242 (2.8GHz/16-core/150W) FIO Processor Kit

P12082-L21

HPE CL4100 Gen10 Intel Xeon-Gold 6244 (3.6GHz/8-core/150W) FIO Processor Kit

P19126-L21

HPE CL Gen10 Intel Xeon-Gold 6248 (2.5GHz/20-core/150W) FIO Processor Kit

P12084-L21

HPE CL Gen10 Intel Xeon-Gold 6262V (1.9GHz/24-core/135W) FIO Processor Kit

P19128-L21

HPE Memory DDR4-2933

NOTE: Select one or more memory. A minimum of two memory kits are required if server is configured with two processors.

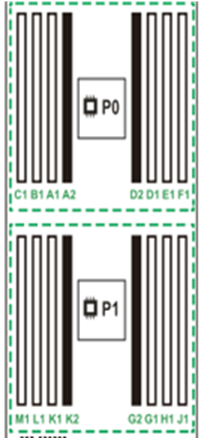

NOTE: If only one processor is installed, only half of the total DIMM slots are available. When populating with two processors, all DIMM slots are available.

NOTE: Depending on the memory configuration and processor model, the memory speed may run at different speeds.

Registered DIMMs

HPE DDR4 Special SmartMemory

P14119-B21

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Memory FIO Kit

P10660-B21

HPE DDR4 Special SmartMemory

P14492-B21

HPE Power Supplies

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

830272-B21

Step 3: Choose Additional Options from the next section

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Drives

SFF (2.5-inch) SATA SSD

HPE CL 240GB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08796-B21

HPE CL 480GB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08799-B21

HPE CL 960GB SATA 6G Mixed Use SFF (2.5in) Intel S4610 FIO SSD

P08811-B21

HPE CL 960GB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08802-B21

HPE CL 1TB SATA 6G Enterprise 7.2K SFF (2.5in) Seagate ISE 512e FIO HDD

881039-B21

HPE CL 1.92TB SATA 6G Mixed Use SFF (2.5in) Intel S4610 FIO SSD

P08814-B21

HPE CL 3.84TB SATA 6G Mixed Use SFF (2.5in) Intel S4610 FIO SSD

P04597-B21

HPE CL 7.68TB SATA 6G Read Intensive SFF (2.5in) Samsung PM883 FIO SSD

P01684-B21

HPE CL 7.6TB SATA RI SFF 5300PRO FIO SSD

P23915-B21

SFF (15mm) NVMe SSD

NOTE: NVMe drive and networking options may have thermal limitations based on processor selection; refer to Thermal Estimations table.

NOTE: 15mm and 7mm NVMe drives cannot be selected together.

NOTE: Intel NVMe drive support will require CID to specify the drive FW.

HPE CL 1TB NVMe x4 Lanes Read Intensive SFF (2.5in) Intel P4510 FIO SSD

P11563-B21

HPE CL 2TB NVMe x4 Lanes Read Intensive SFF (2.5in) Intel P4510 FIO SSD

P04600-B21

HPE CL 3.2TB NVMe x4 Lanes Mixed Use SFF (2.5in) Intel P4610 FIO SSD

P06660-B21

HPE CL 3.2TB NVMe x4 Lanes Mixed Use SFF (2.5in) Samsung PM1725b FIO SSD

P06726-B21

HPE CL 4TB NVMe x4 Lanes Read Intensive SFF (2.5in) Intel P4510 FIO SSD

P06663-B21

SFF (7mm) NVMe SSD

HPE CL 1.9TB NVMe x4 Lanes Read Intensive SFF (2.5in) Samsung PM983 SED FIO SSD

P06710-B21

NOTE: Maximum of (2) NVMe drives may be selected.  NVMe drives require the passthrough card (P17239-B21)..

HPE Drive Cages

NOTE:

• 1SFF Drive Cage (P06238-B21) - Supports Max of 1 SATA SSD or SATA HDD Only
• 8SFF Drive Cage (P06239-B21) - Supports Max of 8 SATA SSD Only
• 2SFF NVMe Passthru FIO Kit (P17242-B21) - Supports Max of 2 NVMe Drives Only

FIO Kits

HPE CL4100 Gen10 1SFF SATA Cable and FIO Drive Cage Kit

P06238-B21

HPE CL4100 Gen10 8SFF SATA Cable and FIO Drive Cage Kit

P06239-B21

HPE CL4100 Gen10 2SFF NVMe Pass-Through FIO Drive Cage Kit

P17242-B21

HPE M.2 Option

FIO Kit

HPE CL4100 Gen10 M.2 Module Option FIO Kit

872926-B21

NOTE: This M.2 Option provides a PCA riser card and SATA cabling; it can support up to (2) SATA M.2 SSD drives

HPE M.2 Drives

NOTE: M.2 SATA SSD Max = 2 M.2 NVMe SSD Max = 1

HPE CL 240GB SATA 6G Read Intensive M.2 - UFF to SFF Intel S4510 FIO SSD

P08790-B21

HPE CL 240G SATA RI M.2 5300BOOT FIO SSD

P18854-B21

HPE CL 256GB NVMe x4 Lanes Read Intensive M.2 - UFF to SFF Intel P4101 FIO SSD

P08793-B21

NOTE: Requires M.2 Module Option FIO Kit - 872926-B21

HPE Networking Adapters

OCP Mezzanine Adapters

HPE CL Ethernet 10Gb 2-port X710-DA2 SFP+ OCP FIO Adapter

P06629-B21

HPE CL Ethernet 25Gb 1-port SFP28 Intel XXV710-D1 OCP FIO Mezzanine Adapter

880148-B21

HPE CL Ethernet 25Gb 2-port Mellanox ConnectX-4 Lx EN SFP28 OCP NC-SI FIO Adapter

P10014-B21

HPE CL Ethernet 50Gb 1-port SFP28 Mellanox ConnectX-4 Lx OCP FIO Mezzanine Adapter

880843-B21

PCIe Adapters

HPE CL Ethernet 10GBASE-T 2-port Intel X550 PCIe 3.0 Card

P01665-B21

HPE CL Ethernet 10Gb 2-port SFP+ Intel X710 PCIe 3.0 Card

P01666-B21

HPE CL Ethernet 25Gb 2-port SFP28 Q41212 PCIe 3.0 Card

P01669-B21

HPE CL Ethernet 50Gb 2-port SFP28 Mellanox ConnectX-5 Single Host PCIe 3.0 Card

P01671-B21

HPE CL InfiniBand EDR/Ethernet 100Gb 2-port Mellanox ConnectX-5 QSFP28 PCIe3 FIO Adapter

P09056-B21

NOTE: For Mellanox networking PXE boot is supported only in Legacy BIOS.

NOTE: Ubuntu 16.04.6 generic kernel does not include drivers for P09056-B21. For configurations with this NIC, Ubuntu 16.04.6 HWE kernel or Ubuntu 18.04.2 is recommended.

Storage Adapter

NOTE: This option requires selection of 2SFF NVMe Passthru FIO Kit P17142-B21.

HPE CL4100 Gen10 NVMe Pass-Through FIO Enablement Kit

P17239-B21

HPE Security

TPM 2.0

HPE Trusted Platform Module 2.0 Kit

745823-B21

NOTE: HPE Trusted Platform Module 2.0 option works with UEFI Mode not Legacy Mode.

Memory Subsystem Architecture

2^nd Gen Intel® Xeon® Processor Scalable Family socket contains six memory channels per installed processor with two DIMM per channel for a total of eight (8) DIMMs or a grand total of sixteen (16) DIMMs for the server.

Memory Population guidelines

CPU1

Rear

8 slot per CPU DIMM Population Order

1 DIMM

G1

2 DIMMs

H1

G1

3 DIMMs

J1

H1

G1

4 DIMMs

H1

G1

K1

L1

5 DIMMs *

J1

H1

G1

K1

L1

6 DIMMs

J1

H1

G1

K1

L1

M1

7 DIMMs *

J1

H1

G1

G2

K1

L1

M1

8 DIMMs *

J1

H1

G1

G2

K2

K1

L1

M1

NOTE:* Unbalanced

NOTE:* Unbalanced

General Memory Population Rules and Guidelines

• Install DIMMs only if the corresponding processor is installed.
• If only one processor is installed in a two processor system, only half of the DIMM slots are available.
• To maximize performance, it is recommended to balance the total memory capacity between all installed processors and load the channels similarly whenever possible.
• When two processors are installed, balance the DIMMs across the two processors.
• The maximum memory speed is a function of the memory type, memory configuration, and processor.
• The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.
• When population DIMMs into a channel, slot #0 must be populated first. And then followed by the slot #1

DIMM slot and configuration order

NOTE:* Unbalanced, not recommended

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor model. For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

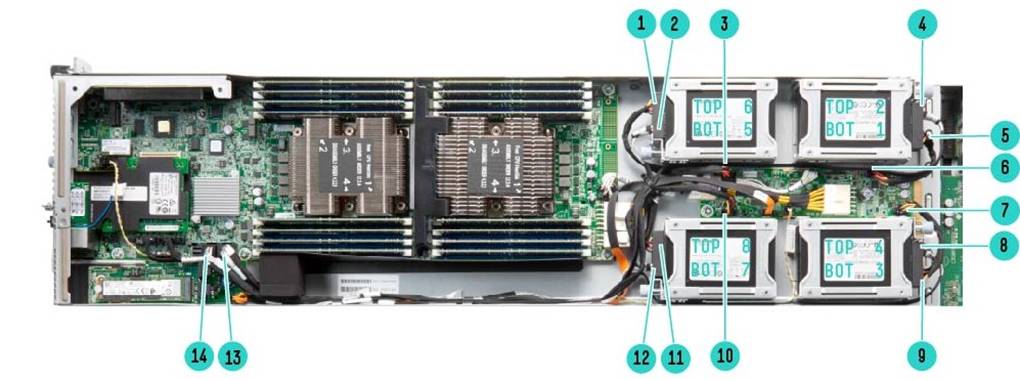

HPE Cloudline CL4100 Gen10 Server - Top View

8 x SFF drive cages SATA option:

1.

SATA SSDs 6 connects with J12

8.

Top SATA Option 4 SSDs (connects with ITP:J3)

2.

SATA SDDs 5 connects with ITP:J11

9.

Bottom SATA Option 3 SDDs (connects with J3)

3.

ITP: J11

10.

ITP: J9

4.

Top SATA Option 2 SSDs (connects with J3)

11.

Top SATA Option 8 SSDs (connects with ITP:J9)

5.

Bottom SATA Option 1 SDD (connects with ITP:J8)

12.

Bottom SATA Option 7 SDDs (connects with J12)

6.

ITP. J8

13.

J12

7.

ITP: J3

14.

J3

NOTE: 2 SFF SATA SSDs per cage

System Unit

Dimensions (H x W x D)

1.69" (4.3cm) Height x 17.18" (43.65 cm) Width x 40" (101.716 cm) Length

Weight

(approximate)

Maximum: (all hard drives, power supplies, and processors installed

25.04 kg

Minimum: (one hard drive, power supply, and processor installed)

16.52 kg

Input Requirements

Rated Line Voltage

100 - 127Vac / 200 - 240Vac

Rated Input Frequency

50 - 60Hz

Rated Output Power

• 800W @ 100-  127Vac
• 800W @ 200240Vac

Rated Input Power

100 - 120 VAC 200 - 240 VAC

BTU Rating

Maximum

• 100 - 127V @ 4040.85 BTU/hour
• 200 - 240V @ 4586.45 BTU/hour

System Inlet Temperature

Standard Operating Support

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight.  Maximum rate of change is 20°C/hr (36°F/hr).  The upper limit and rate of change may be limited by the type and number of options installed.

System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

Extended Ambient Operating Support

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:http://www.hpe.com/servers/ashrae

For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: http://www.hpe.com/servers/ashrae

System performance may be reduced if operating in the extended ambient operating range or with a fan fault

Non-operating

-30° to 60°C (-22° to 140°F).

Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity

Operating

8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Environment friendly Products and Approach- End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

03-Feb-2020

Version 4

Changed

Standard Features and Additional Options sections were updated

02-Dec-2019

Version 3

Changed

Updated processors and Additional Options.

All sections were updated.

04-Feb-2019

Version 2

Changed

SKUs were added in Additional Options section

03-Dec-2018

Version1

New

New QuickSpecs
