HPE Cloudline CL3100 Gen10 Server

The HPE Cloudline CL3100 Gen10 is an ideal 1U 2P dense storage server for Cloud Service Providers that features the 2^nd Gen Intel® Xeon® Scalable processor family. The CL3100 Gen10 can be configured in either 12 Large Form Factor (LFF) SATA HDDs or 20 Small Form Factor (SFF) NVMe SSDs configurations. The 12 LFF HDD configuration is perfect for storage-rich, Hadoop, and Casandra workloads while the 20 NVMe SSD configuration offers great support for fast big data and real-time analytic workloads.

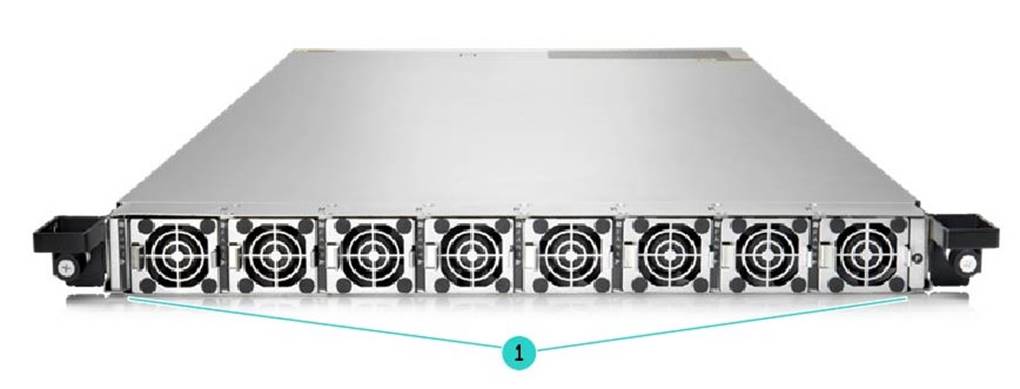

CL3100 Gen10 Front View

1.

(8) Hot-plug fans

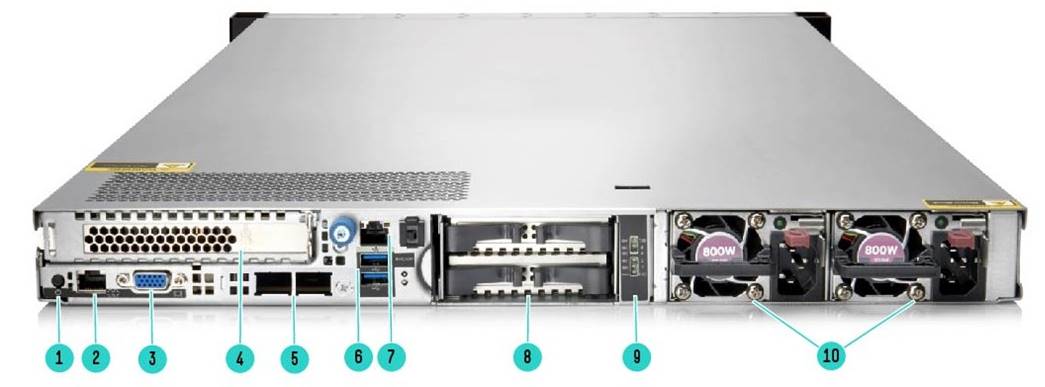

CL3100 Gen10 Rear View

1.

Power Button

6.

(2) USB 3.0 Ports

2.

RJ45 Port for Serial Console

7.

RJ45 for iBMC Management

3.

VGA Display Port

8.

(2) SFF SATA SSDs (Optional for Boot)

4.

PCI-e Expansion Slot

9

HDD LED Panel

5.

OCP Mezzanine NIC Ports

10.

(2) 800/1600W Redundant PSUs

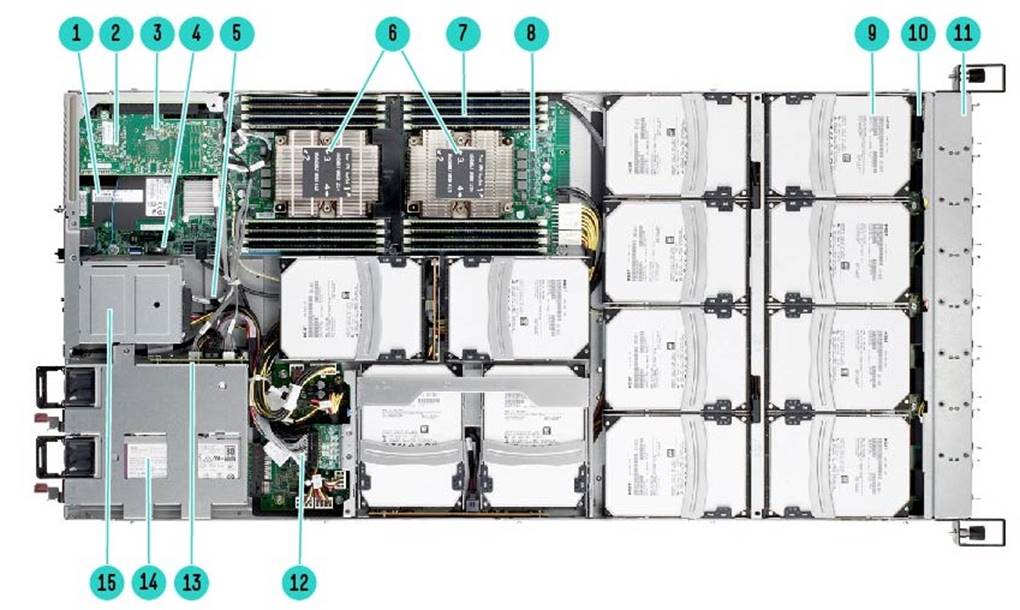

12 LFF Hot-Plug HDD’s SKU- Internal View

1.

(1) OCP Mezzanine NIC

9.

(12) SATA LFF HDDs

2.

Onboard M.2 NVMe SSD Port (Under PCI-e Card)

10.

(1) Fan Control Board

3.

(1) PCI-e Expansion Card

11.

(8) Hot Swappable System Fans

4.

Internal USB port (disabled)

12.

1) Power Interposer Board

5.

(1) Supercap Space

13.

(1) CPLD Board

6.

(2) 2^nd Gen Intel® Xeon® Processors

14.

(2) 800W FlexSlot Redundant PSUs

7.

(16) DDR4 DIMMs

15.

(2) SFF SATA SSDs

8.

(1) System Board

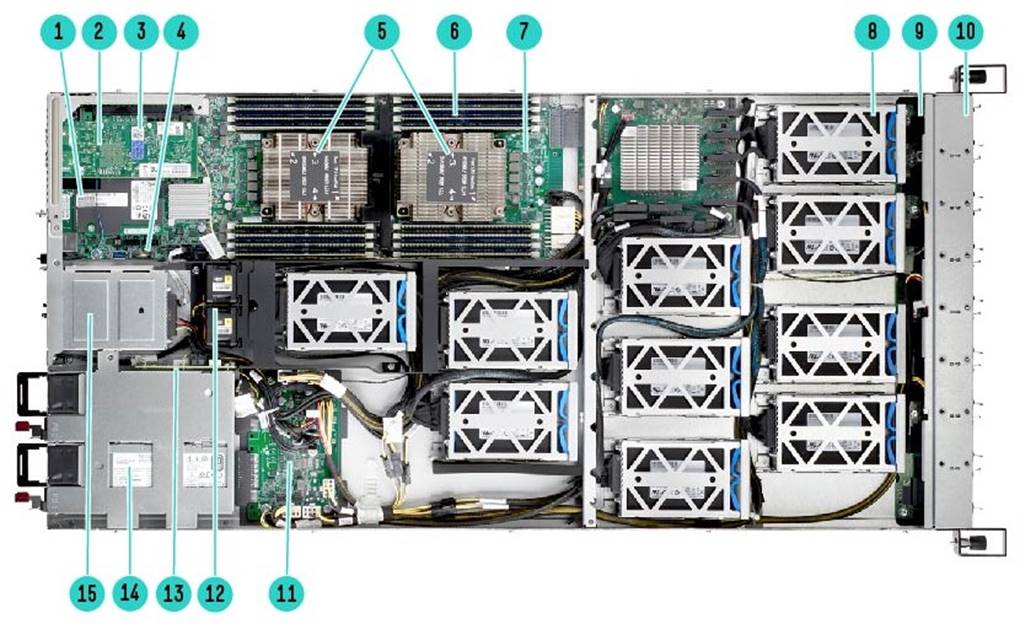

20 NVMe SSD SKU- Internal View

1.

(1) OCP Mezzanine NIC

9.

(1) Fan Control Board

2.

Onboard M.2 NVMe SSD Port (Under PCI-e card)

10.

(8) Hot Swappable System Fans

3.

(1) PCI-e Expansion Card

11.

(1) Power Interposer Board

4.

Internal USB port (disabled)

12.

(2) Internal Rear Fans

5.

(2) Intel® Xeon® Processors

13.

(1) CPLD Board

6.

(16) DDR4 DIMMs

14

(2) 1600W  FlexSlot Redundant PSUs

7.

(1) System Board

15.

(2) SFF SATA SSDs

8.

(20) SFF NVME SSDs

Platform Information

Form Factor

1U rack storage  1.69"(H) x 17.18" (W) x 36" (D) (43.00 mm x 436.50mm x 914.40mm)

Chassis Type

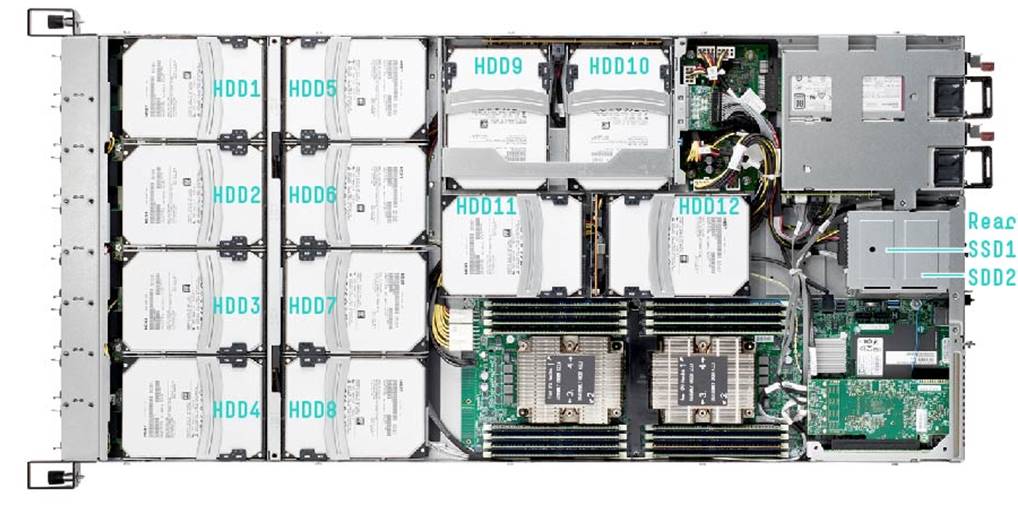

• 12 LFF SATA HDD with optional rear 2 SFF SATA SSD

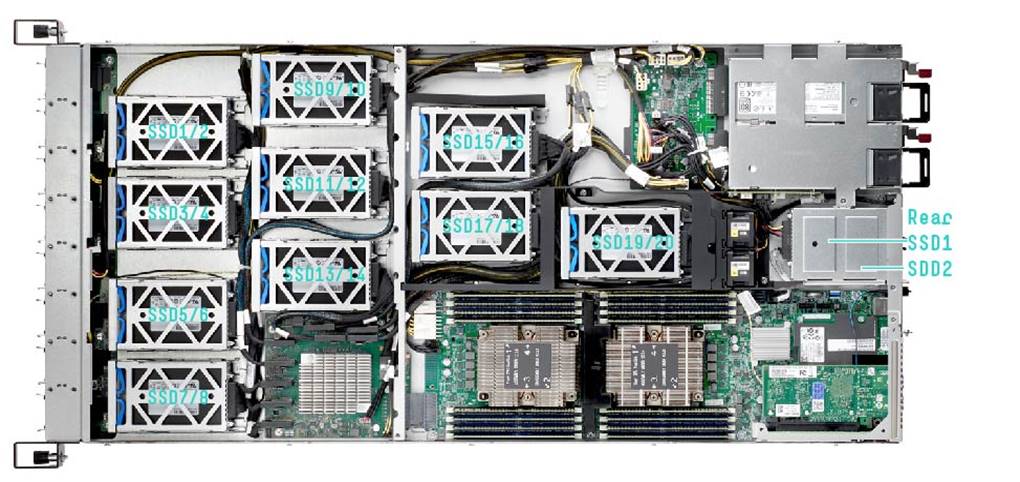

• 20 SFF NVMe with optional rear 2 SFF SATA SSD

System Fans

(8) Front Fans Standard (+2 internal rear fans for 20 NVMe SSDs) Redundant

Standard Features

Processor

Processors - Up to 2 of the following

NOTE: For more information regarding 2^nd Gen Intel® Xeon® processors, please see the following http://www.intel.com/xeon.

NOTE: Up to 2 processors supported. Mixing different processor models is not supported.

NOTE: 2 processors are required for NVMe CTO Server.

2^nd Gen Intel® Xeon® Processor Scalable Family

NOTE: 6-Channel DDR4 @ 2933 MT/s (Gold 6200 & 5222 only), 2666 MT/s on all Gold 5200 (except 5222 @ 2933 MT/s). Support for: Vector Neural Network Instructions (VNNI) for inference acceleration. 2 and 4 socket capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 10.4 GT/s. Intel® Turbo Boost Technology, Intel® Hyper-Threading Technology, Intel®AVX-512, 48 lanes PCIe 3.0, advanced RAS. Only 2 UPI links are supported for this platform. Actual Max Memory Size supported per processor is 512GB based on supported memory options.

NOTE: Silver - 4200 Series - 2 Socket supports 2UPI@9.6 GT/s, 6-Channel DDR4@2400 MT/s providing up to 1TB memory capacity. Intel® Turbo Boost Technology, Intel® Hyper-Threading Technology, Intel® AVX-512, 48 lanes PCIe 3.0, standard RAS supported. Only 2 UPI links are supported for this platform. Actual Max Memory Size supported per processor is 512GB based on supported memory options.

NOTE: Bronze - 3200 Series - 2 Socket supports 2UPI@9.6 GT/s, supports 6-Channel DDR4@2133 MT/s providing up to 1TB memory capacity. Intel® AVX-512, 48 lanes PCIe 3.0, standard RAS supported. Only 2 UPI links are supported for this platform. Actual Max Memory Size supported per processor is 512GB based on supported memory options.

Chipset

Intel® C621 Chipset

NOTE: For more information regarding Intel chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/.

On System Management Chipset

• iBMC ASPEED AST2500 with KVM Support IPMI 2.0
• AMI MegaRAC, Virtual Media

Memory

Industry Standard DDR4 Registered (RDIMM)

Memory Protection

• Memory Static Virtual Lockstep
• Memory Mirror: Set entire 1LM memory in system to be mirrored, consequently reducing the memory capacity by half.
• Memory Rank Sparing
• Memory Correctable Error Threshold: Use for sparing, tagging, and leaky bucket
• Memory SDDC Plus One

Expansion Slots

NOTE: Bus Width data indicates the number of physical electrical lanes running to the connector.

NOTE: All risers are included. Expansion slot will only be available if the processor is installed.

Internal Storage Devices

Maximum Internal Storage

Power Supply

• (2) 800 FlexSlot Hot Plug Redundant Power Supplies for LFF version
• (2) 1600W FlexSlot Hot Plug Redundant Power Supplies for NVMe version

System Fans

(8) hot-swappable non redundant fans (+2 internal rear fans for NVMe SSD SKU)

Interfaces

Operating Systems

NOTE: Tested for successful installation only, No Operating Systems certification done unless indicated.

Linux

• Red Hat Enterprise Linux 7.6 (64 bit) (includes KVM)
• SLES 15 SP0 (64 bit) (includes XEN &KVM)
• Ubuntu 16.04.6
• Ubuntu 18.04.2
• CentOS 7.6

Hypervisors

VMware vSphere 6.7 U1

Industry Standard Compliance

• ACPI 6.1
• PCIe 3.0
• PXE Support
• WOL Support
• USB 3.0 Support

Graphics

Integrated PCIe VGA/2D Controller via ASPEED 2500 BMC, 1920 x 1200 @ 60Hz (32 bpp)

Form Factor

1U Rack form factor  1.69" (4.3cm) Height x 17.18" (43.65 cm) Width x 36" (91.44 cm) Length

Security

• Power-on password
• Administrator's password
• TPM 2.0 (Optional)
• UEFI Secure Boot

Warranty

Hardware support is available for 3 years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Hard drives have either a one year or three year warranty; refer to the HPE Cloudline Servers and Options Global Limited Warranty and Technical Support for details.

NOTE: Server Warranty includes 3-Years Parts with five (5) days response time, 0-Years Labor, 0-Years Onsite support. Additional information regarding worldwide limited warranty and technical support is available at

http://www.hpe.com/support/cloudline_warranty_en.

Response time: Response times are based on local standard business days and working hours. Unless otherwise stated, all responses are measured from the time the customer calls until Hewlett Packard Enterprise has either established a mutually acceptable time for support to be performed, or Hewlett Packard Enterprise has begun to provide support or remote diagnostics. Response time is based on commercially reasonable effort. In some countries and under certain supplier constraints, response time may vary. If your location is outside the customary service zone, response time may be longer or there may be an additional charge. Contact your local Hewlett Packard Enterprise service organization for response time availability in your area.

HPE Services

HPE Pointnext Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Support Services

HPE Cloudline Support Services provide remote diagnosis and support, scheduled onsite hardware repair/troubleshooting, and coverage for replacement components, including defective media retention (DMR). With HPE Cloudline Support Services, you can purchase the services that meet your specific needs.

• 3 year Cloudline Parts plus Labor plus Remote Technical Support
• 3 year Cloudline Parts plus Labor plus Remote Technical wCDMR
• 3 year Cloudline Parts plus Labor plus Remote Technical wDMR
• 3 year Cloudline Parts plus Remote Technical wCDMR
• 3 year Cloudline Parts plus Remote Technical wDMR

Standard Support recommendation

Connect to Hewlett Packard Enterprise for faster problem resolution. Cloudline Support Services provides hardware onsite response. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Datacenter Care for Hyperscale

DC for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture. Customers can take advantage of this environment support tailored to their operating model. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA6-3460ENW.pdf

Spares Management Service

Provides customers with spare parts inventory for onsite stocking, and access to the HPE Spares Management Tool – an automated inventory management tool that helps enable real-time inventory management. More information at

https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA1-3116ENW.pdf

Advisory & Transformational Services

Design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge. More information at

https://www.hpe.com/us/en/services/consulting.html

Lifecycle Event Services

Operational offerings to improve performance and securely handle retirement of customers’ IT environments. More information at https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=5982-0093enn

• Operate & Improve performance, minimize risk of downtime, and reduce security risks.

Retire & Sanitize to safely and securely dispose of retired IT, and ensuring customer data cannot be compromised.

Professional Services

Integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment. More information at https://www.hpe.com/us/en/services/professional.html.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

• Factory Integrated Models must start with a CTO Server.
• FIO indicates that this option is only available as a factory installable option.
• All Factory Integrated Models will be populated with sufficient hard drive blanks
• Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one of the following configurable models)

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

HPE Processors

NOTE: Select up to two Processors for LFF Server (P13646-B21)

NOTE: MUST select two Processors for NVMe Server (P03232-B21)

NOTE: Mixing of 2 different processor models are NOT allowed.

NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed

Gold Processors – In stock

HPE CL Gen10 Intel Xeon-Gold 6262V (1.9GHz/24-core/135W) FIO Processor Kit

P19128-L21

HPE CL Gen10 Intel Xeon-Gold 6238 (2.1GHz/22-core/140W) FIO Processor Kit

P19125-L21

HPE CL Gen10 Intel Xeon-Gold 6234 (3.3GHz/8-core/130W) FIO Processor Kit

P19124-L21

HPE CL Gen10 Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) FIO Processor Kit

P12078-L21

HPE CL Gen10 Intel Xeon-Gold 6226 (2.7GHz/12-core/125W) FIO Processor Kit

P19123-L21

HPE CL Gen10 Intel Xeon-Gold 6222V (1.8GHz/20-core/115W) FIO Processor Kit

P19127-L21

HPE CL Gen10 Intel Xeon-Gold 5222 (3.8GHz/4-core/105W) FIO Processor Kit

P19122-L21

HPE CL Gen10 Intel Xeon-Gold 5220S (2.7GHz/18-core/125W) FIO Processor Kit

P19121-L21

HPE CL Gen10 Intel Xeon-Gold 5220 (2.2GHz/18-core/125W) FIO Processor Kit

P12077-L21

HPE CL Gen10 Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) FIO Processor Kit

P12075-L21

HPE CL Gen10 Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) FIO Processor Kit

P12071-L21

Silver Processors – In stock

HPE CL Gen10 Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) FIO Processor Kit

P12070-L21

HPE CL Gen10 Intel Xeon-Silver 4215 (2.5GHz/8-core/85W) FIO Processor Kit

P12069-L21

HPE CL Gen10 Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) FIO Processor Kit

P12067-L21

HPE CL Gen10 Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) FIO Processor Kit

P12066-L21

HPE CL Gen10 Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) FIO Processor Kit

P12064-L21

Bronze Processors – In stock

HPE CL Gen10 Intel Xeon-Bronze 3204 (1.9GHz/6-core/85W) FIO Processor Kit

P19129-L21

HPE Memory DDR4-2933

NOTE: Select one or more memory. A minimum of two memory kits are required if server is configured with two processors.

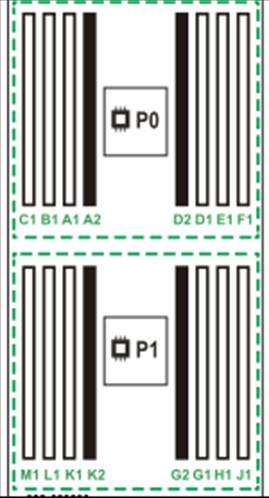

NOTE: If only one processor is installed, only half of the total DIMM slots are available. When populating with two processors, all DIMM slots are available.

NOTE: Depending on the memory configuration and processor model, the memory speed may run at different speeds.

Registered DIMMs

HPE DDR4 Special SmartMemory

P14119-B21

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Memory FIO Kit

P10660-B21

HPE DDR4 Special SmartMemory

P14492-B21

HPE Power Supplies

NOTE: Required 2x 800W Power Supplies for LFF CTO Server and 2x 1600W Power Supplies for NVMe CTO Server.

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

830272-B21

Step 3: Choose Additional Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Drives

NOTE: Up to 2SFF SATA SSDs supported in both LFF and NVMe CTO servers in rear cage.

SFF (2.5-inch) SATA SSD

HPE CL 240GB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08796-B21

HPE CL 480GB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08799-B21

HPE CL 960GB SATA 6G Mixed Use SFF (2.5in) Intel S4610 FIO SSD

P08811-B21

NOTE: NVMe SSDs only supported on NVMe CTO server

SFF (2.5-inch) NVMe SSD

HPE CL 1TB NVMe x4 Lanes Read Intensive SFF (2.5in) Intel P4510 FIO SSD

P11563-B21

HPE CL 2TB NVMe x4 Lanes Read Intensive SFF (2.5in) Intel P4510 FIO SSD

P04600-B21

HPE CL 3.2TB NVMe x4 Lanes Mixed Use SFF (2.5in) Intel P4610 FIO SSD

P06660-B21

HPE CL 4TB NVMe x4 Lanes Read Intensive SFF (2.5in) Intel P4510 FIO SSD

P06663-B21

NOTE: LFF SATA HDDs only supported on LFF HDD CTO server.

LFF (3.5") SATA HDD

HPE CL 6TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate Self-encrypting HDD

P17489-B21

HPE CL 6TB SATA 6G Enterprise 7.2K LFF (3.5in) Hitachi SE 512e FIO HDD

P08756-B21

HPE CL 8TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate ISE FIO HDD

P17492-B21

HPE CL 10TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate 512e FIO HDD

P08762-B21

HPE CL 10TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate Self-encrypting FIO HDD

P17495-B21

HPE CL 10TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate FIO HDD

P19168-B21

HPE CL 12TB 6G SATA 7.2K rpm LFF (3.5in) Hitachi 512e Hard Drive

880852-B21

HPE CL 12TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate Self-encrypting FIO HDD

P17498-B21

HPE CL 14TB SATA 6G Enterprise 7.2K LFF (3.5in) Hitachi ISE 512e FIO HDD

P08759-B21

HPE CL 14TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate FIO HDD

P19167-B21

HPE Cloudline Server Special Hard Drives

P16792-B21

NOTE: Maximum LFF drive selection is dependent on Processor Wattage (W) With 85W Processor: Max is 12 More than 85W Processor: Max is 10

M.2 NVMe SSD (80mm)

HPE CL 256GB NVMe x4 Lanes Read Intensive M.2 - UFF to SFF Intel P4101 FIO SSD

P08793-B21

HPE Networking

OCP Mezzanine Adapters

HPE CL Ethernet 10Gb 2-port X710-DA2 SFP+ OCP FIO Adapter

P06629-B21

HPE CL Ethernet 10GBASE-T 2-port Q41132 OCP FIO Adapter

P08547-B21

HPE CL Ethernet 25Gb 1-port SFP28 Intel XXV710-D1 OCP FIO Mezzanine Adapter

880148-B21

HPE CL Ethernet 25Gb 2-port SFP28 Intel XXV710-D1 OCP FIO Mezzanine Adapter

880149-B21

HPE CL Ethernet 25Gb 2-port Mellanox ConnectX-4 Lx EN SFP28 OCP NC-SI FIO Adapter

P10014-B21

HPE CL Ethernet 50Gb 1-port SFP28 Mellanox ConnectX-4 Lx OCP FIO Mezzanine Adapter

880843-B21

PCle adapters

HPE CL Ethernet 10Gb 2-port SFP+ Intel X710 PCIe 3.0 Card

P01666-B21

HPE CL Ethernet 25Gb 2-port SFP28 Q41212 PCIe 3.0 Card

P01669-B21

HPE CL Ethernet 100Gb 1-port QSFP28 PCIe FIO Adapter

878071-B21

HPE Controllers

HPE CL Broadcom 9460-8i 2G with CVPM05 Tri-Mode RAID Controller

P01726-B21

HPE CL Broadcom 9460-16i 4G with CVPM05 Tri-Mode RAID Controller

P01727-B21

Upgrade

HPE CL SAS MegaRAID SafeStore Software License and Physical Key FIO Kit

P10017-B21

Security Hardware

HPE Trusted Platform Module 2.0 Kit

745823-B21

Rack Options

HPE CL3100 Gen10 FIO Cable Management Arm Kit

P19643-B21

Memory Subsystem Architecture

2^nd Gen Intel® Xeon® Processor Scalable Family socket contains six memory channels per installed processor with two DIMM per channel for a grand total of sixteen (16) DIMMs for the server.

Memory Population guidelines

General Memory Population Rules and Guidelines

• To maximize performance, it is recommended to balance the total memory capacity between all installed processors.
• When two processors are installed, balance the DIMMs across the two processors.
• White DIMM slots denote the first slot to be populated in a channel.
• Mixing of DIMM types (UDIMM, RDIMM, and LRDIMM) is not supported.
• The maximum memory speed is a function of the memory type, memory configuration, and processor model.
• The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.

DIMM slot and configuration order for each CPU

Rear

P0

1 DIMM

A1

2 DIMMs

B1

A1

3 DIMMs

C1

B1

A1

4 DIMMs

B1

A1

D1

E1

5 DIMMs *

C1

B1

A1

D1

E1

6 DIMMs

C1

B1

A1

D1

E1

F1

7 DIMMs *

C1

B1

A1

A2

D1

E1

F1

8 DIMMs *

C1

B1

A1

D2

A2

D1

E1

F1

NOTE: * Unbalanced

Front

P1

1 DIMM

G1

2 DIMMs

G1

H1

3 DIMMs

G1

H1

J1

4 DIMMs

L1

K1

G1

H1

5 DIMMs *

L1

K1

G1

H1

J1

6 DIMMs

M1

L1

K1

G1

H1

J1

7 DIMMs *

M1

L1

K1

G2

G1

H1

J1

8 DIMMs *

M1

L1

K1

G2

K2

G1

H1

J1

NOTE: * Unbalanced

Memory Bandwidth and Capacity

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 16GB = 16,384MB
• 32GB = 32,768MB
• 64GB = 65,536MB

DIMM Type

DIMMs

HPE SKU P/N

P10660-B21

P14119-B21

P14492-B21

SKU Description

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Memory FIO Kit

HPE DDR4 Special SmartMemory

HPE DDR4 Special SmartMemory

DIMM Capacity

32GB

16GB

64GB

DIMM Rank

2R

2R

2R

Voltage

1.2

1.2

1.2

DRAM Depth[bit]

4G

 1G

 2G

DRAM width[bit]

x4

x8

x4

DRAM Density

8G

8G

8G

CAS Latency

21-21-21

21-21-21

21-21-21

DIMM Native Speed

2933 MT/s

2933 MT/s

2933 MT/s

Processors Officially Supported Memory Speed:

Intel® Xeon® Gold 62xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2933 MT/s

2933 MT/s

2933 MT/s

2 DIMMs Per Channel

2666 MT/s

2666 MT/s

2666  MT/s

Intel® Xeon® Gold 52xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2666 MT/s

2666 MT/s

2666 MT/s

2 DIMMs Per Channel

2666 MT/s

2666 MT/s

2666 MT/s

Intel® Xeon® Silver 42xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2400 MT/s

2400 MT/s

2400 MT/s

2 DIMMs Per Channel

2400 MT/s

2400 MT/s

2400 MT/s

Intel® Xeon® Bronze 32xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2133MT/s

2133MT/s

2133MT/s

2 DIMMs Per Channel

2133MT/s

2133MT/s

2133MT/s

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor model. For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

Ambient

LFF system

12 LFF

CPU -Max

LFF HDD-Max (W/ BP)

Rear SFF Drive-Max

OCP-Max

35C

85W*

6TB/8TB (8W)

480GB(5W)

2x10Gb/2x25Gb

30C

105W

6TB/8TB/10TB/12TB/14TB (10W)

480GB/960G/1.6T
(6W)

2x10Gb/2x25Gb/1x50Gb/
1x100Gb

25C

125w

6TB/8TB/10TB/12TB/14TB (10W)

480GB/960G/1.6T
(6W)

2x10Gb/2x25Gb/1x50Gb/
1x100Gb

20C

140W

6TB/8TB/10TB/12TB/14TB (10W)

480GB/960G/1.6T
(6W)

2x10Gb/2x25Gb/1x50Gb/
1x100Gb

Ambient

NVMe system

20 NVMe

CPU -Max

NVMe-Max

Rear Drive-Max

OCP-Max

35C

85W*

P4510 2T/4T NVMe(14W)

480GB(5W)

2x10Gb/2x25Gb

30C

105W

P4510 2T/4T, P4500 2T/4T(18W)

480GB/960G/1.6T
(6W)

2x10Gb/2x25Gb/1x50Gb/
1x100Gb

25C

125W

2T/3.2T/4T(21W)

480GB/960G/1.6T
(6W)

2x10Gb/2x25Gb/1x50Gb/
1x100Gb

20C

140W

P4500 2T/4T, P4510 2T/4T, P4600 3.2T NVMe(21W)

480GB/960G/1.6T
(6W)

2x10Gb/2x25Gb/1x50Gb/
1x100Gb

NVMe M.2 Information

NVMe M.2

Processor Supported

CL3100 G10 configuration

12LFF

20NVMe

256G NVMe M.2

85W or below

25C

25C

System Unit

Dimensions (H x W x D)

1.69" (4.3cm) Height x 17.18" (43.65 cm) Width x 36" (91.44 cm) Length

Weight

(approximate)

Maximum: (all hard drives, power supplies, and processors installed)

25.58 kg 12LFF / 21.28kg 20 NVMe

Minimum: (one hard drive, power supply, and processor installed)

16.52 kg

Input Requirements

Rated Line Voltage

100 – 240 VAC

Rated Input Current

For 800W: 9.4-4.5A

For 1600W: 8.7A Max

Rated Input Frequency

50 - 60Hz

Rated Output Power

800W @ +12VDC, 67A Max

1600W @ +12VDC, 133.3A Max

Rated Input Power

100 – 127V @ 1,185W
200 – 240V @ 1,345W

BTU Rating

Maximum

For 800W Power Supply: 3207 BTU/hr (at 100 VAC), 3071 BTU/hr (at 200 VAC) , 3112 BTU/hr (at 240 VAC) 200 – 240V @ 4586.45 BTU/hour

System Inlet Temperature

Standard Operating Support

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight.  Maximum rate of change is 20°C/hr (36°F/hr).  The upper limit and rate of change may be limited by the type and number of options installed.

System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F).   Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity

(non-condensing)

Operating

8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Environment friendly Products and Approach End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/recycle. To recycle your product, please go to: http://www.hpe.com/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hpe.com/recycle. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

03-Feb-2020

Version 5

Changed

Standard Features and Configuration Information sections were updated.

02-Dec-2019

Version 4

Changed

Hot-Plug version added, processors and options included.

All sections were updated.

01-Jul-2019

Version 3

Changed

Configuration Information section was updated.

Obsolete SKUs were removed

04-Feb-2019

Version 2

Changed

Standard Features section was updated

03-Dec-2018

Version1

Created

New QuickSpecs
