HPE Cloudline CL3100 G3 Server

The HPE Cloudline CL3100 G3 is a new 1U 2P dense storage server for Cloud Service Providers that Features the latest Intel Xeon E5-2600v3 / v4 processors, choice of 12LFF, 24SFF or 4 SSD hard drives. Without any extras, this server is ideal for Hadoop/Casandra workloads to meet the storage needs of Service Providers.

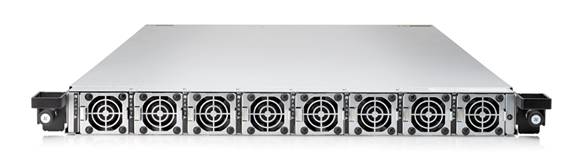

Front View

(8) Hot-plug fans

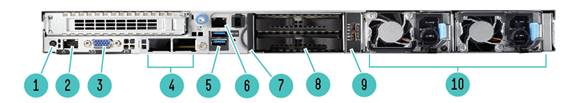

Rear View

Item

Description

Item

Description

1.

Power button with LED

6.

RJ45

2.

RJ45 for serial console

7.

Service Tag

3.

VGA port

8.

(2) 2.5" HDD or (4) SSD/SFF

4.

OCP mezzanine card

9.

LED panel

5.

(2) USB 3.0 Ports

10.

(2) Redundant PSUs

Rear View

12x LFF Hot Pluggable Hard Drive Bays

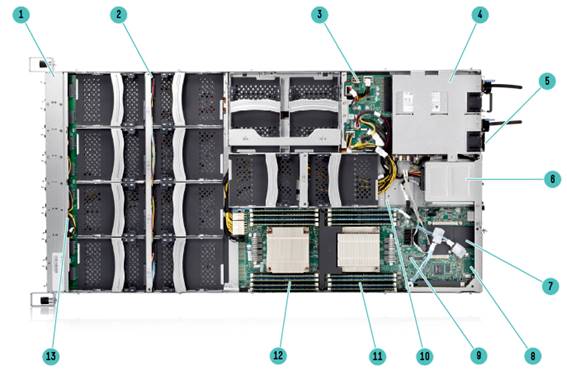

Internal View - 12 LFF

Item

Description

Item

Description

1.

(8) Hot-plug fans

8.

(1) PCIE Add-on Card

2.

(1) HDD Backplane optional

9.

(12) 3.5" LFF HDD

3.

(1) Power Interposer Board

10.

(1) Super Cap for HBA card

4.

(2) Redundant PSUs

11.

(16) DIMM slot

5.

(1) LED Board

12.

(2) CPU/ CPU Heat sink

6.

(4) SSD or (2) 2.5" SFF

13.

(1) Fan Control Board

7.

(1) OCP Mezzanine Card

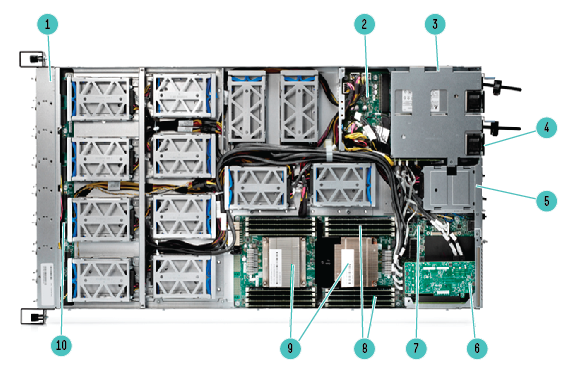

Internal View - 24 SFF

Item

Description

Item

Description

1.

Hot-swappable fan (8)

7.

System Board (1)

2.

Power Interposer Board (1)

8.

DIMM slot (16)

3.

Redundant PSUs (2)

9.

CPU/ CPU Heat sink (2)

4.

LED Board (1)

10.

Fan Control Board (1)

5.

(4) SSD or (2) 2.5" SFF

11.

2.5" SFF (24)

6.

PCIE Add-on Card (1)

Processor

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

NOTE: Up to 2 processors supported. Mixing different processor models is not supported.

Intel® Xeon® processor E5-2600 v4 product family

Chipset

Intel® C610 Series Chipset

NOTE: For more information regarding Intel chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

Upgradeability

Upgradeable to 2 processors (36 Cores)

Up to 16 DIMM slots available for higher Memory capacity

OCP Mezzanine connector for 10 Gigabit networking options

12LFF + 2 x 2,5''HDD, 24SFF or 4 SSD Drive Cage Bay

On System Management Processor

iBMC ASPEED AST2400 with KVM Support

Memory

Industry Standard DDR4 Registered (RDIMM)

DIMM Slots Available        16           (8 DIMM slots per processor, 4 channels per processor, 2 DIMMs per channel)

Maximum Capacity            512GB  (16 x 32GB RDIMM) 16GB/32GB DDR4 up to 2400MT/s

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Online spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Expansion Slots One of the following depending on model

NOTE: Bus Width data indicates the number of physical electrical lanes running to the connector.

Internal Storage Devices

One of the following depending on model

Optical Drive None

Hard Drives  None ship standard

Drive Bays    12 LFF or 4 SSD

Maximum Internal Storage

Power Supply

HPE CL 550W Redundant Platinum PSU

HPE CL 800W Redundant Platinum PSU

System Fans

(8) 4028 Hot Plug fans, Front to Back, N+0 redundant (135W CPU), N+1 redundant (up to 120W CPU)

Interfaces

Serial                                     1

Video                                     1

OCP NIC                ports                     2x SFP+ ports (for OCP NIC Mezzanine card) - depending on model

IPMI management port     dedicated 10/100M LAN port

USB 3.0 Ports                      Up to 2

Operating Systems Test for CL3100 Server

RHEL 7.0

CentOS 6.6

Windows Server 2012 R2

SLES 12

Ubuntu 12.04.5

Industry Standard Compliance

ACPI 2.0b Complaint

PCIe 3.0 Complaint

PXE Support

WOL Support

USB 2.0 Support

Graphics

Integrated PCIe VGA/2D Controller via ASPEED 2400 BMC, 1920 x 1200 @ 60Hz (32 bpp)

Form Factor

1.69" x 17.18" x 36" (43.00 mm x 436.50mm x 914.40mm)

1U Rack form factor

Security

Power-on password

Administrator's password

UEFI

Warranty

Hardware support is available for 3 years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Hard drives have either a one year or three year warranty; refer to the HPE Cloudline Servers and Options Global Limited Warranty and Technical Support for details.

NOTE: Server Warranty includes 3 Years Parts with five (5) days response time, 0 Years Labor, and 0 Years Onsite Support. Additional information regarding worldwide limited warranty and technical support is available at

http://www.hpe.com/support/cloudline_warranty_en.

Response time: Response times are based on local standard business days and working hours. Unless otherwise stated, all responses are measured from the time the customer calls until Hewlett Packard Enterprise has either established a mutually acceptable time for support to be performed, or Hewlett Packard Enterprise has begun to provide support or remote diagnostics. Response time is based on commercially reasonable effort. In some countries and under certain supplier constraints, response time may vary. If your location is outside the customary service zone, response time may be longer or there may be an additional charge. Contact your local Hewlett Packard Enterprise service organization for response time availability in your area.

Protect your business beyond warranty with HPE Pointnext operational services

HPE Cloudline Support Services provide remote diagnosis and support, scheduled onsite hardware repair/troubleshooting, and coverage for replacement components, including defective media retention (DMR). With HPE Cloudline Support Services, you can purchase the services that meet your specific needs.

- HPE 5800 Parts + Remote Technical Support + Defective Media Retention

- HPE 5800 Parts + Remote Technical Support + Onsite Labor

- HPE 5800 Parts + Remote Technical Support + Onsite Labor + Defective Media Retention

Additional information regarding HPE packaged support services for Cloudline servers is available at:

https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA5-9207ENN.pdf.

Standard Support recommendation

Connect to Hewlett Packard Enterprise for faster problem resolution. Cloudline Carepack Services provides hardware onsite response. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

Datacenter Care for Hyperscale

DC for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture. Customers can take advantage of this environment support tailored to their operating model. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA6-3460ENW.pdf.

Spares Management Service

Provides customers with spare parts inventory for onsite stocking, and access to the HPE Spares Management Tool - an automated inventory management tool that helps enable real-time inventory management. More information at

https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA1-3116ENW.pdf.

Advisory & Transformational Services

Design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge. More information at

https://www.hpe.com/us/en/services/consulting.html.

Lifecycle Event Services

Operational offerings to improve performance and securely handle retirement of customers' IT environments. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/5981-8521ENE.pdf.

- Operate & Improve performance, minimize risk of downtime, and reduce security risks.

- Retire & Sanitize to safely and securely dispose of retired IT, and ensuring customer data cannot be compromised.

Professional Services

Integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment. More information at https://www.hpe.com/us/en/services/professional.html.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Memory Subsystem Architecture

Each Intel® Xeon® E5-2600v3/v4 family processor socket contains four memory channels per installed processor with two DIMM per channel for a total of eight (8) DIMMs or a grand total of sixteen (16) DIMMs for the server.

Memory Population guidelines

General Memory Population Rules and Guidelines

Install DIMMs only if the corresponding processor is installed.

If only one processor is installed in a two processor system, only half of the DIMM slots are available.

To maximize performance, it is recommended to balance the total memory capacity between all installed processors and load the channels similarly whenever possible.

When two processors are installed, balance the DIMMs across the two processors.

Quad rank RDIMMs are not supported in CL 3100 G3 Servers

DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed. The maximum memory speed is a function of the memory type, memory configuration, and processor model.

The maximum memory capacity is a function of the memory type and number of installed processors.

Memory Bandwidth and Capacity
