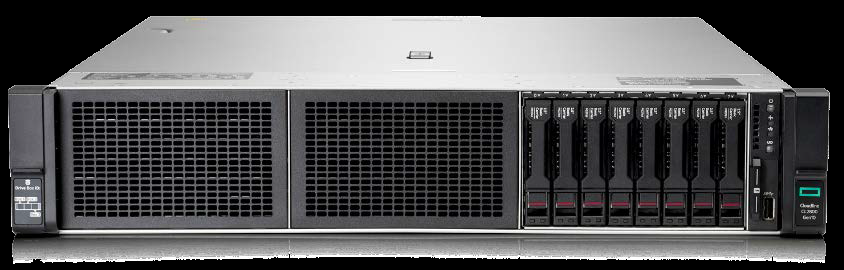

HPE Cloudline CL2800 Gen10 Server

Adaptable for diverse workloads and environments, the secure 2P 2U HPE Cloudline 2800 Gen10 delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency while being backed by a comprehensive warranty make it ideal for multiple environments from Containers to Cloud to Big Data. Standardize on the industry's most trusted compute platform.

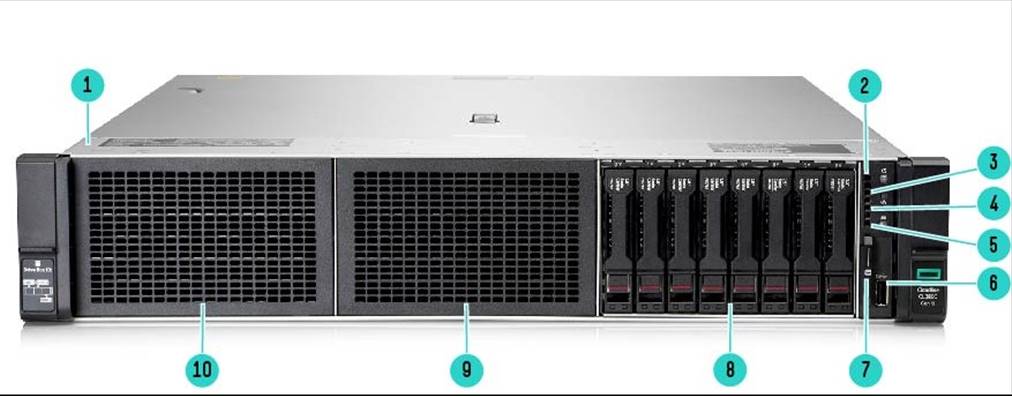

8 SFF chassis- Front View

Item

Description

Item

Description

1.

Quick removal access panel

6.

USB 3.0

2.

Power On/Standby button and system power LED button

7.

Serial label pull tag

3.

Health LED

8.

8 SFF Drive Cage Bay (Box 3)

4.

NIC status

9.

Box 2

5.

UID button

10.

Box 1

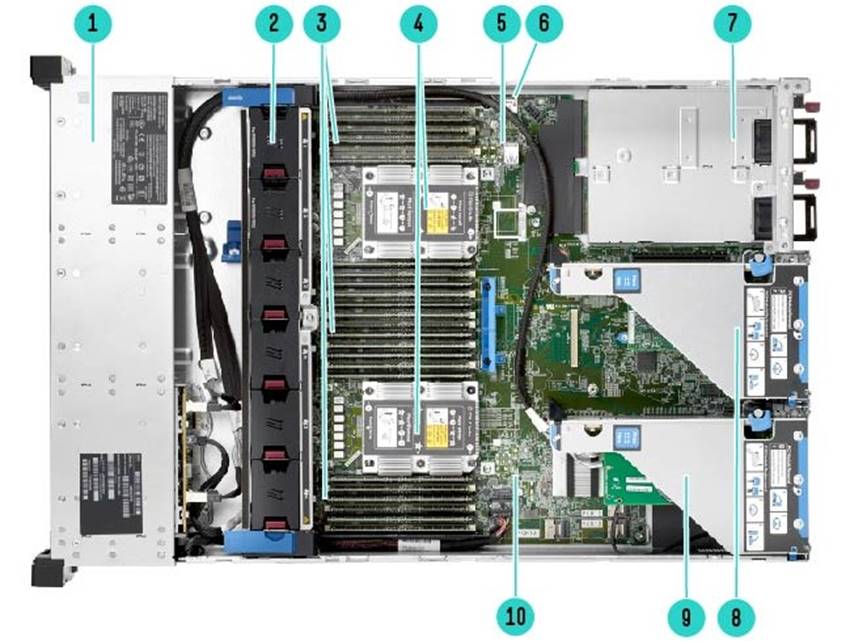

8SFF chassis - with optional 2^nd CPU- Internal View

Item

Description

Item

Description

1.

Drive cage up to 24 SFF SAS/SATA, 16 SFF NVMe, or 12 LFF SATA

6.

microSD card slot

2.

Hot-swappable fans

7.

Redundant HPE Flexible Slot Power supplies

3.

DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor)

8.

Secondary PCIe 3.0 riser

4.

Processors, heatsink showing

9.

Primary PCIe 3.0 riser

5.

USB 3.0

10.

System board

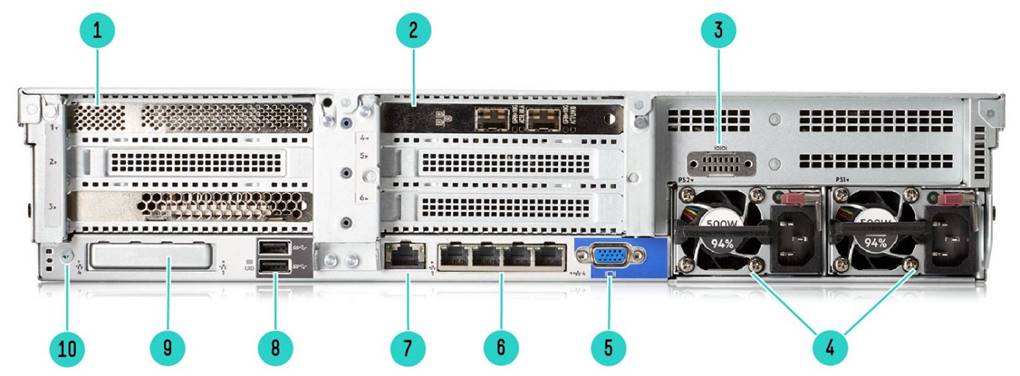

Rear View

Item

Description

Item

Description

1.

Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown)

6..

Embedded 4 x 1GbEE Network Adapter (1^st Generation Intel Xeon Processor Scalable Family chassis)¹

2.

Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor).

7.

BMC management port (1 GbE)

3.

Optional serial port

8.

USB connectors 3.0 (2)

4.

Power supply

9.

FlexLOM 4 x 1GbEE Network Adapter (2^nd Generation Intel Xeon Processor Scalable Family chassis)

5.

VGA connector

10

Unit ID LED

NOTE: ¹ Networking Choice (NC) models do not include an embedded NIC

What's New:

• European Union (EU) Lot 9 regulation, please visit:
  https://www.hpe.com/us/en/about/environment/msds-specs-more.html for more information.
• Network Choice (NC) CTO models featuring no embedded LOM
• 2nd generation Intel® Xeon® Scalable Processor Family
• 16/32/64GB 2933 MT/s DIMMs
• Intel® VROC Software License
• 480/960GB & 2.4TB Secure Encrypted Drives (SED)

Platform Information

Form Factor

2U rack

Chassis Types

• 8 SFF with optional Universal Media Bay, and optional SFF or NVMe drive bay options

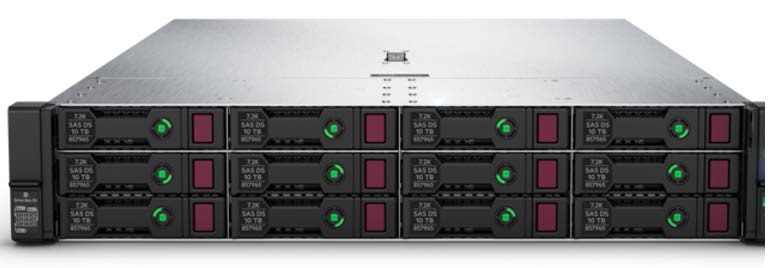

• 12 LFF

NOTE: The 8 SFF can be upgraded with additional 8SFF drive box to total 16 or 24 SFF drives.

NOTE: The 8 LFF chassis cannot be upgraded to 12 LFF.

System Fans

Standard - fan types included

NOTE: 1P models typically ship with 4 standard fans.

NOTE: 2P models typically ship with 6 standard fans.

NOTE: The 12 LFF and 24 SFF chassis ship with 6 High performance fans as standard.

NOTE: High performance fan kit is available to meet ambient temperature environments.

NOTE: High performance fan kits are required for NVMe configurations.

Standard Features

Processors - Up to 2 of the following depending on model.

NOTE: The 2nd digit of the processor model number "x1xx" and "x2xx" is used to denote the processor generation (i.e. 1=1st generation and 2=2nd generation)

NOTE: This table covers the public Intel offering only.

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon

2nd Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per

socket

Platinum 8280M Processor

2.7 GHz

28

38.50 MB

205W

3 @ 10.4 GT/s

2933 MT/s

2TB

Platinum 8276M Processor

2.2 GHz

28

38.50 MB

165W

3 @ 10.4 GT/s

2933 MT/s

2TB

Platinum 8276 Processor

2.2 GHz

28

38.50 MB

165W

3 @ 10.4 GT/s

2933 MT/s

1TB

Platinum 8270 Processor

2.7 GHz

26

35.75 MB

205W

3 @ 10.4 GT/s

2933 MT/s

1TB

Platinum 8268 Processor

2.9 GHz

24

35.75 MB

205W

3 @ 10.4 GT/s

2933 MT/s

1TB

Platinum 8260M Processor

2.4 GHz

24

35.75 MB

165W

3 @ 10.4 GT/s

2933 MT/s

2TB

Platinum 8260 Processor

2.4 GHz

24

35.75 MB

165W

3 @ 10.4 GT/s

2933 MT/s

1TB

NOTE: Platinum Processors:

2^nd Generation:

• 6-Channel DDR4 @ 2933 MT/s.
• Support for: Vector Neural Network Instructions (VNNI) for inference acceleration.
• 2 and 4 socket capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 10.4 GT/s.
• Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).
• 48 lanes PCIe 3.0, advanced RAS

2nd Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per

socket

Gold 6254 Processor

3.1 GHz

18

24.75 MB

200W

3 @ 10.4 GT/s

2933 MT/s

1TB

Gold 6248 Processor

2.5 GHz

20

27.5 MB

150W

3 @ 10.4 GT/s

2933 MT/s

1TB

Gold 6242 Processor

2.8 GHz

16

22 MB

150W

3 @ 10.4 GT/s

2933 MT/s

1TB

Gold 6240 Processor

2.6 GHz

18

24.75 MB

150W

3 @ 10.4 GT/s

2933 MT/s

1TB

Gold 6230 Processor

2.1 GHz

20

27.5 MB

125W

3 @ 10.4 GT/s

2933 MT/s

1TB

Gold 5220 Processor

2.2 GHz

18

24.75 MB

125W

2 @ 10.4 GT/s

2666 MT/s

1TB

Gold 5218 Processor

2.3 GHz

16

22 MB

125W

2 @ 10.4 GT/s

2666 MT/s

1TB

Gold 5217 Processor

3.0 GHz

8

11 MB

115W

2 @ 10.4 GT/s

2666 MT/s

1TB

Gold 5215M Processor

2.5 GHz

10

13.75 MB

85W

2 @ 10.4 GT/s

2666 MT/s

2TB

Gold 5215 Processor

2.5 GHz

10

13.75 MB

85W

2 @ 10.4 GT/s

2666 MT/s

1TB

1st Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per

socket

Gold 6152 Processor

2.1 GHz

22

30.25 MB

140W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6148 Processor

2.4 GHz

20

27.50 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6144 Processor

3.5 GHz

8

24.75 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6142 Processor

2.6 GHz

16

22.00 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6140 Processor

2.3 GHz

18

24.75 MB

140W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6138 Processor

2.0 GHz

20

27.50 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6136 Processor

3.0 GHz

12

24.75 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6134 Processor

3.2 GHz

8

24.75 MB

130W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6130 Processor

2.1 GHz

16

22.00 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6128 Processor

3.4 GHz

6

19.25 MB

115W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6126 Processor

2.6 GHz

12

19.25 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 5122 Processor

3.6 GHz

4

16.50 MB

105W

2 @ 10.4 GT/s

2666 MT/s

768GB

Gold 5120 Processor

2.2 GHz

14

19.25 MB

105W

2 @ 10.4 GT/s

2400 MT/s

768GB

Gold 5118 Processor

2.3 GHz

12

16.50 MB

105W

2 @ 10.4 GT/s

2400 MT/s

768GB

Gold 5115 Processor

2.4 GHz

10

13.75 MB

85W

2 @ 10.4 GT/s

2400 MT/s

768GB

NOTE: Gold Processors:

2^nd Generation:

6-Channel DDR4 @ 2933 MT/s (Gold 6200 skus only), 2666 MT/s on all Gold 5200 skus

Support for: Vector Neural Network Instructions (VNNI) for inference acceleration.

2 and 4 socket capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 10.4 GT/s.

Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).

48 lanes PCIe 3.0, advanced RAS

1^st Generation:

6-Channel 1DPC DDR4 @ 2400 MT/s (SKU 5122 - supports 2666 MT/s).

768 GB max memory capacity (1.5 TB on select skus).

2 and 4 socket capable, 2S - 2UPI, 4S - 3UPI @ 10.4 GT/s.

Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA) (SKU 5122 - supports 2x

512 bit FMA).

48 lanes PCIe 3.0, advanced RAS.

2nd Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per

socket

Silver 4216 Processor

2.1 GHz

16

22 MB

100W

2 @ 9.6 GT/s

2400 MT/s

1TB

Silver 4215 Processor

2.5 GHz

8

11 MB

85W

2 @ 9.6 GT/s

2400 MT/s

1TB

Silver 4214 Processor

2.2 GHz

12

16.5 MB

85W

2 @ 9.6 GT/s

2400 MT/s

1TB

Silver 4210 Processor

2.2 GHz

10

13.75 MB

85W

2 @ 9.6 GT/s

2400 MT/s

1TB

Silver 4208 Processor

2.1 GHz

8

11 MB

85W

2 @ 9.6 GT/s

2400 MT/s

1TB

1^st Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per

socket

Silver 4116 Processor

2.1 GHz

12

16.50 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768GB

Silver 4114 Processor

2.2 GHz

10

13.75 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768GB

Silver 4112 Processor

2.6 GHz

4

8.25 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768GB

Silver 4110 Processor

2.1 GHz

8

11.00 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768GB

Silver 4108 Processor

1.8 GHz

8

11.00 MB

85W

2 @ 9.6 GT/s

2400 MT/s

768GB

NOTE: Silver Processors:

2^nd Generation:

6-Channel DDR4 @ 2400 MT/s.

2TB max RAM

Support for: Intel® Vector Neural Network Instructions (VNNI) for inference acceleration.

2 and 4 socket capable, 2S - 2UPI, 2S - 3UPI, 4S - 3UPI @ 9.6 GT/s.

Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA).

48 lanes PCIe 3.0, standard RAS

1^st Generation:

6-Channel DDR4 @ 2400 MT/s, 768 GB max memory capacity.

2 socket capable, 2S - 2UPI @ 9.6 GT/s.

Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (1x 512-bit FMA).

48 lanes PCIe 3.0, standard RAS.

1st Generation Intel® Xeon® Scalable Processor Family

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Memory per

socket

Bronze 3106 Processor

1.7 GHz

8

11.00 MB

85W

2 @ 9.6 GT/s

2133 MT/s

768GB

Bronze 3104 Processor

1.7 GHz

6

8.25 MB

85W

2 @ 9.6 GT/s

2133 MT/s

768GB

NOTE: Bronze Processors:

1^st Generation:

• 6-Channel DDR4 @ 2133 MT/s, 768 GB max memory capacity.
• 2 socket capable, 2S - 2UPI @ 9.6 GT/s.
• Intel AVX-512 (1x 512-bit FMA).
• 48 lanes PCIe 3.0, standard RAS.

Chipset

Intel C621 Chipset

NOTE: For more information regarding Intel® chipsets, please see the following URL:

https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html

On System Management Chipset

HPE BMC - remote server management processor embedded on the system board of the server

Memory

Type:

Industry Standard DDR4 Registered (RDIMM) and Load Reduced (LRDIMM)

DIMM Slots Available

24

12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel

Maximum capacity (LRDIMM)

1.5 TB

24 x 64 GB LRDIMM @ 2933 MHz

Maximum capacity (RDIMM)

1.5 TB

24 x 64 GB RDIMM @ 2933 MHz

NOTE: Maximum memory per socket is dependent on processor selection. For example, processors supporting 2 TB per CPU is indicated by the "M" in the processor model names (i.e. 6238M).

NOTE: Mixing of RDIMM and LRDIMM memory is not supported.

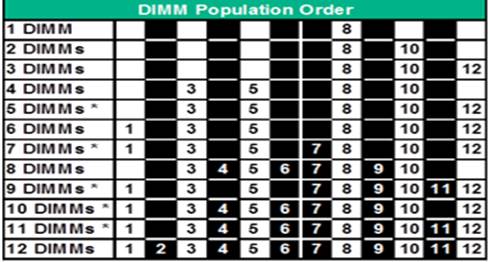

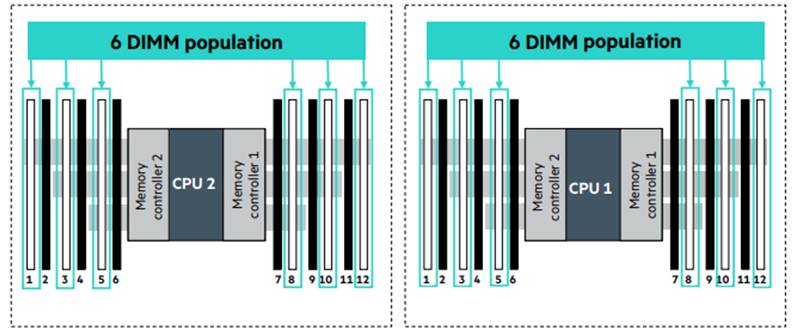

NOTE: For General Server Memory Population Rules and Guidelines for Gen10 see details here:

http://www.hpe.com/docs/memory-population-rules

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Online Spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Expansion Slots

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

1

PCIe 3.0

X8

X8

Full-height,

full-length slot

Proc 1

2

PCIe 3.0

X16

X16

Full-height,

full-length slot

Proc 1

3

PCIe 3.0

X8

X8

Full-height,

half-length slot

Proc 1

NOTE: Bus Width Indicates the number of physical electrical lanes running to the connector.

NOTE: This riser also supports dual m.2 cards.

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

1

PCIe 3.0

X8

X8

Full-height,

full-length slot

Proc 2

2

PCIe 3.0

X16

X16

Full-height,

full-length slot

Proc 2

3

PCIe 3.0

X8

X8

Full-height,

half-length slot

Proc 2

Slots #

Technology

Bus Width

Connector Width

Slot Form Factor

Notes

1

PCIe 3.0

X8

X8

Full-height, full-length slot

Proc 2 required

2

PCIe 3.0

X8

X8

Full-height, full-length slot

Proc 2 required

Storage Controllers

• Embedded Software RAID
• Intel C621 AHCI SATA RAID with 14 SATA ports, 12 ports accessable (embedded)
• RAID Controllers
• Broadcom 9460-8i/16i RAID Controller
• LSI 9361-8i/16i RAID Controller
• Intel Virtual RAID on CPU (Intel VROC)
• HBA Controllers
• LSI 9300-8i SAS HBA Card
• LSI 9305-16i SAS HBA Card

Internal Storage Devices

Hard Drives

None ship standard

Maximum Internal Storage

Storage

Capacity

Configuration

Hot Plug SFF SAS & Hot Plug SFF SAS Self Encrypting

(SED)

57.6 TB

24 2.4TB

Hot Plug LFF SATA

168 TB

12 x 14 TB

Hot Plug SFF SAS SSD

184.32 TB

24 x 7.68 TB

Hot Plug SFF NVMe PCIe SSD

128 TB

16 x 8 TB NVMe

NOTE: 2x m.2 drives are supported on the Primary Riser.

Power Supply

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% efficiency.

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% and 96% efficiency.

NOTE: Also available in -48VDC and 227VAC/380VDC power inputs.

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE Cloudline Gen10 Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the HPE Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Interfaces

Serial

1 port with cable optional, rear

Video

1 Rear - VGA port (standard on all chassis types)

Network Ports

4x 1GbE embedded NIC  (if equipped/depending on model)

BMC Remote Management Network Port

1 GbE  Dedicated

Micro SD Slot

1 Micro SD (internal)

NOTE: The Micro SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.

USB 3.0

Up to 5 total: 1 front, 2 rear, 2 internal (secure)

Operating Systems and Virtualization Software Support for Cloudline Servers

2^nd Generation Intel® Xeon® Scalable Processor Family

• Microsoft Windows Server 2012 R2
• Microsoft Windows Server 2016
• Red Hat Enterprise Linux 7.6 (64 bit) (includes KVM)
• SLES 12 SP3 (64 bit) w/ Xen and KVM
• SLES 15 (64 bit) w/ Xen and KVM

VMware vSphere 6.5 U3, 6.7 U1

CentOS 7.6

Ubuntu LTS 18.04

1^st Generation Intel® Xeon® Scalable Processor Family

• Microsoft Windows Server 2012 R2
• Microsoft Windows Server 2016
• Red Hat Enterprise Linux (64 bit) (includes KVM) 6.9, 6.10, 7.4, 7/5
• SLES 12 SP3 (64 bit) w/ Xen and KVM

VMware vSphere 6.5 U1

CentOS 7.5

Ubuntu LTS 18.04

NOTE: For more information visit http://www.hpe.com/info/ossupport

Industry Compliance

• AMI Aptio 5.12
• UEFI 2.5 Support
• UEFI Shell 2.1 Support
• UEFI PI 1.4 Support
• ACPI 6.1 Compliant
• PCIe 3.0 Compliant
• SMBIOS 3.0
• PXE Support
• WOL Support
• USB 3.0 Compliant
• USB 2.0 Compliant
• Redfish® version 1.0
• IPMI 2.0
• DCMI (Data Center Management Interface), version 1.5
• SPS 3.0
• SMBUS 2.0
• European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. The HPE Cloudline CL2800 Gen10  server is compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html

Graphics

Integrated Video Standard

• Video modes up to 1920 x 1200@60Hz (32 bpp)

AMI UEFI BIOS

Unified Extensible Firmware Interface (UEFI) is an industry standard for better manageability and secured configuration than the legacy ROM at boot time. HPE Cloudline Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode. Please reference the CL2800 User & Maintenance Guide.

• UEFI enables numerous new capabilities specific to HPE servers such as:
• Secure Boot and Secure Start enable for enhanced security
• Operating system specific functionality
• Support for > 2.2 TB (using GPT) boot drives
• USB 3.0 Stack
• Embedded UEFI Shell
• PXE boot support for IPv6 networks
• UEFI Boot Mode only:
• TPM 2.0 Support
• NVMe Boot Support
• iSCSI Software Initiator Support.
• HTTP Boot support
• Boot support for option cards that only support a UEFI option ROM

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

NOTE: Legacy FIO Setting (P11219-B22) can be selected to configure the system in Legacy mode in the factory for your HPE CLoudineGen10 Server.

Embedded Management

Open Systems BMC

Industry standard baseboard management controller (BMC®) for effective remote management with IPMI / Redfish®, and DCMI/PXE boot standard interfaces allowing simple/scripted integration into an application infrastructure. A user can access the BMC firmware (FW), via a web browser, or scripting for server status configurations, user(s) privilege setup, FW updates, power control, event logging, BMC Network, serial port management, and SOL configuration.

Redfish® API

Redfish® API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards.

Security

• UEFI Secure Boot and Secure Start Support
• SECURE FLASH
• SSL (HTTPS) for secured sessions
• TPM (Trusted Platform Module) 2.0 option

NOTE: TPM 2.0 only works when UEFI is set to default

• Bezel Locking Kit

Warranty

Hardware support is available for 3 years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Hard drives have either a one year or three year warranty; refer to the HPE Cloudline Servers and Options Global Limited Warranty and Technical Support for details.

NOTE: Server Warranty includes 3 Years Parts with five (5) days response time, 0 Years Labor, and 0 Years Onsite Support. Additional information regarding worldwide limited warranty and technical support is available at

http://www.hpe.com/support/cloudline_warranty_en.

Response time

Response times are based on local standard business days and working hours. Unless otherwise stated, all responses are measured from the time the customer calls until Hewlett Packard Enterprise has either established a mutually acceptable time for support to be performed, or Hewlett Packard Enterprise has begun to provide support or remote diagnostics. Response time is based on commercially reasonable effort. In some countries and under certain supplier constraints, response time may vary. If your location is outside the customary service zone, response time may be longer or there may be an additional charge. Contact your local Hewlett Packard Enterprise service organization for response time availability in your area.

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we've created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so you're critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

Protect your business beyond warranty with Foundation Care NBD and Cloudline Support Services

HPE Foundation Care Next Business Day and Cloudline Support Services provide remote diagnosis and support, scheduled onsite hardware repair/troubleshooting, and coverage for replacement components. Also available with defective media retention (DMR) or comprehensive defective media retention (CDMR) services.

Extended support duration for up to 5 years is available on Foundation Care NBD services.

• HPE Cloudline 3 Years Parts + Remote Technical Support + Defective Media Retention
• HPE Cloudline 3 Years Parts + Remote Technical Support + Comprehensive Defective Media Retention
• HPE Foundation Care Next Business Day (3, 4, and 5 years options)
• HPE Foundation Care Next Business Day + Defective Media Retention (3, 4, and 5 years options)
• HPE Foundation Care Next Business Day + Comprehensive Defective Media Retention (3, 4, and 5 years options)

More information on Foundation Care NBD available at: https://h20195.www2.hpe.com/v2/getpdf.aspx/4aa4-8876enw.pdf.

More information on Cloudline Support Services available at:

 https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA5-9207ENN.pdf.

Standard Support recommendation

Connect to Hewlett Packard Enterprise for faster problem resolution. Cloudline Carepack Services provides hardware onsite response. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and  engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Datacenter Care for Hyperscale

DC for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high-volume homogenous infrastructure and resilient architecture. Customers can take advantage of this environment support tailored to their operating model. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA6-3460ENW.pdf.

Spares Management Service

Provides customers with spare parts inventory for onsite stocking, and access to the HPE Spares Management Tool - an automated inventory management tool that helps enable real-time inventory management. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA1-3116ENW.pdf.

Advisory & Professional Services

Design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge. More information at https://www.hpe.com/us/en/services/consulting.html.

Operational offerings to improve performance and securely handle retirement of customers' IT environments.

Operate & Improve performance, minimize risk of downtime, and reduce security risks.

Retire & Sanitize to safely and securely dispose of retired IT and ensuring customer data cannot be compromised.

Integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment. More information at https://www.hpe.com/us/en/services/professional.html.

This section lists some of the steps required to configure a Factory Integrated Model.

To ensure valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

• Factory Integrated Models must start with a CTO Server.
• FIO indicates that this option is only available as a factory installable option.
• All Factory Integrated Models will be populated with sufficient hard drive blanks based on number of drives ordered with server.
• Some options may not be integrated at the factory. Contact your local sales representative for additional information
• European Union (EU) eco-design regulations for server and storage products, known as Lot 9, go into effect on March 1st, 2020. Among other requirements, for servers this directive establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. The HPE Cloudline CL2800 Gen10 server is compliant with Lot9 requirements. For more information regarding HPE Lot 9 conformance, please visit: https://www.hpe.com/us/en/about/environment/msds-specs-more.html

Step 1: Base Configuration (choose one of the following configurable models)

Network Choice (NC) Models

Network Choice models do not include embedded LOM. To enable networking capability an HPE Ethernet 1Gb 4-port 366FLR Adapter will be auto-populated for primary NIC with customer choice of additional NICs (stand-up cards)

CTO Server

HPE CL2800 Gen10 8SFF NC CTO Server

HPE CL2800 Gen10 12LFF NC CTO Server

SKU Number

P20548-B21

P20549-B21

Processor

Not included as standard

Not included as standard

DIMM Slots

24-DIMM slots

24-DIMM slots

Storage Controller

Intel® C621 series chipset supporting 14 (12 accessible) Internal 6GbE AHCI/RAID SATA, Intel VROC or Optional SAS/SATA RAID or HBA via PCIe card

PCIe

Three standard in primary riser (with dual M.2 support)

Drive Cage - included

8 SFF

12 LFF

Network Controller

HPE Ethernet 1Gb 4-port 366FLR Adapter (sideband supported) plus optional PCIe stand up card(s)

Fans

4 Standard (1P), 6 Standard (2P) or 6-High Performance (24SFF or NVMe)

6-High Performance

Management

Open Standards Based Management

IPMI 2.0, Redfish® API, AMI MegaRAC BMC, AMI APTIO BIOS

USB

(5) USB ports - 1 Front, 2 Rear, 2 Internal

(5) USB ports - 1 Front, 2 Rear, 2 Internal

CTO Models with embedded LOM

CTO Server

HPE CL2800 Gen10 8SFF CTO Server

HPE CL2800 Gen10 12LFF CTO Server

SKU Number

P04356-B21

P09682-B21

Processor

Not included as standard

Not included as standard

DIMM Slots

24-DIMM slots

24-DIMM slots

Storage Controller

Intel® C621 series chipset supporting 14 (12 accessible) Internal 6GbE AHCI/RAID SATA

Optional SAS/SATA RAID or HBA via PCIe card

PCIe

Three standard in primary riser (with dual M.2 support)

Drive Cage - included

8 SFF

12 LFF

Network Controller

HPE 1GbE Ethernet 4-Port embedded or stand up card

Fans

4 Standard (1P), 6 Standard (2P) or 6-High Performance (24SFF or NVMe)

6-High Performance

Management

Open Standards Based Management

IPMI 2.0, Redfish® API, AMI MegaRAC BMC, AMI APTIO BIOS

USB

(5) USB ports - 1 Front, 2 Rear, 2 Internal

(5) USB ports - 1 Front, 2 Rear, 2 Internal

NOTE: All CTO servers are Energy Star 2.1 compliant.

CTO Server

8 SFF or 8SFF NC CTO Chassis

12 LFF or 12 LFF NC CTO Chassis

Included Drive Cage

8 SFF SAS/SATA

12 LFF Chassis

Additional drive cages

Up to 2 Optional

Not available

8 SFF Drive Cage

Up to 2 Optional

Not available

8 NVME/SAS Bay

Up to 3 Optional

Not available

8 NVME Cage

Up to 2 Optional

Not available

NOTE: This aplies to CTO configurations, field upgrades may differ depending field configuration.

Step 2a: Choose Required Options - Processors

Please select a minimum of one or maximum of two -L21 processors below. The Premium 10SFF base server requires two -L21 processors be selected.

NOTE: Mixing of 2 different processor models is not supported.

NOTE: For first processor selection on the 8SFF chassis, it will include 4 fans; For second processor selection (if applicable), it will add 2 additional fans. For the 8SFF chassis, the high performance fan kit (P05480-B21) is an optional upgrade.

NOTE: Processors with 130W or higher will ship with a high-performance heatsink plus SKUs 6128, 5122 as noted below. All other processors will ship with the Standard heat sink.

NOTE: When 2^nd Generation Intel Xeon Scalable Processor is slected, then only DDR4-2933 Memory Kit can be selected; When 1^st Generation Intel Xeon Scalable Processor is selected, then only DDR4-2666 Memory Kit can be selected

Processor Option Kits

Required Processor

2^nd Generation Intel Xeon-Platinum

HPE CL Gen10 Intel Xeon-Platinum 8280M (2.7GHz/28-core/205W) FIO Processor Kit

P12097-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Gen10 Intel Xeon-Platinum 8276M (2.2GHz/28-core/165W) FIO Processor Kit

P12094-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Gen10 Intel Xeon-Platinum 8276 (2.2GHz/28-core/165W) FIO Processor Kit

P12093-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Gen10 Intel Xeon-Platinum 8270 (2.7GHz/26-core/205W) FIO Processor Kit

P12092-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Gen10 Intel Xeon-Platinum 8268 (2.9GHz/24-core/205W) FIO Processor Kit

P12091-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Gen10 Intel Xeon-Platinum 8260M (2.4GHz/24-core/165W) FIO Processor Kit

P12089-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Gen10 Intel Xeon-Platinum 8260 (2.4GHz/24-core/165W) FIO Processor Kit

P12087-L21

NOTE: Ships with High Performance Heatsink.

2^nd Generation Intel Xeon-Gold

HPE CL Gen10 Intel Xeon-Gold 6254 (3.1GHz/18-core/200W) FIO Processor Kit

P12086-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Gen10 Intel Xeon-Gold 6248 (2.5GHz/20-core/150W) FIO Processor Kit

P12084-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Gen10 Intel Xeon-Gold 6242 (2.8GHz/16-core/150W) FIO Processor Kit

P12082-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Gen10 Intel Xeon-Gold 6240 (2.6GHz/18-core/150W) FIO Processor Kit

P12080-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Gen10 Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) FIO Processor Kit

P12078-L21

HPE CL Gen10 Intel Xeon-Gold 5220 (2.2GHz/18-core/125W) FIO Processor Kit

P12077-L21

HPE CL Gen10 Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) FIO Processor Kit

P12075-L21

HPE CL Gen10 Intel Xeon-Gold 5217 (3.0GHz/8-core/115W) FIO Processor Kit

P12073-L21

HPE CL Gen10 Intel Xeon-Gold 5215M (2.5GHz/10-core/85W) FIO Processor Kit

P12072-L21

HPE CL Gen10 Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) FIO Processor Kit

P12071-L21

1^st Generation Intel Xeon-Gold

HPE CL Intel Xeon-Gold 6152 (2.1GHz/22-core/140W) FIO Processor Kit

P01905-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Intel Xeon-Gold 6148 (2.4GHz/20-core/150W) FIO Processor Kit

P01747-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Intel Xeon-Gold 6144 (3.5GHz/8-core/150W) FIO Processor Kit

P01743-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Intel Xeon-Gold 6142 (2.6GHz/16-core/150W) FIO Processor Kit

P01746-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Intel Xeon-Gold 6140 (2.3GHz/18-core/140W) FIO Processor Kit

P01904-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Intel Xeon-Gold 6138 (2.0GHz/20-core/125W) FIO Processor Kit

P01903-L21

HPE CL Intel Xeon-Gold 6136 (3.0GHz/12-core/150W) FIO Processor Kit

P01745-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Intel Xeon-Gold 6134 (3.2GHz/8-core/130W) FIO Processor Kit

P01906-L21

NOTE: Ships with High Performance Heatsink.

HPE CL Intel Xeon-Gold 6130 (2.1GHz/16-core/125W) FIO Processor Kit

P01902-L21

HPE CL Intel Xeon-Gold 6128 (3.4GHz/6-core/115W) FIO Processor Kit

P01742-L21

NOTE: Ships with High Performance Heatsink

HPE CL Intel Xeon-Gold 6126 (2.6GHz/12-core/125W) FIO Processor Kit

P01744-L21

HPE CL Intel Xeon-Gold 5122 (3.6GHz/4-core/105W) FIO Processor Kit

P01741-L21

NOTE: Ships with High Performance Heatsink

HPE CL Intel Xeon-Gold 5120 (2.2GHz/14-core/105W) FIO Processor Kit

P01901-L21

HPE CL Intel Xeon-Gold 5118 (2.3GHz/12-core/105W) FIO Processor Kit

P01900-L21

HPE CL Intel Xeon-Gold 5115 (2.4GHz/10-core/105W) FIO Processor Kit

P01795-L21

2^nd Genration Intel Xeon-Silver

HPE CL Gen10 Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) FIO Processor Kit

P12070-L21

HPE CL Gen10 Intel Xeon-Silver 4215 (2.5GHz/8-core/85W) FIO Processor Kit

P12069-L21

HPE CL Gen10 Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) FIO Processor Kit

P12067-L21

HPE CL Gen10 Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) FIO Processor Kit

P12066-L21

HPE CL Gen10 Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) FIO Processor Kit

P12064-L21

1^st Genration Intel Xeon-Silver

HPE CL Intel Xeon-Silver 4114 (2.2GHz/10-core/85W) FIO Processor Kit

P01898-L21

HPE CL Intel Xeon-Silver 4112 (2.6GHz/4-core/85W) FIO Processor Kit

P01794-L21

HPE CL Intel Xeon-Silver 4110 (2.1GHz/8-core/85W) FIO Processor Kit

P01897-L21

HPE CL Intel Xeon-Silver 4108 (1.8GHz/8-core/85W) FIO Processor Kit

P01896-L21

HPE CL Intel Xeon-Silver 4116 (2.1GHz/12-core/85W) FIO Processor Kit

P01899-L21

1^st Generation Intel Xeon-Bronze

HPE CL Intel Xeon-Bronze 3106 (1.7GHz/8-core/85W) FIO Processor Kit

P01895-L21

HPE CL Intel Xeon-Bronze 3104 (1.7GHz/6-core/85W) FIO Processor Kit

P01894-L21

Step 2b: Choose Memory Options

Please select one or more memory from below.

For new Gen10 memory population rule whitepaper and optimal memory performance guidelines, please go to: https://www.hpe.com/docs/memory-population-rules

Balanced across two CPUs - 12 DIMMs

NOTE: Maximum memory capacity and speed per processor is dependent on processor model selection or limitation.

NOTE: DDR4-2933 Memory Kits are only supported with 2^nd Generation Intel Xeon Scalable Series Processors and DDR4-2666 Memory Kits are only supported with 1^st Generation Intel Xeon Scalable Series Processors.

Registered DIMMs (RDIMMs) for 2^nd Generation Intel Xeon Scalable Series

HPE DDR4 Special SmartMemory

P14492-B21

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Memory FIO Kit

P10660-B21

HPE DDR4 Special SmartMemory

P14119-B21

HPE DDR4 Special SmartMemory

P14117-B21

Registered DIMMs (RDIMMs) for 1^st Generation Intel Xeon Scalable Series

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Memory FIO Kit

880841-B21

HPE CL 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Memory FIO Kit

P07029-B21

HPE CL 16GB (1x16GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Memory FIO Kit

881067-B21

Load Reduced DIMMs (LRDIMMs) for 2^nd Generation Intel Xeon Scalable Series

HPE DDR4 Special SmartMemory

P14121-B21

Load Reduced DIMMs (LRDIMMs) for 1^st Generation Intel Xeon Scalable Series

HPE CL 64GB (1x64GB) Quad Rank x4 DDR4-2666 CAS-19-19-19 Load Reduced Memory FIO Kit

880842-B21

Step 2c: Choose Power Supplies

Select one or two power supplies from below.

NOTE: Mixing of 2 different power supplies is NOT allowed.

HPE Flex Slot Power Supplies

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865408-B21

HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

865438-B21

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

865434-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

830272-B21

HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit

865428-B21

NOTE: 1600W Power supplies only support high line voltage (200 VAC to 240 VAC).

Step 3: Choose Additional Factory Integratable Options

One of the following from each list may be selected if desired at time of factory integration

HPE Security Options

HPE Trusted Platform Module 2.0 Gen10 Option

864279-B21

NOTE: HPE Trusted Platform Module 2.0 option works with Gen10 servers with UEFI Mode not Legacy Mode.

NOTE: HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other TPM module.

HPE Gen10 2U Bezel Kit

867809-B21

HPE Bezel Lock Kit

875519-B21

HPE Unique Options

HPE CL2800 Gen10 x16 16 Riser FIO Kit

P05479-B21

NOTE: Slot 1 or 2 in Primary location.

NOTE: Supports Full Height and Full length cards.

NOTE: Bus width x16, x16, Connector Width x16, x16.

HPE CL2800 Gen10 x16/x16 GPU FIO Riser Kit

P12134-B21

NOTE: Slot 2 (Middle slot) and 3 (Bottom slot) available in Secondary riser location.

NOTE Max Qty=1 Double-wide Accelerator/GPU can be populated

NOTE: Supports Full Height and Full length cards.

NOTE: Bus width x16, x16, Connector Width x16, x16

HPE CL2800 Gen10 x16 Tertiary GPU FIO Riser Kit

P12135-B21

NOTE: Slot 1 (Top slot) available in Tertiary riser location.

NOTE: Supports Full Height and full-length card.

NOTE: Bus width x16; Connector Width x16.

HPE Cloudline Server Accessories

P10539-B21

NOTE: Riser supporting up to 8 NVMe drives in Primary location.

NOTE: This is a factory integrated only option.

NOTE: This can be connected to an 8SFF NVMe drive cage in box 3

HPE CL2800 Gen10 2U x8/x16/x8 2-port 4 NVMe Secondary FIO Riser Kit

P15479-B21

NOTE: No M.2 support on this riser.

NOTE: Supports Full Height, Half- length cards; Full Height, Full-length cards and Full Height, Half- length cards.

NOTE: Bus width x8, x16, x8, Connector Width x8, x16, x8.

HPE Cloudline Server Accessories

P10540-B21

NOTE: Riser supporting up to 8 NVMe drives in Secondary location.

HPE Cloudline Server Accessories

P10541-B21

NOTE: This is a factory integrated only option.

NOTE:Supports 2 x8 slots in the Tertiary location.

HPE CL2800 Gen10 2SFF Rear FIO Enablement Kit

P12060-B21

NOTE: High performance fan kits are required for rear drives.

HPE CL2800 Gen10 2SFF Premium HDD Front NVMe/SAS/SATA FIO Kit

P12062-B21

NOTE: NVMe drives require the addition of the High Performance Fan kit (P05480-B21).

NOTE: NVMe drives require the addition of an NVMe capable riser.

NOTE: Drive cage can be used in the rear of the chassis, but will not support NVMe drives rear

HPE CL Legacy FIO Mode Setting

P11219-B22

NOTE: UEFI is the default, this FIO part can be used for CTO to enable Legacy mode.

Step 4: Choose additional options for Factory Integration from Core and Additional Options sections below

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information. Note the http://www.hpe.com/info/CablingMatrixGen10 can help to explain the cable routing for each option:

HPE Unique Options

HPE Cloudline Server Accessories

P09683-B21

NOTE: This option provides support for up to 8 NVMe drives, and can only be populated in Box 1, Box 2 and Box 3 of the SFF chassis. Maximum of 16 NVMe drives can be populated.

NOTE: The HPE CL2800 Gen10 High Performance Fan Kit is required for NVMe support (P05480-B21).

NOTE: The HPE CL2800 Gen10 4 port Primary SlimSAS Riser Kit (P10539-B21) and HPE CL2800 Gen10 4 port Secondary SlimSAS Riser Kit (P10540-B21) are required to support this.

NOTE: There may be limitations on some PCIe adapters supported with the NVMe bay populated.

HPE CL2800 Gen10 8SFF HDD Cage FIO Kit

P04353-B21

NOTE: This kit can be supported in Box 1, 2 or 3 and provides support for up to 8 SFF SAS/SATA or 6 SAS/SATA + 2 NVMe drives per Box.

NOTE: When adding to Box 1 the addition of the High Performance Fan kit (P05480-B21) is required.

HPE CL2800 Gen10 High Perf Fan FIO Kit

P05480-B21

NOTE: This kit is required for specific Ambient temperature environments,

NOTE: This is required for NVMe configurations.

NOTE: This kit provides maximum cooling for your Server.

NOTE: This kit is required when Box 1, 2 and 3 are populated.

HPE CL2600/2800Gen10 Rear Serial Cbl FIO

P07013-B21

HPE Drives

Enterprise - 12G SAS - SFF Drives

HPE CL 300GB SAS 12G Enterprise 15K SFF (2.5in) Seagate Self-encrypting FIO HDD

P01660-B21

HPE CL 600GB 12G SAS 10K rpm SFF (2.5in) Enterprise Hard Drive

848513-B21

HPE CL 1.2TB 12G SAS 10K rpm SFF (2.5in) Enterprise Hard Drive

848505-B21

HPE CL 2.4TB 12G SAS 10K rpm SFF (2.5in) Seagate Enterprise Hard Drive

880853-B21

HPE CL 2.4TB SAS 12G Enterprise 10K SFF (2.5in) Seagate SED FIO HDD

P10335-B21

Midline - 6G SATA - LFF Drives

HPE CL 6TB SATA 7.2K rpm LFF (3.5in) Seagate Midline Hard Drive

P01728-B21

HPE CL 6TB SATA 6G Enterprise 7.2K LFF (3.5in) Hitachi SE 512e FIO HDD

P08756-B21

HPE CL 8TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate 512e FIO HDD

848539-B21

HPE CL 10TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate 512e FIO HDD

P08762-B21

HPE CL 12TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate 512e FIO HDD

P08778-B21

HPE CL 12TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate 512e FIO HDD

P23939-B21

HPE CL 14TB SATA 6G Enterprise 7.2K LFF (3.5in) Hitachi ISE 512e FIO HDD

P08759-B21

HPE CL 14TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate 512e FIO HDD

P08781-B21

SSD Selection

Mixed Use - 6G SATA - SFF - Solid State Drives

HPE CL 240GB SATA 6G Mixed Use SFF (2.5in) Micron 5200 FIO SSD

P08787-B21

HPE CL 240GB SATA Mixed Use SFF(2.5in) Micron 5300 MAX FIO SSD

P23924-B21

HPE CL 960GB SATA 6G Mixed Use SFF (2.5in) Micron 5200 SED FIO SSD

P11734-B21

HPE CL 960GB SATA Mixed Use SFF(2.5in) Micron 5300 SED FIO SSD

P23927-B21

HPE CL 960GB SATA 6G Mixed Use SFF (2.5in) Intel S4610 FIO SSD

P08811-B21

HPE CL 1.92TB SATA 6G Mixed Use SFF (2.5in) Intel S4610 FIO SSD

P08814-B21

HPE CL 3.84TB SATA 6G Mixed Use SFF (2.5in) Intel S4610 FIO SSD

P04597-B21

Read Intensive - 6G SATA - SFF - Solid State Drives

HPE CL 240GB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08796-B21

HPE CL 480GB SATA RI SFF (2.5in) Micron 5300 SED FIO SSD

P23921-B21

HPE CL 480GB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08799-B21

HPE CL 480GB SATA 6G Read Intensive SFF (2.5in) Micron 5200 SED FIO SSD

P11737-B21

HPE CL 960GB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08802-B21

HPE CL 1.92TB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08805-B21

HPE CL 1.92TB SATA 6G Read Intensive SFF (2.5in) Samsung PM883 FIO SSD

P01680-B21

HPE CL 1.92TB SATA RI SFF (2.5in) Micron 5300 PRO FIO SSD

P23919-B21

HPE CL 3.84TB SATA 6G Read Intensive SFF (2.5in) Samsung PM883 FIO SSD

879720-B21

HPE CL 7.68TB SATA 6G Read Intensive SFF (2.5in) Samsung PM883 FIO SSD

P01684-B21

HPE CL 3.84TB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08808-B21

HPE CL 3.84TB SATA RI SFF (2.5in) Micron 5300 PRO FIO SSD

P23917-B21

HPE CL 7.6TB SATA RI SFF 5300PRO FIO SSD

P23915-B21

Read Intensive - NVMe - SFF - Solid State Drives

HPE CL 1.9TB NVMe x4 Lanes Read Intensive SFF (2.5in) Samsung PM983 SED FIO SSD

P06710-B21

HPE CL 2TB NVMe x4 Lanes Read Intensive SFF (2.5in) Intel P4510 FIO SSD

P04600-B21

HPE CL 3.84TB NVMe x4 Lanes Read Intensive SFF (2.5in) Samsung PM983 SED FIO SSD

P06713-B21

HPE CL 4TB NVMe x4 Lanes Read Intensive SFF (2.5in) Intel P4510 FIO SSD

P06663-B21

HPE CL 8TB NVMe x4 Lanes Read Intensive SFF (2.5in) Intel P4510 FIO SSD

P04599-B21

Write Intensive - NVMe - SFF - Solid State Drives

HPE CL 375GB NVMe x4 Lanes Write Intensive SFF (2.5in) Intel P4800X FIO SSD

P10984-B21

Mixed Use - 6G SATA - M.2 - Solid State Drives

HPE CL 240GB SATA 6G Mixed Use M.2 - UFF to SFF Micron 5100 FIO SSD

P08784-B21

Read Intensive - 6G SATA - M.2 - Solid State Drives

HPE CL 240GB SATA RI M.2 5300BOT FIO SSD

P18854-B21

Mixed Use - NVMe - SFF - Solid State Drives

HPE CL 3.2TB NVMe x4 Lanes Mixed Use SFF (2.5in) Intel P4610 FIO SSD

P06660-B21

HPE CL 3.2TB NVMe x4 Lanes Mixed Use SFF (2.5in) Samsung PM1725b FIO SSD

P06726-B21

NOTE: No hard drive blank kits are required.

HPE PCIe Accelerators

HPE CL 1.6TB NVMe x4 Lanes Mixed Use HHHL Samsung PM1725b FIO SSD

P01676-B21

HPE Networking

100 Gigabit Ethernet Adapters

HPE CL Ethernet 100Gb 1-port QSFP28 Mellanox ConnectX-5 EN PCIe3 FIO Card

880150-B21

50 Gigabit Ethernet adapters

HPE CL Ethernet 50Gb 2-port SFP28 Mellanox ConnectX-5 Single Host PCIe 3.0 Card

P01671-B21

25 Gigabit Ethernet adapters

HPE CL Ethernet 25Gb 2-port SFP+ Mellanox ConnectX-4 PCIe 3.0 Card

P01670-B21

HPE CL Ethernet 25Gb 2-port SFP28 Q41212 PCIe 3.0 Card

P01669-B21

HPE CL Ethernet 25Gb 1-port SFP28 Intel XXV710 PCIe 3.0 Card

P01667-B21

10 Gigabit Ethernet adapters

HPE CL Ethernet 10Gb 4-port Intel X710-DA4 PCIe3 FIO Adapter

P10664-B21

HPE CL Ethernet 10Gb 4-port Intel X710-T4 PCIe3 FIO Adapter

P10662-B21

HPE CL Ethernet 10Gb 4-port Intel X710-DA4 PCIe3 FIO Adapter

P10664-B21

HPE CL Ethernet 10GBASE-T 2-port Q41112 PCIe FIO Adapter

P08550-B21

HPE CL Ethernet 10Gb 2-port SFP+ QLogic Q41132 PCIe 3.0 Card

P01668-B21

HPE CL Ethernet 10GBASE-T 2-port Intel X550 PCIe 3.0 Card

P01665-B21

HPE CL Ethernet 10Gb 2-port SFP+ Intel X710 PCIe 3.0 Card

P01666-B21

NOTE: The CL2800 Gen10 ships with 4x 1 GbE Embedded.

NOTE: A minimum of two Gigabytes (2 GBE) of server memory is required per each adapter.

HPE I/O Expansion Options

NOTE: The Primary Riser shipping default in the chassis is a x8 FH, FL, x16 FH, FL and x8 FH, HL with m.2 support.

NOTE: For a Secondary/Tertiary riser the second processor is required.

HPE CL2800 Gen10 x16 16 Riser FIO Kit

P05479-B21

NOTE: Slot 1 or 2 in Primary or Secondary location.

NOTE: Supports Full Height and Full length cards.

NOTE: Bus width x16, x16, Connector Width x16, x16.

HPE Cloudline Server Accessories

P10539-B21

NOTE: Riser supporting up to 8 NVMe drives in Primary location.

NOTE: This is a factory integrated only option.

NOTE: This can be connected to an 8SFF NVMe drive cage in box 3.

HPE Cloudline Server Accessories

P10540-B21

NOTE: Riser supporting up to 8 NVMe drives in Secondary location.

HPE Cloudline Server Accessories

P10541-B21

NOTE: Supports 2 x8 slots in the Tertiary location.

HPE CL2800 Gen10 2U x8/x8/x8 1-port 4 NVMe Slimline Primary FIO Riser Kit

P12061-B21

NOTE: Supports 3x 8 and 1-port for NVMe.

NOTE: Supports Full Height and half-length cards.

NOTE: Bus width x8, x8, x8 Connector Width x8, x8, x8.

NOTE: Slot 2 (Middle slot) and 3 (Bottom slot) available in Secondary riser location.

NOTE: Max Qty=1 Double-wide GPU can be populated

NOTE: Supports Full Height and Full length cards.

NOTE: Bus width x16, x16, Connector Width x16, x16

NOTE: Slot 1 (Top slot) available in Tertiary riser location.

NOTE: Supports Full Height and full-length card.

NOTE: Bus width x16; Connector Width x16.

Riser Information*

Part number

Description

Riser position

Bus width (Gen3 lanes)

NVMe Direct Connect

Primary

Secondary

Tertiary

Top slot

Middle Slot

Bottom slot

Ports

Drive count

n/a

This is the default riser in the chassis

D

N

N

x8

x16

x8

P15479-B21

HPE CL2800 Gen10 x8/x16/x8 Riser FIO Kit

O

O

N

X8

X16

X8

P05479-B21

HPE CL2800 Gen10 x16/x16 FIO Kit

O

O

N

x16

x16

0

P12061-B21

HPE CL2800 Gen10 x8/x8/x8 1-port 2 NVMe Slimline FIO Kit

O

O

N

X8

X8

X8

1

2

P10539-B21

HPE CL2800 Gen10 4p Prim SlimSAS FIO Kit

O

N

N

0

0

0

4

8

P10540-B21

HPE CL2800 Gen10 4p Sec SlimSAS FIO Kit

N

O

N

0

0

0

4

8

P10541-B21

HPE CL2800 Gen10 2 x8 Tertiary FIO Kit

N

N

O

X8

X8

0

P12134-B21

HPE CL2800 Gen10 x16/x16 GPU Riser FIO Kit

N

O

N

0

X16

X16

P12135-B21

HPE CL2800Gen10 x16 Tertiary Riser FIO Kit

N

N

O

X16

0

0

NOTE: D = Default on chassis; O = Optional; N = not supported or slot/connector not present.

HPE Power Supplies

HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865408-B21

NOTE: Flex Slot Platinum power supplies support power efficiency of up to 94% and include a standard C-14 power inlet connector.

HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

865438-B21

NOTE: Flex Slot Titanium power supplies support power efficiency of up to 96% and include a standard C-14 power inlet connector.

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

NOTE: Flex Slot Platinum power supplies support power efficiency of up to 94% and include a standard C-14 power inlet connector.

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

865434-B21

NOTE: Flex Slot -48VDC power supplies support power efficiency of up to 94%.

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

830272-B21

NOTE: Flex Slot Platinum Plus power supplies support power efficiency of up to 94% and include a C-14 power inlet connector that can support HPE Power Discovery Services (blue connector).

HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit

865428-B21

NOTE: Flex Slot universal power supplies support power efficiency of up to 94% and support both 277VAC/380VDC power inputs.

HPE Computation and Graphics Accelerators

HPE NVIDIA Tesla V100 PCIe 32GB Computational Accelerator

Q9U36C

NOTE: 3 of these cards are supported with a processor 165W or below

NOTE: System Memory Restriction <128TB.

NOTE: No support on 12LFF chassis.

NOTE: V100 requires "Max Cooling" settings required in ROM.

NOTE: This requires the HPE GPU 8P Keyed Cable Kit - 871829-B21

Graphics Cable Kits

HPE DL38x Gen10 8-pin Keyed Cable Kit

871829-B21

HPE Cooling Options

HPE CL2800 Gen10 High Perf Fan FIO Kit

P05480-B21

NOTE: This kit is required for specific Ambient temperature environments,

NOTE: High Performance fan kit consists of 6 fans, these will need to replace all the standard fans in the unit, and fill all 6 fan cages.

NOTE: The 12 LFF and 24 SFF models (including field upgrades to 24 SFF) will already include 6 High Performance fan kits.

NOTE: For elevated ambient temperature support please see: http://www.hpe.com/servers/ashrae.

HPE Security

HPE Gen10 2U Bezel Kit

867809-B21

HPE Bezel Lock Kit

875519-B21

HPE Trusted Platform Module 2.0 Gen10 Option

864279-B21

NOTE: HPE Trusted Platform Module 2.0 option works with Gen10 servers with UEFI Mode not Legacy Mode.

NOTE: HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other TPM module.

RAID Array Controllers and Host Bus Adapters

RAID Array Controllers

HPE CL 9361-8i SAS3108 1GB 8-port SAS Broadcom FIO MegaRAID Adapter

859912-B21

HPE CL 9361-16i SAS3316 CacheVault CVPM02 Broadcom FIO MegaRAID Adapter

857143-B21

HPE CL Broadcom 9460-8i 2G with CVPM05 Tri-Mode RAID Controller

P01726-B21

HPE CL Broadcom 9460-16i 4G with CVPM05 Tri-Mode RAID Controller

P01727-B21

HPE CL2600/2800 Gen10 Intel VROC FIO Enablement Kit

P12568-B22

HPE CL SAS MegaRAID SafeStore Software License and Physical Key FIO Kit

P10017-B21

Host Bus Adapters

HPE CL 9300-8i SAS3008 8-port SAS Broadcom FIO Host Bus Adapter

859916-B21

HPE CL 9305-16i SAS3224 16-port SAS Broadcom FIO Host Bus Adapter

862627-B21

HPE Racks

Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications.

Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications.

HPE Power Distribution Units (PDUs)

Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

Please see the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

Please see the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs for information on these products and their specifications.

Please see the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

HPE Uninterruptible Power Systems (UPS)

To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.

Please see the HPE DirectFlow Three Phase Uninterruptible Power System QuickSpecs for information on these products and their specifications.

Please see the HPE Line Interactive Single Phase UPS QuickSpecs for information on these products and their specifications.

Please see the HPE KVM Switches web page for information on these products and their specifications.

Rail Kits

Ball bearing and Easy Install rail kits contain telescoping rails which allow for in-rack serviceability.

To assist in the installation of the server into the rack an optional installation tool is available by contacting your local services representative 695539-001.

Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

HPE 2U Small Form Factor Easy Install Rail Kit

733660-B21

NOTE: Does not include CMA 733664-B21.

HPE 2U Large Form Factor Easy Install Rail Kit

733662-B21

NOTE: Does not include CMA 733664-B21.

HPE 2U Cable Management Arm for Easy Install Rail Kit

733664-B21

HPE 2U Small Form Factor Ball Bearing Rail Kit

720863-B21

NOTE: Does not include CMA 720865-B21

HPE 2U Large Form Factor Ball Bearing Rail Kit

720864-B21

NOTE: Does not include CMA 720865-B21.

HPE 2U Cable Management Arm for Ball Bearing Rail Kit

720865-B21

HPE Cloudline Support Services

HPE 3 year Cloudline Parts plus Remote Technical with DMR CL2800 Gen10 Supp

HF8P5E

HPE 3 year Cloudline Parts plus Remote Technical with CDMR CL2800 Gen10 Supp

HF8P6E

HPE Foundation Care 3 Years Next Business Day Services

HPE 3 Year Foundation Care Next Business Day Cloudline 2800 Gen10 Service

HF8P7E

HPE 3 Year Foundation Care Next Business Day with DMR Cloudline 2800 Gen10 Service

HF8P8E

HPE 3 Year Foundation Care Next Business Day with CDMR Cloudline 2800 Gen10 Service

HF8P9E

HPE Foundation Care 4 Years Next Business Day Services

HPE 4 Year Foundation Care Next Business Day Cloudline 2800 Gen10 Service

HF8Q0E

HPE 4 Year Foundation Care Next Business Day with DMR Cloudline 2800 Gen10 Service

HF8Q1E

HPE 4 Year Foundation Care Next Business Day with CDMR Cloudline 2800 Gen10 Service

HF8Q2E

HPE Foundation Care 5 Years Next Business Day Services

HPE 5 Year Foundation Care Next Business Day Cloudline 2800 Gen10 Service

HF8Q3E

HPE 5 Year Foundation Care Next Business Day with DMR Cloudline 2800 Gen10 Service

HF8Q4E

HPE 5 Year Foundation Care Next Business Day with CDMR Cloudline 2800 Gen10 Service

HF8Q5E

Memory Population guidelines

HPE Gen10 12 Slot per CPU

NOTE:*Unbalanced Not Recommended

General Memory Population Rules and Guidelines:

• Install DIMMs only if the corresponding processor is installed.
• If only one processor is installed in a two-processor system, only half of the DIMM slots are available.
• To maximize performance, it is to balance the total memory capacity between all installed processors.
• When two processors are installed, balance the DIMMs across the two processors.
• White DIMM slots denote the first slot to be populated in a channel.
• Mixing of DIMM types (UDIMM, RDIMM, and LRDIMM) is not supported.
• The maximum memory speed is a function of the memory type, memory configuration, and processor model.
• The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform,  the number and model of installed processors qualified on the platform.

2^nd Generation Memory

DIMM Type

Register DIMM (RDIMM)

HPE SKU P/N

P14117-B21

P14119-B21

P10660-B21

P14492-B21

SKU Description

HPE DDR4 Special SmartMemory

HPE DDR4 Special SmartMemory

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Memory FIO Kit

HPE DDR4 Special SmartMemory

DIMM Rank

Single Rank (1R)

Dual Rank (2R)

Dual Rank (2R)

Dual Rank (4R)

DIMM Capacity

16GB

16GB

32GB

64GB

Voltage

1.2V

1.2V

1.2V

1.2V

DRAM depth [bit]

2G

1G

2G

4G

DRAM Width [bit]

x4

x8

x4

x4

DRAM Density

8Gb

8Gb

8Gb

16Gb

CAS Latency

21-21-21

21-21-21

21-21-21

21-21-21

DIMM Native Speed (MT/s)

2933 MT/s

2933 MT/s

2933 MT/s

2933 MT/s

Intel Xeon®Platinum/Gold 82xx/62xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2933 MT/s

2933 MT/s

2933 MT/s

2933 MT/s

2 DIMM Per Channel

2666 MT/s

2666 MT/s

2666 MT/s

2666 MT/s

Intel Xeon®Gold 52xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2666 MT/s

2666 MT/s

2666 MT/s

2666 MT/s

2 DIMM Per Channel

2666 MT/s

2666 MT/s

2666 MT/s

2666 MT/s

Intel Xeon®Silver 42xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2400 MT/s

2400 MT/s

2400 MT/s

2400 MT/s

2 DIMM Per Channel

2400 MT/s

2400 MT/s

2400 MT/s

2400 MT/s

Intel Xeon®Bronze 32xx Processors

1 DIMM Per Channel

2133 MT/s

2133 MT/s

2133 MT/s

2133 MT/s

2 DIMM Per Channel

2133 MT/s

2133 MT/s

2133 MT/s

2133 MT/s

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor model.

For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

2^nd Generation Memory

DIMM Type

Load Reduced (LRDIMM)

HPE DDR4 Special SmartMemory

P14121-B21

SKU Description

HPE DDR4 Special SmartMemory

DIMM Rank

Quad rank (4R)

DIMM Capacity

64 GB

Voltage

1.2V

DRAM depth [bit]

2G

DRAM Width [bit]

X4

DRAM Density

8G

CAS Latency

21-21-21

DIMM Native Speed (MT/s)

2933

Intel Xeon® Platinum/Gold 82xx/62xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2933 MT/s

2 DIMM Per Channel

2666 MT/s

Intel Xeon® Gold 52xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2666 MT/s

2 DIMM Per Channel

2666 MT/s

Intel Xeon® Silver 42xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2400 MT/s

2 DIMM Per Channel

2400 MT/s

Intel Xeon® Bronze 32xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2133 MT/s

2 DIMM Per Channel

2133 MT/s

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor model.

For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

DDR4 memory options part number decoder

NOTE: Capacity references are rounded to the common gigabyte (GBE) values.

• 16GBE = 16,384 MB
• 32GBE = 32,768 MB
• 64GBE = 65,536 MB

1^st Generation Memory

DIMM Type

Register DIMM (RDIMM)

HPE SKU P/N

881067-B21

P07029-B21

880841-B21

SKU Description

HPE CL 16GB (1x16GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Memory FIO Kit

HPE CL 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Memory FIO Kit

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Memory FIO Kit

DIMM Rank

Single Rank (1R)

Dual Rank (2R)

Dual Rank (2R)

DIMM Capacity

16GB

16GB

32GB

Voltage

1.2V

1.2V

1.2V

DRAM depth [bit]

2G

1G

2G

DRAM Width [bit]

x4

x8

x4

DRAM Density

8Gb

8Gb

8Gb

CAS Latency

19-19-19

19-19-19

19-19-19

DIMM Native Speed (MT/s)

2666 MT/s

2666 MT/s

2666 MT/s

Intel Xeon®Platinum/Gold 81xx/61xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2666 MT/s

2666 MT/s

2666 MT/s

2 DIMM Per Channel

2400 MT/s

2400 MT/s

2400 MT/s

Intel Xeon®Gold/Silver 51xx/41xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2400 MT/s

2400 MT/s

2400 MT/s

2 DIMM Per Channel

2400 MT/s

2400 MT/s

2400 MT/s

Intel Xeon®Bronze 31xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2133 MT/s

2133 MT/s

2133 MT/s

2 DIMM Per Channel

2133 MT/s

2133 MT/s

2133 MT/s

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor model.

For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

1^st Generation Memory

DIMM Type

Load Reduced (LRDIMM)

HPE CL 64GB (1x64GB) Quad Rank x4 DDR4-2666 CAS-19-19-19 Load Reduced Memory FIO Kit

880842-B21

SKU Description

HPE CL 64GB (1x64GB) Quad Rank x4 DDR4-2666 CAS-19-19-19 Load Reduced Memory FIO Kit

DIMM Rank

Quad Rank (4R)

DIMM Capacity

64GB

Voltage

1.2V

DRAM depth [bit]

2G

DRAM Width [bit]

x4

DRAM Density

8Gb

CAS Latency

19-19-19

DIMM Native Speed (MT/s)

2666 MT/s

Intel Xeon® Platinum/Gold 81xx/61xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2666 MT/s

2 DIMM Per Channel

2400 MT/s

Intel Xeon® Gold/Silver 51xx/41xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2400 MT/s

2 DIMM Per Channel

2400 MT/s

Intel Xeon® Bronze 31xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2133 MT/s

2 DIMM Per Channel

2133 MT/s

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor model.

For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

8SFF and 8SFF NC chassis

12 LFF and 12 LFF NC chassis

System Unit

Dimensions

8.73 x 44.54 x 67.94 cm 3.44 x 17.54 x 26.75 in

SFF Drives:

8.73 x 44.54 x 73.02 cm 3.44 x 17.54 x 28.75 in

LFF Drives:

Weight (approximate)

Maximum:

19.5 kg

43.00 lbs

Minimum: 8 SFF chassis with 1x SFF HDD and 7 HDD blanks, 2x Drive Bay blanks,  1x processor including standard heatsink, 1x power supply (plus blank), 1x Riser installed, cables for the above)

Minimum:

14.9 kg 32.75 lbs

Maximum:

24.5 kg 54 lbs

Maximum: 12 LFF hard drives (no rear drives), 2x processors, 2x power supplies, , 2x Risers installed)

Minimum:

17.1 kg 37.75 lbs

Input Requirements

(per power supply)

Rated Line Voltage

100 to 120 VAC

200 to 240 VAC

BTU Rating

Maximum

For 800W Power Supply: 3207 BTU/hr (at 100 VAC), 3071 BTU/hr (at 200 VAC), 3112 BTU/hr (at 240 VAC) for China Only

For 500W Power Supply: 1979 BTU/hr (at 100 VAC), 1911 BTU/hr (at 200 VAC), 1965 BTU/hr (at 240 VAC) for China Only

Power Supply Output

(per power supply)

Rated Steady-State Power

For 1400W Power Supply: 1400W (at 240 VAC), 1400W (at 240 VAC)

For 800W Power Supply: 800W (at 100 VAC), 800W (at 240 VAC), 800W (at 240 VAC) input for China only

For 500W Power Supply: 500W (at 100 VAC), 500W (at 240 VAC), 500W (at 240 VAC) input for China only

Maximum Peak Power

For 1400W Power Supply: 1400W (at 200 to 240 1VAC), 1400W (at 240 VAC) input for China only

For 800W Power Supply: 800W (at 100 to 127 VAC), 800W (at 200 to 240 1VAC), 800W (at 240 VAC) input for China only

For 500W Power Supply: 500W (at 100 to 127 VAC), 500W (at 200 to 240 VAC), 500W (at 240 VAC) input for China only

System Inlet Temperature

Standard Operating Temperature

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight.  Maximum rate of change is 20°C/hr (36°F/hr).  The upper limit and rate of change may be limited by the type and number of options installed.

System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

Extended Ambient Operating Temperature

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: http://www.hpe.com/servers/ashrae

For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:

http://www.hpe.com/servers/ashrae

System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity

(non-condensing)

Operating

8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing..

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (L_WAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations.  Additional options may result in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.

Idle

LWAd

• 4.8 B Entry
• 4.4 B Base
• 4.6 B Perf

LpAm

• 37 dBA Entry
• 31 dBA Base
• 31 dBA Perf

Operating

LWAd

• 4.8 B Entry
• 4.4 B Base
• 4.6 B Perf

LpAm

• 37 dBA Entry
• 31 dBA Base
• 31 dBA Perf

NOTE: Acoustics levels presented here are generated by the test configuration only. Acoustics levels will vary depending on system configuration. Values are subject to change without notification and are for reference only.

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

NOTE: The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

Emissions Classification (EMC) - Regulatory Information

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products

Environment-friendly Products and Approach -End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

03-Feb-2020

Version 7

Changed

Overview, Standard Features and Configuration Information, sections were updated.

06-Jan-2020

Version 6

Changed

Overview, Standard Features, Configuration Information, Core Options, Additional Options, Memory and Storage sections were updated.

03-Sep-2019

Version 5
