HPE Cloudline CL2200 Gen10 Server

Overview

HPE Cloudline CL2200 Gen10 Server



Do you have challenges delivering Big Data, cloud storage and near instantaneous compute all in one server?

The HPE Cloudline CL2200 Gen10 Server is a versatile open infrastructure that delivers dense storage and Big Data. Powered by two Intel Xeon Scalable processors, the HPE CL2200 Gen10 Server is ideal for dense storage and Big Data workload in combination with high IOPS (Input/output Operations Per Second) computing demands. This 2U chassis supports up to 24 Small Form Factor (2.5") or 12 Large Form Factor (3.5") front accessible hard disk drives with optional two 2.5" rear disk drives delivering all the storage capacity required in a 2U chassis.

For accelerated high IOPS, performance, and critical workloads requirements, HPE CL2200 Gen10 supports up to 4 front accessible NVMe SSD drives delivering all the operating power desired. It is ideal for storage and big data workloads in combination with high IOPs computing demands. A wide selection of high speed networking option with great flexibility OCP mezzanine or PCIe interface is also available.

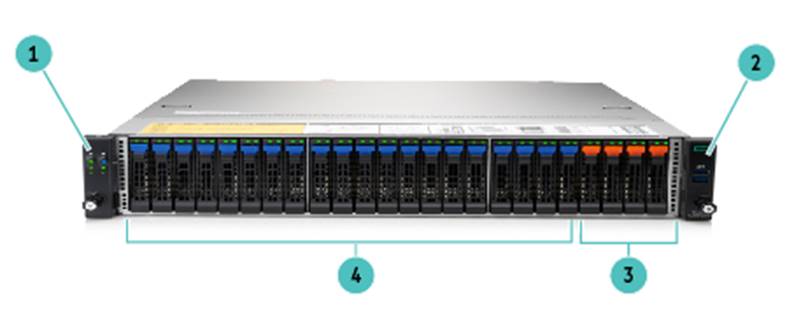

CL2200 Gen10 SFF - Front View

Item

Description

Item

Description

1

Front Control Panel w/ LED Status Indicators

3.

(4) SFF Tri-Mode (SAS/SATA/NVME) Drives

2

Front 2x USB 3.0

4.

(24) SFF Hot plug HDD/SSD Drives

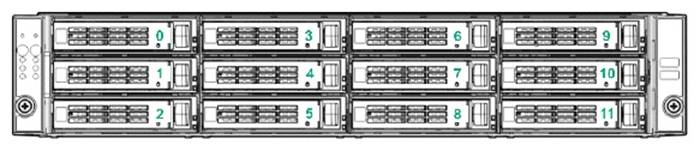

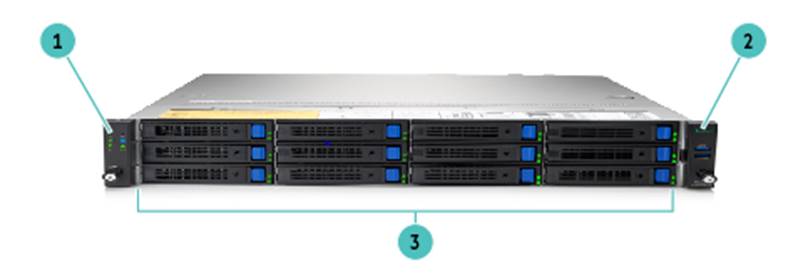

CL2200 Gen10 LFF - Front View

Item

Description

Item

Description

1

Front Control Panel w/ LED Status Indicators

3

(12) LFF Hot plug HDD Drives

2

Front 2x USB 3.0

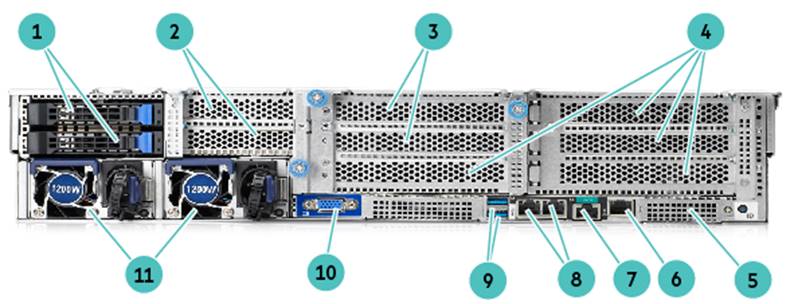

CL2200 Gen10 SFF - Rear View

Item

Description

Item

Description

1.

(2) SFF SAS/SATA SSD/HDD (optional)

7.

(1) Serial Port (If DB9 connector interface is required, a RJ45 to DB9 cable is needed )

2.

(2) HHHL PCIe x8 Slots OR (1) HHHL PCIe x16 Slot from Processor 1

8.

(2) 1GbE Onboard LAN Ports

3.

(2) FHHL PCIe x8 Slots OR (1) FHHL PCIe x16 Slots from Processor 1

9.

(2) USB 3.0 Ports

4.

(4) FHHL PCIe x8 Slots OR (1) FHHL PCIe x16, (2) FHHL PCIe x8 slots from Processor 0

10.

(1) VGA Port

5.

(1) OCP 2.0 Mezzanine Type1

11.

(2) 1200W 80 Plus Platinum Redundant Power Supplies

6.

(1) 1GbE Dedicated BMC Management Port







CL2200 Gen10 SFF - Rear View

Item

Description

Item

Description

1.

(12) LFF or (24) SFF Drive Cage

7.

(1) PCIe Riser from Processor 0/1

2.

(1) HDD Backplane

8.

(1) PCIe Riser from Processor 1

3.

(1) Intel® Xeon® Processors Scalable Family Processor 1

9.

(2) 1200W 80 Plus Platinum Redundant Power Supplies

4.

(1) Intel® Xeon® Processors Scalable Family Processor 0

10.

(2) SFF SATA Drive (optional)

5.

(1) ASPEED 2500 BMC

11.

(24) DDR4 DIMMs

6.

(1) PCIe Riser from Processor 0

12

(4) Non Hot Plug System Fans

Platform Information

Form Factor

2U rack 3.44" x 17.24" x 28.74" (8.76 cm x 43.79 cm x 73.03 cm)

Chassis Type
  • 12 LFF with optional rear 2 SFF
  • 24 SFF with optional rear 2 SFF

System Fans

Front to Back, Non redundancy, 4 Fans Standard

Standard Features

Processor

Up to 2 of the following processors.

NOTE: For more information regarding Intel Xeon processors, please see the following

http://www.intel.com/xeon.

NOTE: Up to 2 processors supported. Mixing different processor models is not supported.

Intel® Xeon® Processor Scalable Family

Gold Processors

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Mamery per socket

Gold 6152 Processor

2.1 GHz

22

30.25MB

140W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6148 Processor

2.4 GHz

20

27.50MB

150W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6144 Processor

3.5 GHz

8

24.75MB

150W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6142 Processor

2.6 GHz

16

22.00MB

150W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6140 Processor

2.3 GHz

18

24.75MB

140W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6138 Processor

2.0 GHz

20

27.50MB

125W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6136 Processor

3.0 GHz

12

24.75MB

150W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6134 Processor

3.2 GHz

8

24.75MB

130W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6130 Processor

2.1 GHz

16

22.00MB

125W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6128 Processor

3.4 GHz

6

19.25MB

115W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 6126 Processor

2.6 GHz

12

19.25MB

125W

3 @ 10.4 GT/s

2666 MT/s

768GB

Gold 5122 Processor

3.6 GHz

4

16.50MB

105W

2 @ 10.4 GT/s

2666 MT/s

768GB

Gold 5120 Processor

2.2 GHz

14

19.25MB

105W

2 @ 10.4 GT/s

2400 MT/s

768GB

Gold 5118 Processor

2.3 GHz

12

16.50MB

105W

2 @ 10.4 GT/s

2400 MT/s

768GB

Gold 5115 Processor

2.4 GHz

10

13.75MB

85W

2 @ 10.4 GT/s

2400 MT/s

768GB

NOTE: Gold - 5100, 6100 Series - 2 Socket supports 2UPI, supports 6-Channel DDR4 @ 2400 MHz (SKU 5122=supports 2666) providing up to 768GB memory capacity (1.5 TB on select skus). Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA)? (SKU 5122 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS supported.

Silver Processors

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Mamery per socket

Silver 4116 Processor

2.1 GHz

12

16.50MB

85W

2 @ 9.6 GT/s

2400 MT/s

768GB

Silver 4114 Processor

2.2 GHz

10

13.75MB

85W

2 @ 9.6 GT/s

2400 MT/s

768GB

Silver 4112 Processor

2.6 GHz

4

8.25MB

85W

2 @ 9.6 GT/s

2400 MT/s

768GB

Silver 4110 Processor

2.1 GHz

8

11.00MB

85W

2 @ 9.6 GT/s

2400 MT/s

768GB

Silver 4108 Processor

1.8 GHz

8

11.00MB

85W

2 @ 9.6 GT/s

2400 MT/s

768GB

NOTE: Silver - 4100 Series - 2 Socket supports 2UPI? @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MHz providing up to 768 GB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.







Bronze Processors

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4

Mamery per socket

Bronze 3106 Processor

1.7 GHz

8

11.00MB

85W

2 @ 9.6 GT/s

2133 MT/s

768GB

Bronze 3104 Processor

1.7 GHz

6

8.25MB

85W

2 @ 9.6 GT/s

2133 MT/s

768GB

NOTE: Bronze - 3100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, supports 6-Channel DDR4 @ 2133 MHz providing up to 768GB memory capacity. Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

Chipset

Intel® C621 Chipset

NOTE: For more information regarding Intel chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

On System Management Chipset

iBMC ASPEED AST2500 with KVM Support

Memory

Industry Standard DDR4 Registered (RDIMM) and Load Reduced (LRDIMM)

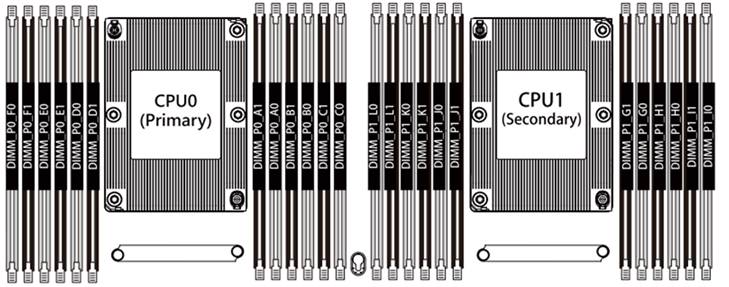

DIMM Slots Available

24

(12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel)

Maximum Capacity (LRDIMM)

1.5 TB

24 x 64 GB LRDIMM @ 2666 MHz

Maximum Capacity (RDIMM)

768 GB

24 x 32 GB RDIMM @ 2666 MHz

Memory Protection

  • Memory Static Virtual Lockstep
  • Memory Mirror: Set entire 1LM/2LM memory in system to be mirrored, consequently reducing the memory capacity by half.
  • Memory Rank Sparing
  • Memory Correctable Error Threshold: Use for sparing, tagging, and leaky bucket
  • Memory SDDC Plus One

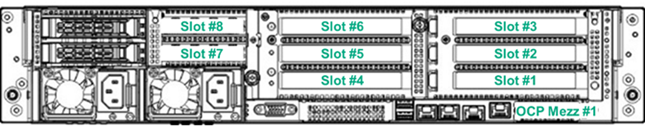

Expansion Slots



Expansion Slots #

Technology

Bus Width

Connector Width

Form Factor

Notes

Slot1

PCIe 3.0

x8

x8 open end

Full-height half-length slot

Processor 0

Slot2

PCIe 3.0

x8

x8

Full-height half-length slot

Processor 0

Slot3

PCIe 3.0

x16

x16

Full-height half-length slot

Processor 0, If Slot 2 is installed then Bus width change to x8

Slot4

PCIe 3.0

x8

x8 open end

Full-height half-length slot

Processor 0

OCP 2.0 Mezzanine

PCIe 3.0

x16

OCP

OCP 2.0 Mezz Type 1

Processor 0

Slot5

PCIe 3.0

x8

x8

Full-height half-length slot

Processor 1

Slot6

PCIe 3.0

x16

x16

Full-height half-length slot

Processor 1, If Slot 5 is installed then Bus width change to x8

Slot7

PCIe 3.0

x16

x16

Half-height half-length slot

Processor 1. If Slot 8 is installed then Bus width change to x8

Slot8

PCIe 3.0

x8

x8

Half-height half-length slot

Processor 1

NOTE: Bus Width data indicates the number of physical electrical lanes running to the connector.

NOTE: All risers are included. Expansion slot will only be available if the processor is installed.





Storage Controllers

  • HPE CL LSI MegaRAID SAS 1G 9361-8i Kit
  • HPE CL LSI 9305-16i SAS HBA Card Kit
  • HPE CL LSI 9361-16i W Cache CVPM02 Kit
  • HPE CL Broadcom 9400-8i Tri-Mode Host Bus Adapter
  • HPE CL Broadcom 9400-16i Tri-Mode Host Bus Adapter
  • HPE CL Broadcom 9460-8i 2G with CVPM05 Tri-Mode RAID Controller
  • HPE CL Broadcom 9460-16i 4G with CVPM05 Tri-Mode RAID Controller

Internal Storage Devices

Optical Drive



None



Hard Drives



None ship standard, all drive carriers included



Optical Drive

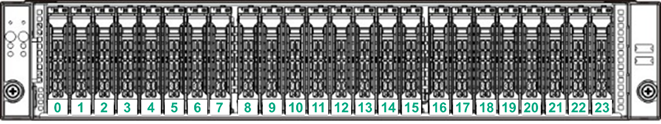

SFF Chassis



  • (24) Front SFF SAS/SATA Hot plug HDD/SSD
  • Optional 4 Front NVMe (Occupied 4 Front drive space)

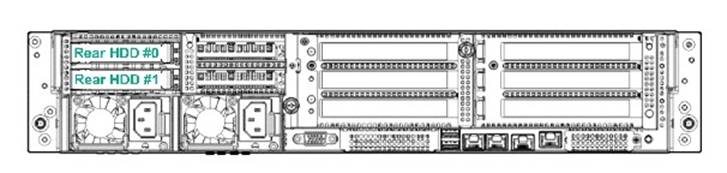

  • Optional 2 rear SFF
  • Optional 4 internal PCIe M.2 via PCIe card







LFF Chassis

  • (12) Front LFF SAS/SATA Hot plug HDD/SSD
  • Optional 2 rear SFF
  • Optional 4 internal PCIe M.2 via PCIe card

Maximum Internal Storage



Capacity

Configurations

Hot Plug SFF SAS

57.6 TB

24X 2.4TB (with optional 2x rear SFF SATA drive)

Hot Plug SFF SATA SSD

92.16 TB

24X 3.84TB (with optional 2x rear SFF SATA drive)

Hot Plug SFF NVMe SSD

16 TB

4X 4TB (with optional 20x front SAS/SATA drives and 2x rear SFF SATA drive)

Hot Plug LFF SATA

144 TB

12X 12TB (with optional 2x rear SFF SATA drive)

Power Supply

(2) 1200W 80 Plus Platinum Hot Plug Redundant Power Supplies

System Fans

4 non hot-swap non redundant fans

Interfaces

Video

1

Serial Port

1 (If DB9 connector interface is required, a RJ45 to DB9 cable is needed)

Network ports

2x 1GbE

OCP NIC ports

1 x OCP 2.0 Mezzanine Type 1 Card

IPMI management port dedicated 1GbE LAN port

dedicated 1GbE LAN port

USB 3.0 Ports

Up to 4 total: 2 rear, 2 front

Operating Systems

  • Windows Server 2012 R2
  • Windows Server 2016
  • Red Hat Enterprise Linux 6.9
  • Red Hat Enterprise Linux 7.3, 7.4
  • SLES 11 SP4
  • SLES 12 SP2, SP3
  • VMware vSphere 6.0 U3
  • VMware vSphere 6.5 U1

NOTE: Tested for successful installation only, No Operating Systems certification done unless indicated.

Industry Standard Compliance

  • ACPI 6.1
  • PCIe 3.0
  • PXE Support
  • WOL Support
  • USB 3.0 Support

Graphics

Integrated PCIe VGA/2D Controller via ASPEED 2500 BMC, 1920 x 1200 @ 60Hz (32 bpp)



Form Factor

  • 2U Rack form factor
  • 3.44 (8.75cm) Height x 17.24" (43.8 cm) Width x 28.74" (73.0 cm) Length

Security

  • Power-on password
  • Administrator's password
  • TPM 2.0 (Optional)
  • UEFI Secure Boot

Warranty

Hardware support is available for 3 years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Hard drives have either a one year or three year warranty; refer to the HPE Cloudline Servers and Options Global Limited Warranty and Technical Support for details.

NOTE: Server Warranty includes 3 Years Parts with five (5) days response time, 0 Years Labor, and 0 Years Onsite Support. Additional information regarding worldwide limited warranty and technical support is available at

http://www.hpe.com/support/cloudline_warranty_en.

Response time: Response times are based on local standard business days and working hours. Unless otherwise stated, all responses are measured from the time the customer calls until Hewlett Packard Enterprise has either established a mutually acceptable time for support to be performed, or Hewlett Packard Enterprise has begun to provide support or remote diagnostics. Response time is based on commercially reasonable effort. In some countries and under certain supplier constraints, response time may vary. If your location is outside the customary service zone, response time may be longer or there may be an additional charge. Contact your local Hewlett Packard Enterprise service organization for response time availability in your area.

Service and Support

Protect your business beyond warranty with HPE Pointnext operational services

HPE Cloudline Support Services provide remote diagnosis and support, scheduled onsite hardware repair/troubleshooting, and coverage for replacement components, including defective media retention (DMR). With HPE Cloudline Support Services, you can purchase the services that meet your specific needs.

  • HPE 2200 Parts + Remote Technical Support + Defective Media Retention
  • HPE 2200 Parts + Remote Technical Support + Onsite Labor
  • HPE 2200 Parts + Remote Technical Support + Onsite Labor + Defective Media Retention

Additional information regarding HPE packaged support services for Cloudline servers is available at:

https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA5-9207ENN.pdf

Standard Support recommendation

Connect to Hewlett Packard Enterprise for faster problem resolution. Cloudline Carepack Services provides hardware onsite response. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

Datacenter Care for Hyperscale

DC for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture. Customers can take advantage of this environment support tailored to their operating model. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA6-3460ENW.pdf.

Spares Management Service

Provides customers with spare parts inventory for onsite stocking, and access to the HPE Spares Management Tool - an automated inventory management tool that helps enable real-time inventory management. More information at

https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA1-3116ENW.pdf.

Advisory & Transformational Services

Design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge. More information at

https://www.hpe.com/us/en/services/consulting.html.

Lifecycle Event Services

Operational offerings to improve performance and securely handle retirement of customers’ IT environments. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/5981-8521ENE.pdf.

  • Operate & Improve performance, minimize risk of downtime, and reduce security risks.
  • Retire & Sanitize to safely and securely dispose of retired IT, and ensuring customer data cannot be compromised.

Professional Services

Integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment. More information at https://www.hpe.com/us/en/services/professional.html.

Parts and Materials

Hewllet Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewllet Packard Enterprise due to malfunction.

Configuration Information

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

  • Factory Integrated Models must start with a CTO Server.
  • FIO indicates that this option is only available as a factory installable option.
  • All Factory Integrated Models will be populated with sufficient hard drive blanks
  • Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one of the following configurable models)

Chassis

HPE CL2200 Gen10 12LFF CTO Svr

HPE CL2200 Gen10 24SFF CTO Svr

SKU Number

880792-B21

880793-B21

Processor

2 (optional) up to 150W

DIMM Slots

24 DIMM slots for RDIMM or LRDIMM DDR4 Memory

Storage

Controller



HPE CL LSI MegaRAID SAS 1G 9361-8i Kit

HPE CL LSI 9305-16i SAS HBA Card Kit

HPE CL LSI 9361-16i W Cache CVPM02 Kit

HPE CL Broadcom 9400-8i Tri-Mode Host Bus Adapter

HPE CL Broadcom 9400-16i Tri-Mode Host Bus Adapter

HPE CL Broadcom 9460-8i 2G with CVPM05 Tri-Mode RAID Controller

HPE CL Broadcom 9460-16i 4G with CVPM05 Tri-Mode RAID Controller

NOTE: HPE CL2200 Gen10 SAS Enablement FIO Kit is required

HPE CL LSI MegaRAID SAS 1G 9361-8i Kit

HPE CL LSI 9305-16i SAS HBA Card Kit

HPE CL LSI 9361-16i W Cache CVPM02 Kit

HPE CL Broadcom 9400-8i Tri-Mode Host Bus Adapter

HPE CL Broadcom 9400-16i Tri-Mode Host Bus Adapter

HPE CL Broadcom 9460-8i 2G with CVPM05 Tri-Mode RAID Controller

HPE CL Broadcom 9460-16i 4G with CVPM05 Tri-Mode RAID Controller

PCIe

Processor 1 supports

4 x8 PCIe3 FHHL slots OR

 1 x16 PCIe3 FHHL + 2 x8 PCIe3 FHHL slots

Optional 1 x OCP Mezz 2.0 Type 1

Processor 2 supports

2 x8 PCIe3 FHHL + 2 x8 PCIe3 HHHL slots OR

1 x16 PCIe3 FHHL + 2 x8 PCIe3 HHHL slots OR

1 x16 PCIe3 FHHL + 1 x16 PCIe3 HHHL slots OR

2 x8 PCIe3 FHHL + 1 x16 PCIe3 HHHL slots

Drive Cage

12 LFF Front + 2 SFF SATA Rear

24 SFF Front + 2 SFF SATA Rear

Network Controller

2 x 1GbE ports

Fans

4 non-hot swap fans

Management

ASPEED 2500, IPMI v2.0 compliant, on board "KVM over IP" support, Redfish API Conformant

Power Supply

2x 1200W 80 Plus Platinum Redundant PSU (2x Included standard)

USB

4 USB 2.0 Ports; 2 rear, 2 front

Other

Standard rail kit included





Chassis

HPE CL2200 Gen10 12LFF CTO Svr

HPE CL2200 Gen10 24SFF CTO Svr

SKU Number

880792-B21

880793-B21

Processor

2 (optional) up to 150W

DIMM Slots

24 DIMM slots for RDIMM or LRDIMM DDR4 Memory

Storage

Controller

HPE CL LSI MegaRAID SAS 1G 9361-8i Kit

HPE CL LSI 9305-16i SAS HBA Card Kit

HPE CL LSI 9361-16i W Cache CVPM02 Kit

HPE CL Broadcom 9400-8i Tri-Mode Host Bus Adapter

HPE CL Broadcom 9400-16i Tri-Mode Host Bus Adapter

HPE CL Broadcom 9460-8i 2G with CVPM05 Tri-Mode RAID Controller

HPE CL Broadcom 9460-16i 4G with CVPM05 Tri-Mode RAID Controller

NOTE: HPE CL2200 Gen10 SAS Enablement FIO Kit is required

HPE CL LSI MegaRAID SAS 1G 9361-8i Kit

HPE CL LSI 9305-16i SAS HBA Card Kit

HPE CL LSI 9361-16i W Cache CVPM02 Kit

HPE CL Broadcom 9400-8i Tri-Mode Host Bus Adapter

HPE CL Broadcom 9400-16i Tri-Mode Host Bus Adapter

HPE CL Broadcom 9460-8i 2G with CVPM05 Tri-Mode RAID Controller

HPE CL Broadcom 9460-16i 4G with CVPM05 Tri-Mode RAID Controller

PCIe

Processor 1 supports

4 x8 PCIe3 FHHL slots OR

 1 x16 PCIe3 FHHL + 2 x8 PCIe3 FHHL slots

Optional 1 x OCP Mezz 2.0 Type 1

Processor 2 supports

2 x8 PCIe3 FHHL + 2 x8 PCIe3 HHHL slots OR

1 x16 PCIe3 FHHL + 2 x8 PCIe3 HHHL slots OR

1 x16 PCIe3 FHHL + 1 x16 PCIe3 HHHL slots OR

2 x8 PCIe3 FHHL + 1 x16 PCIe3 HHHL slots

Drive Cage

12 LFF Front + 2 SFF SATA Rear

24 SFF Front + 2 SFF SATA Rear

Network Controller

2 x 1GbE ports

Fans

4 non-hot swap fans

Management

ASPEED 2500, IPMI v2.0 compliant, on board "KVM over IP" support, Redfish API Conformant

Power Supply

2x 1200W 80 Plus Platinum Redundant PSU (2x Included standard)

USB

4 USB 2.0 Ports; 2 rear, 2 front

Other

Standard rail kit included





Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)



HPE Processors

Please select one -L21 processor required below. For second processor, please select the same processor model again. For example: first processor, select 874752-L21 then for second processor, select 874752-B21.

NOTE: Select up to two (2) Processors

NOTE: If two processors are desired, select one xxxxxx-L21 and another xxxxxx-L21 of the same SKU

NOTE: Mixing of 2 different processor models are NOT allowed.

NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed

Gold Processors - In stock



HPE CL Intel Xeon-Gold 6140 (2.3GHz/18-core/140W) FIO Processor Kit

P01904-L21

HPE CL Intel Xeon-Gold 6138 (2.0GHz/20-core/125W) FIO Processor Kit

P01903-L21

HPE CL Intel Xeon-Gold 6134 (3.2GHz/8-core/130W) FIO Processor Kit

P01906-L21

HPE CL Intel Xeon-Gold 6130 (2.1GHz/16-core/125W) FIO Processor Kit

P01902-L21

HPE CL Intel Xeon-Gold 6128 (3.4GHz/6-core/115W) FIO Processor Kit

P01742-L21

HPE CL Intel Xeon-Gold 5122 (3.6GHz/4-core/105W) FIO Processor Kit

P01741-L21

HPE CL Intel Xeon-Gold 5120 (2.2GHz/14-core/105W) FIO Processor Kit

P01901-L21

HPE CL Intel Xeon-Gold 5115 (2.4GHz/10-core/105W) FIO Processor Kit

P01795-L21

Silver Processors - In stock



HPE CL Intel Xeon-Silver 4112 (2.6GHz/4-core/85W) FIO Processor Kit

P01794-L21

HPE CL Intel Xeon-Silver 4110 (2.1GHz/8-core/85W) FIO Processor Kit

P01897-L21

HPE CL Intel Xeon-Silver 4108 (1.8GHz/8-core/85W) FIO Processor Kit

P01896-L21

Bronze Processors - In stock



HPE CL Intel Xeon-Bronze 3106 (1.7GHz/8-core/85W) FIO Processor Kit

P01895-L21

HPE CL Intel Xeon-Bronze 3104 (1.7GHz/6-core/85W) FIO Processor Kit

P01894-L21

Gold Processors - Add manufacturers’ lead time



HPE CL Intel Xeon-Gold 6152 (2.1GHz/22-core/140W) FIO Processor Kit

P01905-L21

HPE CL Intel Xeon-Gold 6148 (2.4GHz/20-core/150W) FIO Processor Kit

P01747-L21

HPE CL Intel Xeon-Gold 6144 (3.5GHz/8-core/150W) FIO Processor Kit

P01743-L21

HPE CL Intel Xeon-Gold 6142 (2.6GHz/16-core/150W) FIO Processor Kit

P01746-L21

HPE CL Intel Xeon-Gold 6136 (3.0GHz/12-core/150W) FIO Processor Kit

P01745-L21

HPE CL Intel Xeon-Gold 6126 (2.6GHz/12-core/125W) FIO Processor Kit

P01744-L21

HPE CL Intel Xeon-Gold 5118 (2.3GHz/12-core/105W) FIO Processor Kit

P01900-L21

Silver Processors - Add manufacturers’ lead time



HPE CL Intel Xeon-Silver 4116 (2.1GHz/12-core/85W) FIO Processor Kit

P01899-L21

HPE CL Intel Xeon-Silver 4114 (2.2GHz/10-core/85W) FIO Processor Kit

P01898-L21

HPE Memory DDR4-2400

Select one or more memory. A minimum of two memory kits are required if server is configured with two processors.

NOTE: If only one processor is installed, only half of the total DIMM slots are available. When populating with two processors, all DIMM slots are available.

NOTE: Depending on the memory configuration and processor model, the memory speed may run at different speeds.



Registered DIMMs - In stock



HPE CL 16GB (1x16GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Memory FIO Kit

881067-B21

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Memory FIO Kit

880841-B21



Load Reduced DIMMs - In stock



HPE CL 64GB (1x64GB) Quad Rank x4 DDR4-2666 CAS-19-19-19 Load Reduced Memory FIO Kit

880842-B21

HPE Power Supplies



1200W 80 Plus Titanium Hot Plug Redundant Power Supplies

2x Included

Step 3: Choose Additional Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Storage Controllers



SAS Array Controllers 12Gb/s



HPE CL 9361-8i SAS3108 1GB 8-port SAS Broadcom FIO MegaRAID Adapter

859912-B21

HPE CL 9361-16i SAS3316 CacheVault CVPM02 Broadcom FIO MegaRAID Adapter

857143-B21

HPE CL Broadcom 9460-8i 2G with CVPM05 Tri-Mode RAID Controller

P01726-B21

HPE CL Broadcom 9460-16i 4G with CVPM05 Tri-Mode RAID Controller

P01727-B21

SAS Host Bus Adapters 12Gb/s



HPE CL 9305-16i SAS3224 16-port SAS Broadcom FIO Host Bus Adapter

862627-B21

HPE CL Broadcom 9400-8i Tri-Mode Host Bus Adapter

880862-B21

HPE CL Broadcom 9400-16i Tri-Mode Host Bus Adapter

880861-B21

HPE Memory



HPE CL 16GB (1x16GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Memory FIO Kit

881067-B21

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Memory FIO Kit

880841-B21

HPE CL 64GB (1x64GB) Quad Rank x4 DDR4-2666 CAS-19-19-19 Load Reduced Memory FIO Kit

880842-B21

NOTE: Select one or more memory. A minimum of two memory kits are required if server is configured with two processors.

NOTE: If only one processor is installed, only half of the total DIMM slots are available. When populating with two processors, all DIMM slots are available.

NOTE: Depending on the memory configuration and processor model, the memory speed may run at different speeds.

HPE Storage Devices



Hot Plug SFF (2.5-inch) 12Gb/s HDD - In stock



HPE CL 1.2TB 12G SAS 10K rpm SFF (2.5in) Enterprise Hard Drive

848505-B21

HPE CL 2.4TB 12G SAS 10K rpm SFF (2.5in) Seagate Enterprise Hard Drive

880853-B21

HPE CL 300GB SAS 12G Enterprise 15K SFF (2.5in) Seagate Self-encrypting FIO HDD

P01660-B21

Hot Plug LFF (3.5-inch) 6Gb/s HDD - In stock



HPE CL 6TB SATA 7.2K rpm LFF (3.5in) Seagate Midline Hard Drive

P01728-B21

HPE CL 8TB SATA 6G Enterprise 7.2K LFF (3.5in) Seagate 512e FIO HDD

848539-B21

Hot Plug SFF (2.5-inch) SATA SSD - In stock



HPE CL 240GB SATA 6G Read Intensive SFF (2.5in) Intel S4510 FIO SSD

P08796-B21

HPE CL 480GB 6G SATA Read Intensive SFF (2.5in) Intel S4500SE Solid State Drive Kit

P01678-B21

HPE CL 960GB 6G SATA Read Intensive SFF (2.5in) Intel S4500SE Solid State Drive Kit

P01679-B21

Hot Plug SFF (2.5-inch) NVMe SSD - In stock



HPE CL 1TB NVMe Read Intensive SFF (2.5in) x 15mm Intel P4500 Solid State Drive Kit

880844-B21

HPE CL 2TB NVMe Read Intensive SFF (2.5in) x 15mm Intel P4500 FIO Solid State Drive Kit

880845-B21

HPE CL 1.92TB NVMe Read Intensive SFF (2.5in) x 7mm Samsung PM963 3yr Wty Solid State Drive Kit

880846-B21

HPE CL 3.84TB NVMe Read Intensive SFF (2.5in) x 7mm Samsung PM963 Solid State Drive Kit

P01675-B21

HPE CL 3.2TB NVMe Mixed Use SFF (2.5in) x 15mm Samsung PM1725a Solid State Drive Kit

P00252-B21

Hot Plug SFF (2.5-inch) HDD 12Gb/s - Add manufacturers lead time



HPE CL 600GB 12G SAS 10K rpm SFF (2.5in) Enterprise Hard Drive

848513-B21



Hot Plug SFF (2.5-inch) SATA SSD - Add manufacturers lead time



HPE CL 960GB 6G SATA Mixed Use SFF (2.5in) Intel S4600 3yr Wty Solid State Drive Kit

P01685-B21

HPE CL 3.84TB 6G SATA Read Intensive SFF (2.5in) x 15mm Micron 5100 3yr Wty Solid State Drive Kit

P01681-B21

HPE M.2 Drives



HPE CL 256GB NVMe Read Intensive M.2 2280 Intel P3100 Solid State Drive Kit

P01661-B21

NOTE: HPE CL Rack M.2 Enablement FIO Kit P01491-B21 is required



HPE Networking Controllers



OCP Mezzanine Adapters - In stock



HPE CL Ethernet 10GBASE-T 2-port Q41132 OCP FIO Adapter

P08547-B21

HPE CL Ethernet 25Gb 2-port SFP28 Mellanox ConnectX-4 Lx OCP Mezzanine Adapter

847936-B21

HPE CL Ethernet 50Gb 1-port SFP28 Mellanox ConnectX-4 Lx OCP FIO Mezzanine Adapter

880843-B21

HPE CL Ethernet 25Gb 2-port SFP28 Intel XXV710-D1 OCP FIO Mezzanine Adapter

880149-B21

PCIe Ethernet Adapters - In stock



HPE CL Ethernet 10GBASE-T 2-port Q41112 PCIe FIO Adapter

P08550-B21

HPE CL Ethernet 10GBASE-T 2-port Intel X550 PCIe 3.0 Card

P01665-B21

HPE CL Ethernet 10Gb 2-port SFP+ Intel X710 PCIe 3.0 Card

P01666-B21

HPE CL Ethernet 25Gb 1-port SFP28 Intel XXV710 PCIe 3.0 Card

P01667-B21

HPE CL Ethernet 50Gb 2-port SFP28 Mellanox ConnectX-5 Single Host PCIe 3.0 Card

P01671-B21

OCP Mezzanine Adapters - Add manufacturers lead time



HPE CL Ethernet 10Gb 2-port SFP+ QLogic Q41132 OCP Mezzanine Adapter

P01663-B21

HPE CL Ethernet 25Gb 2-port SFP28 QLogic Q41232 OCP Mezzanine Adapter

P01664-B21

HPE CL Ethernet 25Gb 1-port SFP28 Intel XXV710-D1 OCP FIO Mezzanine Adapter

880148-B21

PCIe Ethernet Adapters - Add manufactures lead time



HPE CL Ethernet 10Gb 2-port SFP+ QLogic Q41132 PCIe 3.0 Card

P01668-B21

HPE CL Ethernet 25Gb 2-port SFP28 Q41212 PCIe 3.0 Card

P01669-B21

HPE CL Ethernet 25Gb 2-port SFP+ Mellanox ConnectX-4 PCIe 3.0 Card

P01670-B21

HPE CL Ethernet 100Gb 1-port QSFP28 Mellanox ConnectX-5 EN PCIe3 FIO Card

880150-B21

HPE Cloudline CL2200 Gen10 Other Options



HPE CL Rack M.2 FIO Enablement Kit

P01491-B21

HPE CL Rack Trusted Platform Module 2.0 FIO Kit

P01729-B21

HPE CL2200 Gen10 NVMe FIO Enablement Kit

P01510-B21

HPE CL2200 Gen10 SAS Expander FIO Enablement Kit

P01511-B21

HPE CL2200 Gen10 LFF SAS FIO Enablement Kit

P05804-B21

Additional Options



HPE Cloudline Support Services



HPE Cloudline Parts + Remote Technical Support with DMR

H2NA8A3#WGC

HPE Cloudline Parts + Onsite Labor + Remote Technical Support

H0HF0A3#WGC

HPE Cloudline Parts + Onsite Labor + Remote Technical Support with DMR

H2NA9A3#WGC



Memory

Memory Subsystem Architecture

Intel® Xeon® Processor Scalable Family socket contains six memory channels per installed processor with two DIMM per channel for a total of eight (12) DIMMs or a grand total of twenty four (24) DIMMs for the server.

Memory Population guidelines

General Memory Population Rules and Guidelines

  • Install DIMMs only if the corresponding processor is installed.
  • If only one processor is installed in a two processor system, only half of the DIMM slots are available.
  • To maximize performance, it is recommended to balance the total memory capacity between all installed processors and load the channels similarly whenever possible.
  • When two processors are installed, balance the DIMMs across the two processors.
  • Mixing of DIMM types (RDIMM, and LRDIMM OR non-3DS and 3DS LRDIMMs) is not supported.
  • The maximum memory speed is a function of the memory type, memory configuration, and processor.
  • The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.
  • When population DIMMs into a channel, slot #0 must be populated first. And then followed by the slot #1

DIMM slot and configuration order

DIMM Slot #

1 DIMM

2 DIMM

3 DIMM

4 DIMM

5 DIMM

6 DIMM

7 DIMM

8 DIMM

9 DIMM

10 DIMM

11 DIMM

12 DIMM

DIMM_P0_A0

1

1

1

1

1

1

1

1

1

1

1

1

DIMM_P0_A1













7

7

7

7

7

7

DIMM_P0_B0



2

2

2

2

2

2

2

2

2

2

2

DIMM_P0_B1















8

8

8

8

8

DIMM_P0_C0





3

3

3

3

3

3

3

3

3

3

DIMM_P0_C1

















9

9

9

9

DIMM_P0_D0







4

4

4

4

4

4

4

4

4

DIMM_P0_D1



















10

10

10

DIMM_P0_E0









5

5

5

5

5

5

5

5

DIMM_P0_E1





















11

11

DIMM_P0_F0











6

6

6

6

6

6

6

DIMM_P0_F1























12





Memory Bandwidth and Capacity



Type

Rank Per DIMM and Data Width

DIMM Capacity (GB)

Speed (MT/s); Voltage (V); Slots per Channel (SPC) & DIMMs per Channel (DPC)

DRAM Density

1DPC

2DPC

4Gb

8Gb

1.2V

1.2V

RDIMM

SRx4

8GB

16GB

2666

2666

RDIMM

SRx8

4GB

8GB

RDIMM

DRx8

8GB

16GB

RDIMM

DRx4

16GB

32GB

RDIMM 3DS

QRx4

N/A

2H-64GB

8Rx4

N/A

4H-128GB

LRDIMM

QRx4

32GB

64GB

LRDIMM 3DS

QRx4

N/A

2H-64GB

8Rx4

N/A

4H-128GB



NOTE: Capacity references are rounded to the common gigabyte (GB) values.

  • 16GB     = 16,384MB
  • 32GB     = 32,768MB
  • 64GB     = 65,536MB





Hard Drives

Drive bay 20, 21, 22, and 23 are Tri-Mode drive bay that supports SAS/SATA/NVMe drives

24 Front SFF SAS/SATA Hot plug HDD/SSD + Optional 2 rear SFF SATA drives numbering

Front View



one

Rear View

two

12 Front LFF SAS/SATA Hot plug HDD/SSD + Optional 2 rear SFF SATA drives numbering

Front View

one

Rear View



Technical Specifications

System Unit

Dimensions (H x W x D)

3.44" x 17.24" x 28.74" (8.76 cm x 43.79 cm x 73.03 cm)

Weight

(approximate)

Maximum:
(full load front drives, full load rear drives, 2CPU, full load DIMM, 2PSU, all PCIe add-on card, 1pcs OCP add-on card)
  • LFF Model: 74.85 Lbs (33.98 Kg)
  • SFF Model: 65.86 Lbs (29.90 Kg)

Minimum:
(2 front drives, no rear drive, 1CPU, 1DIMM, 2PSU, no PCIe add-on cards, no OCP add-on card)
  • LFF Model: 45.96 Lbs (20.87 Kg)
  • SFF Model: 45.96 Lbs (20.87 Kg)

Input Requirements

Rated Line Voltage

100 - 127Vac / 200 - 240Vac

Rated Input Current

7A - 12A

Rated Input Frequency

50 - 60Hz

Rated Output Power
  • 1000W @ 100-172Vac
  • 1200W @ 200-240Vac

Rated Input Power
  • 100 - 127V @ 1,185W
  • 200 - 240V @ 1,345W

BTU Rating

Maximum
  • 100 - 127V @ 4040.85 BTU/hour
  • 200 - 240V @ 4586.45 BTU/hour

System Inlet Temperature

Operating

10°C to 35°C (50°F to 95°F)

Non-operating

-30°C to 50°C (-22°F to 122°F)

NOTE: All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed.

NOTE: System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

Relative Humidity

Operating

10% to 80% relative humidity (Rh)

Non-operating

20% to 95% relative humidity (Rh)

NOTE: Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa.

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Environment friendly Products and Approach

End-of-life Management

and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/recycle. To recycle your product, please go to: http://www.hpe.com/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hpe.com/recycle. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Summary of Changes

Date

Version History

Action

Description of Change

09-Dec-2019

Version 7

Changed

Standard Features and Configuration Information sections were updated.

Obsolete SKUs were removed.

03-Dec-2018

Version 6

Changed

Standard Features, Configuration Information and Additional Options sections were updated

01-Oct-2018

Version 5

Changed

Overview, Standard Features, Service and Support, Additional Options, Hard Drives and Technical Specifications sections were updated.

04-Jun-2018

Version 4

Changed

Update the whole document and its sections

02-Apr-2018

Version 3

Changed

Add 880149-B21 / 880858-B21/ Correct Inlet Temperature information

05-Feb-2018

Version 2

Changed

Update the whole document and its sections

04-Dec-2017

Version 1

New

New QuickSpecs









Sign up for updates







© Copyright 2019 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries.

Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.





a00028294enw - 16093 - Worldwide  - V7 - 09-December-2019
