 HPE Cloudline CL2200 G3 1211R Server

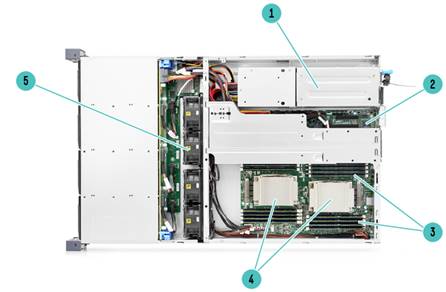

The HPE Cloudline CL2200 Server delivers Big Data and Cloud storage functionality for web-scale service providers in a package that uses basic hardware and no frills mechanical designs to lower acquisition costs, the Cloudline CL2200 is a 2U, 2P server featuring the latest Intel® Xeon® E5-2600v4 series processors.

What’s New

New updated part numbers

Processor

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

NOTE: Up to 2 processors supported. Mixing different processor models is not supported.

Intel® Xeon® processor E5-2600 v4 product family

Chipset

Intel® C610 Series Chipset

NOTE: For more information regarding Intel chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

Upgradeability

Upgradeable to 2 processors (40 Cores)

Up to 16 DIMM slots available for higher Memory capacity

OCP Mezzanine connector for 10 Gigabit networking options

12 LFF or SFF (via conversion tray) Drive Cage Bay

Redundant Power Supply

On System Management Processor

iBMC ASPEED AST2400 with KVM Support

Memory

Industry Standard DDR4 Registered (RDIMM)

DIMM Slots Available        16           (8 DIMM slots per processor, 4 channels per processor, 2 DIMMs per channel)

Maximum Capacity            1024GB                (16 x 64GB RDIMM) 16GB/32GB/64GB DDR4 up to 2400MT/s

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Online spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Expansion Slots
depending on

model

NOTE: Bus Width data indicates the number of physical electrical lanes running to the connector.

Internal Storage Devices
depending on

model

Optical Drive        None

Hard Drives         None ship standard

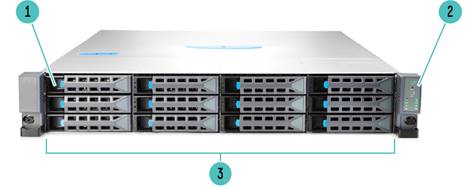

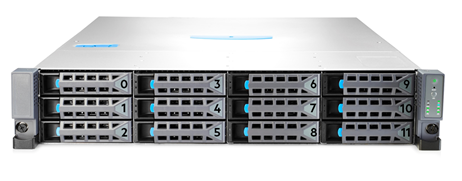

Drive Bays            Front 12 LFF/SFF (via conversion tray)

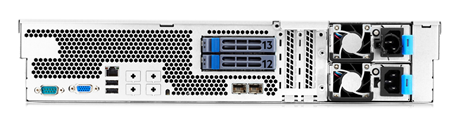

Rear 2 SFF

Maximum Internal Storage

Hot Plug LFF SATA                           120 TB                  12 x 10 TB

Hot Plug SFF SAS                               16.8 TB                 14 x 1.2 TB

Hot Plug LFF / SFF SAS                    122.4 TB                              12 x 10 TB + 2 x 1 .2TB

Hot Plug SFF SATA SSD                   22.4 TB                 14 x 1.6TB

Power Supply

One of the following depending on model

HPE CL 650W Platinum at 220V, Gold at 110V, Fixed PSU

HPE CL 500W Platinum HVDC-PSU, Redundant

HPE CL 800W Platinum HVDC-PSU, Redundant

System Fans

4 Fans, none hot-swap

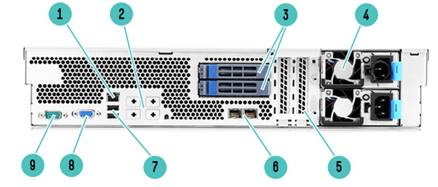

Interfaces

Serial                                     1

Video                                     1

Network ports                      None, 2x 1GbE, 4x 1GbE ports - depending on model

OCP NIC                ports                     2x SFP+ ports (for OCP NIC Mezzanine card) - depending on model

IPMI management port     dedicated 10/100M LAN port and shared 1GbE/10GbE LAN port

USB 2.0 Ports                      Up to 2 total: 2 rear

Operating Systems Test for CL Servers with E5-2600v4

RHEL 7.0 (latest version)

CentOS 7.0 (latest version)

Windows Server 2012 R2 (Datacenter, Standard, Essentials, Foundation, HyperV, Storage)

VMware ESXi 5.5.0 U2d

VMware ESXi 6.0 U1

Industry Standard Compliance

ACPI 2.0b Complaint

PCIe 3.0 Complaint

PXE Support

WOL Support

USB 2.0 Support

Graphics

Integrated PCIe VGA/2D Controller via ASPEED 2400 BMC, 1600 x 1200 @ 60Hz (32 bpp)

Form Factor

2U Rack form factor

3.43 (8.7cm) Height x 17.58" (44.6 cm) Width x 28" (71.1 cm) Length

Security

Power-on password

Administrator's password

UEFI

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services. The Limited Warranty Period for a Hewlett Packard Enterprise hardware Product is a specified, fixed period commencing on the date of purchase. Your HPE Limited Warranty may include a parts only warranty service. Under the terms of parts only service, Hewlett Packard Enterprise will provide replacement parts free of charge. If Hewlett Packard Enterprise carries out the repair, labor and logistics costs are at your expense.

NOTE: CL2100/CL2200 based on E5-2600v4 have the following Warranty
Hardware support is available for 3 year from date of purchase.
Support for software and initial setup is available for 90 days from date of purchase.
NOTE: Server Warranty includes 3-Years Parts, 0-Years Labor, 0-Years Onsite support.

Enhancements to warranty services are available through HPE Services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the HPE Cloudline Servers and Options Global Limited Warranty and Technical Support for details.

NOTE: Addition information regarding worldwide limited warranty and technical support is available at http://www.hp.com/support/cloudline_warranty_en

Response time: Response times are based on local standard business days and working hours. Unless otherwise stated, all responses are measured from the time the customer calls until Hewlett Packard Enterprise has either established a mutually acceptable time for support to be performed, or Hewlett Packard Enterprise has begun to provide support or remote diagnostics. Response time is based on commercially reasonable effort. In some countries and under certain supplier constraints, response time may vary. If your location is outside the customary service zone, response time may be longer or there may be an additional charge. Contact your local Hewlett Packard Enterprise service organization for response time availability in your area.

HPE Support Services

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Support Services

HPE Support Services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.

Standard Support recommendation

Connect to Hewlett Packard Enterprise for faster problem resolution. Cloudline Support Services provides hardware onsite response. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

1. Factory Integrated Models must start with a CTO Server.

2. FIO indicates that this option is only available as a factory installable option.

3. All Factory Integrated Models will be populated with sufficient hard drive blanks

4. Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one of the following configurable models)

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

HPE Motherboard

HPE CL2200 1211RJ OCP 2GbE 2x16 1x8 Motherboard

857689-B21

HPE Processors

NOTE: Select up to two (2) Processors, Processor one and two have a different heatsinks

Segmented Optimized - E5-2600v4 series Processors

HPE CL G3 Intel® Xeon® E5-2695v4 (2.1GHz/18-core/45MB/120W) FIO Processor Kit

857635-L21

Advanced - E5-2600v4 series Processors

HPE CL G3 Intel® Xeon® E5-2690v4 (2.6GHz/14-core/35MB/135W) FIO Processor Kit

847786-L21

HPE CL G3 Intel® Xeon® E5-2680v4 (2.4GHz/14-core/35MB/120W) FIO Processor Kit

847792-L21

HPE CL G3Intel® Xeon® E5-2660v4 (2.0GHz/14-core/35MB/105W) FIO Processor Kit

847798-L21

HPE CL G3 Intel® Xeon® E5-2650v4 (2.2GHz/12-core/30MB/105W) FIO Processor Kit

847810-L21

Standard - E5-2600v4 series Processors

HPE CL G3 Intel® Xeon® E5-2640v4 (2.4GHz/10-core/25MB/90W) FIO Processor Kit

847812-L21

HPE CL G3 Intel® Xeon® E5-2630v4 (2.2GHz/10-core/25MB/85W) FIO Processor Kit

847822-L21

HPE CL G3 Intel® Xeon® E5-2620v4 (2.1GHz/8-core/20MB/85W) FIO Processor Kit

848499-L21

Basic - E5-2600v4 series Processors

HPE CL G3 Intel® Xeon® E5-2609v4 (1.7GHz/8-core/20MB/85W) FIO Processor Kit

857634-L21

HPE CL G3 Intel® Xeon® E5-2603v4 (1.7GHz/6-core/15MB/85W) FIO Processor Kit

847824-L21

NOTE: If two processors are desired, select one xxxxxx-L21 and one xxxxxx-B21.

NOTE: Up to 2 processors supported. Mixing different processor models is not supported.

NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

HPE Heatsink

NOTE: Each processor needs a dedicated heatsink

HPE CL2200 G3 Processor 1 Heat Sink Kit

857145-B21

HPE CL2200 G3 Processor 2 Heat Sink Kit

857683-B21

HPE Memory
DDR4-2400

NOTE: The following memory is supported by the E5-2600v4 series Processors.

HPE CL 16GB (1x16GB) DuaI Rank x4 DDR4-2400 CAS-15-15-15 Registered Memory Kit

851005-B21

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-15-15-15 Registered Memory Kit

851007-B21

HPE CL 64GB (1x64GB) Dual Rank x4 DDR4-2400 LR Registered Memory Kit

859992-B21

NOTE: Select one or more memory. A minimum of two memory kits are required if server is configured with two processors.

NOTE: If only one processor is installed, only half of the total DIMM slots are available. When populating with two processors, all DIMM slots are available.

NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2400MHz, 2133MHz or 1866MHz.

HPE Power Supplies

HPE CL 650W Gold Fixed Power Supply Unit (855424-B21 and 855425-B21)

Included

HPE CL 500W Platinum HVDC Red. Power Supply Unit

864450-B21

HPE CL 800W Platinum HVDC Red. Power Supply Unit

864453-B21

NOTE: Mixing of power supplies in the same server is not supported. All power supplies must be of the same input voltage, output rating, and efficiency rating. If non-matching power supplies are installed, you may receive an error message and/or experience operational issues with your server.

Step 3: Choose Additional Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Storage Controllers

SAS Array Controllers 12Gb/s - HHHL

HPE CL LSI MegaRAID SAS 9341-8i Card

 859910-B21

HPE CL LSI MegaRAID SAS 1G 9361-8i Kit

859912-B21

HPE CL LSI MegaRAID SAS 9361-16i W Cache CVM02 Adapter

857143-B21

SAS Host Bus Adapters 12Gb/s - FHHL

HPE CL LSI-9305-16i SAS Host Bus Adapter

862627-B21

HPE Processors

NOTE: Second processor needs a heatsink

Segmented Optimized - E5-2600v4 series Processors

HPE CL Intel® Xeon® E5-2695v4 (2.1GHz/18-core/45MB/120W) Processor Kit

857635-B21

Advanced - E5-2600v4 series Processors

HPE CL Intel® Xeon® E5-2690v4 (2.6GHz/14-core/35MB/135W) Processor Kit

847786-B21

HPE CL Intel® Xeon® E5-2680v4 (2.4GHz/14-core/35MB/120W) Processor Kit

847792-B21

HPE CL Intel® Xeon® E5-2660v4 (2.0GHz/14-core/35MB/105W) Processor Kit

847798-B21

HPE CL Intel® Xeon® E5-2650v4 (2.2GHz/12-core/30MB/105W) Processor Kit

847810-B21

Standard - E5-2600v4 series Processors

HPE CL Intel® Xeon® E5-2640v4 (2.4GHz/10-core/25MB/90W) Processor Kit

847812-B21

HPE CL Intel® Xeon® E5-2630v4 (2.2GHz/10-core/25MB/85W) Processor Kit

847822-B21

HPE CL Intel® Xeon® E5-2620v4 (2.1GHz/8-core/20MB/85W) Processor Kit

848499-B21

Basic - E5-2600v4 series Processors

HPE CL Intel® Xeon® E5-2609v4 (1.7GHz/8-core/20MB/85W) Processor Kit

857634-B21

HPE CL Intel® Xeon® E5-2603v4 (1.7GHz/6-core/15MB/85W) Processor Kit

847824-B21

HPE Heatsink

NOTE: Each processor needs a dedicated heatsink

HPE CL2200 G3 Processor 2 Heat Sink Kit

857683-B21

HPE Memory
DDR4-2400

NOTE: The following memory is supported by the E5-2600v4 series Processors.

HPE CL 16GB (1x16GB) DuaI Rank x4 DDR4-2400 CAS-15-15-15 Registered Memory Kit

851005-B21

HPE CL 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-15-15-15 Registered Memory Kit

851007-B21

HPE CL 64GB (1x64GB) Dual Rank x4 DDR4-2400 LR Registered Memory Kit

859992-B21

NOTE: Select one or more memory. A minimum of two memory kits are required if server is configured with two processors.

NOTE: If only one processor is installed, only half of the total DIMM slots are available. When populating with two processors, all DIMM slots are available.

NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2400MHz, 2133MHz or 1866MHz.

HPE Drives

Hot Plug SFF (2.5-inch) HDD - 12Gb/s

HPE CL 1.2TB 12G SAS 10k rpm SFF (2.5-inch) Enterprise Hard Drive

848505-B21

Hot Plug LFF (3.5-inch) HDD - 6Gb/s

HPE CL 6TB 6G SATA 7.2K rpm LFF (3.5-inch) Seagate Midline Hard Drive

847820-B21

HPE CL 6TB 6G SATA 7.2k 3.5 MDL HDD Kit

851232-B21

HPE CL 8TB 6G SATA 7.2K rpm LFF (3.5-inch) 512e Seagate Midline Hard Drive

848539-B21

HPE CL 10TB 6GB SATA 7.2K HG-LFF MDL HDD

860038-B21

HPE CL 10TB 6GB SATA 7.2K SG LFF MDL HDD

860036-B21

Hot Plug SFF (2.5-inch) SSD - 6Gb/s

HPE CL 256GB 6G SATA SFF VE SNDK SSD Kit

851019-B21

HPE CL 800G 6G SATA INTL-s3610 SSD Kit

867477-B21

HPE CL960GB 6G-SATA SM-pm863 VE SSD Kit

858337-B21

HPE CL 1.6TB 6G SATA Read Intensive-2 SFF 2.5-in Intel S3520 3yr Wty Solid State Drive

872624-B21

HPE M.2 Drives

HPE CL M2PS Dual M.2 (NGFF) SSD to SATA Adapter

857157-B21

HPE CL 128GB M.2-2280 SAT-MLC-HY SSD Kit

858311-B21

NOTE: A minimum of one SSD to SATA Adapter (857157-B21) is required for M.2 devices

HPE Networking

10 Gigabit Ethernet OCP mezzanine Adapters

HPE CL Ethernet 10Gb 2-port SFP+ OCP Mezzanine Adapter

851279-B21

10 Gigabit Ethernet Adapters

HPE CL Ethernet Intel X540-T2 10Gb Dual Port RJ45 PCIe Adapter

859906-B21

HPE CL Ethernet Intel X520-DA2 10Gb Dual Port SFP+ PCIe Adapter

859908-B21

HPE Rail Kits

HPE CL 2200 Rail Kit

854231-B21

HPE Power Supplies

HPE CL 500W Platinum HVDC Red. Power Supply Unit

 864450-B21

HPE CL 800W Platinum HVDC Red. Power Supply Unit

864453-B21

Memory Subsystem Architecture

Each Intel® Xeon® E5-2600v3/v4 family processor socket contains four memory channels per installed processor with two DIMM per channel for a total of eight (8) DIMMs or a grand total of sixteen (16) DIMMs for the server.

Memory Population guidelines

General Memory Population Rules and Guidelines

Install DIMMs only if the corresponding processor is installed.

If only one processor is installed in a two processor system, only half of the DIMM slots are available.

To maximize performance, it is recommended to balance the total memory capacity between all installed processors and load the channels similarly whenever possible.

When two processors are installed, balance the DIMMs across the two processors.

Quad rank RDIMMs are not supported in CL 2200 G3 Servers

DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed. The maximum memory speed is a function of the memory type, memory configuration, and processor model.

The maximum memory capacity is a function of the memory type and number of installed processors.

DIMM slot and configuration diagram

Memory Bandwidth and Capacity

Memory Speed by Processor Model

E5-2600v4

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 2GB     = 2,048MB
• 4GB     = 4,096MB
• 8GB     = 8,192MB
• 16GB = 16,384MB
• 32GB = 32,768MB
• 64GB = 65,536MB

Front View

Rear View

12x LFF/SFF Hot Pluggable Hard Drive Bays + Rear 2 SFF Hot Pluggable Hard drive Bays

Date

Version History

Action

Description of Change

27-Mar-2017

From version 10 to 11

Updated

Update Technical information and configuration sections

13-Feb-2017

From version 9 to 10

Updated

Add HPE CL 1.6TB 6G SATA Read Intensive solid state drive

9-Dec-2016

From version 8 to 9

Changed

Remove some SKUS in the document

6-Jun-2016

From version 7 to 8

Updated

Updates throughout the QuickSpecs new part numbers

31-Mar-2016

From version 6 to 7

Changed

Update throughout the section of configuration information for v3 and v4 processors

16-Feb-2016

From version 5 to 6

Updated

Update Callouts and Images and info throughout the QuickSpecs

15-Jan-2016

From version 4 to 5

Changed

Changed the formatting and correct the errors throughout the document.

16-Oct-2015

From version 3 to 4

Update

Update the Configuration Information Section

17-Aug-2015

From version 2 to 3

Update

Updates throughout the QuickSpecs

29-May-2015

From version 1 to 2

Changed

Updates throughout the QuickSpecs

30-Mar-2015

Version 1

Created

Create HPE Cloudline G3 2200 Server
