HPE Cloudline CL2100 Gen10 Server

The HPE Cloudline CL2100 Gen10 is a 2P 1U server focus on cost, flexibility and scalability. This Server is designed for cloud computing, cloud-scale application deployments for open compute system marketplace. CL2100 Gen10 server features the latest Intel® Xeon® Processor Scalable Family, support up to Gold Processors, up to 10 SFF hard disk drives at the front, 24 DDR4 DIMMs, and choices of 2x1GbE on board NIC, OCP mezz or PCIe 3.0 networking solutions. The HPE Cloudline CL2100 Gen10 Server offers redundant power supply and N+1 redundant fans to lower the operational risky requiremeints in today's data center. Cloudline server uses industrial standard BIOS and BMC firmware, as well as leverages commodity vendor's firmware to support easy management, clear integration for service provider data center.

Front View

1.

(2) SFF Tri-Mode (SAS/SATA/NVMe) Drive Bays.

3

Front Control Panel Module (1 x USB 3.0, Buttons for Power, reset, and UID / BMC reset)

2.

(10) SFF hot plug SAS/SATA/SSD Drive Cage Bays.

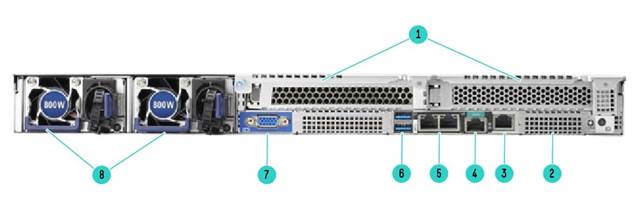

Rear View

1.

PCIe Slot ( PROCESSOR 0 FHHL/ PROCESSOR 1 FHHL)

5.

(2) 1GbE on borad NIC

2.

(1) OCP 2.0 Mezzanine Type 1 (from PROCESSOR 0)

6.

(2) USB 3.0 Ports

3.

(1) BMC Management Port

7.

(1) VGA Port

4..

(1) Serial Port ( If DB9 connector interface is required, a RJ45 to DB9 cable is needed)

8.

(2) 800W Platinum Hot Plug Redundant Power Supply

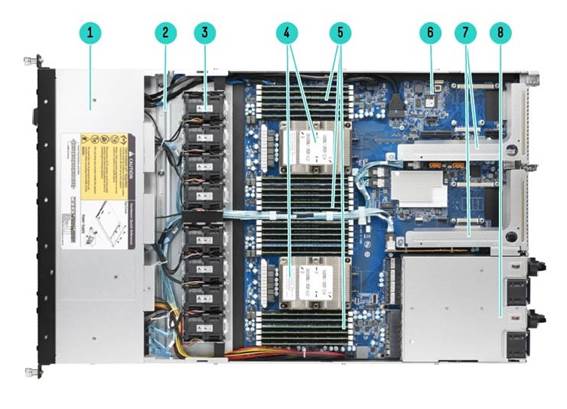

Internal View

1.

10 SFF hard drive bays

5

(24) DDR4 DIMMs

2.

(1) SAS or NVMe upgrade  kit (optional)

6.

(1) ASPEED 2500 BMC

3

(7+1) N+1 Redundant no hot plug Fans

7

(2) PCIe Riser from Processors

4

(2) Intel® Xeon® Processors Scalable Family Processors

8

(2) 800W Platinum Hot Plug Redundant Power Supply

Processor

Processors - Up to 2 of the following

NOTE: For more information regarding Intel Xeon Processors, please see the following http://www.intel.com/xeon.

NOTE: Up to 2 Processors supported. Mixing different Processor models is not supported.

Intel® Xeon® Processor Scalable Family

NOTE: Silver - 4100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MHz providing up to 768 GB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

NOTE: Bronze - 3100 Series - 2 Socket supports 2UPI @ 9.6 GT/s, supports 6-Channel DDR4 @ 2133 MHz providing up to 768GB memory capacity. Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS supported.

Chipset

Intel® C621 Chipset

NOTE: For more information regarding Intel chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/.

On System Management Chipset

iBMC ASPEED AST2500 with KVM Support

Memory

Industry Standard DDR4 Registered (RDIMM) and Load Reduced (LRDIMM)

Memory Protection

Memory Static Virtual Lockstep

Memory Mirror: Set entire 1LM/2LM memory in system to be mirrored, consequently reducing the memory capacity by half.

Memory Rank Sparing

Memory Correctable Error Threshold: Use for sparing, tagging, and leaky bucket

Memory SDDC Plus One

Expansion Slots

NOTE: All risers are included. Expansion slot will only be available if the processor is installed.

NOTE: Bus Width data indicates the number of physical electrical lanes running to the connector.

Storage Controllers

HPE CL LSI MegaRAID SAS 1G 9361-8i Kit

HPE CL LSI 9305-16i SAS HBA Card Kit

HPE CL LSI 9361-16i W Cache CVPM02 Kit

HPE CL Broadcom 9400-8i Tri-Mode Host Bus Adapter

HPE CL Broadcom 9400-16i Tri-Mode Host Bus Adapter

HPE CL Broadcom 9460-8i 2G with CVPM05 Tri-Mode RAID Controller

HPE CL Broadcom 9460-16i 4G with CVPM05 Tri-Mode RAID Controller

Internal Storage Devices

Optical Drive

None

Hard Drives

None ship standard, all drive carriers included

Drive Bays

10 SFF drives

Optional 4 internal PCIe M.2 via PCIe card

Maximum Internal Storage

Power Supply

(2) HPE CL2100 Gen10 800W Redundant Power Supply Unit

System Fans

7 N+1 Redundant Fans, non hot-swap

Interfaces

Video                                     1

Serial Port                            1 ( If DB9 connector interface is required, a RJ45 to DB9 cable is needed)
Network ports                      2x 1GbE , OCP NIC ports 1 x OCP 2.0 Mezzanine Type 1 Card

IPMI management port     dedicated 1GbE LAN port
USB 3.0 Ports                      Up to 3 total: 2 rear, 1 front

Operating Systems

Windows Server 2012 R2
Windows Server 2016
Red Hat Enterprise Linux 6.9
Red Hat Enterprise Linux 7.3, 7.4
SLES 11 SP4

SLES 12 SP2, SP3

VMware vSphere 6.0 U3

VMware vSphere 6.5 U1

NOTE: Tested for successful installation only, No Operating Systems certification done unless indicated.

Industry Standard Compliance

ACPI 6.1

PCIe 3.0

PXE Support

WOL Support

USB 3.0 Support

UEFI 2.5 Support

Redfish API Support

IPMI Support

Graphics

Integrated PCIe VGA/2D Controller via ASPEED 2500 BMC, 1920 x 1200 @ 60Hz (32 bpp)

Form Factor

1U Rack form factor

1.7" (4.3cm) Height x 17" (43.2cm) Width x 26.5" (67.4cm) Length

Security

Power-on password

Administrator's password

TPM 2.0 (Optional)

Secure Boot

Warranty

Hardware support is available for 3 years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Hard drives have either a one year or three year warranty; refer to the HPE Cloudline Servers and Options Global Limited Warranty and Technical Support for details.

NOTE: Server Warranty includes 3 Years Parts with five (5) days response time, 0 Years Labor, and 0 Years Onsite Support. Additional information regarding worldwide limited warranty and technical support is available at

http://www.hpe.com/support/cloudline_warranty_en.

Response time: Response times are based on local standard business days and working hours. Unless otherwise stated, all responses are measured from the time the customer calls until Hewlett Packard Enterprise has either established a mutually acceptable time for support to be performed, or Hewlett Packard Enterprise has begun to provide support or remote diagnostics. Response time is based on commercially reasonable effort. In some countries and under certain supplier constraints, response time may vary. If your location is outside the customary service zone, response time may be longer or there may be an additional charge. Contact your local Hewlett Packard Enterprise service organization for response time availability in your area.

Protect your business beyond warranty with HPE Pointnext operational services

HPE Cloudline Support Services provide remote diagnosis and support, scheduled onsite hardware repair/troubleshooting, and coverage for replacement components, including defective media retention (DMR). With HPE Cloudline Support Services, you can purchase the services that meet your specific needs.

- HPE 2100 Parts + Remote Technical Support + Defective Media Retention

- HPE 2100 Parts + Remote Technical Support + Onsite Labor

- HPE 2100 Parts + Remote Technical Support + Onsite Labor + Defective Media Retention

Additional information regarding HPE packaged support services for Cloudline servers is available at: https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA5-9207ENN.pdf.

Standard Support recommendation

Connect to Hewlett Packard Enterprise for faster problem resolution. Cloudline Carepack Services provides hardware onsite response. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Datacenter Care for Hyperscale

DC for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture. Customers can take advantage of this environment support tailored to their operating model. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA6-3460ENW.pdf.

Spares Management Service

Provides customers with spare parts inventory for onsite stocking, and access to the HPE Spares Management Tool - an automated inventory management tool that helps enable real-time inventory management. More information at

https://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA1-3116ENW.pdf.

Advisory & Transformational Services

Design, strategy, road map, and other services to help enable the digital transformation journey, tuned to IT and business needs. Advisory Services helps customers on their journey to Hybrid IT, Big Data, and the Intelligent Edge. More information at https://www.hpe.com/us/en/services/consulting.html.

Lifecycle Event Services

Operational offerings to improve performance and securely handle retirement of customers' IT environments. More information at https://h20195.www2.hpe.com/v2/GetPDF.aspx/5981-8521ENE.pdf.

- Operate & Improve performance, minimize risk of downtime, and reduce security risks.

- Retire & Sanitize to safely and securely dispose of retired IT, and ensuring customer data cannot be compromised.

Professional Services

Integrate the new solution with project management, installation and startup, relocation services, and more. We help mitigate risk to the business so there is no interruption when new technology is being integrated in the existing IT environment. More information at https://www.hpe.com/us/en/services/professional.html.

Memory Subsystem Architecture

Each Intel® Xeon® Processor Scalable Family socket contains four memory channels per installed Processor with two DIMM per channel for a total of twelve (12) DIMMs or a grand total of twenty four (24 ) DIMMs for the server.

Memory Population guidelines

General Memory Population Rules and Guidelines

Install DIMMs only if the corresponding Processor is installed.

If only one Processor is installed in a two Processor system, only half of the DIMM slots are available.

To maximize performance, it is recommended to balance the total memory capacity between all installed Processors and load the channels similarly whenever possible.

When two Processors are installed, balance the DIMMs across the two Processors.

DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed. The maximum memory speed is a function of the memory type, memory configuration, and Processor model.

The maximum memory capacity is a function of the memory type and number of installed Processors.

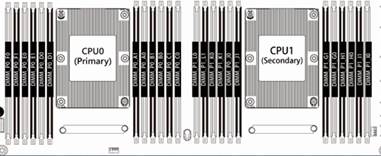

DIMM slot and configuration order

Memory Bandwidth and Capacity

Memory Speed by Processor Models

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 8GB     = 8,192MB
• 16GB = 16,384MB
• 32GB = 32,768MB

Front View

HPE Cloudline CL2100 Gen10 Server

10 x SFF Hot Pluggable Hard Drive Bays ( Include 2 optional Tri mode SAS/SATA/NVMe, Number 8 and 9 )

Date

Version History

Action

Description of Change

03-Dec-2018

Version 6

Changed

Standard Features and Configuration Information sections were updated

01-Oct-2018

Version 5

Changed

.Overview, Standard Features, Service and Support, Configuration information and Technical Specifications sections were updated.

04-Jun-2018

Version 4

Updated

Updates madre troughout the QuickSpecs

02-Apr-2018

Version 3

Updated

Add 880149-B21 / 880858-B21/ Correct Inlet Temperature information

05-Feb-2018

Version 2

Updated

Update the whole document and its sections.

04-Dec-2017

Version 1

Created

Create QuickSpecs for HPE Cloudline CL2100 Gen10 Server
