HPE Cloudline CL2100 G3 Server

The HPE Cloudline CL2100 G3 is a 2P 1U value server for Cloud Service Providers that Features the latest Intel Xeon E5-2600 v4 processors, choice of SFF or LFF hard drives. Without any extras, this server is ideal for web front end applications to meet the needs and workloads of Service Providers. The HPE Cloudline CL2100 G3 offers both redundant power supply model (HPE Cloudline CL2100 G3 806r Server) and fixed power supply models (HPE Cloudline CL2100 G3 407s/807s Server) to support all types of demanding power supply requiremeints in today's data center.

HPE Cloudline CL2100 G3 806r Server

Processor

HPE Cloudline CL2100 G3 806r Server

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

NOTE: Up to 2 processors supported. Mixing different processor models is not supported.

Intel® Xeon® processor E5-2600 v4 product family

HPE Cloudline CL2100 G3 407s Server

HPE Cloudline CL2100 G3 807s Server

Intel® Xeon® processor E5-2600 v4 product family

Chipset

Intel® C610 Series Chipset

NOTE: For more information regarding Intel chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/

Upgradeability

Upgradeable to 2 processors

Up to 16 DIMM slots available for higher Memory capacity

OCP Mezzanine connector for 10 Gigabit networking options

4 LFF/SFF (via conversion tray) Drive Cage Bay (Model depended)

8 SFF Drive Cage Bay (Model depended)

8 SFF Drive Cage Bay and 1 internal SFF SSD drives and 2x M.2 (Model depended)

On System Management Processor

iBMC ASPEED AST2400 with KVM Support

Memory

Industry Standard DDR4 Registered (RDIMM)

DIMM Slots Available 16 (8 DIMM slots per processor, 4 channels per processor, 2 DIMMs per channel)

Maximum Capacity 1024GB (16 x 64GB RDIMM) 16GB/32GB/64GB DDR4 up to 2400MT/s

Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Online spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.

Expansion Slots
One of the following depending on model

HPE Cloudline CL2100 G3 806r Server

HPE Cloudline CL2100 G3 407s Server

HPE Cloudline CL2100 G3 807s Server

NOTE: Bus Width data indicates the number of physical electrical lanes running to the connector.

Internal Storage Devices
One of the following depending on model

Optical Drive

None

Hard Drives

ship standard

Drive Bays(Model denpendint)

4 LFF/SFF (via conversion tray) or 8 SFF or 8 SFF + 1 internal SFF SSD

Maximum Internal Storage

Hot Plug LFF SATA                           32 TB                    4 x 8 TB

Hot Plug SFF SAS                               9.6 TB                    8 x 1.2TB

Hot Plug SFF SATA SSD                   12.8 TB                 8 x 1.6 TB

Power Supply

HPE Cloudline CL2100 G3 806r Server
HPE CL2100 806R 550W Redundant Power Supply Unit

HPE CL2100 806R 800W Redundant Power Supply Unit

HPE Cloudline CL2100 G3 407s Server

HPE Cloudline CL2100 G3 807s Server

HPE CL 550W Platinum HVDC-Fixed PSU

System Fans

HPE Cloudline CL2100 G3 806r Server
6 N+1 Redundant Fans, non hot-swap

HPE Cloudline CL2100 G3 407s Server

HPE Cloudline CL2100 G3 807s Server

Redundant 5 Fans, none hot-swap

Interfaces

HPE Cloudline CL2100 G3 806r Server

Serial                                     1

Video                                     1

Network ports                      2x 1GbE

OCP NIC                ports                     2x SFP+ ports (from OCP NIC Mezzanine card)

IPMI management port     dedicated 10/100M LAN port

USB Ports                             Up to 4 total: 2 front (USB 2.0), 2 back (USB3.0)

HPE Cloudline CL2100 G3 407s Server

HPE Cloudline CL2100 G3 807s Server

Serial                                     1

Video                                     1

Network ports                      2x 1GbE, 4x 1GbE ports - depending on model

OCP NIC                ports                     2x SFP+ ports (for OCP NIC Mezzanine card) - depending on model

IPMI management port     dedicated 10/100M LAN port

USB 2.0 Ports                      Up to 4 total: 2 front, 2 back

Operating Systems Test for CL Servers with E5-2600v4

RHEL 7.0

CentOS 7.0

Windows Server 2012 R2

VMware ESXi 5.5.0

VMware ESXi 6.0

Industry Standard Compliance

ACPI 2.0b Complaint

PCIe 3.0 Complaint

PXE Support

WOL Support

USB 2.0 Support

Graphics

Integrated PCIe VGA/2D Controller via ASPEED 2400 BMC, 1600 x 1200 @ 60Hz (32 bpp)

Form Factor

1U Rack form factor

1.7" (4.3cm) Height x 17" (43.2cm) Width x 26.5" (67.4cm) Length

Security

Power-on password

Administrator's password

UEFI

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services. The Limited Warranty Period for a Hewlett Packard Enterprise hardware Product is a specified, fixed period commencing on the date of purchase. Your HPE Limited Warranty may include a parts only warranty service. Under the terms of parts only service, Hewlett Packard Enterprise will provide replacement parts free of charge. If Hewlett Packard Enterprise carries out the repair, labor and logistics costs are at your expense.

NOTE: CL2100/CL2200 based on E5-2600v4 have the following Warranty
Hardware support is available for 3 year from date of purchase.
Support for software and initial setup is available for 90 days from date of purchase.
NOTE: Server Warranty includes 3-Years Parts, 0-Years Labor, 0-Years Onsite support.

Enhancements to warranty services are available through HPE Services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the HPE Cloudline Servers and Options Global Limited Warranty and Technical Support for details.

NOTE: Addition information regarding worldwide limited warranty and technical support is available at http://www.hp.com/support/cloudline_warranty_en

Response time: Response times are based on local standard business days and working hours. Unless otherwise stated, all responses are measured from the time the customer calls until Hewlett Packard Enterprise has either established a mutually acceptable time for support to be performed, or Hewlett Packard Enterprise has begun to provide support or remote diagnostics. Response time is based on commercially reasonable effort. In some countries and under certain supplier constraints, response time may vary. If your location is outside the customary service zone, response time may be longer or there may be an additional charge. Contact your local Hewlett Packard Enterprise service organization for response time availability in your area.

HPE Support Services

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Support Services

HPE Support Services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.

Standard Support recommendation

Connect to Hewlett Packard Enterprise for faster problem resolution. Cloudline Support Services provides hardware onsite response. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Memory Subsystem Architecture

Each Intel® Xeon® E5-2600v4 family processor socket contains four memory channels per installed processor with two DIMM per channel for a total of eight (8) DIMMs or a grand total of sixteen (16) DIMMs for the server.

Memory Population guidelines

General Memory Population Rules and Guidelines

Install DIMMs only if the corresponding processor is installed.

If only one processor is installed in a two processor system, only half of the DIMM slots are available.

To maximize performance, it is recommended to balance the total memory capacity between all installed processors and load the channels similarly whenever possible.

When two processors are installed, balance the DIMMs across the two processors.

Quad rank RDIMMs are not supported in CL 2200 G3 Servers

DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed. The maximum memory speed is a function of the memory type, memory configuration, and processor model.

The maximum memory capacity is a function of the memory type and number of installed processors.

DIMM slot and configuration diagram

Memory Bandwidth and Capacity

Memory Speed by Processor Model

E5-2600v4

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 2GB     = 2,048MB
• 4GB     = 4,096MB
• 8GB     = 8,192MB
• 16GB = 16,384MB
• 32GB = 32,768MB

Front View

HPE Cloudline CL2100 G3 806r Server

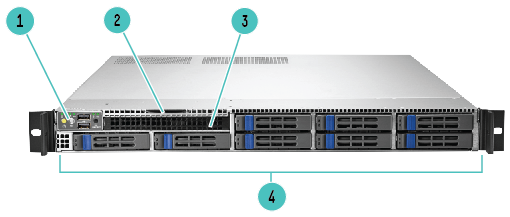

8x SFF Hot Pluggable Hard Drive Bays + 1x SFF Internal SSD

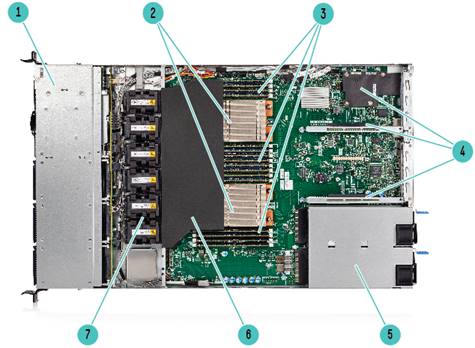

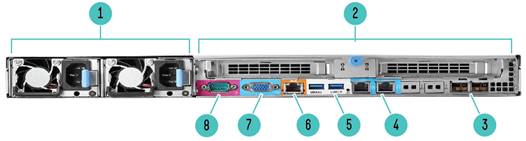

Front View

HPE Cloudline CL2100 G3 407s Server

HPE Cloudline CL2100 G3 807s Server

4x LFF / 8x SFF Hot Pluggable Hard Drive Bays

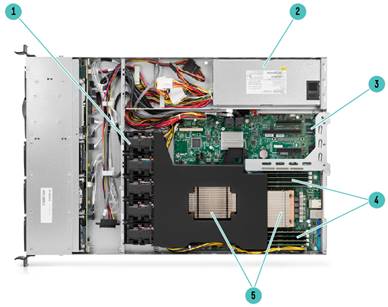

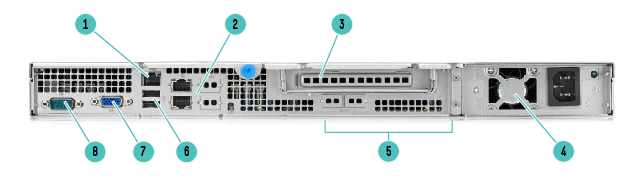

Date

Version History

Action

Description of Change

27-Mar-2017

From version 13 to 14

Updated

Updated Configuration section and the Standard features

13-Feb-2017

From version 12 to 13

Updated

Add HPE CL 1.6TB 6G SATA Read Intensive solid state drive

9-Dec-2016

From version 11 to 12

Updated

Remove some SKUs in the document

15-Aug-2016

From version 10 to 11

Updated

Updates troughout the section of configuration information

6-Jun-2016

From version 9 to 10

Updated

Updates images and information overall

31-Mar-2016

Fromn version 8 to 9

Changed

Update troughout the section of configuration information for v3 and v4 processors

16-Feb-2016

From version 7 to 8

Update

Update images and callouts

15-Jan-2016

From version 6 to 7

Changed

Update the formatting and the memory options

1-Dec-2015

From version 5 to 6

Updated

Update the Processors

16-Oct-2015

From version 4 to 5

Updated

Update the Configuration Section

17-Aug-2015

From version 3 to 4

Changed

Changes made trouhout the QuickSpecs

12-Jun-2015

From version 2 to 3

Changed

Changes made in the overview of the QuickSpecs

26-May-2015

From version 1 to 2

Updated

Update Technical specifications sections

30-Mar-2015

Version 1

Created

Create QuickSpecs for HPE CL2100
