HPE Cloudline CL1100 G3 208S Server

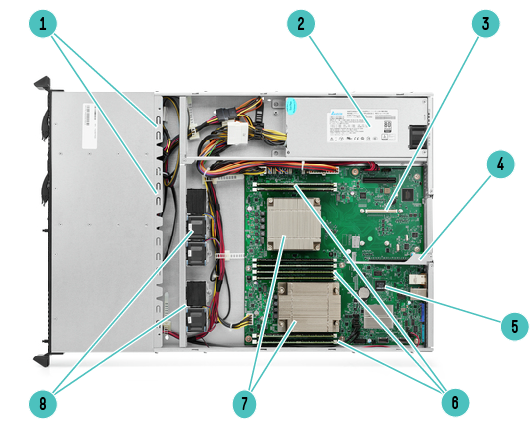

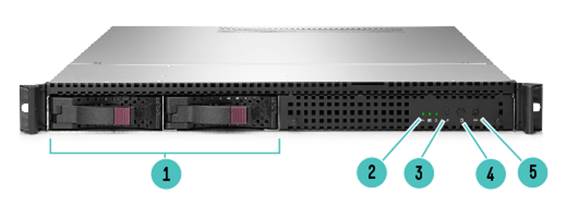

The HPE Cloudline CL1100 Server is the most cost optimized in the Cloudline portfolio. Designed to deliver efficient front-end web performance in Hyperscale deployments, the Cloudline CL1100 is a low-cost 1U 2P server featuring the latest Intel Xeon E5 v3 series processors.

Processor

One of the following depending on model

 NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

Intel® Xeon® processor E5-2600 v3 product family is designed to deliver the best combination of performance, built-in capabilities, and cost-effectiveness. One (or two) of the following Intel® Xeon® E5-2600 v3 processors based on the model.

Chipset

One of the following depending on model

 Intel® C610 Series Chipset

 Intel® E5-2600v3 Processor Family

NOTE: For more information regarding Intel chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/.

On System Management Chipset

One of the following depending on model

ASPEED 2400 without KVM Support

ASPEED 2400 with KVM Support

Memory

One of the following depending on model

Type:

Industry Standard DDR4

Memory Protection

One of the following depending on model

Expansion Slots

PCIe riser slots

OCP Mezzanine slots

Storage Controller

One of the following depending on model

Embedded SATA 3.0 controller via Intel PCH (standard)

HPE CL LSI 9271-8i RAID PCIe Card (optional)

Internal Storage Devices

One of the following depending on model

Hard Drives         -  None ship standard

Hard Drive Bays -  2 LFF drive bays total

Maximum Internal Storage

One of the following depending on model

Power Supply

One of the following depending on model

HPE 400W Power Supply (Base model)

HPE 650W Power Supply (Enhanced model)

Hewlett Packard Enterprise entry-level Power Supplies provide lower-cost options for customers trying to balance their need for enterprise class efficiency and reliability while maintaining lowest possible hardware costs.  All Entry-Level power supply options have been designed specifically for HPE Cloudline Series servers.

The HPE 400W Power Supply is the standard, non-redundant AC power supply on the base model.  It features Gold-level (92%) certified power efficiency.

The HPE 650W Power Supply is the standard, non-redundant AC/DC power supply on the enhanced model.  With an 80 Plus Platinum power efficiency rating (up to 94%), this power option helps to reduce operating expenses while protecting against trapped power capacity in the data center.

System Fans

One of the following depending on model

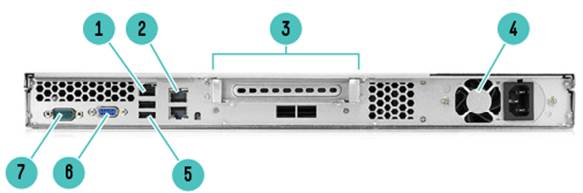

Interfaces

Operating Systems Tested for CL Servers

Upgradeability

One of the following depending on model

Upgradeable to two processors (24 cores) up to 8 DIMM slots

OCP Mezzanine slot

Redundant Fan

Industry Standard Compliance

Graphics

Integrated PCIe VGA/2D Controller via ASPEED 2400 BMC

1920 x 1200 @ 60Hz (32 bpp)

Form Factor

One of the following depending on model

1U Rack form factor

1.71" (4.35cm) Height x 17.2" (43.8cm) Width x 26.6" (67.5cm) Length

Security

Warranty

This product is covered by a global limited warranty and supported by HPE Services. The Limited Warranty Period for a Hewlett Packard Enterprise hardware Product is a specified, fixed period commencing on the date of purchase.  Your HPE Limited Warranty may include a parts only warranty service. Under the terms of parts only service, Hewlett Packard Enterprise will provide replacement parts free of charge. If Hewlett Packard Enterprise carries out the repair, labor and logistics costs are at your expense.

Hardware support and is available for 1 year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the HPE Cloudline Servers and Options Global Limited Warranty and Technical Support for details.

NOTE: Server Warranty includes 1 year five (5) day Parts response time, 0-Years Labor, 0-Years Onsite support.  Addition information regarding worldwide limited warranty and technical support is available at http://www.hp.com/support/cloudline_warranty_en

Response time: Response times are based on local standard business days and working hours. Unless otherwise stated, all responses are measured from the time the customer calls until Hewlett Packard Enterprise has either established a mutually acceptable time for support to be performed, or Hewlett Packard Enterprise has begun to provide support or remote diagnostics.  Response time is based on commercially reasonable effort. In some countries and under certain supplier constraints, response time may vary. If your location is outside the customary service zone, response time may be longer or there may be an additional charge. Contact your local Hewlett Packard Enterprise service organization for response time availability in your area.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
1. Factory Integrated Models must start with a CTO Server.
2. FIO indicates that this option is only available as a factory installable option.
3. All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

4. Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one of the following configurable models)

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

HPE Processors

Entry Processors - E5-2600v3 series Processors

HP CL1100 G3 Intel® Xeon® E5-2603v3 (1.6GHz/6-core/15MB/85W) FIO Processor Kit

807812-L21

Base Processors - E5-2600v3 series Processors

HP CL1100 G3 Intel® Xeon® E5-2620v3 (2.4GHz/6-core/15MB/85W) FIO Processor Kit

  807808-L21

HP CL1100 G3 Intel® Xeon® E5-2630v3 (2.4GHz/8-core/20MB/85W) FIO Processor Kit

807800-L21

HP CL1100 G3 Intel® Xeon® E5-2640v3 (2.6GHz/8-core/20MB/90W) FIO Processor Kit

807792-L21

HP CL1100 G3 Intel® Xeon® E5-2650v3 (2.3GHz/10-core/25MB/105W) FIO Processor Kit

807788-L21

HP CL1100 G3 Intel® Xeon® E5-2670v3 (2.3GHz/12-core/30MB/120W) FIO Processor Kit

807780-L21

HPE CL1100 G3 Intel® Xeon® E5-2680v3 (2.5GHz/12-core/30MB/120W) FIO Processor Kit

811413-L21

NOTE: If two processors are desired, select one xxxxxx-L21 and one xxxxxx-B21.

NOTE: Up to 2 processors supported. Mixing different processor models is not supported

NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed

NOTE: For the Intel® C600 Chipset E5-2600 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x v#, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, x = L for low power SKUs and v# (not yet designated) = version number.

Select one or more memory, a minimum of one is required on single processor configurations and minimum of two is required on dual processor configurations. If only one processor is installed, only half of the total DIMM slots are available. When populating with two processors all DIMM slots are available.

Depending on the memory configuration and processor model, the memory speed may run at 2133MHz, 1866MHz, or 1600MHz. Please see Memory Population rules

Registered DIMMs (RDIMMs) for E5-2600v3 Series

HP CL 4GB (1x4GB) Single Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit

807815-B21

HP CL 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

807816-B21

HP CL 8GB (1x8GB) Dual Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit

807817-B21

HP CL 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

807818-B21

HPE Rail Kit

HP CL1100 G3 208S Tool Less Friction Rail Kit

814771-B21

HPE Processors

HP CL1100 G3 Intel Xeon E5-2660v3 (2.6GHz/10-core/25MB/105W) Processor Kit

811413-B21

HP CL1100 G3 Intel Xeon E5-2670v3 (2.3GHz/12-core/30MB/120W) Processor Kit

807780-B21

HP CL1100 G3 Intel Xeon  E5-2650v3 (2.3GHz/10-core/25MB/105W) Processor Kit

807788-B21

HP CL2100 G3 E5-2623v3 (3GHz/4-core/10MB/105W) Kit

807797-B21

HP CL1100 G3 Intel Xeon E5-2630v3 (2.4GHz/8-core/20MB/85W) Processor Kit

807800-B21

HP CL1100 G3 Intel Xeon E5-2620v3 (2.4GHz/6-core/15MB/85W) Processor Kit

807808-B21

HP CL1100 G3 Intel Xeon E5-2603v3 (1.6GHz/6-core/15MB/85W) Processor Kit

807812-B21

HPE Memory

Registered DIMMs (RDIMMs) for E5-2600v3 Series

HP CL 4GB (1x4GB) Single Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit

807815-B21

HP CL 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

807816-B21

HP CL 8GB (1x8GB) Dual Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit

807817-B21

HP CL 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

807818-B21

HPE Drives

SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP CL 6TB 6G SATA 7.2K rpm LFF (3.5-inch) Midline Hard Drive

807831-B21

HP CL 4TB 6G SATA 7.2K rpm LFF (3.5-inch) Midline Hard Drive

807830-B21

HP CL 2TB 6G SATA 7.2K rpm LFF (3.5-inch) Midline Hard Drive

807828-B21

HP CL 1TB 6G SATA 7.2K rpm LFF (3.5-inch) Midline Hard Drive

807827-B21

HP CL 500GB 6G SATA 7.2K rpm LFF (3.5-inch) Midline Hard Drive

807826-B21

6G SAS Non-Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HP CL 300GB 6G SAS 15K rpm SFF (2.5in) Enterprise Hard Drive

NOTE:NOTE: User may select up to two drives any combination of SAS or SATA drives

NOTE:NOTE: A SAS controller is required if P/N 807837-B21 is selected.

807837-B21

6G SATA Non-Hot Plug SFF Value Endurance  Solid State Drives

HP CL 480GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value Solid State Drive

807823-B21

HP CL 240GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value Solid State Drive

807822-B21

HP CL 120GB 6G SATA Value Endurance SFF 2.5-in Enterprise Value Solid State Drive

807821-B21

HPE Networking

10 Gigabit Ethernet adapters

HP CL Ethernet 10Gb 2-Port SFP+ Mezzanine Card

807842-B21

NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.

HPE CL Storage Controllers

HP LSI 9271-8i RAID PCIe Card

807845-B21

HP CL LSI 9271-8i RAID PCIe Card with Cache Vault LSICVM01

807846-B21

HPE Cable Options

HP CL1100 208S Embedded Controller SATA Cable Kit

814129-B21

HP CL1100 208S LSI Crd SAS Cable Kit

814130-B21

NOTE: One of the above cables is required to be selected depending on the combination of chassis and storage controller. Cable option kit descriptions include the right chassis and storage controller's names.

NOTE: FIO indicates that this option is only available as a factory installable option. Please select FIO option if you want the option to be factory installed.

Memory Subsystem Architecture

Each Intel® Xeon® E5-2600v3 family processor socket contains four memory channels per installed processor with one DIMM per channel for a total of four (4) DIMMs or a grand total of eight (8) DIMMs for the server.

Memory Population guidelines

General Memory Population Rules and Guidelines:

Intel Supported Memory Bandwidth for CL1100 G3 Intel® Xeon®E5-2600v3 Series Processor Family

Memory Bandwidth Capacity

DIMM slot and configuration diagram

Each Intel® Xeon® E5-2600v3 family processor socket contains four memory channels per installed processor with one DIMM per channel for a total of four (4) DIMMs or a grand total of eight (8) DIMMs for the server.

DIMM slot and configuration diagrams

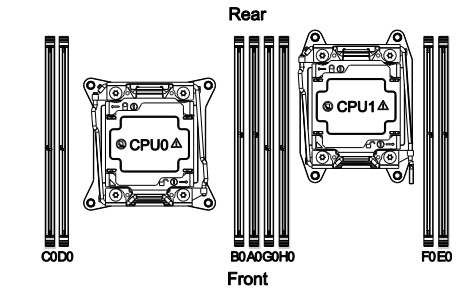

Basic memory slot & population diagram:

• Population order; start with "A" first, "B" second, "C" third, etc.

• When one processor is installed, install DIMMs in sequential alphabetic order: A, B, C, D, E, F …

• When two processors are installed, install DIMMs in sequential

• Alphabetic order: CPU0-A0, CPU1-E0,CPU0-B0,CPU1-F0,CPU0-C0, CPU1-G0,CPU0-D0,CPU1-H0

CPU #0 Is Processor On Left - Looking From Front Of Server

Memory Speed by Processor Model

NOTE: Capacity references are rounded to the common gigabyte (GB) values:

• 2GB = 2,048MB
• 4GB = 4,096MB
• 8GB = 8,192MB
• 16GB = 16,384MB
• 32GB = 32,768MB
• 64GB = 65,536MB

System Unit

Dimensions

(H x W x D)

1.71 x 17.2 x 26.6 inches (4.35 x 43.8 x 67.5 cm)

Weight
(approximate)

Maximum:

(all hard drives, power supplies, and processors installed

25.46 lb (11.55 kg)

Minimum:

(one hard drive, power supply, and processor installed)

21.61 lb (9.8 kg)

Input Requirements

Rated Line Voltage

For 650W Power Supply:

200 to 240 VAC; 240VDC

For 400W Power Supply:

100 to 240 VAC

Rated Input Current

For 650W Power Supply:

4 A (at 200 VAC)

3.2 A (at 240 VDC)

For 400W Power Supply:

5.2 A (at 100 VAC)

2.1 A (at 240 VAC

Rated Input Frequency

47 to 63 Hz

Rated Input Power

For 650 W Power Supply:

<750W.

BTU Rating

Maximum

For 650 W Power Supply:

2466.36  BTU/hr

For 400 W Power Supply:

100VAC: 1574.4 BTU/hr

200VAC: 1622.2 BTU/hr

|Power Supply Output

Rated Steady-State Power

For 650 W Power Supply:

650 W

For 400 W Power Supply

400 W (at 100 VAC)

400 W (at 240 VAC)

Maximum Peak Power

For 650 WPower Supply:

<700 W

System Unit

System Inlet Temperature

Standard Operating Support

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight.  Maximum rate of change is 20°C/hr (36°F/hr).  The upper limit and rate of change may be limited by the type and number of options installed.   System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating

-40° to 70°C. Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity

Operating

50% to 80% relative humidity (Rh)

Non-operating

(non-condensing)

50% to 90% relative humidity (Rh))

Altitude

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Levels

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Maximum Peak Power

For 650 WPower Supply:

<700 W

Intel Network controller

Network Interface

10Base-T/100Base-TX/1000Base-TX

Compatibility

MDI (copper) support for standard IEEE 802.3 Ethernet interface for:

1000BASE

10BASE

MDI (copper) support for standard IEEE 802.3 Ethernet interface for 1000BASE

EEE 1588, IEEE 802.1AS

IEEE 802.3az - Energy Efficient Ethernet (EEE)

Data Transfer Method

PCI Express v 2.1, 2.5 GT/s, X1

Controller

Intel I210 Springville

Network Transfer Rate

10Base-T (Half-Duplex)

10 Mb/s per port, 40 Mb/s combined

10Base-T (Full-Duplex)

20 Mb/s per port, 80 Mb/s combined

100Base-TX (Half-Duplex)

100 Mb/s per port, 400 Mb/s combined

100Base-TX (Full-Duplex)

200 Mb/s per port, 800 Mb/s combined

1000Base-TX (Half and Full-Duplex)

1000Mb/s per port, 4000 Mb/s combined

Connector

Two RJ-45

Cable Support

10 Base-T

Categories 3, 4 or 5 UTP; up to 328 ft (100 m)

10/100/1000 Base-TX

Category 5 or higher UTP; up to 328 ft (100 m)

Date

Version History

Action

Description of Change

23-Oct-2017

Version 6

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

15-Jan-2016

From version 4 to 5

Changed

Change the memory section

16-Oct-2015

From version 3 to 4

Updated

Update the configuration information section

17-Aug-2015

From version 2 to 3

Changed

Change the technical specifications section / update the information on the standard features.

25-May-2015

From version 1 to 2

Changed and updated

Update several sections throughout the QuickSpecs, remove errors.

30-Mar-2015

Version 1

Created

Create QS for HP CloudLine CL1100 208S
