HPE ProLiant DL385 Gen10 Plus - Carrier Grade Supplement

NEBS Level 3 and ETSI Certified

• This section lists some of the steps required to configure a Factory Integrated Model compliant with typically requested telecom carrirer NEBS and ETSI requirements. In addition to the worldwide compliance criteria applied to the commercial version of the product, all components listed in this document have been evaluated to the following criteria: SR-3580, Level 3, NEBS Criteria Levels
• GR-1089-CORE, EMC & Electrical Safety
• GR-63-CORE, Physical Protections
• ETSI EN 300 386, Class A, EMC
• ETSI EN 300 019-2-1, Class 1.2, Storage
• ETSI EN 300 019-2-2, Class 2.3, Transportation
• ETSI EN 300 019-2-3, Class 3.1 & 3.1E, Stationiary Use at Weather protected locations
• ETSI 300 132, Power Suppply Interface to Telecom Equipment, -48VDC
• ETSI ETS 300 753, Acoustic Noise

To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

Factory Integrated Models must start with a CTO Server. FIO indicates that this option is only available as a factory installable option.

All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server. Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Notes:

To yield a carrier grade server that is compliant with all the required technical criteria, the product content is limited to what is listed in this document. In addition to this, system maintenance switch #10 must be turned to the "ON" position  to enable the expanded operating temperature range and hardware from the following kits must be installed:

1. HPE DL38X Gen10 Plus Maximum Performance Fan Kit - P14608-B21

2. HPE DL38X Gen10 Plus High Performance Heat Sink Kit - P14610-B21

3. All installed PCI risers must be NEBS certified versions:

- HPE DL38X Gen10 Plus Primary NEBS-compliant Riser Kit - P14575-B21

- HPE DL38X Gen10 Plus Tertiary NEBS-compliant Riser Kit - P14577-B21

Please refer to the HPE DL385 Gen10 Plus Carrier Grade Conversion documentation on the HPE web site:

http://www.hpe.com/services/hpsc

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

• Factory Integrated Models must start with a CTO Server.
• FIO indicates that this option is only available as a factory installable option.
• All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.
• Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one of the following configurable models)

Notes:

- ** 32 DIMM slots require selection of 2 processors

- HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).

- TAA compliant configuration requires HPE DL385 Gen10 Plus TAA FIO Enablement Kit  (P14282-B21)

- All CTO servers are Energy Star 3.0 compliant.

Notes: This aplies to CTO configurations, field upgrades may differ depending field configuration.

Step 2: Choose Required Options (only one of the following unless otherwise noted)

Please select one -L21 processor required below.

For second processor, please select the same processor model with -B21 from Core Options - HPE Processors section.

For example: first processor, select P17537-L21 then for second processor, select P17537-B21.

Notes:

- Mixing of 2 different processor models are NOT allowed.

- DDR4 memory speed will depend on the quantity and type of DIMMs installed.

Step 2b: Choose Memory Options

Please select one or more memory from below.

For new Gen10 Plus memory population rule whitepaper and optimal memory performance guidelines, please go to: http://www.hpe.com/docs/amd-population-rules-Gen10Plus

For Gen10 Plus memory speed table, please go to: http://www.hpe.com/docs/amd-speed-table-Gen10Plus

Notes:

- Memory DIMM availability with a server platform is dependent upon completion of certification testing.

- The maximum memory speed is a function of the memory type, memory configuration, and processor model.

Registered DIMMs (RDIMMs)

HPE 8GB (1x8GB) Single Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P07638-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit.

P07640-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P07642-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P07646-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P07650-B21

Notes:

- Mixing of x4 & x8 memory is not allowed

- 3200 MT/s memory SKUs offer a transfer rate of 3200 MT/s at 1 DIMM per channel and 2933 MT/s at 2 DIMMs per channel

Step 2c: Choose Power Supplies

Select one or two power supplies from below.

Notes: Mixing of 2 different power supplies is NOT allowed.

HPE Flex Slot Power Supplies

HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

865438-B21

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

865434-B21

HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit

P17023-B21

HPE Power Cable Kits and Accessories

HPE 48VDC 2.85m Power Cable

Q0H80A

Notes: HPE 2.85M, 48V DC Power Cable Kit (Q0H80A) can only be used with the HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit (865434-B21)

HPE 1600W -48VDC 600V 3.5m Power Cable Kit

P22173-B21

Notes:  HPE 1600W -48VDC 600V 3.5m Power Cable Kit (P22173-B21) can only be used with the HPE 1600W -48VDC Flex Slot Power Supply Kit (P17023-B21)

HPE 1600W -48VDC Power Cable Lug Kit

P36877-B21

Notes:

- HPE 1600W -48VDC Power Cable Lug Kit (P36877-B21) contains lugs only no cabling is provided

- HPE 1600W -48VDC Power Cable Lug Kit (P36877-B21) can only be used with the HPE 1600W Flex Slot -48VDC Hot Plug Power Supply Kit (P17023-B21)

Step 3: Choose Additional Factory Integratable Options

One of the following from each list may be selected if desired at time of factory integration

HPE Unique Options

HPE DL325 Gen10 Plus TAA-compliant FIO Enablement Kit

P14282-B21

Notes: This kit enables TAA compliance. HPE offers multiple Trade Agreement Act (TAA) compliant configurations to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO)

Step 4: Choose additional options for Factory Integration from Core and Additional Options sections below

HPE Unique Options

HPE DL38X Gen10 Plus Universal Media Bay Kit

P14609-B21

Notes:

- The HPE DL385 Gen10 Plus Universal Media bay provides front Display Port and 2xUSB 2.0

- This is a 8SFF model option only.

HPE DL38X Gen10 Plus System Insight Display Kit

P14611-B21

HPE DL38X Gen10 Plus Maximum Performance Fan Kit

P14608-B21

HPE DL38X Gen10 Plus High Performance Heat Sink Kit

P14610-B21

Notes: Processor kits above 180W include a High Performance Heatsink.

HPE DL38X Gen10 SFF Box1/2 Cage/Backplane Kit

826691-B21

Notes: Supports 8 SAS/SAFA SFF drives in Box 1 or 2 to a max of 24 SFF SAS/SATA front

HPE Processors

Processor Option Kits

HPE Memory

Registered DIMMs (RDIMMs)

HPE 8GB (1x8GB) Single Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P07638-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit.

P07640-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P07642-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P07646-B21

HPE 64GB (1x64GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit

P07650-B21

Notes:

- The maximum memory speed is a function of the memory type, memory configuration, and processor model.

- Mixing of x4 & x8 memory is not allowed

- 3200 MT/s memory SKUs offer a transfer rate of 3200 MT/s at 1 DIMM per channel and 2933 MT/s at 2 DIMMs per channel

HPE Optical Drives

HPE 9.5mm SATA DVD-ROM Optical Drive

726536-B21

Notes:

- HPE DL385 Gen10 Plus Universal Media Bay Kit (P14609-B21) is required for this option on a SFF model.

- Supported only on 8 SFF Models

HPE 9.5mm SATA DVD-RW Optical Drive

726537-B21

Notes:

- HPE DL385 Gen10 Plus Universal Media Bay Kit (P14609-B21) is required for this option on a SFF model.

- Supported only on 8 SFF Models

HPE Drives

Enterprise - 12G SAS - SFF Drives

HPE 300GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD

870753-B21

HPE 300GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872475-B21

HPE 600GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD

870757-B21

HPE 600GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872477-B21

HPE 900GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD

870759-B21

HPE 1.2TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872479-B21

HPE 1.8TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD

872481-B21

Midline - 12G SAS - SFF Drives

HPE 2TB SAS 12G Business Critical 7.2K SFF SC 1-year Warranty 512e HDD

765466-B21

Midline - 6G SATA - SFF Drives

HPE 1TB SATA 6G Business Critical 7.2K SFF SC 1-year Warranty HDD

655710-B21

HPE 2TB SATA 6G Business Critical 7.2K SFF SC 1-year Warranty 512e HDD

765455-B21

SSD Selection

To streamline the configuration process for HPE ProLiant Gen10 Plus servers and to provide the best product availability, HPE recommends SSDs from the list located here: http://www.hpe.com/products/recommend.

Hard Drive Blank Kits

HPE Small Form Factor Hard Drive Blank Kit

666987-B21

Media Bay Kits

HPE DL38X Gen10 Plus Universal Media Bay Kit

P14609-B21

Notes:

- The HPE DL385 Gen10 Plus Universal Media bay provides front Display Port and 2xUSB 2.0;

- This is a 8SFF model option only.

HPE Storage Options

QLogic Fibre Channel HBAs

HPE SN1100Q 16Gb Dual Port Fibre Channel Host Bus Adapter

P9D94A

HPE Networking

1 Gigabit Ethernet adapters

Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE

P21106-B21

10/25 Gigabit Ethernet adapters

Mellanox MCX512F-ACHT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P13188-B21

100 Gigabit Ethernet adapters

Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE

P25960-B21

OCP Adapters

Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE

P08449-B21

Mellanox MCX562A-ACAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10112-B21

Notes:

- Mellanox OCP NIC MCX562A requires HPE DL385 Gen10 Plus OCP Upgrade Cable Kit PN: P14603-B21 to support  multi-host configuration

- OCP adapters do not consume PCIe slot.

- Only 1 slot is available for OCP adapters.

- Only SFF OCP adapters below 35W can be supported

HPE DL385 Gen10 Plus OCP Upgrade Cable Kit

P14603-B21

HPE InfiniBand

HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe4 x16 MCX653106A-ECAT Adapter

P23666-B21

HPE I/O Expansion Options

Notes: For a Secondary/Tertiary riser the second processor is required

HPE DL38X Gen10 Plus Primary NEBS-compliant Riser Kit

P14575-B21

Notes: Requires selection of HPE DL38X Gen10 Plus Tertiary NEBS-compliant Riser Kit (P14577-B21)

HPE DL38X Gen10 Plus Tertiary NEBS-compliant Riser Kit

P14577-B21

Notes:

- Requires selection of a 2nd processor

- Required to add additional x16 PCIe Gen4 lanes for Primary/Secondary Riser3

NVIDIA T4 16GB Computational Accelerator for HPE

R0W29C

Notes: Y = supported; D = default on Chassis; O = optional; N = not supported or slot/connector not present.

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for additional information.

HPE Security

HPE Gen10 2U Bezel Kit

867809-B21

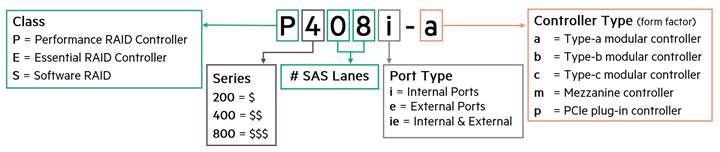

HPE Smart Array Controllers

HPE 96W Smart Storage Battery (up to 20 Devices) with 145mm Cable Kit

Notes: All performance RAID controllers are supported by the HPE Smart Storage Battery (P01366-B21), which supports multiple devices and is sold separately.

HPE Smart Array P816i-a SR Gen10 (16 Internal Lanes/4GB Cache/SmartCache) 12G SAS Modular Controller

804338-B21

Notes:

- Does not occupy a PCIe expansion slot and includes SmartCache license.

- Does not include P816i-a cable

HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller

804331-B21

Notes: Does not occupy a PCIe expansion slot.

HPE Smart Array P408i-p SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS PCIe Plug-in Controller

830824-B21

HPE Smart Array P408e-p SR Gen10 (8 External Lanes/4GB Cache) 12G SAS PCIe Plug-in Controller

804405-B21

Essential RAID Controllers

HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804394-B21

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

HPE Smart Array E208i-a SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular Controller

804326-B21

Notes: Does not occupy a PCIe expansion slot.

HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit

P01366-B21

HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit

P02377-B21

Rail Kits

Notes:

- Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

- CTO Models do not ship with rail kits, they need to be ordered separately

- HPE rail kits are designed to work with HPE racks in compliance with industry standard EIA-310-E.  In the event a customer elects to purchase a third-party rack for use with an HPE rail kit, any such use is at customer's own risk. HPE makes no express or implied warranties with respect to such third-party racks and specifically disclaims any implied warranties of merchantability and fitness for a particular purpose. Furthermore, HPE has no obligation and assumes no liability for the materials, design, specifications, installation, safety, and compatibility of any such third-party racks with any rail kits, including HPE rail kits.

HPE DL38X Gen10 Plus 2U Cable Management Arm for Rail Kit

P22020-B21

HPE DL38X Gen10 Plus 2U SFF Ball Bearing Rail Kit

P22021-B21

Notes: Supported on SFF Model only

HPE USB and SD Options

HPE Enterprise Mainstream Flash Media Kits for Memory Cards

HPE 32GB microSD RAID 1 USB Boot Drive

P21868-B21
