HPE ProLiant DL360 Generation9 (Gen9)Carrier Grade Supplement

Overview

HPE ProLiant DL360 Generation9 (Gen9)

NEBS Level 3 and ETSI certified


HPE's leading server for dense general-purpose computing, the HPE ProLiant DL360 Gen9 Server delivers increased performance with the best memory and I/O expandability packed in a 1U dense rack design. Reliability, serviceability and always on availability, backed by a comprehensive warranty, make it ideal for the most space constrained server workloads.



http://d6e2b1f6971d4049/msoinline/393ef311698e4404

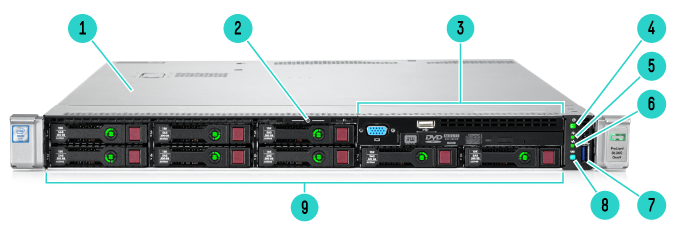

Front View



1.

Access Panel

2.

Serial Label Pull Tab

3.

HPE Universal Media Bay

NOTE: Shown w/VGA, USB 2.0 and DVD-ROM or DVD-RW option. Alternative options 2 SFF HDDs or VGA and USB 2.0.

4.

Power On/Standby button and system power LED button

5.

Health LED

6.

NIC Status LED

7.

USB 3.0 Connector

8.

Unit Identification Button & LED

9.

SAS/SATA/SSD Drive Bays



http://d6e2b1f6971d4049/msoinline/e37458b4176843d3

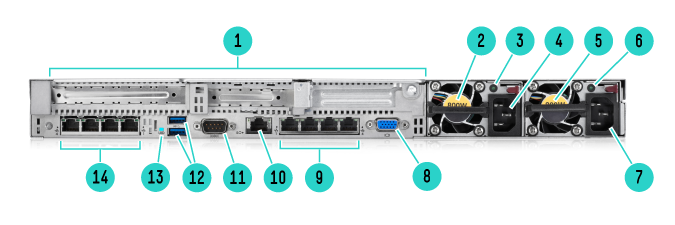

Rear view



1.

PCIe 3.0 Slots 1-3

NOTE: Slot 1 and 2 Riser Ships Standard, only certified with standard riser

2.

HPE Flexible Slot Power Supply Bay 2

3.

Power Supply 2 Status LED

4.

Power Supply 2 C13 Connection

5.

HPE Flexible Slot Power Supply Bay 1

6.

Power Supply 1 Status LED

7.

Power Supply  1 C13 Connection

8.

Video Connector

9.

Embedded 4x1GbE Network Adapter

10.

Dedicated iLO 4 connector

11.

Serial Port Connector (Optional)

12.

USB 3.0 Connectors (2)

13.

Unit Identification LED

14.

FlexibleLOM bay (Optional)

NOTE: Shown: 4x1Gbe.

http://d6e2b1f6971d4049/msoinline/3954ace3db4b482b

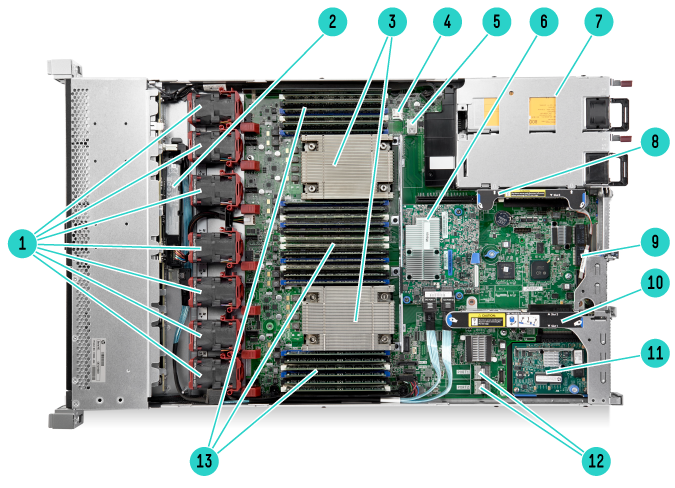

Internal View



1.

5 Standard Fans Ship for 1P and 7 Standard Fans Ship for 2P

NOTE: High Performance Fans required for NEBS certification

2.

2 Processors with HPE Smart Socket Guide

3.

HPE Smart Storage Battery (Optional)

4.

24 DDR4 DIMM slots (12 per processor)

5.

MicroSD card slot

NOTE: Optional Dual Micro-SD option.

6.

Dual Internal USB 3.0 connector

7.

HPE Flexible Smart Array or Smart HBA (Optional)

NOTE: H240ar shown and P440ar available.

8.

2 HPE Flexible Slot Power supplies

9.

Secondary PCIe 3.0 riser for PCIe slot 3 (requires CPU 2)

10.

Embedded 4x1Gbe NIC

11.

Primary PCIe 3.0 riser for PCIe slots 1 & 2

12.

FlexibleLOM Bay (Optional)

13.

Embedded SATA Controller ports



What's New

  • New DVD Universal Media Bay option
  • New larger capacity HDDs
  • New higher capacity memory (64GB), NEBS capacity = XX GB
  • New Networking options
  • NEBS Level 3 (GR-63-CORE and GR-1089-CORE) certified



Standard Features

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.





Processor

Model

CPU frequency

Cores



L3 Cache

Power

QPI

DDR4 Hz

E5-2680v3

2.5GHz

12

30MB

120W

9.6GT/s

2133

E5-2670v3

2.3GHz

12

30MB

120W

9.6GT/s

2133

E5-2660v3

2.6GHz

10

25MB

105W

9.6GT/s

2133

E5-2650v3

2.3GHz

10

25MB

105W

9.6GT/s

2133

E5-2650Lv3

1.8GHz

12

30MB

65W

9.6GT/s

2133

E5-2640v3

2.6GHz

8

20MB

90W

8.0GT/s

1866

E5-2630v3

2.4Ghz

8

20MB

85W

8.0GT/s

1866

E5-2630Lv3

1.8GHz

8

20MB

55W

8.0GT/s

1866

E5-2620v3

2.4GHz

6

15MB

85W

8.0GT/s

1866

E5-2609v3

1.9GHz

6

15MB

85W

6.4GT/s

1600

E5-2603v3

1.6GHz

6

15MB

85W

6.4GT/s

1600

E5-2697v4

2.3GHz

18

45MB

145W

9.6GT/s

2400

E5-2695v4

2.1GHz

18

45MB

120W

9.6GT/s

2400

E5-2683v4

2.1GHz

16

40MB

120W

9.6GT/s

2400

E5-2620v4

2.1GHz

8

20MB

85W

8.0GT/s

2133





Chipset

Intel® C610 Series Chipset

Intel® E5-2600v3 Processor Family

NOTE: For more information regarding Intel® chipsets, please see the following URL: http://www.intel.com/products/server/chipsets/.



On System Management Chipset

HPE iLO (Firmware HPE iLO4 2.0) 4GB NAND

NOTE: 1GB USB user space configurable via UEFI and accessible via iLO. Read and learn more in the iLO QuickSpecs.



Memory

One of the following depending on model



Type:

HPE SmartMemory



DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)



DIMM Slots Available

24

(12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel)

Maximum Capacity (RDIMM)

768GB

(24 x 32GB LRDIMM @2133MHz)



Memory Protection

Advanced ECC

Advanced ECC uses single device data correction to detect and correct single and all multibit error that occurs within a single DRAM chip.

Online spare

Memory online spare mode detects a rank that is degrading and switches operation to the spare rank.



Expansion Slots



Primary Riser

Expansion Slots #

Technology

Bus Width

Connector Width

Bus Number

Form Factor

Notes

1

PCIe 3.0

x16

x16

Full-height, ¾ length (up to 9.5") Slot

Processor 1

2

PCIe 3.0

x8

x8

Low profile slot

Processor 1

NOTE: Bus Width indicates the number of physical electrical lanes running to the connector.



Secondary Riser

Expansion Slots #

Technology

Bus Width

Connector Width

Bus Number

Device Number

Form Factor

Notes

3

PCIe 3.0

x16

x16

Low profile

Processor 2

3

PCIe 3.0

x16

x16

Full-height, ¾ length (up to 9.5") Slot

Processor 2*

*PCI-E Slot 2 cannot be used in conjunction with the FH/¾ Length option kit (744644-B21)





Storage Controller

One of the following depending on model

Entry Models

HPE Dynamic Smart Array B140i Controller

Base Models

HPE H240ar Smart Host Bus Adapter

Performance Models

HPE Flexible Smart Array P440ar/2GB



Internal Storage Devices

One of the following depending on model

Optical Drives



8 SFF with optional Universal Media bay

NOTE: Option Kit 764632-B21 VGA, USB 2.0, and DVD-RW kit.

Hard Drives

None ship standard

Hard Drive Bays

8 SFF with optional Universal Media bay



Maximum Internal Storage (NEBS Limit)



CAPACITY

CONFIGURATION

Hot Plug SFF SAS SSD

6.4TB

8x800GB

Hot Plug SFF SAS

9.6TB

8x1.2TB



Power Supply

One of the following depending on model

HPE 800W Flex Slot Platinum Hot Plug Power Supply

NOTE: Available in 94% and 96% efficiency

HPE 800W Flex Slot -48VDC Hot Plug Power Supply Kit

NOTE: Flex Slot -48VDC power supplies support power efficiency of up to 94%.



System Fans

One of the following depending on model



Non-redundant

Redundant

1P model

N/A

5 fans



Non-redundant

Redundant

2P model

N/A

7 fans

NOTE: The second processor option kit contains two fans.

NOTE: High Performance Fan Kit, 766201-B21, is required for NEBS certification and to meet some extended ambient operating temperatures above 35° C. Qualifications for extended ambient configurations are detailed at: https://www.hp.com/servers/ashrae.



Interfaces

Serial

1

NOTE: Optional kit: 764646-B21.

Video

1 rear (Standard)
1 front (Optional)

NOTE: Front VGA options available for 8SFF and 4LFF models as detailed in the core options section of this QuickSpecs.

Network RJ-45 (Ethernet)

Both the SFF and LFF Chassis have an embedded 4x1GB NIC and a FlexibleLOM bay. (See HPE Networking section below for more details and options).

HPE iLO Remote Management Network Port

1Gb Dedicated

SD Connector

1 micro SD Internal

NOTE: The SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.

USB 3.0

5 total: 2 rear, 1 front, 2 internal



Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server

Canonical Ubuntu

Red Hat Enterprise Linux (RHEL)

SUSE Linux Enterprise Server (SLES)

Oracle Solaris

VMware

Citrix XenServer

NOTE: For more information on HPE's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from HPE, please visit our OS Support Site at: http://www.hp.com/go/ossupport and our driver download page.



Upgradeability

Upgradeable to two processors (36 Cores)

Up to 24 DIMM slots available for higher Memory capacity

FlexibleLOM slot for 1Gigabit or 10 Gigabit Ethernet or QDR/FDR InfiniBand networking options

3 PCIe 3.0 I/O slots for additional communications and storage expansion

NOTE: Slot 1 and 2 Riser Shipped Standard, Slot 3 Optional 1 FH / ¾ length and two Low Profile slots available (shown) or two FH/ ¾ length slots.

Redundant Power Supplies

Optical Drive supported via Universal Media Bay

NOTE: 8SFF Chassis via VGA, USB 2.0 and DVD-RW Option kit: 764732-B21; 4LFF Chassis via DVD-RW 726537-B21, DVD 726536-B21 and the Optical Cable: 766203-B21.



Industry Standard Compliance

ACPI 2.0b Compliant

PCIe 3.0 Compliant

PXE Support

WOL Support

Microsoft® Logo certifications

USB 3.0 Support

Energy Star

ASHRAE A3/A4

NOTE: The DL360 Gen9 is now one of the first HPE ProLiant Gen9 Servers with Extended Ambient Support up to 45 C for data center infrastructures designed for better energy efficiency such as but not limited to fresh air cooling.

For additional technical thermal details regarding ambient temperatures, humidity and features support please visit https://www.hp.com/servers/ashrae.



Graphics

Integrated Matrox G200 video standard

  • 1280 x 1024 (32 bpp)
  • 1920 x 1200 (16 bpp)



HPE Server UEFI/Legacy ROM

HPE Server UEFI /Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration while interacting with your server at boot time. HPE ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot Mode.

NOTE: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hp.com/go/proliantuefi/docs.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

  • Secure Boot
  • Operating system specific functionality
  • Support for > 2.2 TB (using GPT) boot drives
  • USB 3.0 Stack
  • Embedded UEFI Shell
  • Mass Configuration Deployment Tool using HPE RESTful API.
  • PXE boot support for IPv6 networks
  • Boot support for option cards that only support a UEFI option ROM

For more information please visit http://www.hp.com/go/proliant/uefi.

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

NOTE: HPE Legacy FIO Mode Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory.



Form Factor

One of the following depending on model

1U Rack form factor

8 SFF Drive Bay Version:
1.7" (4.32cm) Height x 17.11" (43.47cm) Width x 27.5" (69.85cm) Length



Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with iLO. Learn more at http://www.hp.com/go/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hp.com/go/ProLiant/uefi.

HPE RESTful API

RESTful API is an application programming interface. RESTful Web Service API served by iLO's web server. Learn more at http://www.hp.com/go/restfulapi.

Intelligent Provisioning

Provision servers by discovering and deploying 1 to few servers with Intelligent Provisioning. Learn more at http://www.hp.com/go/intelligentprovisioning.

Embedded Remote Support

HPE's embedded remote support, used with Insight Online direct connect or HPE Insight Remote Support, allows HPE ProLiant servers to transmit hardware events directly to HPE or a Hewlett Packard Enterprise Authorized Partner for automated phone home support. Learn more at http://www.hp.com/go/insightonline/info.





Server utilities

HPE Smart Update

Optimize firmware and driver updates with HPE Smart Update solutions. Learn more at http://www.hp.com/go/smartupdate.

HPE Systems Insight Manager (HPE SIM)

HPE SIM allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers, and also provides you with basic support for non-Hewlett Packard Enterprise servers.

HPE SIM also integrates with HPE SUM to provide quick and seamless firmware updates. Learn more at http://www.hp.com/go/sim.

HPE OneView Standard

HPE OneView Standard can inventory, monitor, alert, and report on your G6, G7, Gen8, and Gen9 servers, while using the HPE OneView user interface. Annual support is optionally available. Learn more at http://www.hp.com/go/oneview.

Scripting Tool Kit and Windows PowerShell

Provision 1 to many servers using your own scripts to discover and deploy them with HPE Scripting Tool Kit for Windows and Linux or HPE Scripting Tools for Windows PowerShell. Learn more at http://www.hp.com/go/ProLiantSTK or http://www.hp.com/go/powershell.

HPE RESTful Interface Tool

HPE RESTful Interface tool is a scripting tool to provision servers using RESTful API Interface to discover and deploy servers at scale. Learn more at http://www.hp.com/go/restfulapi.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hp.com/go/ilo/mobileapp.

HPE Insight Online

HPE Insight Online, available at no additional cost as part of your HPE warranty, Care Pack or contractual support agreement with HPE, is a personalized dashboard for simplified tracking of IT operations and support information from anywhere, anytime. Learn more at http://www.hp.com/go/insightonline/info.

Security

Power-on password

Keyboard password

QuickLock, Network Server Mode

Serial interface control

Administrator's password

iLO 4 (Integrated Lights-Out 4) has 12 customizable user accounts and SSL encryption

iLO 4 can be disabled via a Global Setting

iLO Advanced supports directory services integration

TPM 1.2

UEFI



Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.



Optional Features

Server Management

HPE Insight Control

HPE Insight Control, lets you deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. For more information, see http://www.hp.com/go/insightcontrol.

HPE OneView Advanced

HPE OneView Advanced is converged management that eliminates infrastructure complexity with automation simplicity.  This modern architecture is designed to accelerate your IT operations across servers, storage, and network resources using software-defined approaches and automation, see http://www.hp.com/go/oneview.

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a hyperscale-optimized management framework that includes software for the provisioning, control, performance management and monitoring of groups of nodes and infrastructure. Learn more at http://www.hp.com/go/cmu.

Rack and Power Infrastructure

HPE Rack and Power Infrastructure products and services create highly efficient and intelligent solutions for existing or new IT data centers. HPE Rack and Power infrastructure solutions - rack infrastructure, power protection and management, performance optimized data centers (PODs) - are the foundation you are looking for to help secure your long-term IT success. These products are designed to help you react to changes in the industry. They deliver efficient, easy-to-use capabilities to manage, monitor, deploy and provision infrastructure from entry to enterprise. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

Learn more at HPE Rack and Power Infrastructure.

High Performance Clusters

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a Hyperscale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure. Learn more at http://www.hp.com/go/cmu.

HPC Interconnects

NOTE: High Performance Computing (HPC) interconnect technologies are available for this server under the HPE Cluster Platform product portfolio. These high-speed interconnects are fully supported by HPE when they are part of these configure to order clusters. Solutions can be defined with a lot of flexibility with the help of configuration tools. Please visit the following URL to configure HPC Clusters with InfiniBand Interconnects: http://www.hp.com/techservers/clusters/ucp/index.html.

Storage Software

Whether you need to solve a specific data protection, archiving, or storage command and control challenge, or deliver on strategic consolidation, compliance, or continuity initiatives, look no further than HPE storage software. Our storage software helps you reduce costs, simplify storage infrastructure, protect vital assets and respond faster to business opportunities.

Storage software that gets the job done:

  • Data Protection and Recovery Software
    Whether you're a large enterprise or a smaller business, HPE data protection and recovery software will cost-effectively protect you against disaster and ensure business continuity.
  • Data Archive and Migration Software
    HPE's storage software enables you to comply with data retention and retrieval requirements, improve application performance, and reduce costs by efficiently migrating infrequently accessed or less valuable data to lower cost storage.
  • Storage Resource Management Software (SRM)
    HPE's storage resource management software reduces operational costs and provides the command and control foundation you need to efficiently manage and visualize your physical and virtual environments.
  • Data Replication Software
    Hewlett Packard Enterprise offers array-based and host-based replication software for use in disaster recovery, testing, application development and reporting.
  • Storage Device Management Software
    Maximize your investment in HPE storage and networking with software that enables hardware-specific configuration, performance tuning and connectivity management.
  • HPE StoreVirtual VSA
    With HPE StoreVirtual VSA you can use the power of virtualization to create a virtual array within your host server. Manage it as a single pool of shared storage capacity, and scale it to match your evolving needs. HPE ProLiant Gen9 servers include a 3-year limited license for HPE StoreVirtual VSA software with 1TB of capacity at no extra cost. Simply select to install HPE StoreVirtual VSA software during server setup within Intelligent Provisioning. More information, instructional videos, and free console management software are available at     http://www.hp.com/go/vsa1TB.

NOTE: For more information about Storage Software including QuickSpecs, please see: http://www.hp.com/go/storage/software.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact HPE's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator.

Service and Support

HPE Technology Services

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to HPE to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Pointnext operational services

HPE Pointnext operational services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.

Optimized Support recommendation

HPE Proactive Care - Call to Repair commitment, 24x7 coverage, three year Care Pack Service
Prevent problems and stabilize IT by utilizing secure, real-time, predictive analytics and proactive consultations when your products are connected to HPE.  Includes enhanced escalation management and the industry's highest level of  hardware support commitment - hardware will be returned to operating conditions within six (6) hours after you open your case.  Comes with collaborative software call management with two hour call back to reduce troubleshooting.

As a leading global support provider for Microsoft, Red Hat, VMware, SUSE and other operating systems, Hewlett Packard Enterprise is able to simplify and shorten your time to resolution with one call for hardware or software questions. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

HPE ProLiant Server Hardware Installation
Help ensure your new HPE ProLiant hardware is installed smoothly, efficiently and with minimal disruption to your IT and business operations. https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf

Standard Support recommendation

HPE Proactive Care - 24x7 coverage, three year Care Pack Service
This service helps prevent problems and stabilize IT by utilizing secure, real-time, predictive analytics and proactive consultations when your products are connected to HPE. Includes four hour response for hardware, and collaborative call management for software with a two hour callback.
https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

HPE ProLiant Hardware Installation
Help ensure your new HPE ProLiant hardware is installed smoothly, efficiently and with minimal disruption to your IT and business operations. https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf

Related Services

Data Center Platform Consulting Services
These services help modernize key systems and leverage new technology to support a changing business climate and prepare you for the new style of IT. Hewlett Packard Enterprise understands the needs of the data center of the future and will serve as your guide for the journey. http://www.hp.com/services/consulting

Data Privacy Services
Protect your data through better media management.  HPE Data privacy services help manage and protect sensitive data. http://www.hp.com/services/dataprivacy

Factory Express for Servers and storage
HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Choose how your factory solutions are built, tested, integrated, shipped and deployed. http://www.hp.com/go/factory-express

HPE Foundation Care
Hardware and software support services provide easy connection to HPE to resolve support issues quickly.  Includes collaborative call management for industry leading software; full software support may also be purchased, giving you one place to call for help. http://www.hp.com/services/foundationcare

Additional HPE Pointnext operational services can be found at: http://www.hp.com/go/cpc

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Configuration Information - Factory Integrated Models

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
1. Factory Integrated Models must start with a CTO Server.
2. FIO indicates that this option is only available as a factory installable option.
3. All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

4. Some options may not be integrated at the factory. Contact your local sales representative for additional information.



IMPORTANT: To yield a carrier grade server that is compliant with all the required technical criteria, the product content is limited to what is listed in this document. In addition to this, system maintenance switch #10 must be turned on to enable the expanded operating temperature range and the hardware from the following kits must be installed:

HPE DL360 Gen9 High Performance Fan Kit

HPE DL360 Gen9 Airflow Label (Optional - Based on customer-specific needs.)

Please refer to the HPE DL360 Gen9 Carrier Grade Conversion documentation on the Hewlett Packard Enterprise web site: http://www.hp.com/go/hpsc

Step 1: Base Configuration (choose one of the following configurable models)



[Chassis]

HPE ProLiant DL360 Gen9 8SFF Configure-to-order Server

SKU Number

755258-B21

Processor

2 (optional) x HPE Smart Socket Guide

DIMM Slots

24 DIMM slots for RDIMM, LRDIMM DDR4 Memory

Storage Controller

HPE Dynamic Smart Array B140i

PCIe

2 PCIe 3.0 Slots: Slot 1, FH / ¾ Length; Slot 2, Low Profile

Drive Cage

8SFF Hot Plug



Network Controller

HPE Embedded 1Gb Ethernet 4-port 331i Adapter

Fans

5 Standard hot plug fans, redundant

Management

iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (optional), Insight Control (optional), HPE OneView (optional)

USB

1 front, 2 internal, 2 rear

Ears

HPE Quick Release Ears



NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
NOTE: Factory Integrated Models must start with a CTO Server.
NOTE: FIO indicates that this option is only available as a factory installable option.
NOTE: All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

NOTE: 8SFF CTO Chassis includes two 4 x Mini-SAS Cables, option kit: 766209-B21, which attaches to an optional HPE Smart HBA H240ar or HPE Smart Array P440ar controller.



Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)



HPE Processors

Select one or two processors from Core options-Processor section below.

  • If one processor is desired, select one xxxxxx-L21
  • If two processors are desired, select one xxxxxx-L21 and one xxxxxx-B21.
  • Up to 2 processors supported. Mixing different processor models is not supported.
  • DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

For the Intel® C600 Chipset E5-2600 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x v#, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, x = L for low power SKUs and v# (not yet designated) = version number.

HPE Memory

Select one or more memory from Core options-Memory section below.

  • LRDIMM, RDIMM are all distinct memory technologies and cannot be mixed within a server. The majority of ProLiant Gen9 servers support LRDIMM and RDIMM.
  • HPE memory from previous generation servers are not qualified or warranted with this HPE ProLiant Server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9.
  • If only one processor is installed, only half of the total DIMM slots are available. When populating with two processors all DIMM slots are available.
  • Kits described as LP include Low Power DIMMs.  For more information on ProLiant Energy Efficient Features, see: http://www.hp.com/go/proliant-energy-efficient.
  • Depending on the memory configuration and processor model, the memory speed may run at 2133MHz, 1866MHz, or 1600MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: http://www.hp.com/go/ddr4config.

HPE Power Supplies

Select one or more power supplies from Core Options-Power Supplies section below.

  • Prior to selecting a power supply option, it is highly recommended that you review your server configuration in the HPE Power Advisor tool to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: http://www.hp.com/go/hppoweradvisor.
  • Mixing of power supplies in the same server is not supported. All power supplies must be of the same input voltage, output rating, and efficiency rating. If non-matching power supplies are installed, you may receive an error message and/or experience operational issues with your server.



Step 3: Choose Additional Factory Integratable Options



HPE Unique Options

Select one or more Unique options from Core options section below.

  • This section may contain FIO options, please see the Unique Options section below.
  • FIO indicates that this option is only available as a factory installable option.

HPE Drives

Select one or more drives from Core options-HPE Drives section below.

  • The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
  • Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
  • The HPE ProLiant Gen9 Smart Storage solutions are equipped with re-designed Small Form Factor (SFF 2.5 in) hot plug carriers for HPE Qualified Hard Drives and Solid State Drives. These new carriers provide status and activity indicators as well as caution indicators for "Do Not Remove".

HPE Flexible LOM

Select a FlexibleLOM from Core options-Networking section below.

  • Only one FlexibleLOM can be added to the server. These options are upgradeable and can be changed from the original configuration after the server is shipped.
  • For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
  • Please see the QuickSpecs for Technical Specifications and additional information: http://www.hp.com/go/ProLiantNICs.

HPE Networking

Select a standup NIC adapter from Core options-Networking section below.

  • Please see the QuickSpecs for Technical Specifications and additional information:  http://www.hp.com/go/ProLiantNICs.
  • These options are upgradeable and can be changed from the original configuration after the server is shipped.
  • For 10Gb adapters, a minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

HPE Storage Controllers

Select one or more Storage options from Additional options section below.

  • The embedded B140i controller will operate in UEFI only mode. For legacy support an additional controller will be needed, and for CTO orders please also select  the Legacy mode settings part, 758959-B22
  • This section may contain FIO options, please see HPE Storage Controllers section below.
  • FIO indicates that this option is only available as a factory installable option.

HPE Graphics Options

Select one or more graphics adapter from Additional options section below.

  • Please see the HPE Power Advisor for estimated power consumption of your individual system configuration prior to installing GPUs. The HPE Power Advisor is located at:  http://www.hp.com/go/hppoweradvisor.
  • This section may contain FIO options, please see HPE Computation & Graphics Accelerators section below.

HPE I/O Expansion Options

Select one or more Riser Kit options from Core options section below.

  • To take advantage of the additional PCI slot upgrade, the second processor must be installed.
  • This section may contain FIO options, please see HPE I/O Expansion Options section below.
  • FIO indicates that this option is only available as a factory installable option.

HPE Cooling Options

 Select one or more Fan Kits from Core options section below.

  • This section may contain FIO options, please see HPE Cooling Options section below.
  • FIO indicates that this option is only available as a factory installable option.

HPE Rail Kits

Select one type of rail kit from Additional options section below.

  • Please take a moment to review the installation documentation that comes with the server to help you with the installation of your Gen9 server.
  • To assist in the installation of the server into the rack, an optional installation tool is available by contacting your local services representative (p/n 695539-001).
  • See HPE Rack Options in Additional Options section of this QuickSpecs for more rack kit choices.

CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

Core Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard
Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative
for additional information.

HPE Unique Options

HPE DL360 Gen9 SFF DVD-RW/USB Universal Media Bay Kit

NOTE: DVD RW (Drive Included), USB 2.0, and VGA; when this option kit is installed it cannot be used in conjunction with the 2 SFF SAS/SATA option kit.

764632-B21

HPE DL360 Gen9 Rear Serial Port and Enablement Kit

764646-B21

HPE DL360 Gen9 SFF Systems Insight Display Kit

NOTE: For the 8SFF model, adds a System Insight Display for improved diagnosis capabilities.

764636-B21

HPE DL360 Gen9 High Performance Heat Sink Kit

NOTE: These are included in some higher Watt processors (see processor section), but may be added to lower power processors to reduce fan power consumption.

795235-B21

HPE Processors

Entry Processors - E5-2600v3 series Processors

HPE DL360 Gen9 Intel® Xeon® E5-2603v3 (1.6GHz/6-core/15MB/85W) FIO Processor Kit

NOTE: Ships with a standard Heatsink. A Performance Heatsink can be added to help reduce power consumption (795235-B21).

755374-L21/B21

HPE DL360 Gen9 Intel® Xeon® E5-2609v3 (1.9GHz/6-core/15MB/85W) FIO Processor Kit

NOTE: Ships with a standard Heatsink. A Performance Heatsink can be added to help reduce power consumption (795235-B21).

755378-L21/B21

Base Processors - E5-2600v3 series Processors

HPE DL360 Gen9 Intel® Xeon® E5-2620v3 (2.4GHz/6-core/15MB/85W) FIO Processor Kit

NOTE: Ships with a standard Heatsink. A Performance Heatsink can be added to help reduce power consumption (795235-B21).

755382-L21/B21

HPE DL360 Gen9 Intel® Xeon® E5-2630v3 (2.4GHz/8-core/20MB/85W) FIO Processor Kit

NOTE: Ships with a standard Heatsink. A Performance Heatsink can be added to help reduce power consumption (795235-B21).

755384-L21/B21

HPE DL360 Gen9 Intel® Xeon® E5-2640v3 (2.6GHz/8-core/20MB/90W) FIO Processor Kit

NOTE: Ships with a standard Heatsink. A Performance Heatsink can be added to help reduce power consumption (795235-B21).

755386-L21/B21

HPE DL360 Gen9 Intel® Xeon® E5-2630Lv3 (1.8GHz/8-core/20MB/55W) FIO Processor Kit

NOTE: Ships with a standard Heatsink. A Performance Heatsink can be added to help reduce power consumption (795235-B21).

764097-L21/B21

Performance Processors - E5-2600v3 series Processors

HPE DL360 Gen9 Intel® Xeon® E5-2680v3 (2.3GHz/10-core/25MB/105W) FIO Processor Kit

NOTE: Ships with a standard Heatsink. A Performance Heatsink can be added to help reduce power consumption (795235-B21).

755394-L21/B21

HPE DL360 Gen9 Intel® Xeon® E5-2650v3 (2.3GHz/10-core/25MB/105W) FIO Processor Kit

NOTE: Ships with a standard Heatsink. A Performance Heatsink can be added to help reduce power consumption (795235-B21).

755388-L21/B21

HPE DL360 Gen9 Intel® Xeon® E5-2660v3 (2.6GHz/10-core/25MB/105W) FIO Processor Kit

NOTE: Ships with a standard Heatsink. A Performance Heatsink can be added to help reduce power consumption (795235-B21).

755390-L21/B21

HPE DL360 Gen9 Intel® Xeon® E5-2670v3 (2.3GHz/12-core/30MB/120W) FIO Processor Kit

NOTE: Ships with a standard Heatsink. A Performance Heatsink can be added to help reduce power consumption (795235-B21).

755392-L21/B21

Performance Processors - E5-2600v4 series Processors



HPE DL360 Gen9 Intel® Xeon® E5-2697v4 (2.3GHz/18-core/45MB/145W) FIO Processor Kit

NOTE: Ships with a standard Heatsink. A Performance Heatsink can be added to help reduce power consumption (795235-B21).

818202-L21/B21

HPE DL360 Gen9 Intel® Xeon® E5-2695v4 (2.1GHz/18-core/45MB/120W) FIO Processor Kit

NOTE: Ships with a standard Heatsink. A Performance Heatsink can be added to help reduce power consumption (795235-B21).

818200-L21/B21

HPE DL360 Gen9 Intel® Xeon® E5-2683v4 (2.1GHz/16-core/40MB/120W) FIO Processor Kit

NOTE: Ships with a standard Heatsink. A Performance Heatsink can be added to help reduce power consumption (795235-B21).

818198-L21/B21

HPE DL360 Gen9 Intel® Xeon® E5-2620v4 (2.1GHz/8-core/20MB/85W) FIO Processor Kit

NOTE: Ships with a standard Heatsink. A Performance Heatsink can be added to help reduce power consumption (795235-B21).

818872-L21/B21

HPE Memory

 Registered DIMMs (RDIMMs) for E5-2600v3 Series

HPE 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726718-B21

Load Reduced DIMMs (LRDIMMs) for E5-2600v3 Series

HPE 32GB (1x32GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

726722-B21

NOTE: Memory speeds will vary by processor model, please see memory section of QuickSpecs.

Registered DIMMs (RDIMMs) for E5-2600v4 Series

HP 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805347-B21

HP 16GB (1x16GB) Single Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805349-B21

NOTE: Memory speeds will vary by processor model, please see memory section of QuickSpecs.

HPE Optical Drives

HPE 9.5mm SATA DVD-ROM JackBlack Gen9 Optical Drive

NOTE: Supported only with the 4LFF Models & requires cable kit 766203-B21.

726536-B21

HPE 9.5mm SATA DVD-RW JackBlack G9 Optical Drive

NOTE: Supported only with the 4LFF Models & requires cable kit 766203-B21.

726537-B21

HPE DL360 Gen9 SFF DVD-RW/USB Universal Media Bay Kit

NOTE: Front DVD-RW, USB 2.0 and VGA, and optical cable.

764632-B21

HPE Drives

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HPE 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard Drive

718162-B21

HPE 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652589-B21

HPE 600GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

759212-B21

HPE 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652583-B21

HPE 450GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

759210-B21

HPE 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652572-B21

HPE 300GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

759208-B21

HPE 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652564-B21

12G SAS Hot Plug SFF (2.5-inch) Enterprise Performance Solid State Drives

HPE 800GB 12G SAS High Endurance SFF 2.5-in SC Enterprise Performance 3yr Wty Solid State Drive

741159-B21

HPE 900GB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Wty Hard Drive

785069-B21

HPE 600GB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Wty Hard Drive

781516-B21

HPE 300GB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3ry Wty Hard Drive

785067-B21

12G SAS Hot Plug SFF (2.5-inch) SC Mixed Use Solid State Drives



HPE 1.6TB 12G SAS Mixed Use-1 SFF (2.5in) SC 3yr Wty Solid State Drive

846436-B21

HPE 800GB 12G SAS Mixed Use-1 SFF (2.5in) SC 3yr Wty Solid State Drive

846434-B21

6G SATA Hot Plug SFF (2.5-inch) SC Write Intensive Solid State Drives



HP 200GB 6G SATA Write Intensive-2 SFF 2.5-in SC 3yr Wty

Solid State Drive

804639-B21

Hard Drive Blank Kits

HPE Small Form Factor Hard Drive Blank Kit

666987-B21

HPE Storage Controllers

HP Smart Array P440ar/2GB FBWC 12Gb 2-ports Int SAS Controller

NOTE: Provides support for up to 8 internal SAS/SATA drives without using a PCIe slot.

726736-B21

HP Smart Array P440ar/2GB FBWC 12Gb 2-ports Int FIO SAS Controller

NOTE: Provides support for up to 8 internal SAS/SATA drives without using a PCIe slot.

749974-B21

HP DL360 Gen9 Smart Array P840 SAS Card with Cable Kit

NOTE: Includes the P840 Smart Array controller with 4GB integrated cache, HPE Smart Storage Battery, and associated cabling to attach it to a 10SFF chassis configuration.

766205-B21



HPE Networking

1 Gigabit Ethernet adapters

HPE Ethernet 1Gb 4-port 331T Adapter

647594-B21

HPE Ethernet 1Gb 2-port 332T Adapter

615732-B21

HPE Ethernet 1Gb 2-port 361T Adapter

652497-B21

10 Gigabit Ethernet adapters

HPE Ethernet 10Gb 2-port 530T Adapter

656596-B21

HPE Ethernet 10Gb 2-port 530SFP Adapter

652503-B21

HPE Ethernet 10Gb 2-port 560SFP+ Adapter

665249-B21

HPE Ethernet 10Gb 2-port 561T Adapter

716591-B21

HPE Ethernet 10Gb 2-port 562SFP+ Adapter

727055-B21

HPE Ethernet 10Gb 2-port 557SFP+ Adapter

788985-B21

25 Gigabit Ethernet adapters



HPE Ethernet 10/25Gb 2-port 640SFP28 Adapter

817753-B21

NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. See cables/options below.



FlexibleLOM Adapters

HPE Ethernet 1Gb 4-port 331FLR Adapter

629135-B22

HPE Ethernet 1Gb 4-port 366FLR Adapter

665240-B21

HPE FlexFabric 10Gb 2-port 533FLR-T Adapter

700759-B21

HPE FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter

700751-B21

HPE FlexFabric 10Gb 2-port 561FLR-T Adapter

857163-B21

HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter

727054-B21

NOTE: For the following FlexibleLOM Network Adapters, only 1 FlexibleLOM can be added to the server, which is selected in Step 2 of the "Configuration Information - Factory Integrated Models" section. These options are for upgrade or change from original configuration after the server is shipped.

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://www.hp.com/go/ProLiantNICs.







HPE Power Supplies

HPE Flex Slot Platinum Hot-plug Power supplies

HPE 800W Flex Slot Platinum Hot Plug Power Supply Kit

NOTE: Flex Slot Platinum power supplies support power efficiency of up to 94% and include a standard C-14 power inlet connector.

720479-B21

HPE 800W Flex Slot -48VDC Hot Plug Power Supply Kit

NOTE: Flex Slot -48VDC power supplies support power efficiency of up to 94%.

720480-B21

HPE 500W Flex Slot Platinum Hot Plug Power Supply Kit

NOTE: Flex Slot Platinum power supplies support power efficiency of up to 94%. Includes a C-14 power inlet connector.

720478-B21

NOTE: All power supplies must be of the same input voltage, output rating, and efficiency rating. If non-matching power supplies are installed, you may receive an error message and/or experience operational issues with your server.

NOTE: Mixing different power supplies in the same server may limit or disable some power supply features including support for power redundancy. To ensure access to all available features, all power supplies within the same server should have the same output and efficiency ratings.

NOTE: Prior to selecting a power supply option, it is highly recommended that you review your server configuration in the HPE Power Advisor tool to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: http://www.hp.com/go/hppoweradvisor.

NOTE: Support for HPE Power Discovery Services is included with the 1400W Flex Slot option. Power specifications and technical content for all HPE Server power supplies can be found at http://www.hp.com/go/proliant/powersupply.

NOTE: Maximum of 2 Flex Slot PS per platform.







HPE Cooling Options

HPE DL360 Gen9 High Performance Fan Kit
NOTE: Required for NEBS Compliance.

NOTE: High Performance Fan Kit, is available to meet some extended ambient operating temperatures above 35° C. Qualifications for extended ambient configurations are detailed at: https://www.hp.com/servers/ashrae.

766201-B21







HPE DL360 Gen9 NEBS Airflow Label
NOTE: Optional for NEBS Compliance.

NOTE: Installation of this label is not generally required. The intent of the label is to cover the row of air holes on the top front of the server when the end customer requires this to be technically compliant with NEBS airflow requirements. The product complies with the NEBS expanded operating temperature range with or without the label installed.

NOTE: This label ships without documentation. For installation instructions, please refer to the HPE DL360 Gen9 Carrier Grade Conversion documentation on the Hewlett Packard Enterprise web site:

http://www.hp.com/go/hpsc.

826086-001





Additional Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Insight Software

HPE Insight Control

HPE Insight Control including 1yr 24x7 Technical Support and Updates Single Server License

C6N27A

HPE Insight Control including 1yr 24x7 Technical Support and Updates Electronic License

C6N28ABE

HPE Insight Control Server Provisioning Media Kit

BD883A

HPE Insight Management Media Kit

C6N31A

NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24x7 HPE Software Technical Support and Update Service.

NOTE: Licenses ship without media. The HPE Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.

NOTE: For additional license options please see the QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123391.



Embedded Management

HPE iLO Advanced

HPE iLO Advanced including 3yr 24x7 Technical Support and Updates E-LTU

E6U64ABE

HPE iLO Advanced 1 Server License with 3yr 24x7 Tech Support and Updates

BD505A

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates Single Server License

512485-B21

HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO License

C6N36A

HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO Electronic License

C6N36ABE

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates E-LTU

E6U59ABE

HPE Converged Infrastructure Management Software



HPE OneView Advanced (with HPE iLO Advanced)

HPE OneView incl 3yr 24x7 Supp Phys 1 Svr Lic

E5Y34A

HPE OneView incl 3yr 24x7 Supp Flex Qty E-LTU

E5Y35AAE

HPE OneView for ProLiant DL Server incl 3yr 24x7 Supp FIO Bundle Physical 1 Svr Lic

E5Y43A

HPE OneView Advanced (without HPE iLO Advanced)

HPE OneView w/o iLO Adv incl 3yr 24x7 Supp Phys 1 Svr Lic

E5Y38A

HPE OneView w/o iLO Adv inc 3yr 24x7 Supp Flex Qty E-LTU

E5Y39AAE

HPE OneView Media Kit Phys No Lic

E5Y37A

HPE Operations Analytics for HPE OneView LTU

K8G29A

HPE Operations Analytics for HPE OneView E-LTU

NOTE: Full licenses of HPE OneView Advanced also provide the right-to-use HPE Insight Control without additional charge.

NOTE: Server provisioning (via 'HPE Insight Control server provisioning') is licensed as part of HPE OneView Advanced and provides multi-server OS and driver provisioning. Media kit #BD883A can be ordered for a physical copy of this software (USB flash drive).

NOTE: Licenses ship without media. The HPE OneView Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/oneview.

NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.

K8G29AAE

High Performance Clusters



HPE Cluster Management Utility

HPE Insight Cluster Management Utility 1yr 24x7 Flexible License

QL803B

HPE Insight Cluster Management Utility 3yr 24x7 Flexible License

NOTE: These part numbers can be used to purchase one certificate for multiple licenses and support with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key. Customer also will receive a support agreement.

BD476A

HPE Insight Cluster Management Utility Media

NOTE: For additional license kits please see the QuickSpecs at http://h18004.www1.hp.com/products/QuickSpecs/12612_div/12612_div.html.

BD477A

HPE Security

HPE Trusted Platform Module Option

NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to: http://www.hp.com/go/TPM.
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

488069-B21

HPE Storage Controllers

SAS Controllers

HPE Smart Array Controllers

HPE Smart Array P440ar/2GB FBWC 12Gb 2-ports Int SAS Controller

NOTE: Provides support for up to 8 internal SAS/SATA drives without using a PCIe slot.

726736-B21

NOTE: When ordering controllers, please reference the HPE Cable Options below for the
required cable.

NOTE: FIO indicates factory integrated option via CTO.

HPE Smart Host Bus Adapters

HPE H240ar 12Gb 2-ports Int Smart Host Bus Adapter

NOTE: Provides support for up to 8 internal SAS/SATA drives without using a PCIe slot.

726757-B21

HPE H241 12Gb 2-ports Ext Smart Host Bus Adapter

726911-B21

NOTE: FIO indicates factory integrated option via CTO.

HPE Storage Options

Fibre Channel HBA
NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see: http://h18006.www1.hp.com/storage/saninfrastructure/hba.html.

QLogic Fibre Channel HBAs

HPE 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ764A

HPE StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter

QW972A

HPE Rack Mount Rail Kits

Rail Kits

HPE 1U Small Form Factor Ball Bearing Rail Kit

663201-B21

HPE Care Pack
Services

Installation & Start-up Services

HPE Install ProLiant DL36x(p) Service

U4506E

HPE Startup ProLiant DL36x(p) Service

U4507E

Proactive Care

HPE 3 year 24x7 DL360 Gen9 w/IC Proactive Care Service

U5HM4E

HPE 3 year 24x7 with Defective Media Retention DL360 Gen9 w/IC Proactive Care Service

U5HM5E

HPE 3 year 24x7 w/Comprehensive Defective Material Retention DL360 Gen9 w/IC Proactive Care Service

U5HM6E

HPE 3 year Call to Repair DL360 Gen9 w/IC Proactive Care Service

U5HN3E

HPE 3 year Call to Repair with Defective Media Retention DL360 Gen9 w/IC Proactive Care Service

U5HN4E

HPE 3 year CTR with Comprehensive Defective Material Retention DL360 Gen9 w/IC Proactive Care Service

U5HN5E

HPE 3 year 24x7 DL360 Gen9 Proactive Care Service

U7AM2E

HPE 3 year 24x7 with Defective Media Retention DL360 Gen9 Proactive Care Service

U7AM3E

HPE 3 year 24x7 with Comprehensive Defective Material Retention DL360 Gen9 Proactive Care Service

U7AM4E

HPE 3 year Call to Repair DL360 Gen9 Proactive Care Service

U7AM8E

HPE 3 year Call to Repair with Defective Media Retention DL360 Gen9 Proactive Care Service

U7AM9E

HPE 3 year CTR with Comprehensive Defective Material Retention DL360 Gen9 Proactive Care Service

U7AN0E

Storage

http://dd2b53dc4eb04746/msoinline/142c41e1a3904f54

1-8

8 x SFF SATA/SAS/SSD Hot Pluggable Hard Drive Bays



Technical Specifications

System Unit

Dimensions

(H x W x D)

8 SFF                      1.7 x 17.1 x 27.5 inches (4.32 x 43.47 x 69.85 cm)



Weight

(approximate)

Maximum:

(all hard drives, power supply, and processor installed)

8 SFF Chassis 33.3 lb. (15.31 kg)
NOTE: Includes 2 SFF Option for a total of 10 SFF HDD.

Minimum:

(one hard drive, power supply, and processor installed)

8SFF Chassis 27 lb. (12.25 kg)

Input Requirements

(per power supply)

Range Line Voltage

100 to 120 VAC

200 to 240 VAC

-40 to -72 VDC

BTU Rating

Maximum

For 800W AC Power Supply: 3207 BTU/hr (at 100 VAC), 3071 BTU/hr (at 200 VAC), 3112 BTU/hr (at 240 VAC) for China Only

For 800W DC Power Supply: 3008 BTU/hr (at -40 VDC), 2971 BTU/hr (at -48 VDC), 2929 BTU/hr (at -72 VDC)

For 500W Power Supply: 1979 BTU/hr (at 100 VAC), 1911 BTU/hr (at 200 VAC), 1965 BTU/hr (at 240 VAC) for China Only



Power Supply Output

(per power supply)

Rated Steady-State Power

For 800W AC Power Supply: 800W (at 100 VAC), 800W (at 240 VAC), 800W (at 240 VAC) input for China only

For 800W DC Power Supply: 800W (at -40 VDC), 800W (at -48 VDC), 800W (at -72 VDC)

For 500W Power Supply: 500W (at 100 VAC), 500W (at 240 VAC), 500W (at 240 VAC) input for China only



Maximum Peak Power

For 800W AC Power Supply: 800W (at 100 to 127 VAC), 800W (at 200 to 240 1VAC), 800W (at 240 VAC) input for China only

For 800W DC Power Supply: 800W (at -40 VDC), 800W (at -48 VDC), 800W (at -72 VDC)

For 500W Power Supply: 500W (at 100 to 127 VAC), 500W (at 200 to 240 VAC), 500W (at 240 VAC) input for China only



System Inlet Temperature

Extended Ambient Operating Support

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: http://www.hp.com/servers/Ashrae



For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: http://www.hp.com/servers/Ashrae



System performance may be reduced if operating in the extended ambient operating range or with a fan fault.





Operating









Non-operating

GR-63-CORE, Section 4.1.2: Shelf Level Operating Temperature and Humidity

ETSI EN 300 019-2-3: Stationary Use at Weather Protected Locations, Class 3.1E



GR-63-CORE, Section 4.1.1, Transportation and Storage Environment

ETSI EN 300 019-2-1: Storage, Class 1.2

ETSI EN 300 019-2-2: Transportation, Class 2.3





Relative Humidity

Operating

GR-63-CORE, Section 4.1.2: Shelf Level Operating Temperature and Humidity

ETSI EN 300 019-2-3: Stationary Use at Weather Protected Locations, Class 3.1E



(non-condensing)

Non-operating

GR-63-CORE, Section 4.1.1: Transportation and Storage Environment

ETSI EN 300 019-2-1:Storage, Class 1.2



Altitude

Operating

GR-63-CORE, Section 4.1.3: Shelf Level Altitude





Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).



Emissions Classification

(EMC)

FCC Rating

Telecom

Class A

GR-1089-CORE, Section 3:  Electromagnetic Interference

ETSI EN 300 386: Electromagnetic Compatibility



Normative Standards

CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1



NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

NOTE: The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.





Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

http://www8.hp.com/us/en/hpe/hp-information/livingprogress/environmentalprogress/product-recycling.html#.V-lPA_krKiM

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

http://www8.hp.com/us/en/hpe/hp-information/livingprogress/environmentalprogress/product-recycling.html#.V-lPA_krKiM





Summary of Changes

Date

Version History

Action

Description of Change

23-Oct-2017

From Version 4 to 5

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

06-Jan-2017

From Version 2 to 3

Changed

HPE Processors, HPE Drives, HPE Networking, HPE Power Supplies, and Technical Specifications were revised.

15-Apr-2016

From Version 1 to 2

Added

HPE Storage Controllers section was added to Core Options.

Changed

HPE Processors, HPE Memory, HPE Drives, and HPE Networking sections were revised.









Sign up for updates







© Copyright 2017 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries.

Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less

c04772926 - 15362 - Worldwide  - V4 - 23-October-2017
