HPE ProLiant BL460c Gen9 Server Blade - Carrier Grade Supplement: технические характеристики и документация

HPE ProLiant BL460c Gen9 Server Blade - NEBS (GR-63 & GR-1089) and ETSI 300 386-2 Certified

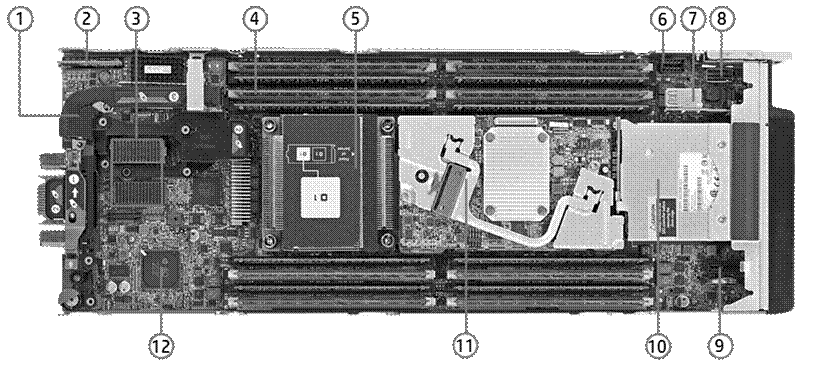

HPE ProLiant BL460c Gen9 Server Blade - Internal View

1.

FlexibleLOM adapter

7.

USB 3.0 and TPM

2.

Nand Flash & Micro SD

8.

Embedded SATA Connector

3.

Mezzanine Slots (x16 PCI 3.0)

9.

Solid State Device Connector

4.

Sixteen (16) DDR4 DIMM memory slots (8 per processor)

10.

Two hot-plug drive bays

5.

Up to two (2) Intel® Xeon® E5-2600 v3 family processors

11.

HPE Smart Array P244br Controller with 1GB FBWC

6.

HPE BLc 12W Smart Storage Battery connector

12.

iLO Management Engine

What's New

• Flexible Controller Options
• Support for 2133MHz  DDR4 memory
• Support for 12Gb SAS internal hard drives and 12Gb SAS storage controller offerings
• Support for the Intel E5-2600 v3 Product Family

NOTE: This document covers the HPE ProLiant BL460c Gen9 server blade only. For information on HPE BladeSystems c-Class Enclosures and HPE BladeSystem c-Class Interconnect and Mezzanine Components, please see the following:

HPE BladeSystem c-Class Enclosures QuickSpecs:

• HPE BladeSystem c3000 Enclosure QuickSpecs at
  http://www8.hp.com/h20195/v2/GetDocument.aspx?docname=c04123379
  NOTE: The c3000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the new enclosures and any future server blades will be supported in the existing enclosures.
• HPE BladeSystem c7000 Enclosure QuickSpecs at
  http://www8.hp.com/h20195/v2/GetDocument.aspx?docname=c04229580
  NOTE: The c7000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the new enclosures and any future server blades will be supported in the existing enclosures.
• HPE BladeSystem c-Class Interconnect and Mezzanine Components at
  http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
  http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html

NOTE: For optimal cooling and system performance the BL460c Gen9 Server Blade requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans.

NOTE: For proper BladeSystem operation, the minimum required versions of HPE Onboard Administrator and HPE Virtual Connect are required and available via the HPE Service Pack for ProLiant, please see http://www.hp.com/go/spp/download.

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.

NOTE: The following Processors are considered NEBS certified, either by testing or Compliant by Similarity

Processor
One of the following depending on Model

E5-2600 v3 series Processors

HPE BL460c Gen9 Intel® Xeon® E5-2680v3 (2.5GHz/12-core/30MB/120W)

HPE BL460c Gen9 Intel® Xeon® E5-2670v3 (2.3GHz/12-core/30MB/120W)

HPE BL460c Gen9 Intel® Xeon® E5-2660v3 (2.6GHz/10-core/25MB/105W)

HPE BL460c Gen9 Intel® Xeon® E5-2650v3 (2.3GHz/10-core/25MB/105W)

HPE BL460c Gen9 Intel® Xeon® E5-2640v3 (2.6GHz/8-core/20MB/90W)

HPE BL460c Gen9 Intel® Xeon® E5-2683v3 (2GHz/14-core/35MB/120W)

HPE BL460c Gen9 Intel® Xeon® E5-2630v3 (2.4GHz/8-core/20MB/85W)

HPE BL460c Gen9 Intel® Xeon® E5-2620v3 (2.4GHz/6-core/15MB/85W)

HPE BL460c Gen9 Intel® Xeon® E5-2609v3 (1.9GHz/6-core/15MB/85W)

HPE BL460c Gen9 Intel® Xeon® E5-2695v3 (2.3GHz/14-core/35MB/120W)

NOTE: DIMM slots 4 and 5 are not accessible when either the E5-2699 v3, the E5-2697 v3, the E5-2643 v3, the E5-2637 v3, or the E5-2667 v3 is used. In a 2 processor configuration, there are twelve (12) total available DIMM slots.
NOTE: For the maximum supported memory speeds for each processor listed above, please reference the 'Memory Speed by Processor Model' table in the Memory section of the QuickSpecs.
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.

NOTE: Turbo indicates the maximum potential frequency when using Intel® Turbo Boost Technology.  The frequency boost increment is dependent on the processor SKU and the number of active cores.  In general, a higher boost increment is obtained when fewer cores are active.
NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
NOTE: Supports 1 or 2 processors. Mixing different processor models is not supported.
NOTE: For the Intel® C610 Chipset E5-2600 v3 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, and x = L for low power SKUs.
NOTE: The BL460c Gen9 includes two I/O mezzanine expansion slots. A processor must be installed in processor slot 1 for access to the first mezzanine expansion slot (expansion slot 1). A processor must be installed in processor slot 2 for access to the second mezzanine expansion slot (expansion slot 2).
NOTE: All processors within the server must be identical.
NOTE: All processors support Intel® Hyper-Threading and Intel® Turbo Boost Technologies except the E5-2603 v3 and E5-2609 v3.
NOTE: The letter "L" following the model number indicates denotes lower wattage.
NOTE: The processor model as well as the memory configuration determines the maximum speed memory can operate. Please see the see the "Memory" section later in this document.

Cache Memory
One of the following depending on Model

45MB (1x45MB) L3 cache
NOTE: For Eighteen-core processors.

40MB (1x40MB) L3 cache
NOTE: For Sixteen-core processors.

35MB (1x35MB) L3 cache
NOTE: For Fourteen-core processors.

30MB (1x30MB) L3 cache
NOTE: For Twelve-core processors.

25MB (1x25MB) L3 cache
NOTE: For Ten-core processors.

20MB (1x20MB) L3 cache
NOTE: For Six or Eight-core processors.

15MB (1x15MB) L3 cache
NOTE: For Quad or Six-core processors.

10MB (1x10MB) L3 cache
NOTE: For Quad-core processors.

Chipset

Intel® C610 Series Chipset

Intel® E5-2600v3 Processor Family

NOTE: For more information regarding Intel chipsets, please see the following: http://www.intel.com/products/server/chipsets/.

Upgradeability

Upgradeable to two (2) processors

On System Management Chipset

HPE iLO (Firmware HPE iLO4 2.0), 4GB NAND with 1GB USB user space configurable via UEFI and accessible via iLO. Read and learn more in the iLO QuickSpecs.

NOTE: For more information, visit: http://www.hp.com/go/ilo

Memory Protection

Advanced ECC

Memory Online Spare Mode (Rank Spare Mode)

Memory
One of the following depending on Model

Type

HPE SmartMemory

DDR4 Load Reduced (LRDIMM), or Registered (RDIMM)

Standard (Pre-configured Models)

128GB (4 x 32GB) DDR4 2133MHz RDIMMs at 1.2V
64GB (4 x 16GB) DDR4 2133MHz RDIMMs at 1.2V
32GB (2 x 16GB) DDR4 2133MHz RDIMMs at 1.2V
32GB (2 x 16GB) DDR4 2133MHz RDIMMs at 1.2V
16GB (2 x 8GB) DDR4 2133MHz RDIMMs at 1.2V
16GB (2 x 8GB) DDR4 2133MHz RDIMMs at 1.2V

Maximum (LRDIMM)

1TB (16 x 64GB) up to 2133MHz at 1.2V

Maximum (RDIMM)

512GB (16 x 32GB) up to 2133MHz at 1.2V

NOTE: Support for 64GB LRDIMM and 32GB RDIMM available in earl 2015.

NOTE: HPE memory from previous generation servers (DDR3) is not compatible with this server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. For additional information, please see the HPE SmartMemory QuickSpecs at:

http://www8.hp.com/h20195/v2/GetHTML.aspx?docname=c04111535

NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2133MHz, 1866MHz, or 1600MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: http://h22195.www2.hp.com/MemoryTool/Home/Legal

Network Controller
One of the following depending on Model

One (1) 20Gb 2-port FlexFabric FLB, 10Gb 2-port HPE FlexFabric FLB, or 10Gb 2-port Ethernet FLB
NOTE: Supports FCoE, , TCP/IP offload engine, hardware-based accelerated iSCSI, iSCSI boot, and autosensing 10Gb/1Gb Ethernet.
NOTE: Each port is autosensing the speed, and can interoperate with 1Gb HPE BladeSystem c-Class interconnect components. Both ports will operate at the same speed.
NOTE: FlexFabric capabilities require the use of an HPE Virtual Connect FlexFabric or Flex10/10D module module.
Fibre Channel over Ethernet (FCoE) is supported with HPE interconnects. Learn more at: http://www.hp.com/go/bladesystem/interconnects

One (1) HPE FlexFabric 10Gb 2-port 536FLB FlexibleLOM

One (1) HPE FlexFabric 20Gb 2-port 650FLB FlexibleLOM
NOTE: FlexibleLOMs are not compatible with prior generation c-Class server blades

Standard iLO Network Controller:
One (1) 10/100 Mbps port for the HPE iLO 4 to Onboard Administrator link. The Onboard Administrator (with 10/100/1000 Mbps) to BladeSystem link is 1Gbps

Expansion Slots

Two (2) I/O expansion mezzanine slots:

• x16 PCIe 3.0 Type A (supports Type A mezzanine cards) (expansion slot 1).
  NOTE: This expansion slot supports dual-port mezzanine cards: one port is routed to interconnect module bay 3 and the other to bay 4.
• x16 PCIe 3.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 2).
  NOTE: This expansion slot supports dual-port and quad-port mezzanine cards. For dual-port cards, one port is routed to interconnect module bay 5 and the other to bay 6. For quad-port cards, one port is routed to interconnect module bay 5, one to bay 6, one to bay 7, and one to bay 8.
  NOTE: A second processor must be installed (in processor slot 2) to have access to the second expansion slot (expansion slot 2).

Mezzanine card options include:

• Dual-port 20Gb FlexFabric,  Dual-port 10Gb FlexFabric, 10GbE options, and quad-port 1Gb Ethernet server adapter mezzanine options for additional network ports.
• I/O accelerator mezzanine options for high transaction rate local storage

HPE Server ROM

HPE ROM (read only memory) is now digitally signed using HPE's Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.

HPE ROM provides for essential initialization and validation of hardware components before control is passed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating system.

HPE ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis.

HPE's ProLiant ROM is used to configure the following:

• Processor and chipset status registers
• System memory, memory map, and memory initialization
• System hardware configuration (integrated PCI devices and optional PCIe cards).
• Customer-specific BIOS configuration using the HPE ROM-Based Setup Utility (RBSU).

NOTE: For further information, please refer to HPE's RBSU (ROM based setup utility) user guide: http://www.hp.com/support/rbsu

HPE Server UEFI /Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration while interacting with your server at boot time. HPE ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot Mode.

NOTE: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hp.com/go/proliantuefi/docs

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot
• Operating system specific functionality
• Support for > 2.2 TB (using GPT) boot drives
• USB 3.0 Stack
• Embedded UEFI Shell
• Mass Configuration Deployment Tool using HPE RESTful API
• PXE boot support for IPv6 networks
• Boot support for option cards that only support a UEFI option ROM

NOTE: For more information please visit http://www.hp.com/go/proliant/uefi

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

NOTE: HPE UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory.

Storage Controller

All BTO Modelsd

One (1) HPE Smart Array P244br Controller with 1GB Flash-Backed Write Cache (FBWC) supporting RAID 0 and RAID 1, or HPE H244br Smart HBA.

NOTE: The HPE Smart Array P244br, the HPE H244br Smart HBA, and the HPE B140i (chipset SATA). Support two (2) small form factor (SFF) hot plug drive bays.

NOTE: The FBWC and battery will be disabled when the server inlet temperature exceeds 50C, the FBWC will be re-enabled when the temperature drops below 50C.  The Smart Array P244 will continue to operate normally up to the short term operating maximum of 55C.

Maximum Internal Storage
One of the following depending on Model

Hot Plug SFF SAS

2.4TB

2 x 1.2TB

Hot Plug SFF SATA

2.0TB

2 x 1.0TB

Hot Plug SFF SAS SSD

3.2TB

2 x 1.6TB

Hot Plug SFF SATA SSD

1.6TB

2 x 800GB

NOTE: The ProLiant BL460c Gen9 server includes the HPE hot plug small form factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance errors. HPE drives from previous generation servers (prior to Gen8) are not compatible with the ProLiant BL460c Gen9 drive bays.

Interfaces

Micro SDHC Slot

One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot

USB 3.0 Port

One (1) internal USB 3.0 connector for USB flash media drive keys

NOTE: The above options are intended for integrated hypervisor virtualization environments.

Industry Standard Compliance

ACPI 2.0
Microsoft® Logo certifications
USB 3.0 Support
IPMI 2.0
Secure Digital 2.0
TPM 1.2 Support
IEEE (specific IEEE standards depending on Ethernet adapter card(s) installed)
Advanced Encryption Standard (AES)
Triple Data Encryption Standard (3DES)
SNMP
SSL 2.0
DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
Active Directory v1.0
PCIe 3.0

ASHRAE A3

FIPS 140-2 Level-2 certification pending

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Canonical Ubuntu
Oracle Solaris
VMware

NOTE: For more information on HPE's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport and our driver download page:
http://www.hp.com/servers/BL460cGen9

Enclosures

Hewlett Packard Enterprise offers two different c-Class server blade enclosures to meet your individual needs:

• The HPE BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant BL460c Gen9 servers plugged vertically.
• The HPE BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HPE ProLiant BL460c Gen9 servers plugged horizontally.



Server blades, interconnect modules, power supplies, fans, and redundant Onboard Administrator modules are all designed to fit into the c3000 and c7000 enclosures.

NOTE: For additional enclosure information, please see: http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html

Graphics

Integrated Matrox G200eh video controller

• 1600 x 1200 (32 bpp)
• 1920 x 1200 (16 bpp)

HPE iLO Management On System Management Memory

• 16 MB Flash Video Memory
• 256 MB DDR 3 with ECC (112 MB after ECC and video)



Form Factor

HPE ProLiant BL460c Gen9 is a half-height server blade that plugs into the HPE BladeSystem c3000 and c7000 enclosures.

Embedded Management

HPE Integrated Lights Out

Monitor your servers for ongoing management, service alerting, reporting and remote management with iLO. Learn more at http://www.hp.com/go/ilo

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hp.com/go/ProLiant/uefi.

HPE RESTful API

RESTful API is an application programming interface. RESTful Web Service API served by iLO’s web server. http://www.hp.com/go/restfulapi .

Intelligent Provisioning

Provision servers by discovering and deploying 1 to few servers with Intelligent Provisioning. Learn more at http://www.hp.com/go/intelligentprovisioning.

Server Utilities

HPE Smart Update

Optimize firmware and driver updates with HPE Smart Update solutions. Learn more at http://www.hp.com/go/smartupdate.

HPE Systems Insight Manager (HPE SIM)

HPE SIM allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers, and also provides you with basic support for non-Hewlett Packard Enterprise servers. HPE SIM also integrates with HPE SUM to provide quick and seemless firmware updates.  Learn more at http://www.hp.com/go/sim.

Scripting Tool Kit and Windows PowerShell

Provision 1 to many servers using your own scripts to discover and deploy them with HPE Scripting Tool Kit for Windows and Linux or HPE Scripting Tools for Windows PowerShell. Learn more at http://www.hp.com/go/ProLiantSTK or http://www.hp.com/go/powershell.

HPE RESTful Interface Tool

HPE RESTful API tool is a scripting tool to provision servers using RESTful API Interface to discover and deploy servers at scale. Learn more at http://www.hp.com/go/restfulapi.

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hp.com/go/ilo/mobileapp.

HPE Insight Online

HPE Insight Online, available at no additional cost as part of your HPE warranty, Care Pack or contractual support agreement with HPE, is a personalized dashboard for simplified tracking of IT operations and support information from anywhere, anytime. Learn more at http://www.hp.com/go/insightonline/info.

Security

• Power-on password
• Administrator's password
• Keyboard password (QuickLock)
• HPE iLO Management On System Management Chipset with:

- SSL encryption

- Secure Shell version 2

- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser, CLP and XML scripting interface

- AES and RC4 encryption of video

• External USB port enable/disable
• Network server mode
• Serial interface control
• TPM (Trusted Platform Module) 1.2 option
• Advanced Encryption Standard (AES)
• Intel® Advanced Encryption Standard-New Instructions (AES-NI)
• FIPS 140-2 Level-2 certification pending

Availability

Memory

• Advanced ECC uses single device data correction (SDDC) to detect and correct single and all multi-bit error that occurs within a single DRAM chip. Both x4 and x8 SDDC are supported (x8 requires lockstep mode).
• Memory online spare mode (also known as rank spare mode) detects a rank that is degrading and switches operation to the spare rank.
• Memory demand and patrol scrubbing to prevent accumulation of correctable errors and reducing the likelihood of unplanned downtime.
• Failed DIMM isolation improves the service time thus improving the overall system availability.
• Address parity protection available on RDIMMs and LRDIMMs detects address bit errors to improve service time and overall system availability.

Mezzanine options and I/O

• Support for one (1) FlexibleLOM, providing two (2) (i.e. redundant) Ethernet ports
• Multiple mezzanine I/O expansion slots that support a wide variety of mezzanine cards each supporting multiple data paths routed to redundant interconnect modules.
• Network Adapter Teaming (bonding) provides network fault tolerance, transmit load balancing, and switch-assisted load balancing.

Storage

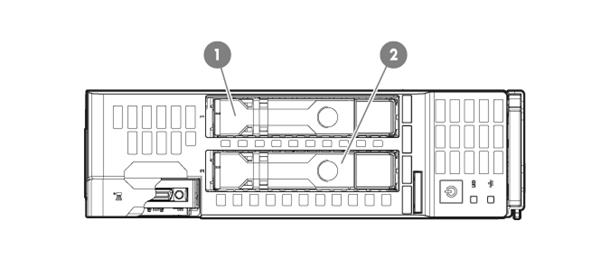

• Two (2) Small Form Factor hot-plug SAS/SATA HDD or SSD drive bays.
• Choice of the HPE Smart Array P244br Controller with 1GB FBWC/HPE, Smart HBA H244br, or theHP B140i (chipset SATA). RAID 0 and 1 support for all three storage controller offerings.,
• Optional dual-port Fibre Channel mezzanine card(s) for redundant SAN connections.

Processor/Chipset

• Processor internal sensors & thermal control protection against over-temperature conditions.
• Cache parity/ECC protects cache data from accidental data corruption.
• Machine Check Architecture (MCA) detects and captures hardware errors such as system bus, memory ECC, parity, and cache, and improves service time.
• Intel® QPI Protocol Protection allows detection of data errors using a checksum of 8-bits.
• Core Disable for FRB (fault resilient boot) allows a system to power-on despite a failing core-pair. It uses BIST (built-in self-test) results to detect a failure and disables the target core-pair upon subsequent boot.

Server Blade Enclosure Infrastructure

• Pooled power for true N+N power redundancy through up to six (6) hot-plug, high-efficiency, common slot enclosure-based power supplies (configuration dependent).
• Up to ten (10) enclosure-based hot-plug HPE Active Cool fans that scale to meet future demands, optimize airflow, reduce power draw, and improve acoustic performance.
• Dual grid power providing redundant rack enclosure power feeds to the server blade enclosure.
• HPE Dynamic Power Saver Mode monitors the total enclosure power consumption in real time and automatically adjusts with change in demand for improved efficiency and reliability.HPE Dynamic Power Capping safely limits power usage without impacting performance by capping peak usage instead of average power usage, removes risk to electrical infrastructure with a fast-acting, hardware-based capping algorithm, and reclaims more power by dynamically controlling power limits based on workload demand.
• Up to eight interconnect modules per server blade enclosure providing four simultaneous redundant fabrics for FlexFabric, Virtual Connect Ethernet, Fibre Channel, InfiniBand, Pass Thru Ethernet, etc.
• Enclosure crosslinks between adjacent enclosures to provide interconnect module-to-module connections or as Virtual Connect module stacking links.
• Optional enclosure redundant Onboard Administrator system management module.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Care Pack services or customized service agreements. Certain restrictions and exclusions apply. Hard drives have either a one year or three year warranty; refer to specific hard drive QuickSpecs for details.
NOTE: Server warranty includes 3-year Parts, 3-year Labor, 3-year on-site support. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HPE replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html.

NOTE: This section lists some of the steps required to configure a Factory Integrated Model (configure-to-order or CTO server). To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: Configure-to-order server blades must start with a CTO Blade Server.
NOTE: FIO indicates that this option is only available as a factory installable option.
NOTE: All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

Step 1: Base Server Blade Configuration (Select a configurable Blade)

Models

HPE ProLiant BL460c Gen9 E5-v3 10Gb/20Gb FlexibleLOM Configure-to-order Blade Server

727021-B21

Configurable Models ship with:

One (1) FlexibleLOM connector providing a choice for one (1) of the supported 10Gb/20Gb FlexibleLOMs (see Step 2)
Two (2) HPE small form factor hot-plug SAS/SATA/ HDD or SSD hard drive bays
Two (2) x16 PCIe I/O expansion slots (one Type A, one Type A/B)
One (1) integrated USB connector and one (1) MicroSDHC connector
One (1) TPM connector
HPE iLO Management (standard)

Step 2: Choose Required Options (one of the following from each list unless otherwise noted)

HPE Processors

NOTE: All configure-to-order processor kits (i.e. xxxxxx-L21) contain one (1) processor.
NOTE: If two processors are desired, select one xxxxxx-L21 here in Step 2 and one xxxxxx-B21 in Step 4.

E5-2600 v3 series Processors

HP BL460c Gen9 Intel® Xeon® E5-2680v3 (2.5GHz/12-core/30MB/120W) FIO Processor Kit

726988-L21

HP BL460c Gen9 Intel® Xeon® E5-2670v3 (2.3GHz/12-core/30MB/120W) FIO Processor Kit

726989-L21

HP BL460c Gen9 Intel® Xeon® E5-2660v3 (2.6GHz/10-core/25MB/105W) FIO Processor Kit

726990-L21

HP BL460c Gen9 Intel® Xeon® E5-2650v3 (2.3GHz/10-core/25MB/105W) FIO Processor Kit

726991-L21

HPE BL460c Gen9 Intel® Xeon® E5-2640v3 (2.6GHz/8-core/20MB/90W) FIO Processor Kit

726992-L21

HP BL460c Gen9 Intel® Xeon® E5-2683v3 (2GHz/14-core/35MB/120W) FIO Processor Kit

726993-L21

HP BL460c Gen9 Intel® Xeon® E5-2630v3 (2.4GHz/8-core/20MB/85W) FIO Processor Kit

726994-L21

HP BL460c Gen9 Intel® Xeon® E5-2620v3 (2.4GHz/6-core/15MB/85W) FIO Processor Kit

726995-L21

HP BL460c Gen9 Intel® Xeon® E5-2609v3 (1.9GHz/6-core/15MB/85W) FIO Processor Kit

726997-L21

HP BL460c Gen9 Intel® Xeon® E5-2695v3 (2.3GHz/14-core/35MB/120W) FIO Processor Kit

727003-L21

E5-2600 v4 series Processors

HPE BL460c Gen9 Intel® Xeon® E5-2695v4 (2.1GHz/18-core/45MB/120W) FIO Processor Kit

819853-L21

HPE BL460c Gen9 Intel® Xeon® E5-2680v4 (2.4GHz/14-core/35MB/120W) FIO Processor Kit

819842-L21

HPE BL460c Gen9 Intel® Xeon® E5-2640v4 (2.4GHz/10-core/25MB/90W) FIO Processor Kit

819839-L21

NOTE: All processors within the server must be identical.

NOTE: DIMM slots 4 and 5 are not accessible when the E5-2699 v4, E5-2697 v4, E5-2697A v4, E5-2667 v4, E5-2643 v4, E5-2637 v4, E5-2699 v3, the E5-2697 v3, the E5-2643 v3, the E5-2637 v3, or the E5-2667 v3 is used. In a 2 processor configuration, there are twelve (12) total available DIMM slots.

NOTE: For the maximum supported memory speeds for each processor listed above, please reference the 'Memory Speed by Processor Model' table in the Memory section of the QuickSpecs.

NOTE: All processors support Intel® Hyper-Threading and Intel® Turbo Boost Technologies except the E5-2609 v4, E5-2603 v4, E5-2603 v3 and E5-2609 v3.

NOTE:DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

NOTE: Supports 1 or 2 processors. Mixing different processor models is not supported.

NOTE:For the Intel® C610 Chipset E5-2600 v3 and v4 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, and x = L for low power SKUs.

NOTE:The BL460c Gen9 includes two I/O mezzanine expansion slots. A processor must be installed in processor slot 1 for access to the first mezzanine expansion slot (expansion slot 1). A processor must be installed in processor slot 2 for access to the second mezzanine expansion slot (expansion slot 2).

NOTE:The letter "L" following the model number indicates denotes lower wattage.

HPE Memory

NOTE: HPE memory from previous generation servers (DDR3) is not compatible with this server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. For additional information, please see the HPE SmartMemory QuickSpecs at:

http://www8.hp.com/h20195/v2/GetHTML.aspx?docname=c04111535

NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2133MHz, 1866MHz, or 1600MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: http://h22195.www2.hp.com/MemoryTool/Home/Legal

HPE SmartMemory

Registered DIMMs (RDIMMs) - E5-2600 v3 series Processors

HP 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726718-B21

HP 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726719-B21

Load Reduced DIMMs (LRDIMMs) - E5-2600 v3 series Processors

HP 32GB (1x32GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

726722-B21

Registered DIMMs (RDIMMs) - E5-2600 v4 series Processors

HP 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805351-B21

HPE 16GB (1x16GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

836220-B21

HP 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805347-B21

NOTE: All DDR4 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR4 Memory Configuration Tool.
NOTE: Depending on the memory configuration and processor model, 2133MHz memory may operate at a lower speed. Please see the see the "Memory" section later in this document for details.
NOTE: For additional memory rules and guidelines, see the "Memory" section later in this document.
NOTE: For more information on ProLiant Energy Efficient Features, see: http://www.hp.com/go/proliant-energy-efficient

HPE Networking

FlexibleLOM Adapters
NOTE: The server requires one (1) FlexibleLOM that is installed in the FlexibleLOM connectors. All FlexibleLOMs are dual port: One port is routed to interconnect module bay 1 and the other to bay 2.

20Gb FlexibleLOM Adapters

HPE FlexFabric 20Gb 2-port 630FLB FIO Adapter

700066-B21

HPE FlexFabric 20Gb 2-port 650FLB FIO Adapter

700764-B21

10Gb FlexibleLOM Adapters

HPE FlexFabric 10Gb 2-port 536FLB FIO Adapter

766491-B21

HPE Ethernet 10Gb 2-port 560FLB FIO Adapter

684214-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://www.hp.com/go/ProLiantNICs

Step 3: Choose Additional Factory Integration Options

HPE Insight Software

HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server FIO LTU

C6N36A

Converged Infrastructure Management Software

HPE OneView with iLO Advanced - Server hardware required on same purchase order

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView for Blade Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

F6Q89A

HPE Storage Controllers

HP Smart Array P244br/1GB FBWC 12Gb 2-ports Int FIO SAS Controller

761871-B21

HPE H244brSmart HBA Controller

HPE FIO B140i RAID Enable Kit - BIOS Setting

761878-B21

784308-B21

NOTE: The HPE Smart Array B140i Controller (chipset SATA) comes standard with the HPE BL460c Gen9 10Gb/20Gb FLB CTO Blade         (727021-B21).  If neither the HPE Smart Array P244br nor the HPE H244br controllers are chosen, a SATA cable will be provided to support SATA devices for the two internal drives.  If RAID is required when using the B140i, please choose ‘HPE FIO B140i RAID Enable Kit - BIOS Setting’ (784308-B21).

Step 4: Choose Additional Options for Factory Integration

NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below. For additional options, including server blade enclosures interconnect, mezzanine options and power subsystem options; please see the Core Options and Additional sections below; or the following:

• HPE BladeSystem c3000 Enclosure QuickSpecs:
  http://www8.hp.com/h20195/v2/GetDocument.aspx?docname=c04123379
  NOTE: The c3000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the new enclosures and any future server blades will be supported in the existing enclosures.
• HPE BladeSystem c7000 Enclosure QuickSpecs:
  http://www8.hp.com/h20195/v2/GetDocument.aspx?docname=c04229580
  NOTE: The c7000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the new enclosures and any future server blades will be supported in the existing enclosures.
• HPE BladeSystem c-Class Interconnect and Mezzanine Components:
  http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html and
  http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html

NOTE: For optimal cooling and system performance the BL460c Gen9 Server Blade requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans.

HPE Networking

NOTE: A 10 Gigabit Ethernet adapter supports linking at 1Gbps or 10Gbps when connected to an interconnect module with 10Gb Ethernet downlinks.
NOTE: A 10 Gigabit Ethernet adapter supports linking at only 1Gbps when connected to an interconnect module with 1Gb Ethernet downlinks.
NOTE: The 10 Gigabit Ethernet adapters on each server blade connect to a 10Gb interconnect in bays 3-6 (HPE BladeSystem c7000 Enclosure) or bays 2-4 (HPE BladeSystem c3000 Enclosure).

20 Gigabit Ethernet Mezzanine Cards

HP FlexFabric 20Gb 2-port 630M Adapter

700076-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04312720

HPE FlexFabric 20Gb 2-port 650M Adapter

700767-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04347342

10 Gigabit Ethernet Mezzanine Cards

HPE FlexFabric 10Gb 2-port 534M Adapter

700748-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111368

HPE Ethernet 10Gb 2-port 560M Adapter

665246-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111406.

1 Gigabit Ethernet Mezzanine Cards

HPE Ethernet 1Gb 4-port 366M Adapter

615729-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111456

FlexibleLOM Adapters

NOTE: The server supports one (1) FlexibleLOM that is installed in the FlexibleLOM connectors and is already included in the pre-configured models. However, it must be added in Step 2 for Configure-to-Order Models. The FlexibleLOM options below are used to change these original FlexibleLOMs.

20Gb FlexibleLOM Adapters

HPE FlexFabric 20Gb 2-port 630FLB Adapter

700065-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04312719

HPE FlexFabric 20Gb 2-port 650FLB Adapter

700763-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04347341

10Gb FlexibleLOM Adapters

HPE FlexFabric 10Gb 2-port 536FLB Adapter

766490-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04347246

HPE Ethernet 10Gb 2-port 560FLB Adapter

655639-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111516

HPE Processors

E5-2600 v3 series Processors

HPE BL460c Gen9 Intel® Xeon® E5-2680v3 (2.5GHz/12-core/30MB/120W) Processor Kit

726988-B21

HPE BL460c Gen9 Intel® Xeon® E5-2670v3 (2.3GHz/12-core/30MB/120W) Processor Kit

726989-B21

HPE BL460c Gen9 Intel® Xeon® E5-2660v3 (2.6GHz/10-core/25MB/105W) Processor Kit

726990-B21

HPE BL460c Gen9 Intel® Xeon® E5-2650v3 (2.3GHz/10-core/25MB/105W) Processor Kit

726991-B21

HPE BL460c Gen9 Intel® Xeon® E5-2640v3 (2.6GHz/8-core/20MB/90W) Processor Kit

726992-B21

HPE BL460c Gen9 Intel® Xeon® E5-2683v3 (2GHz/14-core/35MB/120W) Processor Kit

726993-B21

HPE BL460c Gen9 Intel® Xeon® E5-2630v3 (2.4GHz/8-core/20MB/85W) Processor Kit

726994-B21

HPE BL460c Gen9 Intel® Xeon® E5-2620v3 (2.4GHz/6-core/15MB/85W) Processor Kit

726995-B21

HPE BL460c Gen9 Intel® Xeon® E5-2609v3 (1.9GHz/6-core/15MB/85W) Processor Kit

726997-B21

HPE BL460c Gen9 Intel® Xeon® E5-2695v3 (2.3GHz/14-core/35MB/120W) Processor Kit

727003-B21

E5-2600 v4 series Processors

HPE BL460c Gen9 Intel® Xeon® E5-2695v4 (2.1GHz/18-core/45MB/120W) FIO Processor Kit

819853-L21

HPE BL460c Gen9 Intel® Xeon® E5-2680v4 (2.4GHz/14-core/35MB/120W) FIO Processor Kit

819842-L21

HPE BL460c Gen9 Intel® Xeon® E5-2640v4 (2.4GHz/10-core/25MB/90W) FIO Processor Kit

819839-L21

NOTE: DIMM slots 4 and 5 are not accessible when either the E5-2699 v3, the E5-2697 v3, the E5-2643 v3, the E5-2637 v3, or the E5-2667 v3 is used. In a 2 processor configuration, there are twelve (12) total available DIMM slots.
NOTE: For the maximum supported memory speeds for each processor listed above, please reference the 'Memory Speed by Processor Model' table in the Memory section of the QuickSpecs.
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.

NOTE: Turbo indicates the maximum potential frequency when using Intel® Turbo Boost Technology.  The frequency boost increment is dependent on the processor SKU and the number of active cores.  In general, a higher boost increment is obtained when fewer cores are active.
NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
NOTE: Supports 1 or 2 processors. Mixing different processor models is not supported.
NOTE: For the Intel® C610 Chipset E5-2600 v3 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, and x = L for low power SKUs.
NOTE: The BL460c Gen9 includes two I/O mezzanine expansion slots. A processor must be installed in processor slot 1 for access to the first mezzanine expansion slot (expansion slot 1). A processor must be installed in processor slot 2 for access to the second mezzanine expansion slot (expansion slot 2).
NOTE: All processors within the server must be identical.
NOTE: All processors support Intel® Hyper-Threading and Intel® Turbo Boost Technologies except the E5-2603 v3 and E5-2609 v3.
NOTE: The letter "L" following the model number indicates denotes lower wattage.
NOTE: The processor model as well as the memory configuration determines the maximum speed memory can operate. Please see the see the "Memory" section later in this document.

HPE Memory

NOTE: HPE memory from previous generation servers (DDR3) is not compatible with this server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. For additional information, please see the HPE SmartMemory QuickSpecs at:  https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111535
NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2133MHz, 1866MHz, or 1600MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: http://h22195.www2.hp.com/MemoryTool/Home/Legal

HPE SmartMemory

Registered DIMMs (RDIMMs) - E5-2600 v3 series Processors

HP 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726718-B21

HP 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726719-B21

Load Reduced DIMMs (LRDIMMs) - E5-2600 v3 series Processors

HP 32GB (1x32GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

726722-B21

NOTE: Depending on the memory configuration and processor model, 2133MHz memory may operate at a lower speed. Please see the see the "Memory" section later in this document and the Online Memory Configuration Tool for details at

http://h22195.www2.hp.com/MemoryTool/Home/Legal .

HPE Hard Drives

NOTE: The ProLiant BL460c Gen9 server includes the HPE hot-plug small form factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance errors. HPE drives from generation G7 servers and before are not compatible with the BL460c Gen9 drive bays.
NOTE: The mixing of standard SAS drives with SAS SSD is supported within the server, but limits the RAID configuration to two separate RAID 0 volumes. Mixing of other drives types is not supported.
NOTE: HPE hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
NOTE: The hard drive options are not required when configuring a drive-less model.

SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard Drive

718162-B21

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e HDD

791034-B21

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

781518-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652589-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652583-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652572-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652564-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652611-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652605-B21

6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives

NOTE: The mixing of standard SAS drives with SAS SSD is supported within the server, but limits the RAID configuration to two separate RAID 0 volumes. Mixing of other drives types is not supported

NOTE: The solid state M.2 SATA drives plug directly into a connector on the system board and do not use a SFF drive cage slot.

NOTE: RAID 1, 0 are provided through the B140i in UEFI BIOS mode only.

HPE 64GB Value Endurance Solid State M.2 Enablement Kit for ProLiant Blades

HPE 64GB SATA Read Intensive 2242 3yr Wty Dual M.2 Kit

775588-B21

12G SAS VE SFF (2.5-inch) SC EV Enterprise Drives

HP 1.6TB 12G SAS Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State Drive

762263-B21

16G SATA Hot Plug RI uFF (2.5-inch) Solid State Drives

HPE 340GB SATA 6G Read Intensive UFF 3yr Wty Dual M.2 Kit

815605-B21

HPE Insight software

HPE Insight Control

HPE Insight Control including 1yr 24x7 Technical Support and Updates 1-server LTU

C6N27A

HPE Insight Control including 1yr 24x7 TSU E-LTU

C6N28ABE

HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO E-LTU

C6N36ABE

HPE Insight Management Media Kit

C6N31A

NOTE: HPE Insight Management Media Kit contains DVDs without licenses. Contains HPE Systems Insight Manager, HPE Insight Control, HPE Matrix Operating Environment, and Virtual Connect Enterprise Manager software. Uses an integrated installer to perform quick and accurate software installation and updates.

NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.

NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HPE Software Technical Support Service.

NOTE: Licenses ship without media. The HPE Insight Management Media Kit can be ordered separately, or can be downloaded at http://www.hp.com/go/insightupdates

NOTE: For additional license kits, please see the QuickSpecs at:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123391

HPE iLO Advanced License

HPE Integrated Lights-Out (iLO) Advanced for ProLiant BladeSystem Remote Management

HPE iLO Advanced for BladeSystem including 3yr 24x7 Technical Support and Updates E-LTU

E6U63ABE

HPE iLO Advanced for BladeSystem including 3yr 24x7 Tech Support and Updates 1-server LTU

BD502A

HPE iLO Advanced for BladeSystem including 1yr 24x7 Technical Support and Updates E-LTU

E6U60ABE

HPE iLO Advanced for BladeSystem including 1yr 24x7 Support 1-server LTU

512488-B21

NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one or three years of 24 x 7 HPE Software Technical Support Service.
NOTE: For additional license kits, including electronic delivery options, please see the iLO QuickSpecs at http://www.hp.com/go/iLO

NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one or three year of 24 x 7 HPE Software Technical Support Service.
NOTE: For additional license kits, please see the QuickSpecs at:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154343

Converged Infrastructure Management Software

HPE OneView

HPE OneView with iLO Advanced

HPE OneView including 3yr 24x7 Support Physical 1-server LTU

E5Y34A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView Physical Media Kit LTU

E5Y37A

High Performance Clusters

HPE Cluster Management Utility

HPE Insight Cluster Management Utility 1yr 24x7 Flexible LTU

QL803B

HPE Insight Cluster Management Utility 3yr 24x7 Flexible LTU
NOTE: These part numbers can be used to purchase one certificate for multiple licenses and support with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key. Customer also will receive a support agreement.

BD476A

HPE Insight Cluster Management Utility Media

BD477A

NOTE: For additional license kits please see the QuickSpecs at https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111735.

HPE Security

HP Trusted Platform Module Option

488069-B21

NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008 R2. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 R2 has not been tampered with while the system was offline.
NOTE: For more information about TPM, including a white paper, go to http://www.hp.com/go/TPM.
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

HPE Storage Controllers

HPE Smart Array P244br/1GB FBWC 12Gb 2-ports Int SAS Controller

749680-B21

HPE H244br 12Gb 2-ports Int Smart Host Bus Adapter

726809-B21

NOTE: The FBWC and battery will be disabled when the server inlet temperature exceeds 50C, the FBWC will be re-enabled when the temperature drops below 50C.  The Smart Array P244 will continue to operate normally up to the short term operating maximum of 55C.

HPE QMH2672 16Gb Fibre Channel Host Bus Adapter

710608-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at http://www8.hp.com/h20195/v2/GetDocument.aspx?docname=c04126962

HPE Flash Media Kits for USB Drives

HPE Flash Media Kits for USB Drives

HPE Enterprise Mainstream Flash Media Kits for Memory Cards

HP 8GB USB Enterprise Mainstream Flash Media Drive Key Kit

737953-B21

HPE 8GB microSD Enterprise Mainstream Flash Media Kit

726116-B21

HPE 32GB microSD Mainstream Flash Media Kit

700139-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:https://www.hpe.com/h20195/v2/GetHTML.aspx?
docname=c04123175

HPE Care Pack

Services

Proactive Care Services

HPE 3 year Proactive Care 24x7 BL4xxc Gen9 Service

U7BN8E

HPE 3 year Proactive Care 24x7 with DMR BL4xxc Gen9 Service

U7BN9E

HPE 3 year Proactive Care Advanced 24x7 BL4xxc Gen9 Service

U7BT6E

HPE 3 year Proactive Care Advanced 24x7 with DMR BL4xxc Gen9 Service

U7CF8E

Installation Services

HPE Install c-Class Server Blade Service

UE493E

NOTE: Additional HPE Care Pack services can be found at: http://www.hp.com/go/cpc

For detailed memory configuration rules and guidelines, please use the Online DDR4 Memory Configuration Tool:
http://h22195.www2.hp.com/MemoryTool/Home/Legal

Memory Subsystem Architecture
Each Intel® Xeon® E5-2600 v3 family or Intel® Xeon® E5-2600 v3 family processor socket contains four memory channels that support two DIMMs each for a total of eight (8) DIMM per installed processor or a grand total of sixteen (16) DIMMs for the server. Up to 64GB capacity DIMMs are supported for 1TB of memory (16 DIMM slots x 64GB per DIMM).

NOTE: 64GB DIMM support available in earl 2015.

Memory Population Rules and Guidelines:

• A minimum of one DIMM is required per processor.
• Install DIMMs only if the corresponding processor is installed.
• If only one processor is installed in a two processor system, only half of the DIMM slots are available.
• DIMM sizes can be mixed in channel. To maximize performance, it is recommended to balance the total memory capacity between all installed processors and to load the channels similarly whenever possible.
• LRDIMM and RDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of ProLiant Gen9 servers support RDIMM and LRDIMM.
• DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.
• The maximum memory speed is a function of the memory type, memory configuration, and processor model.
• The maximum memory capacity is a function of the memory type and number of installed processors.
• HPE memory from previous generation servers is not compatible with the BL460c Gen9 Server Blade.
• To realize the performance memory capabilities listed in this document, HPE SmartMemory is required. For additional information, please see the HPE SmartMemory QuickSpecs at:  https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111535
• For memory population rules and additional memory guidelines, please see the BL460c Gen9 user guide at http://www.hp.com/support.

Supported Memory Bandwidth on Intel® Xeon® E5-2600 v3 series Processors

DIMM Rank

Register DIMM (RDIMM)

Load Reduced (LRDIMM)

Single Rank (1R)

Dual Rank (2R)

Dual Rank (2R)

Quad Rank (4R)

DIMM Capacity

8GB

16GB

8GB

16GB

32GB

Voltage

Std Voltage 1.2V

Std Voltage 1.2V

Std Voltage 1.2V

Std Voltage 1.2V

Std Voltage 1.2V

SLOTS THAT CAN BE POPULATED

12 slot servers

12

12

12

12

12

16 slot servers

16

16

16

16

16

MAXIMUM CAPACITY (GB)*

12 slot servers

96

192

96

192

384

16 slot servers

128

256

128

256

512

POPULATED DIMM SPEED (MT/s)

1 DIMM Per Channel

2133

2133

2133

2133

2133

2 DIMM Per Channel

2133

2133

2133

2133

2133

*Maximum Capacity will vary based on individual serve platform qualification schedule

Memory Speed by E5-2600 v3 Series Processor Model

Standard and Maximum Memory Capacity (Pre-configured Models) for E5-2600 v3 Series

NOTE:  Support for 64GB LRDIMMs and 32GB RDIMMs to be available by early 2015.

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 2GB = 2,048MB
• 4GB = 4,096MB
• 8GB = 8,192MB
• 16GB = 16,384MB
• 32GB = 32,768MB

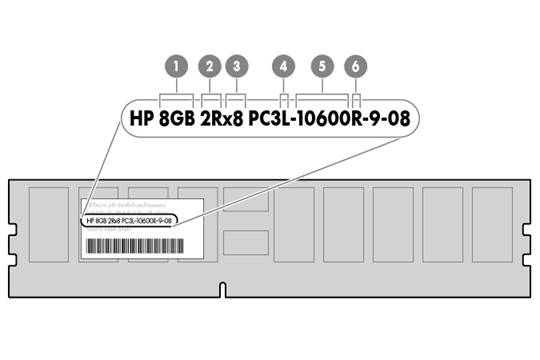

Memory options part number decoder

1

Capacity

8 GByte

16 GByte

32 GByte

2

Rank

1R = Single-rank
2R = Dual-rank
4R = Quad-rank

3

Data width

x4 = 4-bit
x8 = 8-bit

4

Memory generation

DDR4

5

Max. Memory speed

2133MT/s

6

CasLatency

P = 15

6

DIMM type

R = RDIMM (registered)
L = LRDIMM (load reduced)

Following are memory options available from HPE:

HPE Memory

NOTE: HPE memory from previous generation servers (DDR3) is not compatible with this server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. For additional information, please see the HPE SmartMemory QuickSpecs at:

http://www8.hp.com/h20195/v2/GetHTML.aspx?docname=c04111535
NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2133MHz, 1866MHz, or 1600MHz.

HPE SmartMemory

Registered DIMMs (RDIMMs)

Registered DIMMs (RDIMMs) - E5-2600 v3 series Processors

HP 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726718-B21

HP 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726719-B21

Load Reduced DIMMs (LRDIMMs) - E5-2600 v3 series Processors

HP 32GB (1x32GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

726722-B21

NOTE: Depending on the memory configuration and processor model, 2133MHz memory may operate at a lower speed. Please see the see the "Memory" section later in this document.

1-2

2 x SFF hot-plug SAS, SATA, SAS SDD, and SATA SSD hard drives

System Unit

Dimensions
(H x W x D)
(with bezel)

7.11 x 2.18 x 20.37 in (18.07 x 5.54 x 51.76 cm)

Weight
(approximate)

Maximum: all processors, 16 DIMMs, hard drives, mezzanine cards, and two flash cache batteries installed)

14.00 lb (6.33 kg)

Minimum: one processor and 2 DIMMs installed

10.50 lb (4.75 kg)

Power Specifications

For power specifications including input requirements, BTU rating, and power supply output, please see the:

• HPE BladeSystem c3000 Enclosure QuickSpecs at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04123379
• HPE BladeSystem c7000 Enclosure QuickSpecs at https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04229580

To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at http://www.hp.com/go/hppoweradvisor.

NOTE: For optimal cooling and system performance the BL460c Gen9 Server Blade requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans.

System Inlet Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1,000 ft) above sea level to a maximum of 3,050 m (10,000 ft), no direct sustained sunlight.

Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.

System performance may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Extended Ambient Operating Support

For Approved hardware configurations, the supported system inlet range is extended to be:

5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft)

NOTE: Qualifications for extended ambient configurations are detailed at:

https://www.hp.com/servers/ASHRAE

Relative Humidity
(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3,050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1,500 ft/min).

Non-operating

9,144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1,500 ft/min).

Acoustic Noise

For acoustic noise specifications, please see the HPE BladeSystem c-Class Enclosures QuickSpecs located at:

• HPE BladeSystem c3000 Enclosure QuickSpecs:
  http://h18000.www1.hp.com/products/QuickSpecs/12790_div/
  12790_div.html
• HPE BladeSystem c7000 Enclosure QuickSpecs:
  http://h18000.www1.hp.com/products/QuickSpecs/12810_div/
  12810_div.html

HPE Smart Array P244br Controller

Disk Drive Interface

12Gb/s SAS (Serial Attached SCSI)
6Gb/s SATA (Serial ATA)

Server Interface

x8 5G PCIe 3.0 provides 8GB/s maximum bandwidth

Cache Memory

1GB flash backed write cache (FBWC) cache standard

Logical Drives Supported

64 (with included 1GB cache)

Host Memory Addressing

64-bit, supporting servers memory space greater than 4GB

RAID Support

RAID 1 (mirroring), RAID 0 (striping), RAID 10

Other

Upgradeable firmware with recovery ROM
Online drive flash (with SAS drives)

HPE Smart HBA H244br Controller

Disk Drive Interface

12Gb/s SAS (Serial Attached SCSI)
6Gb/s SATA (Serial ATA)

Server Interface

x8 5G PCIe 3.0 provides 8GB/s maximum bandwidth

Cache Memory

None

Logical Drives Supported

64

Host Memory Addressing

64-bit, supporting servers memory space greater than 4GB

RAID Support

RAID 1 (mirroring) and RAID 0 (striping)

Other

Upgradeable firmware with recovery ROM
Online drive flash (with SAS drives)

HPE Dynamic Smart Array B140i Controller

Disk Drive Interface

6Gb/s SATA (Serial ATA)

Server Interface

Embedded x4 PCIe 2.0

SAS Connectors

Cache Memory

2 internal SATA ports

None

SAS Speed

Logical Drives Supported

6Gb/s SATA links

Up to 10 logical volumes (2 physical drives)

Host Memory Addressing

64-bit, supporting greater than 4GB server memory space

Hot Plug Support

RAID Support

Yes

RAID 1 (Mirroring)

RAID 0 (Striping)

Other

Upgradeable firmware with recovery ROM

HPE FlexFabric 10Gb
2-port 536FLB FlexibleLOM

Type

Integrated dual-port KR 10Gb FlexibleLOM with FlexFabric (Flex-10, FCoE, hardware-based iSCSI, iSCSI boot, TCP/IP offload engine, and autosensing 1Gb/10Gb Ethernet capability)

Network Processor

QLogic 57840S with integrated MAC/PHY

Data Transfer Method

x8 PCI Express 3.0

Network Transfer Rate

Two ports, each at 20Gbps full duplex; 40Gbps aggregate full duplex theoretical bandwidth
NOTE: Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb or 10Gb HPE BladeSystem c-Class interconnect components. Both ports will operate at the same speed.
NOTE: Each port on the 554FLB adapter transmits from the server at 20Gbps (theoretical) full duplex.

IEEE Compliance

802.1p, 802.1q, 802.1qau, 802.3ad, 802.3ae, 802.3ap (10GBase-KX4) and 802.3x

Standard Features

Full hardware offload of iSCSI and FCoE storage protocol processing for highest performance

converged Ethernet data and storage networks.

Dual-port 10GbE Flex-10 FlexibleLOM network adapter that provides the flexibility to choose the

type of LOM to meet growing infrastructure needs

Industry-leading throughput and latency performance

Supports HPE's Flex-10 blade interconnect technology

User configurable bandwidth settings when combined with the 10Gb Flex-10 Virtual Connect

module. From 100Mb/s to10Gb/s on up to four "Physical Function" NICs per port, in increments of

100Mb/s for NIC. The combined bandwidth of NICs cannot exceed port bandwidth i.e. 10 Gb.

Up to 40Gb/s bi-directional near line rate throughput

Hardware acceleration and offloads for stateless TCP/IP, TCP Offload Engine (TOE)

Improved small packet performance

Support for Preboot eXecution Environment (PXE)

Integrated PHY and MAC

Supports for SR-IOV

Support for Network Partitioning (NPAR)

HPE FlexFabric 20Gb
2-port 650FLB FlexibleLOM

Type

Integrated dual-port KR2 20Gb FlexibleLOM with FlexFabric (Flex-20, FCoE, RoCE, Tunnel Offload with VXLAN/NVGRE, hardware-based iSCSI, iSCSI boot, TCP/IP offload engine, and autosensing Ethernet speed capability)

Network Processor

Emulex XE-104

Data Transfer Method

x8 PCI Express 3.0

Network Transfer Rate

Two ports, each at 40 Gbps bi-directional; 80 Gbps aggregate bi-directional theoretical bandwidth

IEEE Compliance

802.3ae, 802.1Q, 802.3x, 802.1p, 802.3ad/LACP, 802.1AB(LLDP), 802.1Qbg, 802.1Qbb, 802.1Qaz, 802.3ap

Standard Features

Dual 20Gb ports provide up to 80Gb bi-directional per adapter

Multi-speed adapter operates at either 20GbE or 10GbE

Converges FCoE or RoCE with LAN traffic on a single Ethernet wire

Tunnel Offload support for VXLAN and NVGRE

RDMA over Converged Ethernet (RoCE) for greater server efficiency and lower latency (6125XLG only)

Advanced storage offload processing freeing up valuable CPU cycles

Supports UEFI and legacy boot options

Mixed Storage - supports NIC + FCoE on one port, and NIC + iSCSI on the other

Concurrent Storage - concurrently supports NIC, FCoE, and iSCSI storage functions on the same port (NIC + FCoE + iSCSI)

Industry-leading throughput and latency performance

Supports HPE's Flex-20 blade interconnect technology

Over eight million small packets/s, ideal for web/mobile applications, mobile messaging,  and social media

User configurable bandwidth settings when combined with the 20Gb Flex-20 Virtual Connect module. From 100Mb/s to10Gb/s on up to four "Physical Function" NICs per port, in increments of 100Mb/s for NIC. The combined bandwidth of NICs cannot exceed port bandwidth i.e. 20 Gb/s.

Greater bandwidth with PCIe 3.0

Jumbo Frames support

Supports Wake On LAN (WOL)

Support for Preboot eXecution Environment (PXE)

Support for Microsoft Windows SMB Direct

Optimized host virtualization density with SR-IOV support

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/info/recycle. To recycle your product, please go to: http://www.hpe.com/info/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hpe.com/info/recycle. These instructions may be used by recyclers and other WEEE treatment facilities as well as HEWLETT PACKARD ENTERPRISE OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

10-Feb-2017

From Version 3 to 4

Changed

Configuration Information - Factory Integrated Models, and Core Options sections were updated.

Added

SKUs were added to QuickSpecs:
819853-L21, 819842-L21, 819839-L21, 805351-B21, 836220-B21, 805347-B21, 819853-L21, 819842-L21, 819839-L21, 775588-B21, 762263-B21, 815605-B21.

Removed

Obsolete  SKUs were deleted:
691868-B21, 691866-B21, BD883A.

11-Mar-2016

From Version 2 to 3

Changed

Configuration Information - Factory Integrated Models and Core Options sections were updated.

Added

SKUs added in Configuration Information - Factory Integrated Models and Core Options sections:
781518-B21, 791034-B21, 775588-B21, 700767-B21, 700764-B21, 710608-B21.

Removed

Obsolete SKUs were deleted:
F6Q89AAE, E5Y38A, E5Y39AAE, QK763A, QK762A, QK761A, D8S85AAE, D8S84A.

19-Jun-2015

From Version 1 to 2

Changed

Information updated and corrections to QS.
