HPE ProLiant BL460c Gen10 Server Blade - Carrier Grade Supplement: технические характеристики и документация

HPE ProLiant BL460c Gen10 Server Blade - Carrier Grade Supplement

Scale business performance and securely drive Traditional and Hybrid IT workloads across a converged infrastructure with the new HPE ProLiant BL460c Gen10 Server Blade for HPE BladeSystem. The HPE ProLiant BL460c Gen10 Server Blade helps drive new applications, turbo charge performance and transform into an agile, secure foundation, which with HPE OneView, places you on the path to Composable Infrastructure.

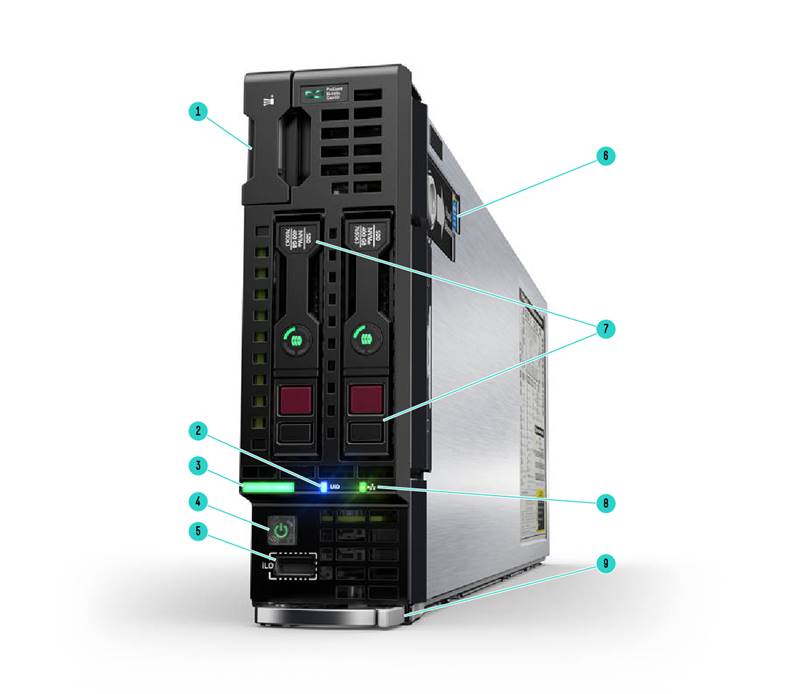

HPE ProLiant BL460c Gen10 Server Blade - Front View

1.

Serial label pull tab (SUV Connector located behind)

6.

Quick access panel

2.

Unique identification (UID) LED

7.

Front hot-plug drive bays

3.

Health status bar LED

8.

NIC activity LED

4.

Power Button

9.

Server blade release lever

5.

iLO USB connection

What's New

• Intel® Xeon® Scalable Family Generation 2 processors (x2xx)

- New level of performance per core processors

- New workload Optimized processors for key categories of applications

• Two new CTO BladeSystem Server models for use with Intel® Xeon® Scalable Family Generation 2 processors .
• Higher speed memory @ 2933 MT/s for a select new Intel Generation 2 processors

This QuickSpecs document focuses on the HPE ProLiant BL460c Gen10 Server Blade - Carrier Grade Supplement. This document includes all the options that have been NEBS (GR-63 and GR-1089) and ETSI (EN 300 132-2 and EN 300 386) certified.

Platform Information

This document covers the HPE ProLiant BL460c Gen10 Server Blade - Carrier Grade Supplement only.

For information on HPE BladeSystems c-Class Enclosures and HPE BladeSystem c-Class Interconnect and Mezzanine Components, please see the following HPE BladeSystem c-Class QuickSpecs:

• HPE BladeSystem c3000 Enclosure QuickSpecs at https://www.hpe.com/h20195/v2/GetPDF.aspx/c04128340.pdf
  NOTE: The c3000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the new enclosures and any future server blades will be supported in the existing enclosures.
• HPE BladeSystem c7000 Enclosure QuickSpecs at https://www.hpe.com/h20195/v2/GetPDF.aspx/c04128339.pdf
  NOTE: The c7000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the new enclosures and any future server blades will be supported in the existing enclosures.
• HPE BladeSystem c-Class Interconnect and Mezzanine Components at
  https://www.hpe.com/us/en/integrated-systems/bladesystem.html

NOTE: For optimal cooling and system performance the BL460c Gen10 Server Blade requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans.

NOTE: For proper BladeSystem operation, the minimum required versions of HPE Onboard Administrator and HPE Virtual Connect are required and available via the HPE Service Pack for ProLiant, please see http://h17007.www1.hpe.com/us/en/enterprise/servers/products/service_pack/spp/index.aspx

Form Factor

HPE ProLiant BL460c Gen10 is a half-height server blade that plugs into the HPE BladeSystem c3000 and c7000 enclosures.

Standard Features
Intel® Xeon® Scalable processor family  - 2nd generation

Intel® Xeon® Scalable processor family  - 2nd generation

Intel Xeon Models

CPU Frequency (GHz)

Cores

Power (WATTs)

DDR4 MT/s

Max Memory
per socket (TeraBytes)

Gold 6240 Processor

2.6

18

150

2933

1

Gold 6238 Processor

2.1

22

140

2933

1

Gold 6230 Processor

2.1

20

125

2933

1

Gold 5222 Processor

3.8

4

105

2933

1

Gold 5218B Processor

2.3

16

125

2666

1

Gold 5218 Processor

2.3

16

125

2666

1

Gold 5215 Processor

2.5

10

85

2666

1

Silver 4216 Processor

2.1

16

100

2400

1

Silver 4215 Processor

2.5

8

85

2400

1

Silver 4214Y Processor*

2.2-2.3-2.4

12-10-8

85

2400

1

Silver 4214 Processor

2.2

12

85

2400

1

Silver 4210 Processor

2.2

10

85

2400

1

Silver 4208 Processor

2.1

8

85

2400

1

Bronze 3204 Processor

1.9

6

85

2133

1

NOTE:  All processors are as is and are subject to change from HPE or Intel.

NOTE: Memory per socket is based on the processor maximum supported memory, not the BL460c memory maximum.

NOTE: Platinum - 8200 Series - Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2933 MT/s supporting up to 1TB memory capacity.  Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported.  Intel AVX-512 (2x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, Node Controller Support, Advanced RAS supported.

NOTE: Gold -6200 Series - Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2933 supporting up to 1TB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (2x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, Node Controller Support, Advanced RAS supported.

NOTE: Gold - 5200 Series - Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2666MHz (SKU 5222=supports 2933), supporting up to 1TB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA)  (SKU 5222 supports 2x 512 bit FMA), VNNI, 48 lanes PCIe 3.0, Advanced RAS supported.

NOTE: Silver - 4200 Series - Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2666 MHz supporting up to 1TB memory capacity.  Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, standard RAS supported.

NOTE: Bronze - 3200 Series - Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2133MHz supporting up to 1TB memory capacity. Intel AVX-512(1x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, standard RAS supported.

NOTE: Y processors come with Intel Speed Select.  These processors allow Core selection at boot through HPE RBSU.  Cores selected determine Frequency at which processor operates. Processor provides capability to configure and operate at 3 distinct operating points.  Core count selected sets frequency of operations (Lower Core = Higher Frequency).  Static Boot Time Configuration: BIOS discovers and prompts for setting at boot only.  Frequency may vary.

Intel® Xeon® Scalable processor family - 1st generation

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon

NOTE: Intel Xeon Platinum 8160M, Gold 6142M, 6140M, and 6134M support extended memory capacities up to 1.5TB per socket versus 768GB per socket for standard processors. However, maximum memory capacity for the server will be limited by maximum capacity DIMMs available and number of DIMM slots. The BL460c Gen10 will support a maximum memory capacity of 512GB per socket with 64GB DIMMs regardless of processor chosen. This maximum will increase as larger capcity DIMMs are qualified for the server.

NOTE: When using processors of 135W or greater, 10 fans are required in the c7000 for optimal performance.

NOTE: Memory per socket is based on the processor maximum supported memory, not the BL460c memory maximum.

NOTE: Platinum - 8100 Series -  2S - 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2666 MT/s, 768 GB memory capacity (1.5 TB on select skus), Intel Turbo Boost Technology, Intel Hyper-Threading Technology

Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.

NOTE:Gold - 5100, 6100 Series - 2S - 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2400 MHz (SKU 5122=supports 2666), 768 GB memory capacity (1.5 TB on select skus), Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA)  (SKU 5122 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS.

NOTE: Silver - 4100 Series - 2S - 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MHz, 768 GB memory capacity, Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS.

Chipset

Intel C621 Chipset

NOTE: For more information regarding Intel chipsets, please see the following: http://www.intel.com/content/www/us/en/chipsets/chipsets-overview.html

On System Management Chipset

HPE iLO 5 ASIC

NOTE: Read and learn more in the iLO QuickSpecs.

Memory

One of the following depending on Model

Type

HPE SmartMemory

DDR4 Load Reduced (LRDIMM), or Registered (RDIMM)

Standard (Pre-configured Models)

128GB (4 x 32GB) DDR4 2666MT/s LDIMMs at 1.2V

64GB (4x 16GB) DDR4 2666MT/s RDIMMs at 1.2V

16GB (2 x 8GB) DDR4 2666MT/s RDIMMs at 1.2V

Maximum (LRDIMM)

1TB

16 x 64GB up to 2666MT/s at 1.2V

Maximum (RDIMM)

512GB

16 x 32GB up to 2666MT/s at 1.2V

NOTE: HPE memory from previous generation servers is not supported with this server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen10. For additional information, please see the HPE SmartMemory QuickSpecs at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111535

NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2666MT/s, 2400MT/s, 2133MT/s, or 1866MT/s. Please see Memory Population Table or the Online Memory Configuration Tool at: https://h22195.www2.hpe.com/DDR4memoryconfig/Home/SelectServer

Memory Protection

Advanced ECC

Memory Mirroring

Memory Online Spare Mode (Rank Spare Mode)

Network Controller

One of the following depending on Model

• One (1) 20Gb 2-port FlexFabric FLB, 10Gb 2-port HPE FlexFabric FLB, or 10Gb 2-port Ethernet FLB
  NOTE: Supports FCoE, TCP/IP offload engine, hardware-based accelerated iSCSI, iSCSI boot, and autosensing 10Gb/1Gb Ethernet.
  NOTE: Each port is autosensing the speed, and can interoperate with 1Gb HPE BladeSystem c-Class interconnect components. Both ports will operate at the same speed.
  NOTE: FlexFabric capabilities require the use of an HPE Virtual Connect FlexFabric or Flex10/10D module.
  Fibre Channel over Ethernet (FCoE) is supported with HPE interconnects. Learn more at: https://www.hpe.com/us/en/integrated-systems/virtual-connect.html
• One (1) HPE FlexFabric 10Gb 2-port 536FLB FlexibleLOM
• One (1) HPE FlexFabric 10Gb 2-port 560FLB FlexibleLOM
• One (1) HPE FlexFabric 20Gb 2-port 630FLB FlexibleLOM
• One (1) HPE FlexFabric 20Gb 2-port 650FLB FlexibleLOM
  NOTE: FlexibleLOMs are not compatible with c-Class server blades prior to Gen9.
• Standard iLO Network Controller:
  One (1) 10/100 Mbps port for the HPE iLO 5 to Onboard Administrator link. The Onboard Administrator (with 10/100/1000 Mbps) to BladeSystem link is 1Gbps

Expansion Slots

Two (2) I/O expansion mezzanine slots:

• x16 PCIe 3.0 Type A (supports Type A mezzanine cards) (expansion slot 1).
  NOTE: This expansion slot supports dual-port mezzanine cards: one port is routed to interconnect module bay 3 and the other to bay 4.
• x16 PCIe 3.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 2).
  NOTE: This expansion slot supports dual-port and quad-port mezzanine cards. For dual-port cards, one port is routed to interconnect module bay 5 and the other to bay 6. For quad-port cards, one port is routed to interconnect module bay 5, one to bay 6, one to bay 7, and one to bay 8.
  NOTE: A second processor must be installed (in processor slot 2) to have access to the second expansion slot (expansion slot 2).



Mezzanine card options include:

• Dual-port 20Gb FlexFabric, Dual-port 10Gb FlexFabric, and 10GbE options,.
• Dual-port 16Gb Fibre Channel HBA for SAN connectivity.
• QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity.
• I/O accelerator mezzanine options for high transaction rate local storage

HPE Server ROM

HPE ROM (read only memory) is now digitally signed using the HPE Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.

HPE ROM provides for essential initialization and validation of hardware components before control is passed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating system.

HPE ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis.

The HPE ProLiant ROM is used to configure the following:

• Processor and chipset status registers
• System memory, memory map, and memory initialization
• System hardware configuration (integrated PCI devices and optional PCIe cards).
• Customer-specific BIOS configuration using the HPE ROM-Based Setup Utility (RBSU).

NOTE: For further information, please refer to the HPE RBSU (ROM based setup utility) user guide: http://h20564.www2.hpe.com/hpsc/doc/public/display?docId=c00191707

HPE Server UEFI /Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration while interacting with your server at boot time. HPE ProLiant Gen10 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot Mode.

NOTE: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit https://support.hpe.com/hpsc/doc/public/display?docId=c04398276

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot
• Operating system specific functionality
• Support for > 2.2 TB (using GPT) boot drives
• USB 3.0 Stack
• Embedded UEFI Shell
• Mass Configuration Deployment Tool using HPE RESTful API
• PXE boot support for IPv6 networks
• Boot support for option cards that only support a UEFI option ROM

NOTE: For more information please visit https://support.hpe.com/hpsc/doc/public/display?docId=c04398276

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

NOTE: HPE Legacy FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory.

Storage Controller

All BTO Models

One (1) HPE Smart Array P204i-b 12G SAS modular Controller with 1GB Flash-Backed Write Cache (FBWC), or HPE Smart Array S100i SR Gen10 SW RAID.
NOTE: The HPE Smart Array P204i-b and the HPE Smart Array S100i SR Gen10 SW RAID (chipset SATA) support up to two (2) small form factor (SFF) or 4 ultra form factor (uFF) hot plug drive bays.

NOTE: For NVMe support, please select the NVMe FIO setting (873373-B21) available on CTO models only.

Maximum Internal Storage

Interfaces

Micro SDHC Slot

One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot

USB 3.0 Port

One (1) internal USB 3.0 connector for USB flash media drive keys

NOTE: The above options are intended for integrated hypervisor virtualization environments.

Industry Standard Compliance

ACPI 6.1 Compliant

PCIe 3.0 Compliant

WOL Support

Microsoft® Logo certifications

PXE Support

USB 3.0 Compliant (internal); USB 2.0 Compliant (external ports via SUV)

SMBIOS 3.1

UEFI 2.6

Redfish API

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server

VMware

Red Hat Enterprise Linux Server

SUSE Linux Enterprise Server

For specific OS support information please visit the OS support matrices - links found at http://www.hpe.com/info/ossupport.

NOTE: For more information on the HPE Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrices at: http://h17007.www1.hpe.com/us/en/enterprise/servers/supportmatrix/windows.aspx

http://h17007.www1.hpe.com/us/en/enterprise/servers/supportmatrix/oracle_linux.aspx

http://h17007.www1.hpe.com/us/en/enterprise/servers/supportmatrix/vmware.aspx and our driver download page:  http://h20566.www2.hpe.com/hpsc/swd/public/readIndex?sp4ts.oid=7271227.

Security Features

UEFI Secure Boot and Secure Start support

Immutable Silicon Root of Trust

Support for Commercial National Security Algorithms (CNSA)

iLO Security Modes including a New iLO Advance Premium Security License

Granular control over iLO interfaces

Tamper-free updates - components digitally signed and verified

Secure Recovery - recover critical firmware to known good state on detection of compromised firmware

TPM (Trusted Platform Module) 1.2 option

TPM (Trusted Platform Module) 2.0 option Bezel Locking Kit

Enclosures

Hewlett Packard Enterprise offers two different c-Class server blade enclosures to meet your individual needs:

• The HPE BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant BL460c Gen10 servers plugged vertically.
• The HPE BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HPE ProLiant BL460c Gen10 servers plugged horizontally.

Server blades, interconnect modules, power supplies, fans, and redundant Onboard Administrator modules are all designed to fit into the c3000 and c7000 enclosures.

NOTE: For additional enclosure information, please see: https://www.hpe.com/us/en/product-catalog/storage/disk-enclosures/pip.hpe-bladesystem-c7000-enclosures.1844065.html

Graphics

Integrated Matrox G200eh video controller

• 1600 x 1200 (32 bpp)
• 1920 x 1200 (16 bpp)

HPE iLO Management On System Management Memory

• 16 MB Flash Video Memory
• 256 MB DDR 3 with ECC (112 MB after ECC and video)

HPE Server UEFI / Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

NOTE: The UEFI System Utilities tool is analogous to the ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot and Secure Start enable for enhanced security
• Operating system specific functionality
• Support for > 2.2 TB (using GPT) boot drives
• USB 3.0 Stack
• Embedded UEFI Shell
• Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant.
• PXE boot support for IPv6 networks
• Workload Profiles for simple performance optimization



UEFI Boot Mode only:

• TPM 2.0 Support
• NVMe Boot Support
• Platform Trust Technology (PTT) can be enabled.
• iSCSI Software Initiator Support.
• HTTP/HTTPs Boot support as a PXE alternative.
• Boot support for option cards that only support a UEFI option ROM

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

NOTE: Legacy FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant Gen10 Server.

Embedded Management

HPE Integrated Lights-Out
(HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more at http://www.hpe.com/info/ilo

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hpe.com/servers/uefi

Intelligent Provisioning

Hassle free server and OS provisioning for one or more servers with Intelligent Provisioning. Learn more at http://www.hpe.com/servers/intelligentprovisioning

iLO RESTful API

iLO RESTful API is Redfish API conformantce and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. http://www.hpe.com/info/restfulapi

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. http://www.hpe.com/servers/ahs

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv

Smart Update

Keep your servers up to date with the HPE’s Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).  Learn more at http://www.hpe.com/info/smartupdate

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale.  Use with an iLO Advanced License to unlock full capabilities. Learn more at http://www.hpe.com/servers/iLOamplifierpack

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hpe.com/info/ilo/mobileapp

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Toolkit (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/stk or http://www.hpe.com/servers/powershell

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE Servers generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. http://www.hpe.com/info/oneview

HPE Systems Insight Manager

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates.  Learn more at www.hpe.com/info/hpesim

Fibre Channel Support

Up to two (2) optional 16Gb Fibre Channel mezzanine HBAs are supported on the HPE ProLiant BL460c Gen10.

Compatible SAN

HPE ProLiant BL460c Gen10 Server Blade - Carrier Grade Supplements are optimized for HPE MSA, EVA, 3PAR and XP.

HPE ProLiant BL460c Gen10 Server Blade - Carrier Grade Supplements are compatible with select 3rd party SANs. Please see blade storage page for more details at https://www.hpe.com/us/en/integrated-systems/bladesystem.html.

HPE Virtual Connect

HPE Virtual Connect is an interconnect option for c-Class BladeSystem that simplifies server connectivity to data and storage networks, and reduces costs. Unique HPE Flex-10 technology makes maximum use of network bandwidths, provide dynamic tuning and enable extreme flexibility to meet individual server and infrastructure requirements by allocating up to 4 network connections per server port. Virtual Connect FlexFabric modules extend those capabilities to allocate one function per port to storage connections (FCoE).

HPE OneView’s software-defined approach to infrastructure management enables central console to administer network connections and workloads for thousands of servers, see
https://www.hpe.com/us/en/integrated-systems/management-software.html

For more information on Virtual Connect Ethernet, Fibre Channel, Converged Network and management options, see https://www.hpe.com/us/en/integrated-systems/virtual-connect.html

Server Management

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8 Gen9 and Gen10 servers. http://www.hpe.com/info/oneview

HPE Insight Control

NOTE: Insight Control is not supported with Gen10 server blades.

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality http://www.hpe.com/servers/iloadvanced

HPE OneView

Powerful converged management of servers, storage, and network for IT service automation and infrastructure simplicity.

HPE iLO Advanced Premium Security Edition

HPE iLO Advanced Premium Security Edition for iLO 5 includes iLO Advanced License plus high-end security modes, unique security capabilities, like Automatic FW recovery; Runtime FW verification, and Secure erase. http://www.hpe.com/servers/ilopremium

HPE Matrix Operating Environment

The HPE Matrix Operating Environment (Matrix OE) for ProLiant and Integrity servers is an integrated command center that helps you instantly adjust to dynamic business demands. This advanced infrastructure management software lets you reduce the cost of common data center tasks by up to 40 percent while keeping pace with your changing business. The HPE Matrix OE includes the automated provisioning, optimization, and recovery management capabilities for HPE CloudSystem Matrix, the ideal platform for private cloud and Infrastructure as a Service (IaaS).

For more information, visit: http://h20392.www2.hpe.com/portal/swdepot/displayProductInfo.do?productNumber=HPID

HPE iLO Scale-Out

HPE iLO Scale-Out is the preferred license built for web hosting, cloud service providers, and high performance computing data centers, managing massive scale out environments. This license offers sophisticated scripting tools that provides remote access through Text Console via SSH, Dynamic power capping, Email-based Alerting and proactive notifications. http://www.hpe.com/servers/iLO/scale-out

HPE Cluster Platforms

HPE Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering.

https://www.hpe.com/us/en/solutions/hpc-high-performance-computing.html

HPE HPC Interconnects

High Performance Computing (HPC) interconnect technologies are available for this server as part of the HPE Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by Hewlett Packard Enterprise when integrated within an HPE cluster.

Get connected to HPE

To get the most from your investment in Hewlett Packard Enterprise servers, get connected to Hewlett Packard Enterprise using our innovative remote support technology which provides system health monitoring, pre-failure alert notification and more.

Expansion Blade Support

Supports one (1) optional PCI Expansion Blade
NOTE: D2200sb and D2220sb storage blades are not compatible with BL460c Gen10 server blade.

NOTE: Gen9 and older HPE option cards will not function in PCI Expansion Blade when paired with a BL460c Gen10 server blade

Factory Express Portfolio for Servers and Storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. Hewlett Packard Enterprise products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services on your specific server model please contact your sales representative or go to: https://www.hpe.com/us/en/services/factory-express.html

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

Recommended Support Services for BL460

Protect your business beyond warranty with HPE Support Services

HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation.  From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap.  Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution.   Finally, operational services provides innovative new approaches like Flexible Capacity and Datacenter Care, to keep your business at peak performance.  HPE is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple.

Connect your devices:

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%1 reduction in down time, near 100%2 diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support.

1-       IDC 2 - HP CSC reports 2014 - 2015

Learn more about getting connected athttp://www.hpe.com/services/getconnected

Proactive Care service levels

HPE Proactive Care* with 24x7 coverage, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice This Service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs),  (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

HPE Proactive Care Advanced* - 24x7 coverage, three year Support Service

This service helps achieve a higher return on your product investment with personalized support from a local assigned Account Support Manager who will share best practice advice and personalized recommendations designed to help improve availability and performance to increase stability and reduce unplanned downtime. Leverage your system’s ability to connect to HPE for pre-failure alerts, automatic call logging and parts dispatch.  For business critical incidents, this service offers critical event management to reduce mean time to resolution.  This recommendation provides 24x7 coverage with four-hour response for hardware and collaborative support that offers two-hour callback for supported software issues. Collaborative software management is included with independent software vendors unless you have your software support from HPE where we own all cases from start through to resolution.

https://www.hpe.com/h20195/v2/getdocument.aspx?docname=4AA5-3259ENW

NOTE: HPE Proactive Care and HPE Proactive Care Advanced require that the customer connect their devices to make the most of these services and receive all the deliverables.

Other related Services

HPE Installation and Startup Service

Provides for the installation and startup of HPE technology including BladeSystem, C-Class enclosure, HPE ProLiant c-Class and Integrity server blades, storage blades, SAN switch blades, HPE Virtual Connect modules (Ethernet and Fibre Channel), Ethernet network interconnects, and InfiniBand, as well as the installation of one supported operating system type (Windows® or Linux).

HPE Server Hardware Installation

Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf

HPE Datacenter Care service

HPE Datacenter Care helps improve IT stability and security, increase the value of IT, and enable agility and innovation.  It is a structured framework of repeatable, tested, and globally available services "building blocks." You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Datacenter Care, you benefit from a personalized relationship with HPE via a single point of accountability for HPE and others’ products.  For more information, visit http://www.hpe.com/services/datacentercare

HPE Flexibly Capacity

With Flexible Capacity, you get the speed, scalability, and economics of the public cloud in the privacy of your data center. Gain the advantages of the public cloud-consumption-based payment, rapid scalability without worrying about capacity constraints. Reduce the "heavy lifting" needed to operate a data center. And retain the advantages that IT provides the business (i.e., control, security). Deliver the right user experience, choose the right technology for the business, manage privacy and compliance, and manage the cost of IT. And, you have the option to use the public cloud when needed.

HPE Factory Express for Servers and Storage

HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.

HPE Technology Services Support Credits offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.

HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes.  Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers.  Learn more http://www.hpe.com/support/hpesc

HPE's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.

HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.
NOTE*: HPE Support Center Mobile App is subject to local availability. For more information: http://www.hpe.com/services

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model (configure-to-order or CTO server). To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: Configure-to-order server blades must start with a CTO Blade Server.
NOTE: FIO indicates that this option is only available as a factory installable option.
NOTE: All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

Step 1: Base Server Blade Configuration (Select a configurable Blade)

Models provided below are for current Intel Scalable Family Processors Generation 2

HPE ProLiant BL460c Gen10 v6 10/20Gb FlexibleLOM Configure-to-order Blade Server

P09524-B21

HPE ProLiant BL460c Gen10 v6 10/20Gb FlexibleLOM TAA-compliant Configure-to-order Blade Server

P09525-B21

Models

HPE ProLiant BL460c Gen10 10Gb/20Gb FlexibleLOM Configure-to-order Blade Server

863442-B21

HPE ProLiant BL460c Gen10 TAA-compliant Configure-to-order Blade Server

875938-B21

NOTE: Trade Agreement Act (TAA) and means that these SKUs are manufactured in countries that are part of the global trade act. This provides greater security assurance that these servers come from countries that signed the agreement act. This is particularly important to HPE customers in our federal sector and other verticals that have concerns about the country of origin for our solutions.

Configurable Models ship with:

One (1) FlexibleLOM connector providing a choice for one (1) of the supported 10Gb/20Gb FlexibleLOMs (see Step 2)
Two (2) HPE small form factor hot-plug SAS/SATA/ HDD or SSD hard drive bays
Two (2) x16 PCIe I/O expansion slots (one Type A, one Type A/B)
One (1) integrated USB connector and one (1) MicroSDHC connector
One (1) TPM connector
HPE iLO Management (standard)

Step 2: Choose Required Options (one of the following from each list unless otherwise noted)

HPE Processors

HPE Synergy Gen10 products now support two generations of processors.  As noted above in Step 1, you select the CTO Model for which generation processor you would like.  Step 2 now lists the Generation 2 and 1 processors you have available.

NOTE: All configure-to-order processor kits (i.e. xxxxxx-L21) contain one (1) processor.
NOTE: If two processors are desired, select one xxxxxx-L21 here in Step 2 and one xxxxxx-B21 in Step 4.

HPE Processors - Intel Scalable Family Processors - Generation 2  (x2xx Models)

NOTE: All configure-to-order processor kits (i.e. xxxxxx-L21) contain one (1) processor.
NOTE: If two processors are desired, select one xxxxxx-L21 here in Step 2 and the corresponding  xxxxxx-B21 for the same processer model in Step 4.

Intel Xeon-Gold Processors

HPE BL460c Gen10 Intel Xeon-Gold 6240 (2.6GHz/18-core/150W) FIO Processor Kit

P06818-L21

HPE BL460c Gen10 Intel Xeon-Gold 6238 (2.1GHz/22-core/140W) FIO Processor Kit

P11873-L21

HPE BL460c Gen10 Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) FIO Processor Kit

P06817-L21

HPE BL460c Gen10 Intel Xeon-Gold 6222V (1.8GHz/20-core/115W) FIO Processor Kit

P11869-L21

HPE BL460c Gen10 Intel Xeon-Gold 5220 (2.2GHz/18-core/125W) FIO Processor Kit

P06816-L21

HPE BL460c Gen10 Intel Xeon-Gold 5218B (2.3GHz/16-core/125W) FIO Processor Kit

P11862-L21

HPE BL460c Gen10 Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) FIO Processor Kit

P06815-L21

HPE BL460c Gen10 Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) FIO Processor Kit

P06811-L21

Intel Xeon-Silver Processors

HPE BL460c Gen10 Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) FIO Processor Kit

P06810-L21

HPE BL460c Gen10 Intel Xeon-Silver 4215 (2.5GHz/8-core/85W) FIO Processor Kit

P06809-L21

HPE BL460c Gen10 Intel Xeon-Silver 4214Y (2.2GHz/12-10-8-core/85W) FIO Processor Kit

P06966-L21

HPE BL460c Gen10 Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) FIO Processor Kit

P06808-L21

HPE BL460c Gen10 Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) FIO Processor Kit

P06807-L21

HPE BL460c Gen10 Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) FIO Processor Kit

P06806-L21

Intel Xeon-Bronze Processor

HPE BL460c Gen10 Intel Xeon-Bronze 3204 (1.9GHz/6-core/85W) FIO Processor Kit

P06805-L21

NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
NOTE: Supports 1 or 2 processors. Mixing of different processor models or generations is not supported.
NOTE: The Intel® Xeon® Scalable Family Processors come with model numbers to indicate SKU level, processor generation, SKU model, integrations-optimizations or memory capacity.  ( ie.  HPE BL460c Gen10 Gen10 Intel Xeon-Gold 6230; 6 is the SKU Level, 2 is the processor generation, 30 is the SKU model, m indicates memory sku)
NOTE: Platinum - 8200 Series -  2S - 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2933 MT/s, supporting up to 1TB memory capacity.  Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported.  Intel AVX-512 (2x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, Node Controller Support, Advanced RAS supported.

NOTE: Gold - 6200 Series - 2S - 2UPI @ 9.6 or 10.4GT/s(processor dependent), 6-Channel DDR4 @ 2933MHz (processor dependent), supporting up to 1TB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (2x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, Node Controller Support, Advanced RAS supported.

NOTE: Gold - 5200 Series - Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2666MHz (SKU 5222=supports 2933), supporting up to 1TB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA)  (SKU 5222 supports 2x 512 bit FMA), VNNI, 48 lanes PCIe 3.0, Advanced RAS supported.

NOTE: Silver - 4200 Series - Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2666 MHz supporting up to 1TB memory capacity.  Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, standard RAS supported.

NOTE: Bronze - 3200 Series - Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2133MHz supporting up to 1TB memory capacity. Intel AVX-512(1x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, standard RAS supported.

NOTE: The BL460c Gen10 includes two I/O mezzanine expansion slots. A processor must be installed in processor slot 1 for access to the first mezzanine expansion slot (expansion slot 1). A processor must be installed in processor slot 2 for access to the second mezzanine expansion slot (expansion slot 2).

HPE Synergy Gen10 products now support two generations of processors.  As noted above in Step 1, you select the CTO Model for which generation processor you would like.  Step 2 now lists the Generation 2 and 1 processors you have available.

NOTE: All configure-to-order processor kits (i.e. xxxxxx-L21) contain one (1) processor.
NOTE: If two processors are desired, select one xxxxxx-L21 here in Step 2 and one xxxxxx-B21 in Step 4.

HPE BL460c Gen10 Intel Xeon-Gold 6240 (2.6GHz/18-core/150W) FIO Processor Kit)

P06818-L21

NOTE: All configure-to-order processor kits (i.e. xxxxxx-L21) contain one (1) processor.

NOTE: If two processors are desired, select one xxxxxx-L21 here in Step 2 and the corresponding  xxxxxx-B21 for the same processer model in Step 4.Intel Xeon-Gold Processors HPE BL460c Gen10 Intel Xeon-Gold 6240 (2.6GHz/18-core/150W) FIO Processor Kit

HPE BL460c Gen10 Intel Xeon-Gold 6238 (2.1GHz/22-core/140W) FIO Processor Kit

P11873-L21

HPE BL460c Gen10 Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) FIO Processor Kit

P06817-L21

HPE BL460c Gen10 Intel Xeon-Gold 6222V (1.8GHz/20-core/115W) FIO Processor Kit

P11869-L21

HPE BL460c Gen10 Intel Xeon-Gold 5220 (2.2GHz/18-core/125W) FIO Processor Kit

P06816-L21

HPE BL460c Gen10 Intel Xeon-Gold 5218B (2.3GHz/16-core/125W) FIO Processor Kit

P11862-L21

HPE BL460c Gen10 Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) FIO Processor Kit

P06815-L21

HPE BL460c Gen10 Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) FIO Processor Kit

P06811-L21

Intel Xeon-Silver Processors

HPE BL460c Gen10 Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) FIO Processor Kit

P06810-L21

HPE BL460c Gen10 Intel Xeon-Silver 4215 (2.5GHz/8-core/85W) FIO Processor Kit

P06809-L21

HPE BL460c Gen10 Intel Xeon-Silver 4214Y (2.2GHz/12-10-8-core/85W) FIO Processor Kit

P06966-L21

HPE BL460c Gen10 Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) FIO Processor Kit

P06808-L21

HPE BL460c Gen10 Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) FIO Processor Kit

P06807-L21

HPE BL460c Gen10 Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) FIO Processor Kit

P06806-L21

Intel Xeon-Bronze Processor

HPE BL460c Gen10 Intel Xeon-Bronze 3204 (1.9GHz/6-core/85W) FIO Processor Kit

P06805-L21

NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

NOTE: Supports 1 or 2 processors. Mixing of different processor models or generations is not supported.

NOTE: The Intel® Xeon® Scalable Family Processors come with model numbers to indicate SKU level, processor generation, SKU model, integrations-optimizations or memory capacity.  ( ie.  HPE BL460c Gen10 Gen10 Intel Xeon-Gold 6230; 6 is the SKU Level, 2 is the processor generation, 30 is the SKU model, m indicates memory sku)

NOTE: Platinum - 8200 Series -  2S - 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2933 MT/s, supporting up to 1TB memory capacity.  Intel Turbo Boost Technology, Intel Hyper-Threading Technology supported.  Intel AVX-512 (2x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, Node Controller Support, Advanced RAS supported.

NOTE: Gold - 6200 Series - 2S - 2UPI @ 9.6 or 10.4GT/s(processor dependent), 6-Channel DDR4 @ 2933MHz (processor dependent), supporting up to 1TB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512 (2x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, Node Controller Support, Advanced RAS supported.

NOTE: Gold - 5200 Series - Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2666MHz (SKU 5222=supports 2933), supporting up to 1TB memory capacity. Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA)  (SKU 5222 supports 2x 512 bit FMA), VNNI, 48 lanes PCIe 3.0, Advanced RAS supported.

NOTE: Silver - 4200 Series - Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2666 MHz supporting up to 1TB memory capacity.  Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, standard RAS supported.

NOTE: Bronze - 3200 Series - Supports 2 socket (BL460c Gen10) compute module, 2 Socket supports 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2133MHz supporting up to 1TB memory capacity. Intel AVX-512(1x 512-bit FMA), VNNI, 48 lanes PCIe 3.0, standard RAS supported.

NOTE: The BL460c Gen10 includes two I/O mezzanine expansion slots. A processor must be installed in processor slot 1 for access to the first mezzanine expansion slot (expansion slot 1). A processor must be installed in processor slot 2 for access to the second mezzanine expansion slot (expansion slot 2).

HPE BL460c Gen10 Intel Xeon-Gold 5118 (2.3GHz/12-core/105W) FIO Processor Kit

872014-L21

HPE BL460c Gen10 Intel Xeon-Gold 5120 (2.2GHz/14-core/105W) FIO Processor Kit

872015-L21

HPE BL460c Gen10 Intel Xeon-Gold 5122 (3.6GHz/4-core/105W) FIO Processor Kit

875939-L21

HPE BL460c Gen10 Intel Xeon-Gold 6128 (3.4GHz/6-core/115W) FIO Processor Kit

875941-L21

HPE BL460c Gen10 Intel Xeon-Gold 6138 (2.0GHz/20-core/120W) FIO Processor Kit

875946-L21

HPE BL460c Gen10 Intel Xeon-Gold 6140 (2.3GHz/18-core/140W) FIO Processor Kit

875947-L21

HPE BL460c Gen10 Intel Xeon-Gold 6152 (2.1GHz/22-core/135W) FIO Processor Kit

875951-L21

Intel Xeon-Silver Processors

HPE BL460c Gen10 Intel Xeon-Silver 4110 (2.1GHz/8-core/85W) FIO Processor Kit

872012-L21

HPE BL460c Gen10 Intel Xeon-Silver 4114 (2.2GHz/10-core/85W) FIO Processor Kit

872010-L21

HPE BL460c Gen10 Intel Xeon-Silver 4116 (2.1GHz/12-core/85W) FIO Processor Kit

872011-L21

NOTE: When using processors of 135W or greater, 10 fans are required in the c7000 for optimal performance.

NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
NOTE: Supports 1 or 2 processors. Mixing different processor models is not supported.
NOTE: For the Intel® C621 Chipset Scalable Family Processors come with model numbers to indicate SKU level, processor generation, SKU model, integrations-optimizations or memory capacity.  ( ie.  HPE BL460c Gen10 Gen10 Intel Xeon-Gold 6134M; 6 is the SKU Level, 1 is the processor generation, 34 is the SKU model, m indicates memory sku)
NOTE: The letter "M" following the model number indicates higher maximum memory support up to 1.5TB per processor.

NOTE: Platinum - 8100 Series -  2S - 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2666 MT/s, 768 GB memory capacity (1.5 TB on select skus), Intel Turbo Boost Technology, Intel Hyper-Threading Technology

Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.

NOTE: Gold - 5100, 6100 Series - 2S - 2UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2400 MHz (SKU 5122=supports 2666), 768 GB memory capacity (1.5 TB on select skus), Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA)  (SKU 5122 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS.

NOTE: Silver - 4100 Series - 2S - 2UPI @ 9.6 GT/s, 6-Channel DDR4 @ 2400 MHz, 768 GB memory capacity, Intel Turbo Boost Technology, Intel Hyper-Threading Technology, Intel AVX-512(1x 512-bit FMA), 48 lanes PCIe 3.0, standard RAS.

NOTE: The BL460c Gen10 includes two I/O mezzanine expansion slots. A processor must be installed in processor slot 1 for access to the first mezzanine expansion slot (expansion slot 1). A processor must be installed in processor slot 2 for access to the second mezzanine expansion slot (expansion slot 2).

HPE MemoryHPE SmartMemory

The following memory supports Intel® Xeon® Scalable processor family 2nd generation

HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00918-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00920-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00922-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00924-B21

NOTE: HPE memory from previous generation servers/PROCESSORS(Gen1) is not supported with this server/processor combination. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen10.

NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.

NOTE: 128GB DIMMs cannot be mixed with other DIMM capacities within the server
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2933 Mt/s, 2666MT/s, 2400MT/s, or 2133MT/s. Please see the Online Memory Configuration Tool at: https://memoryconfigurator.hpe.com/ddr4memoryconfig/home/legal

The following memory supports Intel® Xeon® Scalable processor family 1nd generationRegistered DIMMs (RDIMMs)

HPE 8GB (1x8GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

815097-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

815098-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

835955-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

815100-B21

NOTE: HPE memory from previous generation servers is not supported with this server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen10.

NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.

NOTE: 128GB DIMMs cannot be mixed with other DIMM capacities within the server
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2666MT/s, 2400MT/s, or 2133MT/s. Please see the Online Memory Configuration Tool at:  https://h22195.www2.hpe.com/DDR4memoryconfig/Home/LEGAL

HPE Networking

FlexibleLOM Adapters

NOTE: The server requires one (1) FlexibleLOM that is installed in the FlexibleLOM connectors. All FlexibleLOMs are dual port: One port is routed to interconnect module bay 1 and the other to bay 2.

20Gb FlexibleLOM Adapters

HPE FlexFabric 20Gb 2-port 630M Adapter

700076-B21

HPE FlexFabric 20Gb 2-port 630FLB Adapter

700065-B21

HPE FlexFabric 20Gb 2-port 650M Adapter

700767-B21

HPE FlexFabric 20Gb 2-port 650FLB Adapter

700763-B21

10Gb FlexibleLOM Adapters

HPE FlexFabric 10Gb 2-port 534M Adapter

700748-B21

HPE FlexFabric 10Gb 2-port 536FLB Adapter

766490-B21

HPE Ethernet 10Gb 2-port 560M Adapter

665246-B21

HPE Ethernet 10Gb 2-port 560FLB Adapter

655639-B21

HPE Storage Controllers

HPE FIO Enable Smart Array SW RAID

784308-B21

NOTE: The HPE Smart Array S100i SR Controller (chipset SATA) comes standard with the HPE BL460c Gen10 10Gb/20Gb FLB CTO Blade. If the HPE Smart Array P204i-b controllers is not chosen, a SATA cable will be provided to support SATA devices for the two internal drive bays. If RAID is required when using the S100i, please choose ‘HPE FIO Enable Smart Array S100i SR Setting’ (784308-B21).

HPE Smart Array P204i-b SR Gen10 (4 Internal Lanes/1GB Cache) 12G SAS Modular Controller

804367-B21

HPE Smart Array P408e-m SR Gen10 (8 External Lanes/2GB Cache) 12G SAS Mezzanine Controller

804381-B21

Step 3: Choose Additional Factory Integration Options

HPE Unique Options

HPE Special Enablement Kits

873870-B21

HPE Special Enablement Kits

873373-B21

NOTE: The HPE Gen10 NVMe FIO Setting (873373-B21) is required to support SFF NVMe SSDs within the system. This option is not compatible with the HPE Smart Array P204i-b,. Hewlett Packard Enterprise recommends the use of a dual M.2 solid state drive enablement kit (873870-B21) together with M.2 SSD media for boot when using this option.

HPE Legacy FIO Mode Setting

758959-B22

NOTE: Changes default UEFI BIOS setting into Legacy BIOS setting. (758959-B22) is not supported with HPE Dual 8GB microSD EM USB Kit (741279-B21) nor with HPE FIO Enable Smart Array S100i SR Setting (784308-B21). Must select HPE Gen10 TPM 1.2 FIO if this is selected.

HPE Smart Memory Fast Fault Tolerance FIO Setting

875293-B21

NOTE: Enables Double Device Data Correct (DDDC) with significantly higher performance.

HPE Gen10 TPM 1.2 FIO Setting

872108-B21

NOTE: Can only be selected with TPM 2.0 Gen10 Kit (864279-B21)

Converged Infrastructure Management Software

HPE OneView with iLO Advanced - Server hardware required on same purchase order

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView for Blade Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

F6Q89A

Step 4: Choose Additional Options for Factory Integration

NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below. For additional options, including server blade enclosures interconnect, mezzanine options and power subsystem options; please see the Core Options and Additional sections below; or the following:

• HPE BladeSystem c3000 Enclosure QuickSpecs:
  https://www.hpe.com/h20195/v2/GetPDF.aspx/c04128340.pdf
  NOTE: The c3000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the new enclosures and any future server blades will be supported in the existing enclosures.
• HPE BladeSystem c7000 Enclosure QuickSpecs:
  https://www.hpe.com/h20195/v2/GetPDF.aspx/c04128339.pdf
  NOTE: The c7000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the new enclosures and any future server blades will be supported in the existing enclosures.

HPE BladeSystem c-Class Interconnect and Mezzanine Components:
https://www.hpe.com/us/en/integrated-systems/bladesystem.html#portfolio

NOTE: For optimal cooling and system performance the BL460c Gen10 Server Blade requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans.

HPE Networking

NOTE: A 10 Gigabit Ethernet adapter supports linking at 1Gbps or 10Gbps when connected to an interconnect module with 10Gb Ethernet downlinks.
NOTE: A 10 Gigabit Ethernet adapter supports linking at only 1Gbps when connected to an interconnect module with 1Gb Ethernet downlinks.
NOTE: The 10 Gigabit Ethernet adapters on each server blade connect to a 10Gb interconnect in bays 3-6 (HPE BladeSystem c7000 Enclosure) or bays 2-4 (HPE BladeSystem c3000 Enclosure).

20 Gigabit Ethernet Mezzanine Cards

HPE FlexFabric 20Gb 2-port 630M Adapter

700076-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04312720

HPE FlexFabric 20Gb 2-port 650M Adapter

700767-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04347342

10 Gigabit Ethernet Mezzanine Cards

HPE FlexFabric 10Gb 2-port 534M Adapter

700748-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/us/en/product-catalog/servers/server-adapters.html

HPE Ethernet 10Gb 2-port 560M Adapter

665246-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at: https://www.hpe.com/h20195/v2/GetPDF.aspx/c04111406.pdf

FlexibleLOM Adapters
NOTE: The server supports one (1) FlexibleLOM that is installed in the FlexibleLOM connectors and is already included in the pre-configured models. However, it must be added in Step 2 for Configure-to-Order Models. The FlexibleLOM options below are used to change these original FlexibleLOMs.

20Gb FlexibleLOM Adapters

HPE FlexFabric 20Gb 2-port 630FLB Adapter

700065-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04312719

HPE FlexFabric 20Gb 2-port 650FLB Adapter

700763-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04347341

NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04347246

HPE Ethernet 10Gb 2-port 560FLB Adapter

655639-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetPDF.aspx/c04111516.pdf

HPE Infiniband Mezzanine Adapters

NOTE: When an InfiniBand adapter is installed in mezzanine slot 1, only one port is active (regardless of operating mode). When installed in mezzanine slot 2, both ports are active.

HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+M Adapter

764283-B21

NOTE: The FDR InfiniBand adapter must be installed in mezzanine slot 1 for FDR mode and may be installed in either mezzanine slot if operated in any other mode.

10Gb FlexibleLOM Adapters

HPE FlexFabric 10Gb 2-port 536FLB Adapter

766490-B21

HPE Fibre Channel

HPE LPe1605 16Gb Fibre Channel HBA for BladeSystem c-Class

718203-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/getpdf.aspx/c04315132.pdf?ver=2

HPE QMH2672 16Gb Fibre Channel Host Bus Adapter

710608-B21

NOTE: Please see QuickSpecs for technical specifications and additional information at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04126962

HPE Drives

Enterprise - 12G SAS - SFF Drives

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

872481-B21

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870753-B21

Midline - 12G SAS - SFF Drives

HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765466-B21

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

832514-B21

SSD Selection

To streamline the configuration process for HPE ProLiant Gen10 servers and to provide the best product availability, HPE recommends SSDs from the list located here: http://www.hpe.com/products/recommend.

Read Intensive - PCIe/NVMe - SFF - Solid State Drives

HPE 1.92TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty Digitally Signed Firmware SSD

P10214-B21

HPE 750GB PCIe WI HH DS Card

876038-B21

HPE 1TB NVMe x4 Lanes Read Intensive M.2 2280 1yr Wty Extended Temperature SSD

880266-B21

Mixed Use - 6G SATA - SFF - Solid State Drives

HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P05986-B21

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P05980-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P05976-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872344-B21

HPE 960GB SATA 6G Mixed Use SC SC 1yr Wty Value Digitally Signed Firmware SSD

P09909_B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P08556-B21

Mixed Use - 12G SAS - SFF - Solid State Drives

HPE 1.92TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Value SAS Digitally Signed Firmware SSD

P10454-B21

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P04525-B21

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

P09088-B21

HPE Drives

HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Value SAS Digitally Signed Firmware SSD

P10440-B21

HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Value SAS Digitally Signed Firmware SSD

P10444-B21

HPE 960GB SAS 12G Mixed Use SC 3yr Wty Value SAS Digitally Signed Firmware SSD

P10448-B21

HPE iLO Advanced License

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced Flexible Quantity License with 1yr Support on iLO Licensed Features

512486-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced Flexible Quantity License with 3yr Support on iLO Licensed Features

BD506A

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one or three years of 24 x 7 HPE Software Technical Support Service.
NOTE: For additional license kits, including electronic delivery options, please see the iLO QuickSpecs at https://www.hpe.com/us/en/servers/integrated-lights-out-ilo.html

NOTE: Customer will receive a license entitlement certificate, which must be redeemed online or via fax in order to obtain the license activation key(s). Includes one or three year of 24 x 7 HPE Software Technical Support Service.

Converged Infrastructure Management Software

HPE OneView

HPE OneView with iLO Advanced

HPE OneView including 3yr 24x7 Support Physical 1-server LTU

E5Y34A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView Physical Media Kit LTU

E5Y37A

HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU

P8B24A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

NOTE: For additional license kits please see the QuickSpecs at http://h20564.www2.hpe.com/hpsc/doc/public/display?docId=c04951959

HPE Security

HPE Trusted Platform Module 2.0 Gen10 Option

864279-B21

NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008 R2 and 2012. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 R2 and 2012 has not been tampered with while the system was offline.
NOTE: For more information about TPM, including a white paper, go to https://www.hpe.com/h20195/v2/getpdf.aspx/4AA5-4782ENW.pdf

NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

HPE Storage Controllers

HPE Smart Array P204i-b SR Gen10 (4 Internal Lanes/1GB Cache) 12G SAS Modular Controller

804367-B21

HPE Smart Array P408e-m SR Gen10 (8 External Lanes/2GB Cache) 12G SAS Mezzanine Controller

804381-B21

HPE FIO Enable Smart Array SW RAID

784308-B21

HPE Special Enablement Kits

873373-B21

NOTE: The HPE Gen10 NVMe FIO Setting (873373-B21) is required to support SFF NVMe SSDs within the system. This option is not compatible with the HPE Smart Array P204i-b,. Hewlett Packard Enterprise recommends the use of a dual M.2 solid state drive kit for boot when using this option.

NOTE: The HPE Smart Array S100i SR Controller (chipset SATA) comes standard with the HPE BL460c Gen10 10Gb/20Gb FLB CTO Blade. If the HPE Smart Array P204i-b controllers is not chosen, a SATA cable will be provided to support SATA devices for the two internal drive bays. If RAID is required when using the S100i, please choose ‘HPE FIO Enable Smart Array S100i SR Setting’ (784308-B21).

HPE Secure Encryption

HPE Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU

Q2F26AAE

NOTE: HPE Secure Encryption is supported on the HPE Smart Array P204i-b and P408e-m as an option. HPE Secure Encryption licensing is based on the number of physical drives requiring encryption.

NOTE: For more information about HPE Secure Encryption, go to https://www.hpe.com/us/en/product-catalog/detail/pip.6532260.html

HPE InfiniBand Mezzanine Adapters

NOTE: InfiniBand FDR is the only speed supported on the HPE BL460c Gen10. For additional information, please see the HPE BladeSystem c7000 Enclosure and InfiniBand QuickSpecs at:

https://www.hpe.com/h20195/v2/GetPDF.aspx/c04128339.pdf

https://www.hpe.com/h20195/v2/getpdf.aspx/c04126044.pdf?ver=26

HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+M Adapter

764283-B21

NOTE: The FDR InfiniBand adapter must be installed in mezzanine slot 1 for FDR mode and may be installed in any mezzanine slot if operated in any other mode.

NOTE: When an InfiniBand adapter is installed in mezzanine slot 1, only one port is active (regardless of operating mode). When installed in any other mezzanine slot, both ports are active.

HPE Flash Media Kits for USB Drives

HPE Enterprise Mainstream Flash Media Kits for Memory Cards

HPE 8GB microSD Flash USB Drive

737953-B21

HPE 8GB microSD Flash Memory Card

726116-B21

HPE 32GB microSD Flash Memory Card

700139-B21

HPE 8GB Dual microSD Flash USB Drive

741279-B21

HPE Pointnext operational services

Proactive Care Services

HPE 3 Year Proactive Care 24x7 ProLiant BL460c Gen10 Service

H7LT4E

HPE 3 Year Proactive Care 24x7 with DMR ProLiant BL460c Gen10 Service

H7LT5E

HPE 3 Year Proactive Care Advanced 24x7 ProLiant BL460c Gen10 Service

H7LT7E

HPE 3 Year Proactive Care Advanced 24x7 with DMR ProLiant BL460c Gen10 Service

H7LT8E

Installation Services

HPE Installation ProLiant Blade Server Service

UE493E

NOTE: Additional HPE Pointnext operational services can be found at: https://www.hpe.com/us/en/services/operational.html

Memory Subsystem Architecture

Each processor socket contains six memory channels that support one or two DIMMs each for a total of eight (8) DIMMs per installed processor or a grand total of sixteen (16) DIMMs for the server blade

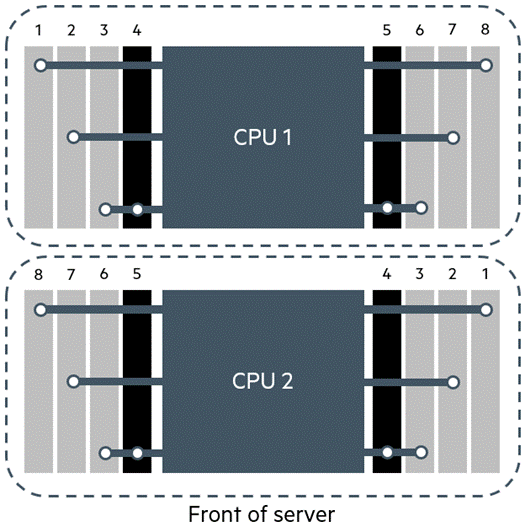

BL460c Gen10 DIMM Channels and Numbering

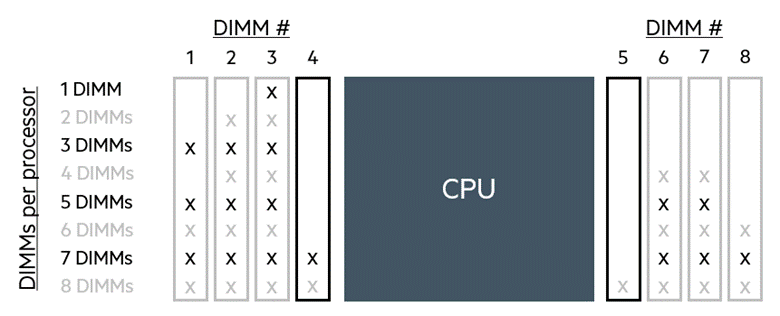

8 DIMM per CPU Population Guidelines

NOTE: Chart to be read from left to right. For example, when installing four (4) DIMMs on a processor, DIMMs 2, 3, 6, and 7 should be populated.

NOTE: For optimal performance, HPE does not recommend configurations with five (5) or seven (7) DIMMs in the BL460c Gen10 server blade.

NOTE: For additional information, please see the HPE SmartMemory QuickSpecs at:  https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111535

Memory Population Rules and Guidelines

• A minimum of one DIMM is required per processor.
• Install DIMMs only if the corresponding processor is installed.
• If only one processor is installed in a two processor system, only half of the DIMM slots are available.
• DIMM sizes can be mixed in channel. To maximize performance, it is recommended to balance the total memory capacity between all installed processors and to load the channels similarly whenever possible.
• LRDIMM and RDIMMs are all distinct memory technologies and cannot be mixed within a compute module.
• DIMMs of different speeds may be mixed in any order; the compute module will select a common optimal speed.
• The maximum memory speed is a function of the memory type, memory configuration, and processor model.
• The maximum memory capacity is a function of the memory type and number of installed processors.
• HPE memory from previous generation servers is not compatible with the HPE ProLiant BL460c Gen10 Server Blade.



To realize the performance memory capabilities listed in this document, HPE SmartMemory is required. For additional information, please see the HPE SmartMemory QuickSpecs at: : http://www.hpe.com/docs/memory-population-rules

BL460c Gen10 Server Blade

BL460c Gen10 BladeSystem Server Memory

Memory Speed Table for Memory used with Intel Scalable Family Gen2 Processors

System Unit

Dimensions
(H x W x D) (with bezel)

7.11 x 2.18 x 20.37 in (18.07 x 5.54 x 51.76 cm)

Weight
(approximate)

Maximum: all processors, 16 DIMMs, hard drives, mezzanine cards, and two flash cache batteries installed)

14.00 lb (6.33 kg)

Minimum: one processor and 2 DIMMs installed

10.50 lb (4.75 kg)

Power Specifications

For power specifications including input requirements, BTU rating, and power supply output, please see the:

• HPE BladeSystem c3000 Enclosure QuickSpecs at https://www.hpe.com/h20195/v2/GetDocument.aspx?docname=c04123379
• HPE BladeSystem c7000 Enclosure QuickSpecs at https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04229580

To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at https://paonline56.itcs.hpe.com.

NOTE: For optimal cooling and system performance the BL460c Gen10 Server Blade requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans.

System Inlet Temperature

Operating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1,000 ft) above sea level to a maximum of 3,050 m (10,000 ft), no direct sustained sunlight.

Maximum rate of change is 10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.

System performance may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Extended Ambient Operating Support

For Approved hardware configurations, the supported system inlet range is extended to be:

5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft)

NOTE: Qualifications for extended ambient configurations are detailed at:

https://h20566.www2.hpe.com/hpsc/doc/public/display?sp4ts.oid=7271259&docId=emr_na-c04513664&docLocale=en_US

Relative Humidity
(non-condensing)

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3,050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1,500 ft/min).

Non-operating

9,144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1,500 ft/min).

Acoustic Noise

For acoustic noise specifications, please see the HPE BladeSystem c-Class Enclosures QuickSpecs located at:

• HPE BladeSystem c3000 Enclosure QuickSpecs: https://www.hpe.com/h20195/v2/GetPDF.aspx/c04128340.pdf
• HPE BladeSystem c7000 Enclosure QuickSpecs: https://www.hpe.com/h20195/v2/GetPDF.aspx/c04128339.pdf

HPE FlexFabric 10Gb 2-port 536FLB FlexibleLOM

Type

Integrated dual-port KR 10Gb FlexibleLOM with FlexFabric (Flex-10, FCoE, hardware-based iSCSI, iSCSI boot, TCP/IP offload engine, and autosensing 1Gb/10Gb Ethernet capability)

Network Processor

QLogic 57840S with integrated MAC/PHY

Data Transfer Method

x8 PCI Express 3.0

Network Transfer Rate

Two ports, each at 20Gbps full duplex; 40Gbps aggregate full duplex theoretical bandwidth
NOTE: Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb or 10Gb HPE BladeSystem c-Class interconnect components. Both ports will operate at the same speed.
NOTE: Each port on the 536FLB adapter transmits from the server at 20Gbps (theoretical) full duplex.

IEEE Compliance

802.1p, 802.1q, 802.1qau, 802.3ad, 802.3ae, 802.3ap (10GBase-KX4) and 802.3x

Standard Features

Full hardware offload of iSCSI and FCoE storage protocol processing for highest performance

converged Ethernet data and storage networks.

Dual-port 10GbE Flex-10 FlexibleLOM network adapter that provides the flexibility to choose the

type of LOM to meet growing infrastructure needs

Industry-leading throughput and latency performance

Supports the HPE Flex-10 blade interconnect technology

User configurable bandwidth settings when combined with the 10Gb Flex-10 Virtual Connect

module. From 100Mb/s to10Gb/s on up to four "Physical Function" NICs per port, in increments of

100Mb/s for NIC. The combined bandwidth of NICs cannot exceed port bandwidth i.e. 10 Gb.

Up to 40Gb/s bi-directional near line rate throughput

Hardware acceleration and offloads for stateless TCP/IP, TCP Offload Engine (TOE)

Improved small packet performance

Support for Preboot eXecution Environment (PXE)

Integrated PHY and MAC

Supports for SR-IOV

Support for Network Partitioning (NPAR)

HPE FlexFabric 20Gb 2-port 650FLB FlexibleLOM

Type

Integrated dual-port KR2 20Gb FlexibleLOM with FlexFabric (Flex-20, FCoE, RoCE, Tunnel Offload with VXLAN/NVGRE, hardware-based iSCSI, iSCSI boot, TCP/IP offload engine, and autosensing Ethernet speed capability)

Network Processor

Emulex XE-104

Data Transfer Method

x8 PCI Express 3.0

Network Transfer Rate

Two ports, each at 40 Gbps bi-directional; 80 Gbps aggregate bi-directional theoretical bandwidth

IEEE Compliance

802.3ae, 802.1Q, 802.3x, 802.1p, 802.3ad/LACP, 802.1AB(LLDP), 802.1Qbg, 802.1Qbb, 802.1Qaz, 802.3ap

Standard Features

Dual 20Gb ports provide up to 80Gb bi-directional per adapter

Multi-speed adapter operates at either 20GbE or 10GbE

Converges FCoE or RoCE with LAN traffic on a single Ethernet wire

Tunnel Offload support for VXLAN and NVGRE

RDMA over Converged Ethernet (RoCE) for greater server efficiency and lower latency (6125XLG only)

Advanced storage offload processing freeing up valuable CPU cycles

Supports UEFI and legacy boot options

Mixed Storage - supports NIC + FCoE on one port, and NIC + iSCSI on the other

Concurrent Storage - concurrently supports NIC, FCoE, and iSCSI storage functions on the same port (NIC + FCoE + iSCSI)

Industry-leading throughput and latency performance

Supports the HPE Flex-20 blade interconnect technology

Over eight million small packets/s, ideal for web/mobile applications, mobile messaging, and social media

User configurable bandwidth settings when combined with the 20Gb Flex-20 Virtual Connect module. From 100Mb/s to10Gb/s on up to four "Physical Function" NICs per port, in increments of 100Mb/s for NIC. The combined bandwidth of NICs cannot exceed port bandwidth i.e. 20 Gb/s.

Greater bandwidth with PCIe 3.0

Jumbo Frames support

Supports Wake On LAN (WOL)

Support for Preboot eXecution Environment (PXE)

Support for Microsoft Windows SMB Direct

Optimized host virtualization density with SR-IOV support

Environment-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/info/recycle .To recycle your product, please go to: http://www.hpe.com/info/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hpe.com/info/recycle .These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

09-Dec-2019

Version 2

Changed

Overview, Standard Features, Configuration Information and Memory sections were updated.

02-Jul-2017

Version 1

Created

New QuickSpecs.
