HPE HDR InfiniBand Switches and Cables: технические характеристики и документация
Overview
|
HPE HDR InfiniBand Switches and Cables |
|
Mellanox InfiniBand (IB) HDR Switches are supported to work with HPE InfiniBand Adapters to deliver high performance connectivity for HPC clusters using HPE ProLiant XL and DL Server families. The 1U switches feature 40 QSFP56 ports delivering up to 16Tbps of non-blocking bandwidth with sub-90ns port-to-port latency.
Ideally suited for Customers who deploy high-performance computing (HPC) clusters based on HPE ProLiant XL and DL Servers using InfiniBand technology. |
|
|
|
|
|

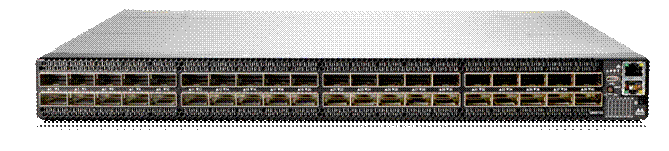

Mellanox InfiniBand HDR Switch Series |
|
|
|
Key features
|
|
|
Standard Features
|
Features and benefits Switch Specifications
|
|
|
|
HDR100 The Mellanox QuantumTM switch, when associated with ConnectX®-6 adapters, supports the HDR100 protocol. Two HDR100 adapters attached to an HDR splitter cable can be connected to a single port on the switch. Each adapter can then deliver 100Gbps of bandwidth. In effect, this turns the Mellanox QuantumTM switch into a 80-port 100Gbps InfiniBand switch, reducing the equipment required for a given fabric when compared to the previous generation and expanding the maximum number of node of a 100Gbps two-level 1:1 fat tree topology to 1,600. |
|
|
|
Management
Require external subnet manager on the fabric (see more description below)
Embedded subnet manager supporting fabrics of up to 2K nodes Enables command line interface and chassis management GUI through dual 100/1000 Ethernet ports RS232 port over DB9 Enables serial console through USB serial port Supports Management over IPv4 or IPv6 Supports SNMP v1, v2, v3 |
|
|
|
Connectors and cabling
|
|
|
|
Indicators
|
|
|
|
Power Supply
|
|
|
|
Cooling
|
|
|
|
Warranty and support
|
|
|
Service and Support
|
HPE Services No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services |
|
|
|
Consulting Services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting |
|
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE |
|
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational |
|
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
https://www.hpe.com/services/completecare |
|
|
|
HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
|
|
|
|
HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
Notes:
To review the list of Lifecycle Services available for your product
go to:
For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu |
|
|
|
Other Related Services from HPE Services: HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training |
|
|
|
Defective Media Retention An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. |
|
|
|
How to Purchase Services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent. https://support.hpe.com/hpesc/public/home/signin |
|
|
|
Consume IT On Your Terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html For more information www.hpe.com/services |
|
|
Configuration Information
|
Description |
SKU |
|
Mellanox InfiniBand HDR 40-port QSFP56 Unmanaged Back to Front Airflow Switch |
P10774-B21 |
Power side inlet airflow
|
|
|
Mellanox InfiniBand HDR 40-port QSFP56 Managed Back to Front Airflow Switch |
P06249-B21 |
Power side inlet airflow
|
|
|
| |
Related Options
|
HPE InfiniBand HDR cables | |
|
Passive Copper cables | |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 0.5m Direct Attach Copper Cable |
P06149-B21 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 1m Direct Attach Copper Cable |
P06149-B22 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 1.5m Direct Attach Copper Cable |
P06149-B23 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 2m Direct Attach Copper Cable |
P06149-B24 |
|
Passive Copper cables |
|
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to 2xQSFP56 1m Splitter Direct Attach Copper Cable |
P06248-B21 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to 2xQSFP56 1.5m Splitter Direct Attach Copper Cable |
P06248-B22 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to 2xQSFP56 2m Splitter Direct Attach Copper Cable |
P06248-B23 |
|
Active Optical cables | |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 3m Active Optical Cable |
P06153-B21 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 5m Active Optical Cable |
P06153-B22 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 10m Active Optical Cable |
P06153-B23 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 15m Active Optical Cable |
P06153-B24 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 20m Active Optical Cable |
P06153-B25 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 30m Active Optical Cable |
P06153-B26 |
|
| |
Technical Specifications
|
Mellanox InfiniBand HDR 40-port QSFP56 Unmanaged Back to Front Airflow Switch |
P10774-B21 | ||
|
I/O ports and slots |
40 QSFP56 ports | ||
|
Additional ports and slots |
1 System reset button | ||
|
Power supplies |
2 power supplies (1+1 redundant and hot-swappable) | ||
|
Fan units |
6 fan units (N+1 redundant and hot-swappable) | ||
|
Physical characteristics |
Dimensions |
1.7in (H) x 17in (W) x 23.2in (D) 4.36cm (H) x 43.32cm (W) x 59.06cm (D) | |
|
Weight |
12.49kg 27.536lb | ||
|
Performance |
Latency |
Sub-90ns port-to-port | |
|
Throughput |
up to 16Tbps | ||
|
Linear forwarding data base |
4x48K entries | ||
|
Environment |
Operating temperature |
32°F to 104°F (0°C to 40°C) | |
|
Non-Operating temperature |
-40°C to 70°C | ||
|
Operating humidity |
10% to 85% | ||
|
Operating Altitude |
up to 3050m | ||
|
Acoustic |
ISO 7779 ETS 300 753 | ||
|
Electrical characteristics |
Frequency |
50/60 Hz | |
|
Voltage |
100-127VAC, 200-240VAC | ||
|
Typical power with passive cables (ATIS) |
(TBD)W | ||
|
Max power with optical cables (assuming 3.5W per port) |
(TBD)W | ||
|
Safety |
US/Canada: cTUVus EU: EN60950-1 International: IEC60950-1 Customs Union, Russian Federation, Belarus and Kazakhstan | ||
|
Emissions |
USA: FCC, Class A Canada: ICES, Class A EU: EN55022, Class A EU: EN55024, Class A EU: EN61000-3-2, Class A EU: EN61000-3-3, Class A Japan: VCCI, Class A Australia/New Zealand: AS/NZS CISPR 22, Class A Korea : KCC (KN32, KN35), Class A Taiwan : BSMI (CNS 13438), Class A | ||
|
Others |
RoHS-6 compliant |
|
Management |
Externally managed - requires a subnet manager (for example, the subnet manager on an internally managed switch, or the Mellanox Unified Fabric ManagerTM running the host) on the fabric to manage the InfiniBand fabric. Mellanox Unified Fabric Manager Advanced (UFM) is a powerful platform for managing scale-out computing environments. UFM enables data center operators to efficiently provision, monitor and operate the modern data center fabric. UFM runs on a server and is used to monitor and analyze Mellanox fabrics health and performance. UFM also can be used to automate provisioning and device management tasks. For example, UFM can communicate with devices, to reset or shut down ports or devices, perform firmware and software upgrades, etc. UFM's extensive API enables it to easily integrate with existing management tools for a unified cluster view. UFM also includes the ability to save historical information, to send alerts to external systems and to activate user made scripts based on system events. |
|
|
|
Mellanox InfiniBand HDR 40-port QSFP56 Managed Back to Front Airflow Switch |
P06249-B21 | ||
|
I/O ports and slots |
40 QSFP56 ports | ||
|
Additional ports and slots |
Dual 100/1000 Ethernet ports 1 RS232 port over DB9 1 USB port | ||
|
Power supplies |
2 power supplies (1+1 redundant and hot-swappable) | ||
|
Fan units |
4 fan units (N+1 redundant and hot-swappable) | ||
|
Physical characteristics |
Dimensions |
1.7in (H) x 17in (W) x 23.2in (D) 4.36cm (H) x 43.32cm (W) x 59.06cm (D) | |
|
Weight |
12.49kg 27.536lb | ||
|
Management processor |
Dual-core x86 CPU for the onboard subnet manager | ||
|
Performance |
Latency |
Sub-90ns port-to-port | |
|
Throughput |
up to 16Tbps | ||
|
Linear forwarding data base |
4x48K entries | ||
|
Environment |
Operating temperature |
32°F to 104°F (0°C to 40°C) | |
|
Non-Operating temperature |
-40°C to 70°C | ||
|
Operating humidity |
10% to 85% | ||
|
Operating Altitude |
Up to 3050m | ||
|
Acoustic |
ISO 7779 ETS 300 753 | ||
|
Electrical characteristics |
Frequency |
50/60Hz | |
|
Voltage |
100-127VAC, 200-240VAC | ||
|
Typical power with passive cables (ATIS) |
(TBD)W | ||
|
Max power with optical cables (assuming 3.5W per port) |
(TBD)W | ||
|
Safety |
US/Canada: cTUVus EU: EN60950-1 International: IEC60950-1 Customs Union: Russian Federation, Belarus and Kazakhstan |
|
Emissions |
USA: FCC, Class A Canada: ICES, Class A EU: EN55022, Class A EU: EN55024, Class A EU: EN61000-3-2, Class A EU: EN61000-3-3, Class A Japan: VCCI, Class A Australia/New Zealand: AS/NZS CISPR 22, Class A Korea : KCC (KN32, KN35), Class A Taiwan : BSMI (CNS 13438), Class A |
|
Others |
RoHS-6 compliant |
|
Management |
Internally managed switch comes with a dual-core x86 CPU for the onboard subnet manager, enabling simple, out-of-the-box fabric bring-up for up to 2k nodes. The InfiniBand fabric can also be managed by the Mellanox Unified Fabric ManagerTM. The Mellanox Unified Fabric Manager Advanced (UFM) is a powerful platform for managing scale-out computing environments. UFM enables data center operators to efficiently provision, monitor and operate the modern data center fabric. UFM runs on a server and is used to monitor and analyze Mellanox fabrics health and performance. UFM also can be used to automate provisioning and device management tasks. For example, UFM can communicate with devices, to reset or shut down ports or devices, perform firmware and software upgrades, etc. UFM's extensive API enables it to easily integrate with existing management tools for a unified cluster view. UFM also includes the ability to save historical information, to send alerts to external systems and to activate user made scripts based on system events. |
|
|
|
Standards and protocols IBTA 1.2.1 and 1.3 |
|
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
18-Dec-2023 |
Version 4 |
Changed |
HPE Services Rebranding |
|
10-Jul-2023 |
Version 3 |
Changed |
Related options section was updated. |
|
15-Nov-2021 |
Version 2 |
Changed |
Service and Support section was updated. |
|
05-Aug-2019 |
Version 1 |
Created |
New QuickSpecs |
Copyright
|
|
| |||||
|
|
|
© Copyright 2023 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
To learn more, visit http://www.hpe.com/
a00062184enw - 16384 - Worldwide - V4 - 18-December-2023 |
