Overview
|
HPE HDR InfiniBand Adapters
| |
|
HPE HDR InfiniBand and Ethernet 200Gb adapters are based on Mellanox ConnectX®-6 VPI and Socket Direct® technologies. They support all InfiniBand and Ethernet data rates for HPE ProLiant XL and DL Servers. The single ported cards can function as a single port HDR InfiniBand card, or a single port 200Gb Ethernet card; the dual ported cards can function, within a 200Gb maximum aggregated bandwidth per card, as a dual ported HDR InfiniBand card, a dual ported 200Gb Ethernet card, or a mixed function card. They are designed for customers who need low latency and high bandwidth InfiniBand interconnect in their high-performance computing (HPC) systems.
HPE HDR100 InfiniBand and Ethernet 100Gb adapters are based on Mellanox ConnectX®-6 VPI technology. They support dual-function InfiniBand and Ethernet for HPE ProLiant XL and DL Servers. The single ported card can function as a single port HDR100 InfiniBand card, or a single port 100Gb Ethernet card; the dual ported card can function as a dual ported HDR100 InfiniBand card, a dual ported 100Gb Ethernet card, or a mixed function card. It is designed for customers who need low latency and high bandwidth interconnect up to 100Gb in their high-performance computing (HPC) systems. HDR100 adapters coupled with HDR 40 port switches via HDR splitter cables provide simplified fabrics, requiring less equipment while achieving the same performances as the previous InfiniBand generation.
The Mellanox ConnectX®-6 VPI adapters combined with HDR InfiniBand Switches deliver low latency and up to 200Gbps injection bandwidth, ideal for performance driven server and storage clustering applications in HPC and enterprise data centers.
HPE HDR InfiniBand 200Gb 1-port QSFP56 and HPE HDR100 InfiniBand 100Gb 1 or 2 port QSFP56 Adapters are supported on HPE ProLiant Gen10 Plus servers and HPE ProLiant Gen10 servers but a different part number is to be ordered based on server generation. They are industry standard adapters with no HPE customization when used with HPE ProLiant Gen10 Plus servers. They are HPE versions developed on HPE specifications when used with HPE ProLiant Gen10 servers. Differences from the industry standard versions are primarily related to the management features implemented in the firmware. HPE HDR InfiniBand 200Gb 2-port QSFP56 and HPE HDR InfiniBand 200Gb 1 or 2 port QSFP56 OCP3 Adapters are supported on HPE ProLiant Gen10 Plus servers only. | |
|
| |
|
|
|
|
P/N P31323-B21, P31323-H21 (for Gen10 Plus only) |
P/N P31348-B21, P31348-H21 (for Gen10 Plus only) |
|
|
|
P/N P31324-B21, P31324-H21 (for Gen10 Plus only) |
|
|
|
|
|
P/N P06154-H21, P06154-H21, P23664-B21, P23664-H21 (HDR 1-port ConnectX®-6) + P06154-H22/23 with Gen10 |
|
|
|
|
|
P/N P06250-H21, P06250-H21, P23665-B21, P23665-H21 (HDR100 1-port ConnectX®-6) |
|
|
|
|
|
P/N P06251-H21, P06251-H21, P23666-B21, P23666-H21 (HDR100 2-port ConnectX®-6) |
|
|
|
Models | |
|

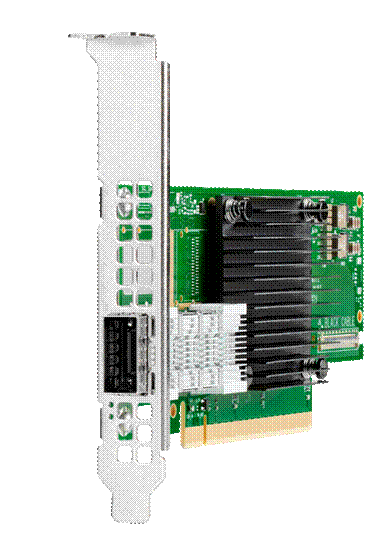

HPE InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe4 x16 MCX653105A-HDAT Adapter |
P23664-B21 |
|
HPE InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe4 x16 MCX653105A-HDAT Adapter |
P23664-H21 |
|

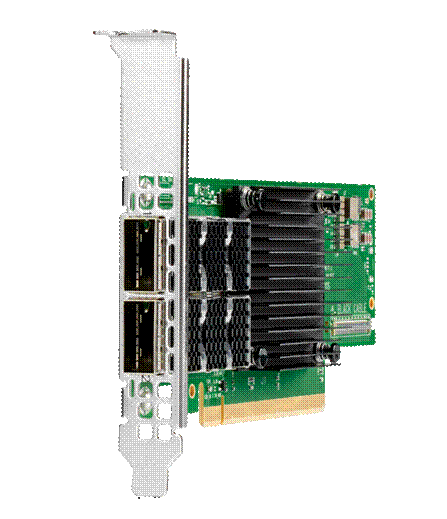

HPE InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 MCX653106A-HDAT Adapter |
P31324-B21 |
|
HPE InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 MCX653106A-HDAT Adapter |
P31324-H21 |
|

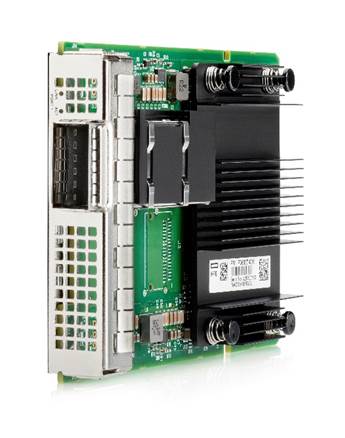

HPE InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe4 x16 OCP3 MCX653435A-HDAI Adapter |
P31323-B21 |
|
HPE InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe4 x16 OCP3 MCX653435A-HDAI Adapter |
P31323-H21 |
|

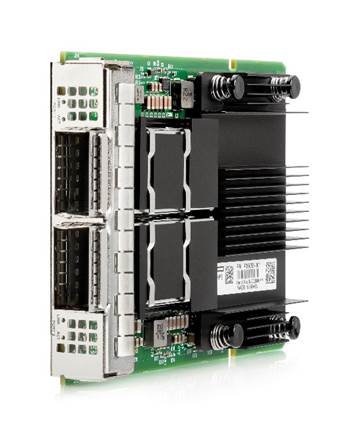

HPE InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 OCP3 MCX653436A-HDAI Adapter |
P31348-B21 |
|
HPE InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 OCP3 MCX653436A-HDAI Adapter |
P31348-H21 |
|
Notes: The adapters above are industry standard adapters with no HPE customization. No auxiliary card required. | |
|
HPE InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe3 x16 MCX653105A-HDAT Adapter |
P06154-H21 |
|
HPE InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe3 x16 MCX653105A-HDAT Adapter |
P06154-H21 |
|

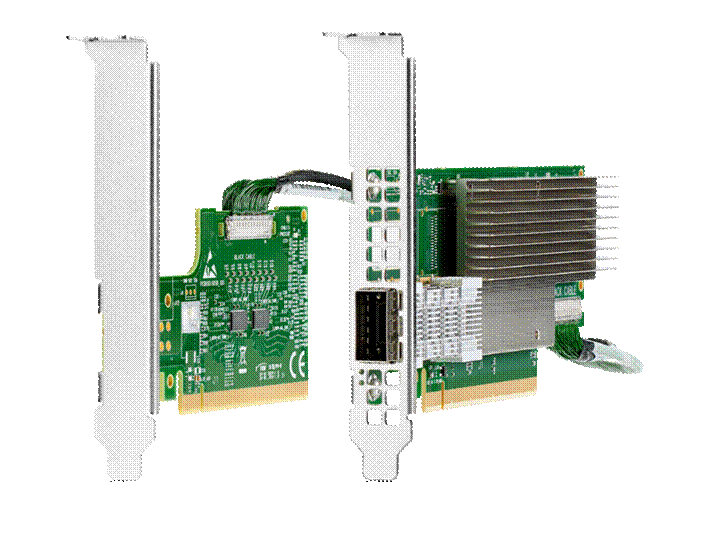

HPE InfiniBand HDR PCIe3 Auxiliary Card with 150mm Cable Kit |
P06154-H22 |
|
HPE InfiniBand HDR PCIe3 Auxiliary Card with 150mm Cable Kit |
P06154-H22 |
|
HPE InfiniBand HDR PCIe3 Auxiliary Card with 350mm Cable Kit |
P06154-H23 |
|
HPE InfiniBand HDR PCIe3 Auxiliary Card with 350mm Cable Kit |
P06154-H23 |
|
Notes: For the adapters above, one auxiliary card must be ordered with every HDR adapter. Short or Long version is server model dependent. | |
|
HPE InfiniBand HDR100/Ethernet 100Gb 1-port QSFP56 PCIe4 x16 MCX653105A-ECAT Adapter |
P23665-B21 |
|
HPE InfiniBand HDR100/Ethernet 100Gb 1-port QSFP56 PCIe4 x16 MCX653105A-ECAT Adapter |
P23665-H21 |
|

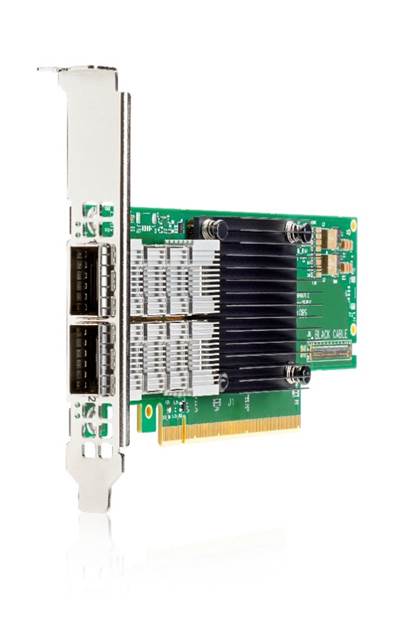

HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe4 x16 MCX653106A-ECAT Adapter |
P23666-B21 |
|
HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe4 x16 MCX653106A-ECAT Adapter |
P23666-H21 |
|
Notes: The adapters above are industry standard adapters with no HPE customization. The dual-ported adapter can deliver two times 100Gb. | |
|
HPE InfiniBand HDR100/Ethernet 100Gb 1-port QSFP56 PCIe3 x16 MCX653105A-ECAT Adapter |
P06250-H21 |
|
HPE InfiniBand HDR100/Ethernet 100Gb 1-port QSFP56 PCIe3 x16 MCX653105A-ECAT Adapter |
P06250-H21 |
|
HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe3 x16 MCX653106A-ECAT Adapter |
P06251-H21 |
|
HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe3 x16 MCX653106A-ECAT Adapter |
P06251-H21 |
|
Notes: The dual-ported adapters above can deliver the aggregated bandwidth that the x16 PCIe Gen3 slot can sustain, not two times 100Gb. | |
|
| |
|
Kit Contents
| |
|
| |
Standard Features
|
Servers supported HPE IB HDR 200Gb 1p QSFP56 Adapter for HPE ProLiant Gen10 servers HPE ProLiant XL Servers (use -H21 part numbers):
Notes: This adapter is not supported on the HPE ProLiant XL270d Gen10 8 PCIe GPU Module
HPE ProLiant DL Servers (use -B21 part numbers):
Notes: This adapter will occupy two x16 PCIe Gen3 slots. One slot must be attached to processor 1 and one to processor 2. |
|
HPE IB HDR 200Gb 1p QSFP56 Adapter for HPE ProLiant Gen10 Plus servers HPE ProLiant XL Servers (use -H21 part numbers):
HPE ProLiant DL Servers (use -B21 part numbers):
|
|
|
|
HPE IB HDR 200Gb 2p QSFP56 Adapter for HPE ProLiant Gen10 Plus servers HPE ProLiant XL Servers (use -H21 part numbers):
|
|
HPE ProLiant DL Servers (use -B21 part numbers):
|
|
HPE IB HDR 200Gb 1p or 2p QSFP56 OCP3 Adapter for HPE ProLiant Gen10 Plus servers Notes: To get the total bandwidth of 200Gb/s, an OCP Upgrade Cable Kit is required on some servers to expand the OCP slot to 16 PCIe lanes. Please refer to server QuickSpecs. HPE ProLiant XL Servers (use -H21 part numbers):
|
|
HPE ProLiant DL Servers (use -B21 part numbers):
|
|
HPE IB HDR100 100Gb 1p or 2p QSFP56 Adapters for HPE ProLiant Gen10 servers HPE ProLiant XL Servers (use -H21 part numbers):
HPE ProLiant DL Servers (use -B21 part numbers):
|
|
|
|
HPE IB HDR100 100Gb 1p or 2p QSFP56 Adapters for HPE ProLiant Gen10 Plus servers HPE ProLiant XL Servers (use -H21 part numbers):
HPE ProLiant DL Servers (use -B21 part numbers):
|
|
|
|
Product Features HPE 1p/2p QSFP56 adapters
- Hardware-based reliable transport - Collective operations offload - Hardware-based reliable multicast - Extended Reliable Connected transport (XRC) - Dynamically Connected transport (DCT) - Enhanced Atomic operations - Advanced memory mapping support, allowing user mode registration and remapping of memory (UMR) - On demand paging (ODP) - registration free RDMA memory access
- 200/100/50/40/25G/10G Ethernet - RoCE (RDMA over Converged Ethernet) - Data Center Bridging (DCB) - Stateless offloads for overlay networks and tunneling protocols - SR-IOV: up to 256 Virtual Functions - SR-IOV: up to 16 Physical Functions per port - DPDK - HPE iLO Shared Network Port with OCP 3.0 adapters |
|
|
|
HDR InfiniBand or 200G Ethernet Throughput The HPE HDR100 adapters deliver up to 100Gbps HDR100 InfiniBand per port while the HPE HDR adapters deliver up to 200Gbps HDR InfiniBand, providing the network performance needed to improve response times and alleviate bottlenecks that impact performance of customers' applications. They are ideal for high performance computing clusters and datacenter servers that require low latency and high bandwidth networking. These adapters also support Ethernet and can deliver up to 200G Ethernet throughput. The HPE HDR100 2p adapters can deliver 100G Ethernet total on Gen10 servers and 200G total (2x 100G) on Gen10 Plus servers. The HPE HDR 2p adapters can deliver 200G Ethernet total (load balancing or 1x 200G) on Gen10 Plus servers. Notes: - The HPE IB HDR/EN 200Gb 1p QSFP56 adapter for Gen10 Servers (P06154-H21/-B21 + P06154-H22/H23/B22/B23) presents itself as two logical devices, each attached to a different processor. If the RHEL inbox OFED driver is used, the application will have to feed the two devices to leverage the full performance of the adapter. If the Mellanox OFED is used instead, the application will see only one device and full performance is obtained transparently. - For the adapters described in this document, QSFP ports when used as Ethernet do not support splitter cables (Only one MAC address available per port). |
|
|
|
InfiniBand Standards The HPE 1p/2p QSFP56 adapters provide support for the following InfiniBand standard Compliant to IBTA 1.3 standard |
|
|
|
Congestion Control Hardware-based congestion control |
|
|
|
Offloads Collective operation offloads The HPE 1p/2p QSFP56 adapters support the following offloads:
|
|
|
|
Transport
|
|
|
|
Atomic Operation Enhanced Atomic operations |
|
|
|
IEEE Standards The HPE 1p/2p 940QSFP56 adapters provide support for the following IEEE Standards:
|
|
|
|
Jumbo Frames The HPE 1p/2p QSFP56 adapters support jumbo frames (also known as extended frames), permitting up to a 9.6K byte (KB) transmission unit (MTU). |
|
|
|
CPU Offload The HPE 1p/2p QSFP56 adapters support the following offload features
|
|
|
|
Single-Root I/O Virtualization The HPE 1p/2p QSFP56 adapters support SR-IOV:
|
|
|
|
IPv4 and IPv6 The HPE 1p/2p QSFP56 adapters support IPv4 and IPv6. |
|
|
|
Time synchronization implementations (PTP) Synchronization of system clocks throughout a network, achieving clock accuracy in the sub-microsecond range, making it suitable for measurement and control systems. The HPE 1p/2p QSFP56 adapters support Precision Time Protocol IEEE 1588v2 |
|
|
|
Network Adapter Teaming The HPE 1p/2p QSFP56 adapters support NIC teaming on Linux and on Windows with tools from the Operating Systems. |
|
|
|
Server Integration The HPE 1p/2p QSFP56 adapters are validated, tested, and qualified server options for the supported HPE ProLiant and HPE Apollo servers. This approach provides a more robust and reliable networking solution than offerings from other venders and provides users with a single point of contact for both their servers and their network adapters. |
|
|
|
Configuration Utilities The HPE 1p/2p QSFP56 adapters for Gen10 servers are configurable through HPE UEFI. The HPE 1p/2p QSFP56 adapters for Gen10 Plus servers are configurable through Mellanox UEFI. |
|
|
|
LED Indicators The colored LED on each port of the HPE 1p/2p QSFP56 adapters indicate link status and link activity. |
|
|
|
HPE Sea of Sensors 3D The HPE 1p/2p QSFP56 adapters support the HPE's Sea of Sensors technology for improved thermal control and energy efficiency. |
|
|
Service and Support
|
HPE Services No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services
|
|
|
|
Consulting Services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting
|
|
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE
|
|
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational
|
|
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
https://www.hpe.com/services/completecare
|
|
|
|
HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
|
|
|
|
HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
Notes:
To review the list of Lifecycle Services available for your product
go to: For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
|
|
|
|
Other Related Services from HPE Services: HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training |
|
|
|
Defective Media Retention An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.
Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. |
|
|
|
How to Purchase Services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience. Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent. https://support.hpe.com/hpesc/public/home/signin |
|
|
|
Consume IT On Your Terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html For more information www.hpe.com/services |
|
|
Configuration Information
|
InfiniBand Direct Attach Cable (Passive Copper cables - 200G QSFP56 to 200G QSFP56) |
|
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 0.5m Direct Attach Copper Cable |
P06149-B21 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 1m Direct Attach Copper Cable |
P06149-B22 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 1.5m Direct Attach Copper Cable |
P06149-B23 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 2m Direct Attach Copper Cable |
P06149-B24 |
|
InfiniBand Split Direct Attach Cable ("Y" Passive Copper cables - 200G QSFP56 to 2x100G QSFP56) | |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to 2xQSFP56 1m Splitter Direct Attach Copper Cable |
P06248-B21 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to 2xQSFP56 1.5m Splitter Direct Attach Copper Cable |
P06248-B22 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to 2xQSFP56 2m Splitter Direct Attach Copper Cable |
P06248-B23 |
|
Notes: Direct Attach Cable must be purchased separately for copper environments. | |
|
| |
|
InfiniBand Active Optic Splitter Cables ("Y" AOC Cables- 200G QSFP56 to 2x100G QSFP56) |
|
|
HPE InfiniBand HDR 200Gb to HDR100/Ethernet 2x100Gb QSFP56 to 2xQSFP56 3m AO Splitter Cable |
P26659-B21 |
|
HPE InfiniBand HDR 200Gb to HDR100/Ethernet 2x100Gb QSFP56 to 2xQSFP56 5m AO Splitter Cable |
P26659-B22 |
|
HPE InfiniBand HDR 200Gb to HDR100/Ethernet 2x100Gb QSFP56 to 2xQSFP56 10m AO Splitter Cable |
P26659-B23 |
|
HPE InfiniBand HDR 200Gb to HDR100/Ethernet 2x100Gb QSFP56 to 2xQSFP56 15m AO Splitter Cable |
P26659-B24 |
|
HPE InfiniBand HDR 200Gb to HDR100/Ethernet 2x100Gb QSFP56 to 2xQSFP56 20m AO Splitter Cable |
P26659-B25 |
|
HPE InfiniBand HDR 200Gb to HDR100/Ethernet 2x100Gb QSFP56 to 2xQSFP56 30m AO Splitter Cable |
P26659-B26 |
|
Notes: - New generation of Active Optical Splitter cables for connections to HDR100 adapters. - Active Optical Cable must be purchased separately for fiber-optic environments. | |
|
| |
|
InfiniBand Active Optic Cables (AOCs - 200G QSFP56 to 200G QSFP56) |
|
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 3m Active Optical Cable |
P06153-B21 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 5m Active Optical Cable |
P06153-B22 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 10m Active Optical Cable |
P06153-B23 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 15m Active Optical Cable |
P06153-B24 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 20m Active Optical Cable |
P06153-B25 |
|
HPE InfiniBand HDR/Ethernet 200Gb QSFP56 to QSFP56 30m Active Optical Cable |
P06153-B26 |
|
Notes: - HDR Active Optical Cables are not supported with the HDR100 adapters for HPE ProLiant Gen10 servers (P06250-H21/-B21 and P06251-H21/-B21). For optical connection with these adapters, EDR Active Optical Cables can be used. Ethernet cables and transceivers must also be of a Power Class compatible with these adapters, i.e. Power Class 4 or below (3.5W max). - The other HDR and HDR100 adapters are functionally supported with HDR Active Optical Cables. However, thermal limitations may occur depending on the server model and its environmental conditions. Please refer to the respective platform QuickSpecs to understand limitations. Same applies to Ethernet Active Optical Cables and transceivers. - Active Optical Cable must be purchased separately for fiber-optic environments. | |
|
| |
|
Additional Supported Cables For qualified Ethernet cables and transceivers, please refer to the release notes of the Adapters: visit the support website and search by adapter part number and operating system. Look for the most recent release and select the Release Notes tab when on the page. Notes: For the adapters described in this document, QSFP ports when used as Ethernet do not support splitter cables (Only one MAC address available per port). | |
|
| |
Technical Specifications
|
General Specifications (HPE HDR 200G 1p/2p QSFP56) | |
|
Network Processor |
Mellanox ConnectX-6 |
|
Data Rate |
200Gbps |
|
Bus Type |
2x PCIe Gen3 x16 (ProLiant Gen10 servers) or PCIe Gen4 x16 (ProLiant Gen10 Plus servers) |
|
Form Factor |
Low profile adapter compliant with the PCIe Gen3 and PCIe Gen4 standard |
|
|
|
Power and Environmental Specifications | |
|
Operating Temperature |
32° to 131° F (0° to 55° C) |
|
Humidity |
5% to 95% non-condensing |
|
Power |
1p Adapter with Passive cables: 19.3W (typical), 24W (max); Active Optical cables: 29.5W (max) 2p Adapter with Passive cables: 23.6W (typical), 28.2W (max); Active Optical cables: 39.3W (max) |
|
|
|
General Specifications (HPE HDR 200G 1p/2p QSFP56 OCP3) | |
|
Network Processor |
Mellanox ConnectX-6 |
|
Data Rate |
200Gbps |
|
Bus Type |
PCIe Gen4 x16 (ProLiant Gen10 Plus servers) |
|
Form Factor |
OCP3 adapter compliant with OCP Spec 3.0 SFF |
|
|
|
Power and Environmental Specifications | |
|
Operating Temperature |
32° to 131° F (0° to 55° C) |
|
Humidity |
5% to 95% non-condensing |
|
Power |
1p Adapter with Passive cables: 18.5W (typical), 23.3W (max); Active Optical cables: 28.5W (max) 2p Adapter with Passive cables: 21.4W (typical), 26.7W (max); Active Optical cables: 37W (max) |
|
|
|
General Specifications (HPE HDR100 100G 1p/2p QSFP56) | |
|
Network Processor |
Mellanox ConnectX-6 |
|
Data Rate |
100Gbps per port (limited to 100Gbps+ total on ProLiant Gen10 servers) |
|
Bus Type |
PCIe Gen3 x16 (ProLiant Gen10 servers) or PCIe Gen4 x16 (ProLiant Gen10 Plus servers) |
|
Form Factor |
Low profile adapter compliant with the PCIe Gen3 and PCIe Gen4 standard |
|
|
|
Power and Environmental Specifications | |
|
Operating Temperature |
32° to 131° F (0° to 55° C) |
|
Humidity |
5% to 95% non-condensing |
|
Power |
1p Adapter with Passive cables: 15.6W (typical), 20.3W (max); Active Optical cables: 23.3W (max) 2p Adapter with Passive cables: 17.7W (typical), 22.4W (max); Active Optical cables: 28.5W (max) |
|
|
|
EMC (Emissions)
|
|
|
|
RoHS Compliance 6 of 6 |
|
|
|
Safety
|
|
|
|
Environmental
|
|
|
|
Operating System Support HPE 1p/2p QSFP56 adapters are supported on MLNX_OFED 5.1 on the following Linux operating systems:
HPE 1p/2p QSFP56 adapters are supported on WinOF-2 version 2.50 on the following Windows operating systems:
HPE 1p/2p QSFP56 adapters configured as Ethernet only mode are also supported in the following virtualized environments:
Please refer to the firmware/software download page of the device for the latest update. |
|
|
|
Environment-friendly Products and Approach End-of-life Management and Recycling Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site.
These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
|
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
06-Nov-2023 |
Version 11 |
Changed |
Overview section was updated. HPE Services Rebranding |
|
10-Jul-2023 |
Version 10 |
Changed |
Configuration Information section was updated |
|
15-Nov-2021 |
Version 9 |
Changed |
Service and Support section was updated. |
|
04-Oct-2021 |
Version 8 |
Changed |
P28169-B2x cables removed. Add note about Ethernet splitter cables not supported. Typo correction, changing -H21 for -B21 on some line items. Overview, Configuration Information and Related Options sections were updated. |
|
06-Jul-2021 |
Version 7 |
Changed |
Note for P28169-B2x cables updated. Configuration Information section was updated |
|
07-Jun-2021 |
Version 6 |
Changed |
Standard Features, Configuration Information and related options sections were updated. Add new generation of AOC and AOC Splitter. New Gen10 Plus platform compatibility added: XL220n, XL290n, DL360, DL380 ,XL675d, XL645d, Apollo 4200 |
|
06-Apr-2021 |
Version 5 |
Changed |
Minimum version for VMware. InfiniBand with Windows Server corrected.Technical Specification section was updated. |
|
07-Dec-2020 |
Version 4 |
Changed |
Overview, Standard Features and Configuration Information sections were updated. OCP adapters support on DL325 and DL385 Gen10 Plus. HDR 2-port adapter support on DL325 and DL385 Gen10 Plus. |
|
05-Oct-2020 |
Version 3 |
Changed |
HDR 2P, HDR 1P OCP, HDR 2P OCP added Standard Features and Technical Specifications sections were updated. |
|
02-Dec-2019 |
Version 2 |
Changed |
Overview, Standard Features and Technical Specifications sections were updated. HDR/HDR100 industry standard cards for Gen10 Plus servers added. |
|
05-Aug-2019 |
Version 1 |
New |
New QuickSpecs |
Copyright
|
|
| |||||
|
|
|
© Copyright 2023 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Windows is a US registered trademark of Microsoft Corporation.
a00062185enw - 16385 - Worldwide - V11 - 06-November-2023 |
