HP Integrity BL870c i2 Server Blade | |||
|
|
| |||
|
|
1. |

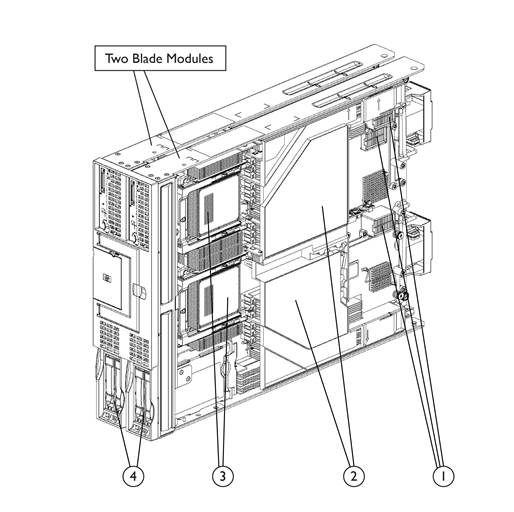

6 x PCIe mezzanine slots (per BL870c i2) |
3. |
4 x Intel® Itanium® processor 9300 series sockets (per BL870c i2) |
|
|
2. |
48 x DDR3 DIMM slots (per BL870c i2) |
4. |

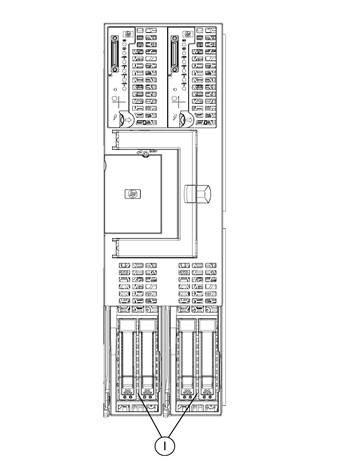

4 x SFF SAS HDDs, hot-swap bays (per BL870c i2) |
|
|
| |||
|
What's New | ||||
| ||||
|
| ||||
|
At A Glance | ||||
|
This document covers the HP Integrity BL870c i2 server blade only. For more information on HP BladeSystem c-Class Enclosure and HP BladeSystem c-Class Interconnect and Mezzanine Components, please see the following:
The HP Integrity BL870c i2 delivers
the performance, reliability, and availability on 64-bit operating systems (HP-UX
11i v3, Microsoft Windows® Server 2008 for Itanium-based systems and OpenVMS
v8.4) for the ultimate in scalability and flexibility in deployment: To further
enrich your cost-efficient, consolidated Integrity blade infrastructure, HP Insight
Dynamics - VSE for HP Integrity servers can help with solution components such
as HP-UX Virtual Partitions (vPars) v6.0, HP Integrity Virtual Machines, HP Capacity
Advisor and Virtualization Manager, HP Global Workload Manager and HP-UX Workload
Manager, HP Insight Dynamics - VSE infrastructure orchestration HP Insight Dynamics
- VSE Reference Architectures, and HP Serviceguard.
| ||||
Standard Features
|
Processor |
Quad-Core Processors | |||||||
|
Intel® Itanium® 9320 (1.33GHz/4-core/16MB/155W); up to 1.46 GHz with Turbo) Processor | ||||||||
|
Intel® Itanium® 9340 (1.6GHz/4-core//20MB/185W); up to 1.73 GHz with Turbo) Processor | ||||||||
|
Intel® Itanium® 9350 (1.73GHz/4-core/24MB/185W); up to 1.86 GHz with Turbo) Processor | ||||||||
|
Dual-Core Processors | ||||||||
|
Intel® Itanium® 9310 (1.6GHz/2-core/10MB/130W) Processor | ||||||||
|
| ||||||||
|
Upgradeability |
Upgradeable to four (4) processors
| |||||||
|
| ||||||||
|
Cache
Memory |
L2 cache per core; 512KB Instruction, 256KB Data | |||||||
|
L3 cache; up to 24MB, see processor specifics | ||||||||
|
| ||||||||
|
Chipset |
Intel Boxboro | |||||||
|
| ||||||||
|
Memory |
Type |
DDR3 registered memory modules (R-DIMMs) | ||||||
|
Minimum |
16 GB (4 x 4 GB DIMMs) | |||||||
|
Maximum |
768 GB (48 x 16 GB DIMMs) | |||||||
|
NOTE:
Memory modules consist of two (2) DIMMs. | ||||||||
|
| ||||||||
|
Network Adapter |
Eight (8) NIC (LOM) ports via
(4) Broadcom Dual Port Flex-1010GbE Multifunction Server Adapter NOTE:
Flex-10 capability requires OS drivers and the use of an HP Virtual Connect Flex-10
10GbE Ethernet module. Learn more at: www.hp.com/go/virtualconnect
| |||||||
|
One (1) additional 10/100 NIC dedicated to Integrity
iLO 3 Management | ||||||||
|
| ||||||||
|
Expansion Slots |
Six Mezzanine slots, four (4) Type II and two (2) Type I, PCIe x8 Gen2 | |||||||
|
| ||||||||
|
Integrated Manageability |
Integrity Integrated Lights-Out 3 (iLO 3) | |||||||
|
Factory installed Integrity iLO 3 Advanced Pack license | ||||||||
|
HP BladeSystem c-Class Onboard Administrator | ||||||||
|
HP BladeSystem c-Class Virtual Connect | ||||||||
|
| ||||||||
|
Storage Controller |
Two (2) HP p410i 3Gb SAS Controller |
4 SAS Channels (one to each
HDD) | ||||||
|
| ||||||||
|
Maximum Internal Storage |
Hot Plug SAS |
3.6TB SAS |
4 x 900GB SAS | |||||
|
| ||||||||
|
Graphics |
Integrated ATI RN50 1280 x 1024 x 16M color (128 MB DDR memory) | |||||||
|
Resolution Color Depths |
Depths 1280 x 1024, 16.7M ,
64k, 256,16 | |||||||
|
| ||||||||
|
FlexFabric Support |
Dual (2) ports via HP BLc NC553m Dual Port FlexFabric
10Gb Converged Network Adapter | |||||||
|
NOTE:
BL8x0c i2 server blades require Virtual Connect 3.15 or later | ||||||||
|
NOTE:
Please see the QuickSpecs for Technical Specifications and additional information
and for HP-UX support. | ||||||||
|
| ||||||||
|
InfiniBand Support |
Optional InfiniBand
HCAs are supported by the HP Integrity BL860c i2 Server Blade. The mezzanine circuit
board connects directly to the server blade system board.
| |||||||
|
| ||||||||
|
Fibre Channel Support |
Optional Fibre Channel
HBAs are supported by the HP Integrity BL870c i2. The mezzanine circuit board
connects directly to the server blade system board.
8Gb Fibre Channel HBAs feature:
| |||||||
|
| ||||||||
|
Compatible SAN |
HP Integrity BL870c i2 server blades are optimized for HP Storage MSA, EVA, and XP products. | |||||||
|
| ||||||||
|
Smart Array Controller Support |
Optional Smart Array
Controller is supported by BL870c. The mezzanine circuit board connects directly
to the server blade system board, and provides connection to off-blade SAS storage
via a SAS interconnect switch module in the HP BladeSystem enclosure:
NOTE:
For additional details please see: | |||||||
|
| ||||||||
|
HP USB Options |
External USB DVD
drive with 6 ft USB extension cable is supported with c7000 enclosures.
NOTE: The
USB Y-connector goes between the extension cable and the 9-inch USB cable fixed
with DVD drive. | |||||||
|
| ||||||||
|
Integrity Server Blades Management Software and HP Integrity Essentials Software Plug-ins |
HP-UX 11i Management Software for HP Integrity BL870c i2 Server Blade and HP BladeSystem |
| ||||||
|
| ||||||||
|
Glossary of Integrity Server Blades Management Software Product Description |
HP BladeSystem Integrated Manager in HP Systems Insight Manager
|
The HP BladeSystem Integrated Manager is a component in HP Systems Insight Manager (SIM) that provides streamlined management for the entire HP BladeSystem product family. The HP BladeSystem Integrated Manager enables users to quickly navigate their HP blade environments including blade servers, enclosure infrastructures, racks, and integrated switches, via automatically generated blade rack picture views and hierarchical trees. Users are able to conveniently configure, deploy, and manage individual or groups of blade systems. Additionally, users are able to quickly set up logical collections of blade systems for convenient management and control. | ||||||
|
HP Blades Visualization |
Used by System Administrators
to identify, associate and group blades into collections, using tables, trees,
and picture views, and it can also be used to monitor performance and launch Integrity
Essentials. | |||||||
|
HP GlancePlus Pak |
HP GlancePlus Pak provides you with a single product for managing a system's availability and performance. It is an integrated product that includes HP GlancePlus. As an integrated product, the GlancePlus Pak includes the real-time diagnostic capabilities of GlancePlus and the historical data collection capabilities of the Performance Agent. The performance agent is used with other availability and performance management products, thus providing an integrated real-time and historical performance management solution. | |||||||
|
HP Ignite-UX |
HP Ignite-UX is a free toolset that enables a network install of HP-UX onto multiple PA-RISC and/or Integrity servers on a network. It can also be used to create custom install configurations, or golden images, recover systems remotely, create custom recovery media including tape, CD and DVD, and manage and monitor multiple client installation sessions. | |||||||
|
HP Capacity Advisor |
The capacity planning component of HP Insight Dynamics - VSE, HP Capacity Advisor offers the industry's first lightweight, integrated tool for ongoing capacity planning by simulating the placement of application workloads to help IT administrators improve server utilization. It captures real-world server utilization data to pre-test different scenarios before making changes to critical applications. | |||||||
|
HP Virtualization Manager |
The configuration management component of HP Insight Dynamics - VSE, HP Virtualization Manager provides a central point of control that allows you to manage all the resources in your environment, providing a powerful way to connect IT resources to real business needs. With its easy-to-use interface you can see all your available virtual and physicals resources and how they are being used. | |||||||
|
HP Integrity Integrated Lights-Out (iLO) 3 (factory integrated with BL870c i2) |
HP Integrity Integrated
Lights-Out (iLO) management processors make it simpler, faster, and less costly
to remotely manage your Integrity servers. HP Integrity iLO 3, ships with a built
in Advanced Pack License. iLO Advanced features enabled in this release: Virtual
Media, LDAP directory services, iLO power measurement, and integration with Insight
Power Manager. No additional iLO licensing is needed. | |||||||
|
HP Onboard Administrator |
The Onboard Administrator for the HP BladeSystem c7000 enclosure is the brains of the new c-Class infrastructure. Together with the enclosure's HP Insight Display, the Onboard Administrator has been designed for both local and remote administration of HP BladeSystem c-Class. This module and its firmware provides:
NOTE: Please see: http://www.hp.com/go/onbaordadministrator for more information. | |||||||
|
HP Serviceguard Manager |
HP Serviceguard Manager is a graphical user interface (GUI) that provides configuration, administration, and monitoring capabilities for Serviceguard, Serviceguard Extension for RAC, Metrocluster, and Continentalclusters. Using Serviceguard Manager, operators see color-coded icons that provide a big-picture view of multiple clusters. From this big-picture view, operators can drill down and proactively manage clusters, systems (nodes), and packages that run applications. | |||||||
|
HP Systems Insight |
HP Systems Insight Manager (HP SIM) provides a unified, secure and extensible environment to centrally manage servers, storage and other infrastructure devices across multiple operating system platforms. | |||||||
|
HP System Management Homepage |
HP System Management Homepage is a web-based interface that consolidates and simplifies the management of individual ProLiant and Integrity servers running Microsoft Windows or Linux operating systems, or HP 9000 and HP Integrity servers running HP-UX 11i. By aggregating data from HP Insight Management Agents and other management tools, the System Management Homepage provides a secure and intuitive interface to review in-depth hardware configuration and status data, performance metrics, system thresholds and software version control information. The System Management Homepage can also be used to access the HP Lights-Out Management processor on ProLiant and Integrity servers. | |||||||
|
HP Insight Dynamics - VSE for HP Integrity servers |
HP Insight Dynamics - VSE is advanced lifecycle management software for HP Integrity servers which allows you to instantly adjust to dynamic business demands - with the new addition of infrastructure orchestration, not only can you easily plan, configure, and automate your physical and virtual resources in the same way, but now you can also provision and modify a complex infrastructure in minutes. | |||||||
|
HP-UX Software Assistant (SWA) |
HP-UX Software Assistant (SWA) is a command-line based tool that consolidates and simplifies patch management and security bulletin management on HP-UX systems. The SWA tool is new for HP-UX releases and includes Security Patch Check (SPC), and is the HP-recommended utility to use to maintain currency with HP-published security bulletins for HP-UX software. | |||||||
|
HP-UX Workload Manager |
HP-UX Workload Manager (HP-UX WLM) is a resource management tool that provides automatic CPU resource allocation and application performance management based on your service-level objectives (SLOs) and business priorities. WLM is most effective managing applications that are CPU-bound. It automatically adapts system or partition CPU resources (cores) to the demands, SLOs, and priorities of the running applications. (A core is the actual data processing engine within a processor, where a single processor can have multiple cores, and a core can support multiple execution threads through Hyper-Threading, introduced with HP-UX 11i v3, as discussed below.) It adjusts the CPU allocation of a group of processes known as a workload, basing adjustment on the current needs and performance of the applications in that workload. | |||||||
|
HP Global Workload Manager |
The workload management capability for HP Integrity servers is provided by the HP Global Workload Manager component of HP Insight Dynamics - VSE. HP Global Workload Manager (gWLM), is an intelligent policy engine that automatically allocates resources among multiple workloads to increase server utilization while meeting service levels for high-priority applications. Designed to work across multiple HP-UX 11i, OpenVMS and Linux environments, the workload management features are ideal for large, centralized IT environments that host applications for many departments. | |||||||
|
HP Insight Dynamics |
HP Insight Dynamics infrastructure orchestration capabilities let you provision infrastructure in minutes to automatically activate physical and virtual servers, storage, and networking from pools of shared resources. Whether you need a single virtual machine or infrastructure for a complex three-tier application, Insight Dynamics infrastructure orchestration finds available resources, streamlines the approval process, and automatically provisions and configures what's needed across infrastructure silos. Delivering infrastructure to the business becomes faster, more efficient, and more reliable. | |||||||
|
Performance Manager and Agent |
HP Performance Manager, Agents, and Monitor combine to provide a powerful and flexible distributed management solution. This solution is a single interface for centrally monitoring, analyzing, and forecasting resource utilization for distributed multi-vendor environments, enabling you to offer the best possible level of service in a cost-effective manner. | |||||||
|
Process Resource Manager |
HP Process Resource Manager (HP PRM) is a resource management tool used to control the amount of resources that processes use during peak system load. HP PRM can manage allocation of the following resources:
| |||||||
|
Secure Resource Partitions |
One method that HP Insight Dynamics - VSE uses to improve server resource utilization is to consolidate multiple applications within a single operating system image. Secure Resource Partitions combine kernel level security and proven resource management to stack multiple applications within the same operating system. HP Process Resource Manager and HP-UX Workload Manager can dedicate specific resources to specific applications within an operating system image, avoiding resource contention issues. Using HP-UX 11i v3 Security Containment, organizations can ensure that application instances cannot access processes or files from other applications or the system. This ensures that multiple application instances run securely in a consolidated environment, providing the benefits of consolidation while preserving the security of a scale out environment. For software licensing purposes, the maximum number of CPUs in a Secure Resource Partition can be capped. | |||||||
|
Software Distributor-UX |
Software Distributor (SD) is the HP-UX administration tool set used to deliver and maintain HP-UX operating systems and layered software applications. SD is delivered as part of HP-UX; you do not need to download it separately. | |||||||
|
| ||||||||
|
Insight Control for BladeSystem Management |
Insight Control for
BladeSystem delivers foundation management for HP BladeSystem lifecycles, including
hardware resource deployment, health monitoring, software version control, performance
monitoring, and power management.
NOTE: For Licensing
and Packaging Options please see the options section of this QuickSpecs. | |||||||
|
| ||||||||
|
OS Support |
HP-UX 11i v3 Data
Center Operating Environment (DC-OE) | |||||||
|
OpenVMS 8.4 (choice of Mission
Critical, Enterprise, or Foundation Operating Environment) | ||||||||
|
Microsoft Windows Server 2008
for Itanium-based systems | ||||||||
|
| ||||||||
|
Supported Software Options |
HP Insight Dynamics - VSE for HP Integrity servers
(included within both the VSE-OE and DC-OE), which includes the following capabilities
for Integrity blades: | |||||||
|
| ||||||||
|
Intelligent Manageability |
HP Integrity Integrated Lights-Out 3 | |||||||
|
Virtual serial console
(Multiple, mirrored sessions, with previous context and console log buffer)
Dedicated
LAN Connectivity | ||||||||
|
NOTE: iLO 3 Advanced Pack license is included with every BL870c i2 server blade. iLO 3 Advanced Pack features enabled in this release are Virtual Media, LDAP Directory Services Integration, iLO power measurement, and integration with Insight power manager. | ||||||||
|
| ||||||||
|
Availability |
Dual-Port Fibre Channel
Mezzanine Card for redundant SAN connection
NOTE: *Fee based software products. | |||||||
|
| ||||||||
|
Security |
Hardware Security
Platform
security fundamentals
Protecting
data:
Protecting
Identity:
NOTE: HP also offers many additional security features available through open source software for HP-UX. | |||||||
|
Common Criteria certification
Common Criteria certifications continue to be an integral part of our HP-UX comprehensive security portfolio. HP-UX 11i v3 has successfully completed a new Commercial off the Shelf (COTS) Compartmentalized Operations Protection Profile (CCOPP) evaluation. This new CCOPP evaluation encompasses the extensive range of security solution for HP-UX 11i v3 including soft partitioning or Virtual partitions (vPars) as well as the previously certified hard partitions (nPars). | ||||||||
|
| ||||||||
|
Factory Express Portfolio for Servers and Storage |
HP Factory Express
offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions
are built, tested, integrated, shipped and deployed. | |||||||
|
| ||||||||
|
HP Simple Configurator |
SCE is a guided self service tool to help sales and non technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator | |||||||
|
| ||||||||
|
Service and Support |
HP Care Pack Services are available for the HP
Integrity BL870c i2 server blade. These services offer integrated hardware and
software support to help customers maintain a robust, stable, flexible IT environment
that enhances their business agility. They encompass today's most popular products,
including UNIX, Windows and Linux servers, as well as mobile technology, network
devices, desktops, printers, storage solutions, management software and more.
These
products are covered by a global limited warranty and supported by HP Services.
NOTE:
For more information regarding the Blade service portfolio visit our worldwide
web site on the internet at: http://h20219.www2.hp.com/services/cache/81725-0-0-225-121.html | |||||||
Support Services
|
HP Technology Services for Integrity Servers HP Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to HP to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time. Protect your business beyond warranty with HP Care Pack Services HP Care Pack Services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select. NOTE: Care Pack Services availability may vary by product and country. |
|
|
|
Recommended HP Care Pack Services for optimal satisfaction Integrity Servers: |
|
Optimized Care HP Proactive Care Advanced - 24x7 coverage, three year Care Pack Service Achieve a higher return on your product investment with the personal attention from a locally assigned Account Support Manager who delivers recommendations designed to improve availability and performance. Leverage your system’s ability to connect to HP for automated problem detection and rapid critical event management to increase stability and reduce unplanned downtime. This recommendation provides 24x7 coverage with four-hour response for hardware and two-hour callback for supported software. Collaborative call management comes with Proactive Care Advanced or you may choose full support from HP where we own all cases through to resolution. HP is a leading provider of support services for most operating systems used on HP BladeSystem with long, successful partnerships with vendors such as Microsoft, Red Hat, VMware, SUSE and others. Purchasing software support from HP simplifies troubleshooting and shortens time to resolution with one call for hardware or software questions. http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=4AA5-3259ENW&cc=us&lc=en |
|
|
|
Basic Care
HP Proactive Care with 24x7 coverage, three year Care Pack Service HP Proactive Care helps prevent problems and stabilize IT by utilizing secure, real-time, predictive analytics and proactive consultations when your products are connected to HP. This Care Pack Service combines three years’ proactive reporting and advice with our 24x7 coverage and enhanced escalation management, four hour hardware response time and two hour call back for software questions on leading industry standard software running on your HP ProLiant server. http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-8855ENW.pdf |
|
|
|
Related Services
HP Server Hardware Installation Provides
for the basic hardware installation of HP branded servers, storage devices and
networking options to assist you in bringing your new hardware into operation
in a timely and professional manner.
Factory Express for Servers and storage HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.
Data Privacy Services Protect your data through better media management. HP Data privacy services help manage and protect sensitive data to reduce the risk of unauthorized access to private information and help meet compliance requirements. Our retention services allow you to keep drives and other devices upon failure, our removal services provide convenient data sanitization and our recovery services allow you to safely retire IT assets and capture any remaining value from the hardware. www.hp.com/services/dataprivacy Additional HP Care Pack services can be found at: http://www.hp.com/go/cpc |
|
|
|
eSupport |
|
Get connected to HP to improve your support experience
Prevent problems with innovative, automated monitoring tools and proactive services. Combining Proactive Care Services with our remote support technology such as Insight Online provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: www.hp.com/go/proactiveinsightexperience HP Support Center Personalized online
support portal with access to information, tools and experts to support HP business
products. Submit support cases online, chat with HP experts, access support resources
or collaborate with peers. Learn more http://www.hp.com/go/hpsc
|
|
|
|
Parts and Materials
HP will provide HP-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HP due to malfunction. |
Models
|
Base Models | ||
|
HP Integrity BL870c i2 Base Unit for c7000
Enclosure |
Processor(s) |
Four (4) processor sockets; processor modules are configured to order. |
|
Cache Memory |
Included with processors. | |
|
Memory |
Forty eight (48) DIMM sockets; memory DIMMs are configured to order. | |
|
Network Adapter |
Eight (8) NIC ports via (4)
NC532i Dual Port Flex-1010GbE Multifunction Server Adapter | |
|
Storage Controller |
Integrated HP Smart Array p410i SAS Controller | |
|
Hard Drives |
Four SFF SAS drive bays; hard disk drives are configured to order. | |
|
IO expansion |
Six PCIe mezzanine card slots (PCIe Gen2 x8 interface); mezzanine card are configured to order | |
|
Optical Drive |
None internal to blade server | |
|
Integrity iLO 3 |
Integrity iLO 3 Advance Pack license included | |
|
Form Factor |
Supports up to 2 BL870c i2
in HP BladeSystem c3000 Enclosure | |
Configuration Information - Factory Integrated Models
|
NOTE:
This section lists some of the steps required to configure a Factory Integrated
Model. To ensure only valid configurations are ordered, HP recommends the use
of an HP approved configurator. Contact your local sales representative for information
on CTO product offerings and requirements. | ||
|
Step 1: Choose Required Base Server Blade Configuration | ||
|
Base Unit |
HP Integrity BL870c i2 c7000
Server Blade |
AH383A |
|
HP Integrity BL870c i2 c3000
Server Blade |
AM329A | |
|
Configurable Model ships with: |
| |
|
Eight embedded 10 Gigabit Ethernet NIC ports with Flex-10 support plus (1) additional 10/100 NIC dedicated to Integrity iLO 3 Management |
| |
|
Two Integrated HP p410i hardware RAID controller |
| |
|
Four small form factor (SFF) SAS hot plug hard drive bays |
| |
|
HP Integrity Integrated Lights-Out 3 |
| |
|
| ||
|
Step 2: Choose Required Options (one of the following from each list unless otherwise noted): | ||
|
HP Processors |
NOTE: Select minimum two (2) and maximum four (4) processors. | |
|
Quad-Core Processors |
| |
|
HP BL8x0c i2 Itanium 9320 (1.33GHz/4-core/16MB/155W) Processor Kit |
AH386A | |
|
HP BL8x0c i2 Itanium 9340 (1.6GHz/4-core//20MB/185W) Processor Kit |
AH387A | |
|
HP BL8x0c i2 Itanium 9350 (1.73GHz/4-core/24MB/185W) Processor Kit |
AH388A | |
|
Dual-Core Processor |
| |
|
HP BL8x0c i2 Itanium 9310 (1.6GHz/2-core/10MB/130W) Processor Kit |
AH385A | |
|
HP Memory |
NOTE: Select minimum two (2) modules per server and maximum twenty four (24) modules per server if 4 processors ordered. |
|
|
HP Integrity BL8x0c i2 8GB (2x4GB) PC3-10600 Registered CAS 9 Memory Kit |
AM327A | |
|
HP Integrity BL8x0c i2 16GB (2x8GB) PC3-10600 Registered CAS 9 Memory Kit |
AM328A | |
|
HP BL8x0c i2 32GB (2x16GB) PC3-10600 Registered CAS-9 Memory Kit |
AM363A | |
|
NOTE: Memory Modules consist of two individual DIMMs. | ||
|
NOTE: DIMMs must be installed in quads. Therefore, memory modules must be ordered two (2) at a time, to reach quads (4) to be installed. | ||
|
| ||
|
Step 3: Choose Additional Options for Factory Integration | ||
|
HP Hard Drives |
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. |
|
|
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives | ||
|
HP 1.2TB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive |
785079-B21 | |
|
HP 900GB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive |
785075-B21 | |
|
HP 600GB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive |
785073-B21 | |
|
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive |
581284-B21 | |
|
HP 300GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive |
785099-B21 | |
|
HP 450GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive |
785101-B21 | |
|
HP 600GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive |
785103-B21 | |
|
HP 300GB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive |
785071-B21 | |
|
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive |
512547-B21 | |
|
NOTE:
Though the disks are 6Gb/12Gb, implementation of the embedded
|
| |
|
12G SAS Hot Plug Enterprise Performance Solid State Drives | ||
|
HP 200GB 12G SAS Write Intensive SFF 2.5-in 3yr Wty Solid State Drive |
802576-B21 | |
|
HP 400GB 12G SAS Write Intensive SFF 2.5-in 3yr Wty Solid State Drive |
802580-B21 | |
|
|
HP 800GB 12G SAS Write Intensive SFF 2.5-in 3yr Wty Solid State Drive |
802584-B21 |
|
HP Ethernet Mezzanine Options |
HP NC364m Quad Port 1GbE BL-c Adapter |
447883-B21 |
|
NOTE: Provides four additional 1GbE ports. |
| |
|
HP NC360m Dual Port 1GbE BL-c Adapter |
445978-B21 | |
|
NOTE: Provides two additional 1GbE ports. |
| |
|
HP NC532m Dual Port 10GbE Multifunction
BL-c Adapter |
467799-B21 | |
|
HP NC552m 10Gb 2-port Flex-10
Ethernet Adapter |
610609-B21 | |
|
HP FlexFabric Mezzanine Options |
HP NC553m 10Gb 2-port FlexFabric
Adapter |
613431-B21 |
|
NOTE:
Please see the QuickSpecs for Technical Specifications and additional information: |
| |
|
HP Fibre Channel Mezzanine Options |
QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem |
451871-B21 |
|
Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem |
456972-B21 | |
|
NOTE: BL870c i2 supports HP Virtual Connect Fibre Channel Interconnect Modules. See: http://www.hp.com/go/bladesystem/virtualconnect for complete details. |
| |
|
HP Infiniband Mezzanine Options |
HP 4X QDR InfiniBand ConnectX-2 Dual Port Mezzanine HCA for c-Class BladeSystem |
592519-B21 |
|
NOTE:
Provides DDR/QDR InfiniBand connectivity when used in conjunction with HP BLc
4X QDR IB Switch for HP BladeSystem c-Class (PN 489184-B21). |
| |
|
HP Security - TPM |
HP Integrity BL8x0c i2 Trusted Platform Module |
AM331A |
|
NOTE: The TPM must be installed by the factory. |
| |
|
| ||
|
Step 4: Choose Additional Options for Field Upgrades | ||
|
NOTE: For additional
options, please refer to the "Core Options" and "Additional Options" section below.
For additional options, including server blade enclosures interconnect, mezzanine
options and power subsystem options; please see the Core Options and Additional
sections below; or the following: | ||
Additional Options
|
HP Ethernet Mezzanine Options |
HP NC364m Quad Port 1GbE BL-c
Adapter |
447883-B21 | ||
|
HP NC360m Dual Port 1GbE BL-c
Adapter |
445978-B21 | |||
|
HP NC552m 10Gb 2-port Flex-10
Ethernet Adapter |
610609-B21 | |||
|
HP NC532m Dual Port 10GbE Multifunction
BL-c Adapter |
467799-B21 | |||
|
NOTE: Provides Flex-10 connectivity when used in conjunction with the HP Virtual Connect Flex-10 10Gb Ethernet Module for the c-Class BladeSystem Option (P/N 455880-B21). | ||||
|
HP FlexFabric Mezzanine Options |
HP NC553m 10Gb 2-port FlexFabric
Adapter |
613431-B21 | ||
|
NOTE:
Please see the QuickSpecs for Technical Specifications and additional information: |
| |||
|
| ||||
|
HP Fibre Channel Mezzanine Options |
Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem |
456972-B21 | ||
|
QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem |
451871-B21 | |||
|
| ||||
|
HP Processors
|
Quad-Core Processors |
| ||
|
HP BL8x0c i2 Itanium 9320 (1.33GHz/4-core/16MB/155W) Processor Kit |
AH386A | |||
|
HP BL8x0c i2 Itanium 9340 (1.6GHz/4-core//20MB/185W) Processor Kit |
AH387A | |||
|
HP BL8x0c i2 Itanium 9350 (1.73GHz/4-core/24MB/185W) Processor Kit |
AH388A | |||
|
Dual-Core Processor |
| |||
|
HP BL8x0c i2 Itanium 9310 (1.6GHz/2-core/10MB/130W) Processor Kit |
AH385A | |||
|
NOTE: HP Integrity BL870c i2 processor upgrade kits contain one processor. Processors in a given server blade must be identical. No mixing of processor models is allowed. | ||||
|
NOTE: The Integrity BL870c i2 only supports 2, 3 or 4 processor configurations. | ||||
|
| ||||
|
HP Memory |
HP Integrity BL8x0c i2 8GB (2x4GB) PC3-10600 Registered CAS 9 Memory Kit |
AM327A | ||
|
HP Integrity BL8x0c i2 16GB (2x8GB) PC3-10600 Registered CAS 9 Memory Kit |
AM328A | |||
|
HP BL8x0c i2 32GB (2x16GB) PC3-10600 Registered CAS-9 Memory Kit |
AM363A | |||
|
NOTE:
Memory Modules consist of duals of DIMMs |
| |||
|
NOTE: DIMMs must be installed in decreasing capacity with the largest DIMMs installed in the lowest numbered slots. |
| |||
|
| ||||
|
HP Hard Drives |
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. | |||
|
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives |
| |||
|
HP 1.2TB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive |
785079-B21 | |||
|
HP 900GB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive |
785075-B21 | |||
|
HP 600GB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive |
785073-B21 | |||
|
HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive |
581284-B21 | |||
|
HP 300GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive |
785099-B21 | |||
|
HP 450GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive |
785101-B21 | |||
|
HP 600GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive |
785103-B21 | |||
|
HP 300GB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive |
785071-B21 | |||
|
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive |
512547-B21 | |||
|
NOTE:
Though the disks are 6Gb/12Gb, implementation of the embedded |
| |||
|
12G SAS Hot Plug Enterprise Performance Solid State Drives |
| |||
|
HP 200GB 12G SAS Write Intensive SFF 2.5-in 3yr Wty Solid State Drive |
802576-B21 | |||
|
HP 400GB 12G SAS Write Intensive SFF 2.5-in 3yr Wty Solid State Drive |
802580-B21
| |||
|
HP 800GB 12G SAS Write Intensive SFF 2.5-in 3yr Wty Solid State Drive |
802584-B21 | |||
|
NOTE:
Please see the QuickSpecs for Technical Specifications and additional information
related to HDDs: |
| |||
|
| ||||
|
HP Integrity Upgrade Kits |
HP Integrity BL8x0c i2 Upgrade
Blade |
AM360A | ||
|
HP Integrity BL2 Blade Link
Upgrade |
AM358A | |||
|
HP Integrity BL2-c7E Blade
Link Upgrade |
AM364A | |||
|
HP Integrity BL2-c3E Blade
Link Upgrade |
AM365A | |||
|
HP Integrity BL4 Blade Link
Upgrade |
AM359A | |||
|
HP Integrity BL4-c3 Blade Link
Upgrade |
AM366A | |||
|
| ||||
|
HP Smart Array Controller |
HP Smart Array P711m/1G 6Gb
FBWC 4-ports Ext Mezzanine SAS Controller |
513778-B21 | ||
|
Optional Upgrade |
| |||
|
HP Smart Array P-Series Low Profile Battery |
452348-B21 | |||
|
NOTE:
The P700M will function as a SAS RAID controller when connected to MDS600 disk
subsystem via the Storage 3Gb SAS Switch. In the RAID mode, HP-UX 11i v3 and integrity
for Windows 6.2 are supported. |
| |||
|
| ||||
|
HP Infiniband Mezzanine Options |
HP 4X QDR InfiniBand ConnectX-2
Dual Port Mezzanine HCA for c-Class BladeSystem |
592519-B21 | ||
|
| ||||
|
HP Ethernet Interconnects |
HP Virtual Connect FlexFabric
10Gb/24-port Module for c-Class BladeSystem |
571956-B21 | ||
|
| ||||
|
HP Storage Blade |
HP
D2200sb PCIe Storage Blade |
AP880A | ||
|
| ||||
|
HP USB Options |
HP Integrity USB External DVD/RW Drive |
AT120B | ||
|
NOTE:
The HP Integrity USB External DVD-RW drive solution includes the External DVD
drive (AT120B) with 9 inch USB cable, power adaptor, power cable and Y-connector
and 6-foot USB extension cable. |
| |||
|
| ||||
|
HP Care Pack Services |
HP offers a
range of support services and additional services. For a complete listing of services,
see: |
| ||
|
HP Critical Service |
| |||
|
HP CP 1Y Critical Service |
HA112A1 | |||
|
HP CP 3Y Critical Service |
HA112A3 | |||
|
Installation Services |
| |||
|
HP CP Installation |
HA113A1 | |||
|
NOTE: For more information: http://www.hp.com/services/bladesystemservices. |
| |||
Memory
|
DIMM installation guidelines:
| ||
|
HP Integrity BL870c i2 Server Blade | ||
|
Standard Memory | ||
|
| ||
|
Following are memory options available from HP: | ||
|
HP Memory |
HP Integrity BL8x0c i2 8GB (2x4GB) PC3-10600 Registered CAS 9 Memory Kit |
AM327A |
|
HP Integrity BL8x0c i2 16GB (2x8GB) PC3-10600 Registered CAS 9 Memory Kit |
AM328A | |
|
HP BL8x0c i2 32GB (2x16GB) PC3-10600 Registered CAS-9 Memory Kit |
AM363A | |
|
NOTE: Must be installed in quads. Therefore, must install two (2) AM327 memory modules at a time. |
| |
|
NOTE: DIMMs must be installed in decreasing capacity with the largest DIMMs smallest numbered slot. |
| |
Storage
|
|
1-4 |
4 x SFF SAS Hot Plug Hard Drives | |||
|
| |||||
|
Hard Drives | |||||
|
SAS Hard Drive | |||||
|
|
Quantity |
Position |
Controller | ||
|
1.2TB 12G 10K SFF 900GB
12G 10K SFF 450GB 12G 15K SFF 600GB
12G 15K SFF |
4 |
1-4 |
HP Smart Array P410i Controller | ||
|
6G SAS Hot Plug Enterprise
Performance Solid State Drives | |||||
|
|
Quantity |
Position |
Controller | ||
|
200GB/400GB/800GB 12G SLC SFF |
2 |
1-2 |
HP Smart Array P410i Controller | ||
Power Specifications
|
NOTE: The HP Power Advisor is a tool provided by Hewlett-Packard to assist in the estimation of power consumption and proper selection of components including power supplies at a system, rack, and multi-rack level. A variety of additional features are also provided including a condensed bill of materials, a cost of owner ship calculator, and a power report. For additional information please visit: HP Power Advisor: http://h18004.www1.hp.com/products/solutions/power/index.html |
Technical Specifications
|
System Unit |
Dimensions |
Height |
14.42 in (36.63 cm) | ||
|
Depth |
20.05 in (50.93 cm) | ||||
|
Width |
4.13 in (10.49 cm) | ||||
|
Shipping Dimensions |
Height |
20.28 in (51.51 cm) | |||
|
Depth |
26.57 in (67.49 cm) | ||||
|
Width |
11.42 in (29.00 cm) | ||||
|
Weight |
Maximum |
53 lbs. (24.04 kg) | |||
|
Temperature Range* |
Operating |
10° to 35° C (50° to 95° F) | |||
|
Non-Operating |
-40° to 60° C (-40° to 140° F) | ||||
|
Storage |
-20° to 60° C (-4° to 140° F) | ||||
|
Maximum Wet Bulb |
30° C (86° F)
| ||||
|
Relative Humidity** |
Operating |
15% to 80% | |||
|
Shipping |
10% to 90% | ||||
|
Storage |
10% to 90% | ||||
|
*All temperature
ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F
per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed.
Upper operating limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating
limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia. | |||||
|
| |||||
|
SAS RAID HP p410i Controller |
Disk Drive and Enclosure Interface |
3Gb SAS (Serial Attached SCSI) | |||
|
SAS Connectors |
4 internal (SFF8484) x4 wide port connectors. | ||||
|
Cache Memory Speed |
DDR2-800 memory provides up to 4.2GB/s maximum bandwidth | ||||
|
Server Interface |
X1 5.0Gbps PCIe provides 1.0GB/s maximum bandwidth | ||||
|
SAS Speed |
Fourx1 3G SAS provides 1200MB/s maximum bandwidth. | ||||
|
Cache Memory |
Not supported. | ||||
|
Logical Drives Supported |
Up to 2 logical volumes | ||||
|
Maximum Logical Drive Capacity |
Up to 64 logical | ||||
|
Host Memory Addressing |
64-bit, supporting greater than 4GB server memory space | ||||
|
RAID Support |
RAID 0 (striping), RAID 1 (mirroring), and 1+0 (Mirroring and striping) (not supported with BL8x0c i2 blades) | ||||
|
Upgradeable Firmware |
Upgradeable Firmware with Recovery
ROM features | ||||
|
| |||||
|
Embedded Dual NC532i Broadcom BCM57711E 10 Gigabit NICs with Flex-10 support |
Network Interface |
1000Base-SX | |||
|
Compatibility |
IEEE 802.3ab 1000Base-Sx | ||||
|
Data Transfer Method |
PCI Express, four lanes (x4) | ||||
|
Network Transfer Rate |
1Dual 10Gb ports offer up to 40Gb/s bidirectional theoretical throughput | ||||
|
| |||||
|
Environment-friendly Products and Approach |
End-of-life Management and Recycling |
Hewlett-Packard offers end-of-life HP product
return, trade-in, and recycling programs in many geographic areas. For trade-in
information, please go to: http://www.hp.com/go/green.
To recycle your product, please go to: http://www.hp.com/go/green
or contact your nearest HP sales office. Products returned to HP will be recycled,
recovered or disposed of in a responsible manner. | |||
|
| |||||
Summary of Changes
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Date |
Version History |
Action |
Description of Change: |
|
01-Jun-2015 |
From Version 21 to 22 |
Changed |
Information updated in storage section. |
|
Added |
Skus added in Configuration Information - Factory Integrated Models and Core options · 802576-B21 · 802580-B21 · 802584-B21 | ||
|
Removed |
Skus removed in Configuration Information - Factory Integrated Models and core options · 632492-B21 · 632494-B21 | ||
|
30-Mar-2015 |
From Version 20 to 21 |
Changed |
Configuration Information - Factory integrated models and Storage sections were updated |
|
Added |
Skus Added: · 785079-B21 · 785075-B21 · 785073-B21 · 785099-B21 · 785101-B21 · 785103-B21 · 785071-B21 | ||
|
Removed |
Skus deleted: · 718160-B21 · 619291-B21 · 581286-B21 · 627117-B21 · 507127-B21 | ||
|
01-Dec-2014 |
From Version 19 to 20 |
Changed |
Standard Features, Support Services, Configuration Information - Factory Integrated Models, Core Options and Memory sections were updated |
|
Added |
Technology Services for Integrity Servers and Protect your business beyond warranty with HP Care Pack Services sections were added to Support Services | ||
|
Removed |
Obsolete skus deleted:
· 507125-B21 · 512545-B21 · 580151-B21 · 508226-B21 · 411243-B21 · BS580A · AQ697A | ||
|
18-Apr-2014 |
From Version 18 to 19 |
Changed |
Service and Support and Basic Care were revised. |
|
10-Dec-2013 |
From Version 17 to 18 |
Added |
HP 1.2TB 6G SAS 10K rpm SFF Dual Port Enterprise 3yr Warranty Hard Drive was added to Hard Drives. |
|
24-Sep-2012 |
From Version 16 to 17 |
Changed |
Changes made in Standard Features section. |
|
07-May-2012 |
From Version 15 to 16 |
Changed |
Memory was revised throughout. |
|
10-Feb-2012 |
From Version 14 to 15 |
Changed |
Changes made to the USB Options sections. And the Support Services section was added. |
|
14-Nov-2011 |
From Version 13 to 14 |
Changed |
FlexFabric Support, Smart Array Controller Support, Supported Software Options, HP FlexFabric Mezzanine Options and Hard Drives were revised. |
|
30-Sep-2011 |
From Version 12 to 13 |
Changed |
Changes made within the Overview, Standard Features, Configuration Information and Options sections. |
|
02-Aug-2011 |
From Version 11 to 12 |
Changed |
Hard Drives Descriptions changes made. |
|
20-Jun-2011 |
From Version 10 to 11 |
Changed |
6G SAS Hot Plug Enterprise Performance Solid State Drives were added to Hard Drives HP Ultrium Tape Drives removed from Additional Options |
|
09-May-2011 |
From Version 9 to 10 |
Changed |
Processor descriptions were revised Maximum internal storage was increased to 3.6TB HP 900GB 6G SAS 10K rpm SFF Enterprise Drive was added to Hard Drives |
|
15-Apr-2011 |
From Version 8 to 9 |
Added |
FlexFabric Support and InfiniBand Support were added to Standard Features HP BLc NC551m Dual Port FlexFabric 10Gb Converged Network Adapter was added to HP Ethernet Mezzanine Options HP c-Class Mezzanine Options was added to Step 3 HP Ethernet Interconnects was added to Additional Options |
|
18-Mar-2011 |
From Version 7 to 8 |
Changed |
Models, Processors, Memory and Fibre Channel Mezzanine Options product descriptions were revised HP USB Options was added to Standard Features and Additional Options |
|
15-Nov-2010 |
From Version 6 to 7 |
Changed |
Maximum memory was increased to 768GB, Smart Array Controllers and HP Ultrium Tape Blade product descriptions were modified, Intel Itanium Processor 9310 was added, HP BL8x0c i2 32GB (2x16) PC3-10600R-9 Kit was added to Memory, HP Integrity Upgrade Kits was added to Additional Options and SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives were removed from Hard Drives. |
|
08-Oct-2010 |
From Version 5 to 6 |
Changed |
Hot Plug SAS Maximum Internal Storage was increased to 2.4TB, 8Gb Fibre Channel Host Bus Adapter product descriptions were revised in Fibre Channel on the HP Integrity BL870c i2 server blade, Smart Array Controller Support was revised and HP 450GB and 600GB 6G SAS 10K rpm SFF Dual Port Enterprise Hard Drives were added to Hard Drives. |
|
20-Aug-2010 |
From Version 4 to 5 |
Changed |
Note was added to HP Onboard Administrator in Glossary of Integrity Server Blades Management Software Product Description and HP BladeSystem c3000 tower enclosure was removed from At A Glance Enclosures. |
|
09-Aug-2010 |
From Version 3 to 4 |
Changed |
Revised the images to reflect the correct callout line style. |
|
19-Jul-2010 |
From Version 2 to 3 |
Changed |
Maximum memory was increased to 384 GB Hard Drive and Ethernet Mezzanine Options descriptions were revised Power Specifications note was completely revised What's New was added to Overview OpenVMS 8.4 and Microsoft Windows Server 2008 for Itanium-based systems were added to OS Systems HP BL8x0c i2 16GB Memory was added HP Integrity BL870c i2 Bundles were added to Core Options |
|
07-May-2010 |
From Version 1 to 2 |
Changed |
Changes made within the Standard Features, Models and Technical Specifications sections. |
|
©
Copyright 2015 Hewlett-Packard Development Company, L.P.
| |||
