Intel Omni-Path Director Switch Series

The Intel® Omni-Path Director Switches are based on the Intel® Omni-Path Architecture. The Intel® Omni-Path Architecture is designed for interconnecting the High Performance Computing (HPC) system resources, using a scalable, 100 Gbps, low-latency fabric. The Intel Omni-Path Director Switches effectively supports clusters with thousands of servers; larger fabrics are possible when the Director Switches are combined with the Intel® Omni-Path 1U Edge Switches.

The Intel Omni-Path Switch is ideal for customers who deploy high-performance computing (HPC) clusters based on HPE ProLiant XL and DL Servers using the Intel Omni-Path technology.

Key features

• Modular Director Class Switches
• Maximum of 768 ports, in 32-port increments, each providing 100 Gbps performance
• Scales up to 19.2 Terabytes per second (TB/s) aggregate bandwidth
• Optimized for message rate and latency
• Multiple Virtual Lanes (VLs) per physical port
• Supports virtual fabric partitioning
• System design supports full redundancy
• Integrated chassis management capabilities for installation, configuration, and ongoing monitoring

Features and benefits

Switch Specifications

• Based on Intel® Omni-Path Switch Silicon 100 Series 48 Port ASIC
• 100 Gbps per port bidirectional
• Virtual lanes (VLs): Configurable from one to eight VLs plus one management VL
• Configurable MTU size of 2 KB, 4 KB, 8 KB, or 10KB
• Maximum multicast table size: 8192 entries
• Maximum unicast table size: 49151 entries
• Supports QSFP28 passive copper and active optical cables

Chassis Management

• Modular Chassis Management Module

- Q7 Intel® Atom^TM processor-based board

- Enables command line interface and chassis management GUI through 10/100/1000 Base-T Ethernet

- Enables serial console through USB serial port

- Chassis requires one Management Module, redundant module is optional

• Management Features

- Chassis Management

- Command Line Interface (CLI) through serial port or Out of Band (OOB) Ethernet

- GUI through Out of Band Ethernet (via HTTP)

- Protocol Enablement: Network Time Protocol (NTP), SNMP/MIBs, LDAP

Connectors and cabling

• The Line Board has QSFP28 ports
• Support passive copper and active optical cables

Warranty and support

• 3-year warranty, On Site, next business day response

Intel Omni-Path Director Switch Series

Models

Intel Omni-Path Architecture 192-port QSFP28/288-port Optical Director Switch Chassis

829912-B21

Intel Omni-Path Architecture 768-port QSFP28/1152-port Optical Director Switch Chassis

829913-B21

Intel Omni-Path Architecture Director Switch Fabric Board

829914-B21

Intel Omni-Path Architecture 32-port QSFP28 Director Switch Line Board

829915-B21

Intel Omni-Path Architecture Director Switch Management Module

829916-B21

Intel Omni-Path Architecture Director Switch Power Supply Module

846041-B21

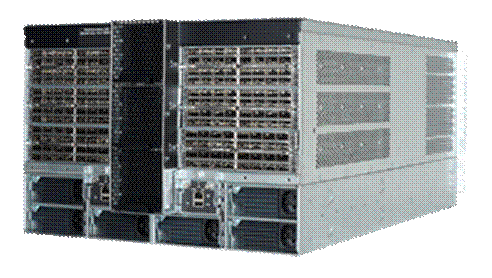

Intel Omni-Path Architecture 192-port QSFP28/288-port Optical Director Switch Chassis

829912-B21

• 7U Chassis
• Up to Six (6) Line Boards, each with 32 QSFP28 ports

- None included

• Up to Two (2) Fabric Boards

- None included

• Up to Two (2) Management Modules

- One (1) included

• Up to Four (4) Power Supplies

- Three (3) included, N+1 redundant, hot swappable

- Three (3) PDU Power Cords C20-C21 included

• Three (3) Fan Module included

- N+1 redundant, hot swappable

• Rack rail kit included

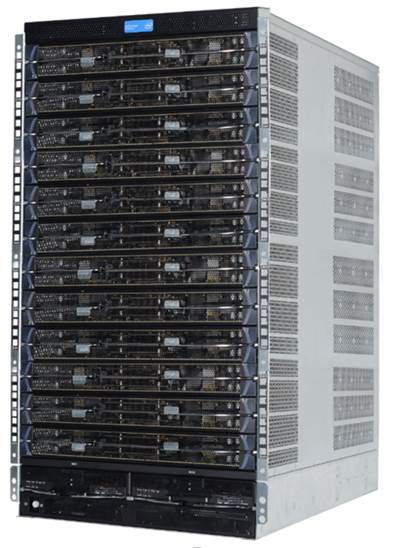

Intel Omni-Path Architecture 768-port QSFP28/1152-port Optical Director Switch Chassis

829913-B21

• 20U Chassis
• Up to twenty-four (24) Line Boards, each with 32 QSFP28 ports

- None included

• Up to Eight (8) Fabric Boards

- None included

• Up to Two (2) Management Modules

- One (1) included

• Up to Twelve (12) Power Supplies

- Seven (7) included, N+1 redundant, hot swappable

- Seven (7) PDU Power Cords C20-C21 included

• Nine (9) Fan Module included

- N+1 redundant, hot swappable

• Rack rail kit included

Intel Omni-Path Architecture Director Switch Fabric Board

829914-B21

• Hot Swappable
• Two (2) Status LEDs (Green)
• Two (2) Attention LEDs (Amber)

Intel Omni-Path Architecture 32-port QSFP28 Director Switch Line Board

829915-B21

• Hot Swappable
• Thirty-Two (32) 100Gbps QSFP28 ports
• Thirty-Two (32) Link Status LEDs (Green)
• Two (2) Board Status LEDs (Green)
• Two (2) Board Attention LEDs (Amber)

Notes: See Related Options for supported cables

Intel Omni-Path Architecture Director Switch Management Module

829916-B21

• Hot Swappable
• One (1) Chassis Status LED (Green)
• One (1) Chassis Attention LED (Amber)
• One (1) Module Status LED (Green)
• One (1) Module Attention LED (Amber)
• One (1) Mechanical Release Latch (Green)
• One (1) Main LED - ON: Management Unit in Control

Intel Omni-Path Architecture Director Switch Power Supply Module

846041-B21

• Hot Swappable
• 180-240 VAC 50-60Hz (2500W rated)
• IEC320-C22 (mating connector IEC320-C21)
• One (1) AC Good LED (Green)
• One (1) DC Good LED/Alarm (Green/Amber/Red)

Supported cables for Intel Omni-Path Switches

Passive Copper cables

HPE 0.5m 100Gb QSFP28 Omni-Path Architecture Copper Cable

830024-B21

HPE 1m 100Gb QSFP28 Omni-Path Architecture Copper Cable

830024-B22

HPE 1.5m 100Gb QSFP28 Omni-Path Architecture Copper Cable

830024-B23

HPE 2m 100Gb QSFP28 Omni-Path Architecture Copper Cable

830024-B24

HPE 3m 100Gb QSFP28 Omni-Path Architecture Copper Cable

830024-B25

Active Optical cables

HPE 3M 100Gb QSFP28 Omni-Path Optical Power Class 2 Cable

881204-B21

HPE 5M 100Gb QSFP28 Omni-Path Optical Power Class 2 Cable

881204-B22

HPE 7M 100Gb QSFP28 Omni-Path Optical Power Class 2 Cable

881204-B23

HPE 10M 100Gb QSFP28 Omni-Path Optical Power Class 2 Cable

881204-B24

HPE 15M 100Gb QSFP28 Omni-Path Optical Power Class 2 Cable

881204-B26

HPE 20M 100Gb QSFP28 Omni-Path Optical Power Class 2 Cable

881204-B27

HPE 30M 100Gb QSFP28 Omni-Path Optical Power Class 2 Cable

881204-B28

HPE Pointnext - Service and Support

Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges.  Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.

Consume IT on your terms

HPE GreenLake brings the cloud experience directly to your apps and data wherever they are—the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

Managed services to run your IT operations

HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

Recommended Services

HPE Pointnext Tech Care.

HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Pointnext Complete Care

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.  HPE Pointnext Complete Care provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Other related Services

HPE Server Hardware Installation

Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

http://h20195.www2.hpe.com/V2/GetPDF.aspx/5981-9356EN.pdf

HPE Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. Hewlett Packard Enterprise products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.

HPE Technology Services Support Credits offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.

Safety

US/Canada

• TUV NRTL: UL 60950-1, CSA 22.1.No. 60950-1

Europe

• TUV: EN60950-1

International

• CB Scheme: IEC 60950-1

Customs Union: Russian Federation, Belarus and Kazakhstan

• GOST R IEC 60950-1
• GOST R 51318.22
• GOST 30805.24
• GOST R 51317.3.2 (Section 6, 7)
• GOST R 51317.3.3

Emissions

US/Canada

• FCC Part 15, Subpart B, Class A
• CAN ICES-3 (A)/NMB-3(A)

Europe/International

• CISPR22
• CISPR32/EN55032
• EN55024
• EN61000-3-2
• EN61000-3-3

Japan

• VCCI, Class A

Australia/New Zealand

• AS/NZS CISPR 22, Class A

Korea

• RRA/KC (KN32, KN35), Class A

Taiwan

• BSMI (CNS 13438), Class A

Customs Union: Russian Federation, Belarus and Kazakhstan

• TR CU 020/2011 "Electromagnetic compatibility of technical equipment"

RoHS/REACH

• Complies with RoHS II Directive 2011/65/EU of the European Parliament
• Complies with REACH Regulation (EC) No 1907/2006

Fabric Management

The Intel® Omni-Path Fabric Suite Fabric Manager (FM) is required to be deployed as a host-based solution for a Director Class Switch. The host solution uses the Intel® Omni-Path Fabric stack running on a Linux Server to make use of the large memory resources and high speed processor technology of standard servers to access and manage the fabric.

Date

Version History

Action

Description of Change

15-Nov-2021

Version 5

Changed

Service and Support section was updated.

01-Feb-2021

Version 4

Changed

Configuration Information section was updated

04-Dec-2017

Version 3

Changed

Add SKUs to the Related Options section

25-Sep-2017

Version 2

Changed

Updates throughout the QuickSpecs

06-Jun-2016

Version 1

New

New QuickSpecs

© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

To learn more, visit http://www.hpe.com/networking

c05069310 - 15593 - Worldwide  - V5 - 15-November-2021
