HPE ProLiant XL230k Gen10 Server

The HPE ProLiant XL230k Gen10 Server delivers extreme compute performance using leading edge technology needed to handle complex HPC workloads. This server leverages the latest select Intel's Xeon Gold and Platinum series processors with support for DDR4 2933 MT/s HPE Smart Memory.

The new modular, fully integrated, and highly flexible HPE Apollo k6000 Chassis accommodates up to 24 XL230k server trays, ethernet and high speed fabric switches to address various HPC workload needs. The Apollo k6000 System is a performance optimized, air-cooled solution. This solution offers outstanding configuration flexibility, redundant power, simplified administration and rack-scale efficiency that lowers the total cost of ownership needed for mass scale HPC deployments.

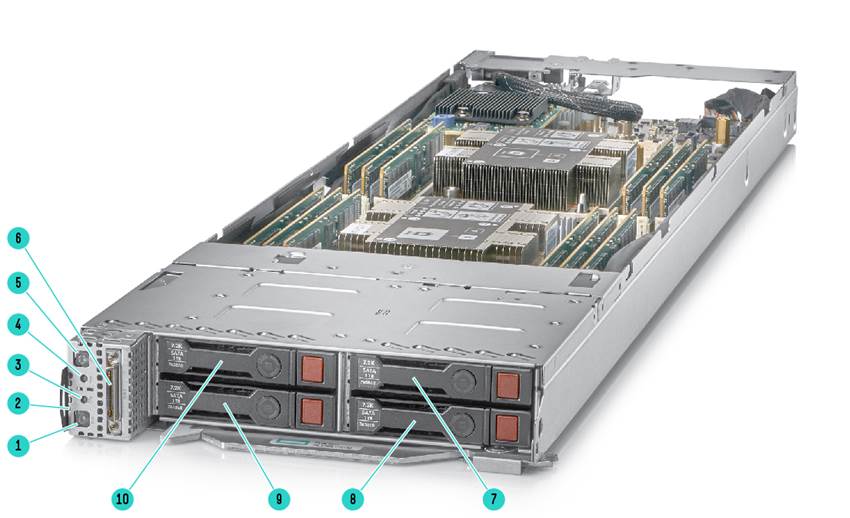

Front View

 Item

Description

 Item

Description

1.

UID LED/Button

6.

SUV Connector

2.

Serial label pull tab

7.

Drive bay 3

3.

NIC LED

8.

Drive bay 4

4.

Health LED

9.

Drive bay 2

5.

Power On/Standby button and system power LED

10.

Drive bay 1

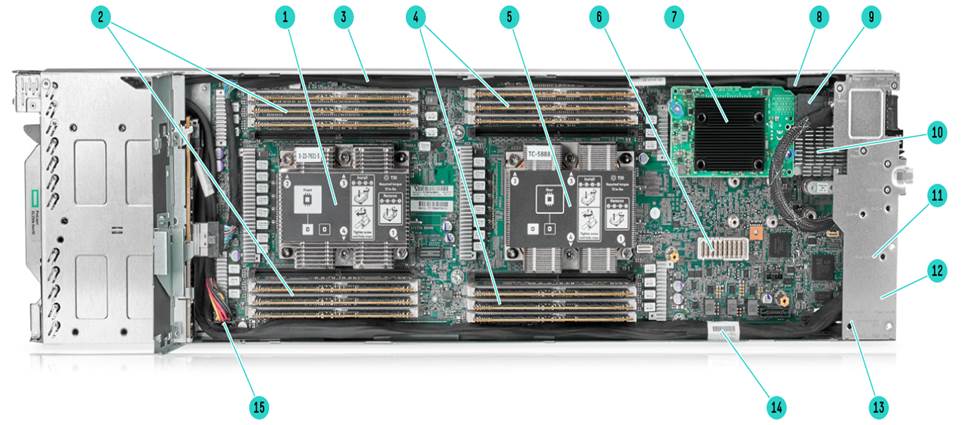

Top View

 Item

Description

 Item

Description

1.

Processor 2

9.

Mezz A egress cable

2.

Processor 2 DIMM slots

10.

Chipset

3.

NVMe riser connector

11.

Front panel SUV cable connector (under the bracket)

4.

Processor 1 DIMM slots

12.

Front panel LED cable connector (under the bracket)

5.

Processor 1

13.

System battery (under the bracket)

6.

Mezzanine B connector

14.

PCIe riser connector

7.

Mezzanine A connector

15.

Drive backplane power connector

8.

SATA cable connector

Notes: For proper cooling, do not operate the server without the access panel, air baffles, expansion slot covers, or blanks installed.

What's New

• Support for Intel's Cascade Lake Processors (CLX-SP)
• PCIe options cards
• New memory size and speed support
• New SSD and drive options

Processors

Intel Xeon Models

CPU Frequency

Cores

L3 Cache

Power

UPI

DDR4 MT/s

Memory per socket

Platinum Processors

1st Generation Intel Xeon Scalable Processor Family

Platinum 8180 Processor

2.5 GHz

28

38.50 MB

205W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8170 Processor

2.1 GHz

26

35.75 MB

165W

3 @ 10.4 GT/s

2666 MT/s

768 GB

2nd Genetation Intel Xeon Scalable Processor Family

Platinum 8260 Processor

2.4 GHz

24

35.75 MB

165W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Platinum 8268 Processor

2.9 GHz

24

35.75 MB

205W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Platinum 8270 Processor

2.7 GHz

26

35.75 MB

205W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Platinum 8276 Processor

2.2 GHz

28

38.50 MB

165W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Platinum 8280 Processor

2.7 GHz

28

38.50 MB

205W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold Processors

1st Generation Intel Xeon Scalable Processor Family

Gold 6154 Processor

3.0 GHz

18

24.00 MB

200W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6152 Processor

2.1 GHz

22

30.25 MB

140W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6150 Processor

2.7 GHz

18

24.75 MB

165W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6148 Processor

2.4 GHz

20

27.50 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6146 Processor

3.2 GHz

12

24.00 MB

165W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6144 Processor

3.5 GHz

8

24.75 MB

145W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6142 Processor

2.6 GHz

16

22.00 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6140 Processor

2.3 GHz

18

24.75 MB

140W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6138 Processor

2.0 GHz

20

27.50 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6137 Processor

3.9 GHz

8

24.75 MB

205W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6136 Processor

3.0 GHz

12

24.75 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6134 Processor

3.2 GHz

8

24.75 MB

130W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6132 Processor

2.6 GHz

14

19.25 MB

140W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6130 Processor

2.1 GHz

16

22.00 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6128 Processor

3.4 GHz

6

19.25 MB

115W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6126 Processor

2.6 GHz

12

19.25 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 5122 Processor

3.6 GHz

4

16.50 MB

105W

2 @ 10.4 GT/s

2400 MT/s

768 GB

2nd Generation Intel Xeon Scalable Processor Family

Gold 6230 Processor

2.1 GHz

20

27.50 MB

125W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6242 Processor

2.8 GHz

16

22.00 MB

150W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6244 Processor

3.6 GHz

8

24.75 MB

150w

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6246 Processor

3.3 GHz

12

24.75 MB

165W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6248 Processor

2.5 GHz

20

27.50 MB

150W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6240 Processor

2.6 GHz

18

24.75 MB

150W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6252 Processor

2.1 GHz

24

35.75 MB

150W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6254 Processor

3.1 GHz

18

24.75 MB

200W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 5222 Processor

3.8 GHz

4

16.50 MB

105W

2 @10.4 GT/s

2666 MT/s

1 TB

Gold 6250 Processor

3.9 GHz

8

35.75 MB

185W

3 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6256 Processor

3.6 GHz

12

33 MB

205W

3 @ 10.4 GT/s

2933

1TB

Gold 6258R Processor

2.7 GHz

28

38.5 MB

205W

2@ 10.4 GT/s

2933

1TB

Gold 6248R Processor

3.0 GHz

24

35.75 MB

205W

2@ 10.4 GT/s

2933

1TB

Gold 6246R Processor

3.4 GHz

16

35.75 MB

205W

2@ 10.4 GT/s

2933

1TB

Gold 6242R Processor

3.1 GHz

20

35.75 MB

205W

2@ 10.4 GT/s

2933

1TB

Gold 6240R Processor

2.4 GHz

24

35.75 MB

165W

2@ 10.4 GT/s

2933

1TB

Gold 6238R Processor

2.2GHz

28

38.5 MB

165W

2@ 10.4 GT/s

2933

1TB

Gold 6230R Processor

2.1 GHz

26

35.75 MB

150W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 6226R Processor

2.9 GHz

16

22MB

150W

2 @ 10.4 GT/s

2933 MT/s

1 TB

Gold 5220R Processor

2.2 GHz

24

35.75 MB

150W

2 @ 10.4 GT/s

2667 MT/s

1 TB

Gold 5218R Processor

2.1 GHz

20

27.5 MB

125W

2 @ 10.4 GT/s

2667 MT/s

1 TB

Silver Processors

2nd Generation Intel Xeon Scalable Processor Family

Silver 4214R Processor

2.4 GHz

12

16.5 MB

100W

2 @ 9.6 GT/s

2400 MT/s

1 TB

Silver 4210R Processor

2.4 GHz

10

13.75 MB

100W

2 @ 9.6 GT/s

2400 MT/s

1 TB

Bronze Processors

2nd Generation Intel Xeon Scalable Processor Family

Bronze 3206R Processor

1.9 GHz

8

11 MB

85W

2 @ 9.6 GT/s

2133 MT/s

1 TB

Notes:

- Bronze & Silver processor support not available in EMEA or Japan.

- If more then 1 processor is selected  within the server they must be identical and paired using -B21 and -B22 SKUs for front and rear processor sockets

- Select processors may limit the system's inlet ambient support to 25°C. Please see the table in technical specifications below for Gold 6137, Gold 6250 & Gold 6256

- Gold 5122 processors supports 2666 MT/s DDR4 memory up to 2400 MT/s

- Gold 6137, Gold 6250 and 6256 require the HPE Apollo FIO Airflow HDD removal Kit (882054-B21)

- The Gold 6137, 6144, 6146, 6154, 6244, 6250, 6254, 6256, 6258R, 6248R, 6242R and Platinum 8180, 8268, 8270, 8276, 8280 processors are limited to a maximum of 6 DIMMs per CPU.

Chipset

Intel® C622 Chipset (Intel EY82C622 PCH)

Notes: For more information regarding Intel® chipsets, please see the following URL:

http://www.intel.com/products/server/chipsets/

HPE iLO 5 ASIC

Notes: Read and learn more in the iLO QuickSpecs

Memory

Notes:

- HPE memory from previous generation servers is not supported with the HPE ProLiant XL230k Gen10 Server.

- For additional information, please see the HPE Smart Memory QuickSpecs at:

https://www.hpe.com/h20195/v2/GetPDF.aspx/c04355083.pdf

- LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.

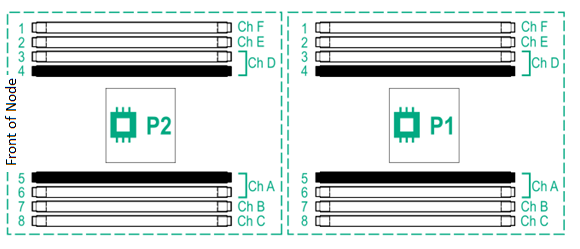

- For DIMM population, please see Memory Population Table at: http://www.hpe.com/docs/memory-population-rules

or the Online Memory Configuration Tool at: http://h22195.www2.hpe.com/MemoryTool/Home/Legal

Memory Protection

Advanced ECC

Detects and corrects multi-bit memory errors. Advanced ECC can detect and correct up to 4-bit memory errors if all failed bits are on the same 4-bit DRAM device on the DIMM, thus enabling continued memory operation.

Online Spare with Advanced ECC Support

Provides protection against persistent DRAM failure. A rank that is starting to degrade making it more likely to receive a fatal/uncorrectable memory error is automatically removed from operation, swapping operation to the spare, thus resulting in less system downtime.

Memory Mirroring with Advanced ECC Support

Provides protection against uncorrectable memory errors that would otherwise result in system failure. In this mode, the system maintains two copies of all data. If an uncorrectable memory error occurs, the system automatically retrieves the good data from the mirrored (redundant) copy.

Use this option to select from the available Memory Mirroring modes.

• Full Mirror - reserves 50% of the total available memory for mirroring.
• Partial Mirror (20% above 4GB) - reserves 20% of the total available Memory above 4GB for Mirroring.
• Partial Mirror (10% above 4GB) - reserves 10% of the total available Memory above 4GB for Mirroring.
• Partial Mirror (Memory below 4GB) - depending on the memory configuration, sets up 2GB or 3GB of lower memory below 4GB for Mirroring.
• Partial Mirror (OS Configured) - sets up the system to configure Partial Mirroring at OS level.

HPE Fast Fault Tolerance

Fault Tolerant Advanced Double Device Data Correction (ADDDC) enables the system to correct memory errors and continue to operate in cases of multiple DRAM device failures on a DIMM. This provides protection against uncorrectable memory errors beyond what is available with Advanced ECC.

Expansion Slots

Notes:

- External PCIe riser requires ordering the HPE Apollo Server Tray IO Mod Opt kit 868858-B21

- Internal Mezzanine B slot will be unavailable with above PCIe options.

- *Indicates the number of electrical lanes running to the connector.

Storage Controllers

Notes: HPE S100i 6G SATA FIO cable SKU 866784-B21 is required for front SATA drive support

Essential RAID

• HPE Smart Array E208i-p SR Gen10 Controller

Notes: The Smart Array E208i-p requires cable kit SKU 866786-B21

• HPE Smart Array E208e-p SR Gen10 Controller

Notes: The Smart Array E208e-p controllers supports external JBODs and requires external PCIe riser kit

Performance RAID

HPE Smart Array P408i-p SR Gen10 Controller

Notes:

- The Smart Array P408i-p above requires cable kit SKU 866786-B21

- The Smart Array P408i-p controller requires HPE XL230k 12W Smart Storage Battery

Storage Controller Cable Kits

• HPE Smart Array E208i-/P408i-p SAS Cable
• HPE Smart Array S100i 6G SATA FIO Cable

Other Storage Controller Options

HPE XL230k 12W Smart Storage Battery Kit

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server

• Windows 2012 R2 Standard, Datacenter, Essentials & Hyper-V
• Windows Server 2016 Standard Datacenter & Hyper-V Server
• Windows server 1709 (Server Core Only) Standard & Datacenter

Red Hat Enterprise Linux (RHEL) 7

• RHEL 7.6 (64 bit) (includes KVM)
• RHEL 6.9
• RHEL 7.3 w/errata kernel 3.10.0-514.6.1.el7

SUSE Linux Enterprise Server (SLES) 11.4 or beyond

• SLES 11 SP4 w/kISO
• SLES 12 SP2
• SLES 12 SP3 (64 bit) (includes KVM)
• SLES 15 (64 bit) (includes KVM)

VMware ESX

• ESXi 6.0 U3
• ESXi 6.5 & 6.5 U1 (with custom image) - 3.29
• vSphere 6.5 U2
• VSpere 6.7

Community OSes: Supported 90 days POST launch

• CentOS 6.9/7.3/7.4/7.6

Notes:

- Only 64-bit versions of these operating systems are supported.

- Latest release of supported OS required for Cascade Lake (CLX-SP).

- For more information on the HPE Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from Hewlett Packard Enterprise, please visit our OS Support Site at: http://www.hpe.com/info/ossupport and our driver download page: http://www.hpe.com/support

Industry Standard Compliance

• ACPI 6.1 Compliant
• PCIe 3.0 Compliant
• WOL Support
• Microsoft® Logo certifications
• PXE Support
• USB 3.0 Compliant (internal); USB 2.0 Compliant (external ports via SUV)
• SMBIOS 3.1
• UEFI 2.6
• Redfish API

Power Specifications

To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at URL:

http://www.hpe.com/info/poweradvisor/online or http://www.hpe.com/info/poweradvisor.

Notes: Power Specification and Technical Content for supported power supplies can be found at:

https://www.hpe.com/info/qs

Graphics

Integrated video standard

• Video modes up to 1920 x 1200@60Hz (32 bpp)
• 16MB Video Memory

HPE Server UEFI /Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS.

For more information, please visit http://www.hpe.com/servers/uefi.

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot
• Operating system specific functionality
• Support for > 2.2 TB (using GPT) boot drives
• USB 3.0 Stack
• Embedded UEFI Shell
• Mass Configuration Deployment Tool using iLO RESTful API.
• PXE boot support for IPv6 networks
• Boot support for option cards that only support a UEFI option ROM
• Network Stack configurations
• Workload Profiles for simple performance optimization

Notes:

- For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

- UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant XL230k Gen10 Server.

Form Factor

The ProLiant XL230k Gen10 Server is a single-slot tray for the HPE Apollo k6000 Chassis

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO.

Learn more at http://www.hpe.com/info/ilo

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at http://www.hpe.com/info/restfulapi

Active Health System

The HPE Active Health System (AHS) is an essential component of iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at http://www.hpe.com/servers/ahsv

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations. Learn more at http://www.hpe.com/servers/ahsv

Smart Update Manager

Keep your servers up to date with HPE's Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

Server Utilities

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities.

http://www.hpe.com/servers/iLOamplifierpack

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. http://www.hpe.com/info/ilo/mobileapp

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. http://www.hpe.com/info/resttool

Scripting tools

Provision 1 to many servers using your own scripts to discover and deploy with Scripting Toolkit (STK) for Windows and Linux or Scripting Tools for Windows PowerShell.  http://www.hpe.com/servers/powershell

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE Servers generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. http://www.hpe.com/info/oneview

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE Servers generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. http://www.hpe.com/info/oneview

HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. www.hpe.com/info/hpesim

Server Management Software Licenses

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE iLO Advanced Premium Security Edition

HPE iLO Advanced Premium Security Edition for iLO 5 includes iLO Advanced License plus high-end security modes, unique security capabilities, like Automatic FW recovery; Runtime FW verification, and Secure erase. http://www.hpe.com/servers/ilopremium

HPE iLO Scale-Out

HPE iLO Scale-Out is the preferred license built for web hosting, cloud service providers, and high performance computing data centers, managing massive scale out environments. This license offers sophisticated scripting tools that provides remote access through Text Console via SSH, Dynamic power capping, Email-based Alerting and proactive notifications.

https://www.hpe.com/us/en/servers/integrated-lights-out-ilo.html

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8 Gen9 and Gen10 servers. http://www.hpe.com/info/oneview

HPE Performance Cluster Manager

The HPE Performance Cluster Manager delivers a fully integrated system management solution for Linux®-based high-performance computing (HPC) clusters scaling up to 100,000 nodes. The software enables fast system setup from bare-metal, comprehensive hardware monitoring and management, image management and software updates as well as power management. The HPE Performance Cluster Manager reduces the time and resources spent administering HPC systems - lowering total cost of ownership, increasing productivity and providing a better return on hardware investments.

Performance Cluster Manager

QuickSpecs: https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=a00044858enw

Security

• UEFI Secure Boot and Secure Start support
• Immutable Silicon Root of Trust
• Support for Commercial National Security Algorithms (CNSA)
• iLO Security Modes including a New iLO Advance Premium Security License
• Granular control over iLO interfaces
• Common Access Card (CAC) 2-factor Authentication

• Tamper-free updates - components digitally signed and verified
• Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
• TPM (Trusted Platform Module) 1.2 option
• TPM (Trusted Platform Module) 2.0 option Bezel Locking Kit
• Intrusion Security Kit option

Ethernet Options

• HPE Ethernet 10Gb 2-port 568i Adapter (integrated)
• HPE Ethernet 10/25Gb 2p 631SFP28 Adapter
• HPE Ethernet 10Gb 2p 535T Adapter
• HPE Ethernet 10Gb 2p 562T Adapter
• HPE Ethernet 1Gb 4-port 366T Adapter
• HPE Ethernet 10/25Gb 2P 640SFP28 Adapter
• HPE Ethernet 1Gb 4-port 331T Adapter
• HPE Ethernet 4x25Gb 1p 620QSFP28 Adapter
• HPE Ethernet 1Gb 2P 361T Adapter
• HPE Ethernet 1Gb 2P 332T Adapter
• HPE Ethernet 10Gb 2-port 562SFP+ Adapter

High Speed Fabric Option

• HPE Apollo IB EDR 100GB 840z FIO Adapter
• HPE Apollo IB EDR 100GB 841z FIO Adapter
• HPE IB EDR/EN 100GB 1P 840QSFP28 Adapter
• HPE IB EDR/EN 100GB 2P 840QSFP28 Adapter
• HPE 100Gb 1p OPA 860z FIO Adapter

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

• Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
• HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
• HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
• Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
• HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

http://www.hpe.com/services

HPE Apollo k6000 Chassis

https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04293373

 Step 2: Choose Required Options (only one from each category unless otherwise noted)

HPE Legacy FIO Mode Setting

758959-B22

HPE Smart Memory Fast Fault Tolerance FIO Setting

875293-B21

HPE 200GB Logical Size FIO Setting

436007-B21

HPE Memory

Registered DIMMs (RDIMMs) - DDR4-2666

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

835955-H21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

815100-H21

Registered DIMMs (RDIMMs) - DDR4-2933

HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00918-H21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00920-H21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00922-H21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00924-H21

HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00930-H21

Load Reduced DIMMs (LRDIMMs) - DDR4-2666

HPE 128GB (1x128GB) Quad Rank x4 DDR4-2933 CAS-21-21-21 Load Reduced Smart Memory Kit

P11040-H21

Notes:

- CLX-SP processors require 2933 MT/s DIMMS

- Minimum 1 DIMMs are required per processor; up to 6 DIMMs per processor.

- If Fabric is installed, minimum of 32GB is required.

- A maximum of 12 DIMMs are supported per XL230k server tray (or 6 DIMMs max per processor).

- LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.

- HPE 128GB LRDIMM cannot be mixed with 64GB LRDIMM.

- HPE memory from previous generation servers is not supported with this server. HPE Smart Memory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen10. For additional information, please see the HPE Server Memory Options Population Rules:

http://www.hpe.com/docs/memory-population-rules

HPE Storage Controllers

Essential RAID Controller

HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804394-B21

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

Notes: The Essential RAID controllers are only supported with PCIe IO Riser card.

Performance RAID Controller

HPE Smart Array P408i-p SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS PCIe Plug-in Controller

830824-B21

Notes:

- This controller is only supported with PCIe IO Riser card.

- The Smart Array P408i-p requires the HPE 12W Smart Storage Battery SKU P01365-B21.

HPE Ethernet Options

HPE Ethernet 10/25Gb 2-port SFP28 BCM57414 Adapter

817718-B21

HPE Ethernet 10Gb 2-port BASE-T BCM57416 Adapter

813661-B21

HPE Ethernet 1Gb 4-port BASE-T I350-T4V2 Adapter

811546-B21

HPE Ethernet 10/25Gb 2-port SFP28 MCX4121A-ACUT Adapter

817753-B21

HPE Ethernet 10Gb 2-port SFP+ X710-DA2 Adapter

727055-B21

HPE Ethernet 10Gb 2-port BASE-T X550-AT2 Adapter

817738-B21

HPE Ethernet 1Gb 4-port BASE-T BCM5719 Adapter

647594-B21

HPE Ethernet 10/25Gb 2-port SFP28 QL41401-A2G Adapter

867328-B21

HPE Ethernet 1Gb 2-port BASE-T BCM5720 Adapter

615732-B21

Notes:

- Ethernet Options will require External I/O Riser Kit

- HPE Ethernet 4x25Gb will require HPE XL230k x16 Low Profile PCIe External I/O Riser Kit to maximize the bandwidth Converged Network Adapters

Step 3: Choose Additional Factory Integrated Options

Notes: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Drives

Enterprise - 12G SAS - SFF Drives

HPE 300GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD

870753-H21

HPE 300GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872475-H21

HPE 600GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD

870757-H21

HPE 600GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872477-H21

HPE 900GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD

870759-H21

HPE 1.2TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872479-H21

HPE 1TB SAS 12G Business Critical 7.2K SFF SC 1-year Warranty HDD

832514-H21

HPE 2TB SAS 12G Business Critical 7.2K SFF SC 1-year Warranty 512e HDD

765466-H21

HPE 1.8TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD

872481-H21

Solid State Drives

Read Intensive SATA Solid State Drives

HPE 960GB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18424-H21

HPE 240GB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18420-H21

HPE 7.68TB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18430-H21

HPE 480GB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18422-H21

HPE 1.92TB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18426-H21

HPE 3.84TB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18428-H21

Read Intensive SAS Solid State Drives

HPE 960GB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P36997-H21

HPE 1.92TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P36999-H21

HPE 3.84TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P37001-H21

HPE 7.68TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P37003-H21

Mixed Use SATA Solid State Drives

HPE 480GB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18432-H21

HPE 960GB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18434-H21

HPE 3.84TB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18438-H21

HPE 1.92TB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18436-H21

Mixed Use SAS Solid State Drives

HPE 2.4TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD

881457-H21

HPE 960GB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD

P37005-H21

HPE 1.92TB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD

P37011-H21

HPE 3.84TB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD

P37017-H21

Write Intensive SAS Solid State Drives

HPE 1.6TB SAS 12G Write Intensive SFF SC PM6 SSD

P26376-H21

Notes:

- Hard drives have either a one year or three year warranty.

- The hard drive options are not required when configuring a drive-less Model.

- The E208i-p or P408i-p controller is required when ordering SAS drives.

- NVMe drives require HPE XL230k NVMe Enablement FIO Kit 866723-B21.

- No NVMe drives are supported with single processor system.

- The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

Security Hardware

HPE Trusted Platform Module 2.0 Gen10 Option

864279-B21

HPE Gen10 TPM 1.2 FIO Setting

872108-B21

HPE Rack Options

HPE USB US Keyboard/Mouse Kit

631341-B21

HPE USB UK Keyboard/Mouse Kit

631344-B21

HPE USB FR Keyboard/Mouse Kit

631346-B21

HPE USB ES Keyboard/Mouse Kit

631348-B21

HPE USB DE Keyboard/Mouse Kit

631358-B21

HPE USB JP Keyboard/Mouse Kit

631360-B21

HPE USB IT Keyboard/Mouse Kit

631362-B21

HPE USB CN Keyboard/Mouse Kit

631364-B21

HPE USB AE Keyboard/Mouse Kit

638212-B21

HPE USB RU Keyboard/Mouse Kit

638214-B21

HPE USB IN Keyboard/Mouse Kit

672097-D63

HPE USB AP/INTL Keyboard/Mouse Kit

672097-373

HPE USB INTL Keyboard/Mouse Kit

672097-B33

HPE USB PT Keyboard/Mouse Kit

672097-133

HPE USB TR Keyboard/Mouse Kit

672097-143

HPE USB CZ Keyboard/Mouse Kit

672097-223

HPE USB FI Keyboard/Mouse Kit

672097-353

HPE USB SE Keyboard/Mouse Kit

672097-103

HPE USB CH Keyboard/Mouse Kit

672097-113

HPE USB KR Keyboard/Mouse Kit

672097-KD3

Notes: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hpe.com/products/QuickSpecs/13972_div/13972_div.html

Embedded Management

HPE iLO Advanced

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced Flexible Quantity License with 3yr Support on iLO Licensed Features

BD506A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced Flexible Quantity License with 1yr Support on iLO Licensed Features

512486-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE iLO Common Password FIO Setting

P08040-B21

Converged Infrastructure Management

HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU

P8B24A

HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU

P8B25A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView including 3yr 24x7 Support Physical 1-server LTU

E5Y34A

HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

E5Y43A

USB and SD Options

HPE 36pin Serial/USB/VGA Dongle Cord Kit

676277-B21

HPE 32GB microSD RAID 1 USB Boot Drive

P21868-B21

HPE Support Services

HPE Installation Apollo 6000 Gen10 Chassis Service

H2GA8E

HPE Memory

For detailed memory configuration rules and guidelines, please use the Online DDR4 Memory Configuration Tool:

http://h22195.www2.hpe.com/MemoryTool/Home/Legal

Memory Subsystem Architecture

Each Intel® Xeon® Scalable family processor socket contains six memory channels per installed processor with Channels A and D are 2DPC DIMMs per channel for a total of eight (8) DIMMs or a grand total of sixteen (16) DIMMs for the server.

General Memory Population Rules and Guidelines

For details on the HPE Server Memory Options Population Rules, visit:

http://www.hpe.com/docs/memory-population-rules

For details on the HPE Server Memory Options RAS Features, visit:

https://www.hpe.com/h20195/V2/Getdocument.aspx?docname=4AA4-3490ENW

Supported Memory Bandwidth with Intel Xeon Gold and Platinum Series Processor Family

Notes:

- Capacity references are rounded to the common gigabyte (GB) values.

• 8GB = 8,192MB
• 16GB = 16,384MB
• 32GB = 32,768MB
• 64GB = 65,536MB
• 128GB = 131,072MB

- Memory options part number decoder

o The Gold 6137, 6144, 6146, 6154, 6244, 6250, 6254, 6256, 6258R, 6248R, 6242R  and Platinum 8180, 8268, 8270, 8276, 8280 processors are limited to a maximum of 12 DIMMs (Channel A and D cannot be used)

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=c04355083

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and measured average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations.

Notes:

- Acoustic levels presented here are generated by the test configurations only. Values are subject to change without notification and are for reference only.

- Performance of system, options, and ancillary equipment will vary depending on the system configuration.

- Levels presented do not account for non-Hewlett Packard Enterprise installed hardware.

Environment friendly Products and Approach  End-of life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

04-Dec-2023

Version 30

Changed

HPE Services Rebranding

18-Jul-2022

Version 29

Changed

Modified DIMMs per CPU to 6 per channel, 12 per Server Tray Adjusted maximimum system memory to 12x128 GB = 1.5TB

Core Options section was updated.

Obsolete SKUs were removed.

15-Nov-2021

Version 28

Changed

Service and Support section was updated

Obsolete SKUs were removed

07-Dec-2020

Version 27

Changed

Core Options section was updated.

Obsolete SKUs were removed.

05-Oct-2020

Version 26

Changed

Core Options section was updated.

Obsolete SKUs were removed.

03-Aug-2020

Version 25

Changed

Obsolete SKUs were removed.

SKUs were updated.

15-Jun-2020

Version 24

Changed

Configuration Information and Standard Features sections were updated.

01-Jun-2020

Version 23

Changed

Configuration Information section was updated.

06-Apr-2020

Version 22

Changed

Standard Features, Configuration Information and Technical Specifications sections were updated.

24-Feb-2020

Version 21

Changed

Standard Features and Configuration Information sections were updated.

Obsolete SKUs were removed

02-Dec-2019

Version 20

Changed

Standard Features, Configuration Information and Technical specifications sections were updated.

Obsolete SKUs were removed

07-Oct-2019

Version 19

Changed

Standard Features and Configuration Information sections were updated

05-Aug-2019

Version 18

Changed

Configuration Information section was updated

03-Jun-2019

Version 17

Changed

Standard Features and Configuration Information section was updated.

Obsolete SKUs were removed

18-Apr-2019

Version 16

Changed

Obsolete SKUs were removed.

SKUs were updated.

02-Apr-2019

Version 15

Changed

Overview, Standard Features and Configuration Information sections were updated, Added CLX, 2933 memory and misc.

Obsolete SKUs were removes

04-Feb-2019

Version 14

Changed

Added Gold 6137 support and removed processor restrictions.

Standard Features and Configuration Information, sections were updated

03-Dec-2018

Version 13

Changed

SKUs and descriptions were updated in Configuration Information section

Obsolete SKUs were removed

01-Oct-2018

Version 12

Changed

SKUs and descriptions were updated in Configuration Information section, Additional Options and Standard Features sections were updated

06-Aug-2018

Version 11

Changed

Overview, Service and Support and SKUs and descriptions in Configuration Information and Additional Options were updated.

07-May-2018

Version 10

Changed

Removed support for Xeon Gold 6137 processor

02-Apr-2018

Version 9

Changed

Update QuickSpecs and the Configuration Information section

05-Feb-2018

Version 8

Changed

Update several sections fo the document

04-Dec-2017

Version 7

Changed

Update SKUs descriptions and overall QuickSpecs

23-Oct-2017

Version 6

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

16-Oct-2017

Version 5

Changed

Update descriptions in the Configuration Information Section

25-Sep-2017

Version 4

Changed

Update QuickSpecs and the Configuration Information section

17-Jul-2017

Version 3

Changed

Update images with callouts and correct errors.

11-Jul-2017

Version 2

Changed

US version created

11-Jul-2017

Version 1

New

New QuickSpecs

© Copyright 2023 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries. Linux is a registered trademark of Linus Torvalds. SUSE is a registered trademark of Suse. Ubuntu and Canonical are registered trademarks of Canonical Ltd. Red Hat is a trademark of Red Hat, Inc. in the U.S. and other countries. VMware is a registered trademark of VMware, Inc. in the United States and/or other jurisdictions.

a00016634enw - 15958 - WorldWide  - V30 - 04-December-2023
