HPE ProLiant XL170r Gen9 Server

 The ProLiant XL170r Gen9 Server is a 1U half-width, 2-processor server with configuration options for:

• Performance and efficient CPUs -- Intel Xeon E5-2600v3 and E5-2600v4 series processor options with choices from 4-18 Cores, 1.6GHz - 3.5GHz CPU speed, and power ratings between 85-145 Watts
• 16 memory DIMM slots with up to 512GB DDR4 memory at up to 2400 MHz
• 2 I/O slots for a choice of networking and clustering options including : 1Gb, 10Gb, 40Gb Ethernet, 56 Gb/s FDR InfiniBand, FibreChannel and options for either 1 PCIe slot plus a FlexibleLOM or 2 PCIe slots

The Apollo 2000r series chassis accommodates 4 independently serviceable ProLiant XL170r Gen9 servers with up to 80 servers in a 42U rack with 1 to 4 servers per chassis.

Rack scale power efficiency is easy with Advanced Power Management for rack, chassis, server and component level management

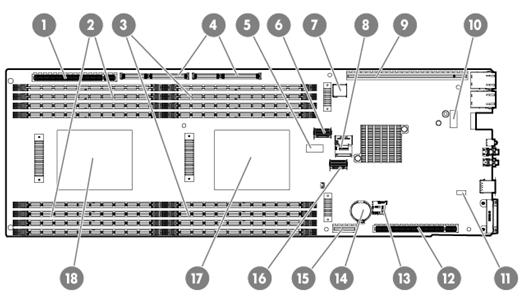

Front View

Item

Description

Item

Description

1

Bayonet board slot

10

Dedicated iLO port connector

2

DIMMs for processor 2

11

NMI header

3

DIMMs for processor 1

12

PCIe x16 riser board connector*

4

PCIe x40 riser board connector*

13

microSD slot

5

System maintenance switch

14

System battery

6

Mini-SAS connector 1 (SATA x4)

15

M.2 SSD riser connector

7

Internal USB 3.0 connector

16

TPM connector

8

Mini-SAS connector 2 (SATA x4)

17

Processor 1

9

PCIe x24 riser board connector*

18

Processor 2

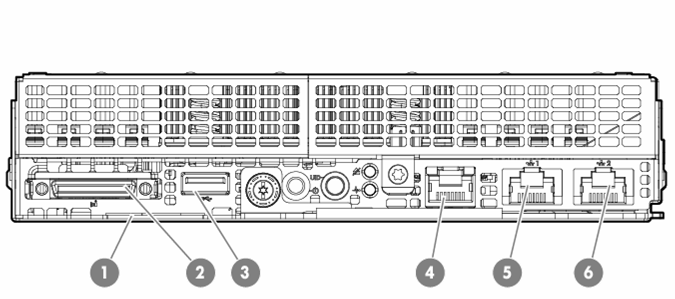

Rear View

Item

 Description

1

Node serial number and iLO label pull tab

2

SUV connector

3

USB 3.0 connector

4

Dedicated iLO port (optional)

5

NIC connector 1

6

NIC connector 2

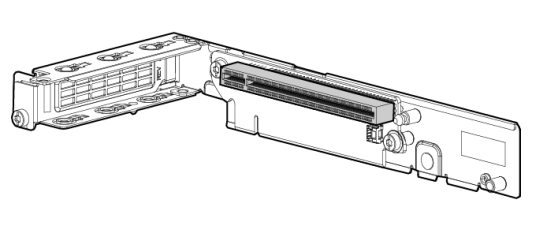

Single-slot left PCI riser cage assembly

Item

Form factor

Slot number

Slot description

1

Low-profile PCIe card

1

PCIe3 x16 (16, 8, 4, 1) for Processor 1

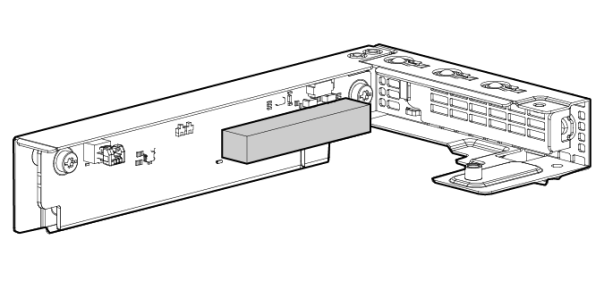

Single-slot 1U node right PCI riser cage assembly

Item

Form factor

Slot number

Slot description

1

Low-profile PCIe NIC card

2

PCIe3 x16 (16, 8, 4, 1) for Processor 2

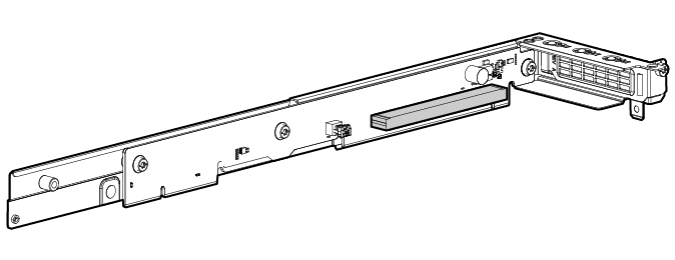

FlexibleLOM 1U node riser cage assembly

Item

Form factor

Slot number

Slot description

1

FlexibleLOM

FlexibleLOM slot

PCIe3 x8 for Processor 1

NOTE: For the Standard Features shipped in the Factory Integrated Models, please see the "Configuration Information Factory Integrated Models" section.

Processor
One of the following depending on Model

E5-2600 v3 series Processors (Please follow product offering to fill out processor SKU)

Processor
One of the following depending on Model

E5-2600 v4 series Processors (Please follow product offering to fill out processor SKU)

Processor
One of the following depending on Model

E5-1600 v3 series Processors (Please follow product offering to fill out processor SKU)

NOTE: these processors are supported with the following risers kits.

• HPE XL170r FLOM x8 R Riser Kit-798180-B21
• HPE XL170r/190r LP PCIex16 L Riser Kit- 798178-B21
• HPE XL170r Gen9 LP PCIex16 R Riser Kit-819939-B21

Chipset

Intel® C610 Series Chipset

NOTE: For more information regarding Intel® chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/.

On System Management Processor

HPE iLO (Firmware: HPE iLO 4)

NOTE: For more information, visit: http://www.hp.com/go/ilo

Memory Protection

Advanced ECC (multi-bit error protection)

Memory Online Spare Mode (Rank Spare Mode)

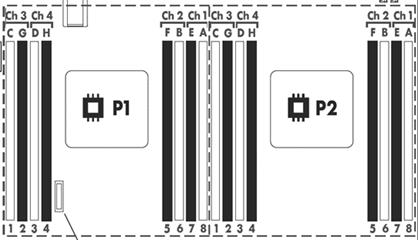

Memory

Type

HPE SmartMemory

DDR4 Load Reduced (LRDIMM), or Registered (RDIMM)

DIMM Slots Available

16 DIMM Slots available

Maximum (LRDIMM) (per server tray)

2TB (16 x 128GB)

NOTE: HPE memory from previous generation servers are not fully compatible with the HPE ProLiant Xl170r Gen9 Server.
NOTE: To realize the performance memory capabilities listed in this document, HPE SmartMemory is required. For additional information, please see the HPE SmartMemory QuickSpecs at:

https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04111535

NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2133MHz, 1866MHz, or 1600MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: http://h22195.www2.hpe.com/MemoryTool/Home/Legal

Network Controller

Ethernet Options

HPE Ethernet 1Gb 2P 332T Adapter

HPE Ethernet 1Gb 4-port 331T Adapter

HPE Ethernet 1Gb 2P 361T Adapter

HPE Ethernet 10Gb 2P 530SFP+ Adapter

HPE Ethernet 10Gb 2P 530T Adapter

HPE Ethernet 10Gb 2P 560SFP+ Adapter

HPE Ethernet 10Gb 2P 561T Adapter

HPE Ethernet 10G 2-port 546SFP+ Adapter

HPE XL170r/190r Dedicated NIC IM Board Ki

HPE 1Gb Ethernet 4P 331FLR Adapter

HPE Ethernet 1Gb 4-port 366FLR Adapter

HPE Eth 4x25Gb 1p 620QSFP28 Adptr

HPE Ethernet 10Gb 2P 560FLR-SFP+ Adapter

HPE FlexFabric 10Gb 2P 534FLR-SFP+ Adapter

HPE FlexFabric 10Gb 2P 533FLR-T Adapter

HPE FlexFabric 10Gb 2P 556FLR-SFP+ Adapter

HPE FlexFabric 10Gb 4-port 536FLR-T Adapter

HPE FlexFabric 10Gb 2-port 536FLR-T Adapter

HPE Ethernet 10Gb 2P 546FLR-SFP+ Adapter

HPE Ethernet 10Gb 2-port 562SFP+ Adptr

HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adpt

HPE StoreFabric CN1200E-T 10Gb CAN

HPE StoreFabric CN1100R-T 10Gb CAN

InfiniBand Options

HPE IB FDR/EN 40Gb 2P 544+FLR-QSFP Adapter

HPE IB QDR/EN 10Gb 2P 544+FLR-QSFP Adapter

HPE IB FDR/EN 40Gb 2P 544+QSFP Adapter

HPE IB FDR 2P 545FLR-QSFP Adapter

HPE IB FDR 2P 545QSFP Adapter

QLogic 4X QDR IB PCI-e G2 HCA

HPE 100Gb 1p OP101 QSFP28 x16 OPA Adptr

HPE IB EDR/EN 100Gb 1P 840QSFP28 Adapter

HPE IB EDR/EN 100Gb 2P 840QSFP28 Adapter

NOTE: the ambient operating temperature cannot exceed 20 ° C/68 ° F

Riser Options to support FlexibleLOM cards

HPE XL170r FLOM x8 R Riser Kit

NOTE: The HPE XL170r FLOM x8 R Riser Kit (798180-B21) is required to order the FlexibleLOM options.

Expansion Slots (EE)

Expansion
Slot #

Technology

Bus
Width*

Source

Connector Width

Form Factor

1

PCIe 3.0

x16

CPU1

x16

Low profile

Expansion
Slot #

Technology

Bus
Width*

Source

Connector Width

Form Factor

FlexibleLOM

PCIe 3.0

X8

CPU1

x16

FlexibleLOM

Expansion
Slot #

Technology

Bus
Width*

Source

Connector Width

Form Factor

2

PCIe 3.0

X16

CPU2

x16

Low profile

NOTE: Indicates the number of physical electrical lanes running to the connector.

NOTE: Expansion slot 1 requires ordering HPE XL170r Gen9 LP PCIex16 L Riser Kit (798178-B21)

NOTE: FlexibleLOM require ordering HPE XL170r FLOM x8 R Riser Kit (798180-B21)

NOTE: Expansion slot 2 HPE XL170r LP PCIe x16 R Riser Kit (798182-B21)

HPE Server ROM

HPE ROM (Read Only Memory) is now digitally signed using the Hewlett Packard Enterprise Corporate Signing Service. This signature is verified before the flash process starts, reducing accidental programming and preventing malicious efforts to corrupt system ROM.

HPE ROM provides for essential initialization and validation of hardware components before control is passed to the customer-installed operating system. The ROM also provides the capability of booting from various fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating system.

HPE ROM performs very early configuration of the video controller, to allow monitoring of initialization progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis. The HPE ProLiant ROM is used to configure the following:

• Processor and chipset status registers
• System memory, memory map, and memory initialization
• System hardware configuration (Integrated PCI devices and optional PCIe cards).
• Customer-specific BIOS configuration (using the HPE ROM-Based Setup Utility (RBSU).

NOTE: For further information, please refer to the HPE RBSU (ROM based setup utility) user guide: http://www.hpe.com/support/rbsu.

Storage Controller

Smart Array Controller
HPE Dynamic Smart Array B140i Controller

HPE Smart Array P440/4G Controller

HPE Smart Array P441/4G Controller

HPE Smart Array P840/4G Controller

HPE Smart Array P841/4G Controller

Host Bus Adapter
HPE H240 Host Bus Adapter

HPE H241 Smart HBA

Storage Controller Cable Kits

HPE XL170r B140i Cbl FIO Kit

HPE XL170r Gen9 Mini-SAS H240 Cbl Kit

HPE XL170r Gen9 Mini-SAS P440 Cbl Kit

HPE XL1x0r Gen9 Mini-SAS P840/440 Cbl Kit

NOTE: The H240 controller and the embedded B140i will operate in UEFI mode only. For legacy support, AHCI mode is required.

Internal Storage Devices

Internal MicroSD slot

Maximum Internal Storage

Hot Plug LFF SAS 7.2k

18.0TB

3 x 6TB

Hot Plug LFF SATA

18.0TB

3 x 6TB

Hot Plug LFF SATA SSD

1.4TB

3x 480GB

Hot Plug LFF SAS SSD

4.8TB

3x 1.6TB

Hot Plug SFF SAS 7.2k

6TB

6x 1.0TB

Hot Plug SFF SAS 10k

10.8TB

6x1.8TB

Hot Plug SFF SAS 15k

3.6TB

6 x600GB

Hot Plug SFF SATA

6TB

6x1TB

Hot Plug SFF SATA SSD

5.8TB

6x960GB

Hot Plug SFF SAS SSD

9.6TB

6x1.6TB

Interfaces

FlexibleLOM

HPE ProLiant Gen9 servers offer a new networking technology-Flexible Network Technology. The HPE ProLiant Gen9 server offers the customer the choice of 1Gigabit, 10Gigabit, InfiniBand or FlexibleLOM solutions depending on workload. For further details on the choices, see FlexibleLOM in the Networking Section of this document.

KVM

Serial USB Video Port (SUV)

MicroSD

1 (internal)

USB Ports

2 (external via SUV); 1 USB 3.0 (external); 1 (USB 3.0 internal)

HPE iLO Remote Management Network Port

Aggregated via HPE Apollo 2000 Chassis; Option for dedicated NIC IM Board Kit

Health LED

1

Power

1

UID

1

Do not remove LED

1

Industry Standard Compliance

ACPI 2.0b Compliant

PCIe 3.0 Compliant

WOL Support

Microsoft® Logo certifications

PXE Support

USB 1.1,2.0 and 3.0 Compliant

SMBIOS 2.6.1

Power Specifications

To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at URL: http://www.hp.com/go/proliant-energy-efficient http://www.hp.com/go/hppoweradvisor.
NOTE: Power Specification and Technical Content for supported power supplies can be found at

http://www8.hp.com/h20195/v2/gethtml.aspx?docname=c04111541

Operating Systems and Virtualization Software Support for ProLiant Servers

Microsoft Windows Server

Red Hat Enterprise Linux (RHEL)

SUSE Linux Enterprise Server (SLES)

Canonical Ubuntu

VMware

CentOS

Fedora

OpenSUSE

Asianux

Debian

NOTE: Only 64-bit versions of these operating systems are supported.
NOTE: For more information on the Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from Hewlett Packard Enterprise , please visit our OS Support Site at: http://www8.hp.com/us/en/products/servers/management/operating-environments/os-support-matrix.html and our driver download page: https://www.hpe.com/us/en/support.html

Graphics

Integrated Matrox G200 video standard

• 1280 x 1024 (32 bpp)
• 1920 x 1200 (16 bpp)

HPE iLO 4 On System Management Memory

• 16 MB Flash
• 256 MB DDR 3 with ECC (112 MB after ECC and video)

Form Factor

The ProLiant Xl170r Gen9 Server is a single-slot tray for the HPE Apollo 2000 Chassis.

Embedded Management

HPE Integrated Lights Out

Monitor your servers for ongoing management, service alerting, reporting and remote management with iLO. Learn more at http://www.hp.com/go/ilo

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hp.com/go/ProLiant/uefi

HPE RESTful API

RESTful API is an application programming interface. RESTful Web Service API served by iLO’s web server http://www.hp.com/go/restfulapi

Intelligent Provisioning

Provision servers by discovering and deploying 1 to few servers with Intelligent Provisioning. Learn more at http://www.hp.com/go/intelligentprovisioning

Server Utilities

HPE Smart Update

Optimize firmware and driver updates with HPE Smart Update solutions. Learn more at http://www.hp.com/go/smartupdate

HPE Systems Insight Manager (HPE SIM)

HPE SIM allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers, and also provides you with basic support for non-Hewlett Packard Enterprise servers. HPE SIM also integrates with HPE SUM to provide quick and seamless firmware updates. Learn more at http://www.hp.com/go/sim

Scripting Tool Kit and Windows PowerShell

Provision 1 to many servers using your own scripts to discover and deploy them with HPE Scripting Tool Kit for Windows and Linux or HPE Scripting Tools for Windows PowerShell. Learn more at http://www.hp.com/go/ProLiantSTK or http://www.hpe.com/go/powershell

HPE RESTful Interface Tool

HPE RESTful API tool is a scripting tool to provision servers using RESTful API Interface to discover and deploy servers at scale. Learn more at http://www.hp.com/go/restfulapi

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit: http://www.hp.com/go/ilo/mobileapp

HPE Insight Online

HPE Insight Online, available at no additional cost as part of your Hewlett Packard Enterprise warranty, Care Pack or contractual support agreement with Hewlett Packard Enterprise, is a personalized dashboard for simplified tracking of IT operations and support information from anywhere, anytime. Learn more at http://www.hp.com/go/insightonline/info.

Embedded Management

HPE Integrated Lights Out

Monitor your servers for ongoing management, service alerting, reporting and remote management with iLO. Learn more at http://www.hp.com/go/ilo.

HPE Insight management software

HPE Service Pack for ProLiant (SPP)

HPE Service Pack for ProLiant (SPP) and HPE Smart Update Manager (HPE SUM) provide a comprehensive approach to firmware and system software maintenance. Together they provide better operating stability and ensure maximum uptime. The SPP will be updated at a predictable cadence, typically coinciding with new Hewlett Packard Enterprise server hardware launches. By enabling firmware to be updated online and integrating firmware and system software updates in one operation, HPE SUM and the SPP offer faster updates of individual servers and dramatically faster updates of entire HPE Apollo 2000 Chassis. Further improving system uptime and stability is the fact that Hewlett Packard Enterprise provides 12 months of support for each Service Pack for ProLiant release (may vary by region).
The user experience around HPE SUM and the SPP has been improved in several ways, starting with the web download. A single web page provides access to a single download containing both the latest version of HPE SUM and the latest SPP. Optional smaller subsets with only specific types of servers or specific operating systems are offered to save on download time. The HPE SUM application provides a straightforward, intuitive user interface that guides the user through the steps of discovery, analyses and update, providing comprehensive information on available updates, criticality and interdependencies. This information is also available in reports. By providing the option of multiple local or shared repositories which can be easily updated from hp.com, HPE SUM provides the tools to optimize stability and consistency throughout the company. While HPE SUM and the SPP recommend the combinations of firmware and system software that Hewlett Packard Enterprise has found to be the best practice, the application gives customers the flexibility to set their own specific baseline.
The Service Pack for ProLiant has been rigorously tested with specific attention for interaction between firmware, drivers and agents both within the server as well as in interaction with the HPE Apollo 2000 chassis. This testing ensures the highest quality as well as providing the input for HPE SUM to deploy updates taking into account all interdependencies, when determining the correct updates and order of update deployment.
NOTE: The Service Pack for ProLiant (which includes HPE SUM) can be downloaded from http://www.hp.com/go/spp/download. More information can be found: http://www.hpe.com/go/SmartUpdate http://www.hpe.com/go/spp and http://www.hpe.com/go/hpsum

Security

Power-on password

Keyboard password

Serial interface control

Administrator's password

iLO 4 (Integrated Lights-Out 4) has 12 customizable user accounts and SSL encryption

iLO 4 can be disabled via a Global Setting

iLO Advanced supports directory services integration

TPM (Trusted Platform Module) 2.0 option

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners (may vary by region). Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty.
NOTE: Server Warranty includes 1 year Parts, 1 year Labor, 1-year on-site support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hpe.com/products/servers/platforms/warranty/index.html

NOTE: In Asia Pacific, Japan and China, Server Warranty includes 3 years Parts, 3 year Labor, 3-year Onsite support with next business day response

HPE Insight management software

HPE Insight Control

HPE Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. For more information, see: http://www.hpe.com/go/insightcontrol
HPE Insight Control includes one year of 24 x 7 HPE Software Technical Support and Update Service ensuring rapid access to Hewlett Packard Enterprise support staff and proactive delivery of software updates. For more information about this service, see: http://www.hpe.com/services/insight.

HPE iLO Advanced

HPE Integrated Lights-Out Advanced License a product option, providing smart remote server management without compromise. iLO Advanced unlocks the full set of remote administration functionality for all HPE ProLiant servers by activating the full Virtual Keyboard Video and Mouse remote console, multi-user collaboration, console record and replay, GUI-based and scripted virtual media and virtual folders, and enhanced security and power management functionality. For more information, see: http://www.hpe.com/go/iloadvance

HPE iLO Scale-Out

The HPE iLO Scale-Out license ideal for web/hosting/cloud service providers and High Performance Computing environments. This license is a specific subset of iLO Advanced functionality, provides fast remote access through Text Console via SSH, lower operational cost with Dynamic power capping, and faster time to resolution through Email-based Alerting and proactive notifications. With this newly designed HPE iLO Scale-Out license HPC customers now have a server management package solely design and priced for their massive data environments. HPE iLO Scale-Out is available on all HPE ProLiant Gen9 servers. For more information, see: http://www.hpe.com/go/iLO/scale-out

HPE Matrix Operating Environment

The HPE Matrix Operating Environment (Matrix OE) for ProLiant and Integrity servers is an integrated command center that helps you instantly adjust to dynamic business demands. This advanced infrastructure management software lets you reduce the cost of common data center tasks by up to 40 percent while keeping pace with your changing business.
The HPE Matrix OE includes the automated provisioning, optimization, and recovery management capabilities for HPE CloudSystem Matrix, the ideal platform for private cloud and Infrastructure as a Service (IaaS).
NOTE: For more information, visit: http://www.hpe.com/go/matrixoe

High Performance Clusters

HPE Cluster Platforms

HPE Cluster Platforms are specifically engineered, factory-integrated large-scale ProLiant clusters optimized for High Performance Computing, with a choice of servers, networks and software. Operating system options include specially priced offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering. http://www.hpe.com/go/clusters

HPE HPC Interconnects

High Performance Computing (HPC) interconnect technologies are available for this server as part of the HPE Cluster Platform portfolio. These high-speed InfiniBand and Gigabit interconnects are fully supported by Hewlett Packard Enterprise when integrated within a Hewlett Packard Enterprise cluster. Flexible, validated solutions can be defined with the help of configuration tools. http://www.hpe.com/techservers/clusters/ucp/index.html

HPE Insight Cluster Management Utility

HPE Insight Cluster Management Utility (CMU) is a Hewlett Packard Enterprise-licensed and Hewlett Packard Enterprise-supported suite of tools that are used for lifecycle management of hyperscale clusters of Linux ProLiant systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hpe.com/go/cmu

HPE Insight Online

HPE Insight Online is a new addition to the HPE Support Center for one stop, secure access to product and Hewlett Packard Enterprise support information personalized to your IT environment. Insight Online can automatically display devices remotely monitored by HPE Insight Remote Support. With Insight Online's easy navigation you can efficiently track your IT support contracts and device status from anywhere and at any time. http://www.hp.com/go/insightonline

Service and Support

The support Care Packs chosen for the chassis are applied to this server node at no additional cost.

HPE Technology Services for HPE Apollo 2000
HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Support for the HPE Apollo 2000, APM and chassis are all covered by support purchased at the chassis level. This simplifies your support experience and can reduce total cost of ownership over support purchased per server.

What HPE Technology Services can do for you
We can help you design, deploy, test, integrate, support, and manage IT and infrastructure solutions. Our services solutions include more than just uplift of base warranty; we help deliver high levels of application availability through proactive service management and advanced technical response.

Protect your business beyond warranty with HPE Pointnext operational services that provide total support expertise to meet your IT and business needs. We have made it simple to select among 3 levels of recommended services; optimized, standard, or basic.

Additional Recommended Services

HPE Installation and Startup for Insight Control Software / HPE SIM
Provides for the deployment and basic configuration of HPE Insight Control or HPE SIM (Systems Insight Manager) on HPE ProLiant servers

http://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA0-9972ENW.pdf

For a Hyperscale Environment, Datacenter Care is our most flexible and comprehensive support offering. Hewlett Packard Enterprise works in partnership with our customers to provide end-to-end tailored support for your existing IT environments while aiding you on your converged cloud journey. It leverages the integrated technology, people, processes, and partner ecosystem of Hewlett Packard Enterprise to deploy, help operate, and evolve your data centers on their journey from traditional data centers to converged cloud. With the ability to configure support tailored to your needs, we offer you flexibility that is cost effective. Datacenter Care is made from "building blocks" of services, each tested and delivered globally. These can be combined to deliver the services that you require, and are monitored and updated to change as your needs change. Start with the core building blocks of an assigned account service manager, enhanced call handling, proactive and reactive support, and add on other services that are tailored to your specific needs. Proactive and reactive support are configured to deliver the level of support needed by the different components in a data center, to meet both SLA and cost targets.

For SMB to Enterprise customers

HPE Technology Services meets business challenges with the right services solution.

For more information

To learn more on HPE ProLiant servers, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hpe.com/services/proliant
To find the full list of Care Pack SKUs for the HPE Apollo family of products, go to: http://hpe.com/go/lookuptool and in step 2 select HPE ProLiant, then select HPE Apollo family.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.
NOTE: FIO indicates that this option is only available as a factory installable option.
NOTE: The HPE Apollo 2000 Chassis is required to support the server. Refer to HPE Apollo 2000 Chassis QuickSpecs for additional information.

Step 1: Base Configuration (Choose one of the CTO Models below)

HPE CTO Model

HP ProLiant XL170r Gen9 1U Node Configure-to-order Server

798155-B21

Step 2: Choose Required Options (only one from each category unless otherwise noted)

HPE XL1x0r Gen9 Intel® Xeon® E5-1630v3 (3.7GHz/4-core/10MB/140W) Processor Kit

845119-L21

HPE XL1x0r Gen9 Intel® Xeon® E5-1650v3 (3.5GHz/6-core/15MB/140W) Processor Kit

845121-L21

HPE XL1x0r Gen9 Intel® Xeon® E5-1680v3 (3.2GHz/4-core/20MB/140W) Processor Kit

845123-L21

HP XL1x0r Gen9 Intel Xeon E5-2603v3 (1.6GHz/6-core/15MB/85W) FIO Processor Kit

793012-L21

HP XL1x0r Gen9 Intel Xeon E5-2650Lv3 (1.8GHz/12-core/30MB/65W) FIO Processor Kit

793050-L21

HP XL1x0r Gen9 Intel Xeon E5-2609v3 (1.9GHz/6-core/15MB/85W) FIO Processor Kit

793014-L21

HP XL1x0R Gen9 Intel Xeon E5-2620v3 (2.4GHz/6-core/15MB/85W) FIO Processor Kit

793016-L21

HP XL1x0r Gen9 Intel Xeon E5-2630v3 (2.4GHz/8-core/20MB/85W) FIO Processor Kit

793018-L21

HP XL1x0r Gen9 Intel Xeon E5-2640v3 (2.6GHz/8-core/20MB/90W) FIO Processor Kit

793020-L21

HP XL1x0r Gen9 Intel Xeon E5-2650v3 (2.3GHz/10-core/25MB/105W) FIO Processor Kit

793022-L21

HP XL1x0r Gen9 Intel Xeon E5-2660v3 (2.6GHz/10-core/25MB/105W) FIO Processor Kit

793024-L21

HP XL1x0r Gen9 Intel Xeon E5-2670v3 (2.3GHz/12-core/30MB/120W) FIO Processor Kit

793026-L21

HP XL1x0r Gen9 Intel Xeon E5-2680v3 (2.5GHz/12-core/30MB/120W) FIO Processor Kit

793028-L21

HP XL1x0r Gen9 Intel Xeon E5-2690v3 (2.6GHz/12-core/30MB/135W) FIO Processor Kit

793030-L21

HP XL1x0r Gen9 Intel Xeon E5-2697v3 (2.6GHz/14-core/35MB/145W) FIO Processor Kit

793032-L21

HPE ProLiant XL170r Gen9 Special Server

850312-L21

HP XL1x0r Gen9 Intel Xeon E5-2637v3 (3.5GHz/4-core/15MB/135W) FIO Processor Kit

793034-L21

HP XL1x0r Gen9 Intel Xeon E5-2643v3 (3.4GHz/6-core/20MB/135W) FIO Processor Kit

793036-L21

HP XL1x0r Gen9 Intel Xeon E5-2667v3 (3.2GHz/8-core/20MB/135W) FIO Processor Kit

793038-L21

HP XL1x0r Gen9 Intel Xeon E5-2683v3 (2GHz/14-core/35MB/120W) FIO Processor Kit

793046-L21

HP XL1x0r Gen9 Intel Xeon E5-2698v3 (2.3GHz/16-core/40MB/135W) FIO Processor Kit

793054-L21

HP XL1x0r Gen9 Intel Xeon E5-2699v3 (2.3GHz/18-core/45MB/145W) FIO Processor Kit

793056-L21

HPE XL1x0r Gen9 Intel Xeon E5-2603v4 (1.7GHz/6-core/15MB/85W) FIO Processor Kit

850286-L21

HPE XL1x0r Gen9 Intel Xeon E5-2609v4 (1.7GHz/8-core/20MB/85W) FIO Processor Kit

850288-L21

HPE XL1x0r Gen9 Intel Xeon E5-2620v4 (2.1GHz/8-core/20MB/85W) FIO Processor Kit

850290-L21

HPE XL1x0r Gen9 Intel Xeon E5-2623v4 (2.6GHz/4-core/10MB/85W) FIO Processor Kit

850292-L21

HPE XL1x0r Gen9 Intel Xeon E5-2630Lv4 (1.8GHz/10-core/25MB/55W) FIO Processor Kit

850294-L21

HPE XL1x0r Gen9 Intel Xeon E5-2630v4 (2.2GHz/10-core/20MB/85W) FIO Processor Kit

850296-L21

HPE XL1x0r Gen9 Intel Xeon E5-2640v4 (2.4GHz/10-core/25MB/90W) FIO Processor Kit

850300-L21

HPE XL1x0r Gen9 Intel Xeon E5-2643v4 (3.4GHz/6-core/20MB/135W) FIO Processor Kit

850302-L21

HPE XL1x0r Gen9 Intel Xeon E5-2650Lv4 (1.7GHz/14-core/35MB/65W) FIO Processor Kit

850304-L21

HPE XL1x0r Gen9 Intel Xeon E5-2650v4 (2.2GHz/12-core/30MB/105W) FIO Processor Kit

850306-L21

HPE XL1x0r Gen9 Intel Xeon E5-2660v4 (2.0GHz/14-core/35MB/105W) FIO Processor Kit

850308-L21

HPE XL1x0r Gen9 Intel Xeon E5-2667v4 (3.2GHz/8-core/25MB/135W) FIO Processor Kit

850310-L21

HPE XL1x0r Gen9 Intel Xeon E5-2680v4 (2.4GHz/14-core/35MB/120W) FIO Processor Kit

850314-L21

HPE XL1x0r Gen9 Intel Xeon E5-2683v4 (2.1GHz/16-core/40MB/120W) FIO Processor Kit

850316-L21

HPE XL1x0r Gen9 Intel Xeon E5-2690v4 (2.6GHz/14-core/35MB/135W) FIO Processor Kit

850318-L21

HPE XL1x0r Gen9 Intel Xeon E5-2695v4 (2.1GHz/18-core/45MB/120W) FIO Processor Kit

850320-L21

HPE XL1x0r Gen9 Intel Xeon E5-2697v4 (2.3GHz/18-core/45MB/145W) FIO Processor Kit

850322-L21

HPE ProLiant XL170r Gen9 Special Server

850312-L21

HPE XL1x0r Gen9 Intel Xeon E5-2698v4 (2.2GHz/20-core/50MB/135W) FIO Processor Kit

850324-L21

HPE XL1x0r Gen9 Intel Xeon E5-2699v4 (2.2GHz/22-core/55MB/145W) FIO Processor Kit

850326-L21

HPE XL1x0r Gen9 Intel® Xeon® E5-1630v3 (3.7GHz/4-core/10MB/140W) Processor Kit

845119-L21

HPE XL1x0r Gen9 Intel® Xeon® E5-1650v3 (3.5GHz/6-core/15MB/140W) Processor Kit

845121-L21

HPE XL1x0r Gen9 Intel® Xeon® E5-1680v3 (3.2GHz/4-core/20MB/140W) Processor Kit

845123-L21

NOTE: Must select one xxxxxx-L21 processor. If one processor is desired, select one xxxxxx-L21. If two processors are desired, select one corresponding xxxxxx-B21. Mixing of processor speeds and types is not supported.

NOTE: For the Intel® C610 Chipset E5-2600 v3 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, and x = L for low power SKUs.
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology. Turbo indicates the maximum potential frequency when using Intel® Turbo Boost Technology. The frequency boost increment is dependent on the processor SKU and the number of active cores. In general, a higher boost increment is obtained when fewer cores are active. All processors support Intel® Hyper-Threading and Intel® Turbo Boost Technologies except the E5-2603 v3 and E5-2609 v3.

NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed. For the maximum supported memory speeds for each processor listed above, please reference the 'Memory Speed by Processor Model' table in the Memory section of the QuickSpecs.

HPE Memory

NOTE: Minimum 2 DIMMs are required if two processors are installed.

NOTE: HPE memory from previous generation servers (DDR3) is not compatible with this server. HPE DDR4 SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. For additional information, please see the HPE DDR4 SmartMemory QuickSpecs at: http://www8.hpe.com/h20195/v2/GetHTML.aspx?docname=c04380279

NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2400MHz, 2133MHz, 1866MHz, or 1600MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: http://h22195.www2.hpe.com/MemoryTool/Home/Legal

Registered DIMMs (RDIMMs) - E5-2600 v3 series Processors

HPE 4GB (1x4GB) Single Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726717-B21

HPE 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726718-B21

HPE 8GB (1x8GB) Dual Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit

759934-B21

HPE 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726719-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

728629-B21

Registered DIMMs (RDIMMs) - E5-2600 v4 series Processors

HPE 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805347-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805349-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805351-B21

HPE 16GB (1x16GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

836220-B21

Load Reduced DIMMs (LRDIMMs) - E5-2600 v3 series Processors

HPE 32GB (1x32GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

726722-B21

HPE 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

726720-B21

Load Reduced DIMMs (LRDIMMs) - E5-2600 v4 series Processors

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit

805353-B21

HPE 64GB (1x64GB) Quad Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit

805358-B21

HPE 128GB (1x128GB) Octal Rank x4 DDR4-2400 CAS-20-18-18 Load Reduced Memory Kit

809208-B21

HPE Riser Cards

HP XL170r/190r Low Profile PCI-E x16 Left Riser Kit

798178-B21

NOTE: this riser can configure with HPE XL170r Gen9 FLOMx8 R Riser Kit (798180-B21) or HPE XL170r Gen9 LP P2 PCIex16 R Riser Kit(798182-B21) or HPE XL170r Gen9 LP P1 PCIex16 R Riser Kit(819939-B21)

HPE XL170r FlexibleLOM x8 Right Riser Kit

798180-B21

HP XL170r Low Profile PCIe x16 Right Riser Kit

798182-B21

HP XL170r Rear FlexibleLOM Blank FIO Kit

800068-B21

HP XL170r Rear PCIe Blank FIO Kit

800069-B21

HPE XL170r Gen9 Low Profile PCIe x16 Right Riser Kit

819939-B21

NOTE: This riser is only applicable for the 1P solution.

Configuration 1:

• HPE XL1x0r Gen9 LP PCIex16 L Riser Kit 798178-B21
• HPE XL170r Gen9 FLOM x8 R Riser Kit  798180-B21

Configuration 2:

• HPE XL1x0r Gen9 LP PCIex16 L Riser Kit  798178-B21
• HPE XL170r Gen9 LP P1 PCIex16 R Riser Kit 819939-B21

HPE Storage Cables

HP XL170/190r Mini-SAS P840/P440 Cable Kit
NOTE:NOTE: If HPE Smart Array P440/4G (P/N 726821-B21) is selected as primary HPE Storage controller in Step 4 below, select 1cable kit per card

798205-B21

HP XL170r/190r Mini-SAS H240 Cable Kit
NOTE:NOTE: If HPE Smart H240 HBA (P/N 726907-B21) is selected as primary HPE Storage controller in Step 4 below, select 1cable kit per card

798207-B21

HP XL170r Mini-SAS B140 Cable Kit
NOTE:NOTE: If SAS Controller is not selected in Step 4 below, must select for B140i, select 1cable kit per card

800060-B21

Step 3: Choose Additional Factory Integrated Options (only one from each category unless otherwise noted)

BIOS Mode

HP UEFI FIO Setting
NOTE:NOTE: If B140i is the only primary controller, then this option cannot be selected.

When this option is selected, then BIOS need to be switched from default UEFI Mode to Legacy Mode

758959-B21

Controller State

HP Manufacturing FIO Enable HBA Mode Setting

NOTE:NOTE: If H240 is the primary controller and if HPE Mfg FIO Enable HBA Mode Setting is selected, then RAID is not allowed. Can only be selected with HBA card. The Legacy Mode Setting and Enable HBA Mode Setting CANNOT be selected together

792962-B21

HP AHCI-Enable FIO Setting

NOTE:NOTE: If B140i is the primary controller and if HP AHCI-Enable FIO Setting is selected, then RAID is not allowed.

801845-B21

Step 4: Choose Additional Options for Factory Integration from Core and Additional Options sections below

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Processors

HP XL1x0r Gen9 Intel Xeon E5-2603v3 (1.6GHz/6-core/15MB/85W) Processor Kit

793012-B21

HPE XL1x0 Gen9 Intel Xeon E5-2695v3 (2.3GHz/14-core/35MB/120W) Processor Kit

793048-B21

HP XL1x0r Gen9 Intel Xeon E5-2650Lv3 (1.8GHz/12-core/30MB/65W) Processor Kit

793050-B21

HPE XL1x0R Gen9 Intel Xeon E5-2620v3 (2.4GHz/6-core/15MB/85W) Processor Kit

793016-B21

HP XL1x0r Gen9 Intel Xeon E5-2609v3 (1.9GHz/6-core/15MB/85W) Processor Kit

793014-B21

HP XL1x0r Gen9 Intel Xeon E5-2630v3 (2.4GHz/8-core/20MB/85W) Processor Kit

793018-B21

HP XL1x0r Gen9 Intel Xeon E5-2640v3 (2.6GHz/8-core/20MB/90W) Processor Kit

793020-B21

HP XL1x0r Gen9 Intel Xeon E5-2650v3 (2.3GHz/10-core/25MB/105W) Processor Kit

793022-B21

HP XL1x0r Gen9 Intel Xeon E5-2660v3 (2.6GHz/10-core/25MB/105W) Processor Kit

793024-B21

HP XL1x0r Gen9 Intel Xeon E5-2670v3 (2.3GHz/12-core/30MB/120W) Processor Kit

793026-B21

HP XL1x0r Gen9 Intel Xeon E5-2680v3 (2.5GHz/12-core/30MB/120W) Processor Kit

793028-B21

HP XL1x0r Gen9 Intel Xeon E5-2690v3 (2.6GHz/12-core/30MB/135W) Processor Kit

793030-B21

HP XL1x0r Gen9 Intel Xeon E5-2697v3 (2.6GHz/14-core/35MB/145W) Processor Kit

793032-B21

HP XL1x0r Gen9 Intel Xeon E5-2637v3 (3.5GHz/4-core/15MB/135W) Processor Kit

793034-B21

HP XL1x0r Gen9 Intel Xeon E5-2643v3 (3.4GHz/6-core/20MB/135W) Processor Kit

793036-B21

HP XL1x0r Gen9 Intel Xeon E5-2667v3 (3.2GHz/8-core/20MB/135W) Processor Kit

793038-B21

HP XL1x0r Gen9 Intel Xeon E5-2683v3 (2GHz/14-core/35MB/120W) Processor Kit

793046-B21

HP XL1x0r Gen9 Intel Xeon E5-2698v3 (2.3GHz/16-core/40MB/135W) Processor Kit

793054-B21

HP XL1x0r Gen9 Intel Xeon E5-2699v3 (2.3GHz/18-core/45MB/145W) Processor Kit

793056-B21

HPE XL1x0r Gen9 Intel Xeon E5-2603v4 (1.7GHz/6-core/15MB/85W) Processor Kit

850286-B21

HPE XL1x0r Gen9 Intel Xeon E5-2609v4 (1.7GHz/8-core/20MB/85W) Processor Kit

850288-B21

HPE XL1x0r Gen9 Intel Xeon E5-2620v4 (2.1GHz/8-core/20MB/85W) Processor Kit

850290-B21

HPE XL1x0r Gen9 Intel Xeon E5-2623v4 (2.6GHz/4-core/10MB/85W) Processor Kit

850292-B21

HPE XL1x0r Gen9 Intel Xeon E5-2630Lv4 (1.8GHz/10-core/25MB/55W) Processor Kit

850294-B21

HPE XL1x0r Gen9 Intel Xeon E5-2630v4 (2.2GHz/10-core/25MB/85W) Processor Kit

850296-B21

HPE XL1x0r Gen9 Intel Xeon E5-2640v4 (2.4GHz/10-core/25MB/90W) Processor Kit

850300-B21

HPE XL1x0r Gen9 Intel Xeon E5-2643v4 (3.4GHz/6-core/20MB/135W) Processor Kit

850302-B21

HPE XL1x0r Gen9 Intel Xeon E5-2650Lv4 (1.7GHz/14-core/35MB/65W) Processor Kit

850304-B21

HPE XL1x0r Gen9 Intel Xeon E5-2650v4 (2.2GHz/12-core/30MB/105W) Processor Kit

850306-B21

HPE XL1x0r Gen9 Intel Xeon E5-2660v4 (2.0GHz/14-core/35MB/105W) Processor Kit

850308-B21

HPE XL1x0r Gen9 Intel Xeon E5-2667v4 (3.2GHz/8-core/25MB/135W) Processor Kit

850310-B21

HPE XL1x0r Gen9 Intel Xeon E5-2680v4 (2.4GHz/14-core/35MB/120W) Processor Kit

850314-B21

HPE XL1x0r Gen9 Intel Xeon E5-2683v4 (2.1GHz/16-core/40MB/120W) Processor Kit

850316-B21

HPE XL1x0r Gen9 Intel Xeon E5-2690v4 (2.6GHz/14-core/35MB/135W) Processor Kit

850318-B21

HPE XL1x0r Gen9 Intel Xeon E5-2695v4 (2.1GHz/18-core/45MB/120W) Processor Kit

850320-B21

HPE XL1x0r Gen9 Intel Xeon E5-2697v4 (2.3GHz/18-core/45MB/145W) Processor Kit

850322-B21

HPE XL1x0r Gen9 Intel Xeon E5-2697Av4 (2.6GHz/16-core/40MB/145W) Processor Kit

850312-B21

HPE XL1x0r Gen9 Intel Xeon E5-2698v4 (2.2GHz/20-core/50MB/135W) Processor Kit

850324-B21

HPE XL1x0r Gen9 Intel Xeon E5-2699v4 (2.2GHz/22-core/55MB/145W) Processor Kit

850326-B21

HPE XL1x0r Gen9 Intel Xeon E5-1630v3 (3.7GHz/4-core/10MB/140W) Processor Kit

845119-B21

HPE XL1x0r Gen9 Intel Xeon E5-1650v3 (3.5GHz/6-core/15MB/140W) Processor Kit

845121-B21

HPE XL1x0r Gen9 Intel Xeon E5-1680v3 (3.2GHz/4-core/20MB/140W) Processor Kit

845123-B21

NOTE: For the Intel® C610 Chipset E5-2600 v3 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 = Processor SKU, and x = L for low power SKUs.
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology. Turbo indicates the maximum potential frequency when using Intel® Turbo Boost Technology. The frequency boost increment is dependent on the processor SKU and the number of active cores. In general, a higher boost increment is obtained when fewer cores are active. All processors support Intel® Hyper-Threading and Intel® Turbo Boost Technologies except the E5-2603 v3 and E5-2609 v3.

NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed. For the maximum supported memory speeds for each processor listed above, please reference the 'Memory Speed by Processor Model' table in the Memory section of the QuickSpecs.

HPE Memory

Registered DIMMs (RDIMMs) - E5-2600 v3 series Processors

HPE 4GB (1x4GB) Single Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726717-B21

HPE 8GB (1x8GB) Single Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726718-B21

HPE 8GB (1x8GB) Dual Rank x8 DDR4-2133 CAS-15-15-15 Registered Memory Kit

759934-B21

HPE 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726719-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

728629-B21

Registered DIMMs (RDIMMs) - E5-2600 v4 series Processors

HPE 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805347-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805349-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

805351-B21

HPE 16GB (1x16GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory Kit

836220-B21

Load Reduced DIMMs (LRDIMMs) - E5-2600 v3 series Processors

HPE 32GB (1x32GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

726722-B21

HPE 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit

726720-B21

Load Reduced DIMMs (LRDIMMs) - E5-2600 v4 series Processors

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit

805353-B21

HPE 64GB (1x64GB) Quad Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced Memory Kit

805358-B21

HPE 128GB (1x128GB) Octal Rank x4 DDR4-2400 CAS-20-18-18 Load Reduced Memory Kit

809208-B21

NOTE: HPE memory from previous generation servers (DDR3) is not compatible with this server. HPE DDR4 SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen9. For additional information, please see the HPE DDR4 SmartMemory QuickSpecs at: http://www8.hpe.com/h20195/v2/GetHTML.aspx?docname=c04380279

NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.
NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2133MHz, 1866MHz, or 1600MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: http://h22195.www2.hpe.com/MemoryTool/Home/Legal

HPE Networking

Ethernet Options

HPE Ethernet 1Gb 2-port 332T Adapter

615732-B21

HPE Ethernet 1Gb 4-port 331T Adapter

647594-B21

HPE Ethernet 1Gb 2-port 361T Adapter

652497-B21

HPE Ethernet 10Gb 2-port 530SFP Adapter

652503-B21

HPE Ethernet 10Gb 2-port 530T Adapter

656596-B21

HPE Ethernet 10Gb 2-port 560SFP+ Adapter

665249-B21

HPE Ethernet 10Gb 2-port 561T Adapter

716591-B21

HPE Ethernet 10Gb 2-port 546SFP+ Adapter

779793-B21

HP XL170r/190r Dedicated NIC IM Board Kit

798192-B21

HPE Ethernet 10Gb 2-port 562SFP+ Adapter

727055-B21

HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter

727054-B21

HPE Ethernet 10Gb 2-port 561FLR-T Adapter

700699-B21

HPE Ethernet 1Gb 4-port 366T Adapter

811546-B21

HPE Ethernet 10/25Gb 2-port 640FLR-SFP28 Adapter

817749-B21

HPE Ethernet 10/25Gb 2-port 640SFP28 Adapter

817753-B21

NOTE: For 1U, total Slots available for PCIe is 2, total Slots available for FlexLOM is 1. This is a total selection from anything in the following categories:
InfiniBand, Networking, Controllers.

NOTE: 817753-B21 and 817749-B21 can only support up to 20C ambient temperature with optical cable, 24C with copper cable.

FlexibleLOM Adapters

HPE Ethernet 1Gb 4-port 331FLR Adapter

629135-B22

HPE Ethernet 1Gb 4-port 366FLR Adapter

665240-B21

HPE Ethernet 10Gb 2-port 560FLR-SFP+ Adapter

665243-B21

HPE Ethernet 4x25Gb 1-port 620QSFP28 Adapter

817762-B21

HPE FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter

700751-B21

HPE FlexFabric 10Gb 2-port 533FLR-T Adapter

700759-B21

HPE FlexFabric 10Gb 2-port 556FLR-SFP+ Adapter

727060-B21

HPE FlexFabric 10Gb 4-port 536FLR-T Adapter

764302-B21

HPE FlexFabric 10Gb 2-port 556FLR-T Adapter

794525-B21

HPE Ethernet 10Gb 2-port 546FLR-SFP+ Adapter

779799-B21

HPE StoreFabric CN1200E 10GBASE-T Dual Port Converged Network Adapter

N3U51A

HPE StoreFabric CN1100R 10GBASE-T Dual Port Converged Network Adapter

N3U52A

HPE StoreFabric CN1100R Dual Port Converged Network Adapter

QW990A

HPE StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter

QW971A

HPE StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter

QW972A

HPE 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AK344A

HPE 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ764A

InfiniBand Options

HPE InfiniBand EDR/Ethernet 100Gb 1-port 840QSFP28 Adapter

825110-B21

HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter

825111-B21

HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+QSFP Adapter

764284-B21

HPE InfiniBand FDR 2-port 545FLR-QSFP Adapter

702212-B21

HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+FLR-QSFP Adapter

764285-B21

HPE InfiniBand QDR/Ethernet 10Gb 2-port 544+FLR-QSFP Adapter

764286-B21

HPE 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel Omni-Path Architecture Adapter

829335-B21

HPE 100Gb 1-port OP101 QSFP28 x8 PCIe Gen3 with Intel Omni-Path Architecture Adapter

829334-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://www.hpe.com/go/ProLiantNICs

M.2

HP XL170r/190r NGFF Riser for M2SATA Kit

798190-B21

HPE XL1x0r Gen9 New Generation Form Factor 240GB (2x120GB) Riser Drive

844540-B21

HPE Tape Backup

NOTE: For the complete range of tape drives, autoloaders, libraries and media see:

http://www.hpe.com/storage/storeever. For hardware and software compatibility of Hewlett Packard Enterprise tape backup products http://www.hpe.com/storage/BURAcompatibility

HPE StoreEver LTO-7 Ultrium 15000 External Tape Drive

BB874A

HPE StoreEver LTO-6 Ultrium 6250 External Tape Drive

EH970A

HPE StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive

EH958B

HPE StoreEver 1U SAS Rack Mount Kit + LTO-7 Ultrium 15000 Internal Tape Drive

AE459B

BB873A

HPE StoreEver 1U SAS Rack Mount Kit + LTO-6 Ultrium 6250 Internal Tape Drive

AE459B

EH969A

HPE StoreEver MSL6480 Scalable Base Module

QU625A

HPE StoreEver MSL2024 0-drive Tape Library

AK379A

HPE StoreEver MSL4048 0-drive Tape Library

AK381A

HPE StoreEver 1/8 G2 LTO-7 Ultrium 15000 SAS/FC Tape Autoloader

N7P35A

N7P34A

HPE StoreEver 1/8 G2 LTO-6 Ultrium 6250 SAS/FC Tape Autoloader

C0H18A

C0H19A

HPE StoreEver 1/8 G2 LTO-5 Ultrium 3000 SAS/FC Channel Tape Autoloader

BL536B

BL541B

HPE StoreEver MSL LTO-7 Ultrium 15000 SAS/FC Drive Upgrade Kit

N7P37A

N7P36A

HPE StoreEver MSL LTO-6 Ultrium 6250 SAS/FC Drive Upgrade Kit

C0H27A

C0H28A

HPE StoreEver MSL LTO-5 Ultrium 3000 SAS/FC Drive Upgrade Kit

BL540B

BL544B

HPE Hard Drives

Hot Plug SFF Drives

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

832414-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804587-B21

HPE 800GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804599-B21

HPE 200GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

804613-B21

HPE 800GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

804625-B21

HPE 400GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872355-B21

HPE 800GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872359-B21

HPE 1.6TB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872363-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872344-B21

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872348-B21

HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872352-B21

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765453-B21

HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765455-B21

HPE 150GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

869374-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

869376-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

869378-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

869384-B21

HPE 1.6TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

869386-B21

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822555-B21

HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822567-B21

HPE 1.6TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

804631-B21

HPE 480GB SATA 6G Mixed Use LFF (3.5in) SCC 3yr Wty SSD

832417-B21

HPE 200GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804639-B21

HPE 400GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804665-B21

HPE 800GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804671-B21

HPE 450GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD

759210-B21

HPE 1.2TB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804677-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD

759212-B21

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD

759208-B21

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872374-B21

HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872376-B21

HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872382-B21

HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872386-B21

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870753-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870757-B21

HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870759-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

870763-B21

HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

870765-B21

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872475-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872477-B21

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872479-B21

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

872481-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in ) SC 3yr Wty HDD

781516-B21

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

781518-B21

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

785067-B21

HPE 900GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

785069-B21

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e HDD

791034-B21

HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872390-B21

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872392-B21

HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872394-B21

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765464-B21

HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765466-B21

HPE Small Form Factor Hard Drive Blank Kit

666987-B21

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

832514-B21

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

655710-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

871768-B21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

871770-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

872853-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

872855-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868814-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868818-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868822-B21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868826-B21

HPE 3.8TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868830-B21

HPE Apollo 2000 SFF Bezel Kit

838521-B21

NOTE: This bezel kit is required for P100 PCIe card.

Hot Plug LFF

HPE Gen9 LFF HDD Spade Blank Kit

807878-B21

HPE 800GB SAS 12G Write Intensive LFF (3.5in) LP 3yr Wty SSD

797291-B21

HPE 400GB SAS 12G Write Intensive LFF (3.5in) LP 3yr Wty SSD

797289-B21

HPE 600GB SAS 12G Enterprise 15K LFF (3.5in) LPC 3yr Wty HDD

797283-B21

HPE 960GB 6G SATA Mixed Use-3 LFF 3.5-in LPC 3yr Wty Solid State Drive

832433-B21

HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e Digitally Signed Firmware HDD

834028-B21

HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e Digitally Signed Firmware HDD

834031-B21

HPE 1.6TB SATA 6G Mixed Use LFF (3.5in) LPC 3yr Wty SSD

846788-B21

HPE 1TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

846526-B21

HPE 3TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

846530-B21

HPE 8TB 12G SAS 7.2K rpm LFF (3.5in) 512e Low Profile Midline 1yr Wty 6-pack FIO Hard Drive Bundle

867263-B21

HPE 4TB 12G SAS 7.2K rpm LFF (3.5in) 512e Low Profile Midline 1yr Wty 6-pack FIO Hard Drive Bundle

867269-B21

HPE 6TB 12G SAS 7.2K rpm LFF (3.5in) 512e Low Profile Midline 1yr Wty 6-pack FIO Hard Drive Bundle

867271-B21

HPE 800GB SAS 12G Mixed Use LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware SSD

872380-B21

HPE 1.6TB SAS 12G Mixed Use LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware SSD

872384-B21

HPE 300GB SAS 12G Enterprise 15K LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware HDD

870755-B21

HPE 900GB SAS 12G Enterprise 15K LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware HDD

870761-B21

HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

833926-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

833928-B21

HPE 6TB  SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e HDD

861746-B21

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e HDD

861748-B21

HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

861681-B21

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

861683-B21

HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

861686-B21

HPE 3TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

861688-B21

HPE 8TB 6G SATA 7.2K rpm LFF (3.5in) 512e Low Profile Midline 1yr Wty 6-pack FIO Hard Drive Bundle

867261-B21

HPE 4TB 6G SATA 7.2K rpm LFF (3.5in) 512e Low Profile Midline 1yr Wty 6-pack FIO Hard Drive Bundle

867265-B21

HPE 6TB 6G SATA 7.2K rpm LFF (3.5in) 512e Low Profile Midline 1yr Wty 6-pack FIO Hard Drive Bundle

867267-B21

HPE 10TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD

857650-B21

HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD

861596-B21

HPE 480GB SATA 6G Read Intensive LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware SSD

869382-B21

HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e HDD

861742-B21

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e HDD

861744-B21

HPE 10TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD

857646-B21

HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD

861592-B21

HPE 6TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

846512-B21

HPE 6TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed Firmware HDD

846516-B21

HPE 480GB SATA 6G Read Intensive LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware SSD

869056-B21

HPE 1.92TB SATA 6G Read Intensive LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware SSD

869058-B21

HPE Apollo 2000 LFF Bezel Kit

838518-B21

NOTE: This bezel kit is required for P100 PCIe card.

HPE Storage Controllers

HPE Smart Array P440/4GB FBWC 12Gb 1-port Int SAS Controller

726821-B21

NOTE: This controller can support up to 8 internal SAS/SATA devices.

NOTE: Selecting this controller means H240 cannot be selected.

NOTE: A maximum of 1 may be ordered.

HPE Smart Array P441/4GB FBWC 12Gb 2-ports Ext SAS Controller

726825-B21

NOTE: This controller supports 0 Internal SAS/SATA devices

NOTE: A maximum of 2 may be ordered to support external devices.

HPE H240 12Gb 2-ports Int Smart Host Bus Adapter

726907-B21

NOTE: This controller can support up to 8 internal SAS/SATA devices.

NOTE: Selecting this controller means P440/4G cannot be selected.

NOTE: A maximum of 1 may be ordered.

HPE H241 12Gb 2-ports Ext Smart Host Bus Adapter

726911-B21

NOTE: This controller supports 0 Internal SAS/SATA devices

NOTE: A maximum of 2 may be ordered to support external devices.

HPE Smart Array P840/4GB FBWC 12Gb 2-ports Int SAS Controller

726897-B21

NOTE: This controller supports up to 16 Internal SAS/SATA devices

NOTE: A maximum of 1 may be ordered to support external devices.

HPE PCIe Accelerators

HPE 800GB NVMe Mixed Use HH/HL PCIe Workload Accelerator

803200-B21

HPE 1.6TB NVMe Mixed Use HH/HL PCIe Workload Accelerator

803202-B21

HPE 800GB NVMe Write Intensive HH/HL PCIe Workload Accelerator

803195-B21

HPE 1.6TB NVMe Write Intensive HH/HL PCIe Workload Accelerator

803197-B21

HPE Storage Controllers

Emulex Fibre Channel HBAs

HPE StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter

C8R38A

HPE StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter

C8R39A

HPE 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AJ762B

HPE 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ763B

HPE Insight Software

Integrated Lights-Out (iLO)

HPE iLO Scale Out

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates E-LTU

E6U59ABE

HPE iLO Advanced including 3yr 24x7 Technical Support and Updates E-LTU

E6U64ABE

HPE iLO Scale-Out including 3yr 24x7 Tech Support and Updates Flex Qty E-LTU

BD776AAE

HPE iLO Scale-Out 3yr 24x7 Tech Support and Updates Flexible Quantity LTU

BD776A

HPE iLO Scale-Out including 3yr 24x7 Tech Support and Updates Tracking LTU

BD777A

HPE iLO Scale-Out 1yr 24x7 Tech Support and Updates Flexible Quantity LTU

BD778A

HPE Integrated Lights-Out (iLO) Advanced for ProLiant

HPE iLO Scale-Out including 1yr 24x7 Tech Support and Updates Flex Qty E-LTU

BD778AAE

HPE iLO Scale-Out including 1yr 24x7 Tech Support and Updates Tracking LTU

BD779A

HPE iLO Advanced including 3yr 24x7 Tech Support and Updates 1-server LTU

BD505A

HPE iLO Advanced including 3yr 24x7 Tech Support and Updates Flexible Quantity LTU

BD506A

HP iLO Advanced Electronic License with 3yr 24x7 Tech Support and Updates

BD506AAE

HPE iLO Advanced including 3yr 24x7 Tech Support and Updates Tracking LTU

BD507A

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates 1-server LTU

512485-B21

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates Flexible Quantity LTU

512486-B21

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates Tracking LTU

512487-B21

HP iLO Advanced including 1yr 24x7 Technical Support and Updates Electronic License

TA850AAE

NOTE: For additional license options please see the QuickSpecs at:

http://www8.hp.com/h20195/v2/gethtml.aspx?docname=c04154343

NOTE: For more information, visit: http://www.hpe.com/go/ilo

USB Flash Kit

HPE Dual 8GB microSD Enterprise Midline USB Kit

741279-B21

HPE 8GB USB Enterprise Mainstream Flash Media Drive Key Kit

737953-B21

High Performance Clusters

HPE Cluster Management Utility

HPE Insight Cluster Management Utility 1yr 24x7 Flexible LTU

QL803B

HPE Insight Cluster Management Utility 3yr 24x7 Flexible LTU
NOTE: These part numbers can be used to purchase one certificate for multiple licenses and support with a single activation key. Each license is for one node (server). Customer will receive a printed end user license agreement and license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online in order to obtain a license key. Customer also will receive a support agreement.

BD476A

HPE Insight Cluster Management Utility Media

BD477A

HPE USB US Keyboard/Mouse Kit

631341-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information:

http://www8.hp.com/h20195/v2/gethtml.aspx?docname=c04168349

Security Hardware

Trusted Platform Module

HPE Trusted Platform Module Option

488069-B21

HPE Trusted Platform Module 2.0 Kit

745823-B21

HPE Memory

DDR4 memory options part number decoder

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

•  2GB = 2,048MB
•  4GB = 4,096MB
•  8GB = 8,192MB
•  16GB = 16,384MB
•  32GB = 32,768MB
•  64GB = 65,536MB

System Unit

Server Dimensions
(L x W x D)

1.63 x 7.07 x 25.26 in (4.13 x 17.95 x 64.15 cm)

Weight
(approximate)

Maximum
(four hard drives and two processors installed)

3.82 lb (1.73 kg)

System Inlet Temperature

Standard Operating Support

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.

Extended Ambient Operating Support

System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:

http://www.hp.com/servers/ASHRAE

For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:

http://www.hp.com/servers/ASHRAE

System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

Non-operatingt

-30° o 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

Relative Humidity
(non-condensing)

Operating

Minimum to be the higher (more moisture) of -12°C (10.4°F) dew point or 8% relative humidity. Maximum to be the lower (less moisture) of 24°C (75.2°F) dew point or 90% relative humidity.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and measured average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Acoustic Noise

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/go/green

To recycle your product, please go to: http://www.hpe.com/go/green or contact your nearest Hewlett Packard Enterprise

Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. He EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) Is posted on the Hewlett Packard Enterprise web site at: http://www.hpe.com/go/green These instructions may be used by recyclers and other

WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

23-Oct-2017

Version 17

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

19-May-2017

From version 15 to 16

Updated

Update information in Configuration Information Section

13-Jan-2017

From version 14 to 15

Changed

Correct broken link from OS

16-Dec-2016

From version 13 to 14

Updated

Add USB Flash Kits

28-Nov-2016

From version 12 to 13

Updated

Update configuration section and correct errors

4-Nov-2016

From version 11 to 12

Updated

Remove some HDD SKUs

15-Aug-2016

From version 10 to 11

Updated

Updates throughout the QuickSpecs

15-Jul-2016

From version 9 to 10

Changed

Change the broken links and update info on the InfiniBand cards

20-May-2016

From version 8 to 9

Updated

Updates throughout the QuickSpecs

31-Mar-2016

From version 7 to 8

Updated

Update the configuration section SKUs

16-Feb-2016

From version 6 to 7

Updated

Update SDD and SATA and processors

8-Jan-2016

From version 5 to 6

Changed

Correct the misinformation and add the HPE Storage options to the QuickSpecs.

1-Dec-2015

From version 4 to 5

Updated

Update the configuration section SKUs

23-Oct-2015

From version 3 to 4

Changed

Correct descriptions for memories section

28-Sept-2015

From version 2 to 3

Updated

Updates throughout the QuickSpecs

17-Aug-2015

From version 1 to 2

Changed

Change and update SKUs for HPE ProLiant XL170r Gen9 Server

30-Mar-2015

Version 1

Created

Create QuickSpecs for HPE ProLiant XL170r Gen9 Server
