HPE Apollo w6000 Chassis Is
it time for a real workhorse server solution to take your business to
the next level? The new modular, fully integrated, and highly flexible HPE Apollo w6000 Chassis accommodates up to twenty four HPE ProLiant XL2x260w server trays, redundant power and cooling, ethernet and high speed fabric switches to address various HPC workload needs. The HPE Apollo 6000 DLC System is a performance optimized, water-cooled solution and is space efficient for your data center. This solution offers outstanding configuration flexibility, simplified administration and rack-scale efficiency that lowers the total cost of ownership needed for large scale HPC deployments.
| |||
|

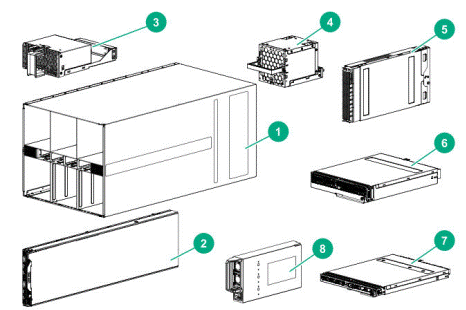

Item |
Description |
Item |
Description |
|
1. |
HPE Apollo w6000 Chassis |
5. |
Chassis controller or HPE Apollo Platform Manager |
|
2. |
Server trays (qty. depends on configuration ordered |
6. |
High-speed fabric switches (qty. and type depend on configuration ordered |
|
3. |
Front fan modules (4) |
7. |
Data switches (qty and type depend on configuration ordered) |
|
4. |
Rear fan modules (12) |
8. |
Power supplies (2) |
|
HPE Apollo w6000 Chassis | |||
|

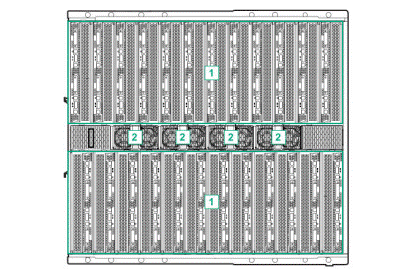

Front chassis components | |||
|
| |||
|
Item |
Description |
Item |
Description |
|
1. |
Server bays |
5. |
Fan module bays |
|

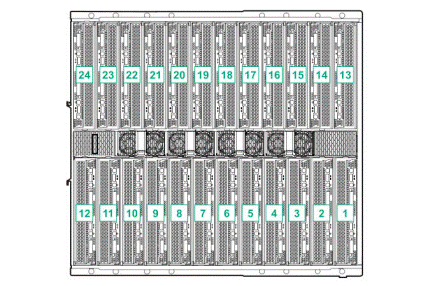

Server bay numbering | |||
|
| |||
|

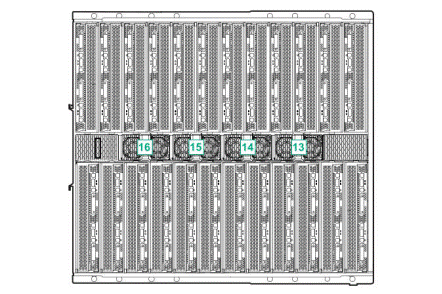

Front panel fan module numbering | |||
|
| |||
|

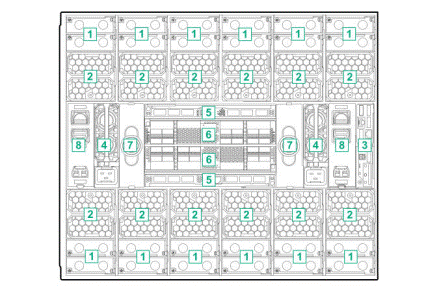

Rear panel components | |||
|
| |||
|
Item |
Description |
Item |
Description |
|
1. |
Blanks |
5. |
Data switches |
|
2. |
Fan modules |
6. |
High-speed fabric switches |
|
3. |
Chassis controller or HPE Apollo Platform Manager |
7. |
Liquid line connection |
|
4. |
Power supply |
8. |
HVDC input connections |
Standard Features
|
Chassis |
Each HPE Apollo w6000 Chassis can be fully configured with the following:
|
|
System Fans |
The Chassis supports 12 dual rotor fan modules and 4 hot pluggable front fans to direct air to switch bays. |
|
Server Blank Kit |
HPE Apollo 6000 Server Tray Blank Kit NOTE: Use this Server Blank tray kit in the absence of a server tray in one of the assigned server slots tomaintain the airflow in the chassis to meet thermal requirements during operation or servicing. |
|
Rack Cooling Requirements |
HPE Apollo Performance 42U 800mm x 1600mm Shock Direct Liquid Cooling Rack w/Environmental Control |
|

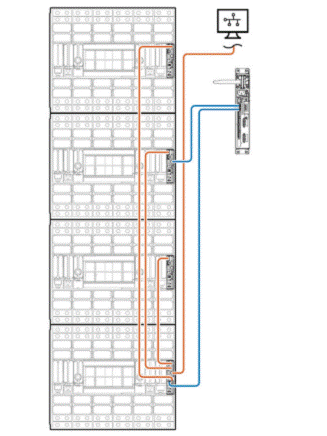

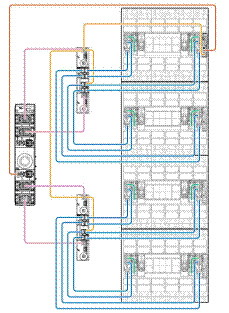

Cabling |
|
|
| |
|
Connect the HPE Apollo Platform Manager |
|
|
|
|
Service and Support |
Protect your business beyond warranty with HPE Support Services It is recommended to have the same attached support level for all products included in the HPE Apollo w6000 chassis. The support of HPE Apollo w6000 the chassis covers the chassis, the included options, the power shelf and APM. The xl2x260w server and switches are not included in the chassis support; separate support services are available for these components. HPE Pointnext for Industry Standard Servers HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution. Finally, operational services provides innovative new approaches like Flexible Capacity and Datacenter Care, to keep your business at peak performance. HPE is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple. |
|
Recommended Services Optimized Recommendation
|
HPE Proactive Care 24x7, three-year Support Service HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice This Service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers. https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf |
|
Standard Recommendation
|
*HPE Proactive Care and HPE Proactive Care Advanced require that the customer connect their devices to make the most of these services and receive all the deliverables. HPE Foundation Care 24x7, three-year Support Service HPE Foundation Care 24x7 gives you access to HPE 24 hours a day, seven days a week for assistance on resolving issues. This service includes need based Hardware onsite response within four hours. In addition, collaborative software support is included in this service that provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make HPE your first call to help resolve hardware or software problems. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en |
|
Basic Recommendation
|
HPE Foundation Care NBD, three-year Support Service HPE Foundation Care Next Business Day connects you to HPE during business hours for assistance on resolving issues - This service features need based next business day hardware onsite response and software call back within two hours. In addition, Collaborative software support and provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make HPE your first call to help resolve hardware or software problems. https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en |
|
Parts and Materials
|
HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction |
|
Other Related Services
|
HPE Server Hardware Installation Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner. https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf |
|
HPE Installation and Startup Service provides for the installation of your HPE hardware according to product specifications including options. The HPE service delivery technician will connect the product to a LAN as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux). | |
|
HPE Factory Express for Servers and Storage HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches. | |
|
HPE Technology Services Support Credits offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business. | |
|
HPE Datacenter Care service HPE Datacenter Care helps improve IT stability and security, increase the value of IT, and enable agility and innovation. It is a structured framework of repeatable, tested, and globally available services "building blocks." You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Datacenter Care, you benefit from a personalized relationship with HPE via a single point of accountability for HPE and others' products. For more information, visit http://www.hpe.com/services/datacentercare | |
|
HPE Flexible Capacity, With Flexible Capacity, you get the speed, scalability, and economics of the public cloud in the privacy of your data center. Gain the advantages of the public cloud-consumption-based payment, rapid scalability without worrying about capacity constraints. Reduce the "heavy lifting" needed to operate a data center. And retain the advantages that IT provides the business (i.e., control, security). Deliver the right user experience, choose the right technology for the business, manage privacy and compliance, and manage the cost of IT. And, you have the option to use the public cloud when needed | |
|
DC for Hyperscale Datacenter Care for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture can take advantage of this environment support tailored to their operating model | |
|
HPE Education Services Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn | |
|
The HPE Support Center Is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers. Learn more http://www.hpe.com/support/hpesc HPE's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. *HPE Support Center Mobile App is subject to local availability Additional can be found at: http://www.hpe.com/services |
|
Warranty |
This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. |
Configuration Information
|
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements. | ||
|
Step 1: Choose a Chassis Configuration | ||
|
HPE Chassis |
HPE Apollo w6000 1.2m Chassis |
870777-B21 |
|
NOTE: This Chassis requires the HPE Apollo Performance 42U 800mm x 1600mm Shock Direct Liquid Cooling Rack w/Environmental Control | ||
|
HPE Cooling Options |
HPE Apollo 6000 Server Tray Blank Kit |
870868-B21 |
|
NOTE: Required for any non-populated slots in the chassis to prevent thermal related issues. | ||
|
Step 2: Choose a Compute Server Tray | ||
|
Server Trays |
NOTE: For full server configuration options and details, please see HPE ProLiant XL2x260w QuickSpecs. | |
|
HPE ProLiant XL2x260w Tray NOTE: This is single slot server tray which contains 2P server. Each HPE Apollo w6000 Chassis can fit up to 24 XL2x260w compute server trays. |
851659-B21 | |
|
Step 3: Choose Additional Options | ||
|
HPE Advanced Power Manage |
HPE Apollo 6000 Fabric FIO Backplane |
859368-B21 |
|
NOTE: The Fabric Backplane is required if high speed EDR InfiniBand or OmniPath Architechture is desired. | ||
|
HPE Apollo 6000 Chassis Controller |
859362-B21 | |
|
NOTE: The Chassis Controller is required to manage the power and thermals of the chassis. | ||
|
HPE Apollo 6000 Platform Manager |
859364-B21 | |
|
NOTE: One Apollo Platform Manager per rack can be installed in place of Chassis Controller that can connect upto 3 Chassis Controllers for full rack level control. NOTE: One HPE Netwrok to Serial port (SKU: 859365-B21) is included with HPE Apollo Platform Manager. | ||
|
Step 4: Choose network and high speed fabric switches | ||
|
Network switches
|
HPE Apollo Ethernet 10Gb Pass Thru Module |
851928-B21 |
|
NOTE: The HPE Apollo 10GbE Pass Thru Module allows customers to connect to their desired top of rack switches. Quantity of 1 or 2 can be installed into the Apollo w6000 Chassis. | ||
|
HPE Apollo 10/40GbE Ethernet Switch |
| |
|
HPE Apollo Ethernet 10/40Gb Switch TE: The HPE Apollo 10/40GbE Ethernet Switch is an integrated switch to be placed in switch Bay 1, 2 or both depending on the desired configuration. |
846633-B21
| |
|
High Speed Fabric Switches
|
HPE Apollo Ethernet 10/40Gb TAA-compliant Switch |
846633-B22 |
|
HPE Apollo A10 InfiniBand EDR 100 Gb 36-port Unmanaged Switch |
843407-B21 | |
|
NOTE: The HPE Apollo InfiniBand EDR Switch can be installed in High Speed Switch Bay 3, 4 or both depending on switch radix alignment. 1 installed switch represents 2:1 radix alignment while 2 switches allow 1:1 radix alignment. | ||
|
HPE Apollo 100Gb 48-port Intel® Omni-Path Architecture Unmanaged Switch |
851341-B21 | |
|
NOTE: The Apollo 100Gb 48-port Intel Omni-Path Architecture (OPA) Switch can be installed in Switch Bay 3, 4 or both depending on single or dual rail. | ||
|
HPE Support Services
|
Installation & start up services | |
|
HPE Installation Apollo 6000 Gen10 Chassis Service |
H2GA8E | |
|
HPE Apollo 6000 Generation 10 Installation and Startup Service |
H6SV1E | |
|
Support Services |
| |
|
HPE 3 Year Proactive Care 24x7 Apollo 6000 Gen10 Chassis Service |
H2FP5E | |
|
HPE 3 Year Foundation Care 24x7 Apollo 6000 Gen10 Chassis Service |
H2FP4E | |
|
HPE 3 Year Foundation Care Next Business Day Apollo 6000 Gen10 Chassis Service |
H2FP1E | |
Technical Specifications
|
Apollo w6000 Chassis |
Dimensions |
Height |
17.64 in (44.80 cm) | ||||||||||||||||||
|
Width |
20.92 in (53.14 cm) | ||||||||||||||||||||
|
Depth |
40.39 in (102.60 cm) | ||||||||||||||||||||
|
Shipping Dimensions |
Height |
18 in (45.70 cm) | |||||||||||||||||||
|
Width |
23.6 in (60.00 cm) | ||||||||||||||||||||
|
Depth |
42.8 in (108.70 cm) | ||||||||||||||||||||
|
Chassis Weight |
Empty |
147 lb (66.68 kg) | |||||||||||||||||||
|
Max Enclosure Weight |
Approximate |
665 lb (301.64 kg) | |||||||||||||||||||
|
Temperature Range
|
Operating |
10° to 35° C (50° to 95° F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed. System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F). NOTE: Operating temperature has an altitude derating of 1.8° F (1° C) per 1,000 ft (304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70Kpa/10.1 psia. Upper non-operating limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa. | |||||||||||||||||||
|
Relative Humidity
|
Extended Ambient Operating Support
|
For approved hardware configurations, the supported system inlet range is extended to be: 10° to 5°C (50° to 41°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL: http://www.hpe.com/servers/ASHRAE | |||||||||||||||||||
|
Non-Operating |
-30° to 60° C (-22° to 140° F ) System performance may be reduced if operating in the extended ambient operating range or with a fan fault. | ||||||||||||||||||||
|
Operating
|
10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.
| ||||||||||||||||||||
|
Non-Operating |
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. | ||||||||||||||||||||
|
Acoustic Noise |
Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). | ||||||||||||||||||||
| |||||||||||||||||||||
|
Environmental-friendly Products and Approach |
End-of-life Management and Recycling |
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site: http://www.hpe.com/RECYCLE. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. | |||||||||||||||||||
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
25-Sept-2017 |
Version 1 |
Created |
Created QuickSpecs for HPE Apollo w6000 Chassis |
| ||||||||||||||||||
