HPE Apollo pc40 Server

The HPE Apollo pc40 Server features up to four NVIDIA® Tesla® PCIe graphic processing units (GPUs) to accelerate mixed-application, GPU-accelerated HPC workloads. The PCIe form factor can allow for a greater selection of accelerators and GPUs than alternate form factors.

Optimize the server for required workloads by choosing from the available CPUs in the Intel® Xeon® Processor Scalable Family, up to twelve 2666 MT/s DDR4 DIMMs, optional network adapters, and up to two SFF hard drives or solid state drives.

Fully integrated and factory tested clusters are delivered with a complete cluster management software stack to simplify deployment and management, and can be custom configured for perfect right-sizing.

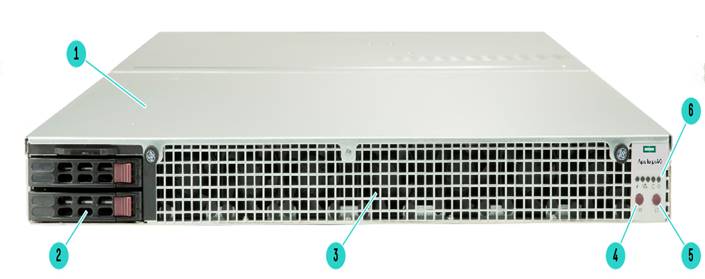

Front View

Item

Description

1.

HPE Apollo pc40 Chassis (1U)

2.

2 SFF Hot-swap SATA Drive Bays

3.

Internal Fans

4.

Unit Identification (UID) LED/button

5.

Power Button

6.

Status LEDs

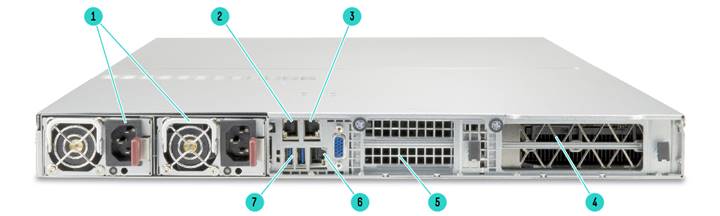

Rear View

Item

 Description

1.

Two 2000W Titanium level power supplies

2.

Embedded 10 Gb NIC 1

3.

Embedded 10 Gb NIC 2

4.

One double wide GPU or two full-height PCIe Gen3 x16 slots

5.

Two low profile PCIe Gen3 x16 slots

6.

Dedicated IPMI LAN port

7.

Two USB 3.0 Connectors

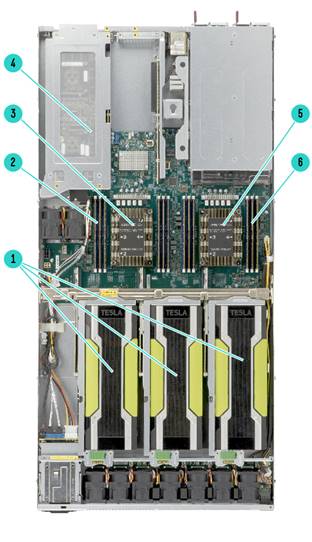

Top View

Item

 Description

1.

Full-height/Full-length PCIe 3 x16 slots for GPUs

2.

DIMMs for processor 1

3.

Processor 1

4.

Full-height/Full-length PCIe Gen3 x16 slot for GPU or two PCIe Gen3 x16 slots

5.

Processor 2

6.

DIMMs for processor 2

Intel® Xeon® Processor Scalable Family Processors (Please follow product offering to fill out processor SKU)

Chipset

Intel® C620 Series Chipset

NOTE: For more information regarding Intel® chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/

Memory

Type

DDR4 Load Reduced (LRDIMM), or Registered (RDIMM)

DIMM Slots Available

12 DIMM slots available

Maximum (LRDIMM)

1.5 TB (12x 128 GB)

NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.

Network Controller

Ethernet Options

HPE Ethernet 10Gb 2-port 535T Adapter

HPE Ethernet 10Gb 2-port 571SFP+ Adapter

HPE Ethernet 10Gb 2-port 561T Adapter

InfiniBand Options

HPE IB EDR/EN 100Gb 1-port 840QSFP28 Adapter

HPE IB EDR/EN 100Gb 2-port 840QSFP28 Adapter

HPE 100Gb 1-port OP101 QSFP28 x16 OPA Adapter

Maximum Internal Storage

HPE 1TB SATA 7.2K SFF RW 512n DS HDD

2x 1 TB

HPE 2TB SATA 7.2K SFF RW 512e DS HDD

2x 2 TB

HPE 240GB SATA MU SFF RW DS SSD

2x 240 GB

HPE 480GB SATA MU SFF RW DS SSD

2x 480 GB

HPE 960GB SATA MU SFF RW DS SSD

2x 960 GB

HPE 1.92TB SATA MU SFF RW DS SSD

2x 1.92 TB

HPE 3.84TB SATA RI SFF ST DS SSD

2x 3.8 TB

Interfaces

USB Ports

2 USB 3.0 (external)

Remote Management Port

Dedicated IMPI port

Status LED

1

Power

1

UID

1

Industry Standard Compliance

ACPI 2.0b Compliant

PCIe 3.0 Compliant

PXE Support

USB 1.1,2.0 and 3.0 Compliant

Power Specifications

To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at URL: https://www.hpe.com/us/en/integrated-systems/rack-power-cooling.html#Portfolio

NOTE: Power Specification and Technical Content for supported power supplies can be found at https://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04111541

Operating Systems and Virtualization Software Support for HPE Apollo Servers

Red Hat Enterprise Linux (RHEL)

SUSE Linux Enterprise Server (SLES)

CentOS

Graphics

Integrated video standard

Form Factor

The Apollo pc40 is a 1U server

Embedded Management

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at https://www.hpe.com/us/en/product-catalog/detail/pip.6935826.html

Intelligent Provisioning

Provision servers by discovering and deploying 1 to few servers with Intelligent Provisioning. Learn more at https://www.hpe.com/us/en/product-catalog/detail/pip.5219984.html

Security

Power-on password

Keyboard password

Serial interface control

Administrator's password

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners (may vary by region). Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty.
NOTE: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hpe.com/products/servers/platforms/warranty/index.html

NOTE: In Asia Pacific, Japan and China, Server Warranty includes 3 years Parts, 3 year Labor, 3-year Onsite support with next business day response

Warranty and Support Services will extend to include HPE options configured with your server or storage device. The price of support service is not impacted by configuration details. HPE sourced options that are compatible with your product will be covered under your server support at the same level of coverage allowing you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for everyone, some high value options will require additional support. Additional support is only required on select high value workload accelerators, fibre switches, InfiniBand and UPS batteries over 12KVA. See the specific high value options that require additional support HERE

High Performance Clusters

HPE Insight Cluster Management Utility

HPE Insight Cluster Management Utility (CMU) is a Hewlett Packard Enterprise-licensed and Hewlett Packard Enterprise-supported suite of tools that are used for lifecycle management of hyperscale clusters of Linux systems. CMU includes software for the centralized provisioning, management and monitoring of nodes. CMU makes the administration of clusters user friendly, efficient, and effective. http://www.hpe.com/go/cmu

Service and Support

Protect your business beyond warranty with HPE Support Services

HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution. Finally, operational services provides innovative new approaches like Flexible Capacity and Datacenter Care, to keep your business at peak performance. HPE is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple.

Optimized Recommendation

HPE Proactive Care* with 24x7 coverage, three year Support Service

HPE Proactive Care gives customers an enhanced call experience. When your products are connected to HPE, Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice This Service combines three years proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem. This service also includes collaborative software support for Independent Software Vendors (ISVs), (Red Hat, VMWare, Microsoft, etc.) running on your HPE servers.

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

NOTE: *HPE Proactive Care and HPE Proactive Care Advanced require that the customer connect their devices to make the most of these services and receive all the deliverables.

Standard

Recommendation

HPE Foundation Care 24x7, three-year Support Service

HPE Foundation Care 24x7 gives you access to HPE 24 hours a day, seven days a week for assistance on resolving issues. This service includes need based Hardware onsite response within four hours. In addition, collaborative software support is included in this service that provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make HPE your first call to help resolve hardware or software problems.

https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Basic Recommendation

HPE Foundation Care NBD, three-year Support Service

HPE Foundation Care Next Business Day connects you to HPE during business hours for assistance on resolving issues - This service features need based next business day hardware onsite response and software call back within two hours. In addition, Collaborative software support and provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make HPE your first call to help resolve hardware or software problems.

https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Other Related Services

HPE Server Hardware Installation
Provides for the basic hardware installation of HPE branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf

HPE Installation and Startup Service

Provides for the installation of your HPE hardware according to product specifications including options. The HPE service delivery technician will connect the product to a LAN as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux).

HPE Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.

HPE Technology Services Support Credits

Offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.

HPE Datacenter Care service

HPE Datacenter Care helps improve IT stability and security, increase the value of IT, and enable agility and innovation. It is a structured framework of repeatable, tested, and globally available services "building blocks." You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Datacenter Care, you benefit from a personalized relationship with HPE via a single point of accountability for HPE and others' products. For more information, visit http://www.hpe.com/services/datacentercare

HPE Flexibly Capacity

With Flexible Capacity, you get the speed, scalability, and economics of the public cloud in the privacy of your data center. Gain the advantages of the public cloud-consumption-based payment, rapid scalability without worrying about capacity constraints. Reduce the "heavy lifting" needed to operate a data center. And retain the advantages that IT provides the business (i.e., control, security). Deliver the right user experience, choose the right technology for the business, manage privacy and compliance, and manage the cost of IT. And, you have the option to use the public cloud when needed.

DC for Hyperscale

Datacenter Care for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture can take advantage of this environment support tailored to their operating model.

HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment.

 http://www.hpe.com/ww/learn

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers.

Learn more http://www.hpe.com/support/hpesc

HPE's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalize IT support anywhere, anytime.
HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.

NOTE: *HPE Support Center Mobile App is subject to local availability.

Parts and Materials

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Options

NOTE: Included options are covered under the HPE Service Contract applied to the HPE Server. No separate HPE support services need to be purchased.

For more information

http://www.hpe.com/services

Step 1: Base Configuration (Choose one of the CTO Models below)

HPE CTO Model

HPE Apollo pc40 2SFF 4GPU Configure-to-order Server

Q5S68A

Step 2: Choose Required Options (only one from each category unless otherwise noted)

HPE Apollo 40 Intel® Xeon-Platinum 8176 (2.1GHz/28-core/165W) Processor Kit

Q5S81A

HPE Apollo 40 Intel® Xeon-Platinum 8170 (2.1GHz/26-core/165W) Processor Kit

Q5S82A

HPE Apollo 40 Intel® Xeon-Platinum 8164 (2.0GHz/26-core/150W) Processor Kit

Q5S83A

HPE Apollo 40 Intel® Xeon-Platinum 8160 (2.1GHz/24-core/150W) Processor Kit

Q5S84A

HPE Apollo 40 Intel® Xeon-Platinum 8158 (3.0GHz/12-core/150W) Processor Kit

Q5S86A

HPE Apollo 40 Intel® Xeon-Platinum 8156 (3.6GHz/4-core/105W) Processor Kit

Q5S87A

HPE Apollo 40 Intel® Xeon-Platinum 8153 (2.0GHz/16-core/125W) Processor Kit

Q5S85A

HPE Apollo 40 Intel® Xeon-Gold 6152 (2.1GHz/22-core/140W) Processor Kit

Q5S88A

HPE Apollo 40 Intel® Xeon-Gold 6150 (2.7GHz/18-core/165W) Processor Kit

Q5S89A

HPE Apollo 40 Intel® Xeon-Gold 6148 (2.4GHz/20-core/150W) Processor Kit

Q5S90A

HPE Apollo 40 Intel® Xeon-Gold 6142 (2.6GHz/16-core/150W) Processor Kit

Q5S91A

HPE Apollo 40 Intel® Xeon-Gold 6140 (2.3GHz/18-core/140W) Processor Kit

Q5S92A

HPE Apollo 40 Intel® Xeon-Gold 6138 (2.0GHz/20-core/125W) Processor Kit

Q5S93A

HPE Apollo 40 Intel® Xeon-Gold 6136 (3.0GHz/12-core/150W) Processor Kit

Q5S94A

HPE Apollo 40 Intel® Xeon-Gold 6134 (3.2GHz/8-core/130W) Processor Kit

Q5S95A

HPE Apollo 40 Intel® Xeon-Gold 6132 (2.6GHz/14-core/140W) Processor Kit

Q5S96A

HPE Apollo 40 Intel® Xeon-Gold 6130 (2.1GHz/16-core/125W) Processor Kit

Q5S97A

HPE Apollo 40 Intel® Xeon-Gold 6128 (3.4GHz/6-core/115W) Processor Kit

Q5S98A

HPE Apollo 40 Intel® Xeon-Gold 6126 (2.6GHz/12-core/125W) Processor Kit

Q5S99A

HPE Apollo 40 Intel® Xeon-Gold 5122 (3.6GHz/4-core/105W) Processor Kit

Q5T02A

HPE Apollo 40 Intel® Xeon-Gold 5120 (2.2GHz/14-core/105W) Processor Kit

Q5T00A

HPE Apollo 40 Intel® Xeon-Gold 5118 (2.3GHz/12-core/105W) Processor Kit

Q5T01A

HPE Apollo 40 Intel® Xeon-Gold 5115 (2.4GHz/10-core/85W) Processor Kit

Q5T03A

HPE Apollo 40 Intel® Xeon-Silver 4116 (2.1GHz/12-core/85W) Processor Kit

Q5T04A

HPE Apollo 40 Intel® Xeon-Silver 4114 (2.2GHz/10-core/85W) Processor Kit

Q5T05A

HPE Apollo 40 Intel® Xeon-Silver 4112 (2.6GHz/4-core/85W) Processor Kit

Q5T06A

HPE Apollo 40 Intel® Xeon-Silver 4110 (2.1GHz/8-core/85W) Processor Kit

Q5T07A

HPE Apollo 40 Intel® Xeon-Silver 4108 (1.8GHz/8-core/85W) Processor Kit

Q5T08A

HPE Apollo 40 Intel® Xeon-Bronze 3106 (1.7GHz/8-core/85W) Processor Kit

Q5T09A

HPE Apollo 40 Intel® Xeon-Bronze 3104 (1.7GHz/6-core/85W) Processor Kit

Q5T10A

NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.

NOTE: Consider selecting 16GB memory DIMMs for Apollo pc40 with 4 NVIDIA GPUs. NVidia design guidelines state a requirement for at least 64GB main memory per CPU to ensure optimal application performance.

NOTE: Depending on the memory configuration and processor model, the memory speed may run at 2666MHz, 2400MHz, 2133MHz, 1866MHz, or 1600MHz. Please see Memory Population Table or the Online Memory Configuration Tool at: http://h22195.www2.hpe.com/MemoryTool/Home/Legal

HPE Memory

HPE 8GB Single Rank x4 DDR4-2666 Registered Memory Kit

Q7D79A

HPE 8GB Dual Rank x8 DDR4-2666 Registered Memory Kit

Q7D81A

HPE SGI 16GB Dual Rank x4 DDR4-2666 Registered Memory Kit

Q2D31A

HPE SGI 32GB Dual Rank x4 DDR4-2666 Registered Memory Kit

Q2D32A

HPE SGI 64GB Quad Rank x4 DDR4-2666 Load Reduced Memory Kit

Q2D33A

HPE 128GB Octal Rank x4 DDR4-2666 Load Reduced Memory Kit

Q7D83A

HPE Networking

Ethernet Options

HPE Ethernet 10Gb 2-port 535T Adapter

813661-B21

HPE Ethernet 10Gb 2-port 571SFP+ Adapter

728987-B21

HPE Ethernet 10Gb 2-port 561T Adapter

716591-B21

InfiniBand Options

HPE InfiniBand EDR/Ethernet 100Gb 1-port 840QSFP28 Adapter

825110-B21

HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter

825111-B21

HPE 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel® Omni-Path Architecture Adapter

829335-B21

HPE Hard Drives

Hot Swap SFF drives

HPE 1TB SATA 7.2K SFF RW 512n DS HDD

Q5T11A

HPE 2TB SATA 7.2K SFF RW 512e DS HDD

Q5T12A

HPE 240GB SATA MU SFF RW DS SSD

Q5T13A

HPE 480GB SATA MU SFF RW DS SSD

Q5T14A

HPE 960GB SATA MU SFF RW DS SSD

Q5T15A

HPE 1.92TB SATA MU SFF RW DS SSD

Q5T16A

HPE 3.84TB SATA RI SFF ST DS SSD

Q5T17A

HPE GPUs

HPE NVIDIA Tesla P100 PCIe 12GB Computational Accelerator

Q2S42A

HPE NVIDIA Tesla P100 PCIe 16GB Computational Accelerator

Q0E21A

HPE NVIDIA Tesla P40 24GB Computational Accelerator

Q0V80A

System Unit

Server Dimensions
(L x W x D)

1.7 x 17.2 x 35.2 in

4.3 x 43.7 x 89.4 cm

Weight
(approximate)

58 lb

21.8 kg

Maximum (four hard drives and two processors installed)

System Inlet Temperature

Standard Operating Support

10º to 35º C (50º to 95º F)

Non-operating

-40º to 60º C (-40º to 140º F)

Relative Humidity
(non-condensing)

Operating

8% to 90% (non-condensing)

Non-operating

5% to 95% (non-condensing).

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and measured average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

4-Dec-2017

From version 4 to 5

Updated

Update sections Standard Features and Configuration Information

2-Oct-2017

From version 3 to 4

Updated

Update throughout the QuickSpecs and verbiage

14-Aug-2017

From version 2 to 3

Changed

Change throughout the QuickSpecs sections

24-Jul-2017

From version 1 to 2

Updated

Update content throughout the QuickSpecs

11-Jul-2017

Version 1

Created

Create QuickSpecs for HPE Apollo sx40 Server
