HPE Apollo Ethernet 10/40GbE Switch Gen10: характеристики и документация

HPE Apollo Ethernet Switches Today's complex data centers require a demanding networking infrastructure. It all starts at the edge and that's where the HPE Apollo Ethernet Switch excels. The HPE Apollo Ethernet Switches are designed to support HPE Apollo k6000 System in HPC environments with exceptional bandwidth of 10Gb to each HPE ProLiant XL230k Gen10 server, while providing a mixture of uplinks to the core network.

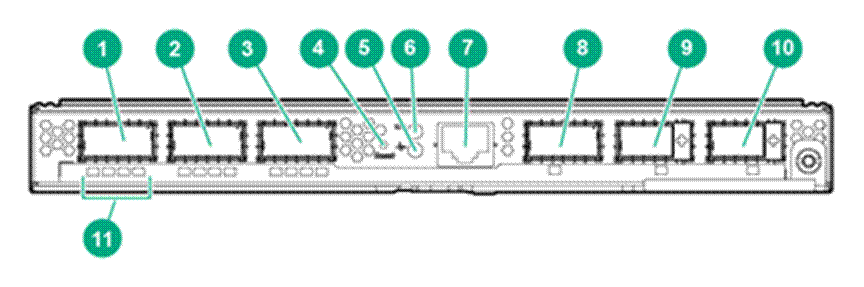

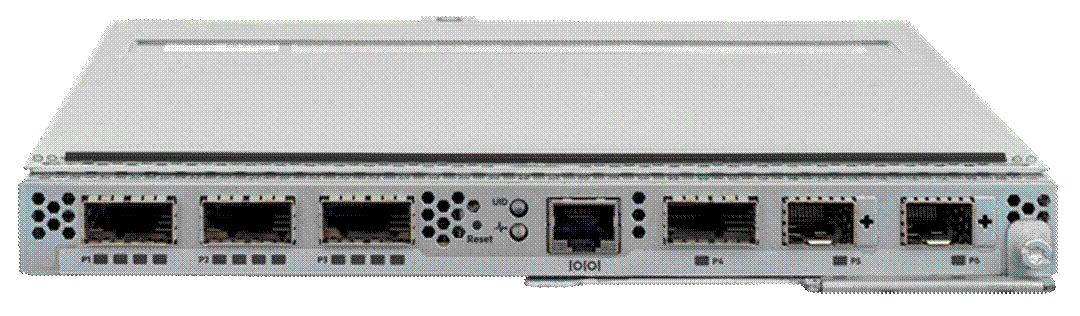

HPE Apollo Ethernet 10/40/100GbE Switch
1.	QSFP+ port (100G/40G, supports breakout cable for 4x25G or 4x10G)	7.	Console port
2.	QSFP+ port (40G, supports breakout cable for 4x10G)	8.	QSFP+ port LED (100G/40G or 25G/10G, does not support breakout cable)
3.	QSFP+ port (40G, supports breakout cable for 4x10G)	9.	SFP+ port (10G, or 1GBaseT with adapter)
4.	Reset Button	10.	SFP+ port (10G, or 1GBaseT with adapter)
5.	Health LED	11	Port LEDs
6.	UID LED

Models
HPE Apollo Ethernet 10/40/100Gb Switch				874061-B21

HPE Apollo Ethernet 10/40Gb Switch				846633-B21

Compatibility HPE ProLiant Servers HPE ProLiant XL230k Gen10 Server Supported Chassis HPE Apollo k6000 Gen10 System

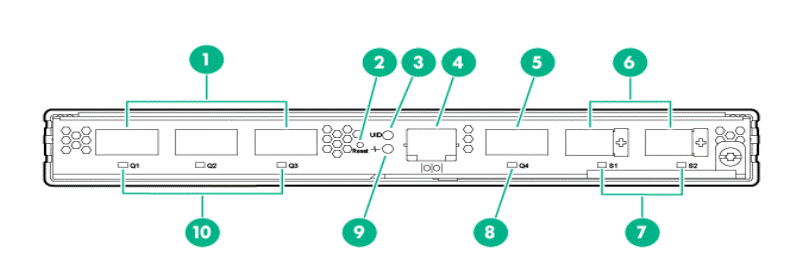

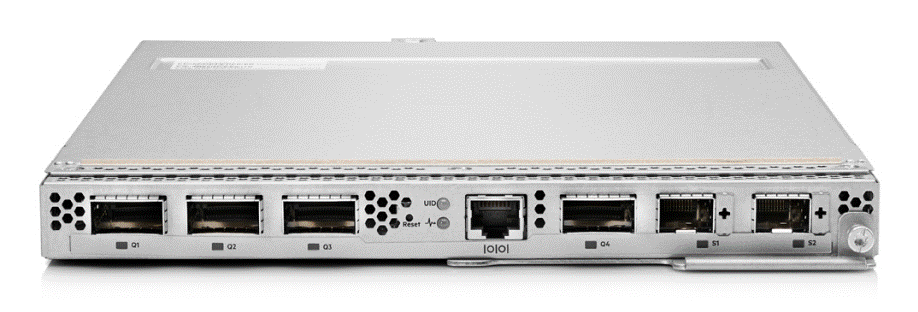

HPE Apollo Ethernet 10/40GbE Switch
1.	QSFP+ ports (40G, supports breakout cable for 4x10G)	6.	SFP+ ports (10G, or 1GBaseT with adapter)
2.	Reset Button	7.	SFP+ port LEDs
3.	UID LED	8.	QSFP+ port LED
4.	Console port	9.	Health LED
5.	QSFP+ port	10.	QSFP+ port LEDs

Performance
10/40/100GbE Switch	10/40GbE Switch
300Gb uplink bandwidth / 480Gb available server side bandwidth Wire-speed switching and IPv4/IPv6 routing on all ports Support up to 2 switches into a single Apollo k6000 Chassis 50 Gb internal crosslink between 2 switches to support MLAG 4 QSFP+ ports: Ports 1 & 8 (see illustration) support 100G/40G; Ports 2 & 3 (see illustration) support 40G. Ports 1, 2, & 3 support breakout cable for 4x25G, or 40x10G, respectively; Port 8 does not support breakout cable. 2 SFP+ ports support either 10Gb or 1Gb (transceiver SFP to RJ45 required) depending on module inserted Cut-through switching Hardware-based wire-speed access control lists (ACLs) Data Center Bridging (DCBX) Support for VXLAN (RFC 7348)	180Gb uplink bandwidth / 240Gb available server side bandwidth Wire-speed switching and IPv4/IPv6 routing on all ports Support up to 2 switches into a single Apollo k6000 Chassis 40 Gb internal crosslink between 2 switches to support IRF 4 QSFP+ ports, each supports 1x40Gb or 4x10Gb ports (with optional breakout cable) 2 SFP+ ports support either 10Gb or 1Gb (transceiver SFP to RJ45 required) depending on module inserted Any uplink or cross connect port can be used for IRF connections Cut-through switching Hardware-based wire-speed access control lists (ACLs) Data Center Bridging (DCBX) Support for VXLAN (RFC 7348)

Management
Standards-based SNMP management via SNMPv1, v2c and v3 Out of band management thru the Chassis controller management (iLO) network SDN with OpenFlow 1.3 RJ45 console port Web based management sFlow Manager and operator privilege levels Command authorization via RADIUS Complete session logging for problem resolution LLDP Discovery protocol IPv6 management Backup firmware image Multiple configuration files Syslog Network Time Protocol (NTP) JSON API Zero-touch Provisioning (ZTP) Control Plain Policing or Policies (CoPP) BER Degradation Monitor		Standards-based SNMP management via SNMPv1, v2c and v3 Out of band management thru the Chassis controller management (iLO) network HPE IMC Virtual Application Networking Fabric Manager Virtual Application Network (VAN) SDN with OpenFlow 1.3 RJ45 console port HTTPS Web based management sFlow Manager and operator privilege levels Command authorization via RADIUS Complete session logging for problem resolution LLDP Discovery protocol IPv6 management Backup firmware image Multiple configuration files Syslog Network Time Protocol (NTP)

Security

10/40/100Gb Switch	10/40Gb Switch
IEEE 802.1X user authentication MAC-based authentication with RADIUS server Access Control Lists (ACLs) Secure FTP STP Root Guard DHCP Protection from unauthorized DHCP servers IP Source Guard RADIUS/TACACS+ Secure management via SSHv2 and SNMPv3	IEEE 802.1X user authentication MAC-based authentication with RADIUS server Access Control Lists (ACLs) Secure FTP STP Root Guard DHCP Protection from unauthorized DHCP servers IP Source Guard Dynamic ARP protection to prevent eavesdropping Endpoint Admission Defense (EAD) RADIUS/TACACS+ Secure management via SSHv2 and SNMPv3 Unicast Reverse Path Forwarding (URPF) Monitor link and Smart link IPsec IKE (Internet Key Exchange) Disable password recovery

Layer 2 Switching
256K MAC addresses 4094 VLANs IEEE 802.1ad QinQ VLANs Per VLAN Spanning Tree (PVST+) Jumbo frame support (9k bytes) IEEE 802.3ad Link Aggregation (LAG) & ALCP 32 Ports/Channel - 64 Groups per system Store & Forward / Cut-through mode of work Spanning Tree Protocol, MSTP, RSTP, STP Root Guard IP Multicast Snooping and data-driven IGMP Link Layer Discovery Protocol (LLDP)	288K MAC addresses 4094 VLANs IEEE 802.1ad QinQ VLANs Per VLAN Spanning Tree (PVST+) Private VLANs (PVLAN) Multicast VLAN Registration Protocol (MVRP) Jumbo frame support Port Aggregation Spanning Tree Protocol, MSTP, RSTP, STP Root Guard IP Multicast Snooping and data-driven IGMP Transparent Interconnect of Lots of Links (TRILL) Shortest Path Bridging (SPB) Multiple Label Switching (MPLS) Virtual Private LAN Service (VPLS)

Layer 3 Routing
IPv4 routing protocols - BFD (static routes, OSPFv2 and BGP4) IPv6 tunneling IP Multicast - PIM-SSM, PIM-SM Equal-Cost Multipath (ECMP 64-way) Policy-based routing IPv4 & IPv6 Routing (Route maps: BGP4, OSPFv2) DHCPv4 and DHCPv6 Relay VRRP (64) Virtual Routing and Forwarding (VRF) Router Port, intVlan, NULL Interface for Routing IGMPv2/v3 Snooping Querier	IPv4 routing protocols - static routes, RIP, OSPF and BGP IPv6 routing protocols - static routes, RIPng, OSPFv3 and BGP+ IPv6 tunneling IP Multicast - PIM-SSM, PIM-DM, PIM-SM, IGMP for IPv4 and IPv6 Equal-Cost Multipath (ECMP) Policy-based routing DHCP and DHCPv6 client VRRP VXLAN

Quality of Service (QoS)
10/40/100Gb Switch			10/40Gb Switch
Advanced classifier-based QoS (with eight queues) - classifies traffic using multiple match criteria based on Layer 2, 3 and 4 information and applies QoS policies such as priority level and rate limit to selected traffic on a per-port or per-VLAN basis Traffic policing - supports Committed Access Rate (CAR) and line rate Powerful QoS feature - creates traffic classes based on access control lists (ACL), IEEE 802.1p precedence, IP, DSCP or Type of Service (ToS) precedence; supports filter, redirect, mirror or remark; supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), weighted fair queuing (WFQ), and weighted random early discard (WRED) Storm restraint - allows limitation of broadcast, multicast, and unknown unicast traffic rate to cut down on unwanted broadcast traffic on the network WRED, Fast ECN & PFC Congestion Control (DCQCN)			Advanced classifier-based QoS (with eight queues) - classifies traffic using multiple match criteria based on Layer 2, 3 and 4 information and applies QoS policies such as priority level and rate limit to selected traffic on a per-port or per-VLAN basis Traffic policing - supports Committed Access Rate (CAR) and line rate Powerful QoS feature - creates traffic classes based on access control lists (ACL), IEEE 802.1p precedence, IP, DSCP or Type of Service (ToS) precedence; supports filter, redirect, mirror or remark; supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), weighted fair queuing (WFQ), and weighted random early discard (WRED) Storm restraint - allows limitation of broadcast, multicast, and unknown unicast traffic rate to cut down on unwanted broadcast traffic on the network.

Resiliency and High Availability
MLAG Extending the implementation of the LAG to more than a single device provides yet another level of redundancy that extends from the link level to the node level. Servers or switches can be attached using standard LACP for automatic load balancing, resiliency and high availability; Simplifies network operation by eliminating Spanning Tree, ECMP and VRRP. Virtual Router Redundancy Protocol (VRRP)		Intelligent Resilient Framework (IRF) - Creates virtual resilient switching fabrics, up to eight switches acting as a single Layer 2/3 switch; Switches do not have to be co-located and can be part of a disaster recovery system; Servers or switches can be attached using standard LACP for automatic load balancing and high availability; Simplifies network operation by eliminating Spanning Tree, ECMP and VRRP. Device Link Detection Protocol (DLDP) - Monitors Link connectivity and shuts down ports at both ends if unidirectional traffic is detected Virtual Router Redundancy Protocol (VRRP)

Monitoring and Diagnostics
Telemetry - Sampling (histograms) - a network administrator can enable a sampling of the port buffer occupancy, record occupancy changes over time, and provide information for different levels of buffer occupancy, and amount of time the buffer has been occupied during the observation period. Mirroring - Port mirroring enables traffic on a port to be simultaneously sent to a network analyzer for monitoring; Flow-based mirroring Link Diagnostic per Port - The Diagnostic commands enables an insight into the physical layer components where the user is able to see information such as a cable status (plugged/unplugged) or if Auto-Negotiation has failed. Digital Diagnostic Monitoring Interface for QSFP/SFP Optical Transceivers	OAM (802.3ah) - Detects data link layer problems in the "last mile"; monitors link status between two devices CFD (802.1ag) - Connectivity Fault Detection (CFD) provides L2 link OAM mechanism used for link connectivity detection and fault location Mirroring - Port mirroring enables traffic on a port to be simultaneously sent to a network analyzer for monitoring; Flow-based mirroring

HPE Pointnext - Service and Support

Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.

Consume IT on your terms

HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.

Get faster time to market
Save on TCO, align costs to business
Scale quickly, meet unpredictable demand
Simplify IT operations across your data centers and clouds

Managed services to run your IT operations

HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

Recommended Services

HPE Pointnext Tech Care.

HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Pointnext Complete Care

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts. HPE Pointnext Complete Care provides:

A complete coverage approach -- edge to cloud
An assigned HPE team
Modular and fully personalized engagement
Enhanced Incident Management experience with priority access
Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

Warranty This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners (may vary by region). Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty. Notes: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/

It is recommended to have the same attached support level for Intel Omni-Path Switches as the Server and chassis.
Parts and Materials Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

HPE Factory Express for Servers and storage HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.

HPE Technology Services Support Credits Offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.

HPE Flexible Capacity With Flexible Capacity, you get the speed, scalability, and economics of the public cloud in the privacy of your data center. Gain the advantages of the public cloud-consumption-based payment, rapid scalability without worrying about capacity constraints. Reduce the "heavy lifting" needed to operate a data center. And retain the advantages that IT provides the business (i.e., control, security). Deliver the right user experience, choose the right technology for the business, manage privacy and compliance, and manage the cost of IT. And, you have the option to use the public cloud when needed.

DC for Hyperscale

Complete Care for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture can take advantage of this environment support tailored to their operating model.

HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers.

Learn more http://www.hpe.com/support/hpesc

HPE's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now you can get access to personalized IT support anywhere, anytime. HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.

Notes: *HPE Support Center Mobile App is subject to local availability

For More Information

http://www.hpe.com/services

SFP Options
Description	Part Number	10/40/100GbE Switch	10/40GbE Switch
HPE X120 1G SFP LC SX Transceiver	JD118B
HPE X120 1G SFP LC LX Transceiver	JD119B
HPE BladeSystem c-Class Virtual Connect 1G SFP RJ-45 Transceiver	453154-B21
HPE X125 1G SFP LC LH40 1310nm Transceiver	JD061A
HPE X120 1G SFP LC LH40 1550nm Transceiver	JD062A
HPE X125 1G SFP LC LH70 Transceiver	JD063B
HPE X120 1G SFP RJ45 T Transceiver	JD089B
SFP+ Options
HPE X130 10G SFP+ LC SR Transceiver	JD092B
HPE X130 10G SFP+ LC LR Transceiver	JD094B
HPE X2A0 10G SFP+ to SFP+ 10m Active Optical Cable	JL291A
HPE X2A0 10G SFP+ to SFP+ 20m Active Optical Cable	JL292A
HPE QSFP/SFP+ Adapter Kit	655874-B21
QSFP+ Options
HPE X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver	JG661A
HPE X140 40G QSFP+ MPO SR4 Transceiver	JG325B
HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver	JG709A
HPE X140 40G QSFP+ LC BiDi 100m MM Transceiver	JL251A
HPE X2A0 40G QSFP+ to QSFP+ 7m Active Optical Cable	JL287A
Direct Attach Cables
HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable	JD095C
HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable	JD096C
HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable	JD097C
HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable	JG081C
HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable	JG326A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable	JG327A
HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable	JG328A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable	JG329A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable	JG330A
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable	JG331A
100GbE Transceiver and cables
HPE 100Gb QSFP28 MPO SR4 100m Transceiver	845966-B21
HPE 100Gb QSFP28 to QSFP28 3m Direct Attach Copper Cable	845406-B21
HPE 100Gb QSFP28 to QSFP28 5m Direct Attach Copper Cable	845408-B21
HPE 100Gb QSFP28 to 4x25Gb SFP28 3m Direct Attach Copper Cable	845416-B21

Service and Support Offerings
Installation & start up services
HPE Installation Apollo 6000 Gen10 Chassis Service	H2GA8E
HPE Apollo 6000 Generation 10 Installation and Startup Service	H6SV1E
Support Services
HPE 3 Year Tech Care 24x7 Apollo 10/40/100GbE Switch Service	H2GL5E
HPE 3 Year Tech Care 24x7 with CDMR Apollo 10/40/100GbE Switch Service	H2GL6E
HPE 3 Year Tech Care 24x7 Apollo 10/40/100GbE Switch Service	H2GL3E
HPE 3 Year Tech Care 24x7 with CDMR Apollo 10/40/100GbE Switch Service	H2GL4E
HPE 3 Year Tech Care Next Business Day Apollo 10/40/100GbE Switch Service	H2GK7E
HPE 3 Year Tech Care Next Business Day with CDMR Apollo 10/40/100GbE Switch Service	H2GK8E
HPE Remote Network Configuration and Integration, Business Hours Service	HR199E
HPE Remote Network Configuration and Integration, After Hours Service	HR200E
HPE Onsite Network Configuration and Integration, Business Hours Service	HR201E
HPE Onsite Network Configuration and Integration, After Hours Service	HR202E
HPE Onsite Network Configuration and Integration, Additional Day Service (requires 2-day minimum purchase)	HR203E
HPE Onsite Network Configuration and Integration, Additional After Hours Service (requires 2-day minimum purchase)	HR204E

		10/40/100GbE Switch	10/40GbE Switch
Shipping Dimensions	Length	15.75 in (400 mm)	13.38 in (339.85 mm)
	Width	11.81 in (300 mm)	11.00 in (279.4 mm)
	Height	2.56 in (65 mm)	2.13 in (54.1 mm)
	Shipping Weight	1.65 kg (3.64 lbs)	2 kg (4.41 lbs)
Product Specifications Hardware
Performance		1.56Tbps throughput 2x10Gb, 2x40Gb, and 2x100Gb uplink ports	1.2Tbps throughput 2x10Gb and 4x40Gb uplink ports
		48x10Gb downlink (server) ports	24x10Gb downlink (server) ports
		50Gbps cross-link	40Gbps cross-link
		Non-blocking, full-wire speed for all connections Auto-MDI/MDIX, auto-negotiation and auto-sensing with full-duplex support.
	Forwarding Mode	Store and forward/Cut Through	Store and forward/Cut Through
	Latency	300ns	1.3 us (store and forward mode)
	MAC Addresses	Supports 256K MAC addresses per switch in an Apollo k6000 Chassis	Supports 128K MAC addresses per switch in an Apollo k6000 Chassis
	Forwarding Table Age Time (Maximum age)	10 to 1,000,000 seconds (default: 300 seconds)	10 to 1,000,000 seconds (default: 300 seconds)
	VLAN IDs	4094	4094
	Jumbo Frame	10K Bytes	10K Bytes
	IGMP Groups	1024	1024
Connectors and Cabling	Connector	4 QSFP+	4 QSFP+
		2 SFP+	2 SFP+
		1 RJ45 Management	1 RJ45 Management
	Cable Support	FCC Class A	FCC Class A
		ICES-003 Class A	ICES-003 Class A
		AS/NZS 3548 Class A	AS/NZS 3548 Class A
		VCCI Class A	VCCI Class A
LED Indicators		Module health, amber/green	Module health, amber/green
		Module locator (UID), blue	Module locator (UID), blue
		QSFP+ port link/activity, green	QSFP+ port link/activity, green
		SFP+ port link/activity, green	SFP+ port link/activity, green
Dimensions	Length	12 in (304.68 mm)	12 in (304.68 mm)
	Width	8.62 in (219 mm)	8.62 in (219 mm)
	Height	0.93 in (23.52 mm)	0.93 in (23.52 mm)
	Weight	1.58 kg (3.48 lbs)	1.80 kg (3.97 lbs)
Environmental Ranges	Temperature Range
	Operating	50° to 95° F (10° to 35° C)	50° to 95° F (10° to 35° C)
	Non-operating	-22° to 140° F (-30° to 60° C)	-22° to 140° F (-30° to 60° C)
	Relative Humidity (non-condensing)	Operating 10% to 90%	Operating 10% to 90%
Power Specification	Power Requirements	160.2 W	112 W

Standards Support

General protocols
IEEE 802.1ag Service Layer OAM
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1Qbg Virtual Edge Bridging
IEEE 802.1s (MSTP)
IEEE 802.1v VLAN classification by Protocol and Port
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
IEEE 802.1X PAE
IEEE 802.1AX / 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3ae 10 Gigabit Ethernet
RFC 768 UDP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 925 Multi-LAN Address Resolution
RFC 951 BOOTP
RFC 1058 RIPv1
RFC 1350 TFTP Protocol (revision 2)
RFC 1519 CIDR
RFC 1542 BOOTP Extensions
RFC 2131 DHCP
RFC 2453 RIPv2
RFC 3768 VRRP
RFC 4675 RADIUS VLAN & Priority
RFC 7348 VXLAN

802.1r GARP Proprietary Attribute Registration Protocol (GPRP)
802.1Qaz DCBx
802.1Qaz ETS
802.1Qbb PFC
NPV Mode

IP Multicast

RFC 2934 Protocol Independent Multicast MIB for IPv4
RFC 3376 IGMPv3 (host joins only)
RFC 3618 Multicast Source Discovery Protocol (MSDP)
RFC 3973 Draft 2 PIM Dense Mode
RFC 4601 PIM Sparse Mode

IPv6

RFC 4443 ICMPv6
RFC 4541 IGMP & MLD Snooping Switch
RFC 4861 IPv6 Neighbor Discovery
RFC 4862 IPv6 Stateless Address Auto-configuration

Layer 3

Static routes
RIP / RIPng
OSPF / OSPFv3
BGP / BGP+
IPv6 tunneling
PIM-SM
PIM-SSM
PIM-DM
IGMP
ECMP
Policy-based routing
DHCP and DHCPv6 client

MIBs

IEEE 8021ag CFM-MIB
IEEE 8021Q CFM-MIBv2
IEEE 8021AB LLDP-MIB
IEEE 8021AB LLDP-EXT-DOT1-MIB
IEEE 8021AB LLDP-EXT-DOT3-MIB
ANSI/TAA 1057 LLDP-EXT-MED-MIB
IEEE 8023 LAG-MIB
RFC 1213 MIB
RFC 1493 BRIDGE-MIB
RFC 2096 IP-FORWARD-MIB
RFC 2233 IF-MIB
RFC 2273 SNMP-NOTIFICATION-MIB
RFC 2571 SNMP-FRAMEWORK-MIB
RFC 2572 SNMP-MPD-MIB
RFC 2573 SNMP-TARGET-MIB
RFC 2674 P-BRIDGE-MIB
RFC 2674 Q-BRIDGE-MIB
RFC 3414 SNMP-USER-BASED-SM-MIB
RFC 3415 SNMP-VIEW-BASED-ACM-MIB
RFC 3417 SNMPv2-TM-MIB
RFC 3418 SNMPv2-MIB
RFC 3826 SNMP-USM-AES-MIB
RFC 4022 TCP-MIB
RFC 4113 UDP-MIB
RFC 4133 ENTITY-MIB
RFC 4273 BGP4-MIB
RFC 4750 OSPF-MIB
RFC 4750 OSPF-TRAP-MIB
SFLOW-MIB (V5)

Environment-friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site: http://www.hpe.com/RECYCLE. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date	Version History	Action	Description of Change
15-Nov-2021	Version 7	Changed	Service and Support section was updated.
03-Jun-2019	Version 6	Changed	Overview, Standard Features and Technical Specifications sections were updated
13-May-2019	Version 5	Changed	QS Name was corrected, SKU was added in Platform Information section under Models. Obsolete SKUs were removed.
07-Jan-2019	Version 4	Changed	Overview, Platform Information, Standard Features, Related Options and Technical Specifications sections were updated
23-Oct-2017	Version 3	Changed	Care Pack naming and Service and Support- Parts and Materials updated.
25-Sep- 2017	Version 2	Updated	Updates throughout the QuickSpecs
11-Jul-2017	Version 1	Created	Create QuickSpecs for HPE Apollo Ethernet 10/40GbE Switch

Make the right purchase decision. Contact our presales specialists.

Chat

Email

Call

HewlettPackardEnterpriseLogo

© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries.

a00016716enw - 15970 - Worldwide - V7 - 15-November-2021

HPE Apollo Ethernet 10/40GbE Switch Gen10: технические характеристики и документация
