HPE Apollo 70 System The HPE Apollo 70 System is an Arm-based platform that delivers density and scalability required for large HPC cluster deployments. The system is powered by Marvell Thunder X2 processor with maximum memory bandwidth, Mellanox interconnect fabric options and Apollo management tools in compact 2U form factor. The Apollo 70 System can be deployed cost-effectively starting with a single 2U chassis to meet the configuration needs of a wide variety of scale-out HPC workloads. The Apollo 70 System is a density-optimized, 2U infrastructure that uses HPE Apollo z70 chassis which supports up to 4 HPE AR44z 1U Arm or up to 2 HPE AR64z 2U Arm independent, hot-plug servers with all the traditional data center attributes - standard racks and cabling and rear-aisle serviceability access. A 42U rack fits up to 20 HPE z70 series chassis accommodating up to 80 Arm-based servers per rack. The Apollo z70 chassis comes with 8 LFF drive cage and 8 new generation single rotor redundant fans. It supports up to 2 HPE Flexible Slot Power Supplies which provide up to 96% power efficiency with 80 Plus Titanium-certified power supplies that lower server power requirements and reduce power waste in your data center. | |||
|
| |||
|
| |||
|

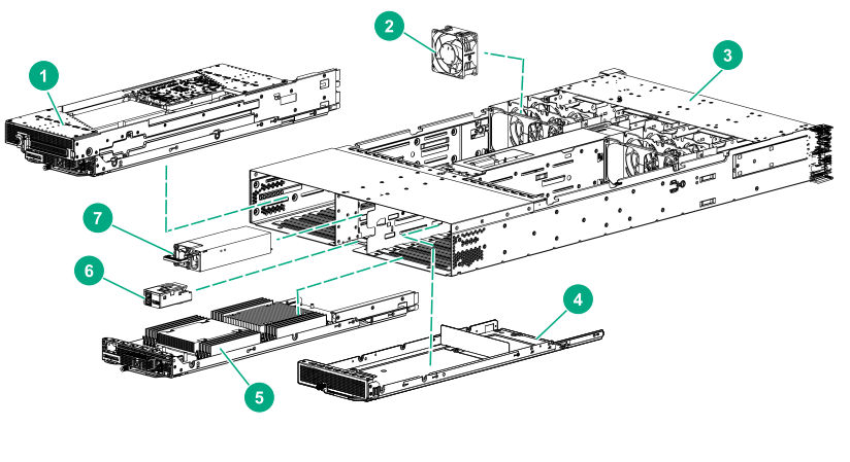

HPE Apollo z70 8 LFF Chassis - 8 LFF | |||
|
Item |
Description |
Item |
Description |
|
1 |
HPE AR64z Server (2U server node) |
5 |
HPE AR44z (1U server node) |
|
2 |
Fan |
6 |
RCM module (optional) |
|
3 |
Chassis |
7 |
Power Supply |
|
4 |
Server blank |
|
|
|
| |||
|
| |||
|

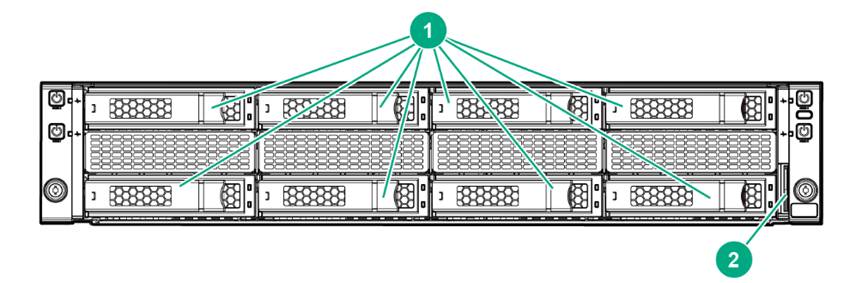

HPE Apollo z70 Chassis - 8LFF (1U system front panel components) | |||
|
Item |
Description |
Item |
Description |
|
1 |
Low-profile LFF hot-plug drives |
2 |
Chassis serial label pull tab |
|
| |||
|
| |||
|

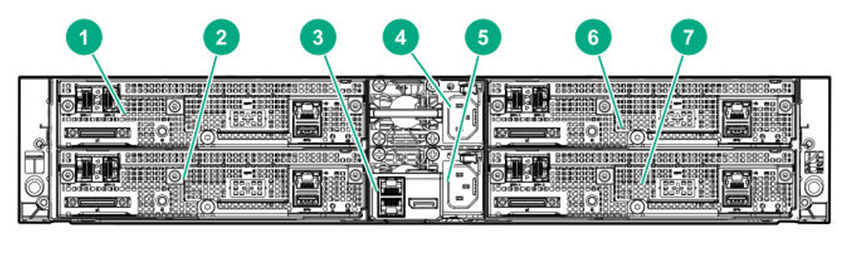

Chassis Rear Panel Components / Four 1U Servers | |||
|
Item |
Description |
Item |
Description |
|
1 |
Server 4 |
5 |
Power Supply 1 |
|
2 |
Server 3 |
6 |
Server 2 |
|
3 |
RCM Module (optional) |
7 |
Server 1 |
|
4 |
Power supply 2 |
|
|
|
| |||
|
| |||
|

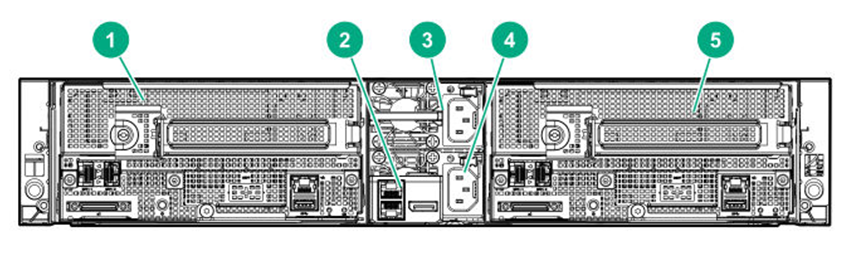

Chassis Rear panel Components / Two 2U Servers | |||
|
Item |
Description |
Item |
Description |
|
1 |
Server 3 |
4 |
Power Supply 1 |
|
2 |
RCM module (optional) |
5 |
Server 1 |
|
3 |
Power Supply 2 |
|
|
|
| |||
|
| |||
|

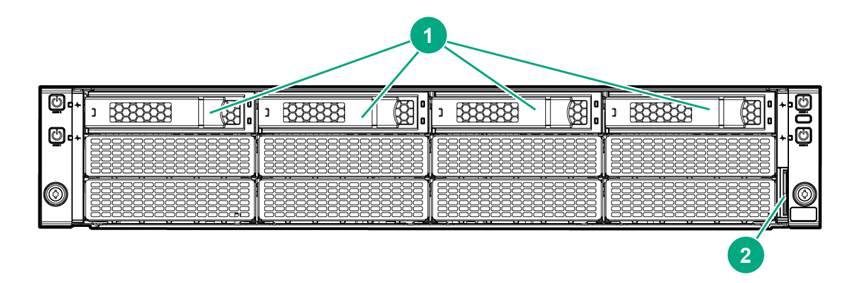

HPE Apollo z70 Chassis - 4LFF (2U system front panel components)
| |||
|
Item |
Description |
Item |
Description |
|
1 |
Low-profile LFF hot-plug drives |
2 |
Chassis serial label pull tab |
|
| |||
|
| |||
|

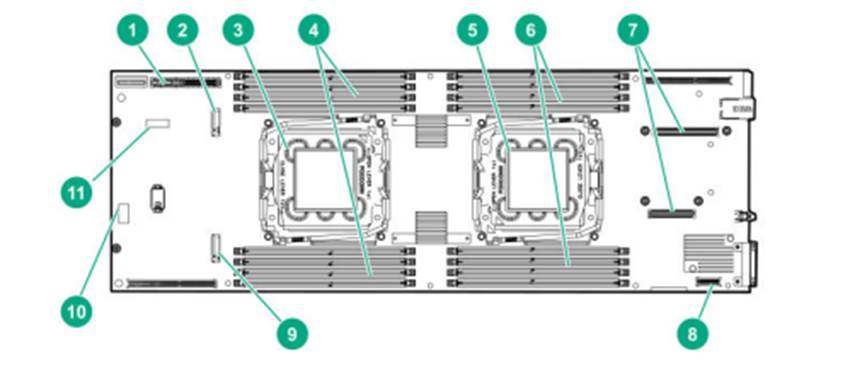

HPE AR44z (1U Server Node)Top View | |||
|
Item |
Description |
Item |
Description |
|
1 |
Bayonet board connector |
7 |
OCP mezzanine card connectors |
|
2 |
M.2 slot for processor 2 |
8 |
SFP+ riser connector |
|
3 |
Processor 2 |
9 |
M.2 slot for processor 1 |
|
4 |
DIMM slots for processor 2 |
10 |
System maintenance switch |
|
5 |
Processor 1 |
11 |
System Battery |
|
6 |
DIMM slots for processor 1 |
|
|
|
| |||
|
| |||
|

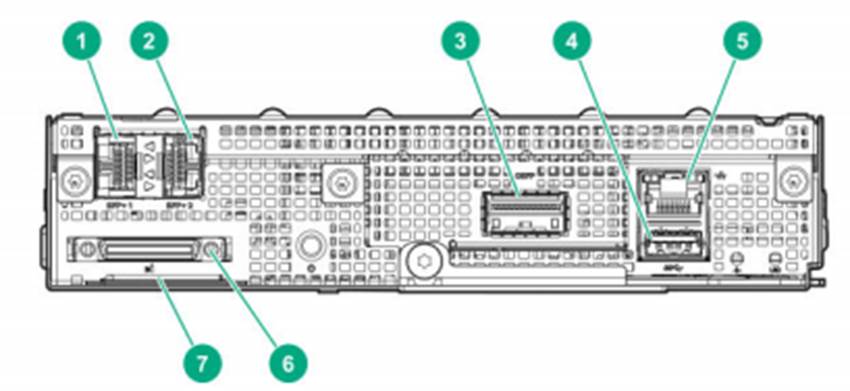

HPE AR44z (1U Server Node) Rear Panel Components | |||
|
Item |
Description |
Item |
Description |
|
1 |
SFP+ port 1* |
5 |
Dedicated Management NIC port |
|
2 |
SFP+ port 2* |
6 |
SUV port |
|
3 |
QSFP port (optional) |
7 |
Server Serial number information pull tab |
|
4 |
USB 3.0 |
|
|
|
Notes: *These ports support both SFP & SFP+ DAC & AOC connections, as well as SFP and SFP+ transceiver module installation | |||
|
| |||
|
| |||
|

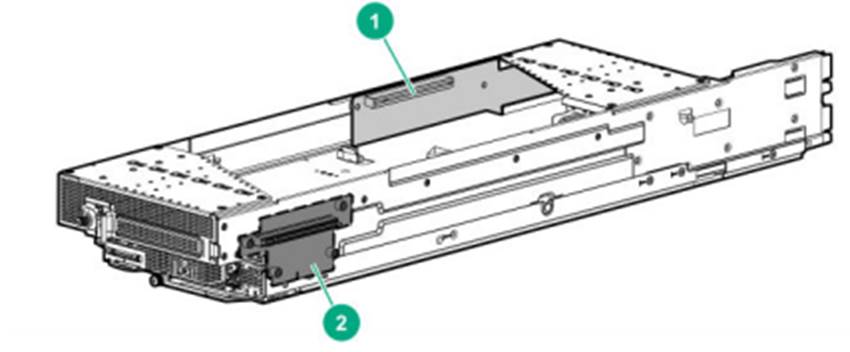

HPE AR64z (2U Server Node) Side and Top View | |||
|
Item |
Description |
Item |
Description |
|
1 |
PCIe3 x16 (16,8,4,1) front expansion slot |
2 |
PCIe3 x16 (16,8,4,1) rear expansion slot |
|
| |||
|
| |||
|

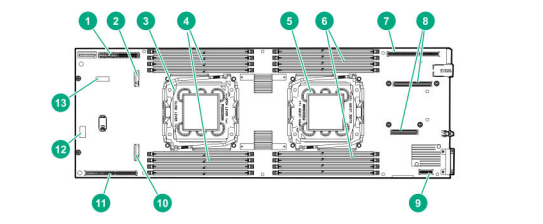

HPE AR64z (2U Server Node) Top View | |||
|
Item |
Description |
Item |
Description |
|
1 |
Bayonet board connector |
8 |
OCP mezzanine card connectors |
|
2 |
M.2 slot for processor 2 |
9 |
SFP+ riser connector |
|
3 |
Processor 2 |
10 |
M.2 slot for processor 1 |
|
4 |
DIMM slots for processor 2 |
11 |
Front riser board connector |
|
5 |
Processor 1 |
12 |
System maintenance switch |
|
6 |
DIMM slots for processor 1 |
13 |
System battery |
|
7 |
Rear riser board connector |
|
|
|
| |||
|
| |||
|

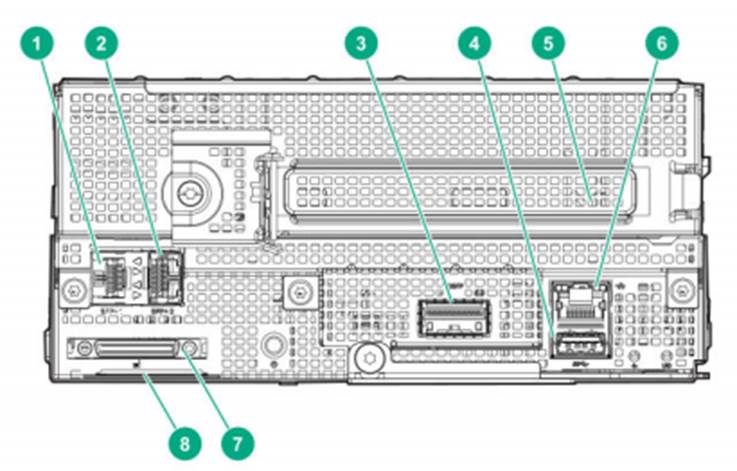

HPE AR64z (2U Server Node) Rear Panel Components | |||
|
Item |
Description |
Item |
Description |
|
1 |
SFP+ port 1* |
5 |
PCIe3 x 16 (16,8,4,1) rear expansion slot for low-profile expansion board |
|
2 |
SFP+ port 2* |
6 |
Dedicated Management NIC port |
|
3 |
QSFP port (optional) |
7 |
SUV port |
|
4 |
USB 3.0 |
8 |
Server Serial number information pull tab |
|
Notes: *These ports support both SFP & SFP+ DAC & AOC connections, as well as SFP and SFP+ transceiver module installation | |||
|
| |||
Standard Features
|
Chassis The Apollo z70 chassis provides the following configuration:
Up to 8 LFF hot-pluggable SATA HDD/SSD (Direct Attach) Each HPE Apollo z70 Chassis is built with the following:
|
|
|
|
Server The HPE AR44z and AR64z servers provides the following:
|
|
|
|
System Fans The Chassis ships standard with 8 single rotor fan modules. |
|
|
|
Server Tray Blank Kit A chassis requires that four (4) server tray slots be populated with either an HPE AR44z or HPE AR64z or Server Node Blank Kit to allow adequate air flow. |
|
|
|
Rack Airflow Requirements HPE Apollo 70 System The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. For maximum cooling, HPE racks are recommended to allow these racks to be fully loaded with servers using the latest processors. For detail information please see Apollo 70 System User Guide.
Notes: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment. Notes: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels will result in improper cooling that can lead to thermal damage. |
|
|
|
Software Portfolio for HPE Apollo 70 Hewlett Packard Enterprise offers customers complete software stack so they can choose the right mix of software to fit their needs - from system software to application and software development tools Operating systems SUSE Enterprise Linux Server 12 & 15 Red Hat Enterprise Linux (v 6.7 and up) |
|
|
|
Fabric software Mellanox UFM |
|
|
|
System management HPE Performance Cluster Manager - complete integrated cluster management software for all HPE HPC clusters offering: system setup, hardware monitoring and management and cluster health management, image management and software updates as well as power management. The software also integrates with leading HPC ISV and open source software solutions. |
|
|
|
Workload Management
|
|
|
|
Software Development Tools (Programming languages,debuggers, libraries)
|
|
|
|
For more information on software portfolio for HPE Apollo 70 visit: https://www.hpe.com/global/h22150/04c06c89-4f6c-4565-8929-184e724f3679/index.html/ |
|
|
Service and Support
|
HPE Pointnext - Service and Support Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike. Consume IT on your terms HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.
Managed services to run your IT operations HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. |
|
|
|
Recommended Services HPE Pointnext Tech Care. HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare
HPE Pointnext Complete Care HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts. HPE Pointnext Complete Care provides:
https://www.hpe.com/services/completecare |
|
|
|
HPE Installation and Startup Service Provides for the installation of your HPE hardware according to product specifications including options. Installation and startup services also includes the installation of one supported operating system type (Linux) |
|
|
|
Factory Express for servers and storage HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches. For more information on Factory Express services for your specific server model please contact your sales representative. |
|
|
|
Data Privacy Services Protect your data through better media management. HPE Data privacy services help manage and protect sensitive data to reduce the risk of unauthorized access to private information and help meet compliance requirements. Our retention services allow you to keep drives and other devices upon failure, our removal services provide convenient data sanitization and our recovery services allow you to safely retire IT assets and capture any remaining value from the hardware. hpe.com/services/lifecycle event Additional can be found at: http://www.hpe.com/services |
|
|
|
HPE Education Services Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn |
|
|
|
HPE Support Credits Offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business. |
|
|
|
HPE Support Center The HPE Support Center is a personalized online support portal with access to information, tools, and experts to support HPE business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more http://www.hpe.com/support/hpescR1C HPE's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalize IT support anywhere, anytime. HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement. Notes:*HPE Support Center Mobile App is subject to local availability For More Information To learn more on services for Hewlett Packard Enterprise Apollo please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hpe.com/services |
|
|
|
Warranty This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Pointnext Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners (may vary by region). Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty.
Notes: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://www.hpe.com/support/ProLiantServers-warranties |
|
|
|
Parts and Materials Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
|
|
Configuration Information
|
Step 2: Choose cooling options | |
|
HPE Cooling Options | |
|
HPE Apollo 2000 Gen10 Server Node Blank Kit |
874309-B21 |
|
Notes: Required for any non-populated slots in the chassis to prevent thermal related issues | |
|
| |
|
Step 3: Choose the following rail kit and bracket per chassis | |
|
HPE Rail Kits |
|
|
HPE 2U Shelf-Mount Adjustable Rail Kit |
822731-B21 |
|
HPE Strap t2500 Shipping Bracket |
740713-B21 |
|
Notes: Hewlett Packard Enterprise recommends that a minimum of two people are required for all rack installations. Please refer to your installation instructions for proper tools and number of people to use for any installation. | |
|
| |
|
HPE M.2 Solid State Drive |
|
|
HPE 240GB SATA 6G Read Intensive M.2 2280 5300B SSD |
P19888-H21 |
|
HPE 480GB SATA 6G Read Intensive M.2 2280 5300P SSD |
P19890-H21 |
|
HPE 960GB SATA 6G Read Intensive M.2 2280 5300P SSD |
P19892-H21 |
|
| |
|
HPE Drives |
|
|
HPE Gen9 LFF HDD Spade Blank Kit |
807878-B21 |
|
HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e HDD |
834028-H21 |
|
HPE 960GB SATA 6G Read Intensive LFF LPC PM883 SSD |
P09691-H21 |
|
HPE 960GB SATA 6G Mixed Use LFF LPC 5300M SSD |
P19980-H21 |
|
HPE 1.92TB SATA 6G Mixed Use LFF LPC 5300M SSD |
P19984-H21 |
|
HPE Apollo 2000 LFF Bezel Kit |
838518-B21 |
|
Notes: The 838518-B21 is always required |
|
|
HPE 480GB SATA 6G Read Intensive LFF LPC 5300P SSD |
P19974-H21 |
|
HPE 1.92TB SATA 6G Read Intensive LFF LPC 5300P SSD |
P19976-H21 |
|
Notes: The SATA SSDs LPC stated above comes with converter kit installed. |
|
|
HPE Networking- |
|
|
HPE BladeSystem CClass Virtual Connect 1G SFP RJ45 Transceiver |
453154-B21 |
|
HPE 36pin Serial/USB/VGA Dongle Cord Kit |
676277-B21 |
|
Notes: Option HPE CL Eth 2x10Gb X710 PCIe3 Card (P01666-B21) is only available for use in the AR64z node |
|
|
HPE InfiniBand EDR/Ethernet 100Gb 2-port 841QSFP28 Adapter |
872726-H21 |
|
Notes: The HPE IB EDR/EN 100Gb 2P 841QSFP28 Adapter can only be used on top of AR64z node. Additional technical content for HPE 1p 841OCP QSFP28 adapter (P02012-B21) can be found at: https://h20195.www2.hpe.com/v2/getpdf.aspx/c04950955.pdf?ver=4 |
|
|
Notes: The HPE 1p 841OCP QSFP28 adapter (P02012-B21) presents itself as two logical devices, each attached to a different processor. If the RHEL inbox OFED driver is used, the application will have to feed the two devices to leverage the full performance of the adapter. If the Mellanox OFED is used instead, the application will see only one device and full performance is obtained transparently. Additional technical content for HPE 1p 841OCP QSFP28 adapter (P02012-B21) can be found at: https://h20195.www2.hpe.com/v2/getpdf.aspx/c04950955.pdf?ver=4 Notes: Active Optical Cable are not supported with the HPE 1p 841OCP QSFP28 adapter (P02012-B21) | |
|
| |
Additional Options
|
RCM Module |
|
|
HPE Apollo 2000 Rack Consolidation Module Kit |
798211-B21 |
|
Notes: This is an optional RCM (Rack Consolidation Management) module kit which allows IPMI aggregation at the chassis level. The RCM Module consists of 2 IPMI ports for redundancy. It can also be daisy chained to connect to a Top of the Rack (TOR) management switch. | |
|
| |
|
Power Supply |
|
|
HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
830272-B21 |
|
HPE r2x00 Gen10 Power Supply Unit Enablement Kit |
880186-B21 |
|
| |
|
Security Hardware |
|
|
HPE Gen10 2U Bezel Kit |
867809-B21 |
|
HPE Bezel Lock Kit |
875519-B21 |
|
| |
|
Power Cords- |
|
|
HPE C13 - C14 WW 250V 10Amp 2.0m Jumper Cord |
A0K02A |
|
HPE C13 - C14 WW 250V 10Amp 1.4m Jumper Cord |
142257-006 |
|
HPE C13-NEMA 6-15P 10A/250V 3.6m Black Power Cord |
A0N33A |
|
HPE C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord |
AF568A |
|
HPE C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord |
AF570A |
|
HPE 1.83m C13-NEMA 6-15P Power Cord |
SK792A |
|
HPE C13-C14 IN 250V 10Amp 2m Black Jumper Cord |
R1C65A |
|
| |
|
Power Specifications To review typical system power ratings use the HPE Power Advisor which is available via the online tool located at URL at: http://www.hpe.com/info/poweradvisor |
|
|
Technical Specifications
|
HPE Apollo z70 Chassis 8 LFF | ||
|
Dimensions |
Height |
3.44 in (8.73 cm) |
|
Width |
17.64 in (44.81 cm) | |
|
Depth |
35.18 in (89.37 cm) | |
|
Shipping Dimensions |
Height |
12.5 in (31.75 cm) |
|
Width |
23.63 in (60.02 cm) | |
|
Depth |
37.76 in (95.9 cm) | |
|
Chassis Weight |
Empty |
37.94 lb (17.21 kg) |
|
Max Enclosure Weight |
Approximate |
49.93 lb (22.65 kg) |
|
System Input requirements |
AC input rating: |
200 VAC to 240 VAC 240 VDC for China only |
|
Rated Input current: |
8.7A at 200 VAC 7.2A at 240 VAC | |
|
Rated Input frequency: |
50 Hz to 60 Hz | |
|
System Inlet Temperature |
Standard Operating support |
10°C ~ 35°C (50°F to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed System performance during standard operating support may be reduced if operating with fan fault or aboce 30° C (86°F) |
|
Relative Humidity |
Operating |
8% to 90% - Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing. |
|
Non-operating |
5%-95% relative humidity (RH), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing | |
|
Altitude |
Operating |
3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min). |
|
Non-operating |
9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min). | |
|
Temperature Range |
Operating |
50° to 95° F (10° to 35° C) |
|
Non-Operating |
-22° to 140° F (-30° to 60° C) | |
|
Relative Humidity |
Operating |
Minimum to be higher (more moisture) of -12°C (10.4°F) dew point or 8% relative humidity |
|
Non-Operating |
5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. | |
|
| ||
|
Environment friendly Products and Approach End-of life Management and Recycling Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. | ||
|
| ||
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
15-Nov-2021 |
Version 12 |
Changed |
Service and Support section was updated. Obsolete SKUs were removed |
|
06-Apr-2020 |
Version 11 |
Changed |
Configuration Information section was updated. Obsolete SKUs were removed |
|
02-Dec-2019 |
Version 10 |
Changed |
SKUs were updated in Configuration Information section |
|
07-Oct-2019 |
Version 9 |
Changed |
Service and Support section was updated. |
|
06-May-2019 |
Version 8 |
Changed |
Overview, Standard features, Configuration Information and Technical Specifications sections were updated Obsolete SKUs were removed |
|
02-Apr-2019 |
Version 7 |
Changed |
Overview and Configuration Information sections were updated. Obsolete SKUs were removed. |
|
04-Feb-2019 |
Version 6 |
Changed |
Configuration Information and Core Options sections were updated |
|
03-Dec-2018 |
Version 5 |
Changed |
Core Options and Configuration Information sections were updated. |
|
15-Oct-2018 |
Version 4 |
Changed |
SKUs descriptions were updated in Configuration Information section Obsolete SKUs were deleted in Configuration Information section |
|
01-Oct-2018 |
Version 3 |
Changed |
QuickSpecs updated with the current Recommended-Extended Options, SKUs descriptions were updated in Configuration Information section |
|
13-Aug-2018 |
Version 2 |
Changed |
Overview, Service and Support, Configuration Information and Core Options sections were updated. |
|
04-Jun-2018 |
Version 1 |
New |
New QuickSpecs |
Copyright
|
|
| ||||||||||||
|
|
|
© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
