HPE Apollo 6000 Power Shelf

The HPE Apollo 6000 Power Shelf offers pooled power for rack level efficiency as well as provide N+N redundancy to support your datacenter needs.  Depending on the power configurations of the trays within a chassis, the power shelf can support 2 to 3 fully populated HPE Apollo a6000 Chassis with max DC power up to 15.9 kW. The HPE Apollo 6000 Power Shelf with its redundant hot-plug power supplies can also be configured for single- or three-phase input.

Front View with Power Supply Slots 1-6

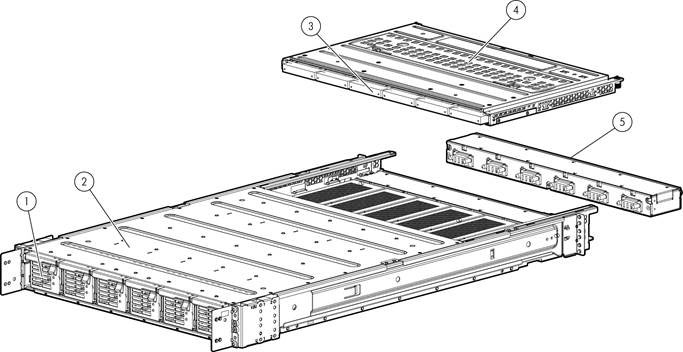

Side View:

1.

Power supply

2.

HPE Apollo 6000 Power Shelf

3.

Power management tray

4.

Air baffle

5.

AC input modules

Key features

• Each power shelf can support up to 15.9 kW of DC power.
• The power shelf has six power supply slots for maximum configurability.
• Can be configured for single-phase or three-phase AC input.

Supports N, N+1 and N+N power redundancy with hot-plug power supplies.

HPE Power Supplies

Notes: Mixing of 2 different power supply types is not supported.

Notes: If Three-Phase AC input is selected, a minimum of 3 Power Supply Option Kits are needed. For full redundancy 6 Power Supply Option Kits are required.

Notes: The HPE power supplies meet multiple Energy Efficiency Initiatives: 94% Climate Savers

Computing, PLATINUM and ECOS Consulting 80 Plus Platinum.

HPE 2650W Performance Platinum Hot Plug Power Supply Kit

733459-B21

HPE 2400W Performance Platinum Hot Plug Power Supply Kit

588603-B21

HPE 2650W Performance Universal Hot Plug Power Supply Kit

753618-B21

AC Power Input Modules

Notes: If Three Phase Power Module is selected, a minimum of 3 Power Supply Option Kits are needed. For full redundancy 6 Power Supply Option Kits are required.

HPE BLc7000 1 PH FIO Power Module Option

413379-B21

HPE BLc7000 3 PH Intl FIO Power Module Option

413381-B21

HPE BLc7000 3 PH NA/JP FIO Power Module Option

413380-B21

HPE HVDC 1PH AC Power Module BLc FIO Option

753623-B21

12V DC Power Cables

HPE Apollo 6000 Power Shelf 863.3mm 12V DC Power Cable

757398-B21

HPE Apollo 6000 Power Shelf 984mm 12V DC Power Cable

757399-B21

HPE Apollo 6000 Power Shelf 1168mm 12V DC Power Cable

757397-B21

Notes: For additional power cable information, please visit:
http://h18000.www1.hpe.com/products/servers/proliantstorage/power-protection/options/power-cable.html

Services

Refer to the Hewlett Packard Enterprise website at: http://www.hpe.com/go/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty.

Notes: Server Warranty includes 1 year Parts, 1 year Labor, 1-year on-site support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://h18004.www1.hpe.com/products/servers/platforms/warranty/index.html

Notes: In Asia Pacific, Japan and China, Server Warranty includes 3 year Parts, 3 year Labor, 3-year On-site support with next business day response.

HPE Pointnext - Service and Support

Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges.  Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.

Consume IT on your terms

HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

Managed services to run your IT operations

HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

Recommended Services

HPE Pointnext Tech Care.

HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

 HPE Pointnext Complete Care

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.  HPE Pointnext Complete Care provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

Recommended HPE Pointnext operational services for your HPE product

Service and Support

The HPE Apollo 6000 power shelf is a part of the HPE Apollo a6000 chassis. Support for this tray can be purchased at a chassis level. Please refer to HPE Apollo a6000 chassis quick spec documentation for details.

HPE Technology Services for Industry Standard Servers

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Pointnext operational services

HPE Pointnext operational services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.

Get connected to Hewlett Packard Enterprise to improve your support experience

Prevent problems with innovative, automated monitoring tools and proactive services. Combining Tech Care Services with our remote support technology such as Insight Online provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: http://www.hpe.com/go/proactiveinsightexperience

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Notes: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

Step 1: Choose a Power Shelf Configuration

HPE Power Shelf

Notes: A Power Shelf is required for all HPE Apollo 6000 configurations. Depending on which trays are populated in the HPE Apollo a6000 chassis, the ratio of power shelf to chassis varies.

Notes: A power shelf can be ordered without a rack.  However both the power shelf and chassis are required if ordered as factory integrated into a rack.

HPE Apollo 6000 Standard Power Shelf

735131-B21

Step 2: Choose an AC Input Power Module

AC Input Power Module

Notes: If Three Phase Power Module is selected, a minimum of 3 Power Supply Option Kits are needed. For full redundancy 6 Power Supply Option Kits are required.

HPE BLc7000 1 PH FIO Power Module Option

413379-B21

HPE BLc7000 3 PH Intl FIO Power Module Option

413381-B21

HPE BLc7000 3 PH NA/JP FIO Power Module Option

413380-B21

HPE HVDC 1PH AC Power Module BLc FIO Option

753623-B21

Step 3: Choose Power Supplies

HPE Power Supplies

Notes: Mixing of Power Supplies is not supported on HPE Apollo 6000 Power Shelf.
Notes: If Three-Phase Power is selected, a minimum of 3 Power Supply Option Kits are needed. For full redundancy, 6 Power Supply Option Kits are required

HPE 2650W Performance Platinum Hot Plug Power Supply Kit

733459-B21

HPE 2400W Performance Platinum Hot Plug Power Supply Kit

588603-B21

HPE 2650W Performance Universal Hot Plug Power Supply Kit

753618-B21

Step 4: Choose Output Power Cables

HPE 12V DC Power Cables

Notes: Each power shelf can support up to twelve 12V DC cables

Notes: Depending on the number of chassis to be supported, the cable length varies.

HPE Apollo 6000 Power Shelf 863.3mm 12V DC Power Cable

Notes:Notes: Recommended for chassis closest /next to power shelf

757398-B21

HPE Apollo 6000 Power Shelf 984mm 12V DC Power Cable

757399-B21

HPE Apollo 6000 Power Shelf 1168mm 12V DC Power Cable

757397-B21

Step 5: Choose Rail Kit

Power Shelf Rails

HPE Apollo 6000 Power Shelf Rail Kit

765439-B21

HPE Apollo 6000 3PO Power Shelf Rail Kit

Step 6: Choose HPE Power Cords

HPE Power Cords

HPE 2.0m 250V 16A C19-C20 WW Single IPD Enabled Jumper Cord

TK738A

HPE 2.0m 250V 16A C19-C20 WW 3PC Kit IPD Enabled Jumper Cord

TK739A

HPE 2.5m 250V 16A C19-C20 WW Single IPD Enabled Jumper Cord

TK740A

HPE 2.5m 250V 16A C19-C20 WW 3PC Kit IPD Enabled Jumper Cord

TK741A

HPE 3.0m 250V 16A C19-C20 WW Single IPD Enabled Jumper Cord

TK742A

HPE 3.0m 250V 16A C19-C20 WW 3PC Kit IPD Enabled Jumper Cord

TK743A

HPE 1.37m 250V 16A C19-C20 WW Single IPD Enabled Jumper Cord

TK744A

HPE 1.37m 250V 16A C19-C20 WW 3PC Kit IPD Enabled Jumper Cord

TK745A

HPE SAFDGRID-SAFDGRID 277V 15Amp DC 0.76m Jumper Cord

J6W98A

HPE SAFDGRID-SAFDGRID 277V 15Amp DC 1.37m Jumper Cord

J6W99A

HPE SAFDGRID-SAFDGRID 277V 15Amp DC 2.0m Jumper Cord

J6X00A

HPE SAFDGRID-LS-25 277V 15Amp AC 0.76m Jumper Cord

J6X01A

HPE SAFDGRID-LS-25 277V 15Amp AC 1.37m Jumper Cord

J6X02A

HPE SAFDGRID-LS-25 277V 15Amp AC 2.0m Jumper Cord

J6X03A

HPE C19 - C20 WW 250V 16Amp Flint Gray 2.0m Jumper Cord

AF574A

HPE C19 - C20 WW 250V 16Amp Flint Gray 1.20m Jumper Cord

AF575A

HPE C19 - CEE-VII EU 250V 16Amp 3.6m Power Cord

AF576A

HPE C19 - AS3112-3 AU/NZ 250V 15Amp 3.6m Power Cord

AF577A

HPE C19 - SABS-164 ZA 250V 16Amp 3.6m Power Cord

AF579A

HPE C19 - CEI-23-50 IT/CL 250V 16Amp 3.6m Power Cord

AF580A

HPE C19 - IEC-309 DK/SE/AR 250V 16Amp 3.6m Power Cord

AF581A

HPE C19 - IS-1293 IN/PK/BD 250V 16Amp 2.5m Power Cord

AF582A

HPE C19 - ISI-32 IL 250V 16Amp 2.5m Power Cord

AF583A

HPE C19 - GB-1002 CN 250V 16Amp 2.5m Power Cord

AF584A

HPE C19 - CNS-690 TW 250V 16Amp 2.5m Power Cord

AF585A

HPE C19 - Nema 5-15P TH-PH 125V 15Amp 3.6m Power Cord

AF586A

HPE C19 - NBR-14136 BR 250V 16Amp 2.5m Power Cord

AF592A

HPE C19 - Nema L6-20P NA/JP 250V 20Amp High Voltage 3.6m Power Cord

AF593A

Notes: For additional power cable information, please visit:
http://h18000.www1.hpe.com/products/servers/proliantstorage/power-protection/options/power-cable.html

Power

Input Requirements - Single Phase Model

Rated input frequency

50 to 60 Hz

2400W PSU

Rated input voltage

200 to 240 VAC

Rated input current
per power supply

13.9 A at 200 V ac
13.3 A at 208 V ac
12.6 A at 220 V ac

Rated input power
per power supply

2780 VA

Rated input Frequency

50 to 60 Hz

2650W PSU

Rated input voltage

200 to 240 VAC

Rated input current
per power supply

14.4 A at 200 VAC
13.8 A at 208 VAC

Rated input power per power supply

2880 VA

Input Requirements - Three Phase NA/JPN Model

Rated input voltage

200 to 208 VAC Line to Line
3-Phase Delta

Rated input frequency

50 to 60 Hz

2400W PSU

Max input current per line cord

24 A at 200 V ac
23.1 A at 208 V ac

Max input power
per line cord

8340 VA max

Rated input Frequency 2650W PSU

Max input current per line cord

14.4 A at 200 VAC
13.8 A at 208 VAC

Max input power
per line cord

2880 VA

HPE Apollo 6000 Power Shelf

Power Supply Slots

Six (6)

Physical characteristics

Dimensions
(L x W x D)

30.88 x 17.64 x 2.55 in (78.44 x 44.81 x 6.47 cm)

Shipping dimension
(L x W x D)

39.37 x23.63 x 13 in (100 x 60 x 45.7 cm)

Weight Maximum

60 lb (27.22 kg)

Minimum

20 lb (9.07 kg)

Environment

Operating temperature

32°F to 131°F (0°C to 55°C)

Operating relative humidity

15% to 95%, noncondensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

15% to 95%, noncondensing

Altitude

up to 9,842 ft (3 km)

Acoustic

Power: 69.1 dB, Pressure: 53.1 dB Acoustic ratings are absolute max sound levels with 3 modular power supplies and max output power

Electrical characteristics

DC voltage

Power supplies can supply 12VDC.

Maximum power rating

3150 W

PoE power

2100 W

RPS

12VDC

Frequency

50/60 Hz

Notes

Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

Safety

GOST R MEK60950; EN62479:2010; UL 60950-1 2nd Edition; CSA C22.2 No. 60950-1-07 2nd Edition; EN 60950-1:2006+A11:2009+A1:2010+A12:2011; IEC 60950-1:2005, Amd 1: 2009

Emissions

FCC Rules Part 15, Subpart B Class A; VCCI Class A; BSMI CNS 13438; AS/NZS CISPR 22 Class A; KCC Class A; EN 55022:2010; EN 61000-3-3:2008; EN 6100-3-2:2006+A1:2009 +
A2:2009; GOST R 51318.22

Immunity

Generic

EN55024:2010

ESD

IEC 61000-4-2:2008

Radiated

IEC 61000-4-3:2010

EFT/Burst

IEC 61000-4-4:2012

Surge

IEC 61000-4-5:2005

Conducted

IEC 61000-4-6:2008

Power frequency magnetic field

IEC 61000-4-8:2009

Voltage dips and interruptions

IEC 61000-4-11:2004

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Date

Version History

Action

Description of Change

15-Nov-2021

Version 6

Changed

Service and Support section was updated.

23-Oct-2017

Version 5

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

15-Aug-2016

From version 3 to 4

Updated

Updates throughout the all document.

29-Apr-2015

From version 2 to 3

Changed

Update the configuration section

13-Jun-2014

From Version 1 to 2

Changed

Service and Support were revised.

© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

c04293375 - 14976 - Worldwide  - V6 - 15-November-2021
