HPE Apollo 4510 Gen10 System

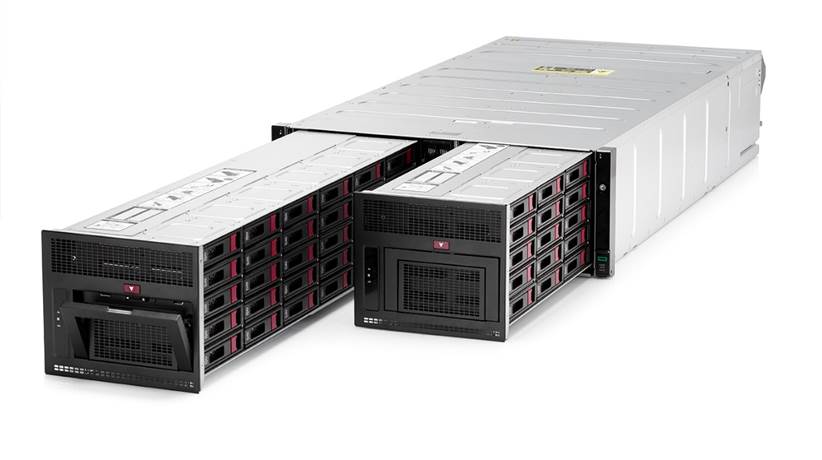

The HPE Apollo 4510 Gen10 System offers revolutionary storage density and accessibility in a 4U rack mount form factor.  Fitting in HPE Standard 1075 mm racks and featuring a front-drawer design for its bulk data drives, it has one of the highest capacities of any 4U storage server with standard rack depth. When you are running Big Data solutions, such as object storage, data analytics, deep archive, or other data-intensive workloads, the HPE Apollo 4510 Gen10 System allows you to save valuable data center space. Its unique density-optimized and easy-access design accommodates a wide array of configuration choices, with support for two Intel® Xeon® Processors, sixteen DIMM slots, four I/O expansion slots, 60 large form factor bulk storage drive slots, two small form factor drive slots, and two M.2 internal drive slots.

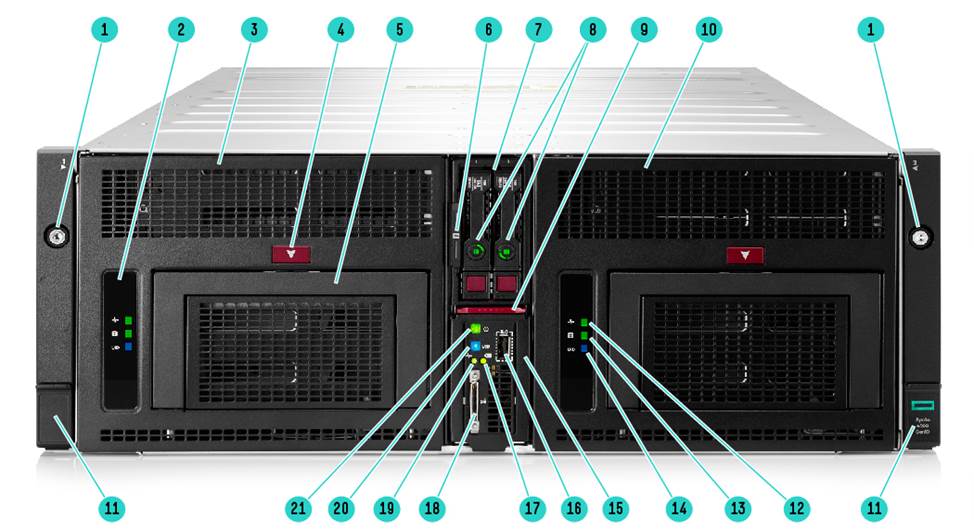

HPE Apollo 4510 Gen10 System Front View

1.

Bezel ear screws (2)

12.

Backplane health LED

2.

Drive drawer LEDs

13.

Drive health LED

3.

LFF drive drawer 1

14.

UID LED

4.

Drive drawer release button

15.

Server release lever

5.

Drive drawer release levers

16.

iLO Service Port

6.

Serial label pull tab

17.

Server backup LED

7.

Server bay

18.

SUV cable connector

8.

Server node SFF drive bays (2)

19.

Server health LED

9.

Server ejector button

20.

UID LED/button

10.

LFF drive drawer 2

21.

Power On/Standby button and system power LED

11.

Quick-release levers (2)

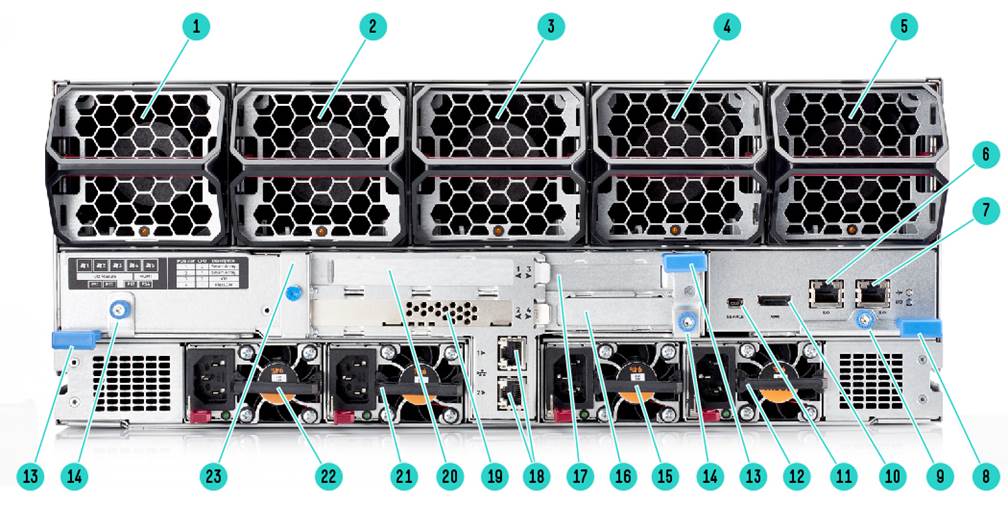

HPE Apollo 4510 Gen10 System Rear View

1.

System fan 1

13.

I/O module release levers (2)

2.

System fan 2

14.

I/O module thumbscrews (2)

3.

System fan 3

15.

Power Supply 3

4.

System fan 4

16.

FlexLOM slot

5.

System fan 5

17.

PCIe slot 3

6.

iLO port 2 (RJ-45)

18.

NIC ports (2)

7.

iLO port 1 (RJ-45)

19.

PCIe slot 2

8.

Management module release lever

20.

PCIe slot 1

9.

Management module thumbscrew

21.

Power Supply 2

10.

APM connector

22.

Power Supply 1

11.

Reserved

23.

I/O Module (shown as HPE Apollo 4500 Gen10
CPU0 x2/CPU1 x2 FIO I/O Module 882020-B21)

12.

Power Supply 4

HPE Apollo 4510 Gen10 System Internal View

1.

Drive cage

9.

Processor 2 DIMMs (8)

2.

Drive backplane

10.

System battery

3.

TPM 2.0 connector

11.

SFF drive cage data cable connector

4.

Controller connector

12

M.2 riser board

5.

System maintenance switch

13.

Front panel I/O board cable connector

6.

Processor 1

14.

microSD card slot

7.

Processor 1 DIMMs (8)

15.

Front panel I/O board

8.

Processor 2

16.

iLO Service Port board

HPE Apollo 4510 Gen10 System

What's New

• Support for HPE 20TB SAS and SATA Business Critical 7.2K HDDs increases the maximum raw capacity to over a petabyte and enable new archive use cases with even deeper storage capacities.
• New SAS 24Gb SSDs offer some future-proofing of storage media (though they will be limited to 12Gb/s on the Apollo 4510 Gen10).
• The HPE NS204i-p OS Boot Device is a dedicated hardware RAID1 solution that enables automatic operating system mirroring on the two included M.2 NVMe SSDs, keeping boot partitions off of bulk storage drives so that they can be used more productively and efficiently.
• Support for HPE 128GB/256GB/512GB Persistent Memory kits featuring Intel® Optane^TM DC persistent memory.  HPE Persistent Memory provides fast, high-capacity, cost-effective memory and storage to transform big data workloads and analytics possibilities-enabling data to be stored, moved, and processed at unprecedented speed, improving TCO.
• Support for HPE Very Read Optimized (VRO) SATA SFF and LFF SSDs: VRO SSDs are QLC NAND-based and have variable endurance levels optimized to certain workloads that are very read-centric.  In those cases, VRO drives can act as HDD replacements for environments looking to standardize on flash storage.
• New designations for NVMe SSDs help customers choose the right balance of performance and price for their applications and use cases.  NVMe "Mainstream" SSDs deliver better performance than SAS/SATA SSDs in both read-intensive and mixed-use endurance varieties.  NVMe "High Performance" SSDs offer better overall performance than NVMe Mainstream and are optimized for read performance in particular.
• Value SAS SSDs offer twice the interface speed of SATA at a lower cost than traditional enterprise-class SAS SSDs and are an alternative to Mainstream NVMe SSDs.
• The new Pensando Distributed Services Platform (DSP) for HPE systems delivers a powerful and scalable suite of software-defined network and security services like firewall, micro-segmentation, and telemetry to the server edge, where the transition between network and server occurs.

Processors

Notes: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

Notes: Up to 2 processors supported. Mixing different processor models is not supported.

Chipset

Intel® C621 Chipset. For more information about Intel® chipsets, please go to: https://www.intel.com/content/www/us/en/products/chipsets/server-chipsets.html

On System Management Chipset

HPE iLO 5. ASIC Read and learn more in the iLO QuickSpecs.

Memory

Notes:

- Mixing of RDIMM and LRDIMM memory is not supported.

- The maximum memory by socket is limited by processor specification

- Intel Xeon Gold 62xx processors that support 2933 MT/s DIMMs will do so only at 1 DIMM per channel.  Configuring 2 DIMMs per channel will drop memory speed back to 2666 MT/s.

- HPE Persistent Memory featuring Intel® Optane^TM DC persistent memory is only supported with select 2^nd-generation Intel Xeon Scalable Series Processors ONLY (62xx/52xx/4215) and can only be mixed with either RDIMMs or LRDIMMs.

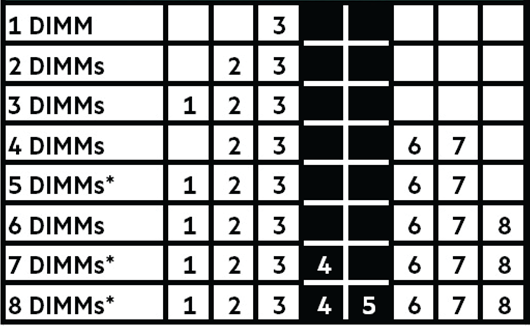

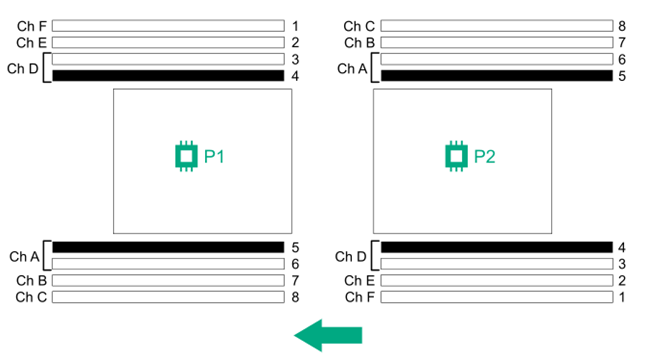

- For General Server Memory Population Rules and Guidelines for Gen10 see details here: http://www.hpe.com/docs/memory-population-rules

Memory Protection

For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-ras-feature.

Expansion Slots

Notes:

- Indicates the number of physical electrical lanes running to the connector.

- The slots supported by Proc 2 will work when the second processor is installed.

Storage Controllers

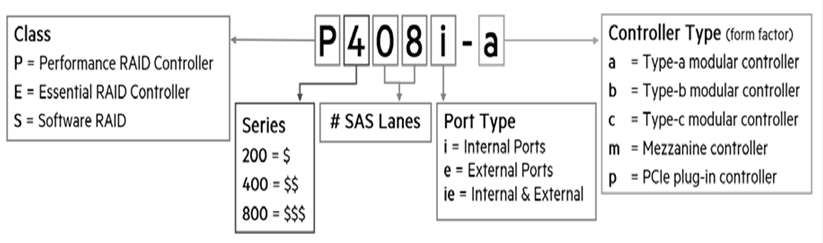

For a more details about supported Smart Array controllers visit https://support.hpe.com/hpesc/public/docDisplay?docLocale=en_US&docId=emr_na-a00039156en_us

Storage Controllers Dedicated to XL450 Gen10 Server Node

• HPE Smart Array S100i SR Gen10 Software RAID

Notes: HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

• HPE Smart Array E208i-a SR Gen10 Controller
• HPE Smart Array P408i-a SR Gen10 Controller

Notes:

- E208i-a and P408i-a connect to the 2 SFF drives in the server node and provide capability for (up to) 12G SAS or 6G SATA hardware RAID/HBA functionality.

- If SFF SAS drives are selected, E208i-a or P408i-a is required.

- If SFF NVMe SSDs are selected, an HPE Smart Array controller is not required.

- Performance RAID Controllers (P series) require purchase of one HPE Smart Storage Battery (P01366-B21) per chassis.

Storage Controllers Dedicated to 60 LFF Drawer Bulk Drive Slots

For hardware RAID/HBA of bulk storage LFF drives, a minimum of one of the following controllers is required (and up to two like controllers are supported):

• HPE Smart Array E208i-p SR Gen10 Controller
• HPE Smart Array P408i-p SR Gen10 Controller

Notes: Performance RAID Controllers (P series) require purchase of one HPE Smart Storage Battery (P01366-B21) per chassis.

SAS Controllers for External Bulk Drive Enclosures

• HPE Smart Array E208e-p SR Gen10 Controller
• HPE Smart Array P408e-p SR Gen10 Controller

Notes:

- Performance RAID Controllers (P series) require purchase of one HPE Smart Storage Battery (P01366-B21) per chassis.

- SAS controllers for internal bulk drives reside in I/O module in the system.

HPE Smart Storage Battery

HPE 96W Smart Storage Battery (up to 20 Devices) with 145mm Cable Kit (P01366-B21)

• HPE Smart Array P408i-a SR Gen10 Controller
• HPE Smart Array P408i-p SR Gen10 Controller
• HPE Smart Array P408e-p SR Gen10 Controller

Notes: One Smart Storage Battery per chassis is required if one of the following controllers has been selected on a server node:

Power Supplies

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes:

- Available in 94% and 96% efficiency.

- Also available in -48VDC and 227VAC/380VDC power inputs.

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

Notes: Available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen10 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

For information on power specifications and technical content visit HPE Server power supplies.

Graphics

Integrated Video Standard

Video modes up to 1920 x 1200@60Hz (32 bpp)

Form Factor

4U form factor

Operating Systems and Virtualization Software Support

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• VMware

Notes:

- Only 64-bit versions of these operating systems are supported.

- For more information on Hewlett Packard Enterprise's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from Hewlett Packard Enterprise, please visit our OS Support Site at:

https://www.hpe.com/us/en/servers/server-operating-systems.html and our driver download page.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more at http://www.hpe.com/info/ilo.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hpe.com/servers/uefi.

Intelligent Provisioning

Hassle free server and OS provisioning for 1 or more servers with Intelligent Provisioning. Learn more at

http://www.hpe.com/servers/intelligentprovisioning.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at

http://www.hpe.com/info/restfulapi.

System Utilities

InfoSight for Servers

HPE InfoSight for Servers combines the machine learning and predictive analytics of HPE InfoSight with the health and performance monitoring of Active Health System (AHS) and HPE Integrated Lights Out (iLO) to optimize performance and predict and prevent problems. HPE InfoSight for Servers nearly eliminates wasted time and headaches by transforming how infrastructure is managed and supported. AHS is like a "flight recorder" for your server that provides continuous, proactive health monitoring and recording thousands of system parameters and diagnostic telemetry data 24x7 on the server. HPE InfoSight for Servers analyzes the telemetry data from AHS to derive insights from the behaviors of the install base to provide recommendations to resolve problems and improve performance. iLO Amplifier pack (see below) is required to connect to InfoSight for servers.  Learn more at http://www.hpe.com/info/infosight-servers-docs.

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities.  Learn more at http://www.hpe.com/servers/iLOamplifierpack.

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers.  Learn more at http://www.hpe.com/servers/ahs.

Active Health System Viewer

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations, to learn more visit: http://www.hpe.com/servers/ahsv.

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP).

Learn more at https://www.hpe.com/us/en/servers/smart-update.html

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. Learn more at http://www.hpe.com/info/resttool.

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/powershell

HPE Systems Insight Manager (HPE SIM)

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. Learn more at http://www.hpe.com/info/hpesim.

Security

• UEFI Secure Boot and Secure Start support
• Immutable Silicon Root of Trust
• FIPS 140-2 validation (iLO 5 certification in progress)
• Common Criteria certification (iLO 5 certification in progress)
• Tamper-free updates - components digitally signed and verified
• Secure Recovery - recover critical firmware to known good state on detection of compromised firmware
• Ability to rollback firmware
• Secure erase of NAND/User data
• TPM (Trusted Platform Module) 2.0 option

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Notes: System Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

 http://www.hpe.com/support/ProLiantServers-warranties .

System Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise for all HPE ProLiant servers (and HPE Apollo 4000 systems). The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. Learn more about HPE iLO Advanced and download a trial license at

http://www.hpe.com/us/en/servers/integrated-lights-out-ilo.html

HPE iLO Advanced Premium Security Edition

HPE iLO Advanced Premium Security Edition for iLO 5 includes iLO Advanced License plus high-end security modes, unique security capabilities, like Automatic FW recovery; Runtime FW verification, and Secure erase. Learn more about HPE iLO Advanced Premium Security Edition at http://www.hpe.com/us/en/servers/integrated-lights-out-ilo.html.

HPE OneView

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at http://www.hpe.com/info/oneview.

HPE Insight Cluster Management Utility (CMU)

HPE Insight Cluster Management Utility is a HyperScale management framework that includes software for the centralized provisioning, management and monitoring of nodes and infrastructure.

Learn more at https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=c04111735.

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go - and business grow. We've reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we've created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today's modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°C, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so you're critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We've got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance. https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

• Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
• HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
• HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
• Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
• HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

http://www.hpe.com/services

This section lists some of the steps required to configure an HPE Apollo 4510 Gen10 system. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

• All configurations must start with a CTO chassis.
• FIO indicates that this option is only available as a factory installable option.
• All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.
• Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Notes: Rack chosen is required to have 1075mm to provide space for cable management at the rear of the chassis and host PDU in the rear of the rack.

Step 1: Base Configuration / Chassis

HPE Apollo 4510 Gen10 Chassis

Description

SKU

HPE Apollo 4510 Gen10 Configure-to-Order Chassis

864668-B21

Notes:

- Requires one HPE ProLiant XL450 Gen10 server node (864625-B21).

- Standard 5 hot-plug fan modules included.

Step 1a: Select Required Server Node

HPE X450 Gen10 Server Node for Apollo 4510 Gen10

HPE ProLiant XL450 Gen10 Configure-to-order Server Node for Apollo 4510 Gen10 Chassis

864625-B21

Notes: Select quantity of one.

Step 1b: Select Required Chassis Options

Only one of the following from each category unless otherwise noted

HPE Power Supplies

Prior to making a power supply selection, please use the HPE Power Advisor to determine the right size power supply for your system configuration. The HPE Power Advisor is located at: http://www.hpe.com/info/hppoweradvisor

HPE Flex Slot Titanium Power Supply Kits

The following power supplies offer up to 96% efficiency.

HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

865438-B21

HPE Flex Slot Power Supplies

The following power supplies offer up to 94% efficiency.

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

830272-B21

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

865434-B21

HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit

865428-B21

Notes:

- For 800W power supplies only: A minimum of three power supplies per chassis is required when two processors are selected.

- Kits contain power supply, an IEC power cable, and PDU IEC cables.

HPE Rail Kits

HPE 4U Server Rail Kit

878571-B21

Notes: One Rail Kit is required for every chassis in a rack.

I/O Module

Notes: One I/O module is required

HPE Apollo 4500 Gen10 CPU0 x2/CPU1 x2 FIO I/O Module

882020-B21

Notes: HPE Apollo 4500 Gen10 CPU0 x2/CPU1 x2 FIO I/O Module (882020-B21) contains one FlexLOM and one x16 PCIe slot from Proc 1 and  two x16 PCIe slots from Proc 2.

HPE Apollo 4500 Gen10 CPU0 x3/CPU1 x1 I/O Module

P00416-B21

Notes: HPE Apollo 4500 Gen10 CPU0 x3/CPU1 x1 I/O Module (P00416-B21) contains one FlexLOM and two x8 PCIe slot from Proc 1 and  one x16 PCIe slots from Proc 2.

Step 2: Choose Required Server Node Options

HPE Processor Kits

First Processor

Up to two processors are supported.  For two-processor configurations, first select one xxxxxx-L21 SKU here, and then later select the corresponding xxxxxx-B21 SKU (with the same the first six digits).

Notes:

- Mixing of different processor models is NOT allowed.

- DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

Description

SKU

Gold 6200 series

Intel Xeon-Gold 6252 (2.1GHz/24-core/150W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P10772-L21

Intel Xeon-Gold 6248 (2.5GHz/20-core/150W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P10771-L21

Intel Xeon-Gold 6242 (2.8GHz/16-core/150W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P10769-L21

Intel Xeon-Gold 6240 (2.6GHz/18-core/150W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P10768-L21

Intel Xeon-Gold 6234 (3.3GHz/8-core/130W) FIO Processor for HPE ProLiant XL450 Gen10

P12718-L21

Intel Xeon-Gold 6230R (2.1GHz/26-core/150W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P24710-L21

Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P10767-L21

Intel Xeon-Gold 6226R (2.9GHz/16-core/150W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P24709-L21

Intel Xeon-Gold 6226 (2.7GHz/12-core/125W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P12717-L21

Gold 5200 series

Intel Xeon-Gold 5220R (2.2GHz/24-core/150W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P19712-L21

Intel Xeon-Gold 5220 (2.2GHz/18-core/125W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P10766-L21

Intel Xeon-Gold 5218R (2.1GHz/20-core/125W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P24708-L21

Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P10765-L21

Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P12716-L21

Silver 4200 series

Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P12715-L21

Intel Xeon-Silver 4215R (3.2GHz/8-core/130W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P24707-L21

Intel Xeon-Silver 4215 (2.5GHz/8-core/85W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P12714-L21

Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P19707-L21

Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P12713-L21

Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P19706-L21

Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P12712-L21

Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) FIO Processor Kit for HPE ProLiant XL450 Gen10

P12711-L21

HPE Memory

For HPE Gen10 memory population rules and optimal memory performance guidelines, please go to:

https://www.hpe.com/docs/memory-population-rules.

For memory Reliability, Accessibility, Serviceability (RAS) features whitepaper like Gen10 Fast Fault Tolerance and legacy mirrored memory feature etc. please go to:

http://www.hpe.com/docs/memory-ras-feature.

Memory DIMM availability with a server platform is dependent upon completion of certification testing.

The maximum memory speed is a function of the memory type, memory configuration, and processor model.

Intel Xeon Gold 62xx processors that support 2933 MT/s DIMMs will do so only at 1 DIMM per channel.  Configuring 2 DIMMs per channel will drop memory speed back to 2666 MT/s.  For more information, please go to:

https://www.hpe.com/docs/memory-speed-table

Notes: Maximum memory capacity is 1024GB per processor/socket.

Description

SKU

DDR4-2933 DIMMs

HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00918-K21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00920-K21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00922-K21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00924-K21

HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00930-K21

DDR4-2666 DIMMs

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

835955-K21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

815100-K21

Step 3: Choose Additional Options

Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Processor Kits

Second Processor

Up to two processors are supported.  For two-processor configurations, the first six digits in the xxxxxx-B21 SKU below should match those in the corresponding xxxxxx-L21 SKU chosen above.

Notes:

- Mixing of different processor models is NOT allowed.

- DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

Description

SKU

Gold 6200 series

Intel Xeon-Gold 6252 (2.1GHz/24-core/150W) Processor Kit for HPE ProLiant XL450 Gen10

P10772-B21

Intel Xeon-Gold 6248 (2.5GHz/20-core/150W) Processor Kit for HPE ProLiant XL450 Gen10

P10771-B21

Intel Xeon-Gold 6242 (2.8GHz/16-core/150W) Processor Kit for HPE ProLiant XL450 Gen10

P10769-B21

Intel Xeon-Gold 6240 (2.6GHz/18-core/150W) Processor Kit for HPE ProLiant XL450 Gen10

P10768-B21

Intel Xeon-Gold 6234 (3.3GHz/8-core/130W) Processor Kit for HPE ProLiant XL450 Gen10

P12718-B21

Intel Xeon-Gold 6230R (2.1GHz/26-core/150W) Processor Kit for HPE ProLiant XL450 Gen10

P24710-B21

Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) Processor Kit for HPE ProLiant XL450 Gen10

P10767-B21

Intel Xeon-Gold 6226R (2.9GHz/16-core/150W) Processor Kit for HPE ProLiant XL450 Gen10

P24709-B21

Intel Xeon-Gold 6226 (2.7GHz/12-core/125W) Processor Kit for HPE ProLiant XL450 Gen10

P12717-B21

Gold 5200 series

Intel Xeon-Gold 5220R (2.2GHz/24-core/150W) Processor Kit for HPE ProLiant XL450 Gen10

P19712-B21

Intel Xeon-Gold 5220 (2.2GHz/18-core/125W) Processor Kit for HPE ProLiant XL450 Gen10

P10766-B21

Intel Xeon-Gold 5218R (2.1GHz/20-core/125W) Processor Kit for HPE ProLiant XL450 Gen10

P24708-B21

Intel Xeon-Gold 5218 (2.3GHz/16-core/125W) Processor Kit for HPE ProLiant XL450 Gen10

P10765-B21

Intel Xeon-Gold 5215 (2.5GHz/10-core/85W) Processor Kit for HPE ProLiant XL450 Gen10

P12716-B21

Silver 4200 series

Intel Xeon-Silver 4216 (2.1GHz/16-core/100W) Processor Kit for HPE ProLiant XL450 Gen10

P12715-B21

Intel Xeon-Silver 4215R (3.2GHz/8-core/130W) Processor Kit for HPE ProLiant XL450 Gen10

P24707-B21

Intel Xeon-Silver 4215 (2.5GHz/8-core/85W) Processor Kit for HPE ProLiant XL450 Gen10

P12714-B21

Intel Xeon-Silver 4214R (2.4GHz/12-core/100W) Processor Kit for HPE ProLiant XL450 Gen10

P19707-B21

Intel Xeon-Silver 4214 (2.2GHz/12-core/85W) Processor Kit for HPE ProLiant XL450 Gen10

P12713-B21

Intel Xeon-Silver 4210R (2.4GHz/10-core/100W) Processor Kit for HPE ProLiant XL450 Gen10

P19706-B21

Intel Xeon-Silver 4210 (2.2GHz/10-core/85W) Processor Kit for HPE ProLiant XL450 Gen10

P12712-B21

Intel Xeon-Silver 4208 (2.1GHz/8-core/85W) Processor Kit for HPE ProLiant XL450 Gen10

P12711-B21

HPE Memory

Additional Memory Kit(s)

For HPE Gen10 memory population rules and optimal memory performance guidelines, please go to:

https://www.hpe.com/docs/memory-population-rules.

For memory Reliability, Accessibility, Serviceability (RAS) features whitepaper like Gen10 Fast Fault Tolerance and legacy mirrored memory feature etc. please go to: http://www.hpe.com/docs/memory-ras-feature.

Memory DIMM availability with a server platform is dependent upon completion of certification testing.

The maximum memory speed is a function of the memory type, memory configuration, and processor model.

Intel Xeon Gold 62xx processors that support 2933 MT/s DIMMs will do so only at 1 DIMM per channel.  Configuring 2 DIMMs per channel will drop memory speed back to 2666 MT/s.  For more information, please go to:

https://www.hpe.com/docs/memory-speed-table

Notes: Maximum memory capacity is 1024GB per processor/socket.

Description

SKU

DDR4-2933 DIMMs

HPE 8GB (1x8GB) Single Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00918-K21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00920-K21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00922-K21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00924-K21

HPE 64GB (1x64GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit

P00930-K21

DDR4-2666 DIMMs

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

835955-K21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Smart Memory Kit

815100-K21

HPE Persistent Memory (Intel Optane)

Intel Optane 128GB persistent memory 100 Series for HPE

835804-B21

Intel Optane 256GB persistent memory 100 Series for HPE

835807-B21

Intel Optane 512GB persistent memory 100 Series for HPE

835810-B21

Notes:

- A maximum 512GB per processor/socket HPE Persistent Memory DIMMs supported with select 2nd-Generation Intel Xeon Scalable Series Processors ONLY (62xx/52xx/4215) and can only be mixed with either RDIMMs or LRDIMMs.

- HPE Persistent Memory (Intel Optane) is available for factory-install only.

- For more information regarding HPE Persistent Memory visit: http://www.hpe.com/info/persistentmemory

BIOS Mode (Factory Setting)

HPE Legacy FIO Mode Setting

758959-B22

Notes: Selecting this option will change the default UEFI BIOS setting into Legacy BIOS setting.

HPE NS204i-p OS Boot Device

The HPE NS204i-p OS Boot Device is a PCIe add-in card that enables dedicated RAID1 operating system mirroring on the two included 480GB M.2 NVMe SSDs.  It presents itself to the system as a single direct-connect NVMe drive (not a RAID controller) and it is "plug-and-play," with no need for device configuration or management.

Description

SKU

HPE NS204i-p x2 Lanes NVMe PCIe3 x8 OS Boot Device

P12965-B21

HPE Smart Array Controllers

Storage Controllers for XL450 Gen10 Server Node SFF Drives

The XL450 Gen10 Server Node has two hot-plug small form factor (SFF) drive bays that support SAS, SATA, or NVMe drives.

HPE Smart Array S100i SR Gen10 SW RAID is included standard (UEFI mode only).

Notes:

- HPE Smart Array E208i-a SR Gen10 or P408i-a SR Gen10 controllers support (up to) 12G SAS or 6G SATA hardware RAID/HBA functionality and do not occupy a PCIe expansion slot.

- If SFF SAS drives are selected, one HPE Smart Array E208i-a SR Gen10 or P408i-a SR Gen10 controller is required.

- If SFF NVMe SSDs are selected, an HPE Smart Array controller is not supported/required.

- All performance RAID controllers require purchase of one HPE Smart Storage Battery (P01366-B21) per chassis.

HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller

804331-B21

HPE Smart Array E208i-a SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular Controller

804326-B21

Storage Controllers for LFF Bulk Drives

Up to 60 hot-plug large form factor (LFF) SAS or SATA drives can be loaded in two front-access drive drawers (30 drives each).   A single controller can address all drives or two controllers can each be assigned to a drawer to optimize performance.

Notes:

- A minimum of one and maximum of two of the following controllers is required to add LFF drives.

- All performance RAID controllers require purchase of one HPE Smart Storage Battery (P01366-B21) per chassis.

HPE Smart Array P408i-p SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS PCIe Plug-in Controller

830824-B21

HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804394-B21

Storage Controllers for External Drives

Notes:  All performance RAID controllers require purchase of one HPE Smart Storage Battery (P01366-B21) per chassis.

HPE Smart Array P408e-p SR Gen10 (8 External Lanes/4GB Cache) 12G SAS PCIe Plug-in Controller

804405-B21

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

Description

SKU

Storage Controller Cable Options

HPE Apollo 4500 Gen10 Smart Array E208i-a/P408i-a SAS Cable Kit

874779-B21

Notes: 874779-B21 is required if an HPE Smart Array Controller (E208i-a SR Gen10 or P408i-a SR Gen10) for the ProLiant XL450 Gen10 Server Node SFF drives is selected.

HPE Apollo 4500 Gen10 Smart Array E208i-p/P408i-p SAS Cable Kit

874777-B21

Notes: 874777-B21 is required if one HPE Smart Array Controller (E208i-p SR Gen10 or P408i-p SR Gen10) for LFF bulk drives is selected:

HPE Apollo 4500 Gen10 Dual Smart Array E208i-p/P408i-p SAS Cable Kit

874778-B21

Notes: 874778-B21 is required if a second HPE Smart Array Controller (E208i-p SR Gen10 or P408i-p SR Gen10) for LFF bulk drives is selected.

Smart Array Optional Software

HPE Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU

Q2F26AAE

Notes: SmartCache is offered for HPE Smart Array performance RAID controllers.

Controller State (Factory Setting)

HPE FIO Enable Smart Array SW RAID

784308-B21

Notes: This option may be selected to support RAID and Hot-plug capabilities for SATA hard drives. HPE Smart Array S100i SR Gen10 Software RAID does not support SAS hard drives, and it supports Microsoft Windows only.

HPE Drives

To streamline the configuration process for HPE ProLiant and Apollo Gen10 systems and to provide the best product availability, HPE recommends options highlighted here: http://www.hpe.com/products/recommend

HDD Selections

LFF Drives for 60-bay Bulk Storage Drawers:

Mission Critical (Enterprise) - 12G SAS

Business Critical (Midline) - 12G SAS

HPE 2TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

833926-K21

HPE 4TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

833928-K21

HPE 6TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

861746-K21

HPE 8TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834031-K21

HPE 10TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e ISE Multi Vendor HDD

P53556-K21

HPE 12TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881781-K21

HPE 14TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

P09155-K21

HPE 16TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23608-K21

HPE 18TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P37669-K21

HPE 20TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53553-K21

Business Critical (Midline) - 6G SATA

Description

SKU

HPE 1TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861686-K21

HPE 4TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD

861683-K21

HPE 6TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

861742-K21

HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD

834028-K21

HPE 10TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e ISE Multi Vendor HDD

P53557-K21

HPE 12TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

881787-K21

HPE 14TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD

P09165-K21

HPE 16TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P23449-K21

HPE 18TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P37678-K21

HPE 20TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD

P53554-K21

The following HPE Hard Drive bundles are Factory Integration Only options. They must be purchased at time of configuration and are not available for field integration.

SFF Drives for XL450 Gen10 Server Node:

Mission Critical (Enterprise) - 12G SAS

HPE 300GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD

870753-K21

HPE 300GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872475-K21

HPE 600GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD

870757-K21

HPE 600GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872477-K21

HPE 900GB SAS 12G Mission Critical 15K SFF SC 3-year Warranty Multi Vendor HDD

870759-K21

HPE 1.2TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD

872479-K21

HPE 1.8TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD

872481-K21

HPE 2.4TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD

881457-K21

Business Critical (Midline) - 12G SAS

HPE 1TB SAS 12G Business Critical 7.2K SFF SC 1-year Warranty HDD

832514-K21

HPE 2TB SAS 12G Business Critical 7.2K SFF SC 1-year Warranty 512e HDD

765466-K21

Business Critical (Midline) - 6G SATA

HPE 1TB SATA 6G Business Critical 7.2K SFF SC 1-year Warranty HDD

655710-K21

HPE 2TB SATA 6G Business Critical 7.2K SFF SC 1-year Warranty 512e HDD

765455-K21

SSD Selections

To further assist with configuration, HPE also offers an SSD Selector Tool located here: http://ssd.hpe.com.

LFF SSDs for 60-bay Bulk Storage Drawers:

Mixed Use - 12G SAS

HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD

P37009-K21

Read Intensive - 12G SAS

HPE 7.68TB SAS 24G Read Intensive LFF LPC Multi Vendor SSD

P49040-K21

HPE 7.68TB SAS 24G Read Intensive LFF LPC Multi Vendor SSD

P49040-K21

HPE 7.68TB SATA 6G Very Read Optimized LFF LPC 5400 SSD

P58232-K21

Read Intensive - 6G SATA LFF

Description

SKU

HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD

P47808-K21

HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD

P47808-K21

SFF SSDs for XL450 Gen10 Server Node:

HPE has qualified the NVMe drive portfolio using the Operating System inbox drivers, full detail on the

HPE Solid State Drive QuickSpecs

Mixed Use - NVMe

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF SC U.3 CM6 SSD

P20088-K21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF SCN U.3 PM1735a SSD

P50225-K21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF SCN U.3 PM1735a SSD

P50228-K21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF SCN U.3 PM1735a SSD

P50231-K21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF SCN U.2 P5620 SSD

P51458-K21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF SCN U.2 P5620 SSD

P51460-K21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF SCN U.2 P5620 SSD

P51462-K21

HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.2 V2 Multi Vendor SSD

P64870-K21

HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.2 V2 Multi Vendor SSD

P64878-K21

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF SCN U.2 V2 Multi Vendor SSD

P64886-K21

Mixed Use - NVMe FIPS

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF SCN Self-encrypting FIPS U.3 CM6 SSD

P44588-K21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF SCN Self-encrypting FIPS U.3 CM6 SSD

P44596-K21

Mixed Use - 12G SAS

HPE 800GB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49046-K21

HPE 960GB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD

P37005-K21

HPE 1.6TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49048-K21

HPE 1.92TB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD

P37011-K21

HPE 3.2TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49052-K21

HPE 3.84TB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD

P37017-K21

HPE 6.4TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49056-K21

HPE 800GB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49046-K21

HPE 1.6TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49048-K21

HPE 3.2TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49052-K21

HPE 6.4TB SAS 12G Mixed Use SFF SC Multi Vendor SSD

P49056-K21

Mixed Use - 6G SATA

HPE 480GB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18432-K21

HPE 480GB SATA 6G Mixed Use SFF SC PM897 SSD

P47814-K21

HPE 960GB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18434-K21

HPE 960GB SATA 6G Mixed Use SFF SC PM897 SSD

P47815-K21

HPE 1.92TB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18436-K21

HPE 1.92TB SATA 6G Mixed Use SFF SC PM897 SSD

P47816-K21

HPE 3.84TB SATA 6G Mixed Use SFF SC Multi Vendor SSD

P18438-K21

HPE 480GB SATA 6G Mixed Use SFF SC PM897 SSD

P47814-K21

HPE 960GB SATA 6G Mixed Use SFF SC PM897 SSD

P47815-K21

HPE 1.92TB SATA 6G Mixed Use SFF SC PM897 SSD

P47816-K21

Read Intensive - NVMe

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF SCN U.3 PM1733a SSD

P50214-K21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF SCN U.3 PM1733a SSD

P50217-K21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF SCN U.3 PM1733a SSD

P50220-K21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF SCN U.2 P5520 SSD

P51452-K21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF SCN U.2 P5520 SSD

P51454-K21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF SCN U.2 P5520 SSD

P51456-K21

HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.2 V2 Multi Vendor SSD

P64874-K21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.2 V2 Multi Vendor SSD

P64882-K21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF SCN U.2 V2 Multi Vendor SSD

P64890-K21

Read Intensive - NVMe FIPS

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF SCN Self-encrypting FIPS U.3 CM6 SSD

P44572-K21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF SCN Self-encrypting FIPS U.3 CM6 SSD

P44580-K21

Read Intensive - 12G SAS

HPE 960GB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P36997-K21

HPE 960GB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49028-K21

HPE 1.92TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P36999-K21

HPE 1.92TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49030-K21

HPE 3.84TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P37001-K21

HPE 3.84TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49034-K21

HPE 7.68TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD

P37003-K21

HPE 7.68TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49039-K21

HPE 15.36TB SAS 12G Read Intensive SFF SC Multi Vendor SSD

P49044-K21

Read Intensive - 6G SATA SFF

HPE 240GB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18420-K21

HPE 480GB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18422-K21

HPE 480GB SATA 6G Read Intensive SFF SC PM893 SSD

P47810-K21

HPE 960GB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18424-K21

HPE 960GB SATA 6G Read Intensive SFF SC PM893 SSD

P47811-K21

HPE 1.92TB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18426-K21

HPE 1.9TB SATA 6G Read Intensive SFF SC PM893 SSD

P47812-K21

HPE 3.84TB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18428-K21

HPE 3.84TB SATA 6G Read Intensive SFF SC PM893 SSD

P47813-K21

HPE 7.68TB SATA 6G Read Intensive SFF SC Multi Vendor SSD

P18430-K21

HPE 480GB SATA 6G Read Intensive SFF SC PM893 SSD

P47810-K21

HPE 960GB SATA 6G Read Intensive SFF SC PM893 SSD

P47811-K21

HPE 1.9TB SATA 6G Read Intensive SFF SC PM893 SSD

P47812-K21

HPE 3.84TB SATA 6G Read Intensive SFF SC PM893 SSD

P47813-K21

HPE M.2 Enablement Kits for XL450 Gen10 Server Node SFF slots

HPE M.2 Enablement Kits are Small Form Factor (SFF) Flash Adapters that package two 6G SATA M.2 Micro Form Factor (uFF) Sleds in a Dual-Domain SFF Smart Drive bay.

M.2 Drives for XL450 Gen10 Server Node Riser Board:

Read Intensive - NVMe

HPE 480GB NVMe Gen3 Mainstream Performance Read Intensive M.2 Multi Vendor SSD

P40513-K21

HPE 960GB NVMe Gen3 Mainstream Performance Read Intensive M.2 Multi Vendor SSD

P40514-K21

HPE 1.92TB NVMe Gen3 Mainstream Performance Read Intensive M.2 Multi Vendor SSD

P40515-K21

HPE 480GB NVMe Gen4 Mainstream Performance Read Intensive M.2 PM9A3 SSD

P69543-K21

HPE Networking

Notes: The Apollo 4510 Gen10 ships with 2x 1 Gb Ethernet ports embedded.

Description

SKU

PCIe Adapters

1 Gigabit Ethernet

HPE Ethernet 1Gb 4-port BASE-T BCM5719 Adapter

647594-B21

HPE Ethernet 1Gb 2-port BASE-T BCM5720 Adapter

615732-B21

HPE Ethernet 1Gb 4-port BASE-T I350-T4V2 Adapter

811546-B21

10 Gigabit Ethernet

HPE Ethernet 10Gb 2-port BASE-T BCM57416 Adapter

813661-B21

HPE Ethernet 10Gb 2-port SFP+ X710-DA2 Adapter

727055-B21

HPE Ethernet 10Gb 2-port BASE-T X550-AT2 Adapter

817738-B21

25 Gigabit Ethernet

HPE Ethernet 10/25Gb 2-port SFP28 MCX4121A-ACUT Adapter

817753-B21

Mellanox MCX512F-ACHT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE

P13188-B21

100 Gigabit Ethernet

HPE Ethernet 100Gb 1-port QSFP28 MCX515A-CCAT Adapter

874253-B21

HPE InfiniBand

Description

SKU

HPE InfiniBand EDR/Ethernet 100Gb 2-port 841QSFP28 Adapter

872726-H21

HPE InfiniBand HDR100/Ethernet 100Gb 1-port QSFP56 PCIe3 x16 MCX653105A-ECAT Adapter

P06250-H21

HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe3 x16 MCX653106A-ECAT Adapter

P06251-H21

HPE Intel® Omni-Path Options

HPE 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel Omni-Path Architecture Adapter

829335-B21

Notes:

- Total number of PCIe slots available is 3 with 2 processors. This is the total selection from any combination of PCIe options in the following categories: Infiniband, Networking, Controllers, and PCIe Accelerators.

- A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately..

FlexibleLOM Adapters

1 Gigabit Ethernet

HPE Ethernet 1Gb 4-port FLR-T BCM5719 Adapter

629135-B22

HPE Ethernet 1Gb 4-port FLR-T I350-T4V2 Adapter

665240-B21

10 Gigabit Ethernet

HPE Ethernet 10Gb 2-port FLR-T BCM57416 Adapter

817721-B21

HPE Ethernet 10Gb 2-port FLR-SFP+ X710-DA2 Adapter

727054-B21

HPE Ethernet 10Gb 2-port FLR-T X550-AT2 Adapter

817745-B21

25 Gigabit Ethernet

HPE Ethernet 10/25Gb 2-port FLR-SFP28 BCM57414 Adapter

817709-B21

HPE Ethernet 10/25Gb 2-port FLR-SFP28 MCX4121A-ACFT Adapter

817749-B21

HPE InfiniBand

HPE InfiniBand FDR/Ethernet 40/50Gb 2-port 547FLR-QSFP Adapter

879482-B21

Notes: FlexibleLOM adapters do not consume a PCIe slot.  The total number of FlexibleLOM slots available is 1.

Pensando Distributed Services Platform (DSP)

Requirements

• One 3yr/4yr/5yr Silver or 3yr/4yr/5yr Platinum license must be purchased for every DSC-25 card in a server.
• 1yr Silver, 1yr Platinum, and 1yr Policy and Services Manager (PSM) licenses are reserved for renewals only.
• One Policy and Services Manager (PSM) license is required to manage up to 3,000 DSC-25 cards.

Distributed Services Card (DSC)

Pensando Distributed Services Platform DSC-25 Enterprise 10/25Gb 2-port SFP28 Card

P26966-B21

HPE Storage Adapters

Emulex Fibre Channel HBAs

Description

SKU

HPE SN1200E 16Gb Single Port Fibre Channel Host Bus Adapter

Q0L13A

HPE SN1200E 16Gb Dual Port Fibre Channel Host Bus Adapter

Q0L14A

HPE SN1600E 32Gb Single Port Fibre Channel Host Bus Adapter

Q0L11A

HPE SN1600E 32Gb Dual Port Fibre Channel Host Bus Adapter

Q0L12A

HPE SN1610E 32Gb 1-port Fibre Channel Host Bus Adapter

R2J62A

HPE SN1610E 32Gb 2-port Fibre Channel Host Bus Adapter

R2J63A

QLogic Fibre Channel HBAs

HPE SN1100Q 16Gb Single Port Fibre Channel Host Bus Adapter

P9D93A

HPE SN1100Q 16Gb Dual Port Fibre Channel Host Bus Adapter

P9D94A

HPE SN1600Q 32Gb Single Port Fibre Channel Host Bus Adapter

P9M75A

HPE SN1600Q 32Gb Dual Port Fibre Channel Host Bus Adapter

P9M76A

HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter

R2E08A

HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter

R2E09A

Converged Network Adapters

HPE CN1200R 10GBASE-T Converged Network Adapter

Q0F26A

HPE CN1300R 10/25Gb Dual Port Converged Network Adapter

Q0F09A

HPE Power Supplies

Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: HPE Power Advisor Tool.

For information on power specifications and technical content visit:  HPE Server power supplies.

HPE Flexible Slot Titanium Power Supply Kits

Notes: The following power supplies offer up to 96% efficiency.

HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

865438-B21

HPE Flexible Slot Power Supplies

Notes: The following power supplies offer up to 94% efficiency.

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

830272-B21

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

865434-B21

HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit

865428-B21

Notes:

- For 800W power supplies only: A minimum of three power supplies per chassis is required when two processors are selected.

- Kits contain power supply, an IEC power cable, and PDU IEC cables.

- HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit

- For 800W power supplies only: A minimum of three power supplies per chassis is required when two processors are selected.

- Kits contain power supply, an IEC power cable, and PDU IEC cables.

HPE Apollo Platform Manager

The Apollo Platform Manager is an optional rack level solution for the HPE Apollo 4510 Gen10 Systems which enable server-level DC (or hardware) power on and off and server-level monitoring. In addition, the APM will automatically discover hardware components which are connected into the APM solution.

The APM does not replace rack PDUs, but is designed to enable the utilization of basic, low cost, rack PDUs while providing the functionality of 'switched' PDUs (which provide hardware power on/off of individual servers by turning off the AC power to the power supplies of a given server). Because the servers share power supplies to optimize power efficiency, using 'switched' PDUs to turn off all the power supplies in the chassis will result in the loss of all server nodes in that chassis. The APM solves this by allowing server node-level hardware power on/off of the DC power to the individual server node motherboards.

Description

SKU

HPE Apollo Platform Manager Kit

741192-B21

Embedded Management

HPE Integrated Lights-Out (iLO) Advanced

HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features

E6U59ABE

HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features

E6U64ABE

HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features

512485-B21

HPE iLO Advanced Flexible Quantity License with 1yr Support on iLO Licensed Features

512486-B21

HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features

512487-B21

HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features

BD505A

HPE iLO Advanced Flexible Quantity License with 3yr Support on iLO Licensed Features

BD506A

HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features

BD507A

HPE iLO Common Password FIO Setting

P08040-B21

HPE Security

HPE Trusted Platform Module 2.0 Gen10 Option

864279-B21

Notes:

- HPE Trusted Platform Module 2.0 option works with Gen10 servers with UEFI Mode not Legacy Mode. It is not compatible with HPE ProLiant Gen8 servers or earlier generation variants.

- HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other TPM module.

HPE Racks

• Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack specifications.
• Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications.
• Please see the HPE Standard Series Racks QuickSpecs for information on additional racks options and rack specifications.

HPE Power Distribution Units (PDUs)

• Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.
• Please see the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.
• Please see the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs for information on these products and their specifications.
• Please see the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

HPE Uninterruptible Power Systems (UPS)

Please see the HPE DirectFlow Three Phase Uninterruptible Power System QuickSpecs for information on these products and their specifications.

Please see the HPE Line Interactive Single Phase UPS QuickSpecs for information on these products and their specifications.

Description

SKU

USB and SD Options

HPE 32GB microSD Flash Memory Card

700139-B21

HPE 36pin Serial/USB/VGA Dongle Cord Kit

676277-B21

Notes: The dongle is required for direct (non-iLO) KVM access. Each provides access to one server, so at least one dongle per chassis is recommended.

HPE Tape Options

HPE StoreEver LTO-8 Ultrium 30750 External Tape Drive

BC023A

HPE StoreEver LTO-7 Ultrium 15000 External Tape Drive

BB874A

HPE StoreEver LTO-5 Ultrium 3000 SAS External Tape Drive

EH958B

HPE StoreEver MSL6480 Scalable Base Module

QU625A

HPE StoreEver MSL2024 0-drive Tape Library

AK379A

HPE StoreEver MSL LTO-8 Ultrium 30750 FC Drive Upgrade Kit

Q6Q67A

HPE StoreEver MSL LTO-8 Ultrium 30750 SAS Drive Upgrade Kit

Q6Q68A

HPE StoreEver MSL LTO-7 Ultrium 15000 FC Drive Upgrade Kit

N7P36A

HPE StoreEver MSL LTO-7 Ultrium 15000 SAS Drive Upgrade Kit

N7P37A

HPE StoreEver MSL LTO-6 Ultrium 6250 Fibre Channel Drive Upgrade Kit

C0H28A

HPE Apollo 4510 Gen10 Systems

DIMM slot and configuration diagrams

HPE ProLiant Gen10 8 slot per CPU DIMM population order

Notes: Unbalanced, not recommended

Memory population guidelines

• Install DIMMs only if the corresponding processor is installed.
• If only one processor is installed in a two-processor system, only half of the DIMM slots are available.
• To maximize performance, it is recommended to balance the total memory capacity between all installed processors.
• When two processors are installed, balance the DIMMs across the two processors.
• White DIMM slots denote the first slot to be populated in a channel.
• Mixing of DIMM types (UDIMM, RDIMM, and LRDIMM) is not supported.
• The maximum memory speed is a function of the memory type, memory configuration, and processor model.
• The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.
• For details on the HPE Server Memory Options Population Rules, visit:

http://www.hpe.com/docs/memory-population-rules

• To realize the performance memory capabilities listed in this document, HPE DDR4 Smart Memory is required. For additional information, please see the HPE DDR4 Smart Memory QuickSpecs.

Notes: The maximum memory speed is a function of the memory type, memory configuration, and processor model.  Intel Xeon Gold 62xx processors that support 2933 MT/s DIMMs will do so only at 1 DIMM per channel.  Configuring 2 DIMMs per channel will drop memory speed back to 2666 MT/s.

For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

DDR4 memory options part number decoder

Notes:

- Capacity references are rounded to the common Gigabyte (GB) Values:

o 4GB = 4096 MB

o 8GB = 8192 MB

o 16GB = 16384 MB

o 32GB = 32768 MB

For more information on memory, please see the Memory QuickSpecs: HPE DDR4 Smart Memory

HPE Persistent Memory

HPE Persistent Memory Kits featuring Intel Optane DC Persistent Memory are available in 128 GB, 256 GB, and 512 GB capacities and are supported only on systems with a second-generation I4ntel Xeon Scalable processor (62xx/52xx/4215).

Notes:

- A maximum 512GB per processor/socket HPE Persistent Memory DIMMs is supported

- For the Apollo 4510 Gen10, HPE Persistent Memory (Intel Optane) is available for factory install only

For more information regarding HPE Persistent Memory visit: http://www.hpe.com/info/persistentmemory

Emissions Classification (EMC) - Regulatory Information

To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts

Environment-friendly Products and Approach End-of-life Management and Recycling

Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products.

Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities.

This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

04-Mar-2024

Version 43

Changed

Core Options section was updated.

05-Feb-2024

Version 42

Changed

SKUs were added in Core Options Section

Obsolete SKUs were removed

04-Dec-2023

Version 41

Changed

HPE Services Rebranding

05-Sep-2023

Version 40

Changed

Obsolete SKUs were removed.

Core Options section was updated.

06-Mar-2023

Version 39

Changed

Obsolete SKUs were removed.

Core Options section was updated.

05-Dec-2022

Version 38

Changed

SKU P58232-K21 was added

01-Aug-2022

Version 37

Changed

Obsolete SKUs were removed.

Core Options section was updated

05-Jul-2022

Version 36

Changed

Obsolete SKUs were removed.

Core Options section was updated

06-Jun-2022

Version 35

Changed

Overview, Standard Features and Core Options sections were updated. Obsolete SKUs were removed.

07-Mar-2022

Version 34

Changed

Service and Support and Core options sections were updated

07-Feb-2022

Version 33

Changed

Core Options section was updated.

Obsolete SKUs were removed.

06-Dec-2021

Version 32

Changed

Core Options section was updated.

Obsolete SKUs were removed.

01-Nov-2021

Version 31

Changed

Core Options section was updated. Obsolete SKUs were removed.

07-Sep-2021

Version 30

Changed

Core Options section was updated. Obsolete SKUs were removed.

06-Jul-2021

Version 29

Changed

Overview, Standard Features, Configuration Information and Core Options sections were updated

07-Jun-2021

Version 28

Changed

Overview, Standard Features, Configuration Information and Core Options sections were updated

04-May-2021

Version 27

Changed

Core Options section was updated.

06-Apr-2021

Version 26

Changed

Core Options section was updated.

01-Mar-2021

Version 25

Changed

Core Options and Technical Specifications sections were updated.

01-Feb-2021

Version 24

Changed

Overview, Standard Features, Configuration Information, Core Options and Additional Options sections were updated.

04-Jan-2021

Version 23

Changed

Configuration Information and Core Options sections were updated.

07-Dec-2020

Version 22

Changed

Overview, Configuration Information and Core Options sections were updated.

05-Oct-2020

Version 21

Changed

Configuration Information and Core Options sections were updated.

08-Sep-2020

Version 20

Changed

Overview, Core Options and Memory sections were updated.

03-Aug-2020

Version 19

Changed

Overview, Configuration Information and Core Options sections were updated.

06-Jul-2020

Version 18

Changed

Overview, Standard Features, Configuration Information, Core Options and

01-Jun-2020

Version 17

Changed

Overview, Configuration Information, Core Options and Additional Options sections were updated.

04-May-2020

Version 16

Changed

Overview and Configuration Information sections were updated.

06-Apr-2020

Version 15

Changed

Overview, Configuration Information, Core Options and Additional Options sections were updated.

02-Mar-2020

Version 14

Changed

Overview, Standard Features and Configuration Information sections were updated.

03-Feb-2020

Version 13

Changed

Overview, Core Options and Additional Options sections were updated.

02-Dec-2019

Version 12

Changed

Configuration Information, Core Options and Additional Options sections were updated.

07-Oct-2019

Version 11

Changed

Standard Features and Core Options sections were updated.

Date

Version History

Action

Description of Change

05-Aug-2019

Version 10

Changed

Overview, Standard Features, Configuration Information and Core Options sections were updated.

03-Jun-2019

Version 9

Changed

Overview, Core Options and Additional Options sections were updated

06-May-2019

Version 8

Changed

Standard Features and Core Options sections were updated.

02-Apr-2019

Version 7

Changed

Overview, Standard Features, Configuration Information, Core Options and Additional Options sections were updated.

04-Mar-2024

Version 43

Changed

04-Feb-2019

Version 6

Added

SKUs were added in Core Options Section

03-Dec-2018

Version 5

Added

SKUs were added in Core Options Section

01-Oct-2018

Version 4

Changed

Service and Support, Configuration Information, Core Options and Additional Options sections were updated. SKU descriptions were updated.

Obsolete SKUs were removed.

04-Jun-2018

Version 3

Changed

Expansion Slots, Maximum Internal Storage, Configuration Information - Factory Integrated Models, Core Options, and Additional Options were updated.

Obsolete SKUs were removed from the QuickSpecs.

05-Feb-2018

Version 2

Changed

Processors, Configuration Information - Factory Integrated Models, Core Options and Additional Options were revised.

25-Sep-2017

Version 1

Created

Create QuickSpecs for HPE Apollo 4510 Gen10 System

© Copyright 2024 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Unix is a registered trademark of The Open Group.

Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

a00021866enw - 16041 - Worldwide  - V43 - 04-March-2024
