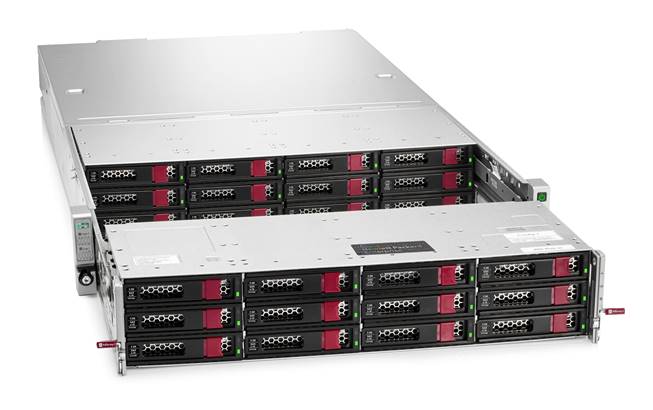

HPE Apollo 4200 Gen9 Server

Are you ready to compete in the Big Data arena by making the leap into enterprise-class server storage architecture?

The HPE Apollo 4200 Gen9 Server offers revolutionary storage density in a 2U form factor, with more than double the storage capacity of competitors. If you are running object storage, Hadoop, content delivery, or other data intensive workloads on general purpose servers, the HPE Apollo 4200 Gen9 Server allows you to save valuable data center space through its unique density optimized 2U form factor which holds up to 28 LFF or 54 SFF hot plug drives.

HPE Apollo 4200 Gen9 Server

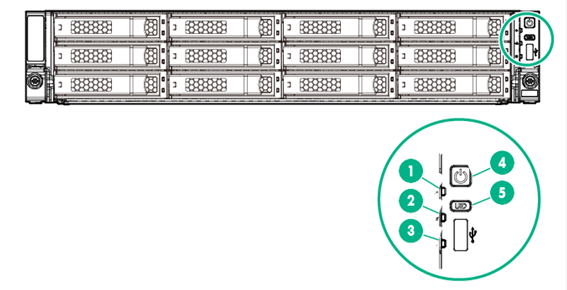

Front panel LEDs and buttons

1

Health LED

3

Front drive health/thermal LED

2

NIC status LED

4

Power On/Standby button and system power LED

5

UID button/LED

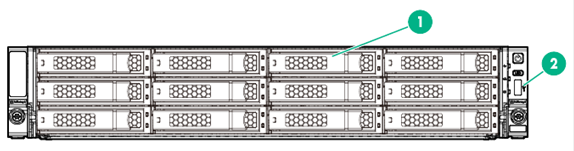

Front View - LFF Chassis

1

LFF hot-plug drives

2

USB 2.0 connector

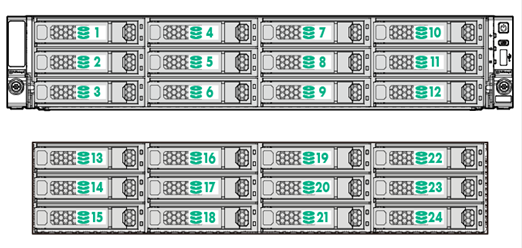

Drive numbering - LFF Chassis

1-12.

Front row of LFF drives

13-24.

Second row of LFF drives

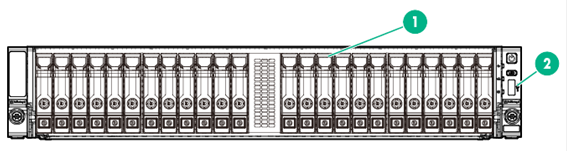

Front View - SFF Chassis

1

SFF hot-plug drives

2

USB 2.0 connector

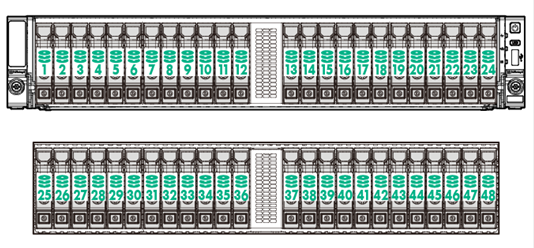

Drive numbering - SFF Chassis

1-24.

Front row of SFF drives

25-48.

Second row of SFF drives

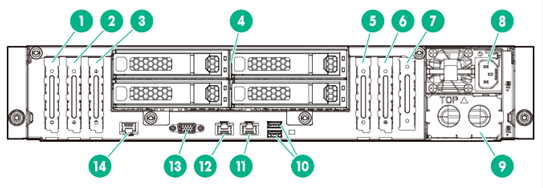

Rear view with rear LFF Rear HDD cage Kit (LFF Model only)

1.

PCIe3 x16 (16, 8, 4, 1) Slot 7

8.

Hot-plug power supply bay 1

2.

PCIe3 x8 (8, 4, 1) Slot 6

9.

Hot-plug power supply bay 2

3.

PCIe3 x16 (16, 8, 4, 1) Slot 5

10.

USB 3.0 connectors

4.

LFF hot-plug drives

11.

NIC 1/shared iLO connector

5.

PCIe3 x16 (16, 8, 4, 1) Slot 2

12.

NIC connector 2

6.

PCIe3 x8 (8, 4, 1) Slot 1

13.

Video connector

7.

FlexibleLOM slot

14.

Dedicated iLO management connector (optional)

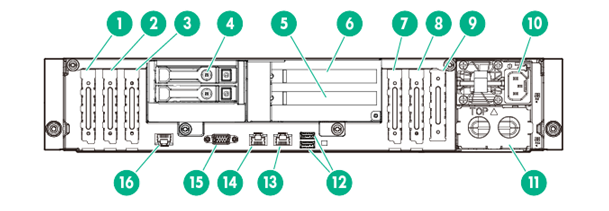

Rear view with 2SFF and 2FHHL Kit

1.

PCIe3 x16 (16, 8, 4, 1) Slot 7

9.

FlexibleLOM slot

2.

PCIe3 x8 (8, 4, 1) Slot 6

10.

Hot-plug power supply bay 1

3.

PCIe3 x16 (16, 8, 4, 1) Slot 5

11.

Hot-plug power supply bay 2

4.

SFF hot-plug drives

12.

USB 3.0 connectors

5.

PCIe3 x8 (8, 4, 1) Slot 4

13.

NIC 1/shared iLO connector

6.

PCIe3 x8 (8, 4, 1) Slot 3

14.

NIC connector 2

7.

PCIe3 Slot 2 for riser cage of slot 3 and slot4 (no slot available)

15.

Video connector

8.

PCIe3 x8 (8, 4, 1) Slot 1

16.

Dedicated iLO management connector (optional)

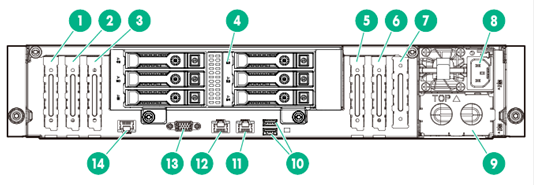

Rear view with 6SFF Rear HDD Cage

1.

PCIe3 x16 (16, 8, 4, 1) Slot 7

8.

Hot-plug power supply bay 1

2.

PCIe3 x8 (8, 4, 1) Slot 6

9.

Hot-plug power supply bay 2

3.

PCIe3 x16 (16, 8, 4, 1) Slot 5

10.

USB 3.0 connectors

4.

SFF hot-plug drives

11.

NIC 1/shared iLO connector

5.

PCIe3 x16 (16, 8, 4, 1) Slot 2

12.

NIC connector 2

6.

PCIe3 x8 (8, 4, 1) Slot 1

13.

Video connector

7.

FlexibleLOM slot

14.

Dedicated iLO management connector (optional)

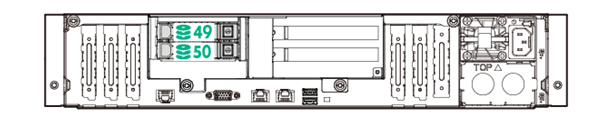

Drive numbering - Two-bay SFF hot-plug rear drive numbering

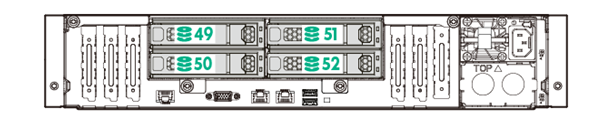

Drive numbering - Four-bay LFF hot-plug rear drive numbering

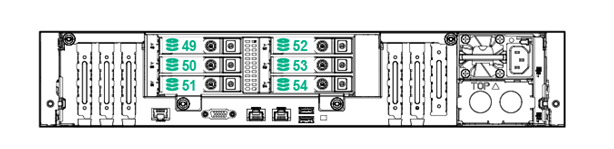

Drive numbering - Six-bay SFF hot-plug rear drive numbering

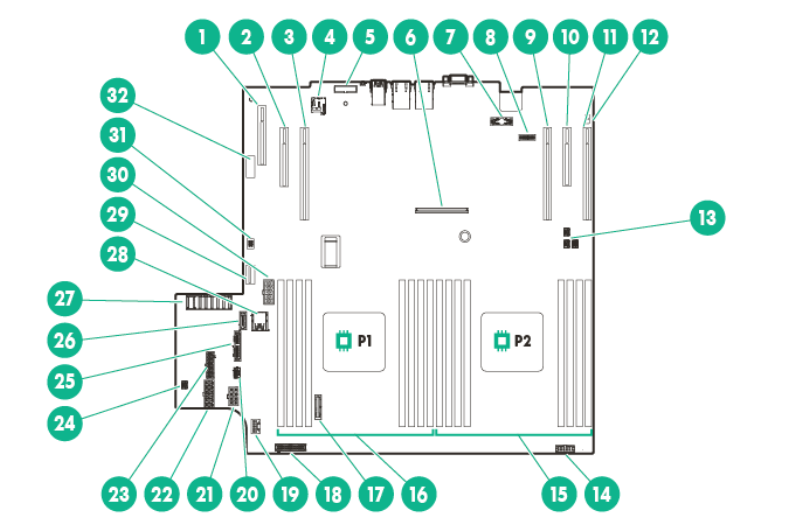

1.

FlexibleLOM Slot

17.

System battery

2.

PCIe3 x8 (8, 4, 1) slot 1 for low-profile, standup expansion board

18.

Fan signal connector

3.

PCIe3 x16 (16, 8, 4, 1) slot 2 for low-profile, standup expansion board or riser cage options

19.

HPE Smart Storage Battery connector

4.

microSD slot

20.

Rear SFF drive backplane detection connector

5.

TPM connector

21.

Fan power connector

6.

HPE Flexible Smart Array Controller slot

22.

Front drive cage 2 backplane power connector

7.

Dedicated iLO management module connector

23.

Front drive cage 1 backplane power connector

8.

System maintenance switch

24.

Storage backup power connector for expansion slots 1-2

9.

PCIe3 x16 (16, 8, 4, 1) slot 5 for low-profile, standup expansion board

25.

SATA 6Gb/s connector 4

10.

PCIe3 x8 (8, 4, 1) slot 6 for low-profile, standup expansion board

26.

SATA 6Gb/s connector 5

11.

PCIe3 x16 (16, 8, 4, 1) slot 7 for low-profile, standup expansion board

27.

Power pass-through board connector

12.

NMI header

28.

Internal USB 3.0 connector

13,

Storage backup power connectors for expansion slots 3-7

29.

SATA x4 connector 1

14.

Front I/O connector

30.

Rear drive cage backplane power connector

15.

Processor 2 DIMM slots

31.

Front USB 2.0 connector

16.

Processor 1 DIMM slots

32.

6SFF backplane sideband connector

NOTE: For more information regarding Intel Xeon processors, please see the following http://www.intel.com/xeon.

Processor Up to two of the following depending on model

Chipset

Intel® C610 Series Chipset

Intel® E5-2600v3 Processor Family

Intel® E5-2600v4 Processor Family

NOTE: For more information regarding Intel chipsets, please see the following URL:

http://www.intel.com/products/server/chipsets/.

On System Management Chipset

HPE iLO (Firmware HPE iLO4 2.0) 2GB NAND

NOTE: Read and learn more in the iLO QuickSpecs.

https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=c04154343

Motherboard

HPE ProLiant XL420 Gen9 Server

NOTE: As a reminder that the Apollo 4200 Gen9 Server offers familiar management tools, the motherboard carries a ProLiant name.

NOTE: In boot-up, the "HPE ProLiant XL420 Gen9 Server" name will appear.

NOTE: The official product name remains HPE Apollo 4200 Gen9 Server, while the motherboard name is "HPE ProLiant XL420 Gen9 Server

Memory Protection

Expansion Slots

CPU1, (Standard)

Slots with 2 PCIe FHHL riser (CPU1)

(Optional 2SFF and 2 FHHL

Kit: (806564-B21)

NOTE: Using optional FHHL kit (PN: 806564-B21), the two PCIe slots (slots 3 and 4) are available by using slot 2 as a standup expansion slot, so slot 2 is not available.

NOTE: PCIe slots 1-4 are associated with processor 1.

CPU 2 (Optional)

Storage Controller

Embedded Controllers

HPE Flexible Smart Array P840ar/2G FIO Controller

HPE Dynamic Smart Array B140i Controller

NOTE: The P840ar is embedded in the chassis by default, including the HPE Smart Storage Battery.

NOTE: The embedded B140i controller will operate in UEFI only mode. For legacy support an additional controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

NOTE: The B140i defaults to AHCI off the chipset. Smart Array needs to be enabled on the SATA-only models, if required.

NOTE: The B140i will not operate in Legacy mode.

Internal Storage Devices

One of the following depending on model

48 SFF plus optional 2 SFF drives rear or 6 SFF drivers rear

24 LFF plus optional 4 LFF drives rear, 2 SFF drives rear, or 6 SFF drivers rear

NOTE: HPE Apollo 4200 Gen9 2SFF and 2FHHL Kit (806564-B21) and HPE Apollo 4200 Gen9 6 SFF Rear Hard Drive Cage Kit (838833-B21) are available for the SFF and LFF models. When using with LFF models, it cannot support HPE 2nd Cage Controller Mode for Rear Storage (813546-B21)

NOTE: HPE Apollo 4200 Gen9 LFF Rear HDD Cge Kit (806563-B21) supports an additional 4 LFF drives and is available only for the LFF model.

CAUTION: Do not operate the server with any of the rear drive cage bays empty. To maintain proper airflow and sufficient cooling in the rear drive cage, all drive bays in this cage should have a drive or a drive blank. Hewlett Packard Enterprise recommends installing at least one drive in the rear drive cage before operating the Apollo 4200.

Power Supply

HPE 800W Flex Slot Platinum Hot Plug Power Supply

HPE 1400W Flex Slot Platinum Plus Hot Plug Power Supply

HPE 800W Flex Slot Titanium Hot Plug Power Supply Kit

HPE 800W Flex Slot Universal Hot Plug Power Supply Kit

HPE 800W Flex Slot 48VDC Hot Plug Power Supply Kit

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen9 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool located at

http://www.hpe.com/info/hppoweradvisor

Power specifications and technical content for all HPE Server power supplies can be found at

http://www.hpe.com/info/proliant/powersupply

NOTE: 1P models typically ship with 4 standard fans. The second processor option kit contains 1 additional fan.

NOTE: HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) will ship 5 fans for redundant function

NOTE: 1P CTO model with HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) will be shipped with 8 fans installed and 1 spare fan in the carton for the future upgrade to 2 processors.

Interfaces

Operating Systems and Virtualization Software Support for ProLiant Servers

Upgradeability

Upgradeable to two processors (44 Cores)

NOTE: Processor upgrade available from Intel® Xeon® Processors E5-2600v3 or E5-2600v4. Please contact Hewlett Packard Enterprise Technology Sales https://www.hpe.com/support

or your local Hewlett Packard Enterprise Re-seller.

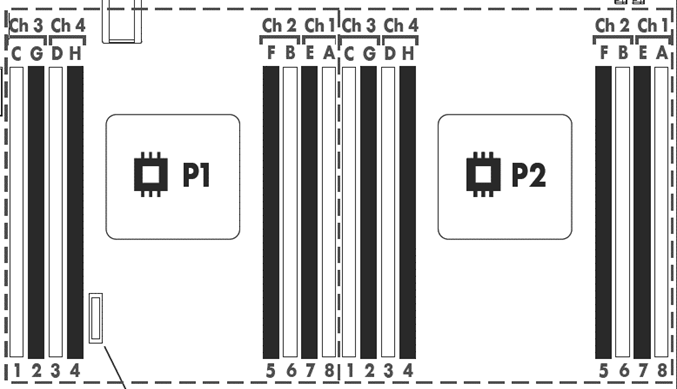

• Up to 16 DIMM slots available for higher Memory capacity
• FlexibleLOM connector for 1 Gigabit or 10 Gigabit networking options
• HPE Flexible Smart Array or Smart HBA Controllers
• Embedded rear 6-Port SATA, B140i as standard
• Optional 2 PCIe slot riser (x8, x8)

NOTE: To utilize PCIe slots 3 and 4, riser kit must be purchased

NOTE: To take advantage of the additional 3 PCIe slot upgrade, the second processor must be installed.

• Optional 4LFF kit in rear, 2SFF+2FHHL PCIe kit, or 6SFF kit
• Redundant Power Supply
• HPE Legacy Mode (FIO only, 758959-B22)

NOTE: UEFI is the default mode for CTO and BTO SKUs. Can change default to legacy via CTO.

Industry Standard Compliance

ACPI 2.0b Compliant

PCIe 3.0 Compliant

PXE Support

WOL Support

Microsoft® Logo certifications

USB 3.0 Support

USB 2.0 Support

ASHRAE A3

NOTE: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit: http://www.hpe.com/servers/ashrae

UEFI (Unified Extensible Firmware Interface Forum)

NOTE: UEFI is the default for the HPE Apollo 4200 Gen9. Legacy model can be selected in the field or as a CTO option (758959-B22).

Graphics

Integrated Matrox G200eH2 video standard with 16MB of Video RAM

• 1280 x 1024 (32 bpp)
• 1920 x 1200 (16 bpp)

HPE iLO 4 On System Management Memory

• 16 MB Flash
• 128 MB DDR3

HPE Server UEFI/Legacy ROM

HPE Server UEFI /Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration while interacting with your server at boot time. HPE Gen9 platform defaults to UEFI and can be field configured for Legacy BIOS Boot Mode.

NOTE: The UEFI System Utilities function is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/go/proliantuefi/docs

UEFI enables numerous new capabilities specific to Hewlett Packard Enterprise servers such as:

• Secure Boot
• Operating system specific functionality
• Support for > 2.2 TB (using GPT) boot drives
• USB 3.0 Stack
• Embedded UEFI Shell
• Mass Configuration Deployment Tool using HPE RESTful API.
• PXE boot support for IPv6 networks
• Boot support for option cards that only support a UEFI option ROM

For more information please visit http://www.hpe.com/go/proliant/uefi

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.

NOTE: HPE Legacy FIO Mode Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory.

Form Factor

2U Rack form factor

LFF and SFF Drive Bay Versions:

3.44 in x 17.63 in x 32 in (8.75cm x 44.8 cm x 81.28 cm)

NOTE: Dimensions without bezel.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote management with HPE iLO. Learn more at

https://www.hpe.com/us/en/servers/integrated-lights-out-ilo.html.

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at http://www.hpe.com/go/proliant/uefi

RESTful API

A single programmatic web interface that allows you to manage and monitor your server infrastructure using basic HTTP operations (GET, PUT, POST, DELETE and PATCH). RESTful API for iLO 4 conforms to the Redfish 1.0 DMTF standard (iLO firmware version v2.30 or higher required for Redfish conformance). For more details visit: https://www.hpe.com/us/en/servers/restful-api.html.

Intelligent Provisioning

Provision servers by discovering and deploying 1 to few servers with Intelligent Provisioning. Learn more at

https://www.hpe.com/us/en/product-catalog/detail/pip.5219984.html.

Embedded Remote Support

Hewlett Packard Enterprise embedded remote support, used with Insight Online direct connect or HPE Insight Remote Support, allows HPE ProLiant servers to transmit hardware events directly to Hewlett Packard Enterprise or a Hewlett Packard Enterprise Authorized Partner for automated phone home support. Learn more at https://www.hpe.com/us/en/servers/management.html.

Server Utilities

Smart Update

Optimize firmware and driver updates with Smart Update solutions including Smart Update Manager (SUM) and Service Pack for ProLiant (SPP). Learn more at https://www.hpe.com/us/en/product-catalog/detail/pip.5182020.html.

HPE Systems Insight Manager (HPE SIM)

HPE SIM allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers, and also provides you with basic support for non-Hewlett Packard Enterprise servers.

HPE SIM also integrates with SUM to provide quick and seamless firmware updates. Learn more at

https://www.hpe.com/us/en/product-catalog/detail/pip.489496.html.

Scripting Tool Kit and Windows PowerShell

Provision 1 to many servers using your own scripts to discover and deploy them with Scripting Tool Kit for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at

https://www.hpe.com/us/en/product-catalog/detail/pip.5219389.html

RESTful Interface Tool

Scripting tool to provision servers using iLO 4 RESTful API to discover and deploy servers at scale. Learn more at

https://www.hpe.com/us/en/product-catalog/detail/pip.7630408.html

HPE iLO Mobile Application

Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. For additional information please visit:

https://www.hpe.com/us/en/servers/integrated-lights-out-ilo.html.

HPE Insight Online

HPE Insight Online, available at no additional cost as part of your Hewlett Packard Enterprise warranty, Care Pack or contractual support agreement with Hewlett Packard Enterprise, is a personalized dashboard for simplified tracking of IT operations and support information from anywhere, anytime. Learn more at https://www.hpe.com/us/en/servers/management.html.

Security

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise

Enterprise Services and a worldwide network of Hewlett Packard Enterprise

Enterprise Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

NOTE: Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise

Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://h20564.www2.hpe.com/hpsc/wc/public/home

NOTE: In Asia Pacific, Japan and China, Server Warranty includes 3 year Parts, 3 year Labor, 3-year On-site support with next business day response

Embedded Management

iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. Learn more about HPE iLO Advanced at

https://buy.hpe.com/b2c/us/en/enterprise-software/server-management-software/server-ilo-management/
ilo-licenses/hpe-ilo-advanced/p/332279

Server Management

2

Service and Support

HPE Technology Services for Industry Standard Servers

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Pointnext operational services

HPE Pointnext operational services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the selected support.

Optimized Care

Supports maintaining servers at optimum performance availability

HPE Proactive Care with 24x7 coverage, three year Care Pack Service

HPE Proactive Care helps prevent problems and stabilize IT by utilizing secure, real-time, predictive analytics and proactive consultations when your products are connected to Hewlett Packard Enterprise. This Care Pack Service combines three years' proactive reporting and advice with our 24x7 coverage and enhanced escalation management, four hour hardware response time and two hour call back for software questions on leading industry standard software running on your HPE ProLiant server.

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Standard Care Package

Supports maintaining high level of server availability

HPE Proactive Care with 6 hour call-to-repair commitment, three year Care Pack Service

HPE Proactive Care helps prevent problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice when your products are connected to Hewlett Packard Enterprise. This Service combines three years' proactive reporting and advice with our highest level reactive coverage - Hewlett Packard Enterprise 24x7, six hour hardware call-to-repair. Hewlett Packard Enterprise is the only leading manufacturer who makes this level of coverage available as a standard service offering for your most valuable servers. Service includes collaborative software support for Independent Software Vendors software (Red Hat, VMWare, Microsoft, etc.) running on your HPE ProLiant/Apollo server.

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Related Services

HPE Server Hardware Installation

Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner

https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf

Data Privacy - protect your data through better media management. Hewlett Packard Enterprise data privacy services help manage and protect sensitive data to reduce the risk of unauthorized access to private information and help meet compliance requirements. Our retention services allow you to keep drives and other devices upon failure, our removal services provide convenient data sanitization and our recovery services allow you to safely retire IT assets and capture any remaining value from the hardware. https://www.hpe.com/us/en/services/platform-consulting-services.html

Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. Hewlett Packard Enterprise products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hpe.com/info/factoryexpress

HPE StoreEver MSL 1/8 G2 0-drive Tape Autoloader

R1R75A

Additional HPE Pointnext operational services can be found at: http://h20565.www2.hpe.com/portal/site/hpsc/

Connect your devices to Hewlett Packard Enterprise

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77% reduction in down time, near 100% diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to Hewlett Packard Enterprise support.

HPE Support Center

Personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more http://h20565.www2.hpe.com/portal/site/hpsc/

HPE Support Center Mobile App** allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.

HPE Insight Remote Support and HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, Care Pack or Hewlett Packard Enterprise contractual support agreement.

** HPE Support Center Mobile App is subject to local availability

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

For more information

To learn more on HPE ProLiant servers, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.

Pre-configured models ship with the configurations below. Options can be selected from the Core or Additional options section of this QuickSpecs.

Hewlett Packard Enterprise does not allow factory integration of options into pre-configured models. Any additional options purchased will be shipped separately.

If you desire a custom configuration please see "Configuration Information - Factory Integrated Models" section of this QuickSpecs.

Not all models are available in all regions. Check with your local country Hewlett Packard Enterprise offices for availability.

NOTE: All Pre-configured Models come populated with some hard drive blanks installed. Should the customer need additional hard drive blanks, they can order more using either P/N 666987-B21: HPE SFF Hard Drive Blank Kit or P/N 807878-B21: HPE LFF Hard Drive Blank Kit.

NOTE: All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (A0K02A). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

CAUTION: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

• BTO SFF Model
• BTO LFF Model
• [SKU Number]
• 806357-B21
• 806356-B21
• Model Name
• HPE Apollo 4200 Gen9 E5-2620v3 SFF Server
• HPE Apollo 4200 Gen9 E5-2620v3 LFF Server
• Processor
• Intel® Xeon® E5-2620v3
• Intel® Xeon® E5-2620v3
• Number of Processors
• One
• Memory
• 16GB (1x16GB Registered DIMMs, 2133 MHz)

NOTE: With the E5-2620v3 this memory DIMM will only operate at 1866MHz

16GB (1x16GB Registered DIMMs, 2133 MHz).

NOTE: With the E5-2620v3 this memory DIMM will only operate at 1866MHz

Network Controller.

• HPE Embedded 1Gb Ethernet 2-port 361i Adapter
• Storage Controller
• HPE Flexible Smart Array P840ar/2G Controller
• HPE Flexible Smart Array P840ar/2G Controller
• Hard Drive
• None ship standard
• 22SFF hard drive blanks
• None ship standard
  10 LFF hard drive blanks
• Internal Storage
• 48 SFF HDD Bays and optional 2SFF Rear Cage Kit or 6SFF Rear Cage Kit
• 28 LFF HDD Bays and optional 4LFF Rear Cage Kit, 2SFF Rear Cage Kit, or 6SFF Rear Cage Kit
• PCI-Express Slots
• 2 PCIe slots and FlexibleLOM (+3 PCIe slots available with upgrade to second processor and optional 2 FHHL slots available with purchase of 2SFF and 2FHHL Rear Cage Kit)
• 2 PCIe slots and FlexibleLOM (+3 PCIe slots available with upgrade to second processor)
• Power Supply
• HPE 1400W Flex Slot Platinum Power Supply
• HPE 1400W Flex Slot Platinum Power Supply
• Fans
• 4 fans
• 4 fans
• Management
• iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (optional), Insight Control (optional)
• Form Factor
• Rack (2U)
• Rack (2U)
• Warranty
• Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response
• BTO SFF Model
• BTO LFF Model
• [SKU Number]
• 849879-B21
• 849878-B21
• Model Name
• HPE Apollo 4200 Gen9 E5-2620v4 SFF Server
• HPE Apollo 4200 Gen9 E5-2620v4 LFF Server
• Processor
• Intel® Xeon® E5-2620v4
• Intel® Xeon® E5-2620v4
• Number of Processors
• One
• Memory
• 16GB (1x16GB Registered DIMMs, 2400 MHz)

NOTE: With the E5-2620v4 this memory DIMM will only operate at 2133MHz

16GB (1x16GB Registered DIMMs, 2400 MHz).

NOTE: With the E5-2620v4 this memory DIMM will only operate at 2133MHz.

• Network Controller
• HPE Embedded 1Gb Ethernet 2-port 361i Adapter
• Storage Controller
• HPE Flexible Smart Array P840ar/2G Controller
• HPE Flexible Smart Array P840ar/2G Controller
• Hard Drive
• None ship standard
• 22SFF hard drive blanks
• None ship standard
• 10 LFF hard drive blanks
• Internal Storage
• 48 SFF HDD Bays and optional 2SFF Rear Cage Kit or 6SFF Rear Cage Kit
• 28 LFF HDD Bays and optional 4LFF Rear Cage Kit, 2SFF Rear Cage Kit, or 6SFF Rear Cage Kit
• PCI-Express Slots
• 2 PCIe slots and FlexibleLOM (+3 PCIe slots available with upgrade to second processor and optional 2 FHHL slots available with purchase of 2SFF and 2FHHL Rear Cage Kit)
• 2 PCIe slots and FlexibleLOM (+3 PCIe slots available with upgrade to second processor)
• Power Supply
• HPE 1400W Flex Slot Platinum Power Supply
• HPE 1400W Flex Slot Platinum Power Supply
• Fans
• 4 fans
• 4 fans
• Management
• iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced (optional), Insight Control (optional)

Form Factor

Rack (2U)

Rack (2U)

Warranty

Server Warranty includes 3-Year Parts, 1-Year Labor, 1-Year Onsite support with next business day response

NOTE: UEFI is the standard default for all Predefined models

Country Code Key

xx1 = B21

Worldwide

NOTE: The -B21 WW SKU is to be ordered in all countries other than Japan or PRC.

xx1 = 291

Japan

xx1 = AA1

PRC

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

• Factory Integrated Models must start with a CTO Server.
• FIO indicates that this option is only available as a factory installable option.
• All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.
• Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)

Step 3: Choose Additional Factory Integrable Options

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

HPE Unique Options

HPE Apollo 4200 Gen9 4 LFF Rear Hard Drive Cage Kit

806563-B21

NOTE: The LFF Rear HDD cage kit supports an additional four LFF drives.

NOTE: The LFF Rear HDD cage only applies to the LFF model.

CAUTION: Do not operate the server with any of the rear drive cage bays empty. To maintain proper airflow and sufficient cooling in the rear drive cage, all drive bays in this cage should have a drive or a drive blank. Hewlett Packard Enterprise recommends installing at least one drive in the rear drive cage before operating the Apollo 4200.

HPE Apollo 4200 Gen9 2 SFF and 2 Full Height Half Length Riser Kit

806564-B21

NOTE: This part supports an additional 2SFF drives and a riser that supports 2 full-height half-length PCIe slots.

NOTE: To access PCIe slots 3-4, this above 2SFF and 2FHHL Kit must be purchased

NOTE: Using optional FHHL kit (PN: 806564-B21), the two PCIe slots 3-4 are available by using slot 2 as a standup expansion slot.

CAUTION: Do not operate the server with any of the rear drive cage bays empty. To maintain proper airflow and sufficient cooling in the rear drive cage, all drive bays in this cage should have a drive or a drive blank. Hewlett Packard Enterprise recommends installing at least one drive in the rear drive cage before operating the Apollo 4200.

HPE Apollo 4200 Gen9 6 SFF Rear Hard Drive Cage Kit

838833-B21

NOTE: The 6SFF Rear HDD cage kit supports an additional six SFF drives.

NOTE: One of the below 6 FIO controller mode combinations is required when the 6SFF Rear HDD cage kit (838833-B21) is selected.

NOTE: When HPE 2nd HDD Cage FIO Controller Mode for Rear Storage (813546-B21) + HPE SATA B140i FIO Controller Mode for Rear Storage (813545-B21) is selected, the SFF Drive number 49-52 are under 2nd HDD cage controller and SFF Drive number 53-54 are under HPE SATA B140i Controller. The SFF Drive number 53-54 have to be SATA HDDs. This combination is for SFF model only.

NOTE: When HPE 2nd HDD Cage FIO Controller Mode for Rear Storage (813546-B21) + HPE SAS Smart HBA H240 FIO Controller Mode for Rear Storage (838827-B21) is selected, the SFF Drive number 49-52 are under 2nd HDD cage controller and SFF Drive number 53-54 are under optional HPE SAS Smart HBA H240 controller. The HPE H240 12Gb 2-ports Int Smart Host Bus Adapter (726907-B21) is required. This combination is for SFF model only.

NOTE: When HPE 2nd HDD Cage FIO Controller Mode for Rear Storage (813546-B21) + HPE SAS Smart Array P440 FIO Controller Mode for Rear Storage (838830-B21) is selected, the SFF Drive number 49-52 are under 2nd HDD cage controller and SFF Drive number 53-54 are under optional HPE SAS Smart Array P440 controller. The HPE Smart Array P440/4GB FBWC 12Gb 1-port Int SAS Controller (726821-B21) is required. This combination is for SFF model only.

NOTE: When HPE SAS Smart HBA H240 FIO Controller Mode for Rear Storage (838827-B21) is selected only, all rear 6SFF HDDs are under optional HPE SAS Smart HBA H240 controller. The HPE H240 12Gb 2-ports Int Smart Host Bus Adapter (726907-B21) is required. This mode is for both LFF and SFF models.

NOTE: When HPE SAS Smart Array P440 FIO Controller Mode for Rear Storage (838830-B21) is selected only, all rear 6SFF HDDs are under optional HPE SAS Smart Array P440 controller. The HPE Smart Array P440/4GB FBWC 12Gb 1-port Int SAS Controller (726821-B21) is required. This mode is for both LFF and SFF models.

NOTE: When HPE SATA B140i FIO Controller Mode for Rear Storage (813545-B21) is selected only, all rear 6SFF HDDs are under HPE SATA B140i controller. All the 6SFF Drives have to be SATA HDDs. This mode is for both LFF and SFF models.

CAUTION: Do not operate the server with any of the rear drive cage bays empty. To maintain proper airflow and sufficient cooling in the rear drive cage, all drive bays in this cage should have a drive or a drive blank. Hewlett Packard Enterprise recommends installing at least one drive in the rear drive cage before operating the Apollo 4200.

HPE Apollo 4200 Gen9 Smart HBA H240 Rear Cable Kit

838823-B21

NOTE: This part is required when HPE H240 12Gb 2-ports Int Smart Host Bus Adapter (726907-B21) is selected.

HPE Apollo 4200 Gen9 Smart Array P440 Rear Cable Kit

841374-B21

NOTE: This part is required when the rear HDDs are controlled by the optional HPE Smart Array P440/4GB FBWC 12Gb 1-port Int SAS Controller (726821-B21).

HPE SATA B140i FIO Controller Mode for Rear Storage

813545-B21

NOTE: Cannot be selected if P/N: 813546-B21, 838827-B21, 838830-B21, or P03845-B21 is selected with HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) or HPE Apollo 4200 Gen9 2SFF and 2FHHL Kit (806564-B21).

NOTE: When one of the HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) or HPE Apollo 4200 Gen9 2SFF and 2FHHL Kit (806564-B21) is selected, one of the HPE SATA B140i Mode for Rear Storage (813545-B21), HPE 2nd HDD Cage FIO Controller Mode for Rear Storage (813546-B21), HPE SAS Smart HBA H240 FIO Controller Mode for Rear Storage (838827-B21), or HPE SAS Smart Array P440 FIO Controller Mode for Rear Storage (838830-B21) is required.

NOTE: Can only be selected with SATA drives for rear HDDs.

HPE 2nd Cage FIO Controller Mode for Rear Storage

813546-B21

NOTE: Cannot be selected if P/N: 813545-B21, 838827-B21, 838830-B21, or P03845-B21 is selected with HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) or HPE Apollo 4200 Gen9 2SFF and 2FHHL Kit (806564-B21).

NOTE: When one of the HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) or HPE Apollo 4200 Gen9 2SFF and 2FHHL Kit (806564-B21) is selected, one of the HPE SATA B140i Mode for Rear Storage (813545-B21), HPE 2nd HDD Cage FIO Controller Mode for Rear Storage (813546-B21), HPE SAS Smart HBA H240 FIO Controller Mode for Rear Storage (838827-B21), or HPE SAS Smart Array P440 FIO Controller Mode for Rear Storage (838830-B21) is required.

NOTE: The Rear HDDs will be under the same controller as the 2nd HDD cage when HPE 2nd HDD Cage FIO Controller Mode for Rear Storage (813546-B21) is selected.

HPE SAS Smart HBA H240 FIO Controller Mode for Rear Storage

838827-B21

NOTE: Cannot be selected if P/N: 813545-B21, 813546-B21, 838830-B21, or P03845-B21 is selected with HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) or HPE Apollo 4200 Gen9 2SFF and 2FHHL Kit (806564-B21).

NOTE: When one of the HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) or HPE Apollo 4200 Gen9 2SFF and 2FHHL Kit (806564-B21) is selected, one of the HPE SATA B140i Mode for Rear Storage (813545-B21), HPE 2nd HDD Cage FIO Controller Mode for Rear Storage (813546-B21), HPE SAS Smart HBA H240 FIO Controller Mode for Rear Storage (838827-B21), or HPE SAS Smart Array P440 FIO Controller Mode for Rear Storage (838830-B21) is required.

NOTE: The Rear HDDs will be under the optional HPE H240 12Gb 2-ports Int Smart Host Bus Adapter (726907-B21) when HPE SAS Smart HBA H240 FIO Controller Mode for Rear Storage (838827-B21) is selected.

HPE SAS Smart Array P440 FIO Controller Mode for Rear Storage

838830-B21

NOTE: Cannot be selected if P/N: 813545-B21, 813546-B21, 838827-B21, or P03845-B21 is selected with HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) or HPE Apollo 4200 Gen9 2SFF and 2FHHL Kit (806564-B21).

NOTE: When one of the HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) or HPE Apollo 4200 Gen9 2SFF and 2FHHL Kit (806564-B21) is selected, one of the HPE SATA B140i Mode for Rear Storage (813545-B21), HPE 2nd HDD Cage FIO Controller Mode for Rear Storage (813546-B21), HPE SAS Smart HBA H240 FIO Controller Mode for Rear Storage (838827-B21), or HPE SAS Smart Array P440 FIO Controller Mode for Rear Storage (838830-B21) is required.

NOTE: The Rear HDDs will be under the optional HPE Smart Array P440/4GB FBWC 12Gb 1-port Int SAS Controller (726821-B21) when HPE SAS Smart Array P440 FIO Controller Mode for Rear Storage (838830-B21) is selected.

HPE Dual SAS Smart Array P440 FIO Controller Mode for Front Storage

P03845-B21

NOTE: Two HPE Smart Array P440/4GB FBWC 12Gb 1-port Int SAS Controller (726821-B21) and one HPE Apollo 4200 Gen9 6 SFF Rear Hard Drive Cage Kit (838833-B21) are required when P03845-B21 is selected.

NOTE: Cannot be selected if P/N: 813545-B21, 813546-B21, 838827-B21, or 838830-B21 is selected with HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) or HPE Apollo 4200 Gen9 2SFF and 2FHHL Kit (806564-B21).

NOTE: The Rear HDDs will be under the default HPE Flexible Smart Array P840ar/2G FIO Controller and the two front HDD cage will be under the two optional HPE Smart Array P440/4GB FBWC 12Gb 1-port Int SAS Controller (726821-B21) when HPE Front Dual SAS P440 FIO Ctrlr Mode for the Apollo 4200 (P03845-B21) is selected.

HPE Apollo 4200 Gen9 Redundant Fan Kit

806562-B21

NOTE: For 1 processor configurations, the HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) will ship 4 additional fans, for a total of 8 fans. There will be one spare fan in the carton for the future upgrade to 2 processors.

NOTE: For 2 processor configurations, the HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) will ship 5 fans for redundant function

HPE 2U Shelf-Mount Adjustable Rail Kit

822731-B21

HPE Apollo 4200 Gen9 FIO Strap Shipping Bracket

822640-B21

NOTE: This part is used for shipping that is integrated in a rack.

HPE Apollo 4200 Gen9 Interface Manager Card Kit

806565-B21

NOTE: This is a management module for the Apollo 4200 Gen9 Server to provide a rear dedicated 1Gb management port.

HPE Processor

22-Core Processors

HPE Apollo 4200 Gen9 Intel Xeon E5-2699v4 (2.2GHz/22-core/55MB/145W) FIO Processor Kit

830754-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2699v4 (2.2GHz/22-core/55MB/145W) Processor Kit

830754-B21

20-Core Processors

HPE Apollo 4200 Gen9 Intel Xeon E5-2698v4 (2.2GHz/20-core/50MB/135W) FIO Processor Kit

830752-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2698v4 (2.2GHz/20-core/50MB/135W) Processor Kit

830752-B21

18-Core Processors

HPE Apollo 4200 Gen9 Intel Xeon E5-2697v4 (2.3GHz/18-core/45MB/145W) FIO Processor Kit

830750-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2697v4 (2.3GHz/18-core/45MB/145W) Processor Kit

830750-B21

HPE Apollo 4200 Gen9 Intel Xeon E5-2695v4 (2.1GHz/18-core/45MB/120W) FIO Processor Kit

830748-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2695v4 (2.1GHz/18-core/45MB/120W) Processor Kit

830748-B21

16-Core Processors

HPE Apollo 4200 Gen9 Intel Xeon E5-2697Av4 (2.6GHz/16-core/40MB/145W) FIO Processor Kit

841372-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2697Av4 (2.6GHz/16-core/40MB/145W) Processor Kit

841372-B21

HPE Apollo 4200 Gen9 Intel Xeon E5-2683v4 (2.1GHz/16-core/40MB/120W) FIO Processor Kit

830744-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2683v4 (2.1GHz/16-core/40MB/120W) Processor Kit

830744-B21

14-Core Processors

HPE Apollo 4200 Gen9 Intel Xeon E5-2690v4 (2.6GHz/14-core/35MB/135W) FIO Processor Kit

830746-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2690v4 (2.6GHz/14-core/35MB/135W) Processor Kit

830746-B21

HPE Apollo 4200 Gen9 Intel Xeon E5-2680v4 (2.4GHz/14-core/35MB/120W) FIO Processor Kit

830742-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2680v4 (2.4GHz/14-core/35MB/120W) Processor Kit

830742-B21

HPE Apollo 4200 Gen9 Intel Xeon E5-2660v4 (2.0GHz/14-core/35MB/105W) FIO Processor Kit

830736-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2660v4 (2.0GHz/14-core/35MB/105W) Processor Kit

830736-B21

HPE Apollo 4200 Gen9 Intel Xeon E5-2650Lv4 (1.7GHz/14-core/35MB/65W) FIO Processor Kit

830732-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2650Lv4 (1.7GHz/14-core/35MB/65W) Processor Kit

830732-B21

12-Core Processors

HPE Apollo 4200 Gen9 Intel Xeon E5-2650v4 (2.2GHz/12-core/30MB/105W) FIO Processor Kit

830734-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2650v4 (2.2GHz/12-core/30MB/105W) Processor Kit

830734-B21

10-Core Processors

HPE Apollo 4200 Gen9 Intel Xeon E5-2640v4 (2.4GHz/10-core/25MB/90W) FIO Processor Kit

830728-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2640v4 (2.4GHz/10-core/25MB/90W) Processor Kit

830728-B21

HPE Apollo 4200 Gen9 Intel Xeon E5-2630v4 (2.2GHz/10-core/25MB/85W) FIO Processor Kit

830724-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2630v4 (2.2GHz/10-core/25MB/85W) Processor Kit

830724-B21

8-Core Processors

HPE Apollo 4200 Gen9 Intel Xeon E5-2667v4 (3.2GHz/8-core/25MB/135W) FIO Processor Kit

830738-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2667v4 (3.2GHz/8-core/25MB/135W) Processor Kit

830738-B21

HPE Apollo 4200 Gen9 Intel Xeon E5-2620v4 (2.1GHz/8-core/20MB/85W) FIO Processor Kit

830718-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2620v4 (2.1GHz/8-core/20MB/85W) Processor Kit

830718-B21

HPE Apollo 4200 Gen9 Intel Xeon E5-2609v4 (1.7GHz/8-core/20MB/85W) FIO Processor Kit

830716-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2609v4 (1.7GHz/8-core/20MB/85W) Processor Kit

830716-B21

6-Core Processors

HPE Apollo 4200 Gen9 Intel Xeon E5-2643v4 (3.4GHz/6-core/20MB/135W) FIO Processor Kit

830730-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2643v4 (3.4GHz/6-core/20MB/135W) Processor Kit

830730-B21

HPE Apollo 4200 Gen9 Intel Xeon E5-2603v4 (1.7GHz/6-core/15MB/85W) FIO Processor Kit

830714-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2603v4 (1.7GHz/6-core/15MB/85W) Processor Kit

830714-B21

4-Core Processors

HPE Apollo 4200 Gen9 Intel Xeon E5-2637v4 (3.5GHz/4-core/15MB/135W) FIO Processor Kit

830726-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2637v4 (3.5GHz/4-core/15MB/135W) Processor Kit

830726-B21

HPE Apollo 4200 Gen9 Intel Xeon E5-2623v4 (2.6GHz/4-core/10MB/85W) FIO Processor Kit

830720-L21

HPE Apollo 4200 Gen9 Intel Xeon E5-2623v4 (2.6GHz/4-core/10MB/85W) Processor Kit

830720-B21

NOTE: FIO indicates factory integrated option via CTO.

NOTE: Up to 2 processors supported.

NOTE: DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.

NOTE: The xxxxxx-L21 is the first processor shipped, the xxxxxx-B21 is the 2nd processor and ships with 1 additional FAN for factory of field installation.

HPE Memory

Registered DIMMs (RDIMMs) for E5-2600v3 Series

NOTE: The following memory is supported by the E5-2600v3 series Processors.

HPE 16GB (1x16GB) Dual Rank x4 DDR4-2133 CAS-15-15-15 Registered Memory Kit

726719-B21

NOTE: Depending on Processor selected this memory will run at 1600, 1866 or 2133MHz.

NOTE: Depending on Processor selected this memory will run at 1600, 1866 or 2133MHz.

Registered DIMMs (RDIMMs) for E5-2600v4 Series

NOTE: The following memory is supported by the E5-2600v4 series Processors.

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2400 CAS-17-17-17 Registered Memory

805351-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2400 CAS-17-17-17 Registered

805349-K21

HPE 8GB (1x8GB) Single Rank x8 DDR4-2400 CAS-17-17-17 Registered Memory

805347-K21

NOTE: Depending on Processor selected this memory will run at 1866, 2133 or 2400MHz.

Load Reduced DIMMs (LRDIMMs) for E5-2600v4 Series

NOTE: The following memory is supported by the E5-2600v4 series Processors.

HPE 64GB (1x64GB) Quad Rank x4 DDR4-2400 CAS-17-17-17 Load Reduced

805358-B21

NOTE: Depending on Processor selected this memory will run at 1866, 2133 or 2400MHz.

HPE Drives

6-pack SATA Hot Plug LFF (3.5-inch) Low Profile Hard Drive Bundles

HPE 10TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty He 512e DS 6-pack FIO HDD

P09797-K21

NOTE: HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) and ROM version 1.50 or later are required.

NOTE: HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) is required when this SKU is selected.

HPE 8TB 6G SATA 7.2K rpm LFF (3.5in) 512e Low Profile Midline 1yr Wty 6-pack FIO Hard Drive Bundle

NOTE: HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) and ROM version 1.50 or later are required.

867261-K21

HPE 6TB 6G SATA 7.2K rpm LFF (3.5in) 512e Low Profile Midline 1yr Wty 6-pack FIO Hard Drive Bundle

867267-K21

6-pack SAS Hot Plug LFF (3.5-inch) Low Profile Hard Drive Bundles

HPE 10TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty He 512e DS 6-pack FIO HDD

P09799-K21

NOTE: HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) and ROM version 1.50 or later are required.

NOTE: HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) is required when this SKU is selected.

HPE 8TB 12G SAS 7.2K rpm LFF (3.5in) 512e Low Profile Midline 1yr Wty 6-pack FIO Hard Drive Bundle

NOTE: HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) and ROM version 1.50 or later are required.

867263-K21

HPE 6TB 12G SAS 7.2K rpm LFF (3.5in) 512e Low Profile Midline 1yr Wty 6-pack FIO Hard Drive Bundle

867271-K21

12G SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed

832514-K21

6G SATA MU Hot Plug LFF (3.5-inch) LP MDL HDD

HPE 14TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD

P09165-K21

NOTE: HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) and ROM version 1.50 or later are required.

NOTE: HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) is required when this SKU is selected.

HPE 12TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e

881787-K21

NOTE: HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) and ROM version 1.50 or later are required.

NOTE: HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) is required when this SKU is selected.

HPE 10TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD

P09161-K21

NOTE: HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) and ROM version 1.50 or later are required.

NOTE: HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) is required when this SKU is selected.

HPE 8TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e Digitally

834028-K21

NOTE: HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) and ROM version 1.50 or later are required.

12G SAS Hot Plug LFF (3.5-inch) LP MDL HDD

HPE 14TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD

P09155-K21

NOTE: HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) and ROM version 1.50 or later are required.

NOTE: HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) is required when this SKU is selected.

HPE 12TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e

881781-K21

NOTE: HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) and ROM version 1.50 or later are required.

NOTE: HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) is required when this SKU is selected

HPE 10TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Helium 512e Digitally Signed Firmware HDD

P09149-K21

NOTE: HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) and ROM version 1.50 or later are required.

NOTE: HPE Apollo 4200 Gen9 LFF Rear HDD Cage Kit (806563-B21) is required when this SKU is selected.

HPE 8TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty 512e Digitally

834031-K21

NOTE: HPE Apollo 4200 Gen9 Redundant Fan Kit (806562-B21) and ROM version 1.50 or later are required.

HPE 4TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed

833928-K21

HPE 2TB SAS 12G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed

833926-K21

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed

655710-K21

SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HPE 4TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed

861683-K21

HPE 2TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed

861681-K21

HPE 1TB SATA 6G Midline 7.2K LFF (3.5in) LP 1yr Wty Digitally Signed

861686-K21

12G SAS Mixed Use Hot Plug SFF (2.5-inch) Solid State Drives

HPE 3.84TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Value SAS Digitally Signed Firmware SSD

P10460-K21

NOTE: This SKU cannot be installed in the rear HDD cage

HPE 1.92TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Value SAS Digitally Signed Firmware SSD

P10454-K21

NOTE: This SKU cannot be installed in the rear HDD cage

HPE 960GB SAS 12G Mixed Use SC 3yr Wty Value SAS Digitally Signed Firmware SSD

P10448-K21

NOTE: This SKU cannot be installed in the rear HDD cage

12G SAS Mixed Use Hot Plug LFF (3.5-inch) Solid State Drives

HPE 3.84TB SAS 12G Mixed Use LFF (3.5in) LPC 3yr Wty Value SAS Digitally Signed Firmware SSD

P10462-K21

NOTE: This SKU cannot be installed in the rear HDD cage

HPE 1.92TB SAS 12G Mixed Use LFF (3.5in) LPC 3yr Wty Value SAS Digitally Signed Firmware SSD

P10458-K21

NOTE: This SKU cannot be installed in the rear HDD cage

HPE 960GB SAS 12G Mixed Use LFF (3.5in) LPC 3yr Wty Value SAS Digitally Signed Firmware SSD

P10452-K21

12G SAS Read Intensive Hot Plug SFF (2.5-inch) Solid State Drives

HPE 7.68TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Value SAS Digitally Signed Firmware SSD

P10446-K21

NOTE: This SKU cannot be installed in the rear HDD cage

HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Value SAS Digitally Signed Firmware SSD

P10444-K21

NOTE: This SKU cannot be installed in the rear HDD cage

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Value SAS Digitally Signed Firmware SSD

P10442-K21

NOTE: This SKU cannot be installed in the rear HDD cage

HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Value SAS Digitally Signed Firmware SSD

P10440-K21

6G SATA Hot Plug SFF (2.5-inch) SC Read Intensive Solid State Drives

HPE 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally

P05946-K21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally

P05938-K21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed

P05932-K21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed

P05928-K21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed

P05924-K21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed

P04556-K21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed

P06194-K21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed

P04560-K21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed

P06196-K21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed

P04564-K21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally

P06198-K21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally

P04566-K21

HPE 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally

P06200-K21

HPE 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally

P04570-K21

6G SATA Hot Plug SFF (2.5-inch) SC Mixed Use Solid State Drives

HPE 3.84TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed

P05994-K21

HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed

P05986-K21

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed

P05980-K21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed

P05976-K21

6G SAS (2.5-inch) 512e SC HDD

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally

765464-K21

HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765466-K21

NOTE: This SKU cannot be installed in the rear HDD cage

6G SATA (2.5-inch) 512e SC HDD

HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally

765455-K21

Hard Drive Blank Kits

HPE Gen9 LFF HDD Spade Blank Kit

807878-B21

HPE Small Form Factor Hard Drive Blank Kit

666987-B21

HPE Networking

HPE InfiniBand

NOTE: The RHEL6.5 driver is not part of SPP, but may be downloaded here:

http://h20565.www2.hpe.com/portal/site/hpsc/

HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+QSFP Adapter

764284-B21

HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+FLR-QSFP Adapter

764285-B21

HPE 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel Omni-Path Architecture Adapter

829335-B21

HPE InfiniBand EDR/Ethernet 100Gb 1-port 840QSFP28 Adapter

825110-B21

HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter

825111-B21

HPE InfiniBand EDR 100Gb 1-port 841QSFP28 Adapter

872725-B21

NOTE: This SKU can only be installed in PCIe slot3 or slot4.

HPE InfiniBand EDR/Ethernet 100Gb 2-port 841QSFP28 Adapter

872726-B21

NOTE: This SKU can only be installed in PCIe slot3 or slot4.

HPE InfiniBand FDR/Ethernet 40/50Gb 2-port 547FLR-QSFP Adapter

879482-B21

HPE I/O Expansion Options

HPE Apollo 4200 Gen9 2 SFF and 2 Full Height Half Length Riser Kit

806564-B21

NOTE: This riser kit allows for two additional small form factor drives in the rear and two PCIe slots 3-4 are available by using slot 2 as a standup expansion slot

NOTE: Using the above kit, PCIe slot 3 and 4 may be populated.

NOTE: Slot3: 1x Gen3 x8 FH/FL. Slot 4: 1xGen3 x8 FH/HL.

HPE Power Supplies

1 Gigabit Ethernet adapters

HPE 800W Flex Slot Titanium Hot Plug Power Supply Kit

720482-B21

HPE 800W Flex Slot Platinum Hot Plug Power Supply Kit

720479-B21

HPE 800W Flex Slot -48VDC Hot Plug Power Supply Kit

720480-B21

HPE 1400W Flex Slot Platinum Plus Hot Plug Power Supply Kit

720620-B21

NOTE: All power supplies must be of the same input voltage, output rating, and efficiency rating. If non-matching power supplies are installed, you may receive an error message and/or experience operational issues with your server.

NOTE: Prior to selecting a power supply option, it is highly recommended that you review your server configuration in the HPE Power Advisor tool to determine the right size power supply for your server configuration.

NOTE: The above power supply options are all 80Plus Platinum-certified with an efficiency rating of up to 94%. Support for HPE Power Discovery Services is included with the 1400W

NOTE: Maximum of 2 Flex Slot PS per platform.

HPE Cooling Options

HPE Apollo 4200 Gen9 Redundant Fan Kit

806562-B21

NOTE: The Apollo 4200 Redundant Fan Kit allows the server to reach up to 8 fans using a 1 processor configuration, or 10 total fans using a 2 processors configuration.

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for additional information.

Embedded Management

HPE Security

HPE Storage Controllers

HPE Storage Options

 Emulex Fibre Channel HBAs

HPE 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AJ762B

HPE 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ763B

HPE StoreFabric SN1100E 16Gb Single Port Fibre Channel Host Bus Adapter

C8R38A

HPE StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter

C8R39A

QLogic Fibre Channel HBAs

HPE 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AK344A

HPE 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AJ764A

HPE StoreFabric SN1000Q 16GB 1-port PCIe Fibre Channel Host Bus Adapter

QW971A

HPE StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter

QW972A

Converged Network Adapter

HPE StoreFabric CN1100R Dual Port Converged Network Adapter

QW990A

HPE StoreFabric CN1100R 10GBASE-T Dual Port Converged Network Adapter

N3U52A

HPE Support Services

HPE 3 year Foundation Care Next business day Apollo 4200 Service

U8MG4E

HPE 3 year Foundation Care Next business day with DMR Apollo 4200 Service

U8MG5E

HPE 3 year Foundation Care Next business day with CDMR Apollo 4200 Service

U8MG6E

HPE 3 year Foundation Care 24x7 Apollo 4200 Service

U8MH3E

HPE 3 year Foundation Care 24x7 wDMR Apollo 4200 Service

U8MH4E

HPE 3 year Foundation Care 24x7 wCDMR Apollo 4200 Service

U8MH5E

HPE 3 year Proactive Care 24x7 Apollo 4200 Service

U8MH6E

HPE 3 year Proactive Care 24x7 with DMR Apollo 4200 Service

U8MH7E

HPE 3 year Proactive Care 24x7 with CDMR Apollo 4200 Service

U8MH8E

HPE Installation ProLiant DL1000/DL2000 Service

UM857E

HPE Installation and Startup DL1000/DL2000 Service

UM858E

Memory Subsystem Architecture

Each Intel® Xeon® E5-2600v3 or E5-2600v4 family processor socket contains four memory channels per installed processor with two DIMMs per channel for a total of eight (8) DIMMs or a grand total of sixteen (16) DIMMs for the server.

Memory Population Guidelines

DIMM Configuration

NOTE: This infomration is for Advanced ECC memory mode. If operating in other modes, see the user guide Key.

Alpha- population order

Numeric-DIMM Slot ID for spare replacement

Before Installing DIMMs, review the following population guidelines:

• Install DIMMs only if the corresponding processor is installed.
• When two processors are installed, balance the total capacity of the DIMM's across the two processors.
• White DIMM's slots denote the first slot of a channel (Ch 1-A, Ch 2-B, Ch 3-C, Ch 4-D).
• Do not mix RDIMMs and LRDIMMs in the same system.

When only one processor is installed, install DIMMs in sequential alphabetic order; A, B, C, D, E, F, and so forth.

When two procesors are installed, install DIMMs in sequential alphabetic order; P1-A, P2-A, P1-B, P2-B, P1-C, P2-C, and so forth.

For DIMM spare replacement, install the DIMMs per slot numbers as insructed by your system software. These are general DIMM population tules. For spcecific memory mode population rules see the server user guide on the Hewlett Packard Enterprise website.

https://www.hpe.com/us/en/support.html.

General Memory Population Rules and Guidelines:

• White DIMM slots denote the first slot of a channel. For 1 DPC (DIMM per channel) populate white slots only.
• A minimum of one DIMM is required per server.
• Install DIMMs only if the corresponding processor is installed.
• If only one processor is installed in a two processor system, only half of the DIMM slots are available.
• To maximize performance, it is recommended to balance the total memory capacity between all installed processors and to load the channels similarly whenever possible.
• When two processors are installed, balance the DIMMs across the two processors.
• Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel. Heaviest load
• (DIMM with most ranks) within a channel goes furthest from the processor.
• Do not mix RDIMMs or LRDIMMs.
• LRDIMMs are supported up to 2 DIMMs per channel.
• DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.
• The maximum memory speed is a function of the memory type, memory configuration, and processor model.
• The maximum memory capacity is a function of the memory type and number of installed processors.
• HPE memory from previous generation servers is not compatible with the HPE Apollo 4200 Gen9 Server. Certain HPE SmartMemory features such as memory authentication and enhanced performance may not be supported.
• To realize the performance memory capabilities listed in this document, HPE SmartMemory is required. For additional information, please see the HPE SmartMemory QuickSpecs at:

http://h18000.www1.hpe.com/products/QuickSpecs/14225_div/14225_div.html

For memory population rules and additional memory guidelines, please see the HPE Apollo 4200 Gen9 user guide at http://www.hpe.com/support

• There are four (4) Memory channels per processor; eight (8) channels per 2 processor server.
• There are two (2) DIMM slots for each memory channel; sixteen (16) total slots for 2 processor server.
• Memory channels 1 and 3 consists of the two (2) DIMMs that are furthest from the processor.
• Memory channel 2 and 4 consists of the two (2) DIMMs that are closest to the processor.

DDR4 memory options part number decoder

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 2GB = 2,048MB
• 4GB = 4,096MB
• 8GB = 8,192MB
• 16GB = 16,384MB
• 32GB = 32,768MB
• 64GB = 65,536MB

System Unit

Dimensions
(L x W x D)

3.44 x 17.63 x 32 in (8.75cm x 44.8 x 81.28 cm)

NOTE: Dimensions without Bezel.

Weight (approximate)

Minimum:

(Minimum - 24LFF chassis)

51.04 lb (23.2 kg)

Maximum:

(Maximum - 24LFF chassis)

89.32 lb (40.6 kg)

Minimum:

(Minimum - 48SFF chassis)

46.64 lb (21.2 kg)
