HPE Apollo 35 System

Are your high performance computing (HPC) applications memory-bound?

The Hewlett Packard Enterprise Apollo 35 System provides a high density AMD EPYC^TM compute solution with exceptional memory bandwidth and capacity per socket.  Offering four servers in 2U, with up to 32 cores and 1 TB DDR4 memory per socket, the Hewlett Packard Enterprise Apollo 35 System is well suited for memory bandwidth or capacity bound HPC workloads, such as computational fluid dynamics, weather simulation, and oil and gas exploration. With high-performance core density per server and support for high-bandwidth network interfaces, the Hewlett Packard Enterprise Apollo 35 System delivers increased HPC performance at both a node and rack level.

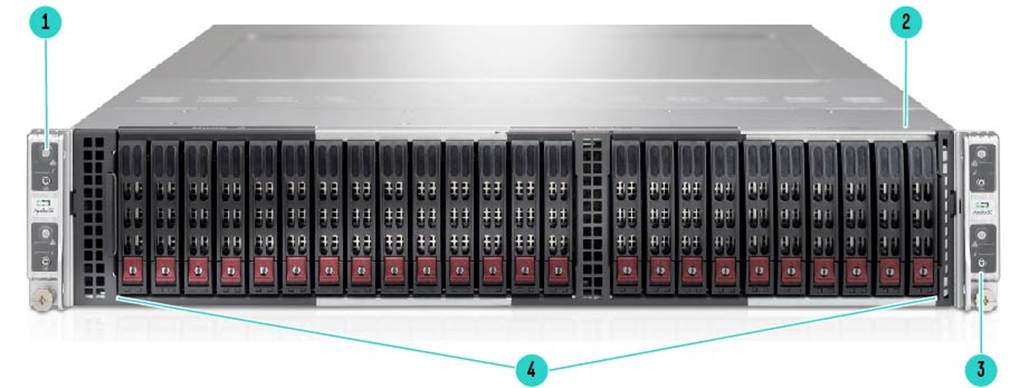

Front View

Item

Description

Item

Description

1

Power button

3

Unit Identification (UID) LED/button

2

HPE Apollo 35 System (2U)

4

SFF SATA drive bays

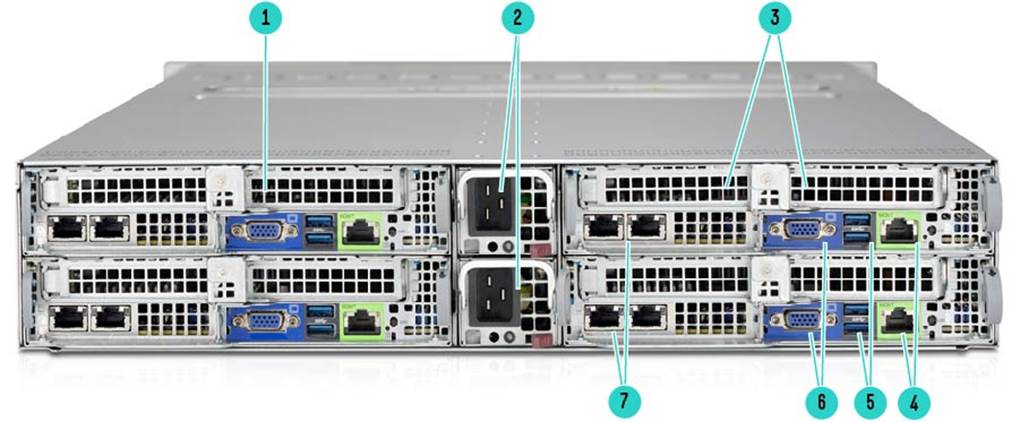

Rear View

Item

Description

Item

Description

1

Hot-swap Nodes (Four nodes per Apollo 35 system)

5

Two USB ports

2

Two 2600W titanium level power Supplies (1 x C20 inlet per power supply)

6

VGA port

3

Two Low profile HH/HL PCIe Gen3 x16 slots

7

Two-port 10 GbE (RJ45) NIC

4

Dedicated IPMI LAN port

Notes: Each Apollo 35 system includes two power supplies and each power supply has one C20 inlet (IEC 60320 C-20).

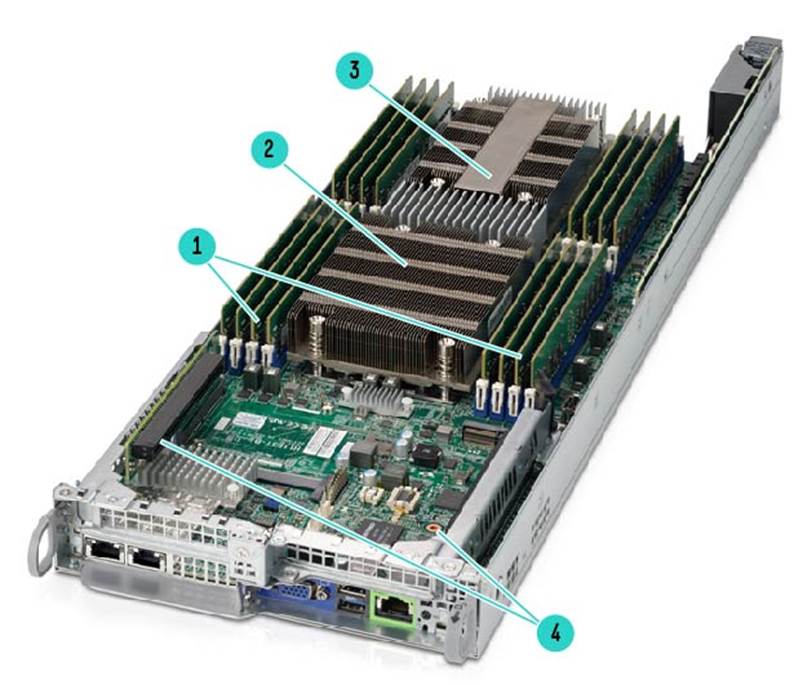

Internal View

Item

Description

Item

Description

1

8 Memory DIMM slots per CPU

3

CPU 2

2

CPU 1

4

Two low profile HH/HL PCIe 3.0 x16 slots

Processor

Notes: Please follow product offering to fill out processor SKU.

AMD EPYC^TM 7000 Series

Notes: 7371 processor is supported in data center environments of 25C or below.

Chipset

System on chip (SoC)

Memory

• Industry Standard DDR4 Load Reduced (LRDIMM), or Registered (RDIMM)
• DIMM Slots Available 16 DIMM per node

Notes: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.

Network Controller

InfiniBand Options

• HPE IB EDR/EN 100Gb 1P 840QSFP28 Adapter
• HPE IB EDR/EN 100Gb 2P 841QSFP28 Adapter
• HPE IB EDR 100Gb 1P 841QSFP28 Adapter

Maximum Internal Storage

HPE 1TB SATA 7.2K SFF ST 512n DS HDD

24 x 1TB

HPE 2TB SATA 7.2K SFF ST 512e DS HDD

24 x 2TB

HPE 240GB SATA MU SFF RW DS SSD

24 x 240GB

HPE 1.92TB SATA MU SFF RW DS SSD

24 x 1.92TB

HPE 1.92TB SATA RI SFF RW DS SSD

24 x 1.92TB

HPE 3.84TB SATA RI SFF RW DS SSD

24 x 3.84TB

Interfaces

• Two USB 3.0 Ports
• Remote Management Port Dedicated IPMI port
• Power 1
• UID 1

Industry Standard Compliance

• ACPI 2.0b Compliant
• PCIe 3.0 Compliant
• PXE Support
• USB 1.1,2.0 and 3.0 Compliant

Operating Systems and Virtualization Software Support for HPE Apollo Servers

Red Hat Enterprise Linux (RHEL 7.4)

Notes: The AMD 7371 processor is supported with RHEL versions 7.6 and up.

SUSE Linux Enterprise Server (SLES12 SP3, SLES12 SP3 KVM)

Notes: The AMD 7371 processor is supported with SLES12 SP4, SLES 15, and up.

Graphics

Integrated ASPEED AST2500 BMC

Form Factor

The Apollo 35 system is a 2U 4 node server

Embedded Management

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI).

Learn more at http://www.hpe.com/servers/uefi.

Out-of-Band Management

Each system includes an out-of-band management license. Application of the license provides remote access and management capabilities.

Security

• Power-on password
• Keyboard password
• Serial interface control
• Administrator's password

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners (may vary by region). Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty.

Notes: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/

Sofware Portfoiio for HPE Apollo 35 High Performance Computing Systems

Operating systems

• SUSE Enterprise Linux Server 12
• Red Hat Enterprise Linux 7
• CentOS 7

Fabric software

Mellanox® UFM^TM

System management

HPE Performance Cluster Manager - complete integrated cluster management software for all HPE HPC clusters offering: system setup, hardware monitoring and management and cluster health management, image management and software updates as well as power management. The software also integrates with leading HPC ISV and open source software solutions.

Workload Management and Orchestration

• Altair® PBS Professional
• Slurm Workload Manager
• Containers: Singularity, Docker
• Kubernetes

Software Development Tools (Programming languages,debuggers, libraries)

• AMD AOCC
• PGI® Professional Edition
• GNU Compiler Collection
• Rogue Wave® TotalView®
• Arm® Forge Professional
• HPE Message Passing Interface (MPI)
• Mellanox® HPC-X
• Open MPI
• OpenHPC

For more information about software portfolio for HPE Apollo 35 please visit:

https://www.hpe.com/global/h22150/46d4529b-55cc-4b9d-8dac-6be33f7fa718/index.html/

Service and Support

Protect your business beyond warranty with HPE Support Services

HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution. Finally, operational services provides innovative new approaches like Flexible Capacity and Complete Care, to keep your business at peak performance. Hewlett Packard Enterprise is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple.

Optimized Recommendation

HPE Tech Care 24x7, three-year Support Service

HPE Tech Care 24x7 gives you access to HPE 24 hours a day, seven days a week for assistance on resolving issues. This service includes need based Hardware onsite response within four hours. In addition, collaborative software support is included in this service that provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make HPE your first call to help resolve hardware or software problems.

Learn more at https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Standard Recommendation

HPE Tech Care 24x7, three-year Support Service

HPE Tech Care 24x7 gives you access to HPE 24 hours a day, seven days a week for assistance on resolving issues. This service includes need based Hardware onsite response within four hours. In addition, collaborative software support is included in this service that provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make HPE your first call to help resolve hardware or software problems.

Learn more at https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Basic Recommendation

HPE Tech Care NBD, three-year Support Service

HPE Tech Care Next Business Day connects you to HPE during business hours for assistance on resolving issues - This service features need based next business day hardware onsite response and software call back within two hours. In addition, Collaborative software support and provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make HPE your first call to help resolve hardware or software problems.

Learn more at https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Other Related Services

HPE Server Hardware Installation

Provides for the basic hardware installation of HPE branded servers, storage devices, and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

For more information, visit https://www.hpe.com/h20195/V2/GetPDF.aspx/5981-9356EN.pdf

HPE Installation and Startup Service

Provides for the installation of your HPE hardware according to product specifications including options. The HPE service delivery technician will connect the product to a LAN as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux).

HPE Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.

HPE Technology Services Support Credits

Offers flexible services and technical skills to meet changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.

HPE Complete Care service

HPE Complete Care helps improve IT stability and security, increase the value of IT, and enable agility and innovation. It is a structured framework of repeatable, tested, and globally available services "building blocks." You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Complete Care, you benefit from a personalized relationship with HPE via a single point of accountability for HPE and others' products. For more information, visit http://www.hpe.com/services/datacentercare

HPE Flexibly Capacity, With Flexible Capacity, you get the speed, scalability, and economics of the public cloud in the privacy of your data center. Gain the advantages of the public cloud-consumption-based payment, rapid scalability without worrying about capacity constraints. Reduce the "heavy lifting" needed to operate a data center. And retain the advantages that IT provides the business (i.e., control, security). Deliver the right user experience, choose the right technology for the business, manage privacy and compliance, and manage the cost of IT. And, you have the option to use the public cloud when needed.

DC for Hyperscale

Complete Care for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture can take advantage of this environment support tailored to their operating model.

HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book a class today and learn how to get the most from your technology investment. For more information, visit http://www.hpe.com/ww/learn

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers.

Learn more at http://www.hpe.com/support/hpesc

The HPE Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalize IT support anywhere, anytime.

HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.

Notes:*HPE Support Center Mobile App is subject to local availability

HPE Pointnext - Service and Support

Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges.  Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.

Consume IT on your terms

HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

Managed services to run your IT operations

HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

Recommended Services

HPE Pointnext Tech Care.

HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Pointnext Complete Care

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.  HPE Pointnext Complete Care provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Options

Notes: Included options are covered under the HPE Service Contract applied to the HPE Server. No separate HPE support services need to be purchased.

Warranty and Support Services will extend to include HPE options configured with your server or storage device. The price of support service is not impacted by configuration details. HPE sourced options that are compatible with your product will be covered under your server support at the same level of coverage allowing you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for everyone, some high value options will require additional support. Additional support is only required on select high value workload accelerators, fibre switches, InfiniBand and UPS batteries over 12KVA.

See the specific high value options that require additional support here

For more information, visit http://www.hpe.com/services

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

• Factory Integrated Models must start with a CTO Server.
• FIO indicates that this option is only available as a factory installable option.
• All Factory Integrated Models will be populated with sufficient hard drive blanks
• Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Configuration (choose one of the following configurable models)

HPE CTO Model

Notes: Each CTO system includes 2U chassis, 4 x base server trays, 2 x 2600W power supplies (C20 connector). Each server includes 2 x dual port 10G SIOM per server.

Step 2: Choose Required Options

HPE Memory

DDR4 2666MT/s (16 DIMMs per node)

HPE 8GB Single Rank x4 DDR4-2666 Registered Memory Kit

Q7D79A

HPE SGI 16GB Dual Rank x4 DDR4-2666 Registered Memory Kit

Q2D31A

HPE SGI 32GB Dual Rank x4 DDR4-2666 Registered Memory Kit

Q2D32A

HPE SGI 64GB Quad Rank x4 DDR4-2666 Load Reduced Memory Kit

Q2D33A

HPE 128GB Octal Rank x4 DDR4-2666 Load Reduced Memory Kit

Q7D83A

HPE Disk Drives

Hot Swap drives (24 drive per chassis, 6 per node)

HPE 240GB SATA 6G Read Intensive SFF RW PM883 SSD

P09685-H21

HPE 3.84TB SATA 6G Read Intensive SFF RW PM883 SSD

P09697-B21

HPE Networking

InfiniBand Options (Two PCIe x16 cards per node)

HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter

825111-H21

HPE InfiniBand EDR 100Gb 1-port 841QSFP28 Adapter

872725-H21

HPE InfiniBand EDR/Ethernet 100Gb 2-port 841QSFP28 Adapter

872726-H21

Ethernet Options (Two PCIe x16 cards per node)

HPE Ethernet 10/25Gb 2-port SFP28 MCX4121A-ACUT Adapter

817753-B21

HPE Ethernet 10Gb 2-port SFP+ X710-DA2 Adapter

727055-B21

HPE Ethernet 10Gb 2-port BASE-T X550-AT2 Adapter

817738-B21

HPE Ethernet 10Gb 2-port BASE-T BCM57416 Adapter

813661-B21

HPE RAID Settings

SW or BIOS assisted RAID. No HW RAID Support. Broadcom 3008; IT mode

HPE RAID 0 Drive 1 FIO Setting

339777-B21

HPE RAID 1 Drive 1 FIO Setting

339778-B21

HPE RAID 5 Drive 1 FIO Setting

339779-B21

Memory Parameters

Notes: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.

Notes: Fully populate 8 memory channels per processor at 1 DIMM per channel

System Unit

Dimensions (H x W x D)

3.47 x 17.25 x 28.5 in (8.8 x 43.8 x 72.39 cm)

Weight

(approximate)

Maximum:
(all hard drives, power supplies, and processors installed

85 lb (38.6 kg)

System Input Requirements

AC Input Rating 2600W: 208-240Vac, 15-12.5A, 50-60Hz

Rated Input Current: 15-12.5A

Rated Input Frequency: 50 - 60 Hz

Efficiency: 96+ (Titanium Level)

System Inlet Temperature

Standard Operating

Support

10°C ~ 30°C (50°F ~ 85°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed.

Non-operating

-40°C to 60°C (-40°F to 140°F)

Relative Humidity

Operating

8% to 90% (non-condensing)

Non-operating (non-condensing)

5% to 95% (non-condensing)

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and measured average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels

Notes: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

Environment friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site.

These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

15-Nov-2021

Version 9

Changed

Service and Support section was updated.

Obsolete SKUs were removed.

02-Dec-2019

Version 8

Changed

SKUs were updated in Configuration Information section

Obsolete SKUs were removed.

07-Oct-2019

Version 7

Changed

Standard Features section was updated

06-May-2019

Version 6

Changed

Standard Features section was updated

15-Apr-2019

Version 5

Changed

Standard Features section was updated

02-Apr-2019

Version 4

Changed

Standard Features and Configuration Information sections were updated

04-Mar-2019

Version 3

Changed

Overview, Standard Features and Configuration Information sections were updated. Obsolete SKU was removed.

03-Dec-2018

Version 2

Changed

SKUs were added in Configuration Information section.

01-Oct-2018

Version 1

New

New QuickSpecs

© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries.

Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less

a00047738enw - 16275 - WorldWide  - V9 - 15-November-2021
