HPE Apollo 2000 Gen10 Plus System HPE is bringing the power of supercomputing to datacenters of any size with the Apollo 2000 Gen10 Plus system. The HPE Apollo 2000 Gen10 Plus System is a dense, multi-server platform that packs incredible performance and workload flexibility into a small datacenter space, while delivering the efficiencies of a shared infrastructure. It is designed to provide a bridge to scale-out architecture for traditional data centers, so enterprise and SME customers can achieve the space-saving value of density-optimized infrastructure in a cost-effective and non-disruptive manner. The Apollo 2000 Gen10 Plus offers a density optimized, shared infrastructure with a flexible scale-out architecture to support a variety of workloads from remote site systems to large HPC clusters and everything in between. HPE iLO5 provides built-in firmware-level server security with silicon root of trust. It can be deployed cost-effectively starting with a single 2U, shared infrastructure chassis and configured with a variety of storage options to meet the configuration needs of a wide variety of scale-out workloads. The Apollo 2000 Gen10 Plus System delivers up to four times the density of a traditional rack mount server with up to four ProLiant Gen10 Plus independent servers per 2U mounted in standard racks with rear-aisle serviceability access. A 42U rack fits up to 20 Apollo n2X00 series chassis accommodating up to 80 servers per rack. |
|
|
|
What's New
Notes: *Available on select processors |
|
|
|
| |||||
|

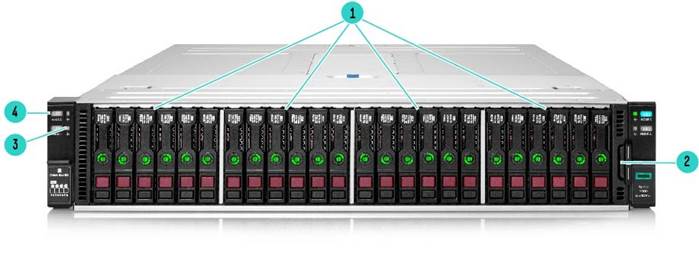

HPE Apollo n2600 Gen10 Plus SFF CTO Chassis supports both Intel and AMD based server nodes HPE Apollo n2800 Gen10 Plus 24 SFF Flexible CTO chassis supports Intel based server nodes Backplane selection determines number and type of drives supported | |||||
|
Item |
Description |
Item |
Description | ||
|
1 |
SFF hot-plug drives |
3 |
Health LED | ||
|
2 |
Serial number/iLO information pull tab |
4 |
UID button LED | ||
|
| |||||
|
| |||||
|

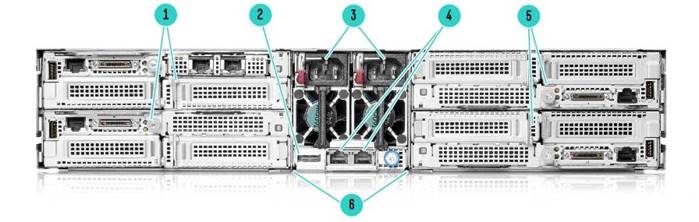

Chassis Rear Panel Components - 4 x 1U nodes | |||||
|
Item |
Description |
Item |
Description | ||
|
1 |
Server 3 & 4 |
4 |
iLO Ports | ||
|
2 |
HPE Apollo Platform Manager (APM) 2.0 port |
5 |
Server 1 & 2 | ||
|
3 |
Power supply 1 & 2 |
6 |
Optional Rack Consolidation Module (RCM) | ||
|
| |||||
|
| |||||||
|

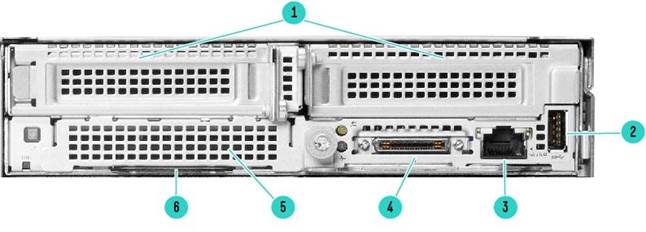

HPE ProLiant XL22Xn Gen10 Plus Server Rear Panel Components | |||||||
|
Item |
Description |
Item |
Description | ||||
|
1 |
Slot 1 & 2 PCIe4 x16 (16,8,4,2,1) |
4 |
SUV port | ||||
|
2 |
USB 3.2Gen 1 Type-A port |
5 |
OCP 3.0 NIC adapter slot | ||||
|
3 |
NIC/shared iLO network port (AMD only) |
6 |
Server Serial number information pull tab | ||||
|
Notes: If ordering Apollo 2000 Gen10 Plus system with Direct Liquid Cooling, slot 1 is not available for use with PCIe cards | |||||||
|
| |||||||
|
| |||||||
|

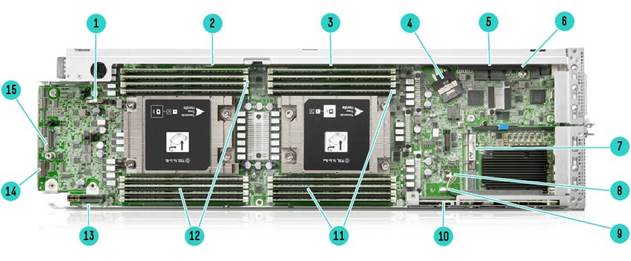

HPE ProLiant XL225n Gen10 Plus Server (Shown-Intel placement is the same) | |||||||
|
Item |
Description |
Item |
Description | ||||
|
1 |
System battery |
9 |
TPM connector | ||||
|
2 |
Secondary PCIe4 x16 riser connector 5 (P2) |
10 |
Primary PCIe4 ×16 riser connector 1 (P1) | ||||
|
3 |
Secondary PCIe4 x8 (P1), x16 (P2) riser connector 4 |
11 |
DIMM slots for processor 1 | ||||
|
4 |
SATA 6GB/s port |
12 |
DIMM slots for processor 2 | ||||
|
5 |
Secondary riser connector 3 |
13 |
Power riser connector | ||||
|
6 |
Secondary PCIe4 ×16 riser connector 2 (P1) |
14 |
System maintenance switch | ||||
|
7 |
OCP NIC 3.0 slot (P1) |
15 |
Mezzanine card connector | ||||
|
8 |
Node power button cable connector |
|
| ||||
|
| |||||||
|

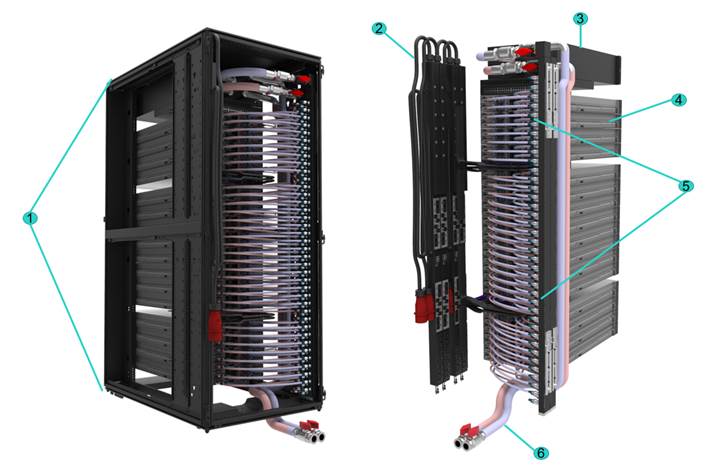

HPE Apollo 2000 Gen10 Plus system with Direct Liquid Cooling | |||||||
|
Item |
Description |
Item |
Description | ||||
|
1 |
42U or 48U HPE Standard 800mm x 1200mm rack |
4 |
Apollo 2000 Gen10 Plus Chassis with DLC | ||||
|
2 |
Rack mount Power Distribution Units inside rack |
5 |
DLC Manifold | ||||
|
3 |
HPE Apollo Rack Mount CDU |
6 |
Facility water hook up kit (supports top or bottom facility water feed) | ||||
|
|
| ||||||
|
Chassis Information Form Factor
There are three chassis options with different storage configurations
0 drives
Offers 2 different storage configurations through backplane selection:
- 24SFF SAS Zoning allows for flexible allocation of drives to server nodes via an embedded SAS Expander Adapter Each HPE Apollo 2000 Chassis is built with the following
|
|
|
|
Server Tray Blank Kit A chassis requires that four (4) server tray slots be populated with an HPE ProLiant XL225n Gen10 Plus or an HPE Apollo 2000 Gen10 Plus Server Node Blank Kit. |
|
|
|
Server Tray HPE ProLiant XL220n Gen10 Plus server
HPE ProLiant XL225n Gen10 Plus server
HPE ProLiant XL290n Gen10 Plus server
Supported storage options: 0, up to 6 SFF SAS/SATA or 2 SFF SAS/SATA or NVME per node. XL220n and XL290n can be mixed in a chassis. No mixing of Intel and AMD nodes in a chassis |
|
|
|
Rack Airflow Requirements HPE Apollo 2000 Gen10 Plus System The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. For maximum cooling, HPE racks are recommended to allow these racks to be fully loaded with servers using the latest processors. For detail information please see Apollo 2000 Gen10 Plus System User Guide: https://www.hpe.com/info/apollo2000gen10plus-docs Notes: - If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment. - When selecting Direct Liquid Cooling (DLC), HPE racks are required for factory integration. - Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels will result in improper cooling that can lead to thermal damage. |
|
|
|
Direct Liquid Cooling (DLC) for Apollo 2000 Gen10 Plus Unlock the entire CPU SKU stack, increase your power density, and increase datacenter efficiency with HPE's direct liquid cooling system that comes ready to plug and play into your data center. The DLC system comes pre-filled with liquid and will easily connect to facility water without the need for secondary plumbing to be installed on site. DLC is fully integrated, installed and supported by HPE. Choose from either CPU only or CPU plus memory cooling options. DLC system includes:
Minimum of one Apollo 2000 Gen10 Plus chassis with Direct Liquid Cooling option - comes pre-filled and ready to plug into rack manifold with no other action needed |
|
|
Standard Features
|
Processors up to 2 of the following depending on the model | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Notes: - All AMD EPYC and Intel Xeon processors can support up to 2TB of memory each on the Apollo 2000 Gen10 Plus system - Certain limitations may apply to select processors, please contact your HPE sales representative - Please contact your HPE sales representatives for any questions on processor support needed - Some processors may require selection of Direct Liquid cooling options (L22 or L23) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Chipset No Chipset - System on Chip (SoC) design | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
On System Management Chipset HPE iLO 5 ASIC Read and learn more in the iLO QuickSpecs | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
NIC/shared iLO network port-AMD only Can choose dedicated NIC or shared NIC interface Notes: For additional information please see the user guide: https://www.hpe.com/info/apollo2000gen10plus-docs | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Memory Applicable for XL220n, XL225n, and XL290n.
Notes: - LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server - Memory DIMM availability with a server platform is dependent upon completion of certification testing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
Expansion slots & riser information for XL220n Gen10 Plus server | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Notes: - If choosing Direct Liquid Cooling for the Apollo 2000 Gen10 plus system slot 1 is not available for use with a PCIe card - Low Profile CPU1 NVMe Right Riser supports 6 NVMe drives direct CPU2 when chosen with the 6 SFF U.3 BP Prem FIO BP Kit is chosen - Low Profile CPU1 NVMe Right Riser supports 2 NVMe drives direct CPU2 when chosen with the 4 SFF U.3 BP Prem FIO BP Kit is chosen - Right riser is required to support SATA drives - Requires 2 CPUs if selected with HPE n2600 Gen10plus 4 SFF U.3 Prem FIO BP Kit or 6SFF U.3 Prem FIO BP Kit - *Bus Width indicates the number of physical electrical lanes running to the connector | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Expansion slots & riser information for XL225n Gen10 Plus server | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Notes: - If choosing Direct Liquid Cooling for the Apollo 2000 Gen10 plus system slot 1 is not available for use with a PCIe card - Low Profile CPU1 NVMe Right Riser supports 2 NVMe drives direct CPU2 when chosen with the 4 SFF U.3 BP Prem FIO BP Kit is chosen - Right riser is required to support SATA drives - Requires 2 CPUs if selected with HPE n2600 Gen10plus 4 SFF U.3 Prem FIO BP Kit - *Bus Width indicates the number of physical electrical lanes running to the connector - When P20264-B21 riser is installed, PCIe Gen4 devices installed in the riser will only operate at PCIe Gen3 speeds (8 GT/s) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Expansion slots & riser information for XL290n Gen10 Plus server | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Notes: - CPU1/2 NVMe Right Riser supports 12 NVMe drives direct CPU1 and CPU2 when chosen with the 6 SFF U.3 BP Prem FIO BP Kit is chosen - CPU1/2 NVMe Right Riser supports 4 NVMe drives direct CPU1 and CPU2 when chosen with the 6 SFF U.3 BP Prem FIO BP Kit is chosen - Right riser is required to support SATA drives - Requires 2 CPUs if selected with HPE n2600 Gen10plus 4 SFF U.3 Prem FIO BP Kit or 6SFF U.3 Prem FIO BP Kit - *Bus Width indicates the number of physical electrical lanes running to the connector | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Essential RAID Controller
Performance RAID Controller
Notes: - Performance RAID Controllers require the HPE Smart Storage Battery (P01366-B21) which is sold separately - Embedded controller will be default controller if no other controller is selected - By default, Embedded Controller will work in AHCI Mode. If "P28417-B21 - HPE SR100i Gen10+ Software RAID" is selected, then Embedded Controller will work in SR100i Mode. - HPE SR100i supports SATA RAID with plans to support NVMe in the future |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Host Bus Adapter
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Controller Cable Kits
Notes: By default, Embedded Controller will work in AHCI Mode. If "P28417-B21 - HPE SR100i Gen10+ Software RAID" is selected, then Embedded Controller will work in SR100i Mode. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Notes: NVMe is x2 for Intel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Internal Storage Devices Optional USB Mezz Riser Kit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interfaces | ||||||||||||||
| ||||||||||||||
|
| ||||||||||||||
|
Industry Standard Compliance
|
||||||||||||||
|
| ||||||||||||||
|
Power Specifications To review additional power cord information check the ProLiant Power Cables web page For information on power specifications and technical content visit: https://www.hpe.com/info/qs | ||||||||||||||
|
| ||||||||||||||
|
HPE Server UEFI /Legacy ROM Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 Plus servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode. Notes: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi UEFI enables numerous new capabilities specific to HPE ProLiant servers such as
|
||||||||||||||
|
UEFI Boot Mode only
Notes: - For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI. - UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE ProLiant XL22Xn Gen10 Plus Server |
||||||||||||||
|
| ||||||||||||||
|
UEFI Configure and boot your servers securely with industry standard Unified Extensible Firmware Interface (UEFI). Learn more at: http://www.hpe.com/servers/uefi | ||||||||||||||
|
| ||||||||||||||
|
Software Portfolio for HPE Apollo 2000 Gen10 Plus Systems Hewlett Packard Enterprise offers customers complete software stack so they can choose the right mix of software solutions to fit their needs - from system software to application and software development tools: Notes: For more information on software portfolio for APOLLO 2000 Gen10 Plus systems,visit this page | ||||||||||||||
|
| ||||||||||||||
|
Operating Systems and Virtualization Software Support for ProLiant Servers
Notes: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server. https://www.hpe.com/us/en/servers/server-operating-systems.html |
||||||||||||||
|
| ||||||||||||||
|
Fabric software
|
||||||||||||||
|
|
|
Server Management HPE iLO 5 Advanced Embedded, in-depth server-level monitoring and management technology offering system management, service alerting, reporting and remote management as well as enhanced security and power management features for HPE Apollo 2000 systems. iLO RESTful API iLO RESTful API is Redfish API conformance and offers simplified server management automation such as configuration and maintenance tasks based on modern industry standards. Learn more at: http://www.hpe.com/info/restfulapi For clustered HPE Apollo 2000 system deployments (for HPC or other emerging workloads such as AI), customers can use the following cluster management software solutions: HPE Performance Cluster Manager Fully integrated system management solution offering all the functionalities you need to manage your HPE Linux®-based high performance computing (HPC) clusters, all day every day. HPE Performance Cluster Manager aggregates system metrics + remote management from iLO. The software provides:
Alternatively, to manage heterogeneous clusters or for customers with additional requirements, HPE also offers: Bright Cluster Manager Automates the process of building clusters in the datacenter and in the cloud. Ideal for heterogeneous clusters or customers with additional requirements. |
|
|
|
Additional HPE system management software (optional) HPE iLO 5 Advanced - additional enhanced security and power management features for Apollo servers. Learn more at: http://www.hpe.com/info/ilo HPE OneView - integration of Apollo systems into overall enterprise data center structure. Learn more at: http://www.hpe.com/info/oneview |
|
|
|
Software Development Tools (Programming languages, debuggers, libraries) HPE Cray Programming Environment - is a fully integrated software development suite offering programmers comprehensive set of tools for developing, porting, debugging, and tuning of their applications so they can shorten application development time and accelerate their performance. Notes: For more information on HPE Cray Programming Environment visit this page HPE Message Passing Interface (MPI) - an MPI development environment designed by HPE to enable optimization of high-performance computing (HPC) applications on HPE Apollo 200 Gen10 Plus systems. The HPE Performance Software-MPI leverages a scalable MPI library and boosts performance of existing applications without requiring recompilation. Additional 3rd party software developmental tools:
|
|
|
|
Server Utilities Active Health System The HPE Active Health System (AHS) is an essential component of iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at: http://www.hpe.com/servers/ahs Active Health System Viewer Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed problem resolution with HPE self-repair recommendations. Learn more at http://www.hpe.com/servers/ahsv Smart Update Keep your servers up to date with HPE's Smart Update solution by using Smart Update Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP) iLO Amplifier Pack Designed for large enterprise and service provider environments with hundreds of HPE servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities. http://www.hpe.com/servers/iLOamplifierpack HPE iLO Mobile Application Enables the ability to access, deploy, and manage your server anytime from anywhere from select smartphones and mobile devices. http://www.hpe.com/info/ilo/mobileapp |
|
RESTful Interface Tool RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API to discover and deploy servers at scale. http://www.hpe.com/info/resttool |
|
|
|
HPE iLO Scale-Out HPE iLO Scale-Out is the preferred license built for web hosting, cloud service providers, and high-performance computing data centers, managing massive scale out environments. This license offers sophisticated scripting tools that provides remote access through Text Console via SSH, Dynamic power capping, Email-based Alerting, and proactive notifications. |
|
|
|
Scripting tools Provision 1 to many servers using your own scripts to discover and deploy with Scripting Toolkit (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. http://www.hpe.com/servers/powershell |
|
|
|
HPE Systems Insight Manager (HPE SIM) Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless firmware updates. www.hpe.com/info/hpesim |
|
|
|
Software Licenses
For more information on Server Management - http://www.hpe.com/info/servermanagement For more information on HPE OneView - http://www.hpe.com/info/hpeoneview |
|
|
|
Security
|
|
|
|
HPE Motivair Liquid Cooled Doors HPE Motivair Liquid Cooled Doors can meet critical cooling requirements of HPE Apollo 2000 Gen10 Plus System servers in HPE racks in the modern datacenter. HPE Motivair Liquid Cooled Doors is a liquid to air heat exchanger cooling system that is mounted directly to the rear panel of HPE racks. For additional information, please visit HPE Motivair Liquid Cooled Doors QuickSpecs here. |
|
|
Service and Support
|
HPE Services No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions. https://www.hpe.com/services
|
|
|
|
Consulting Services No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps. From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations. https://www.hpe.com/services/consulting |
|
|
|
HPE Managed Services HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. HPE Managed Services | HPE
|
|
|
|
Operational services Optimize your entire IT environment and drive innovation. Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes. https://www.hpe.com/services/operational |
|
|
|
HPE Complete Care Service HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts. HPE Complete Care Service provides:
https://www.hpe.com/services/completecare
|
|
|
|
HPE Tech Care Service HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare |
|
|
|
HPE Lifecycle Services HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle. A few popular examples include:
Notes:
To review the list of Lifecycle Services available for your product
go to: For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu
|
|
|
|
Other Related Services from HPE Services: HPE Education Services Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject. Schedule training in a way that works best for your business with flexible continuous learning options. https://www.hpe.com/services/training |
|
|
|
Defective Media Retention An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction. Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options. |
|
|
|
Parts and Materials HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. |
|
|
|
How to Purchase Services Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:
|
|
|
|
AI Powered and Digitally Enabled Support Experience Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience. Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent. https://support.hpe.com/hpesc/public/home/signin |
|
|
|
Consume IT On Your Terms HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.
To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html For more information http://www.hpe.com/services |
|
|
Additional Options
|
This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements. Notes: FIO indicates that this option is only available as a factory installable option. | |
|
Step 1: Choose a Chassis | |
|
HPE Apollo n2600 Gen10 Plus Small Form Factor Configure-to-order Chassis |
P19878-B21 |
|
HPE Apollo n2400 Gen10 Plus Configure-to-order Chassis |
P30036-B21 |
|
HPE Apollo n2800 Gen10 Plus Small Form Factor Configure-to-order Chassis |
P23142-B21 |
|
Notes: n2400 chassis does not support any type of drive backplane n2800 chassis supports Intel server nodes only | |
|
Choose a Backplane for n2600 chassis |
|
|
HPE n2600 Gen10 Plus 6SFF SAS/SATA HDD/SSD FIO Backplane Kit |
P20285-B21 |
|
HPE n2600 Gen10 Plus 4SFF U3 Premium HDD/SSD FIO Backplane Kit |
P20288-B21 |
|
HPE n2600 Gen10 Plus 6SFF U3 Premium HDD/SSD FIO Backplane Kit |
P20287-B21 |
|
HPE ProLiant XL225n Gen10 Plus 4SFF x4 U.3 Premium FIO Backplane Kit |
P43713-B21 |
|
HPE n2610 Gen10 Plus 6SFF SAS/SATA HDD/SSD FIO Backplane Kit with Broadcom |
P56318-B21 |
|
HPE n2610 Gen10 Plus 4SFF x2 NVMe/SAS FIO Backplane Kit with Broadcom |
P56322-B21 |
|
Notes: - For NVME drives on XL225n, select P43713-B21 backplane; P20288-B21 not selectable for NVME. - P20288-B21 backplane supports SAS/SATA drives and P408i-p/E208i-p controller must be selected with this backplane; Switch to P43713-B21 backplane when AHCI/SR100i controller is desired. Choose Zoning Options for n2800 chassis |
|
|
HPE n2800 Gen10 Plus FIO Drive Bay Zoning 1 Node |
P30069-B21 |
|
HPE n2800 Gen10 Plus FIO Drive Bay Zoning 2 Node |
P30070-B21 |
|
HPE n2800 Gen10 Plus FIO Drive Bay Zoning 3 Node |
P30071-B21 |
|
HPE n2800 Gen10 Plus FIO Drive Bay Zoning 4 Node |
P30072-B21 |
|
Notes: - Drive backplanes only compatible with n2600 chassis - When choosing P20285-B21 (HPE n2600 G10+ 6SFF SAS/SATA FIO BP Kit) 4 units must always be selected. This selection results in a total of 24 SFF SAS/SATA drives per chassis or 6 SAS/SATA drives per node. - When choosing P20288-B21 (HPE n2600 Gen10+ 4SFF U3 Prem FIO BP Kit) 2 units must always be selected. This selection results in a total of 8 SFF drives per chassis (2 SAS/SATA or 2 SFF NVMe drives per node) | |
|
| |
|
Step 2: Choose air cooling options | |
|
HPE air Cooling Options |
|
|
HPE Apollo 2000 Gen10 Plus Server Node Blank Kit |
P20280-B21 |
|
Notes: Required for any non-populated slots in the chassis for designed thermal performance, including system operation and node servicing | |
|
HPE n2x00 Gen10 Plus Fan Kit |
P20279-B21 |
|
Notes: - Must select quantity for fan modules: 0 fan kit; 1 fan kit for additional cooling - One fan kit contains 2 fans; chassis comes with default of 5 fans - Fan redundancy available with 5 or 7 dual-rotor fans depends on configuration | |
|
| |
|
Step 3: Choose the following rail kit and bracket per chassis | ||
|
HPE Rail Kits |
| |
|
HPE n2x00 Gen10 Plus 2U Shelf Mount Rail Kit |
P25006-B21 | |
|
Notes: Hewlett Packard Enterprise recommends that a minimum of two people are required for all rack installations. Please refer to your installation instructions for proper tools and number of people to use for any installation | ||
|
| ||
|
Step 4: Choose Base configuration | ||
|
Server Trays | ||
|
HPE ProLiant XL225n Gen10 Plus 1U Node Configure-to-order Server |
P21163-B21 | |
|
HPE ProLiant XL220n Gen10 Plus 1U Node Configure-to-order Server |
P19879-B21 | |
|
HPE ProLiant XL290n Gen10 Plus 2U Node Configure-to-order Server |
P19880-B21 | |
|
Notes: - Up to 4 single 1U half width server trays (XL22Xn Gen10 Plus) can be added to the HPE Apollo 2000 Gen10 Plus Chassis - Up to 2 single 2U half width server trays (XL290n) or 2 single 1U half width server tray with a single 2U half width server tray - Mixing of AMD and Intel nodes is not allowed | ||
|
Power supplies |
| |
|
HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
830272-B21 | |
|
HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
P38997-B21 | |
|
HPE 1800W-2200W Flex Slot Platinum Hot Plug Power Supply Kit |
876935-B21 | |
|
HPE 3000W 200-277VAC Platinum Hot Plug Power Supply |
P24681-B21 | |
|
HPE 3000W 12V Output 200-277VAC Titanium Hot Plug Power Supply |
P47526-B21 | |
|
HPE n2x00 Gen10 Plus Flex Slot Power Interface Board |
P20283-B21 | |
|
HPE n2x00 Gen10 Plus 3000W Power Interface Board |
P20284-B21 | |
|
Notes: - If choosing the 1600W PS or the 1800-2200W PS, then P20283-B21 is required - 830272-B21 is used for AMD 7002 (2nd generation) series processor systems - P38997-B21 is used for AMD 7003 (3rd generation) series and all Intel processor systems - If choosing the 3000W PS, then P20284-B21 is required - 3000W PS is 95% power efficiency (Platinum 80 Plus certified) - Power supplies cannot be mixed - 1800-2200W power supply (876935-B21) requires the selection of one power cord per power supply - If choosing the 3000W PS, then a power cord must be selected from 3000W power cord section; one power cord required per power supply - 2000 chassis is 4000W | ||
|
Power Cords for 3000W PS |
| |
|
HPE SDG300 - C20 250V 16Amp Black 0.5m Jumper Cord |
P24672-B21 | |
|
HPE SDG300 - C20 250V 16Amp Black 1m Jumper Cord |
P24675-B21 | |
|
HPE SDG300 - C20 250V 16Amp Black 2m Jumper Cord |
P24678-B21 | |
|
HPE SDG300 - C20 250V 16Amp 2m IN Jumper Cord |
P56012-B21 | |
|
HPE SDG23A-SDG23B 277V 0.76m Jumper Cord |
P9B75A | |
|
HPE SDG23A-SDG23B 277V 2.0m Jumper Cord |
P9B77A | |
|
Notes: 3000W Power Supply (P24681-B21) requires selection of one of above power cords; one power cord required per power supply | ||
|
Power Cords for 1800-2200W PS | ||
|
HPE C15 EU 250V 10Amp 2.5m Black Power Cord |
Q7F45A | |
|
HPE C15 UK 250V 10Amp 2.5m Black Power Cord |
Q7F46A | |
|
HPE C15 US 250V 10Amp 2.5m Black Jumper Cord |
Q7F57A | |
|
HPE C15 EU 250V 10Amp 0.76m Black Jumper Cord |
Q7F60A | |
|
HPE C15 US 250V 10Amp 1m Black Jumper Cord |
Q7F61A | |
|
HPE C15 EU 250V 10Amp 1m Black Jumper Cord |
Q7F62A | |
|
HPE C15-C14 IN 250V 10Amp 2.5m Black Jumper Cord |
R1C67A | |
|
HPE C15-C14 IN 250V 10Amp 1m Black Jumper Cord |
R1C68A | |
|
Notes: 1800-2200W Power Supply (876935-B21) requires selection of one of above power cords; one power cord required per power supply | ||
|
Power Cords for 1600W PS |
| |
|
HPE C13 - C14 WW 250V 10Amp 2.0m Jumper Cord |
A0K02A | |
|
HPE C13-NEMA 6-15P 10A/250V 3.6m Black Power Cord |
A0N33A | |
|
HPE C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord |
AF556A | |
|
HPE C13 - GB-1002 CN 250V 10Amp 1.83m Power Cord |
AF557A | |
|
HPE C13 - IRAM -2073 AR 250V 10A 2.5m Power Cord |
AF558A | |
|
HPE C13 - Nema 5-15P TH/PH 250V 10Amp 1.83m Power Cord |
AF559A | |
|
HPE C13 - KSC- 8305 KR 250V 10Amp 1.83m Power Cord |
AF560A | |
|
HPE C13 - CNS-690 TW 110V 13Amp 1.83m Power Cord |
AF561A | |
|
HPE C13 - IS-1293 IN 240V 6Amp LV 2.0m Power Cord |
AF562A | |
|
HPE C13 - SI-32 IL 250V 10Amp 1.83m Power Cord |
AF564A | |
|
HPE C13 - SEV 1011 CH 250V 10Amp 1.83m Power Cord |
AF565A | |
|
HPE C13 - DK-2.5A DK 250V 10Amp 1.83m Power Cord |
AF566A | |
|
HPE C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord |
AF567A | |
|
HPE C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord |
AF568A | |
|
HPE C13 - AS3112-3 AU 250V 10Amp 2.5m Power Cord |
AF569A | |
|
HPE C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord |
AF570A | |
|
HPE C13 - JIS C8303 JP 100V 12Amp 2.0m Power Cord |
AF572A | |
|
HPE C13 - C14 WW 250V 10Amp Flint Gray 2.0m Jumper Cord |
AF573A | |
|
HPE C13 - NBR-14136 BR 250V 10Amp 1.83m Power Cord |
AF591A | |
|
HPE C13-C14 IN 250V 10Amp 2m Black Jumper Cord |
R1C65A | |
|
Notes: Above Power cords are compatible with 1600W Power Supply kit (830272-B21) only |
| |
|
| ||
|
Step 5: Choose from chassis options |
|
|
RCM Module |
|
|
HPE n2x00 Gen10 Plus Rack Consolidation Module Kit |
P20290-B21 |
|
Notes: - The RCM (Rack Consolidation Management) module kit which allows iLO aggregation at the chassis level and the port for the HPE APM is optional on all chassis. The RCM Module consists of 2 iLO ports for redundancy. It can also be daisy chained to connect to a Top of the Rack (TOR) management switch. - If using the RCM module iLO port to connect to a network, the network must operate at a speed of Mbps. On-board shared iLO management port could be run at 10/100/1000 Mbps network speed. | |
|
HPE Apollo 2000 Rack Consolidation Module 2.0-1.0 Adapter Kit |
800063-B21 |
|
Notes: 800063-B21 is required if there is one APM in the rack and more than 10 Apollo 2000 Gen10 plus chassis | |
|
HPE Advanced Power Manager |
|
|
HPE Apollo Platform Manager Kit |
741192-B21 |
|
HPE Apollo Platform Manager Distribution Module Kit |
620002-B21 |
|
Notes: - 741192-B21 is an optional kit, however it is highly recommended to enable power capping and aggregated power control using a single dashboard. Each HPE APM can connect up to 10 chassis via consolidated chassis management cables - 620002-B21 is required if there is one APM in the rack and more than 10 Apollo 2000 Gen10 plus chassis. Each APMD can connect up to 10 chassis. - Refer to HPE APM QuickSpecs for further details at https://h20195.www2.hpe.com/v2/GetPDF.aspx/c04111481.pdf | |
|
| |
|
Step 6: Choose between Air Cooled or Liquid Cooled required options | |
|
Notes: For Air Cooling options, skip to step 7. | |
|
Step 6a: Choose between Direct Liquid Cooling of Processor Only (L22) or Processor plus Memory (L23). Select one (1) SKU for each server configuration. Cannot be configured with an Air Cooled option. Notes: For DLC Processor plus Memory, skip to step 6b. | |
|
Intel DLC Kit for Processor only - XL220n |
|
|
Intel Xeon-Platinum 8380 2.3GHz 40-core 270W FIO DLC Processor for HPE ProLiant XL220n Gen10 Plus |
P36816-L22 |
|
Intel Xeon-Platinum 8368 2.4GHz 38-core 270W FIO DLC Processor for HPE ProLiant XL220n Gen10 Plus |
P36815-L22 |
|
Intel Xeon-Platinum 8360Y 2.4GHz 36-core 250W FIO DLC Processor for HPE ProLiant XL220n Gen10 Plus |
P36814-L22 |
|
Intel Xeon-Platinum 8358 2.6GHz 32-core 250W FIO DLC Processor for HPE ProLiant XL220n Gen10 Plus |
P36813-L22 |
|
Intel Xeon-Gold 6348 2.6GHz 28-core 235W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36812-L22 |
|
Intel Xeon-Gold 6330 2.0GHz 28-core 205W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36802-L22 |
|
Intel Xeon-Gold 6338 2.0GHz 32-core 205W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36803-L22 |
|
Intel Xeon-Platinum 8352Y 2.2GHz 32-core 205W FIO DLC Processor for HPE ProLiant XL220n Gen10 Plus |
P36804-L22 |
|
Intel Xeon-Gold 6346 3.1GHz 16-core 205W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36809-L22 |
|
Intel Xeon-Gold 6354 3.0GHz 18-core 205W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36810-L22 |
|
Intel Xeon-Silver 4309Y 2.8GHz 8-core 105W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36795-L22 |
|
Intel Xeon-Silver 4310 2.1GHz 12-core 120W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36796-L22 |
|
Intel Xeon-Silver 4314 2.4GHz 16-core 135W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36797-L22 |
|
Intel Xeon-Silver 4316 2.3GHz 20-core 150W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36798-L22 |
|
Intel Xeon-Gold 5318Y 2.1GHz 24-core 165W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36799-L22 |
|
Intel Xeon-Gold 5320 2.2GHz 26-core 185W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36800-L22 |
|
Intel Xeon-Gold 6336Y 2.4GHz 24-core 185W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36801-L22 |
|
Intel Xeon-Gold 5315Y 3.2GHz 8-core 140W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36805-L22 |
|
Intel Xeon-Gold 5317 3.0GHz 12-core 150W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36806-L22 |
|
Intel Xeon-Gold 6326 2.9GHz 16-core 185W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36807-L22 |
|
Intel Xeon-Gold 6334 3.6GHz 8-core 165W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36808-L22 |
|
Intel Xeon-Gold 6342 2.8GHz 24-core 230W FIO DLC Processor Kit for HPE ProLiant XL220n Gen10 Plus |
P36811-L22 |
|
Notes: - All DLC Processor kits come with 2 processors and 1 node cooling loop for processors - Min 2 memory required per DLC processor kit - If DLC processor kit is chosen slot 1 in the server can no longer be used for the HPE XL2xxn Gen10 Plus LP Left Riser kit (P20260-B21) | |
|
Step 6b: Choose Direct Liquid Cooled Kit for Processor plus Memory | |
|
Intel DLC Kit for Processor plus Memory - XL220n | |
|
Intel Xeon-Platinum 8380 2.3GHz 40-core 270W FIO DLC CPU/Memory for HPE ProLiant XL2x0n Gen10 Plus |
P36816-L23 |
|
Intel Xeon-Platinum 8368 2.4GHz 38-core 270W FIO DLC CPU/Memory for HPE ProLiant XL2x0n Gen10 Plus |
P36815-L23 |
|
Intel Xeon-Platinum 8360Y 2.4GHz 36-core 250W FIO DLC CPU/Memory for HPE ProLiant XL2x0n Gen10 Plus |
P36814-L23 |
|
Intel Xeon-Platinum 8358 2.6GHz 32-core 250W FIO DLC CPU/Memory for HPE ProLiant XL2x0n Gen10 Plus |
P36813-L23 |
|
Intel Xeon-Gold 6348 2.6GHz 28-core 235W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36812-L23 |
|
Intel Xeon-Gold 6330 2.0GHz 28-core 205W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36802-L23 |
|
Intel Xeon-Gold 6338 2.0GHz 32-core 205W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36803-L23 |
|
Intel Xeon-Platinum 8352Y 2.2GHz 32-core 205W FIO DLC CPU/Memory for HPE ProLiant XL2x0n Gen10 Plus |
P36804-L23 |
|
Intel Xeon-Gold 6346 3.1GHz 16-core 205W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36809-L23 |
|
Intel Xeon-Gold 6354 3.0GHz 18-core 205W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36810-L23 |
|
Intel Xeon-Silver 4309Y 2.8GHz 8-core 105W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36795-L23 |
|
Intel Xeon-Silver 4310 2.1GHz 12-core 120W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36796-L23 |
|
Intel Xeon-Silver 4314 2.4GHz 16-core 135W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36797-L23 |
|
Intel Xeon-Silver 4316 2.3GHz 20-core 150W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36798-L23 |
|
Intel Xeon-Gold 5318Y 2.1GHz 24-core 165W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36799-L23 |
|
Intel Xeon-Gold 5320 2.2GHz 26-core 185W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36800-L23 |
|
Intel Xeon-Gold 6336Y 2.4GHz 24-core 185W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36801-L23 |
|
Intel Xeon-Gold 5315Y 3.2GHz 8-core 140W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36805-L23 |
|
Intel Xeon-Gold 5317 3.0GHz 12-core 150W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36806-L23 |
|
Intel Xeon-Gold 6326 2.9GHz 16-core 185W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36807-L23 |
|
Intel Xeon-Gold 6334 3.6GHz 8-core 165W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36808-L23 |
|
Intel Xeon-Gold 6342 2.8GHz 24-core 230W FIO DLC CPU/Memory Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36811-L23 |
|
Notes: - All DLC Processor kits come with 2 processors and 1 node cooling loop for processors and memory - For L23 SKUs all memory slots must be populated - If DLC processor kit is chosen slot 1 in the server can no longer be used for the HPE XL2xxn Gen10 Plus LP Left Riser kit (P20260-B21) | |
|
DLC Installation kit | |
|
Notes: 1 installation kit needed per site install | |
|
| |
|
Step 7: Choose from Air Cooled Processor options (cannot be configured with a DLC option) | |||
|
Notes: - Certain limitations may apply to select processors, please contact your HPE sales representative - All AMD EPYC processors can support up to 2TB of memory each - Please contact your HPE sales representatives for any questions on processor support needed | |||
|
AMD Processors - Factory Integrated Processor Kit for XL225n |
| ||
|
AMD EPYC 7713 2.0GHz 64-core 225W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38730-L21 | ||
|
AMD EPYC 7663 2.0GHz 56-core 240W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38729-L21 | ||
|
AMD EPYC 7643 2.3GHz 48-core 225W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P39472-L21 | ||
|
AMD EPYC 7543 2.8GHz 32-core 225W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38728-L21 | ||
|
AMD EPYC 7513 2.6GHz 32-core 200W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38727-L21 | ||
|
AMD EPYC 7453 2.75GHz 28-core 225W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38725-L21 | ||
|
AMD EPYC 7443 2.85GHz 24-core 200W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38726-L21 | ||
|
AMD EPYC 7413 2.65GHz 24-core 180W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38724-L21 | ||
|
AMD EPYC 7343 3.2GHz 16-core 190W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38723-L21 | ||
|
AMD EPYC 7313 3.0GHz 16-core 155W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38722-L21 | ||
|
AMD EPYC 74F3 3.2GHz 24-core 240W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38734-L21 | ||
|
AMD EPYC 73F3 3.5GHz 16-core 240W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38733-L21 | ||
|
AMD EPYC 72F3 3.7GHz 8-core 180W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38732-L21 | ||
|
AMD EPYC 7713P 2.0GHz 64-core 225W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38739-L21 | ||
|
AMD EPYC 7543P 2.8GHz 32-core 225W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38738-L21 | ||
|
AMD EPYC 7443P 2.85GHz 24-core 200W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38737-L21 | ||
|
AMD EPYC 7313P 3.0GHz 16-core 155W FIO Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38736-L21 | ||
|
Intel Processors - Factory Integrated Processor Kit for XL220n & XL290n | |||
|
Intel Xeon-Platinum 8380 2.3GHz 40-core 270W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36816-L21 | ||
|
Intel Xeon-Platinum 8368 2.4GHz 38-core 270W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36815-L21 | ||
|
Intel Xeon-Platinum 8360Y 2.4GHz 36-core 250W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36814-L21 | ||
|
Intel Xeon-Platinum 8358 2.6GHz 32-core 250W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36813-L21 | ||
|
Intel Xeon-Gold 6348 2.6GHz 28-core 235W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36812-L21 | ||
|
Intel Xeon-Gold 6330 2.0GHz 28-core 205W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36802-L21 | ||
|
Intel Xeon-Gold 6338 2.0GHz 32-core 205W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36803-L21 | ||
|
Intel Xeon-Platinum 8352Y 2.2GHz 32-core 205W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36804-L21 | ||
|
Intel Xeon-Gold 6346 3.1GHz 16-core 205W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36809-L21 | ||
|
Intel Xeon-Gold 6354 3.0GHz 18-core 205W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36810-L21 | ||
|
Intel Xeon-Silver 4309Y 2.8GHz 8-core 105W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36795-L21 | ||
|
Intel Xeon-Silver 4310 2.1GHz 12-core 120W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36796-L21 | ||
|
Intel Xeon-Silver 4314 2.4GHz 16-core 135W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36797-L21 | ||
|
Intel Xeon-Silver 4316 2.3GHz 20-core 150W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36798-L21 | ||
|
Intel Xeon-Gold 5318Y 2.1GHz 24-core 165W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36799-L21 | ||
|
Intel Xeon-Gold 5320 2.2GHz 26-core 185W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36800-L21 | ||
|
Intel Xeon-Gold 6336Y 2.4GHz 24-core 185W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36801-L21 | ||
|
Intel Xeon-Gold 5315Y 3.2GHz 8-core 140W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36805-L21 | ||
|
Intel Xeon-Gold 5317 3.0GHz 12-core 150W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36806-L21 | ||
|
Intel Xeon-Gold 6326 2.9GHz 16-core 185W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36807-L21 | ||
|
Intel Xeon-Gold 6334 3.6GHz 8-core 165W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36808-L21 | ||
|
Intel Xeon-Gold 6342 2.8GHz 24-core 230W FIO Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36811-L21 | ||
|
Notes: - Must select one xxxxxx-L21 processor. If one processor is desired, select one xxxxxx-L21. If two processors are desired, select one corresponding xxxxxx-B21. Mixing of processor speeds and types is not supported. - DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed. For the maximum supported memory speeds for each processor listed above, please reference the 'Memory Speed by Processor Model' table in the Memory section of the QuickSpecs - P type processors are 1P socket count ONLY. Cannot be mixed with any other processor. | |||
|
AMD Processors - Processor Kit for XL225n |
| ||
|
AMD EPYC 7713 2.0GHz 64-core 225W Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38730-B21 | ||
|
AMD EPYC 7663 2.0GHz 56-core 240W Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38729-B21 | ||
|
AMD EPYC 7643 2.3GHz 48-core 225W Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P39472-B21 | ||
|
AMD EPYC 7543 2.8GHz 32-core 225W Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38728-B21 | ||
|
AMD EPYC 7513 2.6GHz 32-core 200W Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38727-B21 | ||
|
AMD EPYC 7453 2.75GHz 28-core 225W Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38725-B21 | ||
|
AMD EPYC 7443 2.85GHz 24-core 200W Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38726-B21 | ||
|
AMD EPYC 7413 2.65GHz 24-core 180W Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38724-B21 | ||
|
AMD EPYC 7343 3.2GHz 16-core 190W Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38723-B21 | ||
|
AMD EPYC 7313 3.0GHz 16-core 155W Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38722-B21 | ||
|
AMD EPYC 74F3 3.2GHz 24-core 240W Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38734-B21 | ||
|
AMD EPYC 73F3 3.5GHz 16-core 240W Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38733-B21 | ||
|
AMD EPYC 72F3 3.7GHz 8-core 180W Processor Kit for HPE ProLiant XL225n Gen10 Plus |
P38732-B21 | ||
|
Intel Processors - Processor Kit for XL220n & XL290n | |||
|
Intel Xeon-Platinum 8380 2.3GHz 40-core 270W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36816-B21 | ||
|
Intel Xeon-Platinum 8368 2.4GHz 38-core 270W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36815-B21 | ||
|
Intel Xeon-Platinum 8360Y 2.4GHz 36-core 250W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36814-B21 | ||
|
Intel Xeon-Platinum 8358 2.6GHz 32-core 250W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36813-B21 | ||
|
Intel Xeon-Gold 6348 2.6GHz 28-core 235W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36812-B21 | ||
|
Intel Xeon-Gold 6330 2.0GHz 28-core 205W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36802-B21 | ||
|
Intel Xeon-Gold 6338 2.0GHz 32-core 205W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36803-B21 | ||
|
Intel Xeon-Platinum 8352Y 2.2GHz 32-core 205W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36804-B21 | ||
|
Intel Xeon-Gold 6346 3.1GHz 16-core 205W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36809-B21 | ||
|
Intel Xeon-Gold 6354 3.0GHz 18-core 205W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36810-B21 | ||
|
Intel Xeon-Silver 4309Y 2.8GHz 8-core 105W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36795-B21 | ||
|
Intel Xeon-Silver 4310 2.1GHz 12-core 120W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36796-B21 | ||
|
Intel Xeon-Silver 4314 2.4GHz 16-core 135W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36797-B21 | ||
|
Intel Xeon-Silver 4316 2.3GHz 20-core 150W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36798-B21 | ||
|
Intel Xeon-Gold 5318Y 2.1GHz 24-core 165W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36799-B21 | ||
|
Intel Xeon-Gold 5320 2.2GHz 26-core 185W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36800-B21 | ||
|
Intel Xeon-Gold 6336Y 2.4GHz 24-core 185W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36801-B21 | ||
|
Intel Xeon-Gold 5315Y 3.2GHz 8-core 140W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36805-B21 | ||
|
Intel Xeon-Gold 5317 3.0GHz 12-core 150W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36806-B21 | ||
|
Intel Xeon-Gold 6326 2.9GHz 16-core 185W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36807-B21 | ||
|
Intel Xeon-Gold 6334 3.6GHz 8-core 165W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36808-B21 | ||
|
Intel Xeon-Gold 6342 2.8GHz 24-core 230W Processor Kit for HPE ProLiant XL2x0n Gen10 Plus |
P36811-B21 | ||
|
Notes: - DDR4 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed. For the maximum supported memory speeds for each processor listed above, please reference the 'Memory Speed by Processor Model' table in the Memory section of the QuickSpecs P type processors are 1P socket count ONLY. Cannot be mixed with any other processor. | |||
|
| |||
|
Step 8: Choose Additional Options from Core and Additional Options sections below | |||
|
HPE Memory |
| ||
|
Registered DIMMs (RDIMMs for AMD platform) |
| ||
|
HPE 8GB (1x8GB) Single Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P07638-H21 | ||
|
HPE 16GB (1x16GB) Single Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P07640-H21 | ||
|
HPE 16GB (1x16GB) Dual Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P07642-H21 | ||
|
HPE 32GB (1x32GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P07646-H21 | ||
|
HPE 64GB (1x64GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P07650-H21 | ||
|
Registered DIMMs (RDIMMs for Intel platform) |
| ||
|
HPE 8GB (1x8GB) Single Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P07525-H21 | ||
|
HPE 16GB (1x16GB) Single Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P06029-H21 | ||
|
HPE 16GB (1x16GB) Dual Rank x8 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P06031-H21 | ||
|
HPE 32GB (1x32GB) Single Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P40007-H21 | ||
|
HPE 32GB (1x32GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P06033-H21 | ||
|
HPE 64GB (1x64GB) Dual Rank x4 DDR4-3200 CAS-22-22-22 Registered Smart Memory Kit |
P06035-H21 | ||
|
Notes: - Intel Optane 512GB only available on XL220n. Intel Optane memory not supported with VMWare - Minimum 1 DIMM are required per server; up to 8 DIMMs per processor. - A maximum of 16 DIMMs are supported per XL22Xn server tray (or 8 DIMMs max per processor). - LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server. - No mixing of x4 and x8 memory allowed - To maximize performance in most potential applications, it is recommended to balance the total memory capacity across all installed processors. Load the channels similarly whenever possible to enable optimal interleaving. - HPE memory from previous generation servers is not compatible with this server. HPE Smart Memory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen10 Plus. For additional information, please see the HPE Smart Memory QuickSpecs at: https://www.hpe.com/h20195/v2/GetPDF.aspx/c04355083.pdf
- Memory Population Table or the Online Memory Configuration Tool can be found at: https://h20195.www2.hpe.com/v2/Getdocument.aspx?docname=a00038346enw https://www.hpe.com/docs/amd-population-rules-Gen10plus | |||
|
| |||
|
HPE PCIe riser kits |
| ||
|
All Server Node Compatible - HPE XL2xxn |
| ||
|
HPE XL2xxn Gen10 Plus Low Profile Left Riser Kit |
P20260-B21 | ||
|
Notes: - To support SATA drives a right riser selection is required - If DLC option is chosen Left Riser kit cannot be ordered - HPE XL2xxn Gen10 Plus Low Profile Left Riser Kit total available PCIe slots is one (1x16) - HPE XL2xxn Gen10 Plus Low Profile Left Riser Kit & HPE XL22xn G10+ LP CPU1 Right Riser Kit P20261-B21 total available PCIe slots is two (2x16) - HPE XL2xxn Gen10 Plus Low Profile Left Riser & HPE XL22xn G10+ LP CPU2 Right Riser Kit P20264-B21 total available PCIe slots is two (2x16). When P20264-B21 riser is installed, PCIe Gen4 devices installed in this riser will only operate at PCIe Gen3 speeds (8 GT/s)HPE XL2xxn Gen10 Plus Low Profile Left Riser Kit & HPE XL225n Gen10+ LP CPU1 NVMe Riser Kit P22337-B21 total available PCIe slots is two (2x16) HPE XL2xxn Gen10 Plus Low Profile Left Riser Kit & HPE XL225n Gen10+ LP CPU1 NVMe Riser Kit P22337-B21 total available PCIe slots is two (2x16) | |||
|
HPE XL2xxn Gen10 Plus USB Mezzanine Riser Kit |
P20291-B21 |
|
Notes: - Can choose either P20291-B21 USB Mezz riser or P20292-B21 NVME boot controller not both - Riser does not take up a PCIe slot in the system |
|
|
HPE XL220n & XL225n Compatible |
|
|
HPE XL22xn Gen10 Plus Low Profile CPU1 Right Riser Kit |
P20261-B21 |
|
HPE XL225n Gen10 Plus 4SFF x4 NVMe/SAS FIO Backplane Kit with Broadcom |
P56314-B21 |
|
Notes: - HPE XL22xn G10+ LP CPU1 Right Riser Kit & HPE XL2xxn Gen10 Plus Low Profile Left Riser Kit (P20260-B21) total available PCIe slots is two (2x16) - This riser can support SAS/SATA drives | |
|
HPE XL22xn Gen10 Plus Low Profile CPU2 Right Riser Kit |
P20264-B21 |
|
Notes: - HPE XL22xn G10+ LP CPU2 Right Riser Kit & HPE XL2xxn Gen10 Plus Low Profile Left Riser Kit (P20260-B21) total available PCIe slots is two (2x16) - This riser can support SAS/SATA drives - PCIe devices installed in this riser are limited to PCIe Gen3 speeds | |
|
HPE XL220n Exclusive |
|
|
HPE XL220n Gen10 Plus Low Profile CPU1 Direct Attach NVMe Right Riser Kit |
P20263-B21 |
|
Notes: - Select up to one NVMe Riser kit. - This riser must be selected if "HPE n2600 Gen10+ 4SFF U3 Prem FIO BP Kit" or "HPE n2600 Gen10+ 6SFF U3 Prem FIO BP Kit" is selected in the Chassis and U.3 NVMe drive is selected in this Node. Each riser can support Six U.3 NVMe drives per Node. - Requires 2 CPUs if selected with "HPE n2600 Gen10+ 4SFF U3 Prem FIO BP Kit" or "HPE n2600 Gen10+ 6SFF U3 Prem FIO BP Kit" and U.3 NVMe drive. | |
|
HPE XL225n Exclusive |
|
|
HPE XL225n Gen10 Plus Low Profile CPU1 Direct Attach NVMe Right Riser Kit |
P22337-B21 |
|
Notes: - This riser must be chosen if HPE n2600 Gen10plus 4 SFF U.3 Prem FIO BP Kit is selected in the chassis and U.3 NVMe drive is selected in this node. Can support two NVMe drives direct CPU2 per node. - Requires 2 CPUs if selected with HPE n2600 Gen10plus 4 SFF U.3 Prem FIO BP Kit - HPE XL225n Gen10+ LP CPU1 NVMe Riser Kit & HPE XL2xxn Gen10 Plus Low Profile Left Riser Kit (P20260-B21) total available PCIe slots is two (2x16) | |
|
HPE XL290n Exclusive |
|
|
HPE XL290n Gen10 Plus CPU1/2 Right Riser Kit |
P20266-B21 |
|
HPE XL290n Gen10 Plus MR216i-p/MR416i-p Cable Kit |
P56338-B21 |
|
HPE XL290n Gen10 Plus 4GPU MR216i-p/MR416i-p Cable Kit |
P56341-B21 |
|
HPE XL290n Gen10 Plus CPU1/2 Direct Attach NVMe Right Riser Kit |
P20268-B21 |
|
HPE XL290n Gen10 Plus CPU2 Right Riser Kit |
P20269-B21 |
|
Notes: Select up to one Right Riser kit above. Two (2) CPUs required. | |
|
HPE XL290n Gen10 Plus 4x GPU Right Riser Kit |
P20293-B21 |
|
Notes: - If this riser is selected and Node gets integrated into Chassis (n2400/ n2600), then chassis must contain a minimum of two identical nodes or two Blank Kits (P20280-B21) must be ordered. - Cannot be selected with NVMe drives. - Cannot be selected with n2800 Chassis - Two (2) CPUs required. Maximum of one (1) right riser. - Minimum Two PCIe cards (InfiniBand / PCIe Accelerators) must be ordered. | |
|
Graphic Card Accessories |
| ||||||||||||||||||||||||
|
HPE XL290n Gen10 Plus GPU Enablement Kit |
P26213-B21 | ||||||||||||||||||||||||
|
HPE ProLiant XL290n Gen10 Plus CPU 8-pin Cable Kit for NVIDIA GPU |
P20276-B21 | ||||||||||||||||||||||||
|
HPE XL290n Gen10 Plus Slot 5 Adapter Kit |
P25636-B21 | ||||||||||||||||||||||||
|
HPE XL290 Gen10 Plus 4xGPU PCIe 2x8p Slot5/Slot6 Cable Kit |
P25472_B21 | ||||||||||||||||||||||||
|
HPE XL290n Gen10 Plus MR216i-p/MR416i-p Cable Kit |
P56338-B21 | ||||||||||||||||||||||||
|
HPE XL290n Gen10 Plus 4GPU MR216i-p/MR416i-p Cable Kit |
P56341-B21 | ||||||||||||||||||||||||
|
Notes: The following table summarizes the configuration options for risers associated with GPU cards
Notes: - P26213-B21 HPE XL290 Gen10+ GPU Enable Kit is required when ordering 4xGPU Right Riser (P20293-B21) and NVIDIA T4 16GB Module (R0W29A) - HPE XL290n Gen10+ NVIDIA CPU 8p kit (P20276-B21) and HPE XL290n Gen10+ Slot 5 Adptr Kit (P25636-B21) are required when ordering one or two NVIDIA A100 80GB GPU (R6B53A) - HPE XL290 Gen10 Plus 4xGPU 2x8p slot 3/Slot4 Cable (P25469-B21) required when ordering Xilinix U50 GPU for slot 3 and 4 - HPE XL290 Gen10 Plus 4xGPU PCIe 2x8p Slot 5/Slot 6 Cable (P25472-B21) required when ordering Xilinx U50 for slot 5 and 6 - Both P25469-B21 and P25472-B21 cables are required when 4 Xilinx U50 GPU are ordered | |||||||||||||||||||||||||
|
Boot Controller |
| ||||||||||||||||||||||||
|
HPE NS204i-t Gen10 Plus x2 Lanes NVMe PCIe 3 x8 Boot Controller |
P20292-B21 | ||||||||||||||||||||||||
|
Notes: - OS Boot controller RAID1 (not configurable) . Requires the selection of 2x 480GB NVMe M.2 devices. Riser does not take up a PCIe slot in the system - Can choose either P20291-B21 USB Mezz riser or P20292-B21 NVME boot controller not both. |
| ||||||||||||||||||||||||
|
HPE Storage Controller |
| ||||||||||||||||||||||||
|
Notes: Required to select one of the following when SAS Drives are installed on the server |
| ||||||||||||||||||||||||
|
HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller |
804394-B21 | ||||||||||||||||||||||||
|
Notes: - Supports up to 6 internal SAS/SATA Drives - Requires the selection of a Right Riser kit - Requires selection of HPE XL22xn Gen10+ E208ip/P408ip Cbl Kit (P20271-B21) |
| ||||||||||||||||||||||||
|
HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller |
804398-B21 | ||||||||||||||||||||||||
|
Notes: - Supports 0 internal SAS/SATA Drives. - Requires the selection of Left or Right Riser kit - This controller may support- SAS tape device (external), SAS Storage (external) |
| ||||||||||||||||||||||||
|
HPE Smart Array P408e-p SR Gen10 (8 External Lanes/4GB Cache) 12G SAS PCIe Plug-in Controller |
804405-B21 | ||||||||||||||||||||||||
|
Notes: - Supports 0 internal SAS/SATA Drives - Requires the selection of Left or Right Riser kit - This controller may support- SAS tape device (external), SAS Storage (external) - The battery cable kit needs to be selected if the node has the P series controller in the node configuration | |||||||||||||||||||||||||
|
HPE Smart Array P408i-p SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS PCIe Plug-in Controller |
830824-B21 | ||||||||||||||||||||||||
|
Notes: - Supports up to 6 internal SAS/SATA Drives. - Requires the selection of a Right Riser kit. - Requires selection of HPE XL22xn Gen10+ E208ip/P408ip Cbl Kit (P20271-B21) - The battery cable kit needs to be selected if the node has the P series controller in the node configuration | |||||||||||||||||||||||||
|
HPE Storage Cables |
| ||||||||||||||||||||||||
|
HPE XL225n Gen10 Plus SATA Cable Kit |
P24055-B21 | ||||||||||||||||||||||||
|
HPE ProLiant XL22xn Gen10 Plus MR216i-p/MR416i-p Cable Kit |
P56335-B21 | ||||||||||||||||||||||||
|
Notes: Required when AHCI is the primary controller; supports to connect to SATA drives; select 1 cable kit/node | |||||||||||||||||||||||||
|
HPE XL22xn Gen10 Plus Smart Array E208ip/P408ip Cable |
P20271-B21 | ||||||||||||||||||||||||
|
Notes: Required to be selected when E208i-p or P408i-p is selected with HPE n2600 G10+ 6SFF SAS/SATA FIO BP Kit or with "HPE n2600 Gen10+ 4SFF U3 Prem FIO BP Kit" and no NVMe drive is selected for this drive cage | |||||||||||||||||||||||||
|
HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit |
P01366-B21 | ||||||||||||||||||||||||
|
Notes: The battery cable kit needs to be selected if the node has the P series controller in the node configuration | |||||||||||||||||||||||||
|
| |||||||||||||||||||||||||
|
Step 9: Choose Additional Factory Integrated Options (only one from each category unless otherwise noted) | |||||||||||||||||||||||||
|
BIOS Model |
| ||||||||||||||||||||||||
|
HPE Legacy FIO Mode Setting |
758959-B22 | ||||||||||||||||||||||||
|
Notes: The system BIOS provides two different Boot Modes: UEFI (Standard) and Legacy BIOS (optional).When this option is selected, then BIOS need to be switched from default UEFI Mode to Legacy Mode | |||||||||||||||||||||||||
|
|
|
HPE Security Hardware |
|
|
HPE Gen10 TPM 1.2 FIO Setting |
872108-B21 |
|
Notes: - This can be selected only when HPE Gen10 Plus TPM WR Module Kit (P17413-B21) is selected - HPE Gen10 Plus TPM WR Module Kit (P17413-B21) UEFI Mode (default) can support either TPM 1.2 or TPM 2.0. The default mode is the TPM 2.0 mode. | |
|
| |
|
Raid Settings |
|
|
HPE RAID 0 Drive 1 FIO Setting |
339777-B21 |
|
HPE RAID 1 Drive 1 FIO Setting |
339778-B21 |
|
HPE RAID 5 Drive 1 FIO Setting |
339779-B21 |
|
HPE Raid 5 w/SP Drive 1 FIO Setting |
339780-B21 |
|
HPE RAID FIO Advanced Data Guarding Option |
339781-B21 |
|
HPE Customer Defined RAID Setting Service |
389692-B21 |
|
Controller state | |
|
HPE SR100i Gen10 Plus FIO Software RAID |
P28417-B21 |
|
Notes: - Embedded Controller works in either AHCI Mode or SR100i Mode. - By default, Embedded controller will work in "AHCI Mode" - If "P28417-B21 - HPE SR100i Gen10+ Software RAID", then Embedded controller will work in "SR100i Mode" - If chosen RAID supportability for SATA is RAID0,1 & 5 - HPE Smart Array SR100i Gen10 Plus Software RAID only supports Windows and does not support Linux or VMware on Gen10 Plus servers - P28417-B21 is only supported if P20285-B21 HPE n2600 Gen10 Plus 6SFF SAS/SATA HDD/SSD FIO Backplane Kit is chosen | |
|
HPE Networking |
|
|
Ethernet Options |
|
|
Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE |
P08443-B21 |
|
Intel I350-T4 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE |
P08449-B21 |
|
Mellanox MCX562A-ACAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE |
P10112-B21 |
|
Mellanox MCX512F-ACHT Ethernet 10/25Gb 2-port SFP28 Adapter for HPE |
P13188-B21 |
|
Intel I350-T4 Ethernet 1Gb 4-port BASE-T Adapter for HPE |
P21106-B21 |
|
Xilinx X2522-25G-PLUS Ethernet 10/25Gb 2-port SFP28 Adapter for HPE |
P21109-B21 |
|
Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE |
P10115-B21 |
|
Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE |
P26253-B21 |
|
Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE |
P26256-B21 |
|
Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE |
P26259-B21 |
|
Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 Adapter for HPE |
P26262-B21 |
|
Mellanox MCX623106AS-CDAT Ethernet 100Gb 2-port QSFP56 Adapter for HPE |
P25960-B21 |
|
Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE |
P10097-B21 |
|
Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE |
P10106-B21 |
|
Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE |
P08458-B21 |
|
Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE |
P51178-B21 |
|
Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE |
P51181-B21 |
|
Notes: - For 1U, total Slots available for PCIe is 2, total Slots available for OCP3.0 is 1. This is a total selection from anything in the following categories: InfiniBand, Networking, Controllers, PCI Accelerator - Requires the selection of Left or Right Riser kit - P08458-B21 is for XL290n only (full height device) | |
|
InfiniBand Options |
|
|
HPE InfiniBand HDR/Ethernet 200Gb 1-port QSFP56 PCIe4 x16 MCX653105A-HDAT Adapter |
P23664-H21 |
|
HPE InfiniBand HDR100/Ethernet 100Gb 1-port QSFP56 PCIe4 x16 MCX653105A-ECAT Adapter |
P23665-H21 |
|
HPE InfiniBand HDR100/Ethernet 100Gb 2-port QSFP56 PCIe4 x16 MCX653106A-ECAT Adapter |
P23666-H21 |
|
HPE InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 MCX653106A-HDAT Adapter |
P31324-H21 |
|
HPE InfiniBand HDR/Ethernet 200Gb 2-port QSFP56 PCIe4 x16 OCP3 MCX653436A-HDAI Adapter |
P31348-H21 |
|
HPE 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel Omni-Path Architecture Adapter |
829335-B21 |
|
HPE InfiniBand NDR200/Ethernet 200Gb 1-port OSFP PCIe5 x16 MCX75310AAS-HEAT Adapter |
P45642-H22 |
|
HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static SPDM Multi Vendor SSD |
P69255-H21 |
|
Notes: - Requires the selection of Left or Right Riser kit. Maximum PCIe card limit is depending on the selection of Left and/ or Right riser kit - Please see the QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/us/en/product-catalog/servers/server-adapters.hits-12.html | |
|
Storage Offload Adapters |
|
|
NVIDIA Ethernet 100Gb 2-port NVMe-oF Offload Adapter for HPE |
R8M41A |
|
HPE Drives |
|
|
Notes: - SATA drive support requires the selection of the right riser kit - NVMe SED Support - TPM is required for direct attach SED when using "Local Key Management." TPM is not required for direct attach SED Remote Key Management For "Remote Key Management," iLO Advanced license is requiredfor remote key manager (example ESKM) support | |
|
Enterprise - 12G SAS - SFF - Hard Disk Drives |
|
|
HPE 2.4TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD |
881457-H21 |
|
HPE 300GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD |
872475-H21 |
|
HPE 600GB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD |
872477-H21 |
|
HPE 1.2TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty Multi Vendor HDD |
872479-H21 |
|
HPE 1.8TB SAS 12G Mission Critical 10K SFF SC 3-year Warranty 512e Multi Vendor HDD |
872481-H21 |
|
Mixed Use - 12G SAS - SFF - Solid State Drives |
|
|
HPE 1.92TB SAS 12G Mixed Use SFF SC Value SAS Multi Vendor SSD |
P37011-H21 |
|
HPE 1.6TB SAS Mixed Use SFF BC Self-encrypting FIPS 140-2 PM7 SSD |
P63871-B21 |
|
Read Intensive - 12G SAS - SFF - Solid State Drives |
|
|
HPE 1.92TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD |
P36999-H21 |
|
HPE 3.84TB SAS 12G Read Intensive SFF SC Value SAS Multi Vendor SSD |
P37001-H21 |
|
HPE 7.68TB SAS Read Intensive SFF BC Self-encrypting FIPS 140-2 PM7 Private SSD |
P63879-B21 |
|
Read Intensive - 6G SATA - SFF - Solid State Drives |
|
|
HPE 240GB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
P18420-H21 |
|
HPE 480GB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
P18422-H21 |
|
HPE 960GB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
P18424-H21 |
|
HPE 1.92TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
P18426-H21 |
|
HPE 3.84TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
P18428-H21 |
|
Mixed Use - 6G SATA - SFF - Solid State Drives |
|
|
HPE 480GB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
P18432-H21 |
|
HPE 960GB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
P18434-H21 |
|
HPE 3.84TB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
P18438-H21 |
|
HPE 1.92TB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
P18436-H21 |
|
Mixed Use /RI NVMe SED SSD's |
|
|
HPE 1.92TB NVMe RI SC FIPS U.3 CM6 SSD |
P44658-H21 |
|
Read Intensive - NVMe - SFF - Solid State Drives |
|
|
HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
P64842-H21 |
|
HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
P64844-H21 |
|
HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
P64846-H21 |
|
HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
P64848-H21 |
|
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
P63829-K21 |
|
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
P63833-K21 |
|
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
P63837-K21 |
|
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
P63841-K21 |
|
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD |
P70426-H21 |
|
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD |
P70428-H21 |
|
Mixed Use - NVMe - SFF - Solid State Drives |
|
|
HPE 800GB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
P64999-H21 |
|
HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
P65007-H21 |
|
HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
P65015-H21 |
|
HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
P65023-H21 |
|
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD |
P63845-K21 |
|
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD |
P63849-K21 |
|
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD |
P63853-K21 |
|
HBA Storage Controllers |
|
|
HPE SN1610E 32Gb 1-port Fibre Channel Host Bus Adapter |
R2J62A |
|
HPE SN1610E 32Gb 2-port Fibre Channel Host Bus Adapter |
R2J63A |
|
HPE SN1200E 16Gb Single Port Fibre Channel Host Bus Adapter |
Q0L13A |
|
HPE SN1200E 16Gb Dual Port Fibre Channel Host Bus Adapter |
Q0L14A |
|
HPE SN1100Q 16Gb Single Port Fibre Channel Host Bus Adapter |
P9D93A |
|
HPE SN1100Q 16Gb Dual Port Fibre Channel Host Bus Adapter |
P9D94A |
|
HPE SN1700Q 64Gb 1-port Fibre Channel Host Bus Adapter |
R7N86A |
|
HPE SN1700Q 64Gb 2-port Fibre Channel Host Bus Adapter |
R7N87A |
|
HPE SN1610Q 32Gb 1-port Fibre Channel Host Bus Adapter |
R2E08A |
|
HPE SN1610Q 32Gb 2-port Fibre Channel Host Bus Adapter |
R2E09A |
|
HPE SN1700E 64Gb 1-port Fibre Channel Host Bus Adapter |
R7N77A |
|
HPE SN1700E 64Gb 2-port Fibre Channel Host Bus Adapter |
R7N78A |
|
HPE Integrated Light-Out (iLO) |
|
|
HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features |
E6U59ABE |
|
HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features |
E6U64ABE |
|
HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features |
BD505A |
|
HPE iLO Advanced AKA Tracking License with 3yr Support on iLO Licensed Features |
BD507A |
|
HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features |
512485-B21 |
|
HPE iLO Advanced AKA Tracking License with 1yr Support on iLO Licensed Features |
512487-B21 |
|
Notes: - For additional license options please see the QuickSpecs at: http://www.hpe.com/h20195/v2/gethtml.aspx?docname=c04154343 - For more information, visit: http://www.hpe.com/info/ilo |
|
|
| |
|
HPE Performance Cluster Manager | |
|
For additional information, please visit HPE Performance Cluster Manager QuickSpecs here | |
|
HPE Performance Cluster Manager 1 Node 3yr 24x7 Support Perpetual E-LTU | |
|
Notes: - One license per node - Includes three years of support - This is an electronic license - This is a perpetual license. The Software will continue working even when the support term ends | |
|
HPE Performance Cluster Manager 1 Node 3yr 24x7 Support Perpetual LTU | |
|
Notes: - One license per node. - Includes three years of support. - This is a perpetual license. The software will continue working even when the support term ends. | |
|
HPE Performance Cluster Manager FIO Software | |
|
Notes: - For factory installation only with HPE SGI 8600. This SKU does not include the license. Please order with Q9V60AAE. - Order one per node | |
|
HPE Performance Cluster Manager Media Kit | |
|
Notes: One media kit per solution. | |
|
USB Flash Kit |
|
|
HPE XL2xxn Gen10 Plus 36-pin Serial/USB/VGA Cable |
P24887-B21 |
|
Security Hardware |
|
|
Trusted Platform Module |
|
|
HPE Gen10 Plus TPM WR Module Kit |
P17413-B21 |
|
Notes: HPE Gen10 Plus TPM WR Module Kit (P17413-B21) UEFI Mode (default) can support either TPM 1.2 or TPM 2.0. The default mode is the TPM 2.0 mode. For more information visit TPM QS: https://h20195.www2.hpe.com/v2/GetPDF.aspx/c04939549.pdf | |
|
Transceivers |
|
|
HPE BladeSystem c-Class Virtual Connect 1G SFP SX Transceiver |
453151-B21 |
|
HPE BladeSystem CClass Virtual Connect 1G SFP RJ45 Transceiver |
453154-B21 |
|
HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver |
455883-B21 |
|
HPE BladeSystem c-Class 10Gb SFP+ LR Transceiver |
455886-B21 |
|
HPE 25Gb SFP28 SR 100m Transceiver |
845398-B21 |
|
HPE 100Gb QSFP28 MPO SR4 100m Transceiver |
845966-B21 |
|
Notes: Please see the QuickSpecs for Technical Specifications and additional information: https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=c04168349 |
|
|
HPE XL2xxn Gen10 Plus 36-pin Serial/USB/VGA Cable |
P24887-B21 |
|
HPE Tape Backup Notes: For the complete range of tape drives, autoloaders, libraries and media see: http://www.hpe.com/storage/storeever. For hardware and software compatibility of Hewlett Packard Enterprise tape backup products http://www.hpe.com/storage/BURAcompatibility | |
|
HPE StoreEver LTO-7 Ultrium 15000 External Tape Drive |
BB874A |
|
HPE StoreEver MSL6480 Scalable Base Module |
QU625A |
|
HPE StoreEver MSL2024 0-drive Tape Library |
AK379A |
|
HPE StoreEver MSL LTO-7 Ultrium 15000 SAS Drive Upgrade Kit |
N7P37A |
|
HPE StoreEver MSL LTO-7 Ultrium 15000 FC Drive Upgrade Kit |
N7P36A |
|
Bulk Packaging |
|
|
HPE Apollo 2000 Gen10 Plus 1U/2U Server Bulk Package |
P41879-B21 |
|
| |
Technical Specifications
|
HPE Apollo n2600/n2800 Gen10 Plus Chassis | ||
|
Dimensions |
Height |
3.44 in (8.75 cm) |
|
Width |
17.32 in (44 cm) | |
|
Depth |
36.38 in (92.4cm) | |
|
Shipping Dimensions |
Height |
12.5 in (31.75 cm) |
|
Width |
23.63 in (60.02 cm) | |
|
Depth |
39.37 in (100.01 cm) | |
|
Chassis Weight |
Empty (no drives, power supplies, RCM, server nodes and server blanks) |
29.03 lbs. (13.7 kg) |
|
Max Enclosure Weight |
Approximate - 24 SFF drive configuration |
103.02 lbs. (46.73 kg) |
|
|
|
HPE Proliant XL220n/XL225n Gen10 Plus Server Node | ||
|
Server Dimensions (H x W x D) |
1.63 x 6.94 x 24.28 in (4.13 x 17.615 x 61.663 cm) | |
|
Weight (approximate) |
Minimum |
10.16 lbs. (4.61 kg) |
|
Weight (approximate) |
Maximum |
11.63 lbs. (5.27 kg) |
|
| ||||||||||||
| ||||||||||||
|
| ||||||||||||
|
Apollo 2000 Gen10 Plus System with Direct Liquid Cooling | |||
|
CDU |
Weight (filled) |
137 lbs. (62.14 kg) | |
|
Manifold |
Weight (filled) |
35 lbs. (15.88 kg) | |
|
Chassis (filled) |
Weight (filled) - Approximate |
103.02 lbs. (46.73 kg) | |
|
HPE Proliant XL225n Gen10 Plus | |||
|
System Inlet Temperature Standard Operating Support |
10° to 35°C (50° to 95°F) |
At sea level with an altitude derating of 1.0°C per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed. | |
|
Extended Ambient Operating Support
|
10° to 5°C (50° to 41°F) and 35° to 40°C (95° to 104°F) |
System performance during standard operating support may be reduced if operating with a fan fault or above 30°C (86°F).
For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:http://www.hpe.com/servers/ashrae
For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:http://www.hpe.com/servers/ashrae
System performance may be reduced if operating in the extended ambient operating range or with a fan fault. |
|
-30° o 60°C (-22° to 140°F). |
Maximum rate of change is 20°C/hr (36°F/hr). | |
|
Relative Humidity (non-condensing) Operating |
8% to 90% |
Relative humidity (Rh), 28°C maximum wet bulb temperature, non-condensing. |
|
Non-operating |
5 to 95% |
Relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing. |
|
Altitude Operating |
3050 m (10,000 ft). |
This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min). |
|
Non-operating |
9144 m (30,000 ft). |
Maximum allowable altitude change rate is 457 m/min (1500 ft/min). |
|
|
|
Thermal limitations For a full list of thermal limitations please see the HPE ProLiant XL225n Gen 10 Plus Server User Guide. https://www.hpe.com/support/xl225ngen10plus-thermal) |
|
|
TCO Certified
|
Environmental-friendly Products and Approach - End-of-life Management and Recycling Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
|
|
|
TCO Certified TCO Certified The HPE ProLiant XL225n servers has been TCO Certified. All HPE TCO Certified products can be found on TCO Certified Product Finder. More information on TCO Certified can be downloaded here : https://www.hpe.com/us/en/about/environment/eco-labels.html |
|
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
28-Jul-2025 |
Version 39 |
Changed |
Additional Options section was updated. Naming on two SKUs was updated: S2A69A and R8M41A. |
|
Removed |
OBS SKUs were removed: Power Cords, AMD DLC Kit for Processor only - XL225n, AMD DLC Kit for Processor plus Memory - XL225n, AMD Processors - Factory Integrated Processor Kit for XL225n, Load Reduced DIMMs (LRDIMMs) - DDR4-3200 for AMD platform, Load Reduced DIMMs (LRDIMMs) - DDR4-3200 for Intel platform, InfiniBand Options, Enterprise - 12G SAS - SFF - Hard Disk Drives, Midline - 12G SAS - SFF - Hard Disk Drives, Midline - 6G SATA - SFF - Hard Disk Drives, Mixed Use - 12G SAS - SFF - Solid State Drives, Read Intensive - 12G SAS - SFF - Solid State Drives, Read Intensive - 6G SATA - SFF - Solid State Drives, Mixed Use /RI NVMe SED SSD's, Read Intensive - NVMe - SFF - Solid State Drives, Mixed Use - NVMe - SFF - Solid State Drives, HPE Integrated Light-Out (iLO) and USB and SD Options. | ||
|
01-Jul-2024 |
Version 38 |
Changed |
Additional Options section was updated. |
|
03-Jun-2024 |
Version 37 |
Changed |
Additional Options section was updated. Obsolete SKUs were removed |
|
04-Mar-2024 |
Version 36 |
Changed |
Additional Options section was updated. Obsolete SKUs were removed |
|
05-Feb-2024 |
Version 35 |
Changed |
Overview, Standard Features and Additional Options section was updated. Obsolete SKUs were removed |
|
08-Jan-2024 |
Version 34 |
Changed |
Additional Options section was updated. Obsolete SKUs were removed |
|
18-Dec-2023 |
Version 33 |
Changed |
HPE Services Rebranding Obsolete SKUs were removed |
|
02-Oct-2023 |
Version 32 |
Changed |
Standard Features and Additional options sections were updated. Obsolete SKUs were removed |
|
05-Sep-2023 |
Version 31 |
Changed |
Additional Options section was updated. Obsolete SKUs were removed |
|
24-Jul-2023 |
Version 30 |
Changed |
Standard Features section was updated. |
|
06-Feb-2023 |
Version 29 |
Changed |
QuickSpecs was updated. |
|
05-Dec-2022 |
Version 28 |
Changed |
Additional Options section was updated. Obsolete SKUs were removed |
|
06-Sep-2022 |
Version 27 |
Changed |
Standard Features Section was updated |
|
05-Jul-2022 |
Version 26 |
Changed |
Additional Options section was removed. Obsolete SKU was removed |
|
20-Jun-2022 |
Version 25 |
Changed |
Standard Features and Configuration Information sections were updated. |
|
16-May-2022 |
Version 24 |
Changed |
Additional Options section was updated. Obsolete SKUs were removed |
|
21-Mar-2022 |
Version 23 |
Changed |
Additional Options section was updated. Obsolete SKUs were removed |
|
06-Dec-2021 |
Version 22 |
Changed |
Additional Options section was updated. Obsolete SKU was removed |
|
01-Nov-2021 |
Version 21 |
Changed |
Update Software development tools Standard Features and Configuration Information sections were updated. Obsolete SKUs were removed. |
|
04-Oct-2021 |
Version 20 |
Changed |
Additional Options section was updated. |
|
07-Sep-2021 |
Version 19 |
Changed |
Obsolete SKU was removed Overview and Additional Options sections were updated. |
|
02-Aug-2021 |
Version 18 |
Changed |
Obsolete SKU was removed Overview and Additional Options sections were updated. |
|
Date |
Version History |
Action |
Description of Change |
|
06-Jul-2021 |
Version 17 |
Changed |
Overview and Additional Options sections were updated. |
|
07-Jun-2021 |
Version 16 |
Changed |
Overview, Standard Features and Additional Options sections were updated. Obsolete SKUs were removed |
|
26-Apr-2021 |
Version 15 |
Changed |
Overview, Standard Features and Additional Options sections were updated. |
|
19-Apr-2021 |
Version 14 |
Changed |
Additional Options section was removed. Obsolete SKU was removed |
|
06-Apr-2021 |
Version 13 |
Changed |
Overview, Standard Features and Additional Options sections were updated. Obsolete SKUs were removed |
|
22-Mar-2021 |
Version 12 |
Changed |
Configuration Information section was updated. Obsolete SKUs were removed |
|
01-Feb-2021 |
Version 11 |
Changed |
Overview and Additional Options sections were updated. |
|
07-Dec-2020 |
Version 10 |
Changed |
Configuration Information and Additional Options sections were updated Obsolete SKUs were removed. |
|
02-Nov-2020 |
Version 9 |
Changed |
Standard Features and Additional Options sections were updated. Obsolete SKUs were removed |
|
05-Oct-2020 |
Version 8 |
Changed |
Overview, Standard Features and Additional Options sections were updated |
|
08-Sep-2020 |
Version 7 |
Changed |
Overview, Standard Features, Configuration Information and Additional Options sections were updated Obsolete SKUs were removed. |
|
10-Aug-2020 |
Version 6 |
Changed |
Additional Options section was updated |
|
03-Aug-2020 |
Version 5 |
Changed |
Overview, Standard Features, Configuration Information and Technical Specifications sections were updated |
|
13-Jul-2020 |
Version 4 |
Changed |
Standard Features, Configuration Information and Technical Specifications sections were updated |
|
29-Jun-2020 |
Version 3 |
Changed |
Overview, Standard Features, Configuration Information and Technical Specifications sections were updated |
|
04-May-2020 |
Version 2 |
Changed |
Overview, Standard Features, Configuration Information and Technical Specifications sections were updated |
|
06-Apr-2020 |
Version 1 |
New |
New QuickSpecs |
Copyright
|
|
| |||||
|
|
|
© Copyright 2025 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries. AMD OpteronTM is a US registered trademark of AMD Corporation.
a00056110enw - 16526 - Worldwide - V39 - 28-July-2025 |
