HPE Apollo 2000 Gen10 Chassis

The HPE Apollo 2000 Gen10 System is a dense, multi-server platform that packs incredible performance and workload flexibility into a small datacenter space, while delivering the efficiencies of a shared infrastructure. It is designed to provide a bridge to scale-out architecture for traditional data centers, so enterprise and SME customers can achieve the space-saving value of density-optimized infrastructure in a cost-effective and non-disruptive manner.

The Apollo 2000 Gen10 System offers the configuration flexibility to support a variety of workloads, from remote site systems to large HPC clusters and everything in between. And it can be deployed cost-effectively starting with a single 2U, shared infrastructure chassis to meet the configuration needs of a wide variety of scale-out workloads.

The Apollo 2000 Gen10 System is a density-optimized, 2U shared infrastructure chassis for up to 4 ProLiant XL170r Gen10 and up to 2 ProLiant XL190r Gen10 independent, hot-plug servers with all the traditional data center attributes - standard racks and cabling and rear-aisle serviceability access. A 42U rack fits up to 20 Apollo r2000 series chassis accommodating up to 80 servers per rack.

With Apollo 2000 Gen10 System servers there is flexibility to tailor the system to the precise needs of each workload with compute and flexible I/O and storage options. Apollo 2000 System servers can be "mixed and matched" within a single chassis to support different applications and it can even be deployed with a single server, leaving room to scale as customer's needs grow. One cannot use Gen9 servers in a Gen10 chassis or Gen10 servers in a Gen9 chassis.

The Apollo Gen10 2000 chassis comes with 4 new generation single rotor fans and an additional 4 fans can be added for redundancy. It supports up to 2 HPE Flexible Slot Power Supplies which provide up to 94% power efficiency.The chassis can also be managed by the HPE Advance Power Manager (HPE APM) an optional rack level manager.

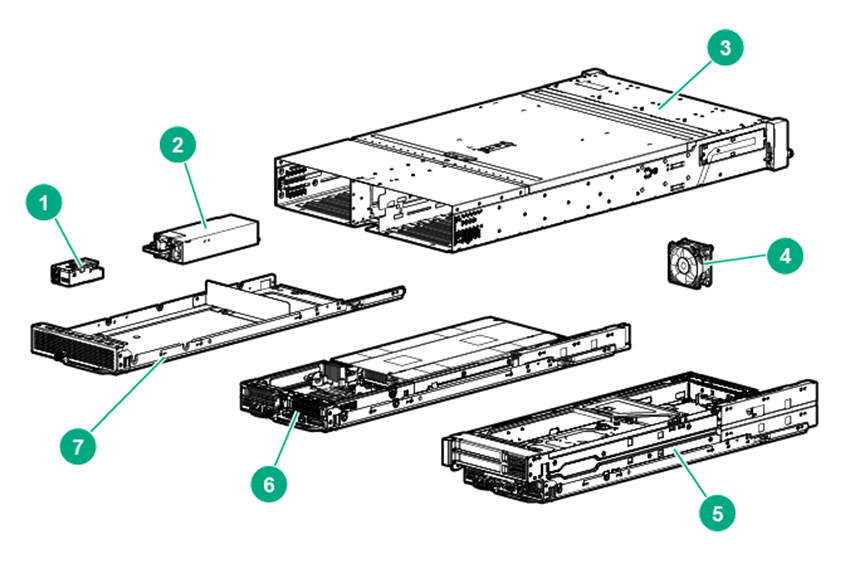

HPE Apollo r2200 12LFF Gen10 CTO Chassis - 12 LFF

Item

Description

Item

Description

1

RCM module (optional)

5

HPE ProLiant XL190r Gen10 Server

2

Power Supply

6

HPE ProLiant XL170r Gen10 Server

3

HPE Apollo 2000 Gen10 Chassis

7

Server tray blank

4

Chassis serial label pull tab

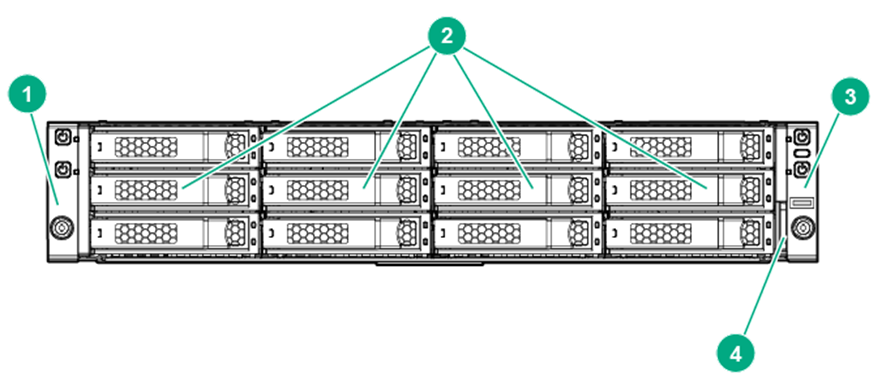

HPE Apollo r2200 12LFF Gen10 CTO Chassis - 12 LFF

Item

Description

Item

Description

1

Left bezel ear

3

Right bezel ear

2

Low-profile LFF hot-plug drives

4

Chassis serial label pull tab

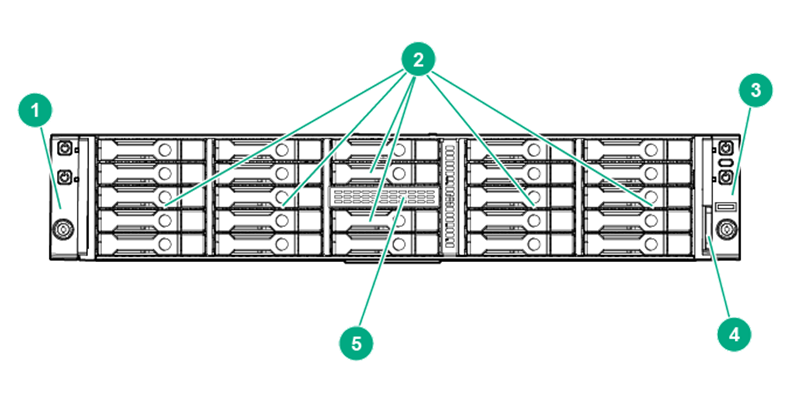

HPE Apollo r2600 24SFF-Prem Gen10 CTO Chassis - 24 SFF

Item

Description

Item

Description

1

Left bezel ear

4

Chassis serial label pull tab

2

SFF hot-plug drives

5

Non-removable bezel blank

3

Right bezel ear

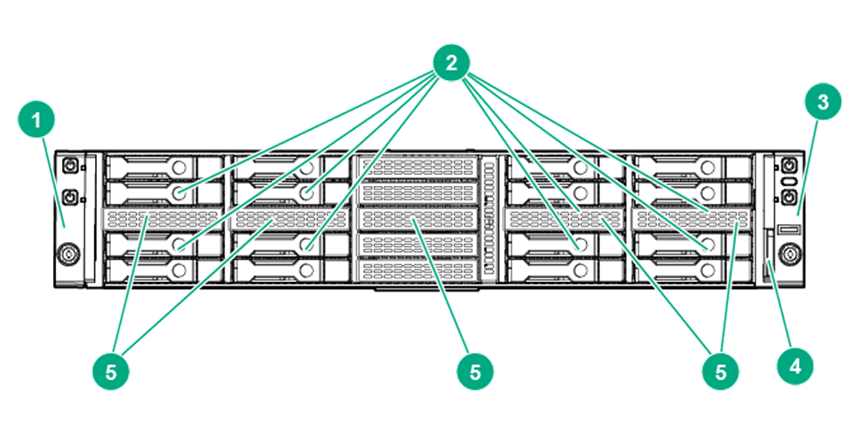

HPE Apollo r2800 24SFF-Flex Gen10 CTO Chassis- 16 NVMe

Item

Description

Item

Description

1

Left bezel ear

4

Chassis serial label pull tab

2

NVMe drives

5

Non-removable bezel blanks

3

Right bezel ear

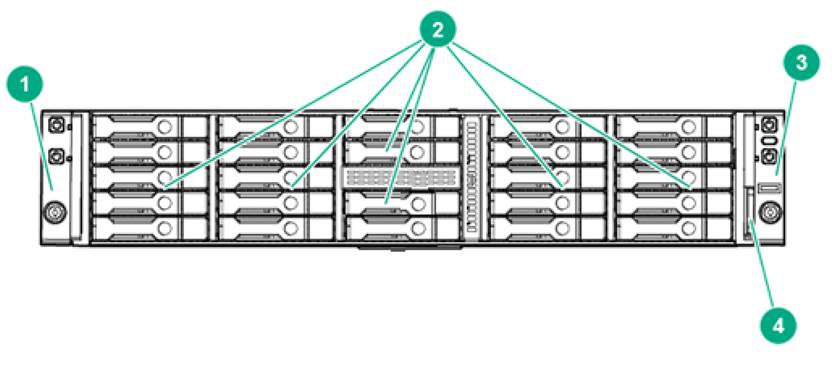

HPE Apollo r2800 24SFF-Flex Gen10 CTO Chassis- w/ SAS expander

Item

Description

Item

Description

1

Left bezel ear

3

Right bezel ear

2

SFF HP SmartDrives

4

Chassis serial label pull tab

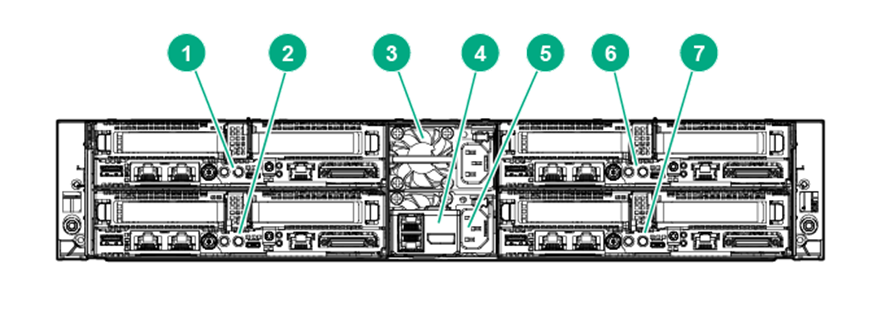

Item

Description

Item

Description

1

Server 4

5

Power Supply 1

2

Server 3

6

Server 2

3

Power supply 2

7

Server 1

4

RCM module (optional)

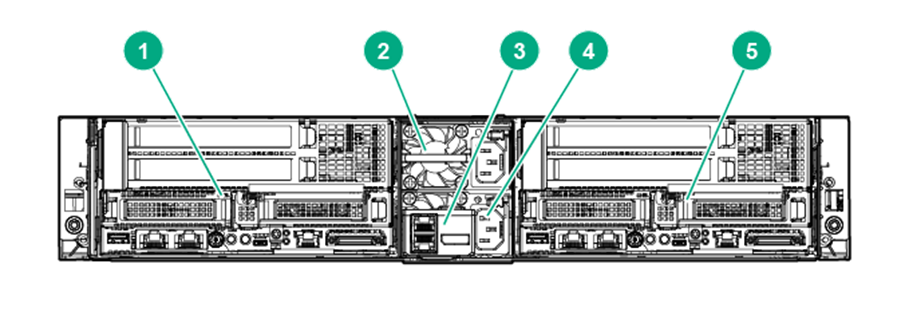

Chassis Rear panel Components / Two 2U Servers

Item

Description

Item

Description

1

Server 3

4

Power Supply 1

2

RCM module (optional)

5

Server 1

3

Power Supply 2

Chassis

There are 4 chassis options with different storage configurations

• HPE Apollo r2200 12LFF Gen10 CTO Chassis - allocated equally across server nodes

­ 12 LFF hot-pluggable SAS/SATA HDD/SSD (Direct Attach)

• HPE Apollo r2600 24SFF-Prem Gen10 CTO Chassis - allocated equally across server nodes

­ 24 SFF hot-pluggable SAS/SATA HDD/SSD

­ 16 SFF SAS/SATA +8 NVMe HDD

• HPE Apollo r2800 24SFF-Flex Gen10 CTO Chassis

­ This chassis has 2 Backplane options

­ HPE r2800 Gen10 16SFF NVMe BP FIO Kit (16 SFF NVMe ) : allocated equally across server nodes

­ HPE r2800 Gen10 24SFF BP w/EXP FIO Kit (SAS Expander) : allocated flexibly across server nodes

Each HPE Apollo 2000 Chassis is built with the following:

• Four server slots for a chassis
• Up to two (2) power supplies for the chassis HPE Thermal Logic technology for lower power consumption and airflow.
• Four (4) single rotor fans standard and an additional 4 fans can be added for redundancy

System Fans

The Chassis ships standard with 4 single rotor fan modules.

Server Tray Blank Kit

A chassis requires that four (4) server tray slots be populated with either an HPE ProLiant XL170r Gen10, XL190r Gen10 server or an HPE Apollo 2000 Gen10 Server Node Blank Kit.

Rack Airflow Requirements

HPE Apollo 2000 Gen10 Chassis

The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. For maximum cooling, HPE racks are recommended to allow these racks to be fully loaded with servers using the latest processors. For detail information please see Apollo 2000 System User Guide

CAUTION:

- If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment.

- Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels will result in improper cooling that can lead to thermal damage.

Pointnext - Service and Support

It is recommended to have the same attached support level for all products included in the HPE Apollo 2000 chassis.

The support of HPE Apollo 2000 the chassis covers the chassis, the included options, and APM. Support for the xl170r and xl190r are sold separately.

HPE Pointnext - Service and Support

Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges.  Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.

Consume IT on your terms

HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

Managed services to run your IT operations

HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

Recommended Services

HPE Pointnext Tech Care.

HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Pointnext Complete Care

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.  HPE Pointnext Complete Care provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Pointnext for Industry Standard Servers

HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution. Finally, operational services provides innovative new approaches like Flexible Capacity and Complete Care, to keep your business at peak performance. HPE is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple.

Related Services

HPE Flexible Capacity

With Flexible Capacity, you get the speed, scalability, and economics of the public cloud in the privacy of your data center. Gain the advantages of the public cloud-consumption-based payment, rapid scalability without worrying about capacity constraints. Reduce the "heavy lifting" needed to operate a data center. And retain the advantages that IT provides the business (i.e., control, security). Deliver the right user experience, choose the right technology for the business, manage privacy and compliance, and manage the cost of IT. And, you have the option to use the public cloud when needed.

HPE Installation and Startup Service

Provides for the installation of your HPE hardware according to product specifications including options. The HPE service delivery technician will connect the product to a LAN as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type (Windows® or Linux)

Factory Express for servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative.

Data Privacy Services

Protect your data through better media management. HPE Data privacy services help manage and protect sensitive data to reduce the risk of unauthorized access to private information and help meet compliance requirements. Our retention services allow you to keep drives and other devices upon failure, our removal services provide convenient data sanitization and our recovery services allow you to safely retire IT assets and capture any remaining value from the hardware. hpe.com/services/lifecycle event

Additional can be found at: http://www.hpe.com/services

HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn

Connect your devices

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Reduce down time and improve diagnostic accuracy with a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Tech Care Service and HPE Complete Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support.

Learn more about getting connected at http://www.hpe.com/services/getconnected

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools, and experts to support HPE business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more http://www.hpe.com/support/hpesc

The HPE Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalize IT support anywhere, anytime.

HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.

Notes: *HPE Support Center Mobile App is subject to local availability

For More Information

To learn more on services for Hewlett Packard Enterprise Apollo please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hpe.com/services

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners (may vary by region). Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty.

Notes: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://www.hpe.com/support/ProLiantServers-warranties

Step 1: Choose a Chassis

HPE Apollo r2200 Gen10 12 LFF Configure-to-order Chassis

867156-B21

HPE Apollo r2600 Gen10 24 SFF Premium Configure-to-order Chassis

867158-B21

HPE Apollo r2800 Gen10 24 SFF Flexible Configure-to-order Chassis

867159-B21

Choose a Backplane for r2800 chassis

HPE r2800 Gen10 16SFF NVMe Backplane FIO Kit

874800-B21

HPE r2800 Gen10 24SFF BP w/EXP FIO Kit

874797-B21

Step 2: Choose cooling options

HPE Cooling Options

HPE Apollo 2000 Gen10 Server Node Blank Kit

874309-B21

Notes: Required for any non-populated slots in the chassis to prevent thermal related issues

HPE r2x00 Gen10 Redundant Fan Module Kit

874308-B21

Notes: Must select quantity for fan modules: 0 fan kit; 1 fan kit for Fan redundancy

Step 3: Choose the following rail kit and bracket per chassis

HPE Rail Kits

HPE 2U Shelf-Mount Adjustable Rail Kit

822731-B21

HPE Strap t2500 Shipping Bracket

740713-B21

Notes: Hewlett Packard Enterprise recommends that a minimum of two people are required for all rack installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

Step 4: Choose Base configuration

Server Trays

HPE ProLiant XL170r Gen10 1U Node Configure-to-order Server

867055-B21

HPE ProLiant XL190r Gen10 2U Node Configure-to-order Server

867056-B21

Notes: Up to 4 single half width server trays (XL170r Gen10) can be added to the HPE Apollo 2000 Chassis.

Up to 2 half width 2 U height server trays (XL190 Gen10) can be added to the HPE Apollo 2000 chassis

RCM Module

HPE Apollo 2000 Rack Consolidation Module Kit

798211-B21

Notes:

- This is an optional RCM (Rack Consolidation Management) module kit which allows iLO aggregation at the chassis level and also has the port for the HPE APM. The RCM Module consists of 2 iLO ports for redundancy. It can also be daisy chained to connect to a Top of the Rack (TOR) management switch.

- If using the RCM module iLO port connect to a network, the network must operate at a speed of 1Gb/s. On-board dedicated iLO management port could be ran at 10/100/1000 Gb network speed.

HPE Apollo 2000 Rack Consolidation Module 2.0-1.0 Adapter Kit

800063-B21

Notes: Refer to HPE APM QuickSpecs for more details at:

 https://www.hpe.com/us/en/product-catalog/detail/pip.hpe-advanced-power-manager.5202410.html

Power Supply

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

830272-B21

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

865434-B21

HPE 1800W-2200W Flex Slot Platinum Hot Plug Power Supply Kit

876935-B21

HPE r2x00 Gen10 Power Supply Unit Enablement Kit

880186-B21

HPE r2x00 Gen10 1800-2200W Redundant Power Supply Enablement Kit

880189-B21

HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit

865428-B21

Security Hardware

HPE Gen10 2U Bezel Kit

867809-B21

HPE Bezel Lock Kit

875519-B21

HPE Advanced Power Manager

HPE Apollo Platform Manager Kit

741192-B21

Notes:

- Each HPE APM can connect up to 10 chassis via consolidated chassis management cable.

- Refer to HPE APM QuickSpecs for further details at

 https://www.hpe.com/us/en/product-catalog/detail/pip.hpe-advanced-power-manager.5202410.html

Power Cords

HPE SAFDGRID-SAFDGRID 277V 15Amp DC 2.0m Jumper Cord

J6X00A

HPE 48VDC 2.85m Power Cable

Q0H80A

Notes: Below Power cords are compatible with 1800W-2200W Power Supply kit (876935-B21)

Power Cords - US

HPE C15 - NEMA 6-20P 250V 15Amp Black 2.5m US Power Cord

Q7F42A

HPE C15 US 250V 10Amp 2.5m Black Jumper Cord

Q7F57A

HPE C15 US 250V 10Amp 0.76m Black Jumper Cord

Q7F59A

HPE C15 US 250V 10Amp 1m Black Jumper Cord

Q7F61A

Power Cords - CN

HPE C15 CN 250V 10Amp 2.5m Black Power Cord

Q7F53A

Power Cords - EU

HPE C15 EU 250V 10Amp 2.5m Black Power Cord

Q7F45A

HPE C15 EU 250V 10Amp 2.5m Black Jumper Cord

Q7F58A

HPE C15 EU 250V 10Amp 0.76m Black Jumper Cord

Q7F60A

HPE C15 EU 250V 10Amp 1m Black Jumper Cord

Q7F62A

Power Cords - UK

HPE C15 UK 250V 10Amp 2.5m Black Power Cord

Q7F46A

Environmental-friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site:

These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

15-Nov-2021

Version 10

Changed

Service and Support section was updated.

08-Sep-2020

Version 9

Changed

Overview section was updated

Obsolete SKUs were removed

07-Oct-2019

Version 8

Changed

Configuration Information section was updated

02-Apr-2019

Version 7

Changed

Overview and Core Options sections were updated..

Obsolete SKUs were removed

01-Oct-2018

Version 6

Changed

SKUs descriptions in the Configuration Information and Core Options were updated

13-Aug-2018

Version 5

Changed

Overview and SKUs descriptions in the Configuration Information and Core Options were updated.

04-Jun-2018

Version 4

Changed

Update SKUs in the Core Options section

02-Apr-2018

Version 3

Updated

Update Overview, Configuration Information and Core Options sections

09-Oct-2017

Version 2

Updated

Update SKUs in the Configuration Information section

25-Sep-2017

Version 1

New

New QuickSpecs.

© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation.

Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.

AMD Opteron^TM is a US registered trademark of AMD Corporation.

a00019876enw - 16063 - Worldwide  - V10 - 15-November-2021
