HPE Apollo 2000 Chassis

The Apollo 2000 System is the enterprise bridge to scale-out architecture for traditional data centers delivering the space and cost savings of density-optimized infrastructure in a non-disruptive manner. It is a dense, multi-server platform that packs a lot of performance and workload capability into a small amount of datacenter space while delivering the efficiencies of a shared infrastructure.

The Apollo 2000 System offers the configuration flexibility to support a variety of workloads, from remote site systems to large HPC clusters and everything in between. And it can be deployed cost-effectively starting with a single 2U, shared infrastructure chassis to meet the configuration needs of a wide variety of scale-out workloads.

The Apollo 2000 System is a density-optimized, 2U shared infrastructure chassis for up to 4 ProLiant Gen9 independent, hot-plug servers with all the traditional data center attributes - standard racks and cabling and rear-aisle serviceability access. A 42U rack fits up to 20 Apollo r2000 series chassis accommodating up to 80 servers per rack.

With Apollo 2000 System servers there is flexibility to tailor the system to the precise needs of each workload with compute and flexible I/O and storage options. Apollo 2000 System servers can be “mixed and matched” within a single chassis to support different applications and it can even be deployed with a single server, leaving room to scale as customer’s needs grow.

The Apollo 2000 chassis comes with 4 new generation single rotor fans and an additional 4 fans can be added for redundancy. The power can be managed by the HPE Advanced Power Manager (HPE APM) an optional rack level manager.

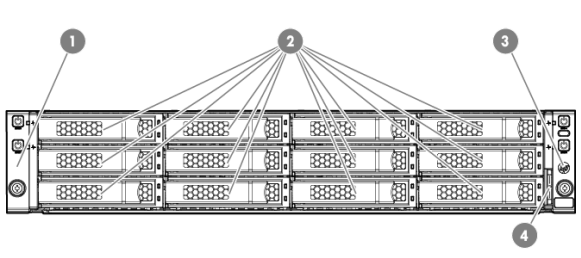

HPE Apollo r2200 Chassis - 12 LFF

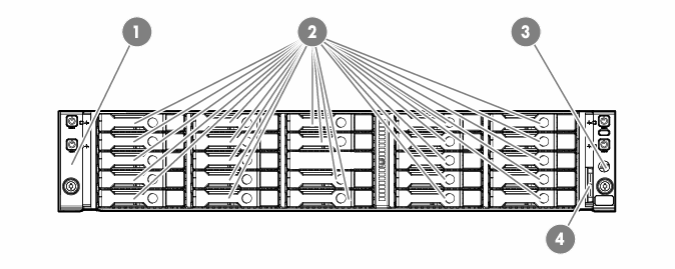

HPE Apollo r2600 Chassis - 24 SFF

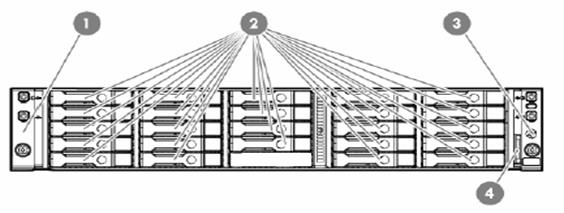

HPE Apollo r2800 Chassis -24 SFF

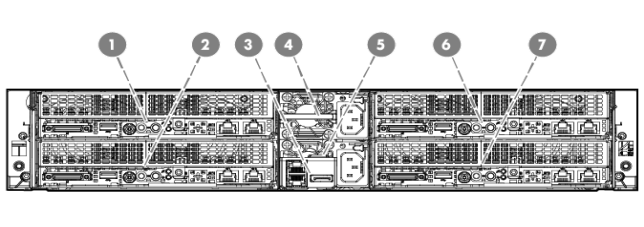

Chassis Rear Panel Components / Four 1U Nodes

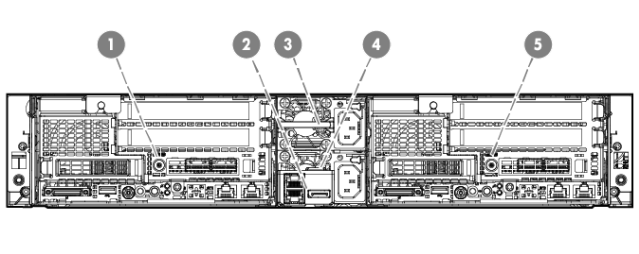

Chassis Rear panel Components / Two 2U Nodes

Chassis Rear panel Components / Two 2U Nodes

Chassis Rear panel Component / Two 2U Nodes

Chassis

There are 3 chassis options with different storage configurations

• HPE Apollo r2200 Chassis - 12 LFF hot-plug SAS or SATA HDDs or SSDs - allocated equally across server nodes
• HPE Apollo r2600 Chassis - 24 SFF hot-plug SAS or SATA HDDs or SSDs - allocated equally across server nodes
• HPE Apollo r2800 Chassis-24 SFF hot-plug SAS or SATA HDD or SSDs- allocated flexibly across server nodes

NOTE: r2800 supports flexible drive mapping enabling custom drive allocations to match workloads giving more flexible storage density for various applications. For more detail information about flexible mapping, visit

http://h20564.www2.hpe.com/hpsc/doc/public/display?docId=c04604560

Each HPE Apollo 2000 Chassis is built with the following:

• Four server slots for a chassis
• Up to two (2) 800W/1400W power supply for the chassis HPE Thermal Logic technology for lower power consumption and airflow.
• Four (4) single rotor fans standard and an additional 4 fans can be added for redundancy

System Fans

The Chassis ships standard with 4 single rotor fan modules.

Server Tray Blank Kit

A chassis requires that four (4) server tray slots be populated with either an HPE ProLiant XL170r, XL190r server or an HPE Apollo 2000 Server Tray Blank Kit.

Rack Airflow Requirements

HPE Apollo 2000 Chassis
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. For maximum cooling, HPE racks are recommended to allow these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment.

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels will result in improper cooling that can lead to thermal damage.

HPE Insight Management software

Insight Management

Managing the growing number of servers can be complex and expensive for your organization. IT managers need to address changing business needs with tools that meet the challenges of managing today's complex Datacenters.

HPE Insight Management lowers the cost of running your HPE ProLiant servers by providing you with best-in-class management tools, including HPE Insight Control, HPE Virtual Connect Enterprise Manager (VCEM), and HPE Insight Dynamics/Matrix Operating Environment. Insight Management increases your productivity and reduces your operating costs to get you higher value from your HPE ProLiant servers.

Electronic download of Insight Management Media
Insight Management software media is available for free download (not
including license entitlement certificates) at this website:
http://www.hpe.com/go/insightupdates

Software media available for download includes:

• HPE Insight Control
• HPE Insight Control for Microsoft® System Center
• HPE Insight Control for VMware vCenter Server
• HPE Virtual Connect Enterprise Manager (VCEM)
• HPE Insight Dynamics / Matrix Operating Environment

Customers will receive an Insight Control or Insight Dynamics license
entitlement certificate via physical shipment or email. The license
entitlement certificate must be redeemed online or via fax in order to
obtain the license activation key(s).

One year of 24x7 Software Technical Support and Updates are included with your purchased licenses.

Hewlett Packard Enterprise provides a complete range of installation and support services to
ensure the successful deployment and operations of your server
infrastructure. For more information about support services and licensing
options, see the following website:
http://www.hpe.com/go/insightsoftware

Insight Software Media Kit (DVDs)
Physical media (DVDs) are also available for purchase from Hewlett Packard Enterprise or from your authorized reseller

Service Pack for ProLiant

Customers should use the HPE Service Pack for ProLiant (SPP) to perform firmware, driver, and related software updates.

• SPP main webpage: http://www.hp.com/go/spp
• SPP downloads webpage: http://www.hp.com/go/spp/download

HPE Integrated Lights-Out (iLO)

HPE Integrated Lights-Out (iLO) simplifies server setup, health monitoring, power and thermal control, and lights-out remote administration of ProLiant SL, XL, ML, DL, and BL servers. HPE iLO functions without additional software and can be accessed from any location via a web browser. HPE iLO works hand-in-hand with HPE Systems Insight Manager, Insight Control and Insight Dynamics for ProLiant, helping customers unleash the value of the ProLiant platform and deliver the highest possible quality of IT service. For more information, visit: http://www.hp.com/go/iLO.

HPE Insight Control

HPE Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. For more information, see http://www.hpe.com/go/insightcontrol

HPE Insight Control includes one year of 24 x 7 HPE Software Technical Support and Update Service ensuring rapid access to Hewlett Packard Enterprise support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hpe.com/services/insight.

HPE Matrix Operating Environment

The HPE Matrix Operating Environment (Matrix OE) for ProLiant and Integrity servers is an integrated command center that helps you instantly adjust to dynamic business demands. This advanced infrastructure management software lets you reduce the cost of common data center tasks by up to 40 percent while keeping pace with your changing business.
The HPE Matrix OE includes the automated provisioning, optimization, and recovery management capabilities for HPE CloudSystem Matrix, the ideal platform for private cloud and Infrastructure as a Service (IaaS).
NOTE: For more information, visit: http://www.hpe.com/go/matrixoe

HPE Advanced Power Manager

The HPE Advanced Power Manager (HPE APM) is an optional rack level solution. HPE APM will automatically discover hardware components and enable server level power on and off, server metering, aggregate dynamic power capping, configurable power-up dependencies and sequencing, consolidated Ethernet access to all resident iLOs, and asset management capabilities.

HPE APM features rack level event logging, RADIUS authentication, integrated serial concentrator, up to 11 local user accounts, read only service port, and supports SNMP, SSH, Syslogd, telnet.

NOTE: use either the HPE APM port or an iLO port to connect to a network.

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty.
NOTE: Server Warranty includes 1 year Parts, 1 year Labor, 1-year on-site support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at:

http://h18004.www1.hpe.com/products/servers/platforms/warranty/index.html

NOTE: In Asia Pacific, Japan and China, Server Warranty includes 3 years Parts, 3 year Labor, 3-year Onsite support with next business day response

Service and Support

The support of HPE Apollo 2000 is at the Chassis level. Support purchased for the chassis covers the chassis and any other option part of this system

HPE Technology Services for Industry Standard Servers

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Pointnext operational services

HPE Pointnext operational services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.

Recommended HPE Pointnext operational services for your HPE Apollo 2000

Optimized recommendation

Supports maintaining servers at optimum performance availability

3-Year HPE Proactive Care Service, 24x7, 4 hour response
This service gives you combined reactive and proactive support including rapid access to our Advanced Solution Center to manage and prevent problems and a Technical Support Specialist with a broad level of technical knowledge that will engage with additional technical expertise as needed from the Hewlett Packard Enterprise vast global resources.
http://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA3-8855enw.pdf

Standard

recommendation

3-Year Foundation Care 24x7, Care Pack Service

HPE Foundation Care 24x7 connects you to Hewlett Packard Enterprise 24 hours a day, seven days a week for assistance on resolving issues. Hardware onsite response within four hours if needed; collaborative software included in this Care Pack service provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

http://h20195.www2.hpe.com/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Basic recommendation

3-Year Foundation Care NBD, Care Pack Service

HPE Foundation Care Next Business Day connects you to Hewlett Packard Enterprise during business hours for assistance on resolving issues - features next business day hardware onsite response if needed and software call back within two hours. Collaborative software support is included and provides troubleshooting assistance on industry leading software running on your server. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

http://h20195.www2.hpe.com/V2/GetDocument.aspx?docname=4AA4-8876ENW&cc=us&lc=en

Related Services

HPE Datacenter Care service

HPE Datacenter Care helps you improve IT stability and security, increase the value of IT, and enable agility and innovation. It is a structured framework of repeatable, tested, and globally available services “building blocks.” You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Datacenter Care, you benefit from a personalized relationship with Hewlett Packard Enterprise via a single point of accountability for Hewlett Packard Enterprise and others’ products. For more information, visit http://www.hp.com/services/datacentercare

HPE ProLiant Server Hardware Installation
Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.
http://h20195.www2.hpe.com/V2/GetPDF.aspx/5981-9356EN.pdf

Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hpe.com/go/factory-express

Data Privacy Services

Protect your data through better media management. HPE Data privacy services help manage and protect sensitive data to reduce the risk of unauthorized access to private information and help meet compliance requirements. Our retention services allow you to keep drives and other devices upon failure, our removal services provide convenient data sanitization and our recovery services allow you to safely retire IT assets and capture any remaining value from the hardware. http://www.hp.com/services/dataprivacy

Additional HPE Pointnext operational services can be found at: http://www.hpe.com/go/cpc

Get connected to Hewlett Packard Enterprise to improve your support experience

Prevent problems with innovative, automated monitoring tools and proactive services. Combining Proactive Care Services with our remote support technology such as Insight Online provides you with expert advice and personalized, cloud-based automated IT support, helping to prevent unplanned down time and solve problems quickly. For more information, visit: http://www.hp.com/go/proactiveinsightexperience

HPE Support Center

Personalized online support portal with access to information, tools and experts to support Hewlett Packard Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more http://www.hpe.com/go/hpsc

The HPE Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for live support. Get access to personalized IT support anywhere, anytime.
These tools are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Care Pack Service or Hewlett Packard Enterprise contractual support agreement.
NOTE: HPE Support Center Mobile App is subject to local availability.

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Data Privacy

Let HPE Data Privacy Services help you control access to data and maintain compliance. We offer retention services called Defective Media Retention (DMR) and Comprehensive Defective Material Retention (CDMR) as part of Foundation Care and Proactive Care that allow you to keep failed drives or other memory-retentive components to protect data that may reside. Our sanitization services should be used as part of tech refresh to help ensure no data lingers once the systems are taken out of service or repurposed. Our asset recovery service helps you responsibly retire IT assets. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

For more information

To learn more on services for HPE Apollo please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hp.com/services/bladesystem.

Step 1: Choose a Chassis

HPE Chassis

HP Apollo r2200 Gen9 12 LFF Configure-to-order Chassis

798152-B21

HP Apollo r2600 Gen9 24 SFF Configure-to-order Chassis

798153-B21

HP Apollo r2800 Gen9 24 SFF with Expander Configure-to-order Chassis

798154-B21

Step 2: Choose cooling options

HPE Cooling Options

HP Apollo 2000 Server Node Blank Kit
NOTE:NOTE: Required for any non-populated slots in the chassis to prevent thermal related issues and required for APM 1.2 or APM 2.0

798194-B21

HP Apollo 2000 Fan Module Kit

NOTE:NOTE: Only required for APM 1.2

800059-B21

Step 3: Choose the following rail kit and bracket per chassis

HPE Rail Kits

HP 2U Gen9 Hardware Rail Kit

822731-B21

HP Strap t2500 Shipping Bracket
NOTE:NOTE: Hewlett Packard Enterprise recommends that a minimum of two people are required for all rack installations. Please refer to your installation instructions for proper tools and number of people to use for any installation.

740713-B21

Step 4: Choose Base configuration

Server Trays

HP ProLiant XL170r Gen9 1U Node Configure-to-order Server

798155-B21

HP ProLiant XL190r Gen9 2U Node Configure-to-order Server
NOTE:NOTE: Up to 4 single half width server trays (XL170r Gen9) can be added to the HPE Apollo 2000 Chassis.
Up to 2 half width 2 U height server trays (XL190 Gen9) can be added to the HPE Apollo 2000 chassis

798156-B21

RCM Module

HP Apollo 2000 Rack Consolidation Module Kit

NOTE:NOTE: This is an optional RCM (Rack Consolidation Management) module kit which allows iLO aggregation at the chassis level and also has the port for the HPE APM. The RCM Module consists of 2 iLO ports for redundancy. It can also be daisy chained to connect to a Top of the Rack (TOR) management switch.

NOTE:NOTE: If using the RCM module iLO port or the dedicated iLO management port module to connect to a network, the network must operate at a speed of 1Gb/s.

798211-B21

Power Supply

HPE 800W Flex Slot Titanium Hot Plug Power Supply Kit

720482-B21

HPE 800W Flex Slot Universal Hot Plug Power Supply Kit

720484-B21

HPE 800W Flex Slot Platinum Hot Plug Power Supply Kit

720479-B21

HPE 800W Flex Slot -48VDC Hot Plug Power Supply Kit

720480-B21

HPE 1400W Flex Slot Platinum Plus Hot Plug Power Supply Kit

720620-B21

Security Hardware

HPE 2U Security Bezel Kit

666988-B21

HPE Advanced Power Manager

HP Advanced Power Manager Kit
NOTE:NOTE: Each HPE APM can connect up to 10 chassis via consolidated chassis management cable.

741192-B21

HP 4M 20 Pin Consolidated Management Cable
 NOTE:NOTE: 1 cable per chassis.

762048-B21

HPE Pointnext operational services

Foundation Care
NOTE: HPE Foundation Care 24x7 connects you to Hewlett Packard Enterprise 24 hours a day, seven days a week for assistance on resolving issues. Hardware onsite response within four hours if needed; collaborative software included in this Care Pack service provides troubleshooting assistance on industry leading software running on your HPE server. Simplify your support experience and make Hewlett Packard Enterprise your first call for hardware or software questions.

HPE 3 year Proactive Care 24x7 Apollo 2000 Service

U8AW3E

HPE 3 year Foundation Care 24x7 Apollo 2000 Service

U8AW0E

HPE 3 year Foundation Care Next business day Apollo 2000 Service

U8AV1E

Installation Services
NOTE: Reduce the time required to get your system up and running and help minimize disruptions to your business.

HPE Installation Apollo a6000 Service

U5V60E

HPE Installation Non Standard Hours Apollo a6000 Service

U5V61E

HPE Installation and Startup Apollo a6000 Service

U5V62E

HPE Installation and Startup Non Standard Hours Apollo a6000 Service

U5V63E

HPE Apollo 2200 Chassis

Dimensions

Height

3.44 in (8.73 cm)

Width

17.64 in (44.80 cm)

Depth

33.40 in (86.33 cm)

Shipping Dimensions

Height

11.5 in (29.2 cm)

Width

23 in (58.4 cm)

Depth

38.74 in (98.4 cm)

Chassis Weight

Empty

26.37 lb (11.94 kg)

Max Enclosure Weight

Approximate

55.93 lb (25.37 kg)

Temperature Range

Operating

50° to 95° F (10° to 35° C)

Non-Operating

-22° to 140° F (-30° to 60° C)

Relative Humidity

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-Operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

NOTE: Operating temperature has an altitude derating of 1.8° F (1° C) per 1,000 ft (304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70Kpa/10.1 psia. Upper non-operating limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Idle

  LWAd

7.1 Bels

  LpAm

54 dBA

Operating

  LWAd

7.2 Bels

  LpAm

54 dBA

HPE Apollo 2600 Chassis

Dimensions

Height

3.44 in (8.73 cm)

Width

17.64 in (44.81 cm)

Depth

32.4 in (82.27 cm)

Shipping Dimensions

Height

11.5 in (29.2 cm)

Width

23 in (58.4 cm)

Depth

37.12 in (94.3 cm)

Chassis Weight

Empty

21.74 lb (9.86 kg)

Max Enclosure Weight

Approximate

51.69 lb (23.45 kg)

Temperature Range

Operating

50° to 95° F (10° to 35° C)

Non-Operating

-22° to 140° F (-30° to 60° C)

Relative Humidity

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-Operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

NOTE: Operating temperature has an altitude derating of 1.8° F (1° C) per 1,000 ft (304.8 m). No direct sunlight. Upper operating limit is 10,000 ft (3,048 m) or 70Kpa/10.1 psia. Upper non-operating limit is 30,000 ft (9,144 m) or 30.3 KPa/4.4 psia. Storage maximum humidity of 95% is based on a maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa.

Acoustic Noise

(No data so far)

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).

Idle

  LWAd

7.1 Bels

  LpAm

54 dBA

Operating

  LWAd

7.2 Bels

  LpAm

54 dBA

Environmental-friendly Products and Approach

End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hpe.com/go/greenTo recycle your product, please go to: http://www.hpe.com/go/green or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.hpe.com/go/green These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

23-Oct-2017

Version 10

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

19-May-2017

From version 8 to 9

Changed

Change and correct information in overview and standard features

15-Jul-2016

Rom version 7 to 8

Updated

Update the QS and update the InfiniBand information

20-May-2016

From version 6 to 7

Changed

Changed information in several sections and fix errors

31-March-2016

From version 5 to 6

Updated

Updates throughout the document, fix link for Chassis info

16-Feb-2016

From version 4 to 5

Changed

Correct typos and fix errors on the document

8-Jan-2016

From version 3 to 4

Changed

Correct errors and rebrand the document

9-Oct-2015

From version 2 to 3

Updated

Updates throughout the document

17-Aug-2015

From version 1 to 2

Updated

Updates throughout the document

30-Mar-2015

Version 1

Created

Create QuickSpecs for HPE Apollo 2000
