HPE Apollo 20 System

Are you searching for more performance in a denser package?

The newly released HPE Apollo 20 System is built on the 2nd Generation Intel® Xeon® 9200 family of processors which offer unmatched 2-socket performance leadership across popular workloads.  Built to support both liquid-cooled and air-cooled options, the Apollo 20 System takes advantage of HPE's strong leadership in cooling technologies as workloads continue to push power and density.  The Apollo 20 System offering up to 56 cores and 12 DIMMs per socket makes it ideal for use in data-intensive industries, including oil and gas, finance, AI, manufacturing, and life sciences.

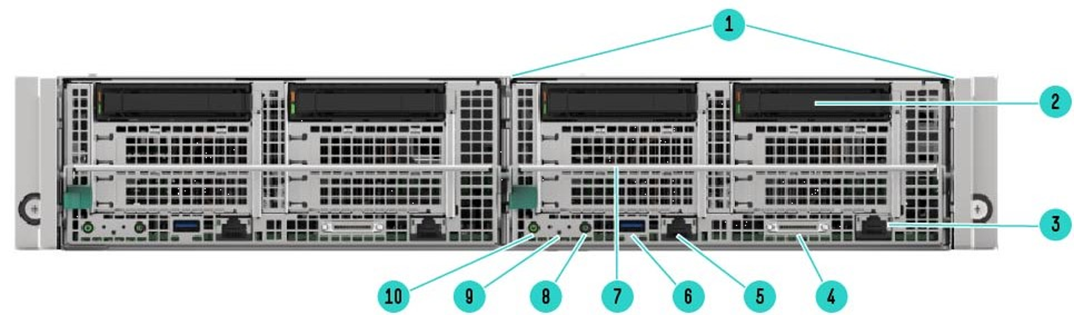

2U Chassis Front View (with 2U servers)

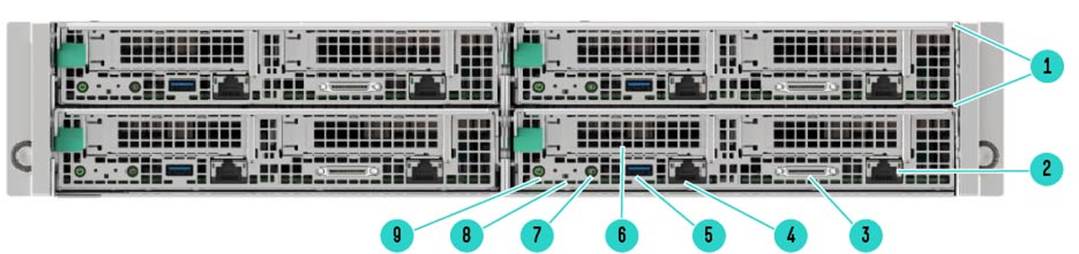

2U Chassis Front View (with 1U servers)

Item

Description

Item

Description

1

Hot-swap servers

6

Low profile HH/HL PCIe Gen3x16 slots

2

Dedicated management port

7

Unit Identification (UID) LED/button

3

Serial/USB/Video dongle

8

Status LED

4

1Gb Ethernet port

9

Power button

5

USB 3.0

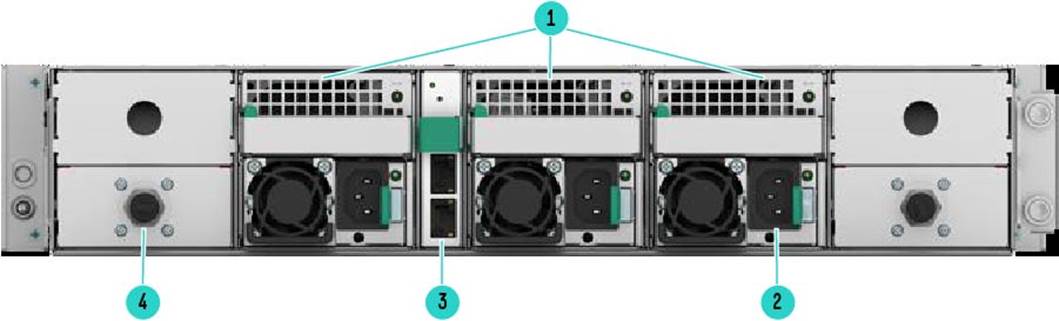

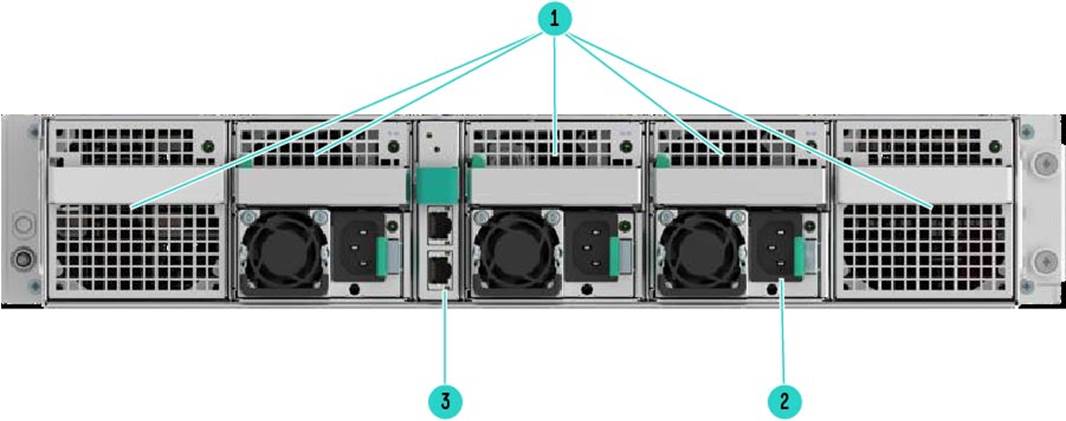

2U Chassis Rear View (with liquid option)

Item

Description

Item

Description

1

Hot plug Fans

3

Aggregated Management ports

2

3x 2100w power supplies for 2+1 redundancy

4

Liquid connections

Notes: Each liquid cooled Apollo 20 system includes 3x 2100w power supplies

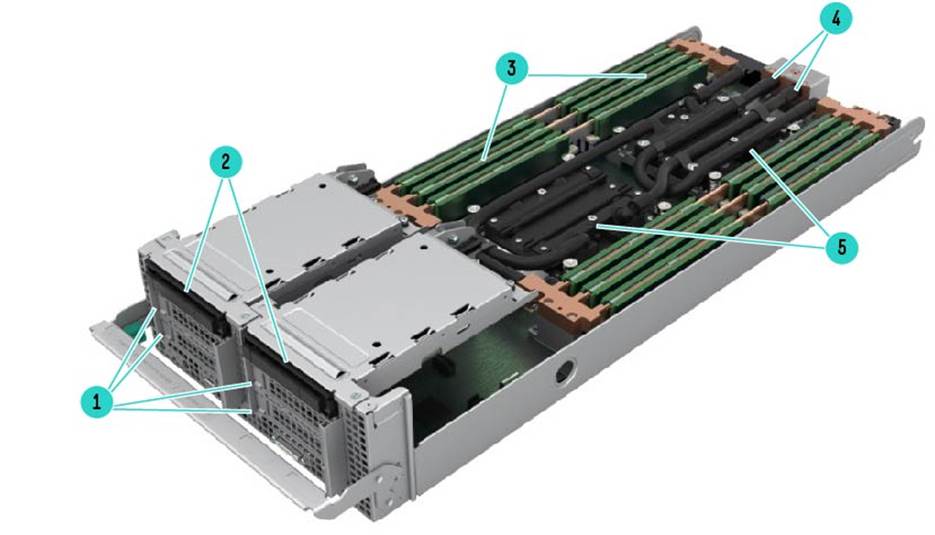

Internal View of 2U (Liquid cooled)

Item

Description

Item

Description

1

4 low profile HH/HL PCIe 3.0 x16 slots

4

CPU and memory cooling loop (if applicable)

2

2 hot plug SSD drives and/or 2 internal M.2 drives

5

CPU 1 & 2

3

12 Dimms per CPU

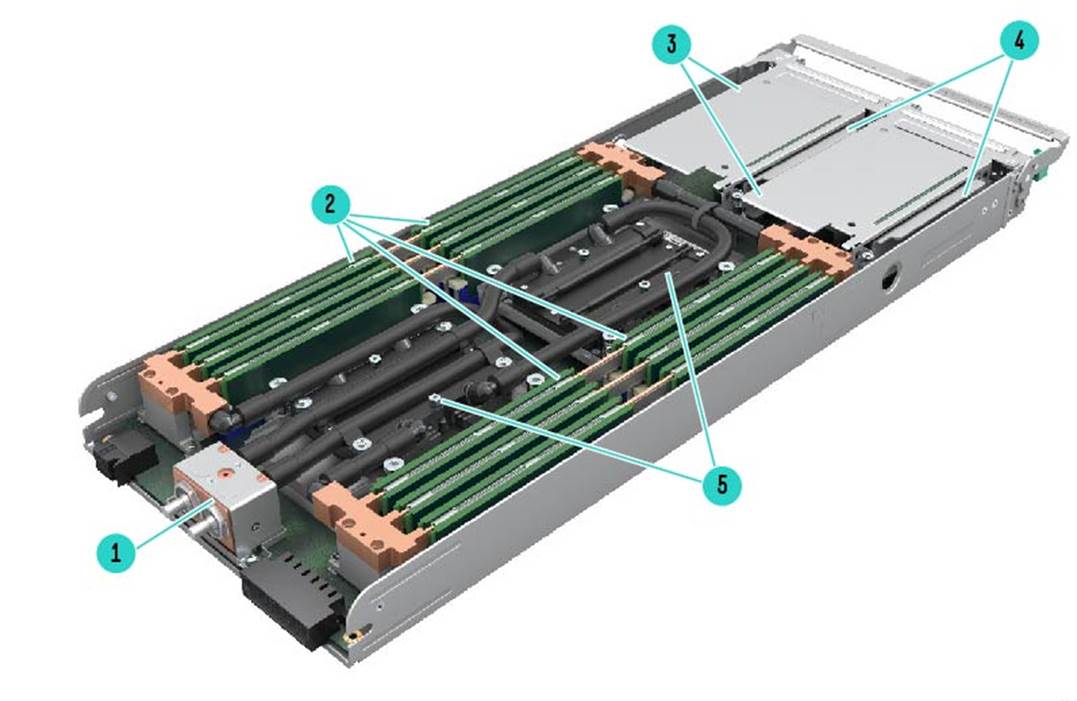

Internal View of 1U (Liquid cooled)

Item

Description

Item

Description

1

CPU and memory cooling loop

4

Internal M.2 storage

2

12 Dimms per CPU

5

CPU 1 & 2

3

Two low profile HH/HL PCIe 3.0 x16 slots

Interfaces

• USB 3.0 Ports
• Dedicated management port
• Power
• UID
• Serial/USB/Video via dongle

Industry Standard Compliance

• ACPI 2.0b Compliant
• PCIe 3.0 Compliant
• PXE Support
• USB 1.1,2.0 and 3.0 Compliant

Operating Systems and Virtualization Software Support for HPE Apollo 20 Servers

• Red Hat Enterprise Linux (RHEL 7.4, 7.5, 7.6, 8.0)
• SUSE Linux Enterprise Server (SLES 12 Sp3 and Sp4, SLES15 EM64T)
• CentOS (7.5, 7.6, 8.0)

Graphics

Integrated ASPEED AST2500 BMC

Management

Integrated ASPEED AST2500 BMC

Form Factor

The Apollo 20 system is a 2U chassis with (4) 1U servers or (2) 2U server

Warranty

This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners (may vary by region). Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty.

Notes: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/

System management

HPE Performance Cluster Manager - complete integrated cluster management software for all HPE HPC clusters offering: system setup, hardware monitoring and management, and network management and cluster health management, image management and software updates as well as power management. The software also integrates with leading HPC ISV and open source software solutions.

HPE Pointnext - Service and Support

Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges.  Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike.

Consume IT on your terms

HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

Managed services to run your IT operations

HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

Recommended Services

HPE Pointnext Tech Care.

HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Pointnext Complete Care

HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts.  HPE Pointnext Complete Care provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

Protect your business beyond warranty with HPE Support Services

HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution. Finally, operational services provides innovative new approaches like Flexible Capacity and Complete Care, to keep your business at peak performance. Hewlett Packard Enterprise is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple.

It is recommended to have the same attached support level for all products included in the HPE Apollo 20 chassis. The support of HPE Apollo 20 chassis covers the chassis. Support for the servers is sold separately.

Other Related Services

HPE Server Hardware Installation

Provides for the basic hardware installation of HPE branded servers, storage devices, and networking options to assist you in bringing your new hardware into operation in a timely and professional manner.

HPE Installation and Startup Service

Provides for the installation of your HPE hardware according to product specifications including options. The HPE service delivery technician will connect the product to a LAN as appropriate and enable remote support to allow for automatic case creation for hardware failures. Installation and start up services also includes the installation of one supported operating system type.

HPE Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative.

HPE Technology Services Support Credits

Offers flexible services and technical skills to meet changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.

HPE Education Services

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book a class today and learn how to get the most from your technology investment. For more information, visit http://www.hpe.com/ww/learn

Data Privacy Services

Protect your data through better media management. HPE Data privacy services help manage and protect sensitive data to reduce the risk of unauthorized access to private information and help meet compliance requirements. Our retention services allow you to keep drives and other devices upon failure, our removal services provide convenient data sanitization and our recovery services allow you to safely retire IT assets and capture any remaining value from the hardware. hpe.com/services/lifecycle event

Additional information can be found at: http://www.hpe.com/services

HPE Support Center

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers.

Learn more at http://www.hpe.com/support/hpesc

The HPE Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalize IT support anywhere, anytime.

HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.

Notes:*HPE Support Center Mobile App is subject to local availability

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Options

Notes: Included options are covered under the HPE Service Contract applied to the HPE Server. No separate HPE support services need to be purchased.

Warranty and Support Services will extend to include HPE options configured with your server or storage device. The price of support service is not impacted by configuration details. HPE sourced options that are compatible with your product will be covered under your server support at the same level of coverage allowing you to upgrade freely. Installation for HPE options is available as needed. To keep support costs low for everyone, some high value options will require additional support. Additional support is only required on select high value workload accelerators, fibre switches, InfiniBand and UPS batteries over 12KVA.

See the specific high value options that require additional support here

For more information, visit http://www.hpe.com/services

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

• Factory Integrated Models must start with a CTO Server.
• FIO indicates that this option is only available as a factory installable option.
• Some options may not be integrated at the factory. Contact your local sales representative for additional information.

Step 1: Base Chassis Configuration (choose one of the following configurable models)

HPE CTO Model

HPE Apollo 20 Liquid Cooled Configure-to-order Chassis

P24693-B21

HPE Apollo 20 Air Cooled Configure-to-order Chassis

P24694-B21

Notes:

- Each CTO system includes 2U chassis, 4 x 1U or 2 x 2U server trays, aggregated management module and 3 x power supplies.

- Liquid Cooled Configure-to-order Chassis requires HPE 48U 800mmx1200mm G2 Enterprise Shock Rack (P9K58A) for In-row CHx750 CDU and HPE 48U/42U Rack can be used for In-rack CHx200 CDU

Step 2: Choose Options

Chassis Options

HPE Apollo 20 Serial/USB/VGA Dongle

P25129-B21

Notes: Dongle needed for initial bring up.  Must have at least 1 dongle per deployment.

HPE servers

Intel Platinum 9200 Processor (Two per Server)

HPE Apollo 20 1U 9282 2.6GHz 56-core 2P Liquid Cooled FIO Server

P24746-B21

HPE Apollo 20 1U 9242 2.3GHz 48-core 2P Liquid Cooled FIO Server

P24712-B21

HPE Apollo 20 1U 9222 2.3GHz 32-core 2P Liquid Cooled FIO Server

P24713-B21

HPE Apollo 20 2U 9242 2.3GHz 48-core 2P Liquid Cooled FIO Server

P24714-B21

HPE Apollo 20 2U 9221 2.3GHz 32-core 2P Liquid Cooled FIO Server

P24715-B21

HPE Apollo 20 2U 9242 2.3GHz 48-core 2P Air Cooled FIO Server

P24716-B21

HPE Apollo 20 2U 9221 2.3GHz 32-core 2P Air Cooled FIO Server

P24717-B21

HPE Apollo 20 1U 9221 2.3GHz 32-core 2P Air Cooled FIO Server

P24718-B21

Notes:

- Servers must be ordered in quantities of 4 for 1U configurations or 2 for 2U configurations

- Partially populated chassis not supported

- Mixing server types not supported

Remote KVM

HPE Apollo 20 Remote Management 4 Lite Key FIO Activation Module

P25131-B21

Notes: Module required to enable remote keyboard, video, mouse and media redirection

HPE Memory

DDR4 2933MT/s (24 DIMMs per server)

HPE Apollo 20 16GB (1x16GB) Dual Rank x8 DDR4-2933 Registered FIO Memory Kit

P24695-B21

HPE Apollo 20 32GB (1x32GB) Dual Rank x4 DDR4-2933 Registered FIO Memory Kit

P24696-B21

HPE Apollo 20 64GB (1x64GB) Quad Rank x4 DDR4-2933 Registered FIO Memory Kit

P24697-B21

Notes: 24 DIMMs must be ordered with each server.

HPE NVMe-M.2-Solid State Drive

HPE Apollo 20 2TB NVMe x4 Lanes Mixed Use M.2 2280 FIO SSD

P24698-B21

HPE Apollo 20 1TB NVMe x4 Lanes Mixed Use M.2 2280 FIO SSD

P24700-B21

HPE 3.84TB NVMe Gen3 Mainstream Performance Read Intensive M.2 22110 PE6011 SSD

P13693-H21

HPE 1.92TB NVMe Gen3 Mainstream Performance Read Intensive M.2 22110 PE6011 SSD

P13691-H21

HPE 960GB NVMe Gen3 Mainstream Performance Read Intensive M.2 22110 PE6010 SSD

P13689-H21

HPE 480GB NVMe Gen3 Mainstream Performance Read Intensive M.2 22110 PE6010 SSD

P24188-H21

Notes: Supported in 1U and 2U configurations

HPE SATA-M.2-Solid State Drive

Intel S4510 240GB SATA 6G Mixed Use M.2 2280 FIO SSD for HPE Apollo 20

P26733-B21

Intel S4510 480GB SATA 6G Mixed Use M.2 2280 FIO SSD for HPE Apollo 20

P37842-B21

Intel S4510 960GB SATA 6G Mixed Use M.2 2280 FIO SSD for HPE Apollo 20

P37844-B21

Notes: Supported in 1U and 2U configurations

HPE NVMe-U.2-Solid State Drive

HPE Apollo 20 6.4TB NVMe x4 Lanes Write Intensive SFF (2.5in) FIO SSD

P25135-B21

Notes: Supported in 2U configuration

CDUs and Liquid Cooled Rack Manifold

HPE Apollo CHx750 CDU

P24777-B21

HPE Apollo 20 CHx200 Direct Liquid Cooling FIO CDU

P38859-B21

HPE Apollo 20 48U Rack Manifold FIO Kit

P24774-B21

HPE Apollo 20 CHx200 48U Rack Manifold FIO Kit

P38856-B21

HPE Apollo 20 CHx200 42U Rack Manifold FIO Kit

P40682-B21

Notes:

- Each liquid cooled rack requires 1 kit.

- Liquid Cooled Configure-to-order Chassis requires HPE 48U 800mmx1200mm G2 Enterprise Shock Rack (P9K58A) for In-row CHx750 CDU and HPE 48U/42U Rack can be used for In-rack CHx200 CDU

Plumbing /Commissioning Options & Spare Kits

HPE Apollo 20 Secondary Water Feed 2-rack Commissioning Service

P24778-B21

HPE Apollo 20 Secondary Water Feed 12-rack Commissioning Service

P24854-B21

HPE Apollo 20 Secondary Water Feed 6-rack Commissioning Service

P24855-B21

HPE Apollo 20 CHx750 Recommended Kit

P36668-B21

HPE Apollo 20 CHx750 Essentials Kit

P36712-B21

Notes: Commissioning service required for all liquid cooled installations. Service includes installation of secondary water feed using Aquatherm plumbing, flushing the system and commissioning the CDU(s) and rack manifolds. Select 6-rack Service for rack sizes 3-6 and 12-rack Service for rack sizes 7-12. In-rack CDU CHx200 option does not require secondary fluid network.

HPE Support Services

Tech Care

HPE 3 Year Foundation Care Next Business Day Apollo 20 Chassis Service

HJ1U9E

Notes: Order one per Chassis

HPE 3 Year Proactive Care 24x7 Apollo 20 1U Server Node Service

HS1N0E

HPE 3 Year Proactive Care 24x7 Apollo 20 2U Server Node Service

HS1W7E

Notes: Order one per server

Tech Care

HPE 3 Year Foundation Care 24x7 Apollo 20 Chassis Service

HJ1V2E

Notes: Order one per Chassis

HPE 3 Year Foundation Care 24x7 Apollo 20 1U Server Node Service

HS1M7E

HPE 3 Year Foundation Care 24x7 Apollo 20 2U Server Node Service

HS1W4E

Notes: Order one per server

Installation & Startup Services

HPE Installation Apollo 20 Service

HS2L2E

HPE Installation and Startup Apollo 20 Service

HS0M5E

Notes: Order one per Chassis

For a full listing of support services available for this server, please visit https://ssc.hpe.com/

Environment friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site.

These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

Date

Version History

Action

Description of Change

15-Nov-2021

Version 9

Changed

Service and Support section was updated.

06-Apr-2021

Version 8

Changed

Standard Features section was updated.

07-Dec-2020

Version 7

Changed

Configuration Information section was updated.

14-Sep-2020

Version 6

Changed

Standard Features and Configuration Information sections were updated.

06-Jul-2020

Version 5

Changed

Standard Features and Configuration Information sections were updated.

01-Jun-2020

Version 4

Changed

Standard Features, Service and Support and Configuration Information sections were edited.

02-Mar-2020

Version 3

Changed

Configuration Information section was updated.

03-Feb-2020

Version 2

Changed

Overview section was updated

02-Dec-2019

Version 1

New

New QuickSpecs

© Copyright 2021 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries.

Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the Microsoft group of companies.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less

a00073552enw - 16500 - WorldWide  - V9 - 15-November-2021
