HPE Apollo Ethernet 10GbE PassThru Module
| ||||
|
The HPE Apollo Ethernet 10GbE PassThru Module is designed for HPE Apollo k6000 Gen10 customers requiring a non-blocking, one-to-one connection between each server and networking switches. The pass-thru module provides 6 QSFP+ (6x10Gb) uplink ports. The HPE Apollo Ethernet 10GbE PassThru Module supports up to 24 10Gb connections one for each HPE ProLiant XL230k server tray. Optical as well as Direct Attach Copper (DAC) cables are also supported. | ||||
|
| ||||
|

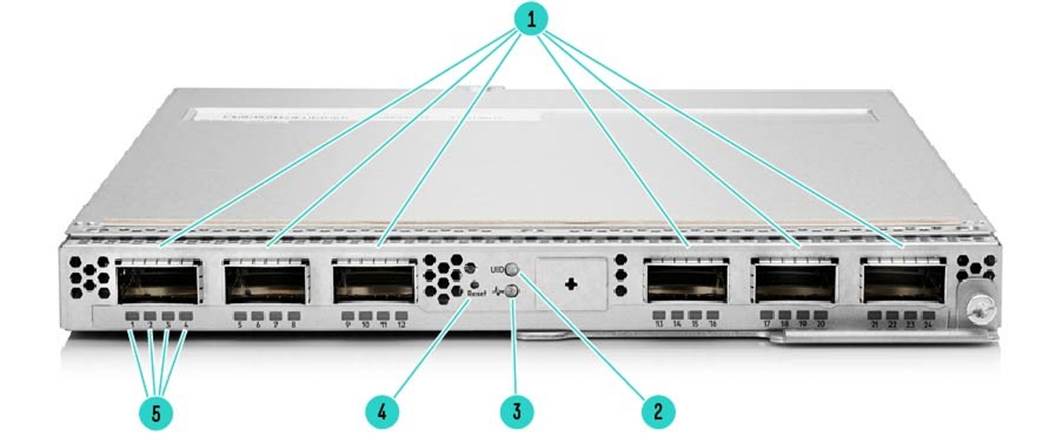

HPE Apollo Ethernet 10GbE Pass Thru Module | ||||
|
1. |
6 QSFP+ (4x10Gb) Ports |
4. |
Reset pin-hole button | |
|
2. |
UID LED |
5. |
Ethernet port link status LEDs | |
|
3. |
Health LED |
|
| |
|
| ||||
|
Model | ||||
|
HPE Apollo Ethernet 10Gb Pass Thru Module |
851928-B21 | |||
|
| ||||
|
What's New
| ||||
|
| ||||
|
At A Glance Performance:
| ||||
|
| ||||
Standard Features
|
Compatibility HPE ProLiant Servers HPE ProLiant XL230k Gen10 Server |
|
|
|
HPE Apollo k6000 Chassis HPE Apollo k6000 Chassis |
|
|
|
Management Module monitored by the HPE Chassis Controller or HPE Apollo Platform Manager (if installed) |
|
|
|
Warranty and support This product is covered by a global limited warranty and supported by Hewlett Packard Enterprise Services and a worldwide network of Hewlett Packard Enterprise Authorized Channel Partners (may vary by region). Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Pointnext operational services or customized service agreements. Hard drives have either a one year or three year warranty Notes: Server Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hpe.com/products/servers/platforms/warranty/index.html |
|
|
Service and Support
|
HPE Pointnext - Service and Support Get the most from your HPE Products. Get the expertise you need at every step of your IT journey with HPE Pointnext Services. We help you lower your risks and overall costs using automation and methodologies that have been tested and refined by HPE experts through thousands of deployments globally. HPE Pointnext Advisory Services, focus on your business outcomes and goals, partnering with you to design your transformation and build a roadmap tuned to your unique challenges. Our Professional and Operational Services can be leveraged to speed up time-to-production, boost performance and accelerate your business. HPE Pointnext specializes in flawless and on-time implementation, on-budget execution, and creative configurations that get the most out of software and hardware alike. Consume IT on your terms HPE GreenLake brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake accelerates digital transformation in a distributed, edge-to-cloud world.
Managed services to run your IT operations HPE GreenLake Management Services provides services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation. |
|
|
|
Recommended Services HPE Pointnext Tech Care. HPE Pointnext Tech Care is the new operational service experience for HPE products. Tech Care goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Pointnext Tech Care has been reimagined from the ground up to support a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Pointnext Tech Care is available in three response levels. Basic, which provides 9x5 business hour availability and a 2 hour response time. Essential which provides a 15 minute response time 24x7 for most enterprise level customers, and Critical which includes a 6 hour repair commitment where available and outage management response for severity 1 incidents. https://www.hpe.com/services/techcare HPE Pointnext Complete Care HPE Pointnext Complete Care is a modular, edge-to-cloud IT environment service that provides a holistic approach to optimizing your entire IT environment and achieving agreed upon IT outcomes and business goals through a personalized and customer-centric experience. All delivered by an assigned team of HPE Pointnext Services experts. HPE Pointnext Complete Care provides:
https://www.hpe.com/services/completecare |
|
|
|
Parts and Materials Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements. Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services. The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. |
|
|
|
|
|
HPE Factory Express for Servers and storage HPE Factory Express offers configuration, customization, integration and deployment services for HPE servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed. Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HPE products supported through Factory Express include a wide array of servers and storage: HPE Integrity, HPE ProLiant, HPE Apollo, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000 servers as well as the MSAxxxx3PAR suite, XP, rackable tape libraries and configurable network switches. | |
|
| |
|
HPE Technology Services Support Credits Offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business. | |
|
| |
|
HPE Complete Care service HPE Complete Care helps improve IT stability and security, increase the value of IT, and enable agility and innovation. It is a structured framework of repeatable, tested, and globally available services "building blocks." You can deploy, operate, and evolve your datacenter wherever you are on your IT journey. With HPE Complete Care, you benefit from a personalized relationship with HPE via a single point of accountability for HPE and others' products. For more information, visit http://www.hpe.com/services/datacentercare | |
|
| |
|
HPE Flexible Capacity With Flexible Capacity, you get the speed, scalability, and economics of the public cloud in the privacy of your data center. Gain the advantages of the public cloud-consumption-based payment, rapid scalability without worrying about capacity constraints. Reduce the "heavy lifting" needed to operate a data center. And retain the advantages that IT provides the business (i.e., control, security). Deliver the right user experience, choose the right technology for the business, manage privacy and compliance, and manage the cost of IT. And, you have the option to use the public cloud when needed. | |
|
| |
|
DC for Hyperscale Complete Care for Hyperscale is available for Service Providers and HPC customers who use a scale out approach to computing with a high volume homogenous infrastructure and resilient architecture can take advantage of this environment support tailored to their operating model. | |
|
| |
|
HPE Education Services Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn | |
|
| |
|
HPE Support Center The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers. Learn more http://www.hpe.com/support/hpesc HPE's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now you can get access to personalized IT support anywhere, anytime. HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement. Notes: *HPE Support Center Mobile App is subject to local availability |
|
|
|
For more Information http://www.hpe.com/services |
|
|
Related Options
|
Cabling and Transceivers | |
|
QSFP+ Transceiver | |
|
HPE X140 40G QSFP+ MPO SR4 Transceiver |
JG325B |
|
HPE X140 40G QSFP+ MPO MM 850nm CSR4 300m Transceiver |
JG709A |
|
QSFP+ to QSFP+ Cables | |
|
HPE FlexNetwork X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable |
JG326A |
|
HPE FlexNetwork X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable |
JG327A |
|
HPE FlexNetwork X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable |
JG328A |
|
HP A-WA2620X-AGN Dual Radio 802.11n FAT Access Point (WW) |
JG287A |
|
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable |
JG329A |
|
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable |
JG330A |
|
HPE FlexNetwork X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable |
JG331A |
|
Notes: The above cables have been tested and verified to work with the HPE 10/40GbE Pass-Thru Module. However, the module will accept cables from any vendor. Hewlett Packard Enterprise does not guarantee the performance or functionality when a non-verified cable has been inserted. | |
|
HPE Support and Services | |
|
Installation & start up services | |
|
HPE Installation Apollo 6000 Gen10 Chassis Service |
H2GA8E |
|
HPE Apollo 6000 Generation 10 Installation and Startup Service |
H6SV1E |
|
Support Services | |
|
HPE 3 Year Proactive Care 24x7 Apollo 10/40/100GbE Switch Service |
H2GL5E |
|
HPE 3 Year Proactive Care 24x7 with CDMR Apollo 10/40/100GbE Switch Service |
H2GL6E |
|
HPE 3 Year Foundation Care 24x7 Apollo 10/40/100GbE Switch Service |
H2GL3E |
|
HPE 3 Year Foundation Care 24x7 with CDMR Apollo 10/40/100GbE Switch Service |
H2GL4E |
|
HPE 3 Year Foundation Care Next Business Day Apollo 10/40/100GbE Switch Service |
H2GK7E |
|
HPE 3 Year Foundation Care Next Business Day with CDMR Apollo 10/40/100GbE Switch Service |
H2GK8E |
|
| |
Technical Specifications
|
Shipping Dimensions |
Length |
17.75 in. (450.9mm) |
|
Width |
14.75 in. (375.7mm) | |
|
Height |
6.5 in. (165.1mm) | |
|
Shipping weight |
8 lbs (3.63kgs) | |
|
Performance |
Latency |
≤110 ns port-to-port |
|
Throughput |
up to 9.6 Tbps | |
|
Maximum multicast table size |
8192 entries | |
|
Maximum unicast table size |
49151 entries | |
|
Dimensions |
Length |
12.41 in (315.2mm) |
|
Width |
8.62 in (219mm) | |
|
Height |
1.70 in (43.3mm) | |
|
Weight |
5.8 lbs. (2.63 kgs) | |
|
Environment |
Operating temperature |
10° to 35° C (50° to 95° F) |
|
Storage temperature |
-30° to 60° C (-22° to 140° F) | |
|
Operating humidity |
10 to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing. | |
|
Operating Altitude |
0 to 3050m (0 to 10,000 feet) | |
|
Electrical characteristics |
Voltage |
12V DC +/- 10% |
|
Power w/Copper Cables |
Max 130W | |
|
Power w/Optical Cables |
Max 187W | |
|
Others |
RoHS-6 compliant | |
|
Environment-friendly Products and Approach |
End-of-life Management and Recycling |
Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. The EU WEEE Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site: http://www.hpe.com/RECYCLE These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
|
|
Summary of Changes
|
Date |
Version History |
Action |
Description of Change |
|
15-Nov-2021 |
Version 4 |
Changed |
Service and Support section was updated. |
|
02-Dec-2019 |
Version 3 |
Changed |
Overview section was updated. |
|
23-Oct-2017 |
Version 2 |
Changed |
Care Pack naming and Service and Support- Parts and Materials updated. |
|
11-Jul-2017 |
Version 1 |
Created |
Initial version of QuickSpecs for HPE Apollo Ethernet 10GbE PassThru Module |
