HPE ProLiant Compute XD230

QuickSpecs

HPE introduces a scale-out system with a compact form factor, designed to meet the evolving demands of workloads in HPC and enterprise data centers.

The HPE ProLiant Compute XD230 system delivers exceptional performance and workload flexibility in a compact footprint, enabling shared infrastructure efficiencies.

It is a 1U chassis system that supports Intel® Xeon® 6 processors with P-cores that deliver up to twice the HPC performance compared to the 5th Gen Intel® Xeon® processors. With the capability to scale up to 128 cores, 12 memory channels, and 96 PCIe lanes per socket, the Intel® Xeon® 6 processors address diverse HPC application needs, significantly reducing memory bandwidth bottlenecks with innovative Multiplexed Rank DIMMs (MRDIMM) delivering up to 8800 megatransfers per second (MT/s).

HPE ProLiant Compute XD230 delivers a complete HPC solution from chassis-scale to rack-scale, in a rack-scale deployment. It offers a complete, scalable solution for HPC customers everywhere, and ensures maximum performance at the lowest possible total cost of ownership. It comes with the flexibility of right-sized power and cooling options, including closed loop cooling, Direct Liquid Cooling and support for Rear Door Heat Exchanger (RDHX) and Adaptive Rack Cooling Solutions (ARCS).

Built with Exascale-ready networking technologies, integrated storage, extensive software portfolio and management tools, HPE ProLiant Compute XD230 systems can enable customers to innovate and prepare for tomorrow's challenges.

What's New

- All new XD230 server

• New 6th Generation Intel® Xeon® Scalable Processors (AP with P-cores) Support for up to 24 DDR5 6400 MT/s DIMMs per 1 server Support for up to 24 DDR5 8800 MT/s MRDIMMs per 1 server

- Direct Liquid Cooling (DLC) option for HPE ProLiant Compute XD230 System comes ready to plug-and-play.

- Supports up to two 3200 W, 2800 W or 2400 W redundant power supplies, delivering up to 6400 W of power in a single node.

- Features Slingshot 200 Gbps and 400 Gbps, InfiniBand NDR, and standard Ethernet, offering a range of HPC interconnect technologies.

- Includes HPE Integrated Lights-Out (iLO) server management software.

- Provides hot-pluggable, high-availability RAID M.2 boot options.

- Compatible with OpenBMC through the iLO Transfer of Ownership process.

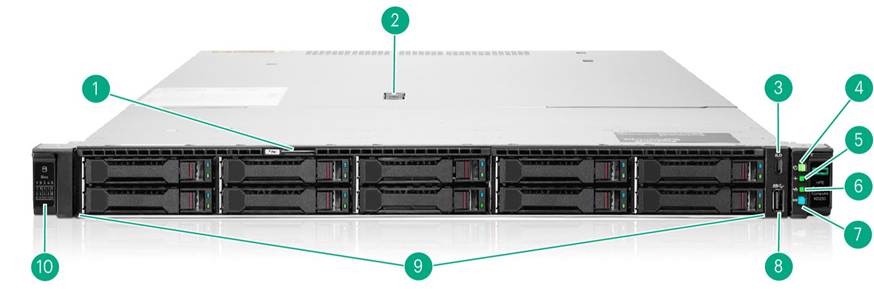

HPE ProLiant Compute XD230

Item

Description

Item

Description

1.

 Serial number/iLO information pull tab

6.

NIC status LED

2.

Quick removal access panel

7.

UID button LED

3.

iLO Service port

8.

USB 3.2 Gen1 port

4.

Power On/Standby button/LED

9.

10x SFF drives

5.

Health LED

10.

Drive support label

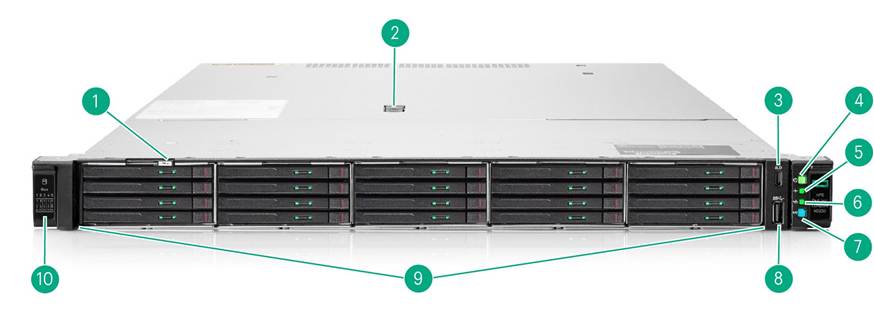

 HPE ProLiant Compute XD230

Item

Description

Item

Description

1.

Serial number/iLO information pull tab

6.

NIC status LED

2.

Quick removal access panel

7.

UID button LED

3.

iLO Service port

8.

USB 3.2 Gen1 port

4.

Power on/Standby button/LED

9.

20x EDSFF drives

5.

Health LED

10.

Serial number/iLO information pull tab

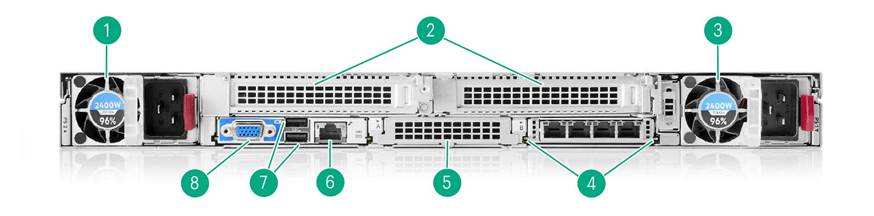

HPE ProLiant Compute XD230 Server Rear Panel Components

Item

Description

Item

Description

1.

Power supply 2

5.

OCP A slot

2.

Slot 1 & 2 x16 PCIe 5.0 - Full Height

Supported Options:

2 FHHL (CLC) model (as shown)

3 HHHL (CLC) model

1 FHHL + 1 HHHL (DLC) model

6.

iLO Management Port

3.

Power supply 1

7.

USB 3.2 Gen1 Ports

4.

OCP B slot

8.

Video (VGA) port

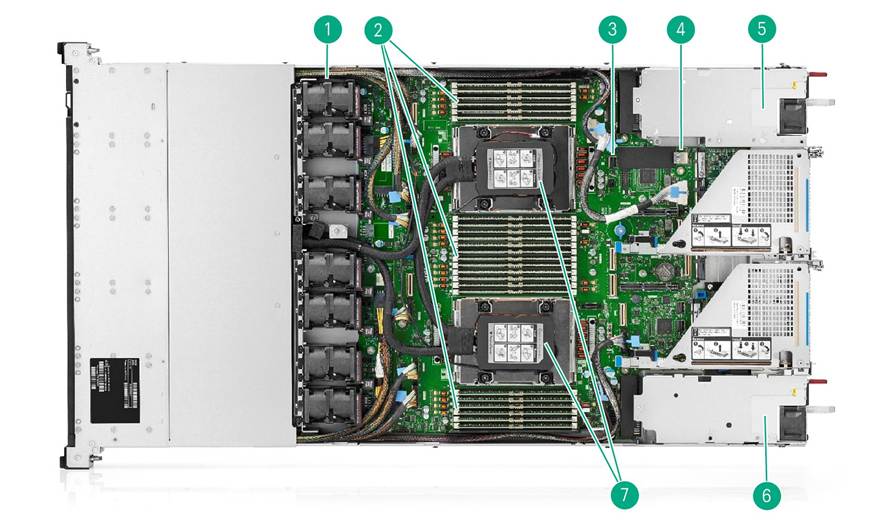

HPE ProLiant Compute XD230 - Internal View

Item

Description

Item

Description

1.

FAN #1 - #7

5.

Power supply 1

2.

DDR5 DIMM Slots (24 DIMMs fully populated as shown)

6.

Power supply 2

3.

Boot Optimized Storage Device 41 Connector (for NS204i-u signal)

7.

CPU 1 (top) and CPU 2 (bottom)

4.

Internal USB 3.2 Gen1 port

Platform Information

Form Factor

- 1U rack

Chassis Types 20 EDSFF Carrier 1T (EC1) drive bays; 10 SFF Basic Carrier (BC) drive bay

Each HPE ProLiant Compute XD230 Chassis is built with the following:

- Supports up to two (2) power supplies for the chassis

• Minimum of one (1) power supply required.

- Five backplanes, each with 2 SFF NVMe drives

- Or five backplanes each with 4 EDSFF drives

HPE ProLiant Compute XD230 server

- 2P server built on the 6^th Generation Intel® Xeon® Scalable Processors. Available with 72 to 128 cores, up to 2.0 GHz base frequency, up to 3.9 GHz turbo frequency, and power ratings up to 500 W.

- XD230 has 24 memory channels per server and supports 8800 MT/s memory, up to three PCIe 5.0 slots, and multiple networking options including high speed fabric.

- Optional M.2 NVMe SSD: 2 x 480 GB or 2 x 960 GB (shipped with optional HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device):

- One iLO Management Port

Rack Airflow Requirements

HPE ProLiant Compute XD230 System

The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. For maximum cooling, HPE racks are recommended to allow these racks to be fully loaded with servers using the latest processors. For detailed information, please see HPE ProLiant Compute XD230 System User Guide.

Notes:

- If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment.

- When selecting Direct Liquid Cooling (DLC), HPE racks are required for factory integration.

- Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels will result in improper cooling that can lead to thermal damage.

On System Management Chipset

HPE iLO ASIC

Read and learn more in the iLO QuickSpecs

Memory

Notes: Memory DIMM availability with a server platform is dependent upon completion of certification testing.

Expansion Slots & Riser Information

Notes:

- If quantity one of 'FH Riser' is in the order, then the customer can choose max of one 'LP Riser'.

- If quantity two of 'FH Riser' is in the order, then customers cannot select 'LP Riser'.

- If no 'FH Riser' is in the order, then customers can select max of three 'LP Riser'.

- If Direct Liquid Cooling (HPE XD230 DLC FIO Kit) is in the order and riser cards are selected, the only allowed riser combination is: 1 Quantity of 'LP Riser' and/or 1 Quantity of 'FH Riser'.

Internal Storage Devices

Optional M.2 NVMe SSD Mezz Riser Kit: 2 x 480 GB or 2 x 960 GB (shipped with optional HPE NS204i-u NVMe Hot Plug Boot Optimized Storage Device).

Interfaces

Industry Standard Compliance

- ACPI 6.3 Compliant

- PCIe 5.0 Compliant

- WOL Support

- Microsoft® Logo certification

- PXE Support

- USB 3.0 Compliant (internal)

- SMBIOS 3.4

- UEFI 2.8

- Redfish API

- European Union ErP Lot 9 Regulation, known as the EU eco-design regulations for server and storage products, establishes power thresholds for idle state, as well as efficiency and performance in active state which vary among configurations. HPE ProLiant Gen12 servers are compliant with Lot9 requirements. Please visit: https://www.HPE.com/us/en/about/environment/msds-specs-more.html for more information regarding HPE Lot 9 conformance.

Beginning on January 1st, 2024, units sold into the European Economic Area (EEA), the United Kingdom, Switzerland, or Turkey must include more efficient AC power supplies: 94% for multi-output and 96% for single-output. HPE M-CRPS power supplies are single-output, and the part numbers P67240-B21, P67244-B21, P67248-B21, and P67252-B21 are 96% efficient, thus meeting the requirements.

HPE is on target to fulfill compliant systems ahead of time and will begin enforcing these requirements in advance to satisfy requests with the current power supplies by the set deadline.

Power Specifications

To review typical system power ratings, please use the HPE Power Advisor Tool

For information on power specifications and technical content visit HPE Common Slot Power Supplies - Specifications

HPE ProLiant Compute XD230 Server UEFI

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and a more secure configuration environment than legacy ROM while interacting with the server at boot time.

The UEFI System utility is embedded in the system ROM. Its features enable you to perform a wide range of configuration activities, including:

- Configuring system devices and installed options.

- Enabling and disabling system features.

- Displaying system information.

- Selecting the primary boot controller or partition.

- Configuring memory options.

- Launching other pre-boot environments.

HPE ProLiant Compute XD230 servers with UEFI can provide:

- Secure Boot that enables the system firmware, option card firmware, operating systems, and software that collaborates to enhance platform security.

- An Embedded UEFI Shell that provides a pre-boot environment for running scripts and tools.

- Boot support for option cards that only support a UEFI option ROM.

UEFI

Configure and boot your servers securely with industry-standard Unified Extensible Firmware Interface (UEFI).

Learn more at: http://www.HPE.com/servers/uefi

Software Portfolio for HPE ProLiant Compute XD230s

Operating Systems and Virtualization Software Support for XD230 Servers

HPE servers are designed for seamless integration with partner Operating Systems and Virtualization Software. By collaborating closely with our partners, we ensure that their products are optimized, certified, and fully supported within your HPE server environment.

o Windows Server

o VMware ESXi 9.x

o Red Hat Enterprise Linux (RHEL)

o SUSE Linux Enterprise Server (SLES)

Ubuntu. Please check the OS support link for the detailed and latest certification information.

HPE Servers Support & Certification Matrices. - https://www.HPE.com/us/en/collaterals/collateral.a50010841enw.html

Fabric software

- Mellanox UFM

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality.

HPE OneView Advanced

HPE OneView Advanced offers a sophisticated level of automation to infrastructure management by taking a template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing multiple HPE server generations. To learn more visit http://www.HPE.com/info/oneview

HPE Performance Cluster Manager

Fully integrated system management solution offering the capabilities you need to manage your HPE Linux®-based high performance computing (HPC) clusters.

HPE Performance Cluster Manager aggregates system metrics and remote management.

The software provides:

- System setup

- Hardware monitoring and management including GPU management

- Image management and software updates

- Power management

- Integration with ISV & open-source software solutions

- AIOps capabilities

HPE Message Passing Interface (MPI) is an MPI development environment designed to enable the development and optimization of high-performance computing (HPC) applications. This software leverages a scalable MPI library and boosts performance of existing applications without requiring recompilation.

Additional 3^rd party software development tools:

- AMD AOCC

- Intel® oneAPI

- GNU Compiler Collection

- Perforce® TotalView®

- Mellanox HPC-X

Security

- UEFI Secure Boot and Secure Start support

- HPE XD Hardware Root of Trust

- Tamper-free updates - components are digitally signed and verified

- Secure Recovery - recover critical firmware to known good state on detection of compromised firmware

- TPM (Trusted Platform Module) Module Kit option

- HPE ProLiant Compute XD230 supports OpenSSL 3.0

- Runtime Firmware Validation - Periodically scans essential firmware for compromised code during runtime

Liquid Cooling Overview

Liquid cooling provides effective cooling for the most powerful chips while they operate at their highest possible performance. It also provides very energy efficient cooling and enables higher rack densities.

Selecting DLC Options

HPE ProLiant Compute XD230 servers can be equipped with Direct Liquid Cooling (DLC) by selecting from the following options, in addition to normal server configuration menu options:

Notes: *highlighted options are specific to ARCS configurations only

SKU Description

HPE SKU

Selection Criteria

Comments

HPE 42U 800 mm x 1200 mm Enterprise G2 Shock rack

P9K46A

One (1) per rack

DLC compatible 42U HPE racks

HPE 48U 800 mm x 1200 mm Enterprise G2 Shock rack

P9K58A

DLC compatible 48U HPE racks

HPE ARCS 48U 800 mm x1600 mm Rack*

R8N95A

DLC compatible 48U HPE ARCS racks

HPE Cray XD 75 kW 208 V FIO In-Rack Coolant Distribution Unit

P55832-B21

One (1) per rack

4U CDU mounted at the bottom of the rack

HPE Cray Fill and Drain FIO Hand Pump Kit

P59920-B21

One (1) for multiple racks

Filling kit for CDU. One can be used to service multiple CDUs

HPE Cray 4U CDU 2.5 m FIO Leak Detection Kit

P55834-B21

One (1) per rack

Additional external leak detection cable (is default but can be removed if not needed). Connects to rear of CDU and can be routed to desired location (CDU already contains internal leak detection)

HPE Cray G2 Rack 25.4 mm SAN to FD83 Secondary FIO Water Hose Kit

P56290-B21

One (1) per rack

1" inner diameter hose kit connects the CDU to the rack manifold in a standard HPE G2 rack

HPE Cray ARCS 25.4 mm SAN to FD83 Secondary FIO Water Hose Kit*

P56291-B21

1" inner diameter hose kit connects the CDU to the rack manifold in a HPE ARCS rack

HPE Cray 25 mm 1.83 m Primary FIO Water Hose Kit with Insulation

P56286-B21

One (1) per rack

1" inner diameter insulated hose kit connects the CDU to the facility water piping below the rack

HPE Cray 25 mm 3.66 m Primary FIO Water Hose Kit with Insulation

P56287-B21

1" inner diameter Insulated hose kit connects the CDU to the facility water piping above the rack

HPE Cray 38 mm 1.83 m Primary FIO Water Hose Kit

P59224-B21

1.5" inner diameter non-insulated hose kit connects the CDU to the facility water piping below the rack

HPE Cray 38 mm 3.66 m Primary FIO Water Hose Kit

P59225-B21

1.5" inner diameter non-insulated hose kit connects the CDU to the facility water piping above the rack

HPE Cray 42U 72-node Direct Liquid Cooling FD83 SCG03 FIO Rack Manifold

P56288-B21

One (1) per rack

42U rack manifold with connections for 72 servers

HPE Cray 48U 84-node Direct Liquid Cooling FD83 SCG03 FIO Rack Manifold

P56289-B21

48U rack manifold with connections for 84 servers

HPE XD230 DLC FIO Kit

P76166-B21

One (1) per server

HPE XD230 DLC FIO Cage Kit

P77598-B21

Cooling options

The following optional cooling technologies are compatible with both air cooled and liquid cooled HPE servers.

HPE Adaptive Rack Cooling System (ARCS)

HPE ARCS can provide advanced cooling for HPE ProLiant Compute XD230 servers using facility water.

This cooling solution supports up to 4 full racks (servers, networking or storage) and manages 100% of the server heat in a completely enclosed cluster. It provides cool air for inlet side and manages exhaust heat, transferring it to facility water cooling. When servers with DLC are added to ARCS, the highest rack density is possible, with 100% heat transfer to facility water.

This option can be used for air cooled HPE ProLiant Compute XD230 racks or in combination with DLC to cool high density racks.

For additional information, refer to the HPE Adaptive Rack Cooling System QuickSpecs here.

HPE Rear Door Heat Exchanger (RDHX)

HPE RDHX can neutralize warm exhaust air from HPE ProLiant Compute XD230 servers using facility water.

This cooling solution attaches to the back of a single rack (servers, networking or storage) and neutralizes the hot air exiting the rack by transferring the heat to facility water cooling. When servers with DLC are added to RDHX, the highest rack density is possible, with 100% heat transfer to facility water.

This option can be used for air cooled HPE ProLiant Compute XD230 racks or in combination with HPE ProLiant Compute XD230 DLC to cool high density racks.

For additional information, please visit HPE Rear Door Heat Exchanger QuickSpecs here.

For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services.

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of a Hewlett Packard Enterprise approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

Notes: FIO indicates that this option is only available as a factory installable option.

Step 1: Choose the Server

HPE ProLiant Compute XD230 v2 Configure-to-order Server

P83951-B21

HPE ProLiant Compute XD230 iLO7 DC-SCM FIO Management Module Kit

P77597-B21

Power Supplies

SKU

HPE 2400W M-CRPS Titanium Hot Plug Power Supply Kit

P67252-B21

HPE 3200W M-CRPS Titanium Hot Plug Power Supply Kit

P67248-B21

HPE 2800W M-CRPS 277VAC Titanium Hot Plug Power Supply Kit

P78196-B21

Cooling Options

SKU

HPE ProLiant Compute XD230 Closed-loop Liquid Cooling FIO Kit

P76165-B21

HPE ProLiant Compute XD230 Direct Liquid Cooling FIO Kit

P76166-B21

Step 2: Choose Processor option

Notes: Certain limitations may apply to select processors, please contact your HPE sales representative

Intel® Processors - Factory Integrated Processor Kit for XD230

SKU

Intel Xeon 6980P 2.0GHz 128-core 500W Processor Kit for HPE ProLiant Compute XD

P76802-B21

Intel Xeon 6978P 2.1GHz 120-core 500W Processor Kit for HPE ProLiant Compute XD

P84907-B21

Intel Xeon 6972P 2.4GHz 96-core 500W Processor Kit for HPE ProLiant Compute XD

P76804-B21

Intel Xeon 6960P 2.7GHz 72-core 500W Processor Kit for HPE ProLiant Compute XD

P76805-B21

Intel Xeon 6952P 2.1GHz 96-core 400W Processor Kit for HPE ProLiant Compute XD

P76806-B21

Notes: Mixing of Processors is not allowed. If two Processors are in the order along with 'HPE XD230 CLC FIO Kit' then maximum of two 'HPE DL3XX G12 1U 4 EDSFF NVMe Stack BP Kit' are allowed per server.

Step 3: Choose Additional Options from Core and Additional Options sections below

HPE ProLiant Compute XD230 Memory

Registered DIMMs and MRDIMM for XD230

SKU

HPE 32GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69727-H21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69728-H21

HPE 96GB (1x96GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69729-H21

HPE 128GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P69730-H21

HPE 32GB (1x32GB) Dual Rank x8 DDR5-88/44 CAS-36-36-36 EC8 Multiplexed Rank Smart Memory Kit

P76826-H21

HPE 64GB (1x64GB) Dual Rank x4 DDR5-88/44 CAS-36-36-36 EC8 Multiplexed Rank Smart Memory Kit

P76828-H21

Notes:

- Mixing of Memory is not allowed.

- P76828-H21 requires the selection of 'HPE XD230 DLC FIO Kit'

- If this Memory P69730-H21 or P76826-H21 is selected along with HPE XD230 CLC FIO Kit then max of quantity of two of HPE DL3XX G12 1U 4 EDSFF NVMe Stack BP Kit are allowed per server.

Drive Cage

SKU

HPE ProLiant Compute DL3XX Gen12 1U 4EDSFF NVMe Stacking Backplane Kit

P72221-B21

HPE ProLiant Compute DL3XX Gen12 1U 2SFF x4 Tri-Mode U.3 Stacking Backplane Kit

P72223-B21

Step 4: Choose Additional Factory Integrated Options

SKU

HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device

P48183-B21

HPE NS204i-u v2 960GB NVMe SED Hot Plug Boot Optimized Storage Device

P81162-B21

Hard Drives

Hot Plug EDSFF

SKU

HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69234-H21

HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69237-H21

HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69239-H21

HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69241-H21

HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69243-H21

HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD

P69245-H21

HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD

P69546-H21

HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70392-H21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70395-H21

HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD

P70397-H21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70399-H21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70401-H21

HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD

P70403-H21

HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70669-H21

HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70672-H21

HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD

P70674-H21

Notes:

- Requires the selection of 'Four EDSFF NVMe Stack BP Kit'.

- Total number of EDSFF Drives allowed per server depends on number of 'EDSFF Drive Cage' ordered. One 'EDSFF Drive cage' can support up to 4 EDSFF Drives, consider this during the total number of EDSFF Drives allowed per server.

Hot Plug SFF

SKU

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61019-H21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61027-H21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61035-H21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61043-H21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61051-H21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD

P61059-H21

HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63829-H21

HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63833-H21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63837-H21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD

P63841-H21

HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63845-H21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63849-H21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD

P63853-H21

HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64842-H21

HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64844-H21

HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64846-H21

HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD

P64848-H21

HPE 800GB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P64999-H21

HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65007-H21

HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65015-H21

HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD

P65023-H21

HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70426-H21

HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD

P70428-H21

HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70434-H21

HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD

P70436-H21

Notes:

- Requires the selection of 'Two SFF x 4 TM Stack BP Kit'

- Total number of SFF Drives allowed per server depends on number of 'SFF Drive Cage' ordered. One 'SFF Drive cage' can support up to 2 SFF Drives, consider this during the total number of SFF Drives allowed per server.

Storage Controller

SKU

HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller

P47777-B21

HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller

P47781-B21

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller

P47789-B21

HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller

P58335-B21

HPE MR408i-p Gen11 x8 Lanes 4GB Cache PCI SPDM Plug-in Storage Controller

P74775-B21

HPE MR932i-p x32 Lanes PCIe Gen5 SPDM Plug-in Storage Controller

P75697-B21

Notes:

- Requires the selection of 'HPE 96 W Smart Stg Li-ion Batt 145 mm Kit' (P01366-B21) or 'HPE Smart Hybrid Capacitor w/ 145 mm Cable'(P02377-B21) or HPE 16 W Smart Hybrid Cap w/145 mm Cable (P65038-B21)

- One Controller can support up to two SFF Drive Cages or one EDSFF Drive Cage. Consider this during the total selection of Controller to support Drive Cages.

- Requires the selection of 'HPE XD230 Controller Signal Cable Kit' OR 'HPE XD230 MR408i-p Signal Cable Kit'.

- Requires the selection of 'HPE XD230 OROC Signal Cable' OR 'HPE XD230 MR408i-o Signal Cable Kit'.

- One Controller can support one SFF Drive Cage. Consider this during the total selection of Controller to support Drive Cages.

- It cannot be selected with EDSFF Drive cage.

Networking

SKU

Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

Intel E810-XXVDA2 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

Broadcom BCM57414 Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P10115-B21

Intel E810-CQDA2 Ethernet 100Gb 2-port QSFP28 OCP3 Adapter for HPE

P22767-B21

Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ OCP3 Adapter for HPE

P26256-B21

Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P26269-B21

Intel E810-XXVDA4 Ethernet 10/25Gb 4-port SFP28 OCP3 Adapter for HPE

P41614-B21

Mellanox MCX631432AS-ADAI Ethernet 10/25Gb 2-port SFP28 OCP3 Adapter for HPE

P42041-B21

HPE InfiniBand NDR/Ethernet 400Gb 1-port OSFP PCIe5 x16 MCX75310AAS-NEAT Adapter

P45641-H23

HPE InfiniBand NDR200/Ethernet 200GbE 2-port QSFP112 PCIe5 x16 MCX755106AC-HEAT Adapter

P65333-H21

HPE InfiniBand NDR/Ethernet 400 GB 1-port OSFP Gen Adapter

P45641-H24

HPE Performance Cluster Manager

For additional information, please visit HPE Performance Cluster Manager QuickSpecs here

SKU

HPE Performance Cluster Manager 1 Node 3yr 24x7 Support Perpetual E-LTU

Q9V60AAE

Notes:

- One license per node

- Including three years of support

- This is an electronic license

- This is a perpetual license. The software will continue working even when the support term ends

HPE Performance Cluster Manager 1 Node 3yr 24x7 Support Perpetual LTU

Q9V60A

Notes:

- One license per node.

- Includes three years of support.

- This is a perpetual license. The software will continue working even when the support term ends.

HPE Performance Cluster Manager FIO Software

Q9V61A

Notes:

- This SKU does not include the license. Please order with Q9V60AAE.

- Order one per node

HPE Performance Cluster Manager Media Kit

Q9V62A

Notes: One media kit per solution.

HPE Power Distribution Units

Power Distribution Units (PDUs) are an integral piece to this data center solution and HPE offers several types. Basic PDUs provide reliable power with 0U or 1U installation options. Metered PDUs have added intelligence to precisely track power usage and switched PDUs provide both local and remote power management. There are additional metered PDUs that are recommended for this solution that are not part of the mainstream PDU product offering. They are as follows:

SKU

HPE Metered 3Ph 57.6kVA/60309 100A 5-wire 80A/230V Outlets (3) C13 (18) C19/Vertical NA PDU

880460-B21

HPE Metered 3Ph 34.5kVA/60309 60A 5-wire 48A/230V Outlets (3) C13 (18) C19/Vertical NA FIO PDU

880461-B21

HPE Cray Supercomputer 60A 415V 3 Phase 24 CX PDU

R4N30A

HPE Mtrd 3P 69.1kVA 125A 96A230V FIO PDU

880462-B21

HPE Metered 3Ph 45.1kVA/60309 63A 5-wire 63A/230V Outlets (3) C13 (18) C19/Vertical INTL FIO PDU

880463-B21

HPE Cray Supercomputer 63A 400V 3 Phase 24 CX PDU

R4N29A

Environmentally-friendly Products and Approach - End-of-life Management and Recycling

Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered, or disposed of in a responsible manner.

The European Union Waste Electrical and Electronic Equipment Directive [EU WEEE] (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. Information about product disassembly instructions can be found here.

These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

TCO Certified

The HPE ProLiant XL225n servers have been TCO Certified. All HPE TCO Certified products can be found in the TCO Certified Product Finder. More information on TCO Certified can be downloaded here: https://www.HPE.com/us/en/about/environment/eco-labels.html

Date

Version History

Action

Description of Change

03-Aug-2026

Version 18

Added

- Updated the HPE ProLiant Compute XD230 section with revised ASHRAE guidance links and updated networking options in Step 4: Choose Additional Factory Integrated Options.

15-Jun-2026

Version 17

Added

- Added HPE 2800W M-CRPS 277VAC Titanium Hot Plug Power Supply Kit.

- Added HPE MR932i-p PCIe Gen5 storage controller to Additional Factory Integrated Options.

Changed

- Software Portfolio section was updated to include supported operating systems and updated certification guidance.

Removed

- Removed obsolete M-CRPS values.

- Removed unsupported server configuration options and associated SKUs from Step 1: Choose the Server.

04-May-2026

Version 16

Changed

Updated factory-integrated networking options in Step 4: Choose Additional Factory Integrated Options by removing the HPE Data Processing Unit InfiniBand NDR/Ethernet 400 GB 1-port QSFP112 HHHL Adapter (P66387-H21) and adding the HPE InfiniBand NDR/Ethernet 400 GB 1-port OSFP Gen Adapter (P45641-H24).

06-Apr-2026

Version 15

Added

Added additional factory integrated options: (P01366-B21) and (P02377-B21) or HPE 16 W Smart Hybrid Cap w/145 mm Cable (P65038-B21).

02-Mar-2026

Version 14

Changed

Service and Support section was updated.

Added

Updated GreenLake statement.

02-Feb-2026

Version 13

Changed

Standard Features and Core Options sections were updated.

Added

Modular Common Redundant Power Supplies (M-CRPS) rules and Storage Controllers SKUs.

05-Jan-2026

Version 12

Changed

Configuration Information section was updated.

Added

Registered DIMMs and MRDIMM for XD230 SKU.

Removed

InfiniBand obsolete SKU.

01-Dec-2025

Version 11

Changed

Configuration Information section was updated.

Added

HPE Memory rules.

Removed

Hard Drive Hot Plug SFF obsolete SKU.

03-Nov-2025

Version 10

Changed

Standard Features and Configuration Information sections were updated.

Added

HPE Servers Support and Certification Matrices.

06-Oct-2025

Version 9

Changed

Configuration Information section was updated.

Added

Server Base SKUs, Storage Controller, and Networking SKUs.

02-Sep-2025

Version 8

Changed

Overview, Standards Features and Configuration Information sections were updated.

Added

Updated ErP Lot9 Regulation.

Removed

Intel® Processors - Factory Integrated Processor Kit for XD230 obsolete SKU.

28-Jul-2025

Version 7

Changed

Survey link updated.

12-Jun-2025

Version 6

Changed

Configuration Information section was updated

27-May-2025

Version 5

Changed

Overview and Standard Features sections were updated

28-Apr-2025

Version 4

Changed

Overview and Standard Features sections were updated

07-Apr-2025

Version 3

Changed

Overview, Standard Features and Configuration Information sections were updated

03-Mar-2025

Version 2

Changed

Overview and Standard Features sections were updated

03-Feb-2025

Version 1

New

New QuickSpecs

Have feedback on QuickSpecs? We're listening

Chat now

© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Microsoft® and Windows NT are US registered trademarks of Microsoft Corporation.

Intel®, the Intel® logo, Xeon® and Xeon® Inside are trademarks of Intel® Corporation in the U.S. and other countries.

a00073557enw - 16505 - Worldwide  - V18 - 03-August-2026

HEWLETT PACKARD ENTERPRISE

HPE.com
