HPE Modular Common Redundant Power Supplies QuickSpecs
HPE Modular Common Redundant (M-CRPS) Power Supplies are newly designed to comply with Open Compute Project (OCP) specifications. They feature new form factors, increased power output, and enhanced serviceability and manageability features. |
|
|
HPE M-CRPS Power Supplies are Platinum-rated (94% efficient) and offer capacities up to 800W, or Titanium-rated (96% efficient) with capacities up to 3200W, allowing users to right-size the power supplies for their specific server configurations. This flexibility helps reduce power waste, lower overall energy costs, and avoid trapped power capacity in the data center. | |||
|
| |||
|

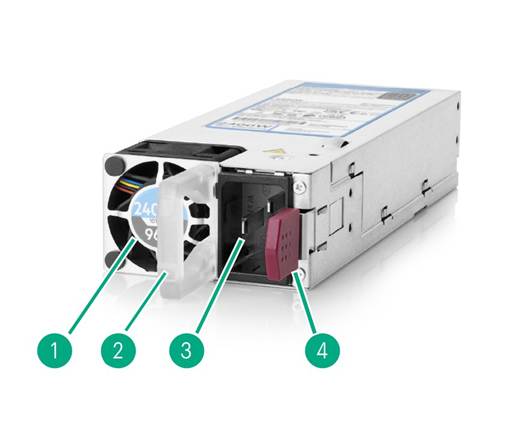

HPE Modular Common Redundant Power Supplies | |||
|
Item |
Description |
Item |
Description |
|
1. |
Identification Label |
3. |
Input Connector (C20 shown) |
|
2. |
Power Supply Handle/Status Indicator |
4. |
Release Lever |
|
|
|
|
What's New - Expanding the HPE M-CRPS Compute Power Supply portfolio which consists of Platinum and Titanium rated Power Supplies, by adding a 277VAC/380VDC Power Supply - HPE 2800W M-CRPS 277VAC Titanium Hot Plug Power Supply Kit | |
|
| |
|
Models | |
|
HPE Power Supplies | |
|
Modular Common Redundant Power Supplies | |
|
Notes: - Mixing different power supplies on servers with multiple power domain, such as the HPE ProLiant Compute DL380a Gen12, is allowed, provided that all power supplies within a domain are identical. - Mixing different power supplies within a server's power domain may limit or disable some power supply features, including support for power redundancy. To ensure access to all available features, all power supplies within the same power domain in a server should have the same output and efficiency ratings. - Capable of low-line (100V-127V) and high-line (200V-240V) AC input. - Power supply output is a result of input voltage. | |
|
| |
|
HPE M-CRPS Titanium Power Supply Kits | |
|
Notes: - M-CRPS Titanium power supplies deliver efficiencies of up to 96%. - Compliant with EU Lot 9 2024 minimum efficiency requirements. | |
|
HPE 1000W M-CRPS Titanium Hot Plug Power Supply Kit |
P67240-B21 |
|
Notes: - 60mm wide, C14 input connector. - 1000W at 200V AC and higher, 800W at 100V to 120V AC. |
|
|
HPE 1500W M-CRPS Titanium Hot Plug Power Supply Kit |
P67244-B21 |
|
Notes: - 60mm wide, C14 input connector. - 1500W at 200V AC and higher, 1000-1100W at 100V to 120V AC. |
|
|
HPE 2400W M-CRPS Titanium Hot Plug Power Supply Kit |
P67252-B21 |
|
Notes: - 73.5mm wide, C20 input connector. - 2400W at 200V AC and higher, 1200W at 100V to 127V AC. | |
|
HPE 3200W M-CRPS Titanium Hot Plug Power Supply Kit |
P67248-B21 |
|
Notes: - 73.5mm wide, C20 input connector. - 2900W-3200W at 200V AC and higher, 1400W-1600W at 100V to 127V AC. | |
|
| |
|
HPE M-CRPS Platinum Power Supply Kits | |
|
Notes: - M-CRPS Platinum power supplies deliver efficiencies of up to 94%. - Not compliant with EU Lot 9 2024 minimum efficiency requirements. | |
|
HPE 800W M-CRPS Platinum Hot Plug Power Supply Kit |
P73190-B21 |
|
Notes: - 60mm wide, C14 input connector. - 800W at 200V AC and higher, 650W at 100V to 120V AC. |
|
|
| |
|
HPE M-CRPS -48VDC Power Supply Kits | |
|
Notes: - M-CRPS -48VDC power supplies deliver efficiencies of up to 94%. - Excluded from EU Lot 9 2024 minimum efficiency requirements scope. - M-CRPS -48VDC power supplies may require separate purchases of power cords or lugs. | |
|
HPE 1300W M-CRPS -48VDC Hot Plug Power Supply Kit |
P82412-B21 |
|
HPE 2200W M-CRPS -48VDC Hot Plug Power Supply Kit |
P73210-B21 |
|
| |
|
HPE M-CRPS HVAC/HVDC Power Supply Kits | |
|
Notes: - M-CRPS HVAC/HVDC power supplies deliver efficiencies of up to 96%. - Excluded from EU Lot 9 2024 minimum efficiency requirements scope.
| |
|
HPE 2800W M-CRPS 277VAC Titanium Hot Plug Power Supply Kit |
P78196-B21 |
|
Notes: - 73.5mm wide, SAFDGRID connection. - Specialized PSU, focused on High Voltages supporting AC ranges from 200V to 277V and DC ranges from 240V to 420V. |
|
|
| |
|
Features/Benefits |
|
Titanium-Certified Power Efficiency - Titanium (96%) power efficiency certification from 80PLUS program - one of the highest power efficiency certifications available in the IT industry. - Reduces data center operating costs related to power by reducing server power requirements and energy waste. M-CRPS Design - New form factor, compliant with Open Compute Project (OCP) base specification. Not compatible with servers prior to Gen12. - Two widths: 73.5mm and 60mm. - Enhanced serviceability through an enlarged handle that illuminates to indicate power supply status. - Robust firmware security with advanced features to protect servers and enhance the end-user experience. - Tool-less hot plug design improves serviceability by allowing quick and easy access to system power supplies. - Common form factor across supported ProLiant Compute Gen12 servers allows multiple platforms to share power supply spares, reducing costs and space requirements for replacements. Wide range of Power Output Options - Multiple output options allowing users to right-size their power needs and avoid trapped power capacity in their data centers caused by over-subscribing power needs. - Support for both low-line and high-line AC input voltages, providing additional flexibility to operate in multiple IT environments and geographical locations. Power Management - Supports multiple operating modes to maximize power efficiency when configuring servers with redundant power supplies. |
|
|
|
80PLUS Certification The 80PLUS test protocol was developed by Ecova Plug Load Solutions and the Electric Power Research Institute (EPRI) in 2003 and formally launched in 2004. The 80PLUS performance specification requires power supplies in servers to be 80% or greater energy efficient at 20%, 50% and 100% of rated load with a true power factor of 0.9 or greater. This makes an 80PLUS certified power supply more efficient than typical power supplies found in many other electrical devices. Who benefits from the 80PLUS power supply program? - Commercial/Residential Consumers - empowered with information regarding energy efficient IT options that help them cut energy costs and reduce their environmental impact. - Utility/Power Providers - participation in a program that focuses on reducing power demands on overburdened grids as well as reducing power waste and its associated environmental impact. |
|
What are the efficiency requirements for each certification level? |
|
80PLUS Certification |
230V Internal | ||
|
% of Rated Load |
20% |
50% |
100% |
|
80PLUS Bronze |
81% |
85% |
81% |
|
80PLUS Silver |
85% |
89% |
85% |
|
80PLUS Gold |
88% |
92% |
88% |
|
80PLUS Platinum |
90% |
94% |
91% |
|
80PLUS Titanium |
94% |
96% |
91% |
|
What level of certification does HPE Modular Common Redundant Power Supplies meet?
|
|
European Union ErP Lot 9 Regulation Beginning on January 1st, 2024, units sold into the European Economic Area (EEA), the United Kingdom, Switzerland or Turkey must include more efficient AC power supplies: 96% for single output type. HPE Modular Common Redundant Power Supplies are single-output, and are 96% efficient, thus meeting requirements. |
|
|
|
Support for Redundant Power Supplies A power domain configured with identical M-CRPS Power Supplies on an HPE ProLiant server solution supports the following three scenarios: - Operation with N-1 power supplies. - Operation with redundant power supplies in load-balanced mode. - Operation with redundant power supplies in high-efficiency mode.
For redundant M-CRPS Power Supplies operating in load-balanced
mode (the default mode when adding redundant power supplies), the load
on a domain is shared equally between the power supplies. |
|
|
|
Compatibility HPE M-CRPS power supplies are compatible with the following HPE ProLiant Compute families: - HPE ProLiant Compute DL320 Gen12 - HPE ProLiant Compute DL325 Gen12 - HPE ProLiant Compute DL345 Gen12 - HPE ProLiant Compute DL340 Gen12 - HPE ProLiant Compute DL380a Gen12 - HPE ProLiant Compute DL580 Gen12 - HPE ProLiant Compute XD230 Notes: To check for power supply compatibility, please review the appropriate HPE Server QuickSpecs at http://www.hpe.com/info/qs.
|
|
|
|
For the most up-to-date information on HPE Services, please refer to the HPE Services - Supplemental QuickSpecs, which provides a comprehensive and regularly updated overview of available services. |
|
C13 - C14 Jumper Cords | |
|
Notes: - Cables listed below are to be used exclusively with the 800W, 1000W, and 1500W power supplies (P73190-B21, P67240-B21, and P67244-B21). - Worldwide use except India, unless otherwise noted. |
|
|
HPE C13 - C14 WW 250V 10Amp 2.0m Jumper Cord |
A0K02A |
|
HPE C13 - C14 WW 250V 10Amp Flint Gray 2.0m Jumper Cord |
AF573A |
|
HPE C13-C14 IN 250V 10Amp 2m Black Jumper Cord |
R1C65A |
|
Notes: For India use only. |
|
|
|
|
|
| |
|
C13 Country-Specific Jumper Cords | |
|
Notes: Cables listed below are to be used exclusively with the 800W, 1000W, and 1500W power supplies (P73190-B21, P67240-B21, and P67244-B21). |
|
|
HPE C13 - JIS C8303 JP 100V 12Amp 2.0m Power Cord |
AF572A |
|
HPE C13 - AS3112-3 AU 250V 10Amp 2.5m Power Cord |
AF569A |
|
HPE C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord |
AF556A |
|
HPE C13-NEMA 6-15P 10A/250V 3.6m Black Power Cord |
A0N33A |
|
HPE C13 - GB-1002 CN 250V 10Amp 1.83m Power Cord |
AF557A |
|
HPE C13 - CNS-690 TW 110V 13Amp 1.83m Power Cord |
AF561A |
|
HPE C13 - IRAM -2073 AR 250V 10A 2.5m Power Cord |
AF558A |
|
HPE C13 - NBR-14136 BR 250V 10Amp 1.83m Power Cord |
AF591A |
|
HPE C13 - DK-2.5A DK 250V 10Amp 1.83m Power Cord |
AF566A |
|
HPE C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord |
AF568A |
|
HPE C13 - SI-32 IL 250V 10Amp 1.83m Power Cord |
AF564A |
|
HPE C13 - KSC- 8305 KR 250V 10Amp 1.83m Power Cord |
AF560A |
|
HPE C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord |
AF567A |
|
HPE C13 - SEV 1011 CH 250V 10Amp 1.83m Power Cord |
AF565A |
|
HPE C13 - Nema 5-15P TH/PH 250V 10Amp 1.83m Power Cord |
AF559A |
|
HPE C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord |
AF570A |
|
HPE C13 - IS-1293 IN 240V 6Amp LV 2.0m Power Cord |
AF562A |
|
Notes: For India use only. |
|
|
Visit HPE Power Cords and Cables for details of optional power cords |
|
|
|
|
|
| |
|
C19 - C20 Jumper Cords | |
|
Notes: - Cables listed below are to be used exclusively with the 2400W and 3200W power supplies (P67252-B21 and P67248-B21). - Worldwide use except India, unless otherwise noted. |
|
|
HPE C19 - C20 WW 250V 16Amp Flint Gray 1.20m Jumper Cord |
AF575A |
|
HPE C19 - C20 WW 250V 16Amp Flint Gray 2.0m Jumper Cord |
AF574A |
|
HPE C19-C20 IN 250V 16Amp 2.5m Black Jumper Cord |
R1C66A |
|
Notes: For India use only. |
|
|
| |
|
C19 Country-Specific Jumper Cords | |
|
Notes: Cables listed below are to be used exclusively with the 2400W and 3200W power supplies (P67252-B21 and P67248-B21). |
|
|
HPE C19 - Nema L6-20P NA/JP 250V 20Amp High Voltage 3.6m Power Cord |
AF593A |
|
HPE C19 - CEE-VII EU 250V 16Amp 3.6m Power Cord |
AF576A |
|
HPE C19 - IEC-309 DK/SE/AR 250V 16Amp 3.6m Power Cord |
AF581A |
|
Notes: For India use only. |
|
|
Visit HPE Power Cords and Cables for details of optional power cords. |
|
|
| |
|
-48VDC Power Cables and Lugs | |
|
HPE Hardwire -48VDC 3.5m 1000-1300W Power Cord |
P79842-B21 |
|
HPE 1000-1300W -48VDC Power Lug Kit |
P79845-B21 |
|
Notes: - P79842-B21 and P79845-B21 are to be used with HPE 1300W M-CRPS -48VDC Hot Plug Power Supply Kit. - Only one power cable kit or power cable lug kit needs to be selected with the power supply. - 8 AWG supported power cord and lug.
|
|
|
HPE Hardwire -48VDC 3.5m 2000-2200W Power Cord |
P73874-B21 |
|
HPE 2000-2200W -48VDC Power Lug Kit |
P79839-B21 |
|
Notes: - P73874-B21 and P79839-B21 are to be used with HPE 2200W M-CRPS -48VDC Hot Plug Power Supply Kit. - Only one power cable kit or power cable lug kit needs to be selected with the power supply. - 6 AWG supported power cord and lug.
|
|
|
HPE SAFDGRID-SAFDGRID 277V 15Amp DC 2.0m Jumper Cord |
J6X00A |
|
HPE Cray XD670 SDG-400 - SDG-300 300V 1m Power Cord |
S4X23A |
|
Notes: These cables are used only with the 277VAC/380VDC M-CRPS Power supply (P78196-B21) and are only supported by this power supply. |
|
|
| |
|
HPE 1000W M-CRPS Titanium Hot Plug Power Supply (P67240-B21) |
HPE's Generic Part Number |
P67242-001 |
| ||||||
|
HPE 1000W M-CRPS Titanium Hot Plug Power Supply Kit |
P67240-B21 |
| |||||||
|
SPS-PS, 1U, 1000W, 12V, HTPLG, HE-P |
P68455-001 |
| |||||||
|
Input connector |
C14 |
| |||||||
|
Input Voltage Range (V rms) |
100-240 |
| |||||||
|
Frequency Range (Nominal) (Hz) |
50-60 |
| |||||||
|
Nominal Input Voltage (V rms) |
100 |
110 |
120 |
200 |
208 |
230 |
240 | ||
|
Maximum Rated Output Wattage Rating (Watts) |
800 |
800 |
800 |
1000 |
1000 |
1000 |
1000 | ||
|
Nominal Input Current (A rms) |
9.0 |
8.1 |
7.4 |
5.4 |
5.2 |
4.7 |
4.5 | ||
|
Maximum Rated Input Wattage Rating (Watts) |
892 |
884 |
878 |
1078 |
1077 |
1074 |
1073 | ||
|
Maximum Rated VA (Volt-Amp) |
901 |
893 |
887 |
1089 |
1088 |
1085 |
1084 | ||
|
Efficiency (%) |
89.7 |
90.5 |
91.2 |
92.7 |
92.9 |
93.1 |
93.2 | ||
|
Power Factor |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 | ||
|
Leakage Current (mA) |
0.33 |
0.36 |
0.40 |
0.66 |
0.69 |
0.76 |
0.80 | ||
|
Maximum Inrush Current (A peak) |
30 |
| |||||||
|
Maximum Inrush Current duration (mS) |
10 |
| |||||||
|
Maximum British Thermal Unit Rating (BTU-Hr) |
3044 |
3016 |
2995 |
3680 |
3675 |
3666 |
3662 | ||
|
HPE 1500W M-CRPS Titanium Hot Plug Power Supply (P67244-B21) |
HPE's Generic Part Number |
P67246-001 |
| ||||||
|
HPE 1500W M-CRPS Titanium Hot Plug Power Supply Kit |
P67244-B21 |
| |||||||
|
SPS-PS, 1U, 1500W, 12V, HTPLG, HE-P |
P68456-001 |
| |||||||
|
Input connector |
C14 |
| |||||||
|
Input Voltage Range (V rms) |
100-240 |
| |||||||
|
Frequency Range (Nominal) (Hz) |
50-60 |
| |||||||
|
Nominal Input Voltage (V rms) |
100 |
110 |
120 |
200 |
208 |
230 |
240 | ||
|
Maximum Rated Output Wattage Rating (Watts) |
1000 |
1100 |
1100 |
1500 |
1500 |
1500 |
1500 | ||
|
Nominal Input Current (A rms) |
11.2 |
11.2 |
10.2 |
8.2 |
7.9 |
7.1 |
6.8 | ||
|
Maximum Rated Input Wattage Rating (Watts) |
1111 |
1220 |
1212 |
1630 |
1628 |
1624 |
1622 | ||
|
Maximum Rated VA (Volt-Amp) |
1123 |
1233 |
1225 |
1646 |
1644 |
1640 |
1638 | ||
|
Efficiency (%) |
90.0 |
90.1 |
90.7 |
92.1 |
92.2 |
92.4 |
92.5 | ||
|
Power Factor |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 | ||
|
Leakage Current (mA) |
0.33 |
0.36 |
0.40 |
0.66 |
0.69 |
0.76 |
0.80 | ||
|
Maximum Inrush Current (A peak) |
30 |
| |||||||
|
Maximum Inrush Current duration (mS) |
10 |
| |||||||
|
Maximum British Thermal Unit Rating (BTU-Hr) |
3792 |
4164 |
4137 |
5560 |
5554 |
5539 |
5534 | ||
|
|
|
HPE 2400W M-CRPS Titanium Hot Plug Power Supply (P67252-B21) |
HPE's Generic Part Number |
P67254-001 | ||||||||
|
HPE 2400W M-CRPS Titanium Hot Plug |
P67252-B21 | |||||||||
|
Power Supply Kit SPS-PS, 1U, 2400W, 12V, HTPLG, HE-P |
P68454-001 | |||||||||
|
Input connector |
C20 | |||||||||
|
Input Voltage Range (V rms) |
100-240 | |||||||||
|
Frequency Range (Nominal) (Hz) |
50-60 |
DC | ||||||||
|
Nominal Input Voltage (V rms) |
100 |
120 |
127 |
200 |
208 |
230 |
240 |
240 | ||
|
Maximum Rated Output Wattage Rating (Watts) |
1200 |
1200 |
1200 |
2400 |
2400 |
2400 |
2400 |
2400 | ||
|
Nominal Input Current (A rms) |
13.0 |
10.8 |
10.1 |
12.9 |
12.4 |
11.2 |
10.7 |
10.7 | ||
|
Maximum Rated Input Wattage Rating (Watts) |
1290 |
1279 |
1275 |
2551 |
2549 |
2541 |
2539 |
2541 | ||
|
Maximum Rated VA (Volt-Amp) |
1303 |
1292 |
1288 |
2577 |
2574 |
2567 |
2564 |
2567 | ||
|
Efficiency (%) |
93.0 |
93.9 |
94.1 |
94.1 |
94.2 |
94.4 |
94.5 |
94.4 | ||
|
Power Factor |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 | ||
|
Leakage Current (mA) |
0.33 |
0.40 |
0.42 |
0.66 |
0.69 |
0.76 |
0.80 |
0.80 | ||
|
Maximum Inrush Current (A peak) |
30 |
| ||||||||
|
Maximum Inrush Current duration (ms) |
10 |
| ||||||||
|
Maximum British Thermal Unit Rating (BTU-Hr) |
4403 |
4364 |
4349 |
8705 |
8696 |
8671 |
8662 |
8672 | ||
|
|
|
HPE 3200W M-CRPS Titanium Hot Plug Power Supply (P67248-B21) |
HPE's Generic Part Number |
P67250-001 |
| ||||||
|
HPE 3200W M-CRPS Titanium Hot Plug Power Supply Kit |
P67248-B21 |
| |||||||
|
SPS-PS, 1U, 3200W, 12V, HTPLG, HE-P |
P68453-001 |
| |||||||
|
Input connector |
C20 |
| |||||||
|
Input Voltage Range (V rms) |
100-240 |
| |||||||
|
Frequency Range (Nominal) (Hz) |
50-60 |
| |||||||
|
Nominal Input Voltage (V rms) |
100 |
120 |
127 |
200 |
208 |
230 |
240 | ||
|
Maximum Rated Output Wattage Rating (Watts) |
1400 |
1600 |
1600 |
2900 |
3000 |
3200 |
3200 | ||
|
Nominal Input Current (A rms) |
15.2 |
14.5 |
13.7 |
15.7 |
15.6 |
15.1 |
14.4 | ||
|
Maximum Rated Input Wattage Rating (Watts) |
1504 |
1727 |
1723 |
3100 |
3207 |
3433 |
3429 | ||
|
Maximum Rated VA (Volt-Amp) |
1519 |
1745 |
1740 |
3131 |
3239 |
3468 |
3464 | ||
|
Efficiency (%) |
93.1 |
92.6 |
92.9 |
93.5 |
93.6 |
93.2 |
93.3 | ||
|
Power Factor |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 | ||
|
Leakage Current (mA) |
0.33 |
0.40 |
0.42 |
0.66 |
0.69 |
0.76 |
0.80 | ||
|
Maximum Inrush Current (A peak) |
30 | ||||||||
|
Maximum Inrush Current duration (mS) |
10 | ||||||||
|
Maximum British Thermal Unit Rating (BTU-Hr) |
5132 |
5894 |
5878 |
10577 |
10941 |
11713 |
11699 | ||
|
|
|
HPE 800W M-CRPS Platinum Hot Plug Power Supply (P73190-B21) |
HPE's Generic Part Number |
P73192-001 | ||||||
|
HPE 800W M-CRPS Platinum Hot Plug Power Supply Kit |
P73190-B21 | |||||||
|
SPS-PS, 1U, 800W, 12V, HTPLG, HE-P |
P77518-001 | |||||||
|
Input connector |
C14 | |||||||
|
Input Voltage Range (V rms) |
100-240 | |||||||
|
Frequency Range (Nominal) (Hz) |
50-60 | |||||||
|
Nominal Input Voltage (V rms) |
100 |
110 |
120 |
200 |
208 |
230 |
240 |
240 |
|
Maximum Rated Output Wattage Rating (Watts) |
650 |
650 |
650 |
800 |
800 |
800 |
800 |
800 |
|
Nominal Input Current (A rms) |
7.3 |
6.6 |
6.0 |
4.3 |
4.2 |
3.8 |
3.6 |
3.6 |
|
Maximum Rated Input Wattage Rating (Watts) |
720 |
715 |
710 |
860 |
859 |
856 |
855 |
856 |
|
Maximum Rated VA (Volt-Amp) |
728 |
722 |
717 |
868 |
867 |
865 |
864 |
865 |
|
Efficiency (%) |
90.2 |
91.0 |
91.5 |
93.1 |
93.2 |
93.4 |
93.5 |
93.4 |
|
Power Factor |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 |
|
Leakage Current (mA) |
0.33 |
0.36 |
0.40 |
0.66 |
0.69 |
0.76 |
0.80 |
0.80 |
|
Maximum Inrush Current (A peak) |
30 | |||||||
|
Maximum Inrush Current duration (mS) |
10 | |||||||
|
Maximum British Thermal Unit Rating (BTU-Hr) |
2458 |
2438 |
2423 |
2933 |
2930 |
2922 |
2919 |
2922 |
|
HPE 2800W M-CRPS 277VAC Titanium Hot Plug Power Supply Kit (P78196-B21) |
HPE's Generic Part Number |
P78198-001 | ||||
|
HPE 2800W M-CRPS 277VAC Titanium Hot Plug Power Supply Kit |
P78196-B21 | |||||
|
SPS-PS, 1U, 277VAC, 2700W, 12V, HTPLG |
P80650-001 | |||||
|
Input Voltage Range (V rms) |
200-277 |
240-420 | ||||
|
Frequency Range (Nominal) (Hz) |
50-60 |
DC | ||||
|
Nominal Input Voltage (V rms) |
200 |
208 |
230 |
240 |
277 |
380 |
|
Maximum Rated Output Wattage Rating (Watts) |
2700 |
2800 |
2800 |
2800 |
2800 |
2800 |
|
Nominal Input Current (A rms) |
14.6 |
14.6 |
13.2 |
12.6 |
10.9 |
7.9 |
|
Maximum Rated Input Wattage Rating (Watt) |
2881 |
3004 |
2995 |
2992 |
2982 |
2965 |
|
Maximum Rated VA (Volt-Amp) |
2910 |
3034 |
3026 |
3022 |
3012 |
2995 |
|
Efficiency (%) |
93.7 |
93.2 |
93.5 |
93.6 |
93.9 |
94.4 |
|
Power Factor |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 |
0.99 |
|
Leakage Current (mA) |
1.15 |
1.19 |
1.32 |
1.38 |
1.59 |
2.18 |
|
Maximum Inrush Current (A peak) |
30 | |||||
|
Maximum Inrush Current duration (mS) |
10 | |||||
|
Maximum British Thermal Unit Rating (BTU-Hr) |
9830 |
10250 |
10220 |
10208 |
10176 |
10116 |
|
HPE 1300W M-CRPS -48VDC Hot Plug Power Supply (P82412-B21) |
HPE Generic Part Number |
P82414-001 | ||
|
HPE 1300W M-CRPS -48VDC Hot Plug Power Supply Kit |
P82412-B21 | |||
|
SPS-PS,1U, 1300W, -48VDC, HTPLG, HE-P |
P84329-001 | |||
|
Input Voltage Range (V rms) |
40-72 | |||
|
Frequency Range (Nominal) (Hz) |
DC | |||
|
Nominal Input Voltage (V rms) |
40 |
48 |
72 | |
|
Maximum Rated Output Wattage Rating (Watts) |
1300 |
1300 |
1300 | |
|
Nominal Input Current (A rms) |
36.5 |
30.2 |
19.9 | |
|
Maximum Rated Input Wattage Rating (Watts) |
1447 |
1435 |
1417 | |
|
Maximum Rated VA (Volt-Amp) |
1461 |
1449 |
1432 | |
|
Efficiency (%) |
89.9 |
90.6 |
91.7 | |
|
Power Factor |
0.99 |
0.99 |
0.99 | |
|
Leakage Current (mA) |
Not applicable for DC model | |||
|
Maximum Inrush Current (A peak) |
55.50 | |||
|
Maximum Inrush Current duration (mS) |
10 | |||
|
Maximum British Thermal Unit Rating (BTU-Hr) |
4936 |
4895 |
4836 | |
|
HPE 2200W M-CRPS -48VDC Hot Plug Power Supply (P73210-B21) |
HPE Generic Part Number |
P73212-001 | ||
|
HPE 2200W M-CRPS -48VDC Hot Plug Power Supply Kit |
P73210-B21 | |||
|
SPS-PS, 1U, 2200W, -48VDC, HTPLG, HE-P |
P77519-001 | |||
|
Input Voltage Range (V rms) |
40-72 | |||
|
Frequency Range (Nominal) (Hz) |
DC | |||
|
Nominal Input Voltage (V rms) |
40 |
48 |
72 | |
|
Maximum Rated Output Wattage Rating (Watts) |
2200 |
2200 |
2200 | |
|
Nominal Input Current (A rms) |
61.1 |
50.3 |
33.1 | |
|
Maximum Rated Input Wattage Rating (Watts) |
2420 |
2393 |
2360 | |
|
Maximum Rated VA (Volt-Amp) |
2445 |
2417 |
2384 | |
|
Efficiency (%) |
90.9 |
92.0 |
93.2 | |
|
Power Factor |
0.99 |
0.99 |
0.99 | |
|
Leakage Current (mA) |
Not applicable for DC model | |||
|
Maximum Inrush Current (A peak) |
30 | |||
|
Maximum Inrush Current duration (mS) |
10 | |||
|
Maximum British Thermal Unit Rating (BTU-Hr) |
8258 |
8163 |
8052 | |
|
All AC Power Supplies | |
|
Operating Temperature |
41° to 131°F (5° to 55°C) |
|
Operating Relative Humidity (%) |
5% to 95%, non-condensing |
|
Operating Elevation |
The maximum ambient temperature of the power supply shall have an altitude de-rating, from sea level, of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft). |
|
Storage Temperature |
-40° to 185°F (-40 to 85°C) |
|
Storage Relative Humidity (%) |
5% to 95%, non-condensing |
|
Storage Elevation |
0 to 50,000ft (0 to 15,240m) |
|
Input Voltage |
Low Line - Rated: 100V - 127V; Min 90V to Max 132V High Line - Rated: 200 - 277VAC |
|
Input Frequency |
Rated: 50-60Hz; Min 47Hz to Max 63Hz |
|
FCC EMI Certification |
CE Mark, UL, cUL, IEC, EN, KCC, BSMI, CCC, TUV, C-tick, CISPR Class A |
|
Mechanical Dimensions |
- 800W PSU (P73190-B21): 2.36 x 1.57 x 7.28 in (60 x 40 x 185 mm) - 1000W PSU (P67240-B21): 2.36 x 1.57 x 7.28 in (60 x 40 x 185 mm) - 1500W PSU (P67244-B21): 2.36 x 1.57 x 7.28 in (60 x 40 x 185 mm) - 2400W PSU (P67252-B21): 2.89 x 1.57 x 7.28 in (73.5 x 40 x 185 mm) - 3200W PSU (P67248-B21): 2.89 x 1.57 x 7.28 in (73.5 x 40 x 185 mm) - 2800W PSU (P78196-B21): 2.89 x 1.57 x 7.28 in (73.5 x 40 x 185 mm) |
|
Unit Weight |
- 800W PSU (P73190-B21): 1.64 lbs. (0.75 kg) - 1000W PSU (P67240-B21): 1.64 lbs. (0.75 kg) - 1500W PSU (P67244-B21): 1.64 lbs. (0.75 kg) - 2400W PSU (P67252-B21): 2.34 lbs. (1.06 kg) - 3200W PSU (P67248-B21): 2.34 lbs. (1.06 kg) - 2800W PSU (P78196-B21): 2.34 lbs. (1.06 kg) |
|
Shipping Dimensions |
14.75 x 7.5 x 5.75 in (37.47 x 19.05 x 14.61 cm) |
|
Shipping Weight |
- 800W PSU (P73190-B21): 3.14 lbs. (1.43 kg) - 1000W PSU (P67240-B21): 3.14 lbs. (1.43 kg) - 1500W PSU (P67244-B21): 3.14 lbs. (1.43 kg) - 2400W PSU (P67252-B21): 3.84 lbs. (1.75 kg) - 3200W PSU (P67248-B21): 3.84 lbs. (1.75 kg) - 2800W PSU (P78196-B21): 3.84 lbs. (1.75 kg) |
|
Kit Contents |
Ships with (1) Power supply unit, (1) IEC jumper cable: IEC C13-C14 on P73190-B21, P67240-B21, and P67244-B21, IEC C19-C20 on P67248-B21 and P67252-B21, and installation/safety guide |
|
Power Supply Hold-Up time in the event of AC loss |
|
|
Condition: 100% rated output power (Time in Milliseconds - Minimum) |
Non-Redundant (1+0) - 10ms Redundant (1+1) - 20ms |
|
Condition: 50% rated output power (Time in Milliseconds - Minimum) |
Non-Redundant (1+0) - 20ms Redundant (1+1) - 30ms |
|
All DC Power Supplies | |
|
Operating Temperature |
41° to 131°F (5° to 55°C) |
|
Operating Relative Humidity (%) |
5% to 95%, non-condensing |
|
Operating Elevation |
0 to 5,000ft (1,524m) with no derating; The maximum ambient temperature of the power supply shall have an altitude derating from sea level, of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft). |
|
Storage Temperature |
-40° to 185°F (-40 to 85°C) |
|
Storage Relative Humidity (%) |
5% to 95%, non-condensing |
|
Storage Elevation |
0 to 50,000ft (0 to 15,240m) |
|
Input Voltage |
48VDC to 54VDC (nominal); Min 40VDC to Max 72VDC (model P82412-B21 and P73210-B21 only); 380VDC (model P78196-B21 only) |
|
Input Frequency |
DC input |
|
Conformance Standards |
CE Mark, UL, CSA, IEC, EN, CNS, KC, CCC, C-tick, TUV, CISPR Class A |
|
Mechanical Dimensions |
- 1300W PSU (P82412-B21): 2.36 x 1.57 x 7.28 in (60 x 40 x 185 mm) - 2200W PSU (P73210-B21): 2.89 x 1.57 x 7.28 in (73.5 x 40 x 185 mm) 2800W PSU (P78196-B21): 2.89 x 1.57 x 7.28 in (73.5 x 40 x 185 mm) |
|
Unit Weight |
- 1300W PSU (P82412-B21): 1.64 lbs. (0.75 kg) - 2200W PSU (P73210-B21): 2.34 lbs. (1.06 kg) - 2800W PSU (P78196-B21): 2.34 lbs. (1.06 kg) |
|
Shipping Dimensions |
- 1300W PSU (P82412-B21): 3.14 lbs. (1.43 kg) - 2200W PSU (P73210-B21): 3.84 lbs. (1.75 kg) 2800W PSU (P78196-B21): 3.84 lbs. (1.75 kg) |
|
Shipping Weight |
- 1300W PSU (P82412-B21): 3.14 lbs. (1.43 kg) - 2200W PSU (P73210-B21): 3.84 lbs. (1.75 kg) - 2800W PSU (P78196-B21): 3.84 lbs. (1.75 kg) |
|
Kit Contents |
Models P78196-B21, P82412-B21, and P73210-B21 ship with: (1) Power supply unit, installation/safety guide |
|
|
|
Environment-friendly Products and Approach - End-of-life Management and Recycling Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered, or disposed of responsibly.
The EU Waste from Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
|
|
|
Date |
Version History |
Action |
Description of Change |
|
06-July-2026 |
Version 11 |
Added |
HPE M-CRPS -48VDC Power Supply Kits SKU |
|
04-May-2026 |
Version 10 |
Changed |
Technical Specifications section was updated. |
|
02-Mar-2026 |
Version 9 |
Changed |
Service and Support and Technical Specifications sections were updated. |
|
Added |
Updated GreenLake statement. HPE 2200W M-CRPS -48VDC Hot Plug Power Supply (P73210-B21) and All AC Power Supplies specifications. | ||
|
02-Feb-2026 |
Version 8 |
Changed |
Overview, Related Options and Technical Specifications sections were updated. |
|
Added |
HPE M-CRPS -48VDC Power Supply Kits SKU and rules. | ||
|
Removed |
C19 Country-Specific Jumper Cords obsolete SKU. | ||
|
08-Dec-2025 |
Version 7 |
Changed |
Technical Specifications section was updated. |
|
Added |
Power Supply matrices. | ||
|
06-Oct-2025 |
Version 6 |
Changed |
Standard Features and Technical Specifications sections were updated. Imagery and AC Power Supplies specifications tables were updated. |
|
28-Jul-2025 |
Version 5 |
Changed |
Survey link was updated. |
|
23-Jun-2025 |
Version 4 |
Changed |
Input Voltage on Specified models (Page 12) |
|
Removed |
Obsolete SKU AF582A | ||
|
10-Mar-2025 |
Version 3 |
Changed |
What's new, Compatibility, and Technical Specifications were revised. |
|
24-Feb-2025 |
Version 2 |
Changed |
Added new Power Supply Kits: 1000W and 3200W Overview, Models, Standard Features, Compatibility, Related Options and Technical Specifications were revised. |
|
04-Nov-2024 |
Version 1 |
Created |
New QuickSpecs |
|
|
|
Have feedback on QuickSpecs? We're listening | |
|
|
|
| |
|
|
|
Chat now | |
|
|
|
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
a00039982enw - 16144 - Worldwide - V11 - 06-July-2026 | |
|
|
|
HEWLETT PACKARD ENTERPRISE HPE.com |
|
