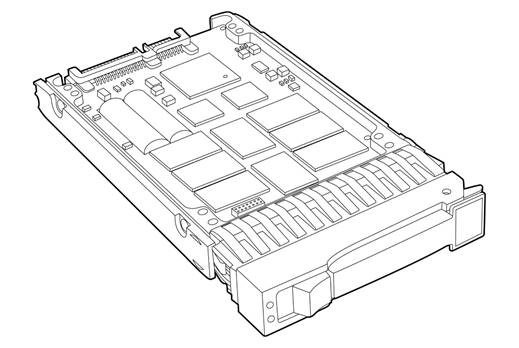

HPE Solid State Drives (SSD)

HPE Solid State Drives (SSDs) deliver exceptional performance and endurance for customers with applications requiring high random read IOPs performance. Leveraging NAND Flash technology, they support HPE ProLiant servers, HPE Synergy and server storage platforms. They are generally available as Small Form Factor (SFF) and Large Form Factor (LFF) hot plug devices, non-hot plug SFF devices, and SFF Quick Release devices. These drives deliver higher performance, lower latency, and more power-efficient solutions when compared with traditional rotating media. Plus they fit seamlessly into the existing HPE server infrastructure.

What's New

• HPE 6G SATA Read Intensive (RI) SSDs - Available in capacities 240GB, 480GB, 960GB, 1.92TB, & 3.8TB with Digitally Signed Firmware
• Introducing the HPE Solid-State Drive Selector Tool - an online tool to assist with determining the best SSD fit for specific requirements http://ssd.hpe.com/

SSD Selection

To streamline the configuration process for HPE ProLiant Gen9 servers and to provide the best product availability, HPE recommends SSDs from the list located here: https://ssd.hpe.com/recommend

To further assist with configuration, HPE also offers an SSD Selector Tool located here: http://ssd.hpe.com/

Models

HPE Solid State Drives (SSD)

6G SATA Read Intensive Hot Plug SFF (2.5-inch) SSDs

NOTE: These drives support Gen9 servers only.

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Extended)

868814-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Extended)

868818-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Extended)

868822-B21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Extended)

868826-B21

HPE 3.8TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD (Extended)

868830-B21

6G SATA Read Intensive Hot Plug LFF (3.5-inch) SSDs

NOTE: These drives support Gen9 servers only.

HPE 480GB SATA 6G Read Intensive LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware SSD (Extended)

869056-B21

NOTE: These drives support G7 only.

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) ST 3yr Wty SSD

802888-B21

12G SAS Write Intensive Hot Plug SFF (2.5-inch) SSDs

NOTE: This drive supports G7servers only.

HPE 200GB SAS 12G Write Intensive SFF (2.5in) ST 3yr Wty SSD

802576-B21

What is SSD?

An enduring data storage device utilizing NAND (negative-AND) semiconductor technology to store and access data which is volatile without the aid of an auxiliary power source.

SSD Quality

Today's businesses are seeing larger, more complex applications, coupled with an increasing amount of mission-critical and transaction processing data demand. In this environment, storage has become a critical component, significantly defining requirements for both systems reliability and performance. This is why HPE drives undergo a rigorous qualification process to ensure functionality and eliminate firmware and O/S incompatibilities.

Integration

Many issues customers have with third party drives are "simple" integration issues. When buying from another supplier, there is no guarantee that a drive has been correctly set for proper operation with ProLiant servers and storage systems. These incompatibilities can create problems in configuration, can rob your system of performance, or at their worst, can cause you to lose data. HPE drives are specifically designed and tested for flawless operation in your HPE equipment. The integration of solid state drives in HPE systems means that associated components are right for your ProLiant server.

Support Matrix

Please see the following URL for the latest list of supported servers and enclosures:

https://www.hpe.com/us/en/servers.html
NOTE: Non-hot plug devices are 15mm Z-height, which restricts them to those servers that can accept a 15mm device.

Product Category

HPE Enterprise SSDs are available in three categories based on workload level: Read Intensive (RI), Mixed Use (MU), and Write Intensive (WI). The categories indicate the number of drive writes per day

(DWPD1) that you can expect from the drive. (DWPD is the maximum number of 4K host writes to the entire drive capacity of the SSD per day over a five-year period.

Service and Support

HPE Technology Services for Industry Standard Servers

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability powered by a rich portfolio of consulting and support services designed to add value to our core products and solutions connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Support Services

HPE support services offer complete care and support expertise with committed response choices that are designed to meet your IT and business needs.

NOTE: HPE Solid State Drives are supported as a part of the HPE Server Infrastructure. No separate Support Services are needed to be purchased.

Connect your devices to HPE

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise.  Achieve up to 77%¹ reduction in down time, near 100%² diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization.

All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support.

1. IDC Whitepaper
2. HPE CSC Reports 2014-2015

HPE Support Center

Personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with Hewlett Packard Enterprise experts, access support resources or collaborate with peers. Learn more http://h20565.www2.hpe.com/portal/site/hpsc/

HPE Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime.

HPE Insight Remote Support and HPE Support Center are available at no additional cost with a Hewlett Packard Enterprise warranty, HPE Support Services or HPE contractual support agreement.

NOTE: HPE Support Center Mobile App above is subject to local availability.

Parts and materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Warranty / Service Coverage

For ProLiant servers and storage systems, the service on the main product covers HP-branded hardware options not designated by Hewlett Packard Enterprise as requiring separate coverage, that are qualified for the server, purchased at the same time or afterward and internal to the enclosure. These items will be covered at the same service level and for the same coverage period as the server unless the maximum supported lifetime and/or the maximum usage limitation has been reached.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction. It does not apply Disk or SSD/Flash Drives that have not failed. SSD/Flash Drives that are specified by Hewlett Packard Enterprise as consumable parts and/or that have reached maximum supported lifetime and/or the maximum usage limits as set forth in the manufacturer's operating manual, the product QuickSpecs, or the technical data sheet are not eligible for the defective media retention service feature option.

Subject to: Maximum supported lifetime: This is a period in years set to equal the warranty for the specific drive. After this period no further service coverage will be available for the drive. Maximum usage limit: This is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for services coverage.

For more information

To learn more on services for HPE ESSN Options, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: https://www.hpe.com/us/en/product-catalog/servers/proliant-servers.html  or https://www.hpe.com/us/en/integrated-systems/bladesystem.html

HPE Solid State Drives

Application Information

Solid State Drives offer high performance, low latency, low power solutions that fit seamlessly into the HPE server infrastructure using the Hewlett Packard Enterprise universal hot plug drive carrier. HPE Enterprise SSDs support Power Loss Protection (PLP).
NOTE: Any drive with SC in the product description is for Gen8 hot plug server bays servers only. They cannot be used in any other server generation.

Read Intensive SSDs

6G SATA Read Intensive Hot Plug SFF (2.5-inch) Solid State Drives
NOTE: The 80GB and 120GB Enterprise Boot SSDs with Endurance Manager enabled are targeted for Boot/Swap applications and may have performance throttled due to write workloads. Write performance shown for 80GB and 120GB Enterprise Boot SSDs is based on no endurance throttling.
NOTE: Random Performance is based on a 4KiB transfer size at a queue of 16.

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868814-B21

Capacity

240GB

Height

7mm

Length x Width

Standard SFF

Interface

SATA

Transfer Rate Synchronous (Maximum)

6Gbps

Performance

Rotational Speed

N/A

Access Latency

Read: 120uSec

Write: 105uSec

Random Reads

66,000 IOP/s

Random Writes

9,800 IOP/s

Sequential Reads

370 MiB/s

Sequential Writes

300 MiB/s

Physical Configuration

Logical Blocks

512 bytes

Power

9W

Operating Temperature

0-60°C

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868818-B21

Capacity

480GB

Height

7mm

Length x Width

Standard SFF

Interface

SATA

Transfer Rate Synchronous (Maximum)

6Gbps

Performance

Rotational Speed

N/A

Access Latency

Read: 120uSec

Write: 58uSec

Random Reads

66,000 IOP/s

Random Writes

17,000 IOP/s

Sequential Reads

530 MiB/s

Sequential Writes

490 MiB/s

Physical Configuration

Logical Blocks

512 bytes

Power

9W

Operating Temperature

0-60°C

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868822-B21

Capacity

960GB

Height

7mm

Length x Width

Standard SFF

Interface

SATA

Transfer Rate Synchronous (Maximum)

6Gbps

Performance

Rotational Speed

N/A

Access Latency

Read: 120uSec

Write: 41uSec

Random Reads

64,000 IOP/s

Random Writes

24,500 IOP/s

Sequential Reads

530 MiB/s

Sequential Writes

490 MiB/s

Physical Configuration

Logical Blocks

512 bytes

Power

9W

Operating Temperature

0-60°C

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868826-B21

Capacity

1.92TB

Height

7mm

Length x Width

Standard SFF

Interface

SATA

Transfer Rate Synchronous (Maximum)

6Gbps

Performance

Rotational Speed

N/A

Access Latency

Read: 120uSec

Write: 38uSec

Random Reads

61,500 IOP/s

Random Writes

26,000 IOP/s

Sequential Reads

530 MiB/s

Sequential Writes

490 MiB/s

Physical Configuration

Logical Blocks

512 bytes

Power

9W

Operating Temperature

0-60°C

HPE 3.8TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868830-B21

Capacity

3.8TB

Height

7mm

Length x Width

Standard SFF

Interface

SATA

Transfer Rate Synchronous (Maximum)

6Gbps

Performance

Rotational Speed

N/A

Access Latency

Read: 120uSec

Write: 36uSec

Random Reads

63,500 IOP/s

Random Writes

27,500 IOP/s

Sequential Reads

530 MiB/s

Sequential Writes

490 MiB/s

Physical Configuration

Logical Blocks

512 bytes

Power

9W

Operating Temperature

0-60°C

6G SATA Read Intensive Hot Plug LFF (3.5-inch) Solid State Drives

HPE 480GB SATA 6G Read Intensive LFF (3.5in) LPC 3yr Wty Digitally Signed Firmware SSD

869056-B21

Capacity

480GB

Height

7mm

Length x Width

Standard SFF

Interface

SATA

Transfer Rate Synchronous (Maximum)

6Gbps

Performance

Rotational Speed

N/A

Access Latency

Read: 120uSec

Write: 58uSec

Random Reads

 66,000 IOP/s

Random Writes

 17,000 IOP/s

Sequential Reads

 530 MiB/s

Sequential Writes

 490 MiB/s

Physical Configuration

Logical Blocks

512 bytes

Power

9W

Operating Temperature

0-60°C

HPE Read Intensive Solid State M.2 Enablement Kit for ProLiant Servers

NOTE: The performance data in the table below is for a single M.2 SSD that would be installed in the M.2 enablement kit. Whether the assembly is a single M.2 or dual M.2 enablement kit installation, each M.2 SSD is an independent SSD device and the performance would be the same for each installed device of the same capacity.

HPE 1.92TB 12G SAS Read Intensive SFF 2.5-in 3yr Wty Solid State Drive

802888-B21

Capacity

1920GB

Length x Width

Standard SFF

Interface

SAS

Transfer Rate Synchronous (Maximum)

12Gbps

Performance

Rotational Speed

N/A

Random Reads

102,000 IOP/s

Random Writes

34,000 IOP/s

Sequential Reads

1,000 MiB/s

Sequential Writes

510 MiB/s

Physical Configuration

Logical Blocks

512 bytes

Power

9W

Operating Temperature

0-60°C

NVMe PCIe Mixed Use (MU) Hot Insertion/Assisted Removal SFF (2.5-inch) Solid State Drives

NOTE: Please see select Gen9 compatibility on SKU listings page 8.

12G SAS  Write Intensive (WI) Hot Plug SFF (2.5-inch) Solid State Drives

HPE 200GB 12G SAS Write Intensive SFF 2.5-in 3yr Wty Solid State Drive

802576-B21

Capacity

200GB

Height

15mm

Length x Width

Standard SFF

Interface

SAS

Transfer Rate Synchronous (Maximum)

12Gbps

Performance

Rotational Speed

N/A

Random Reads

106,000 IOP/s

Random Writes

83,000 IOP/s

Sequential Reads

1,000 MiB/s

Sequential Writes

660 MiB/s

Physical Configuration

Logical Blocks

512 bytes

Power

9W

Operating Temperature

0-60°C

Date

Version History

Action

Description of Change

01-Oct-2018

Version 40

Changed

Overview, Technical Specifications, were updated. Models section SKUs removed.

28-Nov-2016

Version 39

Added

SKUs added: 872853-B21, 872855-B21, 871768-B21, 871770-B21, 868814-B21, 868818-B21, 868822-B21, 868826-B21, 868830-B21, 869056-B21, and 869058-B21.

Changed

Overview, Models, Standard Features, and Technical Specifications were revised.

Removed

739906-B21, 739896-B21, 764937-B21, 764935-B21, 764933-B21, and 764931-B21.

28-Oct-2016

Version 38

Removed

Obsolete SKUs were removed from the QuickSpecs.

31-Mar-2016

Version 37

Added

SKUs added in Models section:
846436-B21, 846434-B21, 846432-B21, and 846430-B21.

Changed

Overview, Standard Features, Service and Support, and Technical Specifications sections were updated.

Removed

Obsolete SKUs were deleted:
728743-B21, 728739-B21, 739904-B21, 739894-B21, 728735-B21, 728726-B21, 734366-B21, 728745-B21, 728741-B21, 728737-B21, 728732-B21, and 734368-B21.

16-Feb-2016

Version 36

Added

SKUs added in Models section:
835563-B21, 835565-B21, 788028-B21, 777894-B21, 846495-B21, 846497-B21, 789135-B21, 789141-B21, 789137-B21, 789163-B21, 789153-B21, 789149-B21, 756611-B21, 756604-B21, and 756607-B21.

Changed

What’s new, Standard Features, and Service and Support sections were updated.

Removed

Obsolete SKUs were deleted:
788028-B21, 777894-B21,

01-Dec-2015

Version 35

Changed

Models and Service and Support sections were updated.

Removed

Obsolete SKUs were deleted:
822553-B21, 822557-B21, 822561-B21, 822565-B21, 816560-B21, 816564-B21, 816570-B21, and 816574-B21.

01-Dec-2015

Version 34

Added

SKUs added in Models section:
816576-B21, 816574-B21, 816572-B21, 816568-B21, 816564-B21, 816561-B21, 816560-B21, 822567-B21, 822565-B21, 822563-B21, 822561-B21, 822559-B21, 822557-B21, 822555-B21, and 822553-B21.

Changed

Overview, Models, Standard Features, Service and Support sections were updated.

23-Oct-2015

Version 33

Changed

Standard Features and Service and Support sections were updated.

Removed

Obsolete SKUs deleted:
789155-B21, 789161-B21, 757354-B21, 757357-B21, 789143-B21, 757345-B21, 739902-B21, 764921-B21, 756614-B21, and 764953-B21.

28-Sep-2015

Version 32

Added

SKUs added:

816929-B21, 816899-B21, 816933-B21, 816903-B21, 764908-B21, 816985-B21, 817015-B21, 816979-B21, 764894-B21, 816919-B21, 816889-B21, 816923-B21, 816893-B21, 817011-B21, 816975-B21, 816999-B21, 816969-B21, 816909-B21, 816879-B21, 816913-B21, 816883-B21, 816995-B21, 816965-B21, 816989-B21, 765044-B21.

Changed

Overview, Models, Standard Features and Service and Support sections were updated.

17-Aug-2015

Version 31

Added

SKUs inserted to Models and Service and Support Section.

Changed

What's new, Models, Standard Features, Service and Support sections were updated.

Removed

SKUs deleted from Models and Service and Support section.

01-Jun-2015

Version 30

Added

SKUs added in models:

777262-B21 and 777264-B21.

Changed

Information in Product categories and Technical Specifications sections were updated.

01-May-2015

Version 29

Changed

Information in Product categories and Technical Specifications sections were updated.

30-Mar-2015

Version 28

Changed

Changes made throughout the QuickSpecs.

13-Feb-2015

Version 27

Removed

SKUs removed:

777894-B21 and 788028-B21

09-Feb-2015

Version 26

Added

New SKUs were added on Models section.

Changed

Technical Specifications, Standard Features sections were updated.

12-Dec-2014

Version 25

Changed

Note on Value Endurance Solid State M.2 Enablement Kit for ProLiant Blades changed from:
NOTE: These drives are supported by the BL460c Gen9 and BL660 Gen9.

To: NOTE: These drives are supported by the BL460c Gen9.

01-Dec-2014

Version 24

Added

SKUs added:

762263-B21, 762272-B21, 757339-B21, 757342-B21, 757354-B21, 757357-B21, 775588-B21, and 785233-B21.

Changed

Overview, Models and Standard Features sections were updated.

23-Sep-2014

Version 23

Added

SKUs added on Models section:

690829-B21, 756666-B21, 756636-B21, 756651-B21, 756621-B21, 756630-B21, 756639-B21, 756624-B21, 756660-B21, 756614-B21, 756669-B21, 756654-B21, 756633-B21, 756663-B21, 756642-B21, and 756627-B21.

Changed

What's new, Models, Technical Specifications sections were updated.

Removed

Obsolete SKUs removed:

690829-B21, 690821-B21, 690825-B21, 690819-B21, 653082-B21, and 636625-B21.

11-Jul-2014

Version 22

Changed

Technical Specification Section was updated.

08-Jul-2014

Version 21

Changed

Technical Specification Section was updated.

10-Jun-2014

Version 20

Changed

Overview section was updated.

On Standard Features Maximum Usage Limitations table was updated.

Technical specifications was updated.

01-Apr-2014

Version 19

Changed

Models was revised.

18-Feb-2014

Version 18

Changed

Changed the What's New section to read:

HPE 12Gb SAS SSDs - High Endurance and Mainstream Endurance.

09-Dec-2013

Version 17

Removed

 Discontinued models were removed.

30-Sep-2013

Version 16

Changed

Changes made throughout the Technical Specifications section.

16-Aug-2013

Version 15

Changed

The Notes in the Models section were revised.

24-Jul-2013

Version 14

Changed

Models were revised.

14-Jun-2013

Version 13

Changed

Changes were made throughout the QuickSpecs to include new models.

25-Mar-2013

Version 12

Added

Standard Features: Added PB to Maximum Usage Limitations to the Lifetime Writes.

04-Jan-2013

Version 11

Removed

Removed 6G SAS MLC Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives.

19-Nov-2012

Version 10

Changed

Correction made in the Models section.

24-Sep-2012

Version 9

Changed

Changes made throughout QuickSpecs.

08-Jun-2012

Version 8

Changed

Changes made to Models and Service and Support sections.

01-Jun-2012

Version 7

Changed

Corrected Part Numbers in the Models and Technical Specifications sections.

14-May-2012

Version 6

Changed

Changes made throughout the QuickSpecs.

16-Mar-2012

Version 5

Changed

Maximum Usage Limitations chart was completely revised and Data Retention was added.

06-Mar-2012

Version 4

Changed

Models was updated and the title was changed.

07-Jul-2011

Version 3

Changed

Changes made in the Standard Features section only.
