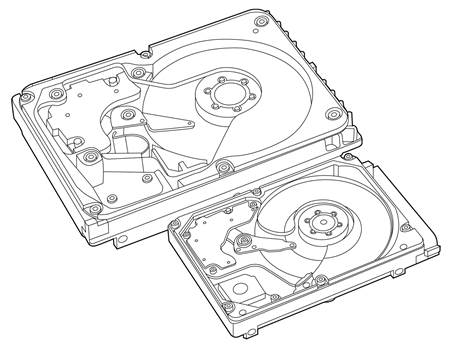

HPE Hard Disk Drives

HPE Hard Disk Drives (HDDs) delivers proven performance at industry leading capacities backed by high quality and reliability, preferred choice for many workloads ranging from small businesses to large enterprise.

HPE hard disk drives are optimized to deliver maximum performance on HPE server platforms, and are proven for applications that demand reliable performance in 24x7 operational environments. HPE HDDs offer customers great value per gigabyte without sacrificing performance. In addition, an industry-leading testing and qualification program ensures that our drives are rugged enough for any need.

HPE HDDs are available for three types of workloads —Entry, Midline and Enterprise, two interfaces—SAS and SATA, and in a variety of capacities—up to 10 TB and growing.

What's New

• HPE 6TB 6G SATA 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive
• HPE 10TB 6G SATA 7.2K rpm LFF (3.5in) 512e SC Midline 1yr Warranty Hard Drive
• HPE 8TB 6G SATA 7.2K rpm LFF (3.5in) 512e SC Midline 1yr Warranty Hard Drive
• HPE 1TB 6G SATA 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive
• HPE 3TB 6G SATA 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

Models

NOTE: SATA Drive Write Cache is disabled by default to minimize the risk of data loss in case of power loss. For information on how to enable Drive Write Cache on SATA drives via supported controllers and HBAs and what precautions should be followed please visit: http://www.hp.com/go/SATA
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

HPE 6G SATA “SmartDrive” Carriers

6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655710-B21

HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655708-B21

6G SATA Hot Plug with SmartDrive SFF (2.5-inch) 512e (MDL) Drives

HP 2TB 6G SATA 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive

765455-B21

HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive

NOTE: Not supported by VMWare: VMWare is not 512e “Aware”.

765453-B21

6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline (MDL) Drives

HPE 6TB 6G SATA 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

846510-B21

HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

753874-B21

HPE 4TB 6G SATA 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

861678-B21

HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

693687-B21

HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

628061-B21

HPE 3TB 6G SATA 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

861693-B21

HPE 2TB 6G SATA 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

861676-B21

HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

658079-B21

HPE 1TB 6G SATA 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

861691-B21

HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

657750-B21

HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

658071-B21

6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline 512e Drives

HPE 8TB 6G SATA 7.2K rpm LFF (3.5in) 512e SC Midline 1yr Warranty Hard Drive

819203-B21

HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive

765255-B21

HP 4TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive

NOTE: Not supported by VMWare: VMWare is not 512e “Aware”.

765253-B21

6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline 512e Performance Drives

HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive

793667-B21

HP 4TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drives

NOTE: Not supported by VMWare: VMWare is not 512e “Aware”.

793665-B21

6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline 512e Helium Drives

HPE 10TB 6G SATA 7.2K rpm LFF (3.5in) 512e SC Midline 1yr Warranty Hard Drive

857648-B21

HPE 8TB 6G SATA 7.2K rpm LFF (3.5in) 512e SC Midline 1yr Warranty Hard Drive

861594-B21

HP 8TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Warranty Hard Drive

793695-B21

HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Warranty Hard Drive

NOTE: Not supported by VMWare: VMWare is not 512e “Aware”.

793683-B21

HPE 6G SATA “Non-hot Plug” Carriers

6G SATA Non-hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

628065-B21

HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

659339-B21

HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

659337-B21

HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot plug Midline 1yr Warranty Hard Drive

659341-B21

6G SATA Non-hot Plug LFF (3.5-inch) Standard (STND) Drives

HP 4TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Standard 1yr Warranty Hard Drive

801888-B21

HP 3TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Standard 1yr Warranty Hard Drive

801886-B21

HP 2TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Standard 1yr Warranty Hard Drive

801884-B21

HP 1TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Standard 1yr Warranty Hard Drive

801882-B21

6G SATA Non-hot Plug LFF (3.5-inch) Entry (ETY) Drives

NOTE: Supported on select 10 series servers only.

HP 4TB 6G SATA 5.9K rpm LFF (3.5in) Non-hot Plug Entry 512e 1yr Warranty Hard Drive

815635-B21

HPE 3TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Entry 512e 1yr Warranty Hard Drive

843270-B21

HPE 2TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Entry 512e 1yr Warranty Hard Drive

843268-B21

HPE 1TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Entry 512e 1yr Warranty Hard Drive

843266-B21

HPE 500GB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Entry 512e 1yr Warranty Hard Drive

843264-B21

HPE 6G SATA Hot Plug Hard Drives
NOTE: These drives are not supported by Gen8/Gen9 servers.

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive

625609-B21

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

507750-B21

SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 4TB 3G SATA 7.2k rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

694374-B21

HP 3TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

628059-B21

HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

507632-B21

HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

454146-B21

HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

458928-B21

SATA Hot Plug LFF (3.5-inch) Midline (MDL) 512e Drives

HP 8TB 6G SATA 7.2K rpm LFF (3.5-inch) 512e Helium 1yr Warranty Hard Drive

793693-B21

HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) 512e Helium 1yr Warranty Hard Drive

NOTE: Not supported by VMWare: VMWare is not 512e “Aware”.

793680-B21

HPE 6G SATA Quick Release Hard Drives

6G SATA Quick Release SFF (2.5-inch) Midline (MDL) Drives
NOTE: These drives are supported by the SL Gen8 servers and Moonshot server.

HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) Quick Release Midline 1yr Warranty Hard Drive

632080-B21

HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) Quick Release Midline 1yr Warranty Hard Drive

632078-B21

6G SATA Quick Release LFF (3.5-inch) Midline (MDL) Drives
NOTE: These drives are supported by the SL Gen8 servers.

HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) Quick-release Midline 1yr Warranty Hard Drive

697954-B21

HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) Quick Release Midline 1yr Warranty Hard Drive

647274-B21

HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) Quick Release Midline 1yr Warranty Hard Drive

672621-B21

Drive Quality

Today's entry-level servers and external storage solutions are seeing an increase in maximum storage capacity and demand for increased levels of drive quality. In the often-changing entry-level server and storage environment, storage has become a critical component of the information system, significantly defining both the systems reliability. This is why HPE drives undergo an intense qualification process that eliminates firmware and O/S incompatibilities. All drives are proven to perform in the HPE ProLiant and Modular Smart Array (MSA) storage systems for which they were designed.

Performance

Only those drives whose quality is suitable for an entry-level, external storage enclosures and server environments are selected through the Hewlett Packard Enterprise qualification process. All our drives are proven to be reliable in the ProLiant server and MSA storage environment.

Native Command Queuing

Native Command Queuing (NCQ) is a technology designed to increase performance of SATA hard disk drives by allowing the individual hard disk to internally optimize the order in which received read and write commands are executed. This can reduce the amount of unnecessary going back-and-forth on the drive's heads, resulting in increased performance for workloads where multiple simultaneous read/write requests are outstanding, most often occurring in server or storage-type applications. Without NCQ the drive has to process and complete one command at a time. For NCQ to be enabled, it must be supported and turned on in the controller and in the hard drive itself.
NOTE: Please reference the HPE Smart Array Controller website for NCQ enabled controllers at: http://www.hp.com/products/smartarray.
Please see SATA hard drive Technical Specifications section for specific capacities supported with NCQ.

Integration

Many issues customers have with third party Serial-ATA drives are integration related issues. When buying from another supplier, there is no guarantee that a drive has been correctly set for proper operation with ProLiant entry-level servers or MSA enclosures. These incompatibilities can create problems in configuration, can rob your system of performance, or at their worst, can result in data corruption. HPE hard drives are specifically designed and tested for flawless operation in your Hewlett Packard Enterprise equipment. The integration of hard drives in HPE systems means that cables, controllers, and firmware are right for your ProLiant entry level server or MSA enclosures.

Pre-Failure Alert

When used in conjunction with a SMART Array Controller and Systems Insight Manager, the SMART capable firmware in HPE hard drives enables extensive fault prediction capabilities. If potential problems develop in one of the drives, the Smart Array Controller, Systems Insight Manager and/or SMART hard disk drive lets you know in advance so you can have the drive replaced, before it fails, under warranty.
NOTE: All drives are protected by a Pre-Failure Alert when used with a HPE Smart Array controller and Systems Insight Manager, allowing hard drives to be replaced before failure under warranty. In addition, all drives are covered by a 1 or 3 year limited on-site warranty, regardless of the warranty period of the system in which they are installed. However, the drive warranty is automatically uplifted when used in a server or MSA for which a care pack is purchased. Please see the below HPE Care Pack Information section for additional services.
NOTE: SATA hard drives have a 1 year limited warranty regardless of the warranty period for the system in which they are installed.

Server and Storage Support

Please see the following URL for the latest list of supported servers and enclosures:
http://www.hp.com/servers/hdd-documentation

Service and Support

NOTE: HPE SATA and SAS Hard drives are covered under the HPE Support Service/ Service Contract applied to the HPE ProLiant Server. No separate HPE Support Service need to be purchased.

HPE Technology Services for Industry Standard Servers

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability powered by a rich portfolio of consulting and support services designed to add value to our core products and solutions Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Support Services

HPE support services offer complete care and support expertise with committed response choices that are designed to meet your IT and business needs.

Connect your devices to HPE

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise.  Achieve up to 77% reduction in down time, near 100% diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support.

Warranty

ATA, SATA and MDL SAS hard drives have a maximum warranty period of one (1) year regardless of the warranty period for the system in which they are installed.

Service Coverage

For ProLiant servers and storage systems, the service on the main product covers HPE-branded hardware options not designated by Hewlett Packard Enterprise as requiring separate coverage that are qualified for the server, are purchased at the same time or afterward, and are internal to the enclosure. The service also covers external monitors up to 22 inches in size and tower UPS products during their supported life of up to 5 years beyond sales discontinuance. These items will be covered at the same service level as the main product.

Maximum supported lifetime/maximum usage:
Parts and components that have exceeded their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer’s operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of this service.

Data Retentive components that are specified by Hewlett Packard Enterprise as consumable parts and/or that have exceeded the maximum supported lifetime and/or the maximum usage limit as set forth in the manufacturer’s operating manual, the product QuickSpecs, or the technical data sheet are not eligible for the defective media retention or the comprehensive defective material retention service feature option.

For more information

To learn more on services for HPE ESSN Options, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant or http://www.hp.com/services/bladesystem

6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655710-B21

Capacity

1,000,204MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.7 ms

Average

<8.5 ms

Full-Stroke

16.96 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,953,525,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655708-B21

Capacity

500,107MB

Height

0.62 in (15.6 mm )

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.7ms

Average

<8.5ms

Full-Stroke

16.96ms

Rotational Speed

7200

Physical Configuration

Bytes/Sector

512

Logical Blocks

976,773,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

6G SATA Hot Plug with SmartDrive SFF (2.5-inch) Midline (MDL) 512e Drives

HP 2TB 6G SATA 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive

765455-B21

Capacity

2,000,398MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.5 ms

Average

<7.2 ms

Full-Stroke

17 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

3,907,029,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive

765453-B21

Capacity

1,000,204MB

Height

0.62 in (15.6 mm )

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.5 ms

Average

<7.2 ms

Full-Stroke

17 ms

Rotational Speed

7200

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,953,525,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline (MDL) Drives

HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

753874-B21

Capacity

6,001,175MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.25ms

Average

8.5 ms

Full-Stroke

22 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

11,721,045,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HPE 6TB 6G SATA 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

846510-B21

Capacity

6,001,175MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.8 ms

Average

8.5 ms

Full-Stroke

15.7 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

11,721,045,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HPE 4TB 6G SATA 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

861678-B21

Capacity

4,000,787MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.25ms

Average

7.6 ms

Full-Stroke

15ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

7,814,037,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

693687-B21

Capacity

4,000,787MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.8 ms

Average

8.5 ms

Full-Stroke

16.2 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

7,814,037,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

628061-B21

Capacity

3,000,592,982,016

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.5 ms

Average

8.2 ms

Full-Stroke

16.0 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

5,860,533,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HPE 3TB 6G SATA 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

861693-B21

Capacity

3,000,592,982,016

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.32 ms

Average

7.45 ms

Full-Stroke

14.2 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

5,860,533,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HPE 2TB 6G SATA 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

861676-B21

Capacity

2,000,398MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.25ms

Average

7.6 ms

Full-Stroke

15ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

3,907,029,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

658079-B21

Capacity

2,000,398MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.5 ms

Average

<8.5ms

Full-Stroke

16.0 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

3,907,029,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

657750-B21

Capacity

1,000,204MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.5 ms

Average

<8.5 ms

Full-Stroke

16.5 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,953,525,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HPE 1TB 6G SATA 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

861691-B21

Capacity

1,000,204MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.32 ms

Average

7.45 ms

Full-Stroke

14.2 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,953,525,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

658071-B21

Capacity

500,107MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.5ms

Average

<8.5ms

Full-Stroke

16.3ms

Rotational Speed

7200

Physical Configuration

Bytes/Sector

512

Logical Blocks

976,773,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline 512e Drives

HPE 10TB 6G SATA 7.2K rpm LFF (3.5in) 512e SC Midline 1yr Warranty Hard Drive

857648-B21

Capacity

10,000,831 MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.22 ms

Average

8.0 ms

Full-Stroke

16.0 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

19,532,873,728

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HPE 8TB 6G SATA 7.2K rpm LFF (3.5in) 512e SC Midline 1 yr Warranty Hard Drive

861594-B21

Capacity

8,001,563MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.22 ms

Average

8.0 ms

Full-Stroke

16.0 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

15,628,053,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline 512e Drives

HPE 8TB 6G SATA 7.2K rpm LFF (3.5in) 512e SC Midline 1 yr Warranty Hard Drive

819203-B21

Capacity

8,001,563MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.7ms

Average

8.5 ms

Full-Stroke

15.7 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

15,628,053,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e 1yr Warranty Hard Drive

765255-B21

Capacity

6,001,175MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.7ms

Average

8.5 ms

Full-Stroke

15.7 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

11,721,045,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 4TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e 1yr Warranty Hard Drive

765253-B21

Capacity

4,000,787MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.7ms

Average

8.5 ms

Full-Stroke

15.7 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

7,814,037,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline 512e Performance Drives

HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive

793667-B21

Capacity

6,001,175MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.25ms

Average

7.6ms

Full-Stroke

15ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

11,721,045,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 4TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive

793665-B21

Capacity

4,000,787MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.25ms

Average

7.6ms

Full-Stroke

15ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

7,814,037,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

6G SATA Hot Plug with SmartDrive LFF (3.5-inch) Midline 512e Helium Drives

HP 8TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Warranty Hard Drive

793695-B21

Capacity

8.001,563MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SATA

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

Seek Time
(typical reads, including settling)

Physical Configuration

Average

8.5 ms

Full-Stroke

16.0 ms

Rotational Speed

7200 rpm

Bytes/Sector

512

Physical Configuration

Operating Temperature (system inlet air temperature)

Logical Blocks

15,628,053,168

50° to 95° F (10° to 35° C)

Capacity

8.001,563MB

HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Warranty Hard Drive

793683-B21

Capacity

6,001,175MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SATA

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

Seek Time
(typical reads, including settling)

Physical Configuration

Average

8.5 ms

Full-Stroke

16.0 ms

Rotational Speed

7200 rpm

Bytes/Sector

512

Physical Configuration

Operating Temperature (system inlet air temperature)

Logical Blocks

11,721,045,168

50° to 95° F (10° to 35° C)

6G SATA Non-hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive

628065-B21

Capacity

3,000,592,982,016

Height

1.028 in (26.1 mm)

Width

4.00 in (101.6 mm)

Depth

5.75 in (146.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.5 ms

Average

8.2 ms

Full-Stroke

16.0 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

5,860,533,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 2TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive

659339-B21

Capacity

2,000,398MB

Height

1.028 in (26.1 mm)

Width

4.00 in (101.6 mm)

Depth

5.75 in (146.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.5 ms

Average

<8.5ms

Full-Stroke

16.0 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

3,907,029,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 1TB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive

659337-B21

Capacity

1,000,204MB

Height

1.028 in (26.1 mm)

Width

4.00 in (101.6 mm)

Depth

5.75 in (146.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.5ms

Average

<8.5 ms

Full-Stroke

16.3ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

976,773,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 500GB 6G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive

659341-B21

Capacity

500,107MB

Height

1.028 in (26.1 mm)

Width

4.00 in (101.6 mm)

Depth

5.75 in (146.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.5 ms

Average

<8.5 ms

Full-Stroke

17.55 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,953,525,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

6G SATA Non-hot Plug LFF (3.5-inch) Standard (STND) Drives

HP 4TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Standard 1yr Warranty Hard Drive

801888-B21

Capacity

4,000,787MB

Height

1.028 in (26.1 mm)

Width

4.00 in (101.6 mm)

Depth

5.75 in (146.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.8ms

Average

<8.5ms

Full-Stroke

16.2ms

Rotational Speed

7200

Physical Configuration

Bytes/Sector

512

Logical Blocks

7,814,037,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 3TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Standard 1yr Warranty Hard Drive

801886-B21

Capacity

3,000,592MB

Height

1.028 in (26.1 mm)

Width

4.00 in (101.6 mm)

Depth

5.75 in (146.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.8ms

Average

<8.5ms

Full-Stroke

16.2ms

Rotational Speed

7200

Physical Configuration

Bytes/Sector

512

Logical Blocks

5,860,533,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 2TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Standard 1yr Warranty Hard Drive

801884-B21

Capacity

2,000,398MB

Height

1.028 in (26.1 mm)

Width

4.00 in (101.6 mm)

Depth

5.75 in (146.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.8ms

Average

<8.5ms

Full-Stroke

16.2ms

Rotational Speed

7200

Physical Configuration

Bytes/Sector

512

Logical Blocks

3,907,029,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 1TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Standard 1yr Warranty Hard Drive

801882-B21

Capacity

1,000,204MB

Height

1.028 in (26.1 mm)

Width

4.00 in (101.6 mm)

Depth

5.75 in (146.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.8ms

Average

<8.5ms

Full-Stroke

16.5ms

Rotational Speed

7200

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,953,525,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

6G SATA Non-hot Plug LFF (3.5-inch) Entry (ETY) Drives
NOTE: Supported on select 10 series servers only.

HP 4TB 6G SATA 5.9K rpm LFF (3.5in) Non-hot Plug Entry 512e 1yr Warranty Hard Drive

815635-B21

Capacity

4,000,787MB

Height

0.63 in (16.0 mm)

Width

3.00 in (72.2 mm)

Depth

5.38 in (136.6 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

1.2ms

Average

<12ms

Full-Stroke

25ms

Rotational Speed

5900

Physical Configuration

Bytes/Sector

512e

Logical Blocks

980,270,955

Operating Temperature
(system inlet air temperature)

41° to 140° F (5C° to 60° C)

HP 3TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Entry 512e 1yr Warranty Hard Drive

843270-B21

Capacity

3,000,593MB

Height

0.63 in (16.0 mm)

Width

3.00 in (72.2 mm)

Depth

5.38 in (136.6 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

1.0ms

Average

<8.5ms

Full-Stroke

18.00ms

Rotational Speed

7200

Physical Configuration

Bytes/Sector

512e

Logical Blocks

5,860,533,167

Operating Temperature
(system inlet air temperature)

41° to 140° F (5C° to 60° C)

HP 2TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Entry 512e 1yr Warranty Hard Drive

843268-B21

Capacity

2,000,398MB

Height

0.63 in (16.0 mm)

Width

3.00 in (72.2 mm)

Depth

5.38 in (136.6 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

1.0ms

Average

<8.5ms

Full-Stroke

18.00ms

Rotational Speed

7200

Physical Configuration

Bytes/Sector

512e

Logical Blocks

3,907,029,167

Operating Temperature
(system inlet air temperature)

41° to 140° F (5C° to 60° C)

HP 1TB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Entry 512e 1yr Warranty Hard Drive

843266-B21

Capacity

1,000,204MB

Height

0.63 in (16.0 mm)

Width

3.00 in (72.2 mm)

Depth

5.38 in (136.6 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

1.0ms

Average

<8.5ms

Full-Stroke

18ms

Rotational Speed

7200

Physical Configuration

Bytes/Sector

512e

Logical Blocks

1,953,525,168

Operating Temperature
(system inlet air temperature)

41° to 131° F (5C° to 131° C)

HP 500GB 6G SATA 7.2K rpm LFF (3.5in) Non-hot Plug Entry 512e 1yr Warranty Hard Drive

843264-B21

Capacity

500,107MB

Height

0.63 in (16.0 mm)

Width

3.00 in (72.2 mm)

Depth

5.38 in (136.6 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

1.0ms

Average

<8.5ms

Full-Stroke

18ms

Rotational Speed

7200

Physical Configuration

Bytes/Sector

512e

Logical Blocks

976,773,168

Operating Temperature
(system inlet air temperature)

41° to 140° F (5C° to 60° C)

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives
NOTE: These drives are not supported by Gen8/Gen9 servers.

HP 1TB 3G SATA 7.2K rpm SFF
(2.5-inch) Hot plug Midline 1yr Warranty Hard Drive

625609-B21

Capacity

1,000,204MB

Height

0.63 in (16.0 mm)

Width

3.00 in (72.2 mm)

Depth

5.38 in (136.6 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

3Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.7ms

Average

<8.5ms

Full-Stroke

16.96ms

Rotational Speed

7200

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,953,525,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

507750-B21

Capacity

500,107MB

Height

0.63 in (16.0 mm)

Width

3.00 in (72.2 mm)

Depth

5.38 in (136.6 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

3Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.5 ms

Average

8.2 ms

Full-Stroke

17.55 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

976,773,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

SATA Hot Plug LFF (3.5-inch) Midline (MDL) Drives
NOTE: These drives are not supported by Gen8/Gen9 servers.

HP 4TB 3G SATA 7.2k rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

694374-B21

Capacity

4,000,787MB

Height

1.04 in (26.4 mm)

Width

4.36 in (110.7 mm)

Depth

7.25 in (184.2 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

3Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.8 ms

Average

8.5 ms

Full-Stroke

16.2 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

7,814,037,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 3TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

628059-B21

Capacity

3,000,592,982,016

Height

1.04 in (26.4 mm)

Width

4.36 in (110.7 mm)

Depth

7.25 in (184.2 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

3Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.5 ms

Average

<8.5 ms

Full-Stroke

16.9 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

3,907,029,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

507632-B21

Capacity

2,000,398MB

Height

1.04 in (26.4 mm)

Width

4.36 in (110.7 mm)

Depth

7.25 in (184.2 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

3Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.5 ms

Average

<8.5 ms

Full-Stroke

16.9 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

3,907,029,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

458928-B21

Capacity

500,107MB

Height

1.04 in (26.4 mm)

Width

4.36 in (110.7 mm)

Depth

7.25 in (184.2 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

3Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

2.0 ms

Average

<8.5 ms

Full-Stroke

21.0 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

976,773,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

SATA Hot Plug LFF (3.5-inch) Midline (MDL) 512e Helium Drives
NOTE: These drives are not supported by Gen8/Gen9 servers.

HP 6TB 6G SATA 7.2K rpm LFF (3.5-inch) 512e Helium 1yr Warranty Hard Drive

793680-B21

Capacity

6,001,175MB

Height

1.04 in (26.4 mm)

Width

4.36 in (110.7 mm)

Depth

7.43 in (188.7 mm)

Interface

SATA

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

Seek Time
(typical reads, including settling)

Physical Configuration

Average

8.5 ms

Full-Stroke

16.0 ms

Rotational Speed

7200 rpm

Bytes/Sector

512

Physical Configuration

Operating Temperature (system inlet air temperature)

Logical Blocks

11,721,045,168

50° to 95° F (10° to 35° C)

HP 8TB 6G SATA 7.2K rpm LFF (3.5-inch) 512e Helium 1yr Warranty Hard Drive

793693-B21

Capacity

8,001,563MB

Height

1.04 in (26.4 mm)

Width

4.36 in (110.7 mm)

Depth

7.43 in (188.7 mm)

Interface

SATA

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

Seek Time
(typical reads, including settling)

Physical Configuration

Average

8.5 ms

Full-Stroke

16.0 ms

Rotational Speed

7200 rpm

Bytes/Sector

512

Physical Configuration

Operating Temperature (system inlet air temperature)

Logical Blocks

15,628,053,168

50° to 95° F (10° to 35° C)

SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives
NOTE: These drives are not supported by Gen8/Gen9 servers.

HP 2TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive

507774-B21

Capacity

2,000,398MB

Height

1.028 in (26.1 mm)

Width

4.00 in (101.6 mm)

Depth

5.75 in (146.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

3Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.5 ms

Average

<8.5 ms

Full-Stroke

16.9 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

3,907,029,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive

507772-B21

Capacity

1,000,204MB

Height

1.028 in (26.1 mm)

Width

4.00 in (101.6 mm)

Depth

5.75 in (146.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

3Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

2.0 ms

Average

<8.5 ms

Full-Stroke

25.0 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,953,525,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1yr Warranty Hard Drive

458941-B21

Capacity

500,107MB

Height

1.028 in (26.1 mm)

Width

4.00 in (101.6 mm)

Depth

5.75 in (146.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

3Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

2.0 ms

Average

<8.5 ms

Full-Stroke

21.0 ms

Rotational Speed

7,200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

976,773,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

6G SATA Quick Release SFF (2.5-inch) Midline (MDL) Drives (Gen8 only)

HP 1TB 6G SATA 7.2K rpm SFF (2.5-inch) Quick Release Midline 1yr Warranty Hard Drive

632080-B21

Capacity

1,000,204MB

Height

0.74 in (18.8mm)

Width

2.91 in (73.9 mm)

Depth

3.95 in (100.2 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.7ms

Average

<8.5ms

Full-Stroke

16.96ms

Rotational Speed

7200

Physical Configuration

Bytes/Sector

512

Logical Blocks

976,773,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 500GB 6G SATA 7.2K rpm SFF (2.5-inch) Quick Release Midline 1yr Warranty Hard Drive

632078-B21

Capacity

500,107MB

Height

0.74 in (18.8mm)

Width

2.91 in (73.9 mm)

Depth

3.95 in (100.2 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

.7ms

Average

<8.5ms

Full-Stroke

16.96ms

Rotational Speed

7200

Physical Configuration

Bytes/Sector

512

Logical Blocks

976,773,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

6G SATA Quick Release LFF (3.5-inch) Midline (MDL) Drives (Gen8 only)

HP 4TB 6G SATA 7.2k rpm LFF (3.5-inch) Quick Release Midline 1yr Warranty Hard Drive

697954-B21

Capacity

4,000,787MB

Height

1.16 in (29.6 mm)

Width

4.16 in (105.6 mm)

Depth

5.79 in (147.0 mm)

Interface

Serial ATA

Transfer Rate
(Maximum)

6Gb/s

Native Command Queuing

Supported

Seek Time
(typical reads, including settling)

Single Track

0.8ms

Average

8.5ms

Full-Stroke

16.2ms

Rotational Speed

7200

Physical Configuration

Bytes/Sector

512

Logical Blocks

7,814,037,168

Operating Temperature
(system inlet air temperature)

50° to 95° F (10° to 35° C)

HP 3TB 6G SATA 7.2K rpm LFF (3.5-inch) Quick Release Midline 1yr Warranty Hard Drive

647274-B21

Capacity

3,000,592,982,016

Height

1.16 in (29.6 mm)

Width

4.16 in (105.6 mm)
