HPE Hard Disk Drives

HPE Hard Disk Drives (HDDs) delivers proven performance at industry leading capacities backed by high quality and reliability, preferred choice for many workloads ranging from small businesses to large enterprise.

HPE hard disk drives are optimized to deliver maximum performance on HPE server platforms, and are proven for applications that demand reliable performance in 24x7 operational environments. HPE HDDs offer customers great value per gigabyte without sacrificing performance. In addition, an industry-leading testing and qualification program ensures that our drives are rugged enough for any need.

HPE HDDs are available for three types of workloads —Entry, Midline and Enterprise, two interfaces—SAS and SATA, and in a variety of capacities—up to 10 TB and growing.

What's New

• HPE 10TB 12G SAS 7.2K rpm LFF (3.5in) 512e SC Midline 1yr Warranty Hard Drive
• HPE 10TB 12G SAS 7.2K rpm LFF (3.5in) 512e Midline 1yr Warranty Hard Drive
• HPE 8TB 12G SAS 7.2K rpm LFF (3.5in) 512e SC Midline 1yr Warranty Hard Drive
• HPE 6TB 12G SAS 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

Models

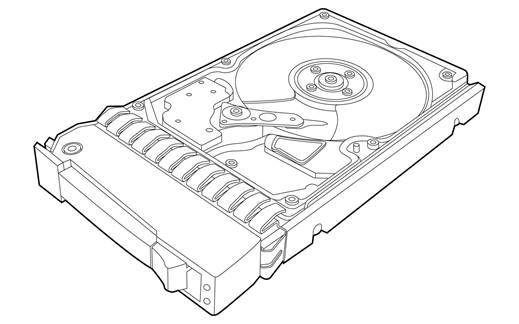

HPE SAS Hot Plug “SmartDrive” Carriers

SAS Hot Plug with SmartDrive SFF (2.5-inch) Enterprise Drives

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard Drive

718162-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652589-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652583-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652572-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652564-B21

HP 1.2TB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

781518-B21

HP 900GB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

785069-B21

HP 600GB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

781516-B21

HP 300GB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

785067-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652611-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652605-B21

HP 600GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

759212-B21

HP 450GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

759210-B21

HP 300GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

759208-B21

SAS Hot Plug SmartDrive SFF (2.5-inch) Enterprise 512e Drives

HP 1.8TB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 512e 3yr Warranty Hard Drive

791034-B21

HP 600GB 12G SAS 15K rpm SFF (2.5-inch) SC 512e Enterprise 3yr Warranty Hard Drive

748387-B21

SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives

HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652749-B21

HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652745-B21

HPE 1TB 12G SAS 7.2K rpm SFF (2.5in) SC Midline 1yr Warranty Hard Drive

832514-B21

SAS Hot Plug SmartDrive SFF (2.5-inch) Midline 512e Drives

HP 2TB 12G SAS 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive

765466-B21

HP 1TB 12G SAS 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive

765464-B21

SAS Hot Plug SmartDrive LFF (3.5-inch) Enterprise Drives

HP 600GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive

652620-B21

HP 450GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive

652615-B21

HP 600GB 12G SAS 15K rpm LFF (3.5-inch) SC Converter Enterprise 3yr Warranty Hard Drive

765424-B21

HP 450GB 12G SAS 15K rpm LFF (3.5-inch) SC Converter Enterprise 3yr Warranty Hard Drive

737394-B21

HP 300GB 12G SAS 15K rpm LFF (3.5-inch) SC Converter Enterprise 3yr Warranty Hard Drive

737261-B21

SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives

HPE 6TB 12G SAS 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

846514-B21

HP 6TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

761477-B21

HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

695510-B21

HPE 3TB 12G SAS 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

846528-B21

HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652766-B21

HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652757-B21

HPE 1TB 12G SAS 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

846524-B21

HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652753-B21

HPE 4TB 12G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

818367-B21

HPE 2TB 12G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

818365-B21

SAS Hot Plug SmartDrive LFF (3.5-inch) Midline 512e Drives

HPE 8TB 12G SAS 7.2K rpm LFF (3.5in) 512e SC Midline 1yr Warranty Hard Drive

819201-B21

HP 6TB 12G SAS 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive

765259-B21

HP 4TB 12G SAS 7.2K rpm LFF (3.5-inch) SC Midline 512e 1yr Warranty Hard Drive

765257-B21

SAS Hot Plug SmartDrive LFF (3.5-inch) Midline 512e Performance Drives

HP 6TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive

793671-B21

HP 4TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive

793669-B21

SAS Hot Plug SmartDrive LFF (3.5-inch) Midline 512e Helium Drives

HPE 10TB 12G SAS 7.2K rpm LFF (3.5in) 512e SC Midline 1yr Warranty Hard Drive

857644-B21

HPE 8TB 12G SAS 7.2K rpm LFF (3.5in) 512e SC Midline 1yr Warranty Hard Drive

861590-B21

HP 8TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Warranty Hard Drive

793703-B21

HP 6TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Warranty Hard Drive

793699-B21

HPE SAS Hot Plug Drives
NOTE: These drives are not supported by Gen8/Gen9 servers.

SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

718160-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

619291-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

581286-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

581284-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

507127-B21

HP 1.2TB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785079-B21

HP 900GB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785075-B21

HP 600GB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785073-B21

HP 300GB 12G SAS 10K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785071-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3yr Warranty Hard Drive

627117-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

512547-B21

HP 600GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785103-B21

HP 450GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785101-B21

HP 300GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785099-B21

SAS Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

516828-B21

HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

516816-B21

HP 600GB 12G SAS 15K rpm LFF (3.5-inch) CC Enterprise 3yr Warranty Hard Drive

737396-B21

HP 450GB 12G SAS 15K rpm LFF (3.5-inch) CC Enterprise 3yr Warranty Hard Drive

737392-B21

HP 300GB 12G SAS 15K rpm LFF (3.5-inch) CC Enterprise 3yr Warranty Hard Drive

737390-B21

SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive

605835-B21

HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive

507610-B21

SAS Hot Plug LFF (3.5-inch) Midline (MDL) Drives

HP 6TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

782669-B21

HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

693689-B21

HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

625031-B21

HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive

507616-B21

HP 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive

507614-B21

SAS Hot Plug LFF (3.5-inch) Midline (MDL) 512e Helium Drives

HPE 10TB 12G SAS 7.2K rpm LFF (3.5in) 512e Midline 1yr Warranty Hard Drive

869347-B21

HP 8TB 12G SAS 7.2K rpm LFF (3.5-inch) 512e Helium 1yr Warranty Hard Drive

793701-B21

HP 6TB 12G SAS 7.2K rpm LFF (3.5-inch) 512e Helium 1yr Warranty Hard Drive

793697-B21

HPE SAS Non-Hot Plug Drives

SAS Non-Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive

537809-B21

SAS Non-Hot Plug LFF (3.5-inch) Enterprise (ENT) Drives

HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive

516830-B21

HP 450GB 6G SAS 15K rpm LFF (3.5-inch) Non-hot Plug Dual Port Enterprise 3yr Warranty Hard Drive

516826-B21

HPE SAS Quick Release Drives

SAS Quick Release SFF (2.5-inch) Enterprise (ENT) Drives

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Quick Release Dual Port ENT 3yr Warranty Hard Drive

718164-B21

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Quick-release Dual Port Enterprise 3yr Warranty Hard Drive

574879-B21

SAS Quick Release LFF (3.5-inch) Enterprise (ENT) Drives

HP 600GB 6G SAS 15K rpm LFF (3.5-inch) Quick-release Dual Port Enterprise 3yr Warranty Hard Drive

574758-B21

SAS Quick Release LFF (3.5-inch) Midline (MDL) Drives

HP 4TB 6G SAS 7.2k rpm LFF (3.5-inch) Quick-release Midline 1yr Warranty Hard Drive

697956-B21

HP 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Quick-release Dual Port Midline 1yr Warranty Hard Drive

574761-B21

NOTE: Refer to the appropriate server QuickSpecs for full compatibility details.

What is SAS?

Serial Attached SCSI (SAS) is the evolution of the SCSI interface. SAS Enterprise drives satisfy the enterprise data center requirement of scalability, performance, reliability and manageability, while providing an enterprise storage infrastructure for both enterprise SAS drives and SATA disk drives. SAS Midline drives provide the lowest dollars per gigabyte and economical reliability and performance. The SAS interface is compatible with SATA devices. This compatibility provides users with unprecedented choices for server and storage subsystem deployment.

Drive Quality and Performance

Today's distributed enterprise is seeing larger, more complex applications, an increase of mission-critical data moving to the server, increasing demand for transaction processing and critical server consolidation. In this environment, storage has become a critical component of the information system, significantly defining both the systems reliability and performance. This is why Hewlett Packard Enterprise drives undergo an intense qualification process that eliminates firmware and O/S incompatibilities. All drive firmware is specific to our drives and is designed to maximize both functionality and compatibility. All drives are proven to perform in the Hewlett Packard Enterprise systems for which they were designed.

While selecting the drives in our Enterprise portfolio, only those drives whose performance is suitable for an enterprise environment are selected through the Hewlett Packard Enterprise qualification process and are labeled "best-in-class." All our Enterprise drives are proven to be reliable and tuned for optimum performance in the Hewlett Packard Enterprise equipment for which they were designed. The drives in our Midline portfolio undergo a similar qualification process to ensure that you get the economical reliability and performance you need for your low workload (less than 40% I/O) environments.

Performance

Only those drives whose performance is suitable for an enterprise environment are selected through the Hewlett Packard Enterprise qualification process and are labeled "best-in-class." All our drives are proven to be reliable and tuned for optimum performance in the Hewlett Packard Enterprise equipment for which they were designed.

Pre-Failure Alert

When used in conjunction with a SMART Array Controller and Systems Insight Manager, the SMART capable firmware in HPE hard drives enables extensive fault prediction capabilities. If potential problems develop in one of the drives, the Smart Array Controller, Systems Insight Manager and/or SMART hard disk drive lets you know in advance so you can have the drive replaced, before it fails, under warranty.
NOTE: All drives are protected by a Pre-Failure Alert when used with a HPE Smart Array controller and Systems Insight Manager, allowing hard drives to be replaced before failure under warranty. In addition, all drives are covered by a one or three-year limited on-site warranty period for the system in which they are installed. The drive warranty is automatically uplifted when used in a server or MSA for which a Care Pack is purchased. Please see the Support Services section below for additional services.

Integration

Many issues customers have with third party drives are "simple" integration issues. When buying from another supplier, there is no guarantee that a drive has been correctly set for proper operation with ProLiant servers and storage systems. These incompatibilities can create problems in configuration, can rob your system of performance, or at their worst, can cause you to lose data. HPE hard drives are specifically designed and tested for flawless operation in your Hewlett Packard Enterprise equipment. The integration of hard drives in Hewlett Packard Enterprise systems means that cables, SCSI ID settings, termination, hot plug drive trays and firmware are right for your ProLiant server or storage system.

Support Matrix

Please see the following URL for the latest list of supported servers and enclosures: http://www.hp.com/go/proliantoptions

Warranty

SAS Enterprise hard drives have a 3 year limited warranty regardless of the warranty period for the system in which they are installed.
SAS Midline hard drives have a 1 year limited warranty regardless of the warranty period for the system in which they are installed.

Service and Support

NOTE: HPE SATA and SAS Hard drives are covered under the HPE Care Pack/ Service Contract applied to the HPE ProLiant Server. No separate HPE Care Packs need to be purchased.

HPE Technology Services for Industry Standard Servers and BladeSystem
HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Pointnext operational services
HPE Pointnext operational services enable you to order the right service level, length of coverage and response time as you purchase your new server, giving you full entitlement for the term you select.

Connect your devices to HPE

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77% reduction in down time, near 100% diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support.

Warranty

ATA, SATA and MDL SAS hard drives have a maximum warranty period of one (1) year regardless of the warranty period for the system in which they are installed.

Service Coverage

For ProLiant servers and storage systems, the service on the main product covers HPE-branded hardware options not designated by Hewlett Packard Enterprise as requiring separate coverage that are qualified for the server, are purchased at the same time or afterward, and are internal to the enclosure. The service also covers external monitors up to 22 inches in size and tower UPS products during their supported life of up to 5 years beyond sales discontinuance. These items will be covered at the same service level as the main product.

For more information

To learn more on services for HPE ESSN Options, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit: http://www.hp.com/services/proliant or http://www.hp.com/services/bladesystem

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

SAS Hot Plug SmartDrive SFF (2.5-inch) Enterprise Drives

Application

SAS Enterprise drives are intended for servers and storage solutions with mission critical and high work load intensive applications where 24/7 duty cycles are a requirement, such as database applications and high transaction level applications.

Transfer rate

The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

HPE 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard Drive

718162-B21

Capacity

1,200,243MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.3 ms

Average

4.6 ms

Full-Stroke

8.9 ms

Rotational Speed

10,000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

2,344,225,968

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652589-B21

Capacity

900,185MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.21 ms

Average

3.8 ms

Full-Stroke

7.4 ms

Rotational Speed

10,000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,758,174,768

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652583-B21

Capacity

600,127MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.3 ms

Average

4.0 ms

Full-Stroke

8.0 ms

Rotational Speed

10,000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,172,123,568

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Quick Release Dual Port ENT 3yr Warranty Hard Drive

718164-B21

Capacity

1,200,243MB

Height

0.740 in (18.8 mm)

Width

2.909 in (73.9 mm)

Depth

3.945 in (100.2 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.3ms

Average

4.6ms

Full-Stroke

8.9ms

Rotational Speed

10,000rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

2,344,225,968

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652572-B21

Capacity

450,098MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.3 ms

Average

4.0 ms

Full-Stroke

8.0 ms

Rotational Speed

10,000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

879,097,968

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652564-B21

Capacity

300,000MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.3 ms

Average

4.0 ms

Full-Stroke

8.0 ms

Rotational Speed

10,000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

585,937,500

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 1.2TB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

781518-B21

Capacity

1,200,243MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.10 ms

Average

3.7 ms

Full-Stroke

7.3 ms

Rotational Speed

10,000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

2,344,225,968

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 900GB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

785069-B21

Capacity

900,185MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.10 ms

Average

3.5 ms

Full-Stroke

7.0 ms

Rotational Speed

10,000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,758,174,768

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 600GB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

781516-B21

Capacity

600,127MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.11 ms

Average

3.3 ms

Full-Stroke

6.6 ms

Rotational Speed

10,000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,172,123,568

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 300GB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

785067-B21

Capacity

300,000MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.10 ms

Average

3.3 ms

Full-Stroke

6.7 ms

Rotational Speed

15,000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

585,937,500

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652611-B21

Capacity

300,000MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.4 ms

Average

2.9 ms

Full-Stroke

5.3 ms

Rotational Speed

15,000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

585,937,500

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652605-B21

Capacity

146,815MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.4 ms

Average

3.0 ms

Full-Stroke

7.0 ms

Rotational Speed

15,000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

286,749,488

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 600GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

759212-B21

Capacity

600,127MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.15 ms

Average

2.9 ms

Full-Stroke

5.9 ms

Rotational Speed

15,000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,172,123,568

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 450GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

759210-B21

Capacity

450,098MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.15 ms

Average

2.9 ms

Full-Stroke

5.9 ms

Rotational Speed

15,000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

879,097,968

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 300GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

759208-B21

Capacity

300,000MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.15 ms

Average

2.9 ms

Full-Stroke

5.9 ms

Rotational Speed

15,000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

585,937,500

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

SAS Hot Plug SmartDrive SFF (2.5-inch) Enterprise 512e Drives

Application

SAS 512e drives are intended for servers and storage solutions that are 4K aligned. These drives are suitable for servers and storage solutions with mission critical and high work load intensive applications where 24/7 duty cycles are a requirement, such as database applications and high transaction level applications.

Transfer rate

The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

HPE 1.8TB 12G SAS 10K rpm SFF (2.5-inch) SC Enterprise 512e 3yr Warranty Hard Drive

791034-B21

Capacity

1,800,360MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.10 ms

Average

3.7 ms

Full-Stroke

7.3 ms

Rotational Speed

10,000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

3,516,328,368

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 600GB 12G SAS 15K rpm SFF (2.5-inch) SC Enterprise 512e 3yr Warranty Hard Drive

748387-B21

Capacity

600,127MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.15 ms

Average

2.9 ms

Full-Stroke

5.9 ms

Rotational Speed

15000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,172,123,568

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

SAS Hot Plug SmartDrive SFF (2.5-inch) Midline Drives

Application

SAS Midline drives are intended for servers and storage solutions where high capacities are required. These drives have moderately-priced reliability and performance for non-mission critical, low workload applications, such as disk backup, archival, and reference applications.

Transfer rate

The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

HPE 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652749-B21

Capacity

1,000,204MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.7 ms

Average

8.7 ms

Full-Stroke

17.16 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,953,525,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652745-B21

Capacity

500,107MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.7 ms

Average

8.7 ms

Full-Stroke

17.16 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

976,773,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 1TB 12G SAS 7.2K rpm SFF (2.5in) SC Midline 1yr Warranty Hard Drive

832514-B21

Capacity

1,000,204MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.5 ms

Average

6.8 ms

Full-Stroke

17.00 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,953,525,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

SAS Hot Plug SmartDrive SFF (2.5-inch) Midline 512e Drives

Application

SAS Midline 512e drives are intended for servers and storage solutions that are 4K aligned. These drives are intended for servers and storage solutions where high capacities are required. These drives have moderately-priced reliability and performance for non-mission critical, low workload applications, such as disk backup, archival, and reference applications.

Transfer rate

The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

HPE 2TB 12G SAS 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive

765466-B21

Capacity

2,000,398MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.7 ms

Average

8.7 ms

Full-Stroke

17.16 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,953,525,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 1TB 12G SAS 7.2K rpm SFF (2.5-inch) SC 512e 1yr Warranty Hard Drive

765464-B21

Capacity

1,000,204MB

Height

0.62 in (15.6 mm)

Width

2.98 in (75.7 mm)

Depth

4.67 in (118.7 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.7 ms

Average

8.7 ms

Full-Stroke

17.16 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,953,525,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

SAS Hot Plug SmartDrive LFF (3.5-inch) Enterprise Drives

Application

SAS Enterprise drives are intended for servers and storage solutions with mission critical and high work load intensive applications where 24/7 duty cycles are a requirement, such as database applications and high transaction level applications.

Transfer rate

The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

HPE 600GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive

652620-B21

Capacity

600,127MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.2 ms

Average

3.5 ms

Full-Stroke

6.8 ms

Rotational Speed

15000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,172,123,568

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 450GB 6G SAS 15K rpm LFF (3.5-inch) SC Enterprise 3yr Warranty Hard Drive

652615-B21

Capacity

450,098MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.2 ms

Average

3.5 ms

Full-Stroke

6.8 ms

Rotational Speed

15000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

879,097,968

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 600GB 12G SAS 15K rpm LFF (3.5-inch) SC Converter Enterprise 3yr Warranty Hard Drive

765424-B21

Capacity

600,127MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.15 ms

Average

2.9 ms

Full-Stroke

5.9 ms

Rotational Speed

15000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,172,123,588

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 450GB 12G SAS 15K rpm LFF (3.5-inch) SC Converter Enterprise 3yr Warranty Hard Drive

737394-B21

Capacity

450,098MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.15 ms

Average

2.9 ms

Full-Stroke

5.9 ms

Rotational Speed

15000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

879,097,968

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 300GB 12G SAS 15K rpm LFF (3.5-inch) SC Converter Enterprise 3yr Warranty Hard Drive

737261-B21

Capacity

300,000MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

15 ms

Average

2.9 ms

Full-Stroke

5.9 ms

Rotational Speed

15000 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

585,937,500

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

SAS Hot Plug SmartDrive LFF (3.5-inch) Midline Drives

Application

SAS Midline drives are intended for servers and storage solutions where high capacities are required. These drives have moderately-priced reliability and performance for non-mission critical, low workload applications, such as disk backup, archival, and reference applications.

Transfer rate

The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

NOTE: To support HPE hard drives exceeding 2.2 TB, HPE Smart Array Firmware version 5.0 or later is required for the following controllers:

• HPE Smart Array P212 Controller
• HPE Smart Array P410 Controller
• HPE Smart Array P411 Controller
• HPE Smart Array P711m Controller
• HPE Smart Array P812 Controller

To use hard drives exceeding 2.2 TB, you must create a boot volume using offline ACU version 8.75 or later. HPE Smart Array controllers do not support boot volumes exceeding 2.2 TB.

HPE 6TB 12G SAS 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

846514-B21

Capacity

6,001,175MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.7 ms

Average

8.5 ms

Full-Stroke

15.7 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

11,721,045,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 6TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

761477-B21

Capacity

6,001,175MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.25 ms

Average

8.5 ms

Full-Stroke

22.0 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

11,721,045,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 4TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

695510-B21

Capacity

4,000,787MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.7 ms

Average

8.5 ms

Full-Stroke

15.7 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

7,814,037,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 3TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652766-B21

Capacity

3,000,592MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.7 ms

Average

8.3 ms

Full-Stroke

15.7 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

5,860,533,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 3TB 12G SAS 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

846528-B21

Capacity

3,000,592MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.32 ms

Average

7.45 ms

Full-Stroke

14.2 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

5,860,533,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 2TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652757-B21

Capacity

2,000,398MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.7 ms

Average

8.5 ms

Full-Stroke

18.2 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

3,907,029,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 1TB 6G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

652753-B21

Capacity

1,000,204MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.7 ms

Average

8.5 ms

Full-Stroke

18.2 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,953,525,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 1TB 6G SATA 7.2K rpm LFF (3.5in) SC Midline 1yr Warranty Hard Drive

861691-B21

Capacity

1,000,204MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

6 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.32 ms

Average

7.45 ms

Full-Stroke

14.2 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

1,953,525,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 4TB 12G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

818367-B21

Capacity

4,000,787MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.8 ms

Average

8.5 ms

Full-Stroke

15.7 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

7,814,037,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 2TB 12G SAS 7.2K rpm LFF (3.5-inch) SC Midline 1yr Warranty Hard Drive

818365-B21

Capacity

2,000,398MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.8 ms

Average

8.5 ms

Full-Stroke

15.7 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

3,907,029,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

SAS Hot Plug SmartDrive LFF (3.5-inch) Midline 512e Drives

Application

SAS 512e drives are intended for servers and storage solutions that are 4K aligned. These drives have moderately-priced reliability and performance for non-mission critical, low workload applications, such as disk backup, archival, and reference applications.

Transfer rate

The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

NOTE: To support HPE hard drives exceeding 2.2 TB, HPE Smart Array Firmware version 5.0 or later is required for the following controllers:

• HPE Smart Array P212 Controller
• HPE Smart Array P410 Controller
• HPE Smart Array P411 Controller
• HPE Smart Array P711m Controller
• HPE Smart Array P812 Controller

To use hard drives exceeding 2.2 TB, you must create a boot volume using offline ACU version 8.75 or later. HPE Smart Array controllers do not support boot volumes exceeding 2.2 TB.

HPE 8TB 12G SAS 7.2K rpm LFF (3.5in) 512e SC Midline 1 yr Warranty Hard Drive

819201-B21

Capacity

8,001,563MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.7 ms

Average

8.5 ms

Full-Stroke

15.7 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

15,628,053,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 6TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e 1yr Warranty Hard Drive

765259-B21

Capacity

6,001,175MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.7 ms

Average

8.5 ms

Full-Stroke

15.7 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

11,721,045,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 4TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e 1yr Warranty Hard Drive

765257-B21

Capacity

4,000,787MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.7 ms

Average

8.5 ms

Full-Stroke

15.7 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

7,814,037,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

SAS Hot Plug SmartDrive LFF (3.5-inch) Midline 512e Performance Drives

Application

SAS 512e Performance drives are intended for servers and storage solutions that are 4K aligned with highest performance output in the Midline portfolio. These drives have moderately-priced reliability and performance for non-mission critical, low workload applications, such as disk backup, archival, and reference applications.

Transfer rate

The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

NOTE: To support HPE hard drives exceeding 2.2 TB, HPE Smart Array Firmware version 5.0 or later is required for the following controllers:

• HPE Smart Array P212 Controller
• HPE Smart Array P410 Controller
• HPE Smart Array P411 Controller
• HPE Smart Array P711m Controller
• HPE Smart Array P812 Controller

To use hard drives exceeding 2.2 TB, you must create a boot volume using offline ACU version 8.75 or later. HPE Smart Array controllers do not support boot volumes exceeding 2.2 TB.

HPE 6TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive

793671-B21

Capacity

6,001,175MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.25 ms

Average

7.6 ms

Full-Stroke

15 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

11,721,045,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 4TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Performance 1yr Warranty Hard Drive

793669-B21

Capacity

4,000,787MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.25 ms

Average

7.6 ms

Full-Stroke

15 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

7,814,037,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

SAS Hot Plug SmartDrive LFF (3.5-inch) Midline 512e Helium Drives

Application

Helium Drives are filled with Helium resulting in less power consumption. SAS 512e drives are intended for servers and storage solutions that are 4K aligned. The drives have moderately-priced reliability and performance for non-mission critical, low workload applications, such as disk backup, archival, and reference applications.

Transfer rate

The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

NOTE: To support HPE hard drives exceeding 2.2 TB, HPE Smart Array Firmware version 5.0 or later is required for the following controllers:

• HPE Smart Array P212 Controller
• HPE Smart Array P410 Controller
• HPE Smart Array P411 Controller
• HPE Smart Array P711m Controller
• HPE Smart Array P812 Controller

To use hard drives exceeding 2.2 TB, you must create a boot volume using offline ACU version 8.75 or later. HPE Smart Array controllers do not support boot volumes exceeding 2.2 TB.

HPE 10TB 12G SAS 7.2K rpm LFF (3.5in) 512e SC Midline 1yr Warranty Hard Drive

857644-B21

Capacity

10,000,831 MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.22 ms

Average

8.0 ms

Full-Stroke

16.0 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

19,532,873,728

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 8TB 12G SAS 7.2K rpm LFF (3.5in) 512e SC Midline 1yr Warranty Hard Drive

861590-B21

Capacity

8,001,563MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth

6.69 in (170.0 mm)

Interface

SAS

Transfer Rate Synchronous (Maximum)

12 Gb/sec

Seek Time
(typical reads, including settling)

Single Track

0.22 ms

Average

8.0 ms

Full-Stroke

16.0 ms

Rotational Speed

7200 rpm

Physical Configuration

Bytes/Sector

512

Logical Blocks

15,628,053,168

Operating Temperature (System Inlet Air Temperature)

50° to 95° F (10° to 35° C)

HPE 6TB 12G SAS 7.2K rpm LFF (3.5-inch) SC 512e Helium 1yr Warranty Hard Drive

793699-B21

Capacity

6,001,175MB

Height

1.06 in (26.8 mm)

Width

4.16 in (105.8 mm)

Depth
