HPE Storage Ethernet Switch H-series SN8325H QuickSpecs
HPE Storage Ethernet H-series SN8325H half width switches address today's data centers' complex networking requirements, growth, expansion and are perfect for Top-of-Rack (TOR) deployments. All SN8325H half width switches are TAA compliant to ensure support of TAA restrictions. It is optimized for virtualized environments, hyperconverged infrastructure, and storage deployments. The HPE Storage Ethernet H-series SN8325H half width switches are designed to provide high-performance 1/10/25/40/100G connectivity with fixed, redundant power and fixed cooling in a half-width, single RU form factor while meeting the requirements of a wide array of compute and storage lossy and lossless networking use cases. These half-width switches help organizations balance density, high availability, and affordability which helps to save space and costs on server, storage and dHCI/HCI connectivity. |
|
|
HPE Storage Ethernet H-series SN8325H half width switches are also ideal for smaller edge or colocation data centers that require limited port density or have limited rack space. SN8325H switches can be used in small branch and edge locations where space is at a premium (e.g., virtualized data centers, next generation storage, retail locations, healthcare facilities, media and entertainment, streaming video, financial services industry, and enterprise branches) and which don't always have IT racks but often have storage closets being used to store servers and IT equipment. The SN8325H switches leverage the same high-performance ASIC and fully featured operating system that the full-width HPE Aruba CX 8325 provides. The SN8325H also utilizes HPE Aruba AOS-CX operating system. This provides a modern, database-driven OS that automates and simplifies critical and complex network tasks. AOS-CX provides an advanced Layer 2/3 feature set including BGP, OSPF, VRF-Lite, IPv6, dynamic VXLAN and intelligent monitoring, visibility, and remediation with a network analytics engine. The switch can be managed with HPE Aruba Networking Central, a cloud-based network management solution, or on-premises with HPE Aruba Networking Fabric Composer, NetConductor, or CLI based management.
Delivering the highest feature set at the right price allows you to get the most out of your Ethernet infrastructure to best support a variety of use cases, including media and entertainment; streaming video, financial services industry, virtualized data centers, and next generation storage, including software-defined storage and NVMe® flash storage. HPE Storage Ethernet Switch H-series SN8325H are available with factory integrated AOS-CX for immediate deployment. With HPE Storage Ethernet Switch H-series SN8325H, you can: - Optimize Storage- modernize your network to eliminate limitations and bottlenecks that can be caused by the addition of flash storage. - Enjoy efficient network performance- avoid packet loss, provide predictable performance with line-rate packet delivery across all ports and all packet sizes - Realize breakthrough economics- make better use of your data center resources with the highest port density per rack unit and the industry's lowest power consumption. - Accelerate business innovation- utilize 1/10/25/40/100Gbps Ethernet connectivity for workloads and enhance connectivity that responds quickly to business needs and stays on the leading edge of Ethernet switching technology. |
|
Flexible connectivity
|
|
- HPE Storage Ethernet H-series SN8325H 18SFP28 4QSFP28 is designed to support any combination of 1/10/25G interfaces on its 18 ports - no port grouping necessary. The 4 ports of 100G can be split using breakout cabling depending on your needs providing up to 1.74 Tbps of bidirectional switching capacity with 2 Bpps. - HPE Storage Ethernet H-series SN8325H 16QSFP28 allows for support of different port speeds utilizing breakout cabling, based on 40/100GbE splits, an example is 100GbE to be split into 4x25G. This switch provides up to 3.24 Tbps of bidirectional switching capacity with 2 Bpps. |
|
|
|
Models
| |
|
HPE Storage Ethernet Switch H-series SN8325H Ethernet Switch Models |
|
|
Description |
SKU |
|
HPE Storage DCN 18p SFP28 25GbE 4p QSFP28 100GbE Power to Connector Half Width Sw H-series SN8325H |
S4Q65A |
|
HPE Storage DCN 18p SFP28 25GbE 4p QSFP28 100GbE Connector to Power Half Width Sw H-series SN8325H |
S4Q66A |
|
HPE Storage DCN 16p QSFP28 100GbE Power to Connector Half Width Switch H-series SN8325H |
S4Q67A |
|
HPE Storage DCN 16p QSFP28 100GbE Connector to Power Half Width Switch H-series SN8325H |
S4Q68A |
|
HPE Storage DCN H-series SN8325H 4-post Rack Mount Kit |
S4Q69A |
|
HPE Aruba Networking 1U Universal 4-post Rack Mount Kit |
R9F57A |
|
HPE Storage DCN H-series SN8325H Rack Mount Blank Panel |
S4Q71A |
|
Notes: - Required to order one R9F57A for any SN8325H order. Only one R9F57A is required if a customer installs 2 switches per rack installation kit (S4Q69A). R9F57A is not required for customers adding a single switch for upgrade to existing installation with one open slot in the chassis. - Only 1 Rack Mount kit (R9F57A) is required for 2x SN8325H switches within the same rack - A Blank Panel (S4Q71A) can be used for customers only ordering one half width switch within the same rack and wanting to prevent cold aisle and hot air from mixing in their data center. - C14 to C15 PDU cords (Qty 2) are included with each switch by default. Power Cord Part Numbers may vary by country region. Customers have the option to order different power cords if required for their application. | |
|
| |||
|

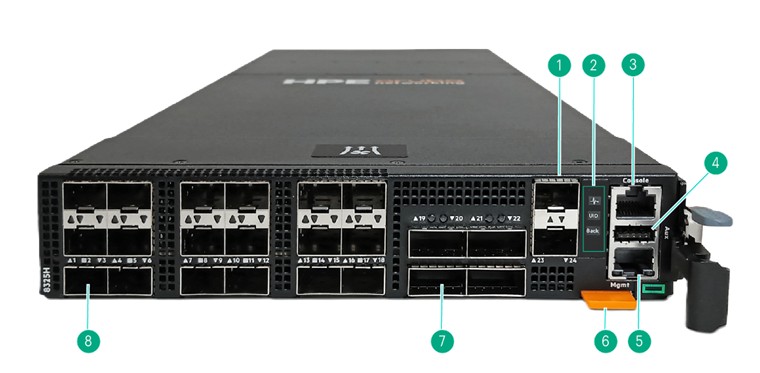

HPE Storage DCN 18p SFP28 25GbE 4p QSFP28 100GbE Power to Connector Half Width Sw H-series SN8325H (Front View) | |||
|
| |||
|
Item |
Description |
Item |
Description |
|
1. |
10G/1G SFP+ x 2 telemetry ports (general purpose ports |
5. |
1000/100/10 Mbps Out-Of-Band-Management Port (Labelled "Mgmt", Baud Rate 115200) |
|
2. |
Status LEDs (System; Fan; Power Supply 1, 2; Unit Identifier) |
6. |
Luggage Tab (Contains Product and Unit Identification Info) |
|
3. |
RJ-45 Serial Console Port (Baud Rate 115200) |
7. |
QSFP28/QSFP Ports (19-22); split x4 supported |
|
4. |
USB Type-A Auxiliary Port (Labelled "Aux") |
8. |
SFP |
|
| |||
|
| |||
|

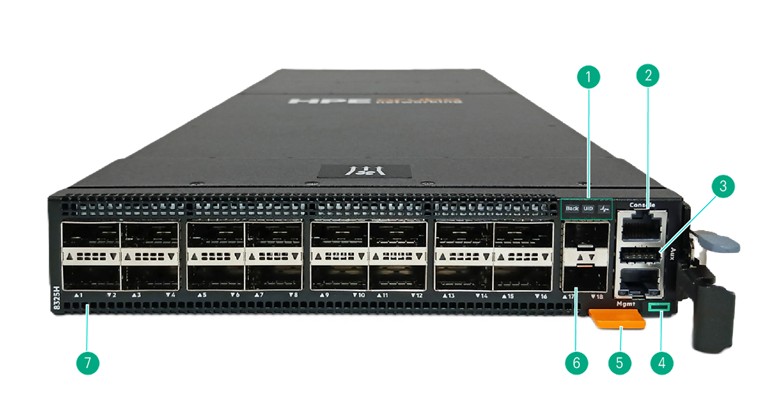

HPE Storage DCN 16p QSFP28 100GbE Power to Connector Half Width Sw H-series SN8325H (Front View) | |||
|
| |||
|
Item |
Description |
Item |
Description |
|
1. |
Status LEDs (System; Fan; Power Supply 1, 2; Unit Identifier) |
5. |
Luggage Tab (Contains Product and Unit Identification Info) |
|
2. |
RJ-45 Serial Console Port (Baud Rate 115200) |
6. |
10G/1G SFP+ x 2 telemetry ports (general purpose port) |
|
3. |
USB Type-A Auxiliary Port (Labelled "Aux") |
7. |
QSFP28/QSFP Ports (1-16); split x4 supported |
|
4. |
1000/100/10 Mbps Out-Of-Band-Management Port (Labeled "Mgmt", Baud Rate 115200) |
|
|
|
| |||
|
| |||
|

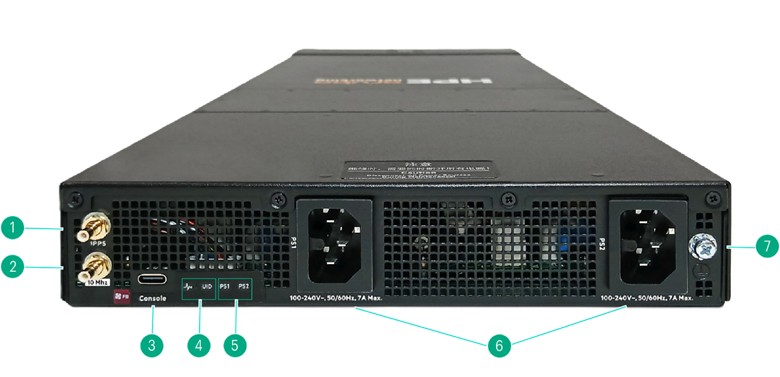

HPE Storage DCN 16p QSFP28 100GbE Power to Connector Half Width Sw H-series SN8325H (Rear View) | |||
|
| |||
|
Rear Panel Features | |||
|
Item |
Description |
Item |
Description |
|
1. |
SMB 1PPS IO connector |
5. |
PSU Status LEDs |
|
2. |
SMB 10MHz IO connector |
6. |
Inlet C16 Sockets |
|
3. |
USB- Console Port |
7. |
Ground Lug |
|
4. |
System LEDs |
|
|
|
| |||
|
|
|

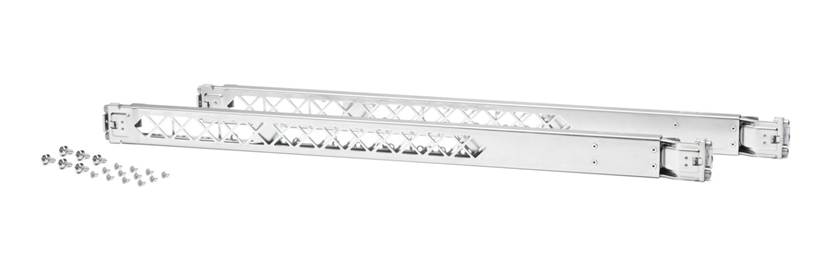

HPE Aruba Networking 1U Universal 4-post Rack Mount Kit (R9F57A) |
|
|
|
|
|
HPE Storage DCN H-series SN8325H 4-post Rack Mount Kit (S4Q69A) |
|
|
|
Notes: Rack Installation - To install the SN8325H in a rack it requires both S4Q69A, which contains the SN8325H switch chassis, and R9F57A, which contains the rail kits. See images up above |
|
|
|
Key Features and Benefits |
|
- The HPE Storage Ethernet Switch H-series SN8325H comes in two different port configuration options to support wider customer application needs. First, a half-width switch with 18 ports of 1/10/25GbE and 4 ports of 40/100GbE Ethernet ports that can breakout to 10GbE or 25GbE ports. Second, a half-width switch with 16 ports of 40/100GbE which can breakout to 4 ports of 10GbE or 25GbE. Both are ideal for Primary, Secondary storage, and Hyperconverged Infrastructures. The SN8325H switches are the ideal top of rack (ToR) solution. - HPE Storage Ethernet Switch H-series SN8325H introduces low latency for 1/10/25GbE and 40/100GbE switching, features a robust implementation of data, control and management planes, and offers a compact form factor and low power consumption. - HPE Storage Ethernet Switch H-series SN8325H provides low cut-through latency (less than 900ns). This is advantageous for flash storage which has moved latency bottlenecks from storage access to the network, as well as for the burst nature of today's software defined and cloud data centers traffic. - The buffering architecture of the HPE Storage Ethernet Switch H-series SN8325H provides superior microburst absorption for applications that burst data at random intervals. - The HPE Storage Ethernet Switch H-series SN8325H provides a flexible combination of ports, allowing for efficiency, simplifying scale-out environments, and saving on total cost of ownership. - Optimized port configuration enables high-speed rack connectivity to the server at 1/10/25GbE speeds with 40/100GbE ports that allow for a variety of blocking ratios that suit specific application requirements. - HPE Storage Ethernet Switch H-series SN8325H supports RoCEv2, full buffer utilization, and zero packet loss combined into a small form factor with low latency make it the ideal switch for ESF (Ethernet Storage Fabric). - The HPE Storage Ethernet Switch H-series SN8325H provides port density in a single rack unit, allowing for higher capacity and efficiency, simplifying scale-out environments and saving on total cost of ownership. - Its unique half-width form factors and port counts, these Ethernet switches allow for two SN8325H units side by side in a redundant or separately to be deployed side-by-side allowing for increased density, making it the ideal top-of-rack switch. - SN8325H is the best fit with a mix of 1/10/25GbE and 40/100GbE ports that are all designed for zero packet loss. Distributed storage, hyperconverged, analytic and database solutions require the ability to scale out without compromising performance or high availability. - High throughput, low latency and active-active network switching capabilities are crucial when deploying clustered servers and storage. HPE Storage Ethernet Switch H-series SN8325H delivers connectivity to many clients plus 40/100GbE connectivity to selected servers, storage systems or for network uplinks, and all with low latency. - SN8325H supports additional 1/10GbE telemetry ports, which can be used for standard applications and/or VSX Heartbeat, etc. |
|
|
|
HPE Aruba AOS-CX
|
|
The HPE Storage Ethernet H-series SN8325H Switch Series is based on AOS-CX, a modern, database-driven operating system that is built on a modular Linux architecture. This operating system provides the following unique capabilities: - Easy access to all network configuration state information - REST APIs for fine-grained programmability of network tasks - A micro-services architecture that enables full integration with other workflow systems and services - All software processes communicate with the database rather than each other, ensuring near real-time state and resiliency |
|
Deployment Models: L3 network, L2 network, Clos, Out-of-band management, Overlay network
|
|
Use cases: Containers, Big data, Private cloud, Network virtualization, DevOps / automation, Monitoring and analytics, Hyperconverged infrastructure |
|
|
|
Key Features
|
|
Virtual Routing and Forwarding: Run multiple network paths without the need for multiple switches, giving you traffic isolation and network segmentation for multiple devices.
Ethernet Virtual Private Networks (EVPN): The most advanced capabilities available for EVPN allow legacy layer-2 applications to operate over next-generation layer-3 networks. |
|
|
|
HPE Aruba Networking CX Operating System-a modern software system HPE Aruba Networking CX Operating System (AOS-CX) is a modern, microservices-based, database-driven operating system that comes with every HPE Aruba Networking CX switch. AOS-CX automates and simplifies many critical and complex network tasks. A built-in time series database enables customers and developers to utilize software scripts for historical troubleshooting, as well as analysis of past trends. This helps predict and avoid future problems due to scale, security, and performance bottlenecks. HPE Aruba Networking CX Operating System features are organized into HPE Aruba Networking CX Foundational and HPE Aruba Networking CX Advanced software licenses. Key capabilities supported on the 8325 include: - HPE Aruba Networking Network Analytics Engine (NAE) - Dynamic Segmentation - Switch Stacking - High Availability and Resiliency - Quality of Service (QoS) - Layer 2 Switching - Layer 3 Services and Routing - IP Multicast - Network Security - Support for HPE Aruba Networking Switch Multi-Edit Software - Designed using the best features of existing HA technologies such as Multi-chassis Link Aggregation (MC-LAG) and Virtual Switching Framework (VSF), HPE Aruba Networking VSX enables a distributed architecture that is highly available during upgrades or control plane events.
|
|
Layer 3 Features - Address Resolution Protocol (ARP) determines the MAC address of another IP host in the same subnet; supports static ARPs - Domain Name System (DNS) provides a distributed database that translates domain names and IP addresses, which simplifies network design; supports client and server - Supports internal loopback testing for maintenance purposes and increased availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or per VLAN basis for added flexibility - Dynamic Host Configuration Protocol (DHCP) simplifies the management of large IP networks and supports client; DHCPv4 Relay support enables DHCP operation across subnets - Layer 3 Routing. The following Layer 3 routing services are supported: - Static IP routing provides manually configured routes. - Dual stack static IPv4 and IPv6 routing provides simple manually configured IPv4 and IPv6 routing - Dual IP stack maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-only network design |
|
|
|
Layer 2 features - VLAN support and tagging support for IEEE 802.1Q (4094 VLAN IDs) and 512 VLANs simultaneously - Jumbo packet support improves the performance of large data transfers; supports frame size of up to 9,220 bytes - Rapid Per-VLAN Spanning Tree (RPVST+) allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+ - STP supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) - MVRP allows automatic learning and dynamic assignment of VLANs - Bridge Protocol Data Unit (BPDU) tunneling transmits STP BPDUs transparently, allowing correct tree calculations across service providers, WANs, or MANs - Port mirroring duplicates port traffic (ingress and egress) to a monitoring port; supports 4 mirroring groups - Internet Group Management Protocol (IGMP) Controls and manages the flooding of multicast packets in a Layer 2 networks |
|
|
|
PTP features - Supports PTP (1588 v2), SMPTE - PTP timing interfaces: 1 PPS, 10 MHz - Boundary clock |
|
|
|
Network Virtualization - VXLAN support - VXLAN Routing - symmetric and asymmetric - L2 gateway services integration with VMware NSX - VXLAN head end replication - VXLAN active-active bridging with MLAG - Controller-less network virtualization with EVPN |
|
Management - REST SNMP - RJ-45 serial - USB-C console - RJ-45 Ethernet port - REST APl switch management using and configuration using SWAGGER - Switch configuration by CLI, REST API, and WebUI - FW Upgrade Management - Hotpatch Management - Hot-patching provides users of AOS-CX with a way to update running software without rebooting their system. Hot-patches are distributed as signed patch files. - Automated install and provisioning: zero touch install and zero touch provisioning - Management VRF - DHCP and v4/v6 DHCP relays - Checkpoints rollback of the entire system to eliminate risk from system updates |
|
|
|
Monitoring and Troubleshooting - Monitor traffic patterns and preemptive capacity planning with buffer monitoring - Traditional monitoring with SNMPv2 and SNMPv3 and network-specific MIBs - Troubleshooting with alerts, syslog, hardware inventory, log files, tech support file. - sFlow monitoring for system statistics and network traffic - IPFIX monitoring for system statistics and network traffic |
|
|
|
Security - Access control lists (ACLs) L2-L4 classification |
|
|
|
QoS - Data Center Bridging Capability Exchange protocol (DCBX) - Classification based on Class of Service (CoS) (IEEE 802.1p) or DSCP (queuing, scheduling-DWRR and Strict Priority - and buffer allocation) - Ingress ACL-based classification/policing - Priority flow control and explicit congestion notification (ECN) - Dynamic buffer configuration as default |
|
|
|
