HPE D2000 Disk Enclosures

Manage your small and midrange business growing storage needs by deploying the next generation 6Gb SAS low cost, flexible tiered external storage system. Ideal for small application environments in SMBs, remote offices and departmental locations as well as tier 2 or 3 storage for enterprise customers. The new 6Gb SAS enclosures - Large Form Factor (LFF) D2600 with 12 drive bays and Small Form Factor (SFF) D2700 with 25 drive bays - offer modular solutions to simplify capacity expansion of HPE ProLiant server environments to external storage without having to make the full move to SAN or NAS. This allows you to buy what is needed today and purchase additional capacity as data storage needs grow.

The D2000 enclosures support direct attach storage to ProLiant Servers with the HPE Smart Array P411, P212, P812, P222, P421, P431, P441, P822 or the P841 Controllers. On HPE ProLiant and Integrity servers Dual Domain support is available for the HPE Smart Array P411, P421, P431, P441, P822 or the P841 Controllers attached to a D2600/D2700. (Single initiator environment only.) (For Dual Domain - HPE Smart Array Advanced Pack 2.0 No Media 1 Server 1yr 24x7 Support Software is required with the P421Controller). HPE UX 11iv3 and Windows 2008 R2 OS supported for HPE Integrity servers (single initiator environment only). Blade 6Gb SAS connectivity is enabled using a HPE Smart Array P711m, P721m, P731m, P741m Controllers, 6Gb SAS BL Switches and the D2000 disk enclosures. HPE H221, H222 and the H241 Host Bus Adapters are also supported with the D2600/D2700 Disk Enclosures.

NOTE: HPE Integrity servers that are supported
rx3600, rx6600, rx2600, rx2800i2, rx7640, rx8640, Superdome (only the versions that support PCI-e cards)

Total support can grow as needed to up to 96 LFF drives or 200 SFF drives.

The D2700 is also supported when attached to a HPE P2000 G3 Modular Smart Array System family.

What's New

• Adding Support for:

- HPE Smart Array P841/4GB FBWC 12Gb 4-ports Ext SAS Controller

- HPE Smart Array P741m/2GB FBWC 12Gb 4-ports Ext Mezzanine SAS Controller

Models

HPE D2000 Disk Enclosures

HPE D2700 Disk Enclosure

AJ941A

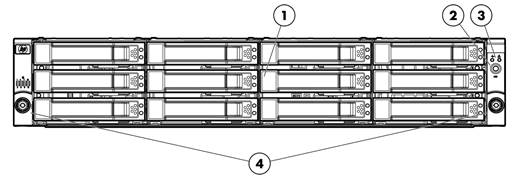

HPE D2600 Disk Enclosure

Front panel LEDs and buttons

1.

Disk drives

2.

UID push button and LED

3.

Enclosure LEDs

4.

Rack-mounting thumb screw

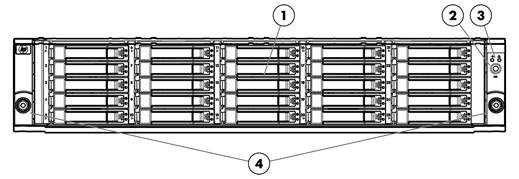

HPE D2700 Disk Enclosure

Front panel LEDs and buttons

1.

Disk drives

2.

UID push button and LED

3.

Enclosure LEDs

4.

Rack-mounting thumb screw

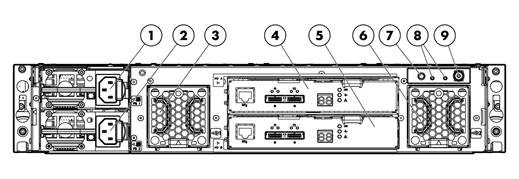

Rear Panel components

1.

Power Supply 1

6.

Fan 2

2.

Power Supply 2

7.

Rear UID push button

3.

Fan 1

8.

Enclosure LEDs

4.

I/O Module A

9.

Power on/standby button

5.

I/O Module B

Affordable, low cost Storage

• Purchase only what you need today and avoid up-front costs. Modular platform provides investment protection and by purchasing only what is needed today, allows for growth as storage requirements evolve. Buying storage only when needed simplifies planning and relieves budget pressures.
• D2700: Maximum storage capacity of 30 TB SAS (1.2 TB SAS), 25 TB SAS MDL (1TB SAS MDL) or SATA (1TB SATA MDL) per enclosure scalable to 240 TB SAS, 200 TB SAS MDL or SATA (dependent on the Smart Array Controller). D2700 also supports SAS SLC and MLC Solid State Drives (SSD) . Number of Solid State drives is limited to twenty five (25) SSDs per controller.
• D2600: Maximum storage capacity of 7.2 TB SAS (600GB SAS) or 72 TB SAS MDL or SATA MDL (4TB SAS or SATA HDD) per enclosure scalable to 57.6 TB SAS, or 576 TB SAS MDL or SATA MDL.
• Enterprise-class dual port SAS or archival-class SATA drives as the need and budget dictates

Flexible/Scalable

• Grow storage capacity easily by attaching up to four D2600 enclosures from a single Controller port, for expansion of up to 8 enclosures or 96 drives, allowing for room to grow as storage demands increase
• Grow storage capacity easily by attaching up to two D2700 enclosures from a single Controller port, for expansion of up to 4 enclosures or 100 drives, allowing for room to grow as storage demands increase. (Smart Array Controllers P411 & P812)
• With the new Smart Array P421, P431, P441, P822, P841 Controllers grow your storage capacity easily by attaching up to four (4) D2700 enclosures from a single Controller port, for expansion of up to eight (8) enclosures or 200 drives, allowing for room to grow as storage demands increase
• Smart Array Controllers P421, P431, P441, P822, P841 support the mixing of the D2600 and the D2700 for expansion, Supports four (4) D2600 and four (4) D2700 (4xLFF and 4xSFF) allowing for expansion up to 148 drives. Flexibility to mix and match SAS and SATA drives in the same enclosure

Easy to Manage

• Hassle free expansion - little IT expertise required.
• Compatible with the latest HPE Smart Array SAS controllers (P812, P411, P212, P222, P421, P431, P441, P822, P841, P711m, P721m, P731m, P741m).
• Compatible with HPE H221, H222 and H241 Host Bus Adapters (HBAs)
• Familiar ProLiant management tools provided via the Smart Controller - SIM, ACU, ORCA.
• Easy removal of parts provides better serviceability.

High performance 6Gb SAS host connectivity

• 6Gb SAS host connectivity enables a higher data transfer rate.
• End-to-end 6 Gb SAS connectivity ensures a high performance storage solution using a P212, P411, P812, P222, P421, P431, P431,  P822, P841, P711m, P721m, P731m or the P741m Smart Array controller and the D2000 enclosures. D2600/D2700 is also supported with the HPE H221, H222 or the H241 Host Bus adapters (HBA).
• SAS disk enclosure support for c-Class BladeSystem utilizing the recently introduced HPE 6Gb SAS BL Switch with the P711m, P721m, P731m, P741m Smart Array Controllers.
• Since storage is contained within the rack, latency is reduced as data does not travel over large distances.

HPE reliability

• Deploy with confidence. Hewlett Packard Enterprise offers a complete end-to-end storage solution including the D2000 storage enclosures, Smart Array P212, P411, P812, P222, P421, P431, P441, P822, P841, P711m, P721m, P731m, P741m Controllers and HPE ProLiant Servers
• Familiar Smart Array technology of the P212, P411, P812, P222, P421, P431, P441, P822, P841, P711m P721m, P731m or the P741m  Controllers enable support for RAID levels 0, 1, 1+0, 5 and RAID 6 with ADG, 50 and 60. Optional battery-backed write cache.
• Advanced Data Guarding (RAID 6): This is the highest level of fault tolerance. It allocates two sets of parity data across drives and allows simultaneous write operations. This level of fault tolerance can withstand two simultaneous drive failures without downtime or data loss.
• Distributed Data Guarding (RAID 5): This allocates parity data across multiple drives and allows simultaneous write operations.
• Receive pre-failure alerts with HPE SIM. When drives installed in D2000 disk enclosures are used in conjunction with the P212, P411, P812, P222, P421, P431, P441, P822, P841, P711m, P721m, P731m or the P741m Smart Array Controller and Systems Insight Manager, the Smart Array firmware in HPE hard drives enables extensive fault prediction capabilities. If potential problems develop in one of the drives, the Smart Array Controller, Systems Insight Manager and/or Smart hard disk drive lets you know in advance so you can have the drive replaced, before it fails, under warranty.
• Remove / replace/ add components when system is running without service disruption with hot Plug drives, power and cooling
• Redundant power and cooling provides increased reliability as failure of a power supply or fans does not interrupt system functioning
• Dual domain SAS creates redundant pathways from servers to storage devices. The redundant paths created by these configurations reduce or eliminate single points of failure within the storage network. This provides increased levels of high availability with redundant paths from the controller to the drives. Dual domain SAS implementations make it possible to tolerate host bus adapter (HBA) failure, external cable failure, expander failure, failure in a spanned disk (JBOD) environments.

HPE D2000 Disk Enclosures

The HPE D2000 Disk Enclosures (hereafter referred to as "D2000") is a family of disk drive storage enclosure with 6 Gb SAS host connectivity. The D2000 is a 2U direct attach, external storage solution designed for small to medium size deployments or remote locations. These enclosures deliver industry-leading availability, storage density, and upgradeability to meet customers' demanding and growing storage needs. The D2000 delivers the ideal mix of low-cost and high capacity, for minimum I/O workloads such as reference data, archival, and disk-to-disk backup.

High Levels of Storage Density, Data Protection, and Functionality

• Storage Capacity - The SFF D2700 disk enclosure supports up to 25 (twenty five) 6Gb SFF SAS drives for a maximum capacity of 30 TB with 6G 1.2 TB SAS drives or 25 TB with 1 TB 6G SAS MDL or 1 TB 3G SATA MDL drives. D2700 also supports SAS SLC and MLC Solid State Drives. Number of Solid State drives is limited to twenty five (25) per controller. The LFF D2600 disk enclosure supports up to 12 (twelve) 6G LFF SAS drives for a maximum capacity of 7.2 TB with 6G 600GB SAS drives or 72 TB with 6G 6 TB SAS MDL or 3G 4TB SATA MDL drives.
• Data Protection - D2000 is designed for a high level of data protection. It includes redundant fans and power supplies (standard), and supports various RAID levels including RAID6 with ADG, 50 & 60 (depending upon the Smart Array Controller used)
• Storage Manageability - The D2000 features familiar configuration and management tools such as Array Configuration Utility (ACU) and HPE Systems Insight Manager (SIM). Online Management Features include: Online Capacity Expansion, Online RAID Level Migration, Online Stripe Size Migration, Online Spares (Global)
• Choice of Computing Platform - The D2000 is designed and qualified for HPE ProLiant servers
• Advanced Data Guarding (RAID 6 with ADG)
• Fault Tolerance - It allocates two sets of parity data across drives and allows simultaneous write operations. This level of fault tolerance can withstand two simultaneous drive failures without downtime or data loss.

Low Total Cost of Ownership

The modular, scalable design of the D2000 disk enclosure family provides an extremely flexible platform. You can buy what you need today and purchase additional capacity as your data storage needs grow, instead of making a large up-front investment. Additional drives and enclosures can be easily added as your needs dictate.

• Cascading - The D2700 has the unique capability of cascading up to two (2) enclosures behind a single SAS port (depends on the Smart Array Controller). The D2600 has the capability of cascading up to four (4) enclosures behind a single SAS port (depends on the Smart Array Controller).
• Pre-Failure Warranty - Drives installed in either the D2600 or the D2700 and monitored under HPE Systems Insight Manager are supported by a Pre-Failure (replacement) Warranty (3 years for SAS drives). Pre-Failure Warranty allows for the replacement of designated drives in the D2600 or the D2700 before they actually fail when using HPE Systems Insight Manager on HPE ProLiant servers.
  NOTE: Some operating systems may not support all of these features.
• Integrated Configuration and Management Tools - The D2000 family utilizes the standard, integrated set of Smart Array management and utility software for HPE ProLiant Servers. These tools consistently lower the cost of ownership by reducing training and technical expertise necessary to install and maintain HPE server storage.

D2000 Disk Enclosures

D2600 Disk Enclosure

The 2U array houses up to twelve (12) 3.5 inch Universal hot pluggable SAS drives.

Each D2600 includes the following standard components:

• D2600 base enclosure with redundant power supplies and fan modules
• Two (2) integrated 6Gb SAS IO Modules
• Rack mounting hardware kit
• Two (2) 0.5m mini-SAS cables
• Two (2) PDU interconnect cords

D2700 Disk Enclosure

The 2U array houses up to twenty five (25) 2.5 inch Universal hot pluggable SAS drives.

Each D2700 includes the following standard components:

• D2700 base enclosure with redundant power supplies and fan modules
• Two (2) integrated 6Gb SAS IO Modules
• Rack mounting hardware kit
• Two (2) 0.5m mini-SAS cables
• Two (2) PDU interconnect cords

Smart Array P411 Features

• The HPE Smart Array P411 is HPE's PCI Express (PCIe) Serial Attached SCSI (SAS) RAID controller
• Low profile, half height card has 8 ports and utilizes DDR2-800 memory
• The P411 is ideal for RAID 0/1, 5, 1+0 & 5+0 and can be upgraded with the 512MB battery-backed write cache (BBWC) module and Smart Array Advanced via license key for RAID 6 & 6+0, 50 and 60
• For more information see: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111712

Smart Array P212 Features

• The HPE Smart Array P212 is HPE's entry level PCI Express (PCIe) Serial Attached SCSI (SAS) RAID controller
• The Low Profile, Half height card has 8 ports and utilizes DDR2-266 memory
  The P212 is ideal for RAID 0/1, 1+0 and can be upgraded with the 256MB battery-backed write cache (BBWC) module for RAID 5, 5+0
• For more information see: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111625

Smart Array P812 Features

• The HPE Smart Array P812 provides superior RAID performance, while delivering high levels of connectivity, reliability, and many advanced features
• Increased connectivity with 8 internal ports and 16 external ports.
• 1 G 72-bit wide DDR2-800 flash-backed write cache (FBWC).
• Smart Array Advanced Pack (SAAP) license key included standard
• For more information see: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111607

Smart Array P222 Features

• Second Generation 6Gb/s SAS Controllers
• Eight (8) SAS physical links distributed across 1 internal x4/1 external x4 wide port connectors
• Read ahead caching
• Flash Backed Write-back Cache
• For more information see: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111474

Smart Array P421 Features

• Second Generation 6Gb/s SAS Controllers
• The SA-P421 Controller supports up to 200 drives
• Eight (8) SAS physical links distributed across 2 external x4 miniSAS connectors.
• Write-back caching (with FBWC)
• For more information see: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111533

Smart Array P431 Features

• The SA-P431 Controller supports up to 200 physical drives
• The SA-P431 Controller supports the HPE D2600/D3600 and the HPE D2700/D3700 Disk Enclosure (up to 8 daisy chained). Seamless upgrades to current or next generation HPE high performance and high capacity Serial Attached SCSI Smart Array controllers.
• 12 Gb/s SAS technology delivers high performance and data bandwidth and contains full compatibility with 6 Gb/s SATA technology
• PCI Express Gen3 x8 link width delivers high performance and data bandwidth up to 8GT/s theoretical maximum bandwidth
• 2 GiBytes Flash Backed Write Cache (FBWC) provides read ahead caching and write back caching with indefinite write cache data retention in the case of unexpected power outage
• Standard on the P431 are RAID 6, RAID 60, RAID 1 ADM, Capacity Expansion, mirror split, recombine and rollback in Online Mode, Drive Erase, Performance Optimization-Degraded Reads and Read Coalescing, Move/Delete any individual LUNs
• The HPE SSD Smart Path feature included in the Smart Array software stack improves SSD reads for all RAID levels and RAID 0 write operations by optimizing the path to each SSD attached to the controller
• The HPE SmartCache feature (HPE Smart Cache license is required on P431) is a controller-based read caching solution in a DAS environment that caches the most frequently accessed data ("hot" data) onto lower latency SSDs to dynamically accelerate application workloads
• Mix-and-match SAS and SATA hard drives lets you deploy drive technology as needed to fit your computing environment
• For more information see: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111365

HPE Smart Array P441 Features

• The SA-P441 Controller supports up to 200 physical drives
• The SA-P441 Controller supports the MSA2040 (Shared storage), HPE D3600 Disk Enclosure and HPE D3700 Disk Enclosure (up to 8 daisy chained in dual domain configuration). Seamless upgrades to current or next generation HPE high performance and high capacity Serial Attached SCSI Smart Array controllers.
• 12Gb/s SAS technology delivers high performance and data bandwidth and contains full compatibility with 6Gb/s SATA technology
•  PCI Express Gen3 x8 link width delivers high performance and data bandwidth up to 8GT/s theoretical maximum bandwidth
• 4 GiBytes Flash Backed Write Cache kit (FBWC) provides read ahead caching and write back caching with indefinite write cache data retention in the case of unexpected power outage
•  Supports legacy and UEFI boot operation on Gen9 servers
• Standard on the P441 are RAID 6, RAID 60, RAID 1 ADM, Capacity Expansion, mirror split, recombine, and rollback in Online Mode, Drive Erase, Performance Optimization-Degraded  Reads and Read Coalescing, Move/Delete any individual LUNS
• The HPE SSD Smart Path feature included in the Smart Array software stack improves SSD reads for all RAID levels and RAID 0 write operations by optimizing the path to each SSD attached to the controller
• The HPE SmartCache feature (HPE Smart Cache license is required on P441) is a controller-based read and write caching solution in a DAS environment that caches the most frequently accessed data ("hot" data) onto lower latency SSDs to dynamically accelerate application workloads
•  HPE Secure Encryption is a Smart Array controller-based data encryption solution for ProLiant Gen9 servers that protects sensitive, mission critical data.
• Mix-and-match SAS and SATA hard drives lets you deploy drive technology as needed to fit your computing environment
• Software consistency on most current shipping Smart Array products: HPE Smart Storage Administrator (HPE SSA), HPE Systems Insight Manager, and HPE Intelligent Provisioning. The HPE Smart Storage Administrator configures and manages a host of Smart Array controllers and other storage devices using a single interface. It replaces the HPE Array Configuration Utility (ACU) with an updated design and configuration enhancements
• Low-profile PCI Express form factor - ships with a full size (attached) and a low profile bracket for deployment flexibility based on slot availability
• Rapid rebuild
• HBA or RAID mode
• Power efficiency
• For more information see: HPE Smart Array P441 Controller (QuickSpecs/c04346300.pdf)

Smart Array P822 Features

• Second Generation 6Gb/s SAS Controllers
• The SA-P822 Controller supports up to 200 drives
• PCIe 3.0 with DDR3-1333 cache.
• Write-back caching (with FBWC)
• For more information: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111513

Smart Array P711m Features

• Storage interface (SAS/SATA)
• Recovery ROM protects against ROM corruption.
• Smart Array PCIe mezzanine card that connects to a HPE 6Gb/s SAS BL Switch through the c-Class enclosure high-speed mid-plane supporting shared SAS storage.
• Eight (8) 6Gb/s SAS physical links distributed across 4 external 2x ports to support up to 4 6Gb/s SAS Switches
• For more information see: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111558

Smart Array P721m Features

• 6 Gb/s SAS technology delivers up to 600 MB/s per physical link
• Smart Array PCIe mezzanine card that connects to a HPE 6Gb/s SAS BL Switch through the c-Class enclosure high-speed mid-plane supporting shared SAS storage.
• Four (4) 6Gb/s SAS physical links distributed across 2 external 2x ports to supports up to 2 6Gb/s SAS Switches
• Two (2) 6Gb/s SAS physical links distributed across 2 internal 1x ports to support up to 2 6Gb/s SAS HDDs
• Software consistency among all Smart Array family products: Array Configuration Utility, Systems Insight Manager, Array Diagnostic Utility (ADU) and SmartStart
• For more information see: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111449

Smart Array P731m Features

• Eight (8) 6 Gb/s SAS physical links distributed equally across 4 external 2x ports to support up
• to four 6 Gb/s SAS Switches
• 6 Gb/s SAS technology delivers up to 600 MB/s theoretical bandwidth per physical lane
• RAID 0, 1, 10, 5, 50, 6, 60, 1 ADM, 10 ADM
• Recovery ROM protects against ROM corruption
• HPE Smart Cache (HPE Smart Cache license is not required on P731m with 2 GiBytes FBWC)
• HPE SSD Smart Path
• PCI Express Gen3 x8 link
• 2 GiBytes Flash Backed Write Cache (FBWC) provides read ahead caching and write back caching withindefinite write cache data retention in the case of unexpected power outage.
• For more information see: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111381

HPE H221 Host Bus Adapter

• SAS technology delivers high performance and data bandwidth up to 6 Gb/s per physical link
• Mix-and-match SAS and SATA hard drives; deploy drive technology as needed
• PCIe x8 ( 4 GB/s bandwidth)
• PCIe 2.0 x8 capable
• For more information see: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111475

HPE H221 Host Bus Adapter

• SAS technology delivers high performance and data bandwidth up to 6 Gb/s per physical link
• Mix-and-match SAS and SATA hard drives; deploy drive technology as needed
• PCIe x8 ( 4 GB/s bandwidth)
• PCIe 2.0 x8 capable on H221 model, PCIe 3.0 x 8 capable on H221 PCIe 3.0 model

• For more information see: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111475

HPE H222 Host Bus Adapter

• SAS technology delivers high performance and data bandwidth up to 6 Gb/s per physical link
• Mix-and-match SAS and SATA hard drives; deploy drive technology as needed
• PCIe x8 ( 8 GB/s bandwidth)
• PCIe 3.0 x8 capable
• For more information see: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111514

HPE H241 Host Bus Adapter

• SAS technology delivers high performance and data bandwidth up to 12Gb/s per physical link
• Mix-and-match SAS and SATA hard drives; deploy drive technology as needed
•  PCIe 3.0 x8 ( 8GB/s bandwidth)

• For more information see: HPE H241 Smart Host Bus Adapter (QuickSpecs/c04375840.pdf)

6Gb SAS BL Switch

• Hot Pluggable 6Gb/s SAS Switch for HPE c-Class BladeSystem
• Sixteen internal blade bay ports containing 2x 6Gb/s SAS links
• Eight external Mini-SAS ports containing 4x 6Gb/s SAS links
• Use the embedded Virtual SAS Manager GUI or CLI interface to zone switch ports or drive bays to server bays.
• Supported by c3000 and c7000 c-Class BladeSystem enclosures
• For more information see: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123176

RAID

Several fault tolerant configurations keep data available and servers running while drives are being replaced - RAID levels that offer fault tolerance include:

• RAID 50 (RAID 5+0) protects against failure of one drive (and failure of particular multiple drives). RAID 50 is a nested RAID method that uses RAID 0 striping across RAID 5 arrays. RAID 50 tolerates one drive failure in each spanned array without loss of data. RAID 50 requires less rebuild time than single RAID 5 arrays RAID 50 requires a minimum of six drives.
• RAID 60 (RAID 6+0) allows administrators to split the RAID 6 storage across multiple external boxes. RAID 60 requires a minimum of eight drives. RAID 60 is a nested RAID method that uses RAID 0 block-level striping across multiple RAID 6 arrays with dual distributed parity. With the inclusion of dual parity, RAID 60 will tolerate the failure of two disks in each spanned array without loss of data.
• RAID 6 with ADG: Allocates the equivalent of two parity drives across multiple drives and allows simultaneous write operations Distributed Data Guarding (RAID 5): Allocates parity data across multiple drives and allows simultaneous write operations. Drive Mirroring (RAID 1 and 1+0 Striped Mirroring): Allocates half of the drive array to data and the other half to mirrored data, providing two copies of every file.

Dual Domain

• Dual domain SAS creates redundant pathways from servers to storage devices. The redundant paths created by these configurations reduce or eliminate single points of failure within the storage network. This provides increased levels of high availability with redundant paths from the controller to the drives. Dual domain SAS implementations make it possible to tolerate external cable failure, expander failure, failure in a spanned disk (JBOD) environments. Requires FW v 3.x

Common Slot Power Supply

The D2000 Disk enclosures use the 460W Common Slot Power supply.

HPE's Common Slot Power supplies meet multiple Energy Efficiency Initiatives:

• 460W, 92%: Climate Savers Computing Initiative GOLD and ECOS Consulting 80PLUS GOLD

NOTE: The 80 PLUS program is a unique forum that unites electric utilities, the computer industry, and consumers in an effort to bring energy efficient technology solutions to the marketplace. 80 Plus independently tests power supply efficiency and publicly posts the results on 80Plus.org.

Utilities

The D2000 disk enclosure family utilizes a single, consistent set of utility software for storage and RAID management, setup, configuration and troubleshooting. This consistency reduces the cost of ownership by reducing the training and technical expertise necessary to install and maintain your HPE server storage solution.

Configuration Utilities

Array Configuration Utility (ACU) [On-line for Microsoft and Linux, Remote Web-Based & Off-line]
Option ROM Configuration for Arrays (ORCA), NetWare ACU CPQONLIN (only online support no Web based support)

Management/Health Utilities

HPE Systems Insight Manager

Array Configuration Utility (ACU)

• Provides a graphical view of HPE drive array configurations.
• Easy to use Wizards for configuration.
• Web Based ACU supports On-Line, Remote Web Based and Off-line configuration.
• Supports on-line configuration for Microsoft, NetWare and Linux.

HPE Systems Insight Manager (SIM)

• Powerful storage, server and server option management tool.
• Monitor storage from a remote central location.
• Browser based Insight Manager 7 provides full access from anywhere on the Intranet, eliminating the need for a dedicated Insight Manager console.

Supported Operating Systems

HPE ProLiant Servers

NOTE: For information on supported Operating Systems, see the following Smart Array QuickSpecs:

P212: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111625

P411: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111712

P812: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111607

P222: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111474

P421: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111533

P431: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111365

P441: HPE Smart Array P441 Controller (QuickSpecs/c04346300.pdf)

P822: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111513

P841: http://www8.hp.com/us/en/products/iss-controllers/product

detail.html?oid=6995463#!tab=features

H221: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111475

H222: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111514

H241: HPE H241 Smart Host Bus Adapter (QuickSpecs/c04375840.pdf)

HPE P2000 G3 FC Modular Smart Array System
NOTE: For up to date compatibility, see the following URL for complete Smart Array Controller compatibility and support information:
http://h18006.www1.hp.com/products/servers/proliantstorage/arraycontrollers/index.html

HPE Integrity Servers

HP-UX 11iv3
Microsoft Windows 2008 R2
NOTE: HPE Integrity Servers supported: rx3600, rx6600, rx2600, rx2800i2, rx7640, rx8640, Superdome (only the versions that support PCI-e cards)

HPE BladeSystem Servers

NOTE: For Information on Supported Operating Systems, see the following Smart Array QuickSpecs:

P711m: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111558

P721m: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111449

P731m: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111381

P741m: http://www8.hp.com/us/en/products/iss-controllers/product-detail.html?oid=7797736#!tab=features

Warranty

Three-year limited parts only warranty, including hardware diagnostic support, pre-failure warranty (coverage of hard drives, memory and processors). The warranty is fully supported by HPE Services and a worldwide network of resellers and service providers. In addition 90-day's getting started software telephone support may be covered under the warranty or available for an additional fee. Enhancements to warranty services are available through HPE Pointnext operational services.
NOTE: The D2000 family has a limited 3 year parts only warranty. SAS and Solid State drives have 3 year warranty. SAS MDL and SATA MDL, Drives have 1 year warranty.

The D2600/D2700 has been designed with customer self-repairable parts to minimize repair time and provide greater flexibility in performing defective parts replacement. Refer to The Hewlett Packard Enterprise Limited warranty Statement and parts replacement instructions for further details.
http://h18006.www1.hp.com/products/storageworks/warranty.html

Service and Support

Services to accelerate time to results

HPE Storage Services bring you a rich portfolio of consulting and support services designed to add value to our core storage products and solutions. We have the know-how and experience to put storage technology to work for you. We work closely with you as your strategic partner, leveraging our full services portfolio to make sure that everything works to optimize your enterprise.
Choose from services aligned to our storage product offerings and lifecycle. From mission-critical onsite services to innovative web-based remote support, you choose the precise level of attention and support your business demands.

Discover, plan, and design

Choose from a rich portfolio of services to make the most of HPE D2000 Disk Enclosures (Rockford - PL LL)), so you can efficiently and affordably consolidate, manage, and extract value from unstructured data.

HPE Services can help you discover needs and create a plan for simplifying the environment, reducing risk, and maximizing your storage investments

HPE Storage Efficiency Analysis - The HPE Storage Efficiency Analysis provides customers with a view of their storage infrastructure and operating environment; highlighting recommendations for improvements. The report provides extensive insight about the existing storage environment, opportunities for efficiency gains, asset aging and replacement through interaction with key decision makers
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-6727enw.pdf

HPE Storage Impact Analysis (SIA): The HPE Storage Impact Analysis service provides a 2-4 week discovery engagement with executive summary presentation. The goal of this service is to help provide customers guidance on storage related issues and develop remediation plans.
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa4-1174enw.pdf

HPE Storage Modernization Service: The HPE Storage Modernization service is a 4-6 week service that defines the customers envisioned target storage environment based on a proven solution design methodology. Hewlett Packard Enterprise architects will quickly perform tool-assisted automatic discovery and facilitate a two-day strategy workshop with all key stakeholders involved in the storage infrastructure initiative
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-4620enw.pdf

Deploy and integrate

We can help you configure, set up, and efficiently use your HPE D2000 Disk Enclosures (Rockford - PL LL)), as well as help migrate data, improve capacity utilization, and establish information management standards used across backup, replication, and archiving needs.

HPE MSA/P2000 Family Disk Array Installation and Startup Service - Implement right from the start, as HPE experts install, test, and configure your hardware and software onsite. We deliver a tailored storage deployment properly integrated into your environment.

HPE Storage Data Migration Services - End-to-end data migration service providing seamless discovery, assessment, planning, and design, completely customizable to your organization's storage area network or network attached storage environment and using innovative software to help you migrate to HPE storage quickly and efficiently. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-0774ENW.pdf

HPE Storage and Data Residency Service - Strategic augmentation of your current environment with HPE resources who become your trusted advisor to provide answers that are right for your storage and backup environment. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-9481ENW.pdf

HPE Proactive Select - A flexible way to purchase services to fit your environment with an extensive menu of HPE Proactive Select event and technical services, such as onsite firmware upgrades, health checks, assessments, and education. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf

Operate and support

Choose the right support to maximize uptime, free up your resources, and achieve improved value-as you get the most out of the existing IT assets while accelerating time-to-revenue.

HPE Proactive Care 24x7 - Hardware and software support services designed specifically for your technology with rapid access to Advanced Solution Center Specialists plus firmware and software management and best practice advice https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-8855enw.pdf

HPE Proactive Care Personalized Support - An option-if you have HPE Proactive Care- to bring increased personalization of the Proactive Care support experience through the assignment of an Account Service Manager (ASM) who provides IT best practice advice to help address IT issues and projects. https://www.hpe.com/h20195/v2/getpdf.aspx/4aa4-3446enw.pdf

HPE Foundation Care 24x7 Service - HPE Foundation Care 24x7 connects you to Hewlett Packard Enterprise 24 hours a day, seven days a week for assistance on resolving issues - hardware onsite response within four hours and software call back within two hours after opening your case. Three years' coverage recommended with HPE Care Pack Service.

HPE Education Services - Comprehensive training for new, as well as experienced, storage administrators designed to expand your skills and keep you up to speed with the latest storage and virtualization technology from HPE Storage. http://education.hp.com/curr-storsan.htm

Optimized Care - Delivers the highest levels of performance and stability through deployment and proactive management practices

Choose from three levels of operate and support care

HPE Proactive Care 24x7-Plus, 20 credits per year
Additional options -HPE Proactive Care Personalized Support (once per Proactive Care support new environment), an additional day of HPE Personalized Support, and 10 additional HPE Proactive Select credits per year

Standard Care - maintains high level of uptime, along with expert help to cut the cost and complexity of implementation and support

HPE Proactive Care 24x7-Plus, 10 credits per year

Additional options -HPE Proactive Care Personalized Support (once per Proactive Care support new environment), an additional day of HPE Personalized Support, and 10 additional HPE Proactive Select credits per year

Basic Care - Minimum recommended support

HPE Support Plus 24- Plus, 10 credits per year

Additional options - 10 HPE Proactive Select credits per year

Remote
Support Automation

HPE Automation provides 24x7 coverage, proactive problem prevention, accurate problem diagnosis and faster problem resolution, as well as interactive support portals and tools. This is an integral, and cost-free, part of your HPE support relationship and we are continually investing in additional cutting-edge capabilities to make it better.

For more information

http://www.hp.com/services/storage
To learn more on HPE Storage Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner

HPE Pointnext operational services are sold by HPE and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find HPE Pointnext operational services at: http://www.hp.com/go/lookuptool

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Step 1: Base Configuration

Model

Model Description

Part Number

D2700

HPE D2700 Disk Enclosure

AJ941A

Configure to Order Program Information

The D2600/D2700 models and options may or may not be factory installed in a rack with add-on controllers, and hard drives. The D2600/D2700 enclosures may be integrated with ProLiant servers or as standalone storage.

Model

Model Description

Part Number

D2600

HPE D2600 Disk Enclosure

AJ940A-#0D1

D2700

HPE D2700 Disk Enclosure

AJ941A-#0D1

Step 2: Array Controllers

Description

Part Number

Smart Array Controllers Supported
(Single Domain)

HPE ProLiant Servers

HPE Smart Array P222/512 FBWC 6Gb 1-port Int/1-port Ext SAS Controller

631667-B21

HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller

631673-B21

HPE Smart Array P841/4GB FBWC 12Gb 4-ports Ext SAS Controller

762903-B21

NOTE: Firmware version 2.0 or higher required on the listed Smart Array Controllers

NOTE:

• Smart Array Controller P421 supports up to 200 drives for D2700 only

- Up to eight (8) D2600 can be cascaded for the P421 with a depth of 4 on each chain, for a total of 96 drives

- Up to eight (8) D2700 can be cascaded for the P421 with a depth of 4 on each chain, for a total of 200 drives

• Smart Array Controller P421 supports the mixing of the D2600 and the D2700 for expansion

- Supports eight (8) D2600 and/or D2700 allowing for expansion up to 148 drives.

Smart Array Controllers Supported (Single Domain)

HPE Integrity Servers

HPE Integrity Smart Array P411/256 2-port External PCIe 6Gb SAS Controller

AM311A

HPE Integrity Smart Array P812/1GB PCIe SAS Controller

AM312A

NOTE: Supported for rx2660, rx2800i2, rx3600, rx6600 rx7640, rx8640 and Superdome on HP-UX11iv3, Microsoft Windows Server 2008 SP2 for Integrity and Microsoft Windows Server R2 for Integrity.

Smart Array Controllers Supported (Dual Domain)

HPE ProLiant & Integrity Servers

HPE Smart Array P841/4GB FBWC 12Gb 4-ports Ext SAS Controller

762903-B21

HP Smart Array P421/1GB FBWC 6Gb 2-ports Ext SAS Controller

631673-B21

HPE Smart Array P431/2GB FBWC 6Gb 2-ports Ext SAS Controller

698531- B21

HPE Smart Array P431/4GB FBWC 6Gb 2-ports Ext SAS Controller

698532- B21

HPE Smart Array P441/4GB FBWC 12Gb 2-ports Ext SAS Controller

726825-B21

HPE Integrity Smart Array P812/1GB PCIe SAS Controller

AM312A

NOTE:

• Requires DP SAS or SAS DP MDL drives
• Up to eight (8) D2600 or four (4) D2700 enclosures can be cascaded in a dual domain configuration behind a P411 or P812 Smart Array Controllers
• Dual Domain configuration with:

- P411 - Requires HPE Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates Single Server License (516471-B21)

• Even though the P812 has two additional ports the number of drives supported by the Smart array controller is limited to 108.Drive count is per controller, so behind the P812 even though there are 4 ports the maximum enclosure supported in a Dual Domain configurations is (8) D2600 - 96 drives or (4) D2700 - 100 drives.
• Up to eight (8) D2600 or eight (8) D2700 enclosures can be cascaded in a dual domain configuration behind a P421, P822 or P841 Smart Array Controllers
• Drive count is per controller, so behind the P421, P431, P822 or the P841 Smart Array Controllers the maximum enclosure supported in a Dual Domain configuration is (8) D2600 - 96 drives or (8) D2700 - 200 drives
• Smart Smart Array Controllers P421, P431, P441, P822 and the P841 support the mixing of the D2600 and the D2700 for expansion

- Supports four (4) D2600 and four (4) D2700 (4xLFF and 4xSFF) allowing for expansion up to 148 drives.

• Integrity Servers - Supported for rx2660, rx2800i2, rx3600, rx6600 rx7640, rx8640 and Superdome on HP-UX11iv3, Microsoft Windows Server 2008 SP2 for Integrity and Microsoft Windows Server R2 for Integrity

HPE Host Bus Adapters (HBAs)

HPE H221 PCIe 3.0 SAS Host Bus Adapter

729552-B21

HPE H241 12Gb 2-ports Ext Smart Host Bus Adapter

726911-B21

Smart Array Controllers /Switches

BladeSystem Servers

HPE Smart Array P741m/2GB FBWC 12Gb 4-ports Ext Mezzanine SAS Controller

762782-B21

HPE 6Gb SAS Switch Single Pack for HPE BladeSystem c-Class

BK763A

HPE 6Gb SAS Switch Dual Pack for HPE BladeSystem c-Class

BK764A

NOTE: D2600/D2700 6Gb SAS BL Switch support requires Firmware version 1.34.

Step 3: Choose HPE ProLiant Servers/MSA Arrays/HPE Integrity Servers

HPE ProLiant Server Compatibility

HPE ProLiant Servers: For up to date compatibility, see the following URL for complete Smart Array P411, P421, P431, P441, P212, P812, P221, P221, P822, P841, P711m, P721m, P731m, P741m  Controller and HBA H221, H222, H241 compatibility and support information:
http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/index.html

Array Compatibility

HPE P2000 G3 FC Modular Smart Array System

NOTE: For up to date compatibility, see the following URL for complete Smart Array Controller compatibility and support information:
http://h18006.www1.hp.com/products/servers/proliantstorage/arraycontrollers/index.html

HPE Integrity Server Compatibility

HPE Integrity Servers supported:

HPE Integrity Server rx2660 with combination PCIx/PCIe riser only

HPE Integrity Server rx3600 with combination PCIx/PCIe backplane only

HPE Integrity Server rx6600 with combination PCIx/PCIe backplane only

HPE integrity Server rx7640 with combination PCIx/PCIe only

HPE integrity Server rx8640 with combination PCIx/PCIe only

HPE integrity Server sx2000 with combination PCIx/PCIe only

NOTE: HPE Integrity Server home:
http://www.hp.com/products1/serverconnectivity/support_matrices.html

HPE BladeSystem Server Compatibility - P711m Controller

HPE Blade Systems supported

BL280c/BL420c
BL460c
BL465c
BL490c
BL620c
BL680c
BL685c
c3000
c7000
BL860
BL870
BL890

HPE BladeSystem Server Compatibility - P721m Controller

HPE Blade Systems supported (P721m Controller) - Gen8 BladeSystems servers only

HPE ProLiant BL420c Gen8

HPE ProLiant BL460c Gen8

HPE ProLiant BL465c Gen8

HPE ProLiant BL685c Gen8

NOTE: For updated list of BladeSystem servers supported, see: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111449

NOTE: Some servers listed above may be discontinued.

NOTE: For more information on internal vs external connections, refer to proper blade QuickSpecs visit: http://h18000.www1.hp.com/products/QuickSpecs/division/12534.html

HPE BladeSystem Server Compatibility - P731m Controller

HPE ProLiant BL420c Gen8
HPE ProLiant BL460c Gen8
HPE ProLiant BL465c Gen8
HPE ProLiant BL660cGen8
NOTE:
For BL420c Gen8 & BL460c Gen8 - P731m is a Type B mezzanine .It can only be installed on
mezzanine slot 2 which requires a second processor for functionality. The BL420c, BL465c, and
BL460c Gen8 can only support one Type B mezzanine.
For BL465 Gen8 - P731m is a Type B mezzanine and can only be installed on mezzanine slot 2
For BL660c Gen8 - P731m is a Type B mezzanine. It can only be supported on mezzanine slot 2 and mezzanine slot 3. The BL660c Gen8 can support up to two Type B mezzanines.
NOTE: For more information on internal vs external connections, please refer to proper blade QuickSpecs visit: http://h18000.www1.hp.com/products/QuickSpecs/division/12534.html

Step 4: Choose Hard Drives

SAS Drives - LFF

D2600 - Large Form Factor (LFF)

HPE 300GB SAS 12G Enterprise 15K LFF (3.5in) STC 3yr Wty HDD

737390-B21

HPE 450GB SAS 12G Enterprise 15K LFF (3.5in) STC 3yr Wty HDD

737392-B21

HPE 600GB SAS 12G Enterprise 15K LFF (3.5in) STC 3yr Wty HDD

737396-B21

SAS Drives - SFF for D2700 behind MSA Arrays

D2700 - Small Form Factor (SFF) for expansion behind MSA Arrays - MSA 2040/P2000

NOTE: When ordering a D2700 as an expansion behind an existing P2000/MSA 2040 then order the following MSA hard drive SKUs

HP MSA 300GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D55A

HP MSA 450GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D56A

HP MSA 600GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S58A

HP MSA 900GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S59A

HP MSA 1.2TB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E7W47A

HP MSA 146GB 6G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D54A

HP MSA 300GB 6G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S61A

HPE MSA 300GB 12G SAS 15K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F40A

HPE MSA 450GB 12G SAS 15K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F41A

HPE MSA 600GB 12G SAS 15K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F42A

NOTE: When ordering a D2700 as an expansion behind an existing P2000/MSA 2040 then order the above MSA hard drive SKUs

SAS Drives - SFF for D2700 behind ProLiant servers

D2700 - Small Form Factor (SFF) for expansion behind ProLiant servers

NOTE: When ordering a D2700 as a standalone to attach behind a ProLiant server order the following Hard drive SKUs

12G

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in)  ST 3yr Wty HDD

785079-B21

HPE 900GB SAS 12G Enterprise 10K SFF (2.5in) ST 3yr Wty HDD

785075-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) ST 3yr Wty HDD

785073-B21

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) ST 3yr Wty HDD

785071-B21

6G

HPE 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

507127-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

581284-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

581286-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

619291-B21

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

718160-B21

HPE 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

512547-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3yr Warranty Hard Drive

627117-B21

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) ST 3yr Wty HDD

785099-B21

HPE 450GB SAS 12G Enterprise 15K SFF (2.5in) ST 3yr Wty HDD

785101-B21

HPE 600GB SAS 12G Enterprise15K SFF (2.5in) ST 3yr Wty  HDD

785103-B21

NOTE: When ordering a D2700 as a standalone to attach behind a ProLiant server order the above Hard Drive SKUs

SAS Midline (MDL) - LFF

HPE 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive

507614-B21

HPE 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port Midline 1yr Warranty Hard Drive

507616-B21

HP 3TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

625031-B21

HP 4TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

693689-B21

HP 6TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

782669-B21

SAS Midline (MDL) - SFF D2700 behind MSA Arrays

D2700 - Small Form Factor (SFF) for expansion behind MSA Arrays - MSA 2040/P2000

HP MSA 1TB 6G SAS 7.2K SFF (2.5-inch) Dual Port Midline 3yr Warranty Hard Drive

C8S62A

NOTE: When ordering a D2700 as an expansion behind an existing P2000/MSA 2040 then order the above MSA Hard Drive SKUs

SAS Midline (MDL) - SFF D2700 behind ProLiant servers

D2700 - Small Form Factor (SFF) for expansion behind ProLiant servers

HPE 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive

507610-B21

HPE 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive

605835-B21

NOTE: When ordering a D2700 as a standalone to attach behind a ProLiant server order the above Hard Drive SKUs

Solid State Drives
(SAS Performance- SFF)

HPE 200GB 12G SAS High Endurance SFF 2.5-in Enterprise Performance 3yr Wty Solid State Drive

741148-B21

Solid State Drives
(SAS ME- SFF) D2700 behind MSA 2040

D2700 - Small Form Factor (SFF) for expansion behind MSA Array - MSA 2040

NOTE: When ordering a D2700 as an expansion behind an existing MSA 2040 then order the following MSA Hard Drive SKUs

HPE MSA 200GB 12G ME SAS SFF (2.5in) Enterprise Mainstream 3yr Warranty Solid State Drive

K2Q45A

HPE MSA 400GB 12G ME SAS 2.5in Enterprise Mainstream 3yr Wty Solid State Drive

J9F37A

HPE MSA 800GB 6G ME SAS 2.5in Enterprise Mainstream 3yr Wty Solid State Drive

J9F38A

HPE MSA 1.6TB 6G ME SAS 2.5in Enterprise Mainstream 3yr Wty Solid State Drive

J9F39A

HP MSA 800GB 6G SAS Main End SFF(2.5in) Ent Mainstream 3yr Wty Solid State Drive

C8R21A

HP MSA 400GB 6G SAS Main End SFF(2.5in) Ent Mainstream 3yr Wty Solid State Drive

C8R20A

HP MSA 200GB 6G SAS Main End SFF(2.5in) Ent Mainstream 3yr Wty Solid State Drive

C8R19A

NOTE: When ordering a D2700 as an expansion behind an existing MSA 2040 then order the above MSA Hard Drive SKUs

Solid State Drives
(SAS ME- SFF) D2700 behind ProLiant servers

D2700 - Small Form Factor (SFF) for expansion behind ProLiant servers

NOTE: When ordering a D2700 as a standalone to attach behind a ProLiant server order the following Hard Drive SKUs

HPE 800GB SAS 12G Write Intensive SFF (2.5in) ST 3yr Wty SSD

779170-B21

HPE 400GB SAS 12G Write Intensive SFF (2.5in) ST 3yr Wty SSD

779166-B21

HPE 200GB SAS 12G Write Intensive SFF (2.5in) ST 3yr Wty SSD

779162-B21

NOTE: When ordering a D2700 as a standalone to attach behind a ProLiant server order the above Hard Drive SKUs

12G Solid State drives will function as 6G drives in the D2700
Number of drives is limited to twenty five (25) per controller.
Solid State Drive support in the D2700 is for direct attach storage only.
Solid State Drives have not yet been qualified on the MSA2000 G2 or the P2000 G3 arrays
SAS Solid State drives are dual path and dual domain.
Cascading is supported in both single and dual domain environments

Step 5: Choose Rack Option

Refer to the Hewlett Packard Enterprise infrastructure products page for more information on HPE racks and rack options:
http://h18004.www1.hp.com/products/servers/platforms/rackandpower.html

Step 6: Choose Cables

Cable Options

Cables to be used for connecting the D2600/D2700 with the HPE Smart Array P212, P411, P812, P222 & P421 Controllers and the D2700 to the P2000 G3 and MSA 2040 Modular Smart Array System

HPE External Mini SAS 2m Cable

407339-B21

HPE External Mini SAS 4m Cable

432238-B21

HPE External Mini SAS 6m Cable

432239-B21

Cables to be used for connecting D2600/D2700 with the Smart Arrays P431 & P441, P841 (HD connector)

HP 0.5m External Mini SAS High Density to Mini SAS Cable

691971-B21

HPE 1.0m External Mini SAS High Density to Mini SAS Cable

716189-B21

HPE 2.0m External Mini SAS High Density to Mini SAS Cable

716191-B21

HPE 4.0m External Mini SAS High Density to Mini SAS Cable

716193-B21

* #0D1 will appear after this part number on your sales order if factory integration is indicated.

Power Cord Options

If customers require a power cord other than the included PDU style cords, they can check the power cord matrix for the appropriate SKU. See the following power cord matrix for details http://www.hp.com/products/powercords.

NOTE: An optional longer 2meter PDU power cable (C14 to C13 style connector) for customers who would like additional length for connections to existing power distribution modules located on the right side of the rack. This is purely optional as the included .7meter power cables will also reach the right sides of the rack. (D2700 power supplies are on the left side of the enclosures). If desired, the quantity to order is 1 AF573A HPE RDNT 2m,10A, C13-C14 JMPR CORD

LED Indicators for HDDs

Online (bottom)

Drive Failure/ID (top)

LED Indicators on Front Panel

Heartbeat LED

Fault LED

UID button/LED

LED Indicators on Rear Panel

I/O Module LED (2) identify/On/Fault; Port (2) Link good/ link fault

UID button/LED

Heartbeat LED

Fault LED

Power On/Standby button/system power LED
Fan LED

Power supply LED

Host Interface

4 x wide SAS 6 Gb/s ports

Maximum Number of Drives

Up to 12 3.5 inch (D2600) or 25 2.5 inch (D2700) SAS or SATA drives
Up to 25 2.5 inch (2700) Solid State Drives

Temperature Range

Operating

50° to 95° F (10° to 35° C)

Shipping

-40° to 150° F (-40° to 66° C)
NOTE: Rated 1°C per 1000 feet of elevation to 10,000 ft.

Relative Humidity

Operating

10% to 90%

Non-operating

Up to 95%

Input Power Requirements

Rated Input Voltage

100 to 240 VAC

Rated Input Frequency

50 to 60 Hz

Rated Input Current

2.68A at115 VAC typical, 4A Maximum

Input Power (max @ 280VAC)

390W (D2600)/340W (D2700)

Heat Dissipation (maximum)

1331/Btu/hr.1160.Btu/hr
NOTE: standard conversion from Watts to Btu/hr = 3.413 Btu/hr per Watt

RAID Support

See QuickSpecs for Smart Array Controllers P212, P411, P812, P222 & P421
http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/index.html
P2000 G3 FC Modular Smart Array System
NOTE: For up to date compatibility, see the following URL for complete Smart Array Controller compatibility and support information: http://h18006.www1.hp.com/products/servers/proliantstorage/arraycontrollers/index.html

Upgradeable Firmware

Yes, Offline only. Firmware updates available through hp.com

Disk Drives and Enclosure Protocol Support

HPE 3.5 inch (D2600) or 2.5 inch (D2700) SAS 6 Gb/s

I/O Module

Connector Type

IPass (mini-SAS)

Number of Ports

Two (one IN, other is OUT)

D2600/D2700 Disk Enclosure

2U Rack Form Factor

Dimensions (HxWxD)

3.47 x 17.99 x 22.3 in (8.8 x 45.0 x 56.7 cm)

Weight (base unit)

38 lb (17.2 kg)

Weight (with all LFF drives)

59.97 lb (27.2 kg)

Weight (with all SFF drives)

54.90 lb (24.9 kg)

Date

Version History

Action

Description of Change

23-Oct-2017

Version 50

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

14-Oct-2016

From Version 48 to 49

Changed

Rebranding Edition

20-Aug-2015

From Version 47 to 48

Changed

Changes were made throughout the QuickSpecs

29-Mar-2015

From Version 46 to 47

Changed

Added Support for:

HPE Smart Array P841/4GB FBWC 12Gb 4-ports Ext SAS Controller

HPE Smart Array P741m/2GB FBWC 12Gb 4-ports Ext Mezzanine SAS Controller

12-Feb-2015

From Version 45 to 46

Changed

Added the new HDDs, Obsolete SKUs removed and SKUsdescriptions updated

31-Dec-2014

From Version 44 to 45

Changed

Changes were made throughout the QuickSpecs

21-Aug-2014

From Version 43 to 44

Changed

What’s new; At a Glance – Affordable, low cost Storage – D2600 maximum storage changed from 48TB to 72TB and 384TB to 576TB; D2000 enclosure components – High Levels of Storage Density, Data Protection and Functionality – changed 48TB to 72TB and 4TB to 6TB; Configuration Information – Step 4 Choose Hard Drives – added 737390-B21, 737392-B21, 737396-B21, 785099-B21, 785101-B21, 785103-B21, 782669-B21. Removed 632492-B21, 632494-B21, 690823-B21, 690821-B21, 690819-B21;

Removed

Obsolete SKU´s: 650931-B21 and 693648-B21

09-May-2014

From Version 42 to 43

Changed

Operate and Support was revised.

24-Apr-2014

From Version 41 to 42

Changed

Smart Array P431 controller was revised.

17-Apr-2014

From Version 40 to 41

Changed

Product descriptions were revised.

27-Feb-2014

From Version 39 to 40

Changed

Updated the following: What's new - added support for 12G SSDs; added Smart Array P431 features; added link to P431 QuickSpecs in the Supported Operating Systems section; Smart Array Controllers Supported - added 698531-B21 - Smart Array P431; Configuration Information - Step 3 added P421 and P431 to the HPE ProLiant Server Compatibility area; Added 741148-B21, 741153-B21 and 741157-B21 to the Solid State Drives (SAS Performance - SFF) area; added 741144-B21, 741140-B21 and 741136-B21 and NOTE to the Solid State Drives (SAS ME - SFF) D2700 behind ProLiant servers;

08-Dec-2013

From Version 38 to 39

Changed

Product descriptions were revised in Configuration Information.

19-Sept-2013

From Version 37 to 38

Changed

Updated the following: Overview; What's new - added support for new Smart Array P731m controller; Easy to Manage; High Performance 6Gb SAS Host Connectivity; HPE Reliability; D2000 Enclosure Components - added Smart Array P731m Features; added - H222 Host Bus Adapter; Supported Operating Systems - added link to H222 and P731m QuickSpecs; Configuration Information - Smart Array Controllers Supported (Dual Domain) - removed Dual Domain note) and removed P421 note; added H222 HBA to the HBA section; added P731m to the Smart Array Controllers/Switches section ; Step 3 updated HPE ProLiant Server Compatibility; added HPE BladeSystem Server Compatibility - P731m Controller section

25-Aug-2013

From Version 36 to 37

Changed

Revised Configuration Information Step 4

25-Apr-2013

From Version 35 to 36

Changed

Changes made to the following sections:

Overview - What's New, At A Glance

D2000 Enclosure Components - High Levels of Storage Density, Data Protection, and Functionality

Configuration Information - Step 4

11-Apr-2013

From Version 34 to 35

Changed

Configuration Information: Updated Solid State Drive (SAS MLC-SFF) section in Step 4.

21-Feb-2013

From Version 33 to 34

Changed

Changes were made to the Product Highlights Section, Configuration Information and Supported Operating Systems Sections.

07-Feb-2013

From Version 32 to 33

Changed

Changes made to the What's New Section, At a Glance Section and Step 4, Choose Hard Drives Section.

06-Dec-2012

From Version 31 to 32

Changed

Changes made to Add the support for the HPE H221 Host Bus Adapter.

Removed

Removed a note from the Configuration Information section.

11-Oct-2012

From Version 30 to 31

Changed

Change made to URL in Service and Support, HPE Care Pack, and Warranty Information section.

16-Aug-2012

From Version 29 to 30

Changed

Changes made throughout the QuickSpecs.

14-May-2012

From Version 28 to 29

Changed

Updated the following: Overview; What's New; At A Glance - added references to the Smart Array P822 Controller throughout this section; D2000 Enclosure Components - added Smart Array P822 features; Configuration Information - Step 2 - Array Controllers - added Smart Array Advanced Pack and Smart Array Advanced Pack 2.0 and Smart Array P822/2GB and NOTES.

14-May-2012

From Version 27 to 28

Changed

Changes made throughout the Product Features and Configuration sections.

05-Mar-2012

From Version 26 to 27

Changed

Updated the following: Product Overview; What's New; At A Glance - affordable, low cost Storage; Flexible/Scalable; Easy to Manage; High performance 6Gb SAS host connectivity; HPE reliability; Enclosure Components - added Smart Array P222 and P421 sections; Supported Operating Systems; Configuration Information - Step 2 - Array Controllers

10-Nov-2011

From Version 25 to 26

Changed

Changes made to the What's New and Configuration Information sections.

22-Sept-2011

From Version 24 to 25

Changed

Updated the following: Overview; What's New; High performance 6 Gb SAS host connectivity; D2000 Enclosure components - Smart Array P711m features and 6Gb SAS BL Switch features; Supported Operating Systems; Smart Array Controllers supported; Configuration Information - HPE BladeSystem Server compatibility list added; Solid State Drives - SATA SFF (572071-B21 and 572073-B21) removed.

29-Aug-2011

From Version 23 to 24

Changed

Changes made throughout the QuickSpecs.

16-Jun-2011

From Version 22 to 23

Changed

Updated the following sections: What's New - added new 3TB SAS & SATA drives and new 200GB, 400GB and 800GB SSDs; At A Glance - affordable, low cost storage and high levels of storage density, data protection and functionality; configuration information - step 4 - choose hard drives - added new hard drive descriptions and part numbers.

07-Jun-2011

From Version 21 to 22

Removed

Mentions of StorageWorks were removed.

27-May-2011

From Version 20 to 21

Changed

Affordable, low cost Storage and High Levels of Storage Density, Data Protection and Functionality were revised

HPE 900GB 6G SAS 10K rpm SFF Dual Port Enterprise Drive, HPE 1TB 6G SAS 7.2K rpm SFF Dual Port Midline Drive and HPE 1TB 3G SATA 7.2K rpm SFF Midline Drive were added to Step 4

24-Apr-2011

From Version 19 to 20

Changed

Change made to the North America and Canada versions only.

17-Mar-2011

From Version 17 to 19

Changed

Part number for HPE StorageWorks D2700 w/10 600GB 6G SAS 10K SFF Dual Port HDD 6TB Bundle in D2700 6G SAS Dual Port drives bundle.

24-Feb-2011

From Version 16 to 17

Changed

D2000 Disk Enclosures was revised in D2000 Enclosure Components.

01-Feb-2011

From Version 15 to 16

Added

Solid State Drives were added throughout the QuickSpecs and Integrity Servers was added to Smart Array Controllers Supported in Step 2.

09-Jan-2011

From Version 14 to 15

Changed

Array Controllers and Hard Drive product descriptions were revised

HPE StorageWorks D2600 w/12 1TB 6G SAS 7.2K LFF Dual Port MDL HDD 12TB Bundles and HPE StorageWorks D2600 w/6 450GB 6G SAS 15K LFF Dual Port HDD 2.7TB Bundles were added

15-Nov-2010

From Version 13 to 14

Changed

Changes made throughout the QuickSpecs.

14-Nov-2010

From Version 12 to 13

Changed

Service and Support, HPE Care Pack and Warranty Information, HPE Integrity Servers in Step 2 and Step 5 were completely revised

HPE StorageWorks D2700 w/25 450GB 6G SAS 10K SFF Dual Port HDD 11.2TB Bundle, HPE StorageWorks D2700 w/25 600GB 6G SAS 10K SFF Dual Port HDD 15TB Bundle and HPE StorageWorks D2700 w/10 600GB 6G SAS 10K SFF Dual Port HDD 6TB Bundle were added

HPE 250GB 3G SATA 5.4K SFF (2.5 inch) ETY HDD was removed from SATA Drives - SFF

10-Nov-2010

From Version 10 to 12

Changed

Made a change to a Smart Buy SKU description in the North America and Canada versions only.

04-Oct-2010

From Version 9 to 10

Changed

Updated the following sections: What's new; configuration information-step 4: choose hard drives - added support for the 450 GB and 600 GB SAS 10K SFF drives

29-Jul-2010

From Version 8 to 9

Changed

Note was added to Smart Array Controllers Supported (Dual Domain) and Dual Domain in supported was removed from the Smart Array Controllers Supported (Single Domain) note in Step 2.

22-Jul-2010

From Version 7 to 8

Added

Added new Smart Buys to the Models section in the North America and Canada versions.

20-Jun-2010

From Version 6 to 7

Added

Three (3) new D2600 + HDD fully populated (2) and one partially populated bundles

HPE StorageWorks D2600 w/12 2 TB 3G SATA 7.2K LFF HDD 24 TB Bundle

HPE StorageWorks D2600 w/12 2 TB 6G SAS 7.2K LFF HDD 24 TB Bundle

HPE StorageWorks D2600 w/6 2 TB 6G SAS 7.2K LFF HDD 12 TB Bundle

Dual Domain support for HPE Smart Array P411 & P812 Controllers for higher levels of redundancy and reliability

25-Mar-2010

From Version 5 to 6

Changed

Supported Operating Systems was completely revised

Technical Specifications were updated

All mentions of HPE Smart Array P812 Controller and RAID 50 and 60 were added

HPE 1TB and 2TB 6G SAS 7.2K LFF Hard Drive were added to SAS Midline-LFF

04-Mar-2010

From Version 4 to 5

Changed

SATA per enclosure was increased to 24TB throughout the QuickSpecs, Hard Drive descriptions were revised and HPE 2TB 3G SATA 7.2K LFF (3.5-inch) MDL Hard Drive was added.

14-Jan-2010

From Version 3 to 4

Added

D2600 - Large Form Factor (LFF) and D2700 - Small Form Factor (SFF) SATA hard drives were added throughout the QuickSpecs.

15-Nov-2009

From Version 2 to 3

Added

What's New to the Overview section

HPE StorageWorks D2600 w/12 450GB 6G SAS 15K LFF Dual Port HDD 5.4TB Bundle, HPE StorageWorks D2600 w/12 600GB 6G SAS 15K LFF Dual Port HDD 7.2TB Bundle, HPE StorageWorks D2700 w/25 146GB 6G SAS 15K SFF Dual Port HDD 3.6TB Bundle, HPE StorageWorks D2700 w/25 300GB 6G SAS 10K SFF Dual Port HDD 7.5TB Bundle and HPE StorageWorks D2700 w/25 500GB 6G SAS 7.2K SFF Dual Port MDL HDD 12.5TB Bundle to Models

01-Oct-2009

From Version 1 to 2

Changed

Updated the following sections: D2000 Disk Enclosure Software Components - Supported Operating Systems; Configuration Information - Step 2 Array Controllers - added note for required firmware version.
