HPE Solid State Disk Drives QuickSpecs
HPE Solid State Drives (SSDs) and M.2s are based upon industry-leading NAND Flash technology, which delivers exceptional performance and endurance to support a broad and growing spectrum of demanding applications with varying workload performance requirements.
These storage devices provide lower I/O latency and higher power efficiency compared to traditional HDDs. They fit seamlessly into existing HPE server and storage infrastructures. |
|
|
HPE Solid State Disk Drives (SSD and M.2s) | ||
|
HPE Solid State Disk Drives are available in a number of form factors, including Small Form Factor (SFF), Large Form Factor (LFF), Enterprise and Datacenter Standard Form Factor (EDSFF) E3, and M.2. | ||
|
| ||
|
|
|
|
|
E3.S Thin Carrier (EC1) |
M.2 |
Smart Carrier NVMe (SCN) |
|
|
|
|
|
|
|
|
|
|
|
|
|
Smart Carrier (SC) |
Basic Carrier (BC) |
Low Profile Converter (LPC) |
|
|
|
|
|
| ||
|
What's New? - New Solid-State Drives and Drive Option Kits:
|
|
|
|
HPE Solid State Drive Selector Tool A web-based tool that dramatically reduces the time and complexity of selecting the right SSD for your demanding workloads. https://ssd.hpe.com
Dramatically reduces the time to select the right SSD for your HPE Server - Recommends the most appropriate SSDs for specific customer workloads - Reduces selection time and eliminates complexity, sort by server model, price, and performance - Ideal for customers, HPE Sales, and HPE channel partners - Simple, web-based tool; user-friendly interface |
|
|
|
Firmware Updates HPE digitally signed firmware prevents unauthorized access to your data by providing security and assurance that drive firmware comes from a trusted source and protects against malicious attacks. Digitally Signed Firmware is indicated by "DS" in the SKU description of older SKUs. All SSDs in the HPE main portfolio of SKU have digitally signed firmware unless otherwise noted, particularly in newer released SKU (even if DS does not appear in the description), Digitally Signed Firmware can be confirmed in the capacity/workload tables by SKU number.
For advanced data protection and encryption, customers should consider HPE Self-Encrypting Drives (SED). Read more about it here: SED Link. |
|
|
|
|
|
Our Solid-State product categories include Solid State Drives, or SSDs We define enterprise-class as products that include full data path error detection and surprise power loss protection. In addition, our SSDs have HPE SmartSSD Wear Gauge support, which provides diagnostic information and reports on the health of any given drive.
HPE Enterprise SSDs are available in three categories based on the customer's application and workload level: Very-read-optimized (VRO), Read Intensive (RI), and Mixed Use (MU). These categories indicate the number of drive writes per day (DWPD) that you can expect from the drive. (DWPD is the maximum number of 4K host writes to the entire drive capacity of the SSD per day over a five-year period).
Workloads such as Read caching, Web Servers, social media, and Boot are more Read Performance driven. Workloads such as Business Intelligence, Big Data Analytics, Virtualization tend to be more Write Performance driven.
For best access to SSDs, HPE has enhanced its extensive SSD portfolio with a multi-vendor offering. HPE multi-vendor portfolio utilizes specific vendor SSDs which are HPE qualified and released and are then bundled into a multi-sourced SKU per capacity. Identified by Multi-Vendor (MV) in the SKU description, these multi-vendor SKUs provide the shortest lead time SSDs, more favorable pricing than single-sourced SKUs and are assured to meet or exceed the minimum performance specifications and power requirements published in this HPE QuickSpecs document per capacity SKU number.
HPE's multi-vendor SSD offering helps customers simplify their purchasing decisions by providing immediate availability, preferable pricing and SKU longevity on HPE certified SSDs.
HPE SATA SSDs deliver enterprise features at an affordable price in HPE servers. Entry-level pricing fuels the rapid adoption of SSDs for read-intensive workloads, with the cost per IOPS comparing favorably to HDDs.
For customers looking to step up from SATA SSDs, HPE single-port Value SAS SSDs offer a significant performance boost over SATA SSDs with roughly twice the IOPS and are typically lower in cost than traditional SAS SSD drives.
HPE full-performance SAS SSDs allow greater I/O bandwidth for superior performance over Value SAS SSDs, providing high write performance and endurance. They are best suited for mission-critical enterprise environments with workloads high in read and writes.
For customers looking for even more performance, HPE offers a portfolio of NVMe SSDs. HPE Mainstream Performance NVMe SSDs are advanced data center drives optimized for greater performance and endurance in a cost-effective design. HPE High Performance NVMe SSDs are positioned to deliver high performance and low latency. HPE High Performance Low Latency NVMe SSDs are a category of drives that offers a combination of high throughput, low latency, and ultra-high endurance. The first HPE SSDs using 3D XPoint technology*, these SSDs are optimized to break through data access bottlenecks by providing a new data storage tier. High Performance Low Latency NVMe SSDs accelerate applications for fast caching and fast storage to increase scale per server and reduce transaction costs for latency sensitive workloads.
Using the above information along with our HPE SSD Selector Tool at https://ssd.hpe.com you can quickly determine what SSD solution might best meet your needs. You can also compare specific capacity, performance attributes, and server compatibility. |
|
|
|

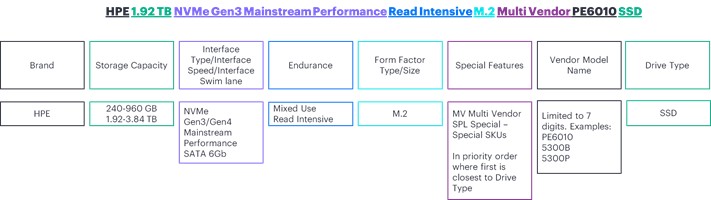

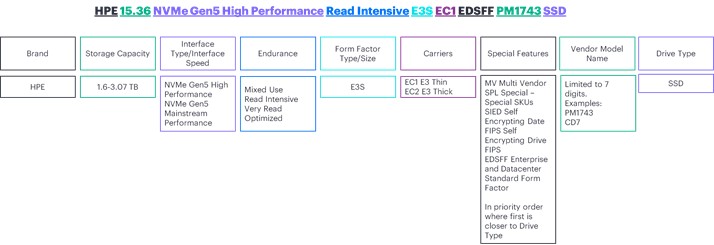

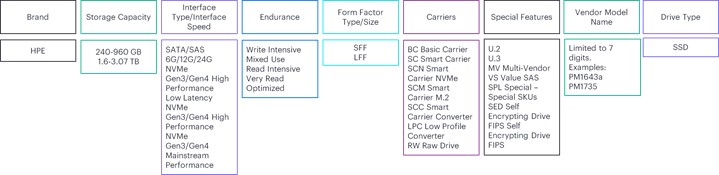

XXXXXX-B21 is SKU designation formed by a common six-digit part number that identifies a SKU that is offered from Compute but also available across multiple server family lines. Refer to the table below to find the SKU suffix that applies to the specific server product line this option can be ordered with. |
|
-B21 |
-H21 |
-K21 |
|
Compute Server Line |
Specialized Compute Server Line |
Storage Line |
|
HPE ProLiant DL20/DL160/DL180 Servers HPE ProLiant DL320/DL340/DL360/DL380/ /DL560/DL580 Servers HPE ProLiant DL325/DL345/DL365/DL385 Servers HPE ProLiant MicroServer HPE ProLiant ML30/ML110/ML350 Servers HPE Synergy 480 Systems
|
|
HPE Apollo 4000 Systems HPE Alletra 4000 Server HPE D3000 Disk Enclosures
|
|
Disclaimer: This may not be a complete listing of applicable servers | ||
|
|
|
What is SSD? An enduring data storage device utilizing NAND (negative-AND) semiconductor technology to store and access data which is volatile without the aid of an auxiliary power source. |
|
|
|
SSD Quality Today's businesses are seeing larger, more complex applications, coupled with an increasing amount of mission-critical and transaction processing data demand. In this environment, storage has become a critical component, significantly defining requirements for both systems' reliability and performance. This is why HPE drives undergo a rigorous qualification process to ensure functionality and eliminate firmware and O/S incompatibilities. |
|
|
|
Integration Many issues customers have with third-party drives are "simple" integration issues. When buying from another supplier, there is no guarantee that a drive has been correctly set for proper operation with ProLiant servers and storage systems. These incompatibilities can create problems in configuration, can rob your system of performance, or at their worst, can cause you to lose data. HPE drives are specifically designed and tested for flawless operation in your HPE equipment. The integration of solid-state drives in HPE systems means that associated components are right for your ProLiant server. |
|
|
|
Support Matrix Refer to the following URL for the latest list of supported servers and enclosures: https://www.hpe.com/us/en/servers.html
|
|
|
|
Product Category HPE Enterprise SSDs are available in three categories based on workload level: Very-read-optimized (VRO), Read Intensive (RI), and Mixed Use (MU). The categories indicate the number of drive writes per day (DWPD) that you can expect from the drive. (DWPD is the maximum number of 4K host writes to the entire drive capacity of the SSD per day over a five-year period). |
|
|
|
Maximum Usage Limitations NAND Flash devices use semiconductor technology that has a finite amount of data that can be written to the device, defined as the Maximum Usage Limit, commonly called "Write Endurance". Write Endurance - is measured while running 100% random 4KiB writes across the entire SSD.
Drive Writes Per Day (DWPD) - Workload environment is based on 100% random 4KiB writes for five (5) years, which is the maximum amount of data that can be written to the device before reaching the device's write endurance limit.
HPE Solid State Drives (SSDs) are equipped with tools that can report the amount of lifetime remaining. Introducing HPE SMARTSSD Wear GaugeTM. To take advantage of SMARTSSD Wear GaugeTM, Smart Array Firmware version 5.0 or greater is required and HPE Array Configuration Utility (ACU) or HPE Diagnostic Utility (ADU) must be running.
Simple Network Management Protocol (SNMP) Storage Agents for both Microsoft® Windows® and Linux provide status and condition updates through traps, OS event logs and the HPE System Management Homepage: https://www.hpe.com/us/en/product-catalog/detail/pip.hp-system-management-homepage-software.344313.html
The HPE SMARTSSD Wear GaugeTM requires a Smart Array or Smart HBA controller listed below: - HPE Smart Array PX1X Controller Series or newer - HPE Smart HBA PX4X Controller Series - HPE Dynamic Smart Array BX2Xi Controller Series or newer - HPE Dynamic Smart Array B320i Controller Notes: HPE Direct Connect to the HPE Smart Array B110i SATA RAID Controller is not currently supported by the above noted tool. |
|
|
|
Data Retention Data Retention is the period of time for retaining the data in the NAND once the maximum rated endurance level has occurred. These SSDs are rated for 3 months if no power is applied once the SSD has reached maximum rated write endurance. |
|
|
|
Warranty SSD & AIC Standard 3/0/0 warranty; Customer Self Repair (CSR) subject to maximum usage limitations. Maximum usage limit: This is the maximum amount of data that can be written to the drive. Drives that have reached this limit will not be eligible for warranty coverage. Notes: In cases where an M.2 SSD is used in conjunction with a Server Cartridge the Warranty includes 3-Year Parts, 3-Year Labor, 3-Year (3/3/3) Onsite support for that option only. |
|
|
|
SATA Capacity, Workload and Carrier Specifications |
|
SATA Interface - (Capacity, Workload, Carrier...) | |||||||||||
|
HPE Option Kit SKU |
Long Description |
Capacity |
Workload |
Interface Type |
Form Factor |
Plug Type |
Carrier Type |
Digitally Signed Firmware (DS) |
Flash Type |
Port |
Server Gen Supported (Select Platforms) |
|
Mixed Use SATA Drives | |||||||||||
|
Mixed Use SATA Self-Encrypting Drives (SED) | |||||||||||
|
P58244-B21 |
HPE 960GB SATA 6G Mixed Use SFF BC Self-encrypting 5400M SSD |
960 |
MU |
SATA |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10, 10 Plus, 11 |
|
Read Intensive SATA Drives | |||||||||||
|
Read Intensive SATA Self-Encrypting Drives (SED) | |||||||||||
|
P58236-B21 |
HPE 480GB SATA 6G Read Intensive SFF BC Self-encrypting 5400P SSD |
480 |
RI |
SATA |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10, 10 Plus, 11 |
|
Very-read-optimized SATA Drives | |||||||||||
|
Notes: - B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. - Please use HPE Selector Tool https://ssd.hpe.com to determine server compatibility.
|
|
|
|
SATA Speeds and Feeds Specifications |
|
SATA Interface - (Speeds & Feeds) | |||||||
|
HPE Option Kit SKU |
Long Description |
Lifetime Writes (TB) |
Endurance DWPD |
MAX Seq Reads / Max Seq Writes Through-put (MiB/s) |
Random Read Avg. / Random Write Avg. Latency uSec (4KiB,Q1) |
Random Read / Random Writes IOPS (4KiB, Q=16) |
MAX Random Read / MAX Random Write IOPS (4KiB) |
|
Mixed Use SATA Drives | |||||||
|
Mixed Use SATA Self-Encrypting Drives (SED) | |||||||
|
P58244-B21 |
HPE 960GB SATA 6G Mixed Use SFF BC Self-encrypting 5400M SSD |
8,760 |
5.00 |
516 / 494 |
111 / 37 |
71,652 / 52,194 |
76,811@32 / 53,103@4 |
|
Read Intensive SATA Drives | |||||||
|
Read Intensive SATA Self-Encrypting Drives (SED) | |||||||
|
P58236-B21 |
HPE 480GB SATA 6G Read Intensive SFF BC Self-encrypting 5400P SSD |
1,324 |
1.50 |
515 / 449 |
111 / 38 |
73,183 / 45,284 |
79,702@128 / 47,820@4 |
|
Very-read-optimized SATA Drives |
|||||||
|
SATA Power and Height Specifications |
|
|
SATA Interface - (Power & Height) | |||||||||
|
|
HPE Option Kit SKU |
Long Description |
Power |
Power Random Read (Watts) |
Power Random Write (Watts) |
Power Sequential Read |
Power Sequential Write (Watts) |
Power Random R/W (Watts) |
Power MAX (Watts) |
z- Height |
|
|
Read Intensive SATA Drives | |||||||||
|
|
Mixed Use SATA Self-Encrypting Drives (SED) | |||||||||
|
|
P58244-B21 |
HPE 960GB SATA 6G Mixed Use SFF BC Self-encrypting 5400M SSD |
1.5 |
3.9 |
3.9 |
3.1 |
4.1 |
2.15 |
4.1 |
7 mm |
|
|
Read Intensive SATA Self-Encrypting Drives (SED) | |||||||||
|
P58236-B21 |
HPE 480GB SATA 6G Read Intensive SFF BC Self-encrypting 5400P SSD |
1.5 |
3.5 |
3.5 |
3.15 |
3.75 |
2.15 |
3.75 |
7 mm | |
|
Very-read-optimized SATA Drives | ||||||||||
|
|
|
SATA Certifications - Prequalified certification will be listed in the HPE Selector Tool https://ssd.hpe.com - For latest vSAN Compatibility, please visit Broadcom vSAN SSD Compatibility Guide and enter specific HPE Part Number to confirm compatibility. - For latest Windows OS Certification and SDDC (Software Defined Data Center) Premium AQ Certification please visit https://www.windowsservercatalog.com and enter specific HPE Model Number to confirm compatibility.
|
|
|
|
SATA Capacity, Workload, Carrier Specifications MULTI VENDOR |
|
SATA Interface - (Capacity, Workload, Carrier...) MULTI VENDOR | |||||||||||
|
HPE Option Kit SKU |
Long Description |
Capacity |
Workload |
Interface Type |
Form Factor |
Plug Type |
Carrier Type |
Digitally Signed Firmware (DS) |
Flash Type |
Port |
Server Gen Supported (Select Platforms) |
|
Mixed Use Multi Vendor SATA Drives | |||||||||||
|
P18432-X21 |
HPE 480GB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
480 |
MU |
SATA |
SFF |
Hot Plug |
SC |
Yes |
TLC |
Single |
Gen10, 10 Plus |
|
P18434-X21 |
HPE 960GB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
960 |
MU |
SATA |
SFF |
Hot Plug |
SC |
Yes |
TLC |
Single |
Gen10, 10 Plus |
|
P18436-X21 |
HPE 1.92TB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
1,920 |
MU |
SATA |
SFF |
Hot Plug |
SC |
Yes |
TLC |
Single |
Gen10, 10 Plus |
|
P18438-X21 |
HPE 3.84TB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
3,840 |
MU |
SATA |
SFF |
Hot Plug |
SC |
Yes |
TLC |
Single |
Gen10, 10 Plus |
|
P40502-B21 |
HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD |
480 |
MU |
SATA |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P40503-B21 |
HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD |
960 |
MU |
SATA |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P40504-B21 |
HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD |
1,920 |
MU |
SATA |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P40505-B21 |
HPE 3.84TB SATA 6G Mixed Use SFF BC Multi Vendor SSD |
3,840 |
MU |
SATA |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
Read Intensive Multi Vendor SATA Drives | |||||||||||
|
P18420-X21 |
HPE 240GB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
240 |
RI |
SATA |
SFF |
Hot Plug |
SC |
Yes |
TLC |
Single |
Gen10, 10 Plus |
|
P18422-X21 |
HPE 480GB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
480 |
RI |
SATA |
SFF |
Hot Plug |
SC |
Yes |
TLC |
Single |
Gen10, 10 Plus |
|
P18424-X21 |
HPE 960GB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
960 |
RI |
SATA |
SFF |
Hot Plug |
SC |
Yes |
TLC |
Single |
Gen10, 10 Plus |
|
P18426-X21 |
HPE 1.92TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
1,920 |
RI |
SATA |
SFF |
Hot Plug |
SC |
Yes |
TLC |
Single |
Gen10, 10 Plus |
|
SATA Capacity, Workload, Carrier Specifications MULTI VENDOR |
|
SATA Interface - (Capacity, Workload, Carrier...) MULTI VENDOR | |||||||||||
|
HPE Option Kit SKU |
Long Description |
Capacity |
Workload |
Interface Type |
Form Factor |
Plug Type |
Carrier Type |
Digitally Signed Firmware (DS) |
Flash Type |
Port |
Server Gen Supported (Select Platforms) |
|
Mixed Use Multi Vendor SATA Drives | |||||||||||
|
P18428-X21 |
HPE 3.84TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
3,840 |
RI |
SATA |
SFF |
Hot Plug |
SC |
Yes |
TLC |
Single |
Gen10, 10 Plus |
|
P18430-X21 |
HPE 7.68TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
7,680 |
RI |
SATA |
SFF |
Hot Plug |
SC |
Yes |
TLC |
Single |
Gen10, 10 Plus |
|
P40497-B21 |
HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
480 |
RI |
SATA |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P40498-B21 |
HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
960 |
RI |
SATA |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P40499-B21 |
HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
1,920 |
RI |
SATA |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P40500-B21 |
HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
3,840 |
RI |
SATA |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P40501-B21 |
HPE 7.68TB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
7,680 |
RI |
SATA |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P47808-B21 |
HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD |
960 |
RI |
SATA |
LFF |
Hot Plug |
LPC |
Yes |
TLC |
Single |
Gen10, 10 Plus |
|
P65272-B21 |
HPE 480GB SATA 6G Read Intensive SFF RW Multi Vendor SSD |
480 |
RI |
SATA |
SFF |
Non-Hot Plug |
RW |
Yes |
TLC |
Single |
Gen10, 10 Plus, 11 |
|
Notes: - B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. - Please use HPE Selector Tool https://ssd.hpe.com to determine server compatibility. - Multi-vendor SKUs are composed of numerous vendors manufactured SSDs within a given SATA capacity SKU. When ordering a particular SKU-B21 number the customer will receive a homogenous set of vendors manufactured SSDs in that capacity that has met or exceeds the HPE qualification standards published above. | |||||||||||
|
SATA Speeds and Feeds Specifications MULTI VENDOR |
|
SATA Interface - (Speeds & Feeds) MULTI VENDOR | |||||||
|
HPE Option Kit SKU |
Long Description |
Lifetime Writes (TB) |
Endurance DWPD |
MAX Seq Reads / Max Seq Writes Through-put (MiB/s) |
Random Read Avg. / Random Write Avg. Latency uSec (4KiB,Q1) |
Random Read / Random Writes IOPS (4KiB, Q=16) |
MAX Random Read / MAX Random Write IOPS (4KiB) |
|
Mixed Use Multi Vendor SATA Drives | |||||||
|
P18432-X21 |
HPE 480GB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
2,628 |
3.0 |
510 / 430 |
125 / 52 |
62,000 / 29,000 |
72,000@Q32 / 29,000@Q4 |
|
P18434-X21 |
HPE 960GB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
5,256 |
3.0 |
516 / 480 |
125 / 50 |
61,000 / 31,000 |
72,000@Q32 / 31,000@Q4 |
|
P18436-X21 |
HPE 1.92TB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
10,000 |
3.0 |
516 / 480 |
125 / 52 |
59,000 / 31,000 |
71,000@Q32 / 31,000@Q4 |
|
P18438-X21 |
HPE 3.84TB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
21,024 |
3.0 |
512 / 480 |
140 / 76 |
59,000 / 32,000 |
69,000@Q32 / 32,500@Q32 |
|
P40502-B21 |
HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD |
2,628 |
3.0 |
510 / 430 |
125 / 52 |
62,000 / 29,000 |
72,000@Q32 / 29,000@Q4 |
|
P40503-B21 |
HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD |
5,256 |
3.0 |
516 / 480 |
125 / 50 |
61,000 / 31,000 |
72,000@Q32 / 31,000@Q4 |
|
P40504-B21 |
HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD |
10,000 |
3.0 |
516 / 480 |
125 / 52 |
59,000 / 31,000 |
71,000@Q32 / 31,000@Q4 |
|
P40505-B21 |
HPE 3.84TB SATA 6G Mixed Use SFF BC Multi Vendor SSD |
21,024 |
3.0 |
510 / 480 |
140 / 76 |
59,000 / 32,000 |
70,000@Q32 / 35,000@Q4 |
|
Read Intensive Multi Vendor SATA Drives | |||||||
|
P18420-X21 |
HPE 240GB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
438 |
1.0 |
400 / 235 |
124 /61 |
44,000 / 16,000 |
45,000@Q16 / 10,500@Q1 |
|
P18422-X21 |
HPE 480GB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
700 |
0.8 |
510 / 395 |
125 / 53 |
63,000 / 25,000 |
73,000@Q32 / 25,000@Q1 |
|
P18424-X21 |
HPE 960GB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
1,400 |
0.8 |
506 / 480 |
125 / 53 |
63,000 / 29,000 |
73,000@Q32 / 29,000@Q4 |
|
P18426-X21 |
HPE 1.92TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
2,800 |
0.8 |
519 / 470 |
125 / 60 |
55,500 / 24,000 |
56,000@Q32 / 25,000@Q32 |
|
P18428-X21 |
HPE 3.84TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
5,256 |
0.8 |
503 / 480 |
125 / 65 |
63,000 / 22,500 |
72,000@Q32 / 23,000@Q1 |
|
P18430-X21 |
HPE 7.68TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
9,111 |
0.7 |
505 / 480 |
126 / 87 |
65,000 / 11,500 |
57,000@Q32 / 10,000@Q1 |
|
P40497-B21 |
HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
700 |
0.8 |
510 / 395 |
125 / 53 |
63,000 / 25,000 |
73,000@Q32 / 25,000@Q1 |
|
P40498-B21 |
HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
1,400 |
0.8 |
506 / 480 |
125 / 53 |
63,000 / 29,000 |
73,000@Q32 / 29,000@Q4 |
|
P40499-B21 |
HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
2,400 |
0.8 |
519 / 470 |
125 / 60 |
55,500 / 24,000 |
56,000@Q32 / 25,000@Q32 |
|
P40500-B21 |
HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
5,256 |
0.8 |
503 / 480 |
125 / 65 |
63,000 / 22,500 |
72,000@Q32 / 23,000@Q1 |
|
P40501-B21 |
HPE 7.68TB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
9,111 |
0.7 |
505 / 480 |
126 / 87 |
65,000 / 11,500 |
73,000@Q32 / 11,800@Q64 |
|
P47808-B21 |
HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD |
1,400 |
0.8 |
506 / 480 |
125 / 53 |
63,000 / 29,000 |
73,000@Q32 / 29,000@Q4 |
|
P65272-B21 |
HPE 480GB SATA 6G Read Intensive SFF RW Multi Vendor SSD |
876 |
1.0 |
515 / 449 |
111 / 38 |
68,000 / 29,000 |
77,000@Q32 / 29,000@Q4 |
|
|
|
SATA Power and Height Specifications MULTI VENDOR |
SATA Interface - (Power & Height) MULTI VENDOR | |||||||||
|
HPE Option Kit SKU |
Long Description |
Power |
Power Random Read (Watts) |
Power Random Write (Watts) |
Power Sequential Read |
Power Sequential Write (Watts) |
Power Random R/W (Watts) |
Power MAX (Watts) |
z- Height |
|
Mixed Use Multi Vendor SATA Drives | |||||||||
|
P18432-X21 |
HPE 480GB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
1.50 |
3.55 |
3.55 |
3.56 |
4.00 |
2.94 |
5.00 |
7 mm |
|
P18434-X21 |
HPE 960GB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
1.50 |
3.90 |
3.90 |
3.10 |
4.10 |
2.81 |
5.00 |
7 mm |
|
P18436-X21 |
HPE 1.92TB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
1.50 |
3.90 |
3.90 |
3.20 |
4.10 |
3.04 |
5.00 |
7 mm |
|
P18438-X21 |
HPE 3.84TB SATA 6G Mixed Use SFF SC Multi Vendor SSD |
1.50 |
4.50 |
4.50 |
3.66 |
4.39 |
3.17 |
5.00 |
7 mm |
|
P40502-B21 |
HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD |
1.50 |
3.55 |
3.55 |
3.56 |
4.00 |
2.94 |
5.00 |
7 mm |
|
P40503-B21 |
HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD |
1.50 |
3.90 |
3.90 |
3.10 |
4.10 |
2.81 |
5.00 |
7 mm |
|
P40504-B21 |
HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD |
1.50 |
3.90 |
3.90 |
3.20 |
4.10 |
3.04 |
5.00 |
7 mm |
|
P40505-B21 |
HPE 3.84TB SATA 6G Mixed Use SFF BC Multi Vendor SSD |
1.50 |
4.50 |
4.50 |
3.66 |
4.39 |
3.17 |
5.00 |
7 mm |
|
Read Intensive Multi Vendor SATA Drives | |||||||||
|
P18420-X21 |
HPE 240GB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
1.50 |
3.05 |
3.05 |
3.00 |
3.50 |
2.10 |
5.00 |
7 mm |
|
P18422-X21 |
HPE 480GB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
1.50 |
3.50 |
3.50 |
3.15 |
3.75 |
2.54 |
5.00 |
7 mm |
|
P18424-X21 |
HPE 960GB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
1.50 |
4.05 |
4.05 |
3.10 |
4.00 |
2.66 |
5.00 |
7 mm |
|
P18426-X21 |
HPE 1.92TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
1.50 |
4.10 |
4.10 |
3.16 |
4.00 |
3.15 |
5.00 |
7 mm |
|
P18428-X21 |
HPE 3.84TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
1.50 |
4.10 |
4.10 |
3.56 |
4.25 |
3.46 |
5.00 |
7 mm |
|
P18430-X21 |
HPE 7.68TB SATA 6G Read Intensive SFF SC Multi Vendor SSD |
1.54 |
2.99 |
2.99 |
2.46 |
3.55 |
2.99 |
3.55 |
7 mm |
|
P40497-B21 |
HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
1.50 |
3.50 |
3.50 |
3.15 |
3.75 |
2.54 |
5.00 |
7 mm |
|
P40498-B21 |
HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
1.50 |
4.05 |
4.05 |
3.10 |
4.00 |
2.66 |
5.00 |
7 mm |
|
P40499-B21 |
HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
1.50 |
4.10 |
4.10 |
3.16 |
4.00 |
3.15 |
5.00 |
7 mm |
|
P40500-B21 |
HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
1.50 |
4.10 |
4.10 |
3.56 |
4.25 |
3.46 |
5.00 |
7 mm |
|
P40501-B21 |
HPE 7.68TB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
1.54 |
2.99 |
2.99 |
2.46 |
3.55 |
2.99 |
3.55 |
7 mm |
|
P47808-B21 |
HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD |
1.50 |
4.05 |
4.05 |
3.10 |
4.00 |
2.66 |
5.00 |
7 mm |
|
P65272-B21 |
HPE 480GB SATA 6G Read Intensive SFF RW Multi Vendor SSD |
1.50 |
3.50 |
3.50 |
3.15 |
3.75 |
2.45 |
5.00 |
7 mm |
|
Notes: - B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. - Please use HPE Selector Tool https://ssd.hpe.com to determine server compatibility. - Multi-vendor SKUs are composed of numerous vendors manufactured SSDs within a given SATA capacity SKU. When ordering a particular SKU-B21 number the customer will receive a homogenous set of vendors manufactured SSDs in that capacity that has met or exceeds the HPE qualification standards published above.
|
|
|
|
SATA Certifications MULTI VENDOR - Prequalified certification will be listed in the HPE Selector Tool https://ssd.hpe.com. - For latest vSAN Compatibility, please visit Broadcom vSAN SSD Compatibility Guide and enter specific HPE Part Number to confirm compatibility. - For latest Windows OS Certification and SDDC (Software Defined Data Center) Premium AQ Certification please visit https://www.windowsservercatalog.com and enter specific HPE Model Number to confirm compatibility. |
|
|
|
SAS Capacity, Workload, Carrier Specifications |
|
SAS Interface - (Capacity, Workload, Carrier...) | |||||||||||
|
HPE Option Kit SKU |
Long Description |
Capacity |
Workload |
Interface Type |
Form Factor |
Plug Type |
Carrier Type |
Digitally Signed Firmware (DS) |
Flash Type |
Port |
Server Gen Supported (Select Platforms) |
|
| |||||||||||
|
Mixed Use SAS Drives | |||||||||||
|
P49048-B21 |
HPE 1.6TB SAS 12G Mixed Use SFF SC Multi Vendor SSD |
1,600 |
MU |
SAS |
SFF |
Hot Plug |
SC |
Yes |
TLC |
Dual |
Gen10, 10 Plus |
|
P49047-B21 |
HPE 800GB SAS 24G Mixed Use SFF BC Multi Vendor SSD |
800 |
MU |
SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus |
|
P49049-B21 |
HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD |
1,600 |
MU |
SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus |
|
P49053-B21 |
HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD |
3,200 |
MU |
SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus |
|
P49057-B21 |
HPE 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD |
6,400 |
MU |
SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus |
|
Mixed Use SAS Self-Encrypting Drives (SED) | |||||||||||
|
P83344-B21 |
HPE 1.6TB SAS Mixed Use SFF BC Self-encrypting FIPS 140-3 PM7 SSD |
1,600 |
MU |
SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen11, 12 |
|
Read Intensive SAS Drives | |||||||||||
|
P49034-B21 |
HPE 3.84TB SAS 12G Read Intensive SFF SC Multi Vendor SSD |
3,840 |
RI |
SAS |
SFF |
Hot Plug |
SC |
Yes |
TLC |
Dual |
Gen10, 10 Plus |
|
P49044-B21 |
HPE 15.36TB SAS 12G Read Intensive SFF SC Multi Vendor SSD |
15,360 |
RI |
SAS |
SFF |
Hot Plug |
SC |
Yes |
TLC |
Dual |
Gen10, 10 Plus |
|
P49029-B21 |
HPE 960GB SAS 24G Read Intensive SFF BC Multi Vendor SSD |
960 |
RI |
SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus |
|
P49031-B21 |
HPE 1.92TB SAS 24G Read Intensive SFF BC Multi Vendor SSD |
1,920 |
RI |
SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus |
|
P49035-B21 |
HPE 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD |
3,840 |
RI |
SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus |
|
P49041-B21 |
HPE 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD |
7,680 |
RI |
SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus |
|
P49045-B21 |
HPE 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor SSD |
15,360 |
RI |
SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus |
|
Read Intensive SAS Self-Encrypting Drives (SED) | |||||||||||
|
P83347-B21 |
HPE 3.84TB SAS Read Intensive SFF BC Self-encrypting FIPS 140-3 PM7 SSD |
3,840 |
RI |
SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen11, 12 |
|
P83350-B21 |
HPE 7.68TB SAS Read Intensive SFF BC Self-encrypting FIPS 140-3 PM7 SSD |
7,680 |
RI |
SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen11, 12 |
|
Notes: B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. Please use HPE Selector Tool https://ssd.hpe.comto determine server compatibility. |
|
|
|
SAS Speeds and Feeds Specifications |
|
SAS Interface - (Speeds & Feeds) | |||||||
|
HPE Option Kit SKU |
Long Description |
Lifetime Writes (TB) |
Endurance DWPD |
MAX Seq Reads / Max Seq Writes Throughput (MiB/s) |
Random Read Avg. / Random Write Avg. Latency uSec (4KiB,Q1) |
Random Read / Random Writes IOPS (4KiB, Q=16) |
MAX Random Read / MAX Random Write IOPS (4KiB) |
|
| |||||||
|
Mixed Use SAS Drives | |||||||
|
P49048-B21 |
HPE 1.6TB SAS 12G Mixed Use SFF SC Multi Vendor SSD |
8,760 |
3 |
1,080 / 1,030 |
185 / 95 |
115,000 / 120,000 |
173,000@Q64 / 120,000@Q16 |
|
P49047-B21 |
HPE 800GB SAS 24G Mixed Use SFF BC Multi Vendor SSD |
4,380 |
3 |
1,090 / 1,040 |
94 / 34 |
150,000 / 135,000 |
174,000@Q64 / 120,000@Q16 |
|
P49049-B21 |
HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD |
8,760 |
3 |
2,030 / 1,950 |
90 / 27 |
150,000 / 165,000 |
155,000@Q64 / 165,000@Q16 |
|
P49053-B21 |
HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD |
17,121 |
3 |
2,030 / 1,950 |
97 / 29 |
145,000 / 160,000 |
155,000@Q64 / 160,000@Q16 |
|
P49057-B21 |
HPE 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD |
32,241 |
3 |
1,080 / 1,035 |
108 / 32 |
135,000 / 125,000 |
173,000@Q64 / 130,000@Q16 |
|
Mixed Use SAS Self-Encrypting Drives (SED) | |||||||
|
P83344-B21 |
HPE 1.6TB SAS Mixed Use SFF BC Self-encrypting FIPS 140-3 PM7 SSD |
8,760 |
3.00 |
2,047 / 2,046 |
78 / 23 |
184,642 / 317,376 |
308,406@Q64 / 325,959@Q128 |
|
Read Intensive SAS Drives | |||||||
|
P49034-B21 |
HPE 3.84TB SAS 12G Read Intensive SFF SC Multi Vendor SSD |
6,848 |
1 |
1,080 / 1,030 |
175 / 95 |
110,000 / 78,000 |
173,000@Q64 / 78,000@Q4 |
|
P49044-B21 |
HPE 15.36TB SAS 12G Read Intensive SFF SC Multi Vendor SSD |
27,393 |
1 |
1,080 / 1,030 |
185 / 95 |
100,000 / 63,000 |
173,000@Q64 / 64,000@Q16 |
|
P49029-B21 |
HPE 960GB SAS 24G Read Intensive SFF BC Multi Vendor SSD |
1,712 |
1 |
2,030 / 1,280 |
90 / 26 |
155,000 / 65,000 |
174,000@Q64 / 65,000@Q4 |
|
P49031-B21 |
HPE 1.92TB SAS 24G Read Intensive SFF BC Multi Vendor SSD |
3,424 |
1 |
2,030 / 1,950 |
90 / 29 |
150,000 / 100,000 |
155,000@Q32 / 100,000@Q4 |
|
P49035-B21 |
HPE 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD |
7,008 |
1 |
2,030 / 1,950 |
97 / 27 |
145,000 / 114,000 |
155,000@Q32 / 100,000@Q4 |
|
P49041-B21 |
HPE 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD |
14,016 |
1 |
2,030 / 1,950 |
97 / 29 |
145,000 / 140,000 |
155,000@Q64 / 140,000@Q16 |
|
P49045-B21 |
HPE 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor SSD |
27,393 |
1 |
2,030 / 1,950 |
97 / 26 |
150,000 / 140,000 |
174,000@Q64 / 145,000@Q16 |
|
Read Intensive SAS Self-Encrypting Drives (SED) | |||||||
|
P83347-B21 |
HPE 3.84TB SAS Read Intensive SFF BC Self-encrypting FIPS 140-3 PM7 SSD |
7,008 |
1.00 |
2,047 / 2,037 |
77 / 23 |
186,622 / 159,779 |
308,508@Q64 / 160,497@Q128 |
|
P83350-B21 |
HPE 7.68TB SAS Read Intensive SFF BC Self-encrypting FIPS 140-3 PM7 SSD |
14,016 |
1.00 |
2,047 / 2,046
|
78 / 23 |
185,074 / 170,276 |
308,726@Q64 / 171,826@Q64 |
|
Notes: - B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. - Please use HPE Selector Tool https://ssd.hpe.comto determine server compatibility. | |||||||
|
|
|
SAS Interface - (Power & Height) | |||||||||
|
HPE Option Kit SKU |
Long Description |
Power |
Power Random Read (Watts) |
Power Random Write (Watts) |
Power Sequential Read |
Power Sequential Write (Watts) |
Power Random R/W (Watts) |
Power MAX (Watts) |
z- Height |
|
Mixed Use SAS Drives | |||||||||
|
P49048-B21 |
HPE 1.6TB SAS 12G Mixed Use SFF SC Multi Vendor SSD |
3.83 |
6.59 |
6.59 |
6.55 |
9.60 |
6.59 |
9.60 |
15 mm |
|
P49047-B21 |
HPE 800GB SAS 24G Mixed Use SFF BC Multi Vendor SSD |
4.66 |
6.47 |
6.47 |
8.28 |
8.56 |
6.47 |
8.56 |
15 mm |
|
P49049-B21 |
HPE 1.6TB SAS 24G Mixed Use SFF BC Multi Vendor SSD |
6.11 |
8.00 |
8.00 |
8.84 |
13.61 |
8.00 |
13.61 |
15 mm |
|
P49053-B21 |
HPE 3.2TB SAS 24G Mixed Use SFF BC Multi Vendor SSD |
6.27 |
8.56 |
8.56 |
9.00 |
16.89 |
8.56 |
16.89 |
15 mm |
|
P49057-B21 |
HPE 6.4TB SAS 24G Mixed Use SFF BC Multi Vendor SSD |
6.12 |
8.77 |
8.77 |
10.49 |
17.64 |
8.77 |
17.64 |
15 mm |
|
Mixed Use SAS Self-Encrypting Drives (SED) | |||||||||
|
P83344-B21 |
HPE 1.6TB SAS Mixed Use SFF BC Self-encrypting FIPS 140-3 PM7 SSD |
5.00 |
10.56 |
13.80 |
9.75 |
14.99 |
14.80 |
16.00 |
15 mm |
|
Read Intensive SAS Drives | |||||||||
|
P49034-B21 |
HPE 3.84TB SAS 12G Read Intensive SFF SC Multi Vendor SSD |
3.42 |
7.00 |
7.00 |
6.63 |
9.19 |
7.00 |
9.19 |
15 mm |
|
P49044-B21 |
HPE 15.36TB SAS 12G Read Intensive SFF SC Multi Vendor SSD |
4.18 |
8.67 |
8.67 |
7.97 |
9.88 |
8.67 |
9.88 |
15 mm |
|
P49029-B21 |
HPE 960GB SAS 24G Read Intensive SFF BC Multi Vendor SSD |
6.19 |
7.81 |
7.81 |
8.42 |
10.34 |
7.81 |
10.34 |
15 mm |
|
P49031-B21 |
HPE 1.92TB SAS 24G Read Intensive SFF BC Multi Vendor SSD |
6.17 |
7.96 |
7.96 |
8.64 |
13.66 |
7.96 |
13.66 |
15 mm |
|
P49035-B21 |
HPE 3.84TB SAS 24G Read Intensive SFF BC Multi Vendor SSD |
6.33 |
8.94 |
8.94 |
9.00 |
16.82 |
8.94 |
16.82 |
15 mm |
|
P49041-B21 |
HPE 7.68TB SAS 24G Read Intensive SFF BC Multi Vendor SSD |
6.10 |
8.90 |
8.90 |
10.10 |
17.29 |
8.90 |
17.29 |
15 mm |
|
P49045-B21 |
HPE 15.36TB SAS 24G Read Intensive SFF BC Multi Vendor SSD |
6.64 |
8.94 |
8.94 |
12.40 |
17.62 |
8.94 |
17.62 |
15 mm |
|
Read Intensive SAS Self-Encrypting Drives (SED) | |||||||||
|
P83347-B21 |
HPE 3.84TB SAS Read Intensive SFF BC Self-encrypting FIPS 140-3 PM7 SSD |
5.00 |
11.22 |
15.48 |
11.47 |
16.02 |
16.20 |
18.00 |
15 mm |
|
P83350-B21 |
HPE 7.68TB SAS Read Intensive SFF BC Self-encrypting FIPS 140-3 PM7 SSD |
5.00 |
10.42 |
13.93 |
10.01 |
13.95 |
14.8 |
16 |
15 mm |
|
Notes: B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. Please use HPE Selector Tool https://ssd.hpe.comto determine server compatibility. |
|
|
|
SAS Certifications - Prequalified certification will be listed in the HPE Selector Tool https://ssd.hpe.com. - For latest vSAN Compatibility, please visit Broadcom vSAN SSD Compatibility Guide and enter specific HPE Part Number to confirm compatibility. - For latest Windows OS Certification and SDDC (Software Defined Data Center) Premium AQ Certification please visit https://www.windowsservercatalog.com and enter specific HPE Model Number to confirm compatibility. |
|
|
|
Value SAS Capacity, Workload, Carrier Specifications MULTI VENDOR |
|
Value SAS Interface - (Capacity, Workload, Carrier...) MULTI VENDOR | |||||||||||
|
HPE Option Kit SKU |
Long Description |
Capacity |
Workload |
Interface Type |
Form Factor |
Plug Type |
Carrier Type |
Digitally Signed Firmware (DS) |
Flash Type |
Port |
Server Gen Supported (Select Platforms) |
|
Mixed Use Multi Vendor Value SAS Drives | |||||||||||
|
P37009-B21 |
HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD |
960 |
MU |
Value SAS |
LFF |
Hot Plug |
LPC |
Yes |
TLC |
Single |
Gen10, 10 Plus |
|
P40510-B21 |
HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD |
960 |
MU |
Value SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P40511-B21 |
HPE 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD |
1,920 |
MU |
Value SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P40512-B21 |
HPE 3.84TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD |
3,840 |
MU |
Value SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
Read Intensive Multi Vendor Value SAS Drives | |||||||||||
|
P40506-B21 |
HPE 960GB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD |
960 |
RI |
Value SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
Value SAS Interface - (Capacity, Workload, Carrier...) MULTI VENDOR | |||||||||||
|
HPE Option Kit SKU |
Long Description |
Capacity |
Workload |
Interface Type |
Form Factor |
Plug Type |
Carrier Type |
Digitally Signed Firmware (DS) |
Flash Type |
Port |
Server Gen Supported (Select Platforms) |
|
Read Intensive Multi Vendor Value SAS Drives | |||||||||||
|
P40507-B21 |
HPE 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD |
1,920 |
RI |
Value SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P40508-B21 |
HPE 3.84TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD |
3,840 |
RI |
Value SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P40509-B21 |
HPE 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD |
7,680 |
RI |
Value SAS |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
Notes: - B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. - Please use HPE Selector Tool https://ssd.hpe.comto determine server compatibility. - Multi-vendor SKUs are composed of numerous vendors manufactured SSDs within a given SATA capacity SKU. When ordering a particular SKU-B21 number the customer will receive a homogenous set of vendors manufactured SSDs in that capacity that has met or exceeds the HPE qualification standards published above.
|
|
|
|
Value SAS Speeds and Feeds Specifications MULTI VENDOR |
|
Value SAS Interface - (Speeds & Feeds) MULTI VENDOR | |||||||
|
HPE Option Kit SKU |
Long Description |
Lifetime Writes (TB) |
Endurance DWPD |
MAX Seq Reads / Max Seq Writes Through-put (MiB/s) |
Random Read Avg. / Random Write Avg. Latency uSec (4KiB,Q1) |
Random Read / Random Writes IOPS (4KiB, Q=16) |
MAX Random Read / MAX Random Write IOPS (4KiB) |
|
Mixed Use Multi Vendor Value SAS Drives | |||||||
|
P37009-B21 |
HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD |
5,200 |
3.0 |
820 / 650 |
122 / 34 |
105,000 / 42,322 |
160,000@Q64 / 51,000@Q32 |
|
P40510-B21 |
HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD |
5,200 |
3.0 |
790 / 635 |
130 / 35 |
105,000 / 42,322 |
155,000@Q32 / 42,322@Q16 |
|
P40511-B21 |
HPE 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD |
10,000 |
3.0 |
820 / 635 |
140 / 38 |
96,000 / 51,000 |
155,000@Q32 / 51,000@Q256 |
|
P40512-B21 |
HPE 3.84TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD |
21,000 |
3.0 |
820 / 650 |
129 / 34 |
105,000 / 51,000 |
160,000@Q32 / 51,000@Q256 |
|
Read Intensive Multi Vendor Value SAS Drives | |||||||
|
P40506-B21 |
HPE 960GB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD |
1,700 |
1.00 |
820 / 650 |
121 / 34 |
105,000 / 41,000 |
160,000@Q32 / 41,000@Q4 |
|
P40507-B21 |
HPE 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD |
3,500 |
1.00 |
820 / 620 |
122 / 34 |
108,713 / 41,000 |
160,000@Q64 / 41,000@Q4 |
|
Read Intensive Multi Vendor Value SAS Drives | |||||||
|
P40508-B21 |
HPE 3.84TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD |
7,000 |
1.00 |
820 / 650 |
129 / 35 |
100,000 / 41,000 |
160,000@Q64 / 42,000@Q128 |
|
P40509-B21 |
HPE 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD |
14,000 |
1.00 |
820 / 695 |
129 / 38 |
108,9550 / 41,550 |
160,000@Q256 / 41,789@Q16 |
|
Notes: - B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. - Please use HPE Selector Tool https://ssd.hpe.comto determine server compatibility. - Multi-vendor SKUs are composed of numerous vendors manufactured SSDs within a given SAS capacity SKU. When ordering a particular SKU-B21 number the customer will receive a homogenous set of vendors manufactured SSDs in that capacity that has met or exceeds the HPE qualification standards published above.
|
|
|
Value SAS Power and Height Specifications MULTI VENDOR |
Value SAS Interface - (Power & Height) MULTI VENDOR | |||||||||
|
HPE Option Kit SKU |
Long Description |
Power |
Power Random Read (Watts) |
Power Random Write (Watts) |
Power Sequential Read |
Power Sequential Write (Watts) |
Power Random R/W (Watts) |
Power MAX (Watts) |
z- Height |
|
Mixed Use Multi Vendor Value SAS Drives | |||||||||
|
P37009-B21 |
HPE 960GB SAS 12G Mixed Use LFF LPC Value SAS Multi Vendor SSD |
4.71 |
5.04 |
4.95 |
8.13 |
5.78 |
5.04 |
9.00 |
15 mm |
|
P40510-B21 |
HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD |
4.71 |
5.04 |
4.95 |
8.13 |
5.78 |
5.04 |
9.00 |
15 mm |
|
P40511-B21 |
HPE 1.92TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD |
4.88 |
6.08 |
5.35 |
8.21 |
6.25 |
6.08 |
9.00 |
15 mm |
|
P40512-B21 |
HPE 3.84TB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD |
4.99 |
6.26 |
5.79 |
8.23 |
6.57 |
6.26 |
9.00 |
15 mm |
Read Intensive Multi Vendor Value SAS Drives | |||||||||
|
P40506-B21 |
HPE 960GB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD |
4.49 |
5.10 |
5.00 |
7.60 |
5.98 |
5.10 |
9.00 |
15 mm |
|
P40507-B21 |
HPE 1.92TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD |
4.60 |
6.33 |
5.12 |
7.66 |
6.62 |
6.33 |
9.00 |
15 mm |
|
P40508-B21 |
HPE 3.84TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD |
4.99 |
6.52 |
5.79 |
8.03 |
7.26 |
6.52 |
9.00 |
15 mm |
|
P40509-B21 |
HPE 7.68TB SAS 12G Read Intensive SFF BC Value SAS Multi Vendor SSD |
4.69 |
7.69 |
5.70 |
8.45 |
6.91 |
7.69 |
9.00 |
15 mm |
|
Notes: - B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. - Please use HPE Selector Tool https://ssd.hpe.comto determine server compatibility. - Multi-vendor SKUs are composed of numerous vendors manufactured SSDs within a given SAS capacity SKU. When ordering a particular SKU-B21 number the customer will receive a homogenous set of vendors manufactured SSDs in that capacity that has met or exceeds the HPE qualification standards published above.
|
|
|
|
Value SAS Certifications MULTI VENDOR - Prequalified certification will be listed in the HPE Selector Tool https://ssd.hpe.com - For latest vSAN Compatibility, please visit Broadcom vSAN SSD Compatibility Guide and enter specific HPE Part Number to confirm compatibility. - For latest Windows OS Certification and SDDC (Software Defined Data Center) Premium AQ Certification please visit https://www.windowsservercatalog.com and enter specific HPE Model Number to confirm compatibility. |
|
|
|
PCIe/NVMe Capacity, Workload, Carrier Specifications |
|
PCIe/NVMe Interface - SKUs (Capacity, Workload, Carrier...) | |||||||||||
|
HPE Option Kit SKU |
Long Description |
Capacity |
Workload |
Interface Type |
Form Factor |
Plug Type |
Carrier Type |
Digitally Signed Firmware (DS) |
Flash Type |
Port |
Server Gen Supported (Select Platforms) |
|
NVMe High Performance and Mainstream Mixed-Use Drives | |||||||||||
|
P50227-B21 |
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD |
1,600 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus, 11 |
|
P50230-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD |
3,200 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus |
|
P50233-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD |
6,400 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus, 11 |
|
P63845-B21 |
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD |
1,600 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus, 11 |
|
P63849-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD |
3,200 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus, 11 |
|
P70426-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD |
3,200 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P70428-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD |
6,400 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P63853-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD |
6,400 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus, 11 |
|
P78801-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD |
3,200 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P78804-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD |
6,400 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85662-B21 |
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD |
1,600 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85664-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD |
3,200 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85666-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD |
6,400 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91237-B21 |
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD |
1,600 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91239-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD |
3,200 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91241-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD |
6,400 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P64999-B21 |
HPE 800GB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
800 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P65007-B21 |
HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
1,600 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P65015-B21 |
HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
3,200 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P65023-B21 |
HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
6,400 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
NVMe High Performance and Mainstream Read Intensive Drives | |||||||||||
|
P50216-B21 |
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD |
1,920 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus |
|
P63829-B21 |
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
1,920 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus, 11 |
|
P63833-B21 |
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
3,840 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus, 11 |
|
P63837-B21 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
7,680 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus, 11 |
|
P63841-B21 |
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
15,360 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus, 11 |
|
P70434-B21 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD |
7,680 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus, 11 |
|
P70436-B21 |
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD |
15,360 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Dual |
Gen10 Plus, 11 |
|
P64842-B21 |
HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
960 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P64844-B21 |
HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
1,920 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P78806-B21 |
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD |
3,840 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P78808-B2 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD |
7,680 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P78810-B21 |
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD |
15,360 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85668-B21 |
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD |
1,920 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85670-B21 |
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD |
3,840 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85672-B21 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD |
7,680 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85674-B21 |
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD |
15,360 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85676-B21 |
HPE 30.72TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD |
30,720 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91243-B21 |
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD |
1,920 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91245-B21 |
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD |
3,840 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91247-B21 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD |
7,680 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91249-B21 |
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD |
15,360 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P64846-B21 |
HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
3,840 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P64848-B21 |
HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
7,680 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P84244-B21 |
HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD |
3,840 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P84242-B21 |
HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD |
7,680 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P84239-B21 |
HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500b SSD |
15,360 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
P84236-B21 |
HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive BC U.3 Static V2 SPDM Multi Vendor SSD |
15,360 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen11, 12 |
|
NVMe High Performance Self-Encrypting Drives (SED) and Federal Information Processing Standards (FIPS) SFF SSDs | |||||||||||
|
P61019-B21 |
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
1,920 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P61027-B21 |
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
3,840 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P61035-B21 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
7,680 |
RI |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P61043-B21 |
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
1,600 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P61051-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
3,200 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
P61059-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
6,400 |
MU |
NVMe |
SFF |
Hot Plug |
BC |
Yes |
TLC |
Single |
Gen10 Plus, 11 |
|
PCIe/NVMe Speeds and Feeds Specifications |
|
PCIe/NVMe Interface - SKUs (Speeds and Feeds) | |||||||||||||||
|
HPE Option Kit SKU |
Long Description |
Lifetime Writes (TB) |
Endurance DWPD |
MAX Seq Reads / Max Seq Writes Throughput (MiB/s) |
Random Read Avg. / Random Write Avg. Latency uSec (4KiB,Q1) |
Random Read / Random Writes IOPS (4KiB, Q=16) |
MAX Random Read / MAX Random Write IOPS (4KiB) | ||||||||
|
NVMe High Performance and Mainstream Mixed-Use Drives | |||||||||||||||
|
P50227-B21 |
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD |
8,760 |
3.00 |
7,100 / 2,500 |
70 / 19 |
220,000 / 270,000 |
1,250,000@Q256 / 280,000@Q64 | ||||||||
|
P50230-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD |
17,520 |
3.00 |
7,100 / 4,200 |
70 / 19 |
225,000 / 310,000 |
1,350,000@Q256 / 320,000@Q64 | ||||||||
|
P50233-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD |
35,040 |
3.00 |
7,100 / 4,200 |
79 / 19 |
200,000 / 310,000 |
1,350,000@Q256 / 320,000@Q64 | ||||||||
|
P63845-B21 |
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD |
8,760 |
3.00 |
7,155 / 3,409 |
67 / 11 |
221,887 / 318,295 |
1,242,113Q128 / 318,187@Q16 | ||||||||
|
P63849-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD |
17,520 |
3.00 |
7,118 / 6,818 |
67 / 11 |
225,305 / 582,238 |
1,334,274@Q256 / 654,401@Q256 | ||||||||
|
P63853-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD |
35,040 |
3.00 |
7,117 / 6,831 |
67 / 11 |
226,351 / 538,037 |
1,286,234@Q256 / 592,261@Q32 | ||||||||
|
P70426-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD |
20,031 |
3.43 |
7,066 / 6,373 |
61 / 15 |
250,180 / 657,811 |
922,894@256 / 714,198@256 | ||||||||
|
P70428-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD |
40,062 |
3.43 |
7,066 / 6,345 |
60 / 14 |
251,921 / 732,734 |
903,765@256 / 794,791@256 | ||||||||
|
P78801-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD |
17,520 |
3.0 |
7100 / 6900 |
59 / 7 |
259,000 / 883,800 |
1,762,800@256 / 884,100@16 | ||||||||
|
P78804-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD |
35,040 |
3.0 |
7100 / 6900 |
59 / 7 |
261,000 / 991,200 |
1,763,400@256 / 992,800@16 | ||||||||
|
P85662-B21 |
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD |
8,760 |
3.0 |
7,119/3,504 |
62/6 |
242,515/325,370 |
1,782,144@Q512/325,770@Q32 | ||||||||
|
P85664-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD |
17,520 |
3.0 |
7,119/6,836 |
62/6 |
245,449/657,218 |
1,782,128@Q512/658,228@Q32 | ||||||||
|
P85666-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD |
35,040 |
3.0 |
7,119/6,996 |
52/6 |
292,110/840,042 |
1,782,116@Q512/841,701@Q32 | ||||||||
|
P91237-B21 |
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD |
8,760 |
3.0 |
7,066 / 3,409 |
67 / 15 |
221,887 / 318,295 |
991,162@256 / 318,187@Q16 | ||||||||
|
P91239-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD |
17,520 |
3.0 |
7,066 / 6,373 |
67 / 15 |
225,305 / 582,238 |
922,894@256 / 654,401@Q256 | ||||||||
|
P91241-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD |
35,040 |
3.0 |
7,066 / 6,345 |
67 / 14 |
226,351 / 538,037 |
903,765@256 / 592,261@Q32 | ||||||||
|
P64999-B21 |
HPE 800GB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
4,380 |
3.0 |
6,200 / 1,383 |
72 / 16 |
189,142 / 158,900 |
543,727@256 / 159,907@4 | ||||||||
|
P65007-B21 |
HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
8,760 |
3.0 |
6,200 / 2,731 |
72 / 16 |
202,668 / 283,846 |
812,698@256 / 283,568@16 | ||||||||
|
P65015-B21 |
HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
17,520 |
3.0 |
6,200 / 4,300 |
73 / 16 |
209,431 / 382,266 |
930,000@Q256 / 390,000@16 | ||||||||
|
P65023-B21 |
HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
35,040 |
3.0 |
6,200 / 4,300 |
73 / 16 |
211,802 / 394,003 |
950,000@Q256 / 408,171@16 | ||||||||
|
NVMe High Performance and Mainstream Read Intensive Drives | |||||||||||||||
|
P50216-B21 |
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD |
3,504 |
1.00 |
7,100 / 2,500 |
70 / 19 |
220,000 / 125,000 |
1,250,000@Q256 / 130,000@Q4 | ||||||||
|
P63829-B21 |
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
3,504 |
1.00 |
7,160 / 3,421 |
67 / 11 |
222,075 / 161,441 |
1,198,665@Q256 / 161,460Q4 | ||||||||
|
P63833-B21 |
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
7,008 |
1.00 |
7,151 / 6,813 |
67 / 11 |
225,439 / 307,155 |
1,207,140@Q256 / 332,212@Q32 | ||||||||
|
P63837-B21 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
14,016 |
1.00 |
7,165 / 6,831 |
67 / 11 |
225,888 / 298,739 |
1,202,924@Q128 / 316,613@Q32 | ||||||||
|
P63841-B21 |
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
28,032 |
1.00 |
7,162 / 6,832 |
67 / 11 |
227,113 / 312,673 |
1,225,944@Q128 / 326,121@Q32 | ||||||||
|
P70434-B21 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD |
19,622 |
1.40 |
7,066 / 6,347 |
61 / 16 |
252,232 / 411,445 |
944,867@256 / 413,020@16 | ||||||||
|
P70436-B21 |
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD |
40,366 |
1.44 |
7,066 / 6,412 |
61 / 15 |
252,285 / 390,850 |
994,678@256 / 395,203@16 | ||||||||
|
P78806-B21 |
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD |
7,008 |
1.0 |
7100 / 6900 |
59 / 7 |
258,900 / 456,200 |
1,763,000@256 / 456,400@16 | ||||||||
|
P78808-B2 |
7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD |
14,016 |
1.0 |
7100 / 6900 |
59 / 7 |
260,900 / 601,000 |
1,762,900@256 / 602,200@16 | ||||||||
|
P78810-B21 |
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD |
28,032 |
1.0 |
7100 / 6900 |
64 / 7 |
242,900 / 651,300 |
1,763,100@256 / 652,700@16 | ||||||||
|
P85668-B21 |
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD |
3,504 |
1.0 |
7,119/3,488 |
62/6 |
242,337/183,781 |
1,782,111@Q512/184,301@Q32 | ||||||||
|
P85670-B21 |
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD |
7,008 |
1.0 |
7,119/6,817 |
62/6 |
245,309/388,076 |
1,782,107@Q512/388,853@Q32 | ||||||||
|
P85672-B21 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD |
14,016 |
1.0 |
7,119/6,996 |
52/6 |
291,882/532,381 |
1,782,068@Q512/533,674@Q32 | ||||||||
|
P85674-B21 |
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD |
28,032 |
1.0 |
7,119/6,994 |
52/6 |
294,250/563,793 |
1,782,120@Q512/566,080@Q32 | ||||||||
|
P85676-B21 |
HPE 30.72TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD |
56,064 |
1.0 |
7,119/6,988 |
58/6 |
264,603/331,194 |
1,782,172@Q512/360,479@Q32 | ||||||||
|
P91243-B21 |
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD |
3,504 |
1.0 |
7,066 / 3,421 |
67 / 14 |
222,075 / 161,441 |
909,633@256 / 161,460@Q4 | ||||||||
|
P91245-B21 |
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD |
7,008 |
1.0 |
7,066 / 6,364 |
67 / 14 |
225,439 / 307,155 |
897,459@256 / 322,789@Q16 | ||||||||
|
P91247-B21 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD |
14,016 |
1.0 |
7,066 / 6,347 |
67 / 16 |
225,888 / 298,739 |
944,867@256 / 316,613@Q32 | ||||||||
|
P91249-B21 |
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD |
28,032 |
1.0 |
7,066 / 6,412 |
67 / 15 |
227,113 / 312,673 |
994,678@256 / 326,121@Q32 | ||||||||
|
P64842-B21 |
HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
1,752 |
1.0 |
6,200 / 1,395 |
72 / 17 |
189,027 / 71,425
|
543,737@256 / 71,429@Q4 | ||||||||
|
P64844-B21 |
HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
3,504
|
1.0
|
6,200 / 2,681
|
73 / 17
|
202,698 / 133,123
|
811,976@256 / 133,753@4
|
| |||||||
|
P64846-B21 |
HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
7,008
|
1.0
|
6,200 / 3,969
|
72 / 17
|
209,990 / 180,000
|
984,200@256 / 180,000@4
|
| |||||||
|
P64848-B21 |
HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
14,016
|
1.0
|
6,200 / 3,870
|
76 / 17
|
196,951 / 190,000
|
950,000@Q256 / 190,000@4
|
| |||||||
|
P84244-B21 |
HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD |
7,008
|
1.0
|
6,631 / 5,276
|
70 / 15
|
218,219 / 187,779
|
1,099,379@256 / 192,70@16
|
| |||||||
|
P84242-B21 |
HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD |
14,016
|
1.0
|
6,648 / 5,946 |
70 / 16
|
220,004 / 242,195
|
1,106,077@256 / 241,897@16
|
| |||||||
|
P84239-B21 |
HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500b SSD |
28,032 |
1.0 |
6,730 / 5,947 |
70 / 16 |
220,577 / 267,851 |
1,098,870@256 / 274,294@16 | ||||||||
|
P84236-B21 |
HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive BC U.3 Static V2 SPDM Multi Vendor SSD |
28,032 |
1.0 |
6,730 / 5,947 |
70 / 16 |
220,577 / 267,851 |
1,098,870@256 / 274,294@16 | ||||||||
|
NVMe High Performance Self-Encrypting Drives (SED) and Federal Information Processing Standards (FIPS) SFF SSDs | |||||||||||||||
|
P61019-B21 |
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
3,504 |
1.00 |
7,160 / 3,421 |
67 / 11 |
222,075 / 161,441 |
1,198,665@Q256 / 161,460Q4 | ||||||||
|
P61027-B21 |
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
7,008 |
1.00 |
7,151 / 6,813 |
67 / 11 |
225,439 / 307,155 |
1,207,140@Q256 / 332,212@Q32 | ||||||||
|
P61035-B21 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
14,016 |
1.00 |
7,165 / 6,831 |
67 / 11 |
225,888 / 298,739 |
1,202,924@Q128 / 316,613@Q32 | ||||||||
|
P61043-B21 |
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
8,760 |
3.00 |
7,155 / 3,409 |
67 / 11 |
221,887 / 318,295 |
1,242,113Q128 / 318,187@Q16 | ||||||||
|
P61051-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
17,520 |
3.00 |
7,118 / 6,818 |
67 / 11 |
225,305 / 582,238 |
1,334,274@Q256 / 654,401@Q256 | ||||||||
|
P61059-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
35,040 |
3.00 |
7,117 / 6,831 |
67 / 11 |
226,351 / 538,037 |
1,286,234@Q256 / 592,261@Q32 | ||||||||
|
Notes: - B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. - Please use HPE Selector Tool https://ssd.hpe.comto determine server compatibility. |
|
|
|
PCIe/NVMe Power & Height Specifications |
|
PCIe/NVMe Interface - (Power & Height) | |||||||||
|
HPE Option Kit SKU |
Long Description |
Power |
Power Random Read (Watts) |
Power Random Write (Watts) |
Power Sequential Read |
Power Sequential Write (Watts) |
Power Random R/W (Watts) |
Power MAX (Watts) |
z- Height |
|
NVMe High Performance and Mainstream Mixed-Use Drives | |||||||||
|
P50227-B21 |
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD |
4.40 |
15.10 |
14.10 |
13.90 |
14.20 |
13.50 |
15.10 |
15 mm |
|
P50230-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD |
4.60 |
17.10 |
15.10 |
14.60 |
18.40 |
15.80 |
18.40 |
15 mm |
|
P50233-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PM1735a SSD |
4.20 |
17.60 |
15.30 |
14.80 |
18.70 |
15.50 |
18.70 |
15 mm |
|
P63845-B21 |
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD |
3.41 |
15.60 |
12.66 |
12.94 |
13.28 |
13.22 |
18.00 |
15 mm |
|
P63849-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD |
3.53 |
16.58 |
18.80 |
13.60 |
20.18 |
18.04 |
22.00 |
15 mm |
|
P63853-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 CM7 SSD |
3.61 |
17.76 |
19.18 |
14.17 |
21.90 |
19.57 |
24.00 |
15 mm |
|
P70426-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD |
3.96 |
13.12 |
15.70 |
11.22 |
14.43 |
15.90 |
16.01 |
15 mm |
|
P70428-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PS1030 SSD |
4.23 |
15.16 |
19.48 |
12.75 |
15.62 |
19.91 |
20.31 |
15 mm |
|
P78801-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD |
2.92 |
11.05 |
15.25 |
9.71 |
13.80 |
13.87 |
15.65 |
15 mm |
|
P78804-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Static PM1755 SSD |
3.05 |
11.77 |
16.70 |
9.48 |
13.57 |
17.92 |
18.39 |
15 mm |
|
P85662-B21 |
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD |
2.73 |
13.86 |
10.97 |
11.08 |
11.78 |
12.09 |
13.95 |
15 mm |
|
P85664-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD |
2.84 |
14.80 |
16.66 |
11.58 |
18.03 |
17.16 |
18.20 |
15 mm |
|
P85666-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 PQC27 CM9 SSD |
2.81 |
11.87 |
15.33 |
9.12 |
14.87 |
16.13 |
16.36 |
15 mm |
|
P91237-B21 |
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD |
4.17 |
15.60 |
12.66 |
12.94 |
13.28 |
13.22 |
18.00 |
15 mm |
|
P91239-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD |
3.96 |
16.58 |
18.80 |
13.60 |
20.18 |
18.04 |
22.00 |
15 mm |
|
P91241-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Multi Vendor SSD |
4.23 |
17.76 |
19.48 |
14.17 |
21.90 |
19.91 |
24.00 |
15 mm |
|
P64999-B21 |
HPE 800GB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
5.00 |
10.06 |
8.28 |
10.64 |
8.70 |
8.35 |
13.00 |
15 mm |
|
P65007-B21 |
HPE 1.6TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
5.00 |
11.94 |
11.58 |
10.96 |
11.75 |
10.62 |
16.00 |
15 mm |
|
P65015-B21 |
HPE 3.2TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
5.00 |
12.65 |
12.38 |
11.31 |
14.80 |
11.79 |
17.00 |
15 mm |
|
P65023-B21 |
HPE 6.4TB NVMe Gen4 Mainstream Performance Mixed Use SFF BC U.3 Static V2 Multi Vendor SSD |
5.00 |
12.75 |
14.32 |
12.10 |
17.92 |
13.55 |
21.00 |
15 mm |
|
NVMe High Performance and Mainstream Read Intensive Drives |
|||||||||
|
P50216-B21 |
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PM1733a SSD |
4.30 |
15.10 |
14.10 |
13.90 |
14.20 |
13.50 |
15.10 |
15 mm |
|
P63829-B21 |
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
3.60 |
15.53 |
12.54 |
13.02 |
13.49 |
12.80 |
18.00 |
15 mm |
|
P63833-B21 |
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
3.71 |
16.79 |
18.37 |
13.74 |
20.16 |
17.88 |
22.00 |
15 mm |
|
P63837-B21 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
3.62 |
17.53 |
19.69 |
14.14 |
21.68 |
19.58 |
24.00 |
15 mm |
|
P63841-B21 |
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 CM7 SSD |
3.97 |
18.78 |
20.94 |
15.02 |
22.61 |
20.33 |
25.00 |
15 mm |
|
P70434-B21 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD |
4.17 |
15.14 |
20.61 |
12.65 |
15.66 |
20.98 |
21.12 |
15 mm |
|
P70436-B21 |
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PS1010 SSD |
4.48 |
16.85 |
21.21 |
13.82 |
16.49 |
21.33 |
21.74 |
15 mm |
|
P78806-B21 |
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD |
2.90 |
11.00 |
15.47 |
9.40 |
13.42 |
14.37 |
15.71 |
15 mm |
|
P78808-B2 |
7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD |
3.00 |
11.64 |
18.57 |
9.58 |
13.72 |
17.86 |
18.93 |
15 mm |
|
P78810-B21 |
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1753 SSD |
3.08 |
12.58 |
19.29 |
10.18 |
14.37 |
18.84 |
19.86 |
15 mm |
|
P85668-B21 |
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD |
3.11 |
13.82 |
11.29 |
11.13 |
11.86 |
11.63 |
13.90 |
15 mm |
|
P85670-B21 |
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD |
2.85 |
14.93 |
17.36 |
11.68 |
18.21 |
16.94 |
17.76 |
15 mm |
|
P85672-B21 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD |
2.83 |
11.77 |
15.16 |
9.46 |
15.32 |
15.70 |
15.92 |
15 mm |
|
P85674-B21 |
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD |
3.19 |
13.18 |
16.78 |
10.32 |
15.79 |
18.06 |
18.35 |
15 mm |
|
P85676-B21 |
HPE 30.72TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 PQC27 CM9 SSD |
3.81 |
17.06 |
15.34 |
12.24 |
17.66 |
16.48 |
18.76 |
15 mm |
|
P91243-B21 |
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD |
4.16 |
15.53 |
12.54 |
13.02 |
13.49 |
12.80 |
18.00 |
15 mm |
|
P91245-B21 |
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD |
3.95 |
16.79 |
18.37 |
13.74 |
20.16 |
17.88 |
22.00 |
15 mm |
|
P91247-B21 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD |
4.17 |
17.53 |
20.61 |
14.14 |
21.68 |
20.98 |
24.00 |
15 mm |
|
P91249-B21 |
HPE 15.36TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Multi Vendor SSD |
4.48 |
18.78 |
21.21 |
15.02 |
22.61 |
21.33 |
25.00 |
15 mm |
|
P64842-B21 |
HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
5.00 |
8.96 |
8.00 |
9.60 |
8.42 |
8.50 |
13.00 |
15 mm |
|
P64844-B21 |
HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
5.00 |
9.50 |
11.28 |
10.00 |
11.33 |
10.25 |
16.00 |
15 mm |
|
P64846-B21 |
HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
5.00 |
10.56 |
13.00 |
10.82 |
14.80 |
11.48 |
17.00 |
15 mm |
|
P64848-B21 |
HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 Multi Vendor SSD |
5.00 |
11.50 |
13.96 |
12.10 |
15.28 |
13.25 |
21.00 |
15 mm |
|
P84244-B21 |
HPE 3.84TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD |
5.00 |
9.30 |
9.50 |
9.50 |
11.60 |
9.20 |
11.90 |
15 mm |
|
P84242-B21 |
HPE 7.68TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD |
5.00 |
10.10 |
10.70 |
10.20 |
12.90 |
10.70 |
13.10 |
15 mm |
|
P84239-B21 |
HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500b SSD |
5.00 |
13.4 |
13.4 |
12.4 |
15.4 |
13.1 |
15.6 |
15 mm |
|
P84236-B21 |
HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive BC U.3 Static V2 SPDM Multi Vendor SSD |
5.00 |
13.4 |
13.4 |
12.4 |
15.4 |
13.1 |
15.6 |
15 mm |
|
NVMe High Performance Self-Encrypting Drives (SED) and Federal Information Processing Standards (FIPS) SFF SSDs | |||||||||
|
P61019-B21 |
HPE 1.92TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
3.60 |
15.53 |
12.54 |
13.02 |
13.49 |
12.80 |
18.00 |
15 mm |
|
P61027-B21 |
HPE 3.84TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
3.71 |
16.79 |
18.37 |
13.74 |
20.16 |
17.88 |
22.00 |
15 mm |
|
P61035-B21 |
HPE 7.68TB NVMe Gen4 High Performance Read Intensive SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
3.62 |
17.53 |
19.69 |
14.14 |
21.68 |
19.58 |
24.00 |
15 mm |
|
P61043-B21 |
HPE 1.6TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
3.41 |
15.60 |
12.66 |
12.94 |
13.28 |
13.22 |
18.00 |
15 mm |
|
P61051-B21 |
HPE 3.2TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
3.53 |
16.58 |
18.80 |
13.60 |
20.18 |
18.04 |
22.00 |
15 mm |
|
P61059-B21 |
HPE 6.4TB NVMe Gen4 High Performance Mixed Use SFF BC U.3 Self-encrypting FIPS 140-3 CM7 SSD |
3.61 |
17.76 |
19.18 |
14.17 |
21.90 |
19.57 |
24.00 |
15 mm |
|
Notes: - B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. - Please use HPE Selector Tool https://ssd.hpe.com to determine server compatibility. | |||||||||
|
|
|
NVMe Certifications - Prequalified certification will be listed in the HPE Selector Tool https://ssd.hpe.com - For latest vSAN Compatibility, please visit Broadcom vSAN SSD Compatibility Guide and enter specific HPE Part Number to confirm compatibility. - For latest Windows OS Certification and SDDC (Software Defined Data Center) Premium AQ Certification please visit https://www.windowsservercatalog.com and enter specific HPE Model Number to confirm compatibility.
|
|
|
|
PCIe/NVMe EDSFF E3.S Capacity, Workload, Carrier Specifications |
|
PCIe/NVMe EDSFF E3.S - SKUs (Capacity, Workload, Carrier...) | |||||||||||
|
HPE Option Kit SKU |
Long Description |
Capacity |
Workload |
Interface Type |
Form Factor |
Plug Type |
Carrier Type |
Digitally Signed Firmware (DS) |
Flash Type |
Port |
Server Gen Supported (Select Platforms) |
|
NVMe Main Performance Mixed Use EDSFF E3.S SSDs | |||||||||||
|
P69241-B21 |
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD |
1,600 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P69243-B21 |
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD |
3,200 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P69245-B21 |
HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD |
6,400 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P77262-B21 |
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD |
1,600 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P77265-B21 |
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD |
3,200 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P77267-B21 |
HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD |
6,400 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85114-B21 |
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD |
1,600 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85117-B21 |
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD |
3,200 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85119-B21 |
HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD |
6,400 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P87715-B21 |
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD |
1,600 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P87717-B21 |
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD |
3,200 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91084-B21 |
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
1,600 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91086-B21 |
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
3,200 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91088-B21 |
HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
6,400 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
NVMe Main Performance Read Intensive EDSFF E3.S SSDs | |||||||||||
|
P69234-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
1,920 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P69237-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
3,840 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P69239-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
7,680 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P69546-B21 |
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
15,360 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P77269-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
1,920 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P77271-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
3,840 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P77273-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
7,680 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P77275-B21 |
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
15,360 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P78914-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD |
1,920 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P78917-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD |
3,840 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P78919-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD |
7,680 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P78921-B21 |
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD |
15,360 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P78923-B21 |
HPE 30.72TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD |
30,720 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P79147-B21 |
HPE 30.72TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF Self-encrypting PM9D3a SSD |
30,720 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85121-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
1,920 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85124-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
3,840 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85126-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
7,680 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85128-B21 |
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
15,360 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P87719-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD |
1,920 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P87721-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD |
3,840 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P87723-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD |
7,680 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91090-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
1,920 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91092-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
3,840 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91094-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
7,680 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91096-B21 |
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
15,360 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
NVMe Main Performance Very-read-optimized EDSFF E3.S SSDs | |||||||||||
|
P63930-B21 |
HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD |
3,840 |
VRO |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
QLC |
Single |
Gen11, 12 |
|
P63934-B21 |
HPE 7.68TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD |
7,680 |
VRO |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
QLC |
Single |
Gen11, 12 |
|
P63938-B21 |
HPE 15.36TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD |
15,360 |
VRO |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
QLC |
Single |
Gen11, 12 |
|
P79065-B21 |
HPE 30.72TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD |
30,720 |
VRO |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
QLC |
Single |
Gen11, 12 |
|
P79615-B21 |
HPE 30.72TB NVMe Gen5 Mainstream Performance Very Read Optimized E3.S EC1 EDSFF 6550 SSD |
30,720 |
VRO |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P79618-B21 |
HPE 61.44TB NVMe Gen5 Mainstream Performance Very Read Optimized E3.S EC1 EDSFF 6550 SSD |
61,440 |
VRO |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P79620-B21 |
HPE 30.72TB NVMe Gen5 Mainstream Performance Very Read Optimized EC1 EDSFF Self-encrypting 6550 SSD |
30,720 |
VRO |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P79623-B21 |
HPE 61.44TB NVMe Gen5 Mainstream Performance Very Read Optimized EC1 EDSFF Self-encrypting 6550 SSD |
61,440 |
VRO |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
NVMe High Performance Mixed Use EDSFF E3.S SSDs | |||||||||||
|
P61191-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD |
3,200 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P61195-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD |
6,400 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P70399-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD |
3,200 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P70401-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD |
6,400 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P70403-B21 |
HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD |
12,800 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P78784-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD |
3,200 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P78787-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD |
6,400 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P77050-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM 9550 SSD |
3,200 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P77053-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM 9550 SSD |
6,400 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P77055-B21 |
HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM 9550 SSD |
12,800 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85731-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD |
3,200 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85733-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD |
6,400 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85735-B21 |
HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD |
12,800 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91098-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
3,200 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91100-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
6,400 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91102-B21 |
HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
12,800 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
NVMe High Performance Read Intensive EDSFF E3.S SSDs | |||||||||||
|
P57799-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD |
3,840 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P57803-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD |
7,680 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P57807-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD |
15,360 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P61179-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD |
3,840 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P61183-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD |
7,680 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P61187-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD |
15,360 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P70392-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD |
3,840 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P70395-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD |
7,680 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P70397-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD |
15,360 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P77057-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM 9550 SSD |
3,840 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P77059-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM 9550 SSD |
7,680 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P77061-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM 9550 SSD |
15,360 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P79965-B21 |
HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 EDSFF SPDM 9550 SSD |
30,720 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P78789-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD |
3,840 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P78791-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD |
7,680 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P78793-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD |
15,360 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85739-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD |
3,840 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85741-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD |
7,680 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85743-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD |
15,360 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P85745-B21 |
HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD |
30,720 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91229-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
3,840 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91231-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
7,680 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P91233-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
15,360 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
NVMe High Performance Self-Encrypting Drives (SED) and Federal Information Processing Standards (FIPS) E3S SSDs | |||||||||||
|
P70674-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD |
7,680 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P79122-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD |
15,360 |
RI |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P70669-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD |
3,200 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
P70672-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD |
6,400 |
MU |
NVMe |
E3.S |
Hot Plug |
EC1 |
Yes |
TLC |
Single |
Gen11, 12 |
|
Notes: B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. Please use HPE Selector Tool https://ssd.hpe.comto determine server compatibility. | |||||||||||
|
|
|
PCIe/NVMe EDSFF E3.S Speeds and Feeds Specifications |
|
PCIe/NVMe EDSFF E3.S - SKUs (Speeds and Feeds) | ||||||||
|
HPE Option Kit SKU |
Long Description |
Lifetime Writes (TB) |
Endurance DWPD |
MAX Seq Reads / Max Seq Writes Throughput (MiB/s) |
Random Read Avg. / Random Write Avg. Latency uSec (4KiB,Q1) |
Random Read / Random Writes IOPS (4KiB, Q=16) |
MAX Random Read / MAX Random Write IOPS (4KiB) | |
|
NVMe Main Performance Mixed Use EDSFF E3.S SSDs | ||||||||
|
P69241-B21 |
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD |
8,760 |
3.00 |
11,837 / 3,429
|
75 / 15
|
199,703 / 314,566
|
1,289,951@Q256 / 315,178@Q Q16
| |
|
P69243-B21 |
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD |
17,520 |
3.00 |
11,837 / 5,425
|
75 / 15
|
206,818 / 424,436
|
1,262,557@Q256 / 423,326@Q16
| |
|
P69245-B21 |
HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD |
35,040 |
3.00 |
11,837 / 5,426
|
75 / 15
|
208,152 / 417,995
|
1,306,127@Q256 / 417,056@Q16
| |
|
P77262-B21 |
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD |
11,855 |
4.06 |
11,536 / 4,173 |
56 / 10 |
262,149 / 383,174 |
1,304,501@256 / 382,283@16 |
|
P77265-B21 |
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD |
23,535 |
4.03 |
11,038 / 6,416 |
55 / 10 |
267,089 / 557,402 |
1,301,776@256 / 561,142@16 |
|
P77267-B21 |
HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD |
47,304 |
4.05 |
11,502 / 5,851 |
56 / 10 |
268,651 / 544,111 |
1,327,381@256 / 545,439@32 |
|
P85114-B21 |
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD |
8,760 |
3.0 |
11,241 / 3,393 |
52 / 11 |
283,361 / 376,284 |
2,151,533@256 / 374,963@16 |
|
P85117-B21 |
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD |
17,500 |
3.0 |
11,240 / 6,629 |
53 / 12 |
288,061 / 619,377 |
2,214,109@256 / 618,301@16 |
|
P85119-B21 |
HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD |
35,040 |
3.0 |
11,239 / 6,960 |
53 / 11 |
289,110 / 810,181 |
2,249,068@256 / 811,359@16 |
|
P87715-B21 |
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD |
8,760 |
3.0 |
11,241 / 3,412 |
52 / 11 |
283,298 / 381,558 |
2,152,457@256 / 378,873@16 |
|
P87717-B21 |
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD |
17,500 |
3.0 |
11,240 / 6,664 |
53 / 12 |
288,270 / 621,566 |
2,215,722@256 / 621,231@16 |
|
P91084-B21 |
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
8,760 |
3.0 |
11,536 / 3,429 |
75 / 15 |
199,703 / 314,566 |
1,289,951@Q256 / 315,178@Q16 |
|
P91086-B21 |
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
17,520 |
3.0 |
11,038 / 5,425 |
73 / 15 |
206,818 / 424,436 |
1,262,557@Q256 / 423,326@Q16 |
|
P91088-B21 |
HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
35,040 |
3.0 |
11,502 / 5,426 |
73 / 15 |
208,152 / 417,995 |
1,306,127@Q256 / 417,056@Q16 |
|
NVMe Main Performance Read Intensive EDSFF E3.S SSDs | |||||||
|
P69234-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
3,504 |
1.00 |
11,837 / 3,423 |
75 / 15 |
199,342 / 160,036 |
1,296,099@Q256 / 160,396@Q4 |
|
P69237-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
7,008 |
1.00 |
11,837 / 5,426 |
73 / 15 |
207,244 / 211,371 |
1,300,978@Q256 / 211,905@Q16 |
|
P69239-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
14,016 |
1.00 |
11,837 / 5,400
|
73 / 15 |
207,936 / 214,770 |
1,280,513@Q256 / 218,309@Q16 |
|
P69546-B21 |
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
28,032 |
1.00 |
11,837 / 5,316 |
95 / 15 |
160,484 / 210,452 |
1,296,764@256 / 212,280@16 |
|
P77269-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
5,011 |
1.43 |
11,654 / 4,109 |
56 / 10 |
261,725 / 176,961 |
1,308,969@256 / 177,226@4 |
|
P77271-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
9,741 |
1.39 |
11,526 / 6,363 |
56 / 10 |
265,590 / 261,446 |
1,295,535@256 / 264,090@64 |
|
P77273-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
19,622 |
1.40 |
11,019 / 5,816 |
56 / 10 |
267,826 / 225,842 |
1,322,295@256 / 226,065@32 |
|
P77275-B21 |
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
40,086 |
1.43 |
11,498 / 6,109 |
56 / 10 |
268,651 / 242,563 |
1,317,146@256 / 243,361@4 |
|
P78914-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD |
3,504 |
1.00 |
12,096 / 3,266 |
59 / 9 |
253,261 / 164,977 |
1768937 / 165006 |
|
P78917-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD |
7,008 |
1.00 |
11,927 / 6,447 |
58 / 9 |
260,036 / 260,474 |
2122003 / 264584 |
|
P78919-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD |
14,016 |
1.00 |
11,938 / 6,577 |
62 / 9 |
242,689 / 384,429 |
2085304 / 400198 |
|
P78921-B21 |
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD |
28,032 |
1.00 |
11,981 / 6,577 |
63 / 9 |
241,324 / 401,032 |
2085424 / 402647 |
|
P78923-B21 |
HPE 30.72TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD |
56,064 |
1.0 |
8,434 / 6,073 |
65 / 9 |
231,888 / 310,211 |
1,594,372@256 / 317,525@Q16 |
|
P79147-B21 |
HPE 30.72TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF Self-encrypting PM9D3a SSD |
56,064 |
1.0 |
8,434 / 6,073 |
65 / 9 |
231,454 / 310,084 |
1,594,300@256 / 317,982@16 |
|
P85121-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
3,264 |
1.0 |
11,241 / 3,376 |
53 / 12 |
282,112 / 205,949 |
2,143,571@256 / 206,032@16 |
|
P85124-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
7,008 |
1.0 |
11,240 / 6,709 |
53 / 12 |
288,409 / 340,303 |
2,213,605@256 / 336,966@16 |
|
P85126-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
14,016 |
1.0 |
11,238 / 6,959 |
53 / 12 |
289,336 / 462,884 |
2,246,894@256 / 473,791@16 |
|
P85128-B21 |
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
28,032 |
1.0 |
11,240 / 6,961 |
54 / 11 |
284,184 / 446,257 |
2,266,680@256 / 454,067@16 |
|
P87719-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD |
3,504 |
1.0 |
11,241 / 3,376 |
53 / 11 |
282,093 / 210,270 |
2,142,978@256 / 209,747@16 |
|
P87721-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD |
7,008 |
1.0 |
11,241 / 6,649 |
53 / 12 |
287,913 / 330,337 |
2,205,746@256 / 330,955@16 |
|
P87723-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD |
14,016 |
1.0 |
11,240 / 6,960 |
53 / 11 |
289,293 / 489,317 |
2,251,684@256 / 487,802@16 |
|
P91090-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
3,504 |
1.0 |
11,654 / 3,423 |
75 / 15 |
199,342 / 160,036 |
1,296,099@Q256 / 160,396@Q4 |
|
P91092-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
7,008 |
1.0 |
11,526 / 5,426 |
73 / 15 |
207,244 / 211,371 |
1,295,535@256 / 211,905@Q16 |
|
P91094-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
14,016 |
1.0 |
11,019 / 5,400 |
73 / 15 |
207,936 / 214,770 |
1,280,513@Q256 / 218,309@Q16 |
|
P91096-B21 |
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
28,032 |
1.0 |
11,498 / 5,316 |
95 / 15 |
160,484 / 210,452 |
1,296,764@256 / 212,280@16 |
|
NVMe Main Performance Very-read-optimized EDSFF E3.S SSDs | |||||||
|
P63930-B21 |
HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD |
3,860 |
0.55 |
5,316 / 908 |
100 / 16 |
134,391 / 59,452 |
541,934.1@Q256 / 63,638.9@Q32 |
|
P63934-B21 |
HPE 7.68TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD |
8,040 |
0.57 |
6,965 / 1,750 |
100 / 14 |
144,842 / 109,023 |
804,975.3@Q256 / 116,139.2@Q128 |
|
P63938-B21 |
HPE 15.36TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD |
14,340 |
0.51 |
7,119 / 2,922 |
101 / 15 |
148,022 / 135,419 |
958,736.8@Q256 / 144,081.1@Q256 |
|
P79065-B21 |
HPE 30.72TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD |
31,220 |
0.56 |
6,967 / 3,017 |
97 / 14 |
157,188 / 82,689 |
971,306@Q256 / 85,721@Q16 |
|
P79615-B21 |
HPE 30.72TB NVMe Gen5 Mainstream Performance Very Read Optimized E3.S EC1 EDSFF 6550 SSD |
14,016 |
0.3 |
13,716 / 8,811 |
61 / 16 |
253,754 / 88,355 |
2,554,640@256 / 91,833@16 |
|
P79618-B21 |
HPE 61.44TB NVMe Gen5 Mainstream Performance Very Read Optimized E3.S EC1 EDSFF 6550 SSD |
28,032 |
0.3 |
13,649 / 8,769 |
62 / 16 |
248,685 / 97,920 |
2,175,332@256 / 100,333@16 |
|
P79620-B21 |
HPE 30.72TB NVMe Gen5 Mainstream Performance Very Read Optimized EC1 EDSFF Self-encrypting 6550 SSD |
14,016 |
0.3 |
13,716 / 8,805
|
61 / 16 |
253,867 / 88,277 |
2,555,056@256 / 90,779@16 |
|
P79623-B21 |
HPE 61.44TB NVMe Gen5 Mainstream Performance Very Read Optimized EC1 EDSFF Self-encrypting 6550 SSD |
28,032 |
0.3 |
13,644 / 8,757
|
62 / 16 |
248,667 / 97,071 |
2,174,865@256 / 99,962@16 |
|
NVMe High Performance Mixed Use EDSFF E3.S SSDs | |||||||
|
P61191-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD |
17,520 |
3 |
13,852 / 6,802
|
70 / 15 |
215,995 / 599,050 |
1,159,100@Q128 / 649,489@Q16 |
|
P61195-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD |
35,040 |
3 |
13,852 / 6,864
|
70 / 15 |
216,271 / 527,456 |
1,199,553@Q128 / 574,490@Q16 |
|
P70399-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD |
19,914 |
3.41 |
14,123 / 7,936
|
57 / 12 |
266,442 / 708,847 |
1,198,444@Q256 / 719,249@Q256
|
|
P70401-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD |
40,062 |
3.43 |
14,125 / 8,289
|
57 / 12 |
267,387 / 798,941 |
1,215,819@Q256 / 822,954@Q256
|
|
P70403-B21 |
HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD |
81,526 |
3.49 |
14,125 / 8,050
|
57 / 12 |
268,034 / 847,716 |
1,218,330@Q256 / 894,439@Q256 |
|
P78784-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD |
17,520 |
3.0 |
14,200 / 8,600 |
59 / 7 |
260,200 / 884,000 |
3,353,200@1024 / 883,500@16 |
|
P78787-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD |
35,040 |
3.0 |
14,200 / 10,000 |
59 / 7 |
262,400 / 989,500 |
3,313,100@512 / 992,500@16 |
|
P77050-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM 9550 SSD |
17,520 |
3.0 |
13,720 / 5,925 |
58 / 9 |
261,397 / 636,949 |
3,129,604@256 / 633,674@16 |
|
P77053-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM 9550 SSD |
35,040 |
3.0 |
13,713 / 10,507 |
59 / 9 |
258,785 / 803,692 |
3,322,429@256 / 809,060@16 |
|
P77055-B21 |
HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM 9550 SSD |
70,080 |
3.0 |
13,722 / 10,743 |
60 / 9 |
260,069 / 849,864 |
3,391,869@256 / 868,855@16 |
|
P85731-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD |
17,520 |
3.0 |
14,223/6,832 |
62/6 |
247,117/658,353 |
3,058,209@Q512/658,573@Q32 |
|
P85733-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD |
35,040 |
3.0 |
14,250/9,837 |
52/5 |
294,374/859,185 |
3,395,313@Q512/859,142@Q32 |
|
P85735-B21 |
HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD |
70,080 |
3.0 |
14,248/10,841 |
52/5 |
296,584/852,804 |
3,389,613@Q512/865,126@Q32 |
|
P91098-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
17,520 |
3.0 |
13,720 / 5,925 |
70 / 15 |
215,995 / 599,050 |
1,159,100@Q128 / 633,674@16 |
|
P91100-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
35,040 |
3.0 |
13,713 / 6,864 |
70 / 15 |
216,271 / 527,456 |
1,199,553@Q128 / 574,490@Q16 |
|
P91102-B21 |
HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
70,080 |
3.0 |
13,722 / 8,050 |
60 / 12 |
260,069 / 847,716 |
1,218,330@Q256 / 868,855@16 |
|
NVMe High Performance Read Intensive EDSFF E3.S SSDs | |||||||
|
P57799-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD |
7,008 |
1 |
13,821 / 5,850 |
73 / 19 |
220,626 / 288,895 |
1,040,714@Q128 / 290,896@Q16 |
|
P57803-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD |
14,016 |
1 |
13,378 / 5,841 |
82 / 19 |
196,587 / 312,346 |
1,068,434@Q128 / 314,755@Q16 |
|
P57807-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD |
28,032 |
1 |
13,800 / 7,276 |
82 / 19 |
197,931 / 359,542 |
1,060,146@Q128 / 363,570@Q16 |
|
P61179-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD |
7,008 |
1 |
13,852 / 6,868 |
70 / 15 |
215,993 / 325,008
|
1,202,413@Q128 / 342,962@Q16
|
|
P61183-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD |
14,016 |
1 |
13,852 / 6,860
|
70 / 14 |
215,951 / 302,927 |
1,175,981@Q128 / 321,298@Q16 |
|
P61187-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD |
28,032 |
1 |
12,520 / 5,337
|
92 / 14 |
165,451 / 273,611 |
1,174,204@Q128 / 276,715@Q16 |
|
P70392-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD |
9,461 |
1.35 |
14,123 / 7,903 |
57 / 12 |
266,362 / 310,939 |
1,220,136@Q256 / 320,418@Q256
|
|
P70395-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD |
18,922 |
1.35 |
14,126 / 8,258 |
57 / 12 |
267,567 / 413,609 |
1,187,283@Q256 / 413,886@Q256
|
|
P70397-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD |
40,366 |
1.44 |
14,125 / 8,231 |
57 / 12 |
268,119 / 379,978 |
1,204,150@Q256 / 386,847@Q256
|
|
P77057-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM 9550 SSD |
7,008 |
1.0 |
13,720 / 5,878 |
58 / 9 |
261,374 / 343,365 |
3,131,044@256 / 343,379@16 |
|
P77059-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM 9550 SSD |
14,016 |
1.0 |
13,713 / 10,512 |
59 / 9 |
258,693 / 452,753 |
3,327,068@256 / 458,627@16 |
|
P77061-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM 9550 SSD |
28,032 |
1.0 |
13,722/ 10,780 |
60 / 9 |
259,812 / 517,449 |
3,392,175@256 / 546,450@16 |
|
P79965-B21 |
HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 EDSFF SPDM 9550 SSD |
56,064 |
1.0 |
13,722/ 10,529
|
61 / 9 |
254,821 / 561,405 |
2,830,337@256 / 573,764@16 |
|
P78789-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD |
7,008 |
1.0 |
14,200/ 8,600 |
59 / 7 |
260,000 / 456,200 |
3,327,400@1024 / 456,200@16 |
|
P78791-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD |
14,016 |
1.0 |
14,200/ 10,000 |
59 / 7 |
262,800 / 601,600 |
3,313,600@512 / 601,900@16 |
|
P78793-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD |
28,032 |
1.0 |
14,200/ 9,900 |
63 / 7 |
244,200 / 651,700 |
3,323,600@512 / 651,800@16 |
|
P85739-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD |
7,008 |
1.0 |
14,223/6,826 |
62/5 |
247,256/389,274 |
3,058,871@Q256/388,876@Q16 |
|
P85741-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD |
14,016 |
1.0 |
14,251/9,820 |
52/5 |
294,927/540,006 |
3,396,494@Q512/539,440@Q32 |
|
P85743-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD |
28,032 |
1.0 |
14,248/10,843 |
52/5 |
296,622/579,915 |
3,394,371@Q512/581,959@Q32 |
|
P85745-B21 |
HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD |
56,064 |
1.0 |
13,100/10,369 |
58/6 |
266,440/297,353 |
2,859,102@Q512/317,341@Q32 |
|
P91229-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
7,008 |
1.0 |
13,720 / 5,878 |
70 / 15 |
215,993 / 310,939 |
1,202,413@Q128 / 320,418@Q256 |
|
P91231-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
14,016 |
1.0 |
13,713 / 6,860 |
70 / 14 |
215,951 / 302,927 |
1,175,981@Q128 / 321,298@Q16 |
|
P91233-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
28,032 |
1.0 |
12,520 / 5,337 |
92 / 14 |
165,451 / 273,611 |
1,174,204@Q128 / 276,715@Q16 |
|
NVMe High Performance Self-Encrypting Drives (SED) and Federal Information Processing Standards (FIPS) E3S SSDs | |||||||
|
P70674-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD |
14,016 |
1 |
13,852 / 6,860
|
70 / 14 |
215,951 / 302,927 |
1,175,981@Q128 / 321,298@Q16 |
|
P79122-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD |
28,032 |
1 |
12,520 / 5,337 |
92 / 14 |
165,451 / 273,611 |
1,174,204@Q128 / 276,715@Q16 |
|
P70669-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD |
17,520 |
3 |
13,852 / 6,802
|
70 / 15 |
215,995 / 599,050 |
1,159,100@Q128 / 649,489@Q16 |
|
P70672-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD |
35,040 |
3 |
13,852 / 6,864
|
70 / 15 |
216,271 / 527,456 |
1,199,553@Q128 / 574,490@Q16 |
|
Notes: B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. Please use HPE Selector Tool https://ssd.hpe.comto determine server compatibility. |
|
|
|
PCIe/NVMe EDSFF E3.S Power & Height Specifications |
|
PCIe/NVMe EDSFF E3.S - (Power & Height) | |||||||||
|
HPE Option Kit SKU |
Long Description |
Power |
Power Random Read (Watts) |
Power Random Write (Watts) |
Power Sequential Read |
Power Sequential Write (Watts) |
Power Random R/W (Watts) |
Power MAX (Watts) |
z- Height |
|
NVMe Main Performance Mixed Use EDSFF E3.S SSDs | |||||||||
|
P69241-B21 |
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD |
3.98 |
15.94 |
13.19 |
17.34 |
13.91 |
13.68 |
17.76 |
7.5 mm |
|
P69243-B21 |
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD |
4.03 |
18.08 |
15.20 |
17.55 |
17.75 |
18.70 |
19.07 |
7.5 mm |
|
P69245-B21 |
HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD |
4.23 |
20.57 |
16.74 |
19.83 |
19.75 |
20.63 |
21.05 |
7.5 mm |
|
P77262-B21 |
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD |
4.39 |
14.21 |
12.48 |
14.07 |
12.69 |
12.64 |
14.23 |
7.5 mm |
|
P77265-B21 |
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD |
4.31 |
15.12 |
14.59 |
14.02 |
15.20 |
15.04 |
15.23 |
7.5 mm |
|
P77267-B21 |
HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 EDSFF SPDM PE1030 SSD |
4.40 |
15.32 |
15.42 |
14.91 |
15.18 |
15.10 |
15.60 |
7.5 mm |
|
P85114-B21 |
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD |
3.91 |
7.63 |
9.60 |
10.06 |
8.94 |
8.92 |
10.10 |
7.5 mm |
|
P85117-B21 |
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD |
3.98 |
8.26 |
12.87 |
10.26 |
12.85 |
8.87 |
13.02 |
7.5 mm |
|
P85119-B21 |
HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 SPDM 7600 SSD |
3.91 |
7.65 |
13.72 |
9.80 |
12.31 |
7.96 |
13.81 |
7.5 mm |
|
P87715-B21 |
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD |
3.91 |
7.63 |
9.60 |
10.06 |
8.94 |
8.92 |
10.10 |
7.5 mm |
|
P87717-B21 |
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 Self-encrypting 7600 SSD |
3.98 |
8.26 |
12.87 |
10.26 |
12.85 |
8.87 |
13.02 |
7.5 mm |
|
P91084-B21 |
HPE 1.6TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
4.39 |
15.94 |
13.19 |
17.34 |
13.91 |
13.68 |
17.76 |
7.5 mm |
|
P91086-B21 |
HPE 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
4.31 |
18.08 |
15.20 |
17.55 |
17.75 |
18.70 |
19.07 |
7.5 mm |
|
P91088-B21 |
HPE 6.4TB NVMe Gen5 Mainstream Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
4.40 |
20.57 |
16.74 |
19.83 |
19.75 |
20.63 |
21.05 |
7.5 mm |
|
NVMe Main Performance Read Intensive EDSFF E3.S SSDs | |||||||||
|
P69234-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
3.96 |
15.91 |
13.31 |
17.25 |
13.80 |
13.45 |
17.60 |
7.5 mm |
|
P69237-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
4.08 |
17.97 |
14.93 |
17.57 |
17.75 |
18.37 |
18.73 |
7.5 mm |
|
P69239-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
4.10 |
20.53 |
16.83 |
19.50 |
19.90 |
20.12 |
20.94 |
7.5 mm |
|
P69546-B21 |
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 CD8P SSD |
4.40 |
23.17 |
18.82 |
20.95 |
23.28 |
21.58 |
23.74 |
7.5 mm |
|
P77269-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
4.39 |
14.28 |
12.88 |
14.19 |
12.90 |
12.46 |
14.29 |
7.5 mm |
|
P77271-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
4.31 |
15.19 |
15.23 |
14.05 |
15.28 |
15.21 |
15.30 |
7.5 mm |
|
P77273-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
4.40 |
15.39 |
15.26 |
15.06 |
15.31 |
15.57 |
15.77 |
7.5 mm |
|
P77275-B21 |
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PE1010 SSD |
4.75 |
17.08 |
16.77 |
17.20 |
16.78 |
16.98 |
17.23 |
7.5 mm |
|
P78914-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD |
3.92 |
10.59 |
10.22 |
10.88 |
9.14 |
10.46 |
10.95 |
7.5 mm |
|
P78917-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD |
4.14 |
12.32 |
13.12 |
11.02 |
14.22 |
13.42 |
15.00 |
7.5 mm |
|
P78919-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD |
3.93 |
13.46 |
14.22 |
11.62 |
14.70 |
13.71 |
15.08 |
7.5 mm |
|
P78921-B21 |
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD |
4.30 |
14.89 |
14.76 |
12.35 |
15.10 |
14.17 |
15.54 |
7.5 mm |
|
P78923-B21 |
HPE 30.72TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF SPDM PM9D3a SSD |
4.48 |
13.80 |
14.49 |
11.07 |
14.97 |
13.67 |
15.69 |
7.5 mm |
|
P79147-B21 |
HPE 30.72TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 EDSFF Self-encrypting PM9D3a SSD |
4.46 |
13.98 |
14.85 |
11.32 |
15.71 |
13.77 |
16.42 |
7.5 mm |
|
P85121-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
3.91 |
7.63 |
9.60 |
10.06 |
8.94 |
8.92 |
10.10 |
7.5 mm |
|
P85124-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
3.98 |
8.26 |
12.87 |
10.26 |
12.85 |
8.87 |
13.02 |
7.5 mm |
|
P85126-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
3.91 |
7.65 |
13.72 |
9.80 |
12.31 |
7.96 |
13.81 |
7.5 mm |
|
P85128-B21 |
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 SPDM 7600 SSD |
3.83 |
8.27 |
14.11 |
10.86 |
12.93 |
9.06 |
14.24 |
7.5 mm |
|
P87719-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD |
3.91 |
7.63 |
9.60 |
10.06 |
8.94 |
8.92 |
10.10 |
7.5 mm |
|
P87721-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD |
3.98 |
8.26 |
12.87 |
10.26 |
12.85 |
8.87 |
13.02 |
7.5 mm |
|
P87723-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3S EC1 Self-encrypting 7600 SSD |
3.91 |
7.65 |
13.72 |
9.80 |
12.31 |
7.96 |
13.81 |
7.5 mm |
|
P91090-B21 |
HPE 1.92TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
4.39 |
15.91 |
13.31 |
17.25 |
13.80 |
13.45 |
17.60 |
7.5 mm |
|
P91092-B21 |
HPE 3.84TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
4.31 |
17.97 |
15.23 |
17.57 |
17.75 |
18.37 |
18.73 |
7.5 mm |
|
P91094-B21 |
HPE 7.68TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
4.40 |
20.53 |
16.83 |
19.50 |
19.90 |
20.12 |
20.94 |
7.5 mm |
|
P91096-B21 |
HPE 15.36TB NVMe Gen5 Mainstream Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
4.75 |
23.17 |
18.82 |
20.95 |
23.28 |
21.58 |
23.74 |
7.5 mm |
|
NVMe Main Performance Very-read-optimized EDSFF E3.S SSDs | |||||||||
|
P63930-B21 |
HPE 3.84TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD |
4.15 |
10.03 |
10.18 |
10.04 |
9.37 |
9.65 |
10.50 |
7.7mm |
|
P63934-B21 |
HPE 7.68TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD |
4.19 |
12.33 |
14.03 |
11.67 |
13.70 |
12.99 |
14.10 |
7.7mm |
|
P63938-B21 |
HPE 15.36TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD |
4.12 |
14.33 |
15.95 |
12.47 |
20.52 |
16.90 |
21.00 |
7.7mm |
|
P79065-B21 |
HPE 30.72TB NVMe Gen4 Mainstream Performance Very Read Optimized E3S EC1 EDSFF P5430 SSD |
4.63 |
14.97 |
20.14 |
13.58 |
21.65 |
20.22 |
21.74 |
7.7mm |
|
P79615-B21 |
HPE 30.72TB NVMe Gen5 Mainstream Performance Very Read Optimized E3.S EC1 EDSFF 6550 SSD |
4.7 |
20.4 |
21.5 |
20.2 |
23.4 |
20.8 |
24.8 |
7.5 mm |
|
P79618-B21 |
HPE 61.44TB NVMe Gen5 Mainstream Performance Very Read Optimized E3.S EC1 EDSFF 6550 SSD |
4.8 |
20.4 |
21.6 |
21.1 |
24 |
21 |
25 |
7.5 mm |
|
P79620-B21 |
HPE 30.72TB NVMe Gen5 Mainstream Performance Very Read Optimized EC1 EDSFF Self-encrypting 6550 SSD |
4.7 |
20.4 |
21.5 |
20.2 |
23.4 |
20.8 |
24.8 |
7.5 mm |
|
P79623-B21 |
HPE 61.44TB NVMe Gen5 Mainstream Performance Very Read Optimized EC1 EDSFF Self-encrypting 6550 SSD |
4.8 |
20.4 |
21.6 |
21.1 |
24 |
21 |
25 |
7.5 mm |
|
NVMe High Performance Mixed Use EDSFF E3.S SSDs | |||||||||
|
P61191-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD |
4.05 |
22.14 |
19.74 |
19.57 |
20.73 |
18.97 |
24 |
7.5mm |
|
P61195-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM CM7 SSD |
4.13 |
23.65 |
20.52 |
22.31 |
23.24 |
21.26 |
24 |
7.5mm |
|
P70399-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD |
4.40 |
18.20 |
16.69 |
15.44 |
17.29 |
16.91 |
18.22 |
7.5 mm |
|
P70401-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD |
4.40 |
21.23 |
20.47 |
17.30 |
21.02 |
20.84 |
21.57 |
7.5 mm |
|
P70403-B21 |
HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 PS1030 SSD |
4.90 |
23.42 |
22.93 |
19.85 |
22.87 |
23.13 |
23.46 |
7.5 mm |
|
P78784-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD |
4.02 |
17.724 |
16.64 |
13.08 |
17.024 |
15.092 |
17.78 |
7.5 mm |
|
P78787-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 PM1755 SSD |
4.08 |
19.416 |
17.704 |
13.296 |
18.312 |
18.884 |
19.52 |
7.5 mm |
|
P77050-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM 9550 SSD |
4.5 |
10.5 |
10 |
12.5 |
13.2 |
10.5 |
14.8 |
7.5 mm |
|
P77053-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM 9550 SSD |
4.5 |
10.5 |
10.3 |
13.4 |
19 |
10.5 |
20.5 |
7.5 mm |
|
P77055-B21 |
HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3S EC1 EDSFF SPDM 9550 SSD |
4.5 |
10.6 |
10.5 |
14.2 |
19.5 |
10.7 |
20.5 |
7.5 mm |
|
P85731-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD |
3.94 |
21.50 |
17.60 |
18.13 |
19.12 |
17.91 |
21.59 |
7.5 mm |
|
P85733-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD |
3.97 |
17.88 |
16.14 |
13.45 |
19.55 |
17.07 |
19.87 |
7.5 mm |
|
P85735-B21 |
HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin PQC27 CM9 SSD |
4.60 |
20.68 |
17.50 |
15.65 |
22.15 |
20.74 |
22.78 |
7.5 mm |
|
P91098-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
4.50 |
22.14 |
19.74 |
19.57 |
20.73 |
18.97 |
24.00 |
7.5 mm |
|
P91100-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
4.50 |
23.65 |
20.52 |
22.31 |
23.24 |
21.26 |
24.00 |
7.5 mm |
|
P91102-B21 |
HPE 12.8TB NVMe Gen5 High Performance Mixed Use E3.S EC1 E3 Thin Multi Vendor SSD |
4.90 |
23.42 |
22.93 |
19.85 |
22.87 |
23.13 |
23.46 |
7.5 mm |
|
NVMe High Performance Read Intensive EDSFF E3.S SSDs | |||||||||
|
P57799-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD |
4.4 |
22.3 |
20.8 |
19.9 |
21.0 |
18.7 |
22.3 |
7.7 mm |
|
P57803-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD |
4.5 |
22.6 |
20.7 |
20.4 |
21.2 |
19.0 |
22.6 |
7.7 mm |
|
P57807-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM PM1743 SSD |
4.9 |
23.5 |
22.5 |
20.9 |
24.6 |
21.1 |
24.6 |
7.7 mm |
|
P61179-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD |
4.03 |
22.26 |
19.6 |
19.61 |
20.71 |
19.04 |
24 |
7.5 mm |
|
P61183-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD |
4.07 |
23.62 |
21.51 |
22.15 |
23.36 |
21.26 |
24 |
7.5 mm |
|
P61187-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM CM7 SSD |
4.41 |
24.38 |
23.21 |
23.32 |
23.75 |
22.23 |
25 |
7.5 mm |
|
P70392-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD |
4.40 |
18.04 |
16.85 |
15.40 |
17.22 |
16.49 |
18.07 |
7.5 mm |
|
P70395-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD |
4.40 |
21.21 |
21.43 |
17.35 |
20.91 |
21.71 |
21.56 |
7.5 mm |
|
P70397-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 PS1010 SSD |
4.90 |
23.35 |
22.90 |
19.84 |
22.93 |
23.08 |
23.38 |
7.5 mm |
|
P77057-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM 9550 SSD |
4.5 |
10.5 |
10 |
12.5 |
13.2 |
10.5 |
14.8 |
7.5 mm |
|
P77059-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM 9550 SSD |
4.5 |
10.5 |
10.3 |
13.4 |
19 |
10.5 |
20.5 |
7.5 mm |
|
P77061-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM 9550 SSD |
4.5 |
10.6 |
10.5 |
14.2 |
19.5 |
10.7 |
20.5 |
7.5 mm |
|
P79965-B21 |
HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 EDSFF SPDM 9550 SSD |
6.43 |
23.5 |
18.8 |
20.1 |
18.7 |
20.2 |
25 |
7.5 mm |
|
P78789-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD |
3.16 |
17.82 |
16.93 |
13.11 |
16.32 |
15.80 |
17.88 |
7.5 mm |
|
P78791-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD |
3.20 |
19.24 |
19.85 |
13.35 |
18.44 |
19.00 |
20.21 |
7.5 mm |
|
P78793-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 PM1753 SSD |
3.94 |
21.28 |
20.78 |
13.88 |
19.09 |
20.33 |
21.34 |
7.5 mm |
|
P85739-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD |
3.74 |
21.35 |
18.04 |
17.96 |
19.13 |
17.53 |
21.41 |
7.5 mm |
|
P85741-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD |
3.73 |
17.94 |
16.12 |
13.29 |
19.43 |
16.69 |
19.76 |
7.5 mm |
|
P85743-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD |
5.05 |
21.11 |
17.97 |
15.82 |
22.40 |
20.24 |
23.07 |
7.5 mm |
|
P85745-B21 |
HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin PQC27 CM9 SSD |
4.53 |
23.20 |
15.44 |
17.15 |
24.06 |
16.60 |
24.80 |
7.5 mm |
|
P91229-B21 |
HPE 3.84TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
4.50 |
22.26 |
19.60 |
19.61 |
20.71 |
19.04 |
24.00 |
7.5 mm |
|
P91231-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
4.50 |
23.62 |
21.51 |
22.15 |
23.36 |
21.71 |
24.00 |
7.5 mm |
|
P91233-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3.S EC1 E3 Thin Multi Vendor SSD |
4.90 |
24.38 |
23.21 |
23.32 |
23.75 |
23.08 |
25.00 |
7.5 mm |
|
NVMe High Performance Self-Encrypting Drives (SED) and Federal Information Processing Standards (FIPS) E3S SSDs | |||||||||
|
P70674-B21 |
HPE 7.68TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD |
4.07 |
23.62 |
21.51 |
22.15 |
23.36 |
21.26 |
24 |
7.5 mm |
|
P79122-B21 |
HPE 15.36TB NVMe Gen5 High Performance Read Intensive E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD |
4.41 |
24.38 |
23.21 |
23.32 |
23.75 |
22.23 |
25 |
7.5 mm |
|
P70669-B21 |
HPE 3.2TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD |
4.05 |
22.14 |
19.74 |
19.57 |
20.73 |
18.97 |
24 |
7.5 mm |
|
P70672-B21 |
HPE 6.4TB NVMe Gen5 High Performance Mixed Use E3S EC1 Self-encrypting FIPS 140-3 CM7 SSD |
4.13 |
23.65 |
20.52 |
22.31 |
23.24 |
21.26 |
24 |
7.5 mm |
|
Notes: B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. Please use HPE Selector Tool https://ssd.hpe.comto determine server compatibility. | |||||||||
|
|
|
NVMe EDSFF E3.S Certifications - Prequalified certification will be listed in the HPE Selector Tool https://ssd.hpe.com - For latest vSAN Compatibility, please visit Broadcom vSAN SSD Compatibility Guide and enter specific HPE Part Number to confirm compatibility. - For latest Windows OS Certification and SDDC (Software Defined Data Center) Premium AQ Certification please visit https://www.windowsservercatalog.com and enter specific HPE Model Number to confirm compatibility. |
|
|
|
M.2 Capacity, Workload, Carrier Specifications |
|
M.2s- (Capacity, Workload, Carrier...) | ||||||||||||||
|
HPE Option Kit SKU |
Long Description |
Capacity |
Workload |
Interface Type |
Form Factor |
Plug Type |
Carrier Type |
Digitally Signed Firmware (DS) |
Flash Type |
Server Gen Supported (Select Platforms) | ||||
|
Read Intensive SATA M.2s | ||||||||||||||
|
P47818-B21 |
HPE 480GB SATA 6G Read Intensive M.2 Multi Vendor SSD |
480 |
RI |
SATA |
M.2 |
Non-Hot Plug |
N/A |
Yes |
TLC |
Gen10,10 Plus, 11 | ||||
|
|
|
M.2 Speeds and Feeds Specifications |
|
M.2s- (Speeds & Feeds) | |||||||
|
HPE Option Kit SKU |
Long Description |
Lifetime Writes (TB) |
Endurance DWPD |
MAX Seq Reads / Max Seq Writes Throughput (MiB/s) |
Random Read Avg. / Random Write Avg. Latency uSec (4KiB,Q1) |
Random Read / Random Writes IOPS (4KiB, Q=16) |
MAX Random Read / MAX Random Write IOPS (4KiB) |
|
Read Intensive SATA M.2s | |||||||
|
P47818-B21 |
HPE 480GB SATA 6G Read Intensive M.2 Multi Vendor SSD |
1,324 |
1.50 |
510 / 400 |
125 / 45 |
64,000 / 38,000 |
74,500@Q632 / 39,500@Q256 |
|
Notes: - B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. - Please use HPE Selector Tool https://ssd.hpe.comto determine server compatibility. | |||||||
|
|
|
M.2 Power and Height Specifications |
|
M.2s- (Power & Height) | |||||||||
|
Read Intensive SATA M.2s | |||||||||
|
P47818-B21 |
HPE 480GB SATA 6G Read Intensive M.2 Multi Vendor SSD |
1.20 |
4.00 |
4.00 |
2.75 |
4.10 |
2.30 |
4.10 |
2280 M.2 |
|
Notes: B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines.
| |||||||||
|
|
|
M.2s Certifications - Prequalified certification will be listed in the HPE Selector Tool https://ssd.hpe.com. - For latest vSAN Compatibility, please visit Broadcom vSAN SSD Compatibility Guide and enter specific HPE Part Number to confirm compatibility. - For latest Windows OS Certification and SDDC (Software Defined Data Center) Premium AQ Certification please visit https://www.windowsservercatalog.com and enter specific HPE Model Number to confirm compatibility. |
|
|
|
M.2 Capacity, Workload, Carrier Specifications |
|
M.2s- (Capacity, Workload, Carrier...) | |||||||||||
|
HPE Option Kit SKU |
Long Description |
Capacity |
Workload |
Interface Type |
Form Factor |
Plug Type |
Carrier Type |
Digitally Signed Firmware (DS) |
Flash Type |
Server Gen Supported (Select Platforms) |
|
|
P80318-B21 |
HPE 480GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD |
480 |
RI |
NVMe |
M.2 |
Non-Hot Plug |
N/A |
Yes |
TLC |
Gen10 Plus, 11, 12 |
|
|
P80321-B21 |
HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD |
960 |
RI |
NVMe |
M.2 |
Non-Hot Plug |
N/A |
Yes |
TLC |
Gen10 Plus, 11, 12 |
|
|
P80324-B21 |
HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD |
1,920 |
RI |
NVMe |
M.2 |
Non-Hot Plug |
N/A |
Yes |
TLC |
Gen10 Plus, 11, 12 |
|
|
P80327-B21 |
HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 Self-encrypting PE9010 SSD |
960 |
RI |
NVMe |
M.2 |
Non-Hot Plug |
N/A |
Yes |
TLC |
Gen10 Plus, 11, 12 |
|
|
Notes: - B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. - Multi-vendor SKUs are composed of numerous vendors manufactured SSDs within a given NVMe M.2 capacity SKU. When ordering a particular SKU-B21 number the customer will receive a homogenous set of vendors manufactured SSDs in that capacity that has met or exceeds the HPE qualification standards published above. - Please use HPE Selector Tool https://ssd.hpe.com to determine server compatibility. |
|
|
|
M.2 Speeds and Feeds Specifications MULTI VENDOR |
|
M.2s- (Speeds & Feeds) MULTI VENDOR | |||||||
|
HPE Option Kit SKU |
Long Description |
Lifetime Writes (TB) |
Endurance DWPD |
MAX Seq Reads / Max Seq Writes Throughput (MiB/s) |
Random Read Avg. / Random Write Avg. Latency uSec (4KiB,Q1) |
Random Read / Random Writes IOPS (4KiB, Q=16) |
MAX Random Read / MAX Random Write IOPS (4KiB) |
|
P80318-B21 |
HPE 480GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD |
893 |
1.12 |
7,020 / 1,007 |
57 / 26 |
227,730 / 38,082 |
693,583@Q256 / 38,285@Q64 |
|
P80321-B21 |
HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD |
1,799 |
1.12 |
7,103 / 2,027 |
57 / 14 |
242,097 / 73,900 |
1,097,749@Q256 / 72,317@Q1 |
|
P80324-B21 |
HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD |
3,264 |
1.02 |
7,022 / 2,416 |
57 / 12 |
247,129 / 92,641 |
1,125,900@Q256 / 92,758@Q64 |
|
P80327-B21 |
HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 Self-encrypting PE9010 SSD |
1,799 |
1.12 |
7,103 / 2,027 |
57 / 14 |
242,097 / 73,900 |
1,097,749@Q256 / 72,317@Q1 |
|
Notes: - B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. - Multi-vendor SKUs are composed of numerous vendors manufactured SSDs within a given NVMe M.2 capacity SKU. When ordering a particular SKU-B21 number the customer will receive a homogenous set of vendors manufactured SSDs in that capacity that has met or exceeds the HPE qualification standards published above. - Please use HPE Selector Tool https://ssd.hpe.comto determine server compatibility. |
|
|
|
M.2 Power and Height Specifications MULTI VENDOR |
|
M.2s- (Power & Height) MULTI VENDOR | |||||||||
|
HPE Option Kit SKU |
Long Description |
Power |
Power Random Read (Watts) |
Power Random Write (Watts) |
Power Sequential Read |
Power Sequential Write (Watts) |
Power Random R/W (Watts) |
Power MAX (Watts) |
z- Height |
|
P80318-B21 |
HPE 480GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD |
2.05 |
4.16 |
3.37 |
4.13 |
3.34 |
3.3 |
4.2 |
2280 M.2 |
|
P80321-B21 |
HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD |
2.13 |
5.61 |
4.85 |
6.03 |
4.81 |
4.65 |
6.3 |
2280 M.2 |
|
P80324-B21 |
HPE 1.92TB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 PE9010 SSD |
2.24 |
6.67 |
6.23 |
7.45 |
6.53 |
5.42 |
7.82 |
2280 M.2 |
|
P80327-B21 |
HPE 960GB NVMe Gen4 Mainstream Performance Read Intensive M.2 2280 Self-encrypting PE9010 SSD |
2.13 |
5.61 |
4.85 |
6.03 |
4.81 |
4.65 |
6.3 |
2280 M.2 |
|
Notes: - B21 SKU suffix may be replaced with -H21 and/or -K21 to support across different server family lines. - Multi-vendor SKUs are composed of numerous vendors manufactured SSDs within a given NVMe M.2 capacity SKU. When ordering a particular SKU-B21 number the customer will receive a homogenous set of vendors manufactured SSDs in that capacity that has met or exceeds the HPE qualification standards published above. - Please use HPE Selector Tool https://ssd.hpe.comto determine server compatibility.
|
|
M.2s Certifications MULTI VENDOR - Prequalified certification will be listed in the HPE Selector Tool https://ssd.hpe.com - For latest vSAN Compatibility, please visit Broadcom vSAN SSD Compatibility Guide and enter specific HPE Part Number to confirm compatibility. - For latest Windows OS Certification and SDDC (Software Defined Data Center) Premium AQ Certification please visit https://www.windowsservercatalog.com and enter specific HPE Model Number to confirm compatibility. |
|
Carrier Key Decoder HPE Solid State Drives (SSDs) utilize a wide variety of carriers, which houses the SSD and enables a specific chassis fit to support a broad range of HPE server and storage products.
The table below summarizes the various form factors, plug types, and carrier attributes. |
|
|
|
SATA/SAS - SFF/LFF - SSD | ||||||||||
|
Form Factor |
Smart or |
Hot Plug or |
Carrier Name (Abbreviation) |
Carrier Abbreviation |
Size/Form Factor | |||||
|
Non-Smart |
Non-Hot Plug | |||||||||
|
SFF Carrier (2.5") |
Smart |
Hot Plug |
Smart Carrier (SC) |
SC |
SFF | |||||
|
Non-Smart |
Basic Carrier (BC) |
BC |
SFF | |||||||
|
LFF Carrier (3.5") |
Smart |
Hot Plug |
Smart Carrier Converter (SCC) |
SCC |
LFF | |||||
|
Non-Smart |
Low Profile Converter (LPC) |
LPC |
LFF | |||||||
|
No Carrier |
Non-Smart |
Non-Hot Plug |
Raw No Carrier (RW) |
RW |
SFF/LFF | |||||
|
NVMe - SFF/AIC SSD | ||||||||||
|
Form Factor |
Smart or |
Hot Plug or |
Carrier Name (Abbreviation) |
Carrier Abbreviation |
Size/Form Factor | |||||
|
Non-Smart |
Non-Hot Plug | |||||||||
|
SFF Carrier (2.5") |
Smart |
Hot Plug |
Smart Carrier NVMe (SCN) |
SCN |
SFF | |||||
|
Smart Carrier (SC) |
SC |
SFF | ||||||||
|
Non-Smart |
Basic Carrier (BC) |
BC |
SFF | |||||||
|
Non-Hot Plug |
Raw No Carrier (RW) |
RW |
SFF | |||||||
|
NVMe Add-in-Card |
Non-Smart |
Non-Hot Plug |
NVMe Add-in-Card (AIC) |
AIC |
HHHL | |||||
|
SATA/NVMe - M.2 & Enablement Kits | ||||||||||
|
Form Factor |
Smart or |
Hot Plug or |
Carrier Name (Abbreviation) |
Carrier Abbreviation |
Size/Form Factor | |||||
|
Non-Smart |
Non-Hot Plug | |||||||||
|
SATA M.2 2280 |
Smart |
Hot Plug |
Smart Carrier M.2 (SCM) |
SCM |
SFF | |||||
|
Non-Smart |
Non-Hot Plug |
Raw Standalone M.2 (N/A) |
N/A |
M.2 | ||||||
|
NVMe M.2 2280 |
Non-Smart |
Non-Hot Plug |
Raw Standalone M.2 (N/A) |
N/A |
M.2 | |||||
|
NVMe - EDSFF SSD | ||||||||||
|
EDSFF E3.S |
Smart |
Hot Plug |
E3.S 1T Thin Carrier (EC1) |
EC1 |
E3.S | |||||
|
EDSFF E3.S |
Smart |
Hot Plug |
E3.S 2T Thick Carrier (EC2) |
EC2 |
E3.S | |||||
|
|
|
SAS, SATA, NVMe SSD SKU Decoders The following charts are provided to assist in decoding the SSD short & long product descriptions; additional details can also be found within the Carrier Key Decoder & the Previous to Current Workload Naming Conversion tables within this document. Please contact product management for any questions.
|
|
|
|
|
|
SATA/ SAS/ NVMe SSD SKU Decoder Long Name |
|
Notes: If the description exceeds character count: - Abbreviate Special Features starting from lowest priority item - Drop form factor from the description - Abbreviate Endurance with the exception Very-read-optimized |
|
|
|
|
|
|
|
|
|
NVMe EDSFF E3.S SSD SKU Decoder Long |
|
|
|
|
|
|
|
|
|
M.2 SSDs SKU Decoder Long Name |
|
|
|
|
|
Environment friendly Products and Approach End-of life Management and Recycling Hewlett Packard Enterprise offers end-of-life product return, trade-in, and recycling programs, in many geographic areas, for our products. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner. The European Union Waste Electrical and Electronic Equipment Directive [EU WEEE] (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment. |
|
|
|
Date |
Version History |
Action |
Description of Change |
|
03-Aug-2026 |
Version 76 |
Changed |
Technical Specifications section was updated |
|
06-Jul-2026 |
Version 75 |
Changed |
Technical Specifications section was updated |
|
Added |
7600 and CM9 E3.S and SFF | ||
|
01-Jun-2026 |
Version 74 |
Added |
Multivendor NVMe SKUs for E3.S and SFF, PM9D3a, 9550 |
|
Changed |
Overview and Technical Specifications sections were updated. | ||
|
Removed |
HPE NVMe Gen4 High Performance Read Intensive SFF BC U.3 Static PM1573 SSD | ||
|
04-May-2026 |
Version 73 |
Added |
Add PM1755/PM1753 SFF and E3.S |
|
05-Jan-2026 |
Version 72 |
Changed |
Overview and Technical Specifications sections were updated. |
|
Added |
HPE 7.68TB SAS Read Intensive SFF BC Self-encrypting FIPS 140-2 PM7 SSD (P63879-B21) HPE 30.72TB NVMe Gen5 High Performance Read Intensive E3S EC1 EDSFF SPDM 9550 SSD (P79965-B21 | ||
|
01-Dec-2025 |
Version 71 |
Changed |
Overview and Technical Specifications sections were updated. |
|
Added |
HPE 1.6TB SAS Mixed Use SFF BC Self-encrypting FIPS 140-3 PM7 SSD (P83344-B21) HPE 3.84TB SAS Read Intensive SFF BC Self-encrypting FIPS 140-3 PM7 SSD (P83347-B21) | ||
|
Removed |
HPE 15.36TB NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static SPDM Multi Vendor SSD | ||
|
03-Nov-2025 |
Version 70 |
Added |
HPE NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500b SSD SKUs. (P84239-B21) HPE NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 Static V2 SPDM Multi Vendor SSD (P84236-B21) |
|
02-Sep-2025 |
Version 69 |
Changed |
Overview section was updated. |
|
Added |
HPE NVMe Gen4 Mainstream Performance Read Intensive SFF BC U.3 SPDM 7500 SSD SKUs. (P84242-B21 and P84244-B21). | ||
|
07-Jul-2025 |
Version 68 |
Changed |
Update VMware to Broadcom vSAN |
|
Removed |
SKUs from "What´s New" Table on Page2: P79065-B21, P80318-B21, P80321-B21, P80324-B21. | ||
|
02-Jun-2025 |
Version 67 |
Changed |
30TB P5430, V2 MV M.2, and SED M.2 added and the following SKUs were removed: P79122-B21, P51460-B21, P51459-B21, P51461-B21, P51455-B21, P51458-B21 |
|
07-Apr-2025 |
Version 66 |
Changed |
15TB FIPS CM7 added. |
|
18-Feb-2025 |
Version 65 |
Changed |
Survey added |
|
03-Feb-2025 |
Version 64 |
Changed |
Overview & What´s New Section was updated PE1010/PE1030 added & Obsolete SKUs were removed |
|
02-Dec-2024 |
Version 63 |
Changed |
FIPS CM7 SFF/E3S added. Update VSAN and Windows Server Hyperlink |
|
01-Jul-2024 |
Version 62 |
Changed |
PS1010/PS1030 SFF/E3S added. CD8P E3S added. |
|
03-Jun-2024 |
Version 61 |
Changed |
U.3ST SPDM MV SFF added |
|
06-May-2024 |
Version 60 |
Changed |
E3S P5430 added. |
|
04-Mar-2024 |
Version 59 |
Changed |
PM9A3 M.2 added. |
|
05-Feb-2024 |
Version 58 |
Changed |
New drive models have been added. Obsolete SKUs have been removed. |
|
Date |
Version History |
Action |
Description of Change |
|
08-Jan-2024 |
Version 57 |
Changed |
Added PM893a and FIPS PM7. Updated NVMe Main U.3ST Power specs |
|
04-Dec-2023 |
Version 56 |
Changed |
SFF and E3.S CM7 added. Updated SATA/SAS/VSAS/NVMe/M.2 MV Specifications |
|
05-Sep-2023 |
Version 55 |
Changed |
MV NVMe main V2 added, Consolidate duplicate SATA data |
|
05-Jun-2023 |
Version 54 |
Changed |
Micron 5400 1.92TB SED added. E3.S VMware restriction removed |
|
03-Apr-2023 |
Version 53 |
Changed |
Kioxia and Samsung EDSFF E3.S Added |
|
10-Jan-2023 |
Version 52 |
Changed |
Micron 5400 SED added. Technical Specifications revised and updated |
|
05-Dec-2022 |
Version 51 |
Changed |
New drive models have been added. Technical Specifications revised and updated |
|
01-Aug-2022 |
Version 50 |
Changed |
New drive models have been added. Technical Specifications revised and updated |
|
05-Jul-2022 |
Version 49 |
Changed |
New drive models have been added. Technical Specifications revised and updated |
|
04-Apr-2022 |
Version 48 |
Changed |
Overview updated. New drive models have been added. Technical Specifications revised and updated |
|
07-Feb-2022 |
Version 47 |
Changed |
Technical Specifications section was updated |
|
10-Jan-2022 |
Version 46 |
Changed |
Technical Specifications section was updated |
|
06-Dec-2021 |
Version 45 |
Changed |
Technical Specifications section was updated |
|
01-Nov-2021 |
Version 44 |
Changed |
Technical Specifications section was updated |
|
04-Oct-2021 |
Version 43 |
Changed |
Technical Specifications section was updated |
|
07-Sep-2021 |
Version 42 |
Changed |
Technical Specifications section was updated |
|
07-Jun-2021 |
Version 41 |
Changed |
Tables were fixed and updated |
|
04-May-2021 |
Version 40 |
Changed |
Technical Specifications section was updated |
|
06-Apr-2021 |
Version 39 |
Changed |
Tables were fixed and updated |
|
01-Feb-2021 |
Version 38 |
Changed |
Technical Specifications section was updated |
|
07-Dec-2020 |
Version 37 |
Changed |
Technical Specifications section was updated |
|
05-Oct-2020 |
Version 36 |
Changed |
Technical Specifications section was updated |
|
17-Aug-2020 |
Version 35 |
Changed |
Technical Specifications and Overview Sections were updated |
|
13-Jul-2020 |
Version 34 |
Changed |
Technical Specifications section was updated |
|
18-May-2020 |
Version 33 |
Changed |
Tables were fixed and updated |
|
27-Apr-2020 |
Version 32 |
Changed |
Technical Specifications section was updated |
|
03-Feb-2020 |
Version 31 |
Changed |
Technical Specifications section was updated |
|
16-Dec-2019 |
Version 30 |
Changed |
Format Revised |
|
02-Dec-2019 |
Version 29 |
Changed |
New drive models have been added. Technical Specifications revised and updated |
|
07-Oct-2019 |
Version 28 |
Changed |
New drive models have been added. Technical Specifications revised and updated |
|
05-Aug-2019 |
Version 27 |
Changed |
Technical Specifications section was updated |
|
01-Jul-2019 |
Version 26 |
Changed |
Technical Specifications section was updated |
|
03-Jun-2019 |
Version 25 |
Changed |
New drive models have been added. Technical Specifications revised and updated |
|
Date |
Version History |
Action |
Description of Change |
|
02-Apr-2019 |
Version 24 |
Changed |
New drive models have been added. Technical Specifications revised and updated |
|
07-Jan-2019 |
Version 23 |
Changed |
Technical Specifications section was updated |
|
03-Dec-2018 |
Version 22 |
Changed |
New drive models have been added. Technical Specifications revised and updated |
|
15-Oct-2018 |
Version 21 |
Changed |
Technical Specifications Section was updated |
|
01-Oct-2018 |
Version 20 |
Changed |
New drive models have been added. Technical Specifications revised and updated |
|
06-Aug-2018 |
Version 19 |
Changed |
New drive models have been added. Technical Specifications revised and updated |
|
02-Jul-2018 |
Version 18 |
Changed |
Overview and SKU description were updated |
|
04-Jun-2018 |
Version 17 |
Changed |
New drive models have been added. Technical Specifications revised and updated |
|
02-Apr-2018 |
Version 16 |
Changed |
New drive models added, Technical Specifications revised and updated |
|
05-Mar-2018 |
Version 15 |
Changed |
Technical Specifications revised and updated, images revised |
|
05-Feb-2018 |
Version 14 |
Changed |
Format Revised and new drive models added |
|
04-Dec-2017 |
Version 13 |
Changed |
New drive model was added Technical Specifications were revised |
|
02-Oct-2017 |
Version 12 |
Changed |
Technical Specifications were revised |
|
25-Sep-2017 |
Version 11 |
Changed |
New drive models were added Technical Specifications were revised The title was changed to HPE Solid State Disk Drives (SSD & Add-In Cards) |
|
14-Aug-2017 |
Version 10 |
Changed |
Technical Specifications were revised |
|
07-Aug-2017 |
Version 9 |
Changed |
Technical Specifications were revised |
|
17-Jul-2017 |
Version 8 |
Changed |
Technical Specifications were revised |
|
28-Jun-2017 |
Version 7 |
Changed |
Technical Specifications were revised |
|
12-Jun-2017 |
Version 6 |
Changed |
Technical Specifications were revised |
|
06-Jun-2017 |
Version 5 |
Changed |
Technical Specifications were revised |
|
17-Mar-2017 |
Version 4 |
Changed |
SSD Selection verbiage was revised |
|
10-Mar-2017 |
Version 3 |
Changed |
Edits to tables and various verbiage |
|
17-Feb-2017 |
Version 2 |
Changed |
Technical Specifications were revised |
|
13-Feb-2017 |
Version 1 |
New |
New QuickSpecs |
|
|
|
Have feedback on QuickSpecs? We're listening | |
|
|
|
| |
|
|
|
Chat now | |
|
|
|
© Copyright 2026 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation.
a00001288enw - 15831 - Worldwide - V76 - 03-August-2026 | |
|
|
|
HEWLETT PACKARD ENTERPRISE HPE.com |
|
