HPE MSA P2000 G3 Modular Smart Array Systems

HPE's MSA P2000 Family of storage arrays features P2000 G3 arrays with the latest 8 GB Fibre Channel, 6 GB SAS, 10GbE iSCSI connected models, and an iSCSI model with four 1 GB iSCSI ports per controller. The arrays are designed for entry-level customers and feature the latest in functionality and host-connect technology while offering excellent price/performance. They are ideal for companies with small budgets or limited IT expertise, and also larger companies with departmental or remote requirements. Each solution is designed to be easy to deploy, to be secure, along with low management costs, while driving rapid return on investment through efficient storage consolidation.

The MSA P2000 G3 arrays are 2U storage area network (SAN) or direct connect solutions (OS and protocol dependent) offering a choice of five controllers - two FC, one SAS, one 10GbE iSCSI and the newest model features a four port 1 GB iSCSI. The first Fibre Channel controller is a high-performance, 8 GB dual port model. The second offering is a unique dual-purpose Combo controller with two 8 GB Fibre Channel ports with the addition of two 1GbE iSCSI ports. The third controller choice is 6Gb SAS with four ports per controller. There is also the addition of a two port 10 GB iSCSI, while the latest controller introduction features four 1 GB iSCSI ports per controller. Whatever the situation calls for, the P2000 G3 line-up has the right solution.

The dual-protocol MSA P2000 G3 MSA FC/iSCSI Combo Controller gives exceptional flexibility. The 8 GB FC ports support a full FC SAN while the two 1GbE iSCSI ports can serve two purposes. With this combination you can economically share the array storage resource with a smaller department accessing it over iSCSI or enable the new optional Remote Snap functionality over iSCSI protocol (also available over FC).

The MSA P2000 G3 SAS is the follow-on product to the MSA2000sa G2, adding the latest 6 GB SAS technology to the four host ports per controller. The P2000 G3 SAS array is designed for directly attaching up to four dual-path or eight single path rack servers. SAS array support for BladeSystems utilizes the HPE 6 GB SAS BL Switch.

The MSA P2000 G3 10GbE iSCSI brings the very latest in high-performance host connection with technology generally found only in higher priced arrays. The bandwidth it provides in conjunction with server consolidation is highly advantageous in shared storage configurations. Array connection to 10GbE switches that are in turn connected to 1GbE NICs is commonplace. Directly attached server support requires the server units to have 10GbE NICs.

Rounding out the controller choices is the MSA P2000 G3 iSCSI controller featuring four 1Gb iSCSI Ethernet ports, double the number of the G2 model. This allows an array that keeps the price of the components, particularly the interconnection, low while markedly increasing the performance capabilities.

All MSA P2000 G3 models can be equipped with single or dual controllers, feature the same scalability, and offer 6 GB SAS back-end transmission speed to drives and JBODs. Significant data protection advances are delivered by the all P2000 G3 arrays. All G3 units come STANDARD with sixty-four snapshot capability at no extra cost and there is an option for the G3 series of five hundred and twelve snapshots. Volume Copy (clone) also comes standard. In a further move to protect the user's data, optional Remote Snap (replication) capability is offered on the FC, FC/iSCSI, and both iSCSI versions.

All MSA P2000 G3 models support hot plug replacement of redundant controllers, fans, power supplies, and I/O modules. Hot add of expansion enclosures is also supported.

The controller-less MSA P2000 chassis is offered in two models - one comes standard with twelve Large Form Factor (LFF) 3.5-inch drive bays, the other can accommodate twenty-four Small Form Factor (SFF) 2.5-inch drives. Both are able to simultaneously support enterprise-class SAS drives, SAS Midline, and archival-class SATA Midline drives. Either chassis can have one or two matching P2000 G3 controllers (same protocol) and are available with AC or DC power Supplies.

The Hewlett Packard Enterprise modular approach to entry level SAN solutions enables incremental customer purchases, allowing the array to grow as needs grow, thus allowing a maximum return on investment. Choose a single controller unit for low initial cost with the ability to upgrade later; or decide on a model with dual controllers for the most demanding entry-level situations. There are no unexpected additional charges, licenses or fees as you add enclosures or hosts and users.

Capacity can easily be added as the need develops by attaching additional drive enclosures. Maximum capacity ranges with LFF drives up to 57.6 TB SAS, 576 TB SAS Midline or 192 TB SATA Midline with the addition of the maximum number of drive enclosures. Configurations utilizing the SFF drive chassis and the maximum number of drive enclosures can grow to 178 TB of SAS, 149 TB of SAS Midline or 74.5 TB SATA Midline with a total of 96 LFF or 149 SFF drives. The P2000 G3 Arrays do not support SSDs.

What's New in the P2000 G3 array family

• Introducing support for 12G SFF Hard Disk Drives.

- HPE MSA 300GB 12G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Drive

- HPE MSA 600GB 12G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Drive

- HPE MSA 900GB 12G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Drive

- HPE MSA 1.2TB 12G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Hard Drive

HPE P2000 G3 SFF Modular Smart Array

HPE P2000 G3 LFF Modular Smart Array

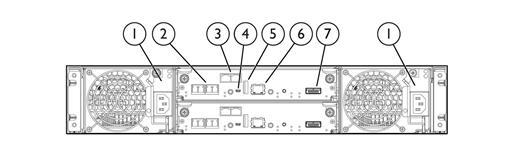

P2000 G3 FC Controllers, 2 installed

1.

Power supplies

4.

Reserved for future use

2.

8 GB Fibre Channel ports

5.

Management Ethernet port

3.

CLI port (mini-USB)

6.

Expansion port

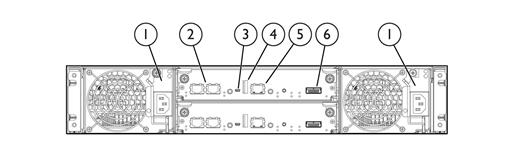

P2000 G3 FC/iSCSI Combo Controllers, 2 installed

1.

Power supplies

5.

Reserved for future use

2.

8 GB Fibre Channel ports

6.

Management Ethernet port

3.

1GbE iSCSI ports

7.

Expansion port

4.

CLI port (mini-USB)

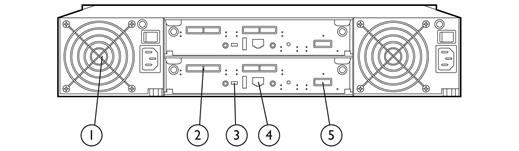

P2000 G3 SAS controllers, 2 installed

1.

Power supplies

4.

Management Ethernet port

2.

6Gb SAS ports (four per controller)

5.

Expansion port

3.

CLI port (mini-USB)

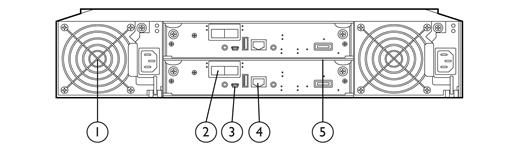

P2000 G3 10GbE iSCSI controllers, 2 installed

1.

Power supplies

4.

Management Ethernet port

2.

10GbE iSCSI ports

5.

Expansion port

3.

CLI port (mini-USB)

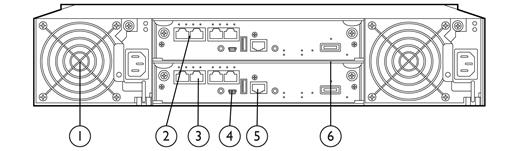

P2000 G3 iSCSI dual controller

1.

Power supplies

4.

CLI port (mini-USB)

2.

1 GbE iSCSI ports (4)

5.

Management Ethernet port

3.

1 GbE iSCSI ports (4)

6.

Expansion port

P2000 G3
Modular Smart Array

P2000 G3 Controllers

P2000 G3 Fibre Channel Controllers

HP P2000 G3 MSA Fibre Channel Controller
NOTE: two 8Gb FC ports per controller

AP836B

HP P2000 G3 MSA FC/iSCSI Combo Modular Smart Array Controller
NOTE: two 8Gb FC ports and two 1GbE iSCSI ports per controller

AP837B

P2000 G3 SAS Controller

HP P2000 G3 SAS MSA Array System Controller
NOTE: four 6Gb SAS ports per controller

AW592B

P2000 G3 10GbE iSCSI controller

HP P2000 G3 10GbE iSCSI MSA Array System Controller
NOTE: two 10GbE iSCSI ports per controller

AW595B

P2000 G3 iSCSI controller (1Gb Ethernet)

HP P2000 G3 iSCSI MSA Array System Controller
NOTE: four 1Gb iSCSI ports per controller

BK829B

P2000 Chassis

P2000 Controller-less Chassis (AC-powered)

HP P2000 LFF Modular Smart Array Chassis
NOTE: Will accept one or two controllers or Disk Enclosure I/O modules

AP838B

HP P2000 SFF Modular Smart Array Chassis
NOTE: Will accept one or two controllers, not I/O modules

AP839B

P2000 G3 Configured Array Systems

Configured Units, 8 GB Fibre Channel Systems

HP P2000 G3 MSA FC/iSCSI Dual Combo Controller LFF Array

AW567B

HP P2000 G3 MSA FC/iSCSI Dual Combo Controller SFF Array

AW568B

Configured Units, 6 GB SAS Systems

HP P2000 G3 SAS MSA Dual Controller LFF Array System

AW593B

HP P2000 G3 SAS MSA Dual Controller SFF Array System

AW594B

Configured Units, 10GbE iSCSI Systems

HP P2000 G3 10GbE iSCSI MSA Dual Controller LFF Array System

AW596B

HP P2000 G3 10GbE iSCSI MSA Dual Controller SFF Array System

AW597B

Configured Units, 1Gb iSCSI Systems

HP P2000 G3 iSCSI MSA Dual Controller LFF Array System

BK830B

HP P2000 G3 iSCSI MSA Dual Controller SFF Array System

BK831B

P2000 G3 FC SAN Starter Kits

HP P2000 G3 FC MSA Dual Controller Small Business SAN Starter Kit

AP847B

includes (1) HPE P2000G3 MSA FC Dual Controller LFF Array (AP845B) , (2) HPE SN6000 12port Single Power FC Switch (BK780B) , (4) HPE 81Q PCI-e FC Single Port HBA (AK344A), (12 ) 8Gb Short Wave FC SFPs (AJ718A ), and (8 ) HPE 5M OM3 FC Cables (AJ836A ).

HP P2000 G3 FC MSA Dual Controller Virtualization SAN Starter Kit

AP848B

(includes (1) HPE P2000G3 MSA FC Dual Controller SFF Array (AP846B) , (2) HPE 8/24 Base 16 Ports Enabled SAN Switch (AM868B) , (6) HPE 81B PCI-e 8Gb FC Single Port HBA (AP769A), (16 ) 8Gb Short Wave B Series FC SFPs (AJ716B ), and (10 ) HPE 5M OM3 FC Cables (AJ836A )

Disk Enclosures

HP P2000 Dual I/O LFF Drive Enclosure

AP843B

HP P2000 LFF Drive Enclosure I/O Module

AP844B

HPE D2700 Disk Enclosure

AJ941A

HPE MSA 2040 Energy Star LFF Disk Enclosure

M0S96A

Controller-less Chassis (DC-powered)

HP P2000 DC-power LFF Chassis

AP840B

(can add one or two P2000 G3 controllers or P2000 JBOD I/O modules)

HP P2000 DC-power SFF Chassis

AP841B

P2000 G3 Array Bundles
In some areas Hewlett Packard Enterprise is offering P2000 G3 Array bundles with SFF SAS drives. These bundles can simplify the process of ordering. Hewlett Packard Enterprise offers these bundles with different type of P2000 G3 Array controllers for different storage capacity needs.

NOTE: These bundles are not offered worldwide so please check the availability for your region

Key Features

The HPE P2000 G3 Modular Smart Array family encompasses five controllers, each featuring different protocols or combination of protocols to match the exact needs of the user.

• P2000 G3 FC/iSCSI Combo MSA controller: this unique controller offers both 8 GB Fibre Channel and 1 GbE iSCSI functionalities built into a single array controller. This allows customers to enable storage needing high performance thru the FC ports while leveraging their SAN investment by sharing the array resources with smaller departments through low-cost iSCSI. It also enables optional Remote Snap (replication) for data protection.
• P2000 G3 FC MSA controller: Dual 8 GB Fibre Channel host ports per controller give high performance with a mature topology and is compatible with the largest installed base of SAN users.
• P2000 G3 10GbE iSCSI MSA controller: Hewlett Packard Enterprise was the first of the major modular array manufacturers that brought a high performance dual-ported 10GbE iSCSI solution to the entry level segment. Ideal for those who want to utilize cost-effective Ethernet as their infrastructure without sacrificing access time to their data. Now supports Remote Snap (replication).
• P2000 G3 SAS MSA controller: the P2000 G3 SAS model gives fast 6 GB transmission rates with low cost SAS connections. Four host ports per controller support a highly efficient direct connect configuration.
• P2000 G3 iSCSI MSA controller offers four 1 GB iSCSI ports utilizes the popular Ethernet infrastructure with its low cost and ease of management, while the additional ports assure increased performance over the previous generation. Now supports Remote Snap (replication).

All P2000 G3 models offer a common set of valuable features:

• Ease of management featuring browser-based out-of-band access. This allows a department or small company to effectively handle growing storage requirements, with the aid of an intuitive GUI to administer the unit with a minimum of complexity. Ideal for local or remote installations.
• All G3 models come standard with 64 controller-based snapshots and clone capability. The G3 arrays also support an optional 512 snaps.
• Choose either a low-cost single controller array or start with a configured dual controller array model to fit the budget, high availability, and performance needs.
• All models feature a wide variety of drives: enterprise-class SAS, SAS Midline, and archival-class SATA Midline in either P2000 LFF 3.5-inch or HPE Storage SFF 2.5-inch drives.
• P2000 G3 models can have a maximum number of P2000 LFF drive enclosures (7), a maximum number of D2700 SFF enclosures (5), or mix both sizes. The array can grow incrementally from a few drives to 178 TB SAS, 576 TB of SAS MDL or 192 TB SATA MDL.
• 2 GB transportable read/write cache per controller. Battery-free cache backup with super capacitors and compact flash
• Vdisks can be spanned across multiple enclosures
  RAID levels 0, 1, 3, 5, 6, 10, 50
• Maximums vary by RAID levels: 2 drive max for RAID level 1; max of 16 drives for RAID levels 0, 3, 5, 6, and 10; max of 32 drives for RAID level 50
• 512 LUNs with LUN sizes greater than 40TB depending on the RAID configuration chosen. The maximum LUN size is 64TB
• Non-disruptive on-line controller code upgrade (requires dual controllers w/ multi-pathing software)
• Upgradable by design. Owners of an original MSA2000 G1 or G2 array are able to do data-in-place controller upgrades to the P2000 G3 FC, Combo FC/iSCSI, 1 GB or 10GbE iSCSI, or P2000 G3 SAS. Cross protocol upgrades are also supported between the protocols. This unique ability protects the earlier investments in chassis, drives, and JBODs

Follow us on twitter and be a part of the conversation, and get the latest P2000 G3/MSA related news and information at:
http://www.twitter.com/MSAstorage

HPE P2000 G3 FC MSA SAN Starter Kits

The new P2000 G3 FC MSA SAN Starter kits are offered to simplify ordering and implementation of your SAN. Hewlett Packard Enterprise includes all the necessary hardware components to build your own SAN solution in one package, just add the drives of your choice. These kits are offered at very affordable prices which reflect a savings over purchasing each SAN component separately.

Virtualization SAN Starter Kit

HP P2000 G3 FC MSA Dual Controller Virtualization SAN Starter Kit

AP848B

The HPE P2000 G3 FC MSA Dual Controller Virtualization SAN Starter Kit addresses the growing need for server and storage administrators to deliver end-to-end storage, virtualization, and management capabilities across their network infrastructure. The hardware bundle consists of six Host Bus Adapters (HBAs), two FC switches, a P2000 G3 FC MSA Dual Controller Array (SFF Chassis), sixteen 8Gb FC SFPs , ten HPE 5M FC cables as well as two licenses per switch enabling Server Application Optimization (SAO) and Adaptive Networking (AN). SAO is an adapter technology that offers Quality of Service (QoS) capabilities that can be used in conjunction with fabric wide QoS and to enable a high performing, virtualized infrastructure. With SAO deployed, administrators can protect a VM and its application by assigning its IO flow to a specific priority level. The QoS priorities are enforced at the hardware level, thereby providing adequate bandwidth during periods of high congestion. Applications such as email and databases achieve better performance when deployed in specific SAO and MSA configurations.

Small Business SAN
Starter Kit

HP P2000 G3 FC MSA Dual Controller Small Business SAN Starter Kit

AP847B

The HPE P2000 G3 FC MSA Dual Controller Small Business SAN Starter Kit is a unique end-to-end 8 Gbps SAN Solution, just add disks and power. This kit includes one 8 Gbps P2000 G3 FC MSA Dual Controller Array (LFF Chassis), four 8 Gbps FC HBAs, two HPE SN6000 Stackable 8 Gbps 8-port FC switches, twelve 8Gb FC SFPs, eight HPE 5M FC cables and HPE unique Simple SAN Connection Manager (SSCM) SAN management software, cables, rails and optics. SSCM is the only SAN management software that can manage the FC switch, HBA and provision HPE storage from a single pane of glass.

Application Solutions

The HPE P2000 SAN is the ideal solution for customers running Oracle, Microsoft, SAP environments and those customers who are deploying virtual server technologies like VMware, Hyper-V, and Oracle Virtual Machine. The HPE P2000 SAN delivers enterprise functionality that enhances virtual environments, simplifies management, and reduces costs. Easy to deploy, scale and maintain, HPE P2000 SANs ensure that crucial business data remains available.
Hewlett Packard Enterprise has developed best-in-class expertise in Oracle, Microsoft, SAP, and Virtualization Hypervisor technology through extensive testing with the HPE P2000 SAN, HPE servers, and management software; high availability and disaster recovery solutions; and backup and recovery on the Oracle, Microsoft, and SAP application platforms. As a result, our customers can expect a wide range of operational and business benefits where they can:

• Deploy IT assets across multiple locations.
• Incrementally grow storage without interruption.
• Enable high availability and disaster recovery capabilities for critical applications.
• Deploy a remote disaster recovery site.

Learn more

To learn more about specific HPE Storage Solutions that are built with Oracle, Microsoft, SAP and Virtualization environments in mind, visit the solution sites supporting each of these applications.
HPE Storage for Oracle hyperlink to: http://www.hp.com/storage/oracle
HPE Storage for Microsoft hyperlink to: http://www.hp.com/storage/microsoft
HPE Storage for SAP hyperlink to: http://www.hp.com/storage/sap
HPE Storage for VMware hyperlink to: http://www.hp.com/go/vmware/storage

P2000 G3 FC

P2000 G3 SAS

P2000 G3 10GbE iSCSI

P2000 G3 iSCSI (1GbE)

Capacity
Minimum / with maximum additional drive enclosures

LFF: 7.2 TB SAS
or 72 TB SAS MDL or 24 TB SATA MDL
w/ 7 LFF enclosures:
57.6 TB SAS,
576 TB SAS MDL or 192 TB SATA
SFF: 28 TB SAS
or 24 TB SAS MDL or 12 TB SATA MDL
w/ 5 D2700 JBODs:
178 TB SAS
or 149 TB SAS MDL or 74.5 TB SATA MDL

LFF: 7.2 TB SAS
or 72 TB SAS MDL or 24 TB SATA MDL
w/ 7 LFF enclosures:
57.6 TB SAS,
576 TB SAS MDL or 192 SATA
SFF: 28 TB SAS
or 24 TB SAS MDL or 12 TB SATA MDL
w/ 5 D2700 JBODs:
178 TB SAS
or 149 TB SAS MDL or 74.5 TB SATA MDL

LFF: 7.2 TB SAS
or 72 TB SAS MDL or 24 TB SATA MDL
w/ 7 LFF enclosures:
57.6 TB SAS,
576 TB SAS MDL or 192 TB SATA
SFF: 28 TB SAS
or 24 TB SAS MDL or 12 TB SATA MDL
w/ 5 D2700 JBODs:
178 TB SAS
or 149 TB SAS MDL or 74.5 TB SATA MDL

LFF: 7.2 TB SAS
or 72 TB SAS MDL or 24 TBSATA MDL
w/ 7 LFF enclosures:
57.6 TB SAS,
576 TB SAS MDL or 192 TB SATA
SFF: 28 TB SAS
or 24 TB SAS MDL or 12 TB SATA MDL
w/ 5 D2700 JBODs:
178TB SAS
or 149 TB SAS MDL or 74.5 TB SATA MDL

Controller Cache

2 GB per controller

2 GB per controller

2 GB per controller

2 GB per controller

Total LUNs
LUN sizes greater than 40TB depending on the RAID configuration chosen

512
maximum LUN size: 64TB

512
maximum LUN size: 64TB

512
maximum LUN size: 64TB

512
maximum LUN size: 64TB

Host connect
P2000 & MSA2000 have 1 or 2 controllers, EVA has 2 controllers standard

Two 8 GB
Fibre Channel ports or
Two 8Gb FC and two 1GbE iSCSI ports
per controller

Four 6 GB (x4)
SAS ports
per controller

Two 10 GbE iSCSI ports per controller

Four 1 GB
iSCSI ports
per controller

Maximum Drives
w/ expansion

96 LFF/149 SFF

96 LFF/149 SFF

96 LFF/149 SFF

96 LFF/149 SFF

Maximum host supported
(dual controller)

64

64
w/ SAS switch: 32 single blade servers (2x c7000), or 16 dual density blade servers

64

64

Optional software:
Snapshot, clone,
Remote Snap

Snapshot, 64 standard (max 512)
Clone (standard)
Remote Snap (optional)

Snapshot, 64 standard (max 512)
Clone (standard)

Snapshot, 64 standard (max 512)
Clone (standard)
Remote Snap (optional)

Snapshot, 64 standard (max 512)
Clone (standard) Remote Snap (optional)

Use for Storage

Primary Storage
with SAS drives.
Secondary with SATA

Primary Storage
with SAS drives.
Secondary with SATA

Primary Storage
with SAS drives.
Secondary with SATA

Primary Storage
with SAS drives.
Secondary with SATA

NOTE: maximum available storage capacity depends on the RAID level being implemented

Product Technology

8Gb Fibre Channel controller

Two host ports per FC controller shipped with SFPs. The P2000 G3 FC controller can run in either point-to-point or FCAL (loop). The default is FCAL which is used in Direct Connect, particularly with two controllers. The PtP (fabric) mode is used with almost all switches.

Combo controller with FC and iSCSI ports

This ingenious dual-protocol "combo" controller supports a full FC SAN through the 8Gb FC ports, while designating the two 1 GbE iSCSI ports to enable remote replication over iSCSI protocol and perform as an iSCSI target. This allows economical sharing of the storage resource (the P2000 G3 array) with one department needing the performance afforded by the 8 GB FC ports while simultaneously supporting another department with lesser performance needs and a budget only allowing a 1GbE iSCSI network.

6Gb SAS controller

Four 4x host ports per 6Gb SAS controller.

10GbE iSCSI controller

Two 10GbE ports per G3 10GbE iSCSI controller. Ports are ready for the choice of SFP (none included)
Supports the ProCurve and ISS versions of the following 10GbE parts for use in the controllers:

HPE 10Gb Cables

• HPE SFP+ 10GbE Copper Cable
• HPE ProCurve 10-GbE SFP+-SFP+ Direct Attach Cable

HPE SFP+ Transceivers

• HPE BladeSystem 10Gb SR SFP+ and HPE BladeSystem 10Gb LRM SFP+
• HPE ProCurve 10-GbE SFP+ SR Transceiver and HPE ProCurve 10-GbE SFP+ LRM Transceiver
• No SFP+ LR Transceiver support

1 GB iSCSI controller

Four 1 GB Ethernet iSCSI ports per G3 iSCSI controller

Modular Chassis

2U rack height. 12 Large Form Factor or 24 Small Form Factor drive bays, accommodating SAS and SATA. Comes with space for one or two controllers, or P2000 3.5-inch disk Enclosure I/O modules (LFF chassis only)

Drives available

The P2000 G3 controllers support both the P2000 3.5-inch Large Form Factor (LFF) drives, and the HPE Storage 2.5-inch Small Form Factor (SFF) drives.

• Serial Attached SCSI (SAS) enterprise-class drives are designed for high demand, 24x7 usage.
• SAS Midline and SATA Midline are usually reserved for archival of data as they are both relatively inexpensive and are available in very large capacities.

The Hewlett Packard Enterprise entry-level family of arrays can accommodate both SAS and SATA drives within the same enclosure making it ideal to have both business-critical, high activity files on SAS drives while using Snapshot, clone, or Remote Snap capability to keep back-up or archival data on the less expensive drives.

For investment protection, the controllers will support single and dual port SAS & SATA drives in a legacy single - or dual - domain MSA70. This support allows current owners of MSA70s to migrate their single port drives (in their MSA70 only, not into the array head) to be attached to a P2000 G3 FC or SAS. They can only cascade to another single I/O MSA70. This is not a data-in-place transition, and overall performance could be impacted.

SAS drive performance can be approximately 30% greater than SATA performance on sequential host I/O. SAS performance excels in sequential lower latency response time and random I/O per second transaction performance due to higher rpm disk speeds yielding lower seek times. SAS drive random performance is generally twice that of SATA drives.

NOTE: P2000 and MSA2 3.5-inch Large Form Factor (LFF) drives are for use only in the P2000 G3 or MSA2000 models. The 2.5-inch Small Form Factor (SFF) drives are supported only with the P2000 G3 or the MSA2300 G2 controllers and are Storage hot-plug 2.5-inch drives.

Optional Disk enclosures

Just as the user has a choice of chassis for the array head (LFF and SFF drive bays, AC or DC powered), so also do they have a choice of expansion disk enclosures accommodating either drive size. Both the P2000 and the D2700 disk enclosures can be hot-added to an operating array.
(NOTE: these are not supported as part of a NEBS-certified configuration with the MSA Carrier Grade Chassis. There is a certified JBOD listed in the Carrier-grade section)

P2000 3.5 - inch drive enclosure. This 2U storage enclosure (AP843B) is designed to support twelve Storage 3.5 - inch Universal form factor (LFF) 6Gb SAS or SATA hard drives. It ships standard with dual I/O modules installed.

• This 3.5-inch drive enclosure can be attached to either the P2000 G3 FC or SAS LFF or SFF array head.
• Each configured model ships standard with two .5m mini-SAS to mini-SAS cables for cascading to other P2000 drive enclosures
• Up to seven P2000 3.5-inch enclosures can be attached to a P2000 G3 FC, FC/iSCSI Combo, or SAS controller in the array head.

D2700 2.5-inch drive enclosure. This 2U storage enclosure (AJ941A) is designed to support twenty five ProLiant 2.5-inch Universal form factor (SFF) 6Gb SAS or SATA hard drives. It ships standard with dual I/O modules installed.

• This 2.5-inch drive enclosure can be attached to a P2000 G3 controller (SFF or LFF) array head
• The D2700 enclosure ships with a two .5m miniSAS to miniSAS cable.
• Up to five D2700 may be attached to the P2000 G3 array head, given total support for 149 SFF drives.

MSA 2040 3.5-inch Disk Enclosure. This 2U unit has twelve LFF (3.5-inch) drive bays and accepts for MSA dual-ported SAS and SAS MDL drives. The pre-configured HPE MSA 2040 LFF Drive Enclosure (M0S96A) has two I/O modules and supports both single and dual controller arrays.

This 3.5-inch MSA disk enclosure can be attached to P2000 G3 FC or SAS LFF or SFF array head

Each configured model ships standard with two .5m mini-SAS to mini-SAS cables for connection to

the MSA 2040 array expansion port or existing disk enclosure cascade port.

Up to seven MSA 2040 3.5-inch enclosures can be attached to a P2000 G3 FC, FC/iSCSI Combo, or SAS controller in the array head.

Scalability

The P2000 G3 FC, Combo FC/iSCSI, SAS, 1 GB or 10GbE iSCSI controllers are designed to allow an installation to begin with smaller capacity and be able to grow gradually as needed. The flexibility of SAS or SATA drive technology, form factors, sizes, speeds, and costs per GB allows a system to easily fit in almost any budget.

• Large Form Factor configurations can scale up to 7.2 TB SAS, 72 TB SAS MDL or 24 TB SATA, expandable to 57.6 TB SAS, 576 TB SAS MDL or 192 TB SATA with the addition of a maximum of seven P2000 3.5-inch Drive Enclosures.
• Small Form Factor configurations can scale from 21.6 TB SAS, 24 TB SAS MDL or 12 TB SATA MDL. With the addition of five D2700 JBODs, the P2000 G3 can support 134 TB SAS, 149 TB SAS MDL or 74.5 TB SATA MDL.
• Users may configure a 24-drive P2000 G3 SFF array head with 12-drive LFF P2000 3.5-inch disk enclosures. This is an excellent method for a configuration that supports fast SFF enterprise-class SAS drives in the array head, combined with economical LFF drives staged for archival purposes, all in the same array.
• Qualification of larger capacity drives is ongoing.

Vdisks

Vdisks can span across multiple enclosures, where drives used in the Vdisk can be contained in different enclosures. The maximum number of drives that can be used in RAID 1 Vdisk is 2; RAID 0, 3, 5, 6, and 10 is 16; and for RAID 50 Vdisk is 32.

LUNs

The HPE 2000 family of arrays supports 512 LUNs (total volumes in a dual controller system) and LUN sizes up to 64 TB depending on the RAID configuration chosen. The array supports expansion and deletion of any LUN.

RAID 0, 1, 3, 5, 6, 10, 50

In addition to the usual RAID levels, the P2000 G3 features several important additional levels. RAID 6 is the highest level of RAID protection. It allocates two sets of parity data across drives and allows simultaneous write operations. It can withstand two simultaneous drive failures without downtime or data loss. RAID 10 is mirroring and striping without parity. It is the most popular of the multiple RAID levels, allowing large arrays with high performance in most cases and superior fault tolerance. RAID 50 combines the block striping and parity of RAID 5 with the straight block striping of RAID 0, yielding higher performance than RAID 5 through the addition of RAID 0, particularly during writes.

Performance

Performance numbers are a guideline as established by tests using RAW I/O in an Operating System Agnostic test lab environment. 144 GB 15K SAS drives were used in a dual controller configuration of 12 vdisks consisting of twelve disks per vdisk, 1.6 TB volumes, and 3 volumes per host. 4 hosts directly attached to the P2000 G3 array were used in this test configuration (results cannot be expected with a single host). Results were achieved in Sequential Writes with 256K blocks; all random tests were based on 8K block sizes.
NOTE: Number and type of applications, drive type and number of drives, operating system used, and the number of hosts will affect overall performance. This table is provided strictly as a test-lab comparison. NOTE: These numbers reflect a full array configuration with the maximum number of front-end ports, disks, and controllers. The test results shown for the P2000 G3 are designed to give a conservative reference point for comparisons.

DC-power chassis

Hewlett Packard Enterprise is making the two models of controller-less chassis available with direct current (DC) power supplies. They each have the two empty bays where users can insert one or two P2000 G3 controller(s). In addition, the P2000 chassis with LFF drive bay can have P2000 3.5-inch I/O modules inserted to create a LFF DC-power JBOD.
The 500 watt power supply is designed to operate over the input range of -40VDC to -75VDC.

SKU

HP P2000 DC-power LFF Chassis

AP840B

(supports up to 2 controllers or I/O modules)

HP P2000 DC-power SFF Chassis

AP841B

Configuration and Management Tools

HPE Storage Management Utility (SMU). Management access, out-of-band: WEB GUI, CLI. Interface Types: USB, 10/100 Ethernet. Protocols Supported SNMP, SMI-S, SSL, SSH, SMTP, FTP, HTTP, Telnet

P2000 Software and Documents
Support CD

• All product documentation (CD can be used on ALL supported server Operating Systems.)
• MSA Device Discovery Tool (Win and Linux) - reports P2000/MSA HW devices, and supported storage software
• Host Software Bundles (Win and Linux for both ProLiant x86, ProLiant x64 and Integrity IA64servers)
• CD updated quarterly on HPE.com with sustaining firmware updates
• The P2000 G3 contains an embedded SMI-S provider for use by SMI-S client applications. The embedded provider is designed to support P2000 configurations with up to 24 hard drives, and up to 250 mapping paths. A mapping path is defined as a P2000 volume presented through a P2000 target port to a Host initiator.

Hot Plug Expansion and Replacement Support

All P2000 G3 models support hot plug expansion and replacement of redundant controllers, enclosures, fans, power supplies, and I/O modules for simple, fast installation and maintenance. Hot add expansion of disk enclosures is also supported.

Snapshot and Clone

All G3 arrays come standard with 64 snaps, 512 snaps available. Controller based functionality. Offers higher levels of data protection, enabling an almost instant recovery from data failure or corruption. Offers alternative development testing of 'offline' production data and the ability to backup snapped/cloned data.

Overview

The P2000 G3 arrays come integrated with web browser and CLI based software for storage and RAID management, setup, configuration, and troubleshooting. This reduces the cost of ownership by reducing the training and technical expertise necessary to install and maintain your Hewlett Packard Enterprise storage solution.

The SPOCK database provides interoperability information for thousands of components and millions of component combinations. It is available to all users at http://www.hp.com/storage/spock.

Server Compatibility
NOTE: depends on protocol

Supports most HPE ProLiant, BladeSystems and Integrity servers including

• HPE ProLiant DL, ML
• HPE c-Class Blade Servers
• Integrity servers, IA64 (FC and FC/iSCSI support only)
• Compatibility must be confirmed at: http://www.hp.com/storage/spock

Industry Standard servers support

• Supports most multi-vendor industry standard 32-bit Intel and AMD based (x86) servers. Hewlett Packard Enterprise requires the Third-Party Server to be logo'd and listed on the Microsoft Windows Server Catalog.
• Refer to the Microsoft website: http://www.microsoft.com/windows/catalog/server/
• Hewlett Packard Enterprise Division recommends that the Third-Party Server Vendor is an active member of TSANet. Refer to the TSANet website for details: http://www.tsanet.com
• Non-HPE servers will generally be supported if the HPE storage stack is used. This includes supported Hewlett Packard Enterprise branded HBAs and drivers, and supported FC switches.

OS Support
Fibre Channel ports

Refer to the Hewlett Packard Enterprise support statements for complete current OS version support: http://www.hp.com/storage/spock

• Microsoft Windows Server 2012
• Microsoft Windows Server 2008 IA32, x64, IA64 (Standard, Enterprise, Datacenter)
• Microsoft Windows Server 2008 R2 x64
• Microsoft Windows 2003 SP1, SP2, and R2 and 2003 R2 IA32, x64
• HPE-UX
• Red Hat Linux (32/64)
• SuSE SLES (32/64)
• Microsoft Windows Server 2008 x64 Hyper-V
• VMware
• OpenVMS
• Apple Mac OS X (requires ATTO Celerity 8Gb FC HBA)
• Solaris 10 (x86)

OS Support
Fibre Channel Ports
(Integrity)

• HPE-UX
• Windows
• OpenVMS
• Linux

OS Support
1GbE iSCSI ports
on the G3 Combo FC/iSCSI Controller

• Microsoft Windows Server 2012
• Microsoft Windows Server 2008 and 2008 R2 (x64, IA64)
• Microsoft Windows Server 2008 x64 Hyper-V
• Microsoft Windows 2003 (SP1, SP2, and R2) and 2003 R2 (IA32, x64)
• Red Hat Enterprise Linux (32/64)
• SuSE Linux IA32, x64
• VMware ESX

OS Support
G3 SAS Controller

Refer to the Hewlett Packard Enterprise support statements for complete current OS version support: http://www.hp.com/storage/spock

• Microsoft Windows Server 2012
• Microsoft Windows Server 2008 IA32, x64
• Microsoft Windows Server 2008 R2
• Microsoft Windows 2003 and 2003 R2 IA32, x64
• Red Hat Linux (32/64)
• SuSE SLES (32/64)
• Microsoft Windows Server 2008 x64 Hyper-V
• VMware
• Solaris 10 (x86)

OS Support
G3 1Gb iSCSI Controller

• Microsoft Windows Server 2012
• Microsoft Windows Server 2008 SP1, SP2, R2
• Microsoft Hyper-V (x64 only)
• Microsoft Windows Server 2003 and 2003 R2, SP2
• VMware
• Red Hat Linux (32/64)
• SuSE SLES (32/64)

OS Support
G3 10GbE iSCSI Controller

• Microsoft Windows Server 2012
• Microsoft Windows Server 2008 SP1, SP2, R2
• Microsoft Hyper-V (x64 only)
• Microsoft Windows Server 2003 and 2003 R2, SP2
• Red Hat Linux (32/64)
• SuSE SLES (32/64)
• VMware

NOTE: the G3 10GbE array must connect to a 10GbE switch; direct connect to the G3 10GbE array must be to a 10GbE NIC and supported by the OS.

Web Browser support

• The P2000 G3 and the older MSA2000 support target based management, and include a Web interface and a telnet interface, and require a web browser for management.
• The P2000 G3 FC requires Microsoft Internet Explorer V7.x or V8.x
• The original MSA2000 and the MSA2000 G2 arrays require Microsoft Internet Explorer V6.X and V7.X (strongly encouraged)
• Mozilla Firefox 1.0.7 or later is supported

VMware Site Recovery Manager (SRM)

VMware Site Recovery Manager (SRM)

VMware vCenter Site Recovery Manager (SRM) is an extension to VMware vCenter that delivers business-continuity and disaster-recovery solution that helps you plan, test, and execute the recovery of vCenter virtual machines. SRM can discover and manage replicated datastores, and automate migration of inventory from one vCenter to another. Site Recovery Manager integrates with the underlying replication product through a Storage Replication Adapter (SRA).

HPE P2000 Site Recovery Adapter (SRA)

The HPE P2000 SRA, a free-to-use plugin, is the program that integrates the VMware cCenter SRM with HPE P2000 G3 arrays. It enables full-featured use of the VMware SRM. It is a host-software component installed on a Microsoft Windows Server that enables disaster recovery management (DRM) software on the host to communicate and control certain aspects of the replication feature in storage systems connected to the server. It allows the VMware SRM software to automatically coordinate virtual machine failover and failback between a protected data center and a disaster recovery site by employing a disaster recovery solution called Remote Snap. A perfect combination of the Remote Snap replication and VMware SRM provides an unfailing automated solution for implementing and testing the disaster recovery between sites located across geographies. It enables communication between the HPE P2000 Remote Snap replication functionality that is embedded in HPE P2000 Fibre Channel, iSCSI, and Combo Fibre Channel systems. Users are required to acquire Remote Snap license for their local and remote HPE P2000 G3 arrays to use the HPE P2000 SRA.

Site Recovery Manager Requirements/Dependencies:

• Requires vSphere 5.0/SRM 5.0

- Not compatible with SRM 4.x

• Requires HPE's P2000 SRA 2.0 Plug-in (downloadable from Hp.com)
• SRM works with Remote Snap functionality

- Requires purchase of P2000 G3 Remote Snap licenses (one for each site)

• Customers must upgrade to T240 or the latest firmware
• SRM works with FC, iSCSI or Combo controllers only

HPE Insight Control Storage Module for vCenter

HPE Insight Control Storage Module for vCenter

HPE Insight Control Storage Module for vCenter is a component within the HPE Insight Control plug-in for vCenter. It provides VMware administrators that are using VMware's vSphere management console (vCenter) with the ability to see how virtual machines are mapped to datastores and individual P2000 volumes. By providing these clear relationships between VM's, datastores and storage, the VMware administrator's productivity increases, as does the ability to ensure quality of service. Roles for administrators can be defined on an individual basis, providing the ability to apply specific permissions for both view and control functions.

The HPE Insight Control Storage Module for vCenter supports mixed array environments including EVA, P4000, P2000 (MSA), and the XP array series including the P9500.

When deployed with the P2000 array, provides the following:

• Active Management functionality for the P2000 array:

- Create/Expand/Delete a Datastore

- Create a Virtual Machine from a template

• Monitors the health and status of the P2000
• Displays LUN / volume connections from VMs and ESX servers to the arrays and provides the location and attributes of the P2000 within the SAN
• Identifies what storage features are available to allow administrators to match the features available on the P2000 to their requirements
• Provide a cluster-level view of the storage

HPE Insight Control Storage Module for vCenter is downloadable from Software Depot: https://h20392.www2.hp.com/portal/swdepot/displayProductInfo.do?productNumber=HPVPR

For more information on HPE Insight Control Storage Module for vCenter visit: http://www.hp.com/go/vmware

vStorage API for Array Integration (VAAI)

The vStorage API for Array Integration (VAAI) is one of the storage application programming interface (API) sets in vSphere 4.1. VAAI is an API storage partners can leverage to enhance performance of virtual machine (VM) management operations by delegating these operations to the storage array. With hardware offload, ESX/ESXi hosts perform certain operations faster and consume less server CPU and memory resources, and also storage port and storage fabric bandwidth. VAAI includes high performance and scalable VM data path primitives. HPE introduced VAAI support for HPE MSA P2000 Storage array products starting with the T230 firmware release.

Storage Hardware Primitives for VAAI

In the VMware vSphere 4.1 release, the HPE StorageWorks P2000 G3 MSA Array Systems offload capabilities support the following three primitives:

• Full Copy or Hardware Assisted Move
• Block Zeroing or Hardware Assisted Zeroing
• Hardware Assisted Locking or Atomic Test and Set (ATS)

HPE Storage Management Pack for Microsoft System Center

The HPE Management Pack for Systems Center Operations Manager provides seamless integration with Microsoft Systems Center Operations Manager and now System Center Essentials by integrating predefined discovery and state monitoring policies, event processing rules and tasks, and diagram and topology views for the storage system.

For more information:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154363

HPE Storage Management Pack can be downloaded free from the following website: https://h20392.www2.hp.com/portal/swdepot/displayProductInfo.do?productNumber=SCOM

Snapshot and Volume Copy Software for the P2000 G3

Product Features

Data Protection

• Snapshots create up to 512 point-in-time pictures of data (512 snaps are exclusive to the P2000 G3)
• Volume Copies create up to 128 point-in-time copies of data
• Recovery is instant - revert data from any previous Snapshot or Volume Copy
• Backup 'snapped' data to disk, virtual tape, or physical tape without a backup window
• A 64 snapshot license and Volume Copy are included with all P2000 G3 models.
• Support and updates are desired for bundled software functionalities (such as 64 LTU Snap and/or Volume Copy etc. in the P2000 G3 products) a combination HW + SW support care pack must be purchased.
• Hewlett Packard Enterprise does not provide warranty assistance for software products included with our base hardware products. This would either be SupportPlus or SupportPlus24. The hardware warranty component of these services is accounted for in the pricing of the SP and SP24 care packs.

Data Testing

• Snap or clone data to test the performance of a software application on 'offline' production data
• Snap or clone data to test how a software patch or enhancement will function on 'offline; production dat0061

P2000 G3 Snapshot and Clone:

G3 controllers/models come STANDARD with 64 snapshots and Volume Copy software
512 Snapshot option is ONLY available and supported with the G3, not the prior generation MSA2000 models

HPE P2000 Array System Snapshot 512 Software LTU

TA806A

HPE P2000 Array System Snapshot 512 Software E-LTU

TA806AAE

MSA2000 and MSA2000 G2 Snapshot and Volume Copy (clone) software:
Snapshot and Volume Copy software is optional on models other than the P2000 G3.
The following skus are designated for use by the MSA2000 G2 models. They are neither necessary nor available for the P2000 G3 FC.

HP 2000 Modular Smart Array Volume Copy Software LTU

T5514A

HPE P2000 Remote Snap Software
(G3 FC and FC/iSCSI, 1GbE and 10GbE iSCSI controllers only)

• HPE P2000 Remote Snap Software is array based software that provides remote replication on the HPE P2000 G3 MSA Array products (except SAS model). HPE Remote Snap is a form of asynchronous replication which consists of replication of block-level data from a volume on a local system to a volume that may be on the same system or on a second independent system. This second system may be collocated with the first system or may be located at a remote site. It requires T230Rxx controller firmware or higher.
• HPE Remote Snap functionality is based on existing Snapshot technology offered by HPE P2000 SAN Array products. Snapshots are used to track the data to be replicated as well as to determine the differences in data updated on the master volume, minimizing the amount of data to be transferred.
• HPE Remote Snap replication technology provides the ability to accomplish key data management and protection capabilities. First, because Remote Snap uses snapshots as the underlying technology it creates multiple local recovery points which can be used for such tasks as to complement daily backups; second, replication provides the ability to access data in a remote site which could be used for dispersed operations; and third but definitely not least important replication allows for business continuance in the event of a failure on the primary site.
• In order to perform a replication, a snapshot of the volume to be replicated is taken, creating a point-in-time image of the data. This point-in-time image is then replicated to the destination volume by copying the data represented by the snapshot via a transport medium such as TCP/IP (iSCSI) or Fibre Channel. The amount of data transferred is minimized though the use of snapshots whenever possible.

HPE P2000 Array System Remote Snap Software LTU

TA808A

HPE P2000 Array System Remote Snap Software E-LTU

TA808AAE

(NOTE: One license per array is required for replication. For example, if you have two P2000 arrays performing replication (from Primary system to Remote System), you will need 2 licenses).

Product Features

• Storage based asynchronous snapshot replication
• Initial copy of data can be performed locally, reducing burden on wide area networks
• Support of both Ethernet and Fiber Channel interconnects provides flexible options to the application environments.
• Snapshot based replication technology means only changed data will be replicated to alternate site
• Many to 1 replication (up to 4 nodes) - primary use case is to replicate from "many" branch offices to the home office for the purpose of backing up data from the branches
• Single controller to single controller replication
• Mixed controller replication - replication between P2000 G3 Fibre Channel and P2000 G3 FC/iSCSI Combo arrays
• Advanced scheduler provides several options to IT administrators for business continuance
• Flexible architecture allows remote replication between P2000 G3 Fibre Channel and/or P2000 G3 FC/iSCSI Combo arrays. You can also join dissimilar controllers; for instance a Combo controller can snap remotely to a 1 or 10 GbE iSCSI array. Protects existing investments and enhances business continuity planning objectives.
• Replication Wizard simplifies the task of setting up and establishing replication pairs from one unified, easy to use GUI.
• Snapshot based replication enables both local and remote recovery depending on the need. Snapshot replication isolates problems to a specific point in time which can be selected by the administrator. Additionally snapshot replication supports longer distance replication.
• Multiple relationships provide greater storage flexibility and utilization.
• Bundled 64 Snapshots and Volume Copy integration provides better efficiencies by combining the management and array technologies to create local copies.
• Fast application recovery with minimal or no transaction loss
• Creation of disaster tolerant copies of your critical business data
• No-single-point-of-failure solution to increase the availability of your customers data

Customer Benefits

Disaster Recovery

Replication technology has typically been used to address disaster recovery issues. Disaster recovery is still the driving business case behind replication. Remote replication can be implemented from the production site to one or more remote sites across a campus, across town, across a state or across the country. When a disaster strikes the primary location, the applications can be brought up at the remote site and continue processing against the replicated copies. When the primary site is back online, the replication can be reversed and when the data is resynchronized, processing can be switched back to the primary site and business can continue. In the past, if an e-mail system experienced a disaster it was an "oh well" moment. The loss of a day or more of e-mail was not considered important. Today, e-mail is a critical component of many companies' business plans and recovering e-mail after a disaster quickly and completely is required.

Maintenance

HPE Remote Snap software can also be used to solve other business needs. For instance, E-mail servers may need periodic maintenance that can take hours to complete. With remote replication in place, the downtime can be minimal (as long as it takes to bring the remote peer of the primary e-mail server online). The primary server can be worked on (patches, hardware upgrades, etc.) and then brought back online and into production. A whole datacenter can be failed over to a remote site on purpose to perform maintenance on generators, air conditioning, etc. Replication can also be used to perform a datacenter move with minimal downtime (fail everything to the DR site, move the production datacenter to its new location then fail the DR site back to the new datacenter).

Storage Based

Data replication is performed at the storage subsystem controller level and is totally transparent to the host, alleviating unnecessary host cycles to perform the data mirroring functions. Unlike a fabric based or host based solution, the storage based solution dedicates its resources to managing the replication process between arrays, with minimal impact to applications, other data or devices on the SAN.

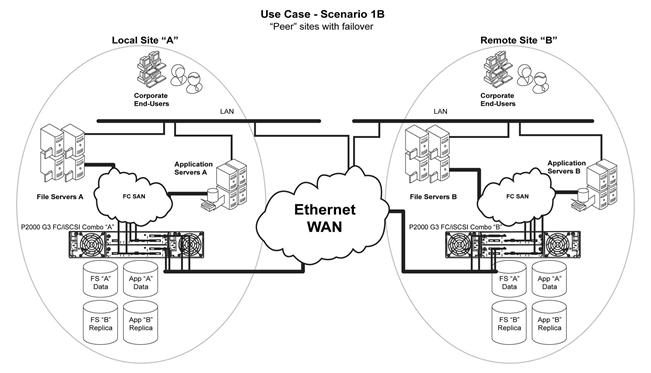

Bi-Directional

The bidirectional HPE P2000 Array solution addresses the growing need among businesses to ensure continuous availability of applications that are critical to daily business operations. HPE P2000 enables two sites in a remote replication connection to use each other as a destination to maintain replicated copies of online data. This maximizes resource utilization while enabling business continuance, even in the event of disaster.

Disaster Tolerance

The P2000 G3 FC products utilize snapshot data online and in real time to a remote P2000 G3 through a local or extended storage area network (SAN). Additionally, data replication can be bidirectional, meaning that a storage array can be both a source and a destination. A particular LUN can be replicated in only one direction between the two storage arrays. Write I/O data sent to the source is replicated by HPE P2000 Array to the destination. A pair of properly configured HPE P2000 G3 FC arrays is a replication solution that guarantees data integrity in the event of a storage system or site failure.

Normalization (first initial copy)

When a DR site is initially created a normalization or initial copy of the data from the source volume to the target volume must occur. The P2000 G3 array allows this first copy to take place locally. After completion the disks can me manually moved to the remote location. Subsequent changes will only remotely copy the changed blocks.

SAN Extensions

HPE P2000 G3 Array provides the capability to replicate data over direct Fibre Channel. The distances supported over dark fiber are determined by the speed of the dark fiber connection and the technology used to communicate over the dark fiber.

Path failover (MPIO)

MPIO for Windows provides a single multi-path solution for HPE P2000 G3 Modular Smart Array on HPE servers.
Support for Windows 2003 and Windows 2003 R2 operating systems is provided by HPE MPIO Full Featured DSM. For the P2000 G3 this version is 2.6.1.7 or greater.
Support for Microsoft Windows 2008 is bundled within the operating system
Support for Linux distributions is with Device Mapper 4.4.0 or greater.
Support for HPUX is native multipathing in HPE-UX v3 and PV-Links in HPE-UX v2.

HPE StoreEasy 3000 Gateway Storage

Add more value to your P2000 array

HPE MSA combined with HPE StoreEasy 3840 Gateway Storage enables you to consolidate block and file storage onto a single, high-performance system - giving your business the flexibility to meet changing business needs on-demand.

The HPE StoreEasy 3840 delivers efficient, secure, and highly available file services that help address your changing file-serving needs. It reduces your cost of ownership by simplifying management, increasing resource utilization, centralizing growth, and protecting data. HPE StoreEasy 3840 provides a simple and consistent experience for managing block and file storage for multiple workloads centrally.

NOTE: For more information visit: http://www.hp.com/go/StoreEasy

HPE P2000 G3
Carrier-Grade Components

The P2000 G3 is an 8 GB Fibre Channel connected 2U storage area network (SAN) or direct connect solution designed for network equipment providers (NEPs) and communication service providers. Suited for those who need a robust telecom infrastructure--- they need storage devices to catch videos, photos, text, new services --- and need a place to have the data stored and cached.

The HPE P2000 Carrier-Grade Chassis AP841B (RoHS Compliant SKU)) is a controller-less 6Gb chassis capable of supporting one or two P2000 G3 8Gb Fibre Channel controllers (AP836A (Retiring SKU) or AP836B (RoHS Compliant SKU)) and has twenty-four Small Form Factor (SFF) drive bays. It comes equipped with two DC-power power supplies.

The HPE P2000 2.5-in Dual I/O JBOD is a special model disk enclosure designed only for use with the carrier-grade array heads. It has 24 drive bays (unlike the D2700 with 25 drive bays) and has dual DC-power supplies. It is only sold with a carrier grade array. Five of these JBODs may be cascaded from the array head.

When used in conjunction with specific Storage SFF SAS drives, the solution is NEBS certified. NEBS level-3 certification provides the assurance that the equipment is safe to operate and sturdy enough to withstand certain physical and environmental (for example, fire, earthquakes) conditions. For Seismic Zone 4 rating, the P2000 must be mounted in an HPE Seismic Rack (AH335A)

 P2000 DC-power Carrier-grade SFF Chassis

RoHS Compliant SKU

HP P2000 DC-power SFF Chassis
NOTE: NEBS certified

AP841B

G3 Controller 8Gb FC

HP P2000 G3 MSA Fibre Channel Controller
NOTE: (1 or 2) With two 8Gb FC ports per controller. NEBS certified.

AP836B

G3 Controller 10GbE iSCSI

HP P2000 G3 10GbE iSCSI MSA Array System Controller
NOTE: two 10GbE iSCSI ports per controller NEBS certified.

AW595B

G3 Controller 6Gb SAS

HP P2000 G3 SAS MSA Array System Controller
NOTE: (1 or 2) with four 6Gb SAS ports per controller. NEBS certified.

AW592B

HP Modular Smart Array SC08e 2-ports Ext PCIe x8 SAS Host Bus Adapter

614988-B21

SFF Carrier-grade (only) DC-power JBOD

HP P2000 Dual I/O DC-power Carrier-Grade SFF Drive Enclosure
NOTE: NEBS certified.
24-drive SFF bays, NEBS certified, NOTE: only sold with carrier-grade arrays

BV921B

HPE MSA P2000 G3 Arrays support both the HPE ProLiant Server SFF Hard Disk Drives and HPE MSA SFF Hard Disk Drives

HPE ProLiant Server Hard Disk Drives

HPE 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

512547-B21

HPE 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

507127-B21

HPE 450GB SAS 6G Enterprise 10K SFF (2.5in) ST 3yr Wty HDD

581284-B21

HPE 600GB SAS 6G Enterprise 10K SFF (2.5in) ST 3yr Wty HDD

581286-B21

HPE 900GB SAS 6G Enterprise 10K SFF (2.5in) ST 3yr Wty HDD

619291-B21

HPE 300GB SAS 6G Enterprise 15K SFF (2.5in) ST 3yr Wty HDD

627117-B21

HPE MSA Hard Disk Drives

Drives, carrier-grade (all NEBS certified)

HP MSA 146GB 6G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D54A

HP MSA 300GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D55A

HP MSA 450GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D56A

HP MSA 600GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S58A

HP MSA 900GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S59A

HP MSA 300GB 6G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S61A

Carrier-grade HBA

HPE 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter
NOTE:NOTE: Emulex 82E

AJ763B

For more information on HPE Carrier Grade Platforms go to http://www.hp.com/products1/servers/carrier_grade/
index.html?jumpid=reg_R1002_USEN

HPE P2000 Remote Snap Software
(G3 FC and FC/iSCSI, 1GbE and 10GbE iSCSI controllers only)

• HPE P2000 Remote Snap Software is array based software that provides remote replication on the HPE P2000 G3 MSA Array products (except SAS model). HPE Remote Snap is a form of asynchronous replication which consists of replication of block-level data from a volume on a local system to a volume that may be on the same system or on a second independent system. This second system may be collocated with the first system or may be located at a remote site. It requires T230Rxx controller firmware or higher.
• HPE Remote Snap functionality is based on existing Snapshot technology offered by HPE P2000 SAN Array products. Snapshots are used to track the data to be replicated as well as to determine the differences in data updated on the master volume, minimizing the amount of data to be transferred.
• HPE Remote Snap replication technology provides the ability to accomplish key data management and protection capabilities. First, because Remote Snap uses snapshots as the underlying technology it creates multiple local recovery points which can be used for such tasks as to complement daily backups; second, replication provides the ability to access data in a remote site which could be used for dispersed operations; and third but definitely not least important replication allows for business continuance in the event of a failure on the primary site.
• In order to perform a replication, a snapshot of the volume to be replicated is taken, creating a point-in-time image of the data. This point-in-time image is then replicated to the destination volume by copying the data represented by the snapshot via a transport medium such as TCP/IP (iSCSI) or Fibre Channel. The amount of data transferred is minimized though the use of snapshots whenever possible.

HPE P2000 Array System Remote Snap Software LTU

TA808A

HPE P2000 Array System Remote Snap Software E-LTU

TA808AAE

(NOTE: One license per array is required for replication. For example, if you have two P2000 arrays performing replication (from Primary system to Remote System), you will need 2 licenses).

Warranty

Three-year limited warranty, parts exchange Next Business day delivery

Enclosures, Hard drives, and Options for the P2000 G3 FC carry their own warranty. Refer to Hewlett Packard Enterprise's Limited Warranty Statement for more information.

The P2000 G3 FC has been designed with customer self-repairable parts to minimize repair time and provide greater flexibility in performing defective parts replacement. Please refer to Hewlett Packard Enterprise’s limited warranty Statement and parts replacement instructions for further details.

http://h18006.www1.hp.com/products/storageworks/warranty.html

Products included in various kits carry their own individual warranties.

NOTE: The warranty of the hard drive options purchased with the P2000 G3 FC, SAS, and 10GbE iSCSI products is different for SAS hard drives versus SAS MDL and SATA hard drives. SAS hard drive options have a three year warranty and SAS MDL and SATA hard drives options have a one year warranty.

Service and Support

Services to accelerate time to results

HPE Storage Services bring you a rich portfolio of consulting and support services designed to add value to our core storage products and solutions. We have the know-how and experience to put storage technology to work for you. We work closely with you as your strategic partner, leveraging our full services portfolio to make sure that everything works to optimize your enterprise.

Choose from services aligned to our storage product offerings and lifecycle. From mission-critical onsite services to innovative web-based remote support, you choose the precise level of attention and support your business demands.

Discover, plan, and design

Choose from a rich portfolio of services to make the most of P2000 G3 MSA Array Systems (Goose Island - PL Li), so you can efficiently and affordably consolidate, manage, and extract value from unstructured data.

HPE Services can help you discover needs and create a plan for simplifying the environment, reducing risk, and maximizing your storage investments

HPE Storage Efficiency Analysis - The HPE Storage Efficiency Analysis provides customers with a view of their storage infrastructure and operating environment; highlighting recommendations for improvements. The report provides extensive insight about the existing storage environment, opportunities for efficiency gains, asset aging and replacement through interaction with key decision makers
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-6727enw.pdf

HPE Storage Impact Analysis (SIA) - The HPE Storage Impact Analysis service provides a 2-4 week discovery engagement with executive summary presentation. The goal of this service is to help provide customers guidance on storage related issues and develop remediation plans.
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa4-1174enw.pdf

HPE Storage Cloud Design Service - Build a scalable, low-cost enterprise storage environment with inherent cloud benefits to meet big data needs.

HPE Storage Modernization Service - The HPE Storage Modernization service is a 4-6 week service that defines the customers envisioned target storage environment based on a proven solution design methodology. Hewlett Packard Enterprise architects will quickly perform tool-assisted automatic discovery and facilitate a two-day strategy workshop with all key stakeholders involved in the storage infrastructure initiative
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-4620enw.pdf

Deploy and integrate

We can help you configure, set up, and efficiently use P2000 G3 MSA Array Systems (Goose Island - PL Li), as well as help migrate data, improve capacity utilization, and establish information management standards used across backup, replication, and archiving needs.

HPE MSA/P2000 Family Disk Array Installation and Startup Service - Implement right from the start, as Hewlett Packard Enterprise experts install, test, and configure your hardware and software onsite. We deliver a tailored storage deployment properly integrated into your environment.
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa0-3048enw.pdf

HPE Storage Data Migration Services - End-to-end data migration service providing seamless discovery, assessment, planning, and design, completely customizable to your organization's storage area network or network attached storage environment and using innovative software to help you migrate to HPE storage quickly and efficiently.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-0774ENW.pdf

HPE Storage and Data Residency Service - Strategic augmentation of your current environment with Hewlett Packard Enterprise resources who become your trusted advisor to provide answers that are right for your storage and backup environment. https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-9481enw.pdf
HPE Proactive Select - A flexible way to purchase services to fit your environment with an extensive menu of HPE Proactive Select event and technical services, such as onsite firmware upgrades, health checks, assessments, and education.
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf

Operate and support

Choose the right support to maximize uptime, free up your resources, and achieve improved value-as you get the most out of the existing IT assets while accelerating time-to-revenue.

HPE Proactive Care 24x7 - Hardware and software support services designed specifically for your technology with rapid access to Advanced Solution Center Specialists plus firmware and software management and best practice advice
https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-8855enw.pdf

HPE Proactive Care Advanced - Building on HPE Proactive Care to give you personalized technical and operational advice from an assigned local Account Support Manager for personalized technical collaboration, flexible access to specialist skills to help fine-tune business critical IT, and Enhanced Critical Incident Management to help make sure your business is not affected if you experience a system or device outage.

HPE Proactive Care Personalized Support - An option-if you have HPE Proactive Care- to bring increased personalization of the Proactive Care support experience through the assignment of an Account Service Manager (ASM) who provides IT best practice advice to help address IT issues and projects. https://www.hpe.com/h20195/v2/getpdf.aspx/4aa4-3446enw.pdf

HPE Foundation Care 24x7 Service - HPE Foundation Care 24x7 connects you to Hewlett Packard Enterprise 24 hours a day, seven days a week for assistance on resolving issues - hardware onsite response within four hours and software call back within two hours after opening your case. Three years' coverage recommended with HPE Care Pack Service.

HPE Education Services - Comprehensive training for new, as well as experienced, storage administrators designed to expand your skills and keep you up to speed with the latest storage and virtualization technology from HPE Storage.
http://education.hp.com/curr-storsan.htm

Optimized Care - Delivers the highest levels of performance and stability through deployment and proactive management practices

Choose from three levels of operate and support care

HPE 6hr CTR Proactive Care Service

Additional options - HPE Proactive Care Personalized Support (once per Proactive Care support new environment), an additional day of Hewlett Packard Enterprise Personalized Support, and 10 additional Hewlett Packard Enterprise Proactive Select credits per year, per array

Standard Care - maintains high level of uptime, along with expert help to cut the cost and complexity of implementation and support

HPE Proactive Care 24x7

Additional options - HPE Proactive Care Personalized Support (once per Proactive Care support new environment), an additional day of HPE Personalized Support, and 10 additional HPE Proactive Select credits per year, per array

Basic Care - Minimum recommended support

HPE Foundation Care 24x7

Additional options - 10 Proactive Select Credits per Year

Remote
Support Automation

Hewlett Packard Enterprise Automation provides 24x7 coverage, proactive problem prevention, accurate problem diagnosis and faster problem resolution, as well as interactive support portals and tools. This is an integral, and cost-free, part of your Hewlett Packard Enterprise support relationship and we are continually investing in additional cutting-edge capabilities to make it better.

For more information

http://www.hp.com/services/storage

To learn more on HPE Storage Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner

HPE Pointnext operational services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from Hewlett Packard Enterprise or an enterprise reseller are quoted using Hewlett Packard Enterprise order configuration tools.
• Customers purchasing from a commercial reseller can find HPE Pointnext operational services at http://www.hp.com/go/lookuptool

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Configure to Order Program Information

Hewlett Packard Enterprise has a very successful Configure to Order program for the P2000 G3 family The P2000 G3 models and options may or may not be factory installed in a rack with add-on controllers, switches, P2000 disk enclosures and hard drives. The P2000 G3 arrays may be integrated with ProLiant servers or as standalone storage.
Orders to be shipped through the CTO process must have a minimum of two drives of the same type (SAS, SAS MDL, or SATA) ordered per controller. SAN Starter Kits are not eligible for CTO.

Description

Product Number

P2000 G3 Controllers & Controller-less Chassis

HP P2000 G3 FC Modular Smart Array Controller
NOTE: two 8Gb FC ports

AP836B#0D1

HP P2000 G3 FC/iSCSI Combo Modular Smart Array Controller
NOTE: two 8Gb FC ports and two 1GbE iSCSI ports

AP837B#0D1

HP P2000 G3 SAS Modular Smart Array Controller
NOTE: four 6Gb 4x SAS ports

AW592B#0D1

HP P2000 G3 10GbE iSCSI Modular Smart Array Controller
NOTE: two 10GbE iSCSI ports

AW595B#0D1

HP P2000 G3 iSCSI MSA Array System Controller
NOTE: four 1Gb Ethernet iSCSI ports

BK829B#0D1

HP P2000 Modular Smart Array 3.5-in Drive Bay Chassis (LFF)
NOTE: Will accept one or two controllers or Disk Enclosure I/O modules

AP838B#0D1

HP P2000 Modular Smart Array 2.5-in Drive Bay Chassis (SFF)
NOTE: Will accept one or two controllers, not I/O modules

AP839B#0D1

Disk Enclosures

HP P2000 Dual I/O LFF Drive Enclosure,
NOTE: twelve 3.5" drive bays
Used with single or dual controller LFF or SFF array head

AP843B#0D1

HP P2000 LFF Drive Enclosure I/O Module
NOTE: no cable included. Designed for use with blank LFF chassis AP838A

AP844B#0D1

HP MSA 2040 Energy Star LFF Disk Enclosure

M0S96A#0D1

 NOTE: twelve 3.5" drive bays

Configured Units

HP P2000 G3 FC MSA Dual Controller LFF Modular Smart Array System

AP845B#0D1

HP P2000 G3 FC MSA Dual Controller SFF Modular Smart Array System

AP846B#0D1

HP P2000 G3 FC/iSCSI MSA Dual Combo Controller LFF Array

AW567B#0D1

HP P2000 G3 FC/iSCSI MSA Dual Combo Controller SFF Array

AW568B#0D1

HP P2000 G3 SAS MSA Dual Controller LFF Modular Smart Array System

AW593B#0D1

HP P2000 G3 SAS MSA Dual Controller SFF Modular Smart Array System

AW594B#0D1

HP P2000 G3 10GbE iSCSI MSA Dual Controller LFF Array System

AW596B#0D1

HP P2000 G3 10GbE iSCSI MSA Dual Controller SFF Array System

AW597B#0D1

HP P2000 G3 iSCSI MSA Dual Controller LFF Array System

BK830B#0D1

HP P2000 G3 iSCSI MSA Dual Controller SFF Array System

BK831B#0D1

HPE D2700 Disk Enclosure

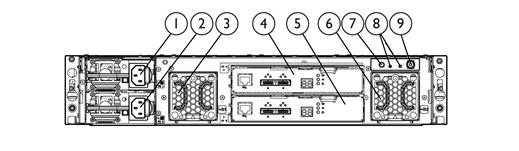

Rear Panel components

1.

Power Supply 1

4.

I/O Module A

7.

Rear UID push button

2.

Power Supply 2

5.

I/O Module B

8.

Enclosure LEDs

3.

Fan 1

6.

Fan 2

9.

Power on/standby button

D2700

HPE D2700 Disk Enclosure
NOTE: 25 Small Form Factor (SFF) drive bays

AJ941A#0D1

HPE MSA P2000 G3 Arrays support both the HPE ProLiant Server SFF Hard Disk Drives and HPE MSA SFF Hard Disk Drives

HPE ProLiant Server SAS & SATA Drives (SFF 2.5-inch)

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

507127-B21

HPE 450GB SAS 6G Enterprise 10K SFF (2.5in) ST 3yr Wty HDD

581284-B21

HPE 600GB SAS 6G Enterprise 10K SFF (2.5in) ST 3yr Wty HDD

581286-B21

HPE 900GB SAS 6G Enterprise 10K SFF (2.5in) ST 3yr Wty HDD

619291-B21

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

718160-B21

HPE 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

512547-B21

HPE 300GB SAS 6G Enterprise 15K SFF (2.5in) ST 3yr Wty HDD

627117-B21

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) ST 3yr Wty HDD

785099-B21

HPE 450GB SAS 12G Enterprise 15K SFF (2.5in) ST 3yr Wty HDD

785101-B21

HPE 600GB SAS 12G Enterprise15K SFF (2.5in) ST 3yr Wty  HDD

785103-B21

HPE 1TB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive

605835-B21

HPE MSA SAS & SATA Drives (SFF 2.5-inch)

12G SFF 10K SAS HDDs

HPE MSA 300GB 12G SAS 10K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F44A

HPE MSA 600GB 12G SAS 10K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F46A

HPE MSA 900GB 12G SAS 10K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F47A

HPE MSA 1.2TB 12G SAS 10K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F48A

6G SFF 10K SAS HDDs

HP MSA 300GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D55A

HP MSA 450GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D56A

HP MSA 600GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S58A

HP MSA 900GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S59A

HP MSA 1.2TB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E7W47A

HP MSA 146GB 6G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D54A

HP MSA 300GB 6G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S61A

HPE MSA 300GB 12G SAS 15K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F40A

HPE MSA 450GB 12G SAS 15K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F41A

HPE MSA 600GB 12G SAS 15K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F42A

HP MSA 1TB 6G SAS 7.2K SFF (2.5-inch) Dual Port Midline 3yr Warranty Hard Drive

C8S62A

NOTE: Go to the HPE Hard Drive Compatibility table for complete drive compatibility information (http://www.hp.com/products/harddiskdrives). Using hard drives in unsupported configurations will result in voiding the warranty and could result in damage to the drive and/or loss of data.

Step 1 - P2000 G3 - Base Configuration

Select one:

Model Name

SKU

HP P2000 Modular Smart Array 3.5-inch Drive Bay Chassis

AP838B

• Controller-less chassis with twelve Large Form Factor (LFF) drive bays. Space for two controllers.

HP P2000 Modular Smart Array 2.5-inch Drive Bay Chassis

AP839B

• Controller-less chassis with twenty-four Small Form Factor (SFF) Storage drives bays. Space for two controllers.

There are two array-head chassis - one with twelve 3.5-inch large form factor bays, the other with twenty-four 2.5-inch small form factor drive bays. For an additional twelve drive bays purchase a P2000 3.5-inch Disk Enclosure. You may attach a total of seven P2000 Drive Enclosures for a total of ninety-six LFF drive bays. For 25 additional SFF drive bays purchase D2700 JBOD. You may attach a total of five D2700 JBODs for a total of one hundred and forty nine SFF drive bays. Dual I/O modules JBODS support both single and dual controller arrays.

Step 2 - Options

Select each option with quantities specified.

Step 2a - Options

Quantity

Description with Parts Shipped:

SKU

1 or 2

HP P2000 G3 MSA Fibre Channel Controller
NOTE: for either the LFF or SFF P2000 or the two DC-powered chassis

AP836B

1 or 2

HP P2000 G3 MSA FC/iSCSI Combo Modular Smart Array Controller
NOTE: for either the LFF or SFF P2000 or the two DC-powered chassis

AP837B

1 or 2

HP P2000 G3 SAS MSA Array System Controller
NOTE: for either the LFF or SFF P2000 or the two DC-powered chassis

AW592B

1 or 2

HP P2000 G3 10GbE iSCSI MSA Array System Controller
NOTE: for either the LFF or SFF P2000 or the two DC-powered chassis

AW595B

1 or 2

HP P2000 G3 iSCSI MSA Array System Controller
NOTE: for either the LFF or SFF P2000 or the two DC-powered chassis

BK829B

Step 2b - SAS and SATA Drive Options
NOTE: SATA drives are designed for archival or reference data. They should not be used in a heavy or intense I/O environment. Those situations require the use of enterprise-class SAS drives. P2000 3.5-inch drives are for use only with P2000 products.

P2000 Large Form Factor (LFF) SAS drives for P2000 G3 FC and P2000 3.5-inch Disk Enclosure

HP MSA 300GB 12G SAS 15K LFF (3.5in) Converter Enterprise 3yr Warranty Hard Drive

J9V68A

HP MSA 450GB 12G SAS 15K LFF (3.5in) Converter Enterprise 3yr Warranty Hard Drive

J9V69A

HP MSA 600GB 12G SAS 15K LFF (3.5in) Converter Enterprise 3yr Warranty Hard Drive

J9V70A

P2000 Large Form Factor (LFF) SAS MDL DP drives for P2000 G3 FC and P2000 3.5-inch Disk Enclosure

HP P2000 1TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port MDL Hard Drive

AP861A

HP P2000 2TB 6G SAS 7.2K rpm LFF (3.5-inch) Dual Port MDL Hard Drive

AW555A

HP P2000 3TB 6G SAS 7.2K LFF (3.5- inch) Dual Port MDL 1yr Warranty Hard Drive

QK703A

HP MSA 4TB 6G SAS 7.2K rpm LFF (3.5-inch) Midline 1yr Warranty Hard Drive

C8R26A

HP MSA 6TB 6G SAS 7.2K 3.5in Midline 1yr Warranty Hard Drive

J9F36A

NOTE: Before installing >3TB HDDs in an P2000 G3 Array please update P2000 array controller firmware to version TS230Rxxx or later

MSA2 Large Form Factor (LFF) SATA drives for P2000 array head an P2000 disk enclosure

HP MSA2 1TB 7.2K rpm LFF (3.5 inch) Dual-port SATA Hard Disk Drive

AJ740B

HP P2000 2TB 3G SATA 7.2K rpm LFF MDL Hard Drive

AW556B

HPE MSA P2000 G3 Arrays support both the HPE ProLiant Server SFF Hard Disk Drives and HPE MSA SFF Hard Disk Drives

HPE ProLiant Server Small Form Factor (SFF) SAS drives for P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive bay)

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

507127-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

581284-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

581286-B21

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

619291-B21

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

718160-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive

512547-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) Hot Plug Enterprise 3yr Warranty Hard Drive

627117-B21

HP 300GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785099-B21

HP 450GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785101-B21

HP 600GB 12G SAS 15K rpm SFF (2.5-inch) Enterprise 3yr Warranty Hard Drive

785103-B21

HPE MSA Small Form Factor (SFF) SAS drives for P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive bay)

12G SFF 10K SAS HDDs

HPE MSA 300GB 12G SAS 10K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F44A

HPE MSA 600GB 12G SAS 10K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F46A

HPE MSA 900GB 12G SAS 10K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F47A

HPE MSA 1.2TB 12G SAS 10K SFF(2.5in) Dual Port Enterprise 3yr Warranty Hard Drive

J9F48A

6G SFF 10K SAS HDDs

HP MSA 300GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D55A

HP MSA 450GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D56A

HP MSA 600GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S58A

HP MSA 900GB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S59A

HP MSA 1.2TB 6G SAS 10K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E7W47A

HP MSA 146GB 6G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

E2D54A

HP MSA 300GB 6G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

C8S61A

HP MSA 300GB 12G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

J9F40A

HP MSA 450GB 12G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

J9F41A

HP MSA 600GB 12G SAS 15K SFF(2.5-inch) Dual Port Ent 3yr Warranty Hard Drive

J9F42A

HPE ProLiant Server Small Form Factor (SFF) SAS MidLine drive for P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive bay)

HP 1TB 6G SAS 7.2K 2.5in Dual Port Midline 1yr Warranty Hard Drive

605835-B21

HPE MSA Small Form Factor (SFF) SAS MidLine drive for P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive bay)

HP MSA 1TB 6G SAS 7.2K SFF (2.5-inch) Dual Port Midline 3yr Warranty Hard Drive

C8S62A

HPE ProLiant Server Small Form Factor (SFF) SATA MidLine drive for P2000 G3 Array (24 drive bay) and the D2700 JBOD (25 drive bay)
(NOTE: SFF SATA drives are single ported and therefore do not have a fail-over path intrinsic to their design)

HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive

507750-B21

Step 2c - Drive Enclosure Options

P2000 Dual I/O 3.5-inch 12 Drive Enclosure

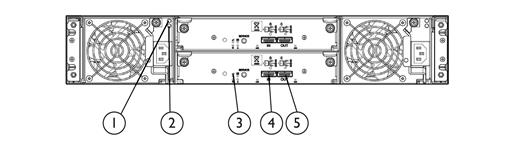

Rear Panel components

1.

Power Indicator

3.

Unit Locator

5.

SAS Out Port

2.

Fault Indicator

4.

SAS In Port

Use either disk enclosure with Large or Small Form Factor, single or dual controller array heads. Each ship with two .5m mini-SAS to mini-SAS cables.

HP P2000 Dual I/O LFF Drive Enclosure

AP843B

HPE D2700 Disk Enclosure

AJ941A

HPE MSA 2040 Energy Star LFF Disk Enclosure

M0S96A

HP P2000 LFF Modular Smart Array Chassis
NOTE:NOTE: Only used in conjunction with the P2000 blank chassis (AP838A) if a single I/O disk enclosure is desired. No cable included)

AP844B

Step 2d - SAS Cable Options

miniSAS to miniSAS Cables:
Connecting P2000 G3 FC or SAS controller to a JBOD if a longer cable is desired. Also used for attaching the P2000 G3 SAS host ports to servers

HPE External Mini SAS 2m Cable

407339-B21

Step 3 - Other P2000 G3 Options

Choose optional AC Power Cords (2 required)
NOTE: Two PDU cables: one 142263-008 (Black) and one 1422633-013 (Grey), ship standard with all AC-powered enclosures.

Power Cord, (Australia/China/New Zealand)

227098-001

Power Cord, (Central Europe)

157215-001

Power Cord, (United Kingdom/Hong Kong)

157216-001

Power Cord, (Switzerland)

157219-001

Power Cord, (Italy)

157217-001

Power Cord, (Denmark)

157218-001

Power Cord, (Japan)

139867-001

Power Cord, (South East Asia/India)

157220-001

Step 4 - Choose Supported Options For Fibre Channel Infrastructure

Fibre Channel
Host Bus Adapters -
X86 servers

Model

Description

SKU

BladeSystem c-Class Fibre Channel Mezzanine HBAs

QLogic QMH2562 8Gb FC HBA for HPE c-Class BladeSystem

451871-B21

HP BLc Emulex LPe1205- 8Gb FC HBA for HPE c-Class BladeSystem

456972-B21

Brocade 804 8Gb FC HBA for HPE BladeSystem c-Class, Windows, VMware, Linux

590647-B21

Fibre Channel HBAs

NOTE: Please visit http://www.hp.com/go/fchba for product details and http://www.hp.com/storage/spock for compatibility details.

Brocade Fibre Channel HBAs

HP 81B PCI-e FC HBA Single Port

AP769B

HP 82B PCI-e FC HBA Dual Port

AP770B

HP 41B 4Gb PCI-e FC HBA

AP767B

HP 42B 4Gb Dual-Port PCI-e FC HBA

AP768B

Emulex Fibre Channel HBAs

HP 81E PCI-e FC HBA Single Port

AJ762B

HP 82E PCI-e FC HBA Dual Port

AJ763B

HP FC2142 4Gb PCI-e HBA

A8002B

QLogic Fibre Channel HBAs

HP 81Q PCI-e FC HBA Single Port

AK344A

HP 82Q PCI-e FC HBA Dual Port

AJ764A

HP FC1142 4Gb PCI-e HBA

AE311A

HP FC1242 Dual Channel 4Gb PCI-e HBA

AE312A

Fibre Channel
Host Bus Adapters -
Integrity servers

Integrity

HP 4Gb 1-port PCI-X 2.0 Fibre Channel Host Bus Adapter

AB378B

HP 4Gb 2-port PCIe Fibre Channel Host Bus Adapter

AD300A

HP 4Gb 1-port PCIe Fibre Channel Host Bus Adapter

AD299A

HP 4Gb 2-port PCIe Fibre Channel Host Bus Adapter

AD355A

HP PCIe 1-port 4Gb and 1-port 1000BT Adapter

AD221A

HP PCIe 2-port 4Gb and 2-port 1000BT Adapter

AD222A

HP PCIe 2-port 4Gb and 2-port 1000BSX Adapter

AD393A

HP PCI-X 1-port 4Gb FC and 1-port 1000BT Adapter

AD193A

HP PCI-X 2-port 4Gb FC and 2-port 1000BT Adapter

AD194A

HPE PCI Express 1-port 8Gb Fibre Channel SR (QLogic) Adapter

AH400A

HPE PCI Express 2-port 8Gb Fibre Channel SR (QLogic) Adapter

AH401A

HPE 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

AH402A

HPE 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

AH403A

Integrity server blades

QLogic QMH2562 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem

451871-B21

Emulex LPe1205 8Gb Fibre Channel Host Bus Adapter for c-Class BladeSystem

456972-B21

Fibre Channel Switches

HP 8/8 Base SAN Switch

AM866B

HP 8/8 SAN Switch

AM867B

HP 8/24 Base SAN Switch

AM868B

HP 8/40 Base SAN Switch

AM869B

HP 8/40 Power Pack+ SAN Switch

AM870B

HP 8/80 Power Pack+ SAN Switch

AM872B

HP 8/80 Base SAN Switch

AM871B

HP 1606 Power Pack+ Extension SAN Switch

AP864B

HP 1606 Full Extension SAN Switch

AP863B

HP 1606 Base Extension SAN Switch

AP862B

HP 2408 FCoE Base Converged Network Switch

AP801B

HP 2408 FCoE Power Pack+ Converged Network Switch

AP802B

Brocade 8/12c SAN Switch for HPE BladeSystem c-Class

AJ820B

Brocade 8/24c SAN Switch for HPE BladeSystem c-Class

AJ821B

Brocade 8/24c SAN Switch for HPE BladeSystem c-Class Power Pack+

AJ822B

Brocade 16Gb/16 SAN Switch for HPE BladeSystem c-Class

C8S45A

Brocade 16Gb/28 SAN Switch for HPE BladeSystem c-Class

C8S46A

Brocade 16Gb/28 SAN Switch Pwr Pk+ for HPE BladeSystem c-Class

C8S47A

SKU

AQ233A

HP 8/20q Fibre Channel Switch
NOTE: 8 device ports active, upgradeable to 20 device ports active

AK241A

HP 8Gb Simple SAN Connection Kit
NOTE: 8 device ports active, upgradeable to 20 device ports active

AK242A

HPE 8/20q Fibre Channel Switch
NOTE: 16 switch ports active

AW575B

HP SN6000 Stackable 8Gb 24-port single power supply FC Switch
NOTE: 20 device ports active/4 stacking (ISL) ports active

AW576B

HP SN6000 Stackable 8Gb 24-port dual power supply FC Switch
NOTE: 20 device ports active/4 stacking (ISL) ports active

BK780B

HP SN6000 Stackable 8 GB 12-port Single Power Fibre Channel Switch
NOTE: 8 device ports/4 stacking (ISL) ports active, upgradeable to 20 device ports active

AG646A

Cisco MDS 9124 8-ports Active Fabric Switch

AG647A

Cisco MDS 9124 16-ports Active Fabric Switch

AG648A

Cisco MDS 9124 24-ports Active Fabric Switch

AW563A

Cisco MDS 8Gb 12-port Fabric Switch for HPE BladeSystem c-Class

AW564A

Cisco MDS 8Gb 24-port Fabric Switch for HPE BladeSystem c-Class

AG641A

Cisco MDS 9124e 12-port Fabric Switch for HPE c-Class BladeSystem

AG642A

Cisco MDS 9124e 24-port Fabric Switch for HPE c-Class BladeSystem

AG874A

Cisco MDS 9134 24-ports Active Fabric Switch

AG875A

Cisco MDS 9134 32-ports Active Fabric Switch

AG851B

Cisco MDS 9222i Fabric Switch

AW585A

HP SN6000C 16-ports Active Fabric Switch

AW586A

HP SN6000C 32-ports Active Fabric Switch

AP775A

HP Nexus 5010 Converged Network Switch

AP776A

HP Nexus 5020 Converged Network Switch

QK732A

PremierFlexOM4+ type cable
P2000 G2

1m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable

QK733A

2m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable

QK734A

5m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable

QK735A

15m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable

QK736A

30m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable

QK737A

50m HP PremierFlex OM4 LC/LC Multi-mode Optical Cable

AJ833A

OM3 FC LC-LC cables options for the P2000 G3

LC-LC Multi-Mode OM3 Fibre Channel Cable 0.5m

AJ834A

LC-LC Multi-Mode OM3 Fibre Channel Cable 1m

AJ835A

LC-LC Multi-Mode OM3 Fibre Channel Cable 2m

AJ836A

LC-LC Multi-Mode OM3 Fibre Channel Cable 5m

AJ837A

LC-LC Multi-Mode OM3 Fibre Channel Cable 15m

AJ838A

LC-LC Multi-Mode OM3 Fibre Channel Cable 30m

AJ839A

LC-LC Multi-Mode OM3 Fibre Channel Cable 50m

AJ839A

Step 4a - Choose Supported Options For 10GbE Infrastructure
- verify that the cable/transceiver is supported with the connecting device (i.e. switch or NIC/iSCSI HBA)

Copper Cable

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 1m Direct Attach Copper Cable

487652-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable

487655-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable

537963-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 7m Direct Attach Copper Cable

487658-B21

HPE BladeSystem c-Class 10Gb SFP+ SR Transceiver

455883-B21

SFP

HPE BladeSystem c-Class 10Gb SFP+ LRM Transceiver

455889-B21

HPE X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

J9281B

HPE X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283B

HPE X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285B

HPE X132 10G SFP+ LC SR Transceiver

J9150A

HPE X132 10G SFP+ LC LRM Transceiver

J9152A

HPE FlexNetwork X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable

JD095C

HPE FlexNetwork X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable

JD096C

HPE FlexNetwork X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

JD097C

HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

HPE FlexNetwork X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable

JC784C

NIC

HP NC532m Dual Port 10GbE Multifunction BL-c Adapter

467799-B21

HP NC552SFP 10Gb 2-port Ethernet Server Adapter

614203-B21

HP NC552SFP 10GbE 2P Svr Adapter

Reference sell

iSCSI HBA - standup

iSCSI HBA - mezz

NIC - mezz

Step 4b - Choose Supported Options For SAS connection

HPE H221 PCIe 3.0 SAS Host Bus Adapter

729552-B21

HP Smart Array P712m/256 6Gb 2-ports Int/2-ports Ext Mezzanine SAS Controller

488348-B21

HPE Smart Array P711m/1G 6Gb FBWC 4-ports Ext Mezzanine SAS Controller

513778-B21

HPE 6Gb SAS Switch Single Pack for HPE BladeSystem c-Class

BK763A

HPE 6Gb SAS Switch Dual Pack for HPE BladeSystem c-Class

BK764A

HPE External Mini SAS 2m Cable

407339-B21

HPE External Mini SAS 4m Cable

432238-B21

HPE External Mini SAS 4m Cable

432238-B21

Step 5 - Choose Rack Options

Please refer to the Hewlett Packard Enterprise Infrastructure products page for more information on Hewlett Packard Enterprise racks and rack options or the HPE 10000 G2 Series Rack QuickSpecs
http://h18004.www1.hp.com/products/servers/platforms/rackandpower.html
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123410

P2000 G3 FC
P2000 G3 FC/iSCSI
P2000 G3 SAS
P2000 G3 10GbE iSCSI
P2000 G3 iSCSI (1Gb)

POWER REQUIREMENTS

Input Power Requirements
(typical-running I/O)
SFF/LFF arrays

• 8G FC (2 Port - 8G FC) 110VAC 3.32A, 344-390 W; 220VAC 1.61A,374-432W
• FC/iSCSI Combo (2 Port - 8G FC + 2 Port -1G iSCSI)
  110VAC; 3.64A,357-418W, 220VAC 1.77 A, 365-424W
• 6G SAS (4 Port - 6G SAS) 110VAC 3.49A,344-390W, 220VAC 1.7A 374-432W
• 10GbE iSCSI (2 Port - 10 GbE iSCSI) 110VAC 3.67A, 395W, 220VAC,1.95A 388.2W
• 1G iSCSI (4 Port - 1GbE iSCSI) 110VAC 3.3A 363W, 220VAC, 1.63A 360W

Max Input Power

100-240 VAC, 50/60 Hz., 4.5-1.9A; 48-60 VDC 10.4A/8.3A

Heat Dissipation

1622 BTU/hr

TEMPERATURE AND HUMIDITY RANGES

Operating Temperature

41°F to 104°F (5°C to 40°C)

Shipping Temperature

-40°F to 158°F (-40°C to 70°C)

Operating Humidity

10% to 90% RH @ 104°F (40°C) non-condensing

Non-Operating Humidity

Up to 93% RH @ 104°F (40°C)

DECLARED ACOUSTIC NOISE LEVELS

Sound Power

A weighted sound power LWAd=6,75 B

Sound Pressure

A weighted sound pressure LpAm - 55dB

SHOCK AND VIBRATION

Shock, Operational

10G's for 10 milliseconds

Shock, Non-Operational

15G 11ms half sine

Vibration, Operational

5-500Hz, 0.21Grms flat

Vibration, Non-Operational

3-365-3Hz, 1.22 Grms,z-axis,0.85 Grms, X&Y axis shaped spectrum

PHYSICAL

Height

3.5 in/ 8.9 cm

Depth (excluding cables) (back of ear to back of controller handle)

P2000 G3 SFF 24-bay array: 20.28 in / 51.510 cm
P2000 G3 LFF 12-bay array: 21.3 in. / 55.1 cm

Width (body only)

17.6 in / 44.7 cm (w/ ears 19 in / 48.26 cm)

Chassis Weight
(no controllers)

P2000 LFF chassis: 34.1 lbs. (DC-pwr model: 37.9 lbs)
P2000 SFF chassis: 32.3 lbs (DC-pwr model: 36.1 lbs)

P2000 G3 FC Controller

FC/iSCSI Combo Controller
P2000 G3 SAS Controller

P2000 G3 10GbE iSCSI Controller

P2000 G3 iSCSI Controller (1Gb)

User Interface

Status and activity provided via management interfaces. Status Indicators on front of Controller

RAID Support

0, 1, 3, 5, 6, 10, 50

Cache Memory

2GB Read/Write. ECC protection with backup to Flash memory (indefinite backup)

Cache Backup

ECC protection with back up to flash memory (indefinite backup)

Upgradeable Firmware

yes

Disk Drive and Enclosure Protocol Support

6 GB SAS - Serial Attached SCSI

Host Ports

FC: 2 x 8Gb Fibre Channel SFP+
SAS: 4 -4x lane 6 GB SAS Host Connections
10GbE iSCSI: 2 x 10GbE SFP+
1GbE iSCSI: 4 x 1GbE RJ45

Expansion Port

SAS (SFF8088) 4x lane 6 GB SAS

Weight, controller

P2000 G3 Fibre Channel, FC/iSCSI, SAS, and 10GbE iSCSI MSA Controllers 4.5lbs. 1GbE iSCSI is 4.89 lbs

P2000 G3
Regulatory Info

Safety

UL 60950-1 (USA)

CAN/CSA-C22.2 No.60950-1-03 (Canada)

EN 60950-1 (European Union)

GS mark (Germany)

IEC 60950-1 (International)

CCC Mark (power supply only, China PRC)

Electromagnetic Compatibility

VCCI:2008-04 Class A (Japan)

FCC 15:109(g) Class A (USA)

ICES-003:2004 Class A (Canada)

EN55022 : (European Union Class A); CISPR 22 (International Class A)

EN61000-3-2 : (Harmonics) (European Union)

EN61000-3-3 : (Flicker) (European Union)

EN 55024 (European Union, Immunity, Class A);CISPR 24 (International Immunity, Class A)

AS/NZS CISPR 22, Class A (Australia, New Zealand)

CNS 13438 Taiwan, Class A (Taiwan)

KN22 Class A (Emissions Class A); KN24 (Immunity) (S Korea)

RoHS and WEEE

RoHS-6/6 Compliance, China RoHS, WEEE

Country Approvals

United States ,Australia/New Zealand, Canada, China (PRC), European Union, Germany (GS Mark), Japan, South Korea, Taiwan

Date

Version History

Action

Description of Change

23-Oct-2017

From Version 47 to 48

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

25-Nov-2015

From Version 46 to 47

Added

Added a critical update of supporting the MSA 2040 LFF DE with the P2000 G3 array

16-Oct-2015

From Version 45 to 46

Changed

Cosmetic Changes

19-Jun-2015

From Version 44 to 45

Changed

Replaced AJ941A with AP843B on page 14 since it was a cut and paste error.

15-May-2015

From Version 43 to 44

Changed

Changes were made throughout the QuickSpecs.

30-Mar-2015

From Version 42 to 43

Changed

SKUs descriptions were updated, Obsolete SKU were removed.

Added

Support for 12G SFF and LFF w Hard Disk Drives

01-Dec-2014

From Version 41 to 42

Changed

Changes were made throughout the QuickSpecs.

03-Oct-2014

From Version 40 to 41

Changed

Changes in the Family Information Section

29-Sep-2014

From Version 39 to 40

Changed

Changes were made throughout the QuickSpecs

09-May-2014

From Version 38 to 39

Changed

Operate and Support and Basic Care were revised.

28-Mar-2014

From Version 37 to 38

Changed

SFP cables and Supported options for SAS connection were revised in Configuration Information.

16-Jan-2014

From Version 36 to 37

Changed

Corrected an invalid part number in the Hardware Support section.

09-Dec-2013

From Version 35 to 36

Changed

Models, Family Information, Hardware, and Configuration Information were revised.

04-Oct-2013

From Version 34 to 35

Changed

Corrected an error in the Hardware section.

13-Sep-2013

From Version 33 to 34

Changed

Updated the following: Optional Software - Drives, carrier-grade (all NEBS certified) - HPE 600GB 6G SAS 10K 2.5in Dual Port Enterprise=3yr Warranty Storage Hard Disk Drive - changed part number from E2D57A to C8S58A.; Configuration Information - D2700 SAS & SATA Drives (SFF 2.5-inch) - HPE 600GB 6G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Storage Hard Disk Drive - changed part number from E2D57A to C8S58A; HPE 900GB 6G SAS 10K 2.5in Dual Port Enterprise 3yr Warranty Storage Hard Disk Drive - changed part number from E2D58A to C8S59A.

19-Aug-2013

From Version 31 to 33

Changed

Capacity, Drives available, Optional Disk enclosures, and Scalability were revised in Family Information

HPE P2000 G3 Carrier-Grade Components and SAS & SATA Drives were revised in Configuration Information

HPE MSA 4TB 6G SAS 7.2K rpm LFF Midline Hard Drive was added to SATA and SATA Drive Options in Configuration Information

Brocade 16Gb/16 and 16Gb/28 SAN Switches for HPE BladeSystem c-Class and Brocade 16Gb/28 SAN Switch Pwr Pk+ for HPE BladeSystem c-Class were added to Fibre Channel Switches in Configuration Information

HPE 2000 Modular Smart Array Snapshot 255, 64, and 8 Software LTUs and 8 to 255, 64 to 255, and 8 to 64 Upgrade Software LTUs were removed from MSA2000 and MSA2000 G2 Snapshot and Volume Copy software in Options Software

19-Jun-2013

From Version 30 to 31

Removed

HPE MSA 4TB 6G SAS 7.2K rpm Hard Drive was removed

13-May-2013

From Version 29 to 30

Removed

Configuration Information: Removed PremierFlex OM3+ type cables P2000 G3 sections from Step 4a

Changed

Overview: Updated What's New with

Adding support for the new HPE P2000 4TB Large Form Factor SAS MDL HDD

HPE MSA 4 TB 6G SAS 7.2K 3.5 in MDL HDD

Microsoft Windows Server 2012 support

Support with HPE StoreEasy 3830 Gateway Storage or StoreEasy 3830 Gateway Storage Blades

Models: Updated P2000 G3 Modular Smart Array section.

Features: Updtaed Virtualization SAN Starter Kit section.

Family Information: Updated Capacity, Scalability, DC-power chassis and P2000 Software and Documents Support CD sections.

Optional Software: Updated Snapshot and Volume Copy Software for the P2000 G3, HPE P2000 Remote Snap Software (G3 FC and FC/iSCSI, 1GbE and 10GbE iSCSI controllers only), HPE StoreEasy 3000 Gateway Storage and HPE P2000 G3 Carrier-Grade Components sections.

Configurations Information: Update d SAS & SATA Drives (SFF 2.5-inch), Step 2b, Step 3 and Step 4a.

29-Mar-2013

From Version 28 to 29

Changed

Updated the following: What's new; Family Information - P2000 Software and Documents Support CD; OS Support - Fibre Channel ports; OS Support 1GbE iSCSI ports on the G3 combo FC/iSCSI controller; OS Support G3 SAS Controller; OS Support G3 1Gb 8SCSI Controller; OS Support G3 10GbE iSCSI controller; added section on HPE StoreEasy 3000 Gateway Storage

21-Dec-2012

From Version 27 to 28

Changed

Changes made in the following sections:

Overview: in Overview and What's New

Models: updated part numbers in P2000 G3 Modular Smart Array and P2000 G3 Array Bundles

Features: updated part numbers in HPE 2000 G3 FC MSA SAN Starter Kits

Family Information: updated part numbers in Scalability, DC-Power Chassis,

Optional Software: updated part numbers in HP2000 G3 Carrier Grade Components

Configuration Information: update product numbers in Configure to Order Program Information, D2700 SAS & SATA Drives, in Step 1, Step 2 and Step 4a.

Removed

Removed hyperlink in Service & Support, HPE Care Pack and Warranty Information: For More Information section.

23-Aug-2012

From Version 26 to 27

Changed

Changes made to the North America and Canada versions only.

13-Aug-2012

From Version 25 to 26

Changed

Changes made throughout the entire QuickSpecs.

14-May-2012

From Version 24 to 25

Changed

Changes made throughout the entire QuickSpecs. Note that the title has changed.

06-Apr-2012

From Version 23 to 24

Changed

URL was changed for HPE Storage Management Pack for Microsoft System Center.

09-Mar-2012

From Version 22 to 23

 Changed

URL was changed in Optional Software.

02-Mar-2012

From Version 21 to 22

 Changed

Updated the following: Overview; What's New updated to reflect new 300GB 6G SAS 15K SFF drives; Key Features; Family Information - Performance; Optional Software - Product Features; HPE P2000 G3 Carrier-Grade Components; Configuration Information - D2700 - added new drive; Configuration Information - Step 2b - added new drive; Configuration Information - Step 4c.

13-Feb-2012

From Version 20 to 21

Added

All the HPE Storage Management Pack for Microsoft System Center section.

13-Jan-2012

From Version 19 to 20

 Changed

P2000 G3 Array Bundles was revised

G3 Controller 10GbE iSCSI and HPE 450GB and 600GB SAS 10K rpm SFF Dual Port Enterprise 3yr Warranty Hard Drives were added and G2 Controller 3Gb SAS were removed from HPE P2000 G3 Carrier-Grade Components

Related Option: MSA2000 G2 Controllers were removed from P2000 G3 Modular Smart Array models

14-Nov-2011

From Version 18 to 19

 Changed

P2000 G3 Array Bundles chart was revised in Models

Citrix XenServer HPE Enterprise Edition was removed from Family Information

HPE Storage Mirroring was removed from Optional Software

02-Sep-2011

From Version 17 to 18

 Changed

Total LUNs, Maximum host supported and Optional Software were updated in the Family Information chart and Product Technology was revised in Family Information

HPE Insight Control Storage Module for vCenter, HPE P2000 Remote Snap Software and Product Features were revised and vStorage API for Array Integration (VAAI) was added to Optional Software

Fibre Channel Switches was updated in Step 4a of the Configuration Information

20-Jun-2011

From Version 16 to 17

 Changed

Capacity was revised in the Family Information chart

HPE 450GB and 600GB 6G SAS 10K 2.5 inch DP ENT HDDs were added to SAS and SATA Drives

HPE P2000 3TB 6G SAS 7.2K LFF DP MDL HDD was added to P2000 Large Form Factor (LFF) SAS MDL DP drives for P2000 G3 FC and P2000 3.5-inch Disk Enclosure

StorageWorks was removed throughout, including from the title

09-Jun-2011

From Version 15 to 16

Removed

Mentions of StorageWorks were removed.

09-May-2011

From Version 14 to 15

 Changed

HPE Insight Control Storage Module for vCenter and HPE P2000 G3 Carrier-Grade Components were completely revised

SAS and SATA Drives descriptions were revised

Apple MAC OS X was added and Citrix XenServer HPE Enterprise Edition was removed from OS Support

HPE StorageWorks 2300fc G2 Modular Smart Array Controller - 4 GB FC was removed from Models

01-Apr-2011

From Version 13 to 14

 Changed

Server Compatibility was revised in Product Technology

HPE Smart Array P712m Controller/256 for Server Blades, HPE Smart Array P711m Controller 1 for Server Blades and HPE StorageWorks 6Gb/s SAS BL Switch - Single and Dual Port for BladeSystems were added to Step 4c

18-Mar-2011

From Version 12 to 13

 Changed

Small Form Factor SAS Capacity was increased

SuSE Linux IA32, x64 and Citrix XenServer HPE Enterprise Edition were added to OS Support in Family Information

HPE Ext Mini SAS 2m and 4m cables were added to Step 4c

07-Feb-2011

From Version 10 to 12

 Changed

HPE 450GB and 600GB 6G SAS 10K 2.5 inch DP ENT HDD were added to ProLiant Small Form Factor (SFF) SAS drives for P2000 G3 Array and the D2700 JBOD in Step 2b

Note was removed from P2000 G3 Array Bundles Model

HPE StorageWorks Encryption SAN Switch was removed from Fibre Channel Switches in Step 4a

10-Jan-2011

From Version 9 to 10

 Added

P2000 G3 Array Bundles was added to Models and HPE 72 GB 6G 15K 2.5 inch SAS DP HDD was added to HPE P2000 G3 and MSA2000 G2 Carrier-Grade Components.

15-Nov-2010

From Version 8 to 9

 Changed

Changes made throughout the entire QuickSpecs.

15-Oct-2010

From Version 7 to 8

 Changed

Updated the Features - Application Solutions section only.

27-Sep-2010

From Version 6 to 7

 Changed

Changes were made within the entire QuickSpecs, including removing Models and adding HPE StorageWorks P2000 G3 10GbE iSCSI Modular Smart Array Controller and HPE StorageWorks P2000 G3 10GbE iSCSI MSA Dual Controller LFF and SFF Array Systems to Configure to Order Program Information.

18-Aug-2010

From Version 5 to 6

 Added

Added new Smart Buys to the Models section in the North America and Canada versions.

23-Jul-2010

From Version 4 to 5

 Added

Added new Smart Buys to the Models section in the North America and Canada versions.

29-Jun-2010

From Version 3 to 4

Changed

Note the title has changed.

21-Jun-2010

From Version 2 to 3

Changed

Changes made throughout the entire QuickSpecs.

29-Mar-2010

From Version 1 to 2

Added

P2000 1TB and 2TB 6G SAS 7.2K LFF Hard Drives were added throughout the QuickSpecs.
