HPE Alletra 9000: технические характеристики и документация

HPE Alletra Storage 9000

Is your enterprise class storage holding you back because you are tied down administering, tuning, and supporting infrastructure?  Are you looking to shift from managing disparate clouds to a cloud everywhere experience with the same agility, simplicity, and cloud consumption for every application?

HPE Alletra Storage 9000 is ideally suited for mission-critical workloads with extreme latency sensitivity and availability requirements. It's ideally suited for an environment that requires a dense data center footprint.  It overcomes the agility versus reliability tradeoff between the public cloud and traditional enterprise storage by providing a modern, as-a-service experience through HPE GreenLake, combined with intelligence and automation that ensures applications are always-on and available.  It features a unique, massively parallel, multi-node, and all-active platform with all volumes active on all media, controllers, and host ports always. Achieve unconstrained scalability for consolidating traditional and next-generation mission-critical applications with predictable performance and ultra-low latency, backed by a 100% availability guarantee.  Also eliminate cost and complexity from business continuity and disaster recovery with fully Active Bidirectional Replication.

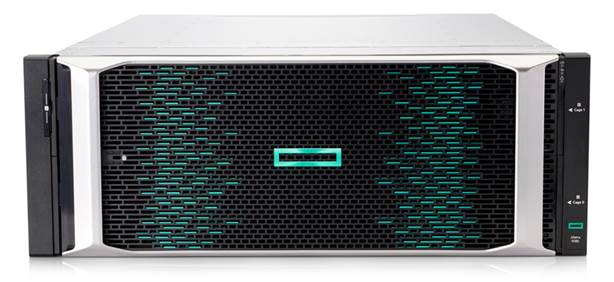

HPE Alletra Storage 9000

(2/4-Node all NVMe Storage Base)

What's new

• Introduction of NVMe Self-encrypting drives (SED) and associated LTU/ELTU.
• Introduction of upgrade skus for Alletra storage 9000 controllers, SSDs and drive enclosures.

Notes:

- ¹ Measured on HPE Alletra Storage 9080 4N, 8KiB Random Reads TPVV RAID6, configured in production mode

- For more information about the value of HPE Alletra Storage 9000 visit: https://hpe.com/storage/Alletra.

AI-driven

• Predict and prevent disruptions across storage, services, and virtual machines, resulting in savings of over 1.5 million hours of lost productivity due to downtime.
• Redefine support experience with predictive support automation that delivers an unprecedented support experience.
• Pinpoint issues between storage and VMs and underutilized virtual resources without effort.
• Take the guesswork out of managing data infrastructure with AI-driven recommendations that improves performance, drives higher availability, and optimizes resource utilization and planning.

Built for cloud

• Setup with zero touch deployment in minutes because systems are automatically discovered, on-boarded, and configured.
• Say goodbye to time-consuming, LUN-centric provisioning with AI-driven, intent based provisioning of application workloads on infrastructure best suited for optimizing SLAs.
• Experience faster access to innovation with no disruptions because new features and enhancements are instantly available through self-service upgrades.
• Manage from anywhere with simple global management driven through a SaaS-based user experience.

As-a-Service

• Consume data infrastructure as a service via HPE GreenLake, eliminating up front capital costs with a pay-per-use model.
• Shift from owning and maintaining data infrastructure to simply accessing and utilizing it on-demand.
• Free up your cash flow and increase financial agility with the right mix of subscription and consumption-based services.

Notes:

- ¹ Effective capacity assumes 4:1 data compaction ratio (thin provisioning, deduplication, compression, and copy technologies) in a RAID 6 (10+2) configuration.  Note TB vs TiB.  Actual ratios will vary based on workload. See HPE Store More Guarantee for more information.

- Max capacity specifications assume 4 node configurations (2 node configurations support 50% of the max specifications).

Host OS Support

Citrix® Hypervisor | HPE HP-UX® | IBM® AIX® | IBM Virtualization | Microsoft® Windows® Server and Microsoft® Hyper-V^TM |

| Oracle® Linux® | Oracle® Solaris | Red Hat® Enterprise Linux® | SUSE® Linux Enterprise Server (SLES) | VMware ESX and ESXi |

For the latest information on supported operating systems refer to Single Point of Connectivity Knowledge for HPE Storage Products (SPOCK): http://www.hpe.com/storage/spock.

Other related services from HPE Services

Timeless Storage and the HPE Technology Refresh Service

The HPE Technology Refresh Service for HPE Alletra Storage 9000 is a service available in conjunction with HPE Services, HPE Tech Care Service or HPE Complete Care Services for eligible HPE Alletra Storage 9000 hardware and software configurations. This service offers HPE Alletra Storage 9000 array customers all the benefits of Timeless Storage for HPE Alletra Storage 9000, including an ownership experience with a simple path to keeping their storage technology current through periodic, non-disruptive technology updates.

This ownership experience offers customers a more predictable cost structure as compared to traditional storage ownership since it incorporates costs associated with future technology updates into a renewable service. Together, Timeless Storage for HPE Alletra Storage 9000 and the HPE Technology Refresh Service not only extend the useful life of the customer's storage assets but create a more sustainable approach to storage ownership.

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

• Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
• HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, considering the relevant revision dependencies within your IT environment.
• HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, considering the relevant revision dependencies within your IT environment.
• Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
• HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product QuickSpecs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience.

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

http://www.hpe.com/services

HPE Storage SSD Extended Replacement Program

Provides for the post warranty replacement of eligible HPE Alletra Storage 9000 SSDs under active HPE support coverage at no additional cost in the event the SSD has reached its maximum usage limit based upon the HPE Alletra Storage 9000 SSD Life-Left reading.

http://h20195.www2.hpe.com/V2/GetPDF.aspx/a00000122ENW.pdf

HPE Alletra Storage 9000 Installation and Startup Service

Provides onsite deployment of your HPE Alletra Storage 9000 array into your storage environment.

HPE Alletra Storage 9000 Replication Software Installation and Startup Service

Provides deployment of HPE Remote Copy, Peer Motion, and Peer Persistence functionality of HPE Alletra Storage 9000. The service helps you get HPE Alletra Storage 9000 replication related software up and running quickly and provides a demonstration of the product's key features using sample or test data only.

HPE Alletra Storage 9000 Base Software Installation and Startup Service

Provides deployment of Dynamic Optimization, Priority Optimization, System Reporter, Virtual Copy, and an overview of Virtual Domain and Virtual Lock. For Virtual Copy, the service provides a demonstration of the product's key features using sample or test data only.

HPE Storage Software Installation and Startup Service

Provides deployment of individual HPE Alletra Storage 9000 software features, helping to ensure proper installation in your storage environment as well as helping you increase the benefit from your storage investment.

http://h20195.www2.hpe.com/V2/GetPDF.aspx/4AA5-8036ENW.pdf

HPE Storage Transformation Workshop

Explore data management to business-aligned visions, covering cloud, object, end to end data protection and BC/DR.

HPE Storage Data Migration

Proven methodology, expertise and tools to help you migrate data across your data center or around the globe.

http://h20195.www2.hpe.com/V2/GetPDF.aspx/4AA5-3759ENW.pdf

HPE Backup and Recovery Efficiency Analysis Service

Rapid health check of your current backup environment, focusing on operational stability, problem identification, and capacity constraints. The output of this service provides clear metrics and high-level recommendations for your backup environment.

https://h20195.www2.hpe.com/V2/getpdf.aspx/4AA3-9104ENW.pdf

HPE Storage Integration Service

Integrate your new HPE Alletra Storage 9000 so that it is agile, performs effectively, and scales to rapid growth.

http://h20195.www2.hpe.com/V2/GetPDF.aspx/4AA4-9254ENW.pdf

HPE SAN Deployment Service

Delivers complete design and implementation services for Fibre Channel, FCoE, FCIP, SAS, and iSCSI SAN connectivity components.

http://h20195.www2.hpe.com/V2/GetPDF.aspx/5981-8527ENW.pdf

https://h20195.www2.hpe.com/v2/GetDocument.aspx?docname=5981-8527enw

HPE Data Replication Solution Service for Virtual Copy

Enables snapshots and mirroring to facilitate data restores, minimize downtime for backups, perform application testing and support data mining use with decision-support tools.

http://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA3-8107ENW.pdf

HPE Data Replication Solution Service for Remote Copy

Configures real-time data mirroring between local and remote storage systems to safeguard critical business information.

http://h20195.www2.hpe.com/V2/GetPDF.aspx/4AA3-8627ENW.pdf

HPE Performance Analysis Service for HPE Storage

Provides data collection, detailed I/O analysis and enhancement recommendations for HPE Storage arrays.

https://www.hpe.com/psnow/doc/a00137467enw?jumpid=in_hpesitesearch

HPE Data Sanitization Storage and Server Services

Provides skilled resources and tools to help your organization address the need to protect data when your organization is retiring systems, upgrading storage and servers, returning leased equipment, or redeploying data storing devices. The service helps ensure that data cannot be reconstructed or retrieved from hard disk media in your server and storage devices. These services offer you a smart alternative or augmentation to physical hardware destruction.

https://www.hpe.com/h20195/v2/GetPDF.aspx/5981-9510ENW.pdf

HPE Storage Rebalance Service

Helps balance data across an HPE Alletra Storage 9000 array to take advantage of the capabilities of the array architecture. The service provides analysis, planning, and implementation of data movement and/or physical movement of drive magazines within the array.

http://h20195.www2.hpe.com/V2/GetPDF.aspx/4AA4-0280ENW.pdf

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and support options.

Step 1: Choose the Storage Base and Controller Nodes

HPE Alletra Storage 9000 configuration starts with the selection of the Storage Base and Controller Nodes. The Storage Base is a 4U 4-way chassis that includes 48 bays for small form factor NVMe drives. The Storage Base does not include any controller nodes or power supplies. The controller SKUs include 2 nodes. Power Supplies are not included in the Storage Base or Controller Nodes. Select controller nodes for new storage systems, and upgrade controller for future upgrades.

HPE Alletra Storage 9000 Base

Remarks

Description

SKU

HPE Alletra Storage 9000 4-way NVMe Storage Base

R0N93A

• One (1) Storage Base SKU must be ordered for each array.
• The Storage Base can host 2 or 4 controller nodes and up to 48 small form factor NVMe drives in 4U.
• The Storage Base does not include any controller nodes or Power Supplies.

HPE Alletra Storage 9000 Controllers

These controller skus are used for new storage systems

*

HPE Alletra 9060 2-node Controller

R0N99A

HPE Alletra 9060 2-node Field Integrated Controller

R0P00A

HPE Alletra 9080 2-node Controller

R0N94A

HPE Alletra 9080 2-node Field Integrated Controller

R0N95A

HPE Alletra Storage 9000 Upgrade Controllers

These controllers skus are used for future controller upgrades, example 2N-4N

*

HPE Alletra Storage 9060 2-node Controller Upgrade

R0N99B

HPE Alletra Storage 9060 2-node Field Integrated Controller Upgrade

R0P00B

HPE Alletra Storage 9080 2-node Controller Upgrade

R0N94B

HPE Alletra Storage 9080 2-node Field Integrated Controller Upgrade

R0N95B

• Each Controller SKU includes two (2) nodes and two (2) C13-C14 Locking Power Cords (1.4m).
• One (1) or two (2) Controller SKUs can be ordered per array.
• All controllers need to be of the same type. Different controller types cannot be mixed in the same Storage Base.
• Each Node has two (2) built-in 10GBase-T ports for Remote Copy over IP, one (1) management port, one (1) service port, (1) Console port (serial), and two (2) 100GbE ports for future back-end connectivity to NVMe drive enclosures.
• Each Node contains (3) three PCIe slots for host adapters.
• When HPE Alletra 9000 Storage is configured with 2 nodes, only the corresponding 24 drive bays can be used
• The standard Controller SKUs (R0N99A, R0N94A, RON99B, RON94B) are used for CTO and sCTO configurations (drives are factory integrated into the Storage Base and HBAs are factory integrated into the controllers) SKU (R0N99A, R0N94A).
• The Field Integrated Controller SKUs (R0P00A, ROP00B, RON95A, RON95B) are used for BTO configurations (drives and HBAs are field integrated)
• For controller upgrades, skus (R0N99B, R0N94B, R0P00B, R0N95B) CTO and sCTO SKUs support HBA factory integration, and BTO SKUs can be used for HBA customer or field integration.
• For new storage systems the controllers are always factory integrated in the Storage Base for shipment.
• *HPE offers Trade Agreement Act (TAA) HPE Alletra Storage 9000 Controller options (R0N99A #GTA, R0N94A #GTA), R0N99B #GTA, R0N94B #GTA) to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).

Description

SKU

HPE Alletra 9080 2-node Upgrade Conversion Kit

S1D71A

HPE Alletra 9080 4-node Upgrade Conversion Kit

S1D72A

• The number of controller nodes in the Conversion Kit must match the number of controllers of the original Alletra 9000 Storage system
• S1D71A is used to upgrade a HPE Alletra 9060 2-node to an HPE Alletra 9080 2N
• S1D72A is used to upgrade a HPE Alletra 9060 4-node to an HPE Alletra 9080 4N
• The HPE Alletra Storage 9000 Conversion Kit includes (2 or 4) controller nodes and bezel labels. They do not include HBAs, or NICs.
• HPE Alletra Storage 9000 OS 9.5.15 or greater is required before proceeding with the upgrade. Install the latest Upgrade Tool Software. For updating software releases, information and instructions are located at HPE MY Software Center and search for the document HPE Alletra Storage 9000: Updating software (V9.4, v9.5) https://myenterpriselicense.hpe.com/cwp-ui/dashboard/entitlement
• After a 9060 2N to a 9060 2N node conversion has occurred (SKU SID71A), and a second controller pair is desired. You can order another Alletra Storage 9080 2-node controller upgrade (R0N95B) to reach the maximum node count of 4-nodes.

Step 2: Choose Power Supplies

HPE Alletra Storage 9000 can be configured with 1-phase or 3-phase AC power, or DC power. Power and Cooling Battery Modules (PCBM) are not included in the Storage Base SKU or Controller SKU and must be ordered separately.

HPE Alletra Storage 9000 Power Supply Battery Kit

Description

SKU

HPE 1700W Power Supply Battery Kit

R4W00A

HPE 1700W Power Supply Kit

R3B79A

HPE 1700W -48VDC Power Supply Battery Kit

R4V53A

• The Storage Base requires two (2) Power Supply Battery Kits (R4W00A or R4V53A) per node pair.
• Each Power Supply Battery Kit (R4W00A, R4V53A) includes one (1) Power Supply with Fan and Battery.
• Each drive enclosure (R3B13A, R3B51A) requires two (2) Power Supply Kits (R3B79A).
• Each Power Supply Kit (R3B79A) includes one (1) Power Supply with Fan (no battery).
• -48VDC power is currently available only for the Storage Base, not for the drive enclosures.
• Different Power Supplies (AC and DC) cannot be mixed in the same Storage Base or Drive Enclosure.
• Power Supplies are always factory integrated in the Storage Base or Drive Enclosures for shipment.
• HPE recommends using 1200mm deep racks with 3-phase power because it provides the best rack density.

DC Power Options

The following SKUs can be ordered as an option with DC power.

DC Breaker Panel

E-T-A S541 2x16 Output DC Breaker Panels

G2H95A

Grounding Bar

E-T-A 6401 Two Grounding Bars w/ screws

Q9N54A

DC Power Cable Kit

HPE -48VDC 1.5m 2-pack Power Cable

R4X83A

HPE -48VDC 2.3m 2-pack Power Cable

R4X84A

Description

SKU

HPE -48VDC 3.0m 2-pack Power Cable

R4X85A

• Each DC power cable kit includes two (2) cables.
• One (1) cable is required for each Power Supply.
• The DC Power Cable Kits listed above are compatible only with G2H95A.
• The DC Breaker Panels SKU (G2H95A) does not include any breakers, only the panel
• When considering alternative DC Power cable/ breaker panels solutions, consider the following. Use 6AWG Conductor Cable for -48VDC, return, and earth ground connections. The recommended compression lug for the 6AWG Conductor Cable is a T&B Two-Hole, 90° Long Barrel Compression Lug.  Please use T&B Part Number 54852BEUBPH.

Step 3: Choose Adapters

Host adapters are used for connection to hosts. They can be ordered standalone to be installed in the field or they can be factory integrated into controller nodes. HPE Alletra Storage 9000 does not have any built-in host ports therefore any configuration needs to have at least one (1) host adapter per node. The NVMe-oF 100GbE 2-port HBA adapter provides more NVMe drive enclosure connectivity.

HPE Alletra Host Adapters

Description

SKU

HPE Alletra 9000 16/32Gb 4-port Fibre Channel Host Bus Adapter

R3B28A

HPE 10/25GbE 4-port Host Bus Adapter

N9Z37A

HPE 10GBASE-T 4-port Host Bus Adapter

N9Z40A

HPE NVMe-oF 100GbE 2-port Host Bus Adapter

R3B29A

• The HPE NVMe-oF 1000GbE 2-port adapter is an optional adapter that provides additional ports for NVMe drive enclosure connectivity.
• The HPE NVMe-oF 1000GbE 2-port adapter allows the connection of up to four NVMe drive enclosures per node pair (two connected to the 100GbE built-in ports, two connected to the NVMe-oF adapter).
• The HPE NVMe-oF 1000GbE 2-port adapter can be used only if the two 100GbE built-in ports are already populated.
• When used, one HPE NVMe-oF 1000GbE 2-port adapter must be installed on every node in the third HBA slot (slot 5)
• This HPE NVMe-oF 1000GbE 2-port adapter cannot be used for NVMe-oF host connectivity.

Host Bus Adapter SFP Kits

HPE 32Gb SFP28 Short Wave 1-pack Pull Tab Optical Transceiver

Q2P62A

HPE 16Gb SFP+ Short Wave 1-pack Pull Tab Optical Transceiver

Q2P63A

HPE 2-pack 25Gb Ethernet SFP Upgrade Kit

N9Z42A

HPE 2-pack 10Gb Ethernet SFP Upgrade Kit

N9Z43A

• Each node must have at least one (1) host adapter. A node without any host adapters is not a supported configuration.
• All nodes must be configured with the same adapters (in a 4-node system all four nodes must have the same adapters).
• The 16/32Gb Fibre Channel Adapter does not include any SFP+ (they must be ordered separately).
• The 32Gb and 16Gb SFP SKUs include one (1) SFP each and must be ordered in pairs.
• Each 16/32Gb Fibre Channel Adapter can be configured with any number of SFPs, min one (1) and max four (4).
• The 32Gb SFPs and 16Gb SFPs can be mixed in any combination in the same 16/32Gb Fibre Channel Adapter.
• The 32Gb/s Fibre Channel Adapter is NVMe-oF capable.
• The 10/25GbE Adapter does not include any SFP (they must be ordered separately).
• The 25GbE and 10GbE SFP SKUs include two (2) SFPs each.
• The 10/25GbE Adapter can be configured with any number of SFPs, min one (1) and max four (4).
• The 25GbE SFPs and 10GbE SFPs can be mixed in any combination in the same 10/25GbE Adapter.

Step 4: Choose Drive Enclosures

HPE Alletra Storage 2240 is a drive enclosure that allows HPE Alletra Storage 9000 to expand beyond 48 NVMe drives. Each drive enclosure includes 24 NVMe drive bays in 2U. Drive enclosures are optional because the Storage Base products include 24 NVMe drive bays.

HPE Alletra Storage 2240 Drive Enclosure

Remarks

Description

SKU

These drive enclosure skus are used for new storage systems

*

HPE Alletra 2240 2U SFF Drive Enclosure

R3B13A

HPE Alletra 2240 2U SFF Field Integrated Drive Enclosure

R3B51A

HPE Alletra Storage 2240 Drive Enclosure Upgrade

These drive enclosure skus are used for future drive enclosure upgrades. Example adding future drive enclosure to an existing storage system.

HPE Alletra Storage 2240 2U SFF Drive Enclosure Upgrade

R3B13B

HPE Alletra Storage 2240 2U SFF Field Integrated Drive Enclosure Upgrade

R3B51B

• Each drive enclosure includes 24 NVMe SFF drive bays, (2) IO modules, (1) mounting rail kit, and power cables.
• The first two drive enclosures per node pair must be directly connected to the built-in ports with 100G QSFP28 cables.
• Two additional drive enclosures per node pair can be connected using the optional HPE NVMe-oF 100GbE 2-port Host Bus Adapter.
• In a four-node configuration, each node pair must have the same number of drive enclosures.
• The standard Controller SKU (R3B13A) is used for CTO and sCTO configurations (drives are factory integrated).
• The drive enclosure upgrade skus (R3B13B, R3B51B) are used for future drive enclosure upgrades and are not factory integrated in a rack. Example a base system with 4 controllers needs to add drive enclosures for future capacity expansion.
• SSD upgrades can be factory integrated in a drive enclosure upgrade sku (R3B13B, R3B51B).
• The Field Integrated SKU (R3B51A), (R3B51B) is used for BTO configurations (drives are field integrated).
• Drive bays that are not filled with a drive must be covered with a drive blank to preserve proper air flow.
• If future capacity upgrades are expected, include enough Drive Enclosures so that there are some empty bays in each enclosure after all drives are added.
• *HPE offers Trade Agreement Act (TAA) compliant HPE Alletra 2240 Drive Enclosures using R3B13B #GTA to meet the needs of US Federal Government customers. These products are either manufactured or substantially transformed in a designated country. TAA compliance is only provided when HPE options are included as part of factory integrated orders (CTO).

Step 5: Choose Drives

Drives are orderable at the time the array is purchased or can be added in the future with SSD upgrade SKUs when additional capacity is required. HPE Alletra Storage 9000 only supports NVMe drives.

HPE Alletra Storage 9000 Storage Encrypted NVMe Drives

HPE Alletra Storage 9000 Storage Self-Encrypting SSDs

These Self-Encrypted NVMe SSDs are used for new storage systems

Description

SKU

HPE Alletra Storage 9000 1.92TB NVMe Self-encrypting SSD

R3B24C

HPE Alletra Storage 9000 3.84TB NVMe Self-encrypting SSD

R0Q07C

HPE Alletra Storage 9000 7.68TB NVMe Self-encrypting SSD

R0Q08C

HPE Alletra Storage 9000 15.36TB NVMe Self-encrypting SSD

R0Q09C

HPE Alletra Storage 9000 Self-Encrypting Upgrade SSDs

These Self-Encrypted NVMe SSDs are used for upgrades

Description

SKU

HPE Alletra Storage 9000 1.92TB NVMe Self-encrypting Upgrade SSD

R3B24E

HPE Alletra Storage 9000 3.84TB NVMe Self-encrypting Upgrade SSD

R0Q07E

HPE Alletra Storage 9000 7.68TB NVMe Self-encrypting Upgrade SSD

R0Q08E

HPE Alletra Storage 9000 15.36TB NVMe Self-encrypting Upgrade SSD

R0Q09E

Notes:

- All NVMe SFF and upgrade SSD have been replaced with self-encrypting SSD of equal capacity size.

- For SSD upgrade of a NVMe SFF SSD, choose the capacity size and order the equal capacity self-encrypting SSD. For example, if planning to upgrade a 1.92 NVMe SSF SSD (R3B24D) previously ordered, then order a HPE Alletra Storage 9000 1.92TB NVMe Self-encrypting Upgrade SSD (R3B24E) as its replacement SSD.

- For new NVMe SSD SFF configurations, choose self-encrypting SSD type, capacity and the number of SSD required.

HPE Alletra Storage 9000 FIPS Encrypted NVMe Drives

These FIPS Encrypted NVMe SSD are used for new storage systems

HPE Alletra 9000 1.92TB NVMe SFF FIPS Encrypted SSD

R3B21B

HPE Alletra 9000 3.84TB NVMe SFF FIPS Encrypted SSD

R3B22B

HPE Alletra 9000 7.68TB NVMe SFF FIPS Encrypted SSD

R0Q16B

HPE Alletra 9000 15.36TB NVMe SFF FIPS Encrypted SSD

R0Q10B

HPE Alletra Storage 9000 FIPS Encrypted NVMe Upgrade Drives

These FIPS Encrypted NVMe SSD are used for upgrades

HPE Alletra Storage 9000 1.92TB NVMe SFF FIPS Encrypted Upgrade SSD

R3B21D

HPE Alletra Storage 9000 3.84TB NVMe SFF FIPS Encrypted Upgrade SSD

R3B22D

HPE Alletra Storage 9000 7.68TB NVMe SFF FIPS Encrypted Upgrade SSD

R0Q16D

HPE Alletra Storage 9000 15.36TB NVMe SFF FIPS Encrypted Upgrade SSD

R0Q10D

HPE Alletra Storage 9000 Storage NVMe Drives

These NVMe Drives are used for new storage systems

HPE Alletra 9000  1.92TB NVMe SFF SSD

R3B24B

HPE Alletra 9000 3.84TB NVMe SFF SSD

R0Q07B

HPE Alletra 9000 7.68TB NVMe SFF SSD

R0Q08B

HPE Alletra 9000 15.36TB NVMe SFF SSD

R0Q09B

HPE Alletra Storage 9000  NVMe Upgrade Drives

These NVMe Drives are used for Upgrades

HPE Alletra Storage 9000 1.92TB NVMe SFF Upgrade SSD

R3B24D

HPE Alletra Storage 9000 3.84TB NVMe SFF Upgrade SSD

R0Q07D

HPE Alletra Storage 9000 7.68TB NVMe SFF Upgrade SSD

R0Q08D

HPE Alletra Storage 9000 15.36TB NVMe SFF Upgrade SSD

R0Q09D

HPE Alletra Storage 9000 TAA Compliant FIPS Encrypted Drives

These FIPS Encrypted TAA NVMe SSD are used for new storage systems

Description

SKU

HPE Alletra 9000 1.92TB NVMe SFF FIPS Encrypted TAA-compliant SSD

R4F94B

HPE Alletra 9000 3.84TB NVMe SFF FIPS Encrypted TAA-compliant SSD

R4F95B

HPE Alletra 9000 7.68TB NVMe SFF FIPS Encrypted TAA-compliant SSD

R4F96B

HPE Alletra 9000 15.36TB NVMe SFF FIPS Encrypted TAA-compliant SSD

R4F97B

HPE Alletra 9000 Storage TAA Compliant FIPS Encrypted Drives

These FIPS Encrypted TAA NVMe SSD are used for upgrades

HPE Alletra Storage 9000 1.92TB NVMe SFF FIPS Encrypted TAA-compliant Upgrade SSD

R4F94D

HPE Alletra Storage 9000 3.84TB NVMe SFF FIPS Encrypted TAA-compliant Upgrade SSD

R4F95D

HPE Alletra Storage 9000 7.68TB NVMe SFF FIPS Encrypted TAA-compliant Upgrade SSD

R4F96D

HPE Alletra Storage 9000 15.36TB NVMe SFF FIPS Encrypted TAA-compliant Upgrade SSD

R4F97D

• The minimum supported quantity is eight (8) drives per node pair.
• SSD skus designated as new storage systems are used for new system sales and follow the same factory integration rules as the the Alletra Storage 9000 Base.
• Upgrades SSD skus are for system and or drive enclosure upgrades. Factory SSD integration is supported in an upgrade drive enclosure.
• The minimum upgrade quantity is two (2) drives per node pair.
• Non-FIP SED drives and FIPS drives are the same encrypted cryptographic hardware and there is no difference in encryption security level, but Non-FIPS SED drives do not have NIST certification which is a requirement for certain organizations such as Federal, public sector and financial institutions.
• If a non-encrypted array contains a mix of NVMe FIPS and NVMe SEDs and or non-encrypted NVMe SSDs, then the following encryption LTUs / E-LTUs cannot be enabled: (R1P29A, R1P29AAE, S3Z48A, S3Z48AAE) .
• HPE Alletra Storage 9000 only supports RAID 6.
• The initial configuration must have all drives of the same capacity. Mixing drives of different capacities in the same array is allowed (but not recommended) for upgrades.
• In a four-node configuration, each node pair must have the same number of drives.
• Drives must be loaded starting from the leftmost slot (slot 0) to the right and leaving no empty slots between drives.
• Trade Acts Agreement (TAA) compliant FIPS drives are sourced from TAA compliant Country of Origin (COO) build sites and are available subject to certification by U.S. National Institute of Standards and Technology.

HPE Encryption Licenses*

HPE Data Encryption LTU

R1P29A

HPE Data Encryption E-LTU

R1P29AAE

HPE Storage Data Encryption LTU

S3Z48A

HPE Storage Data Encryption E-LTU

S3Z48AAE

• You can find more information on self-encrypting (SED) SSDs by accessing the:

HPE GreenLake for Block Storage MP data-at-rest encryption Technical Paper

• *HPE Data Encryption LTUs are used for FIPS/FIPS TAA skus and HPE Storage Data Encryption SKUs are used for self-encrypting drives (SED).
• A data encryption license (LTU) is required to enable encryption on HPE Alletra Storage 9000. One encryption license is required for each encrypted array. Once encryption is enabled on the array, it cannot be disabled.
• An encrypted array must have only self-encrypted drives installed.

• HPE Storage Data Encryption licenses (S3Z48A, S3Z48AAE) are used for Self-encryption drives (SEDs) only.
• If FIPS encryption is enabled in the system and non-FIPS SEDs are added because of capacity upgrades, a new data encryption SED ELTU (S3Z48AAE) is required and the FIPS LTU (R1P29A or R1P29AAE) will have to be overwritten and the new SED ELTU (S3Z48AAE) would be applied for drive system encryption.
• Encryption can be turned on, non-disruptively, at any time, even after data has been written to the system.

• FIPS 140-2 Validated Self-Encrypting Drives (SEDs) have been certified by the U.S. National Institute of Standards and Technology (NIST) and Canadian Communications Security Establishment (CSE) as meeting the Level-2 security requirements for cryptographic modules as defined in the Federal Information Processing Standards (FIPS) 140-2 Publication Strengthen the DAR solution with an optional FIPS 140-2 Level-2 validated external key manager. Supports KMIP 1.3 and 1.4 for key management communications
• Supports Utimaco® Enterprise Secure Key Manager (ESKM) 4.0, 5.0 and Gemalto® SafeNet KeySecure k460 centralized key management
• The local key manager is included in the HPE Alletra Storage 9000 OS. There is not a separately orderable part number for the local key manager

Step 6: Choose Cables

HPE Alletra Storage 9000 requires cables for drive enclosure connectivity, host connectivity, and replication. 100Gb QSFP28 cables are used for drive enclosure connectivity. OM4 fiber cables are used for host connectivity and Peer Motion. Either OM4 or DAC cables may be used for iSCSI host connectivity with the 10/25GbE HBA. Remote Copy and iSCSI connectivity with 10GBase-T require Category 6 or better twisted pair Ethernet cables. Category 6 cables may support lengths of up to 55m. HPE recommends Category 6A or better cables; these cables support lengths of up to 100m.

Cables for drive enclosure connection

Description

SKU

HPE 100Gb QSFP28 to QSFP28 1m Direct Attach Copper Cable

R3B52A

HPE Aruba Networking 100G QSFP28 to QSFP28 7m Active Optical Cable

R0Z27A

HPE Aruba Networking 100G QSFP28 to QSFP28 15m Active Optical Cable

R0Z28A

• Each HPE Alletra 2240 Drive Enclosure requires two (2) QSFP28 cables.
• DAC cables (R3B52A) are used for connections within the same rack.
• AOC cables (R0Z27A and R0Z28A) are used for connections between racks.

OM4 Cables

Description

SKU

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable

QK732A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable

QK733A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable

QK734A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable

QK735A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable

QK736A

HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable

QK737A

Direct Attach Copper Cables (10GbE) - HPE Networking Comware

HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable

JD097C

HPE Networking X240 10G SFP+ SFP+ 5m DAC Cable

JG081C

HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable

JG330A

HPE Networking Comware X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable

JG331A

Direct Attach Copper Cables (10GbE) - HPE Aruba Networking Networks

Description

SKU

HPE Aruba Networking 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

J9283D

HPE Aruba Networking 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

J9285D

Direct Attach Copper Cables (10GbE) - Cisco

HPE C-series 3M Passive Copper SFP+ Cable

K2Q21A

HPE C-series 5M Passive Copper SFP+ Cable

K2Q22A

HPE C-series SFP+ to SFP+ Active Copper 7.0m Direct Attach Cable

QK701A

Direct Attach Copper Cables (10GbE) - HPE BladeSystem

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 3m Direct Attach Copper Cable

487655-B21

HPE BladeSystem c-Class 10GbE SFP+ to SFP+ 5m Direct Attach Copper Cable

537963-B21

Direct Attach Copper Cables (25GbE) - HPE

HPE 25GbE SFP28 to SFP28 3m Smart Active Optical Cable

Q9S67A

HPE 25GbE SFP28 to SFP28 5m Smart Active Optical Cable

Q9S68A

Direct Attach Copper Cables (25GbE) - HPE

HPE 25Gb SFP28 to SFP28 3m Direct Attach Copper Cable

844477-B21

HPE 25Gb SFP28 to SFP28 7m Active Optical Cable

844483-B21

HPE 100Gb QSFP28 to 4x25Gb SFP28 3m Direct Attach Copper Cable

845416-B21

Ethernet Cables (Management)

HPE RJ45 to RJ45 Cat5e Black M/M 7.6ft 1-pack Data Cable

C7535A

HPE 4.3m/14ft CAT5 RJ45 M/M Ethernet Cable

C7536A

HPE 7.6m/25ft CAT5 RJ45 M/M Ethernet Cable

C7537A

HPE 15.2m/50ft CAT5 RJ45 M/M Ethernet Cable

C7542A

Notes:

- HPE Alletra Storage 9000 DAC direct connect to a host is not supported.  You must connect to a switch.

- For the latest information refer to Single Point of Connectivity Knowledge for HPE Storage Products (SPOCK): http://www.hpe.com/storage/spock.

Step 7: Choose Racking Options

HPE Alletra Storage 9000 is compatible with most industry standard 4-post EIA 19-inch racks with square mounting holes. HPE Alletra Storage 9000 can be factory configured and shipped in a rack or shipped without a rack for field integration into an existing rack. The racks used for factory integration are the HPE G2 Advanced Series Racks or the HPE G2 Enterprise Series Racks.

Factory Integration

A factory integrated HPE Alletra Storage 9000 is configured into the HPE Intelligent Series Rack with the appropriate power distribution units (PDUs). Other products such as servers or back-up products can be factory integrated in the rack and different PDUs can be added or selected (if needed) only via HPE Factory Express Services. Multiple HPE Alletra Storage 9000 arrays can be factory integrated in the same rack.

Description

SKU

HPE Intelligent Series Racks

HPE 42U 600mmx1200mm G2 Enterprise Shock Rack

P9K40A

Description

SKU

HPE G2 Rack 42U 1200mm Side Panel Kit

P9L16A

HPE 42U 600mmx1200mm G2 Kitted Advanced Shock Rack with Side Panels and Baying

P9K10A

HPE 42U 600mmx1075mm G2 Enterprise Shock Rack

P9K38A

HPE G2 Rack 42U 1075mm Side Panel Kit

P9L15A

HPE 42U 600mmx1075mm G2 Kitted Advanced Shock Rack with Side Panels and Baying

P9K08A

• HPE recommends using HPE Alletra Storage 9000 in 1200mm deep racks with 3-phase power because this combination provides the best rack density.

Notes:

- For more information on rack options: http://www.hpe.com/products/rackoptions.

- For more information on PDUs: https://www.hpe.com/us/en/product-catalog/servers/power-distribution-units.html

Non-HPE rack and power requirements

HPE Alletra Storage 9000 Storage Base includes mounting rails that are compatible with industry standard 4-post EIA 19-inch racks with square mounting holes. For detailed information on determining compatibility of a non-HPE rack, please review the information included in the HPE Alletra Storage 9000 Site Planning Guide.

Step 8: Choose Software

Hewlett Packard Enterprise provides an extensive selection of features for HPE Alletra Storage 9000 arrays. including Virtual Copy, Remote Copy, Priority Optimization, Peer Motion, Peer Persistence, and Smart SAN. Data Encryption is offered separately with a LTU (see the Drive section for more information).

HPE Alletra Software and Support SaaS

HPE Alletra Storage 9000 arrays include a subscription to HPE Alletra Software and Support SaaS that enables cloud-based management of the array from the HPE Data Services Cloud Console and access to data services^# as they become available on HPE GreenLake. The subscription includes access to the HPE Alletra software and related support.  It is included in the quote when support is selected and has the same duration as support. For more information, please refer to the HPE Data Services QuickSpecs.

Description

SKU

HPE Alletra Storage 9000 per TB 1-year Software and Support SaaS

S0R32AAE

HPE Alletra Storage 9000 per TB 3-year Software and Support SaaS

S0R34AAE

HPE Alletra Storage 9000 per TB 4-year Software and Support SaaS

S0R35AAE

HPE Alletra Storage 9000 per TB 5-year Software and Support SaaS

S0R36AAE

HPE Alletra Storage 9000 per TB 6-year Software and Support SaaS

S0R37AAE

HPE Alletra Storage 9000 per TB 7-year Software and Support SaaS

S0R38AAE

HPE Alletra Storage 9000 per TB Upgrade 1-year Software and Support SaaS

S0R52AAE

HPE Alletra Storage 9000 per TB Upgrade 3-year Software and Support SaaS

S0R54AAE

HPE Alletra Storage 9000 per TB Upgrade 4-year Software and Support SaaS

S0R55AAE

HPE Alletra Storage 9000 per TB Upgrade 5-year Software and Support SaaS

S0R56AAE

HPE Alletra Storage 9000 per TB Upgrade 6-year Software and Support SaaS

S0R57AAE

HPE Alletra Storage 9000 per TB Upgrade 7-year Software and Support SaaS

S0R58AAE

Notes: # Additional data services are available with optional subscription

Subscribe to the HPE Backup and Recovery Service

The HPE Backup and Recovery Service is an optional subscription service available from the HPE GreenLake Cloud Portal. It is the modern way to protect VMware virtual machines that use storage from HPE Alletra systems. The subscription enables automated, Array Optimized, cloud managed protection of the virtual machine. The HPE Backup and Recovery Service is available with a subscription to meet your needs. Working with your HPE account representative you can define whether you want total flexibility to pay for the service as you use it or if you want to lock in lower prices by reserving the service for 1, 2, 3, 4 or 5 years. When you reserve the service you choose the number of virtual machines you want to protect and, if you want to protect your virtual machines with backup to the cloud, the capacity of the Cloud Protection Store you will need. For more information, please refer to the HPE Backup and Recovery Service QuickSpecs:  https://www.hpe.com/psnow/doc/a50004269enw

Step 9: Choose Support

Choose HPE ServicesHPE Tech Care Service to experience the new operational service for HPE products. For HPE Alletra Storage 9000, HPE ServicesHPE Tech Care Service is available in two response levels: Essential, which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical, which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents. For more information refer to the Tech Care Datasheet.

https://psnow.ext.hpe.com/doc/a00108652enw

Step 10: Choose Timeless Technology Refresh (optional)

The HPE Technology Refresh Service is an optional service available for purchase with HPE Alletra Storage 9000 operational services (HPE Tech Care or the HPE Complete Care). The Technology Refresh Service is designed to offer customers an ownership experience with a simple path to helping keep storage technology current through periodic technology updates as more specifically described in the Timeless Storage datasheet. This optional Service also helps provide a more predictable cost structure as compared to traditional storage ownership since it incorporates the cost of future technology updates into a renewable service. This helps to extend the useful life of the customer's storage assets and create a more sustainable approach to storage ownership.

https://psnow.ext.hpe.com/doc/a50000051enw?jumpid=in_lit-psnow-red

Description

SKU

HPE 3Y Technology Refresh SVC

HU2J4A3

HPE 5Y Technology Refresh SVC

HU2J4A5

Step 11 - Choose Installation options

Storage Installation and Startup Service

HPE Alletra Storage 9000 Storage Installation and Startup Service provides deployment of your HPE Alletra Storage 9000 storage, helping to ensure proper installation in your storage environment as well as helping you increase the benefit from your storage investment. The service provides activities required to help you deploy your HPE Alletra Storage 9000 into operation.

Self-Installation

Customers and partners also have the option to self-install HPE Alletra Storage 9000. The self-installation option can be selected in the configurator tool (OCA) and will remove the Storage Installation and Startup Service from the quote. All HPE Alletra Storage 9000 models and configurations are eligible for self-installation.

In order to successfully install the HPE Alletra Storage 9000 the installer should:

• Have a good understanding and knowledge of Storage Area Networks, Fibre Channel fundamentals and a basic understanding of TCP/IP and other networking protocols (DNS/NTP).
• Have experience creating Storage LUNs, presenting/exporting LUNs to a server and formatting the LUNs to make them usable for applications.
• Be able to troubleshoot hardware and software issues using logs and documentation.

If the installer doesn't meet the profile or is not comfortable with the self-installation process, Hewlett Packard Enterprise recommends engaging the Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Channel Partner to purchase HPE Services Deployment Services.

Customer responsibilities

• Ensure that the host and SAN environment is supported and compliant with HPE recommendations and best practices. Host and SAN Implementation Guides are available at https://support.hpe.com/hpesc/public/home. Support Matrix are available on SPOCK (HPE Storage Single Point of Connectivity Knowledge) http://www.hpe.com/storage/spock.
• Resolve any problems with their SAN and host environment prior to installing the HPE Alletra Storage 9000.

Notes: Customers performing a self-install (according to rules identified above) will not void their warranties and will be fully supported.

Power Requirements

Input Voltage - AC PCM option

• HPE Alletra Storage 9060 Storage Base: 200 to 240 VAC (50 to 60 Hz)
• HPE Alletra Storage 9080 Storage Base: 200 to 240 VAC (50 to 60 Hz)
• HPE Alletra Storage 2240 Drive Enclosure: 200 to 240 VAC (50 to 60 Hz)

Notes: Refer to the HPE Power Advisor online tool for power consumption, heat loading, and circuit sizing information:

HPE Power Advisor utility

Electromagnetic Compatibility

• CISPR 32/ EN 55032: 2015 Class A
• CISPR 24/ EN 55024:2010 +A1:2015
• IEC 61000-3-2/ EN 61000-3-2: 2014
• IEC 61000-3-3/ EN 61000-3-3: 2013
• AS/NZS CISPR 32:2013 Class A
• CNS 13438:2006 Class A
• 47 CFR Part 15 Subpart b Class A
• ICES-003 Issue 6 Class A
• VCCI-CISPR 32: 2016 Class A
• RRA Notice No. 2018-19 (2018.10.19) Class A
• RRA Notice No. 2018-103 (2018.10.19) Class A

Safety

• IEC 60950-1:2005 (2nd Edition); +A1:2009 +A2:2013
• EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
• EN 62479:2010
• IEC 62368-1: 2014
• EN 62368-1:2014+A11:2017
• CNS 14336-1
• UL 62368-1 2nd Ed.
• CAN/CSA-C22.2 No. 62368-1-14

Certifications/Markings

• BIS
• BSMI
• cCSAus
• CE
• EAC
• ENERGY STAR Certified
• FCC Class A
• GS
• IC Class A
• KCC
• Morocco
• RCM
• Ukraine
• VCCI
• WEEE
• China RoHS
• EU RoHS
• UKCA

© Copyright 2025 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

a50002571enw - 16726 - Worldwide  - V20 - 03-February-2025
