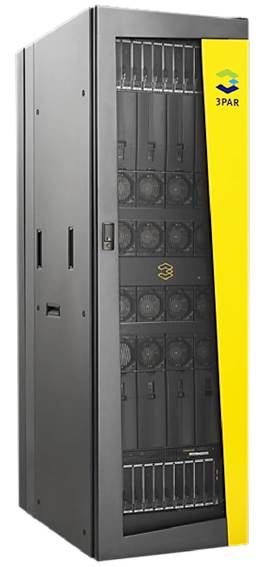

HPE 3PAR StoreServ 10000 Storage

HPE 3PAR StoreServ 10000 Storage is the platinum standard for Tier 1 storage to meet the need of hybrid and private cloud and ITaaS environments delivering autonomic, efficient, multi-tenant, and federated storage. Achieve six nines availability with the same trusted and proven architecture chosen by 3 out of 4 of the world's largest managed service providers (MSPs). Double VM density on your physical servers through a flash-optimized architecture designed to deliver the necessary I/O performance and workload agility to remove storage as a bottleneck in virtualized environments. Deliver uncompromising QoS for even the most demanding workloads. Use of unique thin technologies reduces acquisition and operational costs by up to 50% while autonomic management features improve administrative efficiency by up to tenfold.

HPE 3PAR StoreServ 10000 Storage

NOTE: Support for SAS drives on HPE 3PAR StoreServ 10000 Storage is currently available with HPE 3PAR OS version 3.1.2 and later versions.

NOTE: Native FCoE support is available only for limited host configurations. Please check with your regional manager for more details

NOTE: A dedicated CNA is required for FCoE host connectivity

NOTE: The 1600TB and 3200 TB maximum raw capacity limits for the HPE 3PAR StoreServ 10400 and 10800 Storage respectively are applicable only to systems running HPE 3PAR OS version 3.1.3 or later

NOTE: Specifications are subject to change without notice

¹ Each port is full bandwidth 8 Gbit/s or 16 Gbit/s Fibre Channel capable as aplicable2 Recommended minimum is 32 drives which results in a 9.6 TB minimum raw capacity.

³ Maximum raw capacity currently supported with any and all drive types
⁴ For storage capacity, 1 GiB = 2³⁰bytes and 1 TiB = 1,024 GiB
⁵ RAID MP is HPE 3PAR Fast RAID 6 Technology
⁶ SSDs are Solid State Drives
⁷ SAS drives are Serial Access SCSI Drives
⁸ NL drives are Nearline (7.2k) disks
⁹ Recommended minimum is 4 drive chassis per pair of controller nodes
¹⁰ Each port is full bandwidth 10 Gbit/s iSCSI capable
¹¹ Each port is full bandwidth 10 Gbit/s FCoE capable
¹² Applies to the array storage assigned to 3PAR StoreServ File Controller for file services
¹³ For details, please refer to the 3PAR StoreServ File Controller v2 section in this document

¹⁴ Two built-in 1-GbE RCIP ports per node pair; maximum of 8 usable; RCFC works out of the FC Host ports

Host OS Support

Citrix® XenServer® | HP-UX® | IBM® AIX®

Microsoft® Windows® Server, including Microsoft® Hyper-V^TM

OpenVMS* | Oracle® Linux® (UEK and RHEL compatible kernels) | Oracle® Solaris

Red Hat® Enterprise Linux® | Red Hat® Enterprise Virtualization

SUSE® Linux® Enterprise | Ubuntu | VMware vSphere^TM

For latest information on supported operating systems refer to Single Point of Connectivity Knowledge for HPE Storage Products (SPOCK): http://www.hpe.com/storage/spock

Get Thin and Stay Thin

The revolutionary, zero-detect capable HPE 3PAR Gen4 ASIC is a hyper-efficient storage optimization engine designed to power "fat-to-thin" volume conversions in silicon while preserving superior performance levels. Fat-to-thin volume conversions boost capacity utilization by removing allocated but unused space from traditional, "fat" storage volumes.

With the HPE 3PAR Gen4 ASIC's built-in, hardware-based zero-detection capabilities, migration of "fat" volumes from other storage platforms to new "thin" volumes on HPE 3PAR StoreServ Storage is achieved with the greatest speed possible and without the application disruption of software-based implementations. The HPE 3PAR Gen4 ASIC's enables the automatic migration of data from sparsely used pages to enable 128MB regions to be reclaimed for re-use by other volumes. With conversions taking place at the hardware level, more parallel memory transactions are possible and system performance is not impacted like it is with software-based approaches to volume optimization. Thin Built In capabilities within HPE 3PAR StoreServ 10000 Storage also power the ongoing, automated optimization of thin provisioned volumes on HPE 3PAR StoreServ Storage, so thin volumes stay thin.

Building Block for Cloud Computing

Building a converged infrastructure to support cloud and self-service computing models requires a high degree of virtualization that places new demands on storage. With their distinct architectural advantages, thin hardware capabilities, and superior performance, HPE 3PAR StoreServ 10000 Storage is purpose-built to meet the demands of highly virtualized environments. HPE 3PAR StoreServ 10000 Storage gives enterprises and service providers the agility to respond quickly to changing business needs while maintaining the resiliency that "always-on" businesses demand.

Start Thin. HPE 3PAR Thin Provisioning Software

HPE 3PAR Thin Provisioning Software improves storage system efficiency and optimizes capacity utilization system-wide. It does this by addressing the problem of capacity over-allocation through eliminating the need to dedicate storage capacity on a per-application basis. Since its introduction, HPE 3PAR Thin Provisioning Software has given HPE 3PAR StoreServ Storage clients the ability to meet Green IT targets and reduce capacity purchases. Thin Provisioning makes this possible by cutting SAN costs, floor space requirements, and energy expenses by up to 75% and decreasing administration time by up to 90%. It does this by allowing organizations to purchase only the disk capacity they actually need, only as they actually need it through eliminating the need for up-front capacity allocation and dedicating resources to individual applications. This prevents clients from paying to power, house, and cool disks that they may not need for months or years to come, or may never actually need.

Get Thin. HPE 3PAR Thin Conversion Software

With HPE 3PAR Thin Conversion Software, a technology refresh no longer requires a terabyte-for-terabyte replacement, but instead offers the opportunity to eliminate 70-80% of the legacy capacity in a client's storage environment, simply and rapidly. Leveraging the zero-detection capability built into the HPE 3PAR ASIC, the new Gen4 ASIC combined with HPE 3PAR Thin Conversion Software, still effectively and rapidly "thin" a heterogeneous data center to one-quarter of its original size or less while preserving service levels, and without impacting production workloads. The new ASIC enables the automatic migration of data from sparsely used pages to enable 128MB regions to be reclaimed for re-use by other volumes, driving efficient use of space beyond what was available with the Gen3 ASIC. This solution not only makes a technology refresh more affordable, but it reduces up-front capital costs as well as ongoing operational and environmental costs associated with powering, cooling, and housing storage equipment. It also provides space and power consumption relief for data centers approaching maximum density.

In an ideal world, all storage volumes would start thin using HPE 3PAR Thin Provisioning Software. But in some cases, starting thin has not been an option, particularly when it comes to data stored on legacy arrays from traditional storage vendors. HPE 3PAR Thin Conversion Software uses a virtualization mapping engine for space reclamation called the HPE 3PAR Thin Engine, together with the unique hardware capabilities of the HPE 3PAR Gen4 ASIC to extend the benefits of thin provisioning to existing storage volumes. In tandem with the HPE 3PAR Gen4 ASIC, Thin Conversion enables inline, wire speed "fat-to-thin" conversions compatible with any host volume. HPE 3PAR Utility Storage is the only storage platform to offer this built-in, hardware-accelerated, fat-to-thin conversion capability. With HPE 3PAR Thin Conversion Software, clients can rapidly and non-disruptively shrink storage footprint, reduce storage TCO, and meet Green IT targets.

Stay Thin. HPE 3PAR Thin Persistence Software and Thin Copy Reclamation

To realize the ultimate efficiency and cost-saving benefits of starting thin or getting thin, storage also needs to stay thin. An industry first, HPE 3PAR Thin Persistence Software ensures that thin volumes on the array stay as lean and efficient as possible. Thin Persistence Software accomplishes this by using the HPE 3PAR Thin Engine with the system's built-in zero-detect capability to reclaim unused space associated with deleted data. With Thin Persistence, space reclamation on HPE 3PAR arrays takes place simply, quickly, and without disruption to production workloads.

Thin Copy Reclamation is an HPE 3PAR Operating System Software feature that performs a similar function to HPE 3PAR Thin Persistence Software, but uses the HPE 3PAR Thin Engine to reclaim unused space from thin copies (virtual copy snapshots and remote copies) rather than thin volumes.

On average, HPE 3PAR StoreServ Storage clients already purchase 60% less capacity than with traditional storage arrays. With HPE 3PAR Thin Persistence and Thin Copy Reclamation, customers can improve this average capacity savings by another 10% for a total savings of up to 70%. Volumes and snapshots can now stay thin to help sustain Green IT targets, defer the cost of purchasing raw capacity to handle new data growth, and keep costs down without the need to purchase special host-based software or retaining professional services.

HPE 3PAR Peer Motion Software

HPE 3PAR Peer Motion Software is a non-disruptive, do-it-yourself data migration tool for enterprise Storage Area Networks. With Peer Motion, HPE 3PAR StoreServ Storage customers can load balance I/O workloads across systems at will, perform technology refresh seamlessly, cost-optimize asset lifecycle management, and lower technology refresh capital expenditure. Unlike traditional block migration approaches, Peer Motion enables customers to migrate storage volumes between any HPE 3PAR StoreServ Storage online, non-disruptively, and without complex planning or dependency on extra tools. Peer Motion leverages HPE 3PAR Thin Built In^TM technology to power the simple and rapid conversion of inefficient, "fat" volumes on source arrays to more efficient, higher-utilization "thin" volumes on the destination HPE 3PAR StoreServ Storage. To ensure a simple and fool-proof data migration and data mobility for workload balancing experience, orchestration of all stages of data mobility is available via either 3PAR Management Console or 3PAR Peer Motion CLI, which is an easy to use, scriptable command line interface tool,

HPE 3PAR Online Import Software

HPE 3PAR Online Import Software is the first do-it-yourself data migration tool for enterprise Storage Area Networks. Unlike traditional block migration approaches, Online Import Software enables customers to migrate storage volumes from either HPE EVA Storage, EMC CX4 or EMC VNX Storage to HPE 3PAR StoreServ Storage systems online and without complex planning or dependency on extra tools.

HPE 3PAR Express Writes

HPE 3PAR Express Writes is a write acceleration feature built in to HPE 3PAR OS version 3.2.1 and later to optimize CPU utilization and, depending on workload, deliver greater throughput, up to 30 percent more IOPS, and 20 percent reduced latency¹. All currently supported HPE 3PAR StoreServ Storage HBAs and hosts also support the HPE 3PAR Express Writes feature, and its benefits extend to both spinning drives and flash-based media.

¹Based on a random, 100 percent write workload with an 8K block size.

HPE 3PAR StoreServ Data Encryption

The HPE 3PAR StoreServ Data Encryption enables the encryption for all the data that is stored on the internal drives of the 3PAR StoreServ Storage. The 3PAR StoreServ Data Encryption solution encrypts and decrypts all data written to and read from the media automatically. The 3PAR StoreServ Data Encryption solution encrypts the data so that data cannot be read off a drive that is removed from the 3PAR StoreServ Storage. In the event of a failure of the drive or the theft of a drive, the proper authentication key is required to be entered to gain access to the data stored within the drive. This method of encryption allows the user the comfort knowing all data contained on the drive is protected against internal and external risks

HPE Storage Management Pack for Microsoft System Center

The HPE Management Pack for Systems Center Operations Manager provides seamless integration with Microsoft Systems Center Operations Manager and now System Center Essentials by integrating predefined discovery and state monitoring policies, event processing rules and tasks, and diagram and topology views for the storage system.

For more information:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154363

HPE Storage Management Pack can be downloaded free from the following website

https://h20392.www2.hpe.com/portal/swdepot/displayProductInfo.do?productNumber=SCOM

HPE StoreFront Remote SaaS Portal

The HPE StoreFront Remote SaaS Portal provides proactive tools and integrated data collection from the HPE 3PAR StoreServ Storage arrays that call home to deliver unique insights and analytics all in one dashboard.  Identify capacity and performance issues early through intuitive capacity and performance trend analysis and forecasting.   These valuable analytics help maximize asset utilization and optimize the datacenter with recommendations and remedial actions when issues arise. Users can log into http://www.storefrontremote.com to claim their arrays and get access for free.

Warranty

3 Year, On-site Warranty Service. 7x24 4-hour remote response with next business day on-site response

The warranty on the following HPE 3PAR StoreServ 10000 Solid State Drives is 5 years, parts only:

HPE 3PAR StoreServ 10000 4x480GB 6G SAS MLC Solid State Drive Magazine

E7W56A

HPE 3PAR StoreServ 10000 4x920GB 6G SAS MLC Solid State Drive Magazine

E7W26A

HPE 3PAR StoreServ 10000 4x1.92TB 6G SAS SFF(2.5in) cMLC Solid State Drive Magazine

E7Y61A

HPE 3PAR StoreServ 10000 4x1.92TB 6G SAS SFF(2.5in) cMLC Solid State Drive Magazine

K0F38A

HPE 3PAR StoreServ 10000 4x920GB 6G SAS FIPS Encrypted MLC Solid State Drive Magazine

E7Y53A

HPE 3PAR StoreServ 10000 4x480GB 6G SAS MLC SSD Upgrade Magazine

E7W57A

HPE 3PAR StoreServ 10000 4x920GB 6G SAS MLC SSD Upgrade Magazine

E7W27A

HPE 3PAR StoreServ 10000 4x1.92TB 6G SAS SFF(2.5in) cMLC Solid State Drive Upgrade Magazine

E7Y62A

HPE 3PAR StoreServ 10000 4x1.92TB 6G SAS SFF(2.5in) cMLC Solid State Drive Upgrade Magazine

K0F39A

HPE 3PAR StoreServ 10000 4x920GB 6G SAS FIPS Encrypted MLC Solid State Drive Upgrade Magazine

E7Y54A

HPE 3PAR StoreServ 10000 4x400GB SAS SFF(2.5in) Solid State Drive Upgrade Magazine

P9B43A

The warranty on all other HPE 3PAR StoreServ 10000 drives (FC, SAS, SSD and NL SAS) is 3 years, parts only.

HPE warrants only that the Software media will be free of physical defects for a period of ninety (90) days from delivery.

For more information about HP's Global Limited Warranty and Technical Support, visit

https://ssc.hpe.com/portal/site/ssc/

NOTE: SSDs have a limited number of writes that can occur before reaching the SSD's write endurance limit. This limit is generally high enough so wear out will not occur during the expected service life of an HPE 3PAR StoreServ under the great majority of configurations, IO patterns, and workloads. HPE 3PAR StoreServ tracks all writes to SSDs and can report the percent of the total write endurance limit that has been used. This allows any SSD approaching the write endurance limit to be proactively replaced before they are automatically spared out. An SSD has reached the maximum usage limit once it exceeds its write endurance limit. Following the SSD warranty period, SSDs that have exceeded the maximum usage limit will not be repaired or replaced under Hewlett Packard Enterprise support contracts.

Service and Support

Protect your business beyond warranty with HPE Support Services

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability. Our integrated portfolio of Services for storage help customers reduce costs, optimize data, streamline storage management, and improve backup and recovery. HPE Support Services enable you to choose the right service level, length of coverage and response time as you purchase your new storage solution, giving you full entitlement for the support for need for your IT and business.

Connect your devices

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Achieve up to 77%¹ reduction in down time, near 100%² diagnostic accuracy and a single consolidated view of your environment. By connecting, you will receive 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimization. All of these benefits are already available to you with your server storage and networking products, securely connected to HPE support.

1- IDC

2 - HP CSC reports 2014 - 2015

Optimized Care

HPE Proactive Care Advanced* - 24x7 coverage, three year Support Service

This services helps achieve a higher return on your product investment with personalized support from a local assigned Account Support Manager who will share best practice advice and personalized recommendations designed to help improve availability and performance to increase stability and reduce unplanned downtime.  Leverage your system's ability to connect to HPE for pre-failure alerts, automatic call logging and parts dispatch.  For business critical incidents, this service offers critical event management to reduce mean time to resolution.  This recommendation provides 24x7 coverage with four-hour response for hardware and collaborative support that offers two-hour callback for supported software issues. Collaborative software management is included with independent software vendors unless you have your software support from HPE where we own all cases from start through to resolution.

https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA5-3259ENW&cc=us&lc=en

Standard Care

HPE Proactive Care* with 24x7 coverage, three year Support Service + 20 services credits for 1^st year

HPE Proactive Care gives customers an enhanced call experience plus helps preventing problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice when your products are connected to HPE.  This Service combines three years' proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

Basic Care

HPE Proactive Care* with 24x7 coverage, three year Support Service + 10 services credits per year

HPE Proactive Care gives customers an enhanced call experience plus helps preventing problems and maintains IT stability by utilizing personalized proactive reports with recommendations and advice when your products are connected to HPE.  This Service combines three years' proactive reporting and advice with our 24x7 coverage, four hour hardware response time when there is a problem

https://www.hpe.com/h20195/v2/GetPDF.aspx/4AA3-8855ENW.pdf

HPE Services Support Credits

Services Support Credits offer flexible services and technical skills to meet your changing IT demands. With a menu of service that is tailored to suit your needs, you get additional resources and specialist skills to help you maintain peak performance of your IT. Offered as annual credits, you can plan your budgets while proactively responding to your dynamic business.

*HPE Proactive Care and HPE Proactive Care Advanced require that the customer connect their devices to make the most of these services and receive all the deliverables.

Implement right from the start Whichever level of care you select, it includes:

HPE 3PAR StoreServ Storage Installation and Startup Service - Hewlett Packard Enterprise installs and tests your hardware and software onsite, including configuration. We deliver a custom tailored storage deployment, properly integrated into your environment

http://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA3-2345ENW.pdf

3PAR Remote Support Tools

Support Recommendations include fully integrated remote supported - core design and fabric of 3PAR industry benchmark remote support systems. Site-specific data used both proactively and reactively with real-time monitoring and information extraction tools.

Additional services to meet your needs

HPE Storage Transformation Workshop - Explore data management transformation journey to business-aligned visions, aligning your specific situation and Hewlett Packard Enterprise's experiences.

http://h20195.www2.hpe.com/V2/GetPDF.aspx/4AA4-9541ENW.pdf

HPE 3PAR StoreServ Data Migration - Proven expertise and tools help you migrate data across your data center or around the globe.

HPE Storage Modernization Service - Modernize your storage to take better advantage of physical or virtualized server environments

HPE StoreServ Integration Service - Integrate your new HPE 3PAR StoreServ system so that it is agile, performs effectively, and scales to rapid growth.

http://h20195.www2.hpe.com/V2/GetPDF.aspx/4AA4-9254ENW.pdf

HPE EVA to 3PAR Acceleration Service - The HPE EVA to 3PAR Acceleration Service can help guide you or even execute data migration activities on your behalf that can not only optimize, but provide OPEX and CAPEX savings as a result of your journey from EVA to 3PAR. This service provides customers with an alternative DIY ("do-it-yourself") data migration option with guidance from TS Storage migration specialists. With the help of migration experts, this service allows customers to execute an EVA to 3PAR data migration at their own pace and lowered cost.

HPE SAN Deployment Service - Hewlett Packard Enterprise delivers complete design and implementation services for Fibre Channel, FCoE, FCIP, SAS, and iSCSI SAN connectivity components. http://h20195.www2.hpe.com/V2/GetPDF.aspx/5981-8527EN.pdf

HPE Data Replication Solution Service for 3PAR Virtual Copy - This service enables snapshots and mirroring to facilitate data restores, minimize downtime for backups, perform application testing and support data mining use with decision-support tools.

http://h20195.www2.hpe.com/v2/GetPDF.aspx/4AA3-8107ENW.pdf

HPE Data Replication Solution Service for 3PAR Remote Copy - HPE Data Replication Solution Service for 3PAR Remote Copy Software configures real-time data mirroring between local and remote 3PAR storage systems to safeguard critical business information

http://h20195.www2.hpe.com/V2/GetPDF.aspx/4AA3-8627ENW.pdf

HPE 3PAR Peer Persistence Software Installation and Startup Service - Provides implementation of the HPE 3PAR Peer Persistence Software product. The service is designed to help get HPE 3PAR Peer Persistence up and running quickly and to provide a demonstration of the product's key features using sample or test data only.

http://h20195.www2.hpe.com/V2/GetPDF.aspx/4AA4-2772ENW.pdf

HPE 3PAR Adaptive Optimization Policy Implementation Service - Provides analysis, recommendations, and implementation of HPE 3PAR Adaptive Optimization policies to enable storage tiering using data collected from the HPE 3PAR Storage system over time.

https://h20195.www2.hpe.com/V2/GetPDF.aspx/4AA4-3393ENW.pdf

HPE Storage Virtual Volume Design and Implementation Service - When redeploying an HPE StorageWorks Disk Array, the HPE Virtual Volume Design and Implementation Service provides the necessary activities required to design and implement a new virtual volume configuration.

HPE%20Storage%20Virtual%20Volume%20Design%20and%20Implementation%20Service%20(Data%20sheet/4aa2-3764enw.pdf

HPE Thin Volume Conversion Service - Provides evaluation and execution of conversion from standard to thin provisioned virtual volumes for HPE 3PAR Storage. A service specialist advises the customer on Hewlett Packard Enterprise thin provisioning best practices, provides evaluation of potential disk capacity savings if target virtual volumes are converted, and plans and implements thin conversion processing. The service leverages 3PAR thin provisioning capabilities to help optimize storage capacity, reduce cost, increase agility and maintain performance.

https://h20195.www2.hpe.com/V2/GetPDF.aspx/4AA4-3393ENW.pdf

HPE Performance Analysis Service for HPE Disk Arrays - The service provides data collection, detailed I/O analysis and enhancement recommendations for HPE 3PAR StoreServ Storage disk arrays, HPE EVA P6000 Storage disk arrays and HPE XP Storage disk arrays. HPE Performance Analysis Service for HPE Storage Disk Arrays provides a single engagement concerning the performance of a single HPE Storage disk array http://h20195.www2.hpe.com/V2/GetPDF.aspx/5982-6668EN.pdf

HPE 3PAR Performance and Capacity Trending Service - HPE 3PAR Performance and Capacity Trending Service provides data collection, analysis, and reports with key performance and capacity metrics for your HPE 3PAR StoreServ array. Through this service, you will receive a specified number of reports describing long-term trends in performance and capacity usage, and have the option to purchase additional reports. You will also receive briefing sessions highlighting HPE's findings and recommendations. http://h20195.www2.hpe.com/V2/GetPDF.aspx/4AA5-8792ENW.pdf

HPE 3PAR Health Check Service - The HPE 3PAR Health Check service is delivered as a single engagement, providing data collection, analysis, report creation, and a briefing session concerning the performance of a single HPE 3PAR StoreServ Storage System. This health check service is best for HPE 3PAR StoreServ Storage Systems that have been installed and are in normal production mode. It can also be used to establish a baseline for future reference to improve the effective use of your storage system.

HPE 3PAR Storage Rebalance Service - The HPE 3PAR Rebalance Service helps balance data across your HPE 3PAR StoreServ Storage to take advantage of the capabilities of the array architecture. The service provides analysis, planning, and implementation of data movement and/or physical movement of drive magazines within the array.

http://h20195.www2.hpe.com/V2/GetPDF.aspx/4AA4-0280ENW.pdf

For more information

http://www.hpe.com/services/storage

To learn more on HPE Storage Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner

HPE Pointnext operational services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from Hewlett Packard Enterprise or an enterprise reseller are quoted using Hewlett Packard Enterprise order configuration tools.
• Customers purchasing from a commercial reseller can find HPE Pointnext operational services at

https://ssc.hpe.com/portal/site/ssc/

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by Hewlett Packard Enterprise due to malfunction.

Physical Specifications

2-Meter Cabinet

Dimensions (width x height x depth)

23.6 x 76.5 x 36 in

60 x 194.3 x 91.3 cm

Service Clearance (front and back)

Front/Rear: 36 in / 30 in

Front/Rear: 91.4 cm / 76.2 cm

Weight (not populated)

472.1 lb

214.1 kg

Maximum Weight (fully populated)

1,919.8 lb

870.8 kg

Maximum Weight per Leveling Foot

480 lb

217.7 kg

Maximum Load per Leveling Foot

200 lb/sq in

14 kg/sq cm

Component Weights

10400 Base Configuration¹

693.9 lb

314.7 kg

10800 Base Configuration¹

786.9 lb

356.9 kg

2 Controller Nodes (fully populated)

133 lb

60.4 kg

Drive Chassis (fully populated)

180 lb

81.6 kg

Service Processor

20.8 lb

9.4 kg

Supported Host FC Connections

FC Connector Type from Storage System to Host Port

LC to LC

FC Cable Core Diameter

OM3 / OM4

Connector Boot Length

standard

Power and Heat

Single Phase Power Supply Requirements

Input Voltage (VAC)

220 (200 - 240)

Frequency (Hz)

50 - 60

Circuit Breaker Maximum

30 A per PDU⁶ (de-rated to 24 A)

Power Connectors for 2-Meter Cabinet

(4) L6-30P with 1+1 redundant or (4) IEC 60309-32A (332P6S) with 1+1 redundant

Power Receptacles

(4) L6-30R with 1+1 redundant or (4) IEC 60309 with 1+1 redundant

Three Phase Power Supply Requirements

NEMA (North America, Taiwan, Philippines & Japan)

Input Voltage (VAC)

200 - 240 p-p

Frequency (Hz)

50 - 60

Circuit Breaker Maximum

48 A per PDU (de-rated to 27.71 A per phase)

Power Connectors for 2-Meter Cabinet

(2) IEC 309, 3-pole, 4-wire, BLUE, gnd clocked to 3:00 with 1+1 redundant

Power Receptacles

(2) Hubbell HBL460C9W or equivalent

IEC (International)

Input Voltage (VAC)

200 - 240 p-n; 380 - 415p-p

Frequency (Hz)

50 - 60

Circuit Breaker Maximum

32 A per phase per PDU

Power Connectors for 2-Meter Cabinet

(2) IEC 309, 4-pole, 5-wire, RED, gnd clocked to 6:00 with 1+1 redundant

Power Receptacles

(2) Hubbell C532C6S or equivalent

Maximum Potential Power Draw per 2-Meter Cabinet

Watts per Cabinet

9,984 watts / 34,075 BTU/h

Actual Power Draw / Heat Dissipation

Service Processor

350 watts / 1,193 BTU/h

Drive Chassis (without Drive Magazines)

200 watts / 683 BTU/h

Transactional³
(watts / BTU/h)

Idle
(watts / BTU/h)

4 x 1920-GB SSD / Encryption Drive Magazine

32.4 / 110.55

8.8 / 30

4 x 300-GB 15K SFF SAS Drive Magazine

39 / 132

34 / 117

4 x 600-GB 15K SFF SAS / Encryption Drive Magazine

29.2 / 100.4

28 / 96

4 x 600-GB 10K SFF SAS Drive Magazine

29.6 / 100.8

25.2 / 84.4

4 x 1.2-TB 10K SFF SAS Drive Magazine

32.8 / 111.6

26 / 88.7

4 x 1.8-TB 10K SFF SAS Drive Magazine

30 / 102.4

29.2 / 99.2

4 x 2-TB LFF SAS Drive Magazine

46.4 / 158

26.4 / 89.6

4 x 4-TB LFF SAS Drive Magazine

52.4 / 178.4

36.4 / 124.4

4 x 6-TB LFF SAS Encryption Drive Magazine

57.2 / 195

47.6 / 162.8

Controller Node Pair

1,315 / 4,487

990 / 3,378

Example Full Cabinet Configuration (4-Node 10400; 4 Drive Chassis, 160 600-GB drives,1 service processor)

6,787 / 23,184

5,697 / 20,400

Environmental Specifications

Temperature (°F/°C), 0 - 3,000 ft / 0 - 914.4 m

50 - 104°F / 10 - 40°C

Temperature (°F/°C), 3,000 - 10,000 ft / 914.4 m - 3,048 m

50 - 95°F / 10 - 35°C

Altitude (ft/m) max.

10,000 ft / 3,048 m

Humidity (%), Non-condensing

20 - 80%

Raised Floor

Recommended

Emissions / RFI / EMI

FCC Class A, EN55022 Class A,EN55024: 1998, VCCI Class A

Safety

CE Mark, C-TUVus Mark, TUV GS Mark, CB Scheme with all country deviations

Energy Consumption Efficiency⁵ (Japan Green Law)

0.011

Operating Vibration

0.25 G, Sine, 5-500 Hz, 0.1 Grms, Random 10-100Hz

Non-operating Vibration

0.5 G, 5 - 500 Hz, Sine

NOTE: Specifications are subject to change without notice.

¹ Includes 2-meter rack and two controller nodes (fully populated)

² Maximum, Up to 10 drive magazines (40 drives) of any combination of SAS, FC or NL and up to 8 SSD magazines (32 SSD drives) per Drive Chassis

³ Under maximum load

⁴ Includes power and heat dissipation specifications for the Service Processor as follows: 317 Watts, 1082 BTU/hr,

100 - 240 VAC Input Voltage, 50 - 60 Hz Frequency, and (1) IEC-320 Power Receptacle

⁵ Japan Green Law statement of compliance: The energy consumption efficiency value has been calculated per requirements for Category-N Magnetic Disk Drive Units by dividing the power consumption, measured according to the definition in the Law Concerning the Rational Use of Energy, by the storage capacity defined in the Energy Conservation Law. The efficiency value is based on a host-maximized 10800 configuration using 600GB drives.

⁶ Power Distribution Unit

Date

Version History

Action

Description of Change

04-Feb-2019

Version 47

Changed

Configuration section was updated

01-Oct-2018

Version 46

Changed

Service and Support section was updated

Obsolete SKUs were deleted

Updated Informational Links

02-Apr-2018

Version 45

Changed

Remove What is New.

Removed

Obsolete SKUs were removed.

08-Jan-2018

Version 44

Added

Added 10K Speed HDD FE Drive Magazine.

Removed

Removed EOL HDD Drive Magazines.

23-Oct-2017

Version 43

Changed

Care Pack naming and Service and Support- Parts and Materials updated.

04-Sep-2017

Version 42

Changed

Update HPE 3PAR StoreServ 10000 Drive List and Actual Power Draw List

17-Jul-2017

Version 41

Changed

Update HPE 3PAR StoreServ 10000 Drive List, SSD Drive Warranty List, and Actual Power Draw List

15-Aug-2016

Version 40

Changed

Added new DAC cables supported with 3.2.2 MU3

15-Apr-2016

Version 39

Changed

Removed all references to cMCL

31-Mar-2016

Version 38

Changed

Changes made to the Overview, Service and Support, Configuration and Technical Specifications Sections.

01-Dec-2015

Version 37

Changed

Changes made throughout the QuickSpecs.

02-Oct-2015

Version 36

Added

Added the HPE StoreFront Remote SaaS Portal

26-Jun-2015

Version 35

Changed

Changes made to the Overview Section

05-Jun-2015

Version 34

Changed

Changes made to the What´s New and Technical Specifications Sections.

01-Jun-2015

Version 33

Changed

Changes made to the Configuration, Service and Support , Technical Specs and Overview Sections

Deleted

Removed all the File Controller Section since it now has its own QS.

03-Apr-2015

Version 32

Deleted

Remove QR633C SKU

30-Mar-2015

Version 31

Changed

Changes made to the Warranty and Configuration Sections.

Added

1.92TB and 600GB 15K SAS FIPS added

09-Feb-2015

Version 30

Changed

Changes made on the Service and Support and Technical Specifications Sections

01-Dec-2014

Version 29

Changed

Changes made throughout the QuickSpecs.

29-Sep-2014

Version 28

Changed

Changes made throughout the QuickSpecs.

22-Aug-2014

Version 27

Changed

Removed this entire bullet: "Encrypted and non-encrypted drives can be mixed in a non-encrypted array"

20-Aug -2014

Version 26

Changed

Changes made to the Overview section.

18-Aug-2014

Version 25

Changed

Configuration and Technical Specifications were revised

10-Jun-2014

Version 24

Changed

Updated the Overview section , table and Configuration section

01-May-2014

Version 23

Changed

Updated some main specification summary table footnote numbers, and updated Configuration as well.

23-Apr-2014

Version 22

Changed

Formatting correction made.

11-Apr-2014

Version 21

Changed

Overview image, Warranty, and Configuration were revised.

31-Mar-2014

Version 20

Changed

Warranty, HPE 3PAR StoreServ 10000 Drives, HPE 3PAR Cables, and Power and Heat were revised.

17-Jan-2014

Version 19

Changed

Part numbers for the HPE 3PAR SSDs were revised in Configuration.

11-Dec-2013

Version 18

Changed

Changes made in the Overview chart only.

09-Dec-2013

Version 17

Changed

Configuration and Technical Specifications were revised.

19-Aug-2013

Version 16

Changed

Model descriptions were revised in HPE 3PAR StoreServ 10000 Host Adapters, HPE 3PAR Cables, and Fibre Channel Switches in Configuration

Brocade 16Gb/16 and 16Gb/28 SAN Switches for HPE BladeSystem c-Class and Brocade 16Gb/28 SAN Switch Pwr Pk+ for HPE BladeSystem c-Class were added to Fibre Channel Switches in Configuration

HPE 8/40 Base and Power Pack+ (24) Full Fabric Ports Enabled SAN Switches were removed from Fibre Channel Switches in Configuration

10-Jun-2013

Version 15

Changed

Service and Support: Updated note in The Service and Support section.

Technical Specifications: Updated Actual Power Draw/Heat Dissipation and NOTES section.

Added

Overview: Added HPE StoreServ File Controller information.

Software: Added HPE 3PAR StoreServ Data Encryption section. Configuration: Added C8R67A and C8R68A to the HPE 2PAR SSDs, HPE 3PAR Encryption HDDS and HPE 3PAR Encryption License sections.

08-Mar-2013

Version 14

Added

Configuration: Added Storage Networking Options

Changed

Overview: Updated What's New section with- Increase in maximum raw capacity supported in the HPE 3PAR StoreServ 10000 Storage: 1.1 PB on HPE 3PAR StoreServ 10400, 2.2 PB on HPE 3PAR StoreServ 10800 and Updated Summary section.

19-Feb-2013

Version 13

Changed

Changes made throughout the Configuration and Technical Specifications sections to add the new design cabinets that support HPE Standard single phase and three phase PDUs.

01-Feb-2013

Version 12

Changed

Matching version update

17-Dec-2012

Version 11

Changed

Changes made throughout the QuickSpecs. Note that the title has changed.

24-Aug-2012

Version 10

Changed

Changes made to link in Software section.

05-Jun-2012

Version 9

Changed

Matching version update

04-Jun-2012

Version 8

Changed

Changes made throughout the QuickSpecs to reflect the new title change.

14-May-2012

Version 7

Changed

Changes made within the Configuration section only.

06-Apr-2012

Version 6

Changed

URL was revised for HPE Storage Management Pack.

26-Mar-2012

Version 5

Changed

Changes made throughout the QuickSpecs.

09-Mar-2012

Version 4

Changed

Matching version with document

13-Feb-2012

Version 3

Changed

Changes made within the Summary and Configuration sections.

14-Nov-2011

Version 2

Changed

HPE P10000 3PAR Base Configurations, HPE P10000 3PAR Host Adapters and HPE P10000 3PAR Drive Chassis were revised in Configuration

Total Cache and 10Gb/s iSCSI Host Ports were added to the Overview chart

NetApp Data ONTAP was removed from Host OS Support

30-Aug-2011

Version 1

New

New QuickSpecs
