Alcatel-Lucent Remote Replication Solution | |
|
The Alcatel-Lucent 1830 Photonic Service Switch (PSS) supports next-generation WDM multiservice transport from access to core. The scalable switch drives lower TCO and extends network life cycles. The 1830 PSS transforms traditional WDM into a flexible transport layer with managed agile photonics, multilayer switching and services, plus network intelligence. Support for solutions that offer both low latency and zero data loss, protection from disasters, and that can span wide geographical areas (a cyclone for example) is expensive because they generally require extremely large replication links (high speed) with high recurring monthly costs due to carrier service providers. HPE 3PAR Remote Copy can help limit these costs with our Synchronous Long Distance topology where data is replicated to a nearby data center in synchronous replication mode using Alcatel Lucent Photonic Switch PSS 1830. The distances can now be extended up to 130 Km. Hewlett Packard Enterprise is making available 4 Alcatel-Lucent solution sets:

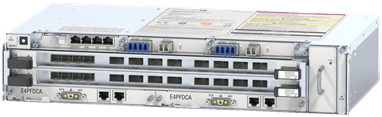

Figure 1. Alcatel-Lucent PSS-4
|
|
|
| |
|

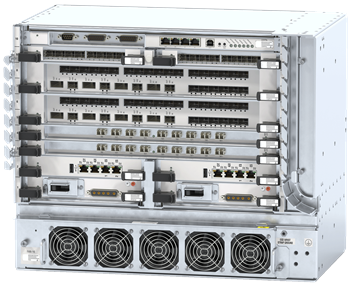

Figure2. Alcatel Lucent PSS-16 | |
|
Alcatel-Lucent PSS Models |

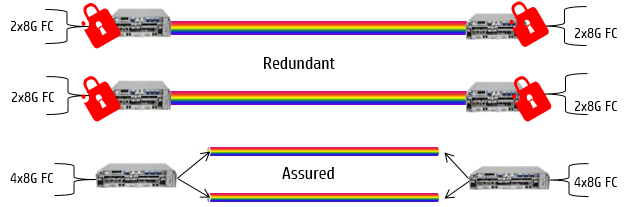

We have designed four unique solutions built for scaling in terms of bandwidth, distance and encryption requirement:
The R20G is a redundant configuration that includes two PSS-4 on each end of the Solution. Designed for maximum redundancy it scales to 75KM of distance and 80G bandwidth. Redundant - Dual Chassis, redundant power, capacity split between chassis' and active service blades, mux/demux and network connections
The XLA20G is a starting configuration for longer distances that includes one PSS-16 on each end of the Solution. It scales to 130 KM of distance and 40G of bandwidth. Assured - Single Chassis, redundant power, capacity split between active service blades, mux/demux and network connections.
The XLR20G is a redundant configuration that includes two PSS 16 on each end of the Solution. Designed for maximum redundancy it scales to 130KM of distance and 200G bandwidth. Redundant - Dual Chassis, redundant power, capacity split between chassis' and active service blades, mux/demux and network connections.
|
Service and Support
|
Service and Support |
|
|
|
Service and Support is included for 3 Years. Service and Support is provided directly by Alcatel Lucent. For installation and integration services referring to initial setup of the solutions please refer to the Service SKU's in each of the Solution SKU sections. |
Features and Benefits
|
Key Features and Benefits Alcatel-Lucent PSS-4 & PSS-16
Secure Fiber Optic Data Center Interconnect Rather than using a public carrier, the combined HPE 3PAR, Alcatel-Lucent 1830 synchronous replication solution certified by a third party, allows for DCI to DCI connections up to 130km without mid-point equipment over your dark fiber network. The Alcatel-Lucent 1830 PSS supports an integrated Layer 1 hardware encryption option to provide secure transport for critical DCI applications. The Alcatel-Lucent 1830 PSS can manage specific physical and logical security risks regarding individual network elements, including secure device configuration, comprehensive logs with intrusion prevention alarms, optical interface redundancy options, while continuously monitoring links for unexpected loss of signal strength from unauthorized optical fiber taping. Very Low Latency for Synchronous Replication Latency requirements for mission-critical applications, usually dictates the fastest and most efficient technology for transport of those applications. The 1830 PSS solution has been engineered to meet the most stringent latency requirement while providing high availability for synchronous replication applications. In-flight hardware based L1 encryption Using industry standard AES-256 shared key encryption of your HP3PAR synchronous replication DCI to DCI, the 1830 utilizes hardware based in flight encryption that not only reduces latency, but also provides for full payload encryption. This includes full AES-256 encryption of native headers, payload, and trailers regardless of the protocol. While encryption in the higher layers of the Open Systems Interconnection (OSI) network stack can be effective in certain situations, such encryption can be complex - resulting in high CPU utilization, increased latency and overhead. Layer 1 (L1) physical layer encryption implemented on 1830 PSS is therefore the preferred method for securing data across the DCC WAN that adds only nanoseconds of latency. Using dedicated hardware, L1 encryption can closely couple any higher-layer data flow with its transmission medium to maximize the data center interconnection capacity and DCR performance. The Alcatel-Lucent KMT is a secure, scalable application that supports management of the cryptographic life cycle of each wavelength service - the keys generated to perform the encryption - as well as the management of encryption key expiration, rotation and destruction.
Scalable 20-200 G+ Solution The 1830 like the 3PAR replication solution is sized for the application and expected growth, the DCI to DCI 1830 equipment can be sized to the network distance and allows for growth starting at 20G replicated data (40G total active no fault through-put). The various solutions can allow "in chassis" growth for up to 200G of data. The solution does not have to stop there, using the virtual chassis concept, where additional chassis can be added while in service, the solution can scale to over 9 terabits without the need to change any of the hardware deployed on day one.
The 1830 PSS is a scalable, next-generation DWDM platform that provides data center aggregation for Ethernet and Fibre Channel (FC) data sources, allowing smooth in service activation of additional clients to meet current and future demand of customers BC/DR needs. Multiprotocol support for all traffic The 1830 equipment is non-intrusive to the native protocols, thus allowing for mix and match traffic on the common network. The solution supports 8/10G Fibre Channel, as well as 10G Ethernet. Being bit transparent, the 1830 does not change, or convert the native protocol. Using the 1830 PSS service modules, wavelengths can be combined onto a single fiber optic pair to quickly and drastically increase overall DCC WAN capacity. Similarly, the ability to take high throughput 8G/10G FC interfaces and transport them between data centers with low latency is a key enabler for mission-critical applications. |
Configuration Information
|
Alcatel-Lucent Assured 20G 1830 PSS4 40G 75km Replication Solution (A20G)
|
|
|
Step1 - Base configuration |
|
|
Alcatel-Lucent Assured 20G 1830 PSS4 40G 75km Main Replication Networking Bundle Alcatel-Lucent 1830 PSS-4 in a 2 RU chassis with redundant power. Service cards to provide 20G at 75 Km. Expandable to 40G. This SKU contain field replaceable units (FRU) to minimize downtime. Requires a K2R31A Remote Bundle, as well as interconnecting fiber between the switches. Designed for cost optimization, this solution does not include an encryption option. |
K2R30A |
|
|
|
|
Alcatel-Lucent Assured 20G 1830 PSS4 40G 75km Remote Replication Networking Bundle Alcatel-Lucent 1830 PSS-4 in a 2 RU chassis with redundant power. Service cards, to provide 20G at 75 Km. Expandable to 40G. The field replaceable units (FRU) for this switch are contained in the K2R30A SKU. Requires a K2R30A Main Bundle, as well as interconnecting fiber between the switches. Designed for cost optimization, this solution does not include an encryption option. NOTE: Must order one Main and one Remote Bundle for the solution to operate as a viable configuration |
K2R31A |
|
|
|
|
Step 2 - Options Select each type of required options with quantities specified:
|
|
|
Power Supply Options | |
|
| |
|
Alcatel-Lucent Assured A20G 2-pack Main AC Power Kit |
K2R32A |
|
|
|
|
Alcatel-Lucent Assured A20G 2-pack Main DC Power Kit |
K2R33A |
|
|
|
|
Alcatel-Lucent Assured A20G 2-pack Remote AC Power Kit |
K2R34A |
|
|
|
|
Alcatel-Lucent Assured A20G 2-pack Remote DC Power Kit |
K2R35A |
|
|
|
|
NOTE: Choose one power supply for each Main and one for each Remote Bundle | |
|
| |
|
Rack Mount Options
|
|
|
Alcatel-Lucent A20G R20G 48cm (19in) Rack Installation Kit |
K2R36A |
|
Rack Installation Kit for K2R30A or K2R31A | |
|
| |
|
Alcatel-Lucent A20G R20G 53cm (21in) Rack Installation Kit |
K2R37A |
|
Rack Installation Kit for K2R30A or K2R31A | |
|
| |
|
Alcatel-Lucent A20G R20G 58cm (23in) Rack Installation Kit |
K2R38A |
|
Rack Installation Kit for K2R30A or K2R31A | |
|
| |
|
NOTE: Choose one Rack Mount Kit for each Main and one for each Remote Bundle |
|
|
Expansion Options | |
|
| |
|
Alcatel-Lucent A20G R20G 20G to 40G Configuration Expansion Kit |
K2R39A |
|
20G Expansion to increase to a 40G Configuration. Includes spares. Order one per K2R30A. Requires K2R40A on the Remote switch |
|
|
|
|
|
Alcatel-Lucent A20G R20G 20G to 40G Configuration Expansion Kit |
K2R40A |
|
20G Expansion to increase to a 40G Configuration Order one per K2R31A. Requires K2R39A on the Main switch |
|
|
NOTE: If K2R39A is selected, it must be ordered in quantity of 1 per K2R30A, and cannot be used in combination with K2R73A. This is not supported on K2R31A. If K2R40A is selected, it must be ordered in quantity of 1 per K2R31A, and cannot be used in combination with K2R74A. This is not supported on K2R30A. |
|
|
| |
|
Network Options | |
|
| |
|
Alcatel-Lucent A20G R20G 2-pack Redundant 10GbE Ethernet/10Gb Fibre Channel Main Expansion Kit |
K2R73A |
|
Main Expansion Kit Adds 2 protected x10GE/10GFC Expansion and spares to initial deployment of A20G |
|
|
Alcatel-Lucent A20G R20G 2-pack 10GbE Ethernet/10Gb Fibre Channel Main Expansion Kit |
K2R74A |
|
Remote Expansion Kit Adds 2 protected x10GE/10GFC Expansion to initial deployment of A20G |
|
|
|
|
|
NOTE: If K2R73A is selected, it must be ordered in quantity of 1 per K2R30A, and cannot be used in combination with K2R39A. This is not supported on K2R31A. If K2R74A is selected, it must be ordered in quantity of 1 per K2R31A, and cannot be used in combination with K2R40A. This is not supported on K2R30A
|
|
|
Services |
|
|
Alcatel-Lucent Installation Service |
K2R77A |
|
This will trigger a site survey by ALU, which will determine how many K2R78A units will need to be purchased for the installation. |
|
|
Alcatel-Lucent Integration Service |
K2R78A |
|
Installation service. Provided by ALU. |
|
|
Alcatel-Lucent A20G 1830 PSS4 Professional Services Bundle |
P4F68A |
|
The Professional Services Bundle option provides all services necessary to successfully deploy and integrate the 1830 PSS4 bundles in a point-to-point communication between both sites of the HPE Data Replication Solution. It includes site-survey, Equipment Installation, Equipment Commissioning, Network Element Integration and associated Project Management. All these services will be led and coordinated by Alcatel-Lucent personnel and stops at connecting the 1830 PSS4 to the Fiber Channel switch but not configuring the Fiber Channel switch. If necessary any additional verification of the overall solution must be ordered separately thru HPE-TS.
|
|
|
NOTE: Alcatel-Lucent will perform a site survey through the Installation Service and conduct the actual integration of the bundles through the Integration Service. Quotes will include the Installation Service, and a note to customers that Integration Services will be quoted after the site survey is complete.
| |
|
Alcatel-Lucent Redundant 20G 1830 PSS4 40G 75km Remote Replication Solution (R20G)
|
|
|
Step1 - Base configuration |
|
|
Alcatel-Lucent Redundant 20G 1830 PSS4 80G 70km Main Replication Networking Bundle |
K2R41A |
|
Consists of two Alcatel-Lucent 1830 PSS-4 chassis with redundant power. Dual Chassis configuration for redundancy. Provides 20G at 75 Km. Capacity split between chassis' and active service blades, mux/demux and network connections. Expandable to 80G. This SKU contain field replaceable units (FRU) to minimize downtime. Requires a K2R42A Remote Bundle, as well as interconnecting fiber between the switches. Encryption option available |
|
|
|
|
|
Alcatel-Lucent Redundant 20G 1830 PSS4 80G 70km Remote Replication Networking Bundle |
K2R42A |
|
Consists of two Alcatel-Lucent 1830 PSS-4 chassis with redundant power. Dual Chassis configuration for redundancy. Provides 20G at 75 Km. Capacity split between chassis' and active service blades, mux/demux and network connections. Expandable to 80G. Field replaceable units (FRU) are included in the K2R41A Main bundle. Requires a K2R41A Main Bundle, as well as interconnecting fiber between the switches. Encryption option available. |
|
|
| |
|
NOTE: Must order one Main and Remote Bundle for the solution to operate as a viable configuration | |
|
| |
|
Step 2 - Options | |
|
Select each type of required options with quantities specified: | |
|
| |
|
Power Supply Options | |
|
|
|
|
Alcatel-Lucent Redundant R20G 2-pack Main AC Power Kit |
K2R43A |
|
AC power solution for R20G Main Bundle, includes multi-nation power kits and spares. Includes 2 power supplies for redundancy for each switch |
|
|
|
|
|
Alcatel-Lucent Redundant R20G 2-pack Main DC Power Kit |
K2R44A |
|
48V DC power supplies with power kits and spares. For R20G Main Bundle, includes 2 power supplies for redundancy for each switch |
|
|
|
|
|
Alcatel-Lucent Redundant R20G 2-pack Remote AC Power Kit |
K2R45A |
|
AC power solution for R20G Remote Bundle, includes multi-nation power kits. Includes 2 power supplies for redundancy for each switch |
|
|
|
|
|
Alcatel-Lucent Redundant R20G 2-pack Remote DC Power Kit |
K2R46A |
|
48V DC power supplies with power kits. For R20G Remote Bundle, includes 2 power supplies for redundancy for each switch |
|
|
|
|
|
NOTE: Choose one power supply for each Main and one for each Remote Bundle |
|
|
|
|
|
Rack Mount Options |
|
|
|
|
|
Alcatel-Lucent A20G R20G 48cm (19in) Rack Installation Kit |
K2R36A |
|
Rack Installation Kit for K2R41A or K2R42A
|
|
|
Alcatel-Lucent A20G R20G 53cm (21in) Rack Installation Kit |
K2R37A |
|
Rack Installation Kit for K2R41A or K2R42A
|
|
|
Alcatel-Lucent A20G R20G 58cm (23in) Rack Installation Kit |
K2R38A |
|
Rack Installation Kit for K2R41A or K2R42A
|
|
|
NOTE: Choose one Rack Mount Kit for each Main and one for each Remote Bundle |
|
|
|
|
|
Expansion Options |
|
|
|
|
|
Alcatel-Lucent A20G R20G 20G to 40G Configuration Expansion Kit |
K2R39A |
|
20G Expansion to increase to 40G on the Main switch. Includes spares. Order one per K2R41A. Requires a K2R40A on the Remote switch
|
|
|
Alcatel-Lucent A20G R20G 20G to 40G Configuration Expansion Kit |
K2R40A |
|
20G Expansion to increase to 40G on the Remote switch Order one per K2R42A. Requires a K2R39A on the Main switch |
|
|
|
|
|
Alcatel-Lucent R20G 40G to 60G Main Configuration Expansion Kit |
K2R47A |
|
20G Expansion to increase from 40 to 60G on the Main switch. Includes spares. Order one per K2R41A. Requires K2R39A to be installed on the Main switch
|
|
|
Alcatel-Lucent R20G 40G to 60G Remote Configuration Expansion Kit |
K2R48A |
|
20G Expansion to increase from 40 to 60G on the Remote switch Order one per K2R42A. Requires K2R40A to be installed on the Remote switch
|
|
|
Alcatel-Lucent R20G 60G to 80G Main Configuration Expansion Kit |
K2R49A |
|
20G Expansion to increase from 60 to 80G on the Main switch. Includes spares. Requires K2R47A to be installed on the Main switch
|
|
|
Alcatel-Lucent R20G 60G to 80G Remote Configuration Expansion Kit |
K2R50A |
|
20G Expansion to increase from 60 to 80G on the Remote switch. Requires K2R48A to be installed on the Remote switch
|
|
|
NOTE: If K2R39A is selected, it must be ordered in quantity of 1 per K2R41A, and cannot be used in combination with K2R73A. This is not supported on K2R42A. If K2R40A is selected, it must be ordered in quantity of 1 per K2R42A, and cannot be used in combination with K2R74A. This is not supported on K2R41A.
|
|
|
|
|
|
Network Options |
|
|
|
|
|
Alcatel-Lucent A20G R20G 2-pack Redundant 10GbE Ethernet/10Gb Fibre Channel Main Expansion Kit |
K2R73A |
|
Main Expansion Kit Adds 2 protected x10GE/10GFC Expansion and spares to initial deployment of R20G
|
|
|
Alcatel-Lucent A20G R20G 2-pack 10GbE Ethernet/10Gb Fibre Channel Main Expansion Kit |
K2R74A |
|
Remote Expansion Kit Adds 2 protected x10GE/10GFC Expansion to initial deployment of R20G
|
|
|
NOTE: If K2R73A is selected, it must be ordered in quantity of 1 per K2R41A, and cannot be used in combination with K2R39A. This is not supported on K2R42A. If K2R74A is selected, it must be ordered in quantity of 1 per K2R42A, and cannot be used in combination with K2R40A. This is not supported on K2R41A.
|
|
|
|
|
|
Services
|
|
|
Alcatel-Lucent Installation Service |
K2R77A |
|
This will trigger a site survey by ALU, which will determine how many K2R78A units will need to be purchased for the installation. |
|
|
|
|
|
Alcatel-Lucent Integration Service |
K2R78A |
|
Installation service. Provided by ALU. |
|
|
|
|
|
Alcatel-Lucent R20G 1830 PSS4 Professional Services Bundle |
P4F69A |
|
The Professional Services Bundle option provides all services necessary to successfully deploy and integrate the 1830 PSS4 bundles in a point-to-point communication between both sites of the HPE Data Replication Solution. It includes site-survey, Equipment Installation, Equipment Commissioning, Network Element Integration and associated Project Management. All these services will be led and coordinated by Alcatel-Lucent personnel and stops at connecting the 1830 PSS4 to the Fiber Channel switch but not configuring the Fiber Channel switch. If necessary any additional verification of the overall solution must be ordered separately thru HPE-TS. |
|
|
|
|
|
NOTE: Alcatel-Lucent will perform a site survey through the Installation Service and conduct the actual integration of the bundles through the Integration Service. Quotes will include the Installation Service, and a note to customers that Integration Services will be quoted after the site survey is complete.
| |
|
Encryption Options
|
|
|
Alcatel-Lucent R20G XLA20G XLR20G 20G Encryption Software |
L9X49A |
|
Layer 1 hardware encryption option to provide secure transport for critical DCI applications. Includes Encryption licenses for initial Main and Remote Bundle 20G configurations. Includes ALUs Key Management Tool (KMT)
|
|
|
Alcatel-Lucent R20G XLA20G XLR20G Incremental 20G for Open Ports Encryption Software |
L9X50A |
|
Provide Encryption licensing in 20G increments for both Main and Remote Bundles. Requires L9X49A |
|
|
|
|
|
NOTE: Each Encryption SKU enables both Main and Remote Sites. Each of these SKU's are incremental upgrades.
| |
|
|
|
|
Alcatel-Lucent Assured Xlong 20G 1830 PSS16 40G 130km Remote Replication Solution (XLA20G)
| |
|
|
|
|
Step1 - Base configuration |
|
|
Alcatel-Lucent Assured Xlong 20G 1830 PSS16 40G 130km Main Replication Networking Bundle |
K2R51A |
|
Alcatel-Lucent 1830 PSS-16 in a 14" chassis with redundant power. Provides 20G at 130 Km. Expandable to 40G. This SKU contain field replaceable units (FRU) to minimize downtime. Requires a K2R52A Remote bundle, as well as interconnecting fiber between the switches. Encryption option available. |
|
|
|
|
|
Alcatel-Lucent Assured Xlong 20G 1830 PSS16 40G 130km Remote Replication Networking Bundle |
K2R52A |
|
Alcatel-Lucent 1830 PSS-16 in a 14" chassis with redundant power. Provides 20G at 130 Km. Expandable to 40G. Requires a K2R51A Main bundle, as well as interconnecting fiber between the switches. Field replaceable units (FRU) are included in the K2R51A Main bundle. Encryption option available |
|
|
| |
|
NOTE: Must order one Main and Remote Bundle for the solution to operate as a viable configuration | |
|
Step 2 - Options |
|
Select each type of required options with quantities specified: |
|
Rack Mount Options |
|
|
|
|
|
Alcatel-Lucent XLA20G XLR20G 48cm (19in) Rack Installation Kit |
K2R53A |
|
Rack Installation Kit for K2R51A or K2R52A
|
|
|
Alcatel-Lucent XLA20G XLR20G 53cm (21in) Rack Installation Kit |
K2R54A |
|
Rack Installation Kit for K2R51A or K2R52A
|
|
|
Alcatel-Lucent XLA20G XLR20G 58cm (23in) Rack Installation Kit |
K2R55A |
|
Rack Installation Kit for K2R51A or K2R52A
|
|
|
NOTE: Choose one Rack Mount Kit for each Main and one for each Remote Bundle |
|
|
DMC Options |
|
|
Alcatel-Lucent XLA20G XLR20G Single Mode Fiber Dispersion Compensation Module |
K2R56A |
|
Must order one for K2R51A and one for K2R52A if using single mode network fiber |
|
|
|
|
|
Alcatel-Lucent XLA20G XLR20G Leaf Fiber Dispersion Compensation Module |
K2R57A |
|
Must order one for K2R51A and one for K2R52A if using Leaf network fiber |
|
|
| |
|
NOTE: These are required to offset the natural characteristics of the fiber being utilized. K2R56A or K2R57A must be ordered for each Main and Remote Bundle. | |
|
Expansion Options |
|
|
Alcatel-Lucent XLA20G XLR20G 2-pack 20G to 40G Configuration Expansion Kit |
K2R58A |
|
20G Expansion to increase to a 40G Configuration. Includes spares. Order one per K2R51A, and one per K2R52A. Cannot be used in combination with K2R75A or K2R76A |
|
|
|
|
|
Networking Options |
|
|
Alcatel-Lucent XLA20G XLR20G 2-pack Redundant 10GbE Ethernet/10Gb Fibre Channel Main Expansion Kit |
K2R75A |
|
This kit adds 2 protected x 10GE/10GFC to the hpXLR20G Main or hpXLA20G Main bundle, Order one per K2R51A, Cannot be used in combination with K2R58A.
|
|
|
Alcatel-Lucent XLA20G XLR20G 2-pack 10GbE Ethernet/10Gb Fibre Channel Remote Expansion Kit |
K2R76A |
|
This kit adds 2 protected x 10GE/10GFC to the hpXLR20G Main or hpXLA20G Remote bundle, Order one per K2R52A, Cannot be used in combination with K2R58A
|
|
|
NOTE: K2R75A & K2R76A can't be used in combination with K2R58A. |
|
|
|
|
|
Services |
|
|
Alcatel-Lucent Installation Service |
K2R77A |
|
This will trigger a site survey by ALU, which will determine how many K2R78A units will need to be purchased for the installation. |
|
|
|
|
|
Alcatel-Lucent Integration Service |
K2R78A |
|
Installation service. Provided by ALU. |
|
|
|
|
|
Alcatel-Lucent XLA20G 1830 PSS16 Professional Services Bundle |
P4F70A |
|
The Professional Services Bundle option provides all services necessary to successfully deploy and integrate the 1830 PSS16 bundles in a point-to-point communication between both sites of the HPE Data Replication Solution. It includes site-survey, Equipment Installation, Equipment Commissioning, Network Element Integration and associated Project Management. All these services will be led and coordinated by Alcatel-Lucent personnel and stops at connecting the 1830 PSS16 to the Fiber Channel switch but not configuring the Fiber Channel switch. If necessary any additional verification of the overall solution must be ordered separately thru HPE-TS. |
|
|
|
|
|
NOTE: Alcatel-Lucent will perform a site survey through the Installation Service and conduct the actual integration of the bundles through the Integration Service. Quotes will include the Installation Service, and a note to customers that Integration Services will be quoted after the site survey is complete.
| |
|
Encryption Options |
|
|
Alcatel-Lucent R20G XLA20G XLR20G 20G Encryption Software |
L9X49A |
|
Layer 1 hardware encryption option to provide secure transport for critical DCI applications. Includes Encryption licenses for initial Main and Remote Bundle 20G configurations. Includes ALUs Key Management Tool (KMT)
|
|
|
Alcatel-Lucent R20G XLA20G XLR20G Incremental 20G for Open Ports Encryption Software |
L9X50A |
|
Provide Encryption licensing in 20G increments for both Main and Remote Bundles. Requires L9X49A
|
|
|
Alcatel-Lucent XLA20G XLR20G Incremental 2-pack 40G Add New Card Encryption Software |
L9X51A |
|
Provide Encryption licensing for 20G increments on main and remote switches Prerequisite: L9X49A and L9X50A Order maximum of 4
|
|
|
NOTE: Each Encryption SKU enables both Main and Remote Sites. Each of these SKU's are incremental upgrades.
| |
Alcatel-Lucent Redundant Xlong 20G-1830-PSS16 200G 130km Replication Solution (XLR20G)
|
Step1 - Base configuration |
|
|
Alcatel-Lucent Redundant Xlong 100G 1830 PSS16 200G 130km Main Replication Networking Bundle |
K2R60A |
|
Consists of two Alcatel-Lucent 1830 PSS-16 in 14" chassis with redundant power. Dual Chassis configuration for redundancy. Provides 20G at 130 Km. Capacity split between chassis' and active service blades, mux/demux and network connections. Expandable to 200G. This SKU contain field replaceable units (FRU) to minimize downtime. Requires a K2R61A Remote bundle, as well as interconnecting fiber between the switches. Encryption option available. |
|
|
|
|
|
Alcatel-Lucent Redundant Xlong 100G 1830 PSS16 200G 130km Remote Replication Networking Bundle |
K2R61A |
|
Consists of two Alcatel-Lucent 1830 PSS-16 in 14" chassis with redundant power. Dual Chassis configuration for redundancy. Provides 20G at 130 Km. Capacity split between chassis' and active service blades, mux/demux and network connections. Expandable to 200G. Field replaceable units (FRU) are included with K2R60A. Requires a K2R60A Remote bundle, as well as interconnecting fiber between the switches. Encryption option available |
|
|
| |
|
NOTE: Must order one Main and Remote Bundle for the solution to operate as a viable configuration | |
|
Step 2 - Options Select each type of required options with quantities specified:
Rack Mount Options |
|
|
Alcatel-Lucent XLA20G XLR20G 48cm (19in) Rack Installation Kit |
K2R53A |
|
Rack Installation Kit for K2R51A or K2R52A
|
|
|
Alcatel-Lucent XLA20G XLR20G 53cm (21in) Rack Installation Kit |
K2R54A |
|
Rack Installation Kit for K2R51A or K2R52A
|
|
|
Alcatel-Lucent XLA20G XLR20G 58cm (23in) Rack Installation Kit |
K2R55A |
|
Rack Installation Kit for K2R51A or K2R52A
|
|
|
NOTE: Choose one Rack Mount Kit for each Main and one for each Remote Bundle |
|
|
DMC Options |
|
|
Alcatel-Lucent XLA20G XLR20G Single Mode Fiber Dispersion Compensation Module |
K2R56A |
|
Must order one for K2R51A and one for K2R52A if using single mode network fiber |
|
|
|
|
|
Alcatel-Lucent XLA20G XLR20G Leaf Fiber Dispersion Compensation Module |
K2R57A |
|
Must order one for K2R51A and one for K2R52A if using Leaf network fiber |
|
|
| |
|
NOTE: These are required to offset the natural characteristics of the fiber being utilized. K2R56A or K2R57A must be ordered for each Main and Remote Bundle.
| |
|
Expansion Options |
|
|
Alcatel-Lucent XLA20G XLR20G 2-pack 20G to 40G Configuration Expansion Kit |
K2R58A |
|
20G Expansion to increase to a 40G Configuration. Includes spares. Order one per K2R51A, and one per K2R52A. Cannot be used in combination with K2R75A or K2R76A
|
|
|
Alcatel-Lucent XLR20G 2-pack 40G Incremental Configuration Expansion Kit |
K2R59A |
|
40G Expansion kit. Provides expansion up to 200G Order up to four per K2R60A and K2R61A. Requires K2R58A. Cannot be used in combination with K2R75A or K2R76A
|
|
|
Networking Options |
|
|
Alcatel-Lucent XLA20G XLR20G 2-pack Redundant 10GbE Ethernet/10Gb Fibre Channel Main Expansion Kit |
K2R75A |
|
This kit adds 2 protected x 10GE/10GFC to the hpXLR20G Main or hpXLA20G Main bundle, Order one per K2R51A, Cannot be used in combination with K2R58A.
|
|
|
Alcatel-Lucent XLA20G XLR20G 2-pack 10GbE Ethernet/10Gb Fibre Channel Remote Expansion Kit |
K2R76A |
|
This kit adds 2 protected x 10GE/10GFC to the hpXLR20G Main or hpXLA20G Remote bundle, Order one per K2R52A, Cannot be used in combination with K2R58A
|
|
|
NOTE: K2R75A & K2R76A can't be used in combination with K2R58A. |
|
|
|
|
|
Services |
|
|
Alcatel-Lucent Installation Service |
K2R77A |
|
This will trigger a site survey by ALU, which will determine how many K2R78A units will need to be purchased for the installation. |
|
|
|
|
|
Alcatel-Lucent Integration Service |
K2R78A |
|
Installation service. Provided by ALU. |
|
|
|
|
|
Alcatel-Lucent XLR20G 1830 PSS16 Professional Services Bundle |
P4F71A |
|
The Professional Services Bundle option provides all services necessary to successfully deploy and integrate the 1830 PSS16 bundles in a point-to-point communication between both sites of the HPE Data Replication Solution. It includes site-survey, Equipment Installation, Equipment Commissioning, Network Element Integration and associated Project Management. All these services will be led and coordinated by Alcatel-Lucent personnel and stops at connecting the 1830 PSS16 to the Fiber Channel switch but not configuring the Fiber Channel switch. If necessary any additional verification of the overall solution must be ordered separately thru HPE-TS. |
|
|
|
|
|
NOTE: Alcatel-Lucent will perform a site survey through the Installation Service and conduct the actual integration of the bundles through the Integration Service. Quotes must include the Installation Service, and a note to customers that Integration Services will be quoted after the site survey is complete.
|
|
|
Encryption Options |
|
|
Alcatel-Lucent R20G XLA20G XLR20G 20G Encryption Software |
L9X49A |
|
Layer 1 hardware encryption option to provide secure transport for critical DCI applications. Includes Encryption licenses for initial Main and Remote Bundle 20G configurations. Includes ALUs Key Management Tool (KMT)
|
|
|
Alcatel-Lucent R20G XLA20G XLR20G Incremental 20G for Open Ports Encryption Software |
L9X50A |
|
Provide Encryption licensing in 20G increments for both Main and Remote Bundles. Requires L9X49A
|
|
|
Alcatel-Lucent XLA20G XLR20G Incremental 2-pack 40G Add New Card Encryption Software |
L9X51A |
|
Provide Encryption licensing for 20 G increments on main and remote switches Prerequisite: L9X49A and L9X50A Order maximum of 4
|
|
|
NOTE: Each Encryption SKU enables both Main and Remote Sites. Each of these SKU's are incremental upgrades.
| |
|
Physical dimensions 1830 PSS-4
1830 PSS-16
Operating environment 1830 PSS-4
1830 PSS-16
High Availability Options
Cabinet support
Software Components, Standard, and Optional
|
|
Warranty
|
3 Year Warranty on Hardware and Software directly available from Alcatel-Lucent The Warranty Periods for the Standard Warranty for Hardware and Software delivered by Alcatel-Lucent, under the Agreement, are three (3) years, and commence on the Delivery Date. Other Considerations
|
HPE 3PAR Replication Software Suite
|
|
|
|
|
The HPE 3PAR Replication Software Suite offers automatic replication, transparent failover and Point-in-Time (PIT) copies enabling seamless disaster recovery for critical data. These features provide an agile, efficient and simple solution to protect against the unpredictable. This suite is ideal for virtualized data centers demanding data availability and business continuity 24x7. Remote Copy Software dramatically reduces the cost of remote data replication and disaster recovery by leveraging thin copy technology, enabling multi-site and multi-mode replication with both midrange and high-end arrays, and reducing the need for professional services. Virtual Copy enables rapid application recovery-while containing costs with a "thin-aware" implementation that minimizes the amount of physical capacity that is actually being consumed by your data-and without sacrificing performance, availability, or versatility. HPE 3PAR Peer Persistence software enables HPE 3PAR StoreServ systems located at metropolitan distances to act as peers to each other, presenting a nearly continuous storage system to VMware vSphere hosts connected to them. The Replication Suite includes the following functionality and features:
* CLX is include in the Replication Suite for HPE 3PAR StoreServ 20800/20850 only
|
Summary of Changes
|
|
Date |
Version History |
Action |
Description of Change | ||||||||||||||||||
|
|
14-Oct-2016 |
From Version 3 to 4 |
Changed |
Rebranding edition | ||||||||||||||||||
|
|
23-Oct-2015 |
From Version 2 to 3 |
Changed |
Cosmetic changes, data correction, warranty info updates, added new service SKUs. | ||||||||||||||||||
|
|
05-Jun-2015 |
From Version 1 to 2 |
Changed |
Cosmetic changes to the HTML version | ||||||||||||||||||
|
| ||||||||||||||||||||||
| ||||||||||||||||||||||
