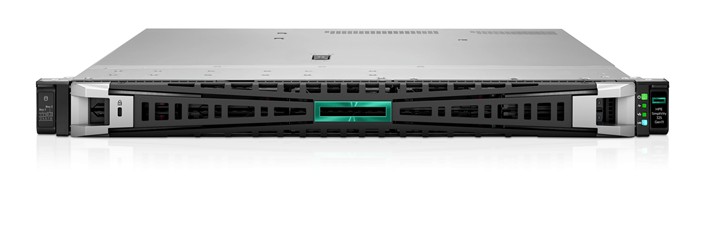

HPE SimpliVity 325 Gen11

What's New

- HPE SimpliVity 325 Gen11 now supports HPE Morpheus VM Essentials Software.

- HPE SimpliVity Software 6.2.0 for HPE Morpheus VM Essentials Software.

- HPE SimpliVity Software 5.3.1 for Broadcom VMware.

- Socket based Term licensing.

- AMD 4th Generation EPYC Processors (Genova).

- AMD 5th Generation EPYC Processors (Turin).

- Introducing a new drive configuration of 7.68 TB.

- PCIe 5.0 support.

HPE SimpliVity 325 Gen11 now supports HPE Morpheus VM Essentials Software

Software Features

- HPE SimpliVity Software 6.0 with HPE Morpheus VM Essentials

- HPE InfoSight server integration

- VM provisioning and lifecycle operations

- Hyper efficiency

- 2-Node HA

- Built-in Data protection

- Backup & Restore

- HPE SimpliVity management plugin for HPE VM Essentials Manage

- HPE SimpliVity with HPE Morpheus VM Essentials must be deployed in a separate federation

Hardware Features

- Single disk resiliency on HPE SimpliVity 325 Gen11 nodes

- Hot-serviceable boot drives

- Redundant power supplies

- Integrated storage controller with battery-backed cache

- HPE ProLiant Integrated Lights-Out Advanced (iLO) 5 Remote Management

Notes:

- It is strongly recommended that an HPE SimpliVity 325 Gen11 cluster have a minimum of two nodes to realize the full benefits of the high availability hyperconverged solution.

- A federation cannot contain HPE Morpheus VM Essentials and Broadcom VMware clusters

HPE SimpliVity 325 Gen11 supports Broadcom VMware

Software Features

- HPE SimpliVity now supports HPE GreenLake for Private Cloud Business Edition Cloud Console

- Support for 4^th Generation AMD EPYC Turin Processors

- Support for 5^th Generation AMD EPYC Turin Processors

- Dual drive resiliency for certain capacities

- HPE InfoSight server integration

- VMware vSphere (customer to procure from authorized distributor).

- HPE SimpliVity management plugin for VMware vCenter.

- HPE Backup Archive to HPE Cloud Bank Storage

- HPE StoreOnce Integration, with HPE StoreOnce Data Immutability.

- Decoupling of firmware dependency -> our decoupled upgrades allow for VMware ESXi upgrades only, with upgrade manager.

- Optional data encryption support

- Optional RapidDR support

- HPE SimpliVity for Broadcom must be deployed in a separate federation

Hardware Features

- Cluster expansion without downtime.

- Choice of single disk resiliency or dual disk resiliency on HPE SimpliVity 325 Gen11 nodes

- Hot-serviceable boot drives

- Redundant power supplies

- Integrated storage controller with battery-backed cache

Notes:

- It is strongly recommended that an HPE SimpliVity 325 Gen11 cluster have a minimum of two nodes to realize the full benefits of the high availability hyperconverged solution.

- A single cluster supports up to 16 nodes. A single federation supports up to 96 nodes. See product documentation for details.

- A federation cannot contain HPE Morpheus VM Essentials and Broadcom VMware clusters

Broadcom VMware Software

- HPE SimpliVity now supports VMware ESXi 8.0U3 (refer to HPE SimpliVity interop guide)

- A valid VMware vSphere license is required for each host (72-core minimum license per-host needed).

- License types offered by VMware:

• vSphere Foundation
• vSphere Standard
• vSphere Essentials Plus Kit

Scalable and Configurable

- Storage Expansion Kits available for 1.92, 3.84, 7.68 TB of x4 SSD to x6 SSD or x8 SSD

- Multiple boot drive controller options

- Expandable in 1 node increments up to 96 total nodes

- Processor - Choice of 4th Gen & 5th Gen AMD® EPYC^TM Series Processors

- Memory - From 256 GB up to 3,072 GB (Per node depending on Pro)

- Network - 1 Gb, 10 Gb/25 Gb, 100 Gb, 200 Gb

- Redundant Power Supplies

- All in a compact 1U form factor

- 3 PCIe expansion slots (PCIe 5.0)

Broadcom VMware Software

- HPE SimpliVity now supports VMware ESXi 8.0U3 (refer to HPE SimpliVity interop guide)

- A valid VMware vSphere license is required for each host (72-core minimum license per-host needed).

- License types offered by VMware,

• vSphere Foundation
• vSphere Standard
• vSphere Essentials Plus Kit

Services

- HPE Services full suite of support offerings (Tech Care and Complete Care).

- HPE Services enabled redeploy storage expansion.

- Remote support technology to provide 24x7 secure remote support

Notes: For the best support experience, HPE Services Installation Services and 24x7x365 support is recommended.

HPE SimpliVity supports integration with HPE GreenLake Private Cloud Business Edition*, offering compatibility for Broadcom VMware

- Customers can leverage features for HPE SimpliVity environment such as viewing federated clusters, and VM provisioning operations.

- Customer can also manage public cloud infrastructure and leverage other additional capabilities which will be offered on the platform in the future.

- Global dash boarding (VM and Clusters information, capacity details/trends, performance details/trends, alerts, protection levels)

- Simple VM provisioning wizard for both on-prem and public cloud instances including VM power cycle and on-prem VM migration operations.

Notes:

- Refer HPE GreenLake for Private Cloud Business edition Quickspecs https://psnow.ext.HPE.com/doc/a50004281enw

- VMware licenses must be procured through Broadcom VMware or authorized distributor

- For VMware and HW compatibility and software details, please visit: https://www.HPE.com/info/simplivity-interop-doc, HPE Suppos portal and SimpliVity Drivers and Software

HPE SimpliVity Term Based licensing

Every HPE SimpliVity nodes will now have socket-based term licenses which includes HPE SimpliVity Software, HPE VM Essentials Software and Support.

Notes: Broadcom VMware licenses must be procured from Broadcom VMware or from an authorized distributor.

DDR5-4800 Registered DIMMs (RDIMMs)

SKU

HPE 16 GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P50309-B21

HPE 32 GB (1x32GB) Dual Rank x8 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P50311-B21

HPE 64 GB (1x64GB) Dual Rank x4 DDR5-4800 CAS-40-39-39 EC8 Registered Smart Memory Kit

P50312-B21

HPE 128 GB (1x128GB) Quad Rank x4 DDR5-4800 CAS-46-39-39 EC8 Registered 3DS Smart Memory Kit

P50313-B21

HPE 256 GB (1x256GB) Octal Rank x4 DDR5-4800 CAS-46-39-39 EC8 Registered 3DS Smart Memory Kit

P50314-B21

HPE 96 GB (1x96GB) Dual Rank x4 DDR5-4800 CAS-46-45-45 EC8 Registered Smart Memory Kit

P66676-B21

DDR5-6400 Registered DIMMs (RDIMMs)

SKU

HPE 16 GB (1x16GB) Single Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64984-B21

HPE 32 GB (1x32GB) Dual Rank x8 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64985-B21

HPE 64 GB (1x64GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64986-B21

HPE 128 GB (1x128GB) Dual Rank x4 DDR5-6400 CAS-52-52-52 EC8 Registered Smart Memory Kit

P64988-B21

Notes:

- Please select one or more memory from above.

- For new Gen11 memory population rule whitepaper and optimal memory performance guidelines, please go to: https://www.HPE.com/psnow/doc/a50007481enw

- Memory DIMM availability with a server platform is dependent upon completion of certification testing.
The maximum memory speed is a function of the memory type, memory configuration, and processor model.

- Memory compatibility may vary or be limited within a specific server family depending upon the specific configuration being requested. Because each server environment and requirements can vary, memory compatibility is based not only upon the server family, but may also be affected by the amount and type of additional hardware options installed within a specific server configuration. For this reason, some HPE memory DIMMs may be qualified for a server model or family and yet occasionally not be supported with limited configurations within that server family. Please consult with the HPE server QuickSpecs or your HPE representative if you have any questions regarding memory compatibility with a specific HPE.

- Minimum 128 GB GB memory must be configured per node

- DDR4800 RDIMMs can support up to 3 TB

- DDR6400 RDIMMs can support up to 1.5 TB

- Mixing of x4 & x8 memory is not allowed

- 8 GB-128 GB memory SKUs can run the transfer rate of 3200 MT/s at both 1 DIMM and 2 DIMM per channel

Boot Device/ Boot RAID controllers

SKU

HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device

P48183-B21

HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller

P47789-B21

HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller

P47785-B21

Notes:

- User must select qty1 of the same type of controller from the above options

- If selecting NS204i-p Controller, there is no need to select boot SSDs since it comes with two 480 GB NVMe drives

- If selecting any boot controller other than NS204i-p, user MUST select boot SSDs below. Boot drive cages are required and will be added in OCA when selecting non NS204i-p boot controllers.

Boot SSD Drives

SKU

HPE SimpliVity 480 GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

S1J86A

HPE SimpliVity 960 GB SATA 6G Read Intensive SFF BC Multi Vendor SSD

S1J87A

Notes:

- User must select qty2 of the same type of HDD/SSD

- If selecting NS204i-p Controller, there is no need to select boot SSDs since NS204i-p it comes with NVMe drives

Storage Controllers

SKU

HPE SR932i-p Gen11 x32 Lanes 8 GB Wide Cache PCI SPDM Plug-in Storage Controller

P47184-B21

Notes: User must select qty1 of the same type of Storage controller from the above options

Storage Drives

SKU

HPE SimpliVity 1.92 TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

S1J88A

HPE SimpliVity 3.84 TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

S1J89A

HPE 7.68 TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

P40501-K21

1.92 TB SSD Options

- If S2V31C Broadcom VMware Hypervisor is selected

Qty 4, 6, 8 of S1J88A is required for HPE SimpliVity 325 Gen11

- If S2V31C HPE Morpheus VM Essentials Software Hypervisor is selected
Qty 4, 6 of S1J88A is required for HPE SimpliVity 325 Gen11

3.84 TB SSD Options

- If S2V31C Broadcom VMware Hypervisor is selected

Qty 4, 6, 8 of S1J89A is required for HPE SimpliVity 325 Gen11

- If S2V31C HPE Morpheus VM Essentials Software Hypervisor is selected
Qty 4, 6 of S1J89A is required for HPE SimpliVity 325 Gen11

7.68 TB SSD Options

- If S2V31C Broadcom VMware Hypervisor is selected

Qty 4, 6, 8 of P40501-K21is required for HPE SimpliVity 325 Gen11

- If S2V31C HPE Morpheus VM Essentials Software Hypervisor is selected
Qty 4, 6, 8 of P40501-K21is required for HPE SimpliVity 325 Gen11

Notes: Some configurations may require exception approval

Capacity options for Broadcom VMware

Capacity options for HPE Morpheus VM Essentials

Notes:

- Currently HPE VM Essentials only supports FTT1

- For SAS Drive support please reach out to HPE Representative

- Usable capacity is the capacity available after RAID and system overheads have been removed, before deduplication and compression is applied. In the case of Dual Disk Resiliency the usable capacity will be different

- The usable capacities are approximately and rounded to near zero. For actual capacities please refer to HPE SimpliVity sizer.

Power Supplies

Description

SKU

HPE 500 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865408-B21

HPE 800 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38995-B21

HPE 1000 W Flex Slot Titanium Hot Plug Power Supply Kit

P03178-B21

HPE 1600 W Flex Slot -48VDC Hot Plug Power Supply Kit

P17023-B21

HPE 1600 W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

P38997-B21

HPE 1800 W -2200 W Flex Slot Titanium Hot Plug Power Supply Kit

P44712-B21

Notes:

- The power supply requirements can vary based on configuration and environment 800" Power Supply is only Supported with specific configurations. Please refer to HPE Power Advisor for proper power sizing.

- All configured nodes whip with a standard 6 foot IEC C-13/C-14 jumper cord (A0K02a). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the HPE ProLiant Power Cables web page: https://h20195.www2.HPE.com/v2/getpdf.aspx/4AA6-6836ENW.pdf

Networking

PCIe NIC Adapters

SKU

Intel I350-T4 Ethernet 1 GB 4-port BASE-T Adapter for HPE

P21106-B21

Broadcom BCM5719 Ethernet 1 GB 4-port BASE-T Adapter for HPE

P51178-B21

Broadcom BCM57416 Ethernet 10 GB 2-port BASE-T Adapter for HPE

P26253-B21

Broadcom BCM57412 Ethernet 10 GB 2-port SFP+ Adapter for HPE

P26259-B21

Broadcom BCM57414 Ethernet 10/25 GB 2-port SFP28 Adapter for HPE

P26262-B21

Broadcom BCM57504 Ethernet 10/25 GB 4-port SFP28 Adapter for HPE

P26264-B21

Intel E810-XXVDA2 Ethernet 10/25 GB 2-port SFP28 Adapter for HPE

P08443-B21

Intel E810-XXVDA4 Ethernet 10/25 GB 4-port SFP28 Adapter for HPE

P08458-B21

Mellanox MCX631102AS-ADAT Ethernet 10/25 GB 2-port SFP28 Adapter for HPE

P42044-B21

Intel E810-CQDA2 Ethernet 100 GB 2-port QSFP28 Adapter for HPE

P21112-B21

Mellanox MCX623106AS-CDAT Ethernet 100 GB 2-port QSFP56 Adapter for HPE

P25960-B21

OCP Network Adapters

SKU

Intel E810-XXVDA2 Ethernet 10/25 GB 2-port SFP28 OCP3 Adapter for HPE

P10106-B21

Mellanox MCX631432AS-ADAI Ethernet 10/25 GB 2-port SFP28 OCP3 Adapter for HPE

P42041-B21

Broadcom BCM57416 Ethernet 10 GB 2-port BASE-T OCP3 Adapter for HPE

P10097-B21

Broadcom BCM57412 Ethernet 10 GB 2-port SFP+ OCP3 Adapter for HPE

P26256-B21

Broadcom BCM57414 Ethernet 10/25 GB 2-port SFP28 OCP3 Adapter for HPE

P10115-B21

Broadcom BCM57504 Ethernet 10/25 GB 4-port SFP28 OCP3 Adapter for HPE

P26269-B21

Intel E810-CQDA2 Ethernet 100 GB 2-port QSFP28 OCP3 Adapter for HPE

P22767-B21

Intel I350-T4 Ethernet 1 GB 4-port BASE-T OCP3 Adapter for HPE

P08449-B21

Broadcom BCM5719 Ethernet 1 GB 4-port BASE-T OCP3 Adapter for HPE

P51181-B21

Fiber Channel Host Bus Adapters

SKU

HPE SN1610Q 32 GB 1-port Fibre Channel Host Bus Adapter

R2E08A

HPE SN1610Q 32 GB 2-port Fibre Channel Host Bus Adapter

R2E09A

HPE SN1610E 32 GB 1-port Fibre Channel Host Bus Adapter

R2J62A

HPE SN1610E 32 GB 2-port Fibre Channel Host Bus Adapter

R2J63A

HPE SN1700E 64 GB 1-port Fibre Channel Host Bus Adapter

R7N77A

HPE SN1700E 64 GB 2-port Fibre Channel Host Bus Adapter

R7N78A

HPE SN1700Q 64 GB 1-port Fibre Channel Host Bus Adapter

R7N86A

HPE SN1700Q 64 GB 2-port Fibre Channel Host Bus Adapter

R7N87A

Notes:

- Please refer to the HPE ProLiant Gen11 QuickSpecs - https://www.HPE.com/psnow/doc/a50004297enw.pdf?jumpid=in_pdp-psnow-qs

- All the HBA cards to be managed outside of HPE SimpliVity manageability and orchestration.

Graphics

Description

SKU

HPE ProLiant DL3X5 Gen11 OCP1 Upgrade Cable Kit

P56658-B21

Step 3: The software license that corresponds to the node configuration will be automatically added.

HPE SimpliVity Software

Action: Based on the number of CPUs in the node, the appropriate software will be included by the configurator

Notes: The License SKU is not user orderable, based on the CPU and Drive Qty selection, HPE configurator adds the corresponding type of license with Qty automatically.

1. HPE Simplivity SW licensing is based on a calculation factor of 1.92 units.
2. For every 1 Qty of 1.92 TB SSD 1 Qty of license is added; for every 1 Qty of 3.84 TB SSD 2 Qty of licenses are added; for every 1 Qty of 7.68 TB SSD 4 Qty of licenses are added;

Examples on how the license SKUs are derived/denoted -

HPE SimpliVity 325 Gen11 Storage Expansion Overview fo Broadcom VMware

Notes: Please note that Storage expansion is only for Perpetual licensing. If you need Term licenses, please reach out to HPE representatives

Use the following steps to expand Storage for your existing HPE SimpliVity 325 Gen11 node:

Step 1: Start with the HPE SimpliVity 325 Gen11 Node/Tracking SKU & Select the option "HPE SimpliVity 325 Gen11 expansion"

Step 2: Select the Disk Resiliency option

Step 3: Select the Storage Drive Capacity Expansion

Step 4: Service and support will be added automatically to perform the storage upgrade, migration, install and redeployment

Step 1: Start with the Expansion Kit SKU

Action: Select the Expansion SKU

SKU

HPE SimpliVity 325 Gen11 8SFF Configure-to-order Node

S2V31A

Step 2: Select the Disk Resiliency Expansion
Action: Select the option

SKU

HPE SimpliVity Node Tracking with Single Disk Resiliency

S3B77A

HPE SimpliVity Node Tracking with Dual Disk Resiliency

S3B78A

HPE SimpliVity 325 Gen11 1 Processor Expansion E-RTU

S4U94AAE

Notes: E-RTU SKU will be automatically added by OCA

Step 3: Select the Storage Drive Capacity Expansion
Action: Select the option

SKU

HPE SimpliVity 1.92 TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

S1J88A

HPE SimpliVity 3.84 TB SATA 6G Read Intensive SFF BC Multi Vendor SSD

S1J89A

Notes:

- One of the options can be selected based on the disk resiliency selected

• Storage Expansion 1 processor, from 4 to 6 1.92 TB drives
• Storage Expansion 1 processor, from 4 to 8 1.92 TB drives
• Storage Expansion 1 processor, from 6 to 8 1.92 TB drives
• Storage Expansion 1 processor, from 4 to 6 3.84 TB drives
• Storage Expansion 1 processor, from 4 to 8 3.84 TB drives
• Storage Expansion 1 processor, from 6 to 8 3.84 TB drives

Step 4: Select service and support to perform the storage upgrade, migration, install and redeployment

HPE provides a full range of support offers for these products. Tech Care is the minimum level of support, but Complete Care is also available.

Contact your local sales representative or channel partner for more details.
Installation services are required for these products. HA124A1#5ZD needs to be ordered in a quantity matching the sum of the software SKUs from Step 2.

HPE SimpliVity 325 Gen10 and 325 Gen10 Plus V2: Storage Expansion Overview

Use the following steps to expand Storage for your existing HPE SimpliVity 325 Gen10 or 325 Gen10 Plus v2 node:

Step 1: Start with the Expansion SKU

Step 2: Add the SW license that correlates to either storage expansion options

Step 3: Select the hardware options to add the storage drive kits

Step 4: Select service and support to perform the storage upgrade, migration, install and redeployment

Step 1: Start with the Expansion Kit SKU

Action: Select the Expansion SKU.

SKU

HPE SimpliVity 325 Expansion Kit

S0N29A

Step 2: If Storage expansion is needed, add the SW license from below that correlates to the desired expansion configuration

Action: Select the appropriate SW license according to the desired storage expansion configuration.

Choose from one of the following Redeployment Storage Expansion choices

325 x4 SSD à 325 x6 SSD

325 x6 SSD à 325 x8 SSD (only on HPE SimpliVity 325 Gen10 Plus V2 models)

Step 3: Select the hardware options to add either the storage drive kits or additional CPU and memory

Action: Select quantity 2 of the same SSD type from the following SSD options, based on the desired storage expansion configuration. For example, in the configurator you can only select qty2 of P44009-K21 or qty2 of P40543-K21, you cannot mix and match two different vendor types.

Step 4: Select service and support to perform the storage upgrade, migration, install and redeployment

HPE provides a full range of support offers for these products. Tech Care is the minimum level of support, but Complete Care is also available.

Contact your local sales representative or channel partner for more details.

Installation services are required for these products. HA124A1#5ZD needs to be ordered in a quantity matching the sum of the software SKUs from Step 2.

Physical Dimensions

- 1U form factor 1.69 x 17.11 x 25.37 in (4.29 x 43.46 x 64.43 cm)

- Dimensions 4.29 x 43.46 x 64.43 cm (1.69 x 17.11 x 25.37 in)

- Weight (approximate)

- Maximum 10 SFF chassis with 10 SFF hard drives, 1x processors including standard heatsink, 16x DIMMs, 2x power supplies, 1x Smart Array, 2x Risers installed, cables for the above 16.19 kg - 35.68 lb

Notes: For all other DL325 Gen10 Plus v2 Server details, please refer to the HPE DL325 Gen10 Plus v2 Server QuickSpecs.

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life Hewlett Packard Enterprise product return, trade-in, and recycling programs in many geographic areas. To recycle your product, please go to: http://www.HPE.com/recycle or contact your nearest Hewlett Packard Enterprise sales office. Products returned to Hewlett Packard Enterprise will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site at: http://www.HPE.com/recycle. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard Enterprise equipment.

EU Lot9 Regulation

If you require validation for an RFP the Compliance Team has a help desk to support EU compliance inquiries and can be reached at Technical Regulations Europe tre@hpe.com or you may also contact sustainability@hpe.com
