HPE Smart Array Gen10 Controllers

for HPE Synergy Compute Modules

The HPE Smart Array Gen10 Controllers for the Synergy Compute Modules, supporting 12Gb/s SAS and PCIe 3.0, are ideal for maximizing performance while supporting advanced RAID levels with up to 2 GB flash-backed write cache (FBWC). These controllers operate in Mixed Mode which combines RAID and HBA operations simultaneously. The Smart Array Gen10 controller portfolio provides the ability to support the internally attached drives inside the compute module and the drives inside the HPE Synergy D3940 Compute Module. The Smart Array Gen10 Controllers also offer encryption for data-at-rest on any drive with HPE Smart Array SR Secure Encryption. The HPE controllers provide enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs.

HPE Smart Array P204i-c SR Gen10 Controller (804424-B21)

HPE Smart Array P408i-c SR Gen10 Controller (823856-B21)

HPE Smart Array P416ie-m SR Gen10 Controller (804428-B21)

Microchip P416ie-m SAS Controller for HPE (P38721-B21)

HPE Smart Array E208i-c SR Gen10 Controller (823852-B21)

Models

Microchip SmartRAID P416ie-m x16 Lanes 2GB Cache SAS 12G Controller for HPE

P38721-B21

HPE Smart Array P416ie-m SR Gen10 (8 Int 8 Ext Lanes/2GB Cache) 12G SAS Mezzanine Controller

804428-B21

HPE Smart Array P408i-c SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller

823856-B21

HPE Smart Array P204i-c SR Gen10 (4 Internal Lanes/1GB Cache) 12G SAS Modular Controller

804424-B21

HPE Smart Array E208i-c SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular Controller

823852-B21

Kit Contents

Includes controller, documentation information card, warranty statement, and battery required card.

Notes: The HPE Smart Storage Battery is not included in the kit and is required with Performance RAID controllers (P204i-c, P408i-c, and P416ie-m).

Notes: The HPE Smart Array E208i-c does not include battery required card

Compatibility

Standard Features Table

Product

P204i-c SR

P408i-c SR

P416ie-m SR

SmartRAID P416ie-m

E208i-c SR

SKU

804424-B21

823856-B21

804428-B21

P38721-B21

823852-B21

Form factor: Type-c modular controller

Form factor: Mezzanine PCIe plug-in controller

Internal SAS lanes

4

8

8

8

8

External SAS lanes

8

8

Cache size (FBWC)

1 GB

2 GB

2 GB

2 GB

Read ahead caching

Write-back caching

Storage protocol: 12G SAS

Storage protocol: 6G SATA

I/O slot: PCI Express 3.0

x4 link

x8 link

x8 link

x8 link

x8 link

Maximum physical drives (up to)

238

238

238

238

238

Maximum logical drives

64

64

64

64

64

RAID 0/1/5/10

RAID:0/1/5/6/10/50/60/ 1 ADM/10 ADM

Mixed mode (RAID & HBA)

Boot mode: UEFI

Boot mode: Legacy

SSD Accelerator

Smart Path

Smart Path

Smart Path

Smart Path

Smart Path

HPE Smart Array SR

Optional

Optional

Optional

Optional

Optional

Secure Encryption (license)

SSD Caching

Optional

Optional

Optional

(SmartCache)

(SmartCache)

(SmartCache)

FIPS 140-2 Level 1

Validation

HPE OneView Support

Array Configuration Features

• Expand Array
• Heal Array
• Move Drives
• Re-Mirror Array
• Shrink Array
• Spare Management
• Split Mirrored Array

Logical Drive Configuration Features

• Extend Logical Drive
• Instant Secure Erase
• Migrate RAID/Stripe Size
• Modifying Cache Write Policy
• Move Logical Drive
• Re-enable Failed Logical Drive

Fault Prevention

The following features offer detection of possible failures before they occur, allowing preventive action to be taken: Predictive drive failure detects possible drive failure before it occurs, allowing replacement of the component before failure occurs.  Background surface scan checks drives during inactive periods and automatically remaps bad sectors, ensuring data integrity. HPE SmartSSD Wear Gauge reports the amount of lifetime remaining on your SSDs.

Fault Recovery

Minimizes downtime, reconstructs data, and facilitates a quick recovery from drive failure Recovery ROM: This feature protects the user from a firmware image corruption by storing a redundant copy of the firmware image. If the active firmware image becomes corrupt, the controller will use the redundant firmware image and continue operating.

On-Line Spares: There is no limit to the number of spare drives that can be installed prior to drive failure. If a failure occurs, recovery begins with an On-Line Spare and data is reconstructed automatically. DRAM ECC detects and corrects data bit errors.

HPE SSD Smart Path

The HPE SSD Smart Path feature included in the Smart Array software stack improves Solid State Disk (SSD) read performance by up to 4x. HPE SSD Smart Path chooses the optimum path to the SSD and accelerates reads for all RAID levels and RAID 0 writes.

HPE Smart Array SR SmartCache (optional license)

The HPE Smart Array SR SmartCache feature is a controller-based read and write caching solution in a DAS environment that caches the most frequently accessed data ("hot" data) onto lower latency SSDs to dynamically accelerate application workloads. The SmartCache architecture is flexible and supports any HPE ProLiant Gen10 HDD for bulk storage and SSD as an accelerator. SmartCache is deployed and managed using the HPE Smart Storage Administrator (HPE SSA). SmartCache requires an optional license (see Related Options section below for more information on the license).

For additional information please visit: http://www.hpe.com/servers/smartcache.

HPE Smart Array SR Secure Encryption (optional license)

HPE Smart Array SR Secure Encryption is a Smart Array controller-based data encryption solution that protects sensitive, mission critical data. This is an enterprise-class encryption solution for data-at-rest on any drives attached to the HPE Smart Array controllers including data on the controller cache. Secure Encryption requires an optional license per server (see Related Options for more information on the license).

The solution is available for both local and remote key management mode deployments. Local Key Management Mode is focused on single server deployment where there is one Primary key per controller that is managed by the user. Remote Key Management Mode is for enterprise wide deployments from just a few servers to thousands of servers.

For more information on please visit: http://www.hpe.com/servers/secureencryption

FIPS 140-2 Cryptographic Module Validation

FIPS provides a security assurance level validation for cryptographic modules. The National Institute of Standards and Technology (NIST) issue the FIPS 140-2 requirements and standards for cryptography modules that include both hardware and software components.

Warranty

The warranty for this device is 3 years parts only.

Warranty Upgrade Options

• Response - Upgrade on-site response from next business day to same day 4 hours.
• Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days.
• Duration - Select duration of coverage for a period of 1, 3, or 5 years.
• Warranty upgrade options can come in the form of HPE Services operational, which are sold at the HPE System level to which this product attaches.

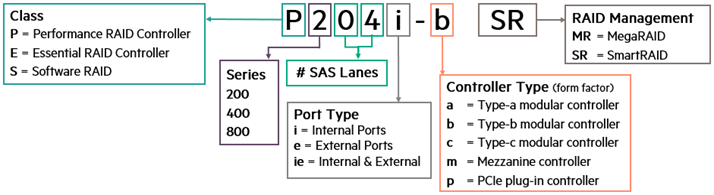

Naming Framework

The Gen10 controller naming framework is illustrated below to help simplify controller identification.

Operating System Support

• Microsoft Windows Server
• Red Hat Enterprise Linux (RHEL)
• SUSE Linux Enterprise Server (SLES)
• VMware ESXi
• Canonical Ubuntu
• CentOS
• Citrix

Notes: HPE Smart Array controllers are supported by the server operating system. For more information on HPE's server operating systems and virtualization software, please visit: http://www.hpe.com/info/ossupport

Storage Management Software Suite

• HPE Smart Storage Administrator (SSA) GUI
• HPE Smart Storage Administrator (SSA) CLI
• HPE Smart Storage Administrator (SSA) Scripting
• HPE Intelligent Provisioning
• UEFI System Utilities (storage configuration)
• UEFI Storage RESTful

Notes: For additional information see the HPE Smart Array SR Gen10 Configuration Guide at: http://www.hpe.com/info/SmartArrayGen10-docs

Additional Information

HPE Smart Array SR Gen10 Controllers

For additional information on the features for HPE Smart Array SR Gen10 Controllers, please see the HPE Smart Array SR Gen10 User Guide, HPE Smart Array SR Gen10 Configuration Guide, and HPE Smart Array SR Secure Encryption Installation and User Guide at: http://www.hpe.com/info/SmartArrayGen10-docs

HPE Services

No matter where you are in your digital transformation journey, you can count on HPE Services to deliver the expertise you need when, where and how you need it. From planning to deployment, ongoing operations and beyond, our experts can help you realize your digital ambitions.

https://www.hpe.com/services

Consulting Services

No matter where you are in your journey to hybrid cloud, experts can help you map out your next steps.  From determining what workloads should live where, to handling governance and compliance, to managing costs, our experts can help you optimize your operations.

https://www.hpe.com/services/consulting

HPE Managed Services

HPE runs your IT operations, providing services that monitor, operate, and optimize your infrastructure and applications, delivered consistently and globally to give you unified control and let you focus on innovation.

HPE Managed Services | HPE

Operational services

Optimize your entire IT environment and drive innovation.  Manage day-to-day IT operational tasks while freeing up valuable time and resources. Meet service-level targets and business objectives with features designed to drive better business outcomes.

https://www.hpe.com/services/operational

HPE Complete Care Service

HPE Complete Care Service is a modular, edge-to-cloud IT environment service designed to help optimize your entire IT environment and achieve agreed upon IT outcomes and business goals through a personalized experience. All delivered by an assigned team of HPE Services experts.  HPE Complete Care Service provides:

• A complete coverage approach -- edge to cloud
• An assigned HPE team
• Modular and fully personalized engagement
• Enhanced Incident Management experience with priority access
• Digitally enabled and AI driven customer experience

https://www.hpe.com/services/completecare

HPE Tech Care Service

HPE Tech Care Service is the operational support service experience for HPE products. The service goes beyond traditional support by providing access to product specific experts, an AI driven digital experience, and general technical guidance to not only reduce risk but constantly search for ways to do things better. HPE Tech Care Service delivers a customer-centric, AI driven, and digitally enabled customer experience to move your business forward. HPE Tech Care Service is available in three response levels. Basic, which provides 9x5 business hour availability and a 2-hour response time. Essential which provides a 15-minute response time 24x7 for most enterprise level customers, and Critical which includes a 6-hour repair commitment where available and outage management response for severity 1 incidents.

https://www.hpe.com/services/techcare

HPE Lifecycle Services

HPE Lifecycle Services provide a variety of options to help maintain your HPE systems and solutions at all stages of the product lifecycle.  A few popular examples include:

• Lifecycle Install and Startup Services: Various levels for physical installation and power on, remote access setup, installation and startup, and enhanced installation services with the operating system.
• HPE Firmware Update Analysis Service: Recommendations for firmware revision levels for selected HPE products, taking into account the relevant revision dependencies within your IT environment.
• HPE Firmware Update Implementation Service: Implementation of firmware updates for selected HPE server, storage, and solution products, taking into account the relevant revision dependencies within your IT environment.
• Implementation assistance services: Highly trained technical service specialists to assist you with a variety of activities, ranging from design, implementation, and platform deployment to consolidation, migration, project management, and onsite technical forums.
• HPE Service Credits: Access to prepaid services for flexibility to choose from a variety of specialized service activities, including assessments, performance maintenance reviews, firmware management, professional services, and operational best practices.

Notes: To review the list of Lifecycle Services available for your product go to:
https://www.hpe.com/services/lifecycle

For a list of the most frequently purchased services using service credits, see the HPE Service Credits Menu

Other Related Services from HPE Services:

HPE Education Services

Training and certification designed for IT and business professionals across all industries. Broad catalogue of course offerings to expand skills and proficiencies in topics ranging from cloud and cybersecurity to AI and DevOps. Create learning paths to expand proficiency in a specific subject.  Schedule training in a way that works best for your business with flexible continuous learning options.

https://www.hpe.com/services/training

Defective Media Retention

An option available with HPE Complete Care Service and HPE Tech Care Service and applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Consult your HPE Sales Representative or Authorized Channel Partner of choice for any additional questions and services options.

Parts and Materials

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

How to Purchase Services

Services are sold by Hewlett Packard Enterprise and Hewlett Packard Enterprise Authorized Service Partners:

• Services for customers purchasing from HPE or an enterprise reseller are quoted using HPE order configuration tools.
• Customers purchasing from a commercial reseller can find services at https://ssc.hpe.com/portal/site/ssc/

AI Powered and Digitally Enabled Support Experience

Achieve faster time to resolution with access to product-specific resources and expertise through a digital and data driven customer experience

Sign into the HPE Support Center experience, featuring streamlined self-serve case creation and management capabilities with inline knowledge recommendations. You will also find personalized task alerts and powerful troubleshooting support through an intelligent virtual agent with seamless transition when needed to a live support agent.

https://support.hpe.com/hpesc/public/home/signin

Consume IT On Your Terms

HPE GreenLake edge-to-cloud platform brings the cloud experience directly to your apps and data wherever they are-the edge, colocations, or your data center. It delivers cloud services for on-premises IT infrastructure specifically tailored to your most demanding workloads. With a pay-per-use, scalable, point-and-click self-service experience that is managed for you, HPE GreenLake edge-to-cloud platform accelerates digital transformation in a distributed, edge-to-cloud world.

• Get faster time to market
• Save on TCO, align costs to business
• Scale quickly, meet unpredictable demand
• Simplify IT operations across your data centers and clouds

To learn more about HPE Services, please contact your Hewlett Packard Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner.  Contact information for a representative in your area can be found at "Contact HPE" https://www.hpe.com/us/en/contact-hpe.html

For more information

www.hpe.com/services

HPE Smart Array SR SmartCache

HPE Smart Array SR SmartCache (Single Key/Single Server) LTU

D7S26A

Single-Server License

Used to purchase a license for one server.

Contains one license per server, a printed license entitlement certificate, end user license agreement, and license key installation card delivered via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HPE Software Technical Support Services.

Flexible-Quantity License

Used to purchase multiple licenses with a single activation key.

Contains license(s) for a customer defined quantity of servers, a license entitlement certificate for the quantity of licenses purchased, end user license agreement, and license key installation card delivered via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HPE Software Technical Support Services.

Flexible-Quantity Electronic License

Used to purchase multiple licenses with a single activation key.

Contains license(s) for a customer defined quantity of servers, a license entitlement certificate for the quantity of licenses purchased, end user license agreement, and license key installation information delivered via e-mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Include one year of 24x7 HPE Software Technical Support Services.

Notes: For more information please visit: http://www.hpe.com/servers/smartcache

HPE Smart Array SR Secure Encryption

HPE Smart Array SR Secure Encryption (Data at Rest Encryption/per Server Entitlement) E-LTU

Q2F26AAE

Notes: HPE Smart Array SR Secure Encryption licensing is based on the number of servers requiring encryption for direct attached storage.

• Not supported on HPE Smart Array P824i-p MR Gen10 Controller.
• For more information visit: http://www.hpe.com/servers/secureencryption

HPE Smart Storage Battery

HPE 96W Smart Storage Lithium-ion Battery with 260mm Cable Kit

P01367-B21

Notes: Smart Array Gen10 controllers are supported by the HPE Smart Storage Battery. This battery supports multiple devices and is sold separately.

Cables

HPE Smart Array P416ie-m SR Gen10 SAS Cable Kit

871573-B21

Notes: P416ie-m cable connects the P416ie-m controller to the Synergy Premium Backplane, allowing connection to SAS/SATA drives inside the Synergy 480 and Synergy 660 compute modules.

HPE Synergy 480 Gen10 Plus 4x for 2x Split Drive SlimSAS Cable Kit

P29010-B21

Notes: SlimSAS cable connects the SmartRAID P416ie-m controller to the Synergy SY480 Gen10 Plus Premium 4 Drive Kit, allowing connection to SAS/SATA drives inside the Synergy 480 Gen10 Plus compute module.

Date

Version History

Action

Description of Change

04-Dec-2023

Version 5

Changed

Service and Support Section was updated

15-Nov-2021

Version 4

Changed

Service and Support Section was updated

16-Aug-2021

Version 3

Changed

Added Microchip SmartRAID P416ie-m x16 Lanes 2GB Cache SAS 12G Controller for HPE, P38721-B21.  Updated for SY480 Gen10 Plus. Updated Synergy support table.

18-Jan-2021

Version 2

Changed

Standard Features Section was updated

04-Sep-2018

Version 1

New

New QuickSpecs
