HPE Composable Fabric FM 2072 Switch

The HPE Composable Fabric FM 2072 is a top-of-rack (TOR) connectivity module that delivers the next generation of innovative networking solutions designed to meet the growing needs of today's virtual and highly dynamic data center and cloud environments.  Specifically designed to support scale-out applications with high performance east/west traffic needs, Composable Fabric provides an easily scalable and automated network solution for diverse application workloads.

HPE Composable Fabric FM 2072 provides a cost effective 1U solution for intensive Big Data or Agile IT workload environments. The FM 2072's industry standard architecture uses the Ethernet switching to create a high performance, resilient, low latency and scalable data center network fabric. Composable Fabric connectivity modules are deployed as a single tier, eliminating cost and complexity while vastly reducing operational overhead while creating true fabric agility to support dynamic workload needs. In conjunction with Composable Fabric Manager; a centralized management, visualization and control platform, the solution streamlines operations and dynamically aligns network resources to the demanding workload and data requirements of the modern data center.

HPE Composable Fabric FM 2072

Key Features

• 1 RU form factor
• 48xSFP+ (1GbE or 10GbE), 6xQSFP+ (4x10)
• 240 Gbps of fabric capacity using 24x10 Gbps paths
• 1.44 Tbps switching capacity
• Simplified cabling with FM 1006 or Leaf-Spine cabling
• Redundant/hot-swappable power and fans
• Controller based architecture using Composable Fabric Manager

Services

• HPE Pointnext full suite of support offerings (Proactive Care and Datacenter Care).

NOTE: For the best support experience, HPE Pointnext Installation Services is required and 24x7x365 support is recommended.

Features and Benefits

The Fabric Advantage

Each HPE Composable Fabric FM 2072 features six QSFP optical interfaces delivering up to 240 Gbps full-duplex bandwidth creating programmable scalable meshed networks.

HPE Composable Fabric FM 2072 uses QSFP optics which when combined with an optical passive interconnect FM 1006 create a mesh between rack connectivity modules that is completely controllable by software through Composable Fabric Manager. Module-to-Module cabling is greatly simplified with two connections per rack connectivity module.

Multi-Layered Network Architecture

The full potential of optical switching is unleashed by Composable Fabric's multi-layered network architecture that delivers efficient layer 1, layer 2 and layer 3 network topologies to critical application workloads. HPE Composable Fabric FM 2072 provide layer 2 and layer 3 network topologies as part of the Composable Fabric network architecture. The optical interfaces create a highly meshed, multipath network fabric with multiple direct and indirect paths between modules. HPE Composable Fabric Manager software, which understands the physical and logical network topology, as well as the application and data workload requirements, establishes a network, where individual workloads receive their own portion of the network at each network layer.

Dynamic Topologies

In conjunction with the centralized HPE Composable Fabric Manager platform, the HPE Composable Fabric provides intelligent and adaptive technology that ensures workloads always have access to the most optimal network paths. HPE Composable Fabric Manager provides both the integration platform, as well as a set of HPE-developed API level integrations that automate workflows based on the included sensors, actions and triggers for 3rd party orchestration systems.

HPE Composable Fabric connectivity modules intelligently select the best network paths for workloads that have resource requirements or explicit constraints defined by the integrations.

Less sensitive workloads without explicitly defined constraints are efficiently forwarded across the available direct and indirect paths created by the network fabric. Based on HPE residual fit algorithms, HPE Composable Fabric Manager dynamically fits non-affinitized traffic. Unlike typical multipath networks, which might utilize a maximum of 16 or 32 IP based equal cost paths between switch ports, HPE Composable Fabric Manager can intelligently select from hundreds of non-interfering, nonequal paths across the highly diverse HPE Composable Fabric at layer 1, 2 or 3. As a result, HPE creates unprecedented efficiency, delivering higher performance with greater flexibility than traditional access/aggregation/core hierarchical networking solutions.

Scale Out, Not Up

HPE Composable Fabric FM 2072 physically interconnect using its QSFP ports to create a very dense, full or partial mesh between connectivity modules. This creates a more cost effective and power efficient network architecture than traditional tree or leaf-and-spine hierarchical networks can achieve. The mesh architecture enables linear scaling, with each additional switch adding fabric capacity, resiliency and multi-path options. HPE Composable Fabric connectivity modules create network fabrics ranging from a few server racks in size to a large capacity cloud data center. The linear build-out offers predictable economics and capacity growth in true scale-out fashion. With an out of the box default access to fabric oversubscription ratio of 2:1, the FM 2072 provides cost-effective performance for up to 48 10GbE server and storage connections.

Latest Switching Technology

HPE Composable Fabric FM 2072 are based on the latest available commercial switching technology providing line rate forwarding. It provides up to 288,000 L2 and up to 112,000 L3 IPv4 host entries, 550ns latency, full Data Center Bridging support and increased packet buffer allocation capabilities leading to improved congestion performance. This leading-edge silicon technology also provides full support for VXLAN and NVGRE overlay networks, with the ability to perform overlay to traditional network gateway functions, as well as optimized packet distribution algorithms based on VXLAN and NVGRE packet formats.

Network Deployments

HPE Composable Fabric FM 2072 network deployments involve the six QSFP ports that are located at the right side of I/O end of the module. These ports connect to an FM 1006 interconnect or to QSFP ports on another FM 2072 for a direct connect network:

• Direct Connect for six FM 2072 modules or less.

- Directly connect FM 2072 modules together using a QSFP-to-QSFP cable such as a Direct Attach Cable (DAC) or Active Optical Cable (AOC). Avoid directly connecting FM 2072 modules in a network if the deployment is expected to grow beyond seven switches.

• Optical-based FM 1006 passive solution for six FM 2072 rack connectivity modules or more.

- Connect all FM 2072 modules to an FM 1006 passive interconnect module. Plug each FM 2072 into the FM 1006 using the HPE-supplied cable. The passive FM 1006 device creates the mesh structure of an HPE Composable Fabric.

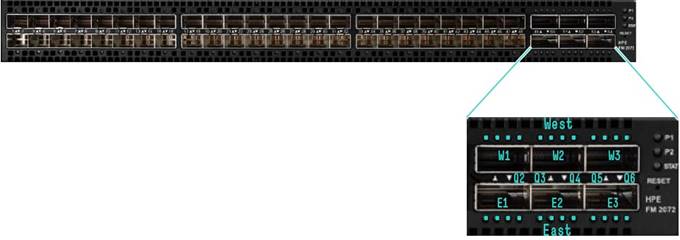

QSFP Port Diagram

In the diagram, the QSFP ports include a label indicating direction (W1 through W3 and E1 through E3). These labels are for informational purpose and are not found on the HPE Composable Fabric FM 2072 chassis.

FM 2072 - QSFP Port Diagram

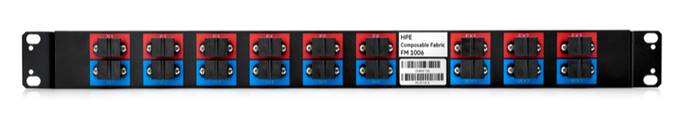

HPE Composable Fabric FM 1006

Network of six FM 2072 rack connectivity modules or more (four minimum) requires connecting the modules to an FM 1006 passive interconnect.

The FM 1006 device is a passive optical module that uses HPE Composable Fabric optical interfaces to connect HPE Composable Fabric into a meshed network.

HPE Composable Fabric FM 1006

Chassis

1RU Form Factor Redundant Hot Swappable Power Supplies Hot swappable fans Console, RJ45

Fabric Interfaces

6 x QSFP (40GbE)

Access Interfaces

48 x SFP+ (1GbE or 10GbE)

Switching Capacity

1.44 Tpbs

Up to 1 billion packets per second

Line rate L2 and L3 forwarding

L2/L3 Latency from 550ns

Platform Software

Linux

ONIE

Power and Cooling

1+1 redundant, hot swap PSUs
100 - 240VAC auto-ranging, 47-63Hz auto input
3+1 redundant fans, front to back and back to front system cooling

Power Consumption

Maximum Power Draw 300W

Typical Power Draw 246W

Dimensions

Height: 43.8 mm (1.73") 1 EIA unit Width: 442 mm (17.3") Depth: 442 mm (20.5")

Weight

22.4 lbs. (10.2 Kg)

Altitude

-60 to 3000m

Temperature

32°F to 104°F (0°C to 40°C)

Humidity

10% to 90% non-condensing

Approvals

EMC: CN(GB9254-2008), EU(EN55022, EN55024), FCC, VCCI, CCC

Safety: IEC60950-1, GB4943, UL/CSA, CB, CCC

Other

ROHS-6

Memoryand processor

Intel Atom C3538 quad-core x86 processor @ 2.4 GHz, 16 GB DDR3 SDRAM 128 GB NAND flash

Performance

Throughput up to 500 Mpps

Routing/Switching capacity 720 Gbps, 12M Byte Buffer

Routing table size 229376 entries (IPv4), 114688 entries (IPv6)

Mac address table size 32K min/288K max

Management

HPE Composable Fabric Manager; Command-line interface; Out-of-band management; Telnet; FTP

Services

Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services  for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.

Date

Version History

Action

Description of Change

17-Feb-2020

Version 7

Changed

Overview, Configuration Information and Related Options sections were updated.

04-Nov-2019

Version 6

Changed

Overview, Configuration Information, Service and Support, and Technical Specifications sections were updated.

Added

SKUs added in Configuration Information.

23-Sep-2019

Version 5

Changed

Configuration Information section was updated.

Added

SKUs added in Configuration Information section: R1N93A, R1N79A, R1N95A

06-May-2019

Version 4

Changed

Configuration Information section was updated.

Added

SKUs added in Configuration Information section: R1N44A, R1N73A, R1N87A, R1N42A, R1N88A, R1N89A, R0Y58A, R1N39A, R1N40A.

04-Mar-2019

Version 3

Changed

Configuration Information section was updated.

04-Feb-2019

Version 2

Changed

Overview, Standard Features, and Technical Specifications sections were updated.

Added

SKUs added in Configuration Information section: R1N54A, R1N53A, R1N52A, R1N56A, R1N55A, R0Y65A.

03-Dec-2018

Version 1

New

QuickSpecs created.
